Two Wire Videokit ESVK Series

Art.4333

Fig.1 Fig.2

Speaker unit with built-in camera

DESCRIPTION

Speaker unit module with built-in B&W camera with autoiris lens comprised of IR illumination LEDs. According to the speaker unit version it includes one or two call push buttons. The module is available also in colour camera version where the illumination LEDs are white light. The unit circuitry incorporates :

The transmitting amplifier with condenser microphone and volume control; The receiving amplifier with volume control; The audio balance circuit with the “BALANCE” control; The enslavement relay to enable the electric lock (3 contacts: common, normally open and normally closed). It can work also as capacitor discharge

to supply directly the electric lock;

The call buttons from 1 to a maximum of 2 depending on the module version; The illumination LEDs for the card name holder; The camera comprised of illumination LEDs.

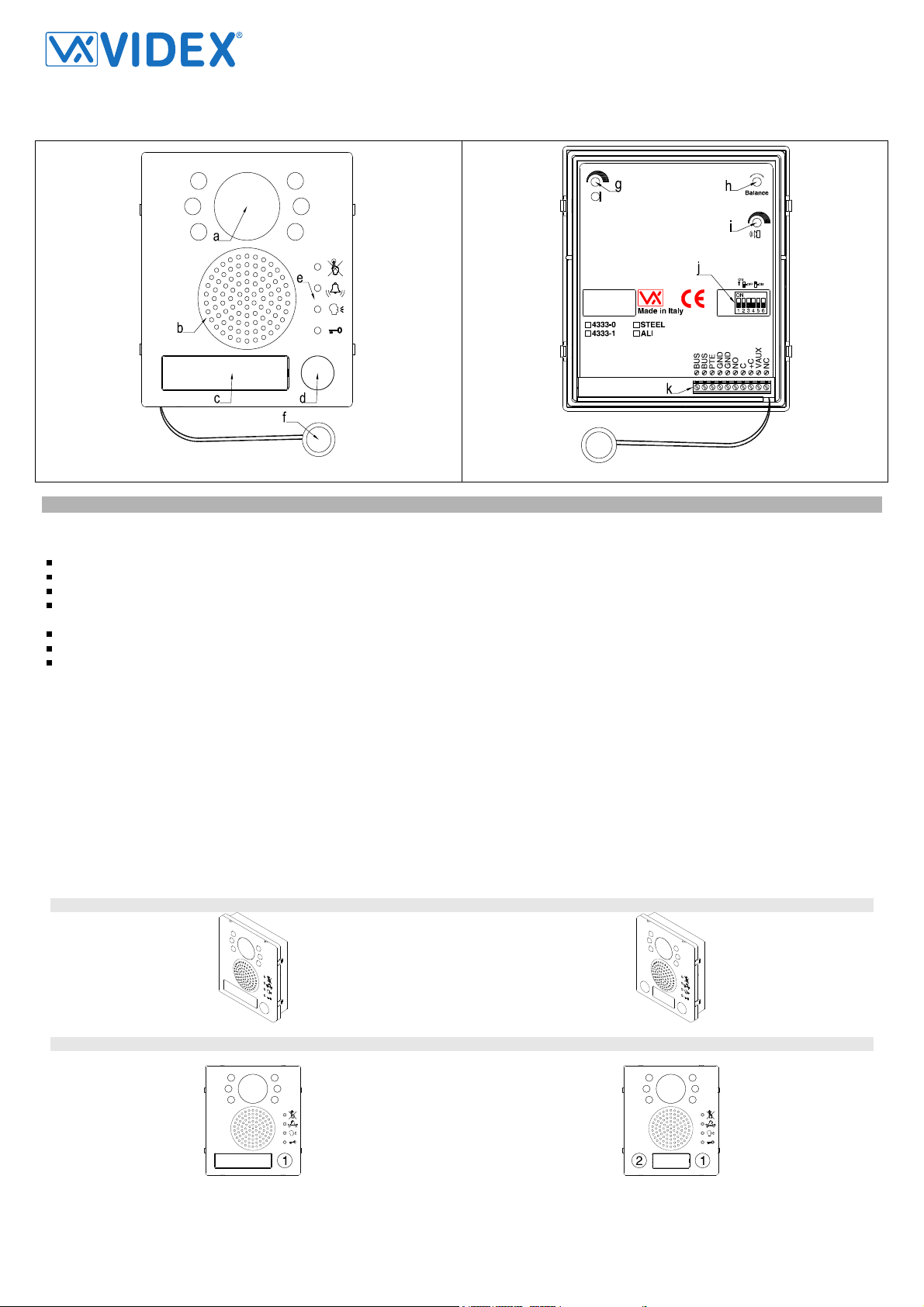

Module Details:

a. Camera with illumination LEDs; b. Loudspeaker; c. Card name holder; d. Call push button (1 or 2 according to the model); e. Operation LEDs f. Microphone; g. Microphone volume control; h. Balance Control; i. Loudspeaker volume control; j. Dip-switch to carry out the following programming:

- Door station ID (switches from 1 to 3);

- Door opening time (switch 4);

- Conversation time (switch 5);

k. System connection terminals;

AVAILABLE MODULE VERSIONS

BUTTONS LAYOUT

PrtCode:ESVK_ENG_1.6.doc – Pag.4/44

Art.4333-1, 4333-1/color

Art.4333-1, 4333-1/color Art.4333-1D, 4333-1D/color

25/11/2009 Rev.1.6

Art.4333-1D, 4333-1D/color

Two Wire Videokit ESVK Series

FRONT LEDS SIGNALLING DESCRIPTION

Sign Description

When illuminated, indicates that it is not possible to make a call because a call or a conversation is in progress (from the outdoor station from which you are calling or from another outdoor station on systems with multiple entrances). The LED will be off when the system is in stand-by If illuminated, indicates that the call from the outdoor station is in progress. The LED will switch OFF when the call is answered or after the programmed number of rings.

If illuminated, indicates that it is possible to speak because the call has been answered. The LED will switch OFF at the end of a conversation (or at the end of the conversation time).

If illuminated, indicates that the door lock has been operated. It will switch OFF at the end of the programmed “door opening” time.

PROGRAMMING

The programming consists of the following settings:

- Unit ID (1..8);

- Door Opening Time (3 or 6 seconds);

- Conversation Time (1 or 2 minutes);

The settings are carried out trough the 6 way dip-switch (reference j on figure 2) accessible from the rear side of the module. The switch 6 is not used.

Unit ID

Switches

1 2 3

ID

OFF OFF OFF 1

ON OFF OFF 2

OFF ON OFF 3

Door Opening Time

Switches

4

Seconds

OFF 3

ON 6

Conversation Time

Switches

5

Minutes

OFF 1 ON 2

ON ON OFF 4

OFF OFF ON 5

ON OFF ON 6

OFF ON ON 7

ON ON ON 8

SIGNALS ON SYSTEM CONNECTION TERMINALS Terminal Description Terminal Description

BUS NO Door open relay normally open contact BUS

Bus connection terminals

C Door open relay normally closed contact PTE “Push to exit” active low input +C Electric lock capacitor discharge output GND Ground

VAUX

35Vdc power supply input (if used, the module is powered locally and not from the BUS)

GND Ground NC Door open relay normally closed contact

To use the electric lock with capacitor discharge, make a short between “C” and “+C” then connect the electric lock between terminals “NO” and “GND”.

UNIT SPECIFICATION

Housing/Mounting Push Buttons Programming Controls Front plate Finishes Power Supply Working Temperature

One 4000 Series Module / 4000 Series Modular System Yes, from 0 to 2 call buttons according to the model Yes, carried out by the 6 way dip-switch located on the rear of the module Microphone and Loudspeaker volume trimmers plus balance trimmer Mirror stainless steel (standard) and Anodized aluminium (add /a after the product code) Supplied by the BUS line

-10 +50ºC

CUSTOMER SUPPORT INFORMATION

All Countries Customers UK Customers VIDEX Electronics S.p.A.

www.videx.it

– technical@videx.it

Tel.+39 0734 631669

The product is CE marked demonstrating its conformity and is for distribution within all member states of the EU with no restrictions. This product follows the provisions of the European Directives 89/336/EEC & 92/31/EEC (EMC), 73/23/EEC (LVD) and 93/68/EEC (CE marking).

Fax +39 0734 632475

Il prodotto è marchiato CE a dimostrazione della sua conformità e può essere distribuito liberamente all’interno dei paesi membri dell’unione europea EU. Questo prodotto è conforme alle direttive Europee 89/336/EEC & 92/31/EEC (EMC), 73/23/EEC (LVD) e 93/68/EEC (Marcatura CE).

VIDEX Security LTD

www.videx-security.com

Tech Line 0191 224 3174

Fax 0191 224 1559

PrtCode:ESVK_ENG_1.6.doc – Pag.5/44

25/11/2009 Rev.1.6

Two Wire Videokit ESVK Series

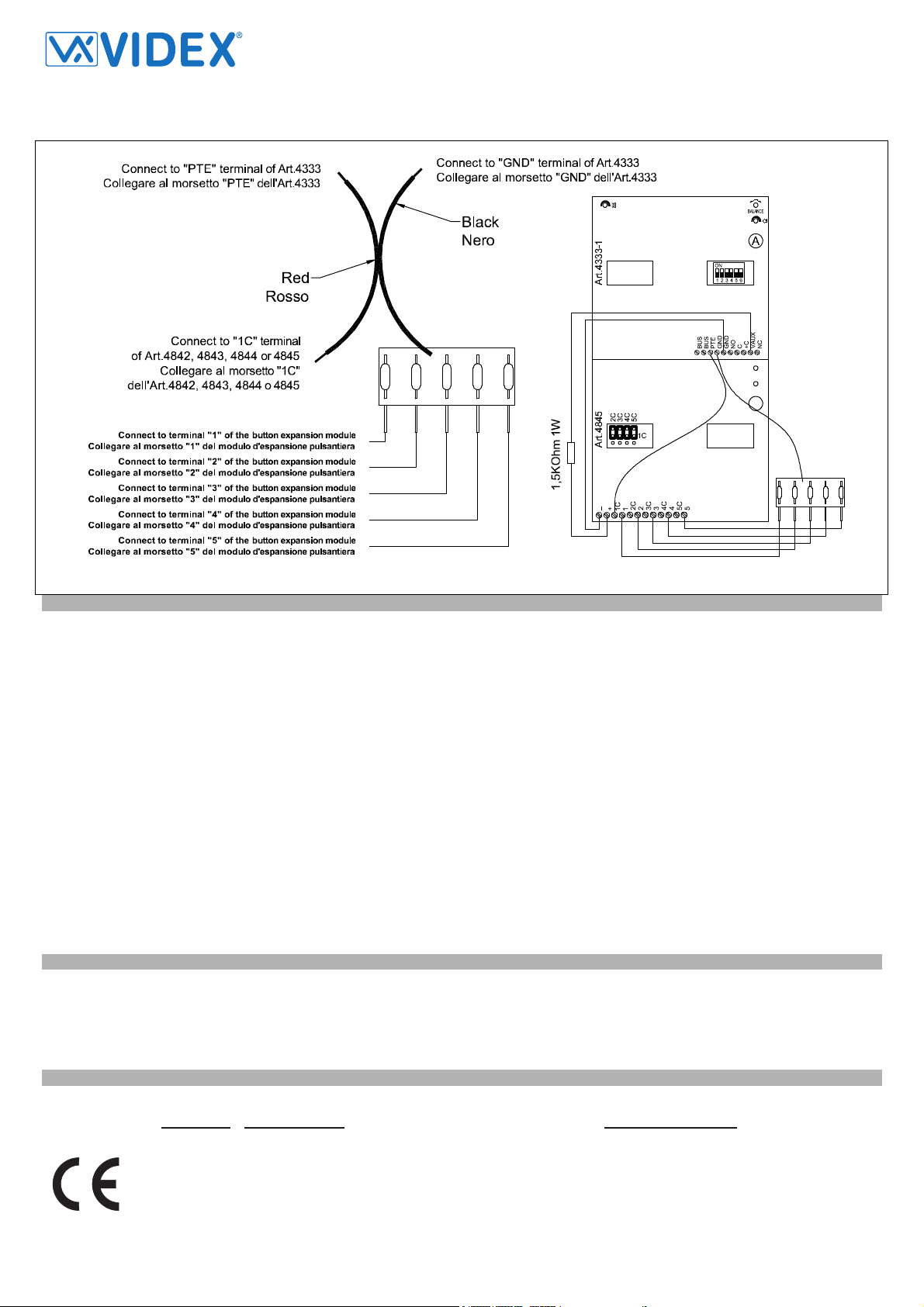

Art.125

Call expansion module

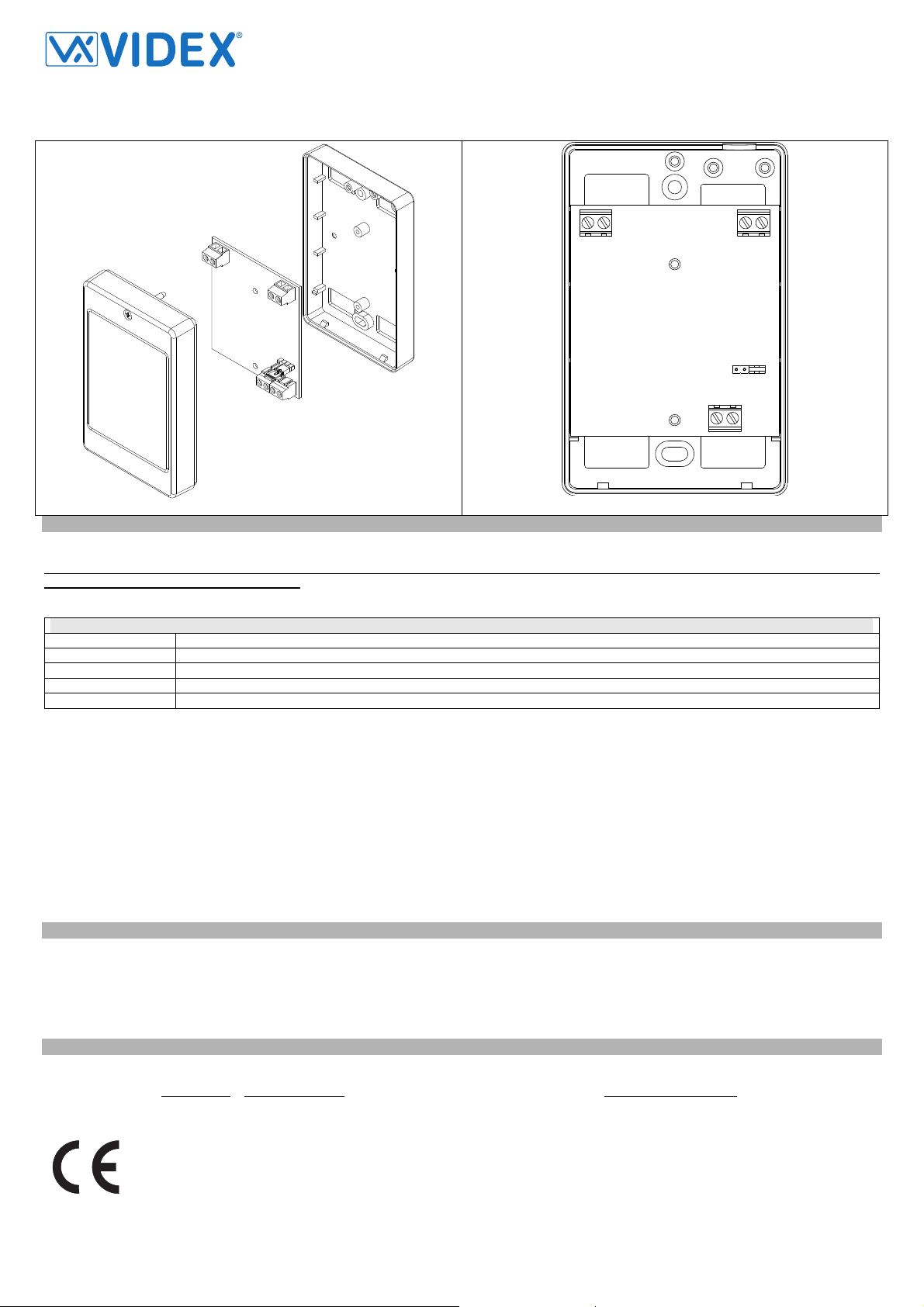

Fig.1

DESCRIPTION

This module must be used in combination with speaker units Art.4333 with firmware release 2.0 or higher. The module, in combination with standard 4000 series button expansion modules (Art.4842, 4843, 4844 and 4845), allows to add up to 5 call buttons to the call buttons built-in the speaker unit to reach a maximum of 7 call buttons. To supply the LED of the button expansion modules make the connection as shown in figure 1.

UNIT SPECIFICATION

Housing/Mounting Push Buttons Programming Controls Power Supply Working Temperature

5 resistors module / fix to button expansion module N/A N/A N/A N/A

-10 +50ºC

CUSTOMER SUPPORT INFORMATION

All Countries Customers UK Customers VIDEX Electronics S.p.A.

www.videx.it

The product is CE marked demonstrating its conformity and is for distribution within all member states of the EU with no restrictions. This product follows the provisions of the European Directives 89/336/EEC & 92/31/EEC (EMC), 73/23/EEC (LVD) and 93/68/EEC (CE marking).

– technical@videx.it

Tel.+39 0734 631669

Fax +39 0734 632475

Il prodotto è marchiato CE a dimostrazione della sua conformità e può essere distribuito liberamente all’interno dei paesi membri dell’unione europea EU. Questo prodotto è conforme alle direttive Europee 89/336/EEC & 92/31/EEC (EMC), 73/23/EEC (LVD) e 93/68/EEC (Marcatura CE).

VIDEX Security LTD

www.videx-security.com

Tech Line 0191 224 3174

Fax 0191 224 1559

PrtCode:ESVK_ENG_1.6.doc – Pag.6/44

25/11/2009 Rev.1.6

Two Wire Videokit ESVK Series

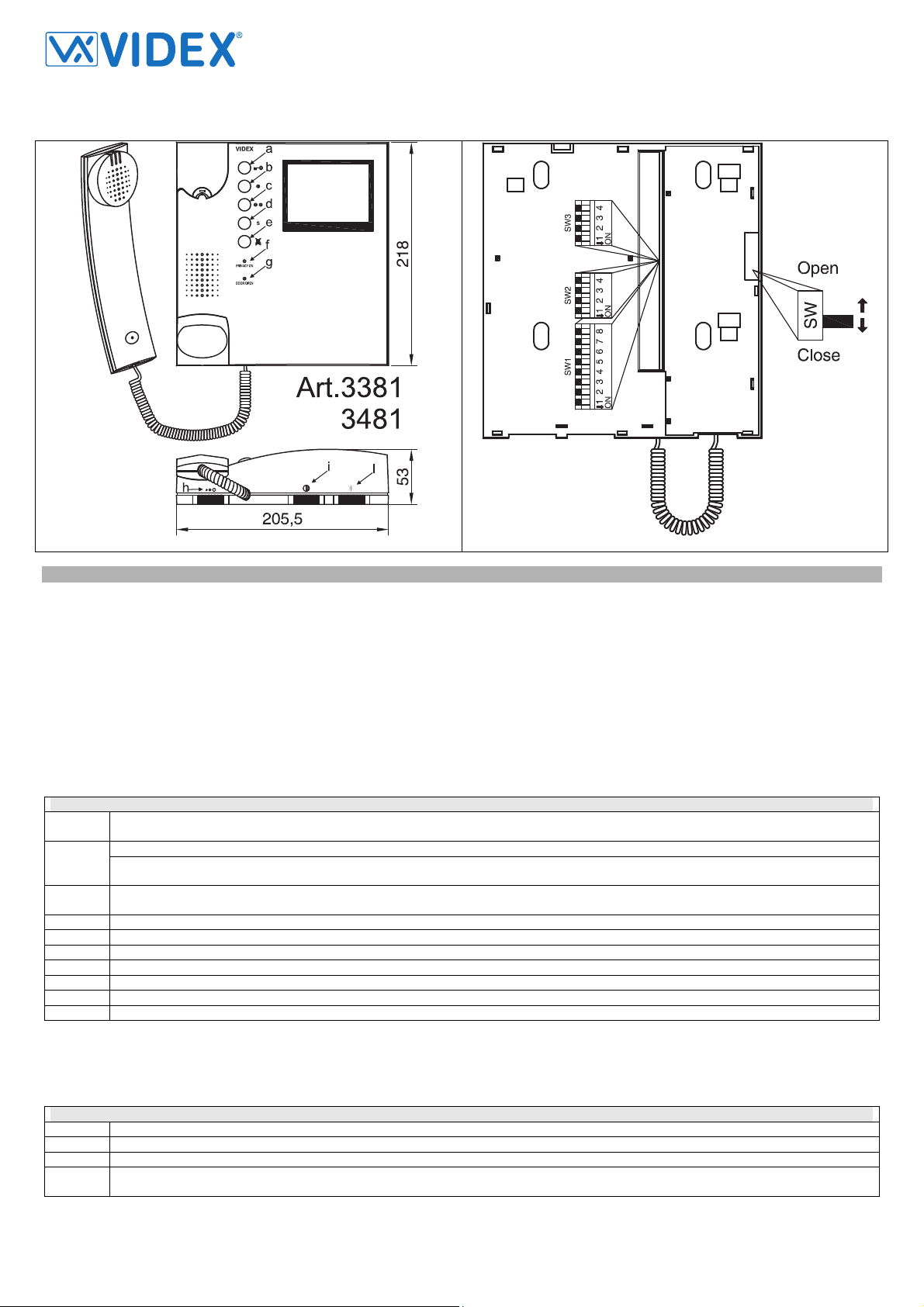

Art.3181

Fig.1 Fig.2

Digital intercom for VX2300 2 Wire System

DESCRIPTION

Intelligent intercom with “door open/intercommunicating call” push button (key), bus relay (Art.2305) activation button (dot), “privacy ON-OFF” switch, “door open” and “privacy on” LEDs and call tone volume control (3 levels). To reduce bus current all apartment devices are in a sleep mode when not used. In case a user forgot to replace the handset, each operation must be executed within 10 seconds of lifting the handset otherwise the handset returns to its sleep state. To then perform an operation it would be necessary to hang up the handset and pick it up again.

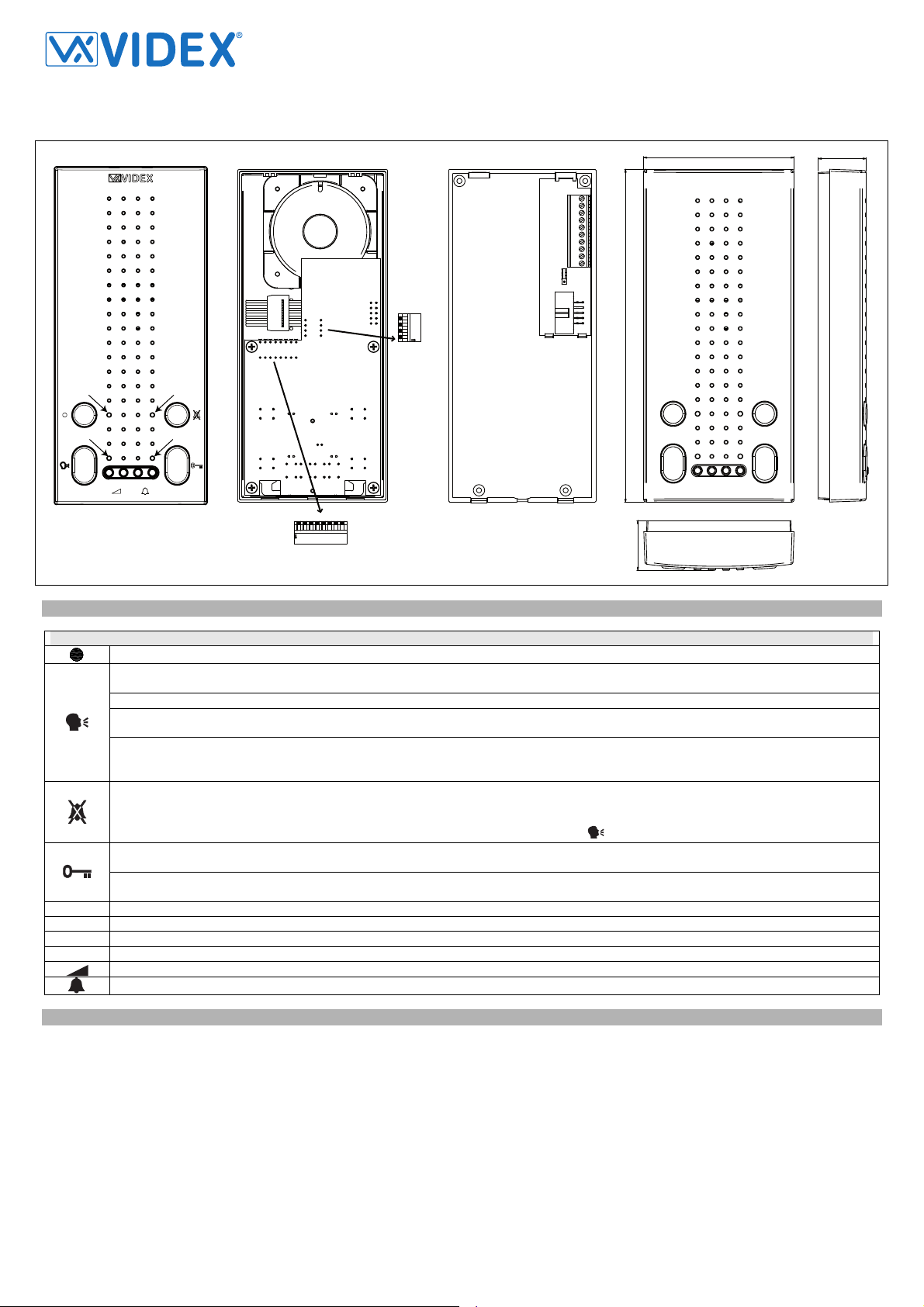

PUSH BUTTONS, LEDS AND CONTROLS (FIG.1)

a Door open push button – Intercommunicating call. For an intercommunicating call, pick up the handset and press as many times as the

b Activate bus relay board Art.2305 push button. To activate a bus relay pick up the handset and press as many times as the address

c Door Open LED. Switched ON if the door is open. Its operation depends on additional connections. d Privacy ON LED. Switched ON when the privacy service is active e Privacy ON-OFF switch. The privacy duration time can be programmed. If the intercom is programmed for a specific privacy duration,

f Call tone volume control (3 levels)

DIP-SWITCHES AND JUMPERS (FIG.2)

SW1 Switches from 1 to 7 are used for unit address (from 1 to 127 binary coded). Last switch (8) is not used SW2 Switches 1,2 and 3 are used to set privacy duration time. Switch 4 is not used. SW3 Switches 1,2 and 3 are used to for intercommunication settings. Switch 4 is not used. S1 Impedance terminator. The jumper must be normally closed. When more videophones/intercoms are connected in parallel (from a pe-

extension or address value to call (see SW3 Intercommunication Settings).

value of the relay.

after the service is enabled to “ON” (red LED ON), the service will automatically turn off when the time expires.

ripheral to another and so on until the last) the jumper must be open for all the intercoms except for the last following the connection order.

PROGRAMMING

After each programming operation carried out through dip-switches or jumpers it is necessary to temporary disconnect the phone from the BUS or from the power supply if locally powered.

SW1 – INTERCOM ADDRESS

7 6 5 4 3 2 1 64 32 16 8 4 2 1

OFF OFF OFF OFF OFF OFF ON 0 0 0 0 0 0 1 1 OFF OFF OFF OFF OFF ON OFF 0 0 0 0 0 1 0 2 OFF OFF OFF OFF OFF ON ON 0 0 0 0 0 1 1 3 OFF OFF OFF OFF ON OFF OFF 0 0 0 0 1 0 0 4

OFF ON OFF OFF ON OFF ON 0 1 0 0 1 0 1 37

ON ON OFF OFF OFF ON ON 1 1 0 0 0 1 1 99

The table above shows how to set the address of the phone. Considering that ON = 1 and OFF = 0, multiply each digit for the relevant decimal weight then add values obtained to get the address: E.g. as highlighted in the table OFF,ON,OFF,OFF,ON, OFF,ON in binary is equal to 0100101 then adding each digit for the relevant decimal weight you obtain the address 37.

Note

The maximum number of units allowed is 100 but the address of each unit can be a value between 1 and 127

Switches Status Binary Code – Decimal Value

Decimal

Code

PrtCode:ESVK_ENG_1.6.doc – Pag.7/44

25/11/2009 Rev.1.6

Two Wire Videokit ESVK Series

SW2 – PRIVACY DURATION TIME

Switches Status

4 3 2 1

OFF OFF 15 minutes OFF ON 1 hour ON OFF 4 hours ON ON

ON

OFF

The privacy duration time is set by switches 2 and 3. When enabled the privacy service will be disabled when the set time expires or the switch is moved back to off.

No privacy time expiration: the privacy service is enabled or disabled only by the slide switch.

Privacy Mode

(switch 1)

Privacy Duration

(switches 2,3)

8 hours

SW3 – INTERCOMMUNICATION SETTINGS

Switches Status

4 3 2 1

OFF OFF 1 (master)

OFF ON 2 (slave)

ON OFF 3 (slave)

OFF

ON ON

Intercommunication allowed between videophones (same unit address) inside the same flat. To call an extension pick up the handset then press the “door open” button as many times as the extension value (Eg. extension 2 two times, 3 three times etc).

Each intercom/videophone in the same apartment must have a different extension address, the master address must always be set except when one of the intercom/videophone is set for apartment intercommunication (i.e. in a 3 intercom/videophone installation, one of the intercom/videophone must have the extension address 1 while the others must have different addresses)

Intercommunication Mode

(switch 1)

Intercommunication allowed between videophones (different apartment). To call an

OFF OFF ON

On installations where there are more than one intercom/videophone in the same apartment and intercommunication between different

extension pick up the handset then press the “door open” button as many times as the address value (Eg. extension 10 ten times, 12 twelve times etc)

Videophone

Extension

(switches 2,3)

4 (slave)

apartments is required, only one intercom/videophone may be set with this function (SW3.1=ON, SW3.2=OFF, SW3.3=OFF). The other intercom/videophones in the apartment must be set for local intercommunication with extension addresses “2-4” (slaves). From the intercom/videophone set for intercommunication with other apartments it will be not possible to intercommunicate within the apartment but slave extensions 2-4 will be able to intercommunicate with each other.

NUMBER OF RINGS

The number of rings can be set to 3 (factory preset) or 6. To change the number of rings proceed as follow:

- Disconnect the power supply from the system;

- Short the terminals “LB” and “GND”;

- Reconnect the power supply to the system checking the privacy on LED and then remove the short between terminals “LB” and “GND”;

- The number of LED flashes will be 1 for 3 rings or 2 for 6 rings.

Each time this operation is carried out the number of rings is switched between the values 3 and 6.

SIGNALS ON CONNECTION TERMINALS Signal Description BUS BUS LEDLED+ GND GND AL LB

Bus contacts

Door open LED ground signal input Door open LED power supply input (+12Vdc) Ground signal Ground signal Alarm input (not implemented) Local Bell contact (put a push button between this terminal and the relevant GND terminal)

SPECIFICATION

Housing/Mounting Push Buttons Programming Controls Power Supply Working Temperature

3000 Series Intercoms / direct wall mounting Yes, two Yes, carried out by the dip-switches inside the intercom Call tone volume and privacy ON-OFF switch Supplied by the BUS line

-10 +50ºC

CUSTOMER SUPPORT INFORMATION

All Countries Customers UK Customers VIDEX Electronics S.p.A.

www.videx.it

– technical@videx.it

Tel.+39 0734 631669

The product is CE marked demonstrating its conformity and is for distribution within all member states of the EU with no restrictions. This product follows the provisions of the European Directives 89/336/EEC & 92/31/EEC (EMC), 73/23/EEC (LVD) and 93/68/EEC (CE marking).

Fax +39 0734 632475

Il prodotto è marchiato CE a dimostrazione della sua conformità e può essere distribuito liberamente all’interno dei paesi membri dell’unione europea EU. Questo prodotto è conforme alle direttive Europee 89/336/EEC & 92/31/EEC (EMC), 73/23/EEC (LVD) e 93/68/EEC (Marcatura CE).

VIDEX Security LTD

www.videx-security.com

Tech Line 0191 224 3174

Fax 0191 224 1559

PrtCode:ESVK_ENG_1.6.doc – Pag.8/44

25/11/2009 Rev.1.6

Two Wire Videokit ESVK Series

Art.3381

Fig.1 Fig.2

Digital videophone for VX2300 2 Wire System

DESCRIPTION

Intelligent videophone with 4” flat screen B&W monitor with “door open” and “camera recall” push buttons, bus relay enable button, service button, “privacy ON-OFF” button plus “privacy on” and “door open” LEDs. Controls: 3 levels of call tone volume (both main and local) plus contrast and brightness. The videophone is available also in colour version Art.3481 which uses a 3,5” active matrix LCD monitor. To reduce bus current all apartment devices are in a sleep mode when not used. In case a user forgot to replace the handset, each operation must be executed within 10 seconds of lifting the handset otherwise the handset returns to its sleep state. To then perform an operation it would be necessary to hang up the handset and pick it upagain.

PUSH BUTTONS, LEDS AND CONTROLS (FIG.1)

a Door open push button – Intercommunicating call. For an intercommunicating call, pick up the handset and press as many times as the

c Activate bus relay board Art.2305 push button. To activate a bus relay pick up the handset and press as many times as the address

d Service push button. e Privacy ON-OFF push button. The privacy duration time can be programmed. f Privacy ON LED. Switched ON when the privacy service is active. g Door Open LED. Switched ON if the door is open. Its correct operation depend from correct connection (terminals 1 and 18) h Call tone volume control (3 levels) i Contrast control (left decrease, right increase) l Brightness control (left decrease, right increase)

DIP-SWITCHES AND SWITCHES (FIG.2)

SW1 Switches from 1 to 7 are used for unit address (from 1 to 127 binary coded). Last switch (8) is not used SW2 Switches 1,2 and 3 are used to set privacy duration time. Switch 4 is not used. SW3 Switches 1,2 and 3 are used for intercommunication settings. Switch 4 is used to set the slave mode. SW Impedance terminator. The standard position is “close”. When more videophones are connected in parallel (from a videophone to an-

extension or address value to call (see SW3 Intercommunication Settings). Camera recall push button. Pick up the handset and press as many times as the DEVICE N. of the door station to switch on. b If the door station uses the Art.4303N plus the Art.4330N, pressing this button during a conversation switches the video signal coming from the camera module to the video signal coming from the camera module input for external camera.

value of the relay.

other and so on until the last) it must be set to “open” for all the videophones except for the last following the connection order.

PrtCode:ESVK_ENG_1.6.doc – Pag.9/44

25/11/2009 Rev.1.6

Two Wire Videokit ESVK Series

PROGRAMMING

After each programming operation carried out through dip-switches or jumpers it is necessary to temporary disconnect the videophone from the BUS or from the power supply if locally powered.

NUMBER OF RINGS

The number of rings can be set to 3 (factory preset) or 6. To change the number of rings proceed as follow:

- Unplug the flat cable from the pcb connection board;

- Put in short the terminals 13 and 14;

- Plug-in the flat cable checking the privacy on LED and remove the short between terminals 13 and 14;

- The number of LED flashes will be 1 for 3 rings or 2 for 6 rings.

Each time this operation is carried out the number of rings is switched between the values 3 and 6.

SW1 – VIDEOPHONE ADDRESS

7 6 5 4 3 2 1 64 32 16 8 4 2 1

OFF OFF OFF OFF OFF OFF ON 0 0 0 0 0 0 1 1 OFF OFF OFF OFF OFF ON OFF 0 0 0 0 0 1 0 2 OFF OFF OFF OFF OFF ON ON 0 0 0 0 0 1 1 3 OFF OFF OFF OFF ON OFF OFF 0 0 0 0 1 0 0 4

OFF ON OFF OFF ON OFF ON 0 1 0 0 1 0 1 37

ON ON OFF OFF OFF ON ON 1 1 0 0 0 1 1 99

The table above shows how to set the address of the videophone. Considering that ON = 1 and OFF = 0, multiply each digit for the relevant decimal weight then sum values obtained to get the address: E.g. as highlighted in the table OFF,ON,OFF,OFF,ON, OFF,ON in binary is equal to 0100101 then multiplying each digit for the relevant decimal weight you obtain the address that is 37.

Note

The maximum number of units allowed is 100 but the address of each unit can be a value between 1 and 127.

SW2 – PRIVACY DURATION TIME

Switches Status

4 3 2 1

OFF OFF 15 minutes OFF ON 1 hour

SW3 – INTERCOMMUNICATION SETTINGS

OFF Factory preset, during a call the slave videophones will only ring while the master will also show the video picture). The picture will only

ON During a call, the videophone will ring and show the video picture: in this case the videophone must be powered locally using an Art.2321

NOTE: Extension 1 is mandatory. On systems with more than one device in an apartment, each device must have a unique extension ID.

On installations where there are more than one intercom/videophone in the same apartment and intercommunication between different apartments is required, only one intercom/videophone may be set with this function (SW3.1=ON, SW3.2=OFF, SW3.3=OFF). The other intercom/videophones in the apartment must be set for local intercommunication with extension addresses “2-4” (slaves). From the intercom/videophone set for intercommunication with other apartments it will be not possible to intercommunicate within the apartment but slave extensions 2-4 will be able to intercommunicate with each other.

ON OFF 4 hours ON ON

ON

Switches Status

4 3 2 1

OFF OFF 1 (Master)

OFF ON 2 (Slave)

ON OFF 3 (Slave)

ON ON

OFF OFF ON

Slave Mode (switch 4) for Extensions 2, 3 and 4

appear on the slave when answered.

and connecting BUS+ to “Vin” (9) and BUS- to “–“ (10).

Switches Status Binary Code – Decimal Weight

Privacy Mode

(switch 1)

The privacy duration time is set by switches 2 and 3. When enabled the privacy ser-

OFF

vice is disable when the time set expires or the relevant button is pressed again.

No privacy time expiration: the privacy service is enabled or disabled only by the privacy button.

Intercommunication Mode

(switch 1)

Intercommunication between videophones in the same apartment. To call an extension pick up the handset then press the “door open” button as many times as the extension (Eg. extension 2 two times, 3 three times etc). Each intercom/videophone

must have a different extension address, the master address must always be set (i.e. in a 3 intercom/videophone installation, one of the intercom/videophone must have the extension address 1 while the others must have different addresses included from 2 to 4)

Intercommunication between videophones in different apartments. To call an extension pick up the handset then press the “door open” button as many times as the address (Eg. extension 10 ten times, 12 twelve times etc)

Address

Privacy Duration

(switches 2,3)

8 hours

Videophone

Extension

(switches 2,3)

4 (Slave)

PrtCode:ESVK_ENG_1.6.doc – Pag.10/44

25/11/2009 Rev.1.6

VIDEOPHONE CONNECTION BOARD ART.3980

As 3000 series videophones also this version uses the Art.3980 connection board.

Two Wire Videokit ESVK Series

Fig.3

SIGNALS ON TERMINALS OF ART.3980 CONNECTION BOARD

Terminal Signal Description 1 -LD 2 AL 3 S 4 S 5 GND 6 7 8 9 Vin 10 11 BUS 12 BUS 13 14 LB 15 16 17 18 +LD

Door open LED ground signal input Alarm input (not implemented)

Contacts for “S” service push button. Linked together when the button is pressed

Ground signal

Auxiliary power supply input (for local power supply)

Bus contacts

Local bell contacts

Door open LED power supply (12Vdc)

SPECIFICATION

Housing/Mounting Push buttons Programming Controls Power Supply Working Temperature

3000 Series Videophones / mounting plate plus connection board Yes, 5 Yes, carried out by the dip-switches located on the rear of the videophone Call tone volume, contrast and brightness Supplied by the BUS line

-10 +50 ºC

CUSTOMER SUPPORT INFORMATION

All Countries Customers UK Customers VIDEX Electronics S.p.A.

www.videx.it

The product is CE marked demonstrating its conformity and is for distribution within all member states of the EU with no restrictions. This product follows the provisions of the European Directives 89/336/EEC & 92/31/EEC (EMC), 73/23/EEC (LVD) and 93/68/EEC (CE marking).

– technical@videx.it

Tel.+39 0734 631669

Fax +39 0734 632475

VIDEX Security LTD

www.videx-security.com

Tech Line 0191 224 3174

Il prodotto è marchiato CE a dimostrazione della sua conformità e può essere distribuito liberamente all’interno dei paesi membri dell’unione europea EU. Questo prodotto è conforme alle direttive Europee 89/336/EEC & 92/31/EEC (EMC), 73/23/EEC (LVD) e 93/68/EEC (Marcatura CE).

Fax 0191 224 1559

PrtCode:ESVK_ENG_1.6.doc – Pag.11/44

25/11/2009 Rev.1.6

Two Wire Videokit ESVK Series

Art.5488

164

Fig.1 Fig.2

Hands Free Videomonitor for VX2300

1

2

53

130,00

3

4

DESCRIPTION

An intelligent Hands-free (surface or flush mounting) video monitor employing a colour 3.5” active matrix LCD display, with push buttons for “door open/intercommunicating call”, “answer/camera recall”, “privacy on/off”, “BUS relay activation” and 2 service buttons plus 4 LED’s associated with 4 main buttons. In addition to the above the unit has controls for loudspeaker volume, call tone volume, brightness and hue with programmable number of rings, privacy duration and intercommunication mode.

PUSH BUTTONS, LEDS AND CONTROLS (FIG.1)

Service push button - When pressed, shorts terminal “S1” to terminal “GND” (ground). Bus Relay Button to Activate bus relay board Art.2305. To activate a bus relay press as many times as the address value of the relay. Answer button - On an incoming call, operation of this button allows the user to answer and converse with the visitor. LED 2 will illuminate. Camera recall button - Press as many times as the DEVICE N. of the door station to switch on. Switch off button - With the system switched on (monitor on), momentary operation of the button will switch the video monitor off. The videomonitor will also automatically switch off after a time delay if the button is not pressed. LED 2 will switch off. Simplex button - Pressing and holding the button for more than 3 seconds will switch the videomonitor into SIMPLEX speech mode. Press and hold the button to speak to the caller (LED 2 will flash rapidly), release the button to listen (LED 2 will flash slowly). If the button is not pressed for 10 seconds the videomonitor will switch off. The videomonitor will revert to duplex speech when another call is made. When pressed, shorts terminal “S2” to Terminal “GND” (ground). Privacy on-off button:

− If the monitor is switched on, press and keep pressed this button for more than 3 seconds to enable/disable the service. The relative LED will illuminate when the privacy service is enabled.

− If the monitor is switched off, keep this button pressed together with the “speak” button

Camera select button - With a conversation in progress, press to switch from door station camera to external camera (requires Art.4330N and external camera) and viceversa. Intercommunicating call button - For an intercommunicating call, when the videomonitor is in stand-by, press as many times as the extension or address value to call. Door open button - During a call, operation of this button will activate the “door open” relay (NO1, NC1, COM1). LED 4 will illuminate if terminal 6 has been connected to a door contact.

1

LED for programming purposes

2

LED relating to the operation of the answer/switch off/camera recall/simplex button

3

LED relating to the operation of privacy button

4

LED relating to the operation of door open button(powered from the connection terminal “6” of Art.5980) Loudspeaker volume control Call tone volume control

Brightness control Colour intensity control

until the privacy LED switches ON.

PrtCode:ESVK_ENG_1.6.doc – Pag.12/44

25/11/2009 Rev.1.6

Two Wire Videokit ESVK Series

PROGRAMMING

The videomonitor setup consists of the following settings:

- Number of Rings;

- Melody selection;

- Unit address (1..127, switches 1 to 7 of SW1);

- Bus Termination (open or close, switch 8 of SW1);

- Intercommunication mode (between apartments or within apartment switch 1 of SW3);

- Extension address (1..4, switches 2,3 of SW3);

- Slave mode (switch 4 of SW3);

- Privacy duration (switches 1,2 and 3 of SW2)

The programming of the number of rings and melody are carried out through the videomonitor push buttons , all other settings are carried out on the three dip-switch banks (SW1, SW2 and SW3) on the rear side of the video monitor.

Except the number of rings programming, it is necessary to remove temporary the power supply after making any other programming changes.

NUMBER OF RINGS AND MELODY SELECTION

First of all make a camera recall to switch on the unit then proceed with the programming operation.To alter the number of rings and select the melody, the videomonitor must be in program mode. This is achieved by operating the two following buttons at the same time (left button of the volume control and the right button of the colour intensity control) see Fig.1A 8 small buttons towards the bottom of the face plate (far left button and far right button together). When the programming mode is entered LED 1 (Fig.1A) starts flashing. This will automatically reset after 20 seconds of idle time.

Number of rings

− When in the programming mode press and hold the “ rings (each flash = 1 ring i.e. 6 flashes = 6 rings)

− Once the value of rings has been reached release the “

− Wait approx 10 seconds for LED 1 to stop flashing to signal that the new value is stored and program mode has exited.

Melody selection

− When in the programming mode, press left or right call tone volume control buttons to navigate forward in the melodies selection menù) until the videomonitor plays the selected melody (during the melody play the LED1 stops flashing);

− Before press again one of the two buttons to select previous (left button) or next (right button) melody, wait for LED1 starts flashing again then press and hold pressed one button until the selected melody is played;

− Once reached the required melody, Wait approx 10 seconds for LED 1 to stop flashing to signal that the new value is stored and program mode has exited.

Notes

The second melody increases its volume at each ring: first ring starts at minimum volume level up to the maximum volume level on the last ring. Are available 4 levels of volume: if are set 6 rings, the fourth, the fifth and the sixth will be emitted at the maximum volume level.

VIDEOMONITOR ADDRESS – SW1.1..7

The table above shows how to set the address of the videophone. Considering that ON = 1 and OFF = 0, multiply each digit for the relevant decimal weight then sum values obtained to get the address: E.g. as highlighted in the table OFF,ON,OFF,OFF,ON, OFF,ON in binary is equal to 0100101 then multiplying each digit for the relevant decimal weight you obtain the address that is 37.

Switches Status Binary Code – Decimal Weight

7 6 5 4 3 2 1 64 32 16 8 4 2 1

OFF OFF OFF OFF OFF OFF ON 0 0 0 0 0 0 1 1 OFF OFF OFF OFF OFF ON OFF 0 0 0 0 0 1 0 2 OFF OFF OFF OFF OFF ON ON 0 0 0 0 0 1 1 3 OFF OFF OFF OFF ON OFF OFF 0 0 0 0 1 0 0 4

OFF ON OFF OFF ON OFF ON 0 1 0 0 1 0 1 37

ON ON ON ON ON ON ON 1 1 1 1 1 1 1 127

Note

The maximum number of units allowed is 100 but the address of each unit can be a value between 1 and 127.

BUS TERMINATION - SW1.8

The factory preset for this switch is ON: termination enabled. In case of more units (intercoms, videophones or video monitors) in a parallel connection (bus wires are connected to the terminals of the first unit then from this to the second and so on up to 4 units max) switch 8 must be set to ON only for the last unit in the chain while on all other units must be set to OFF (bus termination disabled).

INTERCOMMUNICATION MODE – SW3.1

This switch establishes the intercommunication mode: in OFF position (default) intercommunication is between units in the same apartment (same addresses but different extension); in ON position the intercommunication is between units in different apartments (different addresses).

” button, LED 1 will stop flashing and LED 3 (Fig.1A) will start to flash showing the number of

” button.

(press the left button to navigate backward or the right button

Ad-

dress

On installations where there are more than one intercom/videophone in the same apartment and intercommunication between different apartments is required, only one intercom/videophone may be set with this function (SW3.1=ON, SW3.2=OFF, SW3.3=OFF). The other intercom/videophones in the apartment must be set for local intercommunication with extension addresses “2-4” (slaves). From the intercom/videophone set for intercommunication with other apartments it will be not possible to intercommunicate within the apartment but slave extensions 2-4 will be able to intercommunicate with each other.

PrtCode:ESVK_ENG_1.6.doc – Pag.13/44

25/11/2009 Rev.1.6

EXTENSION NO – SW3.2..3

If the intercommunication between apartments is enabled (switch 1 of SW3 = ON) leave these two switches in default position (both to OFF). Otherwise, if the intercommunication is between the same apartment (switch 1 of SW3 = OFF), set the extension addresses starting always from 1. During the external call, all video monitors in the same flat will ring but the video will be shown only from the videmononitor with extension address 1.

2 3 Extension No.

OFF OFF 1 (default, master)

ON OFF 2 (slave)

OFF ON 3 (slave)

ON ON 4 (slave)

SLAVE MODE - SW3.4

PRIVACY UNLIMITED – SW2.1

PRIVACY DURATION – SW2.2..3

This set up requires that switch 1 is set to OFF.

2 3 Duration

OFF OFF 15 minutes

ON OFF 1 hour

OFF ON 4 hours

ON ON 8 hours

This set up concerns the answering mode of the video monitor when there is more than one unit (max 4) in the same apartment. OFF (default) = during a call, only the video monitor with extension 1 (master) will show the video. ON = the video monitor will be switched on independently of the extension address: in this case the video monitor must be supplied locally using a power supply Art.2321 and connecting respectively BUS+ to terminal 14 and BUS- to terminal 11 of the pcb connection board provided with the Art.5980.

If this switch is set to OFF (default), the privacy duration is defined by switches 2 and 3.If this switch is set to ON, the privacy duration is unlimited and the service can be enabled or disabled only by the privacy button.

Two Wire Videokit ESVK Series

VIDEOMONITOR CONNECTION BOARD ART.5980

Fig.3

SIGNAL ON CONNECTION TERMINALS

Terminal Signal Description

1 GND 2 BUS1 3 4 BUS2 5 S1 Terminal controlled by the S1 button, close to GND until the button is pressed 6 LED 7 S2 Terminal controlled by the S2 button, close to GND until the button is pressed 8 GND

9 GND 10 LB 11 GND 12 13 14 +VAUX 15 16 17 18 AL 19 20

Ground Bus input

Bus input

Auxiliary LED power supply input (12Vdc)

Ground Ground Local bell input (active low) Ground

Auxiliary power supply input (to be used when the switch 4 of SW3 is set to ON)

Alarm input (not implemented yet)

PrtCode:ESVK_ENG_1.6.doc – Pag.14/44

25/11/2009 Rev.1.6

Two Wire Videokit ESVK Series

VIDEOMONITOR WALL MOUNTING INSTRUCTIONS

Fig.1 Fig.2

Fig.3 Fig.4

- Cables must be fed through the opening “e” (Fig. 2A) of the mounting plate “c”, which should be fitted approximately 135cm from finished floor level as shown in Fig 1;

- Place the mounting plate “c” against the wall feeding the wire group “d” through opening “e” of the mounting plate and mark the fixing holes “a” (Fig. 2A)

- Drill the fixing holes “a”, insert the wall plugs “b” then with the cables threaded through opening “e” fix the mounting plate “c” to the wall with the 4 screws provided “f” (Fig. 2A).

- Hook the pcb connection board “g” to the mounting plate “c”as shown in Fig2B and connect the wires (using the screwdriver provided) to the terminals as shown in the diagram provided;

- Once the wires are connected, hook the videophone “h” to the Mounting plate “c” as shown in Fig. 3.

• Connect the Plug “I” on the ribbon cable from the videophone to the plug “l” on the PCB connection board “g”;

• Place the videophone “h” against the 4 hooks “m” on the mounting plate “c” (in line with the 4 openings “n” on the rear side of the videophone Fig. 4)

and push down as suggested by the pointers in Fig. 3, the videophone will lock into place;

- To remove the videophone, hold it firmly and push the unit in an upward direction until the videophone “h” unlocks from the mounting plate “c”.

SPECIFICATION

Housing/Mounting Push buttons Programming Controls Power Supply Working Temperature

5000 Series Videophones / mounting plate plus connection board Yes, 6 Yes, carried out by the dip-switches located on the rear of the videophone Loudspeake and call tone volume, brightness and hue Supplied by the BUS line

-10 +50 ºC

CUSTOMER SUPPORT INFORMATION

All Countries Customers UK Customers VIDEX Electronics S.p.A.

www.videx.it

– technical@videx.it

Tel.+39 0734 631669

Fax +39 0734 632475

The product is CE marked demonstrating its conformity and is for distribution within all member states of the EU with no restrictions. This product follows the provisions of the European Directives 89/336/EEC & 92/31/EEC (EMC), 73/23/EEC (LVD) and 93/68/EEC (CE marking).

Il prodotto è marchiato CE a dimostrazione della sua conformità e può essere distribuito liberamente all’interno dei paesi membri dell’unione europea EU. Questo prodotto è conforme alle direttive Europee 89/336/EEC & 92/31/EEC (EMC), 73/23/EEC (LVD) e 93/68/EEC (Marcatura CE).

VIDEX Security LTD

www.videx-security.com

Tech Line 0191 224 3174

Fax 0191 224 1559

PrtCode:ESVK_ENG_1.6.doc – Pag.15/44

25/11/2009 Rev.1.6

Two Wire Videokit ESVK Series

Art.5188

1

2

Fig.1

3

4

Hands Free Intercom for VX2300

SW3

1234

ON

SW1

12345678

ON

DESCRIPTION

PUSH BUTTONS, LEDS AND CONTROLS (FIG.1)

Bus Relay Button to Activate bus relay board Art.2305. To activate a bus relay press as many times as the address value of the relay. Answer button - On an incoming call, operation of this button allows the user to answer and converse with the visitor. LED 2 will illumi-

nate. Camera recall button - Press as many times as the DEVICE N. of the door station to switch on. Switch off button - With the system switched on, momentary operation of the button will switch the unit off. The intercom will also automatically switch off after a time delay if the button is not pressed. LED 2 will switch off. Simplex button - Pressing and holding the button for more than 3 seconds will switch the intercom into SIMPLEX speech mode. Press and hold the button to speak to the caller (LED 2 will flash rapidly), release the button to listen (LED 2 will flash slowly). If the button is not pressed for 10 seconds the intercom will switch off. The intercom will revert to duplex speech when another call is made. Privacy on-off button:

− If the unit is switched on, press and keep pressed this button for more than 3 seconds to enable/disable the service. The relative LED will illuminate when the privacy service is enabled.

− If the unit is switched off, keep this button pressed together with the “speak” button

Intercommunicating call button - For an intercommunicating call, when the intercom is in stand-by, press as many times as the extension or address value to call. Door open button - During a call, operation of this button will activate the “door open” relay (NO1, NC1, COM1). LED 4 will illuminate if terminal 6 has been connected to a door contact.

1

Programming LED

2

LED relating to the operation of the answer/switch off/camera recall/simplex button

3

LED relating to the operation of privacy button

4

LED relating to the operation of door open button(powered from the connection terminal “2” & GND "1" on the connection board) Loudspeaker volume control Call tone volume control

PROGRAMMING

The intercom setup consists of the following settings:

- Number of Rings;

- Privacy duration;

- Melody selection;

- Unit address (1..127, switches 1 to 7 of SW1);

- Intercommunication mode (between apartments or within apartment switch 1 of SW3);

- Extension address (1..4, switches 2,3 of SW3);

- Bus Termination (JP1 jumper on connection board);

A

B

JP1

164,00

24,50

until the privacy LED switches ON.

74,00

23,50

PrtCode:ESVK_ENG_1.6.doc – Pag.16/44

25/11/2009 Rev.1.6

The programming of the number of rings, melody and privacy duration are carried out through the intercom push buttons , all other settings are carried out on the two dip-switch banks (SW1 and SW3) on the rear side of the video monitor. The BUS termination depends on the position of JP1 on the connection board.

Except for when programming the number of rings, it is necessary to temporarily remove the power supply from the unit after making programming changes.

NUMBER OF RINGS, PRIVACY DURATION AND MELODY SELECTION

First of all make a recall to switch on the unit then proceed with the programming operation. To alter the number of rings and select the melody, the intercom must be in program mode. This is achieved by pressing the two following buttons at the same time (left button of the volume control and the right button of the call tone volume control) see Fig.1.When the programming mode is entered LED 1 (Fig.1) starts flashing. This will automatically reset after 20 seconds of idle time.

Number of rings

− When in the programming mode press and hold the “ rings (each flash = 1 ring i.e. 6 flashes = 6 rings)

− Once the value of rings has been reached release the “

− Wait approx 10 seconds for LED 1 to stop flashing to signal that the new value is stored and program mode has exited.

Privacy duration

− When in the programming mode press and hold the “ times the button is pressed (each flash = 15 minutes i.e. 8 flashes = 2 hours )

− Once the duration required has been reached release the “

− Wait approx 10 seconds for LED 1 to stop flashing to signal that the new value is stored and program mode has exited.

Melody selection

− When in the programming mode, press left or right call tone volume control buttons to navigate forward through the melodies selection menù) After each press, the melody will be played (during the melody play the LED1 stops flashing);

− Before pressing again one of the two buttons to select previous (left button) or next (right button) melody, wait for LED1 to start flashing again then press and hold one button until the selected melody is played;

− Once the required melody is reached, Wait approx 10 seconds for LED 1 to stop flashing to signal that the new value is stored and program mode has exited.

Notes

The second melody increases its volume at each ring: first ring starts at minimum volume level and adjusts up to the maximum volume level on the last ring. There are 4 volume levels: Rings after this will all play at full volume.

INTERCOM ADDRESS – SW1.1..7

Switches Status Binary Code – Decimal Weight

7 6 5 4 3 2 1 64 32 16 8 4 2 1

OFF OFF OFF OFF OFF OFF ON 0 0 0 0 0 0 1 1 OFF OFF OFF OFF OFF ON OFF 0 0 0 0 0 1 0 2 OFF OFF OFF OFF OFF ON ON 0 0 0 0 0 1 1 3 OFF OFF OFF OFF ON OFF OFF 0 0 0 0 1 0 0 4

OFF ON OFF OFF ON OFF ON 0 1 0 0 1 0 1 37

ON ON ON ON ON ON ON 1 1 1 1 1 1 1 127

Note

The maximum number of units allowed is 100 but the address of each unit can be a value between 1 and 127. Set switch 8 to OFF position.

INTERCOMMUNICATION MODE – SW3.1

” button, LED 1 will stop flashing and LED 3 (Fig.1) will start to flash showing the number of

” button.

” button, LED 1 will stop flashing and LED 3 (Fig.1) will start to flash showing the number of

” button.

The table above shows how to set the address of the videophone. Considering that ON = 1 and OFF = 0, multiply each digit for the relevant decimal weight then add values obtained to get the address: E.g. as highlighted in the table OFF,ON,OFF,OFF,ON, OFF,ON in binary is equal to 0100101 then multiplying each digit for the relevant decimal weight you obtain the address that is 37.

This switch establishes the intercommunication mode: in OFF position (default) intercommunication is between units in the same apartment (same addresses but different extension); in ON position the intercommunication is between units in different apartments (different addresses).

Two Wire Videokit ESVK Series

(press the left button to navigate backward or the right button

Ad-

dress

On installations where there are more than one intercom/videophone in the same apartment and intercommunication between different apartments is required, only one intercom/videophone may be set with this function (SW3.1=ON, SW3.2=OFF, SW3.3=OFF). The other intercom/videophones in the apartment must be set for local intercommunication with extension addresses “2-4” (slaves). From the intercom/videophone set for intercommunication with other apartments it will be not possible to intercommunicate within the apartment but slave extensions 2-4 will be able to intercommunicate with each other. EXTENSION NO – SW3.2..3

If the intercommunication between apartments is enabled (switch 1 of SW3 = ON) leave these two switches in default position (both to OFF). Otherwise, if the intercommunication is between the same apartment (switch 1 of SW3 = OFF), set the extension addresses starting always from 1.

Notes: Set switch “4” to OFF position.

PrtCode:ESVK_ENG_1.6.doc – Pag.17/44

2 3 Extension No.

OFF OFF 1 (default, master)

ON OFF 2 (slave)

OFF ON 3 (slave)

ON ON 4 (slave)

25/11/2009 Rev.1.6

Two Wire Videokit ESVK Series

BUS LINE TERMINATION JP1

The factory preset for this jumper is “A” position: termination enabled. In case of more units (intercoms, videophones or video monitors) in a parallel connection (bus wires are connected to the terminals of the first unit then from this to the second and so on up to 4 units max) JP1 must be set to A position only for the last unit in the chain while on all other units must be set to B position (bus termination disabled). In case of units of different type, videophones, video monitor, hands free or standard intercoms etc. remains fixed the rule that the bus termination must be enabled only on the last unit in order of connection.

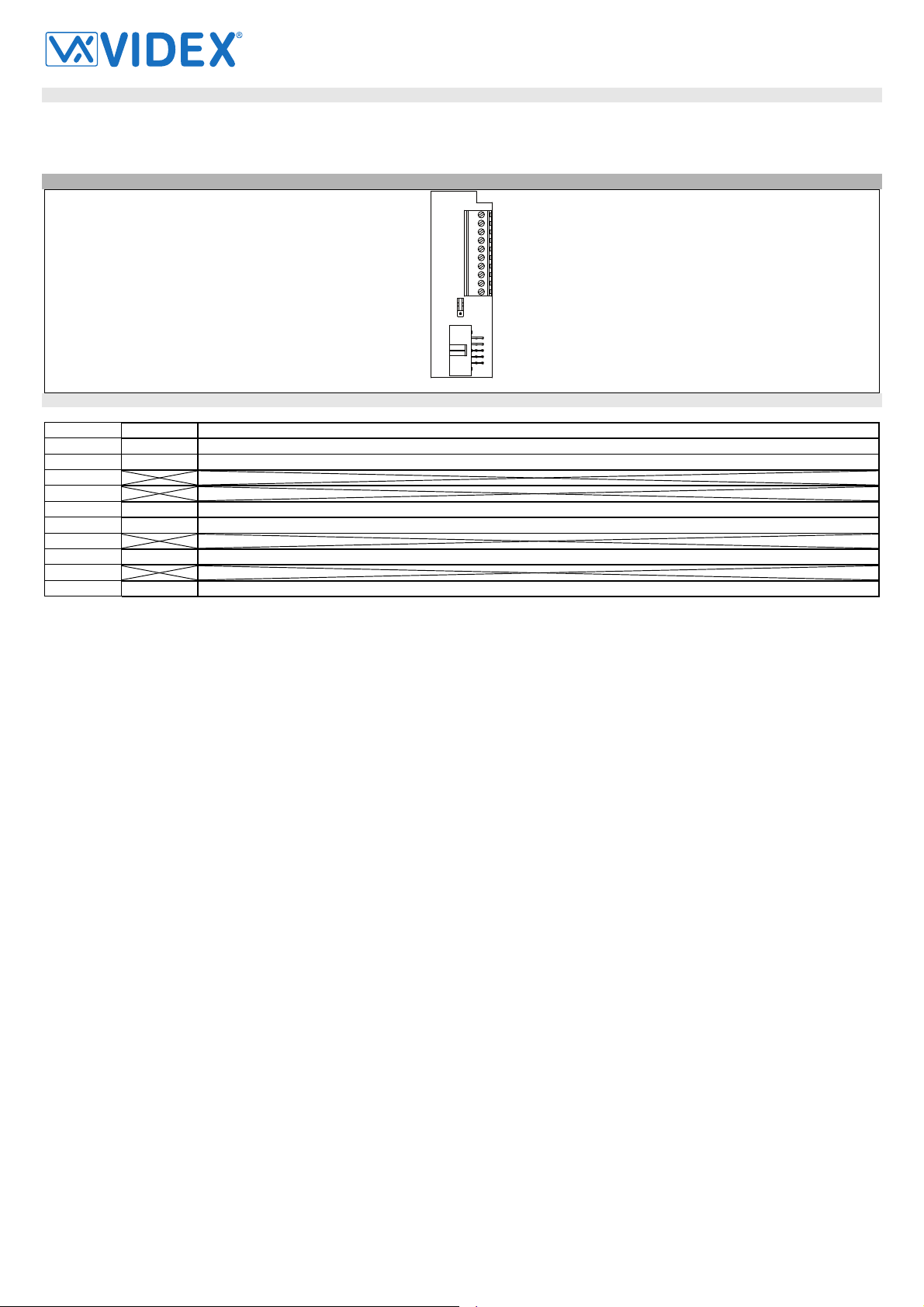

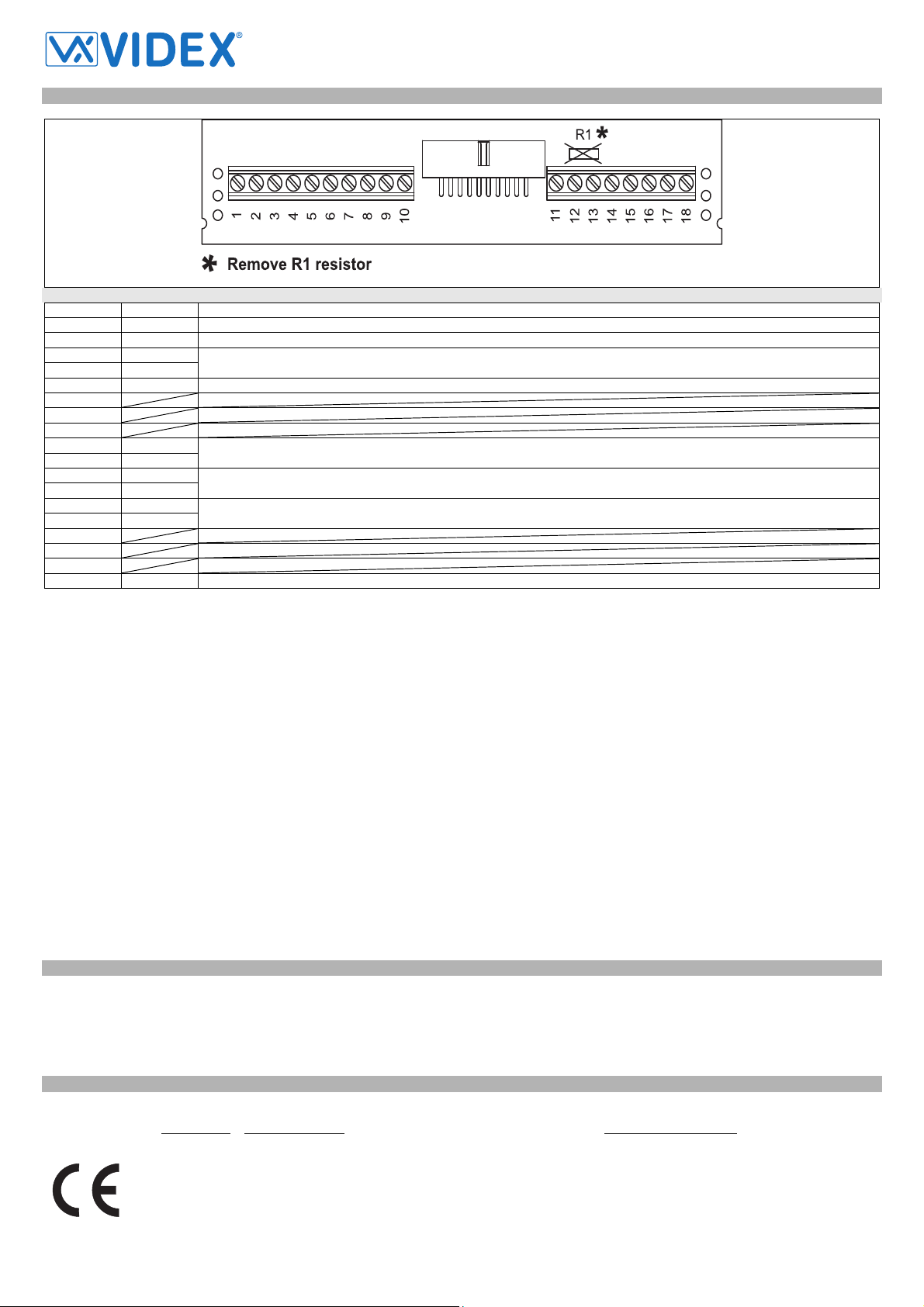

INTERCOM CONNECTION BOARD

1 2 3 4 5 6 7 8 9

10

A

B

JP1

Fig.2

SIGNAL ON CONNECTION TERMINALS

Terminal Signal Description

1 GND 2 LED 3 4 5 LB 6 AL 7 8 BUS2 9

10 BUS1

Ground Auxiliary LED +12Vdc Input

Local bell active low input Alarm input (not implemented yet)

Bus input

PrtCode:ESVK_ENG_1.6.doc – Pag.18/44

25/11/2009 Rev.1.6

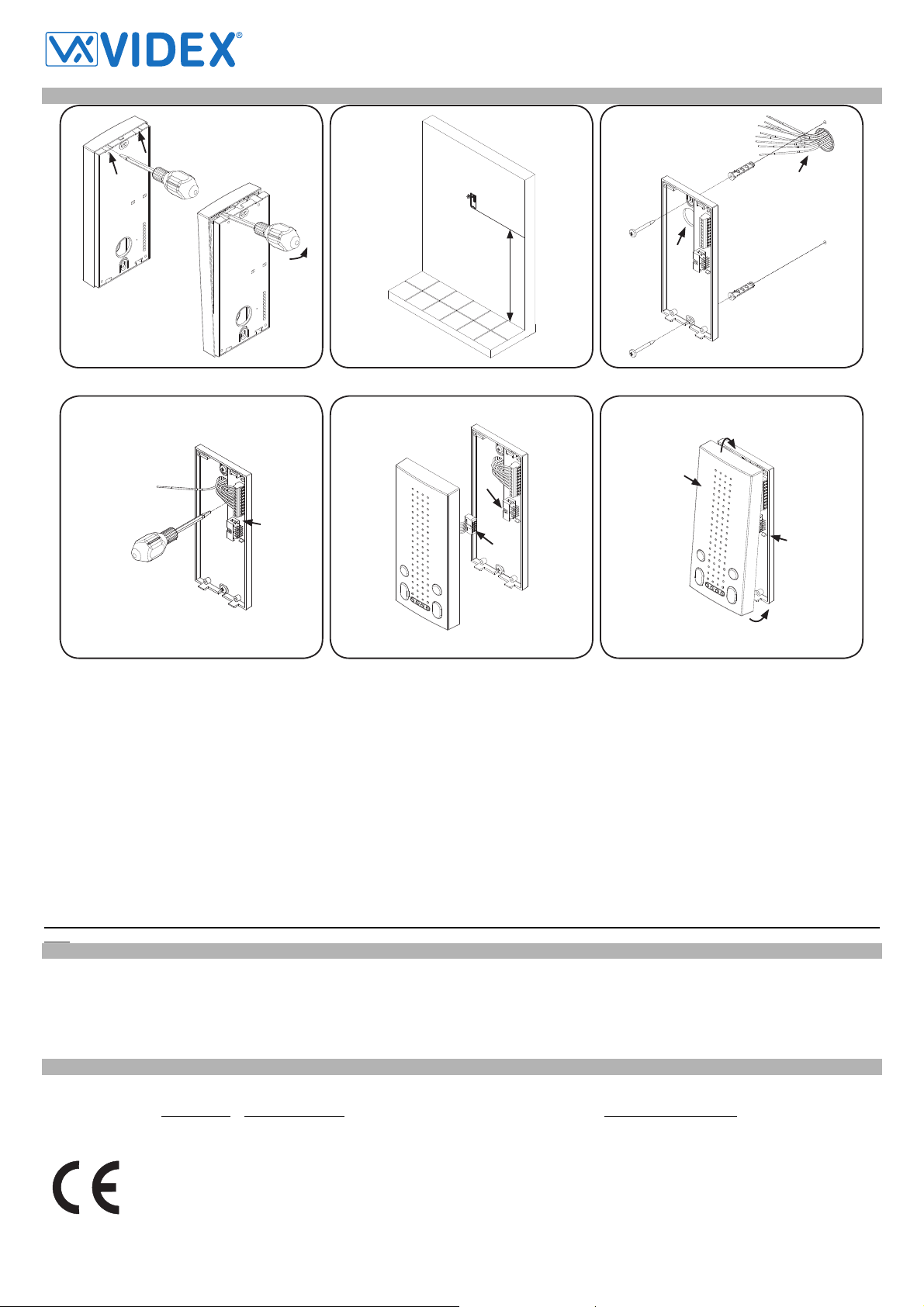

ART.5188 INTERCOM WALL MOUNTING INSTRUCTIONS

Two Wire Videokit ESVK Series

135cm

A

B

Fig.1 Fig.2 Fig.3

e

c

d

a

b

A

g

h

B

Fig.4 Fig.5 Fig.6

− As shown in Fig 1, looking at the rear of the intercom, insert the tip of a flat blade screwdriver into one of the two openings (Fig 1A) then slightly move the screwdriver in an upward direction to release the front from the back plate and opening the intercom unit (Fig 1B).Take care! The back plate of the intercom houses the pcb connection board which is normally connected to the pcb in the front of the intercom by the ribbon cable, the ribbon cable should not be connected when first opened.

− Place the back plate of the intercom against the wall at approximately 135cm (Fig 2) above finished floor level, then mark the fixing holes taking into account that the cable group “a” must feed into the opening “b” (Fig 3).

− As shown in figure 3, fix the back plate of the intercom to the wall feeding the cable group “a” through opening “b”.

− Using a flat blade screwdriver connect the wires to the pcb connection board “c” as shown in Figure 4, according to the installation diagram provided.

− Connect ribbon cable plug “d” from the front plate into plug “e” on the pcb connection board as shown in Figure 5.

− Close the intercom by hooking the front plate “g” to the back plate “h” as described below:

 Hook the top of the front plate “g” to the top of the back plate as shown by pointer “A” in Figure 6.  Move the lower side of the front plate “g” towards the back plate“h” and press until the unit locks into the back plate of the intercom.

To open the intercom once installed, firmly grasp the bottom sides of the front plate cover, pull forward in an upward direction to separate the front cover from the back plate as in Figure 6.

NB. Please take care when opening to avoid damage, remember that the ribbon cable connects the front plate to the back plate connector pcb.

SPECIFICATION

Housing/Mounting Push buttons Programming Controls Power Supply Working Temperature

5000 Series Intercoms / direct wall mount Yes, 4 Yes, carried out by the dip-switches located on the rear of the videophone Loudspeaker and call tone volume Supplied by the BUS line

-10 +50 ºC

CUSTOMER SUPPORT INFORMATION

All Countries Customers UK Customers VIDEX Electronics S.p.A.

www.videx.it

– technical@videx.it

Tel.+39 0734 631669

The product is CE marked demonstrating its conformity and is for distribution within all member states of the EU with no restrictions. This product follows the provisions of the European Directives 89/336/EEC & 92/31/EEC (EMC), 73/23/EEC (LVD) and 93/68/EEC (CE marking).

Fax +39 0734 632475

Il prodotto è marchiato CE a dimostrazione della sua conformità e può essere distribuito liberamente all’interno dei paesi membri dell’unione europea EU. Questo prodotto è conforme alle direttive Europee 89/336/EEC & 92/31/EEC (EMC), 73/23/EEC (LVD) e 93/68/EEC (Marcatura CE).

VIDEX Security LTD

www.videx-security.com

Tech Line 0191 224 3174

Fax 0191 224 1559

PrtCode:ESVK_ENG_1.6.doc – Pag.19/44

25/11/2009 Rev.1.6

Two Wire Videokit ESVK Series

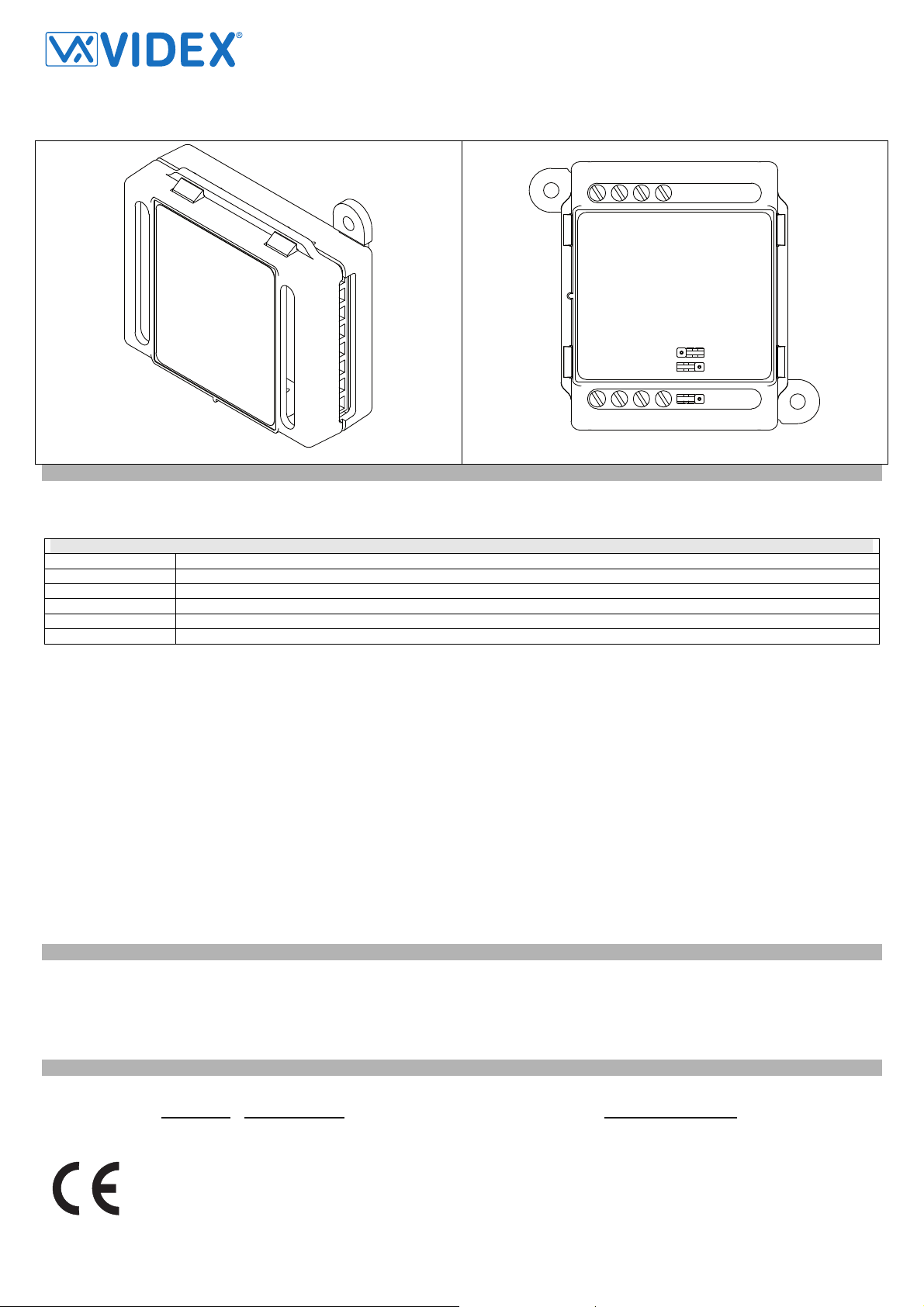

Art.317

Fig.1 Fig.2

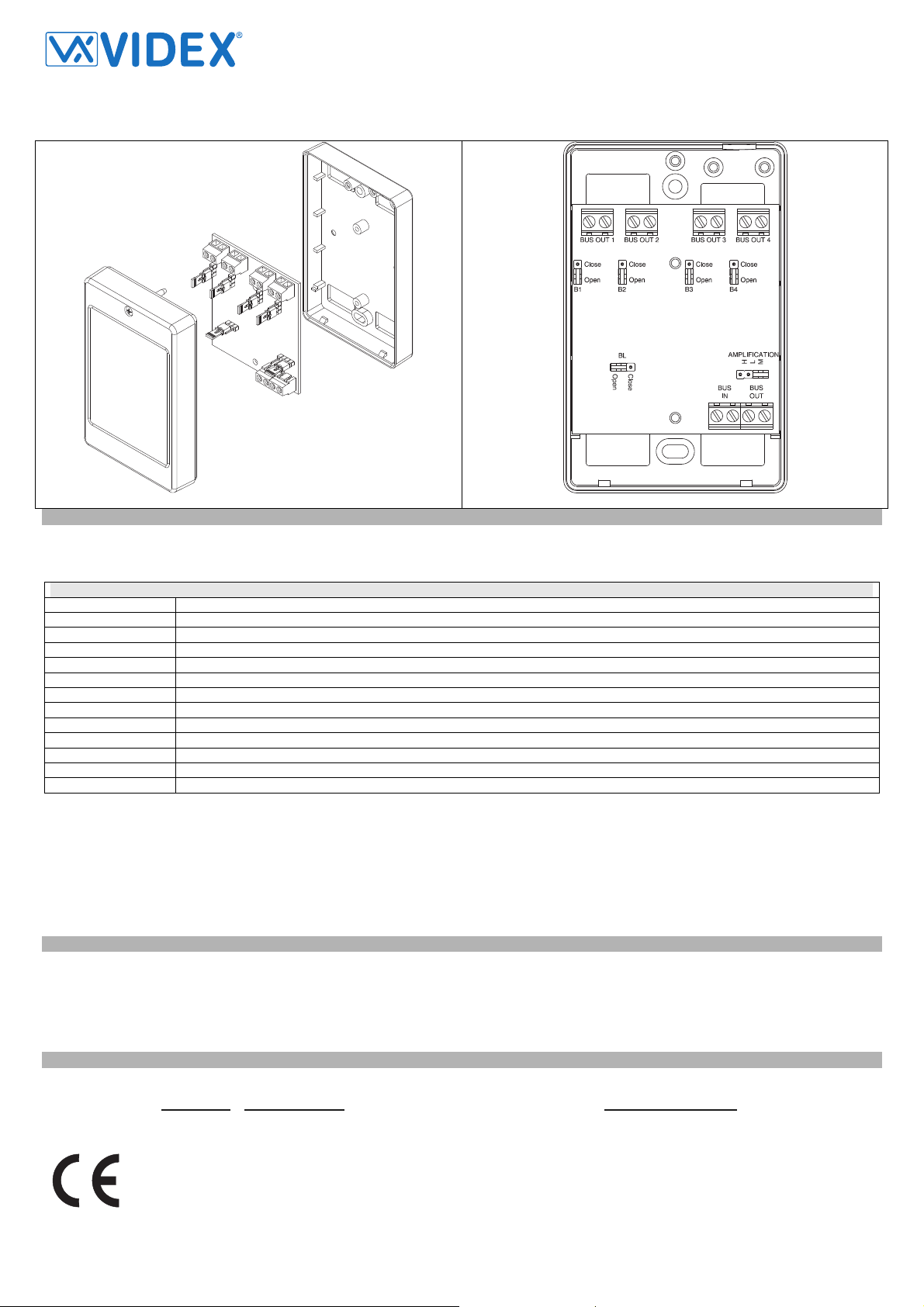

Four way distribution box

DESCRIPTION

The unit distributes the bus signal to 4 outputs linked to videophones or intercoms. The distributor has 3 amplification levels (low, medium and high), the amplification only effects the 4 outputs and not the loop through output. The Art.317 also includes a bus isolation feature which isolates the Art.317 from the rest of the bus if there is a short on one of its outputs. This prevents a short in any one apartment compromising the whole system.

CONNECTION TERMINALS AND JUMPERS Terminal/Jumper Description BUS IN BUS OUT BUS OUT 1 BUS OUT 2 BUS OUT 3 BUS OUT 4 B1 B2 B3 B4 BL AMPLIFICATION

Bus input terminals Bus output terminals (loop through to next distributor) Videophone/Intercom bus output 1 Videophone/Intercom bus output 2 Videophone/Intercom bus output 3 Videophone/Intercom bus output 4 Close/Open bus output jumper for BUS OUT 1. Move to close when BUS OUT 1 is not used. Close/Open bus output jumper for BUS OUT 2. Move to close when BUS OUT 2 is not used. Close/Open bus output jumper for BUS OUT 3. Move to close when BUS OUT 3 is not used. Close/Open bus output jumper for BUS OUT 4. Move to close when BUS OUT 4 is not used. Close/Open bus through output jumper. If the distributor is the last in line move to close otherwise leave open. Set the required level of amplification choosing between low, medium and high

SPECIFICATION

Housing/Mounting Push Buttons Programming Controls Power Supply Working Temperature

Plastic box 70x110x30mm / direct wall mounting N/A N/A Outputs amplification (3 levels) Supplied by the BUS line

-10 +50ºC

CUSTOMER SUPPORT INFORMATION

All Countries Customers UK Customers VIDEX Electronics S.p.A.

www.videx.it

The product is CE marked demonstrating its conformity and is for distribution within all member states of the EU with no restrictions. This product follows the provisions of the European Directives 89/336/EEC & 92/31/EEC (EMC), 73/23/EEC (LVD) and 93/68/EEC (CE marking).

– technical@videx.it

Tel.+39 0734 631669

Fax +39 0734 632475

Il prodotto è marchiato CE a dimostrazione della sua conformità e può essere distribuito liberamente all’interno dei paesi membri dell’unione europea EU. Questo prodotto è conforme alle direttive Europee 89/336/EEC & 92/31/EEC (EMC), 73/23/EEC (LVD) e 93/68/EEC (Marcatura CE).

VIDEX Security LTD

www.videx-security.com

Tech Line 0191 224 3174

Fax 0191 224 1559

PrtCode:ESVK_ENG_1.6.doc – Pag.20/44

25/11/2009 Rev.1.6

Two Wire Videokit ESVK Series

Art.318

Two way passive distribution box

BUS

OUT1

BUS

OUT2

Art.318

BL

BUS

IN

OUT

Fig.1 Fig.2

DESCRIPTION

The unit distributes the bus signal to 2 outputs linked to videophones or intercoms. It is a passive distributor, so there is no possibility to adjust the video amplification. The device is suitable for small systems with a maximum distance between door panel and the last monitor of 70 metres.

CONNECTION TERMINALS AND JUMPERS Terminal/Jumper Description BUS IN BUS OUT BUS OUT 1 BUS OUT 2 BL

Bus input terminals Bus output terminals (to next distrbutor) Videophone/Intercom bus output 1 Videophone/Intercom bus output 2 Close/Open bus output jumper. If the distributor is the last move to close otherwise leave open.

SPECIFICATION

Housing/Mounting Push Buttons Programming Controls Power Supply Working Temperature

Plastic box 50x60x20mm / direct wall mounting N/A N/A N/A Supplied by the BUS line

-10 +50ºC

CUSTOMER SUPPORT INFORMATION

All Countries Customers UK Customers VIDEX Electronics S.p.A.

www.videx.it

The product is CE marked demonstrating its conformity and is for distribution within all member states of the EU with no restrictions. This product follows the provisions of the European Directives 89/336/EEC & 92/31/EEC (EMC), 73/23/EEC (LVD) and 93/68/EEC (CE marking).

– technical@videx.it

Tel.+39 0734 631669

Fax +39 0734 632475

Il prodotto è marchiato CE a dimostrazione della sua conformità e può essere distribuito liberamente all’interno dei paesi membri dell’unione europea EU. Questo prodotto è conforme alle direttive Europee 89/336/EEC & 92/31/EEC (EMC), 73/23/EEC (LVD) e 93/68/EEC (Marcatura CE).

VIDEX Security LTD

www.videx-security.com

Tech Line 0191 224 3174

Fax 0191 224 1559

Close Open

PrtCode:ESVK_ENG_1.6.doc – Pag.21/44

25/11/2009 Rev.1.6

Two Wire Videokit ESVK Series

Art.2315

Fig.1 Fig.2

BUS booster and video signal amplifier

PS

AMPLIFICATION

BUS IN

BUS OUT

L

H

M

DESCRIPTION

The Art.2315 restores the voltage levels of the BUS line and amplifies the video signal (3 levels: H=high, M=medium and L=low). The BUS line must be interrupted and connected to the BUS-IN input, then the signal from the BUS-OUT will be amplified. Connect to the PS input a power supply Art.2321.

We suggest the use of the BUS booster in installations which are not using the VIDEX CM2 cable and it is necessary to reach large cables distances. (i.e. Using CAT5, distances greater than 70m).

CONNECTION TERMINALS AND JUMPERS Terminal/Jumper Description BUS IN BUS OUT PS AMPLIFICATION

BUS line input BUS line output Power supply input (use Art.2321) Video signal amplification, 3 levels = high, medium and low

SPECIFICATION

Housing/Mounting Push Buttons Programming Controls Power Supply Working Temperature

Plastic box 50x60x20mm / direct wall mounting N/A N/A Video signal amplification (3 levels) Requires local 2321 PSU.

-10 +50ºC

CUSTOMER SUPPORT INFORMATION

All Countries Customers UK Customers VIDEX Electronics S.p.A.

www.videx.it

– technical@videx.it

Tel.+39 0734 631669

The product is CE marked demonstrating its conformity and is for distribution within all member states of the EU with no restrictions. This product follows the provisions of the European Directives 89/336/EEC & 92/31/EEC (EMC), 73/23/EEC (LVD) and 93/68/EEC (CE marking).

Fax +39 0734 632475

Il prodotto è marchiato CE a dimostrazione della sua conformità e può essere distribuito liberamente all’interno dei paesi membri dell’unione europea EU. Questo prodotto è conforme alle direttive Europee 89/336/EEC & 92/31/EEC (EMC), 73/23/EEC (LVD) e 93/68/EEC (Marcatura CE).

VIDEX Security LTD

www.videx-security.com

Tech Line 0191 224 3174

Fax 0191 224 1559

PrtCode:ESVK_ENG_1.6.doc – Pag.22/44

25/11/2009 Rev.1.6

Two Wire Videokit ESVK Series

Art.2301N

Fig.1 Fig.2

Entrances exchanger for VX2300 digital systems

DESCRIPTION

This unit is required for systems with 2 or more entrances (4 maximum). The Art.2301N has 4 inputs (IN1..IN4) each with adjustable amplification (“L” = low, “M” = medium and “H” = high) to compensate for different door station distances. The AUX input enables a second 2301N device to be connected to expand the system up to 8 entrances. When connecting 2x2301N the polarity of the bus between the Art.2301N's must be observed ing 2x2301N's the BUS output of the first exchanger must be linked to the AUX input of the second exchanger and then onto the apartments. The polarities are not relevant if there is only one 2301N. The power supply inputs are PS1and PS2. The Art.2321/P with its jumper set to V2 should be used. For systems with up to 4 entrances and 50 videophones only one power supply is required connected to PS1. For larger systems connect a power supply to each of the two inputs (PS1 & PS2).

When 2x2301N, the 2x2321/P power supplies only connect to the 2301N at which the AUX connection is used. (The one supplying the apartments).

CONNECTION TERMINALS AND JUMPERS Terminal/Jumper Description BUSBUS+ AUXAUX+ IN1 IN2 IN3 IN4 PS1 PS2

BUS Output (observe the polarities only when linked to the AUX input of a second 2301N)

Auxiliary BUS input to carry out systems up to 8 entrances linking together two 2301N (observe the polarities when connecting the BUS output of the first exchanger to the AUX of the second BUS- with AUX- and BUS+ with AUX+)

Door station input 1 (the signal may be amplified by the relative jumper – L=Low, M=Medium and H=High) Door station input 2 (the signal may be amplified by the relative jumper – L=Low, M=Medium and H=High) Door station input 3 (the signal may be amplified by the relative jumper – L=Low, M=Medium and H=High) Door station input 4 (the signal may be amplified by the relative jumper – L=Low, M=Medium and H=High) Power Supply input 1 (use Art.2321/P set to V2 voltage level) Power Suppy input 2 (use Art.2321/P set to V2 voltage level)

. When connect-

SPECIFICATION

Housing/Mounting Push Buttons Programming Controls Power Supply Working Temperature

9 Module A Type DIN box / DIN Bar or directly to the wall N/A N/A Signal amplification on 3 levels for each bus input From specific power supply or from the bus

-10 +50ºC

CUSTOMER SUPPORT INFORMATION

All Countries Customers UK Customers VIDEX Electronics S.p.A.

www.videx.it

The product is CE marked demonstrating its conformity and is for distribution within all member states of the EU with no restrictions. This product follows the provisions of the European Directives 89/336/EEC & 92/31/EEC (EMC), 73/23/EEC (LVD) and 93/68/EEC (CE marking).

– technical@videx.it

Tel.+39 0734 631669

Fax +39 0734 632475

Il prodotto è marchiato CE a dimostrazione della sua conformità e può essere distribuito liberamente all’interno dei paesi membri dell’unione europea EU. Questo prodotto è conforme alle direttive Europee 89/336/EEC & 92/31/EEC (EMC), 73/23/EEC (LVD) e 93/68/EEC (Marcatura CE).

VIDEX Security LTD

www.videx-security.com

Tech Line 0191 224 3174

Fax 0191 224 1559

PrtCode:ESVK_ENG_1.6.doc – Pag.23/44

25/11/2009 Rev.1.6

Two Wire Videokit ESVK Series

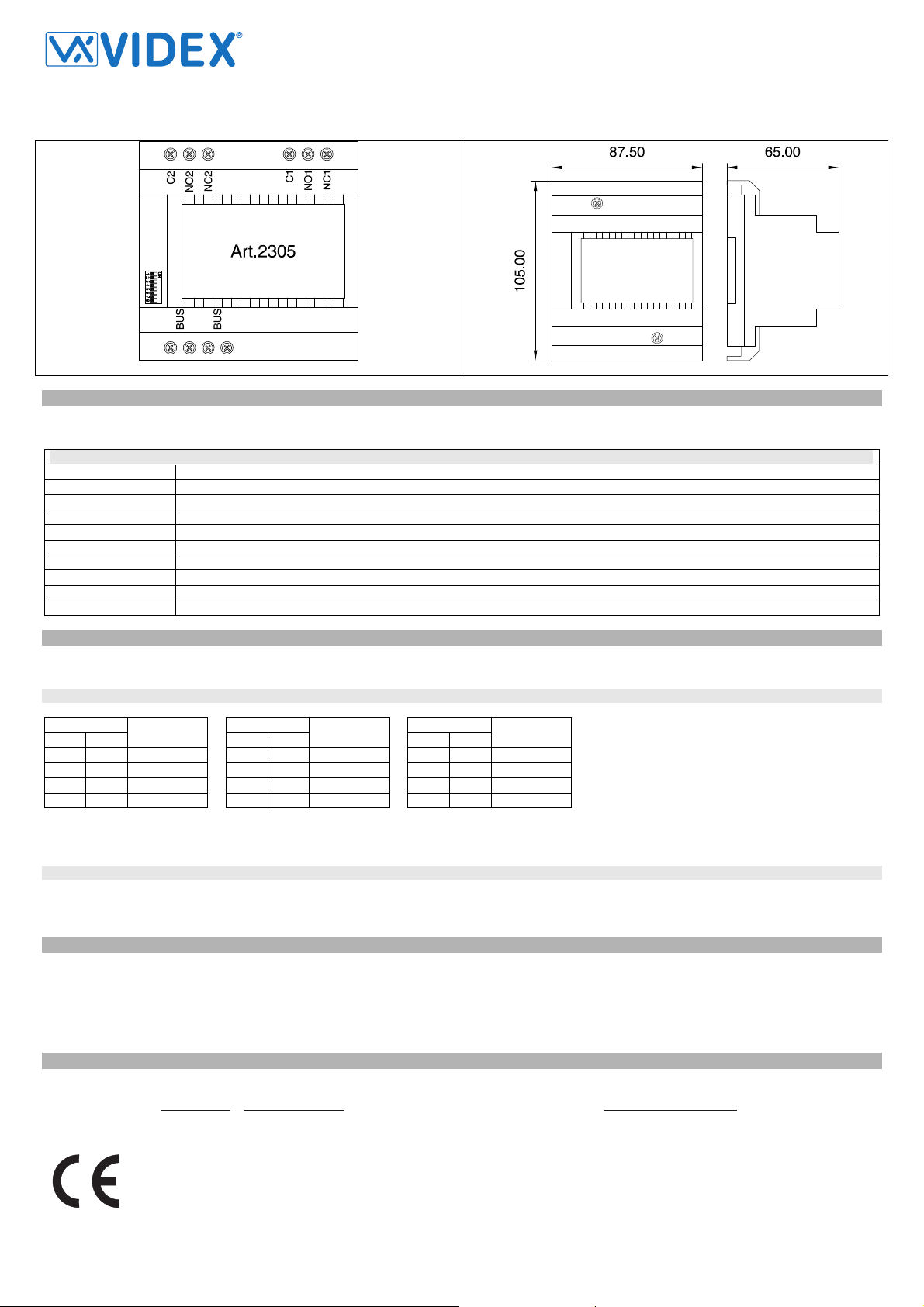

Art.2305

Fig.1 Fig.2

Extension Relay for VX2300 digital systems

DESCRIPTION

This unit can be connected directly to the bus and has two operating modes: general purpose extension relay and apartment extension relay for additional sounders. As general purpose extension relay, the built-in relays are controlled by the relevant button of the intercom or videophone while as extension sounder relay, relay one will operate on each ring and relay two will operate for the duration of the call.

CONNECTION TERMINALS & DIP-SWITCHES Terminal/Jumper Description BUS BUS C2 NO2 NC2 C1 NO1 NC1 DIP-SW

Input/Output bus connection terminals Input/Output bus connection terminals Relay 2 common contact Relay 2 normally open contact Relay 2 normally closed contact Relay 1 common contact Relay 1 normally open contact Relay 1 normally closed contact 8 way dip-switch to set the relay operating mode

PROGRAMMING

The operating mode is set by switch 8 as shown below. Note: After making changes to the dip-switch settings it is necessary to disconnect it from the bus (or power the system down) and then reconnect before the changes will take affect.

GENERAL PURPOSE EXTENSION RELAY – SWITCH 8 = OFF

When the unit is set as general purpose extension relay, switches 1 to 6 are used to set the relays addresses and activation times.

Switches Switches Switches

1 2

OFF OFF 1,2 OFF OFF 2 seconds OFF OFF 2 seconds ON OFF 3,4 ON OFF 4 seconds ON OFF 4 seconds OFF ON 5,6 OFF ON 16 seconds OFF ON 16 seconds

ON ON 7,8 ON ON 32 seconds ON ON 32 seconds Switch 7 is not used. For example if switch 1 is set to ON and switch 2 is set to OFF (addresses 3 & 4), pressing the “dot” button on the intercom (or “double dot” on the videophone) 3 times will operate relay one while pressing 4 times will operate relay two.

EXTENSION SOUNDER RELAY – SWITCH 8 = ON

When the unit is set in this mode, switches from 1 to 7 (8 is not used but set to on) are used to set the address of the unit: the address of the unit is set to the same address as the videophone or intercom it that apartment (refer to intercom/videophone SW1 settings). When the apartment is called, relay 1 will operate 4 times (once for each ring) while relay 2 will energise for the duration of the call (Approx. 60 seconds). The relays revert to the de-energised state if the call is cancelled or the user ends the call.

Relay 1,2

Addresses

3 4

Relay 1

Time

5 6

Relay 2

Time

SPECIFICATION

Housing/Mounting

Push Buttons

Programming

Controls

Power Supply

Working Temperature

Dry contacts relay

5 Module A Type DIN box / DIN bar or directly to the wall N/A Yes, carried out by the 8 way dip-switch N/A from the bus

-10 +50ºC Max 24Vac/dc 5A

CUSTOMER SUPPORT INFORMATION

All Countries Customers UK Customers VIDEX Electronics S.p.A.

www.videx.it

The product is CE marked demonstrating its conformity and is for distribution within all member states of the EU with no restrictions. This product follows the provisions of the European Directives 89/336/EEC & 92/31/EEC (EMC), 73/23/EEC (LVD) and 93/68/EEC (CE marking).

– technical@videx.it

Tel.+39 0734 631669

Fax +39 0734 632475

Il prodotto è marchiato CE a dimostrazione della sua conformità e può essere distribuito liberamente all’interno dei paesi membri dell’unione europea EU. Questo prodotto è conforme alle direttive Europee 89/336/EEC & 92/31/EEC (EMC), 73/23/EEC (LVD) e 93/68/EEC (Marcatura CE).

VIDEX Security LTD

www.videx-security.com

Tech Line 0191 224 3174

Fax 0191 224 1559

PrtCode:ESVK_ENG_1.6.doc – Pag.24/44

25/11/2009 Rev.1.6

Two Wire Videokit ESVK Series

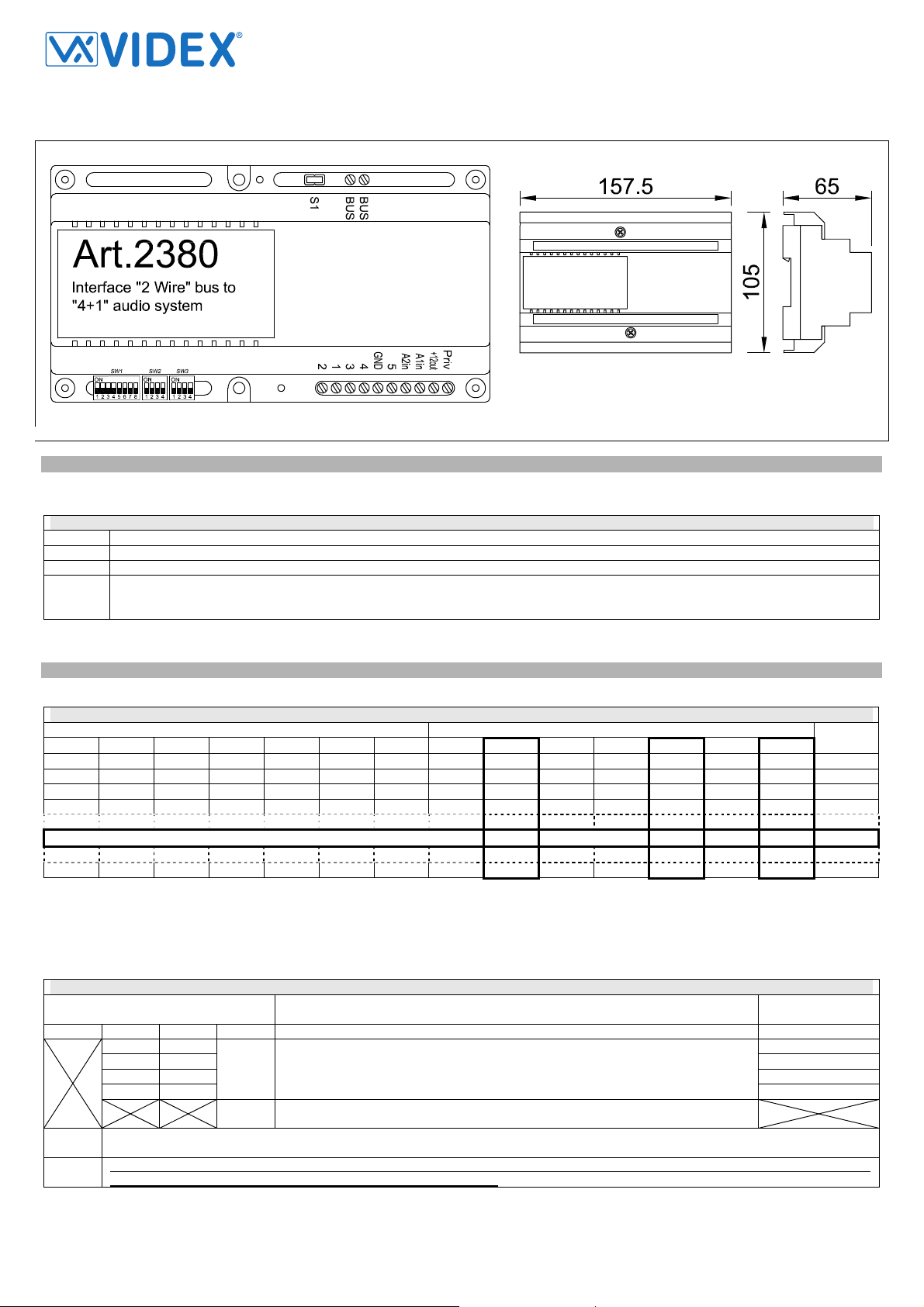

Art.2380

Fig.1 Fig.2

Interface “2 Wire” to “4+1” audio system

DESCRIPTION

Interface to connect 4+ 1 audio devices to the VX2300 “2 Wire” Bus (For example the Art380 telephone interface or the Art275 PABX interface) Using the items listed above (380, 275) it is possible to use a conventional household telephone as a standard intercom. The operating mode of the telephone depends on the connected device and on the connections made, refer to the instructions of the Art.380 or Art275.

DIP-SWITCHES AND JUMPERS (FIG.1)

SW1 Switches from 1 to 7 are used for unit address (from 1 to 127 binary coded). Last switch (8) is not used

SW2 Switches 1,2 and 3 are used to set privacy duration time. Switch 4 is used to set the “Priv” signal operating mode

SW3 Switches 1,2 and 3 are used for intercommunication settings. Switch 4 is not used

S1 Impedance terminator. The jumper must be normally closed. When more videophones/intercoms are connected in parallel (from a pe-

ripheral to another and so on until the last) the jumper must be open for all the intercoms except for the last following the order of connection.

PROGRAMMING

After each programming operation carried out through dip-switches or jumpers it is necessary to temporary disconnect the device from the BUS or from the power supply if locally powered.

SW1 – DEVICE ADDRESS

7 6 5 4 3 2 1 64 32 16 8 4 2 1

OFF OFF OFF OFF OFF OFF ON 0 0 0 0 0 0 1 1

OFF OFF OFF OFF OFF ON OFF 0 0 0 0 0 1 0 2

OFF OFF OFF OFF OFF ON ON 0 0 0 0 0 1 1 3

OFF OFF OFF OFF ON OFF OFF 0 0 0 0 1 0 0 4

OFF ON OFF OFF ON OFF ON 0 1 0 0 1 0 1 37

ON ON OFF OFF OFF ON ON 1 1 0 0 0 1 1 99

The table above shows how to set the address of the device. Considering that ON = 1 and OFF = 0, multiply each digit for the relevant decimal weight then sum the values obtained to get the address: E.g. as highlighted in the table OFF,ON,OFF,OFF,ON, OFF,ON in binary is equal to 0100101 then multiplying each digit for the relevant decimal weight you obtain the address that is 37.

Note

The maximum number of units allowed is 100 but the address of each unit can be a value between 1 and 127.

SW2 – PRIVACY DURATION TIME

Switches Status

4 3 2 1

OFF OFF 15 minutes OFF ON 1 hour ON OFF 4 hours ON ON

ON

The “Priv” terminal works as an open collector output to signal the status of the privacy service. When the service is enabled the “Priv” output shorts to ground.

This mode must be set when the Art.2380 is connected in parallel (with the same address) to one or more intercoms/videophones. Make a link between terminals “Priv” and “2”.

OFF

ON

Switches Status Binary Code – Decimal Value

Privacy Mode

(switch 1)

The privacy duration time is set by switches 2 and 3. After the privacy service is en-

OFF

abled, it is disable when the set time expires or the relevant button is pressed again.

No privacy time expiration: the privacy service is enabled or disabled only by the relevant button.

Decimal

Code

Privacy Duration

(switches 2,3)

8 hours

PrtCode:ESVK_ENG_1.6.doc – Pag.25/44

25/11/2009 Rev.1.6

SW3 – INTERCOMMUNICATION SETTINGS

Switches Status

4 3 2 1

OFF OFF 1

OFF ON 2

ON OFF 3

OFF

ON ON

Intercommunication allowed between videophones (same unit address) inside the same flat. To call an extension pick up the handset then press the “door open” button as many times as the extension value is (Eg. extension 2 two times, 3 three times etc). If there are more videophones/intercoms connected in parallel, one at least must be set with switches 2 and 3 to OFF

Intercommunication allowed between videophones (different unit address) inside dif-

OFF OFF ON

ferent flats. To call an extension pick up the handset then press the “door open” button as many times as the address value is (Eg. extension 10 ten times, 12 twelve times etc)

SIGNALS ON CONNECTION TERMINALS

Signal Description

BUS

2

1

3

4

GND

5

A2in

A1in

+12Vout

BUS connection terminals

Speech line in Speech line out Speech ground Call output Ground Active low input “door open” command Auxiliary active low input 2. When active (0V) switches the status of privacy service. Auxiliary active low input 1. When active (0V) the relay with address 1 of the Art.2305 if installed in the system will activate. +12Vdc Output With SW2.4 = OFF, it works as an open collector output that signals the privacy service status. Internal link to ground when the privacy service is active. With SW2.5 = ON, required setting when the Art.2380 is in a parallel (same address) connection with other devices it must be linked to terminal two.

Priv

SPECIFICATION

Housing/Mounting

Push Buttons

Programming

Controls

Power Supply

Working Temperature

9 Module A Type DIN box N/A Yes, carried out through dip-switches N/A Supplied from the BUS

-10 +50ºC

CUSTOMER SUPPORT INFORMATION

All Countries Customers UK Customers VIDEX Electronics S.p.A.

www.videx.it

The product is CE marked demonstrating its conformity and is for distribution within all member states of the EU with no restrictions. This product follows the provisions of the European Directives 89/336/EEC & 92/31/EEC (EMC), 73/23/EEC (LVD) and 93/68/EEC (CE marking).

– technical@videx.it

Tel.+39 0734 631669

Fax +39 0734 632475

Two Wire Videokit ESVK Series

Intercommunication Mode

(switch 1)

4

VIDEX Security LTD

www.videx-security.com

Tech Line 0191 224 3174

Fax 0191 224 1559

Il prodotto è marchiato CE a dimostrazione della sua conformità e può essere distribuito liberamente all’interno dei paesi membri dell’unione europea EU. Questo prodotto è conforme alle direttive Europee 89/336/EEC & 92/31/EEC (EMC), 73/23/EEC (LVD) e 93/68/EEC (Marcatura CE).

Extension

(switches 2,3)

PrtCode:ESVK_ENG_1.6.doc – Pag.26/44

25/11/2009 Rev.1.6

Two Wire Videokit ESVK Series

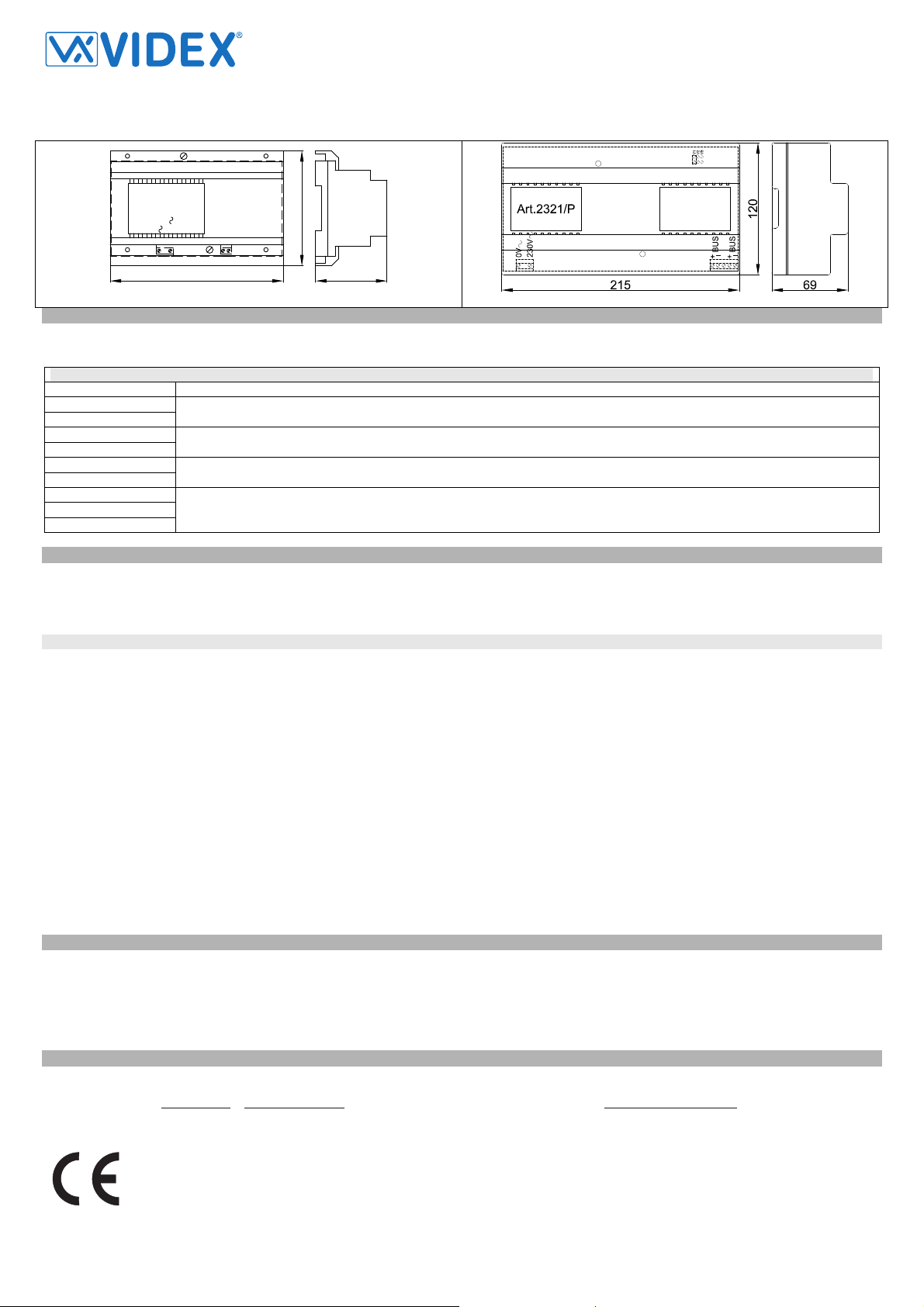

Art.2321-2321/P

Art.2321

BUS

+

230V

0V

_

157,5

Fig.1 Fig.2

105

65

Power supplies for VX2300

DESCRIPTION

These two units are specific power supplies for VX2300 digital system. The 2321 can be used for systems with 1 entrance up to 20 users while the 2321/P is for systems with more than 1 entrance and up to 100 users.

CONNECTION TERMINALS AND JUMPERS

Terminal/Jumper Description

0

~230V

BUS +

BUS -

BUS +

BUS -

V1

V2

V3

Mains input

BUS terminals

BUS terminals (only Art.2321/P)

Jumper to adjust the output voltage (only Art.2321/P). V1=Low, V2=Medium, V3=Maximum. Set to maximum (V3) when the unit is used together with 2301N, otherwise leave in a low or medium position

CONNECTION TO MAINS AND POWER SUPPLY MOUNTING INSTRACTIONS

The system must be installed according to national rules in force, in particular we recommend to:

- Connect the system to the mains through an all-pole circuit breaker which shall have contact separation of at least 3mm in each pole and shall discon-

nect all poles simultaneously;

- The all-pole circuit breaker shall be placed for easy access and the switch shall remain readily operable.

POWER SUPPLY INSTALLATION

- Remove the terminal side covers by unscrewing the retaining screws;

- Fix the power supply to a DIN bar or directly to the wall using two expansion type screws;

- Switch off the mains using the circuit breaker mentioned above and then make the connections as shown on the installation diagrams;

- Check the connections and secure the wires into the terminals;

- Replace the terminal covers and fix them using the relevant screws;

- When all connections are made, restore the mains.

SPECIFICATION

Housing/Mounting

Push Buttons

Programming

Controls

Power Supply

Working Temperature

9 Module A Type DIN box (Art.2321) – 15 Module A Type DIN box (Art.2321/P) / DIN Bar or directly to the wall N/A N/A Voltage amplification (3 levels) 230Vac

-10 +50ºC

CUSTOMER SUPPORT INFORMATION

All Countries Customers UK Customers VIDEX Electronics S.p.A.

www.videx.it

The product is CE marked demonstrating its conformity and is for distribution within all member states of the EU with no restrictions. This product follows the provisions of the European Directives 89/336/EEC & 92/31/EEC (EMC), 73/23/EEC (LVD) and 93/68/EEC (CE marking).

– technical@videx.it

Tel.+39 0734 631669

Fax +39 0734 632475

Il prodotto è marchiato CE a dimostrazione della sua conformità e può essere distribuito liberamente all’interno dei paesi membri dell’unione europea EU. Questo prodotto è conforme alle direttive Europee 89/336/EEC & 92/31/EEC (EMC), 73/23/EEC (LVD) e 93/68/EEC (Marcatura CE).

VIDEX Security LTD

www.videx-security.com

Tech Line 0191 224 3174

Fax 0191 224 1559

PrtCode:ESVK_ENG_1.6.doc – Pag.27/44

25/11/2009 Rev.1.6

Two Wire Videokit ESVK Series

Art.2322

Power supply converter from BUS line to 12 Vdc

BUS

Art.2322

+

12V

-

Fig.1 Fig.2

DESCRIPTION

When this unit is connected to the BUS line it generates a +12Vdc – 100mA power source. This unit can be used to supply peripherals such as the Art.4800 without the need for an additional power supply. Please note: The peripherals must not require more than 100mA.

CONNECTION TERMINALS

Terminal/Jumper Description

BUS

12V+

12V- (0V)

BUS line inputs

12Vdc – 100mA output

SPECIFICATION

Housing/Mounting

Push Buttons

Programming

Controls

Power Supply

Working Temperature

Plastic box 50x60x20mm / direct wall mounting N/A N/A N/A Supplied by the BUS line

-10 +50ºC

CUSTOMER SUPPORT INFORMATION

All Countries Customers UK Customers VIDEX Electronics S.p.A.

www.videx.it

The product is CE marked demonstrating its conformity and is for distribution within all member states of the EU with no restrictions. This product follows the provisions of the European Directives 89/336/EEC & 92/31/EEC (EMC), 73/23/EEC (LVD) and 93/68/EEC (CE marking).

– technical@videx.it

Tel.+39 0734 631669

Fax +39 0734 632475

Il prodotto è marchiato CE a dimostrazione della sua conformità e può essere distribuito liberamente all’interno dei paesi membri dell’unione europea EU. Questo prodotto è conforme alle direttive Europee 89/336/EEC & 92/31/EEC (EMC), 73/23/EEC (LVD) e 93/68/EEC (Marcatura CE).

VIDEX Security LTD

www.videx-security.com

Tech Line 0191 224 3174

Fax 0191 224 1559

PrtCode:ESVK_ENG_1.6.doc – Pag.28/44

25/11/2009 Rev.1.6

Two Wire Videokit ESVK Series

General Directions for Installation

CABLE TYPES AND CROSS SECTIONAL AREAS

The VX2300 digital system can use several types of cables but depending on their specification will allow different distances up 400 meters maximum. We do not recommend the use of shielded cables because of the high eddy capacitance. It is also not advised to double up on cables as this will also increase the capacitance. The following table specifies values of resistance, capacitance and maximum distances achievable for several types of cables (capacitance and resistance values are referring to 100 metres of cable).

* Between the power supply and the furthest door station or between the power supply and the furthest videophone. ** In case of projects where it is necessary to reuse existing cables that could be cabled together with mains or other power cables, check in advance

In case of use of cables not in conformity with above specification it is possible to experience deterioration of digital and video signals. use twisted cables with maximum resistance of 10 Ohm/100m for each wire (between the farthest door station and the farthest videophone) and maximum capacitance of 40nF (this value must be computed considering all the cables used in the system; the capacitance/metres value is normally specified on the cable package or directly on the cable).

Cable Type Section (mm

VIDEX CM2 0.75 3.2 8 200m

CAT5 UTP/CW1308 0.22 8 4.9 70m

Std Telephone Cable 0.28 6.5 5.5 100m

**Two wire 0.8 / 1 2 6.5 70m

the practicability of the system: if the system cables are cabled together with mains or other power cables, the system is directly exposed to electromagnetic interference that may cause noises on audio/video and lost of functionality over digital communications.

BUS DEVICES SETUP AND VIDEO DISTRIBUTION

− Any device on the system (door station, intercom, videophone, relay etc.) for which the programming is carried out through one or more dip-switches,

to store the new setup, must be disconnected from the power supply for 1 minute at least.

− When you have more than one device in the same apartment, all the devices must be connected to the same video distributor (Art.317): this means

that you cannot use two video distributors Art.318 for one apartment where you have 4 videophones/intercoms.

HOW TO CONNECT LOCAL POWER SUPPLY

The drawing below shows how to connect a local power supply when required (i.e. when you have 4 videophones with the same address that must be switched on at the same time). In both cases switch 4 of SW3 must be set to the ON position.

NOTE ! OBSERVE CONNECTION POLARITIES AS SHOWN IN THE DIAGRAM BELOW.

2

) Resistance (Ohm) Capacity (nF) *Maximum Distance (meters)

We suggest to

PrtCode:ESVK_ENG_1.6.doc – Pag.29/44

25/11/2009 Rev.1.6

ESVK-1 ONE WAY TWO WIRE VIDEO DOOR ENTRY KIT

PrtCode:ESVK_ENG_1.6.doc – Pag.30/44

25/11/2009 Rev.1.6

CESVK-1/ECLIPSE ONE WAY TWO WIRE VIDEO DOOR ENTRY KIT

PrtCode:ESVK_ENG_1.6.doc – Pag.31/44

25/11/2009 Rev.1.6

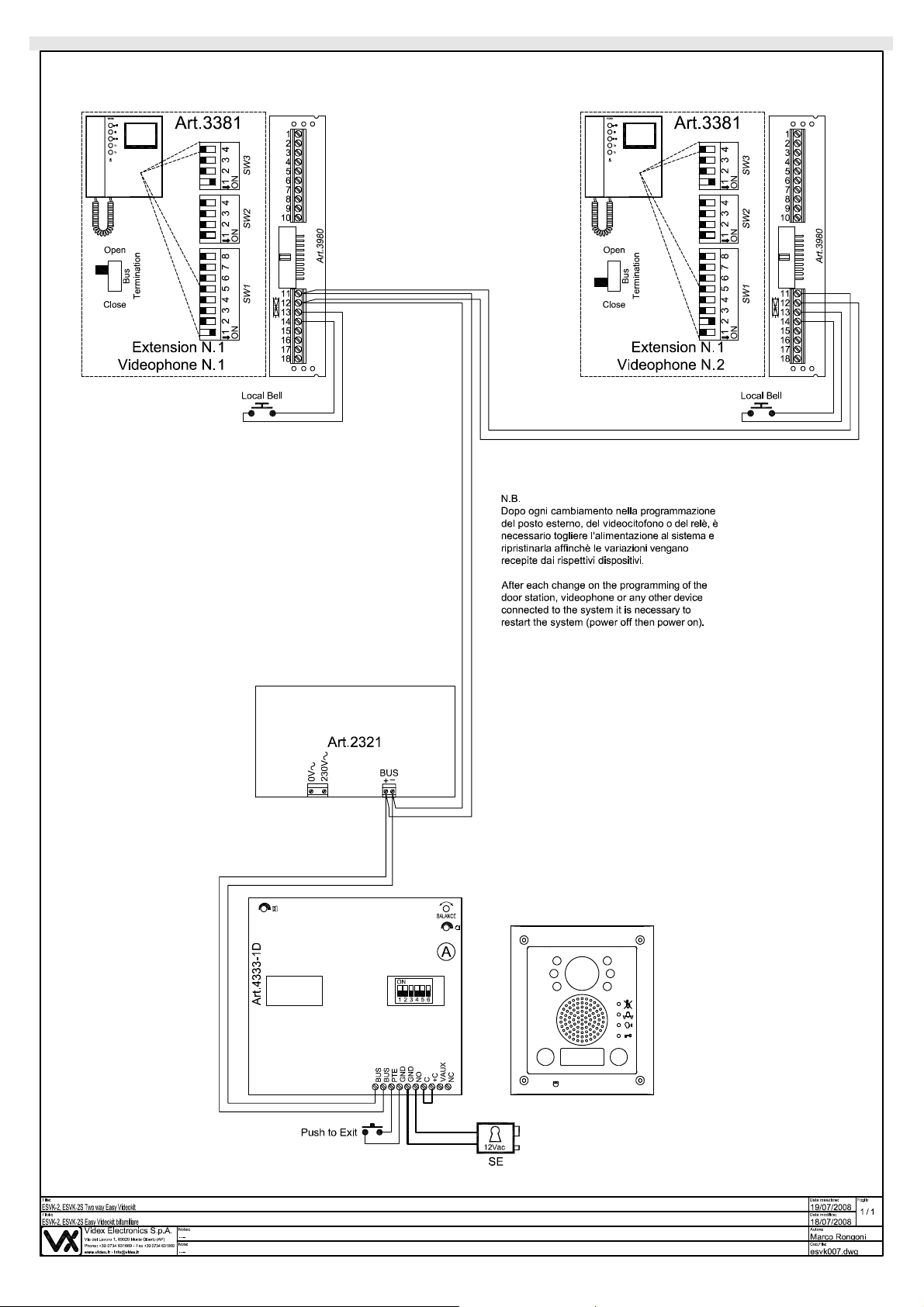

ESVK-2 TWO WAY TWO WIRE VIDEO DOOR ENTRY KIT

PrtCode:ESVK_ENG_1.6.doc – Pag.32/44

25/11/2009 Rev.1.6

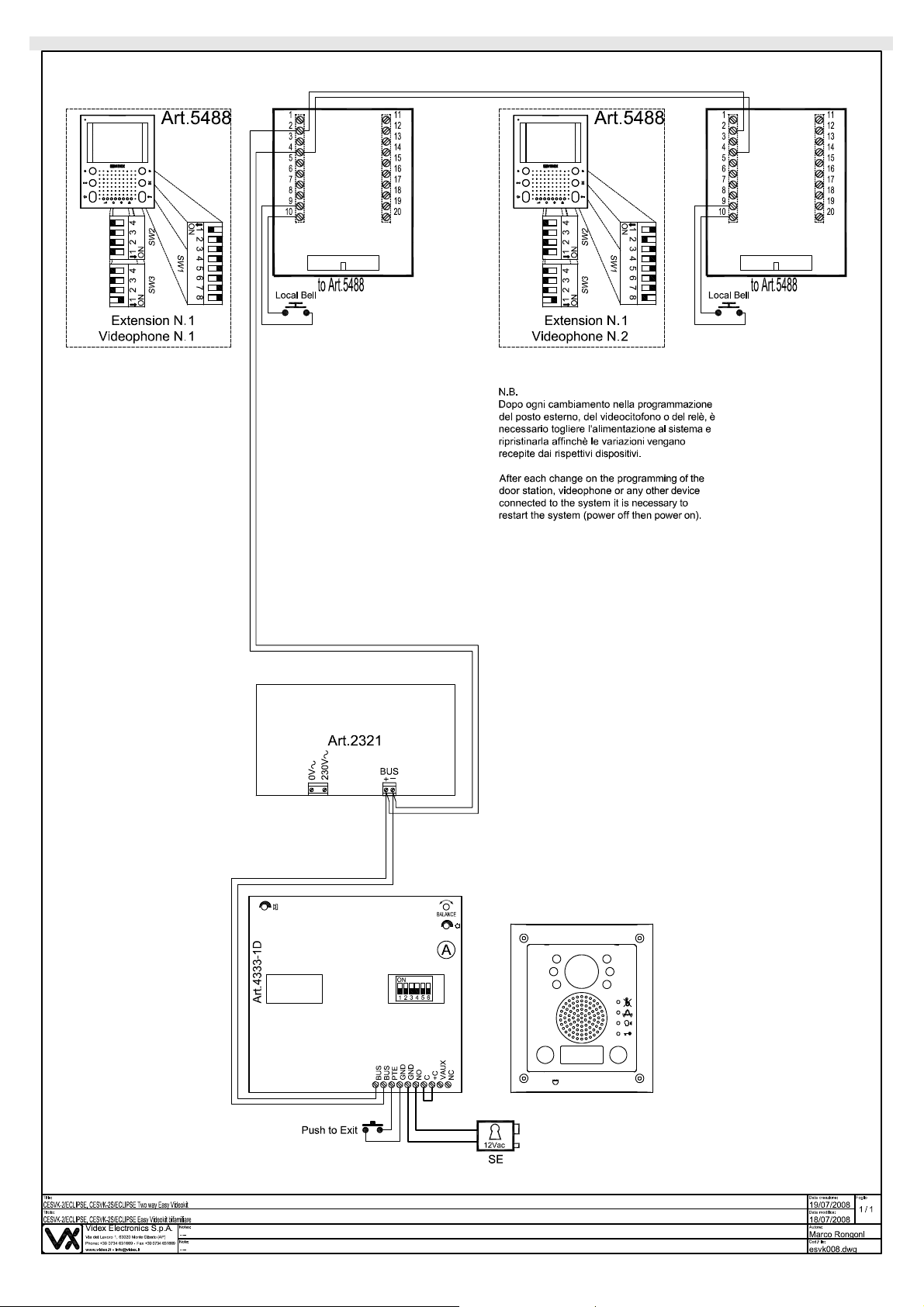

CESVK-2/ECLIPSE TWO WAY TWO WIRE VIDEO DOOR ENTRY KIT

PrtCode:ESVK_ENG_1.6.doc – Pag.33/44

25/11/2009 Rev.1.6

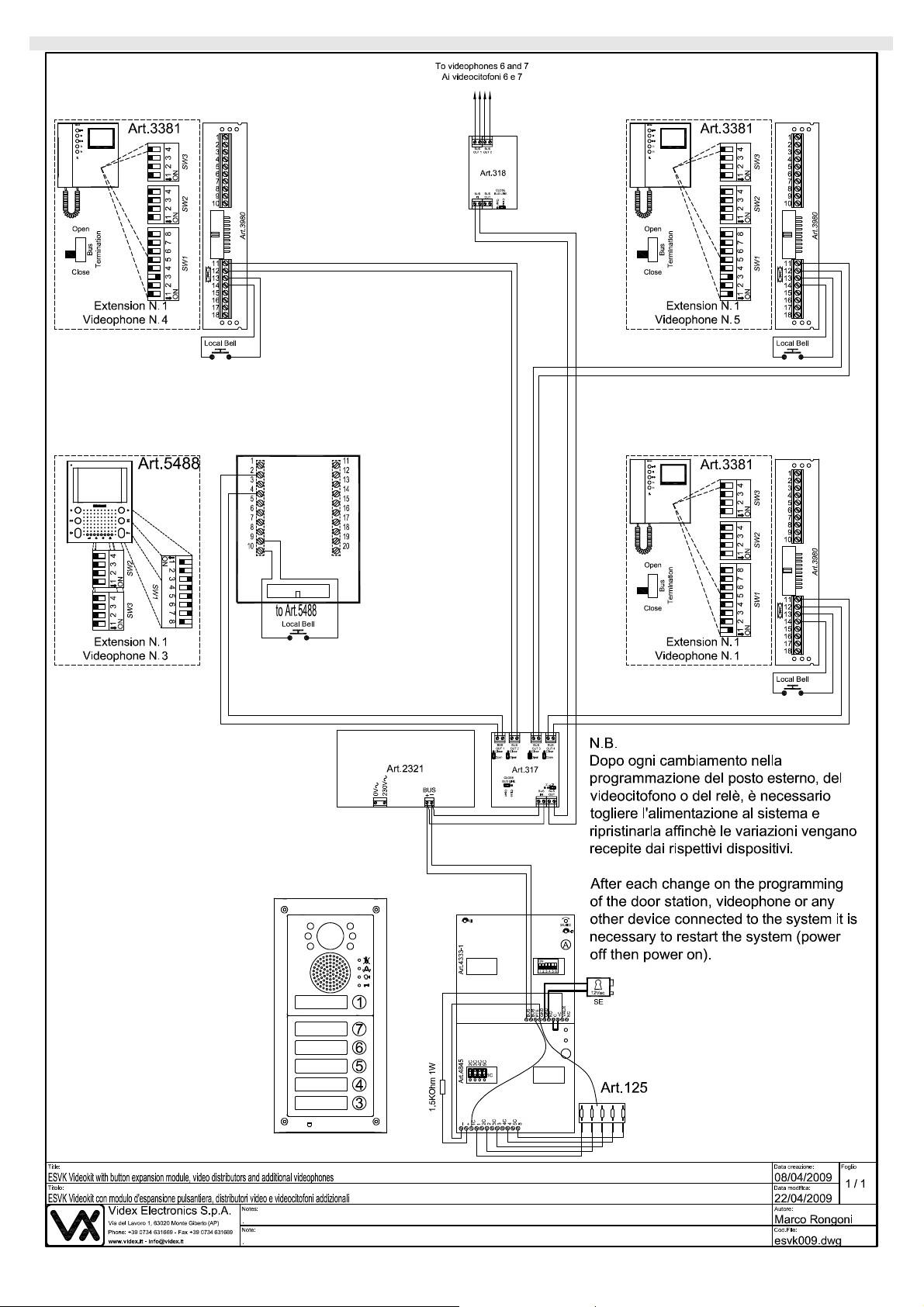

CESVK/ESVK-1 WITH VIDEO DISTRIBUTORS ART.318,317 BUTTON EXPANSION MODULE ART.125 AND ADDITIONAL VIDEOPHONES

PrtCode:ESVK_ENG_1.6.doc – Pag.34/44

25/11/2009 Rev.1.6

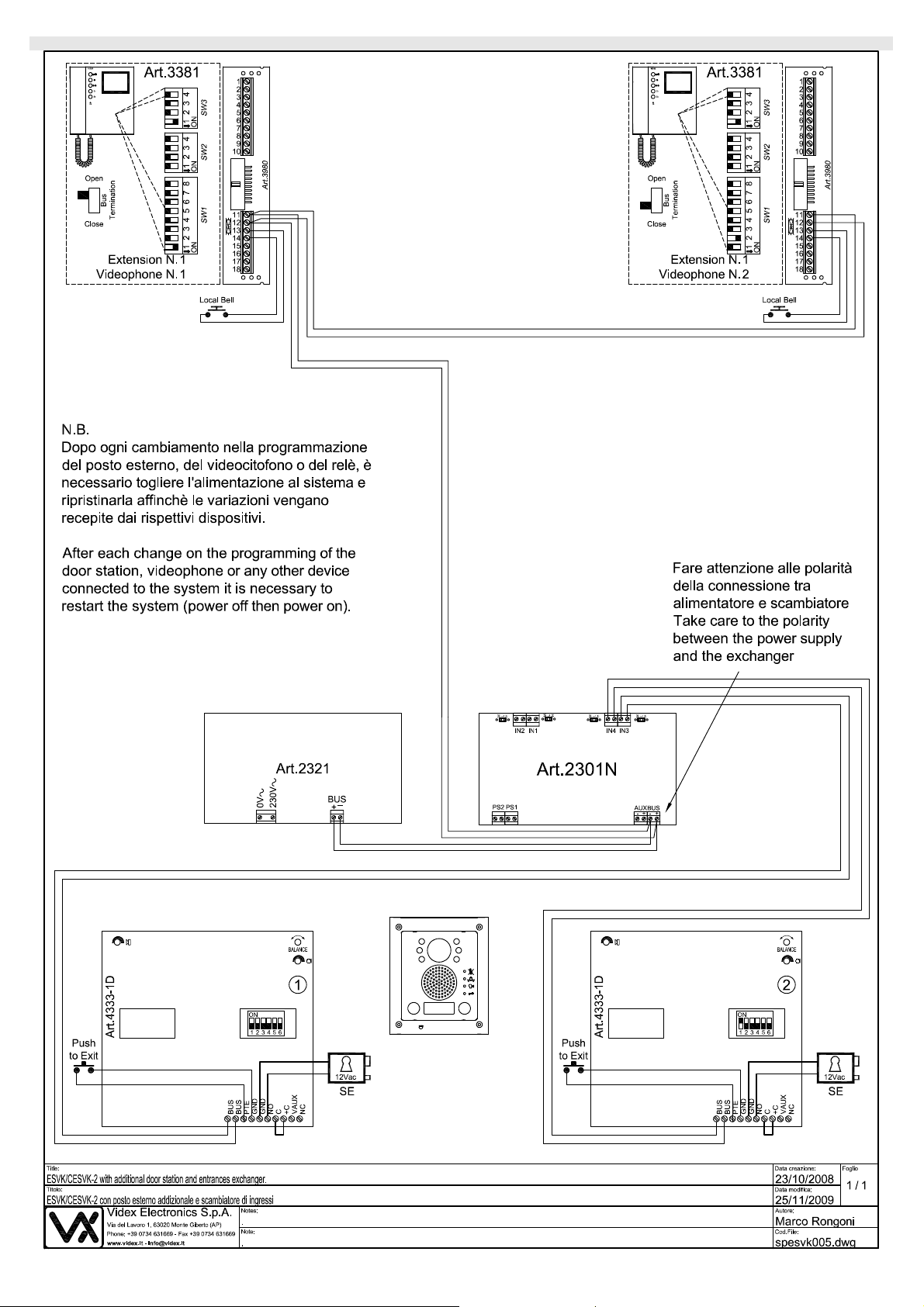

CESVK/ESVK-2 WITH ADDITIONAL DOOR STATION AND ENTRANCES EXCHANGER (TWO ENTRANCES SYSTEM)

PrtCode:ESVK_ENG_1.6.doc – Pag.35/44

25/11/2009 Rev.1.6

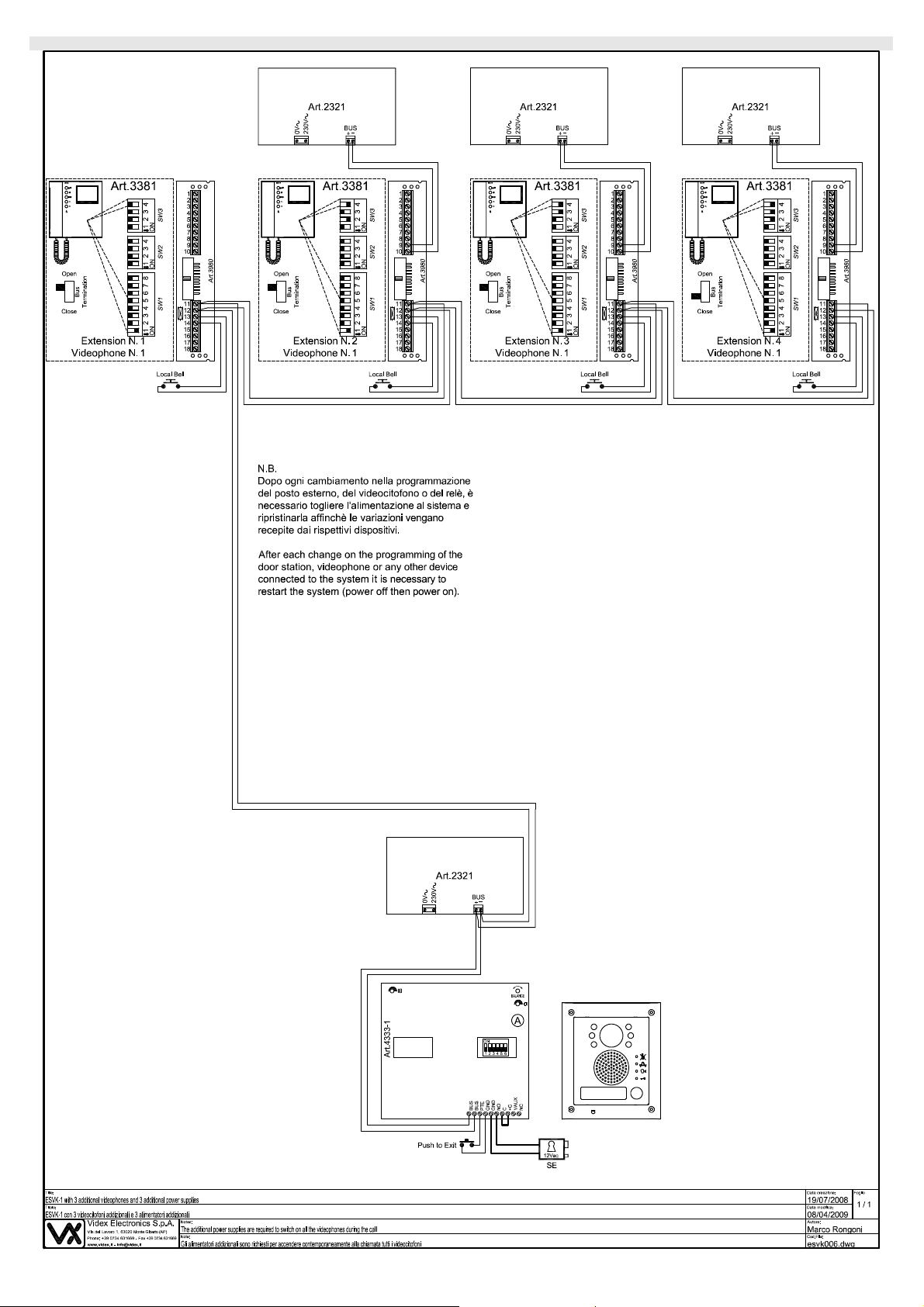

ESVK-1 WITH 3 ADDITIONAL VIDEOPHONES AND RELATIVE POWER SUPPLIES (ALL MONITORS SWITCHED ON DURING THE CALL)

PrtCode:ESVK_ENG_1.6.doc – Pag.36/44

25/11/2009 Rev.1.6

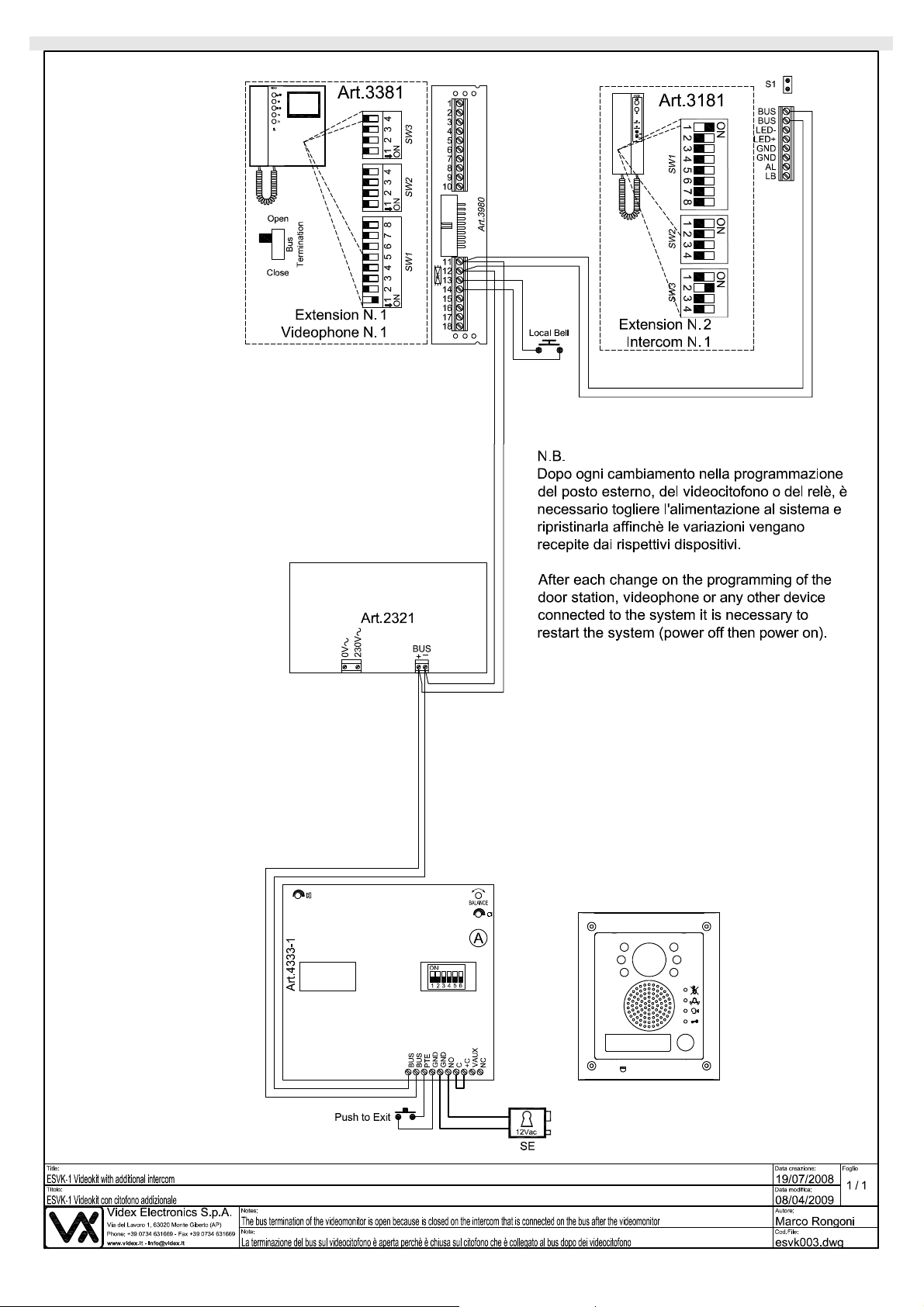

CESVK/ESVK-1 WITH ADDITIONAL INTERCOM

PrtCode:ESVK_ENG_1.6.doc – Pag.37/44

25/11/2009 Rev.1.6

CESVK-1/1S/ECLIPSE WITH ADDITIONAL INTERCOM

ESVK-1/1S WITH ADDITIONAL VIDEOPHONE

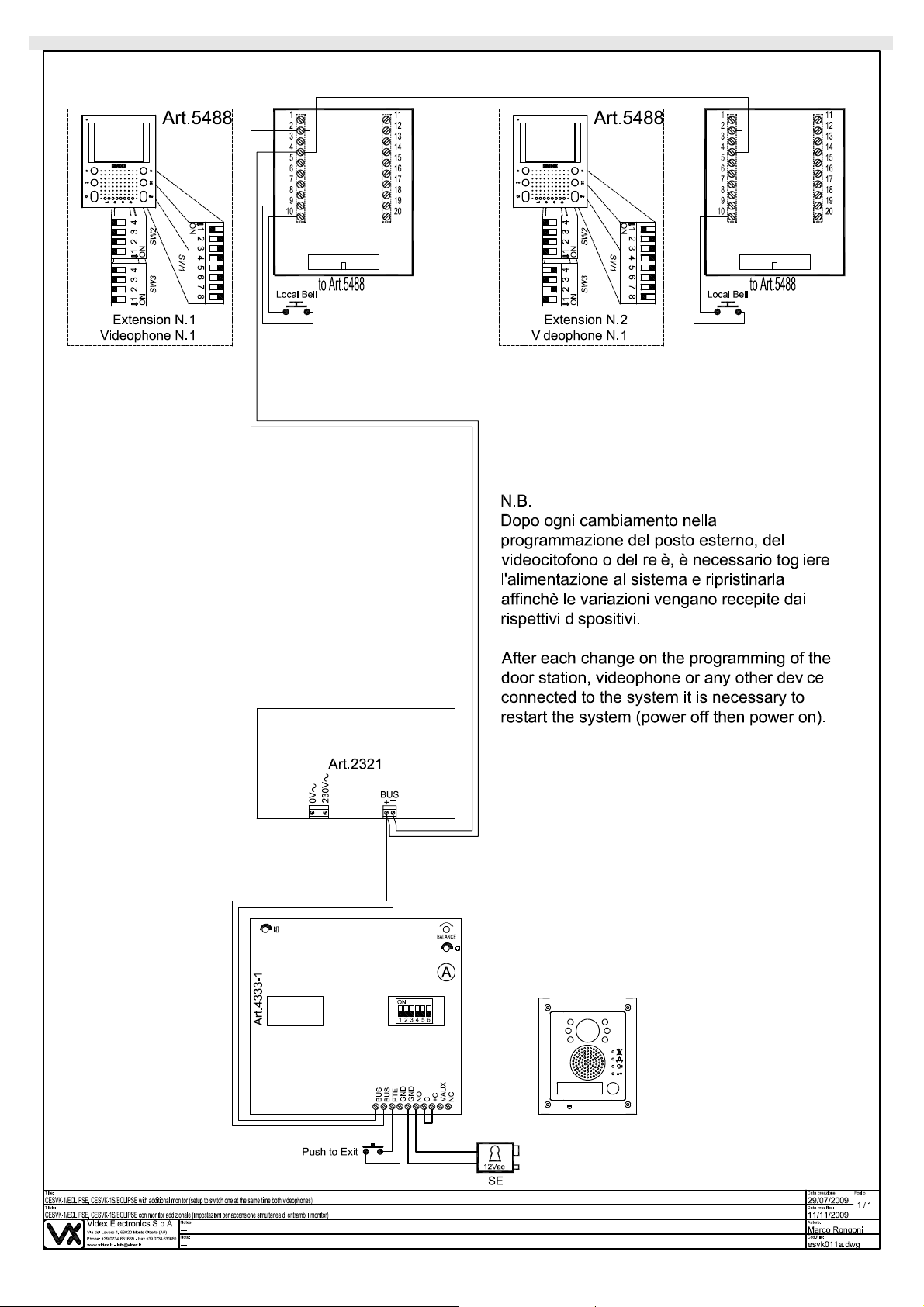

CESVK-1/1S/ECLIPSE WITH ADDITIONAL VIDEOMONITOR

ESVK-1/1S PLUS CODELOCK ART.4800 AND ART.2322 TO PROVIDE POWER SUPPLY TO THE CODELOCK

CESVK-1/1S/ECLIPSE PLUS CODELOCK ART.4800 AND ART.2322 TO PROVIDE POWER SUPPLY TO THE CODELOCK

Factory - Office VIDEX ELECTRONICS S.p.A. Via del lavoro,1 63020 MONTEGIBERTO (AP) - ITALY Phone: (+39) 0734 - 631669 Fax: (+39) 0734 - 632475

www.videx.it

e-mail: info@videx.it

Main UK office: VIDEX SECURITY LTD 1 Osprey Trinity Park Trinity Way London E4 8TD Phone: (+44) 0870 3001240 Fax: (+44) 0208 - 5235825

www.videx-security.com

e-mail: info@videx-security.com

Northern UK office: VIDEX SECURITY LTD Unit 4-7 Chillingham Industrial Estate Chapman Street NEWCASTLE UPON TYNE NE6 2XX Phone: (+44) 0870 3001240 Tech Line: (+44) 0191 224 3174 Fax: (+44) 0191 224 1559

Greece office: VIDEX HELLAS Electronics 48 Filolaou Str. 11633 Athens Phone: +30 210 - 7521028/7521998 Fax: +30 210 - 7560712

www.videx.gr

e-mail: videx@videx.gr

Danish office: VIDEX DANMARK Hammershusgade 15 DK - 2100 Copenhagen Phone: +45 39 29 80 00 Fax: +45 39 27 77 75

www.videx.dk

Videx Security ESVK User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
