Operating Instructions
Radar sensor for continuous level
measurement of bulk solids
VEGAPULS SR 68
HART and accumulator pack
Document ID: 40934
Quick start
Mounting
Electrical connection
Quick start
The quick start procedure enables a quick setup with many applica-
tions. You can nd further information in the respective chapters of the
operating instructions manual.
1. Distance from the vessel wall > 200 mm, the antenna should
protrude > 10 mm into the vessel
200 mm
(7.87
")
Fig. 1: Distance of the antenna to the vessel wall/vessel ceiling
2. Note min. socket diameter depending on the socket length
3. Note the instructions for sealing
For further information see chapter "Mounting".
1. Insert the battery charger into the socket of the power supply
compartment and load the integrated accumulator before setting
up the instrument.
2. Switch on the instrument by means of the button outside on the
housing.
ca. 10 mm
Set parameters
2
1
Fig. 2: Switch on/o button outside on the housing
1 On/O button
For further information see chapter "Connecting to power supply".
1. Go via the display and adjustment module to the menu "Setup".
2. Select in the menu item "Medium" the medium of your application, for example "Powder/Dust".
VEGAPULS SR 68 • HART and accumulator pack
40934-EN-130624
Quick start
3. Select in the menu item "Application" the vessel, the application
and the vessel form, for example, silo.
4. Carry out the adjustment in the menu items "Min. adjustment" and
"Max. adjustment".
Parameterization example
F
ther steps
ur
The radar sensor as a distance measuring instrument measures the
distance from the sensor to the product surface. For indication of the
real level, an allocation of the measured distance to the percentage
height must be carried out.
")
1 m
(39.37
100%
2
")
35 m
(1378
0%
1
Fig. 3: Parameterization example
1 Min. level ≙ max. meas. distance
2 Max. level ≙ min. meas. distance
For this adjustment, the distance is entered for min. and max. level.
If these values are not known, an adjustment with distances, for
example, of 10 % and 90 % is also possible. Starting point for these
distance specications is always the seal surface of the thread or
ange.
1. In the menu "Additional settings", menu item "Damping" you can
adjust the requested damping of the output signal.
2. Select the output characteristics in the menu item "Current out-
put".
The quick start is then nished. For further information see chapter
"Parameter adjustment".
40934-EN-130624
VEGAPULS SR 68 • HART and accumulator pack
3
Contents
Contents
1 About this document
1.1 Function ........................................................................................................................... 6
1.2 Target group ..................................................................................................................... 6
1.3 Symbolism used ............................................................................................................... 6
2 For your safety
2.1 Authorised personnel ....................................................................................................... 7
2.2 Appropriate use ................................................................................................................ 7
2.3 Warning about incorrect use ............................................................................................. 7
2.4 General safety instructions ............................................................................................... 7
2.5 CE conformity ................................................................................................................... 8
2.6 NAMUR recommendations .............................................................................................. 8
2.7 Radio license for Europe .................................................................................................. 8
2.8 Radio license for USA/Canada ......................................................................................... 8
2.9 Environmental instructions ............................................................................................... 8
3 Product description
3.1 Conguration .................................................................................................................. 10
3.2 Principle of operation...................................................................................................... 11
3.3 Packaging, transport and storage ................................................................................... 11
3.4 Accessories and replacement parts ............................................................................... 12
4 Mounting
4.1 General instructions ....................................................................................................... 14
4.2 Mounting preparations - Horn antenna ........................................................................... 14
4.3 Mounting preparations - Parabolic antenna .................................................................... 15
4.4 Mounting instructions ..................................................................................................... 16
5 Connecting to power supply
5.1 Connection of the battery charger .................................................................................. 30
5.2 Wiring plan ..................................................................................................................... 30
5.3 Switch-on phase............................................................................................................. 31
6 Set up with the display and adjustment module
6.1 Insert display and adjustment module ............................................................................ 33
6.2 Adjustment system ......................................................................................................... 34
6.3 Parameter adjustment .................................................................................................... 34
6.4 Saving the parameter adjustment data ........................................................................... 47
7 Setup with PACTware
7.1 Connect the PC .............................................................................................................. 49
7.2 Parameter adjustment .................................................................................................... 50
7.3 Saving the parameter adjustment data ........................................................................... 51
8 Set up with other systems
8.1 DD adjustment programs ............................................................................................... 52
8.2 Field Communicator 375, 475 ........................................................................................ 52
9 Diagnosis, Asset Management and service
9.1 Maintenance .................................................................................................................. 53
9.2 Measured value and event memory ............................................................................... 53
9.3 Asset Management function ........................................................................................... 54
9.4 Rectify faults ................................................................................................................... 57
40934-EN-130624
4
VEGAPULS SR 68 • HART and accumulator pack
9.5 Exchanging the electronics module ................................................................................ 60
9.6 Software update ............................................................................................................. 60
9.7 How to proceed in case of repair .................................................................................... 61
10 Dismounting
10.1 Dismounting steps.......................................................................................................... 62
10.2 Disposal ......................................................................................................................... 62
11 Supplement
11.1 Technical data ................................................................................................................ 63
11.2 Dimensions .................................................................................................................... 69
Contents
Safety instructions for Ex areas
Please note the Ex-specic safety information for installation and operation in Ex areas. These safety instructions are part of the operating
instructions manual and come with the Ex-approved instruments.
40934-EN-130624
Editing status: 2013-05-16
VEGAPULS SR 68 • HART and accumulator pack
5
1 About this document
1 About this document
1.1 Function
This operating instructions manual provides all the information you
need for mounting, connection and setup as well as important instructions for maintenance and fault rectication. Please read this information before putting the instrument into operation and keep this manual
accessible in the immediate vicinity of the device.
1.2 Target group
This operating instructions manual is directed to trained specialist
personnel. The contents of this manual should be made available to
these personnel and put into practice by them.
1.3 Symbolism used
Information, tip, note
This symbol indicates helpful additional information.
Caution: If this warning is ignored, faults or malfunctions can result.
Warning: If this warning is ignored, injury to persons and/or serious
damage to the instrument can result.
Danger: If this warning is ignored, serious injury to persons and/or
destruction of the instrument can result.
Ex applications
This symbol indicates special instructions for Ex applications.
List
•
The dot set in front indicates a list with no implied sequence.
Action
→
This arrow indicates a single action.
1 Sequence of actions
Numbers set in front indicate successive steps in a procedure.
Battery disposal
This symbol indicates special information about the disposal of batteries and accumulators.
40934-EN-130624
6
VEGAPULS SR 68 • HART and accumulator pack
2 For your safety
2 For your safety
2.1 Authorised personnel
All operations described in this operating instructions manual must
be carried out only by trained specialist personnel authorised by the
plant operator.
During work on and with the device the required personal protective
equipment must always be worn.
2.2 Appropriate use
The VEGAPULS SR 68 is a sensor for continuous level measurement. Due to the integrated accumulator the instrument is particularly
suitable as a portable measuring system or test sensor for special
applications.
You can nd detailed information on the application range in chapter
"Product description".
Operational reliability is ensured only if the instrument is properly
used according to the specications in the operating instructions
manual as well as possible supplementary instructions.
2.3 Warning about incorrect use
Inappropriate or incorrect use of the instrument can give rise to
application-specic hazards, e.g. vessel overll or damage to system
components through incorrect mounting or adjustment.
2.4 General safety instructions
This is a state-of-the-art instrument complying with all prevailing
regulations and guidelines. The instrument must only be operated in a
technically awless and reliable condition. The operator is responsible
for the trouble-free operation of the instrument.
During the entire duration of use, the user is obliged to determine the
compliance of the necessary occupational safety measures with the
current valid rules and regulations and also take note of new regula-
tions.
The safety instructions in this operating instructions manual, the national installation standards as well as the valid safety regulations and
accident prevention rules must be observed by the user.
For safety and warranty reasons, any invasive work on the device
beyond that described in the operating instructions manual may be
carried out only by personnel authorised by the manufacturer. Arbitrary conversions or modications are explicitly forbidden.
The safety approval markings and safety tips on the device must also
be observed.
Depending on the instrument version, the emitting frequencies are in
the C or K band range. The low emitting frequencies are far below the
internationally approved limit values. When used correctly, there is no
danger to health.
40934-EN-130624
VEGAPULS SR 68 • HART and accumulator pack
7
2 For your safety
2.5 CE conformity
The device fullls the legal requirements of the applicable EC guidelines. By axing the CE marking, we conrm successful testing of the
product.
You can nd the CE Certicate of Conformity in the download section
of our homepage.
2.6 NAMUR recommendations
NAMUR is the automation technology user association in the process
industry in Germany. The published NAMUR recommendations are
accepted as the standard in eld instrumentation.
The device fullls the requirements of the following NAMUR recom-
mendations:
NE 21 – Electromagnetic compatibility of equipment
•
NE 43 – Signal level for malfunction information from measuring
•
transducers
NE 53 – Compatibility of eld devices and display/adjustment
•
components
NE 107 – Self-monitoring and diagnosis of eld devices
•
For further information see www.namur.de.
2.7 Radio license for Europe
The instrument is approved according to EN 302372-1/2 (2006-04)
for use in closed vessels.
2.8 Radio license for USA/Canada
The instrument is in conformity with part 15 of the FCC regulations.
Take note of the following two regulations:
The instrument must not cause any interfering emissions
•
The device must be insensitive to interfering immissions, including
•
those that may cause undesirable operating conditions
Modications not expressly approved by the manufacturer will lead to
expiry of the operating licence according to FCC/IC.
The instrument is in conformity with RSS-210 of the IC regulations.
The instrument may only be used in closed vessels made of metal,
concrete, or bre-reinforced plastic.
2.9 Environmental instructions
Protection of the environment is one of our most important duties.
That is why we have introduced an environment management system
with the goal of continuously improving company environmental protection. The environment management system is certied according
to DIN EN ISO 14001.
Please help us fulll this obligation by observing the environmental
instructions in this manual:
Chapter "Packaging, transport and storage"
•
8
VEGAPULS SR 68 • HART and accumulator pack
40934-EN-130624
Chapter "Disposal"
•
2 For your safety
40934-EN-130624
VEGAPULS SR 68 • HART and accumulator pack
9
3 Product description
Type plate
3 Product description
3.1 Conguration
The nameplate contains the most important data for identication and
use of the instrument:
1
2
3
4
5
6
7
8
9
10
Fig. 4: Layout of the type label (example)
1 Instrument type
2 Product code
3 Approvals
4 Power supply and signal output, electronics
5 Protection rating
6 Measuring range
7 Process and ambient temperature, process pressure
8 Material, wetted parts
9 Hardware and software version
10 Order number
11 Serial number of the instrument
12 Symbol of the device protection class
13 ID numbers, instrument documentation
14 Reminder to observe the instrument documentation
15 Notied authority for CE marking
16 Approval directive
16
15
14
13
12
11
Serial number
10
With the serial number of the instrument on the type label you can nd
the following data on our homepage:
Article number of the instrument (HTML)
•
Delivery date (HTML)
•
Order-specic instrument features (HTML)
•
Operating instructions at the time of shipment (PDF)
•
Order-specic sensor data for an electronics exchange (XML)
•
Test certicate pressure transmitters (PDF)
•
Go to www.vega.com, "VEGA Tools" and "Serial number search".
As an alternative, you can nd the data via your Smartphone:
Download the smartphone app "VEGA Tools" from the "Apple App
•
Store " or the "Google Play Store"
Scan the Data Matrix code on the type label of the instrument or
•
Enter the serial number manually in the app
•
VEGAPULS SR 68 • HART and accumulator pack
40934-EN-130624
3 Product description
Scope of this operating
instructions manual
Scope of deliv
Application area
Functional principle
y
er
This operating instructions manual applies to the following instrument
versions:
Hardware from 2.1.0
•
Software from 4.5.1
•
The scope of delivery encompasses:
Sensor with integrated accumulator
•
Battery charger
•
Documentation
•
– this operating instructions manual
– Test certicate measuring accuracy (optional)
– Operating instructions manual "Display and adjustment mod-
ule" (optional)
– Ex-specic "Safety instructions" (with Ex versions)
– if necessary, further certicates
3.2 Principle of operation
The VEGAPULS SR 68 is a radar sensor for continuous measurement
of bulk solids also under dicult process conditions. It is particularly
suitable for level measurement in high silos and large bunkers.
The instrument is also suitable for applications in liquids.
The antenna of the radar sensor emits short radar pulses with a
duration of approx. 1 ns. These pulses are reected by the product
and received by the antenna as echoes. The transit time of the radar
pulses from emission to reception is proportional to the distance and
hence to the level. The determined level is converted into an appropriate output signal and outputted as measured value.
Voltage supply
The instrument is powered via an integrated accumulator. This allows
operation of the instrument independently of the mains or a control
system. To achieve a longer battery lifetime, the instrument is preset
to HART multidrop. This puts a load of only 4 mA current on the ac-
cumulator.
3.3 Packaging, transport and storage
Packaging
Transport
40934-EN-130624
VEGAPULS SR 68 • HART and accumulator pack
Your instrument was protected by packaging during transport. Its
capacity to handle normal loads during transport is assured by a test
based on ISO 4180.
The packaging of standard instruments consists of environmentfriendly, recyclable cardboard. For special versions, PE foam or PE
foil is also used. Dispose of the packaging material via specialised
recycling companies.
Transport must be carried out under consideration of the notes on the
transport packaging. Nonobservance of these instructions can cause
damage to the device.
11
3 Product description
Transport inspection
Storage
Stor
age and transport
temperature
PLICSCOM
VEGACONNECT
The delivery must be checked for completeness and possible transit
damage immediately at receipt. Ascertained transit damage or con-
cealed defects must be appropriately dealt with.
Up to the time of installation, the packages must be left closed and
stored according to the orientation and storage markings on the
outside.
Unless otherwise indicated, the packages must be stored only under
the following conditions:
Not in the open
•
Dry and dust free
•
Not exposed to corrosive media
•
Protected against solar radiation
•
Avoiding mechanical shock and vibration
•
Storage and transport temperature see chapter "Supplement -
•
Technical data - Ambient conditions"
Relative humidity 20 … 85 %
•
3.4 Accessories and replacement parts
The display and adjustment module PLICSCOM is used for measured
value indication, adjustment and diagnosis. It can be inserted into the
sensor or the external display and adjustment unit and removed at
any time.
You can nd further information in the operating instructions "Display
and adjustment module PLICSCOM" (Document-ID 27835).
The interface adapter VEGACONNECT enables the connection of
communication-capable instruments to the USB interface of a PC. For
parameter adjustment of these instruments, the adjustment software
PACTware with VEGA-DTM is required.
You can nd further information in the operating instructions "Interface
adapter VEGACONNECT" (Document-ID 32628).
Protective cap
Electronics module
Supplementary electronics power pack
12
The protective cover protects the sensor housing against soiling and
intense heat from solar radiation.
You will nd additional information in the supplementary instructions
manual "Protective cover" (Document-ID 34296).
The electronics module VEGAPULS series 60 is a replacement part
for radar sensors of VEGAPULS series 60. There is a dierent version
available for each type of signal output.
You can nd further information in the operating instructions "Elec-
tronics module VEGAPULS series 60" (Document-ID 36801).
The supplementary electronics is a replacement part with integrated
accumulator for the following sensors:
VEGAPULS series 60
•
VEGAFLEX 80 series
•
VEGABAR series 80
•
VEGAPULS SR 68 • HART and accumulator pack
40934-EN-130624
3 Product description
You can nd further information in the operating instructions "Sup-
plementary electronics for 4 … 20 mA/HART and power pack"
(Document-ID 41033).
40934-EN-130624
VEGAPULS SR 68 • HART and accumulator pack
13
4 Mounting
Screwing in
4 Mounting
4.1 General instructions
On instruments with process tting thread, the hexagon must be tightened with a suitable screwdriver. Wrench size see chapter "Dimen-
sions".
Warning:
The housing must not be used to screw the instrument in! Applying
tightening force can damage internal parts of the housing.
Protection against moisture
Suitability for the process
conditions
Protect your instrument further through the following measures
against moisture penetration:
Use the recommended cable (see chapter "Connecting to power
•
supply")
Tighten the cable gland
•
Loop the connection cable downward in front of the cable gland
•
This applies particularly to:
Outdoor mounting
•
Installations in areas where high humidity is expected (e.g. through
•
cleaning processes)
Installations on cooled or heated vessels
•
Make sure that all parts of the instrument exposed to the process are
suitable for the existing process conditions.
These are mainly:
Active measuring component
•
Process tting
•
Process seal
•
Process conditions are particularly:
Process pressure
•
Process temperature
•
Chemical properties of the medium
•
Abrasion and mechanical inuences
•
You can nd the specications of the process conditions in chapter
"Technical data" as well as on the nameplate.
4.2 Mounting preparations - Horn antenna
The instrument is also available in versions with an antenna whose
diameter is larger than the process tting (thread, ange). In such
cases the antenna must be disconnected from the process tting
before mounting. Proceed as follows:
1. Loosen the hexagon socket screws (3) on the antenna socket
with an Allen wrench (size 3)
2. Remove the antenna (4)
Note:
The plastic cone may not be pulled out of the antenna socket.
40934-EN-130624
14
VEGAPULS SR 68 • HART and accumulator pack
4 Mounting
3. Insert the antenna from below into the vessel socket and secure it
against falling o
4. Retighten the antenna with hexagon screws to the antenna
socket; torque max. 2.5 Nm (1.8 lbf ft)
Note:
The radar sensor with rinsing air connection or antenna extension
is provided with a notch on the antenna socket. This notch must be
aligned with the marking on the process tting (the marking species
the position of the polarisation of the radar signal).
1
2
3
4
Fig. 5: Dismounting of the horn antenna
1 Marking for the polarisation
2 Marking at the antenna socket
3 Hexagon screws on the antenna socket
4 Antenna
4.3 Mounting preparations - Parabolic antenna
The instrument is also available in versions where the antenna has
a diameter larger than the process tting (thread, ange). With such
versions the antenna must be disconnected from the process tting
before mounting. Proceed as follows:
1. Clamp VEGAPULS SR 68 with the ange, e.g. in a bench vice
2. Hold the connection piece (3) with a wrench on the at surfaces
(width across ats 22 mm)
3. Loosen counter nut (2) completely with a wrench (width across
ats 36 mm) in the direction of the antenna
4. Loosen compression nut (1) completely with a wrench (width
across ats 41 mm) in the direction of the antenna
5. Remove the parabolic antenna (4) axially
6. Mount sensor ange on the adapter ange and fasten it tightly
7. Check if the O-ring seal is present on the connection piece and
make sure it is not damaged.
40934-EN-130624
VEGAPULS SR 68 • HART and accumulator pack
15
4 Mounting
Note:
A damaged O-ring seal must be replaced: FKM (SHS FPM 70C3
GLT), FFKM (Kalrez 6375)
8. Remount the parabolic antenna (4)
9. Fasten compression nut (1) with a wrench (width across ats 41),
torque max. 50 Nm
10. Fasten counter nut (2) with a wrench (width across ats 36),
torque max. 40 Nm
Note:
On the version with rinsing air connection, make sure that the holes
in the antenna and in the process tting coincide. This ensures a sufcient air ow (the air is led through the holes to the feed system. A
rinsing of the whole parabolic antenna is not intended).
1
2
3
4

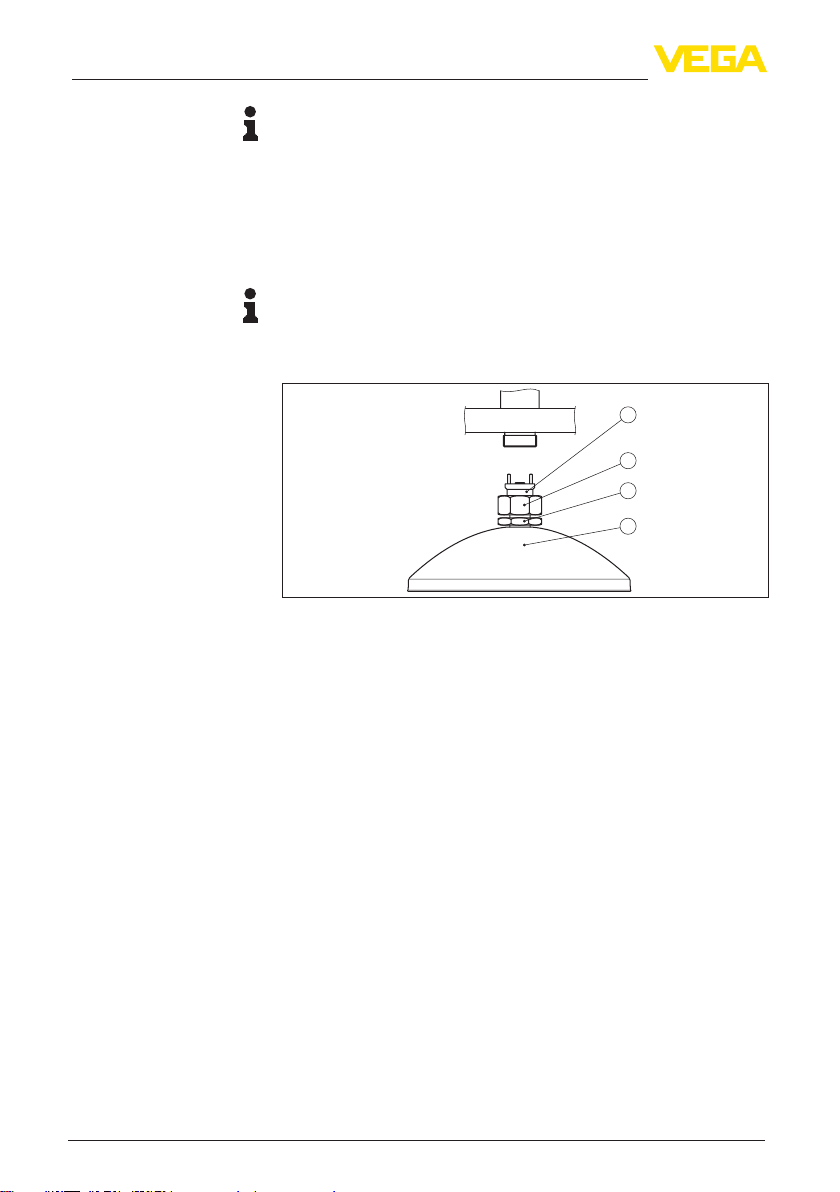

Fig. 6: Dismounting, parabolic antenna
1 Connection piece
2 Compression nut
3 Locknut
4 Parabolic antenna
Polarisation
16
4.4 Mounting instructions
The emitted radar impulses of the radar sensor are electromagnetic
waves. The polarisation is the direction of the electrical wave component. By turning the instrument in the connection ange or mounting
boss, the polarisation can be used to reduce the eects of false
echoes.
The position of the polarisation is marked on the process tting of the
instrument.
40934-EN-130624
VEGAPULS SR 68 • HART and accumulator pack
4 Mounting
Installation position
1
Fig. 7: Position of the polarisation
1 Marking with screwed version
2 Marking with ange version
2
Mount the sensor at least 200 mm (7.874 in) away from the vessel
wall.
200 mm
")
(7.87
Fig. 8: Mounting of the radar sensor on the vessel top
If you cannot maintain this distance, you should carry out a false
signal storage during setup. This applies particularly if buildup on the
vessel wall is expected. In such a case, it is recommended to repeat
the false signal storage at a later date with existing buildup.
Inowingmedium
Mounting should not be too close to the inowing material as the
microwave signal will be interferred. The optimum mounting position is
on the opposite of the lling. To avoid strong pollution, the distance to
the lter or dust extraction must be as big as possible.
40934-EN-130624
VEGAPULS SR 68 • HART and accumulator pack
17
4 Mounting

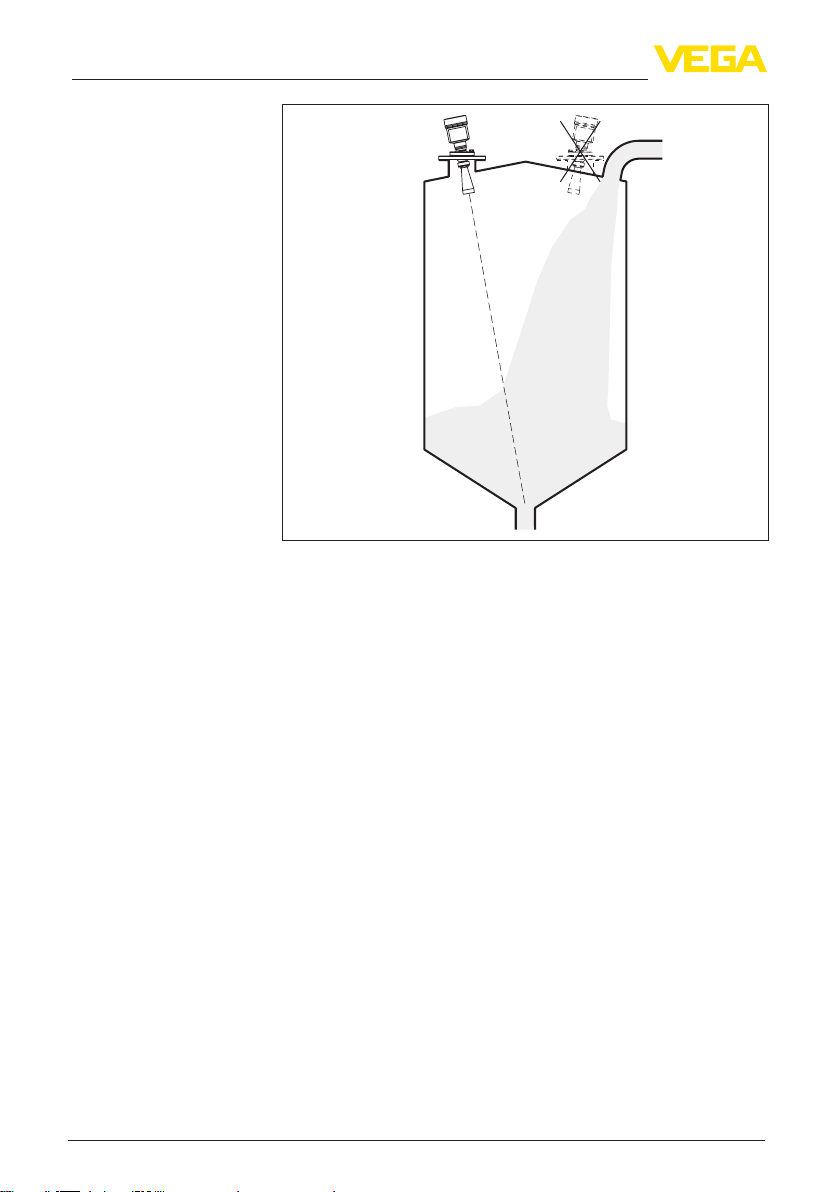

Fig. 9: Mounting of the radar sensor with inowing medium
With bulk solids silos with lateral pneumatic lling, mounting should
not be in the lling stream as the microwave signal will be interferred.
The optimum mounting position is next to the lling. To avoid strong
pollution, the distance to the lter or dust extraction must be as big as
possible.
18
40934-EN-130624
VEGAPULS SR 68 • HART and accumulator pack
4 Mounting

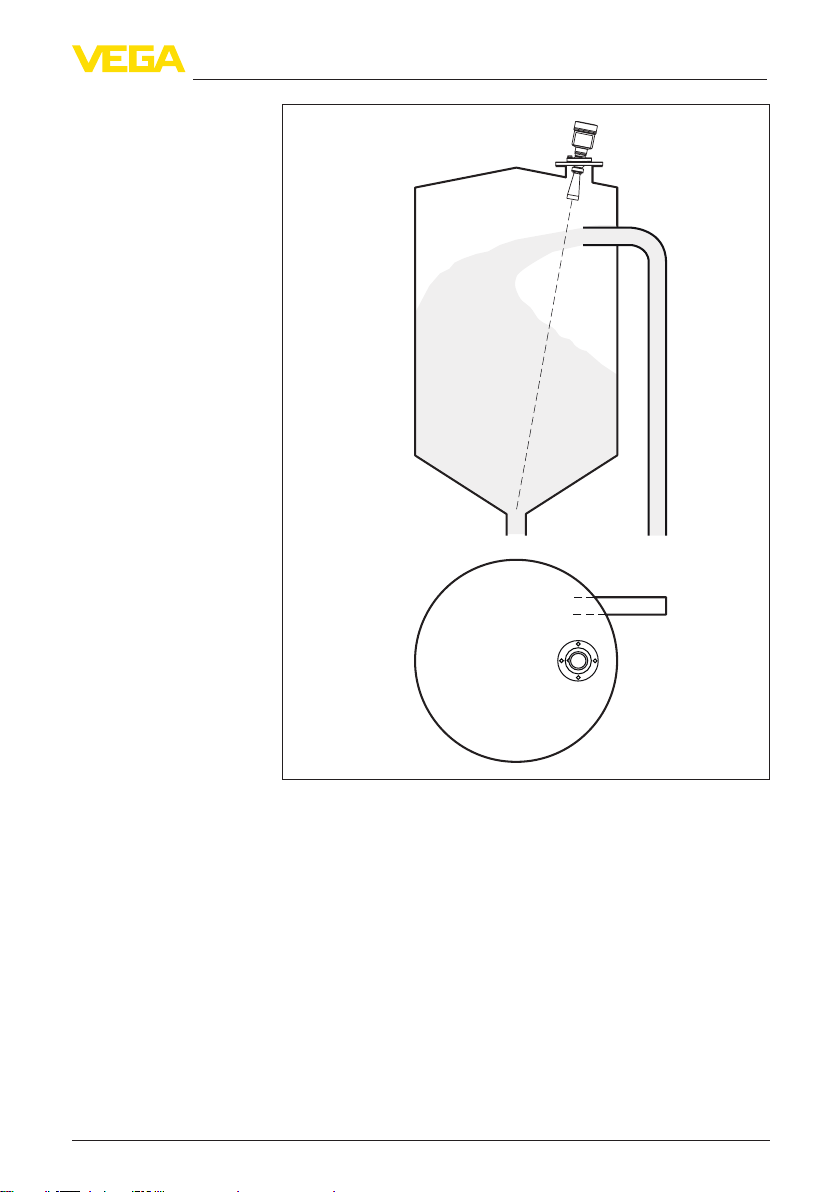

Fig. 10: Mounting of the radar sensor with inowing medium
Socket
The socket piece should be dimensioned in such a way that the
antenna end protrudes slightly out of the socket.
40934-EN-130624
VEGAPULS SR 68 • HART and accumulator pack
19
4 Mounting
ca. 10 mm
Fig. 11: Recommended socket mounting with horn antenna
20
(0.39")
> 10 mm
Fig. 12: Recommended socket mounting with parabolic antenna
When using a swivelling holder, keep in mind that the distance
between antenna and socket gets smaller as the inclination of the
sensor increases. Additional false reections may be generated which
can inuence the measuring result at close range.
VEGAPULS SR 68 • HART and accumulator pack
40934-EN-130624
Fig. 13: Distance between antenna and socket with horn antenna
4 Mounting
Fig. 14: Distance between antenna and socket with parabolic antenna
If the medium has good reective properties, VEGAPULS SR 68
with horn antenna can also be mounted on a longer socket piece.
Recommended values for socket heights are specied in the following
illustration. You must carry out a false echo storage afterwards.
Fig. 15: Deviating socket dimensions
40934-EN-130624
VEGAPULS SR 68 • HART and accumulator pack
max.
h
d
21
4 Mounting
Orientation
Socket diameter d Socket length h Recommended anten-
40 mm 100 mm 40 mm
50 mm 150 mm 48 mm
80 mm 250 mm 75 mm
100 mm 500 mm 95 mm
150 mm 800 mm 95 mm
Socket diameter d Socket length h Recommended anten-
1½"
2"
3"
4"
6"
3.9 in 1½"
5.9 in 2"
9.8 in 3"
19.7 in 4"
31.5 in 4"
na diameter
na diameter
Tip:
The instrument is also optionally available with an antenna extension.
The antenna length can be selected (either ex works or later) to allow
the antenna to protrude slightly out of the end of the mounting socket.
Due to the antenna extension however, disturbing reections are
generated in the close-up range. This can lead to an increase in the
required minimum distance, especially with poorly reecting media
such as plastic powder. In practice, a cleanly constructed mounting
socket, if necessary with rounded edges, introduces fewer disturbing
inuences than an antenna extension.
To measure as much of the vessel volume as possible, the sensor
should be aligned so that the measuring beam reaches the lowest
level in the vessel. In a cylindrical silo with conical outlet mounting is
carried out on a socket. It should be positioned on one third up to the
half of the vessel radius.
22
40934-EN-130624
VEGAPULS SR 68 • HART and accumulator pack
4 Mounting
r
1
1
rr...
3
2
/
/

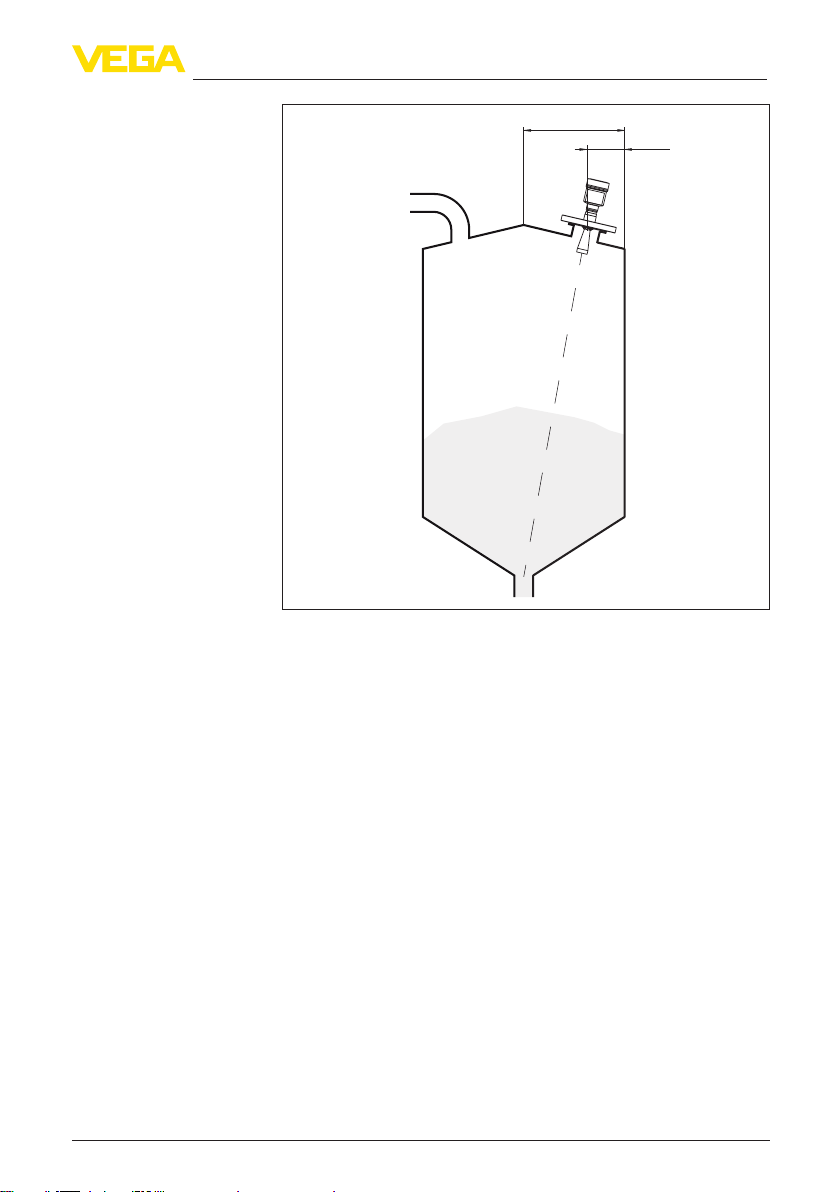

Fig. 16: Orientation
If mounting in the centre of the silo is not possible, the sensor can be
directed to the vessel center by using the optional swivelling holder.
The following description shows a simple way to determine the
required angle of inclination.
40934-EN-130624
VEGAPULS SR 68 • HART and accumulator pack
23
Loading...
