Quick start

Mounting

Quick start

The quick start enables a quick setup with many applications. You
can nd further information in the respective chapters of the operating
instructions manual.

1. Distance from the vessel wall > 200 mm, the antenna should
protrude > 10 mm into the vessel

Connect electrically

Set parameters

> 200 mm

(7.87

")

ca. 10 mm

Fig. 1: Distance of the antenna to the vessel wall/vessel ceiling

2. Note min. socket diameter depending on the socket length

For further information see chapter "Mounting".

1. Make sure that the power supply corresponds to the specica­tions on the type label.

2. Connect the instrument according to the following illustration

2

3

4

5

Bus

+

( )

00

1

1

0

1

1

9

9

2

2

1

8

8

3

3

7

7

4

4

6

6

5

5

0

(-)

2

5

678

1

Fig. 2: Electronics and connection compartment, single chamber housing

1 Voltage supply, signal output
2 For indicating and adjustment module or interface adapter
3 Selection switch for bus address
4 For external indicating and adjustment unit
5 Ground terminal for connection of the cable screen

For further information see chapter "Connecting to power supply".

1. Go via the indicating and adjustment module to the menu "Setup".

2. In the menu item "Medium"you select the medium of your applica­tion, for example "Aqueous solution".

2

VEGAPULS 61 • Probus PA

36501-EN-121011

Quick start

3. Select in the menu item "Application" the vessel, the application
and the vessel form, for example, storage tank.

4. Carry out the adjustment in the menu items "Min. adjustment" and
"Max. adjustment".

Parameterization example

Further steps

The radar sensor measures the distance from the sensor to the
product surface. For indication of the real level, an allocation of the
measured distance to the percentage height must be carried out.

")

0,5 m

(19.68

100%

2

")

5 m

(196.9

0%

1

Fig. 3: Parameter adjustment example min./max. adjustment

1 Min. level = max. meas. distance
2 Max. level = min. meas. distance

For this adjustment, the distance is entered with full and virtually
empty vessel. If these values are not known, an adjustment with
distances, for example, of 10 % and 90 % is also possible. Starting
point for these distance specications is always the seal surface of
the thread or ange.

1. In the menu "Additional settings", menu item "Damping" you have
to adjust the requested damping of the output signal.

2. Select the output characteristics in the menu item "Current out-
put".

The quick start is then nished. For further information see chapter
"Parameter adjustment".

36501-EN-121011

VEGAPULS 61 • Probus PA

3

Contents

Contents

1 About this document

1.1 Function ............................................................................. 6

1.2 Target group ....................................................................... 6

1.3 Symbolism used ................................................................. 6

2 For your safety

2.1 Authorised personnel ......................................................... 7

2.2 Appropriate use .................................................................. 7

2.3 Warning about incorrect use ............................................... 7

2.4 General safety instructions ................................................. 7

2.5 CE conformity ..................................................................... 8

2.6 NAMUR recommendations ................................................ 8

2.7 Radio license for Europe .................................................... 8

2.8 Radio license for USA/Canada ........................................... 8

2.9 Environmental instructions ................................................. 9

3 Product description

3.1 Conguration .................................................................... 10

3.2 Principle of operation ........................................................ 11

3.3 Packaging, transport and storage ..................................... 11

3.4 Accessories and replacement parts ................................. 12

4 Mounting

4.1 General instructions ......................................................... 14

4.2 Collar or adapter ange .................................................... 14

4.3 Mounting preparations, mounting strap ............................ 15

4.4 Instructions for installation ................................................ 16

5 Connecting to the bus system

5.1 Preparing the connection ................................................. 27

5.2 Connecting ....................................................................... 28

5.3 Wiring plan, single chamber housing ................................ 29

5.4 Wiring plan, double chamber housing .............................. 29

5.5 Wiring plan, double chamber housing Ex d ...................... 31

5.6 Wiring plan - version IP 66/IP 68, 1 bar ............................. 32

5.7 Set instrument address .................................................... 32

5.8 Switch-on phase ............................................................... 33

6 Set up with the indicating and adjustment module

6.1 Insert indicating and adjustment module .......................... 34

6.2 Adjustment system ........................................................... 35

6.3 Parameter adjustment ...................................................... 36

6.4 Saving the parameter adjustment data ............................. 48

7 Setup with PACTware

7.1 Connect the PC ................................................................ 50

7.2 Parameter adjustment with PACTware .............................. 50

7.3 Saving the parameter adjustment data ............................. 51

8 Set up with other systems

8.1 DD adjustment programs ................................................. 52

9 Diagnosis, Asset Management and service

36501-EN-121011

4

VEGAPULS 61 • Probus PA

9.1 Maintenance .................................................................... 53

9.2 Measured value and event memory ................................. 53

9.3 Asset Management function ............................................. 54

9.4 Rectify faults ..................................................................... 57

9.5 Exchanging the electronics module .................................. 60

9.6 Software update ............................................................... 61

9.7 How to proceed in case of repair ...................................... 61

10 Dismounting

10.1 Dismounting steps ............................................................ 62

10.2 Disposal ........................................................................... 62

11 Supplement

11.1 Technical data .................................................................. 63

11.2 Communication Probus PA ............................................. 69

11.3 Dimensions ...................................................................... 73

Contents

36501-EN-121011

VEGAPULS 61 • Probus PA

Safety instructions for Ex areas

Please note the Ex-specic safety information for installation and op­eration in Ex areas. These safety instructions are part of the operating
instructions manual and come with the Ex-approved instruments.

Editing status: 2012-09-27

5

1 About this document

1 About this document

1.1 Function

This operating instructions manual provides all the information you
need for mounting, connection and setup as well as important instruc­tions for maintenance and fault rectication. Please read this informa­tion before putting the instrument into operation and keep this manual
accessible in the immediate vicinity of the device.

1.2 Target group

This operating instructions manual is directed to trained qualied
personnel. The contents of this manual should be made available to
these personnel and put into practice by them.

1.3 Symbolism used

Information, tip, note

This symbol indicates helpful additional information.

Caution: If this warning is ignored, faults or malfunctions can result.
Warning: If this warning is ignored, injury to persons and/or serious

damage to the instrument can result.
Danger: If this warning is ignored, serious injury to persons and/or

destruction of the instrument can result.

Ex applications

This symbol indicates special instructions for Ex applications.

List

•

The dot set in front indicates a list with no implied sequence.

Action

→

This arrow indicates a single action.

1 Sequence

Numbers set in front indicate successive steps in a procedure.

Battery disposal

This symbol indicates special information about the disposal of bat­teries and accumulators.

36501-EN-121011

6

VEGAPULS 61 • Probus PA

2 For your safety

2 For your safety

2.1 Authorised personnel

All operations described in this operating instructions manual must
be carried out only by trained specialist personnel authorised by the
plant operator.

During work on and with the device the required personal protective
equipment must always be worn.

2.2 Appropriate use

VEGAPULS 61 is a sensor for continuous level measurement.
You can nd detailed information on the application range in chapter

"Product description".
Operational reliability is ensured only if the instrument is properly

used according to the specications in the operating instructions
manual as well as possible supplementary instructions.

2.3 Warning about incorrect use

Inappropriate or incorrect use of the instrument can give rise to
application-specic hazards, e.g. vessel overll or damage to system
components through incorrect mounting or adjustment.

2.4 General safety instructions

This is a state-of-the-art instrument complying with all prevailing
regulations and guidelines. The instrument must only be operated in a
technically awless and reliable condition. The operator is responsible
for the trouble-free operation of the instrument.

During the entire duration of use, the user is obliged to determine the
compliance of the necessary occupational safety measures with the
current valid rules and regulations and also take note of new regula­tions.

The safety instructions in this operating instructions manual, the na­tional installation standards as well as the valid safety regulations and
accident prevention rules must be observed by the user.

For safety and warranty reasons, any invasive work on the device
beyond that described in the operating instructions manual may be
carried out only by personnel authorised by the manufacturer. Arbi­trary conversions or modications are explicitly forbidden.

The safety approval markings and safety tips on the device must also
be observed.

Depending on the instrument version, the emitting frequencies are in
the C or K band range. The low emitting frequencies are far below the
internationally approved limit values. When used correctly, there is no
danger to health.

36501-EN-121011

VEGAPULS 61 • Probus PA

7

2 For your safety

2.5 CE conformity

The device fullls the legal requirements of the applicable EC guide­lines. By axing the CE marking, we conrm successful testing of the
product.

You can nd the conformity certicate in the download section of our
homepage.

Only with Ex-d-ia version

The instrument is designed for use in an industrial environment.
Nevertheless, electromagnetic interference from electrical conductors
and radiated emissions must be taken into account, as is usual with a
class A instrument according to EN 61326-1. If the instrument is used
in a dierent environment, its electromagnetic compatibility with other
devices must be ensured by suitable measures.

2.6 NAMUR recommendations

NAMUR is the automation technology user association in the process
industry in Germany. The published NAMUR recommendations are
accepted as the standard in eld instrumentation.

The device fullls the requirements of the following NAMUR recom­mendations:

NE 21 – Electromagnetic compatibility of equipment

•

NE 43 – Signal level for malfunction information from measuring

•

transducers
NE 53 – Compatibility of eld devices and indicating/adjustment

•

components
NE 107 - Self-monitoring and diagnosis of eld devices

•

For further information see www.namur.de.

2.7 Radio license for Europe

The instrument is approved according to EN 302372-1/2 (2006-04)
for use in closed vessels.

2.8 Radio license for USA/Canada

The instrument is in conformity with part 15 of the FCC regulations.
Take note of the following two regulations:

The instrument must not cause any interfering emissions

•

The device must be insensitive to interfering immissions, including

•

those that may cause undesirable operating conditions

Modications not expressly approved by the manufacturer will lead to
expiry of the operating licence according to FCC/IC.

The instrument is in conformity with RSS-210 of the IC regulations.
The instrument may only be used in closed vessels made of metal,

concrete, or bre-reinforced plastic.

8

VEGAPULS 61 • Probus PA

36501-EN-121011

2 For your safety

2.9 Environmental instructions

Protection of the environment is one of our most important duties.
That is why we have introduced an environment management system
with the goal of continuously improving company environmental pro­tection. The environment management system is certied according
to DIN EN ISO 14001.

Please help us full this obligation by observing the environmental
instructions in this manual:

Chapter "Packaging, transport and storage"

•

Chapter "Disposal"

•

36501-EN-121011

VEGAPULS 61 • Probus PA

9

3 Product description

Type label

3 Product description

3.1 Conguration

The type label contains the most important data for identication and
use of the instrument:

1

2

3

4
5

6

7
8
9

10

Fig. 4: Layout of the type label (example)

1 Instrument type
2 Product code
3 Approvals
4 Power supply and signal output, electronics
5 Protection rating
6 Measuring range
7 Process and ambient temperature, process pressure
8 Material, wetted parts
9 Hardware and software version
10 Order number
11 Serial number of the instrument
12 Symbol of the device protection class
13 ID numbers, instrument documentation
14 Note to observe the instrument documentation

15 NotiedauthorityforCEmarking

16 Approval directive

16

15

14

13

12

11

Serial number

Scope of this operating
instructions manual

10

With the serial number of the instrument on the type label you have
access to the following data on our homepage:

Article number of the instrument (HTML)

•

Delivery date (HTML)

•

Order-specic instrument features (HTML)

•

Operating instructions at the time of shipment (PDF)

•

Order-specic sensor data for an electronics exchange (XML)

•

Test certicate "Measuring Accuracy" (PDF)

•

For this purpose, move to www.vega.com and "VEGA Tools".

This operating instructions manual applies to the following instrument
versions:

Hardware from 2.1.1

•

Software from 4.5.0

•

VEGAPULS 61 • Probus PA

36501-EN-121011

3 Product description

Electronics versions

Scope of delivery

Application area

The instrument is available in two dierent electronics versions. Each
version can be identied via the product code on the type label as
well as on the electronics.

Standard electronics type PS60PAK.-

•

Electronics with increased sensitivity type PS60PAS.-

•

The scope of delivery encompasses:

Radar sensor

•

Mounting strap with xing material (optional)

•

Documentation

•

– this operating instructions manual
– Test certicate Measurement accuracy, depending on the

instrument VEGAPULS 61 (optional)

– Operating instructions manual 27835 "Indicating and adjust-

ment module PLICSCOM" (optional)

– Supplementary instructions "GSM/GPRS radio module"

(optional)

– Supplementary instructions manual "Heating for indicating and

adjustment module" (optional)

– Supplementary instructions manual "Plug connector for con-

tinuously measuring sensors" (optional)

– Ex-specic "Safety instructions" (with Ex versions)
– if necessary, further certicates

3.2 Principle of operation

The VEGAPULS 61 is a radar sensor for continuous level measure­ment of liquids under simple process conditions.

Dependent on the application range, dierent versions are used:

Level measurement of aggressive liquids in small vessels: encap-

•

sulated antenna system

Flow measurement in open umes or gauge measurement of bod-

•

ies of water: Plastic horn antenna
Products with an εr value ≥ 1.8: Standard electronics

•

Products with an εr value ≥ 1.5, < 1.8; applications with very poor

•

reective properties: Electronics with increased sensitivity

The actual values that can be reached depend on the measurement
conditions, the antenna system or the standpipe or bypass.

Functional principle

Packaging

36501-EN-121011

VEGAPULS 61 • Probus PA

The antenna of the radar sensor emits short radar pulses with a
duration of approx. 1 ns. These pulses are reected by the product
and received by the antenna as echoes. The transit time of the radar
pulses from emission to reception is proportional to the distance and
hence to the level. The determined level is converted into an appropri­ate output signal and outputted as measured value.

3.3 Packaging, transport and storage

Your instrument was protected by packaging during transport. Its
capacity to handle normal loads during transport is assured by a test
according to DIN EN 24180.

11

3 Product description

The packaging of standard instruments consists of environment­friendly, recyclable cardboard. For special versions, PE foam or PE
foil is also used. Dispose of the packaging material via specialised
recycling companies.

Transport

Transport inspection

Storage

Storage and transport
temperature

Indicating and adjust­ment module

Transport must be carried out under consideration of the notes on the
transport packaging. Nonobservance of these instructions can cause
damage to the device.

The delivery must be checked for completeness and possible transit
damage immediately at receipt. Ascertained transit damage or con­cealed defects must be appropriately dealt with.

Up to the time of installation, the packages must be left closed and
stored according to the orientation and storage markings on the
outside.

Unless otherwise indicated, the packages must be stored only under
the following conditions:

Not in the open

•

Dry and dust free

•

Not exposed to corrosive media

•

Protected against solar radiation

•

Avoiding mechanical shock and vibration

•

Storage and transport temperature see chapter "Supplement -

•

Technical data - Ambient conditions"
Relative humidity 20 … 85 %

•

3.4 Accessories and replacement parts

The indicating and adjustment module PLICSCOM is used for meas­ured value indication, adjustment and diagnosis. It can be inserted
into the sensor and removed at any time.

You can nd further information in the operating instructions "Indicat-
ing and adjustment module PLICSCOM" (Document-ID 27835).

Interface adapter

External indicating and
adjustment unit

12

The interface adapter VEGACONNECT enables the connection of
communication-capable instruments to the USB interface of a PC. For
parameter adjustment of these instruments, an adjustment software
such as PACTware with VEGA-DTM is required.

You can nd further information in the operating instructions "Interface
adapter VEGACONNECT" (Document-ID 32628).

VEGADIS 61 is an external indicating and adjustment unit for sensors
with single chamber housing and Ex-d double chamber housing.

It is suitable for measured value indication and adjustment of plics
sensors and is connected to the sensor with a four-wire standard
cable up to 50 m long.

You can nd further information in the operating instructions "VE-
GADIS 61" (Document-ID 27720).

VEGAPULS 61 • Probus PA

®

36501-EN-121011

3 Product description

External radio unit

Protective cover

Electronics module

The PLICSMOBILE T61 is an external GSM/GPRS radio unit for
transmission of measured values and for remote parameter adjust­ment of plics® sensors. The adjustment is carried out via PACTware/
DTM by using the integrated USB connection.

You can nd further information in the supplementary instructions
"PLICSMOBILE T61" (Document-ID 36849).

The protective cover protects the sensor housing against soiling and
intense heat from solar radiation.

You will nd additional information in the supplementary instructions
manual "Protective cover" (Document-ID 34296).

The electronics module VEGAPULS series 60 is a replacement part
for radar sensors of VEGAPULS series 60. There is a dierent version
available for each type of signal output.

You can nd further information in the operating instructions "Elec-
tronics module VEGAPULS series 60" (Document-ID 36801).

36501-EN-121011

VEGAPULS 61 • Probus PA

13

4 Mounting

Screwing in

4 Mounting

4.1 General instructions

With instruments with threaded process tting, suitable tools must be
applied for tightening the hexagon.

Warning:

The housing must not be used to screw the instrument in! Applying
tightening force can damage internal parts of the housing.

Moisture

Suitability for the process
conditions

Use the recommended cables (see chapter "Connecting to power
supply") and tighten the cable gland.

You can give your instrument additional protection against moisture
penetration by leading the connection cable downward in front of the
cable entry. Rain and condensation water can thus drain o. This ap­plies mainly to outdoor mounting as well as installation in areas where
high humidity is expected (e.g. through cleaning processes) or on
cooled or heated vessels.

Make sure that all parts of the instrument exposed to the process, in
particular the active measuring component, process seal and process
tting, are suitable for the existing process conditions. These include
above all the process pressure, process temperature as well as the
chemical properties of the medium.

You can nd the specications in chapter "Technical data" and on the
type label.

4.2 Collaroradapterange

For mounting the instrument on a socket, a combi compression ange
for DN 80 (ASME 3" or JIS 80) is also available for retro tting. Option­ally, the instrument can be also equipped with an adapter ange from
DN 100 (ASME 4" or JIS 100).

With the housing versions plastic, aluminium single chamber and
stainless steel, the collar ange can be placed directly over the hous­ing. With the aluminium double chamber housing, retroactive mount­ing in this way is not possible - the mounting type must be specied
with the order.

You can nd drawings of these mounting options in chapter "Dimen-
sions".

14

36501-EN-121011

VEGAPULS 61 • Probus PA

4 Mounting

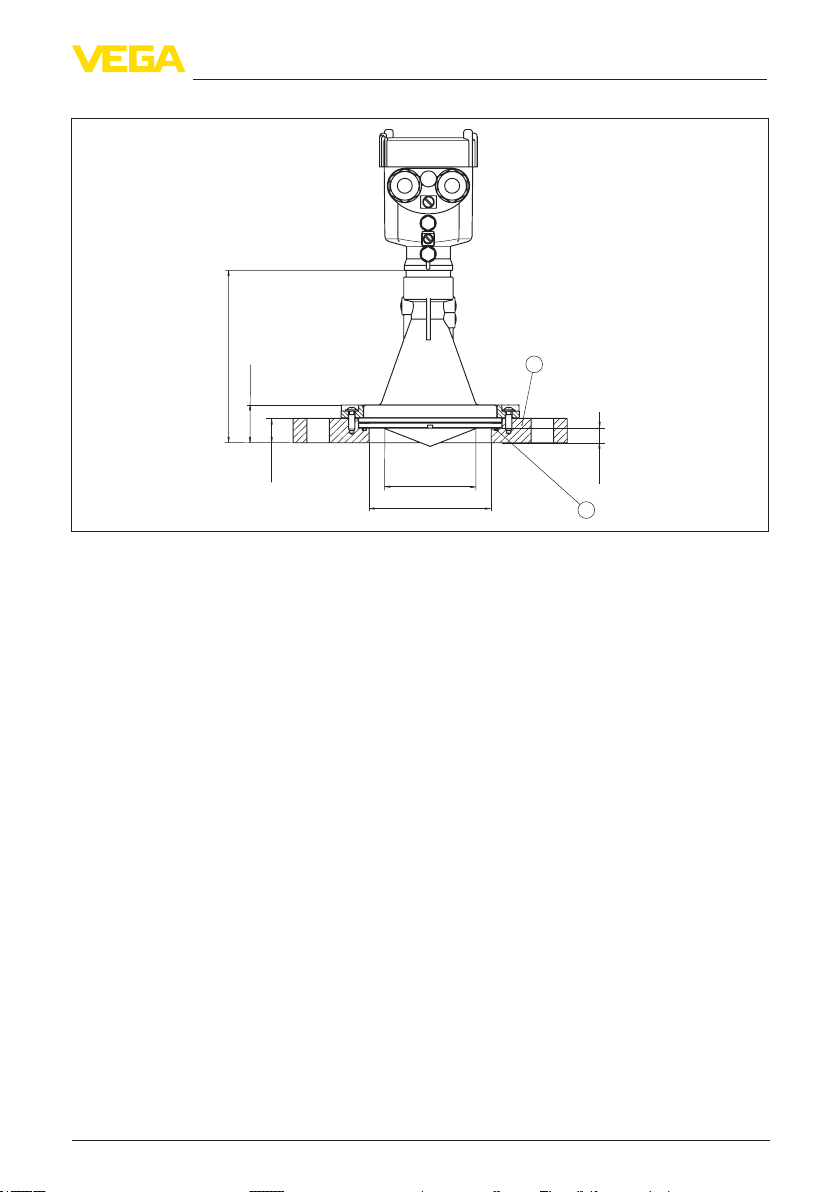

Fig. 5: Flange mounting of the radar sensor

4.3 Mounting preparations, mounting strap

The mounting strap enables simple mounting on the vessel wall or
silo top. It is suitable for wall, ceiling or boom mounting. Especially in
open vessels this is a very easy and eective way to align the sensor
to the bulk solid surface.

The strap is supplied unassembled and must be screwed to the
sensor before setup with three hexagon screws M5 x 10 and spring
washers. Max. torque, see chapter "Technical data". Required tools:
Allen wrench size 4.

There are two ways to screw the strap onto the sensor. Depending
on the selected version, the sensors can be swivelled in the strap as
follows:

Single chamber housing

•

– Angle of inclination 180°, innitely variable
– Angle of inclination in three steps 0°, 90° and 180°

Double chamber housing

•

– Angle of inclination 90°, innitely variable
– Angle of inclination in two steps 0° and 90°

36501-EN-121011

VEGAPULS 61 • Probus PA

15

4 Mounting

Tight installation of the
plastic horn antenna

Fig. 6: Adjustment of the angle of inclination

Fig. 7: Turning by fastening in the centre

4.4 Instructions for installation

For tight installation of the version with plastic horn antenna with com­pression or adapter ange, the following conditions must be fullled:

1. Use suitable at seal, e.g. of EPDM with Shore hardness 25 or 50

2. Make sure the number of ange screws corresponds to the num­ber of ange holes

3. Tighten all screws with the torque stated in the technical data

Polarisation plane

Installation position

16

The emitted radar impulses of the radar sensor are electromagnetic
waves. The polarisation plane is the direction of the electrical wave
component. By turning the instrument in the connection ange or
mounting boss, the polarisation can be used to reduce the eects of
false echoes.

The position of the polarisation plane is marked on the process tting
of the instrument.

1

Fig. 8: Position of the polarisation level

1 Marking with version with encapsulated antenna system
2 Marking with version with plastic horn antenna

2

When mounting the sensor, keep a distance of at least 200 mm
(7.874 in) to the vessel wall. If the sensor is installed in the center of

VEGAPULS 61 • Probus PA

36501-EN-121011

4 Mounting

dished or round vessel tops, multiple echoes can arise. These can,
however, be suppressed by an appropriate adjustment (see chapter
"Setup").

If you cannot keep this distance you should carry out a false echo
storage before setup. This applies mainly if buildup on the vessel wall
is expected. In this case, we recommend repeating a false echo stor­age later with existing buildup.

> 200 mm

(7.87

")

Fig. 9: Mounting of the radar sensor on round vessel tops

In vessels with conical bottom it can be advantageous to mount the
sensor in the center of the vessel, as measurement is then possible
down to the lowest point of the vessel bottom.

Inowingmedium

36501-EN-121011

VEGAPULS 61 • Probus PA

Fig. 10: Mounting of the radar sensor on vessels with conical bottom

Do not mount the instruments in or above the lling stream. Make sure
that you detect the product surface, not the inowing product.

17

4 Mounting

Fig.11:Mountingoftheradarsensorwithinowingmedium

Socket with plastic horn
antenna

A corresponding collar ange for DN 80 (ASME 3" or JIS 80) as well
as a suitable adapter ange are available for mounting VEGAPULS

61.

With the housing versions plastic, aluminium single chamber and
stainless steel, the collar ange can be placed directly over the hous­ing. With the aluminium double chamber housing, retroactive mount­ing in this way is not possible - the mounting type must be specied
with the order.

Information:

The socket should be as short as possible and the socket end
rounded. Thus, false reections by the vessel socket are reduced.

Fig. 12: Recommended socket mounting

If the medium has good reective properties, VEGAPULS 61 can
also be mounted on a longer socket piece. Recommended values
for socket heights are specied in the following illustration. You must
carry out a false echo storage afterwards.

36501-EN-121011

18

VEGAPULS 61 • Probus PA

4 Mounting

h

d

The below charts specify the max. socket piece length h depending
on the diameter d.

Socket diameter d Socket length h

80 mm 300 mm

100 mm 400 mm

150 mm 500 mm

Socket diameter d Socket length h

3" 11.8 in

4" 15.8 in

6" 19.7 in

Tip:

In new facilities it is useful to incline the vessel socket in the direction
of the outlet. False reections from the vessel wall are thus reduced
and measurement all the way down to the bottom of the conical outlet
is possible.

36501-EN-121011

VEGAPULS 61 • Probus PA

Fig. 14: Alignment in silos

19

4 Mounting

Socket with encapsulated
antenna system

The socket piece should be dimensioned in such a way that the an­tenna end protrudes at least 10 mm (0.4 in) out of the socket.

ca. 10 mm

Fig. 15: Recommended socket mounting

If the reective properties of the medium are good, you can mount
VEGAPULS 61 on sockets which are higher than the length of the
antenna. You will nd recommended values for socket heights in the
following illustration. The socket end should be smooth and burr-free,
if possible also rounded. After installation you must carry out a false
echo storage.

d

h

d

1½"
50 mm/2"
80 mm/3"
100 mm/4"
150 mm/6"

h

200 mm
250 mm
300 mm
500 mm
800 mm

Sensor orientation

Vessel installations

20

Fig. 16: Deviating socket dimensions

Align the sensor in liquids as vertical as possible to the product sur­face to achieve optimum measurement.

Fig. 17: Alignment in liquids

The mounting location of the radar sensor should be a place where no
other equipment or xtures cross the path of the microwave signals.

Vessel installations, such as e.g. ladders, limit switches, heating spi­rals, struts, etc., can cause false echoes and impair the useful echo.

VEGAPULS 61 • Probus PA

36501-EN-121011

4 Mounting

Make sure when planning your measuring site that the radar sensor
has a "clear view" to the measured product.

In case of existing vessel installations, a false echo storage should be
carried out during setup.

If large vessel installations such as struts or supports cause false
echoes, these can be attenuated through supplementary measures.
Small, inclined sheet metal baes above the installations scatter the
radar signals and prevent direct interfering reections.

Fig.18:Coversmoothproleswithdeectors

Agitators

Foam generation

If there are agitators in the vessel, a false signal memory should be
carried out with the agitators in motion. This ensures that the interfer­ing reections from the agitators are saved with the blades in dierent
positions.

Fig. 19: Agitators

Through the action of lling, stirring and other processes in the vessel,
compact foams that considerably damp the emitted signals may form
on the product surface.

If foams are causing measurement errors, the biggest possible radar
antennas, the electronics with increased sensitivity or low frequency
radar sensors (C band) should be used.

As an alternative, sensors with guided microwave can be used. These
are unaected by foam generation and are best suited for such ap­plications.

36501-EN-121011

VEGAPULS 61 • Probus PA

21

4 Mounting

Measurement in a surge
pipe

When using a surge pipe in a vessel, inuences from vessel installa­tions and turbulences can be excluded. Under these prerequisites,
the measurement of products with low dielectric values (εr value
≥ 1.6) is possible. In very adhesive products, measurement in a surge
pipe is not recommended.

1

2

3

4

100%

5

6

7

8

9

0%

22

Fig.20:Congurationsurgepipe

1 Radar sensor
2 Marking of the polarisation direction

3 Threadorangeontheinstrument

4 Vent hole
5 Holes
6 Weld joint

7 Weldingneckange

8 Ball valve with complete opening
9 Fastening of the surge pipe

Instructions for orientation:

Note marking of the polarisation plane on the sensor

•

With threaded tting, the marking is on the hexagon, with ange

•

connection between the two ange holes
All holes in the surge pipe must be in one plane with this marking

•

Instructions for the measurement:

The 100 % point must be below the upper vent hole and the

•

antenna edge
The 0 % point is the end of the surge pipe

•

VEGAPULS 61 • Probus PA

36501-EN-121011

4 Mounting

The tube diameter must be at least DN 40 or 1½" with antenna

•

size 40 mm (1½")
For the parameter adjustment, select "Application standpipe" and

•

enter the tube diameter to compensate errors due to running time
shift
A false signal suppression with integrated sensor is recommended

•

but not mandatory
The measurement through a ball valve with complete run is pos-

•

sible

Constructional requirements on the surge pipe:

Material metal, smoother inner tube

•

Preferably pultruded or straight beaded stainless steel tube

•

Welded joint should be straight and lie in one axis with the holes

•

Flanges are welded to the tube according to the orientation of the

•

polarisation level
In case of a extension with a welding neck ange or pipe collar

•

as well as when a ball valve is used, the inner surfaces should be
aligned and accurately joined together
Gap size with junctions ≤ 0.1 mm

•

Do not weld through the pipe wall. The surge pipe must remain

•

smooth inside. Roughness and beads on the inside caused by
unintentional penetration should be removed since they cause
strong false echoes and encourage buildup
Surge pipes must extend all the way down to the requested min.

•

level, as measurement is only possible within the tube
Diameter of holes ≤ 5 mm, any number OK, on one side or com-

•

pletely through
The antenna diameter of the sensor should correspond to the

•

inner diameter of the tube
Diameter should be constant over the complete length

•

Measurement in the
bypass

36501-EN-121011

VEGAPULS 61 • Probus PA

An alternative to measurement in a surge pipe is measurement in a
bypass tube outside of the vessel.

23

4 Mounting

1

2

3

4

100 %

6

5

0 %

Fig.21:Congurationbypass

1 Radar sensor
2 Marking of the polarisation direction

3 Instrumentange

4 Distance sensor reference plane to upper tube connection
5 Distance of the tube connections
6 Ball valve with complete opening

Instructions for orientation:

Note marking of the polarisation plane on the sensor

•

With threaded tting, the marking is on the hexagon, with ange

•

connection between the two ange holes
The pipe connections to the vessel must be in one plane with this

•

marking

Instructions for the measurement:

The 100 % point must not be above the upper tube connection to

•

the vessel
The 0 % point must not be below the lower tube connection to the

•

vessel
Min. distance sensor reference plane to the upper edge upper

•

tube connection > 300 mm
The tube diameter must be at least DN 40 or 1½" with antenna

•

size 40 mm (1½")
For the parameter adjustment, select "Application standpipe" and

•

enter the tube diameter to compensate errors due to running time
shift
A false signal suppression with integrated sensor is recommended

•

but not mandatory

36501-EN-121011

24

VEGAPULS 61 • Probus PA

4 Mounting

The measurement through a ball valve with complete run is pos-

•

sible

Constructional requirements on the bypass pipe:

Material metal, smoother inner tube

•

In case of an extremely rough tube inner surface, use an inserted

•

tube (tube in tube) or a radar sensor with tube antenna
Flanges are welded to the tube according to the orientation of the

•

polarisation level
Gap size with junctions ≤ 0.1 mm, for example, when using a ball

•

valve or intermediate anges with single pipe sections
The antenna diameter of the sensor should correspond to the

•

inner diameter of the tube
Diameter should be constant over the complete length

•

Flow measurement with

rectangularume

The short examples give you introductory information on the ow
measurement. Detailed planning information is available from ume
manufacturers and in special literature.

3 ... 4 h

90°

2 3

Fig.22:Flowmeasurementwithrectangularume:d

sensor (see chapter "Technical data"); h

ume

1 Overoworice(sideview)

2 Headwater
3 Tail water

4 Overfallorice(viewfrombottomwater)

1

max

≥ 50 mm

min

d

h

≥ 2 mm x h

90°

max

max

4

= min. distance of the

min.

=max.llingoftherectangular

max.

In general, the following points must be observed:

Install the sensor on the headwater side

•

Installation in the centre of the ume and vertical to the liquid

•

surface
Distance to the overfall orice

•

Distance of orice opening above ground

•

Min. distance of the orice opening to bottom water

•

Min. distance of the sensor to max. storage level

•

36501-EN-121011

VEGAPULS 61 • Probus PA

25

4 Mounting

Flow measurement with

KhafagiVenturiume

3 ... 4 x h

d

max

90°

h

max

2

1

Fig.23:FlowmeasurementwithKhafagi-Venturiume:d=Min.distancetosen­sor; h

=max.llingoftheume;B=tightestconstrictionintheume

max.

1 Position sensor

2 Venturiume

B

In general, the following points must be observed:

Installation of the sensor at the inlet side

•

Installation in the centre of the ume and vertical to the liquid

•

surface
Distance to the Venturi ume

•

Min. distance of the sensor to max. storage level

•

26

36501-EN-121011

VEGAPULS 61 • Probus PA

Safety instructions

5 Connecting to the bus system

5 Connecting to the bus system

5.1 Preparing the connection

Always keep in mind the following safety instructions:

Connect only in the complete absence of line voltage

•

If overvoltage surges are expected, overvoltage arresters should

•

be installed

Voltage supply

Connection cable

Cable gland ½ NPT

Cable screening and
grounding

36501-EN-121011

VEGAPULS 61 • Probus PA

The voltage supply is provided by a Probus DP /PA segment coupler.
The voltage supply range can dier depending on the instrument

version. You can nd the data for voltage supply in chapter "Technical
data".

Connection is made with screened cable according to the Probus
specication. Power supply and digital bus signal are carried over the
same two-wire connection cable.

Use cable with round cross-section. A cable outer diameter of
5 … 9 mm (0.2 … 0.35 in) ensures the seal eect of the cable gland.
If you are using cable with a dierent diameter or cross-section,
exchange the seal or use a suitable cable gland.

Please make sure that your installation is carried out according to the
Probus specication. In particular, make sure that the termination of
the bus is done with appropriate terminating resistors.

You can nd detailed information of the cable specication, installa­tion and topology in the "ProbusPA-UserandInstallationGuide-
line" on www.probus.com.

With plastic housing, the NPT cable gland or the Conduit steel tube
must be screwed without grease into the threaded insert.

Max. torque for all housings see chapter "Technical data"

Make sure that the cable screening and ground is executed accord­ing to the Fielbus specication. If electromagnetic interference is
expected which is above the test values of EN 61326-1 for industrial
areas, we recommend to connect the cable screen on both ends to
ground potential.

With systems with potential equalisation, connect the cable screen
directly to ground potential at the power supply unit, in the connection
box and at the sensor. The screen in the sensor must be connected
directly to the internal ground terminal. The ground terminal outside
on the housing must be connected to the potential equalisation (low
impedance).

In systems without potential equalisation with cable screening on
both sides, connect the cable screen directly to ground potential at
the power supply unit and at the sensor. In the connection box or
T-distributor, the screen of the short stub to the sensor must not be
connected to ground potential or to another cable screen. The cable
screens to the power supply unit and to the next distributor must be
connected to each other and also connected to ground potential via a

27

5 Connecting to the bus system

Connection technology

ceramic capacitor (e.g. 1 nF, 1500 V). Low-frequency potential equali­sation currents are thus suppressed, but the protective eect against
high frequency interference signals remains.

5.2 Connecting

The voltage supply and signal output are connected via the spring­loaded terminals in the housing.

The connection to the indicating and adjustment module or to the
interface adapter is carried out via contact pins in the housing.

Information:

The terminal block is pluggable and can be removed from the elec­tronics. To do this, lift the terminal block with a small screwdriver and
pull it out. When inserting the terminal block again, you should hear it
snap in.

Connection procedure

Proceed as follows:

1. Unscrew the housing cover

2. If an indicating and adjustment module is installed, remove it by
turning it slightly to the left.

3. Loosen compression nut of the cable entry

4. Remove approx. 10 cm (4 in) of the cable mantle, strip approx.
1 cm (0.4 in) of insulation from the ends of the individual wires

5. Insert the cable into the sensor through the cable entry

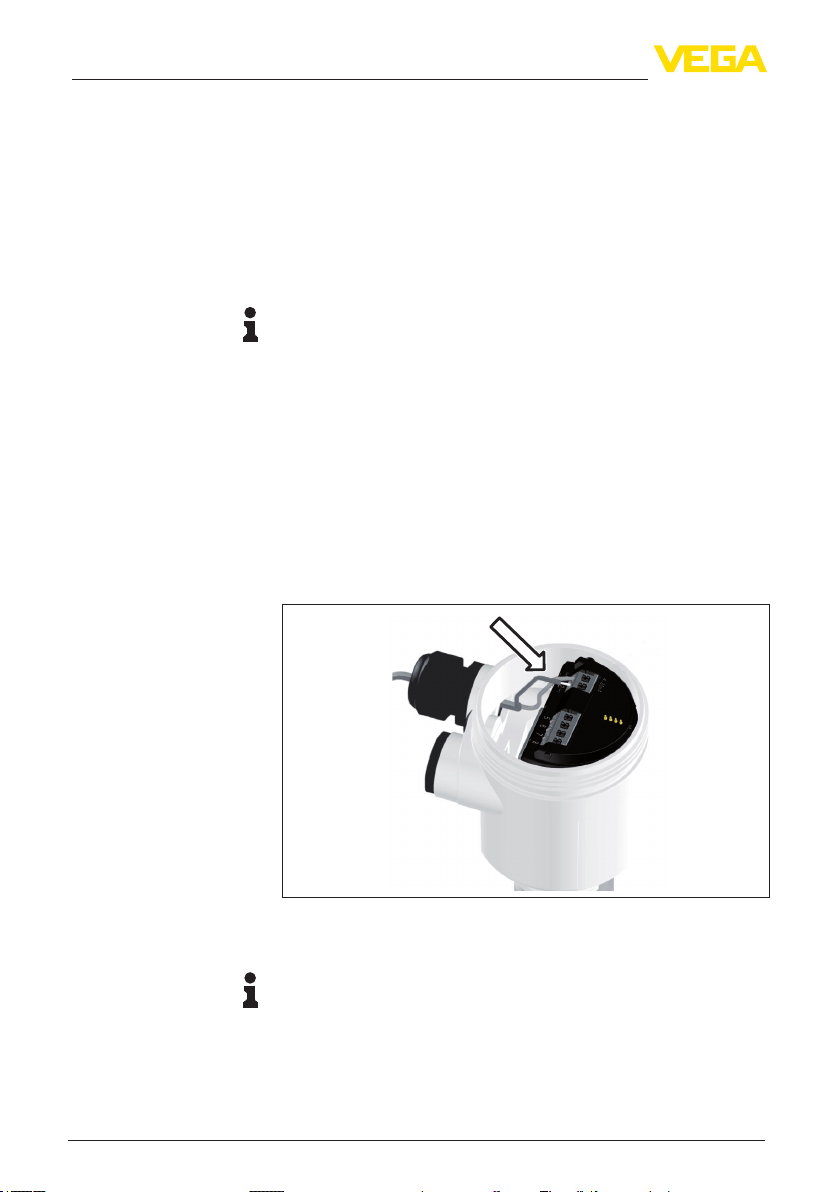

Fig. 24: Connection steps 5 and 6

6. Insert the wire ends into the terminals according to the wiring plan

Information:

Solid cores as well as exible cores with cable end sleeves are
inserted directly into the terminal openings. In case of exible cores
without end sleeves, press the terminal head with a small screwdriver;
the terminal opening is freed. When the screwdriver is released, the
terminal closes again.

36501-EN-121011

28

VEGAPULS 61 • Probus PA

5 Connecting to the bus system

You can nd further information to the max. wire cross-section under
"Technical data/Electromechanical data"

7. Check the hold of the wires in the terminals by lightly pulling on

them

8. Connect the screen to the internal ground terminal, connect the
outer ground terminal to potential equalisation

9. Tighten the compression nut of the cable entry. The seal ring must
completely encircle the cable

10. Place probably existing indicating and adjustment module back

on

11. Screw the housing cover back on

The electrical connection is hence nished.

5.3 Wiring plan, single chamber housing

The following illustration applies to the non-Ex as well as to the Ex-ia
version.

Electronics and connec­tion compartment

2

3

00

0

1

1

9

9

2

2

1

8

8

3

1

Bus

+

( )

1

3

7

7

4

4

6

6

5

5

0

(-)

2

5

678

4

5

1

Fig. 25: Electronics and connection compartment, single chamber housing

1 Voltage supply, signal output
2 For indicating and adjustment module or interface adapter
3 Selection switch for bus address
4 For external indicating and adjustment unit
5 Ground terminal for connection of the cable screen

5.4 Wiring plan, double chamber housing

The following illustrations apply to the non-Ex as well as to the Ex-ia
version.

36501-EN-121011

VEGAPULS 61 • Probus PA

29

5 Connecting to the bus system

2

Electronics compartment

Connection compartment

2

3

00

0

1

1

9

9

2

2

1

8

8

3

1

Bus

( )

+

1

3

7

7

4

4

6

6

5

5

0

(-)

2

5

678

11

Fig. 26: Electronics compartment, double chamber housing

1 Internal connection to the connection compartment
2 Contact pins for the indicating and adjustment module or interface adapter
3 Selection switch for bus address

Information:

The connection of an external indicating and adjustment unit is not
possible with this double chamber housing.

Bus

(-)

( )

+

1

2

3

1

Radio module PLICSMO­BILE integrated in the
connection compartment

30

Fig. 27: Connection compartment, double chamber housing

1 Voltage supply, signal output
2 For indicating and adjustment module or interface adapter
3 Ground terminal for connection of the cable screen

Status

SIM-Card

Test

Bus

( )

+

1

2

USB

(-)

1

Fig. 28: CConnection of the voltage supply of the radio module

1 Voltage supply

You can nd detailed information for connection in the supplementary
instructions "PLICSMOBILE GSM/GPRS radio module".

VEGAPULS 61 • Probus PA

36501-EN-121011

5 Connecting to the bus system

5.5 Wiring plan, double chamber housing Ex d

Electronics compartment

Connection compartment

2

3

00

0

1

1

9

9

2

2

1

8

8

3

1

Bus

+

( )

1

3

7

7

4

4

6

6

5

5

0

(-)

2

5

678

41

Fig. 29: Electronics compartment, double chamber housing

1 Internal connection to the connection compartment
2 Contact pins for the indicating and adjustment module or interface adapter
3 Selection switch for bus address
4 Internal connection to the plug connector for external indicating and adjust-

ment unit (optional)

Bus

( )

(-)

+

1

2

2

1

Fig. 30: Connection compartment, double chamber housing Ex d

1 Voltage supply, signal output
2 Ground terminal for connection of the cable screen

Plug M12 x 1 for external
indicating and adjust­ment unit

36501-EN-121011

VEGAPULS 61 • Probus PA

1

Fig. 31: Top view of the plug connector

1 Pin 1
2 Pin 2
3 Pin 3
4 Pin 4

Contact pin Colour connection ca-

ble in the sensor

Pin 1 Brown 5

Pin 2 White 6

34

2

Terminal, electronics
module

31

5 Connecting to the bus system

Wire assignment, con­nection cable

Instrument address

Contact pin Colour connection ca-

ble in the sensor

Pin 3 Blue 7

Pin 4 Black 8

Terminal, electronics
module

5.6 Wiring plan - version IP 66/IP 68, 1 bar

1

2

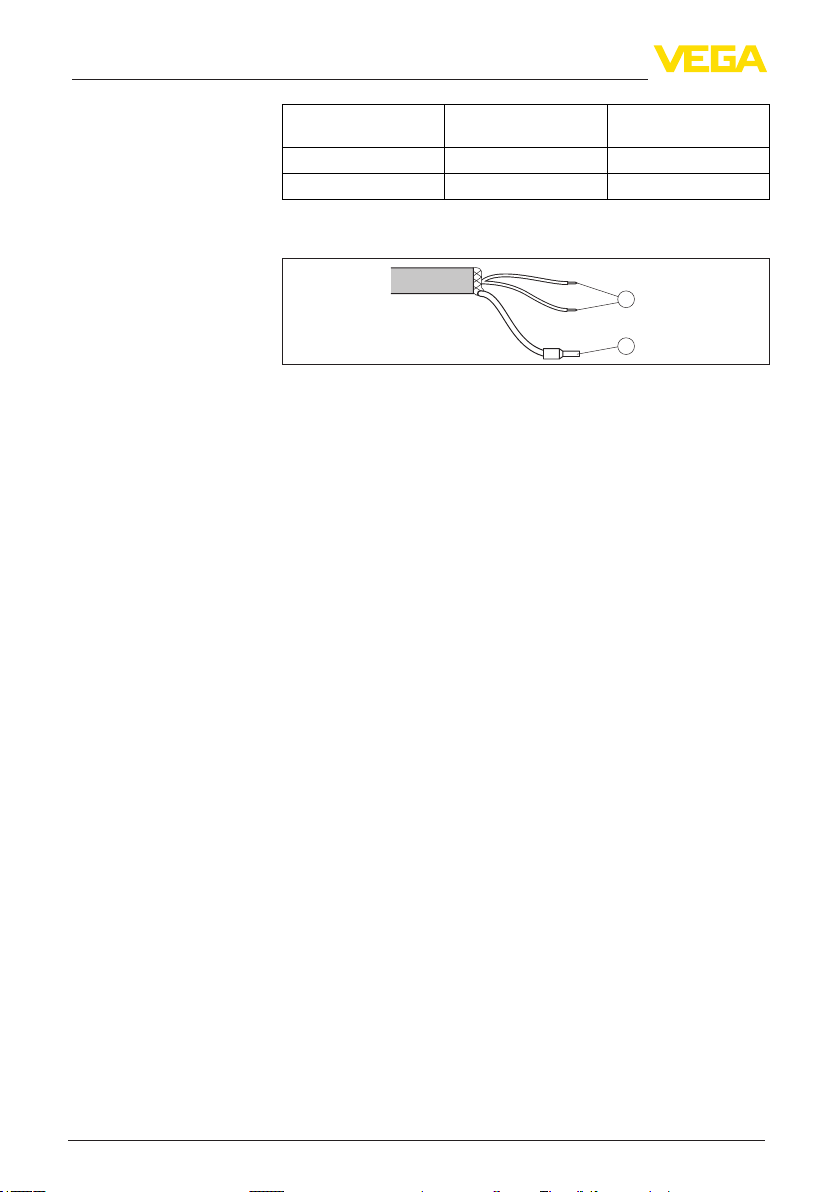

Fig.32:Wireassignmentx-connectedconnectioncable

1 brown (+) and blue (-) to power supply or to the processing system
2 Shielding

5.7 Set instrument address

An address must be assigned to each Probus PA instrument. The
approved addresses are between 0 and 126. Each address must
only be assigned once in the Probus PA network. The sensor is only
recognized by the control system if the address is set correctly.

When the instrument is shipped, address 126 is adjusted. This ad­dress can be used for function test of the instrument and for con­nection to a Probus PA network. Then address must be changed to
integrate additional instruments.

The address setting is carried out either via:

The address selection switch in the electronics compartment of

•

the instrument (address setting via hardware)
The indicating and adjustment module (address setting via soft-

•

ware)
PACTware/DTM (address setting via software)

•

Hardware addressing

32

The hardware addressing is eective if an address <126 is adjusted
with the address selection switches on the instrument. Hence the
software addressing is no longer eective, the adjusted hardware
address is valid.

36501-EN-121011

VEGAPULS 61 • Probus PA

5 Connecting to the bus system

1

2

3

00

0

1

1

9

9

2

2

1

8

8

3

1

Bus

( )

+

1

Fig. 33: Address selection switch

1 Addresses <100 (selection 0), addresses >100 (selection 1)
2 Decade of the address (selection 0 to 9)
3 Unit position of the address (selection 0 to 9)

3

7

7

4

4

6

6

5

5

0

(-)

2

5

678

Software addressing

The software addressing is only eective if address 126 or higher is
adjusted on the instrument with the address selection switches.

The addressing procedure is described in the operating instructions
manual "Indicating and adjustment module.

5.8 Switch-on phase

After VEGAPULS 61 is connected to the bus system, the instrument
carries out a self-test for approx. 30 seconds. The following steps are
carried out:

Internal check of the electronics

•

Indication of the instrument type, hardware and software version,

•

measurement loop name on the display or PC
Indication of the status message "F 105 Determine measured

•

value" on the display or PC
Status byte goes briey to fault value

•

As soon as a plausible measured value is found, it is outputted to the
signal cable. The value corresponds to the actual level as well as the
settings already carried out, e.g. factory settings.

36501-EN-121011

VEGAPULS 61 • Probus PA

33

6 Set up with the indicating and adjustment module

6 Set up with the indicating and adjustment

module

6.1 Insert indicating and adjustment module

The indicating and adjustment module can be inserted into the sen­sor and removed any time. Four positions displaced by 90° can be
selected. It is not necessary to interrupt the power supply.

Proceed as follows:

1. Unscrew the housing cover

2. Place the indicating and adjustment module in the requested
position onto the electronics and turn to the right until it snaps in

3. Screw housing cover with inspection window tightly back on

Removal is carried out in reverse order.
The indicating and adjustment module is powered by the sensor, an

additional connection is not necessary.

34

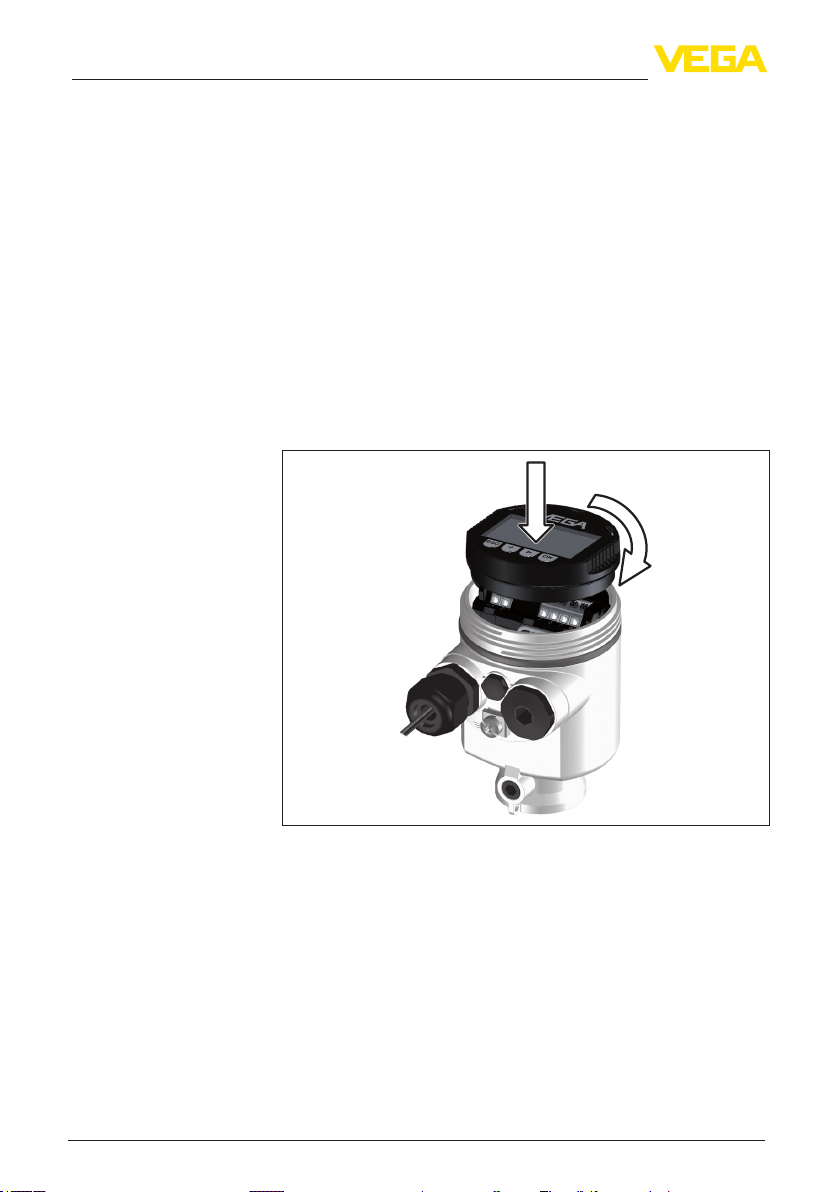

Fig. 34: Insertion of the indicating and adjustment module with single chamber
housing into the electronics compartment

36501-EN-121011

VEGAPULS 61 • Probus PA

6 Set up with the indicating and adjustment module

1 2

Fig. 35: Insertion of the indicating and adjustment module with double chamber
housing

1 In the electronics compartment
2 In the connection compartment (with Ex-d-ia version not possible)

Note:

If you intend to retrot the instrument with an indicating and adjust­ment module for continuous measured value indication, a higher
cover with an inspection glass is required.

Key functions

36501-EN-121011

VEGAPULS 61 • Probus PA

6.2 Adjustment system

Fig. 36: Indicating and adjustment elements

1 LC display
2 Adjustment keys

[OK] key:

•

– Move to the menu overview
– Conrm selected menu

1

2

35

6 Set up with the indicating and adjustment module

– Edit parameter
– Save value

[->] key:

•

– Presentation change measured value
– Select list entry
– Select editing position

[+] key:

•

– Change value of the parameter

[ESC] key:

•

– interrupt input
– Jump to next higher menu

Adjustment system

Main menu

The sensor is adjusted via the four keys of the indicating and adjust­ment module. The LC display indicates the individual menu items. The
functions of the individual keys are shown in the above illustration.
Approx. 10 minutes after the last pressing of a key, an automatic reset
to measured value indication is triggered. Any values not conrmed
with [OK] will not be saved.

6.3 Parameter adjustment

Through the parameter adjustment the instrument is adapted to the
application conditions. The parameter adjustment is carried out via an
adjustment menu.

The main menu is divided into ve sections with the following func-

tions:

Setup: Settings, for example, to measurement loop name, medium,
application, vessel, adjustment, AI FB 1 Channel - scaling - damping

Display: Language setting, settings for the measured value indication
as well as lighting

Diagnosis: Information, for example on the instrument status, pointer,
reliability, AI FB 1 simulation, echo curve

Further settings: Instrument units, false signal suppression, lineari­zation, sensor address, PIN, date/time, reset, copy sensor data

Info: Instrument name, hardware and software version, calibration
date, instrument features

In the main menu point "Setup", the individual submenu points should
be selected subsequently and provided with the correct parameters
to ensure the optimum adjustment of the measurement. The proce­dure is described in the following.

36501-EN-121011

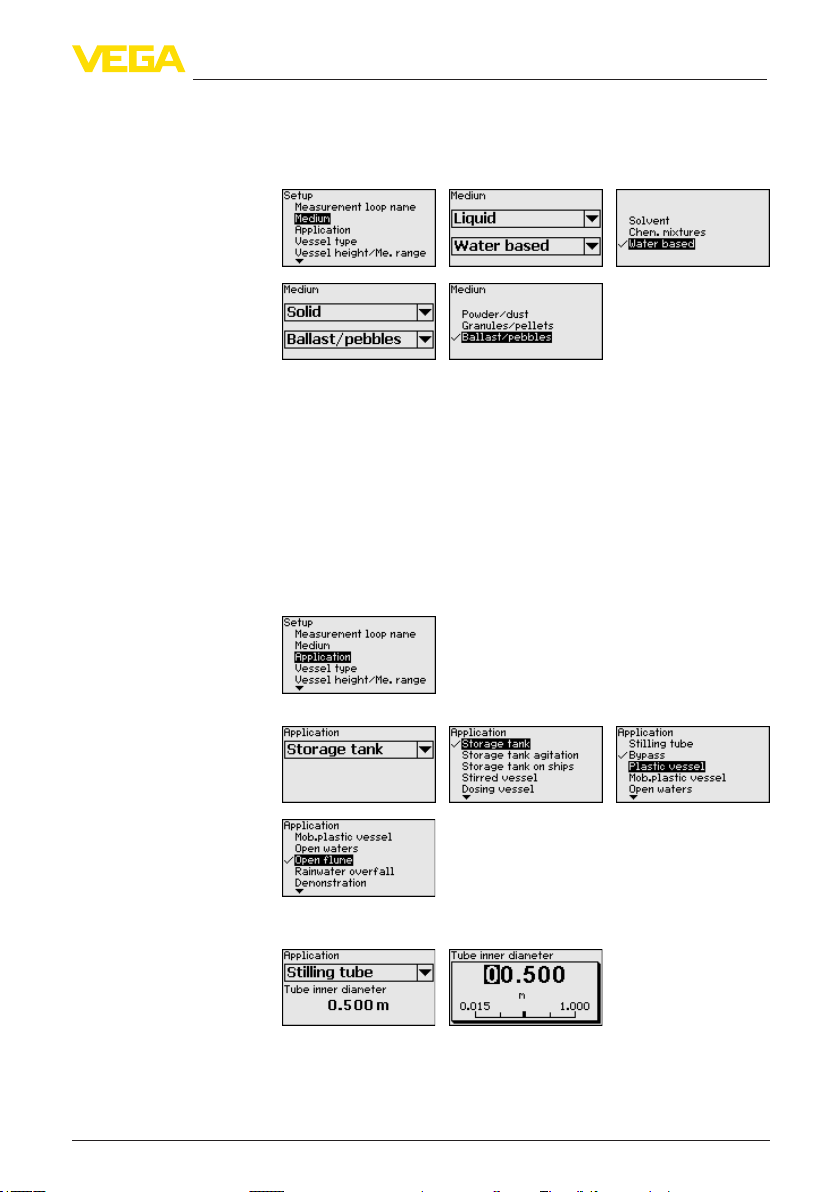

Setup/Medium

36

Each medium has dierent reection properties. With liquids, further
interfering factors are uctuation product surface and foam genera-

VEGAPULS 61 • Probus PA

6 Set up with the indicating and adjustment module

tion. With bulk solids, these are dust generation, material cone and
additional echoes from the vessel wall.

To adapt the sensor to these dierent measuring conditions, the
selection "Liquid" or "Bulk solid" should be made in this menu item.

Through this selection, the sensor is adapted perfectly to the product
and measurement reliability, particularly in products with poor reec­tive properties, is considerably increased.

Enter the requested parameters via the appropriate keys, save your
settings with [OK] and jump to the next menu item with the [ESC] and
the [->] key.

Setup/Application

36501-EN-121011

VEGAPULS 61 • Probus PA

In addition to the medium, also the application, i.e. the measuring site,
can inuence the measurement.

With this menu item, the sensor can be adapted to the applications.
The adjustment possibilities depend on the selection "Liquid" or "Bulk
solid" under "Medium".

The following options are available when "Liquid" is selected:

The selection "Standpipe" opens a new window in which the inner
diameter of the applied standpipe is entered.

The following features form the basis of the applications:

Storage tank:

Setup: large-volumed, upright cylindrical, spherical

•

Product speed: slow lling and emptying

•

37

6 Set up with the indicating and adjustment module

Process/measurement conditions:

•

– Condensation
– Smooth product surface
– Max. requirement to the measurement accuracy

Storage tanke with product circulation:

Setup: large-volumed, upright cylindrical, spherical

•

Product speed: slow lling and emptying

•

Vessel: small laterally mounted or large top mounted stirrer

•

Process/measurement conditions:

•

– Relatively smooth product surface
– Max. requirement to the measurement accuracy
– Condensation
– Slight foam generation
– Overlling possible

Storage tank on ships (Cargo Tank):

Product speed: slow lling and emptying

•

Vessel:

•

– Installations in the bottom section (bracers, heating spirals)
– High sockets 200 … 500 mm, also with large diameters

Process/measurement conditions:

•

– Condensation, buildup by movement
– Max. requirement on measurement accuracy from 95 %

Stirrer vessel (reactor):

Setup: all vessel sizes possible

•

Product speed:

•

– Fast to slow lling possible
– Vessel is very often lled and emptied

Vessel:

•

– Socket available
– Large agitator blades of metal
– Vortex breakers, heating spirals

Process/measurement conditions:

•

– Condensation, buildup by movement
– Strong spout generation
– Very agitated surface, foam generation

Dosing vessel:

Setup: all vessel sizes possible

•

Product speed:

•

– Fast lling and emptying
– Vessel is very often lled and emptied

Vessel: narrow installation situation

•

Process/measurement conditions:

•

– Condensation, buildup on the antenna
– Foam generation

Standpipe:

Product speed: very fast lling and emptying

•

Vessel:

•

– Vent hole

36501-EN-121011

38

VEGAPULS 61 • Probus PA

36501-EN-121011

VEGAPULS 61 • Probus PA

6 Set up with the indicating and adjustment module

– Joins like anges, weld joints
– Shifting of the running time in the tube

Process/measurement conditions:

•

– Condensation
– Buildup

Bypass:

Product speed:

•

– Fast up to slow lling with short up to long bypass tube possible
– Often the level is hold via a control facility

Vessel:

•

– Lateral outlets and inlets
– Joins like anges, weld joints
– Shifting of the running time in the tube

Process/measurement conditions:

•

– Condensation
– Buildup
– Separation of oil and water possible
– Overlling into the antenna possible

Plastic tank:

Vessel:

•

– Measurement x mounted or integrated
– Measurement depending on the application through the vessel

top

– With empty vessel, the measurement can be carried out

through the bottom

Process/measurement conditions:

•

– Condensation on the plastic ceiling
– In outside facilities water and snow on the vessel top possible

Transportable plastic tank:

Vessel:

•

– Material and thickness dierent
– Measurement through the vessel top

Process/measurement conditions:

•

– Measured value jump with vessel change

Open water (gauge measurement):

Gauge rate of change: slow gauge change

•

Process/measurement conditions:

•

– Distance sensor to water surface to big
– Extreme damping of output signal due to wave generation
– Ice and condensation on the antenna possible
– Spiders and insect nestle in the antennas
– Floating material and animals sporadically on the water surface

Openume(owmeasurement):

Gauge rate of change: slow gauge change

•

Process/measurement conditions:

•

– Ice and condensation on the antenna possible
– Spiders and insect nestle in the antennas
– Smooth water surface

39

6 Set up with the indicating and adjustment module

– Exact measurement result required
– Distance to the water surface normally relatively high

Rain water overfall (weir):

Gauge rate of change: slow gauge change

•

Process/measurement conditions:

•

– Ice and condensation on the antenna possible
– Spiders and insect nestle in the antennas
– Turbulent water surface
– Sensor ooding possible

Demonstration:

Adjustment for all applications which are not typically level meas-

•

urement

Sensor accepts all measured value changes within the measuring

•

range immediately
Typical applications:

•

– Instrument demonstration
– Object recognition/monitoring (additional settings required)

Caution:

If a separation of liquids with dierent dielectric gure occurs in the
vessel, for example through condensation, the radar sensor can
detect under certain circumstances only the medium with the higher
dielectric gure. Keep in mind that layer interfaces can cause faulty
measurements.

If you want to measure the total height of both liquids reliably, please
contact our service department or use an instrument specially de­signed for interface measurement.

The following options are available when "Bulk solid" is selected:

40

The following features form the basis of the applications:

Silo (slim and high):

Vessel of metal: weld joints

•

Process/measurement conditions:

•

– Filling too close to the sensor
– System noise with completely empty silo increased
– Automatic false signal suppression with partly lled vessel

Bunker (large-volumed):

Vessel of concrete or metal:

•

– Structured vessel walls
– Installations present

Process/measurement conditions:

•

– Large distance to the medium
– Large angles of repose

Bunkerwithfastlling:

VEGAPULS 61 • Probus PA

36501-EN-121011

6 Set up with the indicating and adjustment module

Vessel of concrete or metal, also multiple chamber silo:

•

– Structured vessel walls
– Installations present

Process/measurement conditions:

•

– Measured value jumps, e.g. by truck loading
– Large distance to the medium
– Large angles of repose

Heap:

Sensor mounting on movable conveyor belts

•

Detection of the heap prole

•

Height detection during lling

•

Process/measurement conditions:

•

– Measured value jumps, e.g. by the prole of the heap or trav-

erses

– Large angles of repose
– Measurement near the lling stream

Crusher:

Vessel: installations, wear and protective facilities available

•

Process/measurement conditions:

•

– Measured value jumps, e.g. by truck loading
– Fast reaction time
– Large distance to the medium

Demonstration:

Adjustment for all applications which are not typically level meas-

•

urement

Sensor accepts all measured value changes within the measuring

•

range immediately
Typical applications:

•

– Instrument demonstration
– Object recognition/monitoring (additional settings required)

Through this selection, the sensor is adapted optimally to the applica­tion or the location and measurement reliability under the various
basic conditions is increased considerably.

Enter the requested parameters via the appropriate keys, save your
settings with [OK] and jump to the next menu item with the [ESC] and
the [->] key.

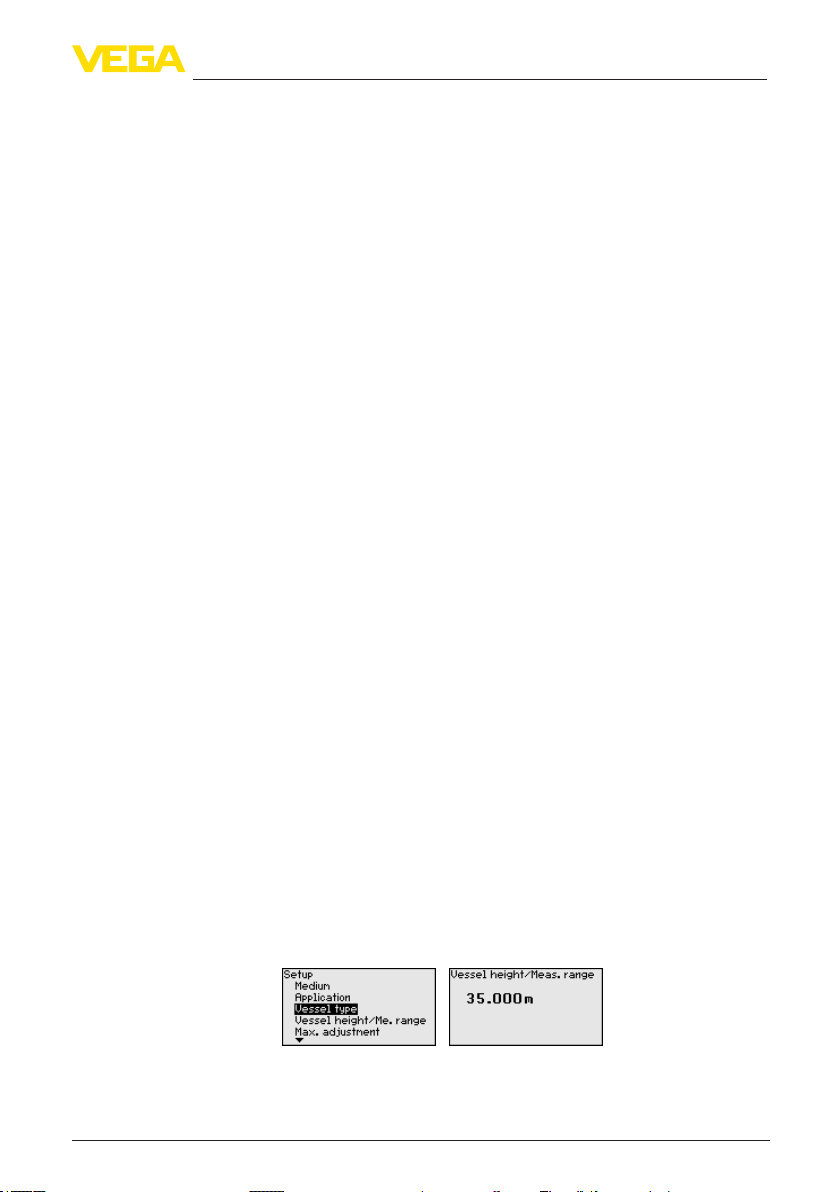

Setup/Vessel height,
measuring range

36501-EN-121011

VEGAPULS 61 • Probus PA

With this selection, the operating range of the sensor is adapted to
the vessel height and the reliability with dierent frame conditions is
increased considerably.

Independent from this, the min. adjustment must be carried out.

Enter the requested parameters via the appropriate keys, save your
settings with [OK] and jump to the next menu item with the [ESC] and

the [->] key.

41

6 Set up with the indicating and adjustment module

Setup/Vessel form

Setup/Adjustment

Also the vessel form can inuence the measurement apart from the
medium and the application. To adapt the sensor to these measure­ment conditions, this menu item oers you dierent options for vessel
bottom and ceiling in case of certain applications.

Enter the requested parameters via the appropriate keys, save your
settings with [OK] and jump to the next menu item with the [ESC] and
the [->] key.

Since a radar sensor is a distance measuring instrument, the distance
from the sensor to the product surface is measured. For indication of
the real level, an allocation of the measured distance to the percent­age height must be carried out.

To perform the adjustment, enter the distance with full and empty ves­sel, see the following example:

")

0,5 m

(19.68

100%

2

42

")

5 m

(196.9

0%

1

Fig. 37: Parameter adjustment example min./max. adjustment

1 Min. level = max. meas. distance
2 Max. level = min. meas. distance

If these values are not known, an adjustment with the distances of for
example 10 % and 90 % is possible. Starting point for these distance
specications is always the seal surface of the thread or ange. By
means of these settings, the real level will be calculated.

The real product level during this adjustment is not important, be­cause the min./max. adjustment is always carried out without chang-

VEGAPULS 61 • Probus PA

36501-EN-121011

6 Set up with the indicating and adjustment module

ing the product level. These settings can be made ahead of time
without the instrument having to be installed.

Setup/Min. adjustment

Setup/Max. adjustment

Proceed as follows:

1. Select the menu item "Setup" with [->] and conrm with [OK].
Now select with [->] the menu item "Min. adjustment" and conrm
with [OK].

2. Edit the percentage value with [OK] and set the cursor to the
requested position with [->].

3. Set the requested percentage value with [+] and save with [OK].
The cursor jumps now to the distance value.

4. Enter the suitable distance value in m for the empty vessel (e.g.
distance from the sensor to the vessel bottom) corresponding to
the percentage value.

5. Save settings with [OK] and move with [ESC] and [->] to the max.
adjustment.

Proceed as follows:

1. Select with [->] the menu item max. adjustment and conrm with
[OK].

36501-EN-121011

VEGAPULS 61 • Probus PA

2. Prepare the percentage value for editing with [OK] and set the
cursor to the requested position with [->].

3. Set the requested percentage value with [+] and save with [OK].
The cursor jumps now to the distance value.

43

6 Set up with the indicating and adjustment module

4. Enter the appropriate distance value in m (corresponding to the
percentage value) for the full vessel. Keep in mind that the max.
level must lie below the min. distance to the antenna edge.

5. Save settings with [OK]

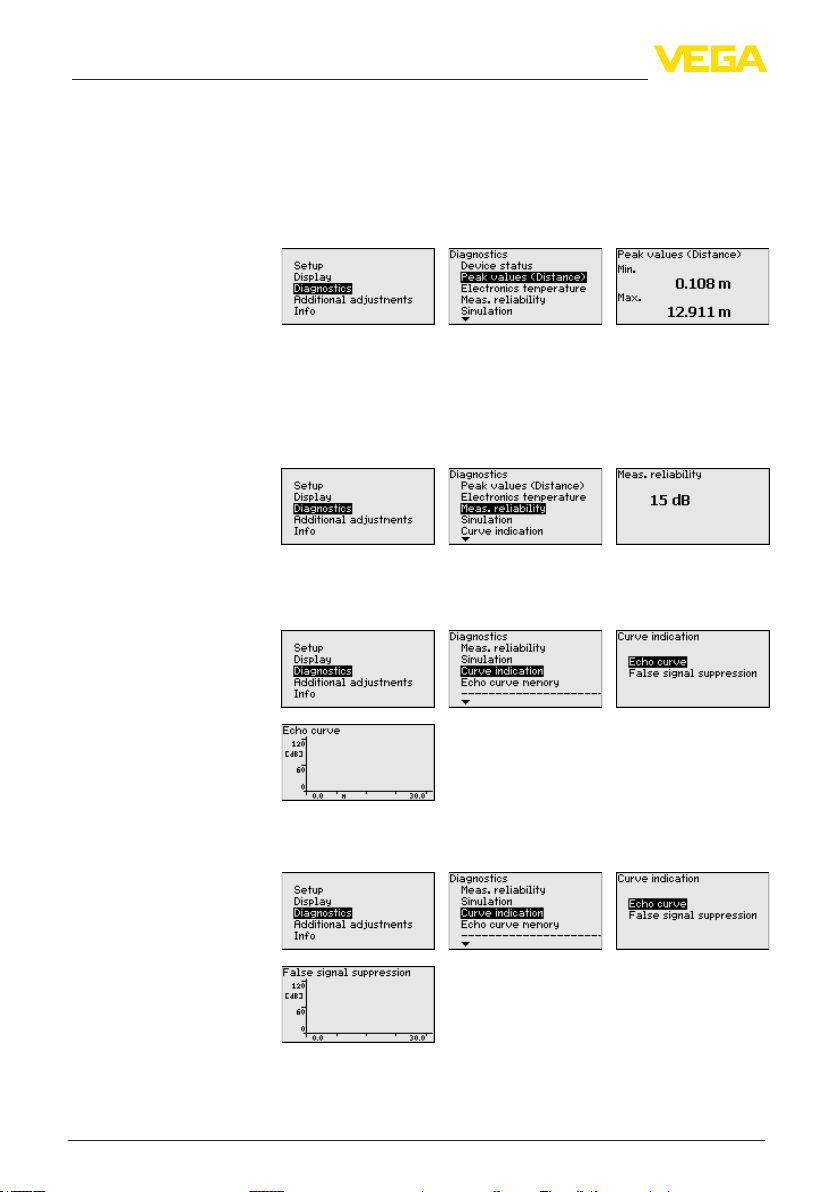

Diagnosis/Peak value

Diagnosis/Measurement
reliability

Diagnoses/Curve indica­tion

The respective min. and max. measured value is saved in the sensor.
The values are displayed in the menu item "Peak values".

When non-contact level sensors are used, the measurement can be
inuenced by the respective process conditions. In this menu item,
the measurement reliability of the level echo is displayed as dB value.
The measurement reliability equals signal strength minus noise. The
higher the value, the more reliable the measurement. With a function­ing measurement, the values are > 10 dB.

The "Echo curve" shows the signal strength of the echoes over the
measuring range in dB. The signal strength enables an evaluation of
the quality of the measurement.

44

The "False signal suppression" displays the saved false echoes (see
menu "Additional settings") of the empty vessel with signal strength in
"dB" over the measuring range.

36501-EN-121011

A comparison of echo curve and false signal suppression allows a
more accurate conclusion on measurement reliability. The selected

VEGAPULS 61 • Probus PA

6 Set up with the indicating and adjustment module

curve is continuously updated. With the [OK] key, a submenu with
zoom functions is opened:

"X-Zoom": Zoom function for the meas. distance

•

"Y-Zoom": 1, 2, 5 and 10x signal magnication in "dB"

•

"Unzoom": Reset the presentation to the nominal measuring range

•

with single magnication

Additional adjustments/
False signal suppression

The following circumstances cause interfering reections and can
inuence the measurement:

High sockets

•

Vessel installations such as struts

•

Agitators

•

Buildup or welded joints on vessel walls

•

Note:

A false signal suppression detects, marks and saves these false sig­nals so that they are no longer taken into account for level measure­ment.

This should be done with the low level so that all potential interfering
reections can be detected.

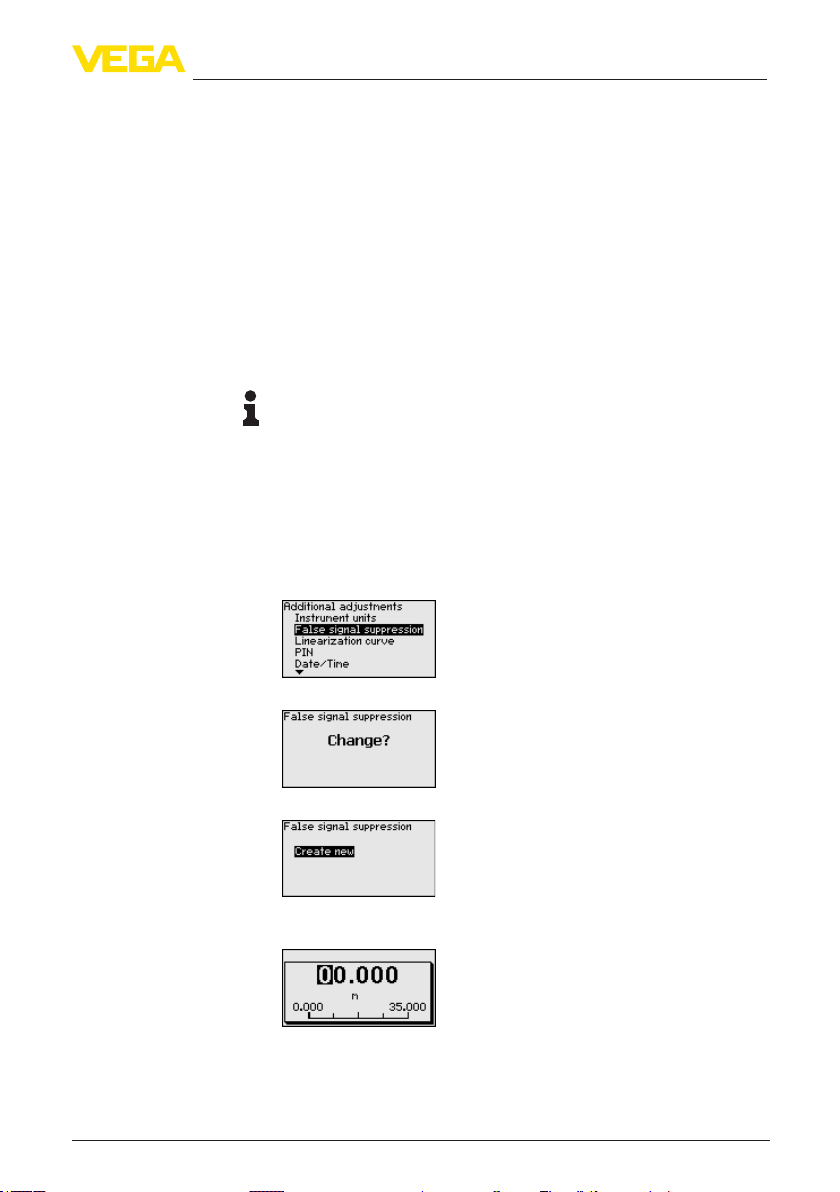

Proceed as follows:

1. Select the menu item "Additional settins" with [->] and conrm
with [OK]. With [->] you have to select the menu item "False
signal suppression" and conrm with [OK].

2. Conrm again with [OK].

3. Conrm again with [OK].

36501-EN-121011

VEGAPULS 61 • Probus PA

4. Conrm again with [OK] and enter the actual distance from the
sensor to the product surface.

5. All interfering signals in this section are detected by the sensor
and stored after conrming with [OK].

45

6 Set up with the indicating and adjustment module

Note:

Check the distance to the product surface, because if an incorrect
(too large) value is entered, the existing level will be saved as false
signal. The lling level would then no longer be detectable in this area.

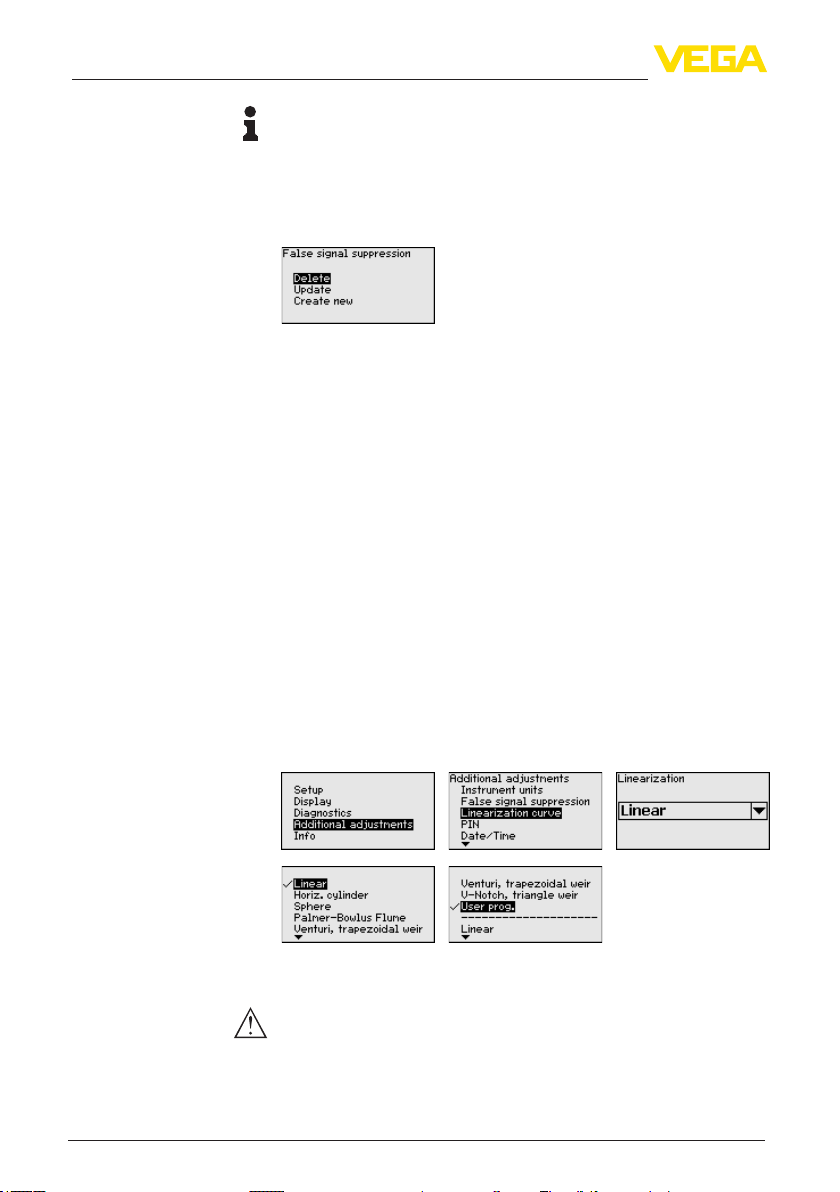

If a false signal suppression has already been created in the sensor,
the following menu window appears when selecting "False signal
suppression":

The menu item "Delete" is used to completely delete an already cre­ated false signal suppression. This is useful if the saved false signal
suppression no longer matches the metrological conditions in the
vessel.

The menu item "Extend" is used to extend an already created false
signal suppression. This is useful if a false signal suppression was
carried out with a too high level and not all false signals could be de­tected. When selecting "Extend", the distance to the product surface
of the created false signal suppression is displayed. This value can
now be changed and the false signal suppression can be extended to
this range.

Additional adjustments/
Linearization curve

46

A linearization is necessary for all vessels in which the vessel volume
does not increase linearly with the level - e.g. in a horizontal cylindri­cal or spherical tank - and the indication or output of the volume is
required. Corresponding linearization curves are preprogrammed
for these vessels. They represent the correlation between the level
percentage and vessel volume.

By activating the appropriate curve, the volume percentage of the
vessel is displayed correctly. If the volume should not be displayed in
percent but e.g. in l or kg, a scaling can be also set in the menu item
"Display".

Enter the requested parameters via the appropriate keys, save your
settings and jump to the next menu item with the [ESC] and [->] key.

Caution:

Note the following if the instrument with corresponding approval is
used as part of an overll protection system according to WHG:

If a linearisation curve is selected, the measuring signal is no longer
linearly proportional to the level. This must be taken into consideration

VEGAPULS 61 • Probus PA

36501-EN-121011

6 Set up with the indicating and adjustment module

by the user, particularly when setting the switching point on the level
switch.

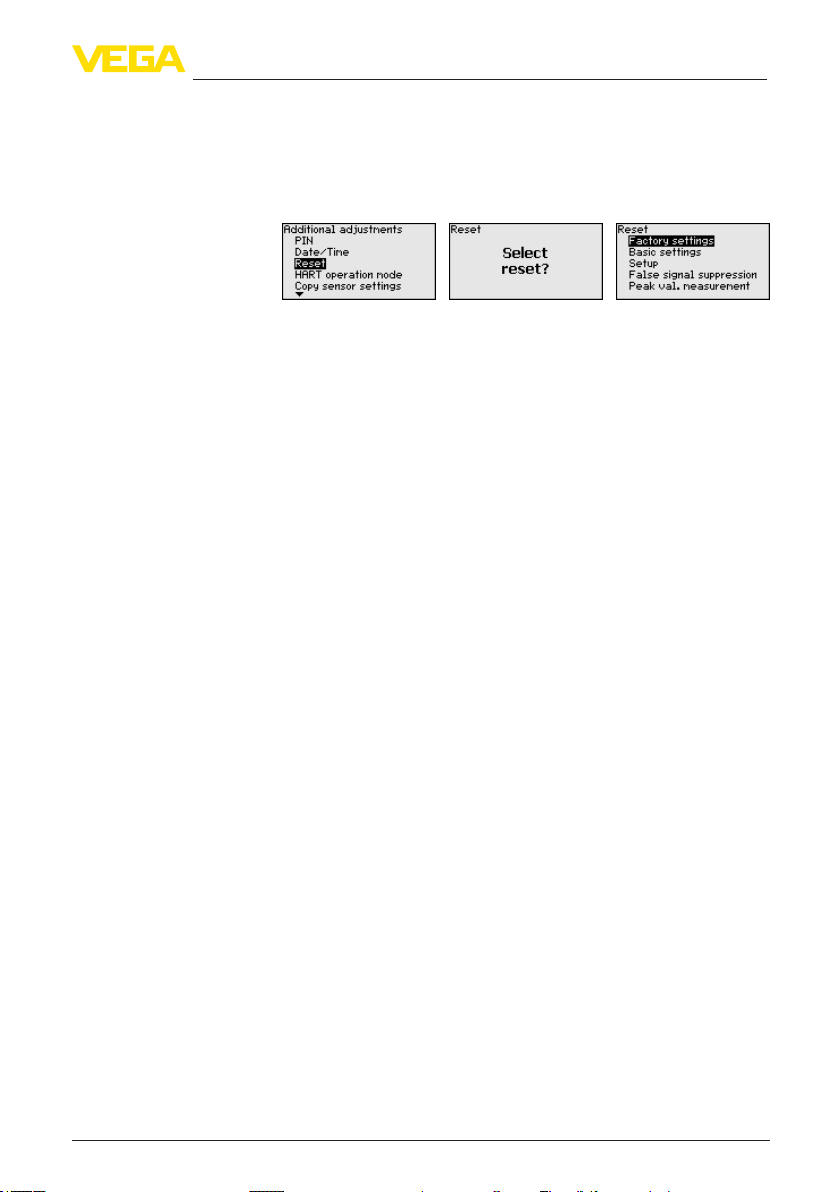

Additional adjustments/
Reset

When a reset is carried out, all settings (with only a few exceptions)
are reset. The exceptions are: PIN, language, lighting, SIL and HART
mode.

The following reset functions are available:

Delivery status: Restoring the parameter settings at the time of

•

shipment from the factory incl. the order-specic settings. A cre­ated false signal suppression, user-programmable linearization
curve, measured value memory as well as event memory will be
deleted.
Basic settings: Resetting of the parameter settings incl. special

•

and laboratory parameters to the default values of the respective
instrument. Any created false signal suppression, user program­mable linearization curve, measured value memory as well as
event memory will be deleted.
Setup: Resetting of the parameter settings to the default values of

•

the respective instrument . Order-related settings remain but are
not taken over into the current parameters. User-generated false
signal suppression, user-programmed linearization curve, meas­ured value memory, echo curve memory as well as event memory
remain untouched. The linearization is set to linear.
False signal suppression: Deleting a previously created false

•

signal suppression. The false signal suppression created in the
factory remains active.
Peak values measured value: Resetting of the measured min.

•

and max. distances to the actual measured value.

Select the requested reset function [->] and conrm with [OK].
The following table shows the default values of VEGAPULS 61:

36501-EN-121011

VEGAPULS 61 • Probus PA

47

6 Set up with the indicating and adjustment module

Menu Menu item Default value

Setup Measurement

Display Language Like order

Additional adjust-

ments

loop name

Medium Liquid/Water

Applications Storage tank

Vessel form Vessel bottom, dished boiler end

Vesell height/
Measuring range

Min. adjustment Recommended measuring range, see

Max. adjustment 0,000 m(d)

AI FB1 Channnel PV (lin. perc.)

AI FB1 scaling

unit

AI FB1 scaling 0.00 lin %, 0.00 %

AI FB1 damping 0 s

Lock operation Released

Displayed value SV 1

Backlight Switched o

Distance unit m

Temperature unit °C

Unit SV2 m

Probe length Length of the standpipe Ex factory

Linearisation

curve

Sensor address 126

Sensor

Bulk solids/Crushed stones, gravel

Silo

Vessel top, dished boiler end

Recommended measuring range, see
"Technical data" in the supplement

"Technical data" in the supplement

Height
%

100.00 lin %, 100.00 %

Linear

48

6.4 Saving the parameter adjustment data

We recommended noting the adjusted data, e.g. in this operating
instructions manual, and archiving them afterwards. They are thus
available for multiple use or service purposes.

If the instrument is equipped with an indicating and adjustment
module, the data in the sensor can be saved in the indicating and
adjustment module. The procedure is described in the operating
instructions manual "Indicating and adjustment module" in the menu
item "Copy sensor data". The data remain there permanently even if
the sensor power supply fails.

VEGAPULS 61 • Probus PA

36501-EN-121011

6 Set up with the indicating and adjustment module

The following data or settings for adjustment of the indicating and
adjustment module are saved:

All data of the menu "Setup" and "Display"

•

In the menu "Additional adjustments" the items "Sensor-specic

•

units, temperature unit and linearization"
The values of the user programmable linearisation curve

•

The function can also be used to transfer settings from one instru­ment to another instrument of the same type. If it is necessary to
exchange a sensor, the indicating and adjustment module is inserted
into the replacement instrument and the data are likewise written into
the sensor via the menu item "Copy sensor data".

36501-EN-121011

VEGAPULS 61 • Probus PA

49

7 Setup with PACTware

7 Setup with PACTware

7.1 Connect the PC

Via the interface adapter
directly on the sensor

Prerequisites

2

1

3

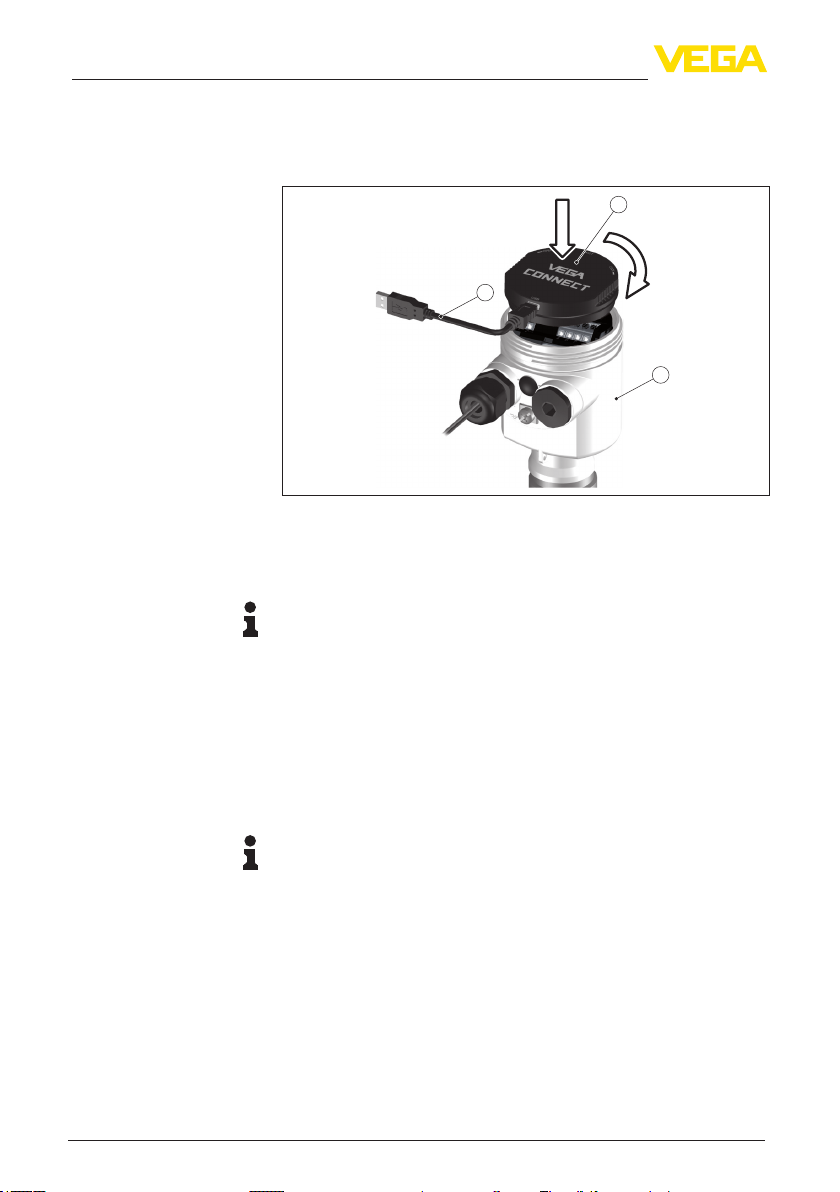

Fig. 38: Connection of the PC directly to the sensor via the interface adapter

1 USB cable to the PC
2 Interface adapter VEGACONNECT 4
3 Sensor

Information:

The interface adapter VEGACONNECT 3 is not suitable for connec­tion to the sensor.

7.2 Parameter adjustment with PACTware

For parameter adjustment of the sensor via a Windows PC, the con­guration software PACTware and a suitable instrument driver (DTM)
according to FDT standard are required. The up-to-date PACTware
version as well as all available DTMs are compiled in a DTM Collec­tion. The DTMs can also be integrated into other frame applications
according to FDT standard.

Note:

To ensure that all instrument functions are supported, you should
always use the latest DTM Collection. Furthermore, not all described
functions are included in older rmware versions. You can download
the latest instrument software from our homepage. A description of
the update procedure is also available in the Internet.

Further setup steps are described in the operating instructions manu­al "DTM Collection/PACTware" attached to each DTM Collection and
which can also be downloaded from the Internet. Detailed descrip­tions are available in the online help of PACTware and the DTMs.

36501-EN-121011

50

VEGAPULS 61 • Probus PA

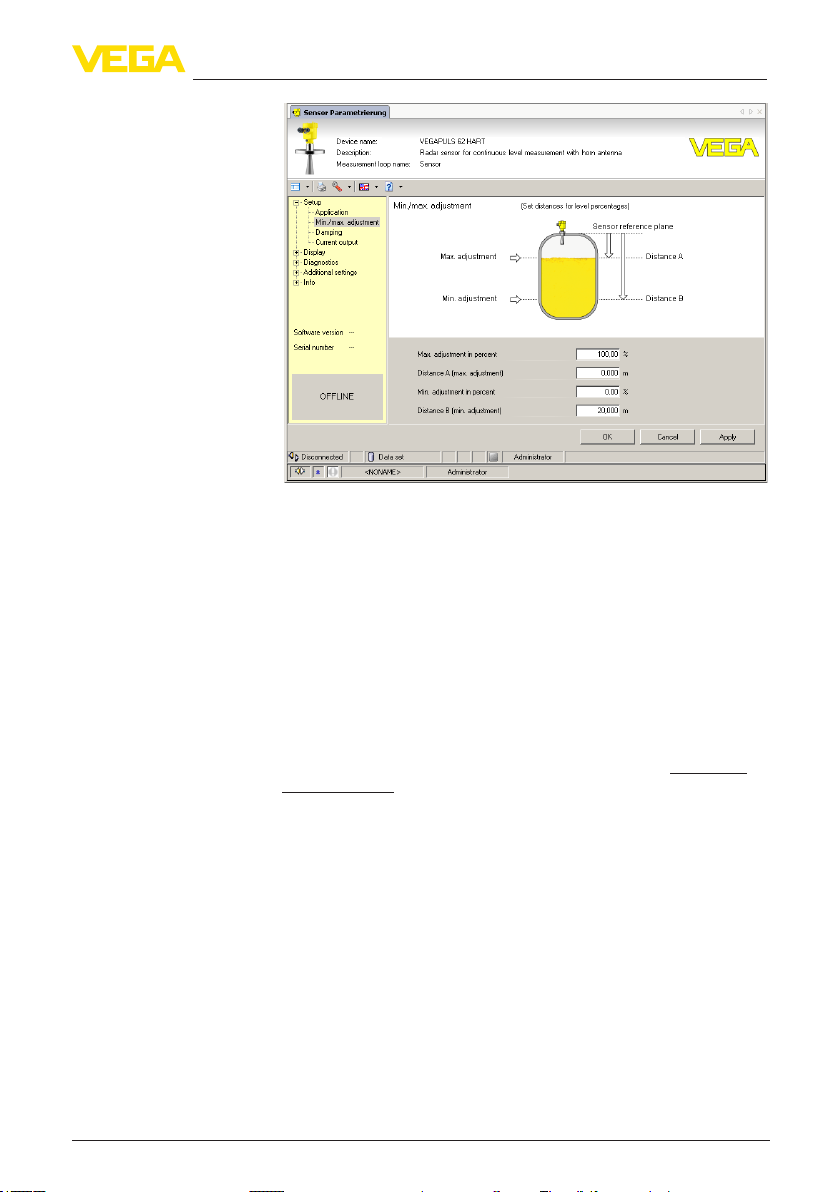

Fig. 39: Example of a DTM view

7 Setup with PACTware

Standard/Full version

All device DTMs are available as a free-of-charge standard version
and as a full version that must be purchased. In the standard version,
all functions for complete setup are already included. An assistant for
simple project conguration simplies the adjustment considerably.
Saving/printing the project as well as import/export functions are also
part of the standard version.

In the full version there is also an extended print function for complete
project documentation as well as a save function for measured value
and echo curves. In addition, there is a tank calculation program as
well as a multiviewer for display and analysis of the saved measured
value and echo curves.

The standard version is available as a download under www.vega.
com/downloads and "Software". The full version is available on CD
from the agency serving you.

7.3 Saving the parameter adjustment data

We recommend documenting or saving the parameter adjustment
data via PACTware. That way the data are available for multiple use or
service purposes.

36501-EN-121011

VEGAPULS 61 • Probus PA

51

8 Set up with other systems

8 Set up with other systems

8.1 DD adjustment programs

Device descriptions as Enhanced Device Description (EDD) are
available for DD adjustment programs such as, for example, AMS™
and PDM.

The les can be downloaded at www.vega.com/downloads under
"Software".

52

36501-EN-121011

VEGAPULS 61 • Probus PA

9 Diagnosis, Asset Management and service

9 Diagnosis, Asset Management and service

9.1 Maintenance

If the device is used correctly, no maintenance is required in normal
operation.

9.2 Measured value and event memory

The instrument has several memories which are available for diagno­sis purposes. The data remain even with voltage interruption.

Measured value memory

Event memory

Echo curve memory

Up to 60,000 measured values can be stored in the sensor in a ring
memory. Each entry contains date/time as well as the respective
measured value. Storable values are for example:

Distance

•

Filling height

•

Percentage value

•

Lin. percent

•

Scaled

•

Current value

•

Meas. reliability

•

Electronics temperature

•

When the instrument is shipped, the measured value memory is
active and stores distance, measurement certainty and electronics
temperature every 3 minutes.

The requested values and recording conditions are set via a PC with
PACTware/DTM or the control system with EDD. Data are thus read
out and also reset.

Up to 500 events are automatically stored with a time stamp in the
sensor (non-deletable). Each entry contains date/time, event type,
event description and value. Event types are for example:

Modication of a parameter

•

Switching on and o times

•

Status messages (according to NE 107)

•

Error messages (according to NE 107)

•

The data are read out via a PC with PACTware/DTM or the control
system with EDD.

The echo curves are stored with date and time and the corresponding
echo data. The memory is divided into two sections:

Echo curve of the setup: This is used as reference echo curve for
the measurement conditions during setup. Changes in the measure­ment conditions during operation or buildup on the sensor can thus
be recognized. The echo curve of the setup is stored via:

PC with PACTware/DTM

•

Control system with EDD

•

Indicating and adjustment module

•

36501-EN-121011

VEGAPULS 61 • Probus PA

53

9 Diagnosis, Asset Management and service

Further echo curves: Up to 10 echo curves can be stored in a ring
buer in this memory section. Further echo curves are stored via:

PC with PACTware/DTM

•

Control system with EDD

•

9.3 Asset Management function

The instrument features self-monitoring and diagnostics according
to NE 107 and VDI/VDE 2650. In addition to the status messages in
the following tables there are more detailed error messages available
under the menu item "Diagnostics" via the indicating and adjustment
module, PACTware/DTM and EDD.

Status messages

The status messages are classied in the following categories:

Failure

•

Function check

•

Out of specication

•

Maintenance requirement

•

and explained by pictographs:

41 2 3

Fig. 40: Pictograms of the status messages

1 Failure - red
2 Function check - orange

3 Outofspecication-yellow

4 Maintenance - blue

Failure: Due to a malfunction in the instrument, a failure message is
outputted.

This status message is always active. It cannot be deactivated by the
user.

Function check: The instrument is in operation, the measured value
is temporarily invalid (for example during simulation).

This status message is inactive by default. It can be activated by the
user via PACTware/DTM or EDD.

Outofspecication: The measured value is unstable because the
instrument specication is exceeded (e.g. electronics temperature).

This status message is inactive by default. It can be activated by the
user via PACTware/DTM or EDD.

Maintenance: Due to external inuences, the instrument function
is limited. The measurement is aected, but the measured value is
still valid. Plan in maintenance for the instrument because a failure is
expected in the near future (e.g. due to buildup).

This status message is inactive by default. It can be activated by the
user via PACTware/DTM or EDD.

36501-EN-121011

54

VEGAPULS 61 • Probus PA

9 Diagnosis, Asset Management and service

Failure (failure)

The following table shows the codes and text messages of the status
message "Failure" and provides information on causes as well as
corrective measures.

Code

Text mes­sage

F013

no meas-

ured value
available

F017

Adjustment
span too
small

F025

Error in the

lineariza­tion table

F036

No op­erable
software

F040

Error in the

electronics

F080 – General software error – Separate operating

F105

Determine

measured
value

F113
Communi-

cation error

F125

Unper­missible
electronics
tempera-

ture

Cause Rectication PA DevS-

– Sensor does not

detect an echo during
operation

– Antenna system con-

taminated or defective

– Adjustment not within

specication

– Index markers are not

continuously rising, for
examle unlogical value
pairs

– Failed or interrupted

software update

– Hardware defect – Exchanging the elec-

– The instrument is still

in the start phase, the
measured value could
not yet be determined

– Error in the internal

instrument communi­cation

– Temperature of the

electronics in the non­specied section

– Check or correct

installation and/or
parameter adjustment

– Clean or exchange

process component or

antenna

– Change adjustment

according to the limit
values (dierence
between min. and
max. ≥ 10 mm)

– Check linearization

table

– Delete table/Create

new

– Repeat software

update

– Check electronics

version

– Exchanging the elec-

tronics

– Send instrument for

repair

tronics

– Send instrument for

repair

voltage briey

– Wait for the warm-up

phase

– Duration depending

on the version and
parameter adjustment
up to approximately
3 min.

– Separate operating

voltage briey

– Send instrument for

repair

– Check ambient tem-

perature

– Isolate electronics
– Use instrument with

higher temperature
range

pec

Diagnosis

Bit 0

Bit 1

Bit 2

Bit 3

Bit 4

Bit 5

Bit 6

Bit 7

Bit 8

36501-EN-121011

VEGAPULS 61 • Probus PA

55

9 Diagnosis, Asset Management and service

Function check

Code

Text mes­sage

F260

Error in the

calibration

F261

Error in the
congura­tion

F264

Installa­tion/Setup

error

F265
Meas-

urement

function
disturbed

Cause Rectication PA DevS-

– Error in the calibra-

tion carried out in the
factory

– Error in the EEPROM

– Error during setup
– False signal suppres-

sion faulty

– Error when carrying

out a reset

– Adjustment not within

the vessel height/
measuring range

– Max. measuring range

of the instrument not
sucient

– Sensor no longer

carries out a measure­ment

– Operating voltage

too low

– Exchanging the elec-

tronics

– Send instrument for

repair

– Repeat setup
– Repeat reset

– Check or correct

installation and/or
parameter adjustment

– Use an instrument

with bigger measuring
range

– Check operating

voltage

– Carry out a reset
– Separate operating

voltage briey

pec

Diagnosis

Bit 9

Bit 10

Bit 11

Bit 12

The following table shows the error codes and text messages in the
status message "Function check" and provides information on causes
as well as corrective measures.

Code

Text mes­sage

C700
Simulation ac-

tive

Cause Rectication

– A simulation is active – Finish simulation

– Wait for the automatic end

after 60 mins.

Outofspecication

56

The following table shows the error codes and text messages in the
status message "Outofspecication" and provides information on
causes as well as corrective measures.

Code

Text mes­sage

S600

Unpermissi­ble electronics
temperature

S601

Overlling

Cause Rectication

– Temperature of the elec-

tronics in the non-specied

section

– Danger of vessel overlling – Make sure that there is no

– Check ambient temperature
– Isolate electronics
– Use instrument with higher

temperature range

further lling

– Check level in the vessel

VEGAPULS 61 • Probus PA

36501-EN-121011

9 Diagnosis, Asset Management and service

Maintenance

The following table shows the error codes and text messages in the
status message "Maintenance" and provides information on causes
as well as corrective measures.

Code

Text mes­sage

M500
Error with the

reset delivery

status

M501

Error in the

non-active
linearization
table

M502

Error in the

diagnosis
memory

M503
Reliability too

low

M504

Error on an

device inter­face

M505
No echo avail-

able

Cause Rectication

– With the reset to delivery

status, the data could not
be restored

– Hardware error EEPROM – Exchanging the electronics

– Hardware error EEPROM – Exchanging the electronics

– The echot/noise ratio is the

small for a reliable meas­urement

– Hardware defect – Check connections

– Level echo can no longer

be detected

– Repeat reset
– Load XML le with sensor

data into the sensor

– Send instrument for repair

– Send instrument for repair

– Check installation and

process conditions

– Clean the antenna
– Change polarisation direc-

tion

– Use instrument with higher

sensitivity

– Exchanging the electronics
– Send instrument for repair

– Clean the antenna
– Use a more suitable

antenna/sensor

– Remove possible false

echoes

– Optimize sensor position

and orientation

Reaction when malfunc­tions occur

Procedure for fault recti-

cation

36501-EN-121011

VEGAPULS 61 • Probus PA

9.4 Rectify faults

The operator of the system is responsible for taking suitable meas­ures to rectify faults.

The rst measures are:

Evaluation of fault messages, for example via the indicating and

•

adjustment module
Checking the output signal with 4 … 20 mA instruments

•

Treatment of measurement errors

•

Further comprehensive diagnostics options oer a PC with the soft­ware PACTware and the suitable DTM. In many cases, the reasons
can be determined in this way and faults can be rectied.

57

9 Diagnosis, Asset Management and service

Treatment of measure­ment errors with liquids

The below tables show typical examples of application-related meas­urement errors with liquids. The measurement errors are dierentiated
according to the following:

Constant level

•

Filling

•

Emptying

•

The images in column "Error pattern" show the real level with a bro­ken line and the level displayed by the sensor as a continuous line.

Level

1

2

0

1 Real level
2 Level displayed by the sensor

time

Instructions:

Wherever the sensor displays a constant value, the reason could

•

also be the fault setting of the current output to "Hold value"
In case of a too low level indication, the reason could be a line

•

resistance that is too high

9.4 Measurement error with constant level

Fault description Error pattern Cause Rectication

1. Measured value
shows a too low or too
high level

2. Measured value
jumps towards 0 %

3. Measured value
jumps towards 100 %

Level

0

Level

0

Level

0

– Min./max. adjustment not

correct

– Wrong linearization curve – Adapt linearization curve

time

– Installation in a bypass tube or

standpipe, hence running time
error (small measurement error
close to 100 %/large error close
to 0 %)

– Multiple echo (vessel top,

product surface) with amplitude
higher than the level echo

time

– Due to the process, the ampli-

tude of the product echo sinks

– A false signal suppression was

not carried out

time

– Amplitude or position of a

false echo has changed (e.g.
condensation, buildup); false
signal suppression no longer

matches

– Adapt min./max. adjustment

– Check parameter "Application"

with respect to vessel form,
adapt if necessary (bypass,
standpipe, diameter)

– Check parameter "Application",

especially vessel top, product
type, dished end, high dielectric
gure, adapt if necessary

– Carry out false signal suppres-

sion

– Determine the reason for the

changed false echo, carry out
false signal suppression, e.g.
with condensation

36501-EN-121011

58

VEGAPULS 61 • Probus PA

9 Diagnosis, Asset Management and service

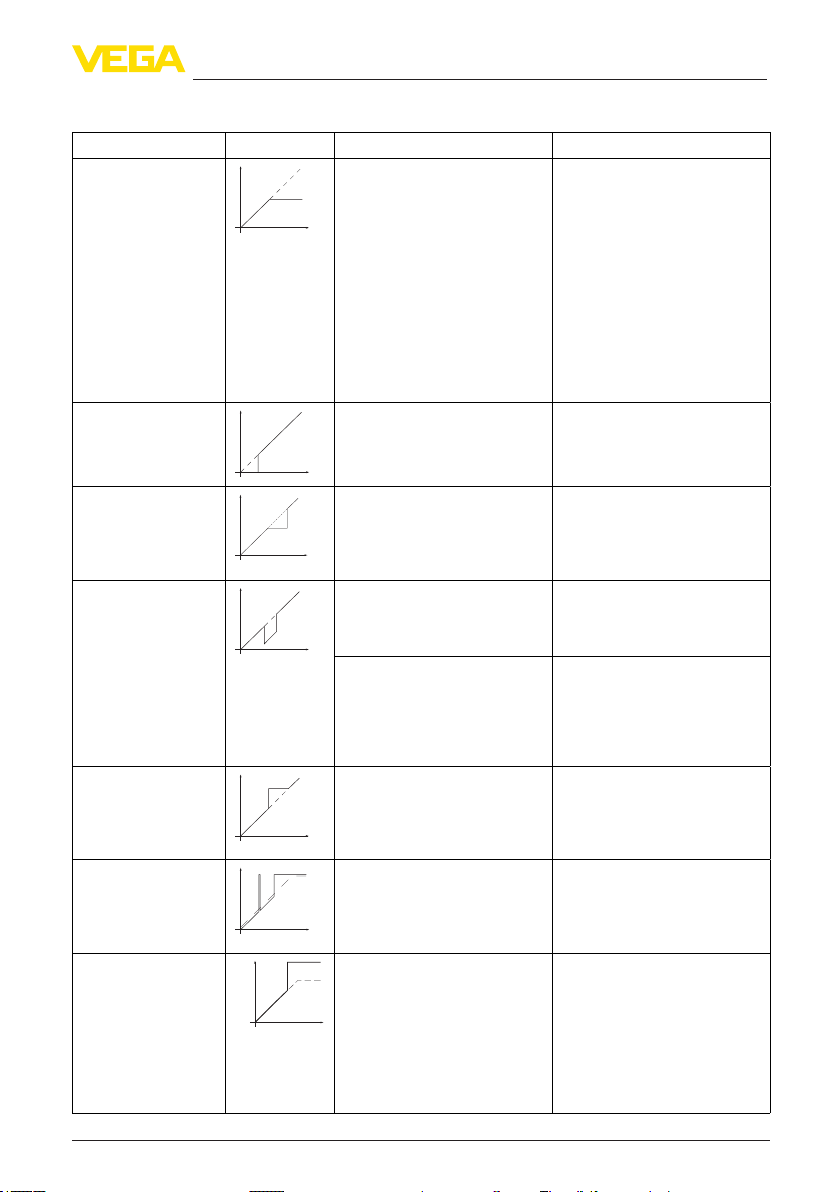

9.4 Measurementerrorduringlling

Fault description Error pattern Cause Rectication

4. Measured value re­mains unchanged
during lling

5. Measured value re­mains in the bottom
section during lling

6. Measured value re­mains momentarily
unchanged during ll­ing and then jumps to
the correct level

7. Measured value
jumps towards 0 %
during lling

8. Measured value
jumps towards 100 %
during lling

9. Measured value
jumps sporadically to
100 % during lling

10. Measured value
jumps to ≥ 100 % or
0 m distance

36501-EN-121011

VEGAPULS 61 • Probus PA

Level

– False echoes in the close range

too big or product echo too
small

0

– Strong foam or spout genera-

time

tion

– Max. adjustment not correct

Level

– Echo from the tank bottom

larger than the product echo,
for example, with products with

0

Level

0

Level

εr < 2.5 oil-based, solvents

time

– Turbulence on the product

surface, quick lling

time

– Amplitude of a multiple echo

(vessel top - product surface) is
larger than the level echo

0

time

– The level echo cannot be distin-

guished from the false echo at
a false echo position (jumps to
multiple echo)

Level

– Due to strong turbulence and

foam generation during lling,
the amplitude of the product

0

Level

0

Level

echo sinks. Measured value

time

jumps to the false echo

– Varying condensation or con-

tamination on the antenna

time

– Level echo is no longer

detected in the close range
due to foam generation or false
echoes in the close range. The
sensor goes into overll protec­tion mode. The max. level (0 m
distance) as well as the status
message "Overll protection"
are outputted.

– Eliminate false echoes in the

close range

– Check measurement situation:

Antenna must protrude out of
the socket, installations

– Remove contamination on the

antenna

– Minimize interfering instal-

lations in the close range by
changing the polarization
direction

– Create a new false signal sup-

pression

– Adapt max. adjustment

– Check application parameters

Medium, Vessel height and
Floor form, adapt if necessary

– Check application parameters,

change if necessary, e.g. in
dosing vessel, reactor

– Check parameter "Application",

especially vessel top, product
type, dished end, high dielectric
gure, adapt if necessary

– Remove/reduce false echo:

minimize interfering installa­tions by changing the polariza­tion direction

– Chose a more suitable installa-

tion position

– Carry out false signal suppres-

sion

– Carry out a false signal sup-

pression or increase false
signal suppression with con­densation/contamination in the
close range by editing

– Check measuring site: Antenna

must protrude out of the socket

– Remove contamination on the

antenna

– Use a sensor with a more suit-

able antenna

59

9 Diagnosis, Asset Management and service

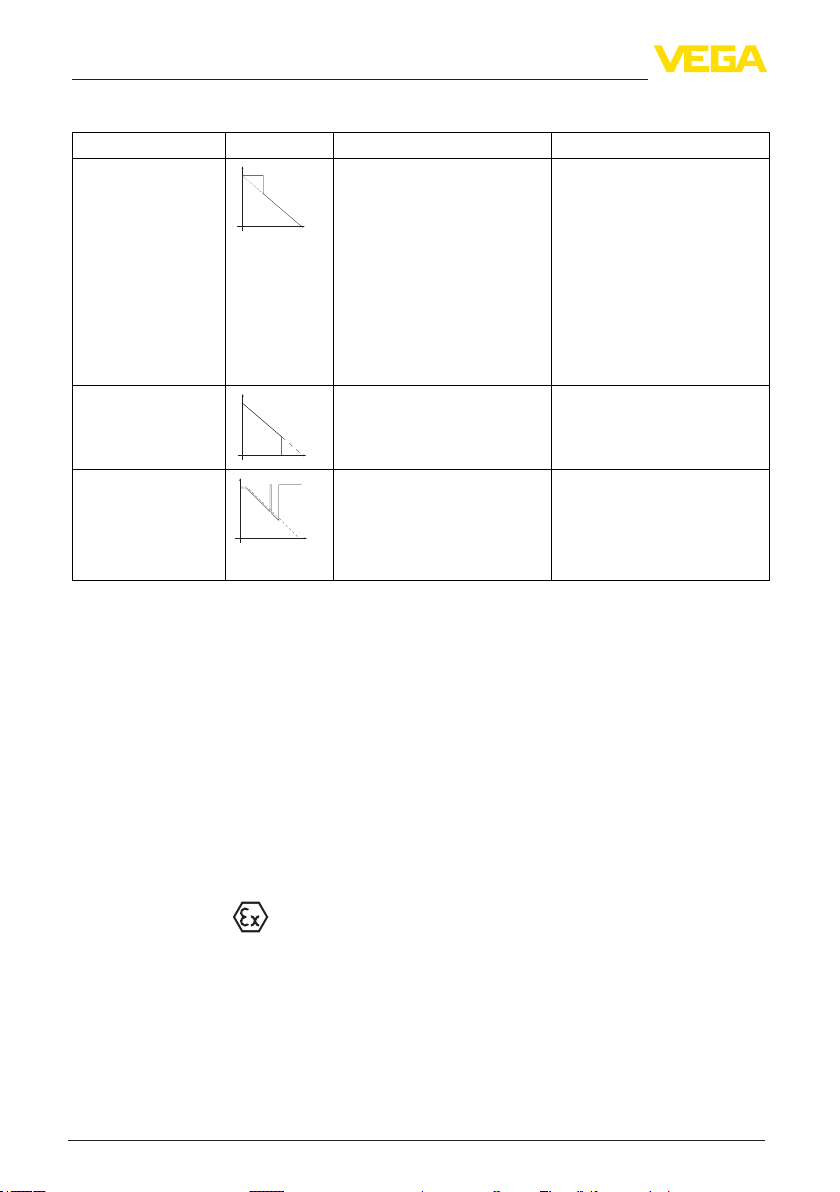

9.4 Measurement error during emptying

Fault description Error pattern Cause Rectication

11. Measured value re­mains unchanged in
the close range during
emptying

12. Measured value
jumps towards 0 %
during emptying

13. Measured value
jumps sporadically to­wards 100 % during
emptying

Level

0

Level

0

Level

0

– False signal larger than the

level echo

– Level echo too small

time

– Echo from the tank bottom

larger than the product echo,
for example, with products with
εr < 2.5 oil-based, solvents

time

– Varying condensation or con-

tamination on the antenna

time

– Remove false echoes in the

close range. Check: Antenna
must protrude out of the socket

– Remove contamination on the

antenna

– Minimize interfering instal-

lations in the close range by
changing the polarization
direction

– After removing the false ech-

oes, the false signal suppres­sion must be deleted. Carry out
a new false signal suppression

– Check application parameters

Medium type, Vessel height and
Floor form, adapt if necessary

– Carry out false signal suppres-

sion or increase false signal
suppression in the close range
by editing

– With bulk solids, use radar sen-

sor with purging air connection

Reaction after fault recti-

cation

24 hour service hotline

60

Depending on the reason for the fault and the measures taken, the
steps described in chapter "Setup" must be carried out again or must
be checked for plausibility and completeness.

Should these measures not be successful, please call in urgent cases
the VEGA service hotline under the phone no. [phone].

The hotline is also available outside the normal working hours on
seven days a week around the clock.

Since we oer this service worldwide, the support is in the English
language. The service itself is free of charge, the only costs involved
are the normal call charges.

9.5 Exchanging the electronics module

If the electronics module is defective, it can be replaced by the user.
In Ex applications only one instrument and one electronics module

with respective Ex approval may be used.
If there is no electronics module available on site, the electronics

module can be ordered through the agency serving you. The electron­ics modules are adapted to the respective sensor and dier in signal
output or voltage supply.

The new electronics module must be loaded with the default settings
of the sensor. These are the options:

In the factory

•

Or on site by the user

•

VEGAPULS 61 • Probus PA

36501-EN-121011

9 Diagnosis, Asset Management and service

In both cases, the serial number of the sensor is needed. The serial
numbers are stated on the type label of the instrument, on the inside
of the housing as well as on the delivery note.

When loading on site, rst of all the order data must be downloaded
from the Internet (see operating instructions manual "Electronics
module").

9.6 Software update

The following components are required to update the sensor soft­ware:

Sensor

•

Voltage supply

•

Interface adapter VEGACONNECT 4

•

PC with PACTware

•

Current sensor software as le

•

You can nd the actual sensor software as well as detailed infor­mation of the procedure under "www.vega.com/downloads" and
"Software".

Caution:

Instruments with approvals can be bound to certain software ver­sions. Therefore make sure that the approval remains eective with a
software update.

You can nd detailed information on www.vega.com/downloads and
"Approvals".

9.7 How to proceed in case of repair

You can nd a repair form as well as detailed information on how to
proceed under www.vega.com/downloads and "Formsandcerti-
cates".

By doing this you help us carry out the repair quickly and without hav­ing to call back for needed information.

If a repair is necessary, please proceed as follows:

Print and ll out one form per instrument

•

Clean the instrument and pack it damage-proof

•

Attach the completed form and, if need be, also a safety data

•

sheet outside on the packaging
Please contact for the return shipment the agency serving you. You

•

can nd the agency on our home page www.vega.com.

36501-EN-121011

VEGAPULS 61 • Probus PA

61

10 Dismounting

10 Dismounting

10.1 Dismounting steps

Warning:

Before dismounting, be aware of dangerous process conditions such
as e.g. pressure in the vessel, high temperatures, corrosive or toxic
products etc.

Take note of chapters "Mounting" and "Connecting to power supply"
and carry out the listed steps in reverse order.

10.2 Disposal

The instrument consists of materials which can be recycled by spe­cialised recycling companies. We use recyclable materials and have
designed the electronics to be easily separable.

Correct disposal avoids negative eects on humans and the environ­ment and ensures recycling of useful raw materials.

Materials: see chapter "Technical data"
If you have no way to dispose of the old instrument properly, please

contact us concerning return and disposal.

WEEE directive 2002/96/EG

This instrument is not subject to the WEEE directive 2002/96/EG and
the respective national laws. Pass the instrument directly on to a spe­cialised recycling company and do not use the municipal collecting
points. These may be used only for privately used products according
to the WEEE directive.

62

36501-EN-121011

VEGAPULS 61 • Probus PA

11 Supplement

11 Supplement

11.1 Technical data

General data

316L corresponds to 1.4404 or 1.4435
Materials, wetted parts with encapsulated antenna system

Ʋ Process tting PVDF, 316L
Ʋ Process seal FKM (IDG FKM 13-75)
Ʋ Antenna PVDF

Materials, wetted parts with plastic horn antenna

Ʋ Adapter ange PP
Ʋ Seal, adapter ange FKM (COG VI500), EPDM (COG AP310)
Ʋ Antenna PBT-GF 30
Ʋ Focussing lense PP

Materials, non-wetted parts

Ʋ Compression ange PP
Ʋ Mounting strap 316L
Ʋ Fixing screws, mounting strap 316L
Ʋ Fixing screws, adapter ange 304
Ʋ Plastic housing plastic PBT (Polyester)
Ʋ Aluminium die-casting housing Aluminium die-casting AlSi10Mg, powder-coated - basis:

Ʋ Stainless steel housing 316L
Ʋ Seal between housing and housing

cover

Ʋ Inspection window in housing cover

(optional)

Ʋ Ground terminal 316L

Process ttings

Ʋ Pipe thread, cylindrical (ISO 228 T1) G1½
Ʋ American pipe thread, tapered 1½ NPT
Ʋ Flanges DIN from DN 80, ANSI from 3", JIS from DN 100 10K
Ʋ Hygienic ttings Clamp, bolting according to DIN 11851, Tuchenhagen

Weight depending on process tting and
housing material

Max. torque, mounting screws - strap on
the sensor housing

Max. torque ange screws

Ʋ Compression ange DN 80 5 Nm (3.689 lbf ft)
Ʋ Adapter ange DN 100 7 Nm (5.163 lbf ft)

Polyester

NBR (stainless steel housing, precision casting), silicone
(aluminium/plastic housing; stainless steel housng,
electropolished)

Polycarbonate

Varivent

0.7 … 3.4 kg (1.543 … 7.496 lbs)

4 Nm

36501-EN-121011

VEGAPULS 61 • Probus PA

63

11 Supplement

Max. torque for NPT cable glands and Conduit tubes

Ʋ Plastic housing 10 Nm (7.376 lbf ft)
Ʋ Aluminium/Stainless steel housing 50 Nm (36.88 lbf ft)

Input variable

Measured variable The measured quantity is the distance between process

tting of the sensor and product surface. The reference
plane is the seal surface on the hexagon or the lower
side of the ange.

Fig. 55: Data of the input variable

1 Reference plane
2 Measured variable, max. measuring range
3 Antenna length
4 Useful measuring range

Standard electronics

Max. measuring range 35 m (114.8 ft)
Recommended measuring range

Ʋ Encapsulated antenna system up to 10 m (32.81 ft)
Ʋ Plastic horn antenna up to 20 m (65.62 ft)

Electronics with increased sensitivity

Max. measuring range 35 m (114.8 ft)
Recommended measuring range

Ʋ Encapsulated antenna system up to 10 m (32.81 ft)
Ʋ Plastic horn antenna up to 20 m (65.62 ft)

3

2

4

1

Output variable

Output signal digital output signal, format according to IEEE-754
Sensor address 126 (default setting)
Damping (63 % of the input variable) 0 … 999 s, adjustable
Probus PA prole 3.02

64

VEGAPULS 61 • Probus PA

36501-EN-121011

11 Supplement

Number of FBs with AI (function blocks

3

with analogue input)
Default values

Ʋ 1. FB PV
Ʋ 2. FB SV 1
Ʋ 3. FB SV 2

Current value

Ʋ Non-Ex and Ex ia instrument 10 mA, ±0.5 mA
Ʋ Ex-d instruments 16 mA, ±0.5 mA

Resolution, digital < 1 mm (0.039 in)

Accuracy (according to DIN EN 60770-1)

Process reference conditions according to DIN EN 61298-1

Ʋ Temperature +18 … +30 °C (+64 … +86 °F)
Ʋ Relative humidity 45 … 75 %
Ʋ Air pressure 860 … 1060 mbar/86 … 106 kPa (12.5 … 15.4 psig)

Installation reference conditions

Ʋ Min. distance to installations > 200 mm (7.874 in)
Ʋ Reector Plane plate reector
Ʋ False reections Largest false echo 20 dB smaller than the useful echo

Deviation with liquids See following diagrams

10 mm (0.394 in)

2 mm (0.079 in)

- 2 mm (- 0.079 in)

- 10 mm (- 0.394 in)

0

0,5 m (1.6 ft)

1 2 3

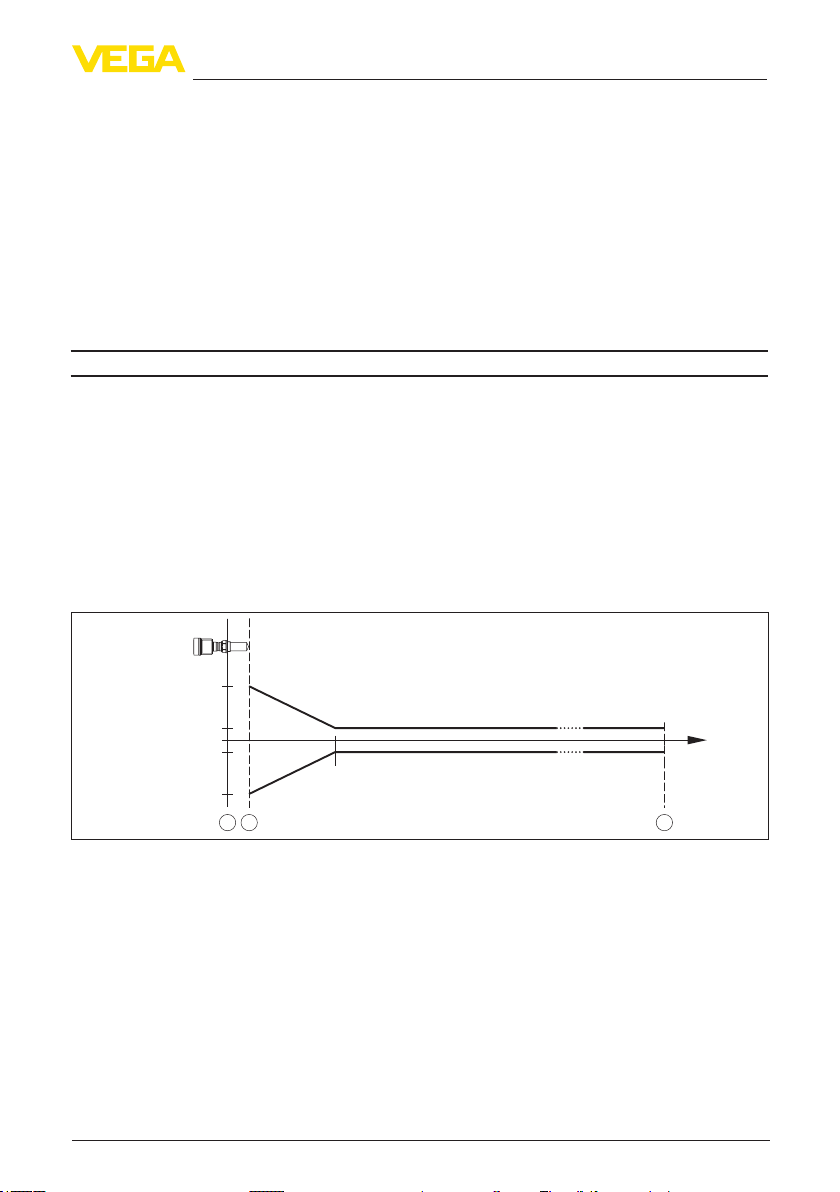

Fig. 56: Deviation under reference conditions - encapsulated antenna system

1 Reference plane
2 Antenna edge
3 Recommended measuring range

36501-EN-121011

VEGAPULS 61 • Probus PA

65

11 Supplement

10 mm (0.394 in)

2 mm (0.079 in)

- 2 mm (- 0.079 in)

- 10 mm (- 0.394 in)

Fig. 57: Deviation under reference conditions - plastic horn antenna

1 Reference plane
2 Antenna edge
3 Recommended measuring range

0

0,5 m (1.6 ft)

1

2

3

Reproducibility ≤ ±1 mm
Deviation with bulk solids The values depend to a great extent on the application.

Binding specications are thus not possible.

Variablesinuencingmeasurementaccuracy

Temperature drift - Digital output ±3 mm/10 K relating to the max. measuring range or

max. 10 mm

Additional deviation through strong, high

< ±50 mm

frequency electromagnetic elds acc. to

EN 61326

Characteristics and performance data

Measuring frequency K-band (26 GHz technology)
Measuring cycle time

Ʋ Standard electronics approx. 450 ms
Ʋ Electronics with increased sensitivity

700 ms

approx.
Step response time
Tracking speed of the measuring window

1)

≤ 3 s
1 m/min

max.
Beam angle

2)

Ʋ Encapsulated antenna system 22°
Ʋ Plastic horn antenna 10°

Emitted HF power (depending on the parameter adjustment)

Ʋ Average spectral transmission power

-14 dBm/MHz EIRP

3)

density

Ʋ Max. spectral transmission power

+43 dBm/50 MHz EIRP

density

1)

Time span after a sudden measuring distance change by max. 0.5 m in liquid applications, max 2 m with bulk

solids applications, until the output signal has taken for the rst time 90 % of the nal value (IEC 61298-2).

2)

Outside the specied beam angle, the energy of the radar signal has a level which is reduced by 50 % (-3 dB)

3)

EIRP: Equivalent Isotropic Radiated Power

36501-EN-121011

66

VEGAPULS 61 • Probus PA

11 Supplement

Ʋ Max. power density in a distance of

1 m

Ambient conditions

Ambient, storage and transport tempera­ture

Process conditions

For the process conditions, please also note the specications on the type label. The lower value
always applies.

Vessel pressure

Ʋ Encapsulated antenna system -1 … 3 bar (-100 … 300 kPa/-14.5 … 43.5 psi)
Ʋ Plastic horn antenna -1 … 2 bar (-100 … 200 kPa/-14.5 … 29.0 psig)
Ʋ Version with adapter ange from

DN 150 PP

Process temperature (measured on the
process tting)

Vibration resistance

Ʋ With adapter ange 2 g at 5 … 200 Hz according to EN 60068-2-6 (vibration

Ʋ with mounting strap 1 g at 5 … 200 Hz according to EN 60068-2-6 (vibration

Shock resistance 100 g, 6 ms according to EN 60068-2-27 (mechanical

Electromechanical data - version IP 66/IP 67 and IP 66/IP 68; 0.2 bar

Options of the cable entry

Ʋ Cable gland M20 x 1.5 (cable: ø 5 … 9 mm)
Ʋ Cable entry ½ NPT
Ʋ Blind stopper M20 x 1.5; ½ NPT
Ʋ Closing cap M20 x 1.5; ½ NPT

Plug options

Ʋ Signal circuit M12 x 1, according to ISO 4400, Harting HAN, 7/8" FF
Ʋ Indication circuit M12 x 1

Wire cross-section (spring-loaded terminals)

Ʋ Massive wire, cord 0.2 … 2.5 mm² (AWG 24 … 14)
Ʋ Stranded wire with end sleeve 0.2 … 1.5 mm² (AWG 24 … 16)

< 1 µW/cm²

-40 … +80 °C (-40 … +176 °F)

-1 … 1 bar (-100 … 100 kPa/-14.5 … 14.5 psig)

-40 … +80 °C (-40 … +176 °F)

with resonance)

with resonance)

shock)

Electromechanical data - version IP 66/IP 68 (1 bar)

Options of the cable entry

Ʋ Cable gland with integrated connec-

tion cable

Ʋ Cable entry ½ NPT
Ʋ Blind stopper M20 x 1.5; ½ NPT

Connection cable

36501-EN-121011

VEGAPULS 61 • Probus PA

M20 x 1.5 (cable: ø 5 … 9 mm)

67

11 Supplement

Ʋ Wire cross-section 0.5 mm² (AWG 20)
Ʋ Wire resistance < 0.036 Ω/m
Ʋ Tensile strength < 1200 N (270 lbf)
Ʋ Standard length 5 m (16.4 ft)
Ʋ Max. length 180 m (590.6 ft)
Ʋ Min. bending radius 25 mm (0.984 in) with 25 °C (77 °F)
Ʋ Diameter approx. 8 mm (0.315 in)
Ʋ Colour - Non-Ex version Blue
Ʋ Colour - Ex-version Blue

Indicating and adjustment module

Voltage supply and data transmission through the sensor
Indication LC display in dot matrix
Measured value indication

Ʋ Number of digits 5
Ʋ Size of digits W x H = 7 x 13 mm

Adjustment elements 4 keys
Protection rating

Ʋ unassembled IP 20
Ʋ mounted into the sensor without cover IP 40

Materials

Ʋ Housing ABS
Ʋ Inspection window Polyester foil

Integrated clock

Date format Day.Month.Year
Time format 12 h/24 h
Time zone Ex factory CET

Measurement electronics temerature

Resolution 1 °C (1.8 °F)
Accuracy ±1 °C (1.8 °F)

Voltage supply

Operating voltage

Ʋ Non-Ex instrument 9 … 32 V DC
Ʋ EEx-ia instrument - Power supply

FISCO model

Ʋ EEx-ia instrument - Power supply

ENTITY model

Ʋ EEx-d instrument 14 … 32 V DC

Number of sensors per DP/PA segment coupler max.

Ʋ Non-Ex 32

68

9 … 17.5 V DC

9 … 24 V DC

36501-EN-121011

VEGAPULS 61 • Probus PA

11 Supplement

Ʋ Ex 10

Electrical protective measures

Protection, depending on housing version

Ʋ Plastic housing IP 66/IP 67
Ʋ Aluminium housing, stainless steel

IP 66/IP 68 (0.2 bar)

4)

housing - investment casting, stain-

less steel housing - electro-polished

Ʋ Aluminium and stainless housing, in-

IP 66/IP 68 (1 bar)

vestment casting (optionally available)
Overvoltage category III
Protection class III

Approvals

Instruments with approvals can have dierent technical data depending on the version.
For that reason the associated approval documents of these instruments must be carefully noted.

They are part of the delivery or can be downloaded under www.vega.com and "VEGA Tools" as
well as under "Downloads" and "Approvals".

11.2 CommunicationProbusPA

11.2 Instrumentmasterle

The instrument master le (GSD) contains the characteristic data of the Probus PA instrument.
These data are, e.g. the permissible transmission rates as well as information on diagnostics values
and the format of the measured value outputted by the PA instrument.

A bitmap le is also provided for the Probus network planning tool. This le is installed automati­cally when the GSD le is integrated. The bitmap le is used for symbolic indication of the PA instru­ment in the conguration tool.

11.3 ID number

Each Probus instrument gets an unambiguous ident number (ID number) from the Probus user
organisation (PNO). This ID number is also included in the name of the GSD le. Optionally to this
manufacturer-specic GSD le, PNO provides also a general so-called prole-specic GSD le. If
the general GSD le is used, the sensor must be set to the prole-specic ident number via the DTM
software. By default, the sensor operates with the manufacturer-specic ID number. When using the
instruments on a segment coupler SK-2 or SK-3, no special GSD les are required.

The following table shows the instrument ID and the GSD names for the VEGAPULS radar sensors.

Device name Instrument ID GSDlename

VEGA Instrument class in

VEGAPULS WL 61 0x0CDB 0x9702 PS61WL0CDB.GSD PA139702.GSD

VEGAPULS 61 0x0BFC 0x9702 PS610BFC.GSD PA139702.GSD

VEGAPULS 62 0x0BFD 0x9702 PS620BFD.GSD PA139702.GSD

VEGAPULS 63 0x0BFE 0x9702 PS630BFE.GSD PA139702.GSD

4)

The prerequisites for maintaining the protection rating are a suitable cable as well as correct mounting.

36501-EN-121011

prole3.02

VEGAPULS 61 • Probus PA

VEGA Prole-specic

69

11 Supplement

Device name Instrument ID GSDlename

VEGA Instrument class in

prole3.02

VEGAPULS 65 0x0BFF 0x9702 PS650BFF.GSD PA139702.GSD

VEGAPULS 66 0x0C00 0x9702 PS660C00.GSD PA139702.GSD

VEGAPULS 67 0x0C01 0x9702 PS670C01.GSD PA139702.GSD

VEGAPULS SR 68 0x0CDC 0x9702 PS68R0CDC.GSD PA139702.GSD

VEGAPULS 68 0x0C02 0x9702 PS680C02.GSD PA139702.GSD

VEGA Prole-specic

11.4 Cyclicaldatatrac

The master class 1 (e.g. PLC) cyclically reads out measured values from the sensor during opera­tion. The below block diagram below shows which data can be accessed by the PLC.

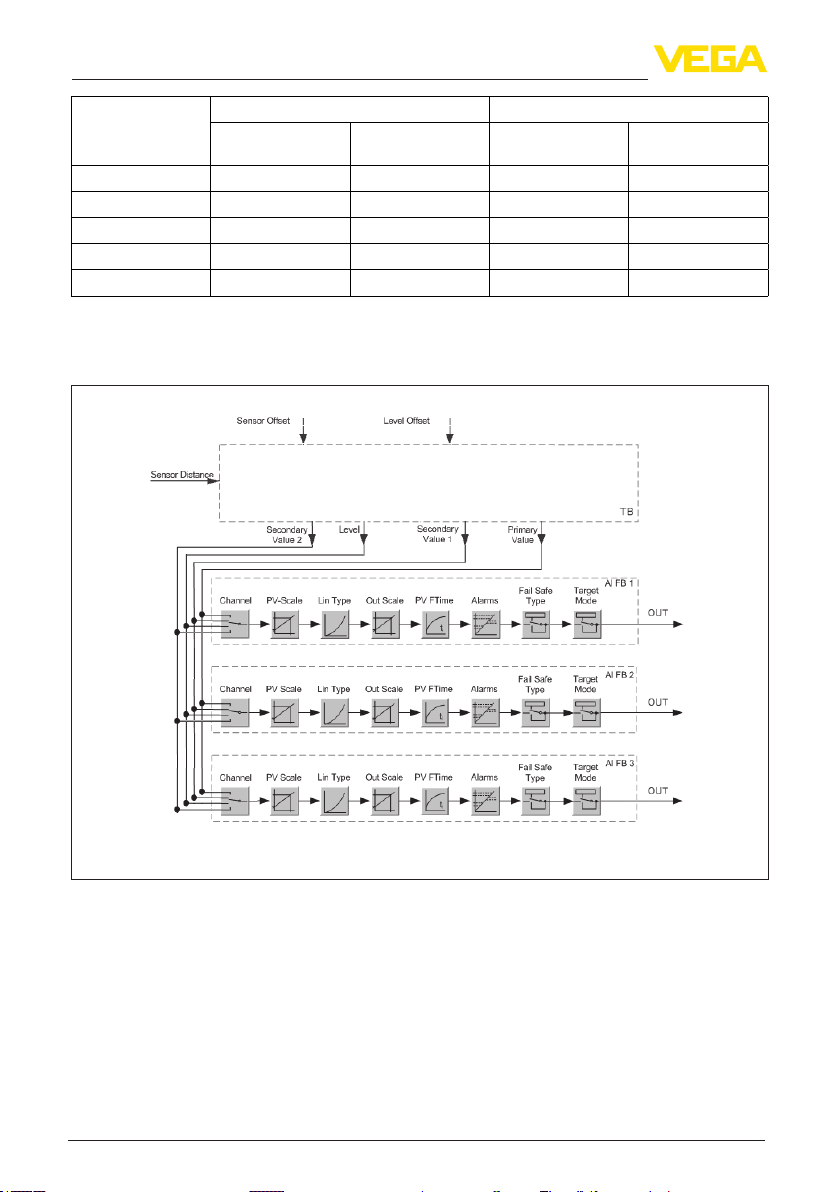

Fig. 58: VEGAPULS 61: Block diagram with AI FB 1 … AI FB 3 OUT values

TB Transducer Block
FB 1 … FB 3 Function Block

11.5 Module of the PA sensors

For the cyclic data trac, VEGAPULS 61 provides the following modules:

AI FB1 (OUT)

•

– Out value of the AI FB1 after scaling
AI FB2 (OUT)

•

– Out value of the AI FB2 after scaling
AI FB3 (OUT)

•

70

36501-EN-121011

VEGAPULS 61 • Probus PA

11 Supplement

– Out value of the AI FB3 after scaling
Free Place

•

– This module must be used if a value in the data telegram of the cyclical data trac should not

be used (e.g. replacement of temperature and Additional Cyclic Value)

A maximum of three modules can be active. By means of the conguration software of the Probus
master you can determine the conguration of the cyclical data telegram with these modules. The
procedure depends on the respective conguration software.

Note:

The modules are available in two versions:

Short for Probus master supporting only one "Identier Format" byte, e.g. Allen

•

Bradley
Long for Probus master only supporting the "Identier Format" byte, e.g. Siemens

•

S7-300/400

11.6 Examplesoftelegramconguration

In the following you will see how the modules can be combined and how the appendant data tel­egram is structured.

Example 1

AI FB1 (OUT)

•

AI FB2 (OUT)

•

AI FB3 (OUT))

•

Byte-

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

No.

For-

IEEE-754-Floating point

mat

Value AI FB1 (OUT) AI

Example 2

AI FB1 (OUT)

•

Free Place

•

Free Place

•

Byte-No. 1 2 3 4 5

Format IEEE-754-Floating point value Status

Value AI FB1 (OUT) AI FB1

value

Note:

Bytes 6-15 are not used in this example.

Sta-

IEEE-754-Floating point

tus

FB1

AI FB2 (OUT) AI

value

Sta-

IEEE-754-Floating point

tus

FB2

value

AI FB3 (OUT) AI

Sta­tus

FB3

11.7 Data format of the output signal

Byte0

Byte4

Byte3

Status Value (IEEE-754)

Fig. 59: Data format of the output signal

The status byte corresponds to prole 3.02 "Probus PA Prole for Process Control Devices" coded.
The status "Measured value OK" is coded as 80 (hex) (Bit7 = 1, Bit6 … 0 = 0).

The measured value is transferred as a 32 bit oating point number in the IEEE-754 format.

36501-EN-121011

VEGAPULS 61 • Probus PA

Byte2

Byte1

71

11 Supplement

Byte n

Bit

6

7

2

Bit

Bit

4

5

6543

2

2

Exponent

VZ

Bit

Bit

7

VZ

Sign

Bit

Value = (-1)

Fig. 60: Data format of the measured value

Bit

Bit

3

2

1

2

2

2

(Exponent - 127)

2

Bit

Bit

Bit

0

7

210-1

2

2

(1 + Significant)

Bit

6

5

-2-3-4-5-6 -7

2

2

Byte n+1

Bit

Bit

Bit

4

3

2

2

2

2

Significant

Bit

Byte n+2

Bit

Bit

7

0

1

2

2

2

Bit

Bit

6

-8

2

Bit

Bit

4

5

-9

-10 -11

2

2

Bit

Bit

Bit

Bit
3
2

0

2

1

-12

-13

-14 -15

2

2

2

Significant

Byte n+3

Bit

Bit

7

6

-16

2

2

Bit

Bit

-17

Bit

Bit

4

5

-19

-18

2

2

Bit

3

2

1

-20

-22

-21

2

2

2

Significant

11.8 Coding of the status byte associated with the PA output value

You can nd further information for the coding of the status byte in the Device Description 3.02 on
www.probus.com.

Status code Description according to

Probusstandard

0 x 00 bad - non-specic Flash-Update active

0 x 04 bad - conguration error – Adjustment error

0 x 0C bad - sensor failure – Hardware error

0 x 10 bad - sensor failure – Measured value generation error

0 x 1f bad - out of service con-

stant

0 x 44 uncertain - last unstable

value

0 x 48 uncertain substitute set – Switch on simulation

0 x 4c uncertain - initial value Failsafe replacement value (Failsafe-Mode = "Last valid

0 x 51 uncertain - sensor; con-

version not accurate - low
limited

0 x 52 uncertain - sensor; con-

version not accurate - high
limited

0 x 80 good (non-cascade) - OK OK

0 x 84 good (non-cascade) - ac-

tive block alarm

Possible cause

– Conguration error with PV-Scale (PV-Span too

small)

– Unit irregularity
– Error in the linearization table

– Converter error
– Leakage pulse error
– Trigger error

– Temperature measurement error

"Out of Service" mode switched on

Failsafe replacement value (Failsafe-Mode = "Last val­ue" and already valid measured value since switching
on)

– Failsafe replacement value (Failsafe-Mode = "Fsafe

value")

value" and no valid measured value since switching on)

Sensor value < lower limit

Sensor value > upper limit

Static revision (FB, TB) changed (10 sec. active, after
the parameter of the static category has been written)

0

-23

2

36501-EN-121011

72

VEGAPULS 61 • Probus PA

11 Supplement

Status code Description according to

Possible cause

Probusstandard

0 x 89 good (non-cascade) - ac-

Lo-Alarm
tive advisory alarm - low
limited

0 x 8a good (non-cascade) - ac-

Hi-Alarm
tive advisory alarm - high
limited

0 x 8d good (non-cascade) - ac-

Lo-Lo-Alarm
tive critical alarm - low
limited

0 x 8e good (non-cascade) - ac-

Hi-Hi-Alarm
tive critical alarm - high
limited

11.3 Dimensions

The following dimensional drawings represent only an extract of the possible versions. Detailed
dimensional drawings can be downloaded at www.vega.com/downloads under "Drawings".

Plastic housing

~ 69 mm

(2.72")

M20x1,5/
½ NPT

ø 79 mm

(3.03")

1

112 mm (4.41")

~ 84 mm (3.31")

M16x1,5

M20x1,5/
½ NPT

ø 79 mm

(3.31")

2

112 mm (4.41")

Fig. 61: Housing versions in protection IP 66/IP 68 (0.2 bar) - with integrated indicating and adjustment module the
housing is 9 mm/0.35 in higher

1 Single chamber version
2 Double chamber version

36501-EN-121011

VEGAPULS 61 • Probus PA

73

11 Supplement

Aluminium housing

~ 116 mm (4.57")

ø 86 mm (3.39")

~ 87 mm (3.43")

M16x1,5

ø 86 mm

(3.39")

M20x1,5/
½ NPT

M20x1,5

116 mm (4.57")

M20x1,5/
½ NPT

21

120 mm (4.72")

Fig. 62: Housing versions in protection IP 66/IP 68 (0.2 bar) - with integrated indicating and adjustment module the
housing is 9 mm/0.35 in higher

1 Single chamber version
2 Double chamber version

Aluminium housing in protection rating IP 66/IP 68, 1 bar

~ 150 mm (5.91")

ø 84 mm (3.31")

116 mm (4.57")

M20x1,5M20x1,5

1

Fig. 63: Housing versions in protection IP 66/IP 68 (1 bar) - with integrated indicating and adjustment module the
housing is 9 mm/0.35 in higher

1 Single chamber version
2 Double chamber version

~ 105 mm (4.13")

M20x1,5/
½ NPT

ø 84 mm

(3.31")

2

M16x1,5

120 mm (4.72")

74

36501-EN-121011

VEGAPULS 61 • Probus PA

Stainless steel housing

~ 59 mm

(2.32")

ø 80 mm

(3.15")

~ 69 mm

(2.72")

ø 79 mm

(3.11")

~ 87 mm (3.43")

M16x1,5

ø 86 mm

(3.39")

11 Supplement

M20x1,5/
½ NPT

112 mm (4.41")

M20x1,5/
½ NPT

117 mm (4.61")

M20x1,5/
½ NPT

321

120 mm (4.72")

Fig. 64: Housing versions in protection IP 66/IP 68 (0.2 bar) - with integrated indicating and adjustment module the
housing is 9 mm/0.35 in higher

1 Single chamber version, electropolished
2 Single chamber version, precision casting
2 Double chamber version, precision casting

Stainless steel housing in protection rating IP 66/IP 68, 1 bar

~ 93 mm

(3.66")

M20x1,5/
½ NPT

ø 80 mm

(3.15")

112 mm (4.41")

~ 105 mm (4.13")

M20x1,5/
½ NPT

ø 84 mm

(3.31")

21

M16x1,5

120 mm (4.72")

Fig. 65: Housing versions in protection IP 66/IP 68 (1 bar) - with integrated indicating and adjustment module the
housing is 9 mm/0.35 in higher

1 Single chamber version, electropolished
2 Single chamber version, precision casting
2 Double chamber version, precision casting

~ 103 mm

(4.06")

M20x1,5

ø 77 mm

(3.03")

3

117 mm (4.61")

36501-EN-121011

VEGAPULS 61 • Probus PA

75

11 Supplement

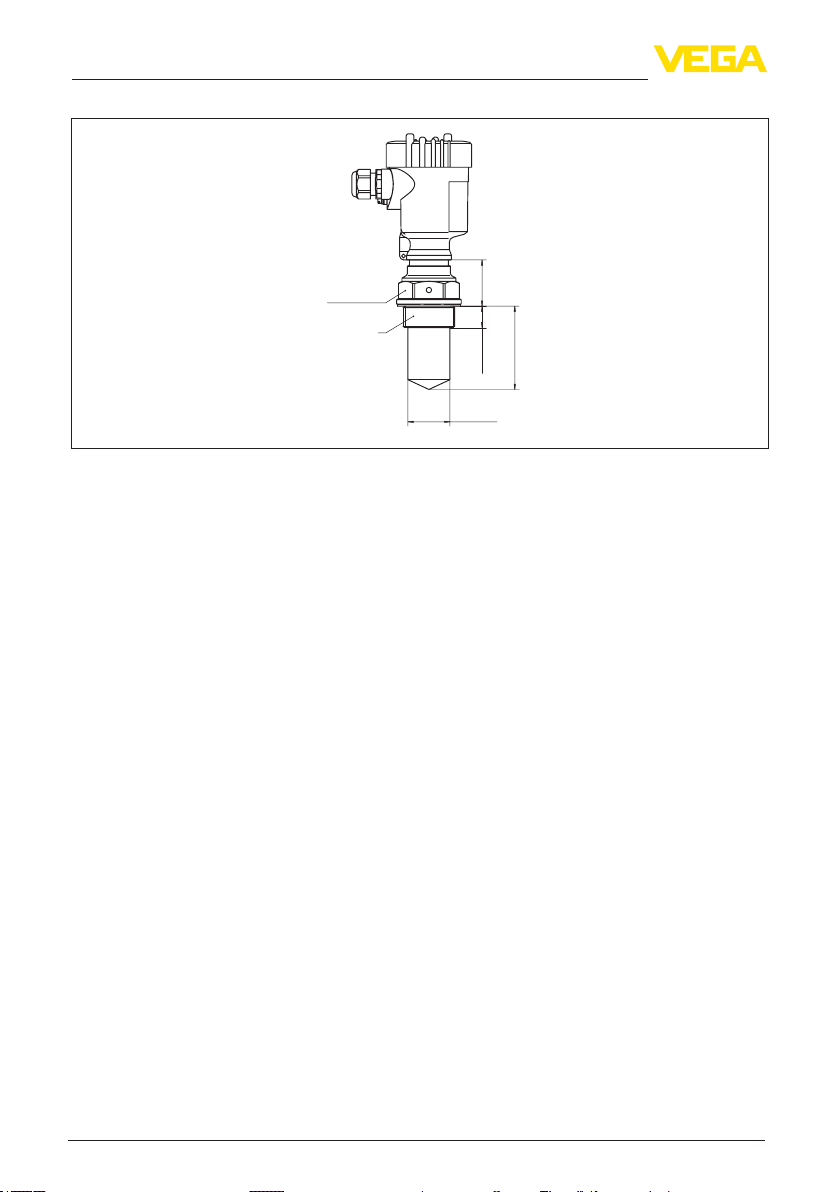

VEGAPULS 61, threaded version

SW 50 mm

(1.97")

G1½A / 1½ NPT

Fig. 66: VEGAPULS 61, threaded version G1½ and 1½ NPT

43 mm

20 mm

ø 39 mm

(1.54")

(1.69")

(0.79")

78 mm (3.07")

76

36501-EN-121011

VEGAPULS 61 • Probus PA

VEGAPULS61,hygienictting

11 Supplement

SW 50 mm

(1.97")

SW 50 mm

(1.97")

SW 50 mm

(1.97")

121 mm (4.76")121 mm (4.76")

ø 64 mm (2.52")

ø 91 mm (3.58")

1 2

1

ø 39 mm

(1.54")

ø 68 mm

(2.68")

ø 84 mm

(3.31")

3

3

ø 39 mm

(1.54")

ø 78 mm (3.07")
ø 95 mm (3.74")

2

121 mm (4.76")

Fig.67:VEGAPULS61,hygienictting

1 Clamp 2" (ø 64 mm) and 3" (ø 91 mm) PN 16 DIN 32676, ISO 2852/316L
2 Bolting according to DIN 11851 DN 50 and DN 80
3 Tuchenhagen Varivent DN 32

36501-EN-121011

VEGAPULS 61 • Probus PA

77

11 Supplement

VEGAPULS 61, version with mounting strap

2,5 mm

(0.10")

8,5 mm

(0.34")

125 mm

(4.92")

(0.75")

19 mm

(6.69")

170 mm

(11.81")

300 mm

(3.86")

98 mm

9 mm

(0.47")

12 mm

9 mm

(0.35")

(0.35")

12 mm
(0.47")

(3.35")

85 mm

Fig. 68: VEGAPULS 61, mounting strap in 170 or 300 mm length

78

75 mm
(2.95")

107 mm

(4.21")

115 mm

(4.53")

(0.59")

15 mm

VEGAPULS 61 • Probus PA

36501-EN-121011

VEGAPULS61,versionwithmountingstrapandreector

(0.69")

17,5 mm

(2.8")

71 mm

ø 9 mm
(0.35")

60 mm
(2.36")

11 Supplement

115,5 mm (4.55")

218 mm (8.58")

45°

110 mm

(4.33")

160 mm

(6.30")

Fig.69:VEGAPULS61,mountingstrapandreector

36501-EN-121011

VEGAPULS 61 • Probus PA

107,5 mm

(4.23")

117,5 mm

(4.63")

79

11 Supplement

VEGAPULS61,versionwithcompressionange

ø 107 mm

(0.41")

10,5 mm

(4.21")

ø 21 mm

(0.83")

(4.96")

126 mm

(0.75")

19 mm

ø 75 mm (2.95")

ø 115 mm (4.53")

ø 156 mm (6.14")

ø 200 mm (7.87")

Fig.70:VEGAPULS61,compressionangesuitableforDN80PN16/ASME3"150lbs/JIS8010K

36501-EN-121011

80

VEGAPULS 61 • Probus PA

VEGAPULS61,versionwithadapterange

138 mm (5.43")

(1.22")

31 mm

(0.79")

20 mm

Fig.71:VEGAPULS61,adapterange

1 Adapterange

2 Seal

ø 75 mm (2.95")

ø 98 mm (3.86")

11 Supplement

1

8 mm

(0.32")

2

36501-EN-121011

VEGAPULS 61 • Probus PA

81

11 Supplement

11.4 Industrial property rights

VEGA product lines are global protected by industrial property rights. Further information see
www.vega.com.

Only in U.S.A.: Further information see patent label at the sensor housing.

VEGA Produktfamilien sind weltweit geschützt durch gewerbliche Schutzrechte.

Nähere Informationen unter www.vega.com.

Les lignes de produits VEGA sont globalement protégées par des droits de propriété intellec­tuelle. Pour plus d'informations, on pourra se référer au site www.vega.com.

VEGA lineas de productos están protegidas por los derechos en el campo de la propiedad indus­trial. Para mayor información revise la pagina web www.vega.com.

Линии продукции фирмы ВЕГА защищаются по всему миру правами на интеллектуальную
собственность. Дальнейшую информацию смотрите на сайте www.vega.com.

VEGA系列产品在全球享有知识产权保护。
进一步信息请参见网站<www.vega.com>。

11.5 Trademark

All the brands as well as trade and company names used are property of their lawful proprietor/
originator.

82

36501-EN-121011

VEGAPULS 61 • Probus PA

INDEX

INDEX

A

Accessories

– External indicating and adjustment unit 12
– External radio unit 13
– Indicating and adjustment module 12
– Interface adapter 12
– Protective cover 13

Adjustment

– Max. adjustment 43
– Min. adjustment 43

Adjustment system 36
Agitators 21
Applications

– Bulk solid 40
– Liquid 37
– Standpipe 37

B

Bypass 23

C

Cable entry 27
Connection procedure 28
Connection technology 28
Curve indication

– Echo curve 44
– False signal suppression 44

Cyclical data trac 70

D

Data format output signal 71

E

Echo curve memory 53
EDD (Enhanced Device Description) 52
Error messages 54
Event memory 53

F

False signal suppression 45
Fault rectication 57
Flow measurement

– Khafagi-Venturi ume 26
– Rectangular ume 25

Foam generation 21
Functional principle 11

G

GSD le 69

36501-EN-121011

VEGAPULS 61 • Probus PA

H

Hardware addressing 32

I

Inowing medium 17
Installation position 16
Instrument address 32
Instrument master le 69

K

Key function 35

L

Linearisation curve 46

M

Main menu 36
Meas. reliability 44
Measured value memory 53
Measurement error 58
Medium

– Liquid Bulk solid 36

Moisture 14

N

NAMUR NE 107

– Failure 55
– Function check 56
– Maintenance 57
– Out of specication 56

O

Overll protection according to WHG 46

P

Packaging 11
PA modules 70
Peak value 44
Polarisation plane 16

R

Reection properties 37
Repair 61
Replacement parts

– Electronics module 13

S

Sensor orientation 20

Service hotline 60
Socket 18, 20

83

INDEX

Software addressing 33
Status bytes PA output value 72
Status messages 54
Storage 12
Surge pipe 22

T

Telegram conguration 71
Type label 10

V

Vessel form 42
Vessel height 41
Vessel installations 20

84

36501-EN-121011

VEGAPULS 61 • Probus PA

Notes

36501-EN-121011

VEGAPULS 61 • Probus PA

85

Notes

86

36501-EN-121011

VEGAPULS 61 • Probus PA

Notes

36501-EN-121011

VEGAPULS 61 • Probus PA

87

Printing date:

All statements concerning scope of delivery, application, practical use and operat­ing conditions of the sensors and processing systems correspond to the information
available at the time of printing.
Subject to change without prior notice

© VEGA Grieshaber KG, Schiltach/Germany 2012

VEGA Grieshaber KG
Am Hohenstein 113
77761 Schiltach
Germany

Phone [phone]
Fax [phone]
E-mail: [e-mail]
www.vega.com

36501-EN-121011
