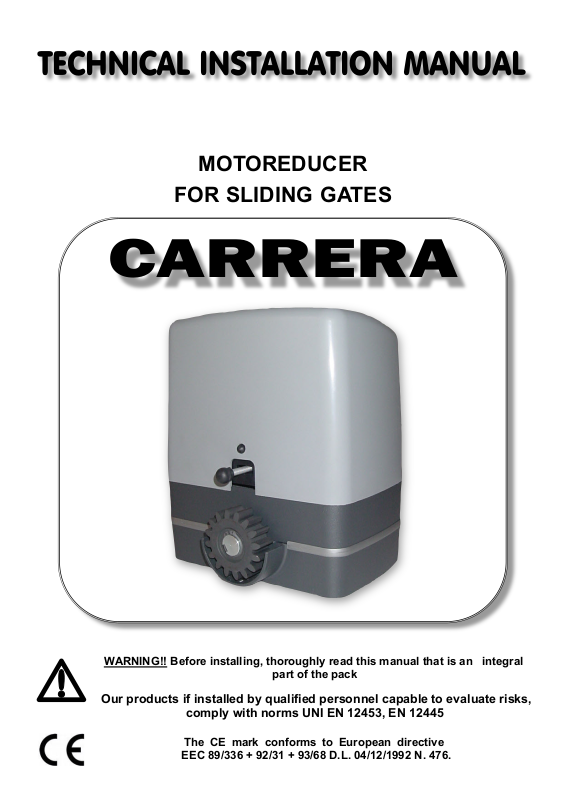

VDS Carrera User Manual
MOTOREDUCER
FOR SLIDING GATES
CARRERA
WARNING!! Before installing, thoroughly read this manual that is an integral
part of the pack
Our products if installed by qualified personnel capable to evaluate risks,
comply with norms UNI EN 12453, EN 12445
The CE mark conforms to European directive
EEC 89/336 + 92/31 + 93/68 D.L. 04/12/1992 N. 476.
PACKING CONTENTS .............................................................................
VIEW OF TYPICAL AUTOMATION AND NAMES OF COMPONENTS .............
3
TECHNICAL DATA....................................................................................
SAFETY PRECAUTIONS ..........................................................................
2
3
DIMENSIONS .........................................................................................
TYPICAL CONNECTION AND CABLE SECTION..........................................
CONSIDERATIONS FOR INSTALLATION...................................................
INSTALLATION.......................................................................................
TROUBLESHOOTING...............................................................................
PACKING CONTENTS
4
4
5
6
7
8
1- GEARED MOTOR
1– LIMIT SWITCH ACCESSORIES
1- PAIR OF UNLOCKING KEYS
1- CONDENSER (230Vca)
230V
800K
230V
1000K
24V
ENCODER
Mechanical unlock for emergency
manoeuvre
VIEW OF TYPICAL AUTOMATION AND NAMES OF COMPONENTS
5
8
Optimal installation
7
2
3
4
5
6
5
1
1- Motor with on-board electronics
2- External photocell
3- Flashing warning light
4- Antenna
TECHNICAL DATA
Max. weight of gate
Motors power supply
Motor current input
Motor power
Motor RPM
Condenser
5- Internal photocell
6- Rack
7- Key-switch
8- Remote control
24V
800 Kg 1000Kg 800 Kg 800 Kg
230 Vac 24V dc 24V dc
1,4 A 2 A 3 A 3 A
270 W 330 W 50 W
1400 1800
12,5 µF /
With key
Working temperature
Weight
Protection rating
Opening time
Limit switch Electromechanical
-20° C / +55° C
9 Kg
IP 44
10 mt min 12 mt min
