AUTOMATION
FOR BARRIERS
WARNING!! Before installing, thoroughly read this manual that is an integral
part of the pack
Our products if installed by qualified personnel capable to evaluate risks,
comply with norms UNI EN 12453, EN 12445
The CE mark conforms to European directive
EEC 89/336 + 92/31 + 93/68 D.L. 04/12/1992 N. 476.
PACKING CONTENTS ........................................................................
TECHNICAL DATA...............................................................................
2
DIMENSIONS ......................................................................................
CONSIDERATIONS FOR INSTALLATION..........................................
INSTALLATION....................................................................................
TROUBLESHOOTING..........................................................................
SAFETY PRECAUTIONS ................................................................... 8

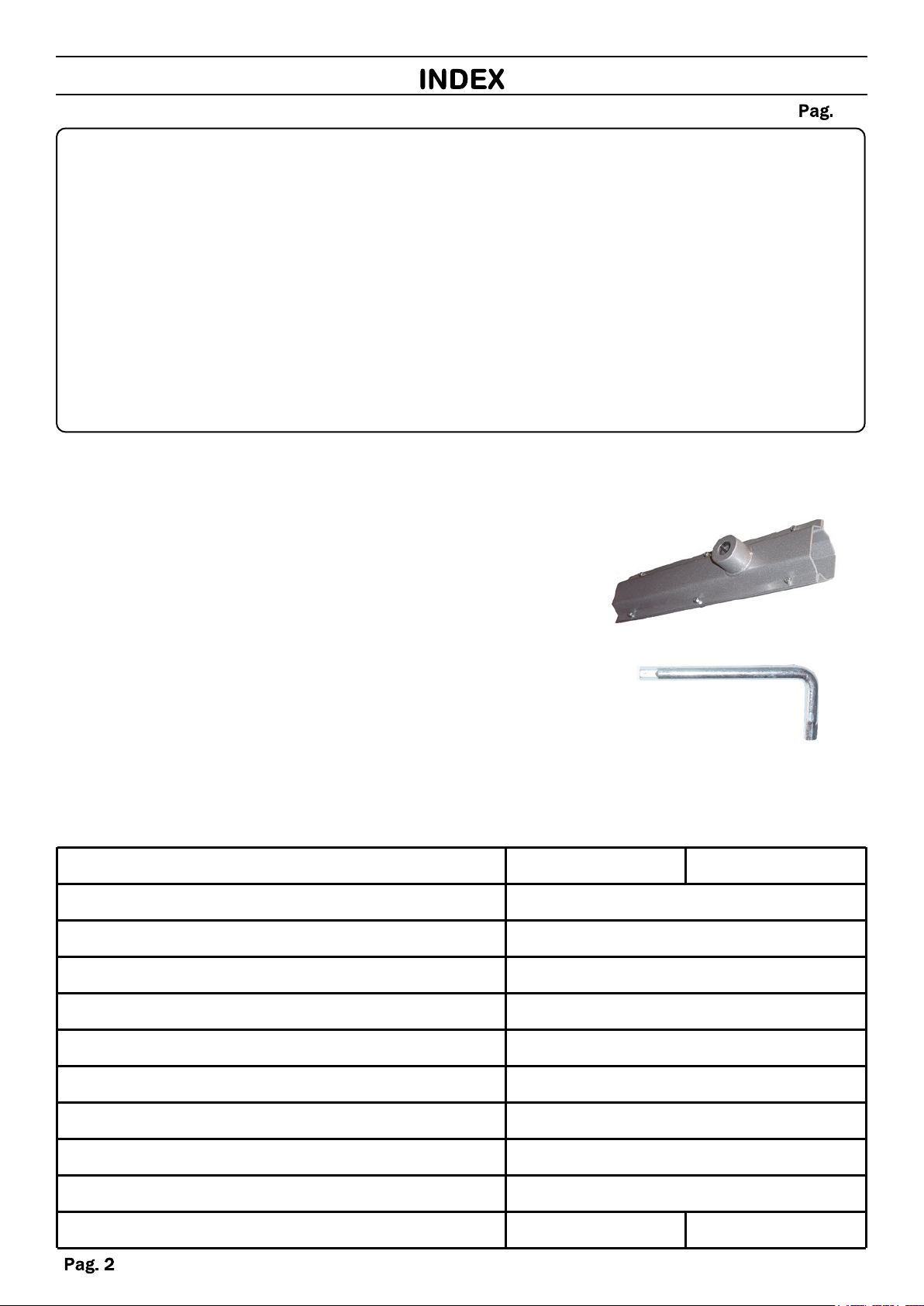

PACKING CONTENTS
1- BARRIER
1- BAR SUPPORT
2
3
3
4-5-6
7
1- UNLOCKING KEY
TECHNICAL DATA
Maximum length of bar
Motors power supply
Motor power
Motor RPM
Condenser
Mechanical unlock for emergency manoeuvre
Working temperature
Weight
BERTA
BERTA
6 mt 4 mt
Mechanical
-20° C / +55° C
FAST VERSION
24Vdc
60 W
1800
/
45Kg
Protection rating
Limit switch Electromechanical
Opening time
10 sec 5 sec
IP 44

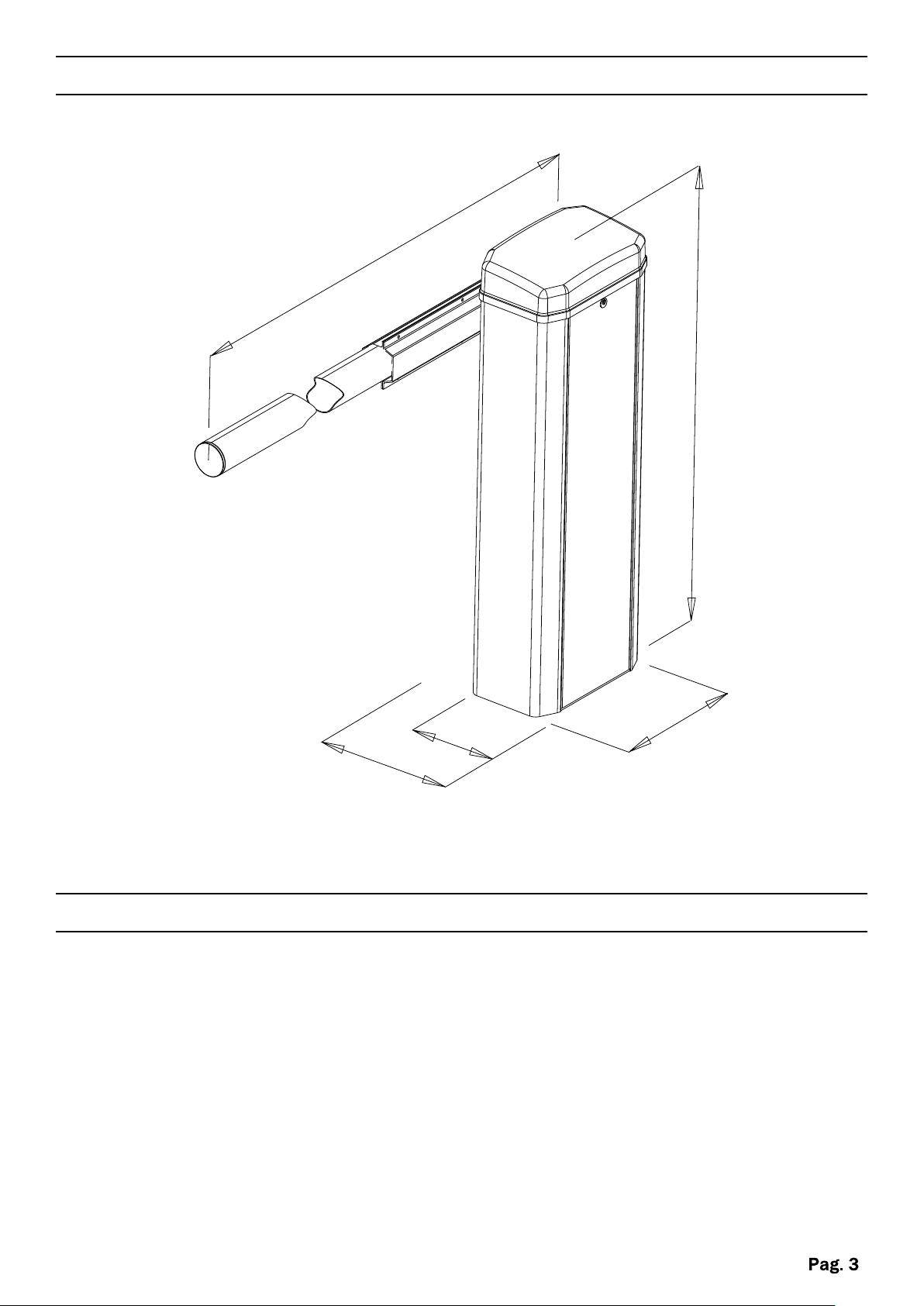

DIMENSIONS
2000-6000mm
CONSIDERATIONS FOR INSTALLATION
1070mm
230mm
370mm
370mm
Ÿ The installation and testing operations must be performed by qualified personnel
in order to guarantee the proper and safe operation of the automatic gate.
Ÿ The company declines any responsibility for damage caused by incorrect
installations due to incompetence and/or negligence.
