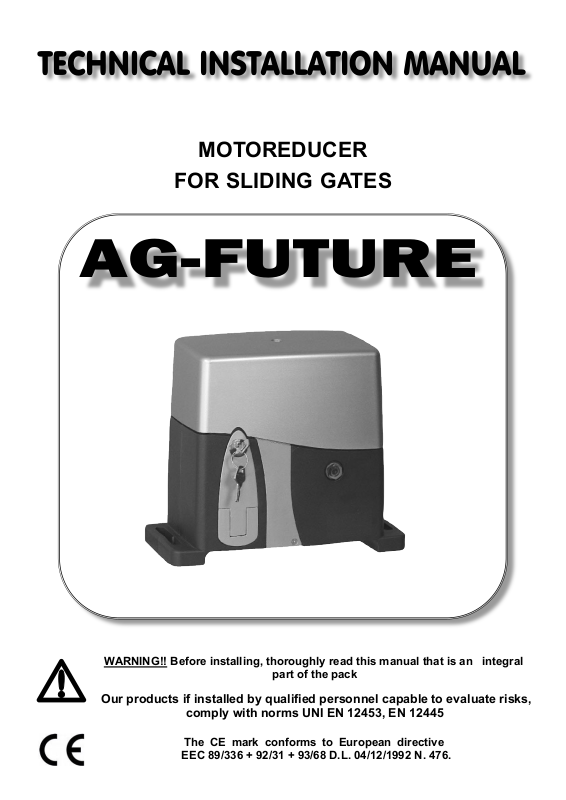

VDS AG-Future User Manual
MOTOREDUCER
FOR SLIDING GATES
AG-FUTURE
WARNING!! Before installing, thoroughly read this manual that is an integral
part of the pack
Our products if installed by qualified personnel capable to evaluate risks,
comply with norms UNI EN 12453, EN 12445
The CE mark conforms to European directive
EEC 89/336 + 92/31 + 93/68 D.L. 04/12/1992 N. 476.
PACKING CONTENTS .............................................................................
VIEW OF TYPICAL AUTOMATION AND NAMES OF COMPONENTS .............
3
TECHNICAL DATA....................................................................................
SAFETY PRECAUTIONS ..........................................................................
2
3
DIMENSIONS .........................................................................................
TYPICAL CONNECTION AND CABLE SECTION..........................................
CONSIDERATIONS FOR INSTALLATION...................................................
INSTALLATION.......................................................................................
TROUBLESHOOTING...............................................................................
PACKING CONTENTS
1- GEARED MOTOR
4
4
5
6
7
8
2– LIMIT STOP PLATES
1- PAIR OF UNLOCKING KEYS
1- CONDENSER
VIEW OF TYPICAL AUTOMATION AND NAMES OF COMPONENTS
1600K
Tree
phase
Mechanical unlock for emergency
manoeuvre
5
Optimal installation
8
7
2
3
4
5
6
5
1
1- Motor with on-board electronics
2- External photocell
3- Flashing warning light
4- Antenna
TECHNICAL DATA
Max. weight of gate
Motors power supply
Motor current input 1,5 A 1,7 A 1,8 A 1,5 A
Motor power
Motor RPM
Condenser
12.5 µF 16 µF 18 µF /
5- Internal photocell
6- Rack
7- Key-switch
8- Remote control
800K 1000K 1600K
Monophase
800Kg 1000Kg 1600 Kg 1600 Kg
230 Vac 380 Vac
280 W 330 W 360 W 500 W
1400
With key
Working temperature
Weight
Protection rating
Opening time
Limit switch
-20° C / +55° C
13 Kg
IP 44
10 mt min
Electromechanical
