High Speed Power Driver
FEATURES
1.5A Source/Sink Drive
•
100 nsec Delay
•
40 nsec Rise and Fall into
•
1000pF
Inverting and Non-Inverting
•
Inputs
Low Cross-Conduction Current
•
Spike
Low Quiescent Current
•
5V to 40V Operation
•
Thermal Shutdown Protection
•
• MINIDIP and Power Packages
DESCRIPTION
The UC1705 family of power drivers is made with a high speed Schottky pro
cess to interface between low-level control functions and high-power switching
devices - particularly power MOSFETs. These devices are also an optimum
choice for capacitive line drivers where up to 1.5 amps may be switched in ei
ther direction. With both Inverting and Non-Inverting inputs available, logic sig
nals of either polarity may be accepted, or one input can be used to gate or
strobe the other.
Supply voltages for both V
For additional application details, see the UC1707/3707 data sheet.
The UC1705 is packaged in an 8-pin hermetically sealed CERDIP for -55°C to
+125°C operation. The UC3705 is specified for a temperature range of 0°C to
+70°C and is available in either a plastic minidip or a 5-pin, power TO-220
package.
application
INFO
available
S and VC can independently range from 5V to 40V.
UC1705
UC2705
UC3705
-
-
-
TRUTH TABLE
INV N.I OUT
H
L
H
L
OUT = INV and N.I.
OUT
= INV or N.I.
H
H
L
L
BLOCK DIAGRAM
CONNECTION DIAGRAMS
DIL-8 MINIDIP, SOIC-8
L
H
L
L
(TOP VIEW)
N or J Package, D Package
5-PIN TO-220
(TOP VIEW)
T Package
JANUARY 1994 - REVISED AUGUST 2000 - SLUS370A
UC1705
UC2705
UC3705
ABSOLUTE MAXIMUM RATINGS
N-Pkg J-Pkg T-Pkg
Supply Voltage, V
Collector Supply Voltage, VC. . . . . . . . . . . . . . . . . . . . . . . . . 40V . . . . . . . . . . . . . . . . . . . 40V . . . . . . . . . . . . . . . . . . . 40V
Output Current (Source or Sink)
Steady-State. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±500mA. . . . . . . . . . . . . . . . ±500mA. . . . . . . . . . . . . . . . . ±1.0A
Peak Transient. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±1.5A. . . . . . . . . . . . . . . . . . ±1.0A. . . . . . . . . . . . . . . . . . ±2.0A
Capacitive Discharge Energy . . . . . . . . . . . . . . . . . . . . . . 20µJ. . . . . . . . . . . . . . . . . . . . 15µJ. . . . . . . . . . . . . . . . . . . . 50µJ
Digital Inputs (See Note) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.5V. . . . . . . . . . . . . . . . . . . 5.5V. . . . . . . . . . . . . . . . . . . 5.5V
Power Dissipation at T
Power Dissipation at T
Operating Temperature Range . . . . . . . . . . . . . . . . . . . . 0°C to +70°C . . . . . . . . . . -55°C to +125°C . . . . . . . . . . 0°C to +70°C
Storage Temperature Range . . . . . . . . . . . . . . . . . . . . -65°C to +150°C . . . . . . . . . -65°C to +150°C . . . . . . . . . -65°C to +150°C
Lead Temperature (Soldering, 10 seconds) . . . . . . . . . . . . . 300°C . . . . . . . . . . . . . . . . . 300°C . . . . . . . . . . . . . . . . . 300°C
Note: All currents are positive into, negative out of the specified terminal.
Digital Drive can exceed 5.5V if input current is limited to 10mA
Consult Packaging Section of Databook for thermal limitations and considerations of package.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40V . . . . . . . . . . . . . . . . . . . 40V . . . . . . . . . . . . . . . . . . . 40V
IN
= 25°C (See Note) . . . . . . . . . . . . . . 1W. . . . . . . . . . . . . . . . . . . . 1W. . . . . . . . . . . . . . . . . . . . 3W
A
(Leads/Case) = 25°C (See Note) . . . 3W. . . . . . . . . . . . . . . . . . . . 2W . . . . . . . . . . . . . . . . . . . 25W
A
ELECTRICAL CHARACTERISTICS:
Unless otherwise stated, these specifications apply for T
A = -55°C to +125°C for
the UC1705, -25°C to +85°C for the UC2705, and 0°C to +70°C for the UC3705;
VS = VC = 20V, TA =TJ.
PARAMETERS TEST CONDITIONS MIN TYP MAX UNITS
S Supply Current VS = 40V, (Outputs High, T Pkg) 6 8 mA
V
S = 40V, (Outputs Low, T Pkg) 8 12 mA
V
C Supply Current (N, J Only) VC = 40V, Outputs Low 2 4 mA
V
C Leakage Current (N, J Only) VS = 0, VC = 30V 0.05 0.1 mA
V
Digital Input Low Level 0.8 V
Digital Input High Level 2.2 V
Input Current V
Input Leakage V
Output High Sat., V
Output Low Sat., V
C-VO IO = -50mA 2.0 V
O IO = 50mA 0.4 V
I = 0 -0.6 -1.0 mA
I = 5V 0.05 0.1 mA
O = -500mA 2.5 V
I
O = 500mA 2.5 V
I
Thermal Shutdown 155 °C
TYPICAL SWITCHING CHARACTERISTICS:
VS = VC = 20V, TA = 25°C. Delays measured to 10% output change.
PARAMETERS TEST CONDITIONS OUTPUT CL = UNIT
From Inv. Input to Output:
open 1.0 2.2 nF
Rise Time Delay 60 60 60 ns
10% to 90% Rise 20 40 60 ns
Fall Time Delay 60 60 60 ns
90% to 10% Fall 25 40 50 ns
From N. I. Input to Output:
Rise Time Delay 90 90 90 ns
10% to 90% Rise 20 40 60 ns
Fall Time Delay 60 60 60 ns
90% to 10% Fall 25 40 50 ns
C Cross-Conduction
V
Current Spike Duration
Ouput Rise 25 ns
Output Fall 0 ns
2
APPLICATIONS
Power MOSFET Drive Circuit
UC1705
UC2705
UC3705
Power MOSFET Drive Circuit using Negative Bias Voltage and Level
Shifting to Ground Referenced PWMs.
D1, D2: UC3611 Schottky Diodes
Transformer Coupled MOSFET Drive Circuit Charge Pump Circuits
D1, D2: UC3611 Schottky Diodes
D1, D2: UC3611 Schottky Diodes
UNITRODE CORPORATION
7 CONTINENTAL BLVD. • MERRIMACK, NH 03054
TEL. 603-424-2410 • FAX 603-424-3460
3
PACKAGE OPTION ADDENDUM
www.ti.com
18-Oct-2005
PACKAGING INFORMATION
Orderable Device Status
(1)
Package
Type
Package
Drawing
Pins Package
Qty
Eco Plan
5962-9579801M2A ACTIVE LCCC FK 20 1 TBD POST-PLATE Level-NC-NC-NC
5962-9579801MPA ACTIVE CDIP JG 8 1 TBD A42 SNPB Level-NC-NC-NC
5962-9579801VPA ACTIVE CDIP JG 8 1 TBD A42 Level-NC-NC-NC
UC1705J ACTIVE CDIP JG 8 1 TBD A42 SNPB Level-NC-NC-NC
UC1705J883B ACTIVE CDIP JG 8 1 TBD A42 SNPB Level-NC-NC-NC
UC1705L883B ACTIVE LCCC FK 20 1 TBD POST-PLATE Level-NC-NC-NC
UC2705D ACTIVE SOIC D 8 75 Green (RoHS &
no Sb/Br)
UC2705J ACTIVE CDIP JG 8 1 TBD A42 SNPB Level-NC-NC-NC
UC2705N ACTIVE PDIP P 8 50 Green (RoHS &
no Sb/Br)
UC3705D ACTIVE SOIC D 8 75 Green (RoHS &
no Sb/Br)
UC3705DTR ACTIVE SOIC D 8 2500 Green (RoHS &
no Sb/Br)
UC3705DTRG4 ACTIVE SOIC D 8 2500 Green (RoHS &
no Sb/Br)
UC3705J ACTIVE CDIP JG 8 1 TBD A42 SNPB Level-NC-NC-NC
UC3705N ACTIVE PDIP P 8 50 Green (RoHS &
no Sb/Br)
UC3705NG4 ACTIVE PDIP P 8 50 Green (RoHS &
no Sb/Br)
UC3705T ACTIVE TO-220 KC 5 50 Green (RoHS &
no Sb/Br)
UC3705TG3 ACTIVE TO-220 KC 5 50 Green (RoHS &
no Sb/Br)
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in
a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
Lead/Ball Finish MSL Peak Temp
CU NIPDAU Level-2-260C-1 YEAR
CU NIPDAU Level-NC-NC-NC
CU NIPDAU Level-2-260C-1 YEAR
CU NIPDAU Level-2-260C-1 YEAR
CU NIPDAU Level-2-260C-1 YEAR
CU NIPDAU Level-NC-NC-NC
CU NIPDAU Level-NC-NC-NC
CU SN Level-NC-NC-NC
CU SN Level-NC-NC-NC
(3)
(2)
Eco Plan - The planned eco-friendly classification: Pb-Free (RoHS) or Green (RoHS & no Sb/Br) - please check
http://www.ti.com/productcontent for the latest availability information and additional product content details.
TBD: The Pb-Free/Green conversion plan has not been defined.
Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements
for all 6 substances, including the requirement that lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered
at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes.
Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame
retardants (Br or Sb do not exceed 0.1% by weight in homogeneous material)
(3)
MSL, Peak Temp. -- The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder
temperature.
Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is
provided. TI bases its knowledge and belief on information provided by third parties, and makes no representation or warranty as to the
accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and continues to take
reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on
incoming materials and chemicals. TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited
Addendum-Page 1
PACKAGE OPTION ADDENDUM
www.ti.com
information may not be available for release.
In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI
to Customer on an annual basis.
18-Oct-2005
Addendum-Page 2
MECHANICAL DATA
MCER001A – JANUARY 1995 – REVISED JANUARY 1997
JG (R-GDIP-T8) CERAMIC DUAL-IN-LINE
0.400 (10,16)
0.355 (9,00)
0.063 (1,60)
0.015 (0,38)
0.100 (2,54)
8
1
5
4
0.065 (1,65)
0.045 (1,14)
0.020 (0,51) MIN
0.023 (0,58)
0.015 (0,38)
0.280 (7,11)
0.245 (6,22)
0.310 (7,87)
0.290 (7,37)
0.200 (5,08) MAX
Seating Plane
0.130 (3,30) MIN
0°–15°
0.014 (0,36)
0.008 (0,20)
NOTES: A. All linear dimensions are in inches (millimeters).
B. This drawing is subject to change without notice.
C. This package can be hermetically sealed with a ceramic lid using glass frit.
D. Index point is provided on cap for terminal identification.
E. Falls within MIL STD 1835 GDIP1-T8
4040107/C 08/96
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
MECHANICAL DATA
MLCC006B – OCTOBER 1996

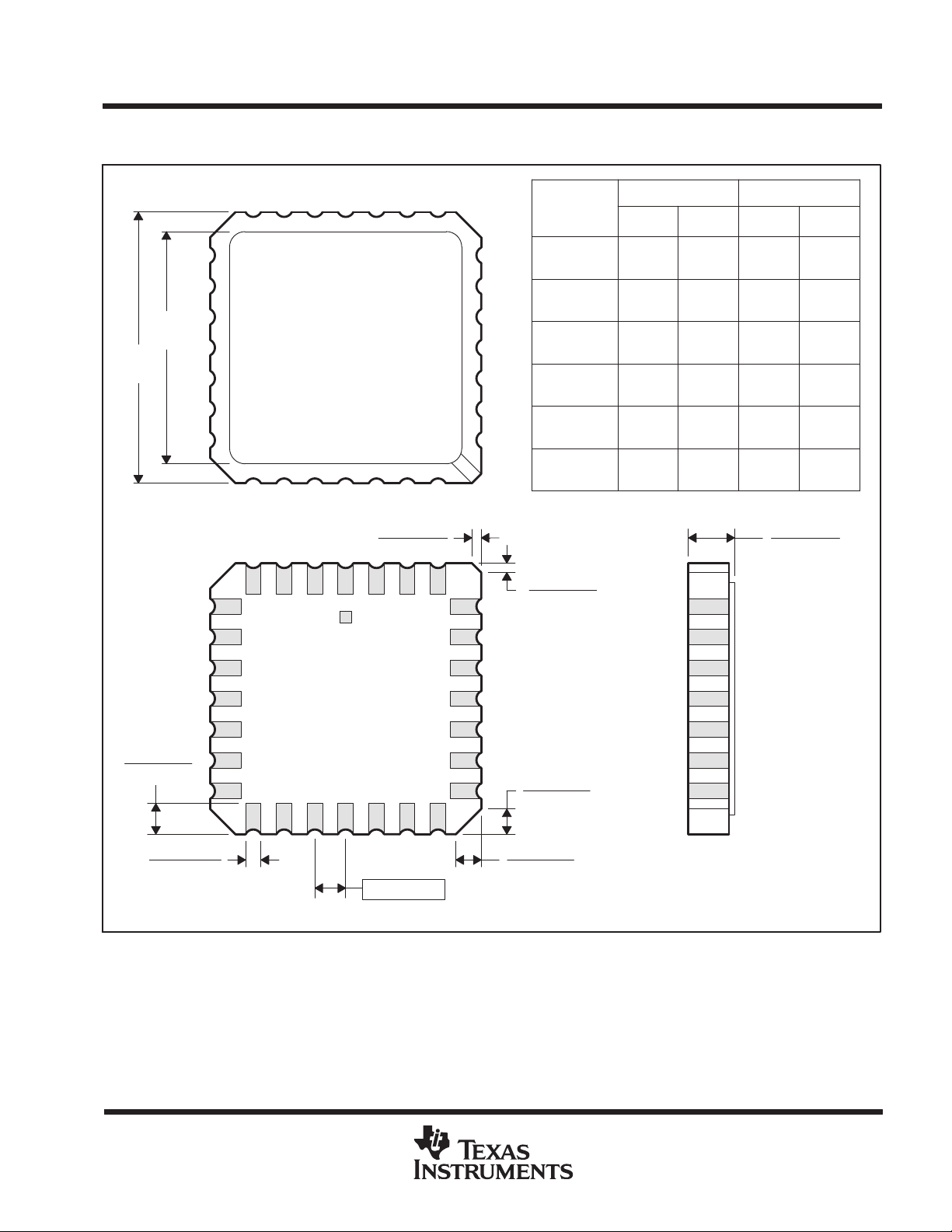

FK (S-CQCC-N**) LEADLESS CERAMIC CHIP CARRIER
28 TERMINAL SHOWN
A SQ
B SQ
19
20
21
22
23
24
25
12826 27
12
1314151618 17
0.020 (0,51)
0.010 (0,25)
MIN
0.342
(8,69)
0.442
0.640
0.739
0.938
1.141
A
0.358
(9,09)
0.458
(11,63)
0.660
(16,76)
0.761
(19,32)(18,78)
0.962
(24,43)
1.165
(29,59)
NO. OF
TERMINALS
**
11
10
9
8
7
6
5
432
20
28
44
52
68
84
0.020 (0,51)
0.010 (0,25)
(11,23)
(16,26)
(23,83)
(28,99)
MINMAX
0.307
(7,80)
0.406
(10,31)
0.495
(12,58)
0.495
(12,58)
0.850
(21,6)
1.047
(26,6)
0.080 (2,03)
0.064 (1,63)
B
MAX
0.358
(9,09)
0.458
(11,63)
0.560
(14,22)
0.560
(14,22)
0.858
(21,8)
1.063
(27,0)
0.055 (1,40)
0.045 (1,14)
0.028 (0,71)
0.022 (0,54)
0.050 (1,27)
NOTES: A. All linear dimensions are in inches (millimeters).
B. This drawing is subject to change without notice.
C. This package can be hermetically sealed with a metal lid.
D. The terminals are gold plated.
E. Falls within JEDEC MS-004
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
0.045 (1,14)
0.035 (0,89)
0.045 (1,14)
0.035 (0,89)
4040140/D 10/96
MECHANICAL DATA
MPDI001A – JANUARY 1995 – REVISED JUNE 1999
P (R-PDIP-T8) PLASTIC DUAL-IN-LINE
0.400 (10,60)
0.355 (9,02)
8
5
0.260 (6,60)
0.240 (6,10)
1
0.021 (0,53)
0.015 (0,38)
NOTES: A. All linear dimensions are in inches (millimeters).
B. This drawing is subject to change without notice.
C. Falls within JEDEC MS-001
4
0.070 (1,78) MAX
0.020 (0,51) MIN
0.200 (5,08) MAX
0.125 (3,18) MIN
0.100 (2,54)
0.010 (0,25)
Seating Plane
M
0.325 (8,26)
0.300 (7,62)
0.015 (0,38)
Gage Plane
0.010 (0,25) NOM
0.430 (10,92)
MAX
4040082/D 05/98
For the latest package information, go to http://www.ti.com/sc/docs/package/pkg_info.htm
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
MECHANICAL DATA
MSOT008B – JANUARY 1995 – REVISED SEPTEMBER 2000
KC (R-PSFM-T5) PLASTIC FLANGE-MOUNT
0.156 (3,96)
0.146 (3,71)
0.125 (3,18)
(see Note C)
DIA
0.420 (10,67)
0.380 (9,65)
0.113 (2,87)
0.103 (2,62)
0.147 (3,73)
0.137 (3,48)
0.185 (4,70)
0.175 (4,46)
0.340 (8,64)
0.330 (8,38)
0.055 (1,40)
0.045 (1,14)
1.037 (26,34)
0.997 (25,32)
1
0.040 (1,02)
0.030 (0,76)
0.010 (0,25)
NOTES: A. All linear dimensions are in inches (millimeters).
B. This drawing is subject to change without notice.
C. Lead dimensions are not controlled within this area.
D. All lead dimensions apply before solder dip.
E. The center lead is in electrical contact with the mounting tab.
M
5
0.067 (1,70)
0.268 (6,81)
0.122 (3,10)
0.102 (2,59)
0.025 (0,64)
0.012 (0,30)
4040208/E 09/00
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
1
IMPORTANT NOTICE
Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications,
enhancements, improvements, and other changes to its products and services at any time and to discontinue
any product or service without notice. Customers should obtain the latest relevant information before placing
orders and should verify that such information is current and complete. All products are sold subject to TI’s terms
and conditions of sale supplied at the time of order acknowledgment.
TI warrants performance of its hardware products to the specifications applicable at the time of sale in
accordance with TI’s standard warranty. Testing and other quality control techniques are used to the extent TI
deems necessary to support this warranty . Except where mandated by government requirements, testing of all
parameters of each product is not necessarily performed.
TI assumes no liability for applications assistance or customer product design. Customers are responsible for
their products and applications using TI components. To minimize the risks associated with customer products
and applications, customers should provide adequate design and operating safeguards.
TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right,
copyright, mask work right, or other TI intellectual property right relating to any combination, machine, or process
in which TI products or services are used. Information published by TI regarding third-party products or services
does not constitute a license from TI to use such products or services or a warranty or endorsement thereof.
Use of such information may require a license from a third party under the patents or other intellectual property
of the third party, or a license from TI under the patents or other intellectual property of TI.
Reproduction of information in TI data books or data sheets is permissible only if reproduction is without
alteration and is accompanied by all associated warranties, conditions, limitations, and notices. Reproduction
of this information with alteration is an unfair and deceptive business practice. TI is not responsible or liable for
such altered documentation.
Resale of TI products or services with statements different from or beyond the parameters stated by TI for that
product or service voids all express and any implied warranties for the associated TI product or service and
is an unfair and deceptive business practice. TI is not responsible or liable for any such statements.
Following are URLs where you can obtain information on other Texas Instruments products and application
solutions:
Products Applications
Amplifiers amplifier.ti.com Audio www.ti.com/audio
Data Converters dataconverter.ti.com Automotive www.ti.com/automotive
DSP dsp.ti.com Broadband www.ti.com/broadband
Interface interface.ti.com Digital Control www.ti.com/digitalcontrol
Logic logic.ti.com Military www.ti.com/military
Power Mgmt power.ti.com Optical Networking www.ti.com/opticalnetwork
Microcontrollers microcontroller.ti.com Security www.ti.com/security
Telephony www.ti.com/telephony
Video & Imaging www.ti.com/video
Wireless www.ti.com/wireless
Mailing Address: Texas Instruments
Post Office Box 655303 Dallas, Texas 75265
Copyright 2005, Texas Instruments Incorporated
Loading...
