Negative Output Flyback Pulse Width Modulator
UC1572
UC2572
UC3572
FEATURES
• Simple Single Inductor Flyback PWM
for Negative Voltage Generation
• Drives External PMOS Switch
• Contains UVLO Circuit
• Includes Pulse-by-Pulse Current Limit
• Low 50µA Sleep Mode Current
DESCRIPTION
The UC3572 is a negative output flyback pulse width modulator which converts a positive input voltage to a regulated negative output voltage. The
chip is optimized for use in a single inductor negative flyback switching
converter employing an external PMOS switch. The block diagram consists
of a precision reference, an error amplifier configured for voltage mode operation, an oscillator, a PWM comparator with latching logic, and a 0.5A
peak gate driver. The UC3572 includes an undervoltage lockout circuit to
insure sufficient input supply voltage is present before any switching activity can occur, and a pulse-by-pulse current limit. Output current can be
sensed and limited to a user determined maximum value. The UVLO circuit
turns the chip off when the input voltage is below the UVLO threshold. In
addition, a sleep comparator interfaces to the UVLO circuit to turn the chip
off. This reduces the supply current to only 50µA, making the UC3572 ideal
for battery powered applications.
BLOCK DIAGRAM
03/99
UDG-94094-2
ABSOLUTE MAXIMUM RATINGS
VCC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35V
EAINV. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.6V to VCC
IEAOUT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25mA
RAMP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to 4V
CS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to VCC
Iout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.7A to 0.7A
I3VREF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-15mA
Storage Temperature . . . . . . . . . . . . . . . . . . . -65°C to +150°C
Junction Temperature . . . . . . . . . . . . . . . . . . . -65°C to +150°C
Lead Temperature (Soldering, 10 sec.). . . . . . . . . . . . . +300°C
Currents are positive into, negative out of the specified
terminal. Consult Packaging Section of Databook for thermal
limitations and considerations of packages.
ORDERING INFORMATION
TEMPERATURE RANGE PACKAGE
UC1572 –55°C to +125°C J
UC2572 –40°C to +85°C D, N or J
UC3572 0°C to +70°C D or N
UC1572
UC2572
UC3572
CONNECTION DIAGRAM
DIL-8, SOIC-8 (TOP VIEW)
D, N or J Packages
ELECTRICAL CHARACTERISTICS:
PARAMETER TEST CONDITIONS MIN TYP MAX UNITS
Reference Section
3VREF 2.94 3 3.06 V
Line Regulation VCC = 4.75 to 30V 1 10 mV
Load Regulation I
Oscillator Section
Frequency VCC = 5V to 30V 85 100 115 kHz
Error Amp Section
EAINV EAOUT = 2V –10 0 10 mV
IEAINV EAOUT = 2V –0.2 –1.0 µA
AVOL EAOUT = 0.5V to 3V 65 90 dB
EAOUT High EAINV = –100mV 3.6 4 4.4 V
EAOUT Low EAINV = 100mV 0.1 0.2 V
IEAOUT EAINV = –100mV, EAOUT = 2V –350 –500 µA
Unity Gain Bandwidth TJ = 25°C, F = 10kHz 0.6 1 MHz
Current Sense Comparator Section
Threshold 0.195 0.215 0.235 V
Input Bias Current CS = 0 –0.4 –1 µA
CS Propogation Delay 300 nS
Gate Drive Output Section
OUT High Saturation I
OUT Low Saturation IOUT = 10mA 0.1 0.4 V
Rise Time TJ = 25°C, CLOAD = 1nF + 3.3 Ohms 30 80 nS
Unless otherwise specified, VCC = 5V, CT = 680pF, TA=T
3VREF = 0V to –5mA 1 10 mV
EANV = –1mA –0.2 –0.9 V
I
EAINV = 100mV, EAOUT = 2V 7 20 mA
OUT = 0 0 0.3 V
IOUT = –10mA 0.7 1.5 V
IOUT = –100mA 1.5 2.5 V
IOUT = 100mA 1.5 2.2 V
.
J
2
UC1572
UC2572
UC3572
ELECTRICAL CHARACTERISTICS:
PARAMETER TEST CONDITIONS MIN TYP MAX UNITS
Fall Time TJ = 25°C, CLOAD = 1nF + 3.3 Ohms 30 80 nS
Pulse Width Modulator Section
Maximum Duty Cycle EAINV = +100mV, VCC = 5V to 30V 92 96 %
Minimum Duty Cycle EAINV = –100mV, VCC = 5V to 30V 0 %
Modulator Gain EAOUT = 1.5V to 2.5V 45 55 65 %/V
Undervoltage Lockout Section
Start Threshold 3.5 4.2 4.5 V
Hysteresis 100 200 300 mV
Sleep Mode Section
Threshold 1.8 2.2 2.6 V
Supply Current Section
IVCC VCC = 5V, 30V 9 12 mA
Unless otherwise specified, VCC = 5V, CT = 680pF, TA=T
VCC = 30, CS = 3V 50 150 µA
.
J

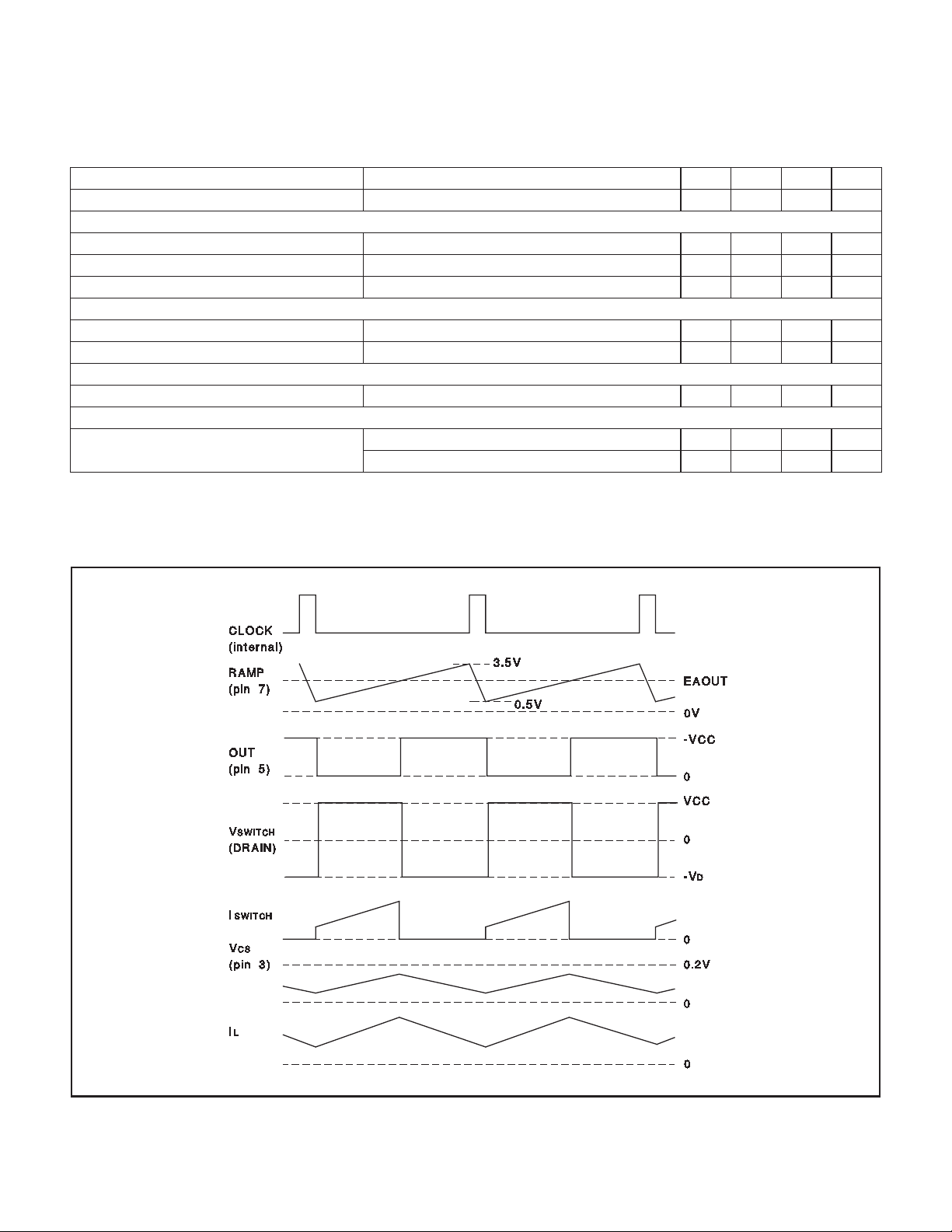

Figure 1. Typical waveforms.
UDG-94095
3

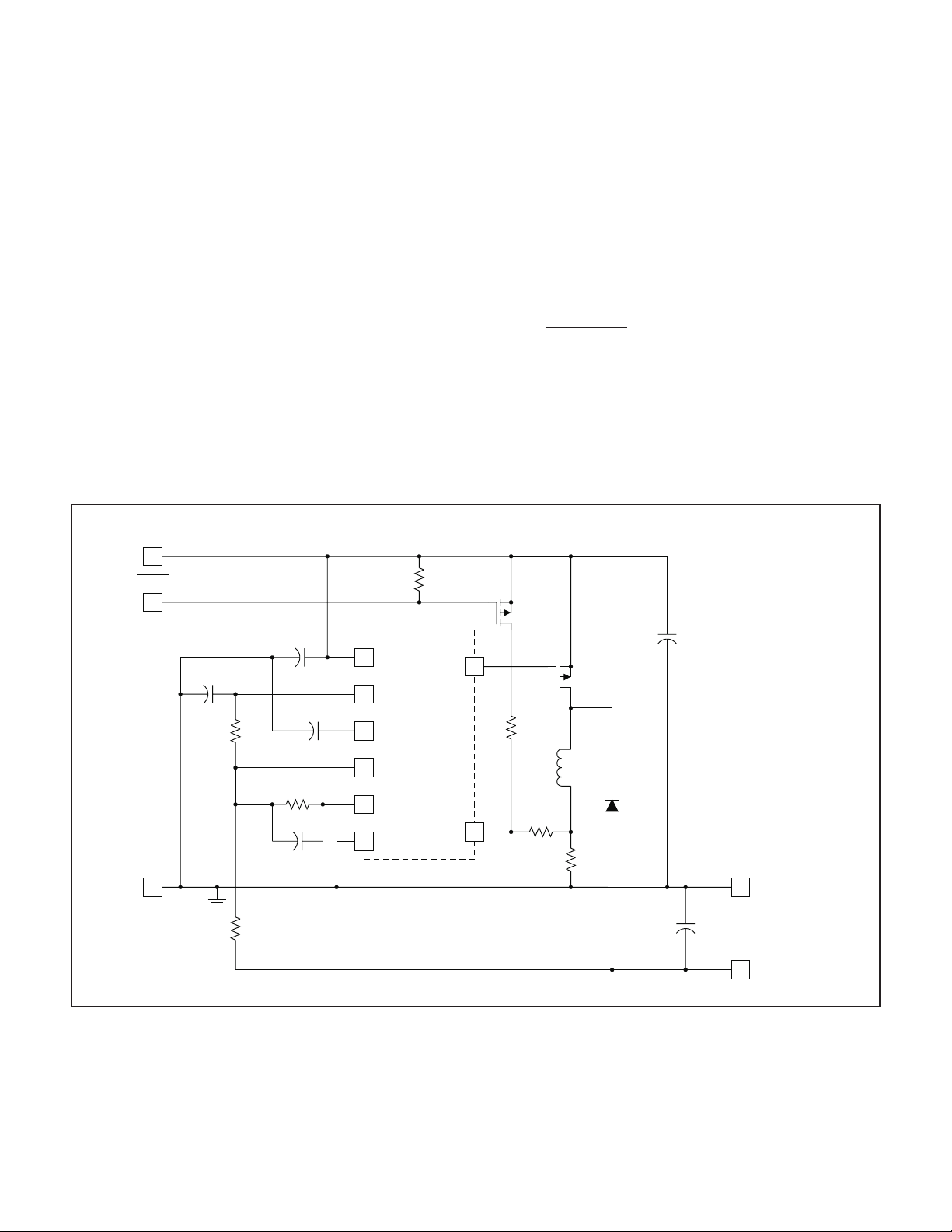

PIN DESCRIPTIONS
3VREF: Precision 3V reference. Bypass with 100nF ca-
pacitor to GND.
CS: Current limit sense pin. Connect to a ground refer-
enced current sense resistor in series with the flyback inductor. OUT will be held high (PMOS switch off) if CS
exceeds 0.2V.
EAINV: Inverting input to error amplifier. Summing junction for 3VREF and VOUT sense. The non-inverting input
of the error amplifier is internally connected to GND. This
pin will source a maximum of 1mA.
EAOUT: Output of error amplifier. Use EAOUT and
EAINV for loop compensation components.
UC1572
UC2572
UC3572
GND: Circuit Ground.
OUT: Gate drive for external PMOS switch connected
between V
gate of the PMOS switch between VCC and GND.
RAMP: Oscillator and ramp for pulse width modulator.
Frequency is set by a capacitor to GND by the equation
F
Recommended operating frequency range is 10kHz to
200kHz.
VCC: Input voltage supply to chip. Range is 4.75 to 30V.
Bypass with a 1µF capacitor.
CC and the flyback inductor. OUT drives the
15
1
kC
RAMP
•
=
VIN
SLEEP
GND
C3V
100nF
REF
R
RV
40k
REF
SENSE
R
C
CV
10µF
COMP
COMP
CC
C
RAMP
680pF
4
8
7
1
2
6
VCC
3VREF
RAMP
EAINV
EAOUT
GND
UC1572
RSLEEP3
1MEG
OUT
CS
M
SLEEP
C
IN
10µF
5
R
SLEEP1
56k
R
SLEEP2
3
33k
M
L
FLYBACK
R
SWITCH
CS
D
FLYBACK
COUT
100µF
GND
–12V OUT
VOUT
Figure 2. Typical application: +5V to –12V flyback converter.
UNITRODE CORPORATION
7 CONTINENTALBLVD. • MERRIMACK, NH 03054
TEL. (603) 424-2410 • FAX (603) 424-3460
4
UDG-99057
