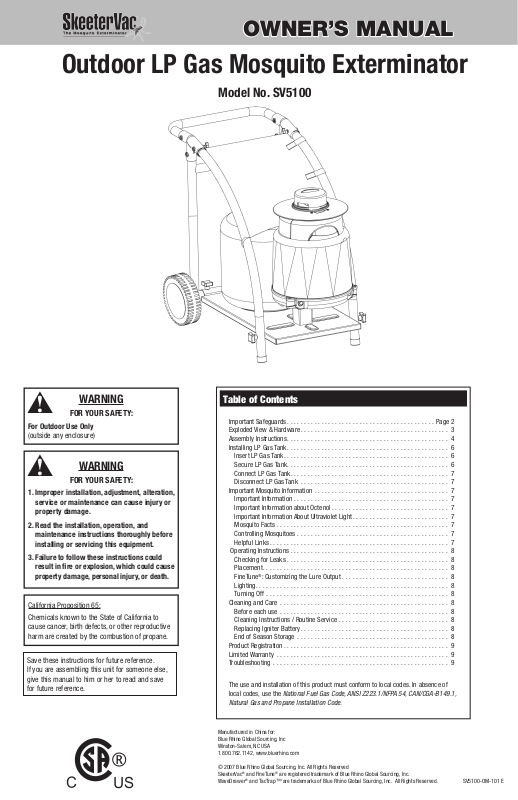

OWNER’S MANUAL

Outdoor LP Gas Mosquito Exterminator

Model No. SV5100

WARNING

FOR YOUR SAFETY:

For Outdoor Use Only

(outside any enclosure)

WARNING

FOR YOUR SAFETY:

1. Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage.

2. Read the installation, operation, and maintenance instructions thoroughly before installing or servicing this equipment.

3. Failure to follow these instructions could result in ﬁre or explosion, which could cause property damage, personal injury, or death.

California Proposition 65:

Chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm are created by the combustion of propane.

Save these instructions for future reference. If you are assembling this unit for someone else, give this manual to him or her to read and save for future reference.

Table of Contents

Important Safeguards ...........................................Page 2

Exploded View & Hardware........................................... 3

Assembly Instructions............................................... 4

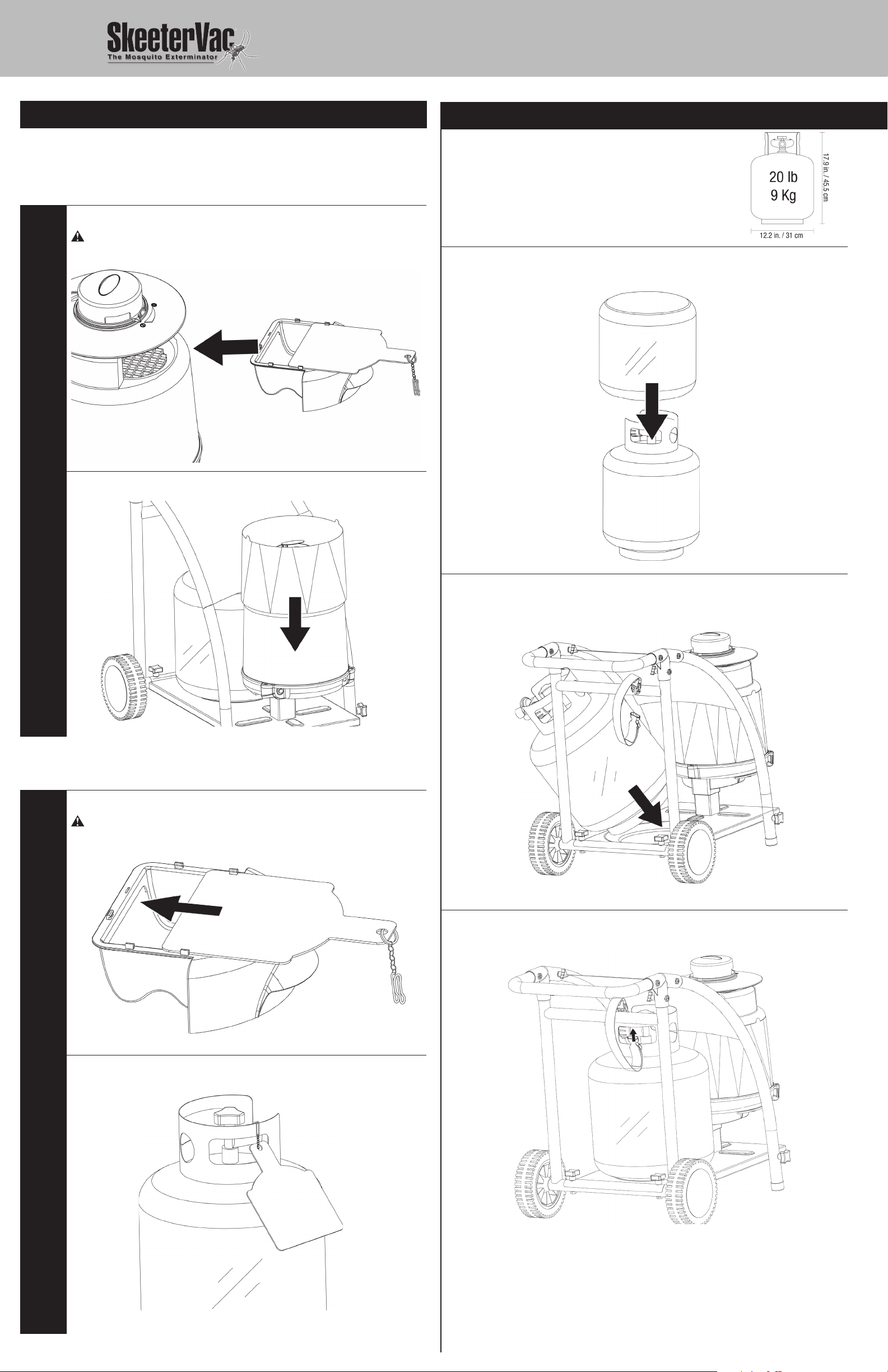

Installing LP Gas Tank............................................... 6

Insert LP Gas Tank................................................ 6

Secure LP Gas Tank............................................... 6

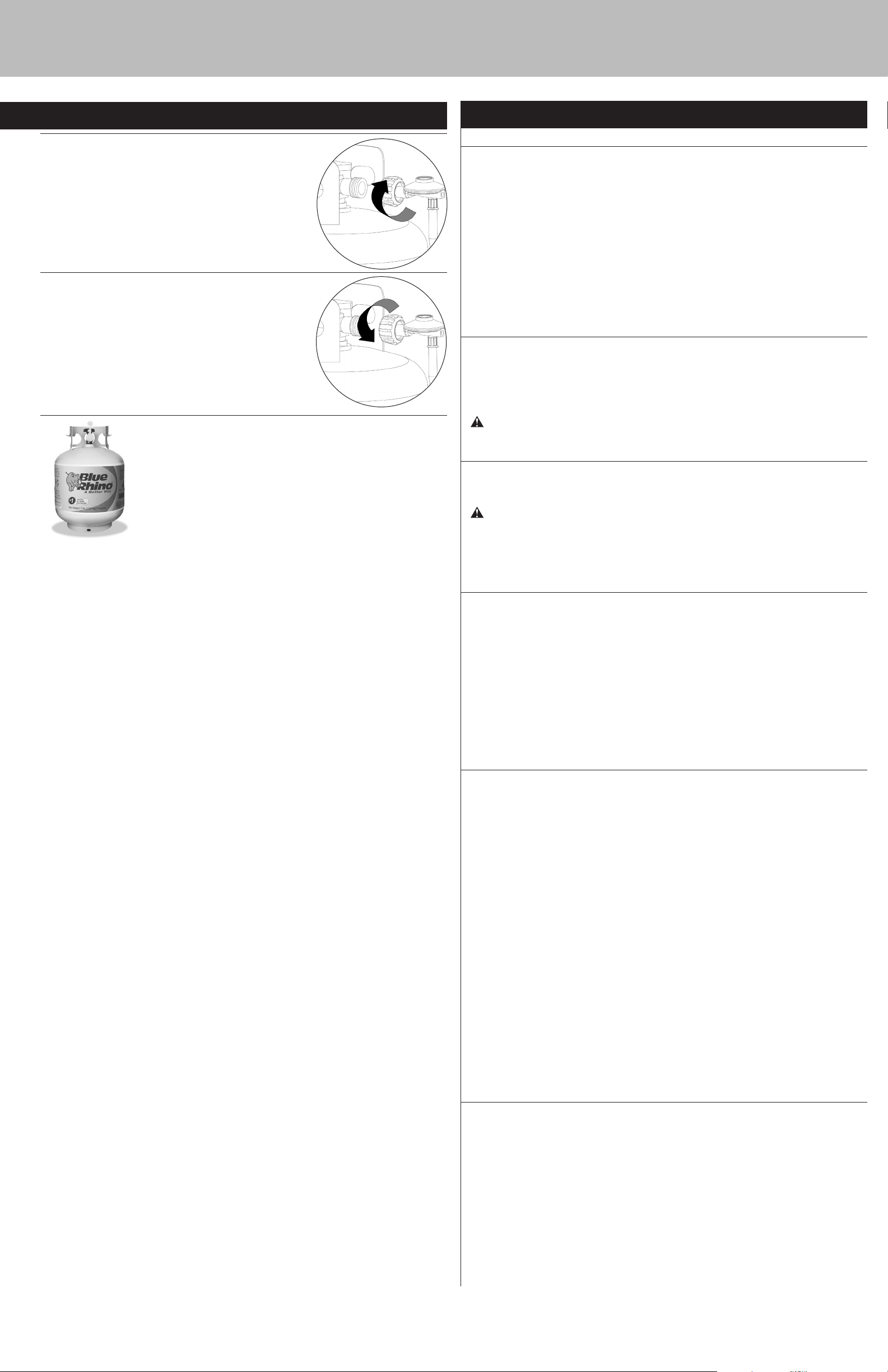

Connect LP Gas Tank.............................................. 7

Disconnect LP Gas Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Important Mosquito Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Important Information about Octenol .................................. 7

Important Information About Ultraviolet Light............................ 7

Mosquito Facts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Controlling Mosquitoes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Helpful Links .................................................... 7

Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

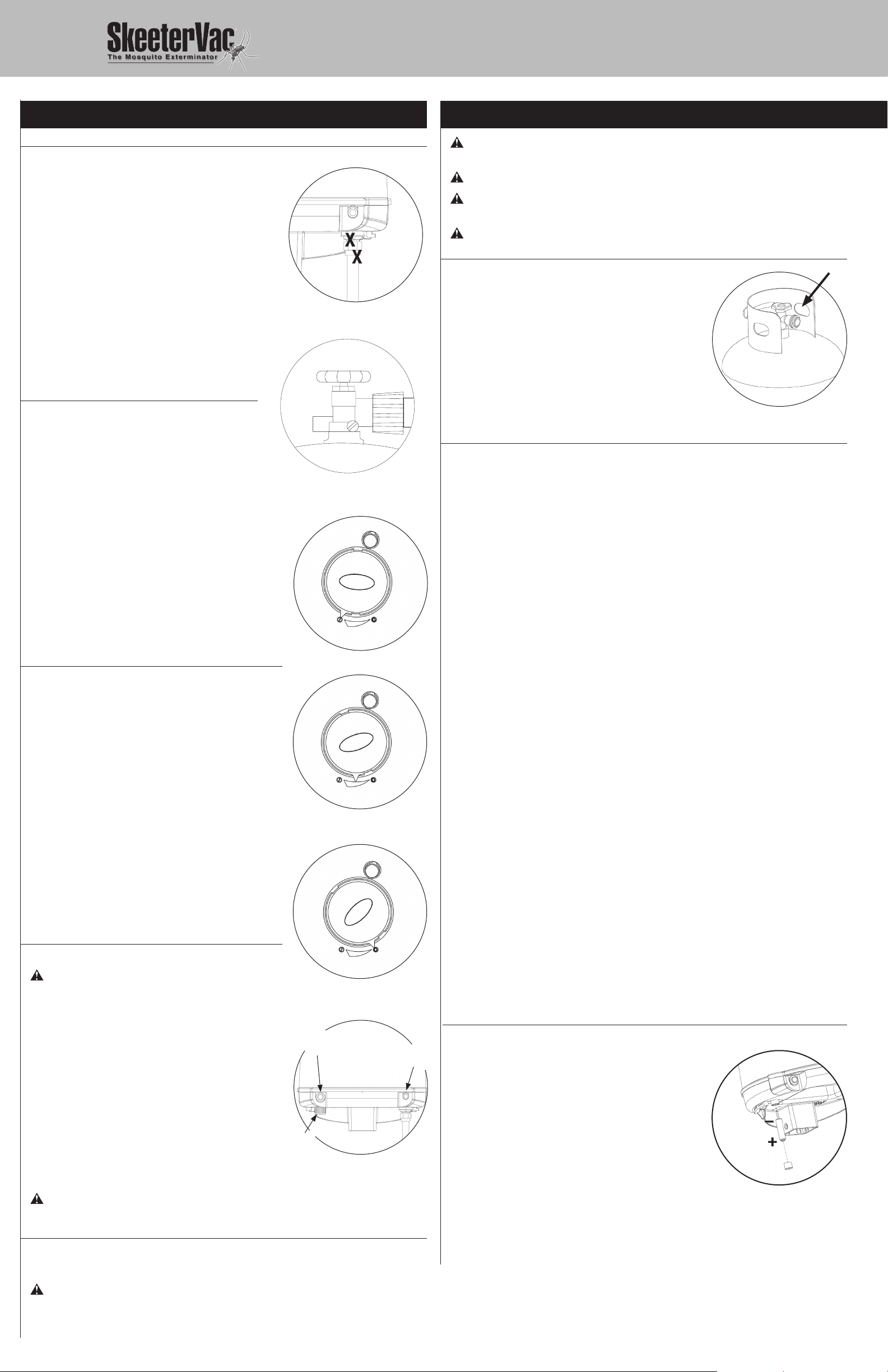

Checking for Leaks ............................................... 8

Placement...................................................... 8

FineTune®: Customizing the Lure Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Lighting........................................................ 8

Turning Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Before each use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Cleaning Instructions / Routine Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Replacing Igniter Battery ........................................... 8

End of Season Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Product Registration ................................................ 9

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

The use and installation of this product must conform to local codes. In absence of local codes, use the National Fuel Gas Code, ANSI Z223.1/NFPA 54, CAN/CGA-B149.1,

Natural Gas and Propane Installation Code.

Manufactured in China for: Blue Rhino Global Sourcing, Inc Winston-Salem, NC USA

1.800.762.1142, www.bluerhino.com

© 2007 Blue Rhino Global Sourcing, Inc. All Rights Reserved SkeeterVac® and FineTune® are registered trademark of Blue Rhino Global Sourcing, Inc. WaveDrawer® and TacTrap™ are trademarks of Blue Rhino Global Sourcing, Inc. All Rights Reserved. SV5100-OM-101 E

Outdoor LP Gas Mosquito Exterminator Model No. SV5100

DANGER

WARNING

FOR YOUR SAFETY

If you smell gas -

1. Shut off gas to appliance.

2. Extinguish any open flame.

3. If odor continues, keep away from the appliance immediately and call your gas supplier or your fire department.

DANGER: Failure to follow the dangers, warning and cautions in this manual may result in serious bodily injury or death, or in a fire or an explosion

causing damage to property.

WARNING: This SkeeterVac® is for outdoor use only, and shall not be used in a

building, garage, or any other enclosed area.

Do NOT operate, light or use this appliance within 8 feet of walls,

structures, buildings or combustible materials.

It is a violation of Federal law to use this product in a manner

inconsistent with its labeling. This SkeeterVac® is NOT for commercial use. This SkeeterVac® is for use with liquid propane (LP) gas only.

The conversion to or attempted use of natural gas in this LP gas

SkeeterVac® is dangerous and will void your warranty. LP gas Characteristics:

a. LP gas is flammable and hazardous if handled improperly. Become

aware of the characteristics before using any LP gas product.

b. LP gas is explosive under pressure, heavier than air, and settles and

pools in low areas.

c. LP gas in its natural state has no odor. For your safety, an odorant is

added that smells like rotten cabbage.

d. Contact with LP gas can cause freeze burns to skin.

LP gas tank needed to operate. Only tanks marked “propane” may be

used.

a. The LP gas supply tank must be constructed and marked in

accordance with the Specifications for LP gas Cylinders of the U.S. Department of Transportation (DOT) or the National Standard of Canada, CAN/CSA-B339, Cylinders, Spheres and Tubes for the

Transportation of Dangerous Goods; and Commission. b. LP gas tank must be arranged for vapor withdrawal. c. The LP gas tank must have a listed overfilling prevention device

(OPD). d. Only use 20-pound cylinders equipped with a cylinder connection

device compatible with the connection for outdoor cooking

appliances. e. The LP gas tank must have a tank collar to protect the tank valve. f. Never use an LP gas tank with a damaged body, valve, collar, or

footing.

g. Dented or rusted LP gas tanks may be hazardous and should be

checked by your LP gas supplier prior to use. h. The LP gas tank should not be dropped or handled roughly. i. Tanks must be stored outdoors out of the reach of children and must

not be stored in a building, garage, or any other enclosed area. Your tank must never be stored where temperatures can reach over 125°F.

j. Never keep a filled LP gas tank in a hot car or car trunk. Heat will

cause the gas pressure to increase, which may open the relief valve and allow gas to escape.

k. Place dust cap on cylinder valve outlet whenever the cylinder is not in

use. Only install the type of dust cap on the cylinder valve outlet that

is provided with the cylinder valve. Other types of caps or plugs may

result in leakage of propane. l. Do not store a spare LP gas tank under or near this appliance. m. Never fill the tank beyond 80 percent full. n. A fire causing, serious injury or damage to property may occur if the

above is not followed exactly. o. Always transport your tank in a secure, well-ventilated location in

your vehicle. LP gas tank should be upright with valve turned off. LP

gas tank should be taken directly to and from place of use.

Never attempt to attach this SkeeterVac® to the self-contained LP gas

system of a camper trailer, motor home, or house.

The use of alcohol, or prescription or non-prescription drugs may

impair the consumer’s ability to properly assemble or safely operate the appliance.

Your SkeeterVac® has been checked at all factory connections for

leaks. Recheck all connections, as movement in shipping can loosen connections.

Check for leaks even if your unit was assembled for you by someone

else.

Do not operate if gas leak is present. Gas leaks may cause a fire or

explosion.

You must follow all leak-checking procedures before operating. To

prevent fire or explosion hazard when testing for a leak:

1. Do not store or use gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance.

2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.

a. Always perform leak test before lighting the SkeeterVac

time the tank is connected for use.

b. No smoking. Do not use or permit sources of ignition in the area

while conducting a leak test. c. Conduct the leak test outdoors in a well-ventilated area. d. Do not use matches, lighters, or a flame to check for leaks. e. Do not use SkeeterVac

If you are unable to stop a leak, disconnect the LP gas supply. Call a

gas appliance serviceman or your local LP gas supplier.

Do not store or use gasoline or other flammable liquids or vapors within

25 feet (7.62 m) of this appliance.

Do not use in an explosive atmosphere. Keep SkeeterVac® area clear

and free from combustible materials, gasoline and other flammable vapors and liquids.

Minimum clearance from sides and back of unit to combustible

construction, 21 inches from side and 21 inches from back. Do not use this appliance under overhead combustible surfaces.

It is essential to keep the SkeeterVac®’s valve compartment, burners,

and circulating air passages clean. Inspect SkeeterVac® before each

use. Do not alter SkeeterVac® in any manner. Do not use the SkeeterVac® unless it is COMPLETELY assembled and all

parts are securely fastened and tightened. This SkeeterVac® should be thoroughly cleaned and inspected on

a regular basis. Clean and inspect the hose before each use of the

appliance. If there is evidence of abrasion, wear, cuts, or leaks, the

hose must be replaced prior to the appliance being put into operation. Use only the regulator and hose assembly provided. The replacement

regulator and hose assembly shall be that specified by the

manufacturer. Use only Blue Rhino Global Sourcing, Inc. factory authorized parts. The

use of any part that is not factory authorized can be dangerous. This

will also void your warranty. Do not use this appliance without reading “Operating Instructions” in

this manual. Do not install or use in or on boats or recreational vehicles. Product performance can vary due to weather, wind and other

environmental conditions. Never lean over the SkeeterVac® when lighting. Do not attempt to move SkeeterVac® when in use. Allow the

SkeeterVac® to cool before moving or storing. Storage of SkeeterVac® indoors is permissible only if the tank is

disconnected, removed from the SkeeterVac® and properly stored

outdoors. Do not attempt to disconnect the gas regulator from the tank or any gas

fitting while the SkeeterVac® is in use. Do not use SkeeterVac® for indoor cooking or heating. TOXIC fumes can

accumulate and cause asphyxiation. After a period of storage and/or nonuse, check for leaks, burner

obstructions and inspect for any abrasion, wear, cuts to the hose. If SkeeterVac® is not in use, the gas must be turned off at the supply

tank. Keep air intake areas clear of dust, dirt and debris Do not allow children to operate or play near a SkeeterVac® device

when it is in use. Inspect for damage and wear during each maintenance cycle. It is recommended to use only FineTune® mosquito attractant in your

SkeeterVac®. The use of other attractants has not been tested with your

product, and void your warranty. Maximum inlet gas supply pressure is 11 inch water column Deaths, serious injury or damage to property may occur if the above is

not followed exactly.

until any and all leaks are corrected.

and each

Contact 1.800.762.1142 for assistance. Do not return to place of purchase.

page no.

Parts List

TacTrap™

Lure Cover

FineTune® Lure

Regulator/Hose Assembly

Engine Assembly

WaveDrawer

WaveDrawer® Cover

Battery Cap

AA Battery*

Handle

Rear Cart Frame

Front Frame (2)

Exploded View

CPSX000021

57-07-110

CPSX000014

57-07-116

57-08-004

57-08-005

57-08-006

57-07-103

57-07-136

55-07-141

57-07-135

Canvas Cover

LP Gas Tank Retainer

Belt

LP Gas Tank Cover

Wheel (2)

Hub Cap (2)

LP Gas Tank (Not Included)

Cart Frame Base

* Pre-installed

57-07-132

57-07-138

57-07-137

57-08-007

57-08-017

57-07-133

Hardware

Bolt

M5 x 40, Stainless steel

4 pcs

Tools Required for Assembly (Not Included)

M8 Wrench

B C D E F G

Bolt

Nut

Wing Nut

Washer

AA Battery 1 pc

M8 x 40, Stainless steel

M8 Chrome Plated

M5 Black

M8 Black

ø8 Stainless Steel

4 pcs

2 pcs

4 pcs

2 pcs

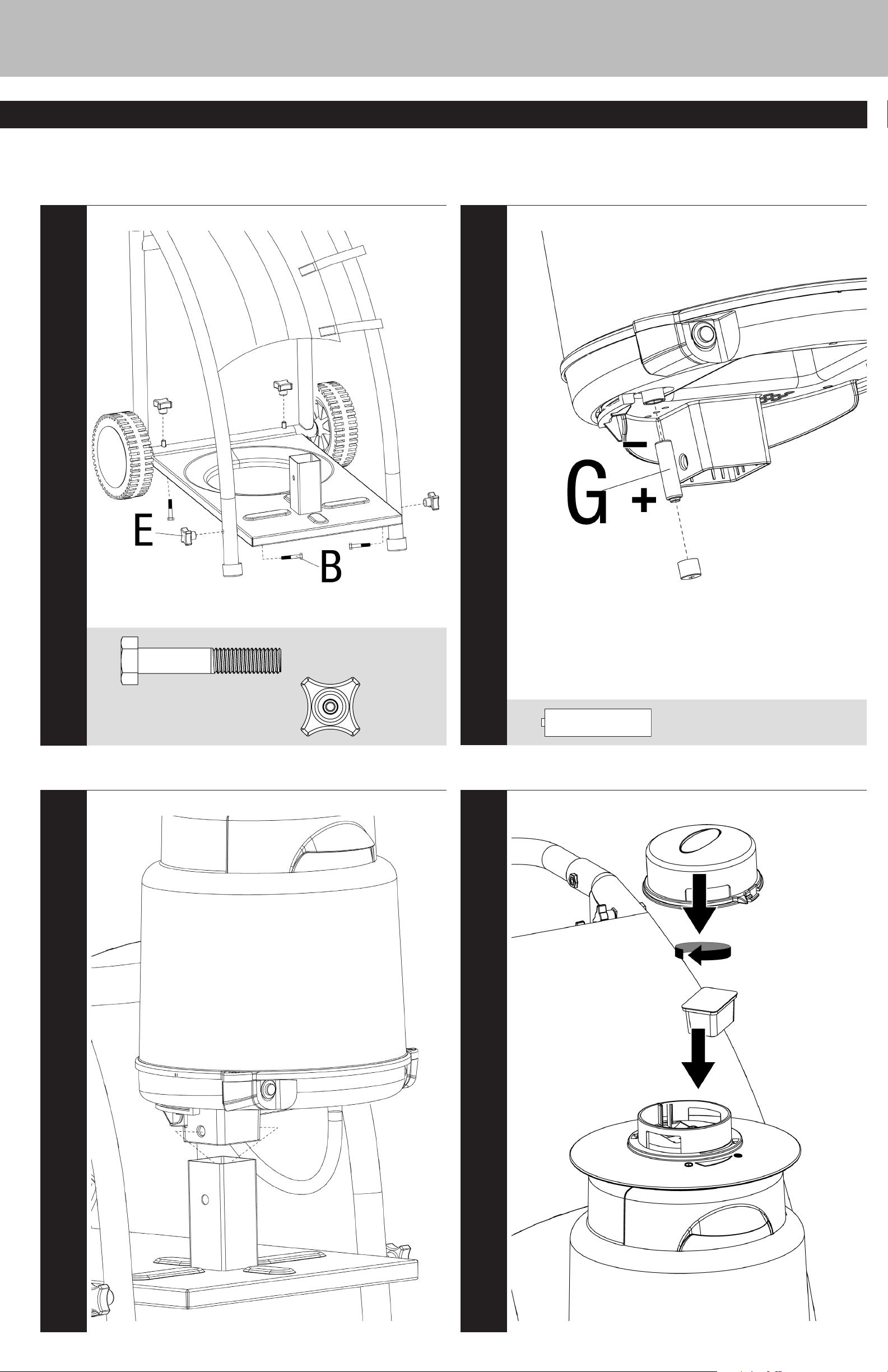

Assembly Instructions

Outdoor LP Gas Mosquito Exterminator Model No. SV5100

DO NOT RETURN PRODUCT TO STORE.

For assistance call 1.800.762.1142 toll free. Please have your owner’s manual and serial number available for reference.

For Easiest Assembly:

• To avoid losing any small components or hardware, assemble your product on a hard level surface that does not have cracks or openings.

• Clear an area large enough to layout all components and hardware.

• When applicable, tighten all hardware connections by hand first. Once the step is completed go back and fully tighten all hardware.

• Follow all steps in order to properly assemble your product.

To complete assembly you will need:

• (1) Leak Detection Solution (Instructions on how to make solution are included in “Operating Instructions” section)

• (1) precision-filled standard grill LP gas tank (20#) with external valve threads.

Note: You must follow all steps to properly assemble your SkeeterVac®.

Attach Wheels and Hub Caps

Note: Do not over tighten the nuts when attaching the wheels.

Typical assembly: approximately 30 minutes.

Attach Cart Frame Handle

Attach Front Frame

x 2
