Uniflame NPE1605 Owner's Manual

Table of Contents

Important Safeguards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Exploded View & Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Turning On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Turning Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Initial Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cooking Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Product Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Manufactured in China for: Blue Rhino Global Sourcing, LLC 104 Cambridge Plaza Drive, Winston-Salem, NC 27104 USA

1.800.762.1142, www.bluerhino.com

WARNING

FOR YOUR SAFETY:

1. Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage.

2. Read the installation, operation, and maintenance instructions thoroughly before installing or servicing this equipment.

3. Failure to follow these instructions could result in fire or explosion, which could cause property damage, personal injury, or death.

Save these instructions for future reference. If you are assembling this unit for someone else, give this manual to him or her to read and save for future reference.

Danger

Do NOT use electric grill for indoor cooking or heating. NOT to be used in or on boats or recreational vehicles.

WARNING

FOR YOUR SAFETY:

For Outdoor Use Only

(outside any enclosure)

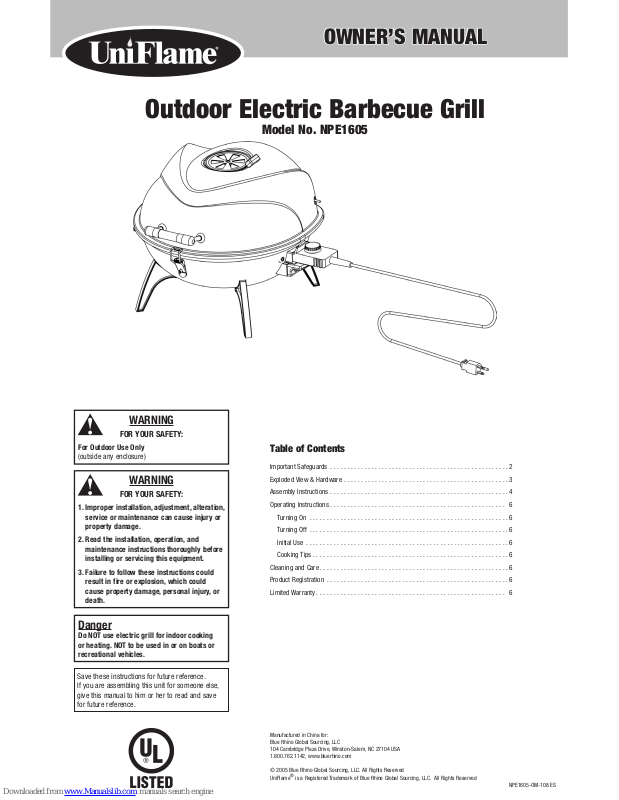

Outdoor Electric Barbecue Grill

Model No. NPE1605

OWNER’S MANUAL

Outdoor Electric Barbecue Grill Model No. NPE1605

WARNING

FOR YOUR SAFETY

1. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

2. When cooking with oil/grease do not allow the oil/grease to exceed 350ºF (176.5ºC). Do not store or use extra cooking oil in the vicinity of this or any other appliance.

1. This grill is for outdoor use only, and shall not be used in a building, garage, or any other enclosed area.

2. This grill is NOT for commercial use.

3. This grill is for use with electricity.

4. This is not a tabletop grill. Therefore, do not place this grill on any type of tabletop surface.

5. Do not use 16 gauge extension cords. Damage to household wiring and/ or fire could result.

ELECTRIC SHOCK CAN KILL OR RESULT IN SERIOUS INJURY. TO PREVENT ELECTRICAL SHOCK:

a. Use only with GFI (Ground Fault Interrupter) protected circuit. b. Do not use grill when raining. c. To prevent grill from being splashed or falling into water, do not use

grill within 10 feet of pool, pond, or other body of water. d. Keep grill and electric controller dry and out of rain at all times. e. Do not operate grill with an electric controller that has a damaged

cord, plug, or metal probe. Call our customer service for a

replacement controller. This controller is made specifically for

this grill. f. Never remove grounding plug, or use with an adapter to two prongs. g. Keep electric plugs off ground, and dry. h. In case of fire, turn controller OFF, unplug grill from outlet, and allow

fire to burn out. Do not use water to put out a fire in this or another

electrical appliance. i. Do not use water or other liquid spray to clean grill without first

unplugging electric controller and removing heating element.

7. The use of alcohol, or prescription or non-prescription drugs may impair the consumer’s ability to properly assemble or safely operate the appliance.

8. Never use lighter fluid, lava rocks, gasoline, kerosene, or alcohol with this product.

9. Do not store or use gasoline or other flammable liquids or vapors within 25 feet (7.62 m) of this appliance.

10. Do not use in an explosive atmosphere. Keep grill area clear and free

from combustible materials, gasoline and other flammable vapors and liquids.

11. Keep all combustible items and surfaces at least 21 inches (53 cm)

away from the grill at all times. DO NOT use this grill or any gas product under any overhead or near any unprotected combustible constructions.

12. Do not alter grill in any manner.

13. Do not use the grill unless it is COMPLETELY assembled and all parts are securely fastened and tightened.

14. This grill should be thoroughly cleaned and inspected on a regular basis.

15. Use only the controller provided. The replacement controller shall be that specified by the manufacturer.

16. Use only Blue Rhino Global Sourcing, LLC. factory authorized parts. The use of any part that is not factory authorized can be dangerous. This will also void your warranty. Contact 1.800.762.1142.

17. Do not use this appliance without reading “Operating Instructions” in this manual.

18. Do not touch metal parts of grill until it has completely cooled (about 45 min.) to avoid burns, unless you are wearing protective gear (pot holders, gloves, BBQ mittens, etc.).

19. Do not use in or on boats or recreational vehicles.

20. Do not use grill in high winds.

21. Do not leave a lit grill unattended, especially keep children and pets away from grill at all times.

22. Do not attempt to move grill when in use. Allow the grill to cool before moving or storing.

23. Always open grill lid carefully and slowly as heat and steam trapped within grill can severely burn you.

24. Always use your grill on a hard, non-combustable level surface.

25. Use extreme caution on wooden decks.

26. Keep all electrical cords away from a hot grill.

27. Do not use grill for indoor cooking or heating. TOXIC fumes can accumulate and cause asphyxiation.

28. After a period of storage and/or nonuse, inspect for any abrasion, wear, cuts to the controller and electrical cord.

29. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

30. Always use a meat thermometer to ensure food is cooked to a safe temperature.

31. Deaths, serious injury or damage to property may occur if the above is not followed exactly.

Safety First

DANGERS and Cautions

When using electrical appliances, basic safety precautions should always be followed including the following:

1. Read all instructions.

2. Do not touch hot surfaces. Use handles or knobs.

3. To protect against electrical shock do not immerse cord, plugs, or heating element in water or other liquids.

4. Close supervision is necessary when any appliance is used by or near children.

5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.

6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.

7. The use of accessory attachments not recommended by the apliance manufacturer may cause injuries.

8. Do not let cord hang over edge of table or counter, or touch hot surfaces.

9. Do not palce on or near a hot gas or electric burner, or in a heated oven.

10. Extreme caution must be used when moving an appliance containing

hot oil or other hot liquids.

11. Always attach plug to appliance first, then plug cord into the wall

outlet. To disconnect, turn any control to “off”, then remove plug from wall outlet.

12. Do not use appliance for other than intended use.

13. Use only on properly grounded outlet.

14. Fuel, such as charcoal briquettes, is not to be used with appliance.

15.

SAVE THESE INSTRUCTIONS.

IMPORTANT SAFEGUARDS

Contact 1.800.762.1142 for assistance. Do not return to place of purchase.

page no.

Exploded View

1. Lid . . . . . . . . . . . . . . . . . . . . . . . . . . .55-14-955

2. Bowl . . . . . . . . . . . . . . . . . . . . . . . . . . 55-14-956

3. Warming Rack . . . . . . . . . . . . . . . . . . 55-14-957

4. Cooking Grid . . . . . . . . . . . . . . . . . . . .

55-14-958

5. Heat Reflector Plate . . . . . . . . . . . . . .55-14-959

6. Heating Element . . . . . . . . . . . . . . . . .55-14-960

7. Side Handle (2) . . . . . . . . . . . . . . . . . .55-14-961

8. Temperature Control . . . . . . . . . . . . . .55-14-962

9. Lid Handle . . . . . . . . . . . . . . . . . . . . .55-14-963

10. Air Vents . . . . . . . . . . . . . . . . . . . . . . .55-14-964

11. Leg (4) . . . . . . . . . . . . . . . . . . . . . . . .55-14-965

Hardware / Actual Size

A. Small Screw 3 pcs

M5x12 Zinc Plated Philips Truss Head Screw

Medium Screw 4 pcs

M6x20 Zinc Plated Philips Truss Head Screw

Small Wing Nut 5 pcs

M5 Steel Wing Nuts

Large Wing Nut 8 pcs

M6 Steel Wing Nuts

E. Washer 13 pcs

ø6 Zinc Plated Washer

Small Lock Washer 5 pcs

M5 Zinc Plated Lock Washer

G. Large Lock Washer 8 pcs

M6 Zinc Plated Lock Washer

H. Pins* 1 pc

Cotter Pins* 1 pc

* Not shown at actual size.

Outdoor Electric Barbecue Grill Model No. NPE1605

Step

Attach air vent and lid handle

A. Attach air vent to lid using small screw (A), small lock washer (F) and small wing

nut (C).

B. Attach lid handle to lid using 2 sets of washers (E), small lock washers (F) and

small wing nuts (C).

Step

Attach legs

Attach the legs to bowl using 4 sets of medium screws (B), washers (E), large lock washers (G) and large wing nuts (D).

Step

Attach side handles

Attach side handles to bowl using 2 handle supports, 4 sets of washers (E), large lock washers (G) and large wing nuts (D).

Step

Assemble cooking system

A. Insert heat reflector plate into bottom bowl.

Note: Align cut outs in heat reflector plate with handles.

B. Attach heating element to bottom bowl using small screws (A), washers (E), small

lock washers (F) and small wing nuts (C).

C. Insert cooking grid into bottom bowl.

Assembly Instructions

DO NOT RETURN PRODUCT TO STORE. For assistance call 1.800.762.1142 toll free. Please have your owner’s manual and serial

number available for reference.

For Easiest Assembly:

• To avoid losing any small components or hardware, assemble your product on a hard level surface that does not have cracks or openings.

• Clear an area large enough to layout all components and hardware.

• When applicable, tighten all hardware connections by hand first. Once the step is completed, go back and fully tighten all hardware.

• Follow all steps in order to properly assemble your product.
