Ubiquiti UF-LOCO-20 Specsheet

Datasheet

Gigabit Passive Optical Network

Models: UF-OLT, UF-OLT-4, UF-Nano, UF-LOCO

GPON End-to-End Solution

High-Performance, Provider OLT

Low-Cost, Robust ONU CPE

High-Performance GPON

Conguring a ber network just became
as easy as setting up a smartphone. Say
goodbye to command lines, manuals,
and paid support licenses. Introducing
the U Fiber OLT – a ber solution that

Datasheet

anyone can deploy.

U Fiber offers internet and telecom
service providers a cost-effective ber
optic delivery system for Triple Play
Services (data, voice, IPTV/VoD) with
speeds of up to 2.488 Gbps downstream
and 1.244 Gbps upstream.

The U Fiber network is intelligently
managed using the included UNMS™
(Ubiquiti® Network Management
System) controller. U Fiber devices
consist of the U Fiber OLT or OLT-4
(deployed at the provider premises)
and the U FiberNano G or loco clients,
which function as ONU CPEs (Customer
Premises Equipment).

U Fiber Controller Software

Ubiquiti Networks distinguishes itself
with a library of powerful and intuitive
management software that is included
at no additional cost. The UNMS is the
latest addition to the library.

UNMS is a comprehensive management
controller, featuring a graphical UI that
is easy to learn and navigate. UNMS
manages all of the registered UFiber
OLTs and all of their ONU clients.

UF-GP-B+
GPON SFP

Passive
Optical
Splitter

POS

UF-OLT

Up to 128 UF-Nano or UF-LOCO

per OLT GPON Port

Features

• Intuitive, Graphical Web UI

• Quick Conguration and Deployment
of U Fiber Devices

• Centralized Management of Multiple
GPON Networks and Sites

• Graphical Reports for Efcient
Monitoring and Troubleshooting

• Linux-based Software Installation

• Bundled Software – No Licensing or
Support Fees

2

Optical Line Terminal

The U Fiber OLT supports up to
128ONU CPEs per GPON port
with physical links of up to 20km
in distance. It also features SFP+
connectivity for uplinking.

The UFiber OLT is available in two
models: the UF-OLT for eight GPON
ports and the UF-OLT-4 for four
GPONports.

Model: UF-OLT

8-Port GPON Optical Line
Terminal

Features

• Ports:

• (8) GPON SFP Ports

• (2)SFP+Ports

• Concurrent Clients: 1024 ONUs
Total (128 Clients per Port)

• Max. Power Consumption: 40W

• Power Method: Hot-Swappable
Power Module(s)

• AC/DC Power Module (Included)

• DC/DC Power Module (Optional)

Features

• GPON Speeds:

• 2.488 Gbps Upstream (TX)

• 1.244 Gbps Downstream (RX)

• Wavelengths:

• 1490 nm Upstream (TX)

• 1310 nm Downstream (RX)

• GPON Range: Up to 20 km Link

• Mounting Options:

• 1U Rack

• Wall

• Desktop

• Management Options:

• Gigabit Ethernet Port (Out-of-Band)

• RJ45 Serial Console Port (CLI)

AC/DC Power

Module

Datasheet

Secondary Power

Module Bay

Model: UF-OLT-4

4-Port GPON Optical Line
Terminal

Features

• Ports:

• (4) GPON SFP Ports

• (1)SFP+Port

• Concurrent Clients: 512 ONUs Total
(128 Clients per Port)

• Max. Power Consumption: 35W

• Power Method: 100-240VAC/50-60Hz,

Universal Input

3

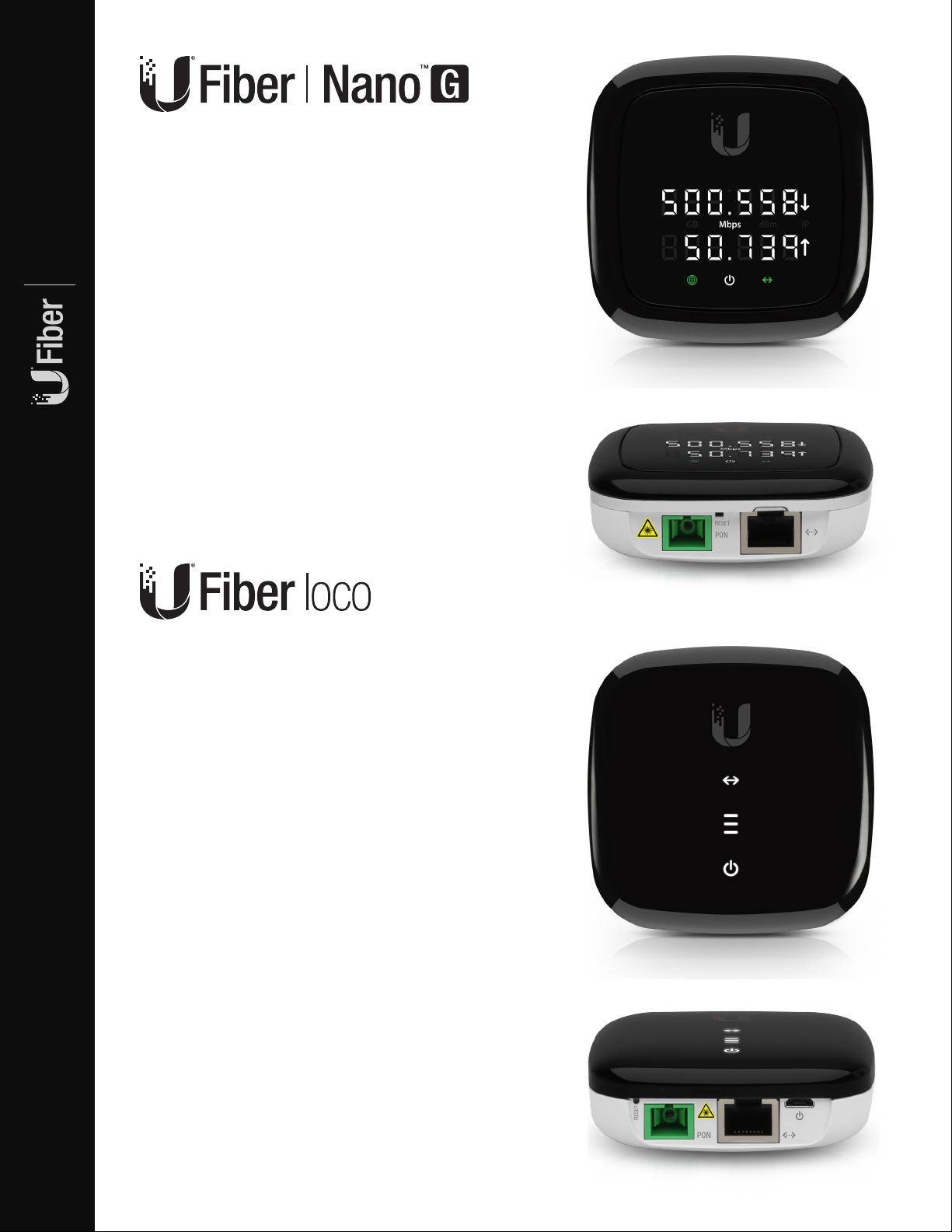

Model: UF-Nano

GPON Optical Network Unit

Featuring an informational LED display, the U Fiber
Nano G is a robust, high-performance GPON CPE

Datasheet

housed in a sophisticated design. It is powered by 24V
passive PoE.

Features

• WAN: (1) GPON Port

• LAN: (1) Gigabit Ethernet Port

• GPON Speeds: 2.488 Gbps Downstream (RX),

1.244 Gbps Upstream (TX)

• Wavelengths: 1490 nm Downstream (RX),
1310 nm Upstream (TX)

• Display: Digital LED for Status Reporting

• Max. Power Consumption: 7W

• Power Method: 24V Passive PoE

• Mounting: Wall-Mountable (Indoor)

Model: UF-LOCO

GPON Optical Network Unit

Sporting a sleek industrial design, the U Fiber loco is
a robust, high-performance GPON CPE that features
extremely low power consumption and the choice of
24V passive PoE or Micro-USB power.

Features

• WAN: (1) GPON Port

• LAN: (1) Gigabit Ethernet Port

• GPON Speeds: 2.488 Gbps Downstream (RX),

1.244 Gbps Upstream (TX)

• Wavelengths: 1490 nm Downstream (RX),
1310 nm Upstream (TX)

• Max. Power Consumption: 3.5W

• Power Method: 24V Passive PoE or Micro-USB
Power Adapter*

• Mounting: Wall-Mountable (Indoor)

* Included only in the single-pack of the UF-LOCO

4

Accessories

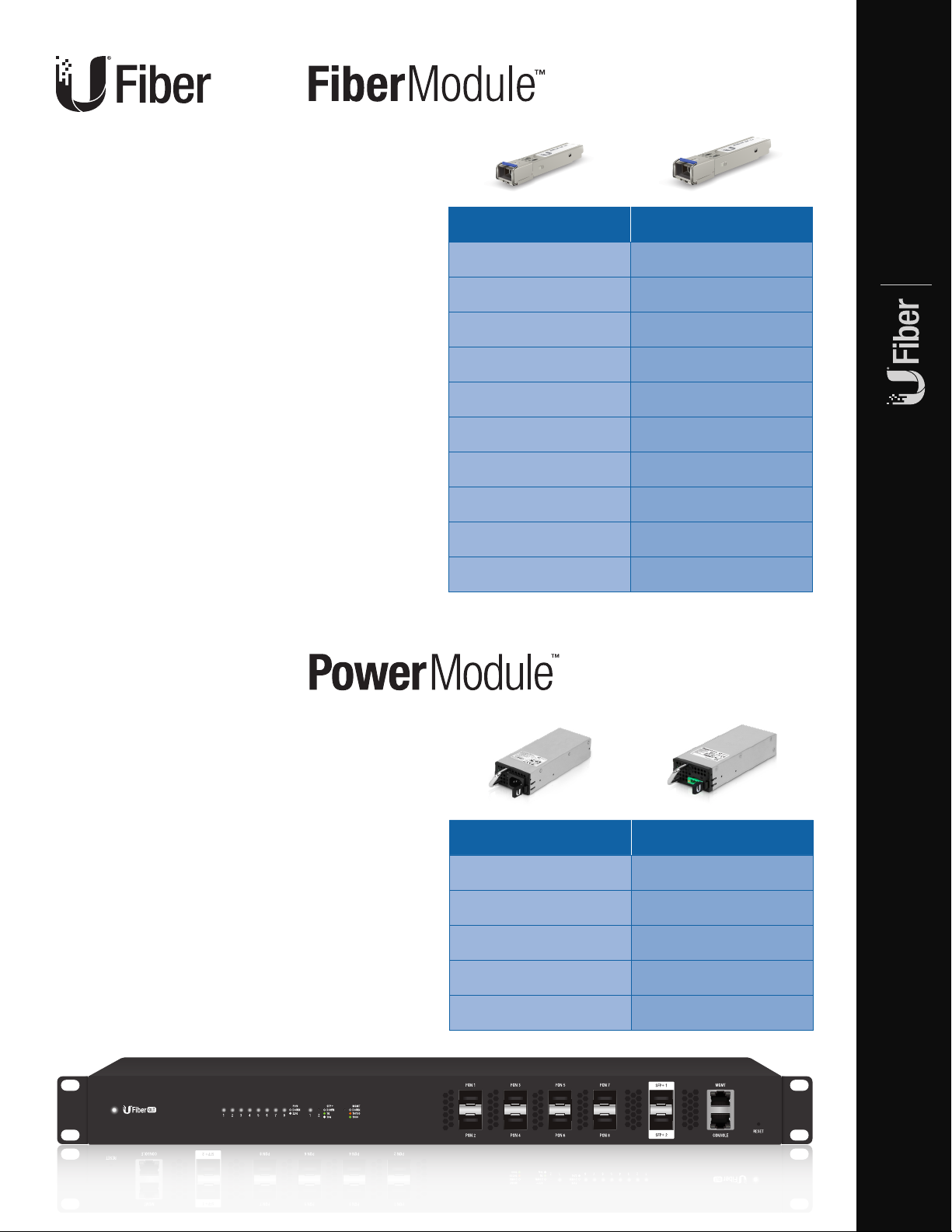

GPON SFP Modules

The UFiber OLT’s GPON SFP ports are
designed for use with the UF-GP-B+
and UF-GP-C+ SFP modules.

Each model, the UF-OLT or UF-OLT-4,
includes one UF-GP-B+ module;
additional modules can be purchased
separately.

Model Comparison

UF-GP-B+ UF-GP-C+

Supported Media Single-Mode Fiber Single-Mode Fiber

Connector Type (1) SC/UPC (1) SC/UPC

TX Wavelength 1490 nm 1490 nm

RX Wavelength 1310 nm 1310 nm

TX Power Range 1.5 to 5 dBm 3 to 7 dBm

RX Power Range -28 to -8 dBm -30 to -12 dBm

Downstream Data Rate 2.5 Gbps 2.5 Gbps

Upstream Data Rate 1.25 Gbps 1.25 Gbps

Cable Distance 20 km 20 km

Datasheet

Power Modules

The UF-OLT comes with one AC/DC
power module pre-installed and
features two modular power adapter
bays for exible power options:

Backup Power The second power
bay can house a backup power
module. If the UF-OLT detects failure
of the primary power module,
the backup module automatically
activates to supply uninterrupted
power.

DC/DC Power Both power bays can
also house a DC/DC power module
for use with DCpower.

Available power modules are:
RPS-AC-100W and RPS-DC-100W.

Pack Options 20-Pack 20-Pack

Model Comparison

RPS-AC-100W RPS-DC-100W

Power Type AC/DC DC/DC

Input Voltage Range 90-264VAC 38-54VDC

Output Voltage Range 24-26VDC 23-25V

Operating Temperature

Operating Humidity 5 to 95% Noncondensing 5 to 95% Noncondensing

-10 to 45° C (14 to 104° F) -10 to 50° C (14 to 122° F)

5

Hardware Specications

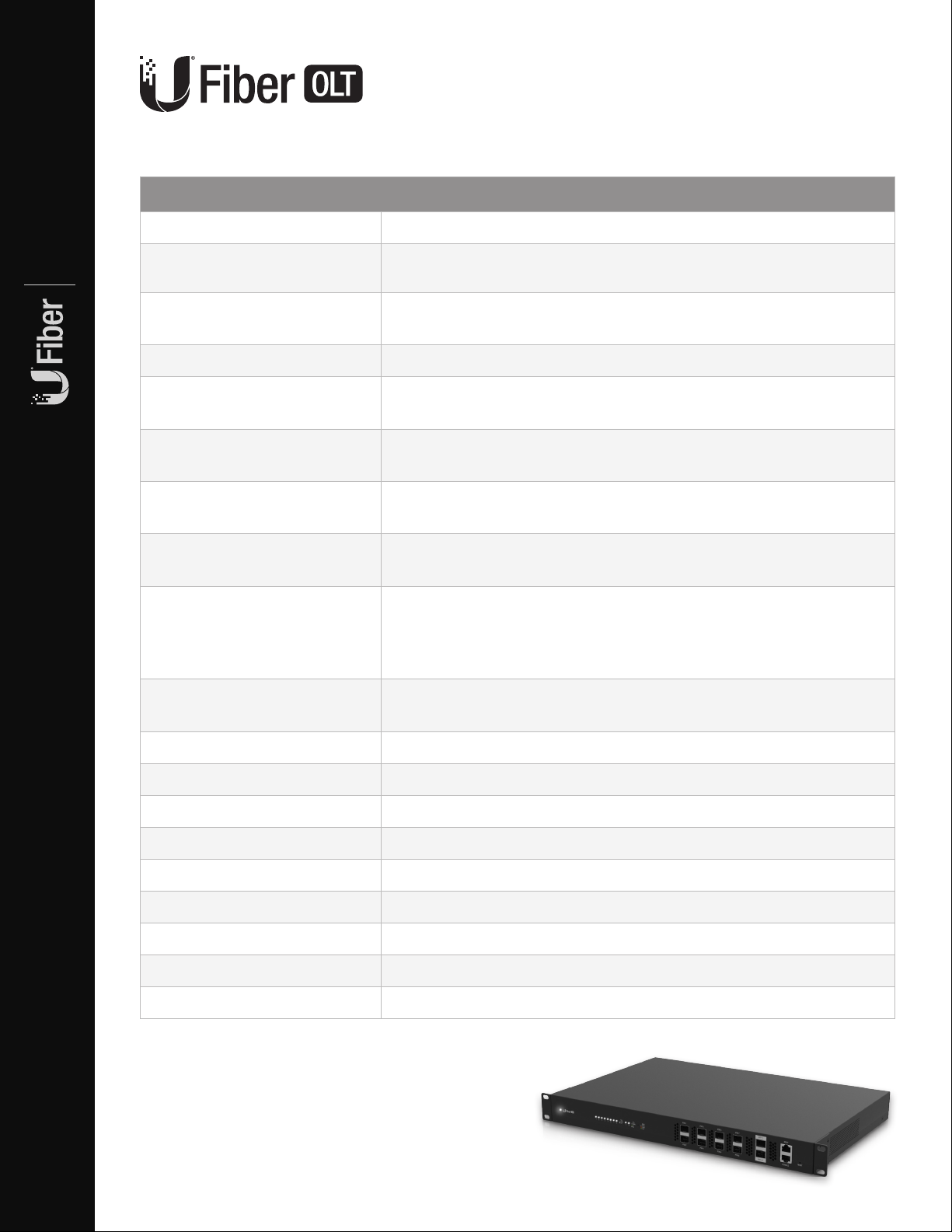

UF-OLT

Dimensions 442.4 x 285.6 x 43.7 mm (17.42 x 11.24 x 1.72")

Datasheet

Weight

(with Mount Brackets)

Networking Interfaces (8) GPON OLT SFP

Concurrent Clients 1024 Registered ONUs/ONTs (128 per GPON Port)

Management Interfaces (1) Ethernet for Out-of-Band Management

(1) RJ45 Serial Console Port

GPON Speeds 2.488 Gbps Upstream (TX)

1.244 Gbps Downstream (RX)

Operating Wavelengths 1490 nm TX

Normal Optical Power Range TX (Class B+): 1.5 dBm to 5 dBm

Range

Physical Reach

Logical Reach

Max. Differential Fiber Distance

Power Method 100-240VAC, 100W AC/DC Power Module (Included)

38-54VDC, 100W DC/DC Power Module (Optional)

4.40 kg (9.70 lb)

4.495 kg (9.91 lb)

(2) 1G/10G SFP+

1310 nm RX

RX: -28 dBm to -8 dBm

20 km

60 km

20 km (B+) /40 km (C+)

Power Supply (1) 25V, 100W AC/DC PSU Module (Included)

Max. Power Consumption 40W (Excluding SFP Modules)

Operating Mode OLT 2/3 Ethernet Switch and GPON Core

Advanced QoS Supports 8 Priority Queues per User Port and Trafc Classication

Processor Specs MIPS 1004kc, 880 MHz Dual Core

Memory Information 512 MB DDR3, 512 MB NAND

Operating Temperature -10 to 45° C (14 to 113° F)

Operating Humidity 10 to 90% Noncondensing

Certications CE, FCC, IC

6

Hardware Specications

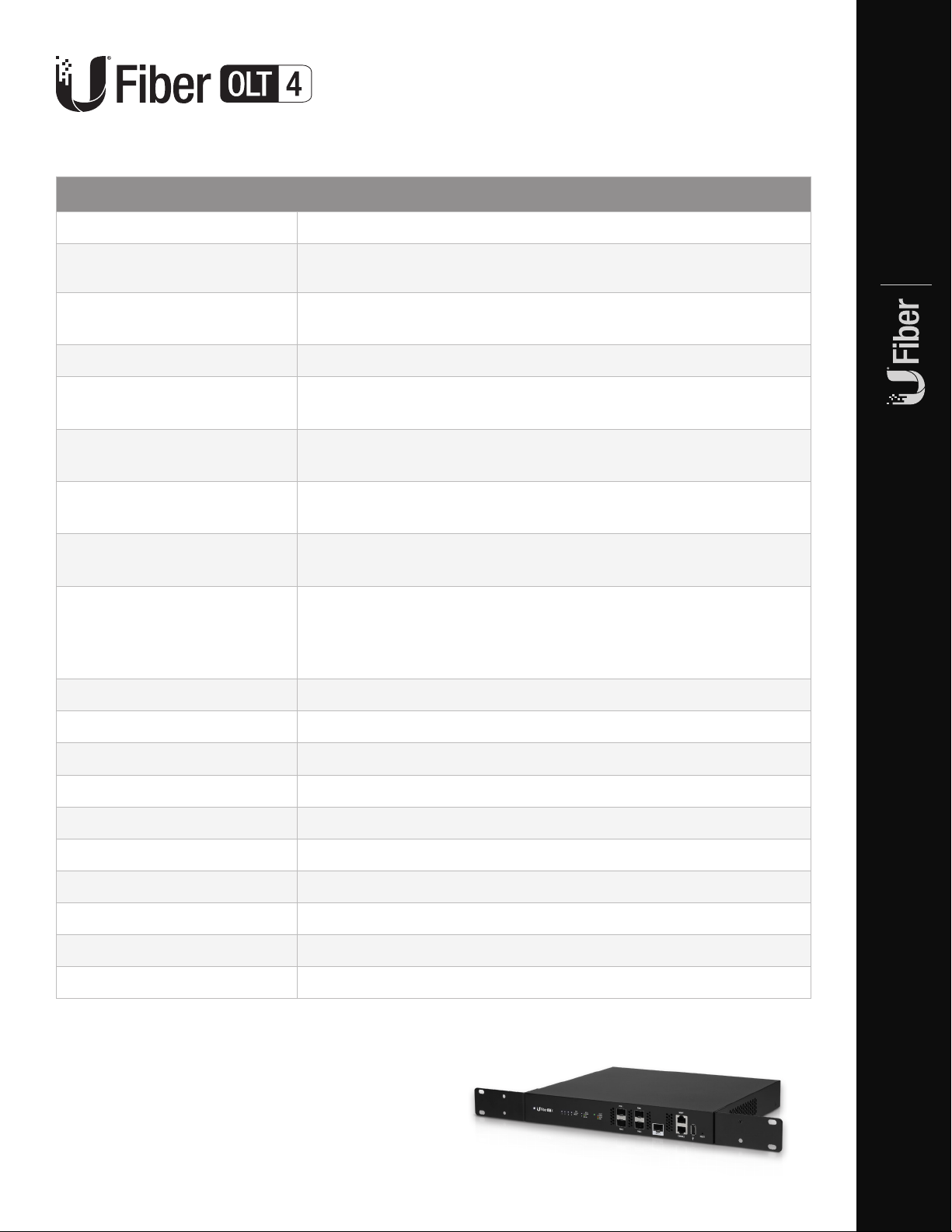

UF-OLT-4

Dimensions 299.80 x 258.95 x 42.55 mm (11.80 x 10.19 x 1.68")

Weight

(with Mount Brackets)

Networking Interfaces (4) GPON OLT SFP

Concurrent Clients 512 Registered ONUs/ONTs (128 per GPON Port)

Management Interfaces (1) Ethernet for Out-of-Band Management

(1) RJ45 Serial Console Port

GPON Speeds 2.488 Gbps Upstream (TX)

1.244 Gbps Downstream (RX)

Operating Wavelengths 1490 nm TX

Normal Optical Power Range TX (Class B+): 1.5 dBm to 5 dBm

Range

Physical Reach

Logical Reach

Max. Differential Fiber Distance

Power Method 100-240VAC/50-60 Hz, Universal Input

1.93 kg (4.25 lb)

2.13 kg (4.70 lb)

(1) 1G/10G SFP+

1310 nm RX

RX: -28 dBm to -8 dBm

20 km

60 km

20 km (B+) /40 km (C+)

Datasheet

Power Supply AC/DC Internal 56W DC

Max. Power Consumption 35W (Excluding SFP Modules)

Operating Mode OLT 2/3 Ethernet Switch and GPON Core

Advanced QoS Supports 8 Priority Queues per User Port and Trafc Classication

Processor Specs MIPS 1004kc, 880 MHz Dual Core

Memory Information 512 MB DDR3, 512 MB NAND

Operating Temperature -10 to 45° C (14 to 113° F)

Operating Humidity 10 to 90% Noncondensing

Certications CE, FCC, IC

7

Hardware Specications

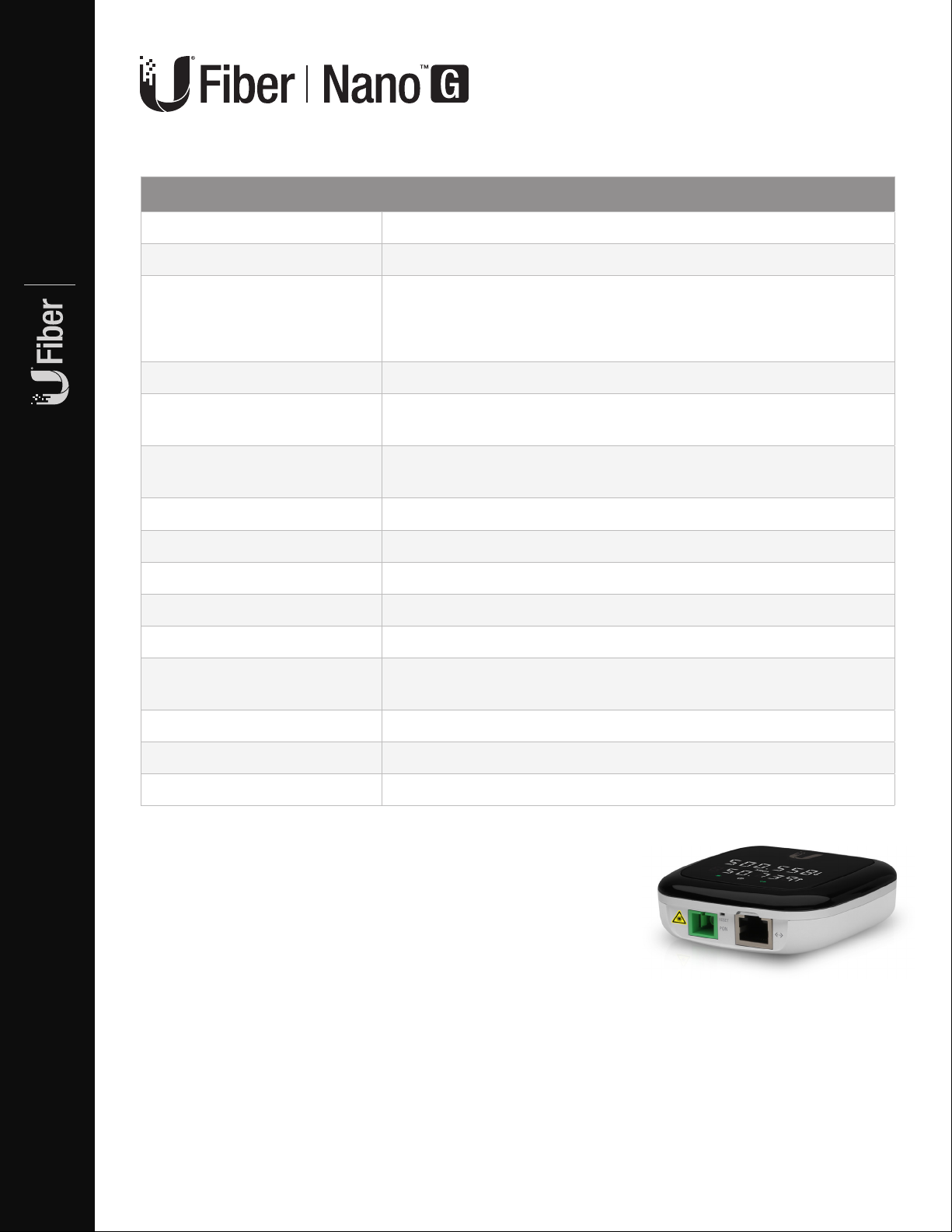

UF-Nano

Dimensions 77 x 77 x 28 mm (3.03 x 3.03 x 1.1")

Datasheet

Weight 110 g (3.88 oz)

Networking Interface Speeds (1) GPON WAN, ITU G.984,

2.488 Gbps Downstream,

1.244 Gbps Upstream

(1) GbE LAN, 10/100/1000 Mbps

Management Interface In-Band Ethernet/PON

Normal Optical Power Range TX (Class B+): 1.5 dBm to 5 dBm

RX: -28 dBm to -8 dBm

Power Method Passive PoE (Pins +4, 5; -7, 8)

Dying Gasp Support

Power Supply PoE Adapter: 24V, 0.3A (Included)

Max. Power Consumption 7W

Supported Voltage Range 20V to 28V

Processor Specs MIPS32, 240 MHz

Memory Information 128 MB DDR3

Buttons (1) Display Information

(1) Reset

Operating Temperature -10 to 45° C (14 to 113° F)

Operating Humidity 5 to 95% Noncondensing

Certications CE, FCC, IC

8

Hardware Specications

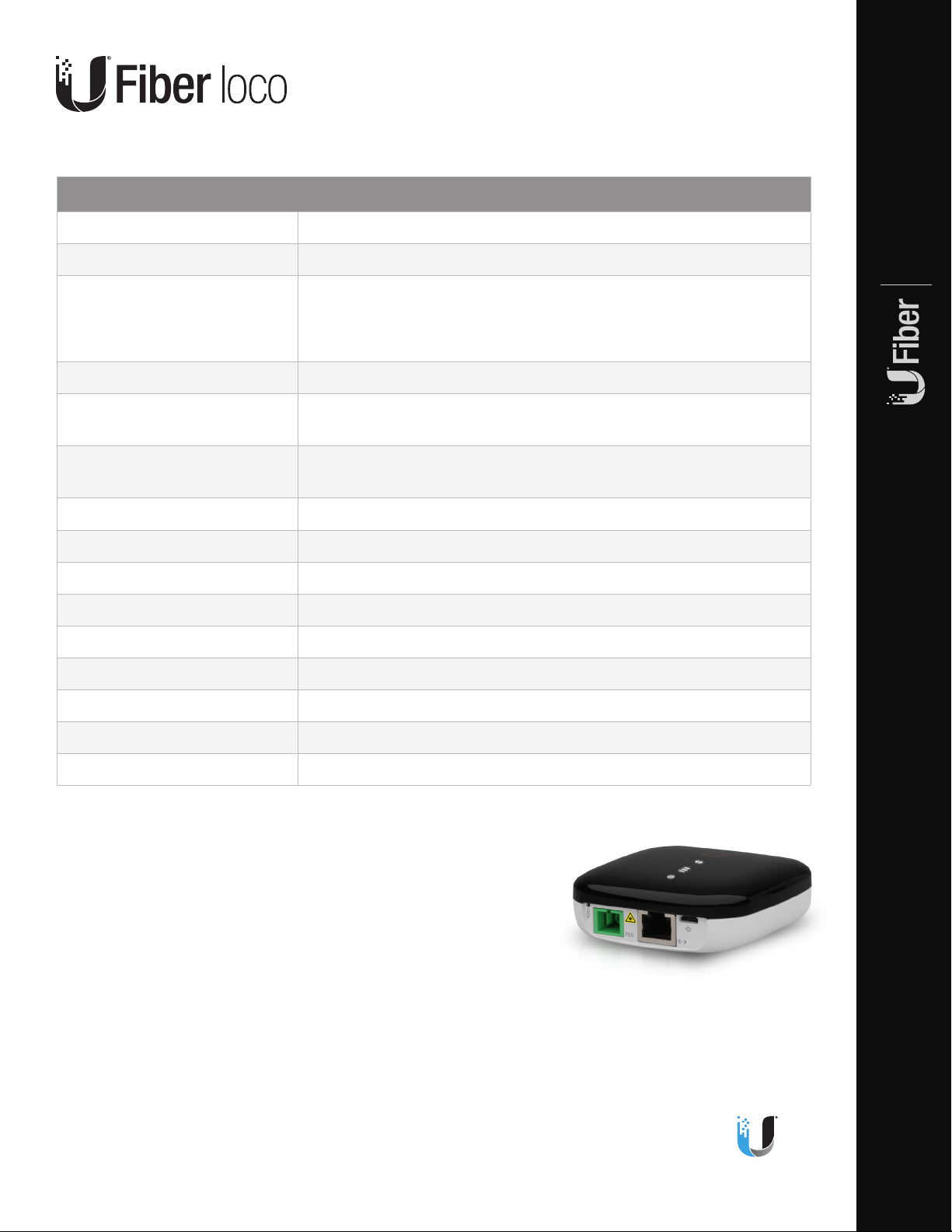

UF-LOCO

Dimensions 76.5 x 76.5 x 26.4 mm (3.01 x 3.01 x 1.04")

Weight 77 g (2.72 oz)

Networking Interface Speeds (1) GPON WAN, ITU G.984,

2.488 Gbps Downstream,

1.244 Gbps Upstream

(1) GbE LAN, 10/100/1000 Mbps

Management Interface In-Band Ethernet/PON

Normal Optical Power Range TX (Class B+): 1.5 dBm to 5 dBm

RX: -28 dBm to -8 dBm

Power Method Micro-USB: 5V, 1A

24V Passive PoE (Pins +4, 5; -7, 8)

Power Supply Micro-USB Power Adapter*: 5V, 1A

Max. Power Consumption 3.5W

Supported Voltage Range 4.7 to 5.3V

Processor Specs MIPS32, 240 MHz

Memory Information 128 MB DDR3

Buttons (1) Reset

Operating Temperature -10 to 45° C (14 to 113° F)

Datasheet

Operating Humidity 10 to 90% Noncondensing

Certications CE, FCC, IC

* Included only in the single-pack of the UF-LOCO

Specications are subject to change. Ubiquiti products are sold with a limited warranty described at: www.ubnt.com/support/warranty
