DATASHEET

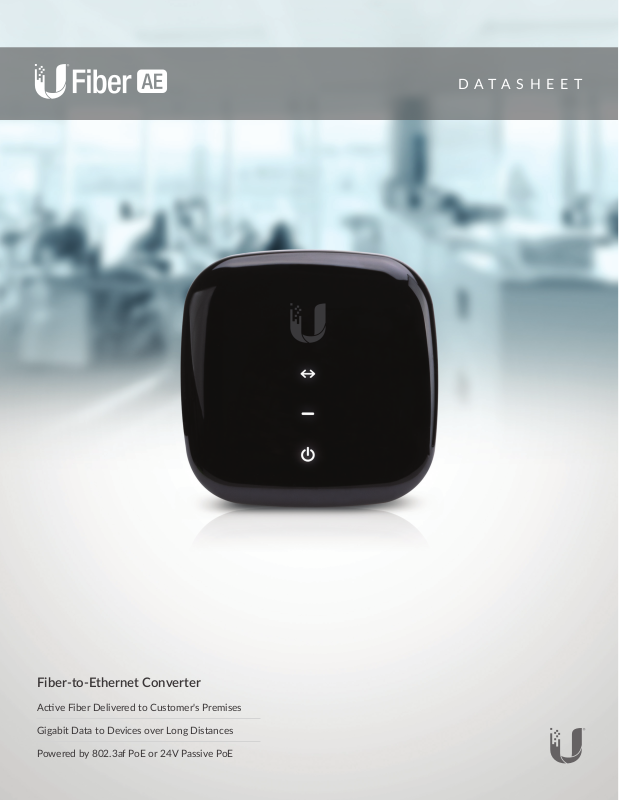

Fiber-to-Ethernet Converter
Acve Fiber Delivered to Customer's Premises
Gigabit Data to Devices over Long Distances
Powered by 802.3af PoE or 24V Passive PoE
Page 2
Fiber Connectivity for Any PoE Device
DATASHEET
Model: UF-AE
The UFiber Active Ethernet is a 1 Gbps ber-to-copper media
converter; it allows ISPs to deliver active ber to a customer's
premises and connect it to aordable SOHO network equipment
lacking SFPports. Its compact design allows the UF-AE to be
discreetly integrated into any environment.
Fiber Optic Data Transport
Using ber optic cable for data transport signicantly reduces
electrostatic discharge (ESD) failures and electromagnetic
interference (EMI). Data integrity is also sustained in runs beyond
100 meters, the limit of Ethernet over twisted-pair cable. The UF-AE
delivers data over long distances at high speed using ber.
The UF-AE provides ber connectivity to an RJ45 Ethernet device,
which in turn provides 802.3af or 24V passive PoE to the UF-AE.
Application Diagram
Features
Module Compatibility The versatile UF-AE connects any SFP or
SFP+ module at the maximum speed of 1 Gbps. All UFiber SFP
or SFP+ modules are supported. For more information, go to:
ui.com/accessories/ber-modules-cable
PoE Convenience The UF-AE is powered by 24VDC passive PoE or
802.3af active PoE.
Supported Speeds 1 Gbps ber uplink speeds and
10/100/1000Ethernet speeds are supported.
Status LEDs Intuitive LEDs indicate link and speed status.
Indoor Installation Use the included bracket to easily mount the
UF-AE on a wall.
The UFiber Active Ethernet delivers active ber from the service provider to the customer's residence,
where it is powered by the airCube™ AC, model ACB-AC.
2
Page 3
Model Summary
DATASHEET
UF-AE
Connecting SFP and RJ45
Fiber Type
SFP Module Compatibility
SFP Port Speed
PoE Input
RJ45 Port Speed
Mounting
Active
SFP or SFP+
(All UFiber Modules)
1 Gbps
24V Passive PoE
802.3af PoE
10/100/1000 Mbps
Wall
Insert a compatible active ber SFP module.
(UFiber module, model UF-MM-1G shown)
A
B
Connect a ber optic cable.
(UFiber ODN cable, model UOC-5 shown)
A
B
Connect an Ethernet cable from a device
delivering PoE to the UF-AE.
3
Page 4
SPECIFICATIONS
UF-AE
Dimensions 76.5 x 76.5 x 26.8 mm (3.01 x 3.01 x 1.06")
Weight 70 g (2.47 oz)
Networking Interfaces
(1) 10/100/1000 Mbps RJ45 Port
(1) 1 Gbps SFP Port
Power Method 802.3af PoE: (Pins 1, 2+; 3, 6-)
24V Passive PoE: (Pins 4, 5+; 7, 8-)
Power Supply 802.3af PoE or 24V Passive PoE Device*
Max. Power Consumption 1.5W
Supported Voltage Range 16 to 57V
LEDs (1) Ethernet
(1) Optical Signal
(1) Power
Operating Temperature -40 to 60° C (-40 to 140° F)
Operating Humidity 10 to 90% Noncondensing
ESD/EMP Protection ± 12kV Contact/Air
Certications CE, FCC, IC
* Power supply not included.
Specications are subject to change. Ubiquiti products are sold with a limited warranty described at: ui.com/support/warranty
The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where applicable, specify arbitration instead of jury trials or class actions.
