TL-WA890EA
Table of contents
Loading...
REV.:1.0.0
TL-WA890EA
N600 Universal Dual Band WiFi
Entertainment Adapter with 4 Ports
1910010832
COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice. is a registered trademark of
TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or
registered trademarks of their respective holders.
No part of the specifications may be reproduced in any form or by any means or used to make any
derivative such as translation, transformation, or adaptation without permission from TP-LINK
TECHNOLOGIES CO., LTD. Copyright © 2013 TP-LINK TECHNOLOGIES CO., LTD.
All rights reserved.
http://www.tp-link.com
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1） This device may not cause harmful interference.
2） This device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Note: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user’s authority to
operate the equipment.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This device and its antenna must not be co-located or operating in conjunction with
any other antenna or transmitter.
“To comply with FCC RF exposure compliance requirements, this grant is applicable to only
Mobile Configurations. The antennas used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter.”
10 mW e.i.r.p. within
CE Mark Warning
This is a class B product. In a domestic environment, this product may cause radio interference, in
which case the user may be required to take adequate measures.
National Restrictions
This device is intended for home and office use in all EU countries (and other countries following
the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:
Country Restriction Reason/remark
Bulgaria None
Outdoor use limited to
France
Italy None
Luxembourg None
Norway Implemented
Russian Federation None Only for indoor applications
Note: Please don’t use the product outdoors in France.
the band 2454-2483.5
MHz
General authorization required for outdoor use and
public service
Military Radiolocation use. Refarming of the 2.4 GHz
band has been ongoing in recent years to allow current
relaxed regulation. Full implementation planned 2012
If used outside of own premises, general authorization is
required
General authorization required for network and service
supply(not for spectrum)
This subsection does not apply for the geographical area
within a radius of 20 km from the centre of Ny-Ålesund
Canadian Compliance Statement
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject
to the following two conditions:
(1) This device may not cause interference, and
(2)This device must accept any interference, including interference that may cause undesired
operation of the device.
Cet appareil est conforme aux norms CNR exemptes de licence d’Industrie Canada. Le
fonctionnement est soumis aux deux conditions suivantes:
(1) cet appareil ne doit pas provoquer d’interférences et
(2) cet appareil doit accepter toute interférence, y compris celles susceptibles de provoquer un
fonctionnement non souhaité de l’appareil.
於
區域內操作之無線設備的警告聲明
Industry Canada Statement
Complies with the Canadian ICES-003 Class B specifications.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
This device complies with RSS 210 of Industry Canada. This Class B device meets all the
requirements of the Canadian interference-causing equipment regulations.
Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.
Korea Warning Statements
당해 무선설비는 운용중 전파혼신 가능성이 있음.
NCC Notice & BSMI Notice
注意！
依據 低功率電波輻射性電機管理辦法
第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、
加大功率或變更原設計之特性或功能。
第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通行；經發現有干擾現象時，應立即
停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信規定作業之無線電信。低功率射
頻電機需忍受合法通信或工業、科學以及醫療用電波輻射性電機設備之干擾。
5.25GHz至5.35GHz
工作頻率 5.250~5.350GHz 該頻段限於室內使用。
安全諮詢及注意事項
●請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。
●清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。
●注意防潮，請勿將水或其他液體潑灑到本產品上。
●插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。
●請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。
●請不要私自打開機殼，不要嘗試自行維修本產品，請由授權的專業人士進行此項工作。
Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам
нормативних документів та вимогам, що передбачені чинними законодавчими актами
України.
Safety Information
When product has power button, the power button is one of the way to shut off the product;
when there is no power button, the only way to completely shut off power is to disconnect the
product or the power adapter from the power source.
Don’t disassemble the product, or make repairs yourself. You run the risk of electric shock
and voiding the limited warranty. If you need service, please contact us.
Avoid water and wet locations.
This product can be used in the following countries:
AT BG BY CA CZ DE DK EE
ES FI FR GB GR HU IE IT
LT LV MT NL NO PL PT RO
RU SE SK TR UA
TP-LINK TECHNOLOGIES CO., LTD
DECLARATION OF CONFORMITY
For the following equipment:
Product Description: N600 Universal Dual Band WiFi Entertainment Adapter with 4 Ports
Model No.: TL-WA890EA
Trademark: TP-LINK
We declare under our own responsibility that the above products satisfy all the technical
regulations applicable to the product within the scope of Council Directives:
Directives 1999/5/EC, Directives 2004/108/EC, Directives 2006/95/EC, Directives 1999/519/EC,
Directives 2011/65/EU
The above product is in conformity with the following standards or other normative documents
ETSI EN 300 328 V1.7.1: 2006
ETSI EN 301 489-1 V1.9.2:2011& ETSI EN 301 489-17 V2.2.1:2012
EN 55022:2010
EN 55024:2010
EN 61000-3-2:2006+A1:2009+A2:2009
EN 61000-3-3:2008
EN 60950-1:2006+A11：2009+A1:2010+A12:2011
EN 62311:2008
EN 301 893
EN 302 502
The product carries the CE Mark:
Person is responsible for marking this declaration:
Yang Hongliang
Product Manager of International Business
Date of Issue: 2013
TP-LINK TECHNOLOGIES CO., LTD.
Building 24 (floors 1, 3, 4, 5), and 28 (floors 1-4) Central Science and Technology Park,
Shennan Rd, Nanshan, Shenzhen, China
CONTENTS
Package Contents .................................................................................................... 1
Chapter 1 Introduction ........................................................................................... 2
1.1 Product Overview .............................................................................................. 2
1.2 Main Features ................................................................................................... 2
1.3 Appearance ....................................................................................................... 2
Chapter 2 Hardware Installation ........................................................................... 4
2.1 Before You Begin .............................................................................................. 4
2.2 Basic Requirements .......................................................................................... 4
2.3 Connecting the Device ...................................................................................... 4
Chapter 3 Quick Installation Guide ....................................................................... 6
Chapter 4 Configure the Device ............................................................................ 9
4.1 Status ................................................................................................................ 9

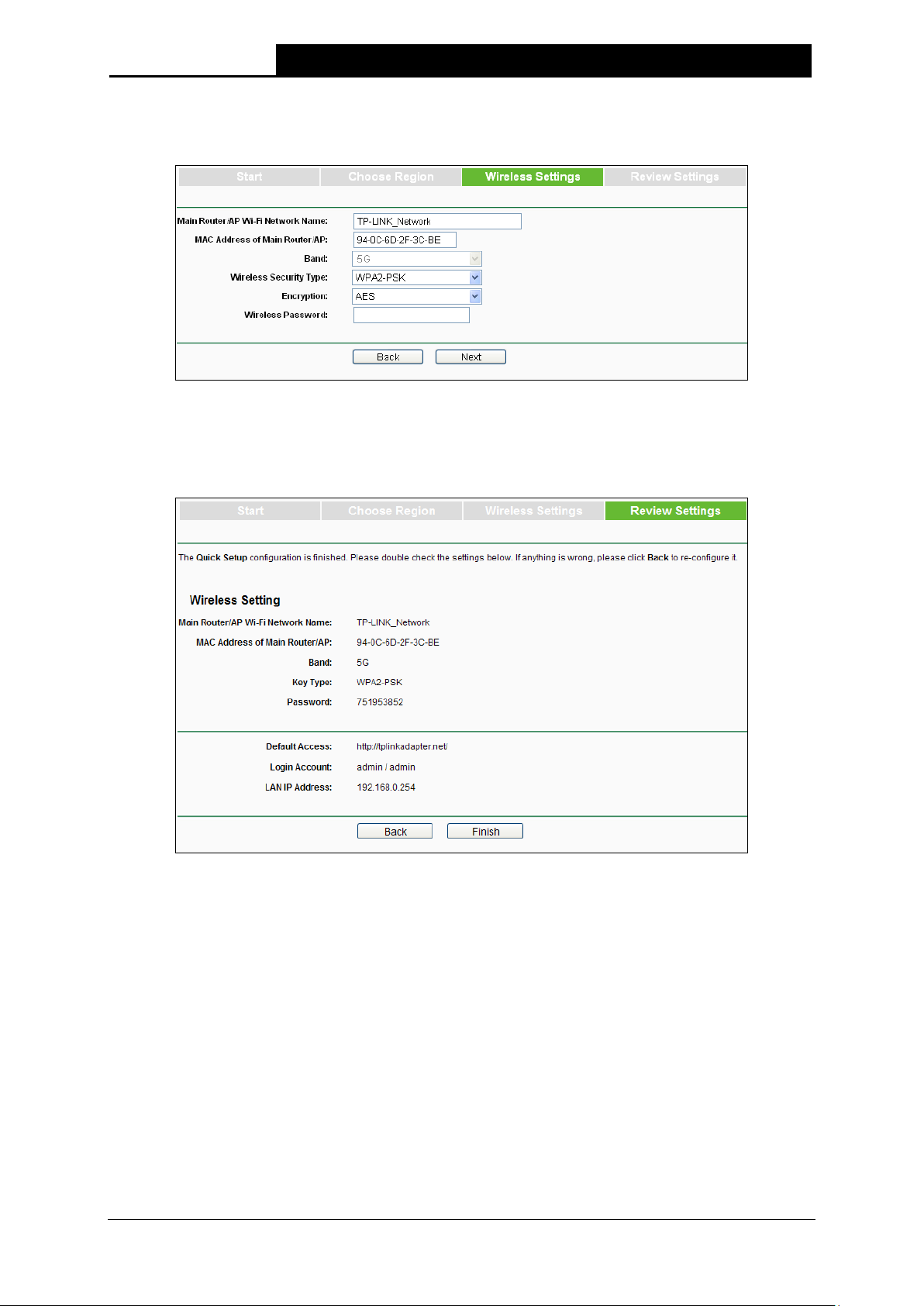

4.2 Quick Setup .................................................................................................... 10
4.3 WPS ................................................................................................................ 10
4.4 Advanced ........................................................................................................ 12
4.4.1 LAN .................................................................................................................. 12
4.4.2 Wireless Settings ............................................................................................. 14
4.4.3 Wireless Advanced .......................................................................................... 14
4.4.4 DHCP Settings ................................................................................................. 15
4.4.5 Profile ............................................................................................................... 17
4.5 System Tools .................................................................................................. 19
4.5.1 Firmware Upgrade ........................................................................................... 19
4.5.2 Factory Defaults ............................................................................................... 20
4.5.3 Backup & Restore ............................................................................................ 20
4.5.4 Reboot ............................................................................................................. 21
4.5.5 Password ......................................................................................................... 22
4.5.6 System Log ...................................................................................................... 22
Appendix A: Factory Defaults ............................................................................... 24
Appendix B: Troubleshooting ............................................................................... 25
Appendix C: Specifications ................................................................................... 26
Appendix D: Glossary ............................................................................................ 27
TL-WA890EA
N600 Universal Dual Band WiFi Entertainment Adapter with 4 Ports
Package Contents
The following items should be found in your package:
TL-WA890EA N600 Universal Dual Band WiFi Entertainment Adapter with 4 Ports
Ethernet Cable
USB Cable and Power Adapter
Quick Installation Guide
Resource CD for TL-WA890EA N600 Universal Dual Band WiFi Entertainment Adapter with 4
Ports, including only This User Guide.
Note:
Make sure that the package contains the above items. If any of the listed items is damaged or
missing, please contact your distributor.
Conventions
The Entertainment Adapter, the Device or TL-WA890EA mentioned in this User guide stands for
TL-WA890EA N600 Universal Dual Band WiFi Entertainment Adapter with 4 Ports without any
explanations.
Parameters provided in the pictures are just references for setting up the product, which may differ
from the actual situation. You can set the parameters according to your demand.
1
TL-WA890EA
N600 Universal Dual Band WiFi Entertainment Adapter with 4 Ports
Chapter 1 Introduction
1.1 Product Overview
The N600 Universal Dual Band WiFi Entertainment Adapter with 4 Ports TL-WA890EA can bring
all of your home or office’s Internet-enabled devices into the world of wireless.
By connecting them to TL-WA890EA, the entertainment devices in your home that previously
required running Ethernet cables around furniture, through walls and doorways can now be
connected to your network wirelessly, without the risk of degrading performance. With N600 dual
band wireless speeds and four LAN ports, TL-WA890EA provides your devices with ample
bandwidth for smooth HD video and music streaming and online gaming. What’s more, the N600
Universal Dual Band WiFi Entertainment Adapter with 4 Ports TL-WA890EA is universally
compatible with all Internet-enabled devices, so if it has an Ethernet port, you can make it wireless
in a flash.
1.2 Main Features
Gives wired-only devices (such as Smart TVs, Games Consoles, Blu-ray players, etc.) access
to an existing Wi-Fi network
Dual band performance, 300Mbps wireless speed over 5GHz or 2.4GHz
Universally compatible - works with any device with an Ethernet port
Works seamlessly with all 802.11a/b/g/n devices
Easy wireless security encryption at a push of the WPS button
CD-less installation
1.3 Appearance
Figure 1-1
2
TL-WA890EA
N600 Universal Dual Band WiFi Entertainment Adapter with 4 Ports
Press the button for 5 - 8 seconds to reset TL-WA890EA.
and then turn off, after the connection succeeds.
light blue.
Figure 1-2
Detail Explanation:
Item Status Indication
WPS/RESET
Ports (1-4）
LAN
LEDs (1-4）
USB Port
System LED
Button
LED
Press the button for 1 - 2 seconds to enable WPS function.
When the WPS LED keeps blinking, TL-WA890EA is connecting
to the root device; then the WPS LED will be solid for 5 minutes
To connect the client(s) to TL-WA890EA with Ethernet cable(s).
The LAN LED(s) will turn on when the corresponding port(s) is
connected to a client.
The LAN LED(s) will keep blinking when there is data transferring.
The LAN LED(s) will turn off when the corresponding port(s) is
disconnected.
To connect TL-WA890EA to the power adapter with an USB cable.
When the powered-on device isn’t connected or fails in connection,
the System LED will light orange.
When the device is connected successfully, the system LED will
Table 1-1
3
Loading...
