Tp-link TL-PS110P.G User Manual

TABLE OF CONTENTS

COPYRIGHT........................................................................................................................................3

1. INTRODUCTION............................................................................................................................4

PRODUCT OVERVIEW ........................................................................................................................4

COMPONENTS AND FEATURES ..........................................................................................................4

HARDWARE INSTALLATION.................................................................................................................5

NETWORK ENVIRONMENT..................................................................................................................6

WIRED NETWORK WITH PRINT SERVER............................................................................................6

2. PRINT SERVER INSTALLATION..............................................................................................7

PREPARATION....................................................................................................................................7

CONFIGURATION SOLUTION TABLE...................................................................................................7

3. SOFTWARE INSTALLATION.....................................................................................................9

INSTALLING THE PSADMIN AND PRINT SERVER’S DRIVER...............................................................9

USING PSADMIN..............................................................................................................................18

WIZARD............................................................................................................................................19

MANUAL SETUP ...............................................................................................................................21

REFRESH..........................................................................................................................................23

MULTIPLE PRINT QUEUES CONFIGURATION ...................................................................................24

UNINSTALLING THE PSADMIN ON WINDOWS PC............................................................................24

4. INTERNET PRINTER CONNECTION AND HP WEB JETADMIN.....................................26

IPP OVERVIEW ................................................................................................................................26

HP WEB JETADMIN OVERVIEW.......................................................................................................28

INSTALLING HP WEB JETADMIN......................................................................................................29

REMOVING HP WEB JETADMIN UTILITY .........................................................................................29

5. CONFIGURATION FROM EMBEDDED WEB SERVER......................................................30

VERVIEW........................................................................................................................................30

USING EMBEDDED WEB SERVER....................................................................................................30

ETUP MENU ...................................................................................................................................37

NSTALLING PRINT SERVER ON NETWARE 4.X/5.X.........................................................................42

SETTING UP A MACINTOSH COMPUTER..........................................................................................44

6. NETWORK PRINT MONITOR ..................................................................................................47

PREPARATION..................................................................................................................................47

TCP/IP

PROTOCOL INSTALLATION..................................................................................................48

IPX/SPX-COMPATIBLE PROTOCOL INSTALLATION .........................................................................49

NETBEUI PROTOCOL INSTALLATION..............................................................................................49

WINDOWS 95/98/ME/NT/2000/XP/2003 MANUAL INSTALLATION PROCEDURE...........................50

UNINSTALLING NETWORK PRINT PORT ON WINDOWS 95/98/ME/NT/2000/XP/2003.................52

7. TCP/IP LPR PORT PRINTING INSTALLATION...................................................................52

ASIC TCP/IP INSTALLATION OVERVIEW .......................................................................................52

B A

SSIGNING AN IP ADDRESS.............................................................................................................53

WINDOWS NT LPR PORT PRINTING INSTALLATION .......................................................................53

INDOWS 2000/XP/2003 STANDARD TCP/IP PORT PRINTING INSTALLATION ...........................54

W UNIX

INSTALLATION........................................................................................................................58

8. UPGRADING PRINT SERVER.................................................................................................63

OVERVIEW........................................................................................................................................63

UPGRADING THE PRINT SERVER FROM PSADMIN...........................................................................63

UPGRADING THE PRINT SERVER FROM WINDOWS NT/2000/XP/2003 (THROUGH TCP/IP)........63

UPGRADING THE PRINT SERVER FROM UNIX (THROUGH TCP/IP)................................................64

UPGRADING THE PRINT SERVER FROM BROWSER..........................................................................64

9. TROUBLESHOOTING ...............................................................................................................66

GENERAL TROUBLESHOOTING OVERVIEW......................................................................................66

POWER RELATED PROBLEMS..........................................................................................................66

PRINT PORT RELATED PROBLEMS..................................................................................................66

WINDOWS 95/98/ME/NT/2000/XP/2003 TROUBLESHOOTING.....................................................67

MOVING THE PRINT SERVER TO A NEW SEGMENT..........................................................................68

MOVING YOUR COMPUTER TO A NEW SEGMENT...........................................................................69

OVELL NETWARE TROUBLESHOOTING.........................................................................................69

N TCP/IP

TROUBLESHOOTING...........................................................................................................69

APPENDIX........................................................................................................................................72

FREQUENTLY ASKED QUESTIONS ...................................................................................................81

ADDITIONAL INSTALLATION INSTRUCTIONS .....................................................................................83

Trademarks

NetWare is a registered trademark of Novell Inc and Windows 95/98/Me and Windows NT/2000/XP/2003/Vista are registered trademarks of Microsoft Corp. All other brands and product names are trademarks of their respective companies.

Copyright

No part of this publication may be reproduced in any form or by any means or used to make any derivative (such as translation, transformation or adaptation) without the express written consent of the manufacturer as stipulated by the United States Copyright Act of 1976.

FCC Warning

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to subpart J of Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which the user will be required to correct the interference at their own expense.

Shielded (STP) network cables must be used with this unit to ensure compliance with EMC standards.

All contents are subject to change without prior notice.

Part No. PS110P-V1.0

1. Introduction

Product Overview

The external print servers enhance capability by letting you place your printers at convenient locations directly on the Ethernet network, and by increasing network printer performance and management. Please note that the print server does not support printing with host-based printers, e.g. CAPT, GDI, PPA.

Network Management

The print servers support the Simple Network Management Protocol (SNMP), which remote printer management and a warning. A standard SNMP agent is permanent on these print servers. Any standard SNMP-based application can be used to access and manage these print servers.

Network configuration

The print servers provide an embedded web server that can be accessed via a proper web browser. We also subsidiary Windows-based PSAdmin utility which help administrator to setup print server environment.

Components and Features

Network Print Server

․1 Parallel port ․Fast Ethernet network port: RJ-45 for 10Base-T or 100Base-TX ․1 LED to indicate Status(Yellow), 2 LED’s to indicate 10M(Yellow) and 100M(Green) link

lights

․One Setup CD for Windows 95/98/Me/NT/2000/XP/2003, User’s Guide ․One external AC power adapter ․One Quick Installation Guide

˙Built-in Reset button

LED Indicators

LED State Indication

Status

Blinking for POST (Yellow)

When power switched on, the Status indicator will flash five times, and then on.

100Mbps On (Green) LAN Port has a valid network connection at 100Mbps.

10Mbps On (Yellow) LAN Port has a valid network connection at 10Mbps.

Before you start, you should prepare the following items:

 One Windows-based computer with print server setup CD  One printer with a Parallel port  One printer cable

Hardware Installation

To install the print servers, you need to complete these steps:

․Confirm that your printer parallel port works well. ․Connect the print server to the network and printer, and plug in the print server.

Follow these instructions to install the print servers, please refer to any peripheral you are connecting to the print server:

1. Turn off the printer’s power.

2. Connect the print server to your printer with printer cable.

3. Turn the printer’s power on.

4. Plug the AC power adapter into the power connector on the print server.

5. Wait 10 seconds until all the LEDs have stopped flashing. Note: The Status LED should be flash five times when POST. If not, please contact your

local dealer for repair or replacement.

To printer

Network Environment

Wired Network with Print Server:

Printer

Print Server

Reset Button

HUB

Computer Computer Computer

2. Print Server Installation

Preparation

To meet users’ network printing needs in today’s heterogeneous and multiple protocol networking environments, the print server supports industrial standard protocols, including TCP/IP, IPX/SPX, NetBEUI and AppleTalk. This means that the print server supports the most popular network operating systems today, including NetWare, Windows 95/98/Me/NT/2000/XP/2003, UNIX systems and Macintosh computer. As such, there might be several ways to deploy the print server on your network.

Supported Networks

Print server supports a variety of network protocols, including TCP/IP, IPX/SPX, NetBEUI and AppleTalk. In addition, we provide software for network configuration on the following networks:

․Novell NetWare 3.12, 4.x, 5.x (Bindery and NDS) ․Microsoft Windows 95/98/Me ․Microsoft Windows NT/2000/XP/2003 ․Apple EtherTalk ․UNIX /Linux system ․Internet (via Internet Printer Connection software)

Configuration Solution Table

Setup Operating

System

PSAdmin utility / Setup Wizard Windows 95/98/Me Windows NT/2000/XP/2003

Embedded Web server Windows 95/98/Me Windows NT/2000/XP/2003 Mac OS, Linux… HP Web JetAdmin Windows Remote Print server solution for continual management of

Function Remarks

Install a single network on a peer-to-peer or client-server network

Remote setup print server from private LAN

Easy printer installation runs from print server setup CD

Follow standard browse, e.g. IE or Netscape

NT/2000/XP/2003 management of

print server, include alert and

consumables Internet Printing Protocol Windows NT/2000/XP/2003

Printing via the

internet to

Internet Printing

Protocol-

enabled print

server

multiple printers- anywhere on your LAN

Allows saving distribution of HQ hardcopy document over Internet, replacing fax, mail

Comment

Configuration solution Table has many installations way to setup Windows 95/98/Me, Windows NT/2000/XP/2003, NetWare, UNIX / Linux system and Mac computer. Firstly, we introduce PSAdmin utility, HP Web JetAdmin program and Internet Printing Protocol solution. Then we will discuss Embedded Web Server Installation with print server.

3. Software Installation

The PSAdmin is a proprietary Windows-based management program that can assist you in configuring and managing your print server in NetWare environments. The program can be installed from the setup CD of print server.

Installing the PSAdmin and Print Server’s Driver

1. To enable network communication with print server, your computer must have a proper

IP address, e.g. 192.168.0.100 (the print server’s default IP is 192.168.0.10)

2. Insert the setup CD into your CD-drive, and the following message appears:

3. Choose Setup Wizard to install the print server and configure the connected printer.

Note: The setup CD will install the print server’s driver, PSAdmin and Setup Wizard into your computer. The default installation directory will be C:\Program files\Network Print Monitor.

Click Next, the wizard will automatically discover the print server.

5. From the Select A Print Sever screen, select the print server that you want to configure

and click Next.

6. On the Change Settings screen, select No or Yes:

Click No if you want the print server to keep using the default IP address and keep the default settings:

z IP address: 192.168.0.10 z Subnet Mask: 255.255.255.0

Click Yes if you want change IP address to the print server, and then click Next. Note:

The IP address of print server must be within the same subnet as your network adapter.

7. In the setup wizard, select an already configured printer from the list, click Next, Next

and then Finish to complete the installation. or

Select Add New Printer if the print server is connected to a printer that hasn’t been installed before and does not appear in the list.

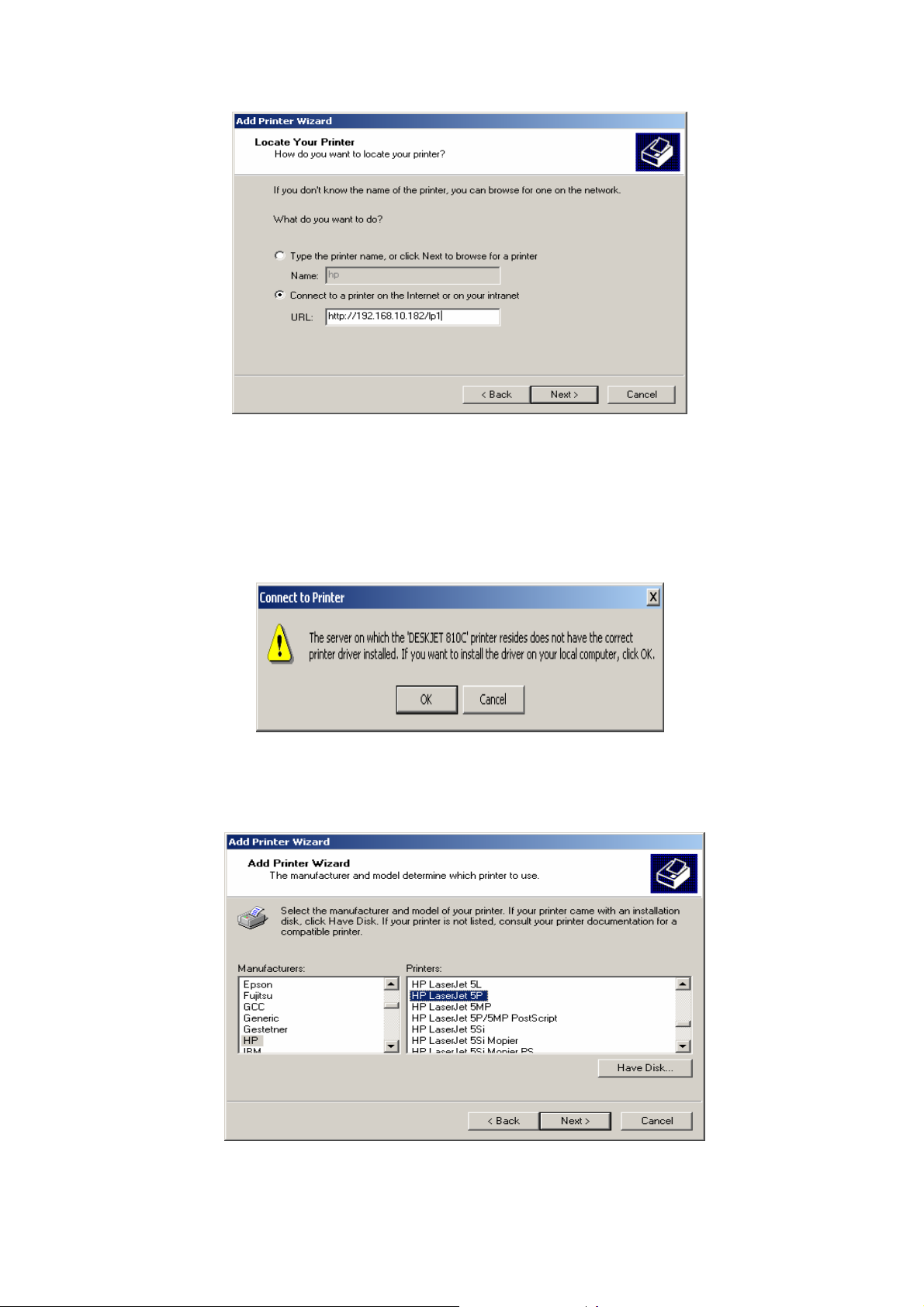

8. Click Add New Printer to launch Windows Add Printer Wizard.

9. Click Next and select Local Printer, make sure the Automatically detect and install

my Plug and Play printer check box is NOT checked. Then click Next.

10. Make sure the Use the following port radio-button is clicked and select LPT1:

(recommended Printer Port) from the pull-down list. Then click Next.

11. Select Manufacturer and Printer from the lists of printer’s driver. Then click Next.

12. If you already have the printer’s driver installed, you will be asked whether to keep it or to

replace it. Click Next. Supply a name for the printer and choose whether you want to make it your default printer. Then click Next.

13. Then, choose whether you want to share the printer with other network user, print a test

page (please select No.), etc. Select the appropriate radio-button and click Next and Finish.

14. In the setup wizard, finish the installation by highlighting the installed printer in the

Select a Printer list and click Next, NEXT -> Finish.

15. From Windows system, go to start -> Printers and Faxes and highlight your newly

installed printer.

16. Right-click, select Properties -> Ports and verify that the print server’s port appears.

17. Go to General; click Print Test Page to verify the configuration.

18. Done. Note:

If you want to install more print servers, start setup wizard from your Windows Start menu: start -> All Programs -> Network Print Server -> PSWizard and repeat the installation procedure.

Using PSAdmin

After the software of setup CD is successfully installed, starts PSAdmin utility from your Windows Start menu: start -> All Programs -> Network Print Server -> PSAdmin. The screen will then appear as follow picture.

All print server(s) feature Novell NetWare function on the LAN will be displayed along with their respective device name, MAC Address, print server name, firmware version, and status. The terms are defined as follows:

Device Name: The name of the print server hardware used for identification purposes. MAC Address: The Ethernet address of the print server. Print server Name: The print server to which the device is attached. Version: The firmware version of the print server. Status: To come up a Printer’s status presently.

Wizard

Wizard is a configuration program that can assist you in setting up the necessary parameters for your print server device to function. Setup a print server by using Wizard.

TCP/IP Wizard

1. Click Wizard button just like a picture ＜＞.and select TCP/IP Wizard.

2 Select “Obtain an IP address from DHCP server”. If there is a DHCP server on your

network. This option allows the print server to obtain IP-related settings automatically from your DHCP server. This setting, by default, is disabled. If you would like to manually specify an IP address to the device, please skip to the following step.

3 In the IP Address option, type an IP address for the print server. The IP address must

meet the IP addressing requirements of the network segment.

4 (Optional) In the Subnet Mask option, type the Subnet Mask your LAN or network

segment is currently configured to use. 5 (Optional) In the Gateway field, type the IP address of gateway. 6 When done, click OK button. The program will save the above settings into the print

server. 7 Done

NetWare Wizard

1. Log into your NetWare file server as a Supervisor (Admin.) or equivalent.

2. Click Wizard button just like a picture ＜＞.and select NetWare Wizard, as follow picture.

3. Select the NetWare File Server to which the print server device will be attached.

4. Type in a Print server.

5. Type in a Print Queue Names.

Note: Each print queue corresponds to each print port of the print server.

6. Click OK.

7. Done.

8. From your NetWare client computer, such as Windows 95/98/Me, create a printer that is connected (redirected) to one of the NetWare print queues serviced by the print server.

Manual Setup

Manual Setup is a configuration program designed for more experienced users of NetWare. To setup the print server by using Manual Setup follow the steps:

1. Run PCONSOLE in NetWare 3.x or NetWare 4.x and create the necessary parameters (Refer to your Novell NetWare print server/Services manual for details).

2. Log into your NetWare file server as a Supervisor (Admin.) or equivalent. From your Windows 95/98/Me, run PSAdmin.

3. Select the print server that you wish to configure.

4. Click Properties in the tool bar and the following screen will appear, Properties button just like a picture ＜＞, as follow picture.

5. Select NetWare and type in the Print server that created during PCONSOLE.

6. (Optional) In Bindery Settings, Select NetWare file server(s) that print server can do Bindery mode.

7. (Optional) In NDS Settings, Select NetWare file server(s), NetWare 4.x or later that print server can do NDS mode.

8. Click OK. From your NetWare client computer, such as Windows 95/98/Me, create a printer that is connected (redirected) to one of the NetWare print queues serviced by the print server.

Properties –TCP/IP Options

The TCP/IP options allow you to modify the print server’s TCP/IP settings. Each option is detailed as follows.

Obtain an IP address from a DHCP server:

This option enables or disables the DHCP feature of the print server. When this option is enabled, the print server will obtain an IP address automatically from the DHCP server on your LAN. The default value is “Disable”.

Note: 1.Once this option is enabled, the following IP address, Subnet Mask, Gateway will be

grayed out and are not available for editing.

2.While the print server supports DHCP, we strongly recommend you manually specify

a fixed IP address to the print server.

Specify an IP address: IP Address: This option shows the print server’s current IP address maybe obtained from

your DHCP server or manually specified. This option also allows you to manually specify an IP address to the print server, if DHCP option is disabled.

Subnet Mask: This option shows the print server’s current subnet mask maybe obtained

from the DHCP server or manually specified. This option also lets you manually specify a subnet mask to the print server, if DHCP option is disabled. This value is optional.

Gateway: This option shows the print server’s current gateway address maybe obtained

from the DHCP server or manually specified. The option also allows you to manually specify the IP address of the gateway to the print server, if DHCP option is disabled. This value is optional

Upgrade

Upgrade allows the user to upgrade the print server device. In order to upgrade the unit please perform the steps as follows:

1. Click Upgrade button just like a picture ＜＞, as shown as follow picture

2. Select General Upgrade. Make sure that the upgrade file is located in the same directory as PSAdmin.

Reset

1. Click Reset button just like a picture ＜

2. Reset allows the user to reset the print server device in order to establish a new

connection or for new settings to take effect.

＞.

Refresh

1. Click Reset button just like a picture ＜＞.

2. Refresh searches the network for all attached print server(s).

Note: Configure the print speed in the Advanced label, must match the printer’s speed

which connect to the print server. Undependable configuration will cause printer to abnormal printing.

Multiple Print Queues Configuration

To configure the print server to service multiple print queues, please follow the instructions listed below:

1. Log into your NetWare file server as a Supervisor (Admin.) or equivalent.

2. Run the PSAdmin from your Windows.

3. Select the print server and to be configured.

4. Click the Wizard icon in the tool bar.

5. Type in a Print server and a Print Queue Name (For more detailed information about Wizard, please refer to the “Wizard” section in this chapter).

6. Run the NetWare’s PCONSOLE and create additional print queues.

7. Select the Print server name you specify in Step 5.

8. Select the “Print server Configuration” option and select the ”Queue Serviced by

Printer” option (For NetWare 4.x’s PCONSOLE, please select “Printers” option and select “Printer 0” instead).

9. Select the “ Printer 0” and press the [Insert] key to add the print queues you create in Step 6 into the list (For NetWare 4.x’s PCONSOLE, please select “Print queues assigned” option instead).

10. Reset the print server by clicking the “Reset” icon from the PSAdmin. Done.

Note: Please refer to NetWare’s Print server/Services manuals for detailed PCONSOLE

commands.

Uninstalling the PSAdmin on Windows PC

To help users easily remove all installed software components of the PSAdmin from their Windows PC, and the PSAdmin software comes with un-installation wizard program that can automatically remove the software components from their Windows PC systems in minutes. Please follow the directions listed below to proceed with the un-installation procedure. After the PSAdmin is removed, the print server is no longer accessible via the PSAdmin. You have to re-install the PSAdmin on your system in order to access the print server again.

Procedure:

1. Click Start, point to Settings, and select Control Panel.

2. Double click the Add/Remove Programs icon.

3. Click Change or Remove Programs tab.

4. Select Network Print Monitor for Windows 95/98/NT/2000/XP/2003 and click

Change/Remove button.

5. The un-installation wizard program will be launched.

6. Follow the directions on the screen to complete the un-installation procedure.

+ 58 hidden pages
