TP-LINK TD-W8920G, TD-W8920GB User Manual

108M Wireless ADSL2+ Router

TD-W8920G/TD-W8920GB

3-in-1: ADSL2+ modem, 4-port

Ethernet router and Super G™ &

eXtended Range™ wireless access point

Latest ADSL standards for superior

performance: up to 24Mbps

downstream and 3.5Mbps upstream

Description：

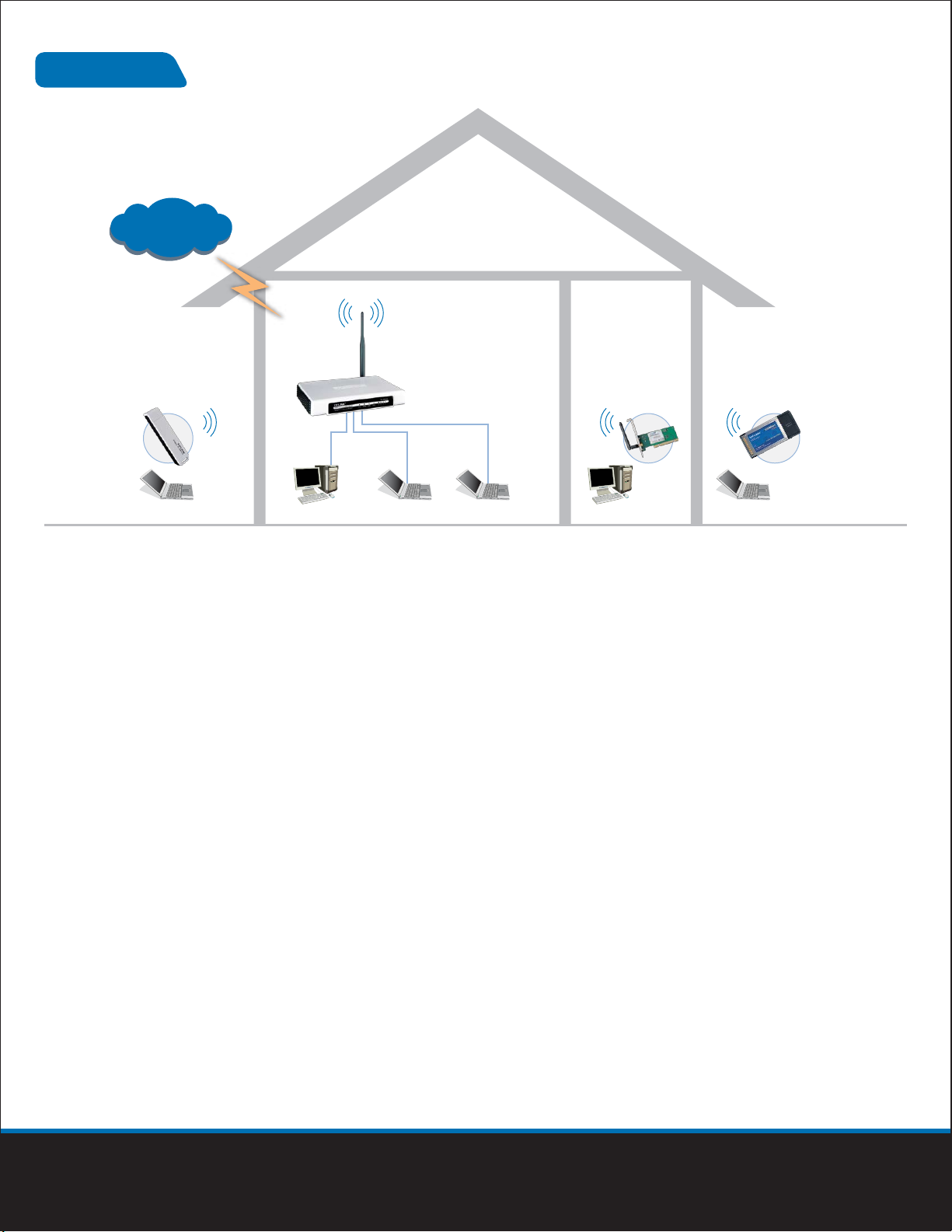

The TP-LINK ADSL2/2+ Modem with 108M Wireless Router (TD-W8920G/TD-W8920GB) is a 3-in-1 device that combines the function of a high-speed DSL modem, Super G™ & eXtended Range™ wireless access point, and 4-port Ethernet router. It supports the latest ADSL2/2+ standards to provide higher performance (up to 24Mbps downstream and 3.5Mbps upstream) and longer reach from your Internet Service Provider’s (ISP) Digital Subscriber Line Access Multiplexer (DSLAM).With the TD-W8920G/TD-W8920GB, you can create a wireless network to connect 802.11g/802.11b devices as well as a wired network to connect up to four 10/100 Ethernet devices.

The TD-W8920G/TD-W8920GB includes a built-in QoS engine that helps prioritize Internet traffic to enable smooth Internet

Various QoS policies

enable various application,

meeting people’s dierent needs

phone calls (VoIP) and lag-free online gaming. To prevent unauthorized wireless access into your network, the TD-W8920G/TDW8920GB supports the latest encryption including WEP, WPA, and WPA2. In addition, this device includes Dual Active Firewalls (NAT and Packet Filter)) to help protect your network from potential attacks from across the Internet.

The TD-W8920G/TD-W8920GB also supports TR-069 which automatically updates the firmware and other settings when they become available from your ISP. Whether it is for a home or for a small office user, the ADSL2/2+ Modem with 108M Wireless Router (TD-W8920G/TD-W8920GB) is the ideal all-in-one broadband and wireless networking solution.

www.tp-link.com

Features：Specifications：

Interfaces

Data Rates

ADSL Features

ATM Features

PPP Features

Switching Features

Routing Features

Wireless Features

Firewall

VPN Pass Through

QoS

Device Management

Led

Operating Temperature

Storage Temperature

Operating Humidity

Storage Humidity

Dimensions(L x W x H)

1 RJ11 port, 4 ethernet ports, support 802.3,802.3u

Downstream: Up to 24Mbps Upstream: Up to 3.5Mbps（With Annex M enabled）

Full-rate ANSI T1.413 Issue 2

ITU-T G.992.1 (G.dmt)

ITU-T G.992.2 (G.lite)

ITU-T G.994.1 (G.hs)

ITU-T G.992.3 (G.dmt.bis)

ITU-T G.992.5

Supports Annex A/B/L/M

Max 6 kilometers

UNI 3.1，ATM Adaptation Layer Type 5-AAL5

Multiprotocol encapsulation over ATM (RFC 1483/2684)

UBR, CBR, VBR-rt, VBR-nrt

Supports 8PVCs

PPP over ATM (RFC 2364)

PPP over Ethernet (RFC 2516)

IGMP snooping

IGMP multicast

IEEE 802.1d transparent learning bridging

Clasical IP and ARP over ATM (RFC 1577/2225), RIP V1/V2

MAC Encapsulation Routing

Static routing, IP, TCP, UDP, ARP

NAT, NAPT, DNS, DDNS, DHCP Server

UPnP, Virtual Server, DMZ, Port Trigger

SIP, H323 ALG

Complies with IEEE 802.11g, IEEE802.11b

Supports 108/54/48/36/24/18/12/9/6Mbps or 11/5.5/2/1Mbps

data transfer rates.

Provides WPA/WPA2 and WPA-PSK/WPA2-PSK authentication and

TKIP/AES encryption security

Provides 64/128-bit WEP encryption security and wireless LAN ACL

(Access Control List)

Wireless operating range: Indoor up to200m, Outdoor up to 830m

NAT and Packet Filter

IPSec/PPTP/L2TP Pass-through

IP Type of service(ToS)

DSCP

802.1p

HTTP, TELNET, Console

Administration and operation software (rmware) upgradable

locally by WEB, Console

CWMP（TR-069）

Power,System,ADSL,WLAN,LAN1~4

0°C~40°C (32°F~104°F)

-40°C~70°C (-40°F~158°F)

10% ~ 90%, non condensation

5%~90% non-condensing

7.9 x 5.5 x 1.1 in.(200 x 140 x 28mm)

3-in-1: ADSL2+ modem，4-port Ethernet router and Super G™ & eXtended Range™ wireless access point

Easily share ADSL connection with all oce or home computers，wired or wirelessly

Supports Annex M, which can double upstream data rates

Dual Firewall protects LAN devices from potential attacks from across the Internet

QoS prioritization based on IP Type of service(ToS), DSCP or 802.1p

Auto-reconnect keeps Internet always connected

TP-069 enables centralized management

SIP, H.323 ALG enables VOIP pass-through

Package:

108M Wireless ADSL2+ Router TD-W8920G/TD-W8920GB

One DC power Adapter

Quick Installation Guide

One RJ45 cable

Two RJ11 cables

One ADSL splitter

One Resource CD
