TD-W8901N
150Mbps Wireless N ADSL2+ Modem Router
REV 3.1.2 1910011773
COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders.
No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2016 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved.
http://www.tp-link.com
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1 This device may not cause harmful interference.
2 This device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.
“To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
CE Mark Warning
This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.
RF Exposure Information
This device meets the EU requirements (1999/5/EC Article 3.1a) on the limitation of exposure of the general public to electromagnetic fields by way of health protection.
The device complies with RF specifications when the device used at 20 cm from your body.
UkrSEPRO
Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних документів та вимогам, що передбачені чинними законодавчими актами України.
Safety Information
When product has power button, the power button is one of the way to shut off the product; when there is no power button, the only way to completely shut off power is to disconnect the product or the power adapter from the power source.
Don’t disassemble the product, or make repairs yourself. You run the risk of electric shock and voiding the limited warranty. If you need service, please contact us.
Avoid water and wet locations.
Adapter shall be installed near the equipment and shall be easily accessible.
The plug considered as disconnect device of adapter.
Use only power supplies which are provided by manufacturer and in the original packing of this product. If you have any questions, please don't hesitate to contact us.
Explanation of the symbols on the product label
Symbol Explanation
Class II equipment
DC voltage
RECYCLING
This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.
User has the choice to give his product to a competent recycling organization or to the retailer when he buys a new electrical or electronic equipment.
CONTENTS
Chapter 1. |
Introduction.................................................. |
1 |
|
1.1 |
Product Overview ............................................. |
1 |
|
1.2 |
Main Features ................................................ |
1 |
|
1.3 |
Conventions.................................................. |
2 |
|
Chapter 2. |
Hardware Installation ......................................... |
3 |
|
2.1 |
The Front Panel............................................... |
3 |
|
2.2 |
The Back Panel ............................................... |
5 |
|
2.3 |
Installation Environment........................................ |
6 |
|
2.4 |
Connecting the Modem Router.................................. |
6 |
|
Chapter 3. |
Quick Installation Guide ...................................... |
8 |
|
3.1 |
TCP/IP Configuration .......................................... |
8 |
|
3.2 |
Login |
........................................................ |
9 |
Chapter 4. |
Software ......................................Configuration |
12 |
|
4.1 |
Status ...................................................... |
12 |
|
|
4.1.1 .................................................... |
Device Info |
12 |
|
4.1.2 .................................................... |
System Log |
13 |
|
4.1.3 ...................................................... |
Statistics |
14 |
4.2 |
Quick ..................................................Start |
17 |
|
4.3 |
Interface ..............................................Setup |
17 |
|
|
4.3.1 ....................................................... |
Internet |
17 |
|
4.3.2 .......................................................... |
LAN |
27 |
|
4.3.3 ....................................................... |

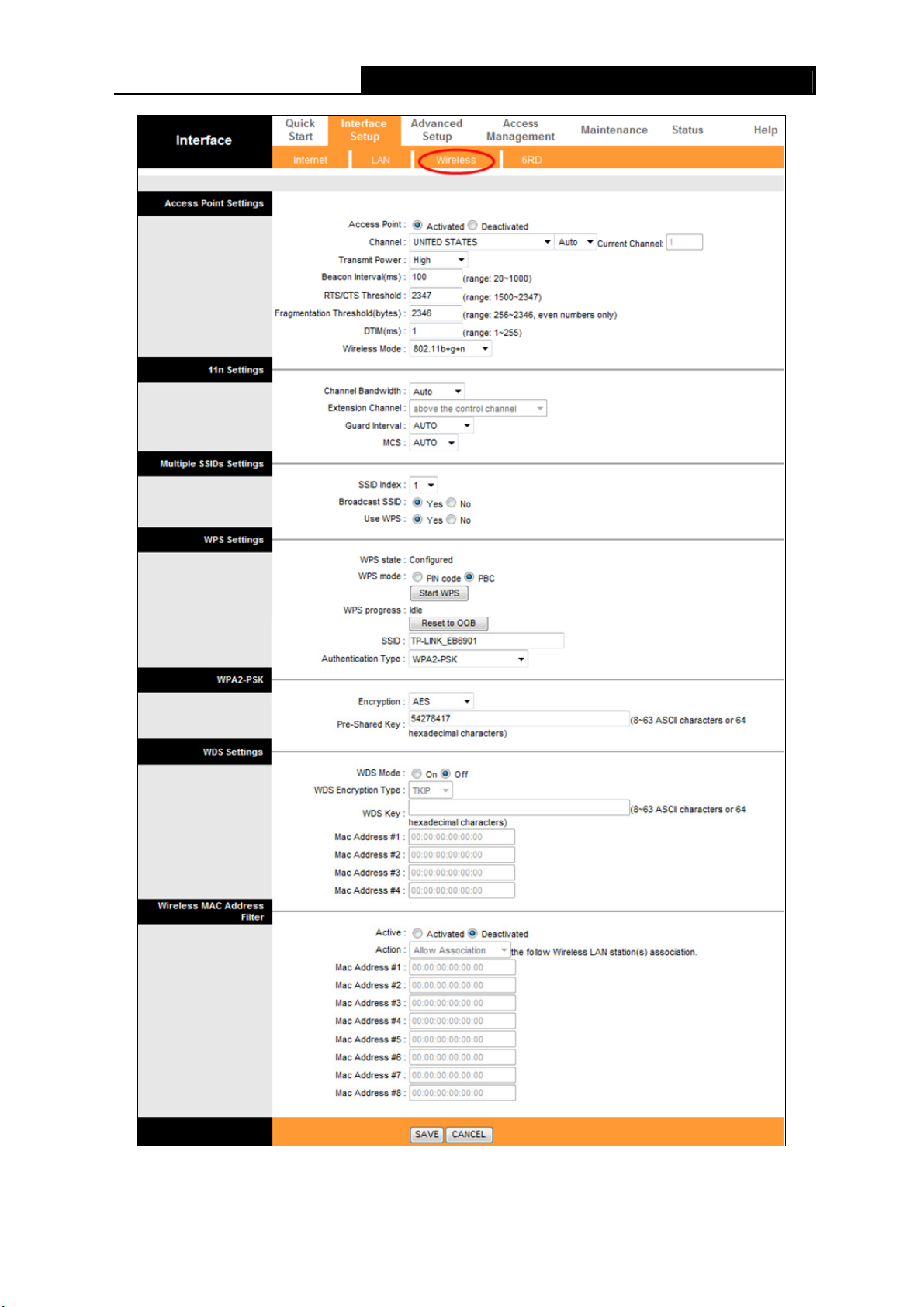

Wireless |
31 |
|
4.3.4 .......................................................... |
6RD |
42 |
|
4.3.5 ................................................. |
Guest Network |
43 |
4.4 |
Advanced .............................................Setup |
44 |
|
|
4.4.1 ....................................................... |

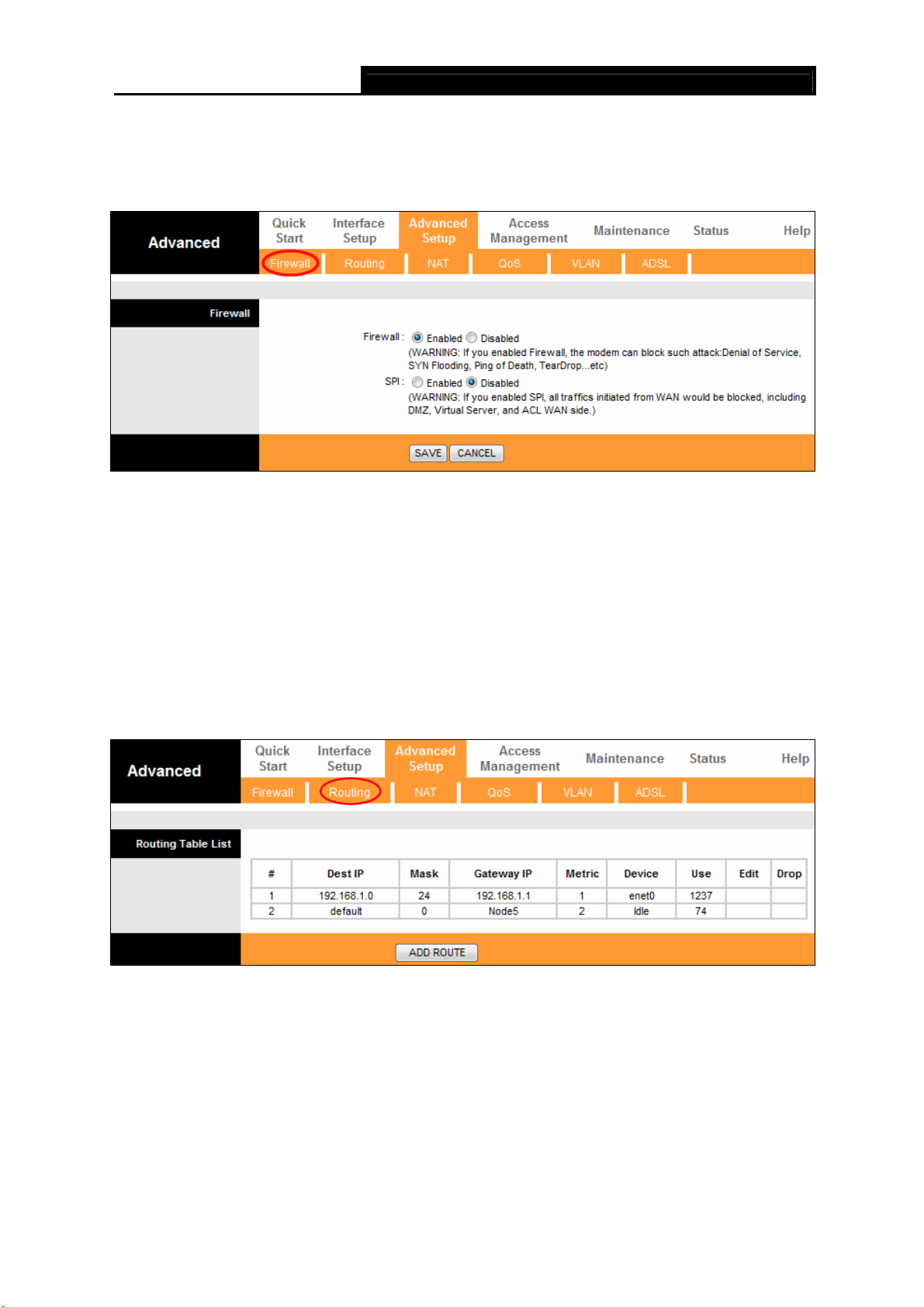

Firewall |
45 |
|
4.4.2 ....................................................... |
Routing |
45 |
|
4.4.3 .......................................................... |
NAT |
46 |
|
4.4.4 .......................................................... |
QoS |
50 |
|
4.4.5 ......................................................... |
VLAN |
53 |
|
4.4.6 ......................................................... |
ADSL |
55 |
4.5 |
Access .........................................Management |
56 |
|
4.5.1 |

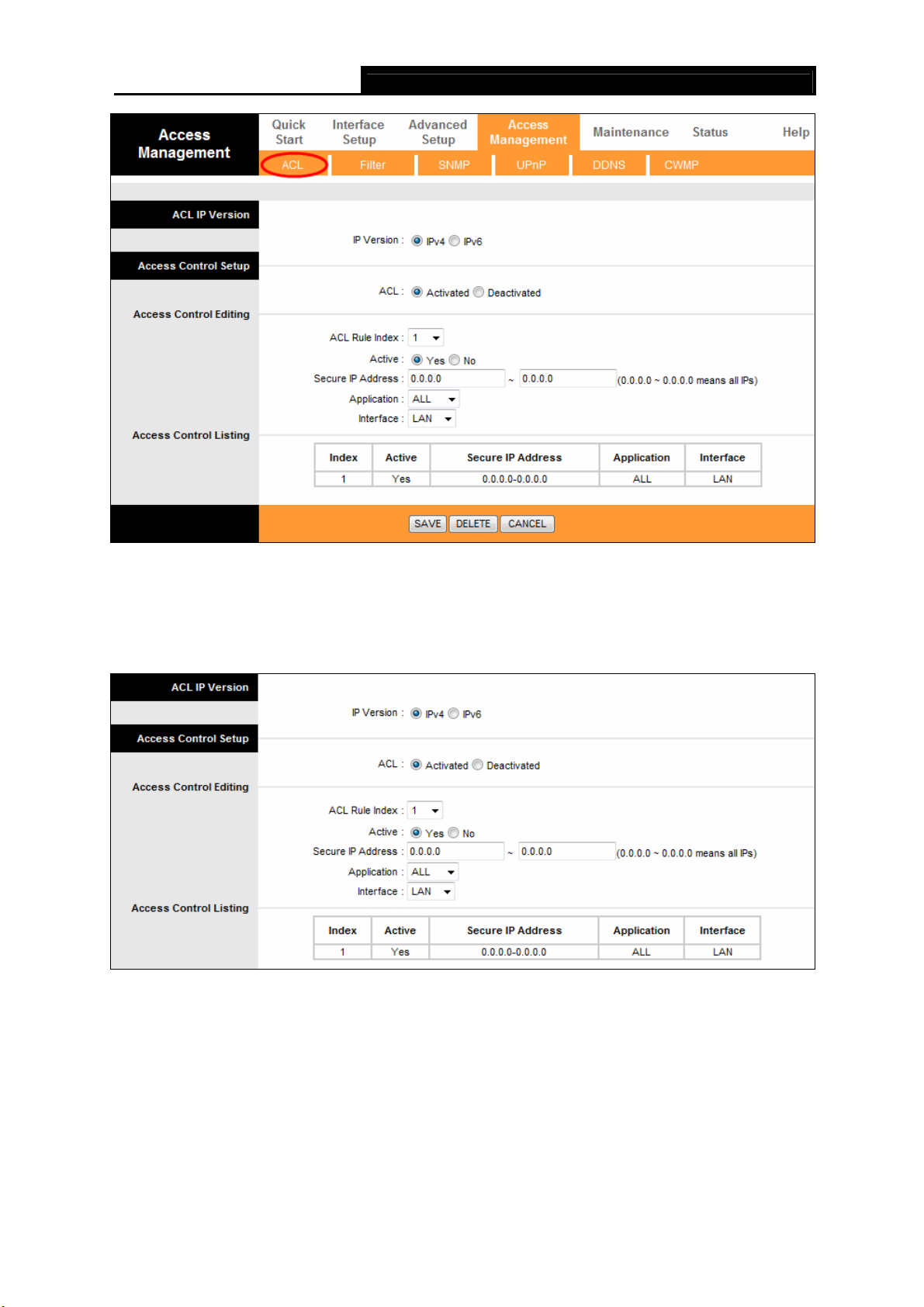

ACL .......................................................... |
56 |
|
4.5.2 |

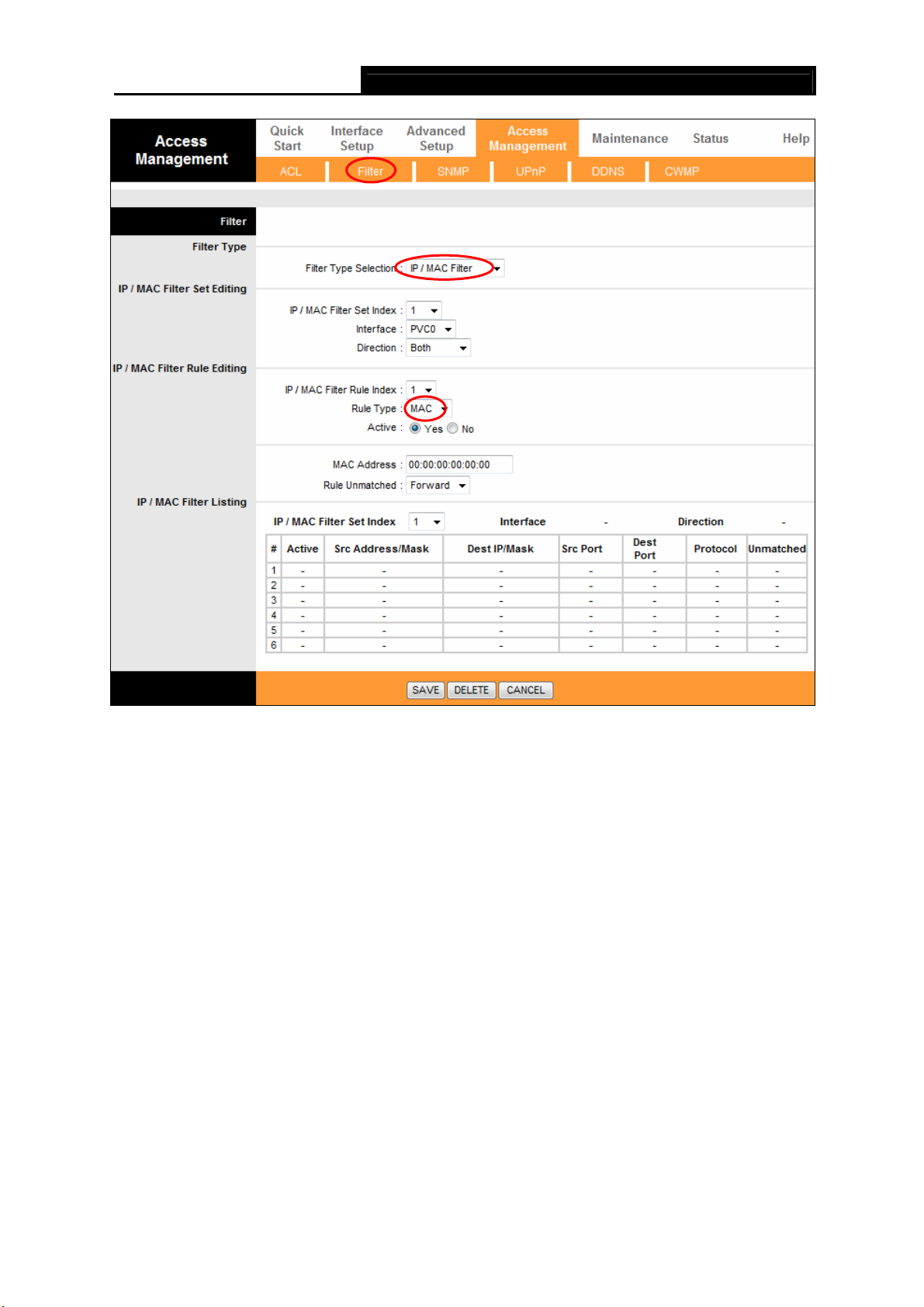

Filter .......................................................... |
58 |
|
4.5.3 |
SNMP ........................................................ |
67 |
|
4.5.4 |
UPnP ......................................................... |
67 |
|
4.5.5 |
DDNS ......................................................... |
68 |
|
4.5.6 |
CWMP ........................................................ |
69 |
4.6 |
Maintenance ................................................ |
70 |
|
|
4.6.1 |
Administration .................................................. |
70 |
|
4.6.2 |
Time Zone ..................................................... |
70 |
|
4.6.3 |
Firmware ...................................................... |
72 |
|
4.6.4 |
SysRestart ..................................................... |
74 |
|
4.6.5 |
Diagnostics .................................................... |
74 |
4.7 |
Help |
........................................................ |
75 |
Appendix A: Specifications .............................................. |
77 |
||
Appendix B: Troubleshooting ............................................ |
78 |
||
Appendix C: Technical ..........................................Support |
81 |
TD-W8901N 150Mbps Wireless N ADSL2+ Modem Router User Guide
Chapter 1.Introduction
Thank you for choosing the TD-W8901N 150Mbps Wireless N ADSL2+ Modem Router.
The device is designed to provide a simple and cost-effective ADSL Internet connection for a private Ethernet or IEEE 802.11n/ IEEE 802.11g/ IEEE 802.11b wireless network.
The TD-W8901N connects to an Ethernet LAN or computers via standard Ethernet ports. The ADSL connection is made using ordinary telephone line with standard connectors. Multiple workstations can be networked and connected to the Internet using a single Wide Area Network (WAN) interface and single global IP address. The advanced security enhancements, IP/MAC Filter, Application Filter and URL Filter can help to protect your network from potentially devastating intrusions by malicious agents from the outside of your network.
Quick Start of the Web-based Utility is supplied and friendly help messages are provided for the configuration. Network and Router management is done through the Web-based Utility which can be accessed through local Ethernet using any web browser.
The TD-W8901N supports full-rate ADSL2+ connectivity conforming to the ITU and ANSI specifications. In addition to the basic DMT physical layer functions, the ADSL2+ PHY supports dual latency ADSL2+ framing (fast and interleaved) and the I.432 ATM Physical Layer.
In the most attentive wireless security, the modem router provides multiple protection measures. It can be set to turn off the wireless network name (SSID) broadcast so that only stations that have the SSID can be connected. The modem router provides wireless LAN 64/128-bit WEP encryption security, WPA-PSK/WPA2-PSK authentication, as well as TKIP/AES encryption security.
Four 10/100Mbps Auto-Negotiation RJ45 LAN ports (Auto MDI/MDIX), one RJ11 port.
Provides external splitter.
Adopts Advanced DMT modulation and demodulation technology.
Supports bridge mode and Router function.
Multi-user sharing a high-speed Internet connection.
Downstream data rates up to 24Mbps, upstream data rates up to 2.5Mbps With Annex M enabled .
Supports long transfers, the max line length can reach to 6.5Km.
1
TD-W8901N 150Mbps Wireless N ADSL2+ Modem Router User Guide
Supports remote configuration and management through SNMP and CWMP.
Supports PPPoE, and it allows connecting the Internet on demand and disconnecting from the Internet when idle.
Provides reliable ESD and surge-protect function with quick response semi-conductive surge protection circuit.
High speed and asymmetrical data transmit mode, provides safe and exclusive bandwidth.
Supports All ADSL industrial standards.
Compatible with all mainstream DSLAM (CO).
Provides integrated access to Internet and route function which face to SOHO user.
Real-time Configuration and device monitoring.
Supports Multiple PVC (Permanent Virtual Circuit).
Built-in DHCP server.
Built-in firewall, supporting IP/MAC filter, Application filter and URL filter.
Supports Virtual Server, DMZ host and IP Address Mapping.
Supports Dynamic DNS, UPnP and Static Routing.
Supports system log and flow Statistics.
Supports firmware upgrade and Web management.
Provides WPA-PSK/WPA2-PSK data security, TKIP/AES encryption security.
Provides 64/128-bit WEP encryption security and wireless LAN ACL (Access Control List).
Supports IPv6.
The modem router or device mentioned in this User Guide stands for TD-W8901N without any explanations.
Parameters provided in the pictures are just references for setting up the product, which may differ from the actual situation.
2
TD-W8901N 150Mbps Wireless N ADSL2+ Modem Router User Guide
Chapter 2.Hardware Installation
Figure 2-1
The LEDs locate on the front panel. They indicate the device’s working status. For details, please refer to LEDs Explanation.
LEDs Explanation:
|
|
Name |
|
Status |
|
Indication |
|
|
|
|
On |
|
The modem router is powered on. |
|
|
(Power) |
|
|
|
|
|
|
|
Off |
|
The modem router is off. Please ensure that the power adapter is |
|
|
|
|
|
|
connected correctly. |
|
|
|
|
|
|
|
|
|
|
|
|
On |
ADSL line is synchronized and ready to use. |
|
|
|
|
|
|
|
|
|
|
(ADSL) |
|
Flash |
|
The ADSL negotiation is in progress. |
|
|
|
|
|
|
|
|
|
|
Off |
|
ADSL synchronization fails. Please refer to Note 1 for |
|
|
|
|
|
|
||
|
|
|
|
|
troubleshooting. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
On |
The network is available with a successful Internet connection. |
|
|
|
|
|
|
|
|
|
|
(Internet) |
|
Flash |
|
There is data being transmitted or received via the Internet. |
|
|
|
|
|
|
|
|
|
|
Off |
|
There is no successful Internet connection or the modem router is |
|
|
|
|
|
|
||
|
|
|
|
|
operating in Bridge mode. Please refer to Note 2 for troubleshooting. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(WLAN) |
|
On |
Wireless is enabled. |
|
|
|
|
|
|
|
|
|
|
|
Off |
|
Wireless function is disabled. |
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
On |
|
Wireless is enabled but no data is being transmitted. |
|
|
|
|
|
|
|
|
|
|
|
Flash |
|

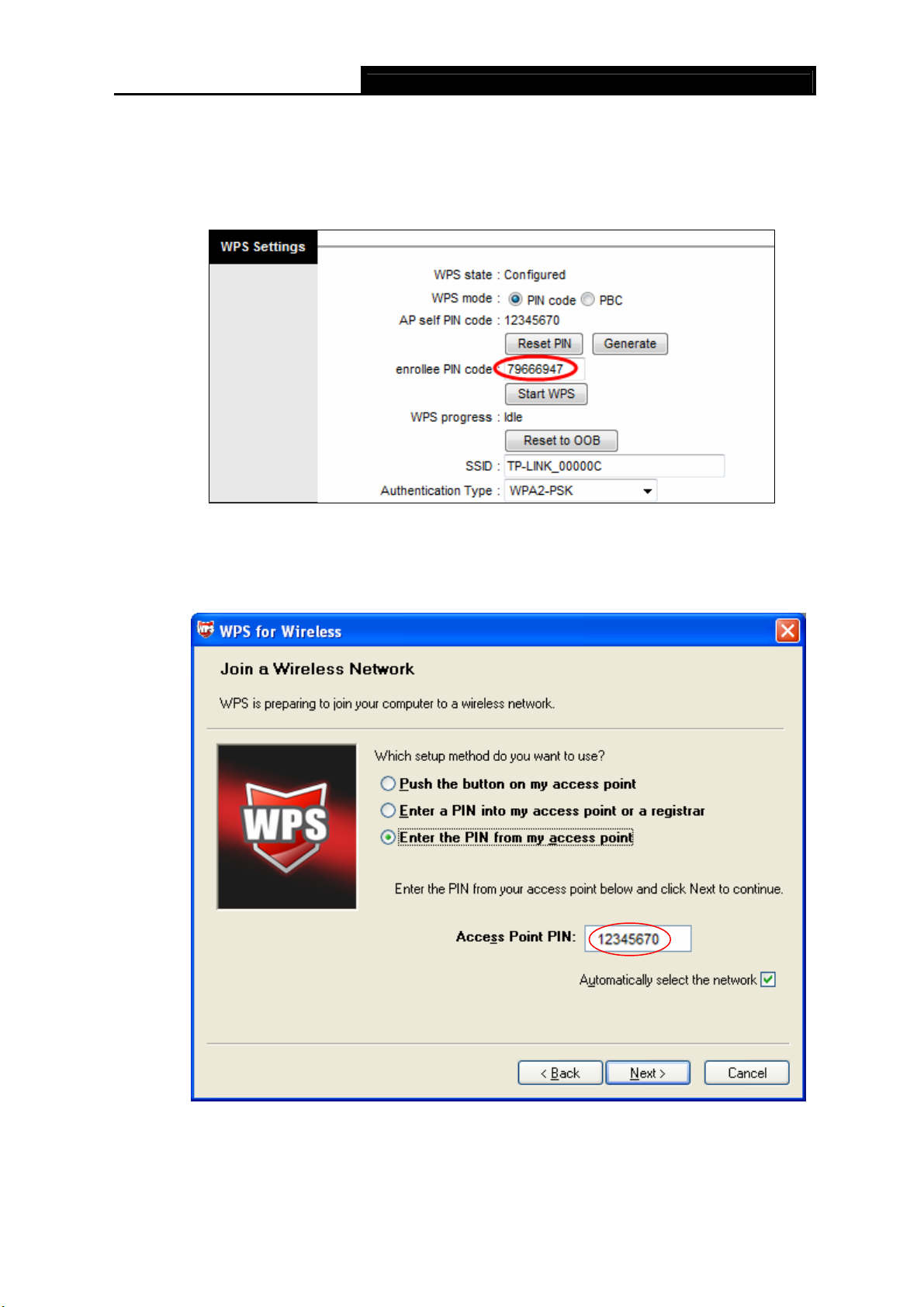

WPS handshaking is in process and will continue for about 2 |
|
|
|
|
|
minutes. Please press the WPS button on other wireless devices |
|
|
|
(WPS) |
|
|
|
that you want to add to the network while the LED is flashing. |
|
|
|
|
|
|
|
|
|
|
|
|
|
The WPS function is disabled or the wireless device fails to be added |
|
|
|
|
Off |
|
to the network in 2 minutes after WPS function is enabled. Please |
|
|
|
|
|
|
refer to WPS Settings for more information. |
|
|
(LAN 1-4) |
|
On |
There is a device connected to this LAN port. |
|
|
|
|
|
|
|
|
|
|
|
Off |
There is no device connected to this LAN port. |
||
|
|
|
|
|||
|
|
|
|
|
|
|
Note: |
|
|
|
|
1.If the ADSL LED is off, please check your Internet connection first. Refer to 2.4 Connecting the Modem Router for more information about how to make Internet connection correctly. If you have already made a right connection, please contact your ISP to make sure if your Internet service is available now.
3
TD-W8901N 150Mbps Wireless N ADSL2+ Modem Router User Guide
2.If the Internet LED is off, please check your ADSL LED first. If your ADSL LED is also off, please refer to Note 1. If your ADSL LED is GREEN ON, please check your Internet configuration. You may need to check this part of information with your ISP and make sure everything have been input correctly. Refer to 4.1.1 Device Info and 4.3.1 Internet for more information.
4
TD-W8901N 150Mbps Wireless N ADSL2+ Modem Router User Guide
WiFi
POWER |
ON/OFF |
WPS/ |
LAN4 |
LAN3 |
LAN2 |
LAN1 |
ADSL |
|
RESET |
||||||||
|
|
|
|
|
|
|
||
|
|
|
|
Figure 2-2 |
|
|
POWER: The Power plug is where you will connect the power adapter.
ON/OFF: The switch for the power.
WiFi: Press this button to enable or disable Wireless LAN interface.
WPS/RESET: The switch for the WPS function. If your client devices, such as wireless adapters, support Wi-Fi Protected Setup, then you can press this button for about two seconds to quickly establish a connection between the router and client devices and automatically configure wireless security for your wireless network. For details, please refer to WPS Settings. If you press this button for more than 8 seconds, you will enable the RESET function. There are two ways to reset the modem router's factory defaults.
Method one: With the modem router powered on, press and hold down the WPS/RESET button on the rear panel for about 8 seconds until some LEDs go off, then release the button. Method two: Restore the default setting from “Maintenance-SysRestart” of the modem router's Web-based Utility.
4, 3, 2, 1 (LAN): Through the port, you can connect the modem router to your PC or the other Ethernet network devices.
ADSL: Through the port, you can connect the modem router with the telephone. Or you can connect them by an external separate splitter. For details, please refer to 2.4 Connecting the Modem Router.
Antenna: Used for wireless operation and data transmit.
5
TD-W8901N 150Mbps Wireless N ADSL2+ Modem Router User Guide
The Product should not be located where it will be exposed to moisture or excessive heat.
Place the modem router in a location where it can be connected to the various devices as well as to a power source.
Make sure the cables and power cord are safely placed out of the way so they do not create a tripping hazard.
The modem router can be placed on a shelf or desktop.
Keep away from the strong electromagnetic radiation and the device of electromagnetic sensitive.
Generally, TD-W8901N is placed on a horizontal surface. The device also can be mounted on the wall as shown in Figure 2-3.
Figure 2-3 Wall-mount Install
Note:
The diameter of the screw, 3.5mm<D<8mm, and the distance of two screws is 118mm. The screw that project from the wall need around 4mm based, and the length of the screw need to be at least 20mm to withstand the weight of the product.
Before installing the device, please make sure your broadband service provided by your ISP is available. If there is any problem, please contact your ISP. Before cable connection, cut off the power supply and keep your hands dry. You can follow the steps below to install it.
Step 1: Connect the ADSL Line.
6
TD-W8901N 150Mbps Wireless N ADSL2+ Modem Router User Guide
Method one: Plug one end of the twisted-pair ADSL cable into the ADSL port on the rear panel of TD-W8901N, and insert the other end into the wall socket.
Method two You can use a separate splitter. External splitter can divide the data and voice, and then you can access the Internet and make calls at the same time. The external splitter has three ports:
•LINE: Connect to the wall jack
•PHONE: Connect to the phone sets
•MODEM: Connect to the ADSL port of TD-W8901N
Plug one end of the twisted-pair ADSL cable into the ADSL port on the rear panel of TD-W8901N. Connect the other end to the MODEM port of the external splitter.
Step 2: Connect the Ethernet cable. Attach one end of a network cable to your computer’s Ethernet port or a regular hub/switch port, and the other end to the LAN port on the TD-W8901N.
Step 3: Power on the computers and LAN devices.
Step 4: Attach the power adapter. Connect the power adapter to the power connector on the rear of the device and plug in the adapter to an electrical outlet or power extension. The electrical outlet shall be installed near the device and shall be easily accessible.
Wall Socket |
|
|
|
|
|
|
|
|
Phone Cable |
|
|||
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
LINE |
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
Splitter |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
PHONEMODEM |
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
WiFi |
|
|
|
|
|
|
POWER |
ON/OFF |
WPS/ |
LAN4 |
LAN3 |
LAN2 |
LAN1 |
ADSL |
|
RESET |
||||||||
|
|
|
|
|
|
|
Computer
Phone Cable
Ethernet Cable
Figure 2-4
7
TD-W8901N 150Mbps Wireless N ADSL2+ Modem Router User Guide
Chapter 3.Quick Installation Guide
The default IP address of the TD-W8901N 150Mbps Wireless N ADSL2+ Modem Router is 192.168.1.1. And the default Subnet Mask is 255.255.255.0. These values can be changed as you desire. In this guide, we use all the default values for description.
Connect the local PC to the LAN port of the Modem Router. And then you can configure your PC to an obtain IP address in the following way:
1)Set up the TCP/IP Protocol in "Obtain an IP address automatically" mode on your PC. If you need instructions as to how to do this, please refer to T3 in Appendix B: Troubleshooting.
2)Then the built-in DHCP server will assign IP address for the PC.
Now, you can run the Ping command in the command prompt to verify the network connection. Please click the Start menu on your desktop, select run tab, type cmd or command in the field and press Enter. Type ping 192.168.1.1 on the next screen, and then press Enter.
If the result displayed is similar to the screen below, the connection between your PC and the modem router has been established.
Figure 3-1
If the result displayed is similar to the screen shown below, it means that your PC has not connected to the modem router.
8
TD-W8901N 150Mbps Wireless N ADSL2+ Modem Router User Guide
Figure 3-2
You can check it follow the steps below:
1)Is the connection between your PC and the modem router correct?
The LEDs of LAN port which you link to the device and the LEDs on your PC's adapter should be lit.
2)Is the TCP/IP configuration for your PC correct?
If the modem router's IP address is 192.168.1.1, your PC's IP address must be within the range of 192.168.1.2 ~ 192.168.1.254.
Once your host PC is properly configured, please proceed as follows to use the Web-based Utility: Launch your web browser and enter http://tplinkmodem.net or 192.168.1.1 in the address bar.
After that, you will see the screen shown below, enter the default User Name admin and the default Password admin, and then click Login to access to the Web-Management page. You can follow the steps below to complete the Quick Start.
Figure 3-3
9
TD-W8901N 150Mbps Wireless N ADSL2+ Modem Router User Guide
Step 1: Click NEXT to continue.
Figure 3-4
Step 2: Configure the time for the modem router, and then click NEXT.
Figure 3-5
Step 3: Select your country and ISP, and select your ISP Connection type (Here we take PPPoE/PPPoA mode for example), and complete the corresponding settings with the information provided by your ISP, then click the NEXT button.
Figure 3-6
10
TD-W8901N 150Mbps Wireless N ADSL2+ Modem Router User Guide
Note:
Per FCC regulations, all Wi-Fi products marketed in the U.S. must be fixed to the U.S. region only. Step 4: After finishing the Internet Settings, configure the rules for the WLAN, and click NEXT.
Figure 3-7
Note:
If the Access Point is activated, the wireless function will be available even without the external antenna because of an additional printed antenna. To adopt the wireless security protection measures, please refer to 4.3.3 Wireless.
Step 5: Click SAVE to finish the Quick Start.
Figure 3-8
11
TD-W8901N 150Mbps Wireless N ADSL2+ Modem Router User Guide
Chapter 4.Software Configuration
This User Guide recommends using the “Quick Installation Guide” for first-time installation. For advanced users, if you want to know more about this device and make use of its functions adequately, maybe you will get help from this chapter to configure the advanced settings through the Web-based Utility.
After your successful login, you can configure and manage the device. There are main menus on the top of the Web-based Utility; submenus will be available after you click one of the main menus. On the center of the Web-based Utility, there are the detailed configurations or status information. To apply any settings you have altered on the page, please click the SAVE button.
Choose “Status”, you can see the next submenus: Device Info, System Log and Statistics. Click any of them, and you will be able to configure the corresponding function.
Figure 4-1
Click any of them, and you will be able to view the corresponding information.
Choose “Status→Device Info” menu, and you will be able to view the device information, including LAN, WAN and ADSL. The information will vary depending on the settings of the modem router configured on the Interface Setup screen.
12
TD-W8901N 150Mbps Wireless N ADSL2+ Modem Router User Guide
Figure 4-2
Note:
Click the other submenus System Log or Statistics in Figure 4-2, and you will be able to view the system log and traffic statistics about the modem router.
Choose “Status→System Log” menu, and you will be able to query the logs of the modem router.
13
TD-W8901N 150Mbps Wireless N ADSL2+ Modem Router User Guide
Figure 4-3
The modem router can keep logs of all traffic. You can query the logs to find what happened to the Router.
Click the CLEAR LOG button to clear the logs.
Click the SAVE LOG button to save the logs.
Choose “Status→Statistics” menu, and you will be able to view the network traffic over Ethernet, ADSL and WLAN.
14
TD-W8901N 150Mbps Wireless N ADSL2+ Modem Router User Guide
Figure 4-4
Interface: You can select Ethernet, ADSL and WLAN to view the corresponding network traffic over different ports.
Select Ethernet, and you will see the statistics table as below.
Statistics Table:
|
Transmit Frames |
The frames transmitted over the Ethernet port. |
|
|
|
|
|
|
Transmit Multicast Frames |
The multicast frames transmitted over the Ethernet |
|
|
port. |
||
|
|
||
Transmit |
|
|
|
Transmit total Bytes |
The total bytes transmitted over the Ethernet port. |
||
Statistics |
|
|
|
Transmit Collision |
The collision occurred over the Ethernet port when |
||
|
|||
|
data is being transmitted. |
||
|
|
||
|
|
|
|
|
Transmit Error Frames |
The error frames over the Ethernet port when data is |
|
|
being transmitted. |
||
|
|
||
|
|
|
|
Receive |
Receive Frames |
The frames received over the Ethernet port. |
|
Statistics |
Receive Multicast Frames |
The multicast frames received over the Ethernet port. |
|
|
|||
|
|
|
|
|
Receive total Bytes |
The total bytes received over the Ethernet port. |
|
|
Receive CRC Errors |
The CRC errors occurred over the Ethernet port when |
|
|
data is being received. |
||
|
|
||
|
|
|
15
TD-W8901N 150Mbps Wireless N ADSL2+ Modem Router User Guide
Receive Under-size Frames
The Under-size frames received over the Ethernet port.
Select ADSL, and you will see the statistics table as below.
Statistics Table:
Transmit |
Transmit total PDUs |
The total PDUs transmitted over the ADSL port. |
|
|
|
||
|
The total errors occurred over the ADSL port when data is |
||
Statistics |
Transmit total Error Counts |
||
being transmitted. |
|||
|
|
||
|
|
|
|
Receive |
Receive total PDUs |
The total PDUs transmitted over the ADSL port. |
|
|
|
||
|
The total errors occurred over the ADSL port when data is |
||
Statistics |
Receive total Error Counts |
||
being received. |
|||
|
|
||
|
|
|
Select WLAN, and you will see the statistics table as below.
Statistics Table:
|
Tx Frames Count |
The frames transmitted over the WLAN when wireless data is being |
|
|
transmitted. |
||
|
|
||
Transmit |
|
|
|
Tx Errors Count |
The errors occurred over the WLAN when wireless data is being |
||
Statistics |
transmitted. |
||
|
|||
|
|
|
|
|
Tx Drops Count |
The drops occurred over the WLAN when wireless data is being |
|
|
transmitted. |
||
|
|
||
|
|
|
|
|
Rx Frames Count |
The frames received over the WLAN when wireless data is being |
|
|
transmitted. |
||
|
|
||
Receive |
|
|
|
Rx Errors Count |
The errors occurred over the WLAN when wireless data is being |
||
Statistics |
received. |
||
|
|||
|
|
|
|
|
Rx Drops Count |
The drops occurred over the WLAN when wireless data is being |
|
|
received. |
||
|
|
||
|
|
|
Click the REFRESH button to refresh immediately.
16
TD-W8901N 150Mbps Wireless N ADSL2+ Modem Router User Guide
Please refer to 3.2 Login.
Choose “Interface Setup”, you can see the next submenus:.
Figure 4-5
Click any of them, and you will be able to configure the corresponding function.
Choose “Interface Setup→Internet” menu, you can configure the parameters for WAN ports in the next screen (shown in Figure 4-6).
17
TD-W8901N 150Mbps Wireless N ADSL2+ Modem Router User Guide
Figure 4-6
ATM VC: ATM settings are used to connect to your ISP. Your ISP provides VPI (Virtual Path Identifier), VCI (Virtual Channel Identifier) settings to you. In this Device, you can totally setup 8 VCs on different encapsulations, if you apply 8 different virtual circuits from your ISP. You
18
TD-W8901N 150Mbps Wireless N ADSL2+ Modem Router User Guide
need to activate the VC to take effect. For PVCs management, you can use ATM QoS to setup each PVC traffic line's priority.
Virtual Circuit: Select the VC number you want to setup, PVC0~PVC7.
PVCs Summary: Click the button, and you can view the summary information about the PVCs.
Status: If you want to use a designed VC, you should activate it.
VPI: Identifies the virtual path between endpoints in an ATM network. The valid range is from 0 to 255. Please input the value provided by your ISP.
VCI: Identifies the virtual channel endpoints in an ATM network. The valid range is from 32 to 65535 (1 to 31 is reserved for well-known protocols). Please input the value provided by your ISP.
QoS: Select the Quality of Service types for this Virtual Circuit, including CBR (Constant Bit Rate), UBR (Unspecified Bit Rate) and VBR (Variable Bit Rate). These QoS types are all controlled by the parameters specified below, including PCR (Peak Cell Rate), SCR (Sustained Cell Rate) and MBS (Maximum Burst Size), please configure them according to your needs.
4.3.1.1 IPv4
There are two IP versions: IPv4 and IPv6. If you select IPv4 as IP version, please follow the configuration below to configure the parameters for WAN ports.
Encapsulation: There are four connection types: Dynamic IP Address, Static IP Address, PPPoA/PPPoE and Bridge Mode. Please choose the designed type that you want to use. After that, you should follow the configuration below to proceed.
1)Dynamic IP Address
Select this option if your ISP provides you an IP address automatically. This option is typically used for Cable services. Please enter the Dynamic IP information accordingly.
19
TD-W8901N 150Mbps Wireless N ADSL2+ Modem Router User Guide
Figure 4-7
Encapsulation: Select the encapsulation mode for the Dynamic IP Address, you can leave it default.
Bridge Interface: Activate the option, the modem router can also work in Bridge mode.
Default Route: If enable this function, the current PVC will be considered as the default gateway to Internet from this device.
TCP MTU Option: Enter the TCP MTU as your desire. The default value is 1500.
IPv4 Address: If you select IPv4 as IP version, you should configure the following.
NAT: Select this option to Enable/Disable the NAT (Network Address Translation) function for this VC. The NAT function can be activated or deactivated per PVC basis.
Dynamic Route: Select this option to specify the RIP (Routing Information protocol) version for WAN interface, including RIP1, RIP2-B and RIP2-M. RIP2-B and RIP2-M are both sent in RIP2 format, the difference is that RIP2-M using Multicast, while RIP2-B using Broadcast format.
Direction: Select this option to specify the RIP direction. None is for disabling the RIP function. Both means the ADSL modem router will periodically send routing information and accept routing information, and then incorporate them into routing table. IN only means the ADSL modem router will only accept but will not send RIP packet. OUT only means the ADSL modem router will only send but will not accept RIP packet.
Multicast: Select IGMP version, or disable the function. IGMP (Internet Group Multicast Protocol) is a session-layer protocol used to establish membership in a multicast group. The ADSL ATU-R supports IGMP version 1 (IGMP v1), IGMP version 2 (IGMP v2) and IGMP version 3 (IGMP v3). Select “Disabled” to disable it.
2)Static IP Address
20
