Teka LP8 650 User guide

EN
Dishwasher / User Manual
LP8 650 WH TTH LP8 650 SS TTH
Thank you for choosing this product.
This User Manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance.
Please take the time to read this User Manual before using your appliance and keep this book for future reference.
Icon Type Meaning
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
CAUTION Injury or property damage risk
IMPORTANT / NOTE Operating the system correctly
CONTENTS
1.SAFETY INSTRUCTIONS ................................................................................................ 1
1.1. General Safety Warnings ..............................................................................................1
1.2. Installation Warnings .....................................................................................................2
1.3. During Use.....................................................................................................................3
2.INSTALLATION ................................................................................................................. 6
2.1. Machine Positioning .....................................................................................................6
2.2. Water Connection ..........................................................................................................6
2.3. Water Inlet Hose ............................................................................................................6
2.4. Drain Hose.....................................................................................................................7
2.4. Electrical Connection ....................................................................................................7
3.TECHNICAL SPECIFICATIONS ....................................................................................... 8
3.1. General Appearance......................................................................................................8
3.2. Technical Specifications ................................................................................................8
4.BEFORE USING THE APPLIANCE .................................................................................9
4.1. Preparing your Dishwasher for first use .......................................................................9
4.2. Salt usage......................................................................................................................9
4.3. Fill the salt ....................................................................................................................9
4.4. Test Strip ...................................................................................................................10
4.5. Water Hardness Table .................................................................................................10
4.6. Water Softener System ...............................................................................................10
4.7. Setting ...................................................................................................................10
4.8. Detergent Usege .........................................................................................................11
4.9. Filling the Detergent .................................................................................................... 11
4.10. Using Combined Detergents ..................................................................................... 11
4.11. Rinse-aid Usege ........................................................................................................ 11
4.12. Filling the Rinse-aid and Setting ................................................................................ 11
5.LOADING YOUR DISHWASHER ....................................................................................12
5.1. Recommendations....................................................................................................... 12
5.2. Alternative Basket Loads .............................................................................................14
6.PROGRAMME TABLE .................................................................................................... 15
7.THE CONTROL PANEL .................................................................................................. 16
7.1. Changing a Programme .............................................................................................16
7.2. Cancelling a Programme .............................................................................................17
7.3. Switching the Machine Off ........................................................................................... 17
CLEANING AND MAINTENANCE ................................................................................. 18
8.
8.1. Filters ...........................................................................................................................18
8.2. Spray Arms ..................................................................................................................18
8.3. Drain Pump ..................................................................................................................19
TROUBLESHOOTING .................................................................................................... 20
9.
10.PRACTICAL INFORMATION ........................................................................................ 23
11.THE PRODUCT FICHE ................................................................................................. 24
1. SAFETY INSTRUCTIONS
1. General Safety Warnings
• Read these instructions carefully before using your appliance and keep this manual for future reference.
Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened.
• Packaging materials protect your machine from any damage that might occur during transportation. The packaging materials are environmentally friendly as they are recyclable. Use of recycled material reduces raw material consumption and decreases waste production.
This appliance can be used by children aged from 8 years and above, and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand hazards involved. Children should not be allowed to play with the appliance.
Remove packaging and keep it out of reach of
children.
Keep children away from detergents and rinse aids.
There may be some residue left in the machine after washing. Keep children away from the machine when it is open.
EN - 1
2. Installation Warnings
• Choose a suitable and safe place to install your
machine.
• Only original spare parts should be used with the
machine.
Unplug the machine before installation.
Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void.
Check that the indoor electrical fuse system is
connected in line with safety regulations.
All electrical connections must match the values on
the plate.
Ensure the machine does not stand on the electrical supply cable.
Never use an extension cord or a multiple socket
connection.
The plug should be accessible after the machine is
installed.
• After installation, run your machine unloaded for the
first time.
The machine must not be plugged in during
positioning.
Always use the coated plug supplied with your
machine.
If the electrical cable is damaged, it should only
be replaced by a qualified electrician.
• Connect the hose directly to the water inlet tap. The
pressure supplied by the tap should be a minimum of 0.03 MPa and a maximum of 1 MPa. If the
EN - 2
pressure exceeds 1 MPa, a pressure relief valve must be fitted between the connection.
3. During Usage
• This machine is for domestic use only; do not use
• it for other purposes. Commercial use will void the
guarantee.
Do not stand, sit or place loads on the open door of
the dishwasher.
Only use detergents and rinse aids produced specifically for dishwashers. Our company is not responsible for any damage that may occur due to misuse.
Do not drink water from the machine.
Due to the danger of explosion, do not place any chemical dissolving agents into the machine’s washing section.
• Check the heat-resistance of plastic items before
washing them in the machine.
Only put items in the machine which are suitable for dishwashing, and take care not to overfill the baskets.
Do not open the door while the machine is in operation, hot water may spill out. Safety devices ensure the machine stops if the door is opened.
The machine door should not be left open. It may cause accidents.
Place knives and other sharp objects in the cutlery basket in a blade-down position.
For models with the automatic door-opening system, when the EnergySave option is active, the door will open at the end of a program. To prevent damage to your dishwasher, do not attempt to close
EN - 3
the door for one minute after it has opened. For effective drying, keep the door open for 30 minutes after a programme has ended. Do not stand in front of the door after the auto-open signal sounds.
In the case of a malfunction, repair should only be performed by an authorised service company, otherwise the warranty will be void.
Before repair
work, the machine should be disconnected from the mains. Do not pull the cable to unplug the machine. Switch of
f the water tap.
Operation at a low voltage will cause a decline in
performance levels.
For safety
, disconnect the plug once
a program has
finished.
T
o avoid an electric shock, do not unplug the
machine with wet hands.
Pull the plug to disconnect the machine from the
mains, never pull on the cord.
RECYCLING
Some machine components and packaging consist of recyclable materials.
Plastics are marked with the international abbreviations:(>PE<, >PP<, etc. )
The cardboard parts consist of recycled paper. They can be put into waste paper containers for recycling.
Material unsuitable for domestic waste must be disposed of at recycling centres.
Contact a relevant recycling centre to obtain information about disposal of different materials.
PACKAGING AND THE ENVIRONMENT
Packaging materials protect your machine from damage that may occur during transportation. The packaging materials are environmentally friendly as they are recyclable. The use of recycled material reduces raw material consumption and therefore decreases waste production.
EN - 4
CE Declaration of Conformity
We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.
Disposal of your old machine
The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead, it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of
please contact your local city office, your household waste disposal service or the shop where the product was purchased.
this product. For more detailed information about recycling of this product,
EN - 5
2. INSTALLATION
2.1. Machine positioning
When positioning the machine, place it in an area where dishes can be easily loaded and unloaded. Do not put the machine in an area where the ambient temperature falls below 0°C.
Read all warnings located on the packaging before removing the packaging and positioning the machine.
Place the machine close to a water tap and drain. Take into consideration that the connections will not be altered once the machine is in position.
Do not hold the machine by its door or panel.
Leave an adequate distance around the machine to allow ease of movement when cleaning.
Ensure the water inlet and outlet hoses are not squeezed or trapped and that the machine does not stand
on the electrical cable while positioning. Adjust the feet so the machine is level and
balanced. The machine should be placed on flat ground otherwise it will be unstable and the door of the machine will not close properly.
2.2. Water connection
We recommend fitting a filter to your water inlet supply in order to prevent damage to your machine due to contamination (sand, rust, etc.) from indoor plumbing. This will also help prevent yellowing and deposit formation after washing.
WARNING: Use the new water inlet hose supplied with your machine, do not use an old machine’s hose.
WARNING: Run water through the
new hose before connecting.
WARNING: Connect the hose directly to the water inlet tap. The pressure supplied by the tap should be a minimum of 0.03 MPa and a maximum of 1 MPa. If the pressure exceeds 1 MPa, a pressure relief valve must be fitted between the connection.
WARNING: After the connections are made, turn the tap on fully and check
for water leaks. Always turn off the water inlet tap after a wash program has finished.
An Aquastop water spout is available
with some models. Do not damage it
or allow it to become kinked or twisted.
2.4. Drain Hose
Note printing on the water inlet hose! If models are marked with 25°, the water temperature may be max. 25 °C (cold water). For all other models: Cold water preferred; hot water max. temperature 60 °C.
2.3. Water inlet hose
Connect the water drain hose directly to water drain hole or to the sink outlet spigot. This connection should be minimum 50 cm and maximum 110 cm from flor plane.
IMPORTANT: Items will not wash properly if a drain hose longer than 4 m is used.
EN - 6
2.5. Electrical connection
WARNING: Your machine is set to
operate at 220-240 V. If the mains voltage supply to your machine is 110 V, connect a transformer of 110/220 V and 3000 W between the electrical connection.
WARNING: After removing the top panel of your dishwasher, the machine should be placed in a space of the dimensions shown in the figure below.
grounded outlet protected by a fuse
Connect the product to a
complying with the values in the "Technical Specifications" table".
The earthed plug of the machine must be connected
to an earthed outlet supplied by suitable voltage and current.
In the absence of earthing installation, an authorised
electrician should carry out an earthing installation. In the case of use without earthing installed, we will not be responsible for any loss of use that may occur.
The plug on this appliance may incorporate 13A fuse depending on the target country. (For Example UK, Saudi Arabia)
2.6. Fitting the machine undercounter
If you wish to fit your machine undercounter, there must be sufficient space to do so and the wiring-plumbing must be suitable to do so (1). If the space under the countertop is suitable for fitting your machine, remove the worktop as shown in the illustration (2).
H1: min A H2: min B1 H3: min B2
A B
All
Products
Product’s Height (±2 mm) 820 mm 830 mm 835 mm
B
1
B
2
A: If there is no felt on the top of the
product; you should take into account this product’s height.
WARNING: The countertop, which the machine will be placed under, must be stable in order to prevent imbalance.
The top panel of the dishwasher must be removed to fit the machine under the countertop.
To remove the top panel, remove the screws that hold it on, located at the rear of the machine. Then, push the panel 1 cm from the front towards the rear and lift it. Adjust the machine feet according to the slope of the floor (3).
Fit your machine by pushing it under the counter taking care not to crush or bend the hoses (4).
B1: If there is felt on the top of the product with 2nd basket; you should take into
account this product’s height.
B2: If there is felt on the top of the product with 3rd basket; you should take into
account this product’s height.
EN - 7
3. TECHNICAL SPECIFICATIONS
3.2. Technical specifications
13
3.1. General appearance
1. Worktop
2. Upper basket with racks
3. Upper spray arm
4. Lower basket
5. Lower spray arm
6. Filters
7. Rating plate
8. Control panel
9. Detergent and rinse-aid dispenser
10. Cutlery basket
11. Salt dispenser
12. Upper basket track latch
13. Mini Active Drying Unit: This system
provides better drying performance for your dishes.
Capacity
Dimensions Height Width Depth
Net weight
Operating voltage / frequency
Total current (A)
Total power (W)
Water supply pressure
12 place settings
850(mm) 598(mm) 598(mm)
37.2 kg
220-220-240 50 Hz
10(A)
1900(W)
Maximum: 1 (Mpa) Minimum:
0.03 (Mpa)
EN - 8
4. BEFORE USING THE APPLIANCE
4.1. Preparing your dishwasher for first use
Make sure the electricity and supply
water specifications match the values indicated in the installation instructions for the machine.
Remove all packaging material inside
the machine.
Set the water softener level.
Fill the rinse aid compartment.
4.2 Salt usage (IF AVAILABLE)
For a good washing function, the dishwasher needs soft, i.e. less calcareous water. Otherwise, White lime residues will remain on the dishes and the interior equipment. This will negatively affect your machine’s washing, drying and shining performance. When water flows through the softener system, the ions forming the hardness are removed from the water and the water reaches the softness required to obtain the best washing result. Depending on the level of hardness of the inflowing water, these ions that harden the water accumulate rapidly inside the softener system. Therefore, the softener system has to be refreshed so that it operates with the same performance also during the next wash. For this purpose, dishwasher salt is used.
Machine can only be used by special dishwasher salt to soften the water. Do not use any small grained or powdered type of salts which can easily soluble. Using any other type of salt can damage your machine.
4.3. Fill the salt (IF AVAILABLE)
To add softener salt, open the salt compartment cap by turning it counter clockwise. (1) (2) At first use, fill the compartment with 1 kg salt and water (3) until it is almost overflowing. If available, using a funnel (4) will make filling easier. Replace the cap and close it. After every 20-30 Cycles add salt into your mach until it fills up (approx. 1 kg).
1 2
3 4
SALT
Only add water to the salt compartment on first use.
Use softener salt specifically produced for use in dishwashers.
When you start your dishwasher, the salt compartment is filled with water, therefore put the softener salt in prior to starting your machine.
If the softener salt has overflowed and you do not start the machine immediately, run a short washing program to protect your machine against corrosion.
EN -9
4.4. Test Strip
Run water
through tap
(1min.)
Keep the
strip in
water (1sec)
Shake the
strip.
Wait
(1min.)
Set the hardness level of
your machine.
1 2 3 4 5 6
NOTE: Level is set 3 as default. If the water is well water or has a hardness level above 90 dF, we recommend that you use filter and refinement devices.
4.5 Water Hardness Table
Level German dH
1 0-5 0-9 0-6 Wash LED is on.
2 6-11 10-20 7-14 Rinse LED is on.
3 12-17 21-30 15-21 Dry LED is on.
4 18-22 31-40 22-28 End LED is on.
5 23-31 41-55 29-39 Wash and End LEDs are on.
6 32-50 56-90 40-63 Rinse and End LEDs are on.
French dFBritish
dE
Indicator
4.6. Water Softener System
The dishwasher is equipped with a water softener which reduces the hardness in the mains water supply. To find out the hardness level of your tap water, contact your water company or use the test strip (if available).
4.7. Setting
Turn the knob to the “0/Reset” position.
Push the “Start/Pause” button and hold down.
Turn on the machine.
Hold down the “Start/Pause” button until the lights flash and “SL” disappears.
The machine will display the last setting.
Set the level by pushing the “Start/Pause” button.
Switch off the machine to save the setting.
4.8. Detergent usage
Only use detergents specifically designed for domestic dishwashers. Add the recommended amount of detergent for the selected programme to ensure the best performance. Keep your detergents in cool, dry places out of reach of children. See the detergent manufacturer’s instructions for a further information.
EN - 10
Continued use of too much detergent may cause machine damage.
Using little detergent can result in poor cleaning and you can see whitish streaksin hard water. See the detergent manufacturer’s instructions for a further information.

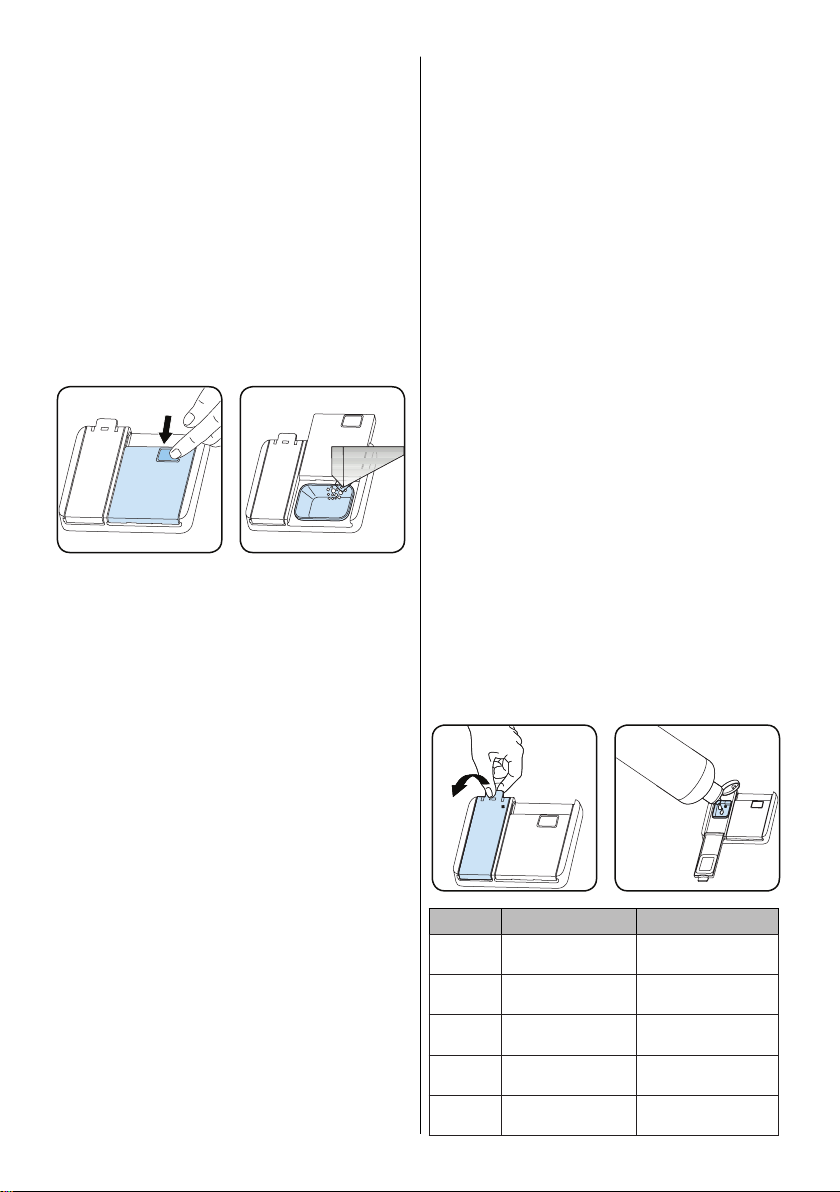

4.9. Filling the detergent
Push the latch to open the dispenser and pour in the detergent.
Close the lid and press it until it locks in place. The dispenser should be refilled just before the start of each programme. If the dishes are heavily soiled, place additional detergent in the pre-wash detergent chamber.
DETERGENT
4.10. Using combined detergents
These products should be used according to the manufacturer’s instructions.
Never put combined detergents into the interior section or the cutlery basket.
Combined detergents contain not only the detergent but also rinse-aid, salt replacement substances and additional components depending on the combination.
We recommend you do not use combined detergents in short programmes. Please use powder detergents in such programmes.
If you encounter problems when using combined detergents, please contact the detergent manufacturer.
When you stop using combined detergents, make sure that water hardness and rinse aid settings are set to the correct level.
4.11. Rinse-aid usage
The rinse aid helps to dry the dishes without streaks and stains. Rinse-aid is required for stain-free utensils and clear glasses. The rinse aid is automatically released during the hot rinse phase. If rinse aid dosage setting set too low, whitish stains remains on dishes and dishes do not dry and washed clean. If rinse aid dosage setting
set too height, you can see bluish layers on glass and dishes.
4.12. Filling the rinse-aid and setting
To fill the rinse aid compartment, open the rinse-aid compartment cap. Fill the compartment with rinse aid to the MAX level and then close the cap. Be careful not to overfill the rinse aid compartment and wipe up any spills.
In order to change the rinse aid level, follow the below steps before turning on the machine:
Turn the knob to the “off” position.
Push the “Start/Pause” button and hold it down.
Turn the knob counter clockwise one step.
Hold down the “Start/Pause” button until
• the LEDs flash twice.
The machine will display the current setting.
Set the level by pushing the “Start/ Pause” button.
Turn the knob to the “off” position to
save the setting.
The factory setting is “4”. If the dishes are not drying properly or are
spotted, increase the level. If blue stains form on your dishes, decrease the level.
Level Brightener Dose Indicator
1 Rinse-aid not
2 1 dose is
3 2 doses are
4 3 doses are
5 4 doses are
dispensed
dispensed
dispensed
dispensed
dispensed
Wash LED is on.
End LED is on.
Start/Pause LED
is on.
Wash and End
LEDs are on.
Wash and Start/
Pause LEDs are on.
EN - 11
5. LOADING YOUR DISHWASHER
For best results, follow these loading guidelines.
Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings.
Manual pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended You can place cups, glasses, stemware, small plates, bowls, etc. in upper basket. Do not lean long glasses against one another or they cannot remain steady and may receive damage. When placing long stem glasses and goblets, lean them against the basket edge or rack and not against other items.
Place all containers such as cups, glasses and pots into the dishwasher with the opening facing downwards otherwise water can collect on items.
If there is cutlery basket in machine, you are recommended to use the cutlery grid in order to obtain the best result. Place all large (pots, pans, lids, plates, bowls etc.) and very dirty items in the lower rack.
WARNING: To avoid any possible injuries, place long-handle and sharp­pointed knives with their sharp points facing down or horizontally on the baskets.
Dishes and cutlery should not be placed above each other.
WARNING: Take care not to obstruct
the rotation of spray arms.
WARNING: Make sure after loading the dishes do not prevent opening the detergent dispenser.
5.1. Recommendations Remove any coarse residue on dishes before placing the dishes in the machine. Start the machine with full load.
Do not overload the drawers or place dishes in the wrong basket.
EN - 12
Upper Basket Height adjustment
Turn the Rail Stop Clips, at the ends of the rails, to the sides to open them (as shown in the image below), then pull out and remove the basket. Change the position of the wheels, then reinstall the basket to the rail, making sure to close the Rail Stop Clips. When the upper basket is in the higher position, large items such as pans can be placed on the lower basket.
Height Adjustable Rack (peg type)
The height adjustable racks enable glasses and cups to be placed on or under the racks. The racks can be adjusted to 2 different heights. Cutlery and utensils can also be placed on the racks horizontally.
1
2
EN - 13
5.2. Alternative basket loads Lower basket
Upper basket
Incorrect Loads
Incorrect loading can cause poor washing and drying performance. Please follow the manufacturer's recommendations for a good performans result.
Unsuitable items for dishwashing
Cigarette ashes, candle leftovers, polish, paint, chemical substances, iron­alloy materials.
••Forks, spoons and knives with wooden, bone, ivory or nacrecoated handles; glued items, items soiled with abrasive, acidic or base chemicals.
Temperature-sensitive plastics, copper or tincoated containers.
Aluminium and silver objects.
Some delicate glasses, ornamental printed porcelains; some crystal items, adhered cutlery, lead crystal glasses, cutting boards, synthetic fibred items.
Absorbent items such as sponges or kitchen rugs.
IMPORTANT: In future, purchase
dishwasher-proof kitchenware.
Important Note for Test Laboratories
For detailed information required for tests according to EN normatives and a softcopy of the manual, please send the model name and serial number to the following address:
dishwasher@standardtest.info
EN - 14
6. PROGRAMME TABLE
Programme
Quick 30 Quick wash programme for lightly soiled dishes.
Eco
(Reference)
Super 50’ 50 A faster programme for dishes which are used daily but are not heavily soiled.
Intensive 117 For heavily soiled dishes.
Duration
(min)
165 Standard programme for dishes which are used daily but are not heavily soiled.
Description
NOTE: PROGRAMME DURATION MAY CHANGE ACCORDING TO THE AMOUNT OF DISHES, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.
Only use powder detergent in short programmes.
Short programmes do not include a drying step.
To assist drying, we recommend partially opening the door after the programme has
finished.
EN - 15
7.. THE CONTROL PANEL
Selection knob to the 'Off' position. During a delay, the light corresponding to the remaining time is switched on.
7.1. Changing a Programme
Follow the steps below to change a programme while in operation.
Rotate the Programme Selection Knob (3) to switch the machine on and select suitable programme for your dishes. When the knob is in the 'Off' position, the machine will not operate.
Press the Start/Pause button (2) to start the selected programme. The Start/Pause light will switch off and the Wash light will illuminate. If the door of your machine is opened while a programme is in operation, the Start/Pause light will flash.
NOTE: Press and hold the Delay button (1) for 3 seconds to activate the Half Load function, which shortens the duration of a programme. Press and hold the button again for 3 seconds to cancel it.
NOTE: If an extra feature is used, such as the Delay or Half Load, (1) on the most recent wash programme, this feature will remain active on the next selected programme. To cancel this feature on the newly selected wash programme, turn the Programme Selection Knob to the 'Off' position, then turn the machine on. Extra features can be activated with the newly selected programme.
Delaying the Programme
Press the Delay button to delay the start time of a programme for 3, 6 or 9 hours. Pressing the button once will delay the start time for 3 hours, pressing twice will delay for 6 hours, and pressing a third time will delay the start time for 9 hours. If the button is pressed for a fourth time, there will be no delay. Press the Start/Pause button to activate the delay. The programme can be selected first and the delay time after, or vice versa. To cancel or change the delay time, press the Start/Pause button first, then select a new delay time. The delay time can be cancelled by turning the Programme
Press the Start/Pause button.
After the programme stops,
select a new programme using
the Programme Selection Knob.
Press the Start/Pause button to start the newly selected programme.
The new programme will resume the course of the old programme.
EN - 16
7.2. Cancelling a Programme
Follow the steps below to cancel a programme while in operation.
Press and hold the Start/Pause button
for 3 seconds.
While the programme is cancelling,
the Dry light will illuminate. The water
discharge process will start and
continue for 30 seconds.
When the programme is
cancelled, the End light will
illuminate.
NOTE: Do not open the door before the
programme is complete.
NOTE: Leave the door slightly open at the end of a wash programme to speed up the drying process.
NOTE: If the door of the machine is opened or the power is cut off during a wash programme, the programme will continue when the door is closed or when the power returns.
NOTE: If the power is interrupted or if the machine door is opened during the drying process, the programme will terminate and your machine will now be ready for a new programme selection.
7.3. Switching the Machine Off
Disconnect the plug and
turn off the water tap.
When the End light illuminates, turn
the Programme Selection knob
to the 'Off' position to switch your
machine off.
EN -17
8. CLEANING AND MAINTENANCE
Cleaning your dishwasher is important to maintain the machine’s service life Make sure that the water softening setting (If available) is done correctly and correct amount of detergent is used to prevent limescale accumulation. Refill the salt compartment when the salt sensor light comes on.
Oil and limescale may build up in your Dishwasher over time. If this occurs:
Fill the detergent compartment but do not load any dishes. Select a programme which runs at high temperature and run the Dishwasher empty. If this does not clean your Dishwasher sufficiently, use a cleaning agent designed for use with dishwashers.
To extend the life of your dishwasher, clean the appliance regularly on each month
Wipe the door seals regularly with a damp cloth to remove any accumulated
residue or foreign objects.
8.1. Filters
Clean the filters and spray arms at least once a week. If any food waste remains or foreign objects on the coarse and fine filters, remove them and clean them thoroughly with water.
Micro Filter b) Coarse Filter
a) c) Metal Filter
To remove and clean the filter combination, turn it counter clockwise and remove it by lifting it upwards (1).Pull the coarse filter out of the micro filter (2).Then pull and remove the metal filter (3).Rinse the filter with lots of water until it is free of residue. Reassemble the filters. Replace the filter insert, and
rotate it clockwise (4).
Never use your dishwasher without a filter.
Incorrect fitting of the filter will reduce the washing effectiveness.
Clean filters are necessary for proper running of the machine.
8.2. Spray arms
Make sure that the spray holes are not clogged and that no food waste or foreign object is stuck to the spray arms. If there is any clogging,remove the spray arms and clean them under water. To remove the upper spray arm undo the nut holding it in position by turning it clockwise and pulling it downwards. Make sure that the nut is properly tightened when refitting the upper
spray arm.
1 2
3 4
c
b
a
EN - 18
8.3 Drain Pump
Large food residues or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will then be above the filter.
Warning Risk of cuts!
When cleaning the waste water pump, ensure that you do not injure yourself on pieces of broken glass or pointed implements.
In this case:
1. First always disconnect the appliance from the power supply.
2. Take out baskets.
3. Remove the filters.
4. Scoop out water, use a sponge if
required.
5.Check the area and remove any foreign objects.
6. Install filters.
7. Re-insert baskets.
EN -19
9. TROUBLESHOOTING
FAULT POSSIBLE CAUSE TROUBLESHOOTING
Your Dishwasher is not plugged in. Plug your Dishwasher in.
The programme does
not start.
Water remains inside
the machine.
Machine stops during
washing.
Shaking and hitting
noises are heard during
a wash operation.
Your Dishwasher is not switched on.
Fuse blown. Check your indoor fuses.
Water inlet tap is closed. Turn on the water inlet tap.
Your Dishwasher door is open. Close the Dishwasher door.
Water inlet hose and machine filters
The programme is not finished yet. Wait until the programme is finished.
The spray arm is hitting the dishes in
Dishes placed incorrectly, sprayed
water not reaching affected dishes.
are clogged.
Water drain hose is clogged or
Dishes leaning each another.
twisted.
The filters are clogged. Clean the filters.
Power failure. Check mains power.
Water inlet failure. Check water tap.
the lower basket.
Switch your Dishwasher on by pressing the
Check the water inlet hose and machine
filters and make sure they are not clogged.
Check the drain hose, then either clean or
Move or remove items blocking the spray
Place dishes as instructed in the section on
On/Off button.
untwist it.
arm.
Do not overload baskets.
loading your dishwasher.
Partial food wastes
remain on the dishes.
Not enough detergent used.
Wrong wash programme selected.
Spray arms clogged with food waste.
Filters or water drain pump clogged
or filter misplaced.
EN - 20
Use the correct amount of detergent, as
instructed in the programme table.
Use the information in the programme table
to select the most appropriate programme.
Clean the holes in the spray arms with thin
Check the drain hose and filters are
objects.
correctly fitted.
FAULT POSSIBLE CAUSE TROUBLESHOOTING
Whitish stains remains
on dishes.
Dishes do not dry.
Rust stains form on the
dishes.
Detergent remains in the
detergent compartment.
Not enough detergent used.
Rinse aid dosage and/or water
softener setting set too low.
High water hardness level. Increase water softerner level and add salt.
Salt compartment cap not closed
Drying option is not selected. Select a programme with a drying option.
Rinse aid dosage set too low. Increase rinse aid dosage setting.
Stainless-steel quality of the dishes
High level of salt in wash water.
Salt compartment cap not closed
Dishwasher while filling it with salt.
Detergent was added when the
detergent compartment was wet.
properly.
is insufficient.
properly.
Too much salt spilled in the
A poor mains grounding. Consult a qualified electrician immediately.
Use the correct amount of detergent, as
instructed in the programme table.
Increase rinse aid and/or water softener
Check that the salt compartment cap is
Use only dishwasher-proof sets.
Adjust the water hardness level using water
Check that the salt compartment cap is
Use funnel while filling salt to the
compartment to avoid spillage.
Make sure detergent compartment is dry
level.
closed properly.
hardness table.
closed properly.
before use.
EN - 21
AUTOMATIC FAULT WARNINGS AND WHAT TO DO
TROUBLE CODE
POSSIBLE FAULT WHAT TO DO
Wash End
Start/
Pause
Make sure the water inlet tap is open and
Insufficient water
Continuous water input
Inability to discharge water
Faulty heater and heater sensor Contact for service.
Overflow
Faulty electronic card Contact for service.
Separate the inlet hose from the tap and
Contact for service if the error continues.
Close the tap and contact for service.
Water discharge hose and filters may be
If the error continues, contact for service.
Unplug the machine and close the tap.
water is flowing.
clean the filter of the hose.
clogged.
Cancel the program.
Contact for service.
Contact for service.
The installation and repairing procedures should always carried out by the Authorised Service Agent in order to avoid possible risks. The manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorised persons. Repairs may be carried out by technicians only. If a component has to be replaced, ensure that only original spare parts are used.
Improper repairs or use of non-original spare parts may cause considerable damage and put the user at considerable risk.
Contact information for your customer service can be found on the back of this document.
Function-relevant genuine spare parts according to the corresponding Ecodesign order can be obtained from Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Economic Area.
EN - 22
10. PRACTICAL INFORMATION
1. When the machine isn’t in operation:
Disconnect the plug and close the tap.
Leave the door slightly open to prevent odour formation.
2. Select the dry option to remove water droplets.
3. Place dishes in the machine properly to achieve the best energy consumption, washing
and drying performance. Please see the programme and consumption table for more information.
4. Rinse dirty dishes before placing them in the dishwasher.
5. Only use the Prewash programme when necessary.
6. Do not place the machine near a refrigerator because it will reach high temperatures.
7. If the machine is located in an area that is at risk of freezing, close the tap, disconnect
the inlet hose from the tap and drain the water inside the hose and the machine completely.
EN - 23
11 . THE PRODUCT FICHE
Supplier's trade mark
Supplier's model
Capacity of dishwasher 12
The energy efficiency class A++
Annual energy consumption in kWh per year (AEc) ( 280 Cycle )* 258
Energy consumption (Et) (kWh per cycle) 0,90
Off-mode power consumption (W) (Po) 0,50
Left-on mode power consumption (W) (Pı) 1,00
Annual water consumption in litres per year (AWc) ( 280 Cycle )** 3360
Drying efficiency class*** A
Standard programme name**** Eco
Programme time for standard cycle ( min) 165
Duration of the left-on mode (Tı ) (min) -
Airborne acoustical noise emissions ( dB(A) re 1 pW )
Freestanding/Built-in Freestanding
LP8 650 SS TTH - LP8 650 WH TTH
TEKA
52
* Energy consumption 258 kwh per year, based on 280 standard cleaning cycles using cold water fill and the consumption of low power modes. Actual energy consumption will depend on how the appliance is used.
** Water consumption 3360 litres per year based on 280 standard cleaning cycles. Actual water consumption will depend on how appliance is used.
*** Drying efficiency class A on a scale from G (least efficient) to A (most efficient). **** The “Eco” is the standard cleaning cycle to which the information in the label and the
fiche relates. This programme is suitable to clean normally soiled tableware and it is the most efficient programme in terms of combined energy and water consumption.
EN - 24
Loading...
