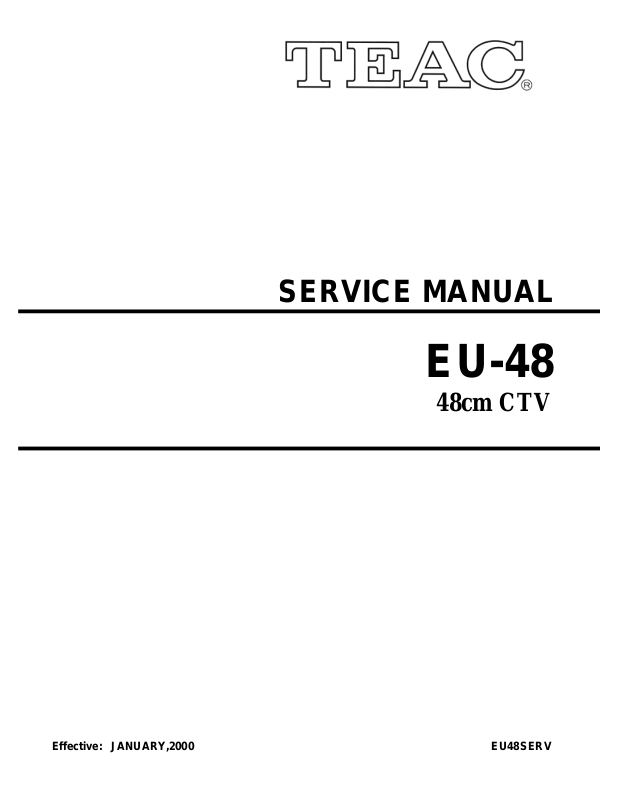

TEAC EU-48 Service manual

SERVICE MANUAL

EU-48

48cm CTV

Effective: JANUARY,2000 EU48SERV

1

DO NOT CHANGE ANY MODULE UNLESS THE SET IS SWITCH OFF

The mains supply side of the switch mode power supply transformer is live.
Use an isolating transformer.
The receivers fulfill completely the safety requirements.

Safety precautions:

Servicing of this TV should only be carried out by a qualified person.

- Components marked with the warning symbol on the circuit diagram are critical for safety and must only be replaced with an identical
component.

- Power resistor and fusable resistors must be mounted in an identical manner to the original component.

- When servicing this TV, check that the EHT does not exceed 26kV.

TV Set switched off:

Make short-circuit between HV-CRT clip and CRT ground layer.
Short C804 (150mF) before changing IC802 or other components in primary side of SMPS.

Measurements:

Voltage readings and oscilloscope traces are measured under following conditions.
Antenna signal 60dB from colourbar generator. (100% white, 75% colour saturation)
Brightness, contrast, colour set for a normal picture.
Mains supply, 220VAC, 50Hz.

PERI-TV SOCKET

SCART 1 (SC050) SCART 2 (SC051)

1 Audio right output 0.5Vrms / 1K 1 Audio right output 0.5Vrms / 1K
2 Audio right input 0.5Vrms / 10K 2 Audio right input 0.5Vrms / 10K
3 Audio left output 0.5Vrms / 1K 3 Audio left output 0.5Vrms / 1K
4 Ground AF 4 Ground AF
5 Ground Blue 5 Ground Blue
6 Audio left input 0.5Vrms / 10K 6 Audio left input 0.5Vrms / 10K
7 Blue input 0.7Vpp / 75ohm 7 Blue input 0.7Vpp / 75ohm
8 AV switching input 0-12VDC /10K 8 AV switching input 0-12VDC /10K
9 Ground Green 9 Ground Green
10 - 10 ­11 Green input 0.7Vpp / 75ohm 11 ­12 - 12 ­13 Ground Red 13 Ground Red
14 Ground Blanking 14 Ground Blanking
15 Red input 0.7Vpp / 75ohm 15 ­16 Blanking input 0-0.4VDC, 1-3VDC / 75ohm 16 ­17 Ground CVS output 17 Ground CVS output
18 Ground CVS input 18 Ground CVS input
19 CVS output 1Vpp / 75ohm 19 CVS output 1Vpp / 75ohm
20 CVS input 1Vpp / 75ohm 20 CVS input 1Vpp / 75ohm
21 Ground 21 Ground

* * ALL WIRES TO FRONT PANEL & LOUD SPEAKERS MUST BE ZIP-TIED TOGETHER AFTER ANY KIND OF REPAIREMENT

1. INTRODUCTION

11AK19 is a 90ø and 110ø chassis capable of driving 20-21,24,25,28-29,32,33 tubes at appropriate currents.
The chassis is capable of working in both PAL and SECAM. The sound system is capable of giving 6watts
RMS output into a load of 8ohms.
One 8 page simple TELETEXT, TOPTEXT and FASTEXT is provided.
The chassis is equipped with 21-pin scart connectors which can accept via scart the SVHS format from VCRs so equipped.

2. SMALL SIGNAL PART WITH TDA884X

The TDA8840/8842/8844 combine all small signal functions required for a colour TV receiver, except tuning.

2.1. Vision IF amplifier

The IF-amplifier contains 3 AC-coupled control stages with a total gain control range which is higher than 66dB.
The sensitivity of the circuit is comparable with that of modern IF-IC s. The video signal is demodulated by means of a PLL
carrier regenerator. This circuit contains a frequency detector and a phase detector. The AFC output is obtained by using the
VCO control voltage of the PLL and can be read via the I²C-bus. For fast search tuning systems the window of
the AFC can be increased with a factor 3. The setting is realised with the AFW bit.
Depending on the type the AGC-detector operates on top-sync level (single standard versions) or on top sync and top
white-level (multi standard versions). The demodulation polarity is switched via the I²C-bus. The AGC detector time-constant capacitor
is connected externally. This mainly because of the flexibility of the application. The time-constant of the AGC system during positive

2

modulation is rather long to avoid visible variations of the signal amplitude. To improve the speed of the AGC system a circuit has
been included which detects whether the AGC detector is activated every frame period. When during 3 frame periods no action is
detected the speed of the system is increased. For signals without peak white information the system switches automatically to a
gated black level AGC. Because a black level clamp pulse is required for this way of operation the circuit will only switch to black level
AGC in the internal mode.
The circuits contain a video identification circuit which is independent of the synchronisation circuit. Therefore search tuning is
possible when the display section of the receiver is used as a monitor. The ident output is supplied to the tuning system via
the I²C-bus. The video ident circuit can be made less sensitive by means of the STM bit. This mode can be used during search tuning
to avoid that the tuning system will stop at very weak input signals.

2.2. Video Switches

The circuits have two CVBS inputs (internal and external CVBS) and Y/C input. When the Y/C input is not required the Y input can be
used as third CVBS input. The selection of the various sources is made via the I²C-bus. The circuit has one CVBS output.

2.3. Sound Circuit

The sound band pass and trap filters have to be connected externally. The filtered intercarrier signal is fed to a limiter circuit
and is demodulated by means of a PLL demodulator. This PLL circuit tunes itself automatically to the incoming carrier signal
so that no adjustment is required.
The volume is controlled via the I²C-bus. The deemphasis capacitor has to be connected externally. The non-controlled audio
signal can be obtained from this pin. The FM demodulator can be muted via the I²C-bus. This function can be used to switch-off
the sound during a channel change so that high output peaks are prevented. The TDA8840/8842 contain an automatic volume
levelling (AVL) circuit which automatically stabilises the audio output signal to a certain level which can be set by the viewer by means
of the volume control. This function prevents big audio output fluctuations due to variations of the modulation depth of the transmitter.
The AVL function can be activated via the I²C-bus.

2.4. Synchronisation circuit

The sync seperator is preceded by a controlled amplifier which adjusts the sync pulse amplitude to a fixed level. These pulses are fed
to the slicing stage which is operating at 50% of the amplitude. The separated sync pulses are fed to the first phase detector and to the
coincidence detector. This coincidence detector is used to detect whether the line oscillator is synchronised and can also be used for
transmitter identification. The first PLL has a very high statical steepness so that the phase of the picture is independent of the line
frequency.
The horizontal output signal is generated by means of an oscillator which is running at twice the line frequency. Its frequency is divided
by 2 to lock the first control loop to the incoming signal. The time-constant of the loop can be forced by the I²C-bus (fast or slow).
If required the IC can select the time-constant depending on the noise content of the incoming video signal.
To protect the horizontal output transistor, the horizontal drive is immediately switched off when a power-on-reset is detected.
The drive signal is switched-on again when the normal switch-on procedure is followed.
Via the I²C-bus, adjustments can be made of the horizontal and vertical geometry. The vertical sawtooth generator drives the
vertical output drive circuit which has a differrential output current. For the EW drive a single ended current output is available.
When the horizontal scan is reduced to display 4 : 3 pictures on a 16 : 9 picture tube an accurate video blanking can be switched on
to obtain well defined edges on the screen.
Overvoltage conditions can be detected via the EHT tracking pin.When an overvoltage condition is detected the horizontal output
drive signal will be switched-off via the slow stop procedure but it is also possible that the drive is not switched-off and that just a
protection indication is given in the I²C-bus output byte. The choice is made via the input bit PRD.

2.5. Chroma and Luminance processing

The circuits contain a chroma bandpass and trap circuit. The filters are realised by means of gyrator circuits and they are
automatically calibrated by comparing the tuning frequency with the X-tal frequency of the decoder.
The luminance delay line and the delay for the peaking circuit are also realised by means of gyrator circuits.
The centre frequency of the chroma bandpass filter is switchable via the I²C-bus so that the performance can be optimised for
front-end signals and external CVBS signals.
During SECAM reception the centre frequency of the chroma trap is reduced to get a better suppression of the SECAM
carrier frequencies.

2.6. Colour Decoder

The decoder contains an alignment-free X-tal oscillator, a killer circuit and two colour difference demodulators. The 90° phase shift for
the reference signal is made internally.
The IC contains an automatic colour limiting (ACL) circuit which prevents that oversaturation occurs when signals with a high
chroma-to-burst ratio are received. The ACL circuit is designed such that it only reduces the chroma signal and not the burst signal.
This has the advantage that the colour sensitivity is not affected by this function.
The base-band delay line is integrated in the PAL/SECAM IC s.
The demodulated colour difference signals are internally supplied to the delay line. The matrixed signals are externally available.
The colour difference matrix switches automatically between
PAL/SECAM and NTSC, however, it is also possible to fix the matrix in the PAL standard.
Which colour standard the IC can decode depends on the external X-tals. The X-tal to be connected to pin 34 must have a frequency
of 3.5 MHz (NTSC-M, PAL-M or PAL-N) and pin 35 can handle X-tals with a frequency of 4.4 and 3.5 MHz. To prevent calibration
problems of the horizontal oscillator the external switching between the 2 X-tals should be carried out when the oscillator is forced to
pin 35. For a reliable calibration of the horizontal oscillator it is very important that the X-tal indication bits (XA and XB) are not
corrupted. For this reason the X-tal bits can be read in the output bytes so that the software can check the I²C-bus transmission.

2.7. RGB output circuit and black-current stabilisation

The colour-difference signals are matrixed with the luminance signal to obtain the RGB-signals. The TDA 884X device has one linear
RGB input. This RGB signal can be controlled on contrast and brightness.
The output signal has an amplitude of about 2 volts black-to-white at nominal input signals and nominal settings of the controls.
To increase the flexibility of the IC it is possible to insert OSD and/or teletext signals directly at the RGB outputs.
This insertion mode is controlled via the insertion input (pin 26 in the S-DIP 56- and pin 38 in the QFP-64 level). This blanking action
at the RGB outputs has some delay which must be compansated externally.
To obtain an accurate biasing of the picture tube a Continuous Cathode Calibration circuit has been developed.
This function is realised by means of a 2-point black level stabilisation circuit.
When the TV receiver is switched-on, the RGB output signals are blanked and the black current loop will try to set the right picture
tube bias levels.Via the AST bit a choice can be made between automatic start-up or a start-up via the m-processor.

3

3. TUNER

Either a PLL or a VST tuner is used as a tuner.
UV1316 (VHF/UHF) is used as a PLL tuner. For only PALM/N, NTSC M applications UV 1336 is used as the PLL tuner. UV 1315 (VHF/
UHF) is used as a VST Tuner.

Channel coverage of UV1316:

BAND

Low Band E2 to C 48.25 to 82.25 (1) S01 to S08 69.25 to 154.25

Mid Band E5 to E12 175.25 to 224.25 S09 to S38 161.25 to 439.25

High Band E21 to E69 471.25 to 855.25 (2) S39 to S41 447.25 to 463.25

(1). Enough margin is available to tune down to 45.25 MHz.
(2). Enough margin is available to tune up to 863.25 MHz.

OFF-AIR CHANNELS CABLE CHANNELS

CHANNELS FREQUENCY CHANNELS FREQUENCY
RANGE (MHz) RANGE (MHz)

Noise Typical Max. Gain Min. Typical Max.

Low band : 5dB 9dB All channels : 38dB 44dB 52dB
Mid band : 5dB 9dB Gain Taper (of-air channels) : - - 8dB
High band : 6dB 9dB

Channel Coverage UV1336:

BAND CHANNELS FREQUENCY

RANGE (MHz)

Low Band 2 to D 55.25 to 139.25

Mid Band E to PP 145.25 to 391.25

High Band QQ to 69 397.25 to 801.25

Noise is typically 6dB for all channels. Gain is minimum 38dB and maximum 50dB for all channels.

Channel Coverage of UV1315:

BAND

Low Band E2 to C 48.25 to 82.25 (1) S01 to S10 69.25 to 168.25

Mid Band E5 to E12 175.25 to 224.25 S11 to S39 231.25 to 447.25

High Band E21 to E69 471.25 to 855.25 (2) S40 to S41 455.25 to 463.25

(1). Enough margin is available to tune down to 45.25 MHz.
(2). Enough margin is available to tune up to 863.25 MHz.

Noise Typ. Max. Gain Min. Typ. Max.

Low band : 6dB 9dB All Channels 38dB 44dB 50dB
Mid band : 6dB 10dB Gain Taper - - 8dB
High band : 6dB 11dB (off-air channels)

4.VIDEO SWITCH TEA6415C

In case of three or more external sources are used, the video switch IC TEA6415C is used. The main function of this device is to switch
8 video input sources on the 6 outputs.
Each output can be switched on only one of each input. On each input an alignment of the lowest level of the signal is made (bottom
of sync. top for CVBS or black level for RGB signals).
Each nominal gain between any input and output is 6.5dB.For D2MAC or Chroma signal the alignment is switched off by forcing, with
an external resistor bridge, 5VDC on the input. Each input can be used as a normal input or as a MAC or Chroma input (with external
resistor bridge). All the switching possibilities are changed through the BUS.
Driving 75ohm load needs an external resistor.
It is possible to have the same input connected to several outputs.

OFF-AIR CHANNELS CABLE CHANNELS

CHANNELS FREQUENCY CHANNELS FREQUENCY

RANGE (MHz) RANGE (MHz)

5. AM DEMODULATOR TDA9830

The TDA9830 is designed for AM-sound demodulation used in L and L standard.

4

Sound IF Input:

The sound IF amplifier consists of three AC-coupled differential amplifier stages each with approximately 20dB gain.
At the output of each stage is a multiplier for gain controlling. The overall control range is approximately -6 to +60dB and the
frequency response (-3dB) of the IF amplifier is approximately 6 to 70MHz. The steepness of gain control is approximately 10mV/dB.

IF AGC:

The automatic gain control voltage to maintain the AM demodulator output signal at a constant level is generated by a mean
level detector.The AGC-detector charges and discharges the capacitor at pin 3 controlled by the output signal of the
AM-demodulator compared to an internal reference voltage.The maximum charge/discharge current is approximately 5 mA.

AM-demodulator

The IF amplifier output signal is fed to a limiting amplifier (two stages) and to a multiplier circuit.
However the limiter output signal (which is not any more AM modulated) is also fed to the multiplier, which provides AM
demodulation (in phase demodulation). After lowpass filtering (fg @ 400kHz) for carrier rejection and buffering,
the demodulator output signal is present at pin 6.

Audio Switch

This circuit is an operational amplifier with three input stages and internal feedback network determining gain (0dB) and
frequency response (fg @ 700kHz). Two of the input stages are connected to pin 7 and pin 9, the third input stage to an
internal reference voltage. Controlled by the switching pins 10 and 12, one of the three input stages can be activated and a
choice made between two different AF signals or mute state. The selected signal is present at pin 8. The decoupling capacitors
at the input pins are needed, because the internally generated bias voltage for the input stages must not be influenced
by the application in order to avoid DC-plop in case of switching.

Reference Circuit:

This circuit is a band gap stabiliser in combination with a voltage regulation amplifier, which provides an internal reference voltage
of about 3.6V nearly independent from supply voltage and temperature. This reference voltage is filtered by the capacitor at
pin 4 in order to reduce noise. It is used as a reference to generate all important voltages and currents of the circuit.
For application in 12V power supply concepts, there is an internal voltage divider in combination with a Darlington transistor in
order to reduce the supply voltage for all IC function blocks to approximately 6V.

6. DIGITAL TV SOUND PROCESSOR TDA9875

The TDA9875 is a single-chip Digital TV Sound Processor.
Supported standards are M, B/G, D/K, I and L.

Description of the demodulator and decoder section:
SIF Input:

Two input pins are provided, SIF1 e.g. for terrestrial TV and SIF2 e.g. for a satellite tuner. The selected signal is passed through an
AGC circuit and then digitized by an 8-bit ADC operating at 24.576MHz.

AGC:

The gain of the AGC amplifier is controlled from the ADC output by means of a digital control loop employing hysteresis.
The AGC has a fast attack behaviour to prevent ADC overloads and slow decay behaviour AGC oscillations.
For AM demodulation AGC must be switched off.

Mixer

The digitized input signal is fed to the mixers, which mix one or both input sound carriers down to zero IF. A 24-bit control word for
each carrier sets the required frequency.

FM and AM Demodulation

An FM or AM input signal is fed via a band-limiting filter to a demodulator that can be used for either FM or AM demodulation.
Apart from the standard (fixed) de-emphasis characteristic, an adaptive de-emphasis is available for encoded satellite programs.
A stereo decoder recovers the left and right signal channels from the demodulated sound carriers.

FM Identification:

The identification of the FM sound mode is performed by AM synchronous demodulation of the pilot signal and narrow-band detection
of the identification frequencies. The result is available via the I²C-bus interface.

NICAM Demodulation:

The NICAM signal is transmitted in a DQPSK code at a bit rate of 728 kbit/s. The NICAM demodulator performs DQPSK
demodulation and feeds the resulting bitstream and clock signal onto the NICAM decoder and, for evaluation purposes, to PCLK
(pin 1) and NICAM (pin 2).

NICAM Decoder:

The device performs all decoding functions in accordance with the EBU NICAM 728 specification. After locking to the frame
alignment word, the data is descrambled by applying the defined pseudo-random binary sequence; the device will then synchronise
to the periodic frame flag bit C0.
The status of the NICAM decoder can be read out from the NICAM status register by the user. The OSB bit indicates that the
decoder has locked to the NICAM data. The VDSP bit indicates that the decoder has locked to the NICAM data and that the
data is valid sound data.

7. SOUND OUTPUT STAGE TDA2614/TDA2615/TDA2616Q

TDA2614 is used as the AF output amplifier for mono applications. It is supplied by ±12VDC coming from a separate winding in the
SMPS transformer. An output power of 2*6W (THD=0.5%) can be delivered into an 8ohm load.
TDA2615 is used as the AF output amplifier for stereo applications. It is supplied by
±12VDC coming from a separate winding in the SMPS transformer. An output power of 2*6W (THD=0.5%)
can be delivered into an 8ohm load.
TDA2616Q is used as the AF output amplifier for stereo and dolby prologic applications. It is supplied by ±16VDC coming from
a separate winding in the SMPS transformer. An output power of 2*12W (THD=0.5%) can be delivered into an 8ohm load.

5

8. VERTICAL OUTPUT STAGE WITH TDA8351/8356

The TDA8351/8356 vertical deflection circuit can be used in 90° and 110° deflection systems with field frequencies from
50 up to 120Hz. With its bridge configuration the deflection output can be DC coupled with few external components.
Only a single supply voltage for the scan and a second supply for the flyback are needed. The TDA8356 is intended for 90°
systems and the TDA8351 is intended for 110° systems.
The drive voltage is amplified by an amplifier and fed to two amplifiers, one is inverting and the other is a non inverting amplifier.
The outputs (pins 7 and 4) are connected to the series connection of the vertical deflection coil and feedback resistor Rsense
(R702//R703). The voltage across Rsense is fed via pin 9 to correction amplifier, to obtain a deflection current which is proportional
to the drive voltage. The supply voltage for the TDA8351/8356 is 15VDC at pin 3. The supply voltage generator has a separate
supply voltage of 45VDC at pin 6.

9. VIDEO OUTPUT AMPLIFIER TDA6107Q

The TDA6107Q consists of three monolithic video output amplifiers. The amplifier can be seen as an operational amplifier
with negative feedback.
The advantage of negative feedback is that the amplifier characteristics do not play an important role up to certain frequencies.
The internal flash diodes protect the amplifiers against flash over in the picture tube.
The only protections required at the cathode outputs are a flash resistor and a sparkgap.
The TDA6107Q has an internal thermal protection circuit which gives a decrease of the slew rate at high temperatures.
Furthermore, the device needs only one power supply voltage (Vdd).
In contrast to previous types of DMOS video amplifiers, all the external resistors (Rf, Ri and Ra) are integrated, so the gain is fixed
and saves 9 resistors.
Furthermore, the reference voltage is integrated, it saves a resistor divider and a decoupling capacitor. So, the replacement
value of the TDA6107Q is very high.
The TDA6107Q is provided with a black current data pin. Since TDA884X is used as drive device, no adjustments are required
for gain and black setting, as the TDA884X has I²C white point adjustment and black current set-up.

10. SINGLE/MULTISTANDARD VIF/SIF-PLL and FM-PLL/AM
DEMODULATOR TDA9818

The TDA9818is an IC for multistandard vision IF signal processing, sound AM and FM demodulation.
It is a gain controlled wide band VIF-amplifier (AC-coupled). It is applicable for IF frequencies of 38.9 MHz, 45.75 MHz and 58.75 MHz.
True synchronous demodulation is provided with active carrier regeneration. It has a VCO frequency which can be switchable
between L and L accent (alignment external) picture carrier frequency.
The TDA9818 has a SIF input for single reference QSS mode (PLL controlled). SIF AGC detector is to provide gain controlled
SIF amplifier. The AM demodulator is without extra reference circuit. The supply voltage is +5VDC at pin 21.

11. COMBFILTER SAA4961

The SAA 4961 is a one-chip, PAL/NTSC combfilter IC with internal delay lines, filters, clock control, synchronisation and
signal switches. The combfilter function is realised in a switched capacitor technique, so it has time discrete but amplitude
continuous processing.
The Y/CVBS input is first clamped and then fed to the delay-line and combfilter section via a low pass pre-filter.
This filter can be bypassed via the external LPF-on pin. This pin is internally pulled up, to put the filter default on. The Y/CVBs
input is also fed to the sync seperator, where horizontal and vertical reference pulses are made.
Bypass mode can be forced via BYP (pin 3).FSC (pin 1) is the subcarrier input which is connected to the colour decoder.
Input FSCSW pin indicates if fsc or 2*fsc is used.
The Sys1,2 pins (20, 23) indicate which system standard is processed. Sys2 is internally pulled up, Sys1 is internally pulled down.
Therefore when the Sys1,2 inputs are left open, automatically PAL 4.43MHz is forced.
SAA4961output pin 15 CVBS can be used for parallel-synced teletext decoders, to guarantee that the teletext display always
has a correct timing relation with the main picture. Comb filter is disabled by setting SAA4961 pin 3 BYP high.

12. POWER SUPPLY (SMPS)

The DC voltages required at various parts of the chassis are provided by an SMPS transformer controlled by the IC MC44604
which is designed for driving, controlling and protecting switching transistor of SMPS. The transformer produces 150/115V for
FBT input, ±14V for audio output IC, S+5V for microcontroller, +15V for vertical output (field scan) and +33V for tuner and some
other ICs and transistors.

13. MICROCONTROLLER SDA525X

The device is TV TEXT tuning and control system based on the SDA 525X TV TEXT microcontroller. It is designed for a low
cost mono TV-SET with analogue picture and sound control. Neverthless the system offers an on screen display (OSD) and
IR remote control of all functions.

SDA525X has the following features:

- Display of program number, channel number, TV standard, analogue values, sleep timer, parental control, and mute is done by OSD.

- Single LED for IR active, standby and on mode indication.

- 1 Control line to select external source.

- 3 Control lines for TV standard selection.

- Frequency synthesis tuning (62.5 kHz steps)

- 192 step fine tuning

- Channels corresponding to standards B/G, OIRT, L and I (I+)

- Mono sound control by analogue voltage

- System configuration with service mode

14. SERIAL ACCESS CMOS 8K (1024*8) EEPROM ST24C08

The ST24C08 is a 8Kbit electrically erasable programmable memory (EEPROM), organised as 4 blocks of 256*8 bits.
The memory is compatible with the I²C standard, two wire serial interface which uses a bi-directional data bus and serial clock.
The memory carries a built-in 4 bit, unique device identification code (1010) corresponding to the I²C bus definition.
This is used together with 1 chip enable input (E) so that up to 2*8K devices may be attached to the I²C bus and selected individually.

6

15. CLASS AB STEREO HEADPHONE DRIVER

The TDA1308 is an integrated class AB stereo headphone driver contained in a DIP8 plastic package.
The device is fabricated in a 1 mm CMOS process and has been primarily developed for portable digital audio applications.

16. SAW FILTERS
Saw filter type : Model:
G1965M : PAL-SECAM B/G MONO
G3962M : PAL-SECAM B/G GER&NIC STEREO, PAL I NIC STEREO, INT-1
G1984 : PAL-SECAM B/G GER&NIC STEREO INT-2
J1951M : PAL-I MONO
J3950M : PAL-I NIC STEREO
J1956M : PAL-I MONO
K2955M : PAL-SECAM B/G-D/K MONO, PAL-SECAM B/G-D/K-I, MONO, PAL-SECAM B/G-D/K-L MONO
K2958M : PAL-SECAM B/G-D/K (38) MONO
K2962M : PAL-SECAM B/G-L/L MONO
G3957M : PAL-SECAM B/G-L/L GER&NIC BG/L STEREO
K6256K : PAL-SECAM B/G-D/K-I-L/L MONO, PAL-SECAM B/G-D/K-I, L/L GER&NIC BG/L STEREO,

PAL-SECAM B/G-D/K-I-L/L I, NICAM STEREO, PAL-SECAM B/G-D/K-I-L/L GER&NIC I-B/G-L, STEREO

K6259K : PAL-SECAM B/G-D/K-I-M/N (EURO) MONO
M1963M : PAL M/N MONO, NTSC M MONO, PAL M/N-NTSC M MONO

17. BTSC STEREO/SAP/DBX-DECODER and AUDIO PROCESSOR TDA9855

The TDA9855 is a BTSC stereo/SAP/dbx decoder and audio processor. It performs all functions to transform the composite baseband
signal into the appropriate audio output signals to line out and to the loudspeaker output stages.

IC DESCRIPTIONS AND INTERNAL BLOCK DIAGRAM

n TDA8840/8842/8844
n TUNER (UV1315, UV1316, UV1336)
n TEA6415C
n TDA9830
n TDA2614/2615/2616Q
n TDA8351/8356
n TDA6107Q
n SAA4961
n MC44604
n SDA525X
n TDA9875
n TDA9818
n ST24C08
n TDA1308
n G1965M
n TDA9855

TDA1308

TDA8840/8842/8844:

The TDA884X is IýC-bus controlled single chip TV processor which is intended to be applied in PAL, NTSC, PAL/NTSC and
multi-standard television receivers. These IC s are nearly pin compatible with the TDA837X TV processors but have a higher
degree of integration because the delay line (TDA4665 function) and the SECAM decoder have been integrated. In addition to
these functions some additional features have been added like Continuous Cathode Calibration (2-point black current loop
which results in an accurate biasing of the 3 guns), adjustable luminance delay time, blue stretching and dynamic skin tone control.

Features:

n Vision IF circuit with PLL demodulator
n Alignment-free multi-standard FM sound demodulator (4.5 MHz to 6.5 MHz)
n Audio switch
n Flexible source selection with CVBS switch and Y(CVBS)/C input so that a comb filter can be applied
n Integrated chrominance trap circuit
n Integrated luminance delay line
n Asymmetrical peaking in the luminance channel with a noise coring function
n Black stretching of non-standard CVBS or luminance signals
n Integrated chroma band-pass filter with switchable center frequency
n Blue stretch circuit which offsets colours near white towards blue
n RGB control circuit with Continuous Cathode Calibration and white point adjustment
n Linear RGB inputs and fast blanking
n Possibility to insert a blue black option when no video signal is available
n Horizontal synchronisation with two control loops and alignment-free horizontal oscillator
n Vertical count-down circuit
n Vertical driver optimised for DC-coupled vertical output stages
n IýC-bus control of various functions
n Low dissipation (850 mW)

Functional Differences between the 8840/8842/8844:

7

IC VERSION (TDA) 8840 8842 8844

Multi-standard IF X X
Automatic Volume Limiting X X
PAL Decoder X X X
SECAM Decoder X X
NTSC Decoder X X
Dynamic Skin Control X
Colour Matrix PAL/NTSC (Japan) X X
Colour Matrix NTSC Japan/USA
YUV interface X
Base-band delay line X X X
Adjustable luminance delay time X
Horizontal geometry X
Horizontal and vertical zoom X
Vertical scroll X

PINNING PIN VALUE

1. Sound IF input : 1mVrms

2. External audio input : 500mVrms

3. IF demodulator tuned circuit 1

4. IF demodulator tuned circuit 2

5. IF-PLL loop filter : Min:32-Max:60 MHz

6. IF video output : 4.7V (Negative Modulation), 2V (Positive Modulation)

7. Serial clock input : Low level max:1.5 V, High level min 3.5V

8. Serial data input/output : Low level max:1.5 V, High level min 3.5V

9. Bandgap decoupling

10. Chrominance input (S-VHS) : 1Vpp, Max:1.4Vpp

11. External CVBS/Y input : 1Vpp, Max:1.4Vpp

12. Main supply voltage 1 : 8V, Min:7.2V, Max:8.8V

13. Internal CVBS input : 1Vpp, Max:1.4Vpp

14. Ground 1

15. Audio output : 700mVrms, Min:500mVrms, Max:900mVrms

16. SECAM PLL decoupling

17. External CVBS input : Vpp, Max:1.4Vpp

18. Black-current input : Amplitude of low reference current : 8mA
Amplitude of high reference current : 20mA

19. Blue output : 2Vpp

20. Green output : 2Vpp

21. Red output : 2Vpp

22. Beam current limiter input/V-guard input

23. Red input for insertion : 0.7Vpp, Max:0.8Vpp

24. Green input for insertion : 0.7Vpp, Max:0.8Vpp

25. Blue input for insertion : 0.7Vpp, Max:0.8Vpp

26. RGB insertion input : Max:0.3V

27. Luminance input : 1.4Vpp

28. Luminance output : 1.4Vpp

29. (B-Y) signal output : 1.05Vpp

30. (R-Y) signal output : 1.05Vpp

31. (B-Y) signal input : 1.05Vpp

32. (R-Y) signal input : 1.05Vpp

33. Subcarrier reference output : 3.58/4.43 MHz

34. 3.58 MHz crystal connection

35. 4.43/3.58 MHz crystal connection

36. Loop filter phase detector

37. 2nd

supply voltage 1 : 8V, Min:7.2V, Max:8.8V

38. CVBS output : 1Vpp, Max:1.4Vpp

39. Decoupling digital supply : 1.8V

40. Horizontal output : Max: 0.3V

41. Flyback input/sandcastle output : Min:100ma, Max:300mA

42. Phase-2 filter : 150 ms/ms

43. Phase-1 filter : ±0.9 kHz, Max: ±1.2 kHz

44. Ground 2

45. East-west drive output

46. Vertical drive A output : 0.95mA

47. Vertical drive B output : 0.95mA

48. IF input 1

49. IF input 2

50. EHT/overvoltage protection input : Min:1.2V, Max : 2.8V

51. Vertical sawtooth capacitor : 3Vpp

52. Reference current input : 3Vpp

53. AGC decoupling capacitor

54. Tuner AGC output : Max:9V (Maximum tuner AGC

output voltage), 300mV (Output saturation voltage)

55. Audio deemphasis : 500mVrms

56. Decoupling sound demodulator

8

UV1315, UV1316, UV1336

General description of UV1315:

The UV1315 tuner belongs to the UV 1300 familiy of tuners, which are designed to meet a wide range of applications.
It is a combined VHF, UHF tuner suitable for CCIR systems B/G, H, L, L, I and I. The low IF output impedance has been
designed for direct drive of a wide variety of SAW filters with sufficient suppression of triple transient.

Features of UV1315:

n Member of the UV1300 family small sized UHF/VHF tuners
n Systems CCIR:B/G, H, L, L, I and I; OIRT:D/K
n Voltage synthesized tuning (VST)
n Off-air channels, S-cable channels and Hyperband
n Standardized mechanical dimensions and pinning
n Compact size

PINNING PIN VALUE

1. Gain control voltage (AGC) : 4.0V, Max:4.5V

2. Tuning voltage

3. High band switch : 5V, Min:4.75V, Max:5.5V

4. Mid band switch : 5V, Min:4.75V, Max:5.5V

5. Low band switch : 5V, Min:4.75V, Max:5.5V

6. Supply voltage : 5V, Min:4.75V, Max:5.5V

7. Not connected

8. Not connected

9. Not connected

10. Symmetrical IF output 1

11. Symmetrical IF output 2

Bandswitching table:

Pin 3 Pin 4 Pin 5

Low band 0V 0V +5V
Mid band 0V +5V 0V
High band +5V 0V 0V

General description of

The UV1316 tuner belongs to the UV 1300 family of tuners, which are designed to meet a wide range of applications.
It is a combined VHF, UHF tuner suitable for CCIR systems B/G, H, L, L, I and I. The low IF output impedance has been designed
for direct drive of a wide variety of SAW filters with sufficient suppression of triple transient.

Features of UV1316:

n Member of the UV1300 family small sized UHF/VHF tuners
n Systems CCIR: B/G, H, L, L, I and I; OIRT: D/K
n Digitally controlled (PLL) tuning via IýC-bus
n Off-air channels, S-cable channels and Hyperband
n World standardized mechanical dimensions and world standard pinning
n Compact size
n Complies to CENELEC EN55020 and EN55013

PINNING PIN VALUE

1. Gain control voltage (AGC) : 4.0V, Max:4.5V

2. Tuning voltage

3. I²C-bus address select : Max:5.5V

4. I²C-bus serial clock : Min:-0.3V, Max:5.5V

5. I²C-bus serial data : Min:-0.3V, Max:5.5V

6. Not connected

7. PLL supply voltage : 5.0V, Min:4.75V, Max:5.5V

8. ADC input

9. Tuner supply voltage : 33V, Min:30V, Max:35V

10. Symmetrical IF output 1

11. Symmetrical IF output 2

UV1316:

General description of

UV1336 series is developed for reception of channels broadcast in accordance with the M, N standard. The tuning is available
through built-in digitally controlled IýC bus (PLL).

Features of UV1336:

n Global standard pinning
n Integrated Mixer-Oscillator&PLL function
n Conforms to CISPR 13, FCC and DOC (Canada) regulations
n Low power consumption
n Both Phono connector and F connector are available

UV1336:

9

PINNING PIN VALUE

1. Gain control voltage : 4.0V, Max:4.5V

2. Tuning voltage

3. Address select : Max:5.5V

4. Serial clock : Min:-0.3V, Max:5.5V

5. Serial data : Min:-0.3V, Max:5.5V

6. Not connected

7. Supply voltage : 5.0V, Min:4.75V, Max:5.5V

8. ADC input (optional)

9. Tuning supply voltage : 33V, Min:30V, Max:35V

10. Ground

11. IF output

TEA6415C:

General Description:

The main function of the TEA6415C is to switch 8 video input sources on the 6 outputs.
Each output can be switched to only one of the inputs whereas but any same input may be connected to several outputs.
All switching possibilities are controlled through the IýC-bus.

Features:

n 20 MHz Bandwith
n Cascadable with another TEA6415C (Internal address can be changed by pin 7 voltage)
n 8 inputs (CVBS, RGB, Mac, CHROMA, )
n 6 Outputs
n Possibility of MAC or chroma signal for each input by switching-off the clamp with an external resistor bridge
n Bus controlled
n 6.5dB gain between any input and output
n -55dB crosstaljk at 5MHz
n Fully ESD protected

PINNING PIN VALUE

1. Input : Max : 2Vpp, Input Current : 1mA, Max : 3mA

2. Data : Low level : -0.3V Max:1.5V, High level : 3.0V Max : Vcc+0.5V

3. Input : Max : 2Vpp, Input Current : 1mA, Max : 3mA

4. Clock : Low level : -0.3V Max:1.5V, High level : 3.0V Max : Vcc+0.5V

5. Input : Max : 2Vpp, Input Current : 1mA, Max : 3mA

6. Input : Max : 2Vpp, Input Current : 1mA, Max : 3mA

7. Prog

8. Input : Max : 2Vpp, Input Current : 1mA, Max : 3mA

9. Vcc : 12V

10. Input : Max : 2Vpp, Input Current : 1mA, Max : 3mA

11. Input : Max : 2Vpp, Input Current : 1mA, Max : 3mA

12. Ground

13. Output : 5.5Vpp, Min : 4.5Vpp

14. Output : 5.5Vpp, Min : 4.5Vpp

15. Output : 5.5Vpp, Min : 4.5Vpp

16. Output : 5.5Vpp, Min : 4.5Vpp

17. Output : 5.5Vpp, Min : 4.5Vpp

18. Output : 5.5Vpp, Min : 4.5Vpp

19. Ground

20. Input : Max : 2Vpp, Input Current : 1mA, Max : 3mA

TDA9830:

General description:

The TDA9830, a monolithic integrated circuit, is designed for AM-sound demodulation used in L- and L-standard.
The IC provides an audio source selector and also mute switch.

Features:

n Adjustment free wideband synchronous AM demodulator
n Audio source-mute switch (low noise)
n Audio level according EN50049
n 5 to 8V power supply or 12 V alternative
n Low power consumption

PINNING PIN VALUE

1. Sound IF differential input signal : Minimum IF input signal (between pins 1 and 16):60mV

Max:100mV Maximum IF input signal (between pins 1 and 16) :120mV Min :70mV

2. Not connected

3. AGC capacitor

4. REF voltage filtering capacitor

5. Not connected

6. AM demodulator output : THD:0.8%, Max:2%; S/N:53dB, Min:47%; DC potential:2.15V, Min : 2.00V Max :2.30V

7. Input signal (from AM) to audio switch : Max:1.2V

8. Output signal from audio switch : 80dB, Min : 70dB

9. Input signal (from external) to audio switch : Max:1.2V

10

10. Switch input select control : Audio switching voltage to activate pin7 : Min :0V, Max :0.8V

Audio switching voltage to activate pin9 : Min:1.5V, Max :Vp

11. Supply voltage : 12V, Min:10.8V, Max:13.2V

12. Mute control : For Mute-ON Min : 0V, Max : 0.8V For Mute-OFF Min : 1.5V, Max : Vp

13. Ground

14. Supply voltage : 5V, Min : 4.5V, Max : 8.8V

15. Not connected

16. Sound IF differential input signal : Look at pin 1

TDA2614/TDA2615/TDA2616Q:

General Description of TDA2614:

The TDA2614 is a power amplifier in a 9-lead single-in-line (SIL9) plastic medium power package. It has been especially
designed for mains fed applications.

Features:

n Requires very few external components
n No switch-on/switch-off clicks
n Input mute during switch-on and switch-off
n Low offset voltage between output and ground
n Hi-fi in accordance with IEC 268 and DIN 45500
n Short-circuit proof and thermal protected
n Mute possibility

PINNING PIN VALUE

1. Not connected

2. Mute input : 300mA (For mute to activate)

3. Ground

4. Not connected

5. Supply voltage (negative) : -12VDC

6. Output : 6.9Vrms

7. Supply voltage (positive) : +12VDC

8. Inverting input (Ground) : 0V

9. Non-inverting input : 700mVrms, Min : 500mVrms, Max : 900mVrms

General Description of

The TDA2615 is a dual power amplifier in a 9-lead single-in-line (SIL9). It has been especially designed for mains fed applications.

Features:

n Requires very few external components
n No switch-on/switch-off clicks
n Input mute during switch-on and switch-off
n Low offset voltage between output and ground
n Excellent gain balance of both amplifiers
n Hi-fi in accordance with IEC 268 and DIN 45500
n Short-circuit proof and thermal protected
n Mute possibility

PINNING PIN VALUE

1. Non-inverting input 1 : 700mVrms, Min :500mVrms, Max : 900mVrms

2. Mute input : 300mA (For mute to activate)

3. Ground

4. Output 1 : 6.9Vrms

5. Supply voltage (negative) : -12VDC

6. Output 2 : 6.9Vrms

7. Supply voltage (positive) : +12VDC

8. Inverting inputs 1 and 2 (Ground) : 0V

9. Non-inverting input 2 : 700mVrms, Min : 500mVrms, Max : 900mVrms

General Description of

The TDA2616Q is a dual power amplifier. It is supplied in a 9-lead SIL-bent-to DIL plastic power package (SOT157).
It has been especially designed for mains fed applications.

TDA2615:

TDA2616Q:

Features:

n Requires very few external components
n No switch-on/switch-off clicks
n Input mute during switch-on and switch-off
n Low offset voltage between output and ground
n Excellent gain balance of both amplifiers
n Hi-fi in accordance with IEC 268 and DIN 45500
n Short-circuit proof and thermal protected
n Mute possibility

11

PINNING PIN VALUE

1. Non-inverting input 1 : 700mVrms, Min : 500mVrms, Max : 900mVrms

2. Mute input : 300mA (For mute to activate)

3. Ground

4. Output 1 : 9.8Vrms

5. Supply voltage (negative) : -16VDC

6. Output 2 : 9.8Vrms

7. Supply voltage (positive) : +16VDC

8. Inverting inputs 1 and 2 (Ground) : 0V

9. Non-inverting input 2 : 700mVrms, Min : 500mVrms, Max : 900mVrms

TDA8351/8356:

General Description:

The TDA8356 is a power circuit for use in 90ø colour deflection system for field frequencies of 50 to 120 Hz.
The circuit operates as a highly efficient class G system.
The TDA8351 is a power circuit for use in 110ø colour deflection system for field frequencies of 50 to 120 Hz.
The circuit operates as a highly efficient class G system.

Features:

n Few external components
n Highly efficient fully DC-coupled vertical output bridge circuit
n Vertical flyback switch
n Guard circuit
n Protection against:

- short-circuit of the output pins (7 and 4)

- short-circuit of the output pins to Vp

n Temperature (thermal) protection
n High EMC immunity because of common mode inputs
n A guard signal in zoom mode

PINNING PIN VALUE

1. Input power-stage (positive); includes Ii(sb) signal bias : 400mA, Min : 50mA, Max : 500mA

2. Input power-stage (negative); includes Ii(sb) signal bias : 400mA, Min : 50mA, Max : 500mA

3. Operating supply voltage : +15VDC

4. Output voltage B : Max : 52V Output current : 2App (TDA8356) 3App (TDA8351)

5. Ground

6. Input flyback supply voltage : Min : Vp, Max : 50V

7. Output voltage A : Max : 52V Output current : 2App (TDA8356) 3App (TDA8351)

8. Guard output voltage : Max:5.5V (Io:100mA)

9. Input feedback voltage : Max:52V

TDA6107Q:

The TDA6107Q includes three video output amplifiers in a SIL 9 MP (Single In Line 9 pins Medium Power) package SOT111BE,
using high-voltage DMOS technology, and is intended to drive the three cathodes of a colour picture tube.
In contrast to previous types of DMOS video amplifiers, all external resistors (Rf, Ri and Ra) are integrated, so the gain is fixed
and it saves 9 resistors.
To obtain maximum performance, the amplifier should be used with black-current control and mounted on the CRT panel.

Features:

n Bandwith: 4.0 MHz typ at 100Vpp (Measured in appli,cation set-up, with Rfl=1K5 and Cl=Ctube+Cpcb=10pF)
n Slewrate: 950V/ms
n Fixed gain of 50 times
n No external components, only the well known supply decoupling
n Very simple application with a variety of colour decoders
n Black-current measurement output for automatic black current stabilization
n Only one supply voltage needed
n Internal protection against positive appearing CRT flash-over discharges
n Protection against ESD
n Internal reference voltage
n Thermal protection
n Controllable switch-off behaviour
n Very small PCB dimensions
n Very high replacement value

PINNING PIN VALUE

1. Inverting input 1 : 2Vpp

2. Inverting input 2 : 2Vpp

3. Inverting input 3 : 2Vpp

4. Ground

5. BSC-output : Max:7V

6. Supply voltage : 200VDC

7. Cathode output 3 : 20mA, 100Vpp

8. Cathode output 2 : 20mA, 100Vpp

9. Cathode output 1 : 20mA, 100Vpp

12

SAA4961:

The SAA4961 is an adaptive alignment-free one chip comb filter compatible with both PAL and NTSC systems and provides high
performance in Y/C separation.

Features:

n One chip adaptive multi-standard comb filter
n Time discrete but continuous amplitude signal processing with analogue interfaces
n Internal delay lines, filters, clock processing and signal switches
n Alignment-free
n No hanging dots or residual cross colour on vertical transients
n Few external components

It is possible to switch the comb filter into one of the following 3 modes:

1. Comb mode : In this mode, luminance and chrominance comb filter function are active.

Chrominance output pin (pin 12) outputs comb filtered chrominance signal, luminance output pin (pin 14)
outputs comb filtered luminance signal and CVBS output pin (pin 15) outputs delay compensated CVBS signal.

2. Comboff mode : In this mode, luminance comb filter function is turned off, but chrominance comb filter function operates.

Chrominance output pin (pin 12) outputs comb filtered chrominance signal, luminance output pin (pin 14) outputs
delay compensated CVBS signal and CVBS output pin (pin 15) outputs delay compensated CVBS signal.

3. Bypass mode : In this mode, no IC-function is active. Cext is bypassed to chrominance output pin (pin 12) and Yext/CVBS

is bypassed to luminance output pin (pin 14) and CVBS output pin (pin 15).

PINNING PIN VALUE

1. Subcarrier frequency input : 200mVpp, Min : 100mVpp, Max : 400mVpp

2. Internal connected

3. Bypass mode forcing : HIGH level input voltage Min : 2.4VDC, Max : Vcc

4. Internal connected

5. Decoupling capacitor : 1.25VDC, Min : 1.1VDC, Max : 1.4VDC

6. Internal connected

7. Analogue supply voltage : 5VDC, Min : 4.75VDC, Max : 5.5VDC

8. Analogue supply voltage output buffer : 5VDC, Min : 4.75VDC, Max : 5.5VDC

9. Analogue ground

10. External chrominance input : 0.7Vpp, Max : 1Vpp

11. Analogue ground output buffer

12. Chrominance output signal : 0mV, Min : -400mV, (DC offset voltage related to input) Max : +400mV

BYPASS-mode:Co/Cext : 0dB, Min : -1dB, Max : +1dB

13. fsc reference selection : HIGH level input voltage Min : 2V, Max : Vcc

: Low level input voltage Min : 0V, Max : 0.8V

14. Luminance output signal : 1Vpp, Min : 0.6Vpp, Max : 1.54Vpp

15. CVBS and Y output signal : 1Vpp, Min : 0.6Vpp, Max : 1.54Vpp

16. Internal connected

17. CVBS and Y input signal : 1Vpp, Min : 0.7Vpp, Max : 1.4Vpp

18. Disable prefilter : HIGH level input voltage Min : 2.0VDC, Max : Vcc

LOW level input voltage Min : 0VDC, Max : 0.8VDC

19. Storage Capacitor : 2.5VDC, Min : 1.8VDC, Max : Vcc

20. Standard select 1 : HIGH level input voltage Min : 2.0VDC, Max : Vcc

LOW level input voltage Min : 0VDC, Max : 0.8VDC

21. Digital ground

22. Digital supply voltage : 5VDC, Min : 4.75VDC, Max : 5.5VDC

23. Standard select 2 : HIGH level input voltage Min : 2.0VDC, Max : Vcc

LOW level input voltage Min : 0VDC, Max : 0.8VDC

24. Decoupling capacitor : 1.25VDC, Min : 1.1VDC, Max : 1.4VDC

25. Controlling I/O pin : HIGH level input voltage Min : 2.4VDC, Max : Vcc

LOW level input voltage Min : 0VDC, Max : 1.5VDC

26. Analogue ground PLL

27. Analogue supply voltage PLL : 5VDC, Min : 4.75VDC, Max : 5.5VDC

28. Internal connected

MC44604:

General description:

The MC44604 is an enhanced high performance controller that is specifically designed for off-line and DC-to-DC converter applications.
It offers a really safe and reliable power management thanks particularly to its protection features (foldback, overvoltage detection,
soft start, accurate demagnetization detection). Its high current totem pole output is also ideally suited for driving a power
MOSFET, but can also be used for driving a bipolar transistor in low power converters. In addition to these features,
the MC44604 offers an efficient stand-by mode.

Features:

Current Mode Controller

n Operation up to 250 kHz Output Switching Frequency
n Inherent Feed Forward Compensation
n Latching PWM for Cycle-by-Cycle Current Limiting
n Oscillator with Precise Frequency Control

High Flexibility

n Externally Programmable Reference Current
n Secondary or Primary Sensing
n High Current Totem Pole Output
n Undervoltage Lockout with Hysteresis

13

Safety/Protection Features

n Overvoltage Protection Facility against Open Loop
n Protection against Short Circuit on Oscillator Pin
n Fully Programmable Foldback
n Soft-Start Feature
n Accurate max Duty Cycle Setting
n Demagnetization (Zero Current Detection) Protection
n Internally Trimmed Reference

Green Controller

n Low Start-Up and Operating Current
n Patented Stand-by Pulsed Mode for low stand-by losses
n Low dV/dT for Low EMI radiations

PINNING PIN VALUE

1. Output Supply Voltage (Vcc) : 12VDC

2. Output Supply Voltage (Vc) : 12VDC

3. Output voltage : LOW Level Drop Voltage 1VDC, Max : 1.2VDC (Isink=100mA)

1.4VDC, Max : 2VDC (Isink=500mA)

HIGH Level Drop Voltage 1.5VDC, Max : 2VDC (Isource=200mA)

2VDC, Max : 2.7VDC (Isource=500mA)

4. Ground

5. Foldback input : 0.9VDC, Min:-0.3VDC, Max : Vcc+0.3VDC

6. Overvoltage protection (OVP) : 0.78VDC, Min:-0.3VDC, Max : Vcc+0.3VDC

7. Current sense input : Min:-0.3VDC, Max : Vcc+0.3VDC

8. Demagnetization detection input : Idemag-ib (source):-4mA Idemag-ib (sink) : 10mA

9. Standby current set : Ipeak-stby/Iref : 0.40 Min : 0.37 Max : 0.43

10. Oscillator voltage swing : 2Vpp

11. Soft start/Dmax/Voltage mode : Idischarge : 5mA, Min : 1.5mA (Vsoft start=1V)

12. Clamp E/A input : 4.7VDC, Min : 4.5VDC Max : 4.9VDC

13. E/A output : HIGH State: 6.5VDC, Min : 5.5VDC, Max : 7.5VDC LOW State : 1.0VDC, 1.1VDC

14. E/A input : 2.5VDC, Min : 2.4VDC, Max : 2.6VDC

15. Stand-by management : Stand-by On Detection current ratio : Idet/Iref : 0.38, Min : 0.34, Max : 0.42

Stand-by regulation current ratio : Ireg/Iref : 20.5, Min : 18, Max : 23

16. Rref input : 2.5VDC, Min : 2.4VDC, Max : 2.6VDC

SDA525X:

General description:

The SDA525X is designed for a low cost mono TV-set with analogue picture and sound control. IN SDA525X the following
IC s are used and supported:

Non-volatile memory : SDA 2526 or SDA2546
PLL : SDA 3202-3, SDA 3302
IR transmitter : SDA 2208-3 or SDA 2218
IR preamplifier : SFH 506-32

Features:
General:

n Display of program number, channel number, TV standard, analogue values, sleep timer, parental control, and mute is done by

OSD

n Single LED for IR active, standby and on mode indication
n Local control (8 keys)
n IR remote control
n Control of volume, contrast, brightness, and saturation by analogue voltages
n Non-volatile memory for 50 or 100 programs, optimum analogue values and system parameters
n Individual delta volume for each program
n 1 control line to select external source
n 3 control lines for TV standard selection
n Automatic muting if no carrier detected
n Automatic switch-off when carrier disappears for more than 5 minutes
n Software protection against tube flashovers with internal watchdog timer
n Sleep timer
n Parental control
n IF 38 MHz or 38.9 MHz selectable

Tuning:

n Frequency synthesis tuning (62.5 kHz steps)
n 192 step fine tuning
n Channels corresponding to standards
n 100 programs selectable by directly entering a program number or by up/down function depending on the NVM size
n Channel selection by directly entering a channel number or by up/down function
n Channel search function in two directions

Sound:

n Mono sound control by analogue voltage

Service Mode:

n System configuration with service mode

14

PINNING PIN VALUE

1. Crystal selection output 1 : LOW level : 0V

2. Volume + switch input : LOW level : 0V

3. Volume - switch input : LOW level : 0V

4. Program - switch input : LOW level : 0V

5. Program + switch input: : LOW level : 0V

6. LED output : LOW level : 0V

7. Filter (sound standard) selection output 1 : LOW level : 0V

8. Filter (sound standard) selection output 2 : LOW level : 0V

9. Mod-switch selection output : LOW level : 0V

10. Ground

11. Supply voltage : +5V

12. 18 MHz crystal connection 1 : 2Vpp

13. 18 MHz crystal connection 2 : 2Vpp

14. L-ACC output : LOW level : 0V

15. RESET output LOW level : 0V

16. Comb filter PAL/SECAM selection output : LOW level : 0V

17. Tuning output : LOW level : 0V

18. Audio switch transistor selection 1 : LOW level : 0V

19. Audio switch transistor selection 2 : LOW level : 0V

20. Audio switch transistor selection 3 : LOW level : 0V

21. Audio switch transistor selection 4 : LOW level : 0V

22. Comb filter standard selection 1 : LOW level : 0V

23. Comb filter standard selection 2 : LOW level : 0V

24. Analogue ground

25. Filter 3

26. Filter 2

27. Filter 1

28. Analogue supply voltage : 5VDC

29. Reference current input

30. CVBS input : 1Vpp

31. Service output : LOW level : 0V

32. AV2-status input : LOW level : 0V

33. AV1-status input : LOW level : 0V

34. AFC output : 600mVpp

35. Ground

36. IR-input : LOW level : 0V

37. Supply voltage : 5V

38. LC input : 5Vpp

39. LC output : 5Vpp

40. Mute output : LOW level : 0V

41. St-by output : LOW level : 0V

42. Clock signal output

43. Data output

44. Local connection : LOW : 0V

45. SAND input : 4Vpp

46. ODD/EVEN output : 1.8V

47. OSD-red output : LOW level : 0V

48. OSD-green output : LOW level : 0V

49. OSD-blue output : LOW level : 0V

50. OSD-blanking output : LOW level : 0Vh

51. COR output : LOW level : 0V

52. Crystal selection output 2 : LOW level : 0V

HIGH level : 4.2V

HIGH level : 5V

HIGH level : 5V

HIGH level : 5V

HIGH level : 5V

HIGH level : 4.2VDC

HIGH level : 4.2V

HIGH level : 4.2V

HIGH level : 4.2V

HIGH level : 3.6V

HIGH level : 5V

HIGH level : 5V

HIGH level : 3.4V

HIGH level : 5V

HIGH level : 5V

HIGH level : 5V

HIGH level : 5V

HIGH level : 5V

HIGH level : 5V

HIGH level : 5V

HIGH level : 5V

HIGH level : 5V

HIGH level : 5V

HIGH level : 4.2V

HIGH level : 1.4V

HIGH : 5V

HIGH level : 5V

HIGH level : 5V

HIGH level : 5V

HIGH level : 5V

HIGH level : 5V

HIGH level : 4.2V

15

TDA9875:

General description:

The TDA9875 is a single-chip Digital TV Sound Processor (DTVSP) for analogue and digital multi-channel sound systems.

Features:

Demodulator and decoder section:

n Sound IF (SIF) input switch e.g. to select between terrestrial TV SIF and SAT SIF sources
n SIF AGC with 21dB control range
n SIF 8-bit Analogue-to-Digital Converter (ADC)
n DQPSK demodulation for different standards, simultaneously with 1-channel FM demodulation
n NICAM decoding (B/G, I and L standard)
n Two-carrier multistandard FM demodulation (B/G, D/K and M standard)
n Decoding for three analogue multi-channel systems (A2, A2+ and A2*) and satellite sound
n Optional AM demodulation for system L, simultaneously with NICAM
n Programmable identification (B/G, D/K and M standard) and different identification times

DSP section:

n Digital crossbar switch for all digital signal sources and destinations
n Control of volume, balance, contour, bass, treble, pseudo stereo, spatial, bass boost and soft-mute
n Plop-free volume control
n Automatic Volume Level (AVL) control
n Adaptive de-emphasis for satellite
n Programmable beeper
n Monitor selection for FM/AM DC values and signals, with peak detection option
n I²S-bus interface for a feature extension (e.g. Dolby surround) with matrix, level adjust and mute.

Analogue audio section:

n Analogue crossbar switch with inputs for mono and stereo, SCART 1 input/output, SCART2 input/output and line output
n User defined full-level/-3dB scaling for SCART outputs
n Output selection of mono, stereo, dual A/B, dual A or dual B
n 20 kHz bandwith for SCART-to-SCART copies
n Standby mode with functionality for SCART copies
n Dual audio digital-to-analogue converter from DSP to analogue crossbar switch, bandwith 15kHz
n Dual audio ADC from analogue inputs to DSP
n Two dual audio Digital-to-Analogue Converters (DACs) for loudspeakers (Main) and headphone (Auxiliary) outputs;

also applicable for L, R, C and S in the Dolby Pro Logic mode with feature extension.

PINNING PIN VALUE

1. NICAM clock output (728kHz) : LOW level input voltage : Max : 0.8V

2. Serial NICAM DATA output (728kHz) : LOW level input voltage : Max : 0.8V

3. First I²C-bus slave address modifier : LOW level input voltage : Max : 0.8V

4. SCL (I²C-bus clock) : LOW level input voltage : Max : 1.6V

5. SDA (I²C-bus data) : LOW level input voltage : Max : 0.8V

6. Analogue supply ground 1 : 0V

7. Analogue supply voltage 1 : 5V, Min : 4.75V, Max : 5.5V

8. Resistor for reference current generator : Iref : 220mA, Min : 170mA, Max : 260mA

9. First general purpose I/O pin

10. Sound IF input 2 : Min : 21Vrms, Max : 250mVrms

11. Reference voltage for demodulator part : Vdda1/Vssa1 : 50%, Min : 35%, Max : 65%

12. Sound IF input 1 : Min : 21Vrms, Max : 250mVrms

13. Second I²C-bus slave address modifier : LOW level input voltage : Max : 0.8V

14. Digital supply ground 1 : 0V

15. Digital supply voltage 1 : 5V, Min : 4.75V, Max : 5.5V

16. Capacitor for power-on reset : LOW level input voltage : Max : 1.6V

17. Crystal oscillator output

18. Crystal oscillator input

19. Tuning voltage output for crystal oscillator

20. Second general purpose I/O pin

21. System clock output : LOW level input voltage : Max : 0.5V

22. I²S-bus clock : LOW level input voltage : Max : 0.8V

23. I²S-bus word select : LOW level input voltage : Max : 0.8V

24. I²S-bus data output 2 : LOW level input voltage : Max : 0.8V

25. I²S-bus data output 1 : LOW level input voltage : Max : 0.8V

26. I²S-bus data input 2 : LOW level input voltage : Max : 0.8V

27. I²S-bus data input 1 : LOW level input voltage : Max : 0.8V

28. First test pin; connected to ground for normal operation

29. Audio mono input : 500mVrms

30.Second test pin; connected to ground for normal operation

31. External audio input right channel : 350mVrms

HIGH level input voltage : Min : 2.0V

HIGH level input voltage : Min : 2.0V

HIGH level input voltage : Min : 2.0V

HIGH level input voltage : Min : 3.0V

HIGH level input voltage : Min : 2.0V

HIGH level input voltage : Min : 2.0V

HIGH level input voltage : Min : 3.0V

HIGH level input voltage : Min : 2.9V

HIGH level input voltage : Min : 2.0V

HIGH level input voltage : Min : 2.0V

HIGH level input voltage : Min : 2.0V

HIGH level input voltage : Min : 2.0V

HIGH level input voltage : Min : 2.0V

HIGH level input voltage : Min : 2.0V

16

32. External audio input left channel : 350mVrms

33. SCART 1 input right channel : 350mVrms

34. SCART 1 input left channel : 350mVrms

35. Ground guards

36. SCART 2 input right channel : 350mVrms

37. SCART 2 input left channel : 350mVrms

38. Analogue supply voltage 2 : 5V, Min : 4.75V, Max : 5.5V

39. Positive reference voltage

40. Reference voltage ground : 0V

41. Filter capacitor pin 1

42. Filter capacitor pin 2

43. Analogue supply ground 2 : 0V

44. Filter capacitor pin 2

45. Filter capacitor pin 1

46. Reference voltage 2 : Vdda2/Vssa2 : 50%

47. Scart 1 output right channel : 500mVrms

48. Scart 1 output left channel : 500mVrms

49. Digital supply ground 2 : 0V

50. Analogue supply ground 4 : 0V

51. Scart 2 output right channel : 500mVrms

52. Scart 2 output left channel : 500mVrms

53. Reference voltage 3 : Vdda3/Vssa3:50%

54. Post-filter capacitor pin right channel

55. Post-filter capacitor pin left channel

56. Analogue supply ground 3 : 0V

57. Headphone output right channel : Vo(clip) : Min : 1400mVrms

58. Headphone output left channel : Vo(clip) : Min : 1400mVrms

59. Analogue supply voltage 3 : 5.0V, Min : 4.75V, Max : 5.5V

60. Loudspeaker (main) output right channel : Vo(clip) : Min : 1400mVrms

61. Loudspeaker (main) output left channel : Vo(clip) : Min : 1400mVrms

62. Line output left channel : 500mVrms

63. Line output right channel : 500mVrms

64. Digital supply voltage 2 : 5.0V, Min : 4.75V, Max : 5.5V

TDA9818:

General description:
The TDA9818 is an integrated circuit for multistandard vision IF signal processing, sound AM and FM demodulation.

Features:

n 5 V supply voltage
n Applicable for IF frequencies of 38.9 MHz, 45.75 MHz and 58.75 MHz
n Gain controlled wide band VIF-amplifier (AC-coupled)
n True synchronous demodulation with active carrier regeneration (very linear demodulation, good intermodulation figures, reduced

harmonics, excellent pulse response)

n Robustness for overmodulation better than 105% due to gated phase detector at L/L accent standard and PLL-bandwidth control

at negative modulated standards

n VCO frequency switchable between L and L accent (alignment external) picture carrier frequency
n VIF AGC detector for gain control, operating as peak sync detector for B/G, peak white detector for L; signal controlled reaction

time for L

n Tuner AGC with adjustable takeover point (TOP)
n AFC detector without extra reference circuit
n AC-coupled limiter amplifier for sound intercarrier signal
n Alignment-free FM-PLL demodulator with high linearity
n SIF input for single reference QSS mode (PLL controlled); SIF AGC detector for gain controlled SIF amplifier; single reference

QSS mixer able to operate in high performance single reference QSS mode and in intercarrier mode

n AM demodulator without extra reference circuit
n Stabilizer circuit for ripple rejection and to achieve constant output signals
n ESD protection for all pins

PINNING PIN VALUE

1. VIF differential input signal voltage 1 : Input signal voltage sensitivity

2. VIF differential input signal voltage 2 : Input signal voltage sensitivity

3. Standard switch : Min : 2.8V, Max : Vp

4. VIF AGC capacitor : Charging current : 1mA, Min : 0.75mA, Max : 1.25mA

5. SIF AGC capacitor : Charging current : FM mode : 12mA, Min : 8mA, Max : 16mA

6. PLL loop filter : Min : 0V, Max : Vp

7. L/L accent switch and adjust : Min : 0V, Max : Vp

8. Audio output : Rx : 470ohm : 250mVrms, Min : 200mVrms, Max : 300mVrms

9. De-emphasis input : Min : 0V, Max : Vp

10. De-emphasis output : Min : 0V, Max : Vp

11. Decoupling capacitor : Min : 0V, Max : Vp

12. Single reference QSS/intercarrier output voltage : 140mVrms, Min : 100mVrms Max : 180mVrms

60mVrms, Max:100mVrms

60mVrms, Max:100mVrms

Discharging current : B/G standard : 20mA, Min : 15mA, Max:25mA
Normal mode L : 300nA, Min : 225nA, Max : 375nA
Fast mode L : 40mA, Min : 30mA, Max : 50mA

AM mode : 1.2mA, Min : 0.8mA, Max : 1.6mA
Discharging current : FM mode : 12mA, Min : 8mA, Max : 16mA
Normal mode AM : 1.4mA, Min : 1mA, Max : 1.8mA
Fast mode AM : 85mA, Min : 60mA, Max : 110mA

Rx : 0ohm : 500mVrms, Min : 400mVrms, Max : 600mVrms

17

13. Sound intercarrier input voltage : Input signal voltage for lock-in: Max : 100mVrms

14. Tuner AGC output : IF input signal voltage for minimum starting point of tuner takeover

15. Black level detector : Min : 0V, Max : Vp

16. Composite video output voltage : 1.1Vpp, Min : 0.97Vpp, Max : 1.23Vpp

17. AFC output : Upper limit : Vp-0.3V, Min : Vp-0.6V, Lower limit : 0.3V, Max : 0.6V

18. VCO1 resonance circuit

19. VCO2 resonance circuit

20. Ground : 0V

21. Supply voltage : 5V, Min : 4.5V, Max : 5.5V

22. Tuner AGC takeover adjust (TOP)

23. SIF differential input signal voltage 1 : Input signal voltage sensitivity 50mVrms, Max : 100mVrms

24. SIF differential input signal voltage 2 : Input signal voltage sensitivity 50mVrms, Max : 100mVrms

Input signal voltage : 250mVrms

2mV, Max : 5mV
IF input signal voltage for maximum starting point of tuner takeover
100mV, Min : 50mV

ST24C08:

General description:

The ST24C08 is a 8Kbit electrically erasable programmable memory (EEPROM), organized as 4 blocks of 256 * 8 bits.
The memory operates with a power supply value as low as 2.5V. Both Plastic Dual-in-Line and Plastic Small Outline packages
are available.

Features:

n Minimum 1 million ERASE/WRITE cycles with over 10 years data retention
n Single supply voltage:4.5 to 5.5V
n Two wire serial interface, fully IýC-bus compatible
n Byte and Multibyte write (up to 8 bytes)
n Page write (up to 16 bytes)
n Byte, random and sequential read modes
n Self timed programming cycle

PINNING PIN VALUE

1. Write protect enable (Ground) : 0V

2. Not connected (Ground) : 0V

3. Chip enable input (Ground) : 0V

4. Ground : 0V

5. Serial data address input/output : Input LOW voltage : Min : -0.3V, Max : 0.3*Vcc

Input HIGH voltage: Min : 0.7*Vcc, Max : Vcc+1

6. Serial clock : Input LOW voltage : Min: -0.3V, Max : 0.3*Vcc

Input HIGH voltage: Min : 0.7*Vcc, Max : Vcc+1

7. Multibyte/Page write mode : Input LOW voltage : Min: -0.3V, Max :0.5V

Input HIGH voltage: Min : Vcc-0.5, Max : Vcc+1

8. Supply voltage : Min : 2.5V, Max : 5.5V

TDA1308:

Features:

n Wide temperature range
n No switch ON/OFF clicks
n Excellent power supply ripple rejection
n Low power consumption
n Short-circuit resistant
n High performance

- high signal-to-noise ratio

- high slew rate

- low distortion

n Large output voltage swing

PINNING PIN VALUE

1. Output A (Voltage swing) : Min : 0.75V, Max : 4.25V

2. Inverting input A : Vo(clip) : Min : 1400mVrms

3. Non-inverting input A : 2.5V

4. Ground : 0V

5. Non-inverting input B : 2.5V

6. Inverting input B : Vo(clip) : Min : 1400mVrms

7. Output B (Voltage swing) : Min : 0.75V, Max : 4.25V

8. Positive supply

: 5V, Min : 3.0V, Max : 7.0V

G1965M:

Features:

n TV IF filter with Nyquist slope and sound shelf at typ. 20.4dB
n High colour carrier level at typ. 1.0dB
n Constant group delay
n Insertion attenuation typ. 15.0dB

PINNING

1. Input

2. Input-ground

3. Chip carrier-ground

18

TDA9855

General description:

The TDA9855 is a bipolar-integrated BTSC stereo/SAP decoder with hi-fi audio processor (IýC-bus controlled) for application in TV sets.

Features:

n Quasi alignment-free BTSC stereo decoder due to auto adjustment of channel separation via IýC-bus
n High integration level with automatically tuned integrated filters
n Input level adjustment IýC-bus controlled
n Alignment-free Sap processing
n dbx noise reduction circuit
n Audio processor

-Selector for internal and external signals (line in)

-Automatic volume level control

-Subwoofer or surround output with separate volume control

-Volume control

-Special loudness characteristic automatically controlled in combination with volume setting

-Bass and treble control

-Audio signal zero crossing detection between any volume step switching

-Mute control at audio signal zero crossing

-IýC-bus tranceiver.

PINNING PIN VALUE

1. Treble control capacitor, left channel

2. Bass control capacitor, left channel

3. Bass control capacitor, left channel

4. Not connected

5. Programmable address bit (module address)

6. Output, left channel : 500mVrms, Min : 480mVrms,

7. Input loudness, left channel

8. Input volume control, left channel : 2.15Vrms, Min : 2Vrms

9. Output effects, left channel

10. Automatic volume control capacitor

11. Reference voltage 0.5Vcc : 4VDC

12. Line input, left channel : 2.3Vrms, Min : 2Vrms

13. Input automatic volume control, left channel : Min : 2Vrms

14. Output selector, left channel

15. Line output, left channel : 500mVrms

16. Capacitor timing wideband for dbx

17. Capacitor timing spectral for dbx

18. Capacitor wideband for dbx

19. Capacitor spectral for dbx

20. Variable emphasis out for dbx

21. Variable emphasis in for dbx

22. Capacitor noise reduction for dbx

23. Capacitor mute for SAP

24. Capacitor DC decoupling for SAP

25. Common ground : 0V

26. Serial data input/output : High level input voltage:

27. Serial clock input : High level input voltage:

28. Supply voltage : 8VDC

29. Input composite signal : 250mVrms

30. Capacitor for electronic filtering of supply

31. Capacitor for pilot detector

32. Capacitor for pilot detector

33. Capacitor for phase detector

34. Capacitor for filter adjust

35. Ceramic resonator

36. Capacitor DC decoupling mono

37. Capacitor DC decoupling stereo/SAP

38. Line output, right channel : 500mVrms

39. Output selector, right channel

40. Input automatic volume control, right channel : Min:2Vrms

41. Line input, right channel : 2.3Vrms, Min : 2Vrms

42. Capacitor 2 pseudo function

43. Capacitor 1 pseudo function

44. Output effects, right channel

45. Input volume control, right channel : Min : 2Vrms

46. Input loudness, right channel

47. Output, right channel : 500mVrms, Min : 480mVrms,

48. Not connected

49. Filter capacitor for subwoofer

50. Bass control capacitor, right channel

51. Bass control capacitor, right channel

52. Treble control capacitor

Max : 520mVrms

Min : 3VDC, Max : Vcc Low level input voltage:
Min : -0.3VDC, Max : 1.5VDC
Low level output voltage : Max : 0.4VDC

Min : 3VDC, Max : Vcc
Low level input voltage : Min : -0.3VDC, Max : 1.5VDC
Low level output voltage : Max : 0.4VDC

Max : 520mVrms

19

AK19 CHASSIS MANUAL ADJUSTMENTS PROCEDURE

In order to enter the service mode, first enter the installation menu (or press blue button on the remote
control handset) and then press the digits 4, 7, 2 and 5 respectively.

For ADJUST settings:
Select Adjust using or button and press or button to enter it. To select different adjust parameters, use or button.

To change the selected parameter, use or button.

WHITE BALANCE ADJUSTMENT:

The following three parameters are used to make white balance adjustment. To do this, use a Colour Analyser. Using white point
RED, white point GREEN and white point BLUE parameters, insert the + sign in the square which is in the middle of the screen.

ADJUST 00 = White Point RED
ADJUST 01 = White Point GREEN
ADJUST 02 = White Point BLUE

AGC ADJUSTMENT:

In order to do AGC adjustment, enter a 60dBmV RF signal level from channel C-12.
Connect a digital voltmeter to pin 1 of the tuner. Change the AGC parameter until you see 3.70VDC on voltmeter display. Check
that picture is normal at 90dBmV signal level.

IF-PLL NEGATIVE ADJUSTMENT (Only with PLL tuner):

Connect 38.9 MHz test pattern for PAL B/G, PAL-SECAM B/G, 39.5 MHz test pattern for PAL I or 45.75 MHz test pattern for
PAL M/N, NTSC M model to Z401 SAW filter input terminals. Change the IF-PLL Negative parameter until you see IN, DOWN
below. If you cannot catch IN, DOWN position this way, using a screwdriver rotate the VIF-COIL LT401 left or right until you
see IN, DOWN.

IF-PLL POSITIVE ADJUSTMENT (Only with PLL tuner):

Connect 33.9 MHz test pattern for SECAM L model to Z401 SAW filter input terminals. Change the IF-PLL Positive parameter
until you see IN, DOWN below. If you cannot catch IN, DOWN position this way, using a screwdriver rotate the VIF-COIL LT401
left or right until you see IN, DOWN.

LUMINANCE DELAY ADJUSTMENT (with only TDA 8844 video processor):

Y-Delay PAL

Enter a PAL B/G colour and black-white bar test pattern via RF. Adjust Y-Delay PAL till the colour transients on the colour bar of
the pattern become as sharper and colours between transients do not mix with each other as possible.
Note: If the SAW filter is one of the G1965M, J1951M, J3950M, K2958M, K2962M, G3957M, K6256K, K6259K or M1963M, there
is constant group delay distortion, so for an equal delay of the luminance and chrominance signal the delay must be set at a
value of 160nS. This means the adjustment must be set to the maximum value.
Y-Delay SECAM

Enter a SECAM B/G colour and black-white bar test pattern via RF. Adjust Y-Delay SECAM till the colour transients on the colour
bar of the pattern become as sharper and colours between transients do not mix with each other as possible.
Note: If the SAW filter is one of the G1965M, K2958M, K2962M, G3957M, K6256K or K6259K, there is constant group delay
distortion, so for an equal delay of the luminance and chrominance signal the delay must be set at a value of 160nS.
This means the adjustment must be set to the maximum value.
Y-Delay NTSC

Enter an NTSC colour and black-white bar test pattern via RF. Adjust Y-Delay NTSC till the colour transients on the colour bar
of the pattern become as sharper and colours between transients do not mix with each other as possible.
Note: If the SAW filter is M1963M, there is constant group delay distortion, so for an equal delay of the luminance and
chrominance signal the delay must be set at a value of 160nS. This means the adjustment must be set to the maximum value.
Y-Delay Other

In case of other colour systems, enter this system with colour and black-white bar test pattern via RF. Adjust Y-Delay Other till the
colour transients on the colour bar of the pattern become as sharper and colours between transients do not mix with each other
as possible. Normally for an equal delay of the luminance and chrominance signal the delay must be set at a value of 160nS.
This means the adjustment must be set to the maximum value.

VERTICAL ZOOM ADJUSTMENT (only for 110ø picture tubes):

Enter a PAL B/G circle test pattern via RF. Change vertical zoom till you see the upper and lower limit of the circle as close to the
upper and lower limit of the picture tube as possible.

VERTICAL SCROLL ADJUSTMENT (only for 110ø picture tubes):

Enter a PAL B/G circle test pattern via RF. Change vertical scroll till you see the circle exactly in the middle of the screen.

4:3 HORIZONTAL SHIFT ADJUSTMENT:

Enter a RED PURITY test pattern via RF.Change horizontal shift till the picture is horizontally centred. Check whether this adjust­ment is correct after completing Service Mode Adjustment.

4:3 VERTICAL SLOPE ADJUSTMENT:

Enter a CROSS-HATCH B/G test pattern via RF. Change vertical slope till the size of squares on both the upper and lower part
of test pattern become equal to the squares laying on the vertical centre of the test pattern. Check and readjust VERTICAL
SLOPE item if the adjustment becomes improper after some other geometric adjustments are done.

20

4:3 VERTICAL AMPLITUDE ADJUSTMENT:

Enter a PAL B/G test pattern via RF. Change vertical slope till horizontal black lines on both the upper and lower part of the test
pattern become very close to the upper and lower horizontal sides of picture tube and nearly about to disappear. Check and
readjust VERTICAL AMPLITUDE item if the adjustment becomes improper after some other geometric adjustments are done.

4:3 S-CORRECTION ADJUSTMENT:

Enter a PAL B/G circle test pattern via RF. Change S-correction till the middle part of the circle is as round as possible.

4:3 VERTICAL SHIFT ADJUSTMENT:

Enter a PAL B/G test pattern via RF. Change Vertical Shift till the test pattern is vertically centred, i.e. horizontal line at the centre
pattern is in equal distance both to upper and lower side of the picture tube. Check and readjust Vertical Shift item if the
adjustment becomes improper after some other geometric adjustments are done.

4:3 EW WIDTH ADJUSTMENT (only for 110ø picture tubes):

Enter a PAL B/G test pattern via RF. Change EW Width till the vertical black and white bars on both left and right side of the
pattern exactly disappear.

4:3 EW PARABOLA WIDTH ADJUSTMENT (only for 110ø picture tubes):

Enter a PAL B/G test pattern via RF. Change EW Parabola Width till vertical lines close to the both sides of the picture frame
become parallel to vertical sides of picture tube. Check and readjust EW Parabola Width item if the adjustment becomes improper
after some other geometric adjustments are done.

4:3 EW CORNER PARABOLA ADJUSTMENT (only for 110ø picture tubes):
Enter a PAL B/G test pattern via RF. Change EW Corner Parabola till vertical lines at the corners of both sides of picture frame
become vertical and parallel to vertical corner sides of picture tube. Check and readjust EW Corner Parabola item if the
adjustment becomes improper after some other geometric adjustments are done.

4:3 EW TRAPEZIUM ADJUSTMENT (only for 110ø picture tubes):
Enter a PAL B/G test pattern via RF. Change EW Trapezium till vertical lines, especially lines at the sides of the picture frame
became parallel to the both sides of picture tube as close as possible. Check and readjust EW Trapezium item if the adjustment
becomes improper after some other geometric adjustments are done.

16:9 HORIZONTAL SHIFT ADJUSTMENT:

Enter a RED PURITY test pattern via RF.Change horizontal shift till the picture is horizontally centred. Check whether this adjust­ment is correct after completing Service Mode Adjustment.

16:9 VERTICAL SLOPE ADJUSTMENT:

Enter a CROSS-HATCH B/G test pattern via RF. Change vertical slope till the size of squares on both the upper and lower part of
test pattern become equal to the squares laying on the vertical centre of the test pattern. Check and readjust VERTICAL SLOPE
item if the adjustment becomes improper after some other geometric adjustments are done.

16:9 VERTICAL AMPLITUDE ADJUSTMENT:

Enter a PAL B/G test pattern via RF. Change vertical slope till horizontal black lines on both the upper and lower part of the test
pattern become very close to the upper and lower horizontal sides of picture tube and nearly about to disappear. Check and
readjust VERTICAL AMPLITUDE item if the adjustment becomes improper after some other geometric adjustments are done.

16:9 S-CORRECTION ADJUSTMENT:

Enter a PAL B/G circle test pattern via RF. Change S-correction till the middle part of the circle is as round as possible.

16:9 VERTICAL SHIFT ADJUSTMENT:

Enter a PAL B/G test pattern via RF. Change Vertical Shift till the test pattern is vertically centred, i.e. horizontal line at the
centre pattern is in equal distance both to upper and lower side of the picture tube. Check and readjust Vertical Shift item if the
adjustment becomes improper after some other geometric adjustments are done.

16:9 EW WIDTH ADJUSTMENT (only for 110ø picture tubes):

Enter a PAL B/G test pattern via RF. Change EW Width till the vertical black and white bars on both left and right side of the
pattern exactly disappear.

16:9 EW PARABOLA WIDTH ADJUSTMENT (only for 110ø picture tubes):

Enter a PAL B/G test pattern via RF. Change EW Parabola Width till vertical lines close to the both sides of the picture frame
become parallel to vertical sides of picture tube. Check and readjust EW Parabola Width item if the adjustment becomes
improper after some other geometric adjustments are done.

16:9 EW CORNER PARABOLA ADJUSTMENT (only for 110ø picture tubes):

Enter a PAL B/G test pattern via RF. Change EW Corner Parabola till vertical lines at the corners of both sides of picture frame
become vertical and parallel to vertical corner sides of picture tube. Check and readjust EW Corner Parabola item if the
adjustment becomes improper after some other geometric adjustments are done.

16:9 EW TRAPEZIUM ADJUSTMENT (only for 110ø picture tubes):
Enter a PAL B/G test pattern via RF. Change EW Trapezium till vertical lines, especially lines at the sides of the picture frame
became parallel to the both sides of picture tube as close as possible. Check and readjust EW Trapezium item if the adjustment
becomes improper after some other geometric adjustments are done.

21

Press " Ctrl+F " to find any word on this page!

LEVEL

COMPONENT

UNIT

CON.ASSY.2/40 R2.6

BILL OF MATERIAL LIST

10003277

BOM Date : 05/09/2000

5196 TEAC AUSTR TEAC EU-48

NO

1 1 20000580

2 2 20000550

3 3 30001955

4 3

5 2

6 3

7 3

8 1 20000592

9 2 30002119

10 2

11 2

12 1 20002319 MD.ASY.HP06-2SPK PC 1,000 . . . . .

13 2

14 3 20002310 MD.SEQ.HPXX-FTZ PC 1,000 . . . . .

15 4
16 4 30000743 RES CF 1/2W 560R J PC 2,000 R01 R02 . . .

17 4 30001996
18 4 30002583 JUMPER WIRE 0.6MM G 0,375 S01 S02 S04 . .

19 3
20 2 30001762

21 2
22 2 30002275

CODE

30002306

20000579

30001955

30002346

30007298

35000014

20002318

30000712

30009564

30001900

MATERIAL

SPK.AS.XX6-7-8-9/6­25/26 2SPK HP 19

SPK.ASSY.XX6-7-8-9/6
(R) AK19

SPEAKER 16R 5W
(50*90)

CON.ASSY.2/50 R2.6
SPK/(R)

SPK.ASSY.5X6-7-8­9/6(L) HP 19

SPEAKER 16R 5W
(50*90)

CONN.ASSY.2/69 R2.6
W/BL CONN.

CRT KIT (20) AK19
WO/UL

20 DEG COIL&EARTH
CB. WO/UL

CONN.ASSY.4/45 R26
(HRZ&VER)
IMPROVED

EARTH SPRING (2CM) PC 1,000 .

MD.AXI.HP06

RES CF 1/4W 470R J PC 2,000 R03

FIXED COIL 22UH Q40
K

PCB 11HP06-2
CONN.MALE 2P (2052)

GRAY
JACK HEADPHONE

HP01/2/3/4/5/6

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,000 .

PC 1,000 .

PC 1,000 .

PC 1,000 .

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,000 .

PC 1,000 .

PC 2,000 L01 L02 . . .

PC 1,000 .

PC 2,000 . . . . .

PC 1,000 .

PC 1,000 . . . . .

QTY

POSITION NUMBER

.

.

.

.

.

.

.

R04 .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

(SPEAKER)

SCREW S C ZNSY

23 1

24 2

25 3
26 2
27 2

28 1

29 2

30 2
31 1
32 2

33 3 60000003 ABS BLACK KG 0,006 . . . . .

34 2 20003651

35 3 60000003 ABS BLACK KG 0,003 . . . . .

36 2

37 3 60000012
38 2

39 3 60000013 ACRYLIC MILKY G 2,575 . . . . .

40 1 20004298

41 2
42 3
43 2

44 3 60000011 EPS KG 0,285 . . . . .

45 1 20005499

46 2 35000013

47 2 35000215
48 2 35000216

20002562

20004519

60000018
35000512
70000331

20003517

30001793

30002386
20003655
20003650

20004332

20004348

20004274
60000011
20004275

EXPEND KIT10/19
(20"-21")

CABLE HOLDER CRT
(I)

COPOLYMER
POLYPROPYLENE

NUT C ZN M4
ADHESIVE TAPE

75MM/660M (4125)
POWER CORD

ASSY.(2.2/AV TYPE)
CONN.FEMALE 2P

MLX
POWER CORD 2.2MT

AUST.TYPE
BUTTON ASSY.5X96 PC 1,000 .
BUTTON FUNCTION

(T) XX96 (I)

BUTTON ON/OFF
XX96 (I)

LENS PRE-AMP
8*24.7MM (I)

ACRYLIC DIACON
CLG 356(SEFFAF)

LENS (C) LED (I)

SNOW BOX
ASSY.XX6-7-8-9/6
25/26

SNOW BOX-TOP XX6­7-8-9/6

EPS
SNOW BOX-BOTTOM

XX6-7-8-9/6

SCREW AS.XX6-7-8­9/6 2S/HP/BAV

SPRING ON/OFF
SWITCH

SCREW S C ZNSY
YSMB 3.9*13

PC 1,000 .

PC 1,000 .

KG 0,002 .
PC 1,000 .
M 1,907 .

PC 1,000 .

PC 1,000 .

PC 1,000 .

PC 1,000 .

PC 1,000 . . . . .

PC 1,000 .

G 2,550 . . . . .

PC 1,000 .

PC 1,000 . . . . .

PC 1,000 .
KG 0,285 .
PC 1,000 .

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 5,000 . . . . .

.

.

.
.
.

.

.

.
.
.

.

.

.
.
.

.

.

.
.
.

.

.

.
.
.

.

.

.
.
.

.

.

.
.
.

.

.

.
.
.

.

.

.
.
.

.

.

.
.
.

.

.

.
.
.

.

.

.
.
.

YSMB 3.9*19

PAINT DARK BLACK

49 2

50 2

51 2 35001777

52 1

53 2

54 3

55 3

56 2 60000054

57 1 20019026

58 2 40004700 LENS 5196 (I) PC 1,000 . . . . .

59 1 20019027

60 2 20013018

61 3 50004065

62 3

63 1

64 2 50006056

65 2

66 1

67 2 20004629

68 3 60000009

69 3 60000022
70 2 60000055

35000224

35000231

20019017

20000712

60000009

60000022

70000321

20019028

50007082

20019029

SCREW C SK ZN
YFMB 2.9*9.5

SCREW SK C NI
YFMB 2.9*6.5

SCREWSCZNORYAKB
5x30 WITH RUBBER
WASHER

FRONT 5196 W/H&J
AKAI(UL) (P)

FRONT 5196 W/H&J
(UL) (I)

FR-HIPS NATR.V-0
6335

MASTERBATCH
(BLACK)

PAINT AKAI
METALLIC

LENS 5196 (-V+­P+)TEAC EU-48
(PN429C/S)

LBL.BCK.CVR.TEAC
EU-48

LBL.BCK.CVR.ASSY
(TV) (WO/UL)

LABEL LOT
W/BARCODE (3)

RIBBON T13506 ZA
110MM*335MM

F CARTON BOX TEAC
EU-48

CARTON BOX XX6-7­8-9/6-25 CR&W/TV
EMPTY

CARTON BOX TEAC
EU-48

BACK CV.XX6-7-8-9/6­25/26 MAT
BLACK(P)UL

BACK CVR.XX6-7-8­9/6-25/26 UL (I)

FR-HIPS NATR.V-0
6335

MASTERBATCH
(BLACK)

PC 1,000 .

PC 9,000 .

PC 4,000 . . . . .

.

.

.

.

.

.

PC 1,000 .

PC 1,000 .

KG 1,139 .

KG 0,012 .

KG 0,030 . . . . .

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,050 . . . . .

PC 1,050 .

PC 1,000 .

PC 1,000 . . . . .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

PC 1,000 .

PC 1,000 .

PC 1,000 . . . . .

KG 1,595 . . . . .

KG 0,016 . . . . .

KG 0,030 . . . . .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

(MAT)

71 1

72 2

73 3

74 3 30000156

75 3 30000174

76 3 30000580 RES CF 1/4W 22R J PC 1,000 R702 . . . .

77 3 30000712 RES CF 1/4W 470R J PC 1,000 R717 . . . .

78 3 30000837 RES CF 1/4W 9.1K J PC 1,000 R613 . . . .

79 3

80 3 30001215 RES FUSE 1W 1R J PC 1,000 R611 . . . .

81 3 30001855

82 3

83 3 30013514

84 2 20026970

85 3 20002077

86 4

87 5

88 6

89 7 20002072

90 8 20002073

91 9 30002583 JUMPER WIRE 0.6MM G 0,125 S101 . . . .

92 8 20011398 PCB 11BAV19-6 PC 1,000 . . . . .

93 9 60000047
94 7 30000109 CAP MKT 470NF 63V J PC 3,000 C113 C114 C115 . .

95 7
96 7 30000387 CAP EL 33UF 50V M PC 2,000 C101 C102 . . .

20026971

20003128

30000131

30000911

30002051

20002087

20002070

20002071

30000352

CHS.ASSY.19B­142U22231322I1

CRT DIFF.KIT AK19­20/THO(02)-(04)

CAP MKP 100NF 250V
J

CAP MKP 430NF 250V
J

CAP MKP 7.5NF 1.6KV

3.5%

RES MF 1/4W 1.8R J PC 1,000 R703 .

SOCKET CRT
NARROWNECK
W/GND

TRF FBT
COM.FOC.(AK19­AK20)90°

CABLE 5/45 FC
(W/CABLE HOLDER)

CHS.WO/CRT.19B­142U22231322X1

MD.ASY.BAV19-BAV
IN/OUT MN

MD.OTO.BAV19-BAV
IN/OUT MN

MD.SMD.BAV19­MONO

MD.RAD.BAV19­MONO

MD.AXI.BAV19­MONO

MD.SEQ.BAV19­MONO

CCL 1220*1020*1.6
FR2 V0 351

CAP EL 100UF 16V M PC 1,000 C100 .

PC 1,000 .

PC 1,000 .

PC 1,000 C610 .

PC 1,000 C617 . . . .

PC 1,000 C611 . . . .

PC 1,000 PL900 . . . .

PC 1,000 TR602 .

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,000 .

PC 1,000 .

PC 1,000 .

PC 1,000 . . . . .

PC 1,000 . . . . .

M2 0,009 . . . . .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

97 7

(MC44604) PCB

98 6

99 6
. .

100 6 30000653 RES SMD 1/10W 33R J PC 1,000 R101 . . . .

101 6 30000732
102 6
103 4

104 5

105 5

106 5 30001840

107 5 30001842

108 5 30001880

109 5 30002248

110 5 30002249

111 5 30002250

112 5

113 3
114 4
115 3 20026968

116 4

117 5 20025313

118 6 20025314

119 7 20025315

30001454
30000464

30000469
.

30000807
20003207

30001833

30001834

30002251

20026725
30009005

20010983

TR BC548B
RES SMD 1/10W 100R

J
RES SMD 1/10W 1K J

0805
.

RES SMD 1/10W 470K
J

RES SMD 1/10W 75K J PC 1,000 R113 .
MD.MAN.BAV19-BAV

IN/OUT MONO
CONN MALE 2P SIDE

BLUE
CONN MALE 2P SIDE

RED
CONN MALE 3P SIDE

WHITE
CONN MALE 3P SIDE

BLUE
JACK RCA 3P (BACK

AV) 180°
CONN ASSY 2/28

SHL.D.C. RED
CONN ASSY 2/28

SHL.D.C. BLU
CONN ASSY 3/28

SHL.D.C. BLU
CONN ASSY 3/28

SHL.D.C. WHT
IC 24C16

772U2E1100100010
IC 24C16
M.ASSY.19B-OTO

142U22XX1X2XX1
MB.SMD.19B-AK19B1

(MC44604) PCB
GRUBU

MB.RAD.19B-AK19B1
(MC44604) PCB
GRUBU

MB.AXI.19B-AK19B1
(MC44604) PCB
GRUBU

MB.SEQ.19B-AK19B1

PC 3,000 Q100 Q101 Q102 .
PC 1,000 R100 .

PC 7,000 R102 R105 R106 R107 R110
.

.

PC 2,000 R103 R108 . . .

PC 1,000 .

PC 1,000 PL103 .

PC 1,000 PL108 .

PC 1,000 PL101 . . . .

PC 1,000 PL100 . . . .

PC 2,000 PL102 PL113 . . .

PC 1,000 PL108 . . . .

PC 1,000 PL103 . . . .

PC 1,000 PL100 . . . .

PC 1,000 PL101 .

PC 1,000 .
PC 1,000 .

PC 1,000 . . . . .

PC 1,000 .

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,000 . . . . .

R111 R112 .

.

.
.

.

.

.
.

.

.

.

.
.

.

.

.

.
.

.

.

.

.
.

.

.
.

.

.
.

.

.

.

.
.

.

GRUBU

CAP CER 820PF 50V K

MB.JUM.19B-AK19B1

120 8 20025713

121 9 30002583 JUMPER WIRE 0.6MM G 2,375 J801 D822 S805 R802 R803
. .

. . . . . . J125 J278 J288 J451 J800

. .
122 8 30000466 RES CF 1/4W 1K J PC 3,000 R809 R807 R829 . .
123 8

124 8 30000495 RES CF 1/4W 1.2K J PC 1,000 R587 . . . .

125 8 30000519 RES CF 1/4W 150R J PC 1,000 R812 . . . .

126 8 30000554 RES CF 1/4W 180R J PC 1,000 R569 . . . .

127 8 30000569 RES CF 1/4W 180K J PC 1,000 R850 . . . .

128 8
129 8 30000583 RES CF 1/4W 220R J PC 2,000 J167 R559 . . .
130 8

131 8 30000599 RES CF 1/4W 220K J PC 1,000 R821 . . . .

132 8 30000603

133 8 30000633 RES CF 1/4W 27K J PC 1,000 R805 . . . .

134 8 30000706 RES CF 1/4W 47R J PC 4,000 R836 R833 R814 R103 .
135 8 30000718 RES CF 1/4W 4.7K J PC 2,000 R879 R832 . . .
136 8

137 8 30000837 RES CF 1/4W 9.1K J PC 1,000 R813 . . . .

138 8

139 8 30001318 DIODE BA159 PC 1,000 D805 . . . .

140 8
141 8

142 8
143 7

144 6 30000074 CAP MKT 100NF 63V J PC 2,000 C807 C483 . . .
145 6 30000191
146 6
147 6

148 6
149 6

.

.

30000471

30000580

30000594

30000815

30001284

30001349
30001369

30001992
30007878

30000283
30000290

30000295
30000342

(MC44604) PCB
GRUBU

.

.

RES CF 1/4W 10K J

RES CF 1/4W 22R J

RES CF 1/4W 22K J

RES CF 1/2W 2.2M J
(400V)

RES CF 1/4W 8.2K J PC 1,000 R834 .

DIODE 1N4148

DIODE ZENER 11V
DIODE ZENER 3.6V

ZPD
FIXED COIL 10UH Q65

K-A
PCB 11AK19B-1

CAP CER 100PF 50V J
SL

CAP CER 1NF 50V K B PC 3,000 C855 C808 C809 .
CAP CER 10NF 50V Z

F
CAP CER 100NF 50V Z

F

PC 1,000 . . . . .

.

.

.

.

PC 3,000 R844 R831 R546 .

PC 1,000 R835 .

PC 2,000 R810 R811 .

PC 1,000 R860 . . . .

PC 3,000 D823 D524 D525 .

PC 1,000 D819 .
PC 1,000 D505 .

PC 2,000 L503
PC 1,000 .

PC 1,000 C803 . . . .

PC 1,000 C853 .

PC 2,000 C830 C832 .
PC 1,000 C806 .

J803

J802

S804 J101 J111 J120

S511 J163 J197 .

L406 .
.

.

.

.
.

.

.

.

.

.

.

.
.

.
.

.

.
.

.

.

.

.

.

.
.

.
.

.
.

.
.

B

150 6 30000345 CAP EL 10UF 50V M PC 1,000 C580 . . . .

151 6 30000353 CAP EL 100UF 25V M PC 1,000 C848 . . . .

152 6 30000375 CAP EL 220UF 16V M PC 1,000 C814 . . . .

153 6 30000387 CAP EL 33UF 50V M PC 2,000 C449 C601 . . .
154 5

155 5 30000289

156 5 30000294

157 5 30000300 CAP SMD 1.5NF 50V K PC 1,000 C495 . . . .

158 5
. .
159 5 30000475

160 5

161 5

162 5 30000597 RES SMD 1/10W 22K J PC 1,000 R101 . . . .

163 5 30000751

164 5 30000797
165 5 30001734 JUMPER SMD (0805) PC 3,000 J092 J231 J401 . .

166 4 20019648

167 5 20019788

168 6 20019789

169 7

170 8

171 9 30002583 JUMPER WIRE 0.6MM G 0,375 J141 J264 J261 . .
172 8

173 8 30000500 RES CF 1/4W 12K J PC 1,000 R711 . . . .

174 8
175 8 30001284 DIODE 1N4148 PC 4,000 D510 D506 D507 D508 .

30000189

30000469
.

30000563

30000593

20019790

20019791

30000466

30000718

CAP SMD 100PF 50V J

(0805)

CAP SMD 10NF 50V K

R (0805)

CAP SMD 100NF 50V

K (0805)

RES SMD 1/10W 1K J

0805

.

RES SMD 1/10W 10K J

0805

RES SMD 1/10W 1.8K J

(0805)

RES SMD 1/10W 2.2K J

(0805)

RES SMD 1/10W 5.6K J

0805

RES SMD 1/10W 75R J

(0805)

MB.SMD.19B-

WO/TXT-8P/TXT 545X

TEAC

MB.RAD.19B-

WO/TXT-8P/TXT 545X

TEAC

MB.AXI.19B-WO/TXT-

8P/TXT 545X TEAC

MB.SEQ.19B-WO/TXT-

8P/TXT 545X TEAC

MB.JUM.19B-

WO/TXT-8P/TXT 545X

TEAC

RES CF 1/4W 1K J

RES CF 1/4W 4.7K J PC 1,000 R710 .

PC 1,000 C528 .

PC 1,000 C506 . . . .

PC 1,000 C510 . . . .

PC 6,000 R571 R554 R543 R438 R439
.

.

PC 1,000 R581 . . . .

PC 1,000 R566 .

PC 3,000 R537 R538 R539 .

PC 3,000 R528 R529 R530 . .

PC 3,000 R070 R071 R072 . .

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,000 .

PC 1,000 .

PC 1,000 R448 .

R440 .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

176 8

177 6 30000099 CAP MKT 33NF 63V J PC 1,000 C529 . . . .

178 6 30000100 CAP MKT 330NF 63V J PC 1,000 C521 . . . .

179 6 30000345 CAP EL 10UF 50V M PC 2,000 C428 C517 . . .

180 6 30000400 CAP EL 47UF 50V M PC 1,000 C505 . . . .

181 6
182 5 30000237

183 5

184 5

185 5

186 5

187 5 30000631

188 5 30000636

189 5 30000668

190 5 30000688

191 5 30000727
192 5 30001734 JUMPER SMD (0805) PC 2,000 S502 S415 . . .
193 4 20020167

194 5 20020168

195 6 20020169

196 7 20020170

197 8

198 9
199 9 30002583 JUMPER WIRE 0.6MM G 19,000 J096 J098 J100 J102 J103

. . . . . . J107 J108 J109 J110 J112

. .

. . . . . . J130 J132 J133 J136 J138

. .

30001315

30001454

30000294

30000475

30000484

30000626

20020171

20020172

.

.

DIODE BYD33D

TR BC548B

CAP SMD 33PF 50V J

(08*05)

CAP SMD 100NF 50V

K (0805)

RES SMD 1/10W 10K J

0805

RES SMD 1/10W 1M J

(0805)

RES SMD 1/10W 270R

J

RES SMD 1/10W 2.7K J

0805

RES SMD 1/10W 27K J

0805

RES SMD 1/10W 33K J

0805

RES SMD 1/10W 390R

J (0805)

RES SMD 1/10W 47K J

(0805)

MB.SMD.19B-

COMMON

MB.RAD.19B-

COMMON

MB.AXI.19B-

COMMON

MB.SEQ.19B-

COMMON

MB.JUM.19B-

COMMON

MB.PER.19B-

COMMON

.

.

PC 2,000 D811 D812 .

PC 2,000 Q415 Q702 .
PC 2,000 C524 C525 . . .

PC 1,000 C590 .

PC 3,000 R595 R596 R564 .

PC 1,000 R584 .

PC 1,000 R447 .

PC 3,000 R540 R591 R593 . .

PC 1,000 R550 . . . .

PC 1,000 R556 . . . .

PC 1,000 R465 . . . .

PC 1,000 R548 . . . .

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,000 .

PC 1,000 .

.

.

.

.

J115

J139

.

.

J117 J118 J122 J124

J143 J145 J146 J147

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

. .

. . . . . . J155 J157 J158 J159 J160

. . . . . . J161 J169 J170 J177 J178

. . . . . . J179 J180 J182 J183 J184

. . . . . . J186 J189 J190 J191 J192

. .

. . . . . . J201 J202 J203 J204 J205

. .

. . . . . . J211 J212 J214 J215 J216

. .

. . . . . . J226 J227 J230 J237 J238

. . . . . . J239 J240 J241 J242 J245

. . . . . . J246 J247 J248 J249 J250

. . . . . . J251 J252 J253 J255 J256

. .

. . . . . . J270 J273 J274 J282 J290

. .

. . . . . . J296 J299 J498 J499 J570

. .

. . . . . . J619 J648 J651 J804 J808

. . . . . . J810 J850 R616 R825 R827

. . . . . . S112 S113 S114 S602 S107

. . . . . . J805 J114 J131 J156 J171

. .

. . . . . . J265 J271 J277 J280 J598

. .
200 8 30000459 RES CF 1/4W 100R J PC 8,000 R202 R407 R431 R432 R602
. .
201 8 30000466 RES CF 1/4W 1K J PC 5,000 R605 R626 R716 R818 R700
202 8 30000471 RES CF 1/4W 10K J PC 3,000 R203 R488 R601 . .

203 8 30000580 RES CF 1/4W 22R J PC 1,000 R705 . . . .

204 8 30000633 RES CF 1/4W 27K J PC 1,000 R451 . . . .

205 8

206 8 30000723 RES CF 1/4W 47K J PC 1,000 R201 . . . .

207 8
208 8 30000810 RES CF 1/4W 820R J PC 2,000 R868 R869 . . .
209 8

210 8 30000949 RES MF 1/4W 3K G PC 1,000 R706 . . . .

211 8 30001082 RES MO 1/2W 1K J PC 2,000 R620 R630 . . .
212 8 30001284 DIODE 1N4148 PC 8,000 D201 D420 D509 D602 D603

.

.

.

.

.

.

.

.

.

.

30000706

30000770

30000815

.

.

.

.

.

.

.

.

.

.

RES CF 1/4W 47R J

RES CF 1/4W 680R J PC 1,000 R460 .

RES CF 1/4W 8.2K J PC 1,000 R619 .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

PC 1,000 R402 .

J148

J193

J206

J218

J257

J291

J611

J187

J128

R621 R714 R715 .

J149 J150 J151 J153

J194 J196 J198 J199

J207 J208 J209 J210

J220 J221 J223 J225

J260 J262 J266 J267

J292 J293 J294 J295

J612 J613 J615 J616

J188 J243 J254 J263

J164 .

.

.

.

.

.

.

.

.

.

.

.

.

. .

213 8 30001315 DIODE BYD33D PC 1,000 D813 . . . .

214 8 30001317 DIODE BA157 PC 2,000 D605 D609 . . .
215 8 30001318 DIODE BA159 PC 4,000 D818 D826 D827 D807 .

216 8 30001347 DIODE ZENER 8.2V PC 1,000 D408 . . . .

217 8

218 8 30001979

219 8 30001984

220 8 30001986

221 8 30001992

222 8 30001997

223 8

224 6 30000071 CAP MKT 10NF 63V J PC 1,000 C705 . . . .

225 6 30000074 CAP MKT 100NF 63V J PC 3,000 C403 C436 C709 . .
226 6 30000092 CAP MKT 220NF 63V J PC 2,000 C706 C415 . . .

227 6 30000107 CAP MKT 47NF 250V J PC 1,000 C604 . . . .

228 6
229 6 30000198

230 6

231 6
232 6 30000345 CAP EL 10UF 50V M PC 7,000 C102 C203 C402 C405 C410

. . . . . . C440 C514 . . .

233 6
234 6 30000362 CAP EL 1UF 50V M PC 2,000 C431 C437 . . .
235 6
236 6 30000375 CAP EL 220UF 16V M PC 3,000 C413 C845 C847 . .
237 6

238 6 30000393 CAP EL 3.3UF 50V M PC 1,000 C500 . . . .

239 6 30000407 CAP EL 470UF 16V M PC 1,000 C607 . . . .

240 6
241 6

242 6 30001454 TR BC548B PC 8,000 Q100 Q402 Q406 Q420 Q514

.

30001377

30002016

30000109

30000295

30000313

30000353

30000371

30000384

30000433
30001435

.

DIODE ZENER 33V

UZT 33B

FIXED COIL 1UH Q45

M-A

FIXED COIL 2.2UH

Q55 M-AX

FIXED COIL 3.3UH

Q65 K

FIXED COIL 10UH Q65

K-A

FIXED COIL 33UH Q60

J

FIXED COIL 150UH

Q60 K

CAP MKT 470NF 63V J PC 1,000 C112 .

CAP CER 120PF 500V J

SL

CAP CER 100NF 50V Z

F

CAP CER 22NF 50V Z

F

CAP EL 100UF 25V M PC 1,000 C426 .

CAP EL 22UF 50V M PC 2,000 C516 C570 .

CAP EL 2.2UF 50V M PC 1,000 C407 .

CAP CER 1NF 1KV M

B

TR BC639

.

.

PC 1,000 D604 .

PC 1,000 L201 . . . .

PC 1,000 L801 . . . .

PC 1,000 L402 . . . .

PC 3,000 L502 L405 L504 . .

PC 1,000 J129 . . . .

PC 2,000 J649

PC 1,000 C831 . . . .

PC 4,000 C816 C819 C822 C825 .

PC 1,000 C406 .

PC 4,000 C850 C851 C846 C852 .
PC 1,000 Q604 .

D607 D608 D701 .

L001 .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

. .

CAP SMD 220NF 25V Z

RES SMD 1/10W 1R J

243 6 30001455 TR BC558B PC 3,000 Q503 Q601 Q701 . .

244 6 30001506 IC TL431 PC 1,000 Q809 . . . .

245 6 30008805 CAP MKT 39NF 63V J PC 1,000 C854 . . . .

246 5 30000189

247 5 30000201

248 5

249 5

250 5

251 5
. .

. . . . . . C530 C533 . . .

252 5
253 5

254 5
. .

.

30000220

30000252

30000284

30000294
.

30000300
30000309

30000312
.

.

CAP SMD 100PF 50V J

(0805)

CAP SMD 15PF 50V J

(08*05)

CAP SMD 22PF 50V J

(08*05)

CAP SMD 47PF 50V J

(08*05)

CAP SMD 1NF 50V K

R (0805)

CAP SMD 100NF 50V

K (0805)

.

CAP SMD 1.5NF 50V K PC 2,000 C497 C499 .

CAP SMD 2.2NF 50V K

R

CAP SMD 22NF 50V K

(0805)

.

.

.

PC 2,000 C448 C498 . . .

PC 2,000 C576 C577 . . .

PC 1,000 C422 .

PC 2,000 C446 C447 .

PC 2,000 C433 C434 .

PC 12,000 C211 C424 C427 C513 C537
.

.

PC 1,000 C603 .

PC 7,000 C108 C412 C416 C417 C418
.

.

Q805 Q806 Q807 .

C538 C539 C540 C029 C526

C425 C438 .

.

.

.

.

.

.
.

.

.

.

.

.

.
.

.

255 5 30000315

256 5 30000322

257 5

258 5

259 5

260 5 30000464

261 5 30000469

. . . . . . R503 R507 R708 . .

262 5
. .
263 5 30000480
264 5 30000489

30000332

30000334

30000457

30000475
.

(0805)

CAP SMD 3.3NF 50V K

(0805)

CAP SMD 4.7NF 50V K

(0805)

CAP SMD 47NF 50V K

(0805)

RES SMD 1/10W 10R J

0805

RES SMD 1/10W 100R

J

RES SMD 1/10W 1K J

0805

RES SMD 1/10W 10K J

0805

.

RES SMD 1/10W 100K

J (0805)

PC 1,000 C419 . . . .

PC 1,000 C423 . . . .

PC 3,000 C459 C109 C111 .

PC 2,000 C411 C450 .

PC 1,000 R104 .

PC 2,000 R580 R582 . . .

PC 8,000 R405 R437 R441 R500 R502

PC 8,000 R433 R524 R534 R552 R572
.

.

PC 2,000 R446 R586 . . .

PC 1,000 R449 . . . .

R578 R594 R709 .

.

.

.

.

.

.

.

(0805)
265 5

266 5

267 5

268 5 30000606

269 5 30000631

270 5 30000653 RES SMD 1/10W 33R J PC 1,000 R075 . . . .

271 5

272 5
273 5
274 5

275 5
276 5 30000721 RES SMD 1/10W 4.7K J PC 2,000 R486 R542 . . .
277 5 30000727

278 5 30000732

279 5 30000735

280 5
281 5 30001734 JUMPER SMD (0805) PC 18,000 J097 J195 J224 J233 J236

. . . . . . J258 J268 J279 J283 J289

. .

. . . . . . J275 J450 J400 . .

282 4 20020227

283 5 20020228

284 6 20020229

285 7 20020230

286 8 20020231

287 9 30002583 JUMPER WIRE 0.6MM G 0,125 S010 . . . .

30000503

30000563

30000588

30000659

30000688
30000697
30000710

30000717

30000747

.

RES SMD 1/10W 12K J

(0805)

RES SMD 1/10W 1.8K J

(0805)

RES SMD 1/10W 220R

J 0805

RES SMD 1/10W 2.2M

J

RES SMD 1/10W 2.7K J

0805

RES SMD 1/10W 330R

J (0805)

RES SMD 1/10W 390R

J (0805)

RES SMD 1/10W 39K G PC 1,000 R459 .

RES SMD 1/10W 47R J

(0805)

RES SMD 1/10W 470R

J (0805)

RES SMD 1/10W 47K J

(0805)

RES SMD 1/10W 470K

J

RES SMD 1/10W 4.7R J

(0805)

RES SMD 1/10W 560R

J (0805)

.

MB.SMD.19B-1SC

MONO FAV

MB.RAD.19B-1SC

MONO FAV

MB.AXI.19B-1SC

MONO FAV

MB.SEQ.19B-1SC

MONO FAV

MB.JUM.19B-1SC

MONO FAV

PC 1,000 R200 .

PC 1,000 R498 .

PC 1,000 R618 .

PC 1,000 R457 . . . .

PC 1,000 R450 . . . .

PC 2,000 R403 R426 .

PC 1,000 R404 .

PC 1,000 R419 .

PC 1,000 R400 .

PC 1,000 R100 . . . .

PC 1,000 R458 . . . .

PC 1,000 R418 . . . .

PC 1,000 R102 .

.

.

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,000 . . . . .

J405

.

.

.

J406 J610 J617 S070

.
.
.

.

.

.

.

.

.

.
.
.

.

.

.

.

.

.

.
.
.

.

.

288 8

289 8 30000531 RES CF 1/4W 15K J PC 1,000 R549 . . . .

290 8 30002015
291 6 30000109 CAP MKT 470NF 63V J PC 2,000 C056 C057 . . .

292 6
293 6 30001454 TR BC548B PC 4,000 Q051 Q052 Q057 Q500 .
294 6
295 5 30000242 CAP SMD 330PF 50V J PC 3,000 C061 C062 C077 . .
296 5

297 5

298 5

299 5

300 5 30000475

301 5 30000593
302 5 30000597 RES SMD 1/10W 22K J PC 2,000 R055 R058 . . .
303 5

304 5

305 5 30000692

306 5 30000727

307 5 30000774

308 5 30000797
309 5 30001734 JUMPER SMD (0805) PC 4,000 S051 S055 S056 S058 .
310 4 20020481

311 5 20020482

312 6 20020493

313 7 20020494

314 8 20020495
315 9 30002583 JUMPER WIRE 0.6MM G 0,250 J137 S109 . . .

30000466

30000371

30001455

30000300
30000332

30000334

30000469

30000668

30000675

RES CF 1/4W 1K J

FIXED COIL 150UH

Q50 K (RAD)

CAP EL 22UF 50V M PC 1,000 C074 .

TR BC558B

CAP SMD 1.5NF 50V K PC 2,000 C059 C060 .

CAP SMD 4.7NF 50V K

(0805)

CAP SMD 47NF 50V K

(0805)

RES SMD 1/10W 1K J

0805

RES SMD 1/10W 10K J

0805

RES SMD 1/10W 2.2K J

(0805)

RES SMD 1/10W 33K J

0805

RES SMD 1/10W 3.3M

J

RES SMD 1/10W 3.9K J

0805

RES SMD 1/10W 47K J

(0805)

RES SMD 1/10W 680R

J (0805)

RES SMD 1/10W 75R J

(0805)

MB.SMD.19B-20/21"

MONO (2 SPK.)

MB.RAD.19B-20/21"

MONO (2 SPK.)

MB.AXI.19B-20/21"

MONO (2 SPK.)

MB.SEQ.19B-20/21"

MONO (2 SPK.)

MB.JUM.19B-20/21"

MONO (2 SPK.)

PC 2,000 R092 R508 .

PC 1,000 L050 . . . .

PC 1,000 Q504 .

PC 2,000 C01

PC 1,000 C409 .

PC 3,000 R064 R067 R069 .

PC 1,000 R086 . . . .

PC 1,000 R509 . . . .

PC 1,000 R511 .

PC 1,000 R510 .

PC 2,000 R059 R056 . . .

PC 2,000 R057 R060 . . .

PC 1,000 R068 . . . .

PC 3,000 R073 R074 R417 . .

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,000 . . . . .

C02 .

.

.

.

.

.

.

.
.

.

.

.

.

.

.

.

.

.
.

.

.

.

.

316 8 30001986

317 5 30000252

318 5 30000284

319 5 30000480

320 5

321 5

322 4 20020758

323 5

324 6 20020760

325 7 20020761

326 8 30000531 RES CF 1/4W 15K J PC 1,000 R849 . . . .

327 8 30000540
328 8

329 8 30000837 RES CF 1/4W 9.1K J PC 1,000 R808 . . . .

330 8 30001317 DIODE BA157 PC 1,000 D606 . . . .

331 6

332 6

333 4 20020784

334 5 20020785

335 6 20020786

336 7 20020787

337 8 20026015
338 9 30002583 JUMPER WIRE 0.6MM G 0,375 J140 J272 J175 . .

339 8

30000668

30000717

20020759

30000660

30000433

30009208

30000459

FIXED COIL 3.3UH

Q65 K

CAP SMD 47PF 50V J

(08*05)

CAP SMD 1NF 50V K

R (0805)

RES SMD 1/10W 100K

J (0805)

RES SMD 1/10W 33K J

0805

RES SMD 1/10W 470R

J (0805)

MB.SMD.19B-SMPS

90-270V 90°MIT-DI-

TE545X

MB.RAD.19B-SMPS

90-270V 90°MIT-DI-

TE545X

MB.AXI.19B-SMPS 90-

270V 90°MIT-DI-

TE545X

MB.SEQ.19B-SMPS 90-

270V 90°MIT-DI-

TE545X

RES CF 1/2W 1.5M J

(400V)

RES CF 1/4W 3.3K J PC 1,000 R871 .

CAP CER 1NF 1KV M

B

CAP CER 470PF 1KV K

(PULSE)

MB.SMD.19B-PLL

NORMAL

MB.RAD.19B-PLL

NORMAL

MB.AXI.19B-PLL

NORMAL

MB.SEQ.19B-PLL

NORMAL

MB.JUM.19B-PLL

NORMAL

RES CF 1/4W 100R J PC 2,000 R208 R209 .

PC 1,000 L401 . . . .

PC 1,000 C575 . . . .

PC 1,000 C107 . . . .

PC 1,000 R107 . . . .

PC 1,000 R106 .

PC 1,000 R401 .

PC 1,000 . . . . .

PC 1,000 .

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,000 R816 . . . .

PC 2,000 C824 C821 .

PC 1,000 C827 .

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,000 . . . . .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

340 6

341 6 30000352 CAP EL 100UF 16V M PC 1,000 C201 . . . .

342 5 30000597 RES SMD 1/10W 22K J PC 1,000 R213 . . . .

343 5 30001734 JUMPER SMD (0805) PC 2,000 S201 S203 . . .
344 4 20020836

345 5 20020837

346 6

347 7

348 8
349 9
350 4 20021360

351 5

352 6

353 7

354 8
355 9

. . . . . . S503 S504 S505 S510 J200

. .

. . . . . . S509 J276 . . .

356 8 30000650 RES CF 1/4W 33R J PC 1,000 R428 . . . .

357 8 30000712 RES CF 1/4W 470R J PC 2,000 R588 R599 . . .

358 8 30001257 RES MG 1/2W 4.7M J PC 1,000 R845 . . . .

359 8
360 8 30001990

361 6 30000384 CAP EL 2.2UF 50V M PC 1,000 C401 . . . .

362 6

363 6 30001455 TR BC558B PC 1,000 Q512 . . . .

364 6 30001716

365 6 30001724

366 5 30000220

30000345

20020838

20020839

20020840
30002583

20021361

20021362

20021363

20021364
30002583

.

30001284

30001454

CAP EL 10UF 50V M PC 1,000 C204 .

MB.SMD.19B-WO/CF-

CTI

MB.RAD.19B-WO/CF-

CTI

MB.AXI.19B-WO/CF-

CTI

MB.SEQ.19B-WO/CF-

CTI

MB.JUM.19B-WO/CF-

CTI

JUMPER WIRE 0.6MM G

MB.SMD.19B-PSBG

MONO PLL

MB.RAD.19B-PSBG

MONO PLL

MB.AXI.19B-PSBG

MONO PLL

MB.SEQ.19B-PSBG

MONO PLL

MB.JUM.19B-PSBG

MONO PLL

JUMPER WIRE 0.6MM G

.

DIODE 1N4148

FIXED COIL 6.8UH

Q75 K

TR BC548B

FILTER SER 5.5MHZ

SFE 5.5MB

FILTER SER TRAP

TPS 5.5MHZ

CAP SMD 22PF 50V J

(08*05)

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,000 .

PC 1,000 .

PC 1,000 .

0,125 S062

PC 1,000 . . . . .

PC 1,000 .

PC 1,000 .

PC 1,000 .

PC 1,000 .

2,250 C451 C452 D402 D405 S110

.

.

PC 2,000 D503 D504 .

PC 1,000 L403 . . . .

PC 2,000 Q401 Q407 .

PC 1,000 Z204 . . . .

PC 1,000 Z209 . . . .

PC 1,000 C421 . . . .

J165

.

.

.
.

.

.

.

.

J166 S506 S507 S508

.

.

.

.
.

.

.

.

.

.

.

.

.
.

.

.

.

.

.

.

.

.

.

.
.

.

.

.

.

.

.

367 5 30000268

SIZE NORMAL/UL 90

-

368 5 30000284

369 5 30000294

370 5 30000499

371 5

372 5

373 5

374 5

375 5 30000563

376 5 30000593

377 5 30000778
378 5 30001734 JUMPER SMD (0805) PC 3,000 S420 R478 J500 . .
379 4

380 5 20032122

381 6 20041714

382 7 20041715

383 8 20041716
384 6 30000082 CAP MKT 15NF 63V J PC 2,000 C116 C117 . . .
385 6 30000191

386 4 20044581

387 5 20044582

388 6

389 7 20044584

30000503

30000524

30000534

30000558

20032121

20044583

CAP SMD 68PF 50V J

(0805)

CAP SMD 1NF 50V K

R (0805)

CAP SMD 100NF 50V

K (0805)

RES SMD 1/10W 1.2K J

(0805)

RES SMD 1/10W 12K J

(0805)

RES SMD 1/10W 150R

J (0805)

RES SMD 1/10W 15K J

(0805)

RES SMD 1/10W 180R

J

RES SMD 1/10W 1.8K J

(0805)

RES SMD 1/10W 2.2K J

(0805)

RES SMD 1/10W 6.8K J

0805

MB.SMD.19B-W/EMC

90°

MB.RAD.19B-W/EMC

90°

MB.AXI.19B-W/EMC

90°

MB.SEQ.19B-W/EMC

90°

MB.JUM.19B-W/EMC

90°

CAP CER 100PF 50V J

SL

MB.SMD.19B-20/21"

SIZE NORMAL/UL 90-

270V

MB.RAD.19B-20/21"

SIZE NORMAL/UL 90-

270V

MB.AXI.19B-20/21"

SIZE NORMAL/UL 90-

270V

MB.SEQ.19B-20/21"

PC 1,000 C404 . . . .

PC 2,000 C490 C439 . . .

PC 3,000 C030 C031 C032 . .

PC 2,000 R421 R461 . . .

PC 2,000 R561 R574 .

PC 1,000 R429 .

PC 1,000 R454 .

PC 1,000 R422 .

PC 1,000 R463 . . . .

PC 1,000 R420 . . . .

PC 1,000 R462 . . . .

PC 1,000 .

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,000 C212 . . . .

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,000 .

PC 1,000 . . . . .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

270V

RES SMD 1/10W 10K J

MB.JUM.19B-20/21"
390 8 20044585

391 9

392 9

. . . . . . J614 . . . .

393 8
394 8 30000525 RES CF 1/2W 1.5K J PC 5,000 R901 R902 R903 R905 R906

395 8 30000655 RES CF 1/4W 330R J PC 1,000 R707 . . . .

396 8 30000815 RES CF 1/4W 8.2K J PC 1,000 R614 . . . .

397 8 30000837 RES CF 1/4W 9.1K J PC 1,000 R615 . . . .

398 8

399 8 30001037 RES MF 1/4W 99K F PC 1,000 R823 . . . .

400 8

401 8 30001230 RES FUSE 1/2W 27R J PC 1,000 R628 . . . .

402 8

403 8 30001318 DIODE BA159 PC 1,000 D601 . . . .

404 8 30001329 DIODE 1N4007 PC 3,000 D901 D902 D903 . .

405 6 30000074 CAP MKT 100NF 63V J PC 1,000 C435 . . . .

406 6 30000090 CAP MKT 22NF 100V J PC 1,000 C707 . . . .

407 6

408 6 30000323
409 6

410 6 30000413 CAP EL 4.7UF 50V M PC 1,000 C432 . . . .

411 6 30000434

412 6 30000599 RES CF 1/4W 220K J PC 1,000 R617 . . . .

413 6

414 6 30001455 TR BC558B PC 1,000 Q425 . . . .

415 6 30007308

416 6 30009208

417 5 30000284

418 5 30000309
419 5 30000475

20044586

30002583

30000459

30000925

30001210

30001242

30000319

30000394

30001454

SIZE NORMAL/UL 90-

270V

MB.PER.19B-20/21"

SIZE NORMAL/UL 90-

270V

JUMPER WIRE 0.6MM G

RES CF 1/4W 100R J PC 3,000 R907 R908 R909 .

RES MF 1/4W 2.2K F PC 1,000 R824 .

RES FUSE 1/4W 100R J PC 1,000 R704 .

RES FUSE 1/4W 47R J PC 1,000 R914 .

CAP CER 2.7NF 500V

K B

CAP CER 33NF 50V K

B

CAP EL 3.3UF 160V M PC 1,000 C618 .

CAP CER 1NF 2KV K

B

TR BC548B

CAP CER 220PF 1KV K

(PULSE)

CAP CER 470PF 1KV K

(PULSE)

CAP SMD 1NF 50V K

R (0805)

CAP SMD 2.2NF 50V K

R

PC 1,000 . . . . .

PC 1,000 .

0,750 R608 S601 S806 J901 J903

.

.

.

PC 1,000 C904 .

PC 1,000 C608 . . . .

PC 1,000 C903 . . . .

PC 1,000 Q426 .

PC 1,000 C833 . . . .

PC 1,000 C835 . . . .

PC 2,000 C708 C715 . . .

PC 1,000 C430 . . . .

PC 1,000 R487 . . . .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

0805
420 5

421 5

422 3

423 4 20000957

424 5 20003607

425 6 60000003 ABS BLACK KG 0,001 . . . . .

426 5 30001440 TR 2506DF PC 1,000 Q605 . . . .

427 5 30001561 IC TDA8356 PC 1,000 IC701 . . . .

428 5

429 5 35000119

430 5 35000158

431 5 35000165

432 5 35000183

433 5 50001755

434 4 20019661

435 5 20017158 PR.IC.19-545X TEAC PC 1,000 . . . . .

436 6 30001862

437 6 30006718 IC SDA545X OTP PC 1,000 IC501 . . . .

438 5

439 5 30006662 XTAL 6MHZ PC 1,000 X501 . . . .

440 4 20020278

441 5 30001830

442 5 30001831

443 5 30001865 SOCKET SCART (R) PC 1,000 SC050 . . . .

444 4

445 5 20003606

30000480

30000550

20026969

35000015

30000359

20020559

RES SMD 1/10W 100K

J (0805)

RES SMD 1/10W 160K

J

M.ASSY.19B-MAN

142U22231X22X1

HE.ASY.19-HOR&VER

BAV/EXT.90°

BRACKET HEATSINK

BACK AV AK19 (I)

SPRING TR.HOLDER

(BIG)

HEATSINK 19-

HOR&VER BACKAV

NUT C ZN BOTTOM

M3

KNURL WASHER C

ZNSY 3*6*04 (M3)

SCREW C ZN YSMB

M3*12

LABEL 19-HOR&VER

90ø

MB.MAN.19B-

WO/TXT 545X TEAC

SOCKET IC 52P

(SHRINK)

CAP EL 1000UF 16V M PC 1,000 C820 .

MB.MAN.19B-1SC

MONO FAV

CONN MALE 2P TOP

BLUE

CONN MALE 2P TOP

RED

MB.MAN.19B-

COMMON

BRACKET HEATSINK

(AUDIO-HOR)

PC 2,000 R479 R494 .

PC 1,000 R456 .

PC 1,000 .

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,000 .

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,000 IC501(S) . . . .

PC 1,000 . . . . .

PC 1,000 PL056 . . . .

PC 1,000 PL055 . . . .

PC 1,000 .

PC 1,000 . . . . .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

446 6

HEATSINK 19

-

CRT

447 5

448 5 30000161 CAP MKP 47NF 630V J PC 1,000 C811 . . . .

449 5 30000356 CAP EL 100UF 63V M PC 2,000 C612 C702 . . .
450 5

451 5 30000360 CAP EL 1000UF 25V M PC 1,000 C632 . . . .

452 5

453 5 30000411 CAP EL 4700UF 16V M PC 1,000 C813 . . . .

454 5 30000447

455 5 30001384 TR MCR22-6 PC 1,000 Q810 . . . .

456 5
457 5
458 5 30001792

459 5 30001827 HRZ VRT CONN.(4P) PC 1,000 PL601 . . . .

460 5 30001999

461 5 30002011

462 5 30002090

463 5 30007759 RES CF 1W 47K J PC 1,000 R828 . . . .

464 5
465 5 30009832

466 4

467 5 20000952 HE.ASY.16/19-REG(2) PC 1,000 . . . . .

468 6 30001622 IC 7805 (1A) PC 1,000 IC804 . . . .

469 6

470 6 35000158

471 6 35000165

472 6 35000181

473 5 20000954

474 6 30008721 IC TDA6108 PC 1,000 IC901 . . . .

475 6

60000003
30000075

30000359

30000402

30001762
30001783

30009829

20020610

35000105

35000114

ABS BLACK

CAP MKT 100NF 250V

K (DC)

CAP EL 1000UF 16V M PC 2,000 C817 C828 .

CAP EL 47UF 100V M PC 1,000 C704 .

CAP CER 4.7NF 4KV

M E

CONN.MALE 2P (2052)

GRAY

CONN.MALE 5P (2005) PC 1,000 PL050 .

CONN.MALE 2P

MOLEX

FIXED COIL 40UH

(LOSS COIL)

COIL CHOKE 150UH

0.82A RAD

LINE DRIVER NEW

TYPE

CABLE 1P R2.6 (8CM) PC 1,000 CAB111 .

CABLE 0.6MM BLUE

(13CM)

MB.MAN.19B-20/21"

SIZE NORMAL

HEATSINK 16/19-

REGULATOR(2)

NUT C ZN BOTTOM

M3

KNURL WASHER C

ZNSY 3*6*04 (M3)

SCREW C ZN YSMB

M3*8

HE.ASY.19-CRT

BOARD

KG 0,006 .
PC 1,000 C605 .

PC 1,000 C860 . . . .

PC 1,000 PL100 .

PC 1,000 PL801 . . . .

PC 1,000 L605 . . . .

PC 1,000 L803 . . . .

PC 1,000 TR601 . . . .

PC 1,000 A-A . . . .

PC 1,000 .

PC 1,000 .

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,000 .

.

.

.

.

.
.

.

.
.

.

.

.

.

.
.

.

.

.
.

.

.

.

.

.
.

.

.

.
.

.

.

.

.

BOARD
476 6

477 6

478 6

479 5 30000075

480 5 30000084

481 5 30000350 CAP EL 10UF 250V M PC 1,000 C902 . . . .

482 5 30000388 CAP EL 33UF 160V M PC 1,000 C606 . . . .

483 5 30000404

484 5 30001125 RES MO 2W 2.2K J PC 1,000 R610 . . . .

485 5

486 5 30001795 CONN.MALE 3P (DEG) PC 1,000 PL802 . . . .

487 5 30002149

488 5 30002876

489 5 30007681 DIODE UF5407 PC 1,000 D816 . . . .

490 5 30013513

491 5 35000135 TEST PIN 1.1MM PC 1,000 PL903 . . . .

492 4 20020794

493 5 20030540

494 5 20030541

495 5 30009637

496 4

497 5 35000058 SHIELD AK19 SIDE PC 1,000 . . . . .

498 5 35000059 SHIELD AK19 (TOP) PC 1,000 . . . . .

499 5

500 4 20020846

35000158

35000165

35000189

30001270

20020820

35000061

NUT C ZN BOTTOM

M3

KNURL WASHER C

ZNSY 3*6*04 (M3)

SCREW C NI YSMB

M3*6

CAP MKT 100NF 250V

K (DC)

CAP MKT 150NF 275V

M AC P=15

CAP EL 47UF 160V M

(HR)

PTC 9 OHM

LINEARITY COIL

50UH (06-06A)

CABLE ASSY 1/25

AK19 EMC

CABLE 4/45 FC

(FLAMAN) (W/CABLE

HOLDER)

MB.MAN.19B-PLL

NORMAL

MB.MAN.19B-PLL

NORMAL (THOMSON

TUNER)

MB.MAN.19B-PLL

NORMAL (SAMSUNG

TUNER)

TUNER WSP (PLL)

38.9 MK2 - BATCH

MB.MAN.19B-FTZ

WO/90° YERLI

SHIELD AK19

(BOTTOM W/PVC)

MB.MAN.19B-BAV

IN/OUT WO/BTSC

PC 1,000 .

PC 1,000 .

PC 1,000 .

PC 1,000 C901 . . . .

PC 2,000 C802 C801 . . .

PC 1,000 C829 . . . .

PC 1,000 TH801 .

PC 1,000 L603 . . . .

PC 1,000 . . . . .

PC 1,000 . . . . .

.

.

.

.

.

.

.

.

.

.

.

PC 1,000 . . . . .

PC 0,550 . . . . .

PC 0,450 . . . . .

PC 1,000 . . . . .

PC 1,000 .

PC 1,000 .

PC 1,000 . . . . .

.

.

.

.

.

.

.

.

.

.

.

.

501 5 30001835

502 5 30001837

503 5 35000194

504 4 20020877

505 5

506 6 60000008 HIPS (NATURAL) KG 0,002 . . . . .

507 6 60000022

508 5 30001279

509 5 30001670

510 5

511 4

512 5 30002175

513 4 20021190

514 5 30000410 CAP EL 470UF 50V M PC 1,000 C115 . . . .

515 5
516 5

517 5 30001745 XTAL 3.579545 PC 1,000 X404 . . . .

518 5 30001748 XTAL 4.433619 MHZ PC 1,000 X401 . . . .

519 4

520 5 30009085

521 5 30009849

522 4 20025039

523 5
524 6
525 6

20004204

30002178

20020893

30001575
30001692

20021245

20000849
30001732
35000138

CONN MALE 3P TOP

WHITE

CONN MALE 3P TOP

BLUE

SCREW S C ZN YSMB

2.9*9.5

MB.MAN.19B-

CAB.XX55/65 4SW

BRACKET LED (8*22)

5X55/65 (I)

MASTERBATCH

(BLACK)

LED RED/GREEN

LTL293SJ

PREAMPLIFIER

TFMS5360

SWITCH TACT

SKHHLU

MB.MAN.19B-

90°KABIN WO/TACK

SW

SWITCH ON/OFF

2.5A/100A

MB.MAN.19B-PSBG

MONO PLL 90°

IC TDA8842/N2

FILTER SAW

OFWK3953M

MB.MAN.19B-W/EMC

14-20-21"

CABLE 1P R2.6 35

W/CLIPS

CABLE 0.6MM BLUE

(7CM)

MB.MAN.19B-SMPS

90°90-270 545XTE-

ME5X/96

FUSE ASSY.TK79-A

(3.15A)

FUSE 3.15A 250V 5*20 PC 1,000 .

FUSE HOLDER TK79A

(BLACK)

PC 1,000 PL058 . . . .

PC 1,000 PL059 . . . .

PC 4,000 . . . . .

PC 1,000 . . . . .

PC 1,000 .

KG 0,001 . . . . .

PC 1,000 LD501 . . . .

PC 1,000 MD501 . . . .

PC 4,000 SW501 SW502 SW503 SW504 .

PC 1,000 .

PC 1,000 SW801 . . . .

PC 1,000 . . . . .

PC 1,000 IC401 .
PC 1,000 Z401

PC 1,000 .

PC 1,000 . . . . .

PC 1,000 CX8 . . . .

PC 1,000 . . . . .

PC 1,000 F801

PC 1,000 .

.

.

.

.

.
.
.

.

.

.
.

.

.
.
.

.

.

.
.

.

.
.
.

.

.

.
.

.

.
.
.

HE.ASY.19-SMPS

REG.&AUDIO

526 5 20000969

527 6

528 6

529 6 35000165

530 6 35000190

531 6 35000269

532 6 70000074 SILICON (GRES) KG 0,010 . . . . .

533 5

534 5 30001129 RES MO 22K 3W J PC 1,000 R822 . . . .

535 5
536 5
537 5 30001305 DIODE BYM56E PC 4,000 D801 D802 D803 D804 .

538 5 30001307 DIODE BYW95A PC 2,000 D814 D815 . . .

539 5 30001499 IC MC44604P PC 1,000 IC802 . . . .

540 5 30002084

541 5 30002101

542 5 30007069 IC TCDT1102G PC 1,000 IC801 . . . .

543 5
544 4

545 5
546 6

547 6 30001524 IC TDA2614 PC 1,000 IC100 . . . .

548 6
549 6

550 6

551 6

552 6

553 6 35001647

30001386

35000158

30000422

30001131
30001260

30007431
20031436

20000955
30001500

30001622
35000158

35000165

35000181

35000183

90ø90-270V MIT

(PLASTIK)

TR MTP6N60E

(PLASTIC)

NUT C ZN BOTTOM

M3

KNURL WASHER C

ZNSY 3*6*04 (M3)

SCREW C NI YSMB

M3*10

HEATSINK 19-

PRIMER-90 3MM

CAP EL 330UF 400V M PC 1,000 C804 .

RES MO 1W 0.22R J PC 1,000 R870 .

RES WW 5W 2.2R J

RAD.

TRF SMPS AK19 90°

(90-270V)

LINE FILTER 27MH (1

A)

RES MO 5W 10K J

MB.MAN.19B-20/21"

MONO (2 SPK.)

HE.ASY.19-

REG&MONO 90°

IC LM7808

IC 7805 (1A)

NUT C ZN BOTTOM

M3

KNURL WASHER C

ZNSY 3*6*04 (M3)

SCREW C ZN YSMB

M3*8

SCREW C ZN YSMB

M3*12

HEATSINK

PC 1,000 . . . . .

PC 1,000 Q802 .

PC 1,000 .

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,000 R817 .

PC 1,000 TR802 . . . .

PC 1,000 TR801 . . . .

PC 1,000 R806 .
PC 1,000 .

PC 1,000 .
PC 1,000 IC805 .

PC 1,000 IC807 .
PC 3,000 .

PC 3,000 .

PC 1,000 .

PC 2,000 .

PC 1,000 . . . . .

.

.

.

.

.

.

.

.

.

.

.
.

.
.

.
.

.
.

.

.

.

.

.

.

.
.

.
.

.
.

.
.

.

.

.

.

.

.

.
.

.
.

.
.

.
.

.

.

.

(AK19,SATELLITE TV)

554 6 40000020 TR HOLDER TR-06A PC 2,000 . . . . .

555 6 40000146

556 6 50001758 LABEL 19-REG MONO PC 1,000 . . . . .

557 5
558 5 30001764

559 1

560 2 20026650

561 3

562 2 30002391

563 2 50007083

564 2

565 1

566 1 40001939

567 1 50000009

568 1 50007084

569 1 50015845

30000383

20056797

30009320

50016146

30008695

INSULATOR SILICON

PAD (15*20)

CAP EL 2200UF 25V M PC 2,000 C823 C826 .

CONN.MALE (2052)

BLACK

ARTWORK TEAC

AUSTR TEAC EU-48

(2)

R/C 2042 TEAC RC-763

(AKAI/P)(ÖZEL/S)

R/C 2042

NOBRAND(427C/S)

(AKAI/P)

BATTERY AAA UM4

1.5V GREEN

I/B TEAC EU-48

FST/2040/ENG/545X-

OTP

WARRANTY CARD

TEAC (ENG) (2)

20" AUSTRALIA CPT

TUBE

LOGO TEAC

(BIG)(GRAY W/P)

PLASTIZOTE BAG

(20/21)

LBL.SCREEN TEAC

EU-48

LBL.SERVICE TEAC

(2)

PC 2,000 . . . . .

PC 1,000 PL101 . . . .

PC 1,000 .

PC 1,000 . . . . .

PC 1,000 .

PC 2,000 . . . . .

PC 1,000 . . . . .

PC 1,000 .

PC 1,000 .

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,000 . . . . .

PC 1,000 . . . . .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.
