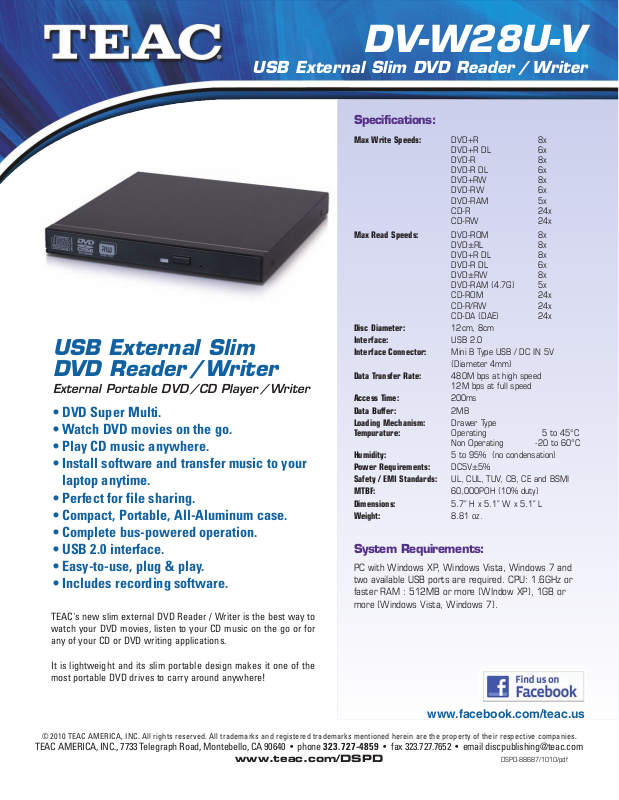

Teac DV-W28U-V User Manual
DV-W28U-V
USB External Slim DVD Reader / Writer
Specifications:
USB External Slim
DVD Reader / Writer
External Portable DVD /CD Player / Writer
• DVD Super Multi.
• Watch DVD movies on the go.
• Play CD music anywhere.
• Install software and transfer music to your
laptop anytime.
• Perfect for file sharing.
• Compact, Portable, All-Aluminum case.
• Complete bus-powered operation.
• USB 2.0 interface.
• Easy-to-use, plug & play.
• Includes recording software.
TEAC's new slim external DVD Reader / Writer is the best way to
watch your DVD movies, listen to your CD music on the go or for
any of your CD or DVD writing applications.
Max Write Speeds: DVD+R 8x
Max Read Speeds: DVD-ROM 8x
Disc Diameter: 12cm, 8cm
Interface: USB 2.0
Interface Connector: Mini B Type USB / DC IN 5V
Data Transfer Rate: 480M bps at high speed
Access Time: 200ms
Data Buffer: 2MB
Loading Mechanism: Drawer Type
Tempurature: Operating 5 to 45°C
Humidity: 5 to 95% (no condensation)
Power Requirements: DC5V
Safety / EMI Standards: UL, CUL, TUV, CB, CE and BSMI
MTBF: 60,000POH (10% duty)
Dimensions: 5.7” H x 5.1” W x 5.1” L
Weight: 8.81 oz.
DVD+R DL 6x
DVD-R 8x
DVD-R DL 6x
DVD+RW 8x
DVD-RW 6x
DVD-RAM 5x
CD-R 24x
CD-RW 24x
DVD
±RL 8x
DVD+R DL 8x
DVD-R DL 6x
DVD
±RW 8x
DVD-RAM (4.7G) 5x
CD-ROM 24x
CD-R/RW 24x
CD-DA (DAE) 24x
(Diameter 4mm)
12M bps at full speed
Non Operating -20 to 60°C
±5%
System Requirements:
PC with Windows XP, Windows Vista, Windows 7 and
two available USB ports are required. CPU: 1.6GHz or
faster RAM : 512MB or more (WIndow XP), 1GB or
more (Windows Vista, Windows 7).
It is lightweight and its slim portable design makes it one of the
most portable DVD drives to carry around anywhere!
www.facebook.com/teac.us
© 2010 TEAC AMERICA, INC. All rights reserved. All trademarks and registered trademarks mentioned herein are the property of their respective companies.
TEAC AMERICA, INC., 7733 Telegraph Road, Montebello, CA 90640 • phone 323 .727- 48 59 • fax 323.727.7652 • email discpublishing@teac.com
www.teac.com/DSPD
DSPD-88687/1010/pdf
