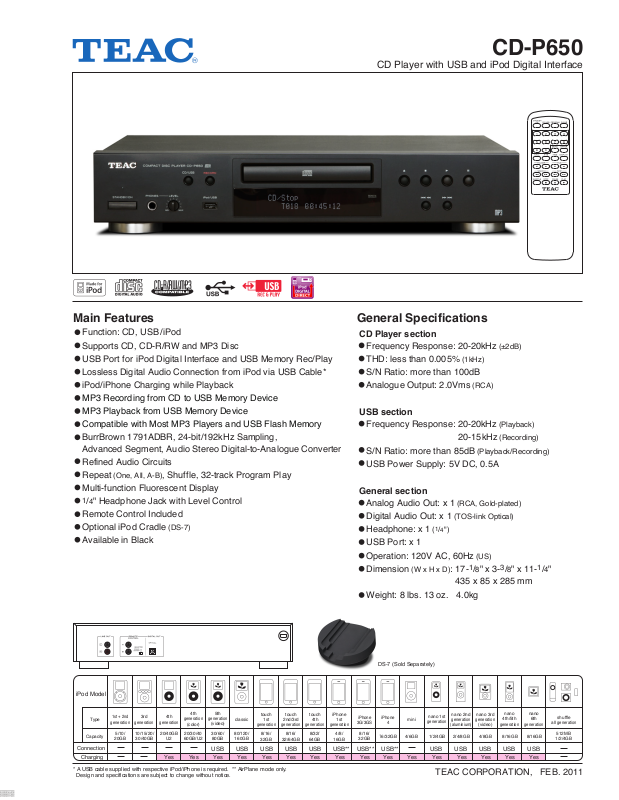

CD-P650
CD Player with USB and iPod Digital Interface
Main Features
Function: CD, USB/iPod
Supports CD, CD-R/RW and MP3 Disc
USB Port for iPod Digital Interface and USB Memory Rec/Play
Lossless Digital Audio Connection from iPod via USB Cable*
iPod/iPhone Charging while Playback
MP3 Recording from CD to USB Memory Device
MP3 Playback from USB Memory Device
Compatible with Most MP3 Players and USB Flash Memory
BurrBrown 1791ADBR, 24-bit/192kHz Sampling,
Advanced Segment, Audio Stereo Digital-to-Analogue Converter
Refined Audio Circuits
Repeat
(One, All, A-B), Shuffle, 32-track Program Play
Multi-function Fluorescent Display
1
/4" Headphone Jack with Level Control
Remote Control Included
Optional iPod Cradle
Available in Black
(DS-7)
General Specifications
CD Player section
Frequency Response: 20-20kHz (±2dB)
THD: less than 0.005% (1kHz)
S/N Ratio: more than 100dB
Analogue Output: 2.0Vms
USB section
Frequency Response: 20-20kHz (Playback)
S/N Ratio: more than 85dB (Playback/Recording)
USB Power Supply: 5V DC, 0.5A
General section
Analog Audio Out: x 1
Digital Audio Out: x 1 (TOS-link Optical)
Headphone: x 1 (
1
/4")
USB Port: x 1
Operation: 120V AC, 60Hz
Dimension (W x H x D): 17-1/8" x 3-3/8" x 11-1/4"
Weight: 8 lbs. 13 oz. 4.0kg
(RCA)
20-15kHz
(Recording)
(RCA, Gold-plated)
(US)
435 x 85 x 285 mm
Rev. 3 FEB25-11
Rev. 2 JUL14-10
Rev. 1 FEB23-10
Rev. 0 FEB04-10
iPod Model
5th
1st + 2nd
5/10/
20GB
3rd
generation
10/15/20/
30/40GB
generation
Type
generation
Capacity
Connection
Charging
* A USB cable supplied with respective iPod/iPhone is required. ** AirPlane mode only.
Design and specifications are subject to change without notice.
4th
20/40GB
U2
4th
generation
generation
(video)
(color)
30/60/
20/30/40
80GB
60GB/U2
USB USB USB USB USB USB** USB** USB**
YesYesYes
touch
classic
1st
generation
80/120/
8/16/
160GB
32GB
Yes Yes Yes
Yes
touch
2nd/3rd
generation
8/16/
32/64GB
Yes
touch
4th
generation
8/32/
64GB
Yes
iPhone
1st
generation
4/8/
16GB
Yes
DS-7 (Sold Separately)
iPhone
iPhone
3G/3GS
8/16/
16/32GB
32GB
Yes
Yes Yes
4
nano 1st
mini
generation
4/6GB 1/2/4GB
TEAC CORPORATION, FEB. 2011
nano 2nd
nano 3rd
generation
(video)
4/8GB
Yes
4th/5th
generation
generation
(aluminium)
2/4/8GB 8/16GB
nano
Yes
nano
6th
generation
8/16GB
USBUSBUSBUSBUSB
Yes
shuffle
all
generation
512MB
1/2/4GB
