Introduction
About this manual
This manual will teach you everything you need
to know about your new MP-76 Modern Performance Microphone with Mic Control.
This manual is only available as a PDF download
from the TC-Helicon website.
Of course, you can print this manual, but we encourage you to use the PDF version, which has
both internal and external hyperlinks. For example, clicking the TC-Helicon logo in the upper left
corner of each page will take you to the table of
contents.
To get the most from this manual, please read it
from start to finish, or you may miss important
information.
To download the most current version of this
manual, visit
Introduction
Thank you for purchasing a TC-Helicon MP-76
multi-switch microphone!
We’re super excited to be able to bring you such
amazing control over vocal presets, effects and
looping.
Being mobile on stage is a huge component
of an engaging presentation for your audience.
With MP-76 and its four buttons, you can access
a ton of aspects of your vocal processor without
being tied to a single stage location.
Thanks,
The TC-Helicon Team
Features
► Super-cardioid pickup pattern
► Excellent pop and breath noise rejection
► Superior background noise rejection and re-
sistance to feedback
► Lismer™ dynamic capsule voiced for “close-
up” microphone technique
► Suspended dual shock mount for low handling
noise
► Mic Control circuit with four buttons for con-
trolling TC-Helicon vocal effects
► Rugged and ergonomic design
tc-helicon.com/products/mp-76/support/
Enjoy your TC-Helicon product.
MP-76 English Manual – 2015-01-20 3
Setup
Setup
Ready…
The MP-76 box should contain the following
items:
► 1 MP-76 microphone
► 1 Microphone clip
► 1 Carrying case
Inspect all items for signs of transit damage. In
the unlikely event of transit damage, inform the
carrier and supplier.
If damage has occurred, keep all packaging as it
can be used as evidence of excessive handling
force.
Set…
► Connect your MP-76 to the next device in the
signal chain using an XLR cable.
► You’re done!
Cable recommendations
Each MP-76 compatible product has slightly different setup options, but there is one common
thing to consider:
The recommended cable length between
your TC-Helicon device and MP-76 should be
25 feet/7.5 meters or less. Cable runs greater
than 25 feet/7.5 meters, or cables shorter than
25 feet/7.5 meters that connects to a snake may
cause line noise and/or cause Mic Control to
function unreliably.
MP-76 English Manual – 2015-01-20 4
Setup
Using Mic Control
Mic Control™ is a patented technology invented
by TC-Helicon. As a Mic Control-enabled microphone, MP-76 allows you to use and control TCHelicon’s studio quality vocal processing from
anywhere on stage.
Mic Control has to be enabled via a switch or
menu item on your TC-Helicon product. The exact procedure depends on the product you have.
Below is a list of all compatible products. Click
on your product’s name to jump to the appropriate section of this manual.
► VoiceLive 3
► VoiceLive Touch 2
► VoiceSolo FX150
► Play Acoustic
► Play Electric
► VoiceLive Play
Other TC-Helicon devices are supported, but
with the single large button (just like an MP-75)
being the only active button:
MP-76 LCD
On most supported products, the MP-76’s LCD
will show the preset number currently selected
on the device.
If the device supports the HIT feature, a “:” (colon) will be shown in the MP-76 LCD when HIT
is ON.
► VoiceLive 2
► VoiceLive Touch
► VoiceLive Rack
► VoiceTone 2-switch Pedals
MP-76 English Manual – 2015-01-20 5

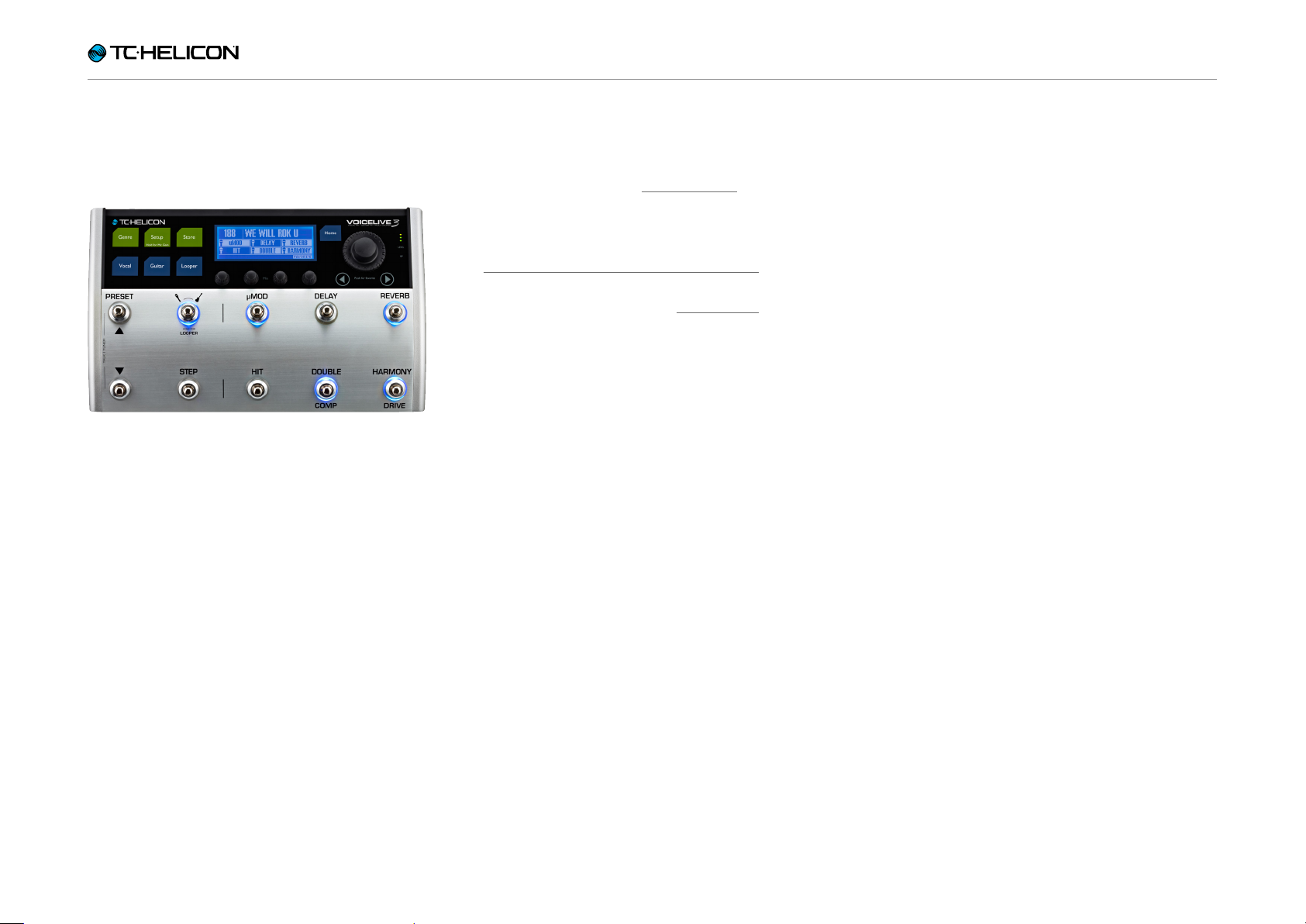

Using MP-76 with your VoiceLive 3
Using MP-76 with
your VoiceLive 3 Make sure your VoiceLive 3 is running the newest
firmware version. Use VoiceSupport software to
update your device’s firmware. You can download VoiceSupport here:
tc-helicon.com/products/voicesupport/
To enable Mic Control on VoiceLive 3 for your
MP-76:
► Press SETUP.
► Navigate to the INPUT tab using the < or >
arrow buttons.
► Select the INPUT TYPE parameter using the
Large Control Knob.
► Change the INPUT TYPE to MP-76 using the
far Right Mix Knob (below the screen).
To select what your MP-76 buttons do:
► Press SETUP.
► Navigate to the BUTTONMAP tab using the <
or > arrow buttons.
► Select the UP button parameter using the
Large Control Knob.
► Use the Mix knob below the parameter to se-
lect the “target” for the UP button.
(“Target” meaning: “what this button is supposed to do/control.”)
► Set Mic Switch Mode to “Latched” or “Mo-
mentary”.
► “Latched” means:
“To activate the feature, press the button.
To deactivate the feature, press the button
again”.
► “Momentary” means:
“To activate the feature, press and hold
button. To deactivate the feature, release
the button”.
► Repeat this process for the other three mic
buttons (Left, Right, Down).
You’re done!
MP-76 English Manual – 2015-01-20 6
Using MP-76 with your VoiceLive Touch 2
Using MP-76 with your
VoiceLive Touch 2 Make sure your VoiceLive Touch 2 is running
the newest firmware version. Use VoiceSupport
software to update your device’s firmware. You
can download VoiceSupport here:
tc-helicon.com/products/voicesupport/
To enable Mic Control on VoiceLive Touch 2 for
your MP-76:
► Press SETUP.
► Navigate to the INPUT tab using the < or >
arrow buttons on the SliderFX bar.
► Select the INPUT parameter using the top left
button on the Matrix.
► Change the INPUT TYPE to MP-76 using the
SliderFX bar.
To select what your MP-76 buttons do:
► Press SETUP.
► Navigate to the MIC CONTROL tab using the
< or > arrow buttons.
► Select the UP button parameter using the
Matrix.
► Use the SliderFX bar to select the “target” for
the UP button.
(“Target” meaning: “What this button is supposed to do”).
Some options have “Momentary” in the title.
“Momentary” means:
“To activate the feature, press and hold the
button.
To deactivate the feature, release the button”.
► Repeat this process for the other three mic
buttons (Left, Right, Down).
You’re done!
MP-76 English Manual – 2015-01-20 7
Using MP-76 with your VoiceSolo FX150
Using MP-76 with your
VoiceSolo FX150 Make sure your VoiceSolo FX150 is running
the newest firmware version. Use VoiceSupport
software to update your device’s firmware. You
can download VoiceSupport here:
tc-helicon.com/products/voicesupport/
► Ensure the +48V button on your VoiceSolo
FX150 is pressed IN.
► Press and HOLD the Low EQ button for the
channel you’ve got a Mic Control enabled mic
connected to for five seconds.
Please note that FX150 only supports MP-76
on Channel 2.
Mic Control for MP-76 is predefined:
► Up: Reverb on/off
► Left: Volume down
► Right: Volume up
► Bottom: Mute
MP-76 LCD and VoiceSolo FX150
On most supported products, the MP-76’s LCD
will show the preset number currently selected
on the device.
Since VoiceSolo FX150 has no presets, the display will shows the level of Channel 2 instead.
When Channel 2 is muted, the MP-76 display will
flash and show the level as “0”.
MP-76 English Manual – 2015-01-20 8
Using MP-76 with your Play Series product
Using MP-76 with your
Play Series product To enable Mic Control on your Play Acoustic,
Play Electric or VoiceLive Play for your MP-76:
► Press SETUP.
► Navigate to the INPUT tab using the < or >
arrow buttons.
► Select the MIC TYPE parameter using the
“soft button” next to it.
► Change the INPUT TYPE to MP-76 using the
Control Knob.
To select what your MP-76 buttons do:
► Press SETUP.
► Navigate to the MIC CONTROL tab using the
< or > arrow buttons.
► Select the UP button parameter using the
“soft button” next to it.
► Use the Control knob bar to select the “tar-
get” for the UP button.
(“Target” meaning: “What this button is supposed to do”).
Some options have “Momentary” in the title.
“Momentary” means:
“To activate the feature, press and hold the
button.
To deactivate the feature, release the button”.
► Repeat this process for the other three mic
buttons (Left, Right, Down).
You’re done!
MP-76 English Manual – 2015-01-20 9
Getting support
Technical specifications
► Element type: Dynamic
► Pickup pattern: Super-cardioid
► Impedance: 300 Ohms
► Sensitivity: -54 dBV/Pa (1.99 mV) – 1 Pa
= 94 dB SPL measured @ 1 kHz
► Frequency response: 50 Hz to 18 kHz
► Weight: 0.63 lb. /290 g
► Dimensions
► Height: 7.25 inches / 185 mm
► Diameter (max): 2 inches / 50 mm
Due to continuous development, these speci-
fications are subject to change without notice.
Getting support
If you still have questions about the product after
reading this manual and the FAQ page, please
get in touch with TC-Helicon Support:
tc-helicon.com/support/
MP-76 English Manual – 2015-01-20 10
MP-76 English Manual – 2015-01-20 11
Loading...
