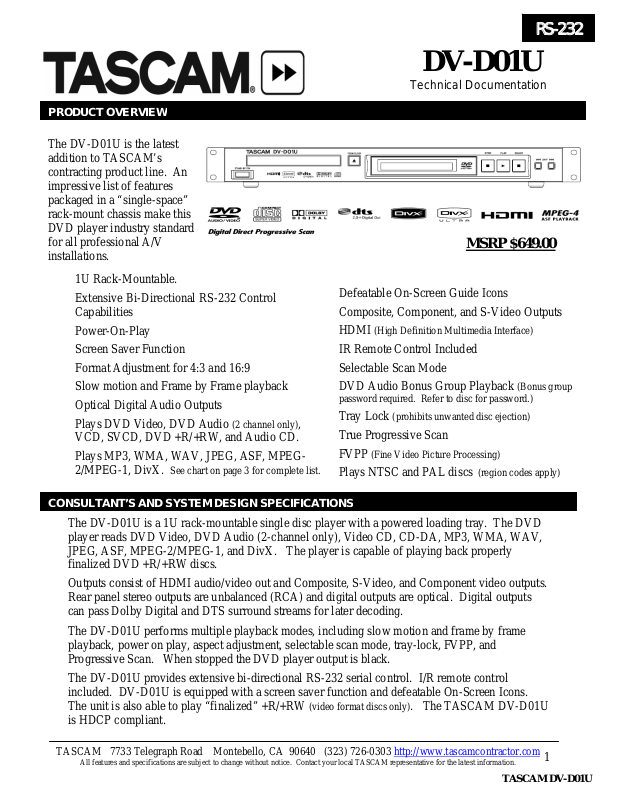

Tascam DV-D01U User Manual

RS-232

DV-D01U

The DV-D01U is the latest
addition to TASCAM’s
contracting product line. An
impressive list of features
packaged in a “single-space”
rack-mount chassis make this
DVD player industry standard
for all professional A/V
installations.

1U Rack-Mountable.
Extensive Bi-Directional RS-232 Control

Capabilities
Power-On-Play
Screen Saver Function
Format Adjustment for 4:3 and 16:9
Slow motion and Frame by Frame playback
Optical Digital Audio Outputs
Plays DVD Video, DVD Audio (2 channel only),

VCD, SVCD, DVD +R/+RW, and Audio CD.
Plays MP3, WMA, WAV, JPEG, ASF, MPEG-

2/MPEG-1, DivX. See chart on page 3 for complete list.

Defeatable On-Screen Guide Icons
Composite, Component, and S-Video Outputs
HDMI (High Definition Multimedia Interface)
IR Remote Control Included
Selectable Scan Mode
DVD Audio Bonus Group Playback (Bonus group

password required. Refer to disc for password.)

Tray Lock (prohibits unwanted disc ejection)
True Progressive Scan
FVPP (Fine Video Picture Processing)
Plays NTSC and PAL discs (region codes apply)

’

The DV-D01U is a 1U rack-mountable single disc player with a powered loading tray. The DVD
player reads DVD Video, DVD Audio (2-channel only), Video CD, CD-DA, MP3, WMA, WAV,
JPEG, ASF, MPEG-2/MPEG-1, and DivX. The player is capable of playing back properly
finalized DVD +R/+RW discs.

Outputs consist of HDMI audio/video out and Composite, S-Video, and Component video outputs.
Rear panel stereo outputs are unbalanced (RCA) and digital outputs are optical. Digital outputs
can pass Dolby Digital and DTS surround streams for later decoding.

The DV-D01U performs multiple playback modes, including slow motion and frame by frame
playback, power on play, aspect adjustment, selectable scan mode, tray-lock, FVPP, and
Progressive Scan. When stopped the DVD player output is black.

The DV-D01U provides extensive bi-directional RS-232 serial control. I/R remote control
included. DV-D01U is equipped with a screen saver function and defeatable On-Screen Icons.
The unit is also able to play “finalized” +R/+RW

(video format discs only). The TASCAM DV-D01U

is HDCP compliant.

Technical Documentation

MSRP $649.00

TASCAM 7733 Telegraph Road Montebello, CA 90640 [phone] http://www.tascamcontractor.com

All features and specifications are subject to change without notice. Contact your local TASCAM representative for the latest information.

TASCAM DV-D01U

1

General

Power Requirements: U.S.A./Canada 120 VAC, 60 Hz
U.K./Europe 230 VAC, 50 Hz
Australia 240 VAC, 50 Hz
Power Consumption: 11 W (at operation)

0.2 W (in standby mode)
Dimensions (W x H x D): 482 mm x 51 mm x 269 mm
(19 inches x 2 inches x 10.6
inches)
Mass: 2.3 kg (5.1 lbs)

Audio section

Analog output:
AUDIO OUT: –8 dB/1 kØ
Digital output*1:
DIGITAL OUT (OPTICAL): –21 dBm to –15 dBm
(660 nm ±30 nm)

*1 Corresponding to Linear PCM, Dolby Digital, and DTS Digital

Surround (with sampling frequency — 32 kHz, 44.1 kHz, 48 kHz)

Video section

Video System: NTSC
Horizontal Resolution: 500 lines
Signal-to-Noise Ratio: 64 dB
Video output level
Composite: 1.0 V(p-p)/75 Ø
S-video-Y: 1.0 V(p-p)/75 Ø
S-video-C: 0.286 V(p-p)/75 Ø
Component-Y: 1.0 V(p-p)/75 Ø
Component-P

HDMI

HDMI Output (Ver. 1.1): HDMI

RS-232C

Serial command: 9-Pin D-SUB
Designs & specifications are subject to change without notice.
HDMI, the HDMI logo and High-Definition Multimedia
Interface are trademarks or registered trademarks of HDMI
Licensing LLC.
HDCP is the abbreviation of “High-Bandwidth Digital Content
Protection,” and is the high-reliable copy control technology
licensed by Digital Content Protection, LLC.

B/PR: 0.7 V(p-p)/75 Ø
