Page 1

User Guide

Personal Computer

VGN-TZ100 Series/VGN-TZ10 Series

Page 2

Contents

Before Use .........................................................................................................................................................................6

Documentation .............................................................................................................................................................6

Ergonomic Considerations...........................................................................................................................................9

Getting Started .................................................................................................................................................................11

Locating Controls and Ports.......................................................................................................................................12

About the Indicator Lights ..........................................................................................................................................18

Connecting a Power Source ......................................................................................................................................20

Using the Battery Pack ..............................................................................................................................................21

Shutting Down Your Computer Safely .......................................................................................................................28

Using Your VAIO Computer .............................................................................................................................................29

Using the Keyboard ...................................................................................................................................................30

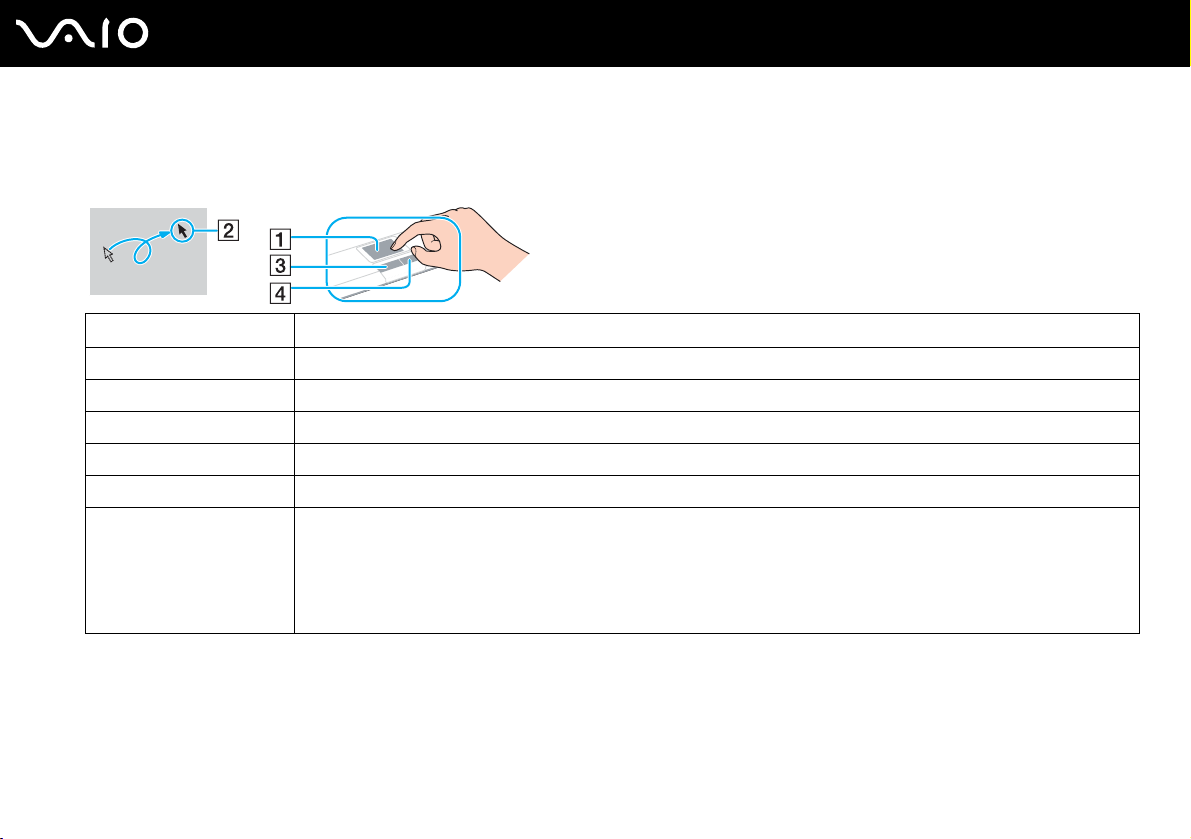

Using the Touch Pad .................................................................................................................................................32

Using Special-function Buttons ..................................................................................................................................33

Using the Built-in MOTION EYE Camera...................................................................................................................34

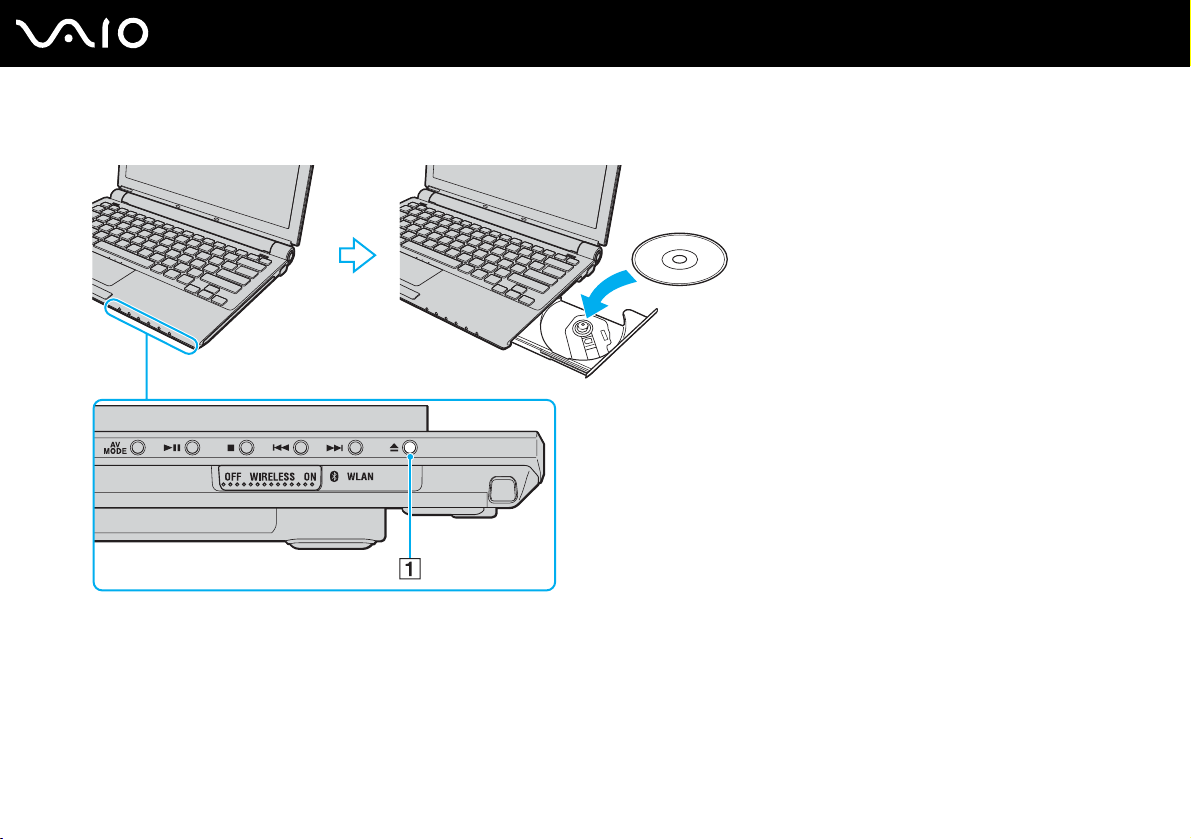

Using the Optical Disc Drive ......................................................................................................................................35

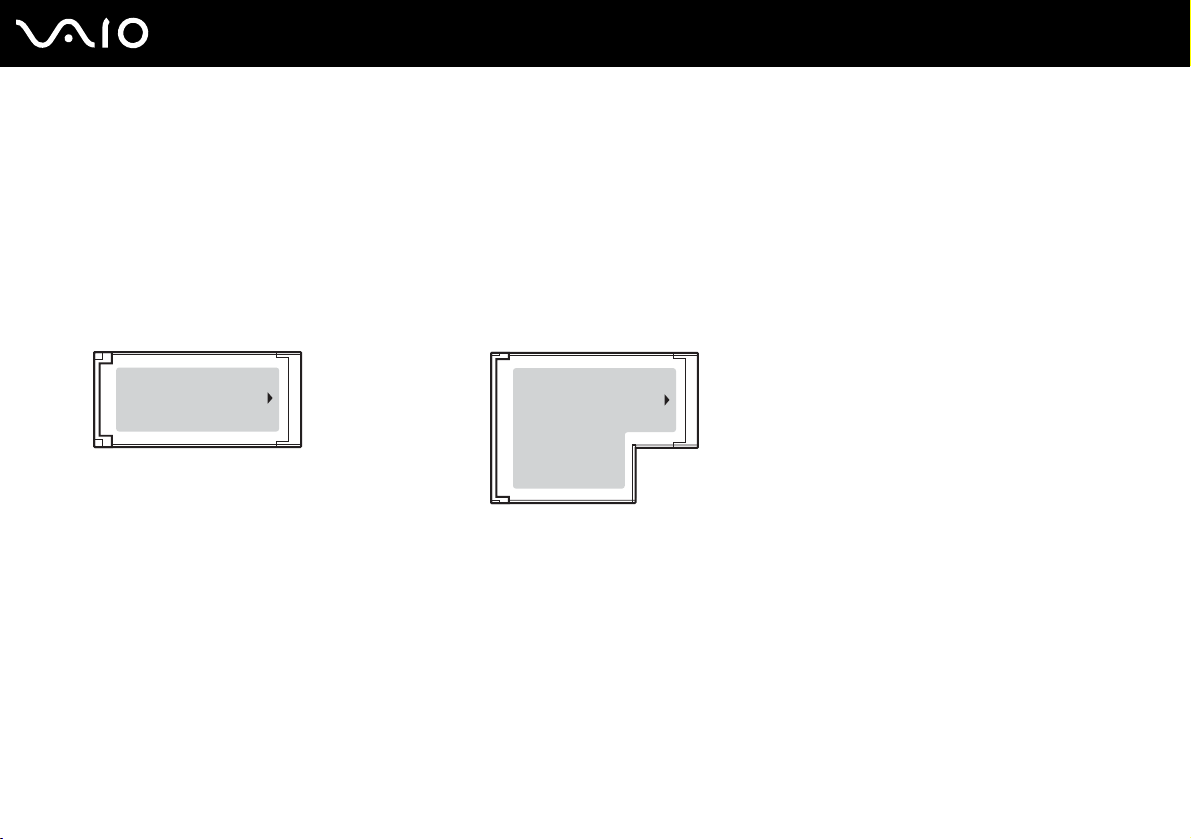

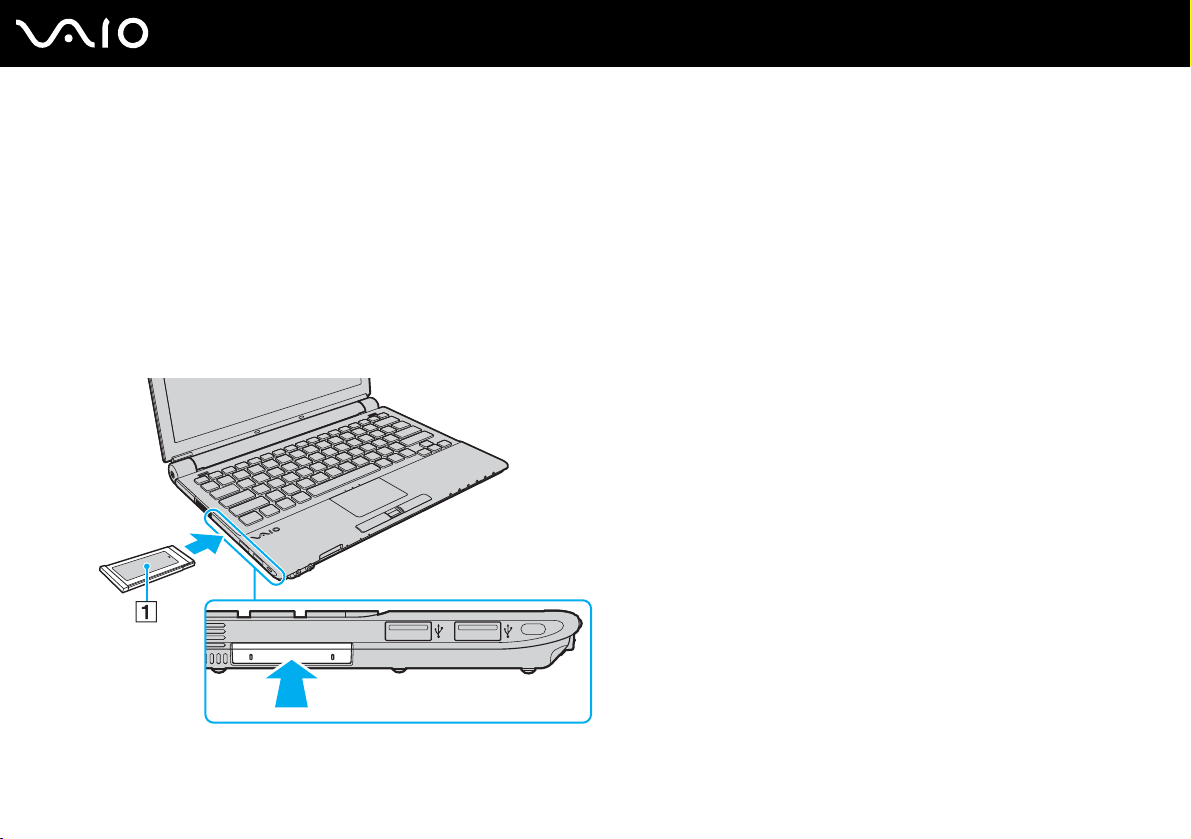

Using the ExpressCard Module .................................................................................................................................44

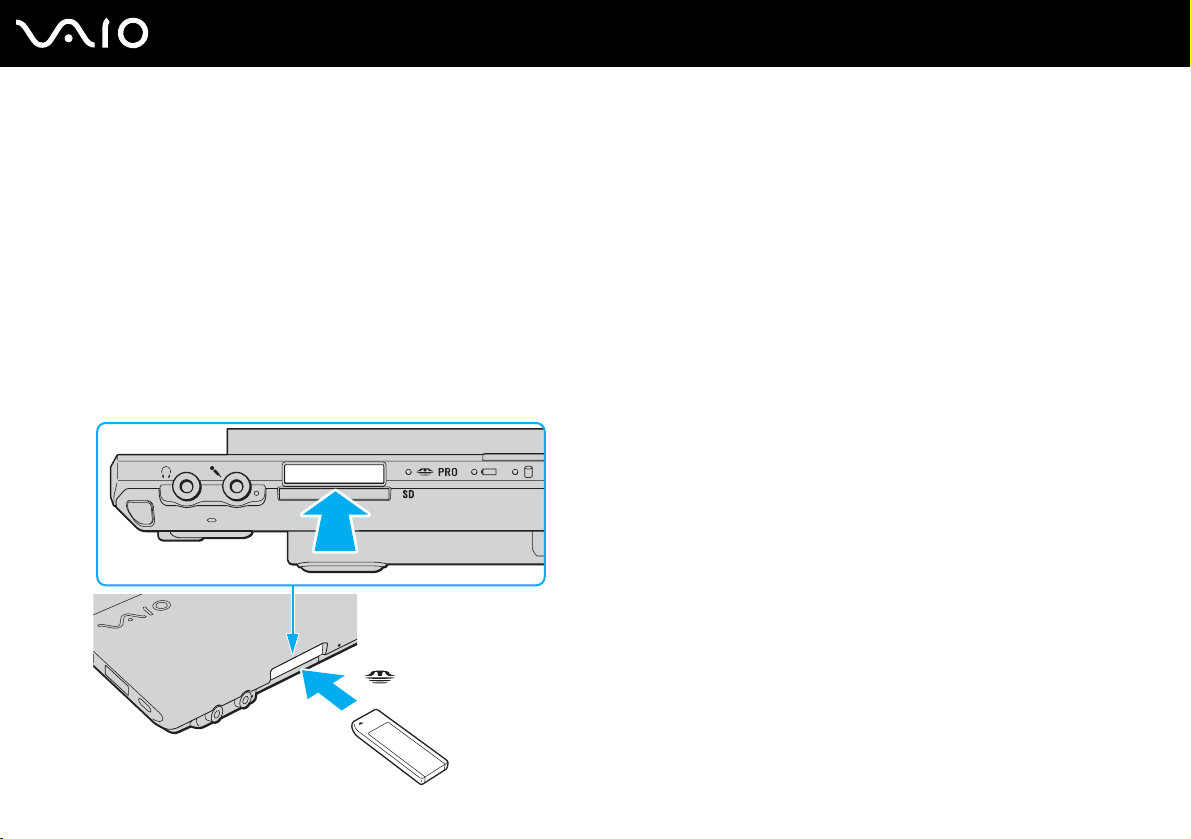

Using the Memory Stick Media ..................................................................................................................................48

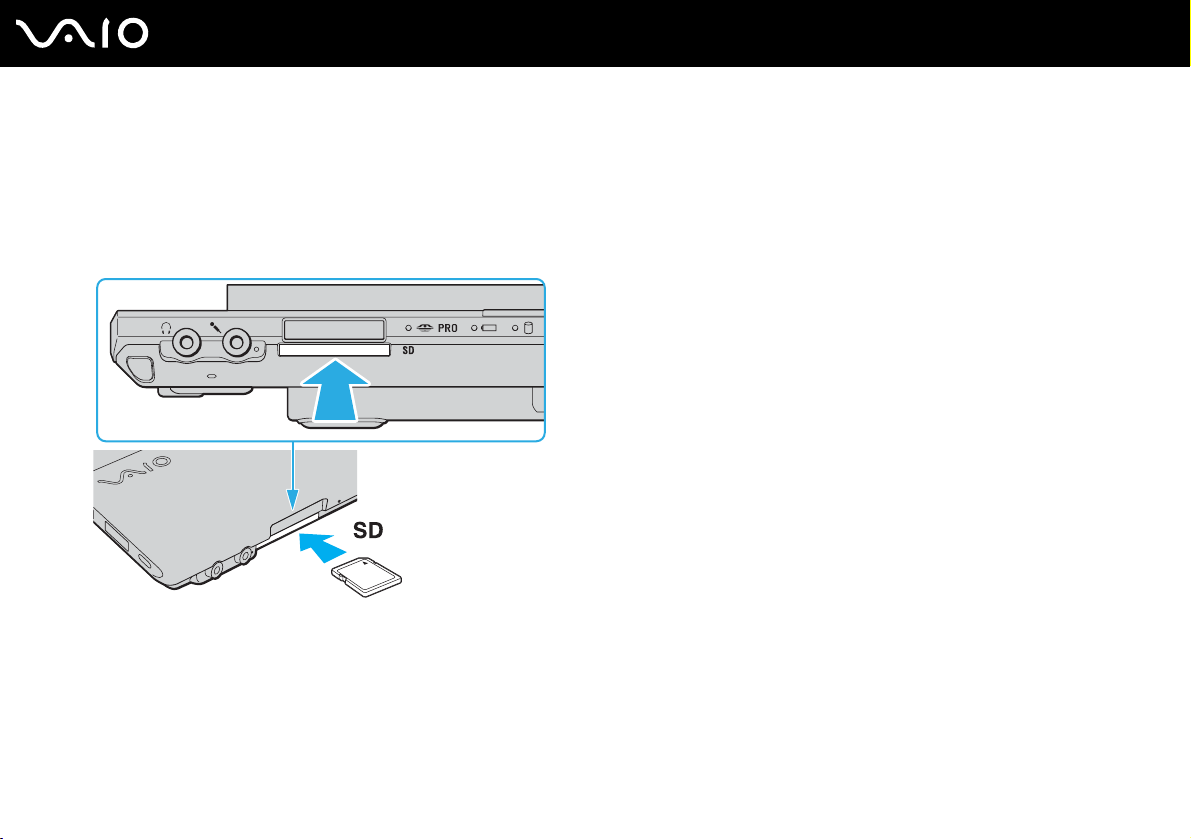

Using Other Memory Cards .......................................................................................................................................54

Using the Internet.......................................................................................................................................................58

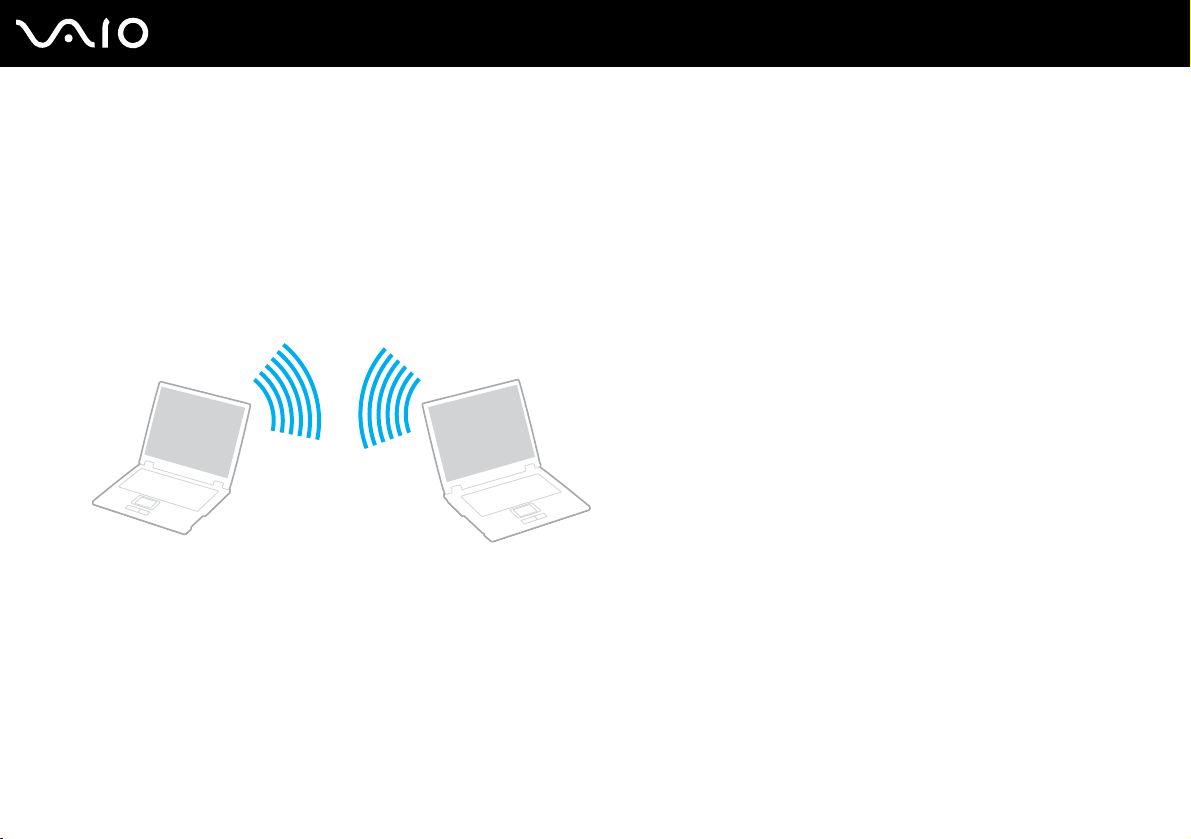

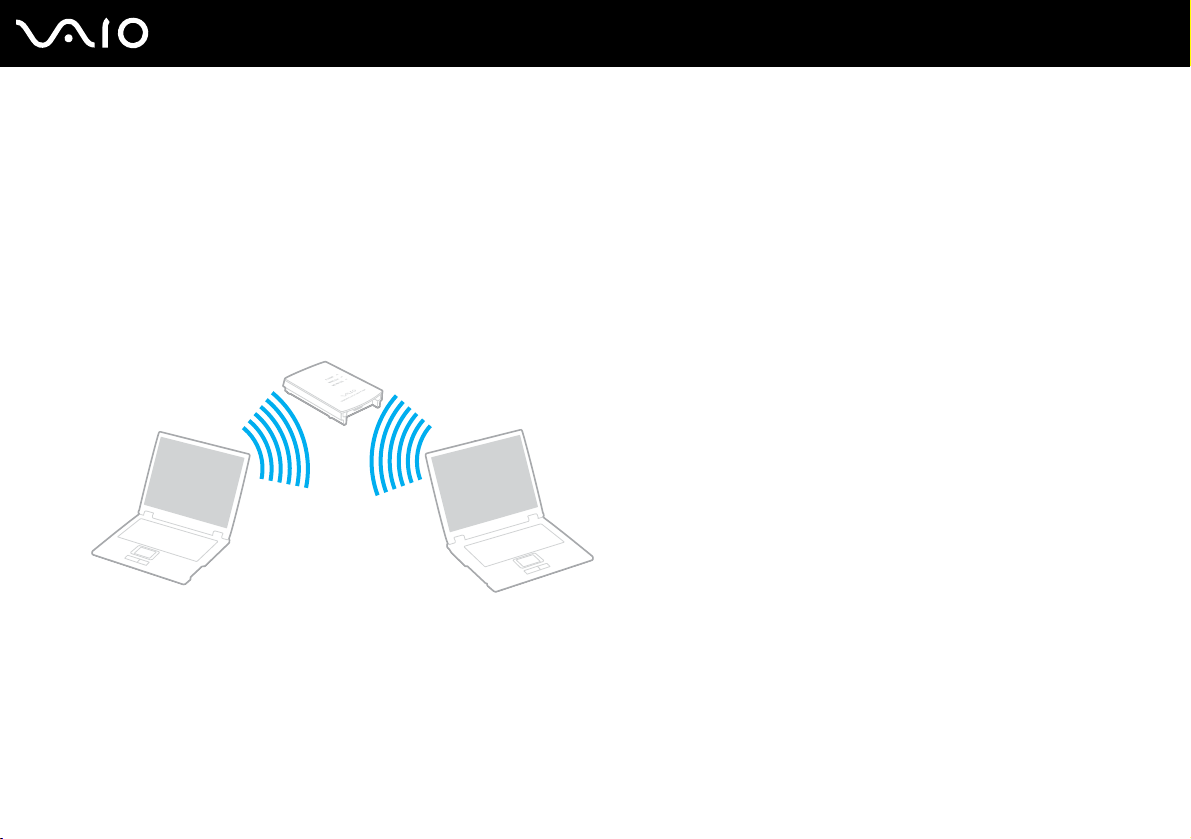

Using Wireless LAN (WLAN) .....................................................................................................................................59

Using the Bluetooth Functionality ..............................................................................................................................66

Page 3

Using Peripheral Devices .................................................................................................................................................74

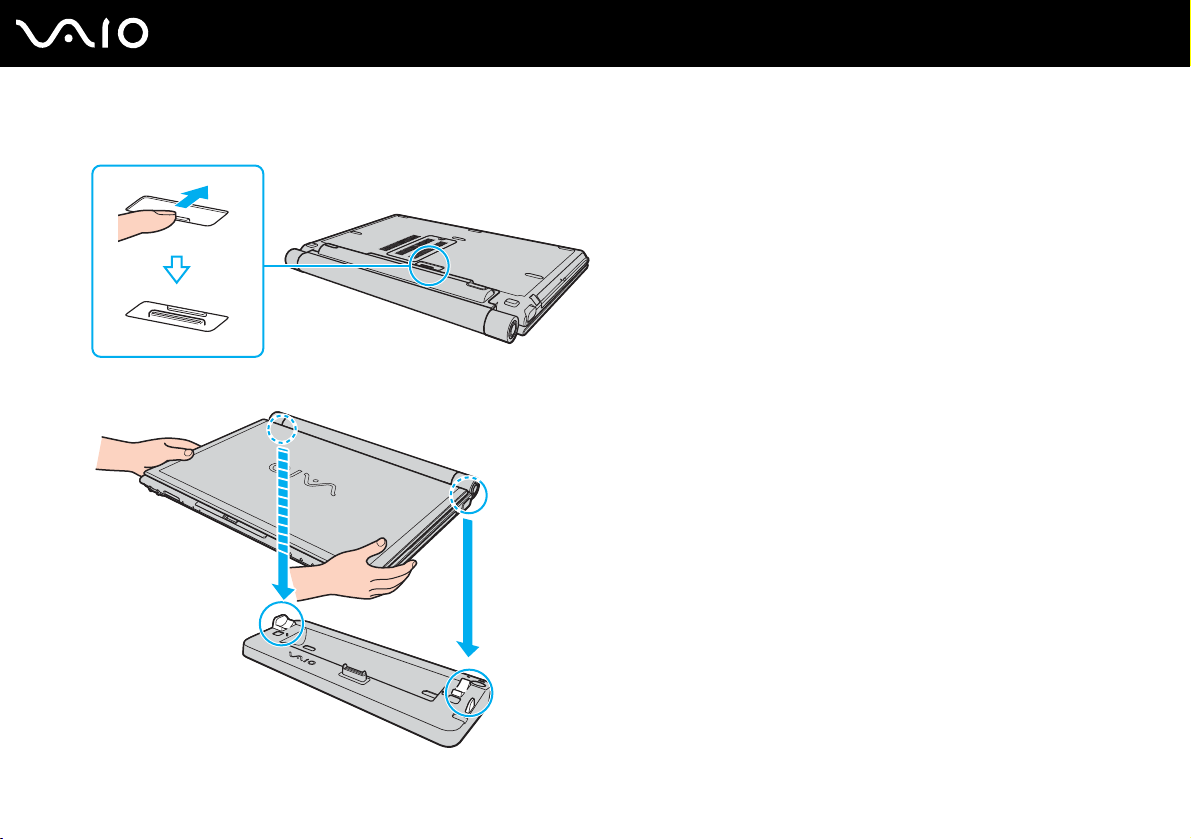

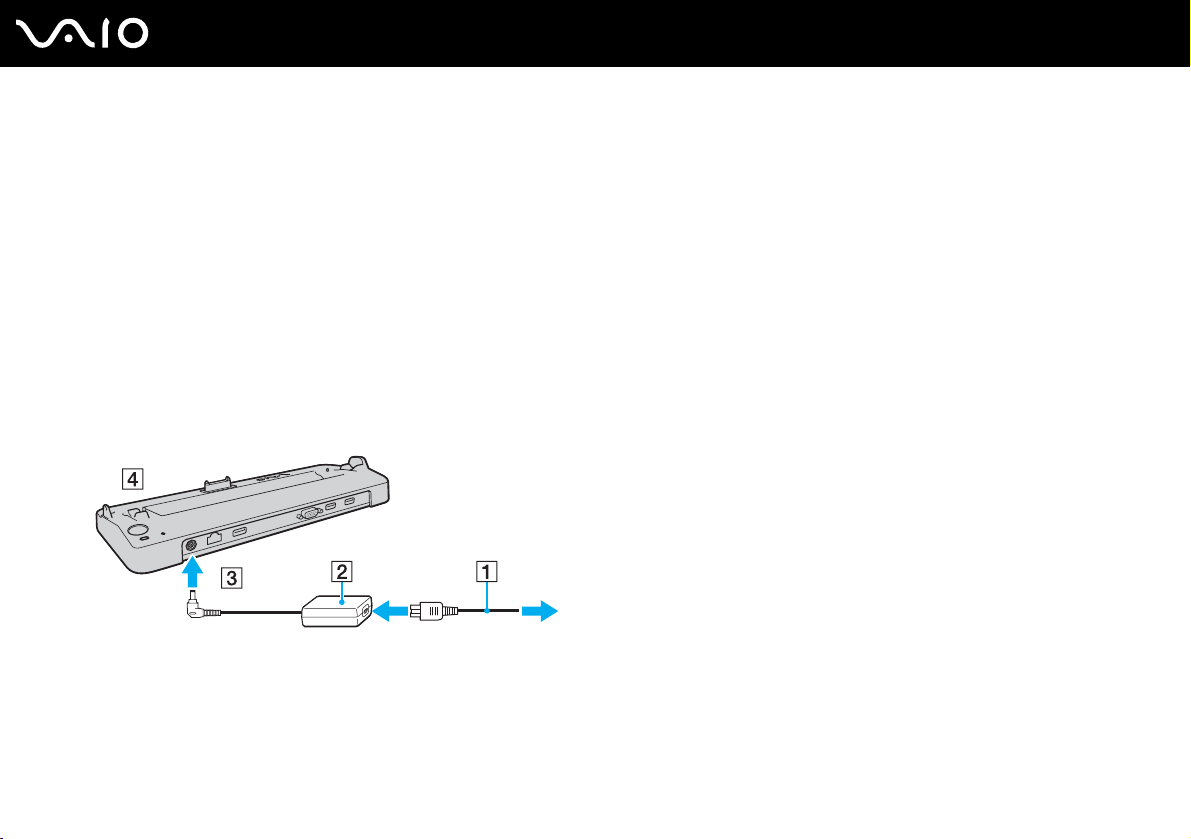

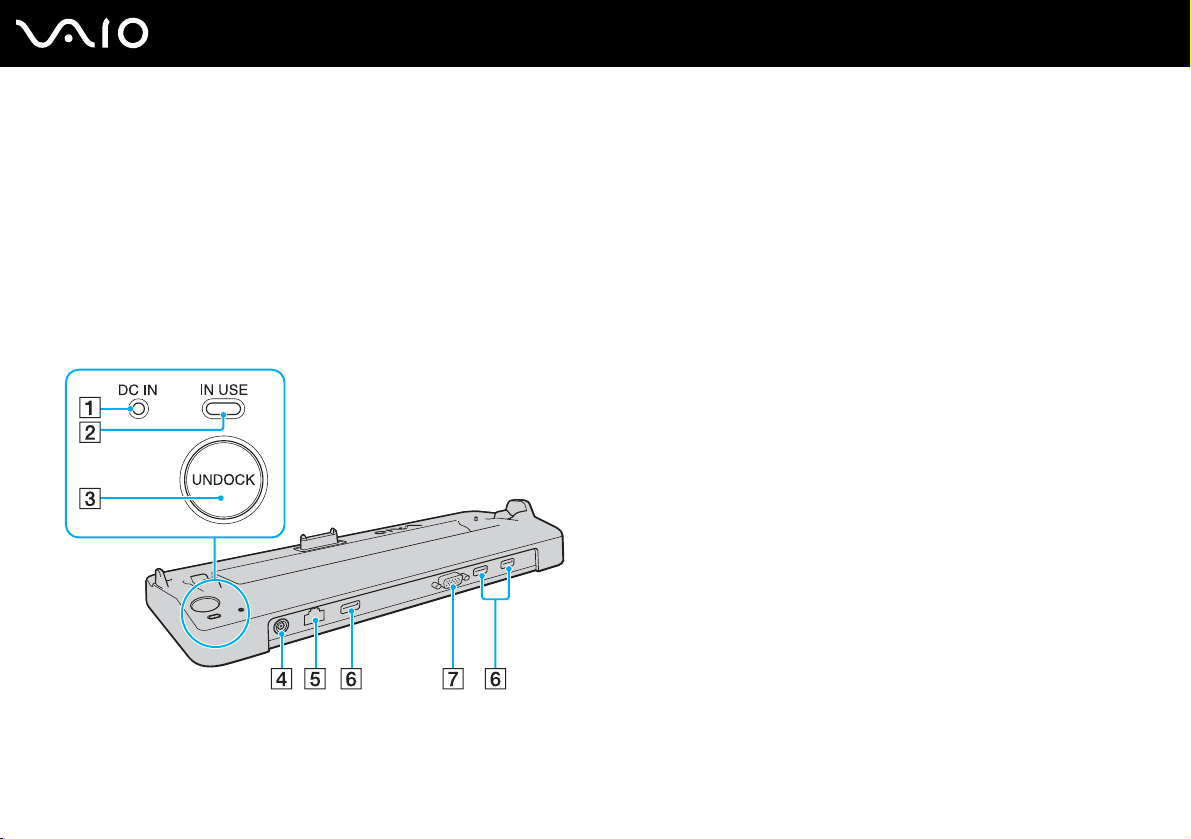

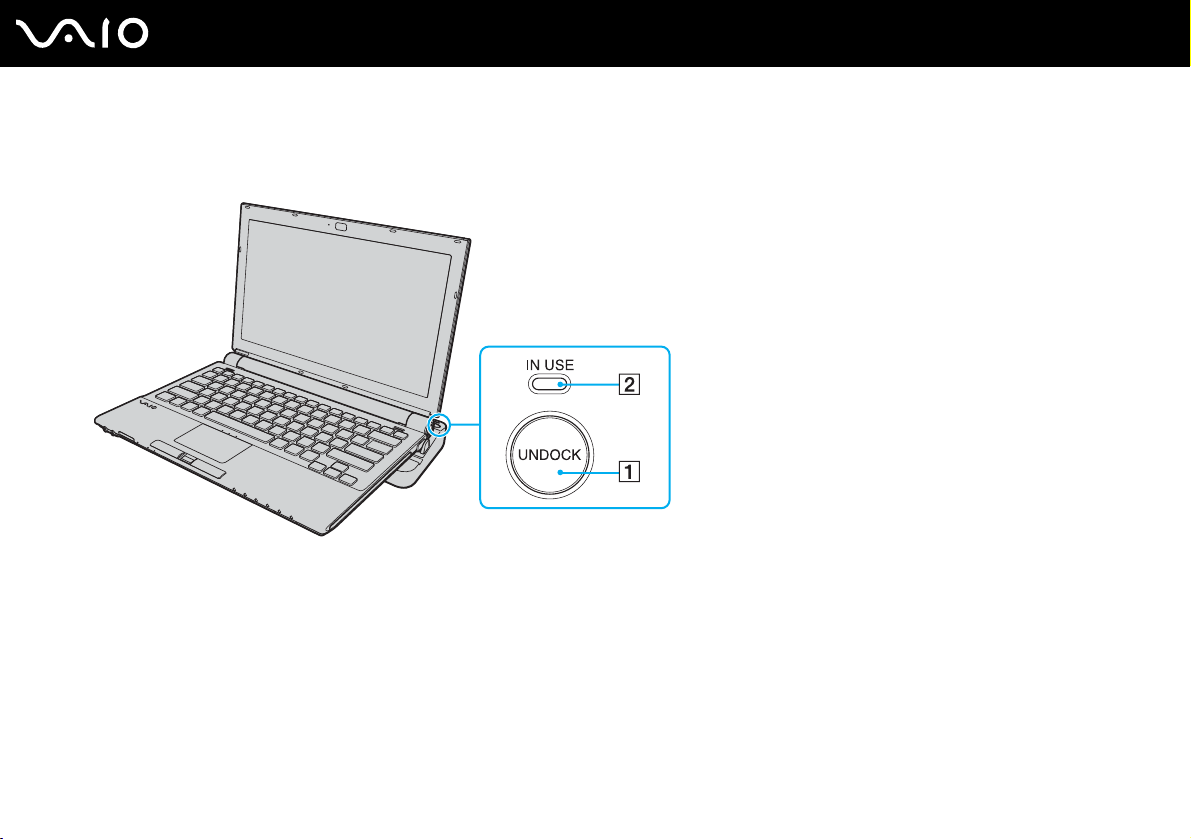

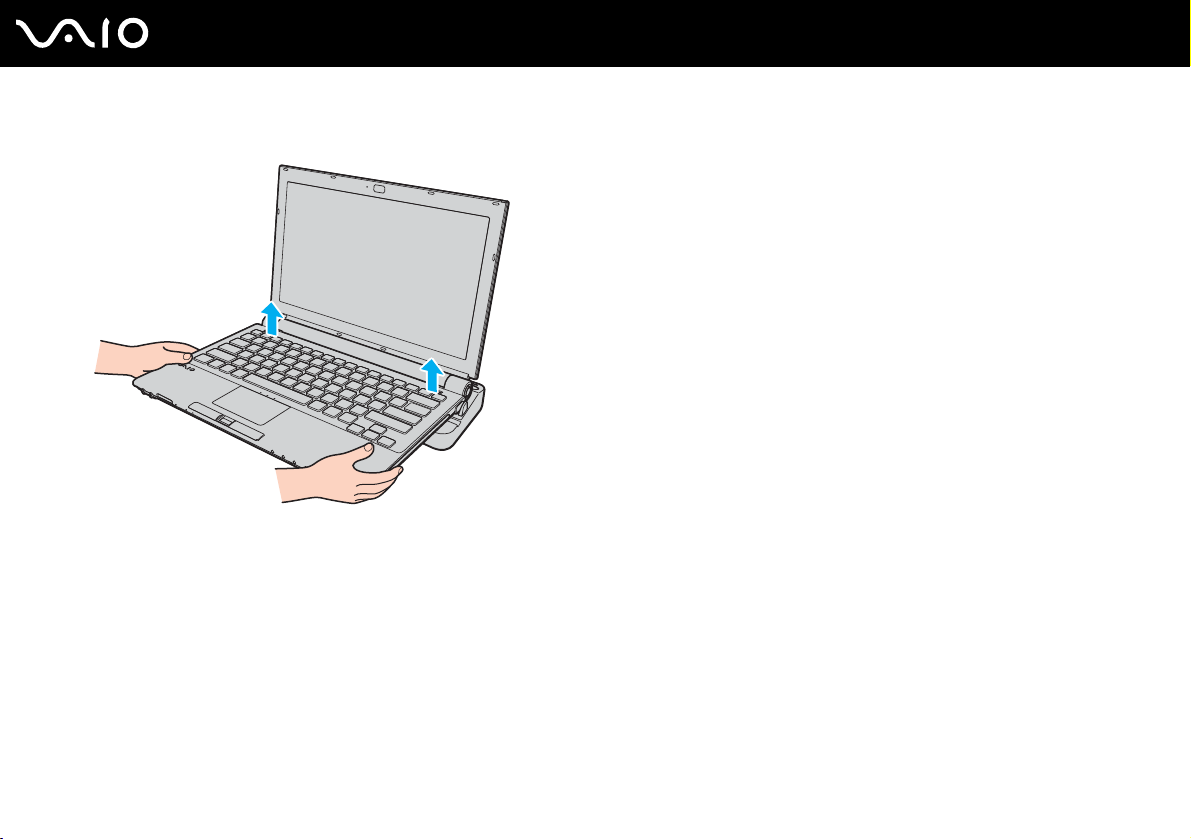

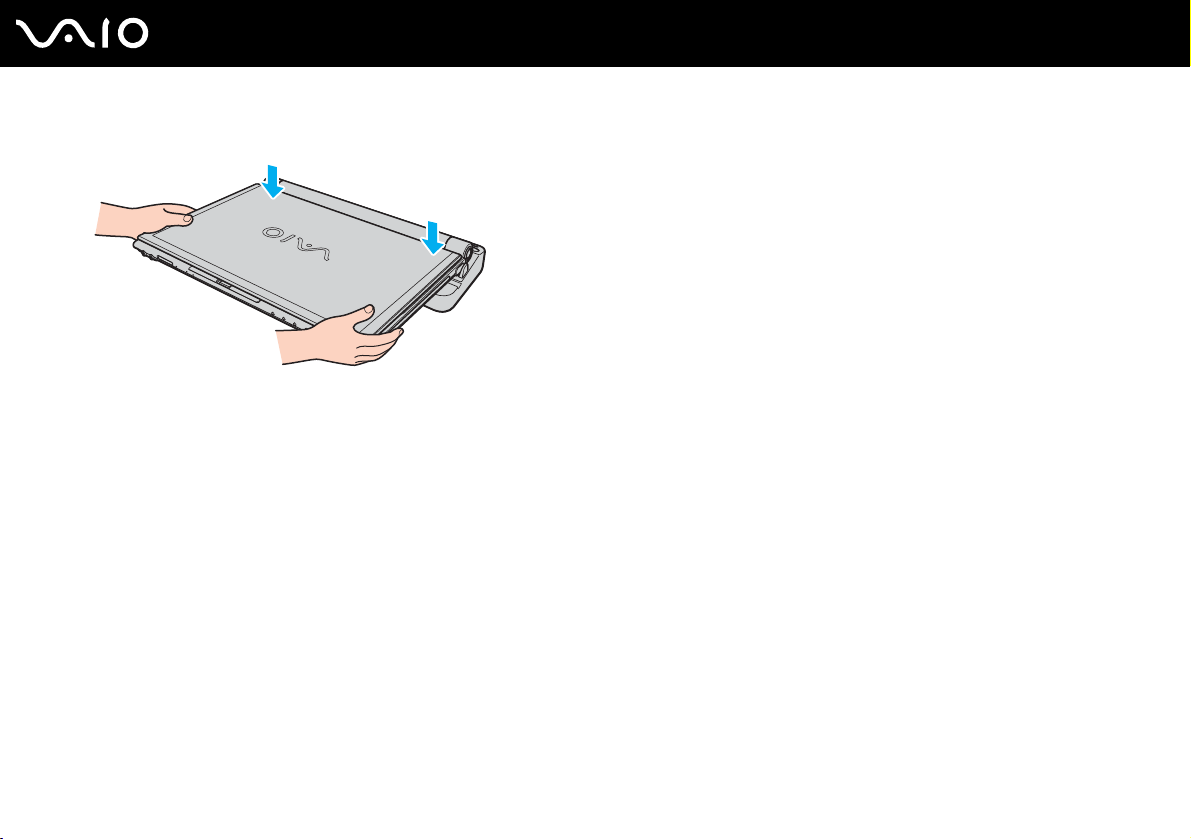

Connecting a Docking Station....................................................................................................................................75

Connecting External Speakers ..................................................................................................................................83

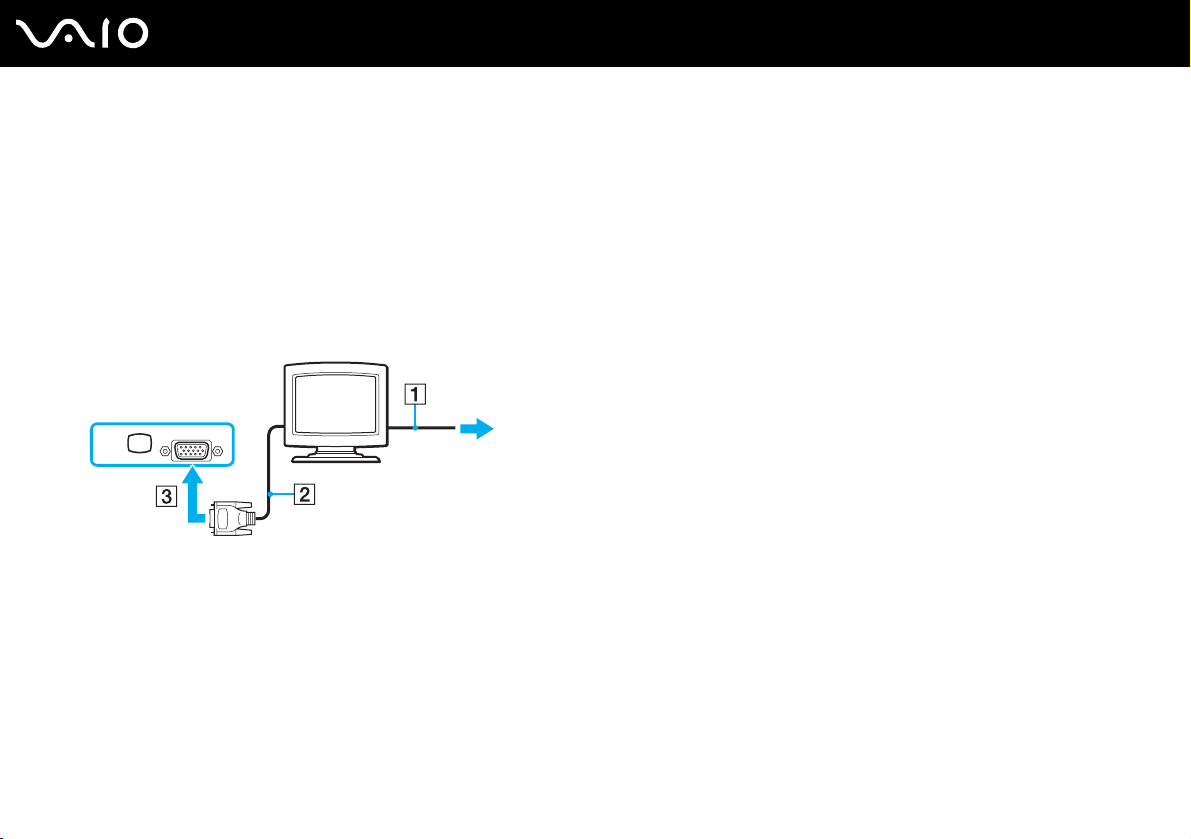

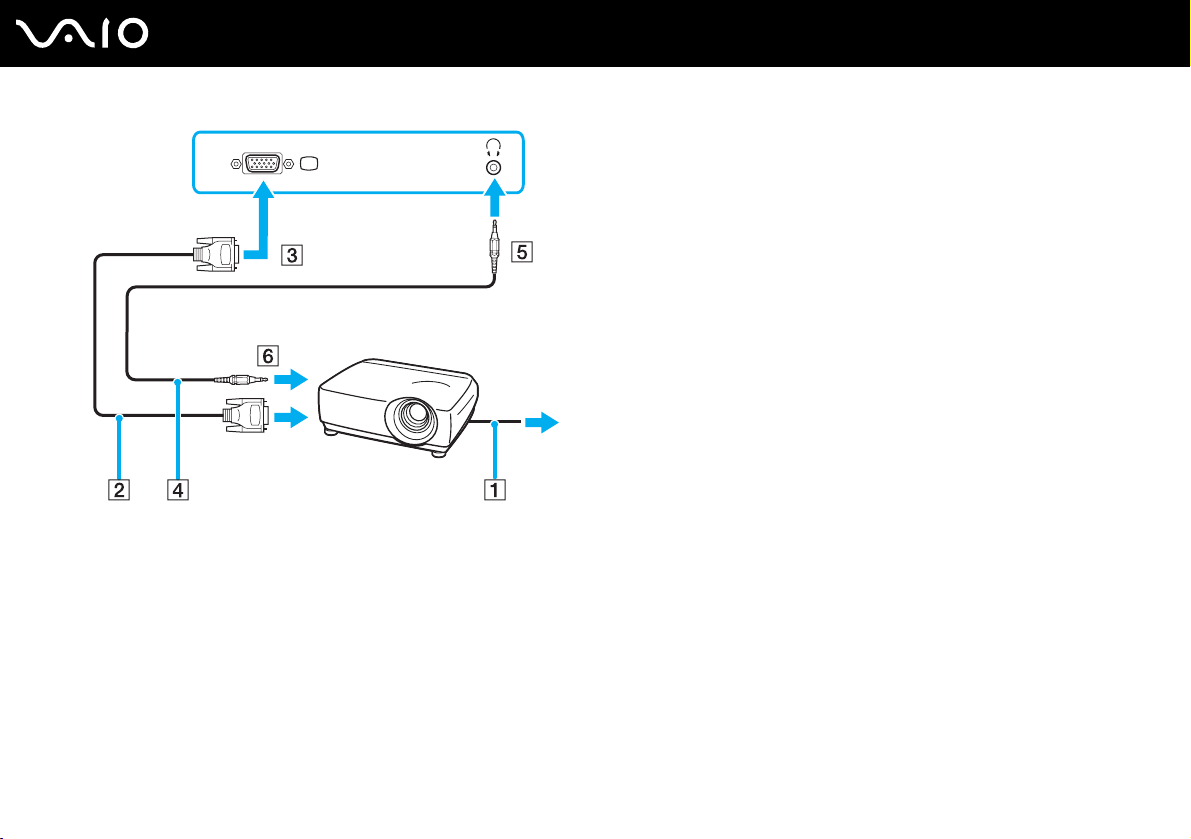

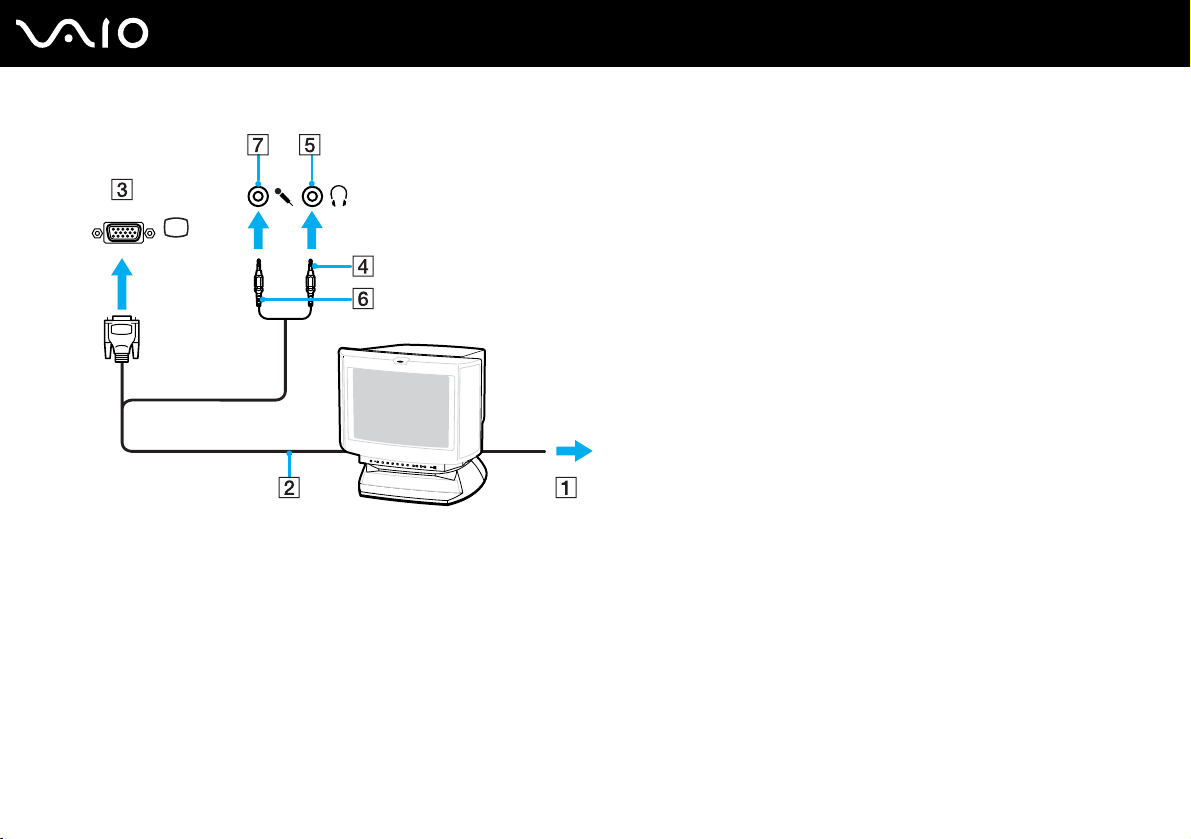

Connecting an External Display.................................................................................................................................84

Selecting Display Modes............................................................................................................................................90

Using the Multiple Monitors Function.........................................................................................................................91

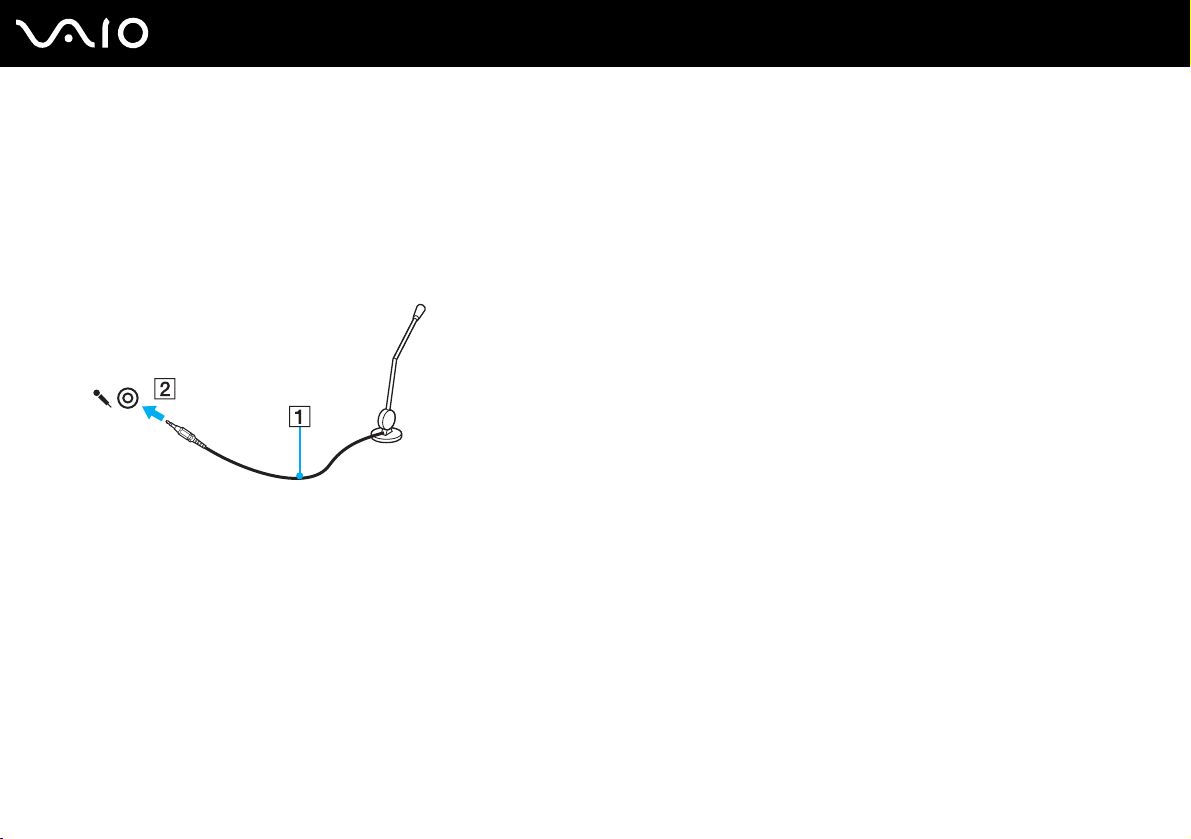

Connecting an External Microphone..........................................................................................................................93

Connecting a Universal Serial Bus (USB) Device......................................................................................................94

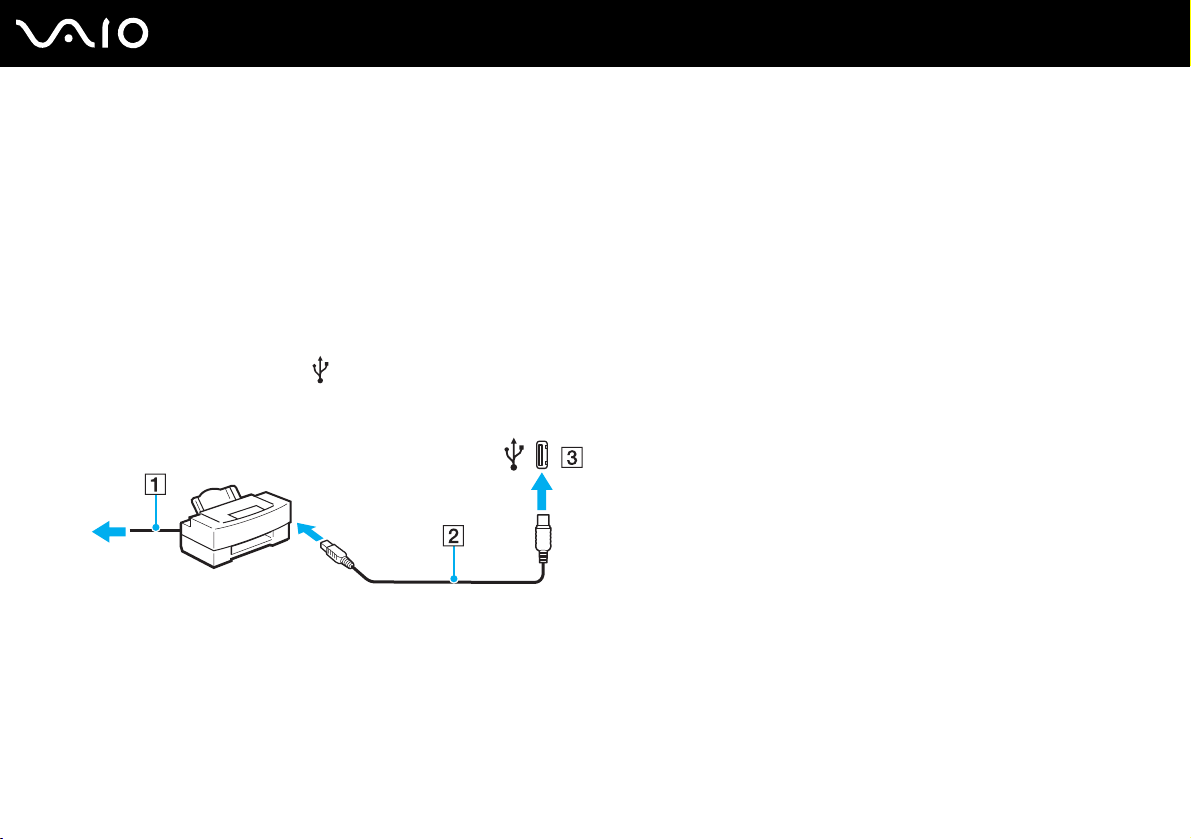

Connecting a Printer ..................................................................................................................................................97

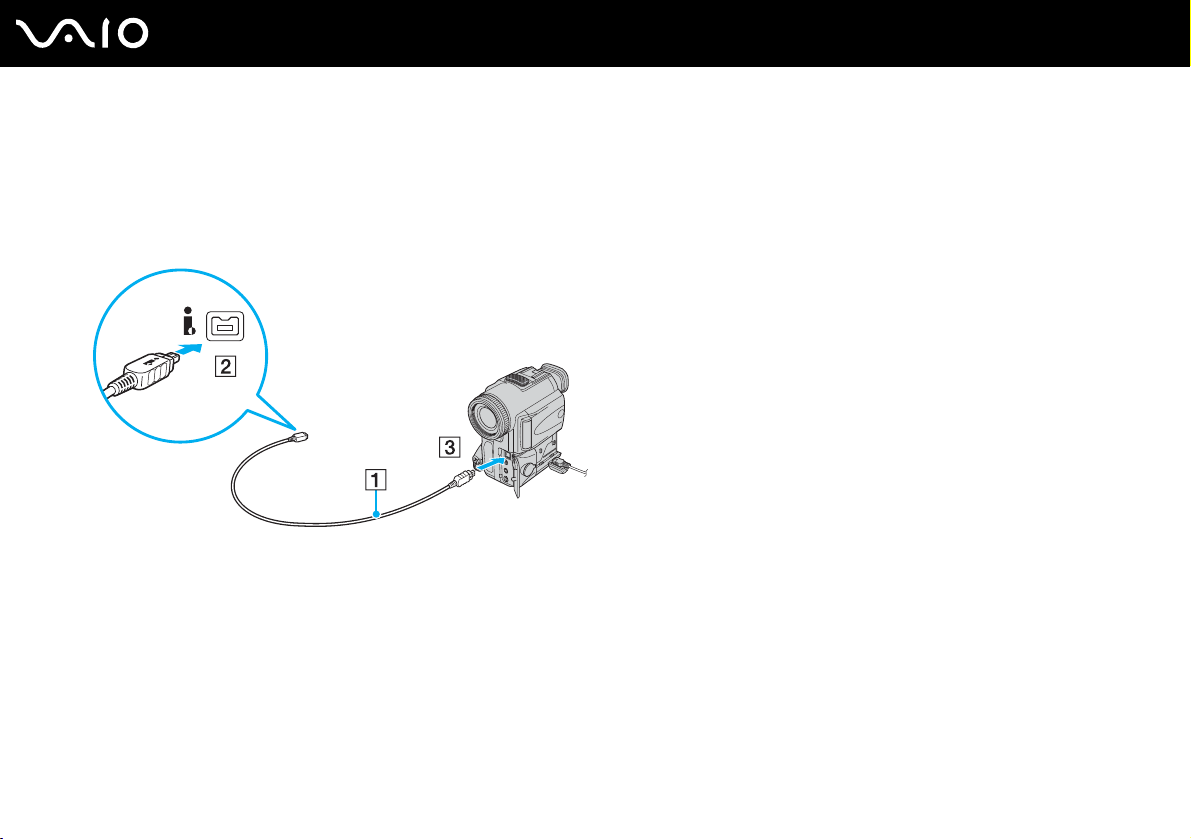

Connecting an i.LINK Device .....................................................................................................................................98

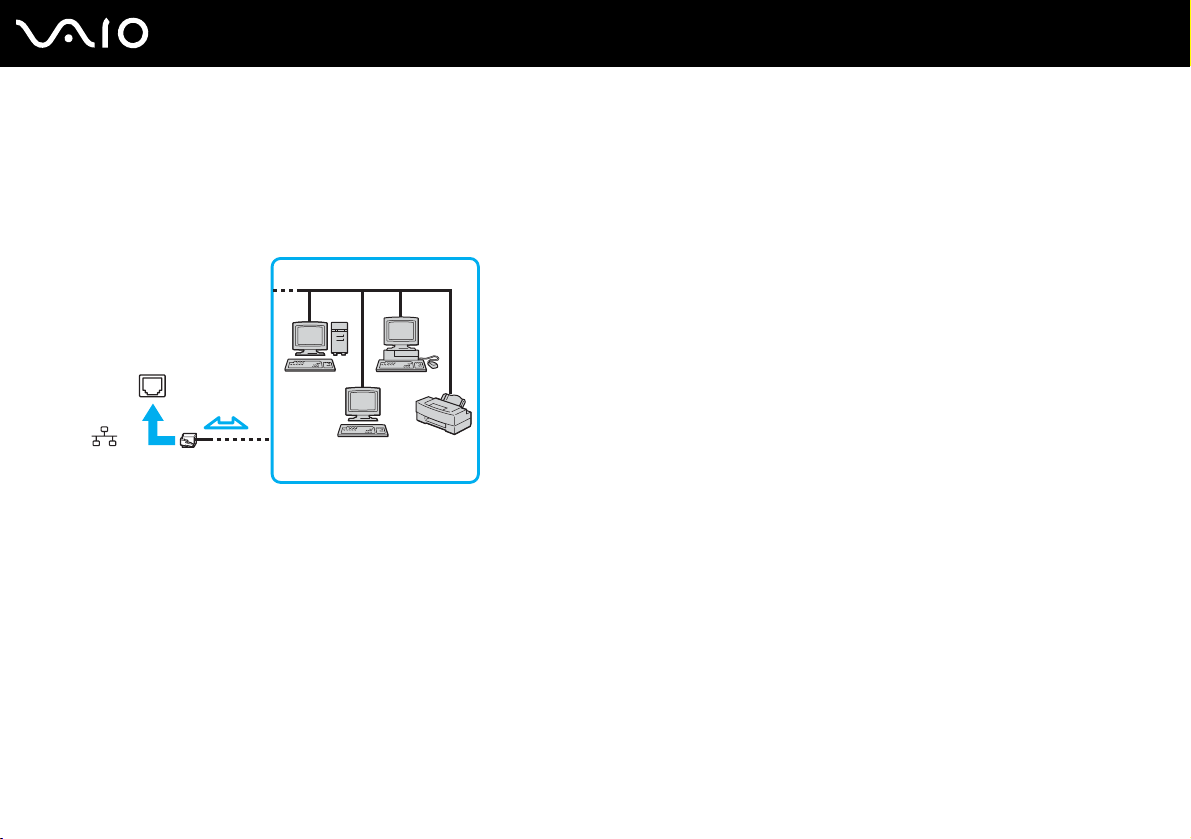

Connecting to a Network (LAN) ...............................................................................................................................100

Customizing Your VAIO Computer ................................................................................................................................102

Setting the Password ...............................................................................................................................................103

Using Fingerprint Authentication..............................................................................................................................115

Using Trusted Platform Module (TPM).....................................................................................................................123

Setting Up Your Computer with VAIO Central .........................................................................................................130

Using VAIO Status Monitor ......................................................................................................................................131

Using the Power Saving Modes...............................................................................................................................132

Managing Power with VAIO Power Management ....................................................................................................137

Changing the Performance Setting..........................................................................................................................140

Protecting Data from Unauthorized Use ..................................................................................................................141

Protecting the Hard Disk ..........................................................................................................................................143

Upgrading Your VAIO Computer....................................................................................................................................144

Replacing Memory ...................................................................................................................................................145

Page 4

Precautions ....................................................................................................................................................................151

On Handling the LCD Screen ..................................................................................................................................152

On Using the Power Source ....................................................................................................................................153

On Handling Your Computer....................................................................................................................................154

On Using the Built-in MOTION EYE Camera...........................................................................................................156

On Handling Floppy Disks .......................................................................................................................................156

On Handling Discs ...................................................................................................................................................157

On Using the Battery Pack.......................................................................................................................................158

On Using Headphones.............................................................................................................................................159

On Handling Memory Stick Media............................................................................................................................160

On Handling the Hard Disk ......................................................................................................................................161

On Updating Your Computer ...................................................................................................................................162

Troubleshooting .............................................................................................................................................................163

Computer .................................................................................................................................................................165

System Security .......................................................................................................................................................174

Battery......................................................................................................................................................................175

Built-in MOTION EYE Camera.................................................................................................................................177

Internet.....................................................................................................................................................................180

Networking ...............................................................................................................................................................182

Bluetooth Technology ..............................................................................................................................................185

Optical Discs ............................................................................................................................................................189

Display .....................................................................................................................................................................193

Printing.....................................................................................................................................................................197

Microphone ..............................................................................................................................................................198

Page 5

Mouse ......................................................................................................................................................................199

Speakers..................................................................................................................................................................200

Touch Pad................................................................................................................................................................201

Keyboard..................................................................................................................................................................202

Floppy Disks ............................................................................................................................................................203

Audio/Video..............................................................................................................................................................204

Memory Stick Media ................................................................................................................................................206

Peripherals ...............................................................................................................................................................208

Docking Station ........................................................................................................................................................209

Support Options .............................................................................................................................................................210

Sony Support Information ........................................................................................................................................210

Program Support Information...................................................................................................................................214

Page 6

Before Use

Congratulations on your purchase of this Sony VAIO® computer, and welcome to the on-screen User Guide. Sony has combined leading-edge technology in audio, video, computing, and communications to provide state-of-the-art personal computing.

External views illustrated in this manual may look slightly different from those of your computer.

Documentation

Your documentation includes printed information and user guides to read on your VAIO computer.

Printed Documentation

❑ Welcome mat — Contains an overview of connections, set-up information, etc. ❑ Safety Information — Contains safety guidelines and owner information. ❑ Instant Mode — Provides a guide to use Instant Mode.

Page 7

Before Use

Non-printed Documentation

❑ User Guide (this manual) — Contains features of your computer. It also includes information about the software programs

included with your computer, as well as information on solving common problems.

❑ Specifications — The online Specifications describe the hardware and software configuration of your VAIO computer.

To view the online Specifications:

1 Connect to the Internet. 2 Go to the Sony online support Web site at:

http://esupport.sony.com/EN/VAIO/ http://www.sony.ca/support

for customers in Canada,

http://esupport.sony.com/ES/VAIO/ http://esupport.sony.com/ES/VAIO/BR/

❑ VAIO Recovery Center User Guide — Provides information about restoring individual software programs, software

drivers, and drive partition(s) or your entire hard disk drive to the original factory installed settings. To access this on-screen guide:

1 Click Start and Help and Support. 2 Click Manuals & Specifications. 3 Click VAI O Recovery Center User Guide.

™

❑ SmartWi

Connection Utility Help (Selected models only) — Provides information about setting up Bluetooth, wireless

LAN, and wireless WAN functionalities. To access this on-screen guide:

1 Click Start, All Programs, and SmartWi Connection Utility. 2 Click SmartWi Connection Utility Help.

for customers in USA,

for customers in Spanish speaking Latin American countries or areas, or

for customers in Brazil.

Page 8

Before Use

Help and Support

Help and Support is easy to access and provides a single location for information and technical assistance for your VAIO computer. Choose from the following categories to find the answers you need.

To access Help and Support, click Start and Help and Support.

❑ Manuals & Specifications

Here you will find the on-screen User Guide, warranty information, other VAIO documents, and system and software information for your computer.

❑ VAIO Support

Access interactive help in the form of VAIO tutorials, an escalation page containing support and contact information, and various links to VAIO online support Web sites.

❑ Backup & Recovery

Find information on how to back up and restore your operating system, system software, and your personal data.

❑ Wireless & Network

Learn about wireless connections including Bluetooth Wireless technology and Wireless LAN. Run utilities that include VAIO Media Setup and Windows Network and Sharing, and access to wireless tutorials.

❑ Security

Keep your data safe and your computer running efficiently with updates and maintenance programs from Microsoft and Sony.

❑ VAIO Sites

Contains links to other Internet sites you might find interesting and useful.

Page 9

Before Use

Ergonomic Considerations

You will be using your computer as a portable device in a variety of environments. Whenever possible, you should attempt to take account of the following ergonomic considerations for both stationary and portable environments:

❑ Position of your computer – Place the computer directly in front of you (1). Keep your forearms horizontal (2), with your

wrists in a neutral, comfortable position (3) while using the keyboard, touch pad, or external mouse. Let your upper arms hang naturally at your sides. Have breaks during sessions with your computer. Excessive use of the computer may strain muscles or tendons.

❑ Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet are flat on the

floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning far backwards.

Page 10

Before Use

❑ Viewing angle of the computer's display – Use the display's tilting feature to find the best position. You can reduce eye

strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness setting of the display as well.

❑ Lighting – Choose a location where windows and lights do not create glare and reflection on the display. Use indirect

lighting to avoid bright spots on the display. Proper lighting adds to your comfort and work effectiveness.

❑ Positioning an external display – When using an external display, set the display at a comfortable viewing distance.

Make sure the display screen is at eye level or slightly lower when you are sitting in front of the monitor.

Page 11

Getting Started

This section describes how to get started with using your VAIO computer.

Before starting your computer for the first time, do not connect any other hardware that did not originally come with your computer. Be sure to start up your computer with only the supplied accessories connected and set up your system. Upon completion, connect one device (for example, a printer, an external hard disk drive, a scanner, and so on) at a time, following the manufacturers' instructions.

❑ Locating Controls and Ports (page 12) ❑ About the Indicator Lights (page 18) ❑ Connecting a Power Source (page 20) ❑ Using the Battery Pack (page 21) ❑ Shutting Down Your Computer Safely (page 28)

Page 12

Getting Started

Locating Controls and Ports

Take a moment to identify the controls and ports shown on the following pages.

The appearance of your computer may be different from those illustrated in this manual due to variations in specifications. It may also vary depending on the country or area of your residency.

Front

A Num lock indicator (page 18) B Caps lock indicator (page 18) C Scroll lock indicator (page 18)

D Built-in MOTION EYE camera indicator E Built-in MOTION EYE camera

F LCD screen (page 152) G Built-in speakers (stereo) H Keyboard (page 30) I Touch pad (page 32) J Fingerprint sensor (page 115)

* On selected models only.

(page 34)

(page 18)

Page 13

Getting Started

Headphones jack (page 83)

A B Microphone jack (page 93)

C Memory Stick PRO/Duo media slot

(page 49)

D Media Access indicator (page 18) E Battery indicator (page 18) F Hard disk drive indicator (page 18) G Built-in microphone (monaural) H SD memory card slot (page 54) I AV MODE button (page 33) J Play/Pause button (page 33) K Stop button (page 33) L Previous track button (page 33) M Next track button (page 33) N Disc drive eject button (page 33) O WIRELESS switch (page 59) P Bluetooth indicator (page 18) Q WLAN (Wireless LAN) indicator (page 18)

R WWAN (Wireless WAN) indicator

Your computer supports Memory Stick PRO media and Memory Stick Duo media with high speed and high capacity capabilities.

On selected models only.

(page 18)

Page 14

Back

A Battery connector (page 21)

Getting Started

Page 15

Right

A Optical disc drive (page 35) B Manual eject hole (page 189) C Optical disc drive indicator (page 18) D Substitute drive eject button (page 35) E Monitor (VGA) port (page 85) F Power button / Power indicator (page 18)

Getting Started

Page 16

Left

A DC IN port (page 20) B Modem port (page 58) C Network (Ethernet) port (page 100) D i.LINK (IEEE 1394) S400 port (page 98) E Air vents F ExpressCard/34 slot (page 44)

G Hi-Speed USB (USB 2.0) ports H Security slot

* Support high-/full-/low- speeds.

(page 94)

Getting Started

Page 17

Bottom

A Air vents B Docking station connector (page 76)

Getting Started

Page 18

Getting Started

About the Indicator Lights

Your computer is equipped with the following indicator lights.

Indicator Functions

Power 1 Illuminates when the power of the computer is on, blinks when the computer is in Sleep mode, and turns off

when the computer is in Hibernate mode or off.

Battery e Illuminates when the computer is using battery power, blinks when the battery pack is running out of power, and

Media Access Illuminates when data is read from or written to a memory card. (Do not enter Sleep mode or turn off the

Built-in MOTION EYE camera

Optical disc drive Illuminates when data is read from or written to the optical disc media. When the indicator is off, the optical disc

Hard disk drive

Num lock

Caps lock

Scroll lock

Bluetooth technology

double-blinks when the battery pack is charging.

computer when this indicator is on.) When the indicator is off, the memory card is not being used.

Illuminates while the built-in MOTION EYE camera is in use.

media is not being used.

Illuminates when data is read from or written to the built-in flash memory storage or hard disk drive

enter Sleep mode or turn off the computer when this indicator is on.

Press the Num Lk key to activate the numeric keypad. Press it a second time to deactivate the numeric keypad.

The numeric keypad is not active when the indicator is off.

Press the Caps Lock key to type letters in uppercase. Letters appear in lowercase if you press the Shift key

while the indicator is on. Press the key a second time to turn off the indicator. Normal typing resumes when the

Caps lock indicator is off.

Press the Scr Lk key to change how you scroll the display. Normal scrolling resumes when the Scroll lock

indicator is off. The Scr Lk key functions differently depending on the program you are using and does not work

with all programs.

Illuminates when the WIRELESS switch is set to ON and Bluetooth technology is enabled.

. Do not

Page 19

Indicator Functions

Wireless LAN Illuminates when the wireless LAN functionality is enabled.

Wireless WAN

On selected models only. Your computer is equipped with a built-in flash memory storage and/or a hard disk drive, depending on the model you purchased. See the online Specifications to

find about your storage device configuration.

Illuminates when the wireless WAN functionality is enabled.

Getting Started

Page 20

Getting Started

Connecting a Power Source

You can use either an AC adapter or a rechargeable battery pack as a power source for your computer.

Using the AC Adapter

✍

Use your computer only with the supplied AC adapter.

To use the AC adapter

1 Plug one end of the power cord (1) into the AC adapter (3). 2 Plug the other end of the power cord into an AC outlet (2). 3 Plug the cable attached to the AC adapter (3) into the DC IN port (4) on the computer or on the optional docking station.

✍

To disconnect your computer completely from AC power, unplug the AC adapter.

Make sure that the AC outlet is easily accessible.

If you do not use your computer for a long period of time, place the computer into Hibernate mode. See Using Hibernate Mode (page 135). This power saving mode saves the time of shutting down or resuming.

Page 21

Using the Battery Pack

The battery pack supplied with your computer is not fully charged at the time of purchase.

Installing the Battery Pack

To install the battery pack

1 Turn off the computer and close the LCD screen lid. 2 Slide the battery LOCK switch (1) inward.

3 Slide the battery pack diagonally along the guide (2) on either side of the battery compartment.

Getting Started

Page 22

4 Rotate the battery pack in the direction of the arrow and push in the battery pack until it clicks into place.

5 Slide the battery LOCK switch outward to secure the battery pack to the computer.

✍

When your computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet.

This computer is designed to operate only with genuine Sony batteries.

Getting Started

Page 23

Getting Started

Charging the Battery Pack

The battery pack supplied with your computer is not fully charged at the time of purchase.

To charge the battery pack

1 Install the battery pack. 2 Connect the AC adapter to the computer.

The computer automatically charges the battery pack (the battery indicator light flashes in a double blink pattern as the battery pack charges). When the battery pack charges close to the charge level you selected with the battery care function, the battery indicator turns off. To select your desired maximum charge level with the battery care function, see

To use the battery care function (page 25).

Battery indicator light status Meaning

On The computer is using battery power.

Blinks The battery pack is running out of power.

Double blinks The battery pack is charging.

Off The computer is using AC power.

Page 24

Getting Started

✍

You can charge the battery pack in such a usual manner as mentioned in this manual from the first time.

When the battery pack is running out of power, both the battery and power indicator lights blink.

Keep the battery pack in your computer while it is directly connected to AC power. The battery pack continues to charge while you are using the computer.

If the battery level falls below 10%, you should either attach the AC adapter to recharge the battery pack or shut down your computer and install a fully charged battery pack.

The battery pack supplied with your computer is a lithium ion battery pack and can be recharged any time. Charging a partially discharged battery pack does not affect battery life.

The battery indicator light is on while you use the battery pack as a power source. When battery life is nearly depleted, both the battery and power indicator lights start flashing.

For some software applications and some peripheral devices, your computer may not enter Hibernate mode even when battery life is low. To avoid loss of data when using battery power, you should save your data frequently and manually activate a power management mode, such as Sleep or Hibernate.

If the battery pack wears out when the computer enters Sleep mode, you will lose any unsaved data. Going back to the previous work state is impossible. To avoid loss of data, you should save your data frequently.

When your computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet.

Page 25

To use the battery care function

You can select your desired maximum charge level with the battery care function to reduce battery degradation. 1 Click Start, All Programs, and VAIO Central.

The VAIO Central window appears.

2 Double-click Power Management and Battery Care Function. 3 Click to select the Enable Battery Care Function check box. 4 Select the desired maximum charge level. 5 Click OK.

Getting Started

Page 26

Getting Started

Removing the Battery Pack

You may lose data if you remove the battery pack while your computer is on and not connected to the AC adapter or if you remove the battery pack while the computer is in Sleep mode.

To remove the battery pack

1 Turn off the computer and close the LCD screen lid. 2 Slide the battery LOCK switch (1) inward and slide and hold the battery RELEASE latch (2) on the bottom of the

computer.

Page 27

3 Pull the battery pack slightly, rotate it in the direction of the arrow, and then slide it away from the computer.

Getting Started

Page 28

Getting Started

Shutting Down Your Computer Safely

To avoid losing unsaved data, be sure to shut down your computer properly, as described below.

To shut down your computer

1 Turn off any peripherals connected to the computer. 2 Click Start, the arrow next to the Lock button, and Shut Down.

3 Respond to any prompts warning you to save documents or to consider other users and wait for the computer to turn off

automatically. The power indicator light turns off.

Page 29

Using Your VAIO Computer

This section describes how to get the most out of using your VAIO computer.

❑ Using the Keyboard (page 30) ❑ Using the Touch Pad (page 32) ❑ Using Special-function Buttons (page 33) ❑ Using the Built-in MOTION EYE Camera (page 34) ❑ Using the Optical Disc Drive (page 35) ❑ Using the ExpressCard Module (page 44) ❑ Using the Memory Stick Media (page 48) ❑ Using Other Memory Cards (page 54) ❑ Using the Internet (page 58) ❑ Using Wireless LAN (WLAN) (page 59) ❑ Using the Bluetooth Functionality (page 66)

Using Your VAIO Computer

Page 30

Using Your VAIO Computer

Using the Keyboard

Your keyboard is very similar to a desktop computer keyboard, but has additional keys that perform model-specific tasks.

Combinations and Functions with the Fn Key

✍

Some keyboard functions can be used only after the operating system finished launching.

Combinations/Feature Functions

Fn + (F1): wireless switching

Fn + % (F2): speaker switch Turns on and off the built-in speakers and the headphones.

Fn + 2 (F3/F4): volume Adjusts the volume level.

Fn + 8 (F5/F6): brightness control Adjusts the LCD brightness of your computer screen.

Fn + /T (F7): display output

Toggles among Bluetooth, wireless LAN, and wireless WAN functionalities.

To increase the volume, press Fn+F4 and then M or ,, or keep pressing Fn+F4. To decrease the volume, press Fn+F3 and then m or <, or keep pressing Fn+F3.

To increase lightness intensity, press Fn+F6 and then M or ,, or keep pressing Fn+F6. To decrease lightness intensity, press Fn+F5 and then m or <, or keep pressing Fn+F5.

Toggles among your computer screen, an external display, and simultaneous output to both.

Page 31

Combinations/Feature Functions

Fn + (F10): zoom

Fn + (F12): Hibernate

On selected models only.

Your computer is equipped with either the built-in flash memory storage or hard disk drive as the primary storage device, depending on the model you purchased. See the online Specifications to find about your storage device configuration.

Using Your VAIO Computer

Changes the screen resolution to magnify/restore your computer's screen view.

✍

The magnified view is not as clear as the standard view, as it is implemented by applying a lower resolution to the computer screen with a higher resolution. This key combination may not work with graphic images as it magnifies the screen view by changing the resolution. The location and size of software windows may change when the screen view is magnified or the standard view is restored because pressing this key combination changes the resolution. When your computer's screen view is magnified, switching the view to the external display disables the function and restores the standard view.

Provides for the lowest level of power consumption. When you execute this command, the states of the system and the peripheral devices are written to the primary storage device

the system power is turned off. To return the system to its original state, use the power button to turn on the power. For details on power management, see Using the Power Saving Modes (page 132).

and

Page 32

Using Your VAIO Computer

Using the Touch Pad

You can point to, select, drag, and scroll objects on the screen using the touch pad.

Action Description

Point Slide your finger on the touch pad (1) to place the pointer (2) on an item or object.

Click Press the left button (3) once.

Double-click Press the left button twice.

Right-click Press the right button (4) once. In many applications, this action displays a shortcut menu.

Drag Slide your finger on the touch pad while pressing the left button.

Scroll Slide your finger along the right edge of the touch pad to scroll vertically. Slide your finger along the bottom edge to scroll

horizontally (the scroll function is available only with applications that support a touch pad scroll feature).

✍

You can also use the fingerprint sensor for vertical scrolling while the Scroll lock indicator is lit. Press the Fn+Scr Lk keys to turn on and off the indicator.

Page 33

Using Your VAIO Computer

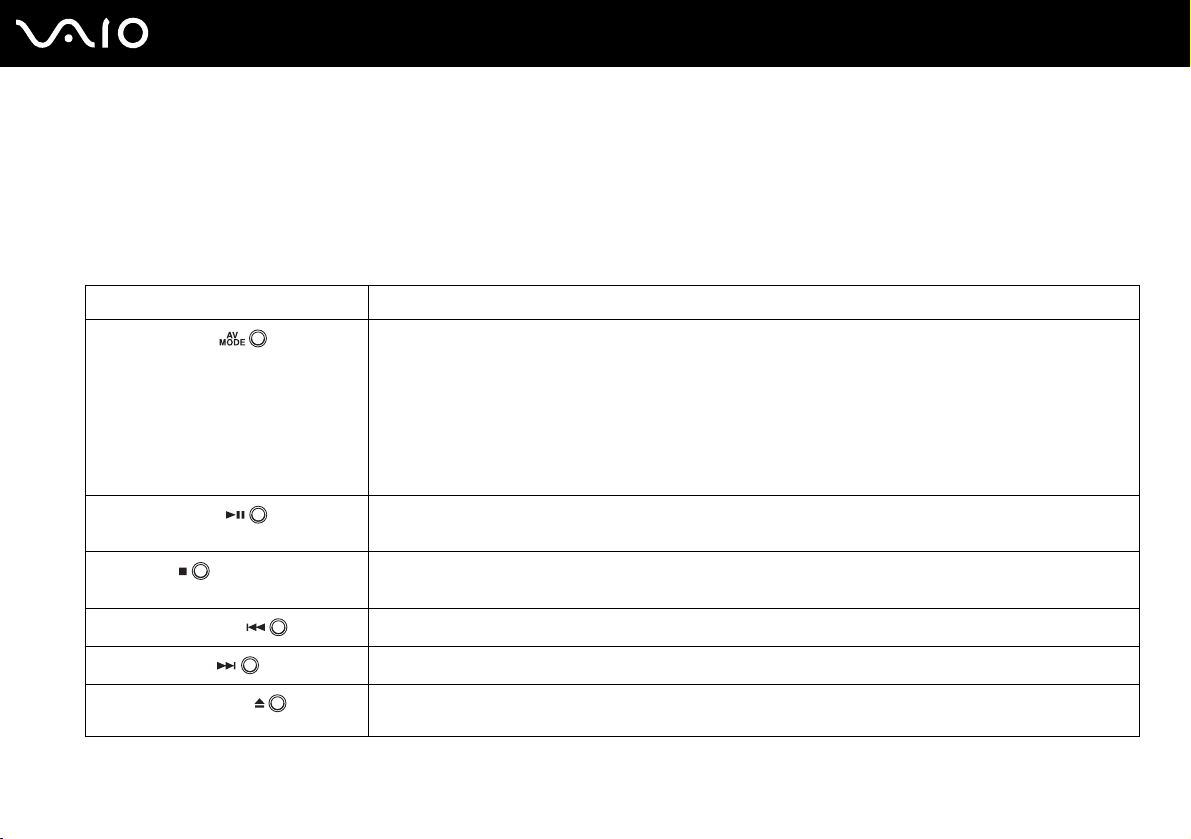

Using Special-function Buttons

Your computer is equipped with special buttons to help you use specific functions of the computer. The AV MODE, Play/Pause, Stop, Previous track, and Next track buttons support Instant Mode. To activate Instant Mode,

the computer must be off or in Hibernate mode. See the printed Instant Mode booklet for more information on the Instant Mode.

Special-function button Functions

AV MODE button

Play/Pause button

Stop button

Previous track button

Next track button

Disc drive eject button

* Your computer is equipped with a built-in flash memory storage and/or a hard disk drive, depending on the model you purchased. See the online Specifications to

find about your storage device configuration.

When the computer is off or in Hibernate mode: Activates Instant Mode to enable you immediately to play music and view the image data stored on the built-

in flash memory storage or hard disk drive for more information. When the computer is on or in Sleep mode: Launches VAIO AV Mode Launcher for selecting the desired software. You can change the default software options in VAIO AV Mode Launcher. To do so, press and hold the AV MODE button to display the setup window.

Starts or pauses playback of a CD or DVD disc media or a music/video file stored on the built-in flash memory storage or hard disk drive

Stops playback of a CD or DVD disc media or a music/video file stored on the built-in flash memory storage or hard disk drive

Plays the previous chapter/file during video playback or the previous song/file during audio playback.

Plays the next chapter/file during video playback or the next song/file during audio playback.

Ejects the optical disc drive tray. If this button does not work, try the substitute drive eject button on the optical disc drive.

without launching Windows. See the printed Instant Mode booklet

Page 34

Using Your VAIO Computer

Using the Built-in MOTION EYE Camera

Your computer may be equipped with a built-in MOTION EYE camera. See the online Specifications to find whether your model is equipped with the built-in MOTION EYE camera.

The built-in MOTION EYE camera adds video functionality to instant messaging software and video editing software. Turning on the computer activates the built-in MOTION EYE camera, so the computer is ready for a video conference using

such software. Note that launching or exiting your instant messaging or video editing software does not activate or deactivate the built-in

MOTION EYE camera, respectively. Make sure that the camera is activated before using the software.

✍

The built-in MOTION EYE camera cannot be shared by more than one software application. If another software application is using the camera, exit the application before using the built-in MOTION EYE camera.

When capturing an image in a dark place, click the VAIO Camera Utility icon on the taskbar and the Advanced Setting tab on the Properties window, and select the Low Light check box. It decreases the frame rate and slows down the shutter speed to allow the camera to capture more light.

The viewer window may show some noises, for example horizontal streaks, if you view a rapid-moving object. This is normal and does not indicate a malfunction.

You cannot operate the built-in MOTION EYE camera with the Microsoft Windows MovieMaker software.

Page 35

Using Your VAIO Computer

Using the Optical Disc Drive

Your computer is equipped with an optical disc drive.

To insert a disc

1 Turn on the computer. 2 Press the disc drive eject button (1) to open the drive.

The tray slides out.

✍

If the disc drive eject button does not work, try the substitute drive eject button on the optical disc drive.

If power supply to the optical disc drive is disabled by VAIO Power Management, it will take a while to eject the drive tray. Note that the substitute drive eject button is disabled when the optical disc drive is not powered.

When recovering your system, turn on your computer and press the substitute drive eject button on the optical disc drive. Insert your Recovery Disc into the optical disc drive, turn off the computer, and then turn on the computer again to start the recovery process.

Page 36

Using Your VAIO Computer

3 Place a disc in the middle of the tray with the label side facing upward and gently push it until the disc clicks into place.

4 Close the tray by pushing it in gently.

Do not remove the optical disc when your computer is in a power saving mode (Sleep or Hibernate). Doing so may cause the computer to malfunction.

✍

If you plan to use an external optical disc drive, connect the drive before you launch any preinstalled disc operation program.

Page 37

Using Your VAIO Computer

Reading and Writing Optical Discs

Your computer plays and records CDs, DVDs, or Blu-ray Discs, depending on the model you purchased. Check your specifications for the type of optical disc drive installed on your model. Use the table below to see which types of media your optical disc drive supports.

Page 38

Using Your VAIO Computer

PR: playable and recordable P: playable but not recordable –: not playable or recordable

BD-R

*10

–

DVD± RW/ ±R DL/RAM

CD-RW/

CDROM

PPPPPRPP–

PPPPPRPP–PPPP––

Video CDMusic CDCD

Extra

CD-R/RWDVD-

ROM

DVDVideo

BDROM

DVD-R/RWDVD+R/RWDVD+R DLDVD-R DLDVD-

RAM

*1 *2

*3 *4

DVD- ROM

DVD-ROMPPPPPPP–PPPP––

Blu-ray Disc P P P P

Supports writing data to DVD-R discs compliant with DVD-R for General Version 2.0/2.1.

Supports writing data to DVD-RW discs compliant with DVD-RW Version 1.1/1.2.

The DVD±RW/RAM disc drive on your computer does not support the DVD-RAM cartridge. Use non-cartridge discs or discs with removable cartridge.

Writing data to single-sided DVD-RAM discs (2.6 GB) compliant with DVD-RAM Version 1.0 is not supported.

PPP

*1 *2

*3 *4

DVD-RAM Version 2.2/12X-SPEED DVD-RAM Revision 5.0 disc is not supported.

Writing data to DVD+R DL (Double Layer) discs is available only on discs supporting DVD+R DL (Double Layer) recording.

Writing data to DVD-R DL (Dual Layer) discs is available only on discs supporting DVD-R DL (Dual Layer) recording.

Supports writing data to BD-R Version 1.1 discs (single-layer discs with the capacity of 25 GB, dual-layer discs with the capacity of 50 GB) and BD-RE Version 2.1 discs (single-layer discs with the capacity of 25 GB, dual-layer discs with the capacity of 50 GB). The Blu-ray Disc drive on your computer does not support BD-RE Version 1.0 discs and Blu-ray cartridge discs.

Writing data to Ultra Speed CD-RW discs is not supported on models with the Blu-ray Disc drive.

BD-R stands for Blu-ray Disc-Recordable in Version 1.1 format.

*10

BD-RE stands for Blu-ray Disc-Rewritable in Version 2.1 format.

Page 39

Using Your VAIO Computer

This product is designed to playback discs that conform to the Compact Disc Digital Audio standard specifications (CD Standard). A DualDisc is a two sided disc product which mates DVD recorded material on one side with digital audio material on the other side. Be aware that the audio side (non-DVD side) of a DualDisc may not play on this product because it does not conform to the CD Standard.

Due to the multiple formats of discs now available, when buying pre-recorded or blank discs for use with a VAIO computer, be sure to read the notices on the disc packaging carefully to check both playback and recording compatibility with your computer's optical disc drives. Sony does NOT guarantee

the compatibility of VAIO CD drives with discs that are not compliant with the official "CD" format standard (or "DVD" standard in relation to DVD drives, or "Blu-ray Disc" standard in relation to Blu-ray Disc drives). USING NON-COMPLIANT DISCS CAN CAUSE FATAL DAMAGE TO YOUR VAIO PC OR CREATE SOFTWARE CONFLICTS AND CAUSE SYSTEM HANGING. For inquiries about disc formats, contact the individual publisher of the pre-recorded disc or the manufacturer of the recordable disc.

✍

8cm disc writing is not supported.

To play copyright protected Blu-ray Discs continually, you need to update the AACS key. Note that the AACS key update requires Internet access.

As with other optical media devices, circumstances may limit compatibility or prevent Blu-ray Disc playback. VAIO computers may not support movie playback on packaged media recorded in AVC or VC1 formats at high bit rates.

Region settings are required for Movies and BD-ROM contents. If the region setting and the region of the disc do not match, playback is not possible.

Unless your external display is compliant with the High-bandwidth Digital Content Protection (HDCP) standard, you cannot play or view the contents of copyright protected Blu-ray Discs.

Some contents may restrict video output to be standard definition or prohibit analog video output at all. It is strongly recommended that digital HDCPcompliant environment be implemented for optimum compatibility and viewing quality.

Page 40

Using Your VAIO Computer

Notes on writing data to a disc

❑ Use only Sony recommended software, which is preinstalled on your computer, to write data to a disc.

Other software programs may not be fully compatible and errors may result.

❑ To make data on a disc readable on the optical disc drive, you need to close the session before you eject it. To complete

this process, follow the instructions included with your software.

❑ Only use circular discs. Do not use discs in any other shape (star, heart, card, etc.), as this may damage the optical disc

drive.

❑ Do not strike or shake your computer while writing data to a disc. ❑ Deactivate the screen saver and exit anti-virus software before writing data to a disc. ❑ Do not use memory-resident utility software while writing data to a disc. This may cause your computer to malfunction. ❑ When using your software application to burn discs, make sure you exit and close all other applications. ❑ Do not switch to power saving modes while using the preinstalled software or any disc burning software. ❑ Connect and use the AC adapter to power your computer or make sure your battery pack is at least 50 percent charged. ❑ Make sure you use the same disc burning software to add data to a used disc. Use of different disc burning software for

additional data burning may cause a failure. For example, if you have a disc with data that you burned with the Roxio Easy Media Creator software, use the Roxio Easy Media Creator software to add some data to the same disc.

Page 41

Using Your VAIO Computer

Notes on playing discs

To achieve optimum performance when playing discs, you should follow these recommendations. ❑ Some CD players and computer's optical disc drives may not be able to play audio CDs created with the CD-R or CD-RW

disc media.

❑ Some DVD players and computer's optical disc drives may not be able to play DVDs created with the DVD+R DL, DVD-

R DL, DVD+R, DVD+RW, DVD-R, DVD-RW, or DVD-RAM disc media.

❑ Do not use memory-resident utility software to speed up disc access when playing a disc. This may cause your computer

to malfunction.

❑ Do not switch to power saving modes while your computer is playing a disc. ❑ Region code indicators are labeled on the DVDs to indicate in which region and on what type of player you can play the

disc. If the DVD is labeled "all," this means that you can play this DVD in most regions of the world. If the region code of your residence area is different from the label on the DVD disc or on the packaging, you cannot play the disc on your computer.

Page 42

Using Your VAIO Computer

Playing CDs

To play an audio CD

1 Insert a disc into the optical disc drive. 2 If nothing appears on the desktop, then click Start, All Programs, and the desired CD software to play the CD.

If the Audio CD window appears, click to select an option.

Copying Files to CDs

To copy files to a disc

Do not strike or shake your computer while writing data to a disc.

1 Insert a disc into the optical disc drive.

If the AutoPlay window appears, click Burn files to disc and follow the on-screen instructions until the empty disc folder appears.

2 Open the folder that contains the file(s) you want to copy and drag them to the empty disc folder. 3 Close the disc folder.

Page 43

Using Your VAIO Computer

Playing DVDs

To play a DVD

1 Close all running software applications. 2 Insert a DVD into the optical disc drive. 3 If nothing appears on the desktop, then click Start, All Programs, and the desired DVD software to play the DVD.

For instructions on how to use the software, see the help file on your DVD software.

Copying Files to DVDs

To copy files to a disc

1 Connect the AC adapter to the computer. 2 Insert a disc into the optical disc drive. 3 If nothing appears on the desktop, then click Start, All Programs, and the desired DVD software to copy files to the disc.

For instructions on how to use the software, see the help file on your DVD software.

Page 44

Using Your VAIO Computer

Using the ExpressCard Module

Your computer is equipped with either a Universal ExpressCard™ slot* or an ExpressCard™/34 slot* for transferring data among digital cameras, camcorders, music players, and other audio/video devices. The former

™

ExpressCard ExpressCard

/34 (34 mm wide) or ExpressCard™/54 (54 mm wide) module* as shown below; and the latter, an

™

/34 module* only.

can accommodate either an

❑ ExpressCard™/34 module

Your computer is equipped with an ExpressCard

* Referred to as the ExpressCard slot and the ExpressCard module in this manual.

❑ ExpressCard™/54 module

™

/34 slot*.

Page 45

Inserting an ExpressCard Module

Use care when inserting or removing the ExpressCard module from the slot. Do not force it in or out of the slot.

✍

You do not need to shut down your computer before inserting or removing the ExpressCard module.

To insert an ExpressCard module

1 Carefully slide the ExpressCard module (1) into the slot until it clicks into place.

Do not force it into the slot.

Using Your VAIO Computer

Page 46

✍

If the module or adapter does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction.

Make sure you use the most recent software driver provided by the ExpressCard module manufacturer.

Using Your VAIO Computer

Page 47

Using Your VAIO Computer

Removing an ExpressCard Module

Follow the steps below to remove the ExpressCard module while your computer is on. If it is not removed properly, your system may not work properly.

To remove an ExpressCard module

✍

To remove an ExpressCard module when your computer is off, skip steps 1 to 7.

1 Double-click the Safely Remove Hardware icon on the taskbar.

The Safely Remove Hardware window appears.

2 Select the hardware you want to unplug. 3 Click Stop.

The Stop a Hardware device window appears. 4 Confirm that the device can be safely removed from the system. 5 Click OK.

A message appears stating it is now safe to remove the device.

6 Click OK. 7 Click Close to close the Safely Remove Hardware window. 8 Push in the ExpressCard module toward the computer to pop it out. 9 Gently take hold of the ExpressCard module and pull it out of the slot.

Page 48

Using Your VAIO Computer

Using the Memory Stick Media

Your computer supports the Memory Stick media. Memory Stick media is a compact, portable, and versatile IC recording media especially designed for exchanging and sharing digital data with compatible products, such as digital cameras, mobile phones and other devices. Because it is removable, it can be used for external data storage.

For the latest information about the Memory Stick media, visit the Memory Stick Web site at http://www.memorystick.com/en/

Your computer has been tested and found compatible with the Sony branded Memory Stick media with capacity of up to 8 GB that are available as of

January 2007. However, not all Memory Stick media that meet the same conditions as the compatible media are guaranteed of compatibility.

Inserting a Memory Stick media with multiple conversion adapters is not guaranteed of compatibility.

MagicGate is the general name of the copyright protection technology developed by Sony. Use a Memory Stick media with the MagicGate logo to use

this feature.

You cannot use a Memory Stick media if you select the option to disable the Memory Stick PRO/Duo media slot with the Peripheral Device & Storage

Media Restriction Setting Utility or power supply to the Memory Stick PRO/Duo media slot on the VAIO Power Management tab in the Power Options

window. To change the settings, see Protecting Data from Unauthorized Use (page 141) or Activating VAIO Power Management Power Schemes

(page 138).

Page 49

Using Your VAIO Computer

Inserting a Memory Stick Media

To insert a Memory Stick media

1 Locate the Memory Stick PRO/Duo media slot. 2 Push in the Memory Stick media slot protector toward the computer. 3 Pull the protector out of the slot. 4 Hold the Memory Stick media with the arrow facing upward and pointing toward the Memory Stick PRO/Duo media slot. 5 Carefully slide the Memory Stick media into the slot until it clicks into place.

The Memory Stick media is automatically detected by your system and the content of the Memory Stick media is

displayed. If nothing appears on the desktop, click Start, Computer, and double-click the Memory Stick media icon.

Page 50

Using Your VAIO Computer

Be sure to hold the Memory Stick media with the arrow pointing in the correct direction as you insert it into the slot. To avoid damaging your computer

or the Memory Stick media, do not force the Memory Stick media into the slot if you cannot insert it smoothly.

Do not insert more than one Memory Stick media into the slot. Improper insertion of the media may damage both your computer and the media.

Insert the Memory Stick media slot protector to protect against debris entering the slot when not using a Memory Stick media. Before moving your

computer, make sure to insert the Memory Stick media slot protector into the slot.

✍

Your computer supports Memory Stick Duo media and is equipped with the Memory Stick PRO/Duo media slot that is compatible with both standard-

and duo-size media. For more information on the Memory Stick Duo media, visit the Memory Stick Web site at http://www.memorystick.com/en/

You can insert a Memory Stick Duo media directly into the slot.

To view the contents of the Memory Stick media

1 Click Start and Computer to open the Computer window. 2 Double-click the Memory Stick media icon to view the list of data files saved in the Memory Stick media.

Page 51

To format a Memory Stick media

The Memory Stick media has been formatted in the factory default setting and is ready for use. If you want to reformat the media with your computer, follow these steps.

Be sure to use the device that is designed to format the media and supports the Memory Stick media when formatting the media.

Formatting the Memory Stick media erases the entire data on the media. Avoid accidental erasure of your valuable data.

Do not remove the Memory Stick media from the slot while formatting the media. This could cause a malfunction.

1 Carefully slide the Memory Stick media into the slot until it clicks into place. 2 Click Start and Computer to open the Computer window. 3 Right-click the Memory Stick media icon and select Format. 4 Click Restore device defaults.

The size of the allocation unit and file system may change.

Do not select NTFS from the File system drop-down list.

✍

The formatting process will be completed more quickly if you select Quick Format in Format options.

5 Click Start.

Using Your VAIO Computer

Page 52

6 At the confirmation prompt, click OK.

The formatting process starts.

It may take time to format the Memory Stick media depending on the media.

7 Once completed, click OK. 8 Click Close.

Using Your VAIO Computer

Page 53

Using Your VAIO Computer

Removing a Memory Stick Media

To remove a Memory Stick media

1 Check that the Media Access indicator light is off. 2 Push the Memory Stick media in toward the computer.

The Memory Stick media ejects.

3 Pull the Memory Stick media out of the slot.

Always remove the Memory Stick media gently, or it may pop out unexpectedly.

Do not remove the Memory Stick media while the Media Access indicator light is turned on. If you do, you may lose data. Large volumes of data may

take time to load, so be sure the indicator is off before removing the Memory Stick media.

Page 54

Using Your VAIO Computer

Using Other Memory Cards

In addition to the Memory Stick PRO/Duo media slot, your computer is equipped with an SD memory card slot to accommodate other memory cards. You can use this slot to transfer data among digital cameras, camcorders, music players, and other audio/video devices.

Before You Use Memory Cards

The SD memory card slot on your computer supports the following memory cards:

❑ MultiMediaCard (MMC) ❑ Secure Digital (SD)

For the latest information on compatible memory cards, visit the Sony online support Web site regularly.

Page 55

Using Your VAIO Computer

Always insert the correct memory card into the SD memory card slot.

SD memory cards with capacity of up to 2 GB and SD High Capacity (SDHC) memory cards with capacity of up to 4 GB have been tested and found

compatible with your computer.

Do not attempt to insert a memory card or memory card adapter of a different type into the slot. An incompatible memory card or memory card adapter

may be difficult to remove from the slot and can cause damage to your computer.

Use care when inserting or removing a memory card from the slot. Do not force the memory card in or out of the slot.

The SD memory card slot on your computer does not support the copyright protection and high-speed data transfer features of the SD memory card.

Your computer has been tested and found compatible only with major memory card media available as of January 2007. However, not all memory card

media that meet the same conditions as the compatible media are guaranteed of compatibility.

You cannot use a memory card if you select the option to disable the SD memory card slot with the Peripheral Device & Storage Media Restriction

Setting Utility or power supply to the SD memory card slot on the VAIO Power Management tab in the Power Options window. To change the settings,

see Protecting Data from Unauthorized Use (page 141) or Activating VAIO Power Management Power Schemes (page 138).

Page 56

Inserting a Memory Card

To insert a memory card

1 Locate the SD memory card slot on the front of the computer. 2 Hold the memory card with the arrow facing upward and pointing toward the memory card slot.

Using Your VAIO Computer

3 Carefully slide the memory card into the slot until it clicks into place.

Do not force the card into the slot.

✍

If the memory card does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction.

Page 57

Removing a Memory Card

Do not remove a memory card while the Media Access indicator light is on. The card or its data may become damaged.

To remove a memory card

1 Check that the Media Access indicator light is off. 2 Press the extended part of the memory card, causing it to extend out from the slot. 3 When the card extends, carefully pull it out of the slot.

Using Your VAIO Computer

Page 58

Using Your VAIO Computer

Using the Internet

Setting Up a Dial-up Internet Connection

Before you can connect to the Internet, you need to connect your computer to a telephone line with a telephone cable (not supplied). Once you have set up your telephone cable connection, you are ready to connect to the Internet.

To connect a telephone cable

1 Plug one end of the phone cable (1) into the modem port on the computer. 2 Plug the other end into the wall jack (2).

✍

Your computer does not work with party lines, cannot be connected to a coin-operated telephone, and may not work with multiple telephone lines or a

private branch exchange (PBX). Some of these connections may result in excess electrical current and could cause a malfunction in the internal modem.

If you connect a telephone cable coming through a splitter, the modem or connected device may not work properly.

To set up a dial-up connection to the Internet

1 Click Start and Control Panel 2 Click Connect to the Internet under Network and Internet.

The Connect to the Internet window appears. 3 Click Dial-up. 4 Follow the on-screen instructions.

Page 59

Using Your VAIO Computer

Using Wireless LAN (WLAN)

Using the Sony Wireless LAN (WLAN), all your digital devices with built-in WLAN functionality communicate freely with each other through a network. A WLAN is a network in which a user can connect to a Local Area Network (LAN) through a wireless (radio) connection. So there is no need anymore to pull cables or wires through walls and ceilings.

The Sony WLAN supports all normal Ethernet activities, but with the added benefits of mobility and roaming. You can still access information, Internet/intranet and network resources, even in the middle of a meeting, or as you move from one place to another.

You can communicate without an access point, which means that you can communicate between a limited number of computers (ad-hoc). Or you can communicate through an access point, which allows you to create a full infrastructure network (infrastructure).

❑ Wireless WAN models

See the SmartWi Connection Utility Help for setting up wireless LAN and wireless WAN functionalities. For instructions

on how to access the SmartWi Connection Utility Help, see Non-printed Documentation (page 7). ❑ Other models

See the following for setting up wireless LAN functionality.

Page 60

Using Your VAIO Computer

✍

In some countries, using WLAN products may be restricted by the local regulations (e.g. limited number of channels). Therefore, before activating the

WLAN functionality, read the Safety Information carefully.

WLAN uses the IEEE 802.11a

Privacy (WEP), which is a security protocol, Wi-Fi Protected Access 2 (WPA2), and Wi-Fi Protected Access (WPA). Proposed jointly by the IEEE and

Wi-Fi Alliance, both WPA2 and WPA are specifications of standards based, interoperable security enhancements that increase the level of data

protection and access control for existing Wi-Fi networks. WPA has been designed to be forward compatible with the IEEE 802.11i specification. It

utilizes the enhanced data encryption TKIP (Temporal Key Integrity Protocol) in addition to user authentication using 802.1X and EAP (Extensible

Authentication Protocol). Data encryption protects the vulnerable wireless link between clients and access points. Besides that, there are other typical

LAN security mechanisms to ensure privacy, such as: password protection, end-to-end encryption, virtual private networks, and authentication. WPA2,

the second generation of WPA, provides stronger data protection and network access control and is also designed to secure all versions of 802.11

devices, including 802.11b, 802.11a, 802.11g, and 802.11n, multi-band and multi-mode. In addition, based on the ratified IEEE 802.11i standard, WPA2

provides government grade security by implementing the National Institute of Standards and Technology (NIST) FIPS 140-2 compliant AES encryption

algorithm and 802.1X-based authentication. WPA2 is backward compatible with WPA.

* See the online Specifications to see whether your model supports the IEEE 802.11a/n standard.

IEEE 802.11b/g is a wireless LAN standard, using the 2.4 GHz bandwidth. The IEEE 802.11g standard provides high-speed communications, faster than

the IEEE 802.11b standard.

IEEE 802.11a is a wireless LAN standard, using the 5 GHz bandwidth, and provides high-speed communications of up to 54 Mbps.

IEEE 802.11n is a wireless LAN standard, using the 2.4 or 5 GHz bandwidth, and provides high-speed communications of up to 300 Mbps

/b/g/n* standard, which specifies the used technology. The standard includes the encryption methods: Wired Equivalent

* Actual communication speed varies depending on your access point settings and so on.

Your computer may employ the Intel® Next-Gen Wireless-N technology* compliant with the IEEE 802.11a/b/g standard and the draft form of the

IEEE 802.11n standard. The computer with the Intel® Next-Gen Wireless-N technology can connect only to an access point that supports the "Connect

with Intel® Centrino®" program, using the draft form of the IEEE 802.11n standard.

Page 61

Using Your VAIO Computer

* See the online Specifications to see whether your model employs the Intel® Next-Gen Wireless-N technology.

Wireless LAN devices using the 2.4 GHz bandwidth and the ones using the 5 GHz bandwidth cannot communicate with each other because the

frequencies are different.

The 2.4 GHz bandwidth used by wireless LAN compatible devices is also used by other various devices. Although technologies to minimize interference

from other devices that use the same bandwidth are employed on wireless LAN compatible devices, such interference may cause lower communication

speed, narrower communication range, or broken wireless connections.

The communication speed varies depending on the distance between communication devices, existence of obstacles between such devices, the device

configuration, the radio conditions, and the software in use. In addition, communications may be cut off depending on the radio conditions.

The communication range varies depending on the actual distance between communication devices, existence of obstacles between such devices, the

radio conditions, the ambient environment that includes existence of walls and materials of such walls, and the software in use.

Deploying IEEE 802.11b and IEEE 802.11g products on the same wireless network may reduce the communication speed due to radio interference.

Taking this into consideration, the IEEE 802.11g products are designed to reduce the communication speed to ensure communications with

IEEE 802.11b products. When the communication speed is not as fast as expected, changing the wireless channel on the access point may increase

the communication speed.

Page 62

Using Your VAIO Computer

Communicating without an Access Point (Ad-hoc)

An ad-hoc network is a network in which a local network is created only by the wireless devices themselves, with no other central controller or access point. Each device communicates directly with other devices in the network. You can set up an ad-hoc network easily at home.

❑ If the wireless connection is initiated by the VAIO computer, channel 11 will be selected. ❑ If the wireless connection is initiated by peer wireless LAN equipment, the wireless LAN communication will make use of

the channel selected by the peer wireless LAN equipment.

Page 63

Using Your VAIO Computer

To communicate without an access point (ad-hoc)

You cannot select the 5 GHz bandwidth, which is used for the IEEE 802.11a standard, on ad-hoc networks.

The IEEE 802.11n standard, using the 2.4 or 5 GHz bandwidth, is not available on ad-hoc networks.

1 Turn on the WIRELESS switch.

The Wireless LAN indicator lights up.

2 Double-click ( / ) on the taskbar to display the Wireless Device Switch window. Select your desired wireless

option(s) and click OK.

3 Click Start and Control Panel. 4 Click View network status and tasks under Network and Internet. 5 Click Set up a connection or network on the left pane.

The Set up a connection or network window appears. 6 Select an option to specify the ad-hoc network settings and click Next. 7 Follow the on-screen instructions.

✍

See the online Specifications to see whether your model supports the Bluetooth functionality and/or the IEEE 802.11a/b/g/n standard.

Page 64

Using Your VAIO Computer

Communicating with an Access Point (Infrastructure)

An infrastructure network is a network that extends an existing wired local network to wireless devices by providing an access point (not supplied), for example the Sony Access Point. The access point bridges the wireless and wired LAN and acts as a central controller for the wireless LAN. The access point coordinates transmission and reception from multiple wireless devices within a specific range.

The access point will select which channel to use on an infrastructure network.

For details on how to select the channel that will be used by the access point, see the manual that came with your access point.

Page 65

Using Your VAIO Computer

To connect to a wireless network

1 Make sure an access point is set up.

See the manual that came with your access point for more information. 2 Turn on the WIRELESS switch.

The Wireless LAN indicator lights up.

3 Double-click ( / ) on the taskbar to display the Wireless Device Switch window. Select your desired wireless

option(s) and click OK.

4 Right-click or on the taskbar and select Connect to a network. 5 Select the desired access point and click Connect.

✍

See the online Specifications to see whether your model supports the Bluetooth functionality and/or the IEEE 802.11a/b/g/n standard.

To disconnect from a wireless network

Turn off the WIRELESS or WIRELESS LAN switch.

Turning off the wireless LAN functionality while accessing remote documents, files, or resources may result in data loss.

✍

For WPA-PSK or WPA2-PSK authentication, you must enter a passphrase. The passphrase is case sensitive and must be between 8 and 63

alphanumeric characters long or up to 64 characters long using numbers from 0 to 9 and letters from A to F.

Page 66

Using Your VAIO Computer

Using the Bluetooth Functionality

You can establish wireless communication between your computer and other Bluetooth devices such as another computer or a mobile phone. You can transfer data between these devices without cables and up to 33 feet (10 meters) range in open space.

❑ Wireless WAN models

See the SmartWi Connection Utility Help for setting up Bluetooth functionality. For instructions on how to access the

SmartWi Connection Utility Help, see Non-printed Documentation (page 7). ❑ Other models

See the following for setting up Bluetooth functionality.

To connect to a Bluetooth device

1 Turn on the WIRELESS switch.

2 Double-click ( / ) on the taskbar to display the Wireless Device Switch window. 3 Select the Enable Bluetooth Device option. 4 Click OK.

Page 67

Using Your VAIO Computer

Notes on using the Bluetooth functionality

❑ The data transfer rate varies, depending on the following conditions:

❑ Obstacles, such as walls, located between devices

❑ Distance between devices

❑ Material used in walls

❑ Proximity to microwaves and cordless telephones

❑ Radio frequency interference and other environmental conditions

❑ Device configuration

❑ Type of software application

❑ Type of operating system

❑ Use of both wireless LAN and Bluetooth functionalities at the same time on your computer

❑ Size of file being exchanged ❑ Note that due to limitations of the Bluetooth standard, large files may occasionally be corrupted during continuous transfer

due to electromagnetic interference from the environment. ❑ All Bluetooth devices must be certified to make sure that the applicable standard requirements are maintained. Even if

standards are met, individual device performance, specifications, and operation procedures can vary. Data exchange may

not be possible in all situations. ❑ As general characteristics of Bluetooth technology, video and audio may go out of synchronization if you play videos on

your computer with audio output from the connected Bluetooth device.

Page 68

Using Your VAIO Computer

❑ The 2.4 GHz band, with which Bluetooth devices or wireless LAN devices work, is used by various devices. Bluetooth

devices use the technology to minimize the interference from other devices that use the same wave length. Simultaneous

use of the Bluetooth functionality and wireless communication devices, however, may cause radio interference and result

in poorer communication speeds and distances than the standard values. ❑ The Bluetooth functionality may not work depending on the third party devices or the software version used by third party

companies. ❑ As general characteristics of Bluetooth technology, connecting multiple Bluetooth devices to your computer may cause

bandwidth congestion, resulting in poor performance of the devices.

Page 69

Using Your VAIO Computer

Bluetooth Security

The Bluetooth wireless technology has an authentication function, which allows you to determine with whom you choose to communicate. With the authentication function, you can avoid any anonymous Bluetooth device to access your computer.

The first time two Bluetooth devices communicate, a common passkey (a password required for authentication) should be determined for both devices to be registered. Once a device is registered, there is no need to re-enter the passkey.

✍

The passkey can be different each time, but must be the same at both ends.

For certain devices, such as a mouse, no passkey can be entered.

Page 70

Using Your VAIO Computer

Communicating with Another Bluetooth Device

You can connect your computer to a Bluetooth device such as another computer, a mobile phone, a PDA, a headset, a mouse, or a digital camera without the use of any cables.

Page 71

Using Your VAIO Computer

To communicate with another Bluetooth device

To communicate with another Bluetooth device, you need first to set up the Bluetooth functionality. For setting up and using the Bluetooth functionality, see the help file on the Bluetooth utility software.

To see the help file

1 Right-click the Bluetooth icon on the taskbar, and select Help from the menu.

Stopping the Bluetooth Connection

To stop the Bluetooth connection, turn off the WIRELESS switch. The Bluetooth indicator turns off.

Page 72

Using Your VAIO Computer

Using the Bluetooth Headset

The Bluetooth headset (not supplied) will come in handy during a video conference over the Internet using instant messaging software. For details on using the Bluetooth headset, see the manual that came with your Bluetooth headset.

To connect the headset with your computer

1 Press and hold the headset power button for at least five seconds to turn on the Bluetooth headset. 2 Press and hold the volume buttons for at least five seconds until the indicator light blinks in red and green.

3 Right-click the Bluetooth icon on the taskbar and select Bluetooth Settings from the menu.

The Bluetooth Settings window appears and Add New Connection Wizard automatically starts. 4 If the Add New Connection Wizard window does not appear, click New Connection.

The Add New Connection Wizard window appears. 5 Select Express Mode (Recommended) and then click Next.

The wizard searches for Bluetooth devices in range and lists available devices, if any. 6 Select the device name for your Bluetooth headset and then click Next.

The Bluetooth Manager-Bluetooth Security window appears when a connection is established.

7 Enter "0000" for Bluetooth Passkey (PIN) and then click OK. 8 Click Next.

The headset icon appears in the Bluetooth Settings window. 9 Right-click the icon and select Connect from the menu.

Page 73

To disconnect the headset from your computer

1 Right-click the Bluetooth icon on the taskbar and select Bluetooth Settings from the menu.

The Bluetooth Settings window appears.

2 Right-click the headset icon and select Disconnect from the menu. 3 Click Yes.

Using Your VAIO Computer

Page 74

Using Peripheral Devices

You can add functionality to your VAIO computer by using the various ports on the computer.

❑ Connecting a Docking Station (page 75) ❑ Connecting External Speakers (page 83) ❑ Connecting an External Display (page 84) ❑ Selecting Display Modes (page 90) ❑ Using the Multiple Monitors Function (page 91) ❑ Connecting an External Microphone (page 93) ❑ Connecting a Universal Serial Bus (USB) Device (page 94) ❑ Connecting a Printer (page 97) ❑ Connecting an i.LINK Device (page 98) ❑ Connecting to a Network (LAN) (page 100)

Using Peripheral Devices

Page 75

Using Peripheral Devices

Connecting a Docking Station

Attaching a docking station enables you to connect additional peripherals to your computer, such as a printer and an external display.

A docking station is not supplied with your computer and is available as an optional accessory.

Locating Ports on the Docking Station

Back

DC IN indicator

Illuminates when the docking station is powered.

B IN USE indicator (page 79) C UNDOCK button (page 79) D DC IN port (page 76) E Network (Ethernet) port (1000BASE-T / 100BASE-TX /

10BASE-T) (page 100)

F Hi-Speed USB (USB 2.0) ports G MONITOR (VGA) port (page 85)

* Supports high-/full-/low- speeds.

(page 94)

The docking station can be powered only through the AC adapter supplied with your computer. Do not unplug the AC adapter from the docking station

and the AC outlet while using the docking station; this may cause data damage or hardware malfunctions.

Page 76

Using Peripheral Devices

Attaching Your Computer to the Docking Station

When your computer has no battery pack installed, do not attach the computer to the docking station.

To attach your computer to the docking station

Use the AC adapter supplied with your computer.

Do not move your computer while attached to the docking station; this may detach the docking station and cause damage to both units.

1 Disconnect all peripherals from the computer. 2 Plug one end of the power cord (1) into the AC adapter (2) and the other end into an AC outlet. 3 Plug the cable attached to the AC adapter (2) into the DC IN port (3) on the docking station (4).

Page 77

4 Slide open the docking station connector cover on the bottom of the computer.

5 Align the rear bottom corners of the computer with the guides on the docking station.

Using Peripheral Devices

Page 78

6 Gently push down the computer until it clicks into place.

7 Lift open the LCD screen lid and turn on the computer.

Using Peripheral Devices

Page 79

Using Peripheral Devices

Disconnecting Your Computer from the Docking Station

Be sure that no devices connected to the docking station are in use before disconnecting your computer.

Do not disconnect your computer from the docking station when the IN USE indicator is lit. Disconnecting the computer while the IN USE indicator is

lit may result in loss of unsaved data or a failure of the computer.

When the battery pack is running out of power, disconnecting your computer from the docking station may result in loss of unsaved data.

Do not disconnect your computer from the docking station during video playback. Be sure to close video playback software before disconnection.

Once you have completed the steps in To disconnect your computer from the docking station (page 80), make sure to place your computer off the

docking station. Use of the computer still on the docking station may cause unstable operations.

Page 80

To disconnect your computer from the docking station

1 Press the UNDOCK button (1) and wait until the IN USE indicator (2) turns off.

✍

If the IN USE indicator is unlit, you do not have to press the UNDOCK button.

Using Peripheral Devices

Pressing the UNDOCK button while your computer is in a power saving mode returns the computer to Normal mode first, and then initiates the

disconnection process.

Once you have placed your computer back in Normal mode, make sure to place your computer off the docking station. Use of the computer still on the

docking station may cause unstable operations.

Page 81

2 Lift the computer away from the docking station.

3 Close the docking station connector cover on the bottom of the computer.

Using Peripheral Devices

Page 82

Using Peripheral Devices

Alternatively, you can disconnect the computer from the docking station as follows:

1 Click Start and Undock Computer. 2 Make sure that a message balloon appears and the IN USE indicator turns off; and then lift the computer away from the

docking station. 3 Close the docking station connector cover on the bottom of the computer.

✍

It is extremely important to close the docking station connector cover after disconnecting your computer from the docking station. If the cover is left

open, dust may get inside and damage the computer.

To disconnect the docking station completely from AC power, unplug the AC adapter.

Page 83

Connecting External Speakers

You can enhance the sound quality of your computer by connecting external speakers.

To connect external speakers

1 Plug the speaker cable (1) into the headphones jack (2) i. 2 Plug the other end of the speaker cable to the external speaker (3). 3 Turn down the volume of the speakers before you turn them on.

✍

Make sure your speakers are designed for computer use.

Using Peripheral Devices

Do not place floppy disks on the speakers; their magnetic field may damage the data on the disks.

Page 84

Using Peripheral Devices

Connecting an External Display

You can connect an external display (not supplied) to your computer. For example, you can use the computer with a computer display or a projector.

✍

Connect the power cord after connecting all other cables.

Connected external displays are used as secondary screens.

On the Windows operating system, you can also use an external display to set up multiple monitors.

Page 85

Using Peripheral Devices

Connecting a Computer Display

You can connect a computer display (monitor) either directly to your computer or via the optional docking station.

To connect a computer display

The monitor (VGA) port on your computer is not accessible when the computer is attached to the docking station.

1 If necessary, plug one end of the display's power cord (1) into your display, and the other end into an AC outlet. 2 Plug the display cable (2) (not supplied) into the monitor (VGA) port (3) a on the computer or on the docking station.

Page 86

Using Peripheral Devices

Connecting a Multimedia Computer Display

You can connect a multimedia computer display that includes built-in speakers and a microphone either directly to your computer or via the optional docking station.

To connect a multimedia computer display

The monitor (VGA) port on your computer is not accessible when the computer is attached to the docking station.

1 Plug the power cord of your multimedia computer display (1) into an AC outlet. 2 Plug the display cable (2) (not supplied) into the monitor (VGA) port (3) a on the computer or on the docking station. 3 Plug the speaker cable (4) into the headphones jack (5) i on the computer. 4 Plug the microphone cable (6) into the microphone jack (7) m on the computer.

Page 87

Using Peripheral Devices

Page 88

Using Peripheral Devices

Connecting a Projector

You can connect a projector (for example, the Sony LCD projector) either directly to your computer or via the optional docking station.

To connect a projector

The monitor (VGA) port on the computer is not accessible when the computer is attached to the docking station.

1 Connect the power cord (1) of your projector into an AC outlet. 2 Plug an RGB signal cable (2) (not supplied) into the monitor (VGA) port (3) a on the computer or on the docking station. 3 Plug an audio cable (4) (not supplied) into the headphones jack (5) i on the computer. 4 Plug the RGB signal cable and the audio cable into the jack and port on the projector (6).

Page 89

Using Peripheral Devices

Page 90

Using Peripheral Devices

Selecting Display Modes

You can select which display to be used as the primary monitor when an external display (desktop monitor, etc.) is connected to your computer.

If you want to work on your computer screen and the external display at the same time, see Using the Multiple Monitors Function (page 91) for more information.

To select a display

The monitor (VGA) port on your computer is not accessible when the computer is attached to the docking station.

1 Right-click on the desktop and select Personalize from the shortcut menu. 2 Click Display Settings.

The Display Settings window appears. 3 Follow the on-screen instructions to change the settings.

✍

You may not be able to display the same contents on your computer screen and the external display or projector at the same time, depending on the

type of your external display or projector.

Before turning on your computer, turn on the peripheral devices.

Page 91

Using Peripheral Devices

Using the Multiple Monitors Function

The Multiple Monitors function allows you to distribute portions of your desktop across separate displays. For example, if you have an external display attached to the monitor (VGA) port, your computer screen and the external display can function as a single desktop.

You can move the cursor from one display to the other. This allows you to drag objects, such as an open application window or a toolbar, from one display to the other.

✍

Your external display may not support the Multiple Monitors function.

Certain software applications may not be compatible with Multiple Monitors settings.

Make sure that your computer does not enter Sleep or Hibernate mode while you are using Multiple Monitors mode; otherwise the computer may not

return to Normal mode.

If you set different colors on each display, do not expand a single window across two displays; otherwise your software may not work properly.

Set fewer colors or a lower resolution for each display.

Page 92

To select the Multiple Monitors mode

The monitor (VGA) port on your computer is not accessible when the computer is attached to the docking station.

1 Right-click on the desktop and select Personalize from the shortcut menu. 2 Click Display Settings.

The Display Settings window appears. 3 Follow the on-screen instructions to change the settings.

✍

Additionally, you can set the display colors and resolution for each display and customize the Multiple Monitors mode.

Using Peripheral Devices

Page 93

Using Peripheral Devices

Connecting an External Microphone

If you need to use a sound input device (for example, to chat over the Internet) you need to plug in an external microphone (not supplied).

To connect an external microphone

Plug the microphone cable (1) into the microphone jack (2) m.

✍

Make sure your microphone is designed for computer use.

Page 94

Using Peripheral Devices

Connecting a Universal Serial Bus (USB) Device

To prevent your computer and/or USB devices from damage, observe the following:

❑ When moving the computer with USB devices connected, avoid any shock or force to the USB ports. ❑ Do not put the computer into a bag or carrying case when it has USB devices connected.

Connecting a USB Mouse

To connect a USB mouse

1 Choose the USB port (1) you prefer to use. 2 Plug the USB mouse cable (2) into the USB port.

You can now use your USB mouse (not supplied) (3).

Page 95

Connecting a USB Floppy Disk Drive

You can purchase a USB floppy disk drive and connect it to your computer.

To connect a USB floppy disk drive

1 Choose the USB port (1) you prefer to use. 2 Plug the USB floppy disk drive cable (2) into the USB port.

Your USB floppy disk drive (3) is now ready for use.

When using a USB floppy disk drive, do not apply force on the USB port. This may cause a malfunction.

Using Peripheral Devices

Page 96

Using Peripheral Devices

Disconnecting a USB floppy disk drive

You can disconnect a USB floppy disk drive when your computer is on or off. Disconnecting the drive when the computer is in a power saving mode (Sleep or Hibernate) may cause the computer to malfunction.

To disconnect a USB floppy disk drive

✍

To disconnect a USB floppy disk drive when your computer is off, skip steps 1 to 8.

1 Close all programs accessing the floppy disk drive. 2 Double-click the Safely Remove Hardware icon on the taskbar.

The Safely Remove Hardware window appears. 3 Select the floppy disk drive you want to unplug. 4 Click Stop.

The Stop a Hardware device window appears. 5 Confirm that the floppy disk drive can be safely removed from the system. 6 Click OK.

A message appears stating it is now safe to remove the hardware device.

7 Click OK. 8 Click Close to close the Safely Remove Hardware window. 9 Disconnect the floppy disk drive from the computer.

Page 97

Using Peripheral Devices

Connecting a Printer

You can connect a Windows-compatible printer to your computer to print documents.

Connecting a Printer Using the USB Port

You can connect a USB printer compatible with your version of Windows to the computer.

To connect a printer using the USB port

1 Plug the power cord (1) of your printer into an AC outlet.

2 Choose the USB port (3) you prefer to use. 3 Plug one end of a USB printer cable (2) (not supplied) into the USB port and the other end to your printer.

Page 98

Using Peripheral Devices

Connecting an i.LINK Device

Notes on connecting i.LINK devices

❑ Your computer is equipped with an i.LINK port, which you can use to connect to an i.LINK device such as a digital video

camcorder.

❑ The i.LINK port on your computer does not supply power to external devices generally powered by i.LINK ports. ❑ The i.LINK port supports transfer rates up to 400 Mbps; however, the actual transfer rate depends on the transfer rate of

the external device.

❑ The optional i.LINK cables may not be available, depending on the country or area of your residency. ❑ An i.LINK connection with other compatible devices is not fully guaranteed. ❑ The i.LINK connection varies depending on the software applications, operating system, and i.LINK-compatible devices

you use. See the manual that came with your software for more information. ❑ Check the working conditions and operating system compatibility of i.LINK-compatible PC peripherals (for example, an

HDD or a CD-RW drive) before you connect them to your computer.

❑ The i.LINK port is disabled if you select the option to disable the i.LINK port with the Peripheral Device & Storage Media

Restriction Setting Utility or power supply to the i.LINK port on the VAIO Power Management tab in the Power Options

window.

Page 99

Using Peripheral Devices

Connecting a Digital Video Camcorder

To connect a digital video camcorder

Plug one end of an i.LINK cable (1) (not supplied) into the i.LINK port (2) on the computer and the other end into the DV In/ Out port (3) on the digital video camcorder.

✍

On Sony digital video cameras, ports labeled DV Out, DV In/Out, or i.LINK are i.LINK-compatible.

The Sony digital video camcorder shown here is an example; your digital video camcorder may need to be connected differently.

You cannot access the pictures stored on a Memory Stick media when using an i.LINK connection.

Page 100

100

Using Peripheral Devices

Connecting to a Network (LAN)

You can connect your computer to 1000BASE-T/100BASE-TX/10BASE-T-type networks with an Ethernet network cable. Connect one end of a network cable (not supplied) to the network (Ethernet) port on the computer and the other end to your network. For detailed settings and devices needed to connect to the network, ask your network administrator.

✍

Your computer can be connected to the network with the default settings.

When your computer is attached to the optional docking station, you need to select which network (Ethernet) port to use. Follow the on-screen

instructions.
