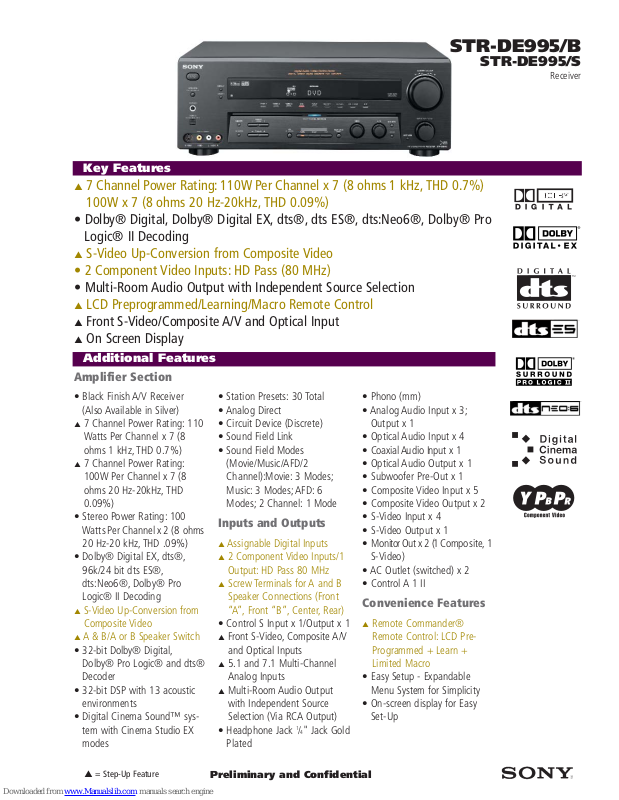

Sony STR-DE995 - Fm Stereo/fm-am Receiver, STR-DE995B, STR-DE995S Specifications

Amplifier Section

• Black Finish A/V Receiver
(Also Available in Silver)

S 7 Channel Power Rating: 110

Watts Per Channel x 7 (8
ohms 1 kHz, THD 0.7%)

S 7 Channel Power Rating:

100W Per Channel x 7 (8
ohms 20 Hz-20kHz, THD

0.09%)

• Stereo Power Rating: 100
Watts Per Channel x 2 (8 ohms
20 Hz-20 kHz, THD .09%)

• Dolby® Digital EX, dts®,
96k/24 bit dts ES®,
dts:Neo6®, Dolby® Pro
Logic® II Decoding

S S-Video Up-Conversion from

Composite Video

S A & B/A or B Speaker Switch

• 32-bit Dolby® Digital,
Dolby® Pro Logic® and dts®
Decoder

• 32-bit DSP with 13 acoustic
environments

• Digital Cinema Sound™ sys­tem with Cinema Studio EX
modes

• Station Presets: 30 Total

• Analog Direct

• Circuit Device (Discrete)

• Sound Field Link

• Sound Field Modes
(Movie/Music/AFD/2
Channel):Movie: 3 Modes;
Music: 3 Modes; AFD: 6
Modes; 2 Channel: 1 Mode

Inputs and Outputs

S Assignable Digital Inputs
S 2 Component Video Inputs/1

Output: HD Pass 80 MHz

S Screw Terminals for A and B

Speaker Connections (Front
“A”, Front “B”, Center, Rear)

• Control S Input x 1/Output x 1

S Front S-Video, Composite A/V

and Optical Inputs

S 5.1 and 7.1 Multi-Channel

Analog Inputs

S Multi-Room Audio Output

with Independent Source
Selection (Via RCA Output)

• Headphone Jack 1/4" Jack Gold
Plated

• Phono (mm)

• Analog Audio Input x 3;
Output x 1

• Optical Audio Input x 4

• Coaxial Audio Input x 1

• Optical Audio Output x 1

• Subwoofer Pre-Out x 1

• Composite Video Input x 5

• Composite Video Output x 2

• S-Video Input x 4

• S-Video Output x 1

• Monitor Out x 2 (1Composite, 1
S-Video)

• AC Outlet (switched) x 2

• Control A 1 II

Convenience Features

S Remote Commander®

Remote Control: LCD Pre­Programmed + Learn +
Limited Macro

• Easy Setup - Expandable
Menu System for Simplicity

• On-screen display for Easy
Set-Up

S 7 Channel Power Rating: 110W Per Channel x 7 (8 ohms 1 kHz, THD 0.7%)

100W x 7 (8 ohms 20 Hz-20kHz, THD 0.09%)

• Dolby® Digital, Dolby® Digital EX, dts®, dts ES®, dts:Neo6®, Dolby® Pro
Logic® II Decoding

S S-Video Up-Conversion from Composite Video

• 2 Component Video Inputs: HD Pass (80 MHz)

• Multi-Room Audio Output with Independent Source Selection

S LCD Preprogrammed/Learning/Macro Remote Control

S Front S-Video/Composite A/V and Optical Input
S On Screen Display

STR-DE995/B

STR-DE995/S

Receiver

Key Features

Additional Features

Preliminary and Confidential

S = Step-Up Feature

DIGITAL

7.1 Channel Surround Sound

Auto Channel Grouping

5.1 or 6.1 Converted to 7.1 Channels
AUTOMATICALLY

Specifications

Amplifier Section

• 7 Channel Power Rating:
110 Watts Per Channel x 7
(8 ohms 1 kHz, THD 0.7%)

• 7 Channel Power Rating:
100W Per Channel x 7
(8 ohms 20 Hz-20kHz,
THD 0.09%)

• Stereo Power Rating:
100Watts Per Channel x 2
(8 ohms 20 Hz-20 kHz,
THD .09%)

• FM Tuning Range:

87.5 - 108 MHz

• AM Tuning Range:
530 - 1710 kHz

• Display Type (Dot FL.)

• Phono Input S/N Ratio:
86 dB

• Line Input S/N Ratio:
96 dB

• Frequency Response Line
(CD): 10 Hz-100kHz ±3 dB

• Phono Input Sensitivity
Impedance:
8mV/50 k ohm

• Line (CD) Input
Sensitivity/Impedance:
500mV/50 k ohm

• Record Out Level
Impedance:
500mV/10 k ohm

• Subwoofer Pre-Out Level
Impedance:
2V/1 k ohm

Video Section

• Composite Video Input
Sensitivity/Impedance:
1 Vp-p/75 ohm

• S-Video (Y)/(C) Input
Sensitivity Impedance:
(Y) 1 Vp-p/75 ohm;
(C) .286 Vp-p/75 ohm

• Component Video(Y/Pb/Pr)
Input Sensitivity Impedance:
(Y) 1 Vp-p/75 ohm;
(Pb) .7 Vp-p/75 ohm;
(Pr) .7 Vp-p/75 ohm

• Composite Video Output
Sensitivity Impedance:
1 Vp-p/75 ohm

• S-Video (Y)/(C) Output
Sensitivity Impedance:
(Y) 1 Vp-p/75 ohm;
(C) .286 Vp-p/75 ohm

• Component Video(Y/Pb/Pr)
Output Sensitivity
Impe danc e:
(Y) 1 Vp-p/75 ohm;
(Pb) .7 Vp-p/75 ohm;
(Pr) .7 Vp-p/75 ohm

General

• Power Requirements:
120V AC, 60 Hz

• Power Consumption:
265 Watts

• Power Consumption
(Standby): 0.3 Watts

Accessories

Supplied Accessories

• Instruction Manual

• Remote Model:
RM-LG112

Weights & Measures

• Approx. Dimensions (w/h /d) :
17" x 6.2" x 14.5"
(430 x 157.5 x 369mm)

• Approx. Weight:
21 lbs. (9.5 kg)

UPC Coding

• Black: 027242618091

• Silver: 027242618107

Key Technology

Specifications

©2003 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony, Digital Cinema Sound and Remote Commander are trademarks of
Sony. Dolby Digital, Dolby Digital EX and Dolby Pro Logic II are registered trademarks of Dolby Laboratories Licensing Corporation. dts, dts EX and dts:NEO6 are registered trademarks of Digital
Theater Systems, Inc. All other trademarks and logos are property of their respective owners.

STR-DE995/B

STR-DE995/S

Receiver

Video Up Conversion

Only 1 Connection to TV Needed!

Composite Up-Converted to S-Video

(ASSIGNABLE)

OPTICAL

TV/SAT

IN

MD/

TAPE

IN

MD/

TAPE

OUT

CD/

SACD

IN

DVD

y

IN

COAXIAL

SIGNAL GND

L

R

PHONO

CD/SACD

ANTENNA

CTRL S

CTRL S

STATUS

STATUS

OUT

AM

y

FM

75Ω

COAXIAL

SUB

WOOFER

PRE OUT

L

L

R

R

OUT ININ IN

MD/TAPE

SURROUNDFRONT

MULTI CH IN 2 MULTI CH IN 1

IN

VIDEO IN VIDEO IN

AUDIO IN AUDIO IN

TV/SAT

S-VIDEOINS-VIDEO

IN

L

R

CENTER

SUB

FRONT

WOOFER

VIDEO OUT

AUDIO OUT

L

R

SURROUND

VIDEO IN

L

R

AUDIO IN

L

R

SURR
BACK

S-VIDEO

OUT

VIDEO OUT

AUDIO OUT

VIDEO 1VIDEO 2DVD

CENTER

SUB

WOOFER

S-VIDEOINS-VIDEO

OUT

VIDEO IN

VIDEO OUT

CTRL

L

A1 II

MONITOR

R

AUDIO IN

L

+ + +

– –

R

OUT

2ND ZONE

Y

OUT

IMPEDANCE USE 8-16Ω

+

FRONT B

SPEAKERS

IMPEDANCE USE 8-16Ω

FRONT ACENTER

R

P

B

/BÐY

P

R

/RÐY

TV/SATINDVDINMONITOR

COMPONENT VIDEO

SURR BACK SURROUND

SPEAKERS

–

L

+

––

LRLR

AC OUTLET
