3-860-212-11 (1)
Color Rear Video
Pr ojector
Operating Instructions
Manual de instrucciones
EN
ES
KP-48V45
KP-53V45
KP-61V45
© 1997 by Sony Corporation
WARNING
Note on Caption Vision
This television receiver provides display of television closed
captioning in accordance with §15.119 of the FCC rules.
Note on CATV system installer
This reminder is provided to call the CATV system installer’s
attention to Article 820-40 of the NEC that provides
guidelines for proper grounding and, in particular, specifies
that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as
practical.
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION
RISQUE DE CHOC ELECTRIQUE,
NE PAS OUVRIR
PRECAUCION
RIESGO DE CHOQUE ELECTRICO
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK,
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
NO ABRIR
NO ADRIR
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
This symbol is intended to alert the user to the
presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.
This symbol is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
Use of this television receiver for other than private viewing
of programs broadcast on UHF or VHF or transmitted by
cable companies for the use of the general public may require
authorization from the broadcaster, cable company and/or
program owner.
Note on convergence adjustment
Before you use your projection TV, make sure to adjust
convergence. For the procedure, see page 17.
NOTIFICATION
This equipment has been tested and found to comply with
the limits for a Class B digital device pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
inteference with radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
– Reorient or relocate the receiving antennas
– Increase the separation between the equipment and
receiver.
– Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician
for help.
CAUTION
To prevent electric shock, do not use this polarized AC plug
with an extension cord, receptacle or other outlet unless the
blades can be fully inserted to prevent blade exposure.
CAUTION
When using TV games, computers, and similar products with
your projection TV, keep the brightness and contrast
functions at low settings. If a fixed (non-moving) pattern is
left on the screen for long periods of time at a high brightness
or contrast setting, the image can be permanently imprinted
onto the screen. These types of imprints are not covered by
your warranty because they are the result of misuse.
-EN
2
You are cautioned that any changes or modifications not
expressly approved in this manual could void your
authority to operate this equipment.

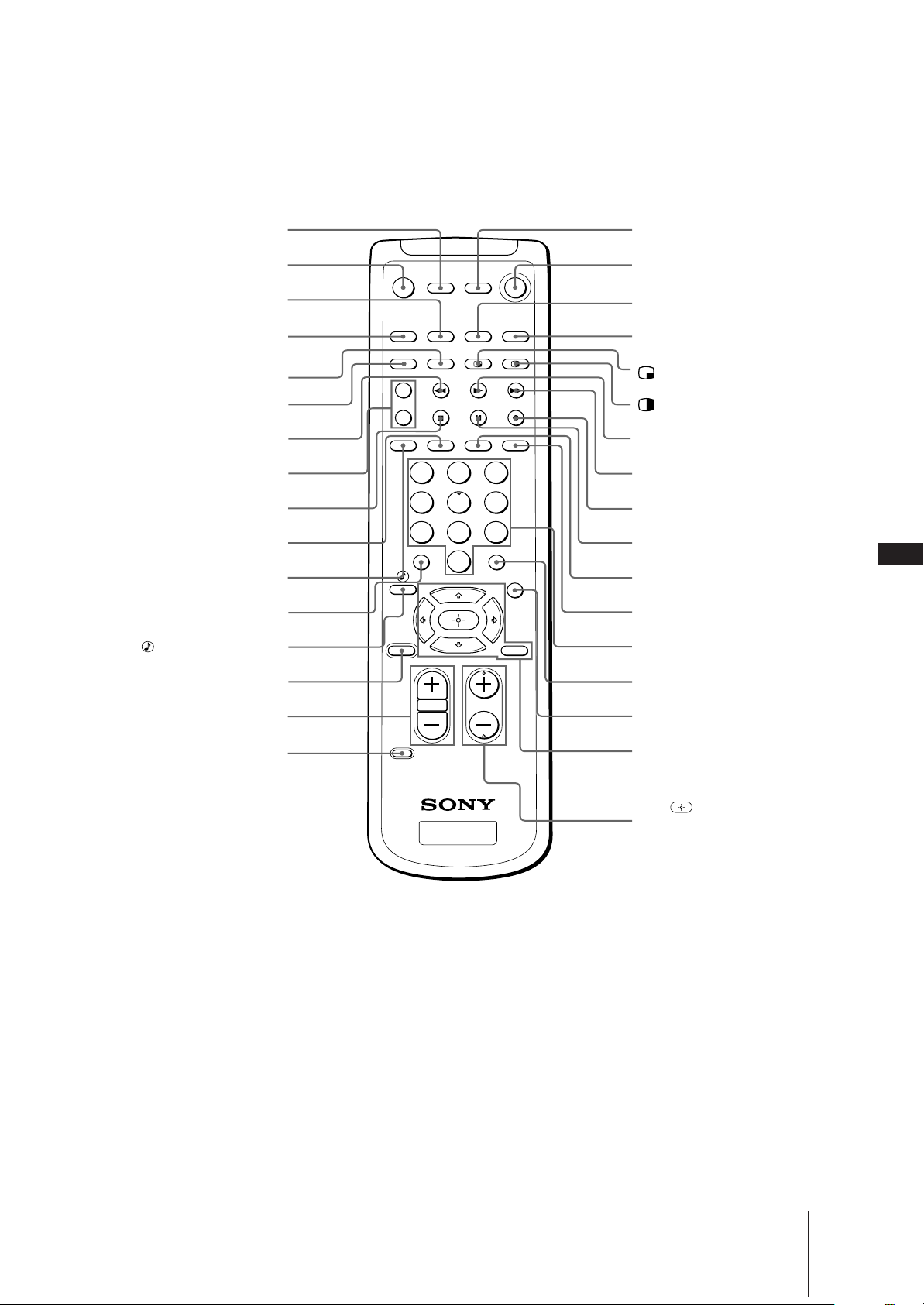

This document is for the remote control RM-Y901.
MODELS: KP-48V45/53V45/61V45.
Please keep this notice with the instruction manual.
Owner’s Record
The model and serial numbers are located at the rear of the
projection TV. Record these numbers in the spaces provided
below. Refer to them whenever you call upon your Sony
dealer regarding this product.
Model No.
Serial No.
Table of contents
4 Welcome!
4 Precautions
Getting Started
5 Step 1: Installing the projection TV
6 Step 2: Hookup

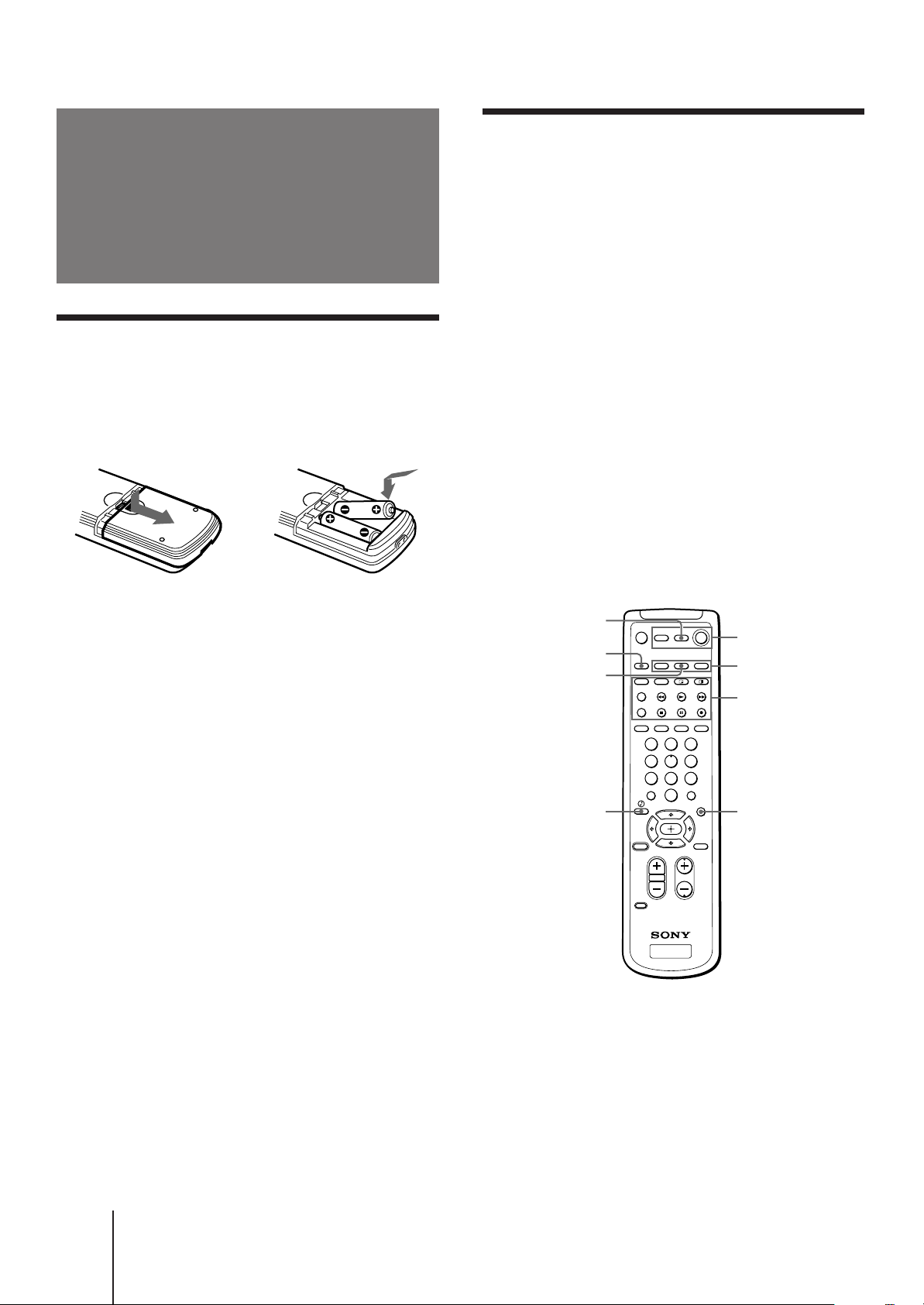

16 Step 3: Setting up the remote control

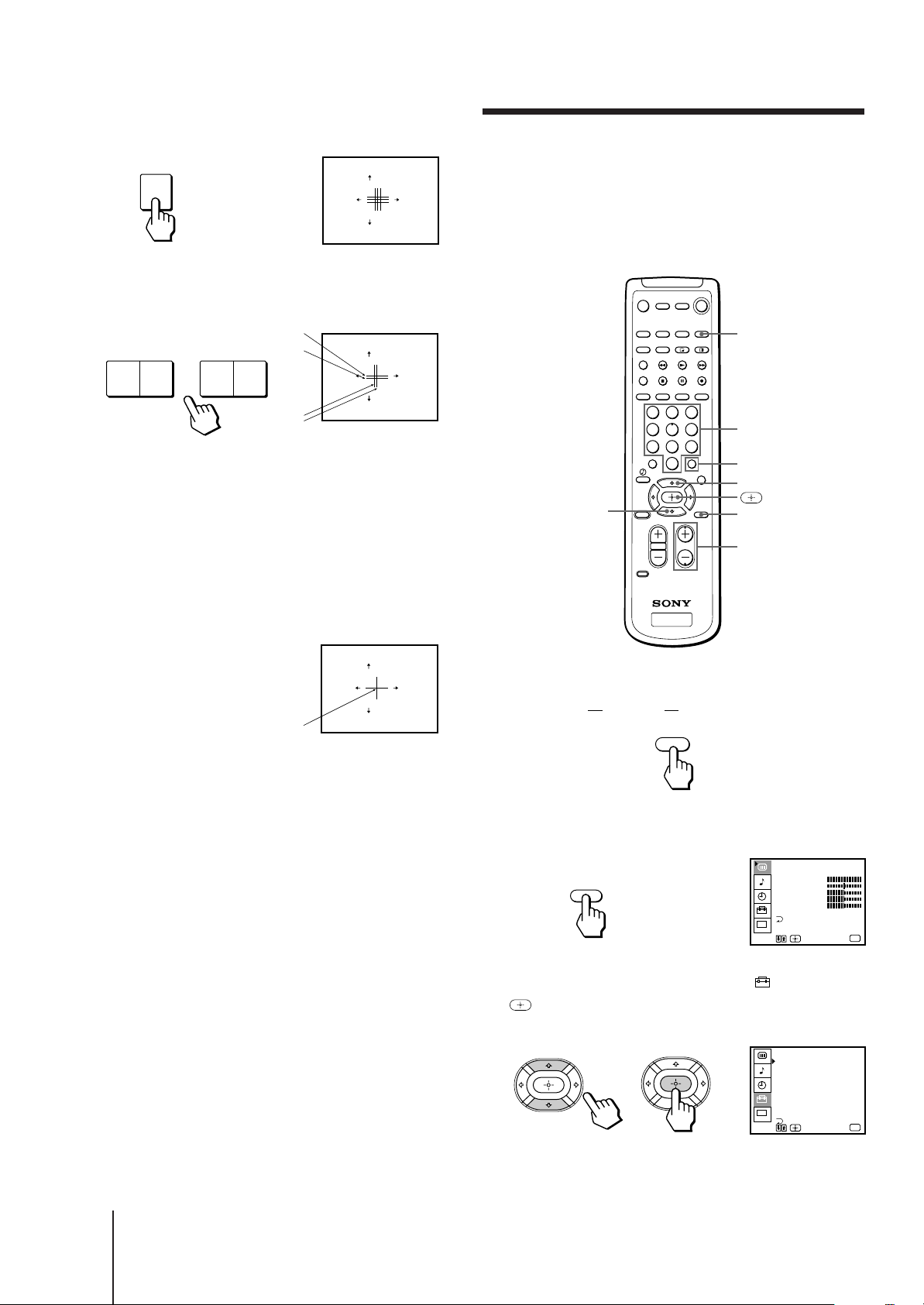

17 Step 4: Setting up the projection TV automatically
(AUTO SET UP)
21 Changing the menu language
Operations

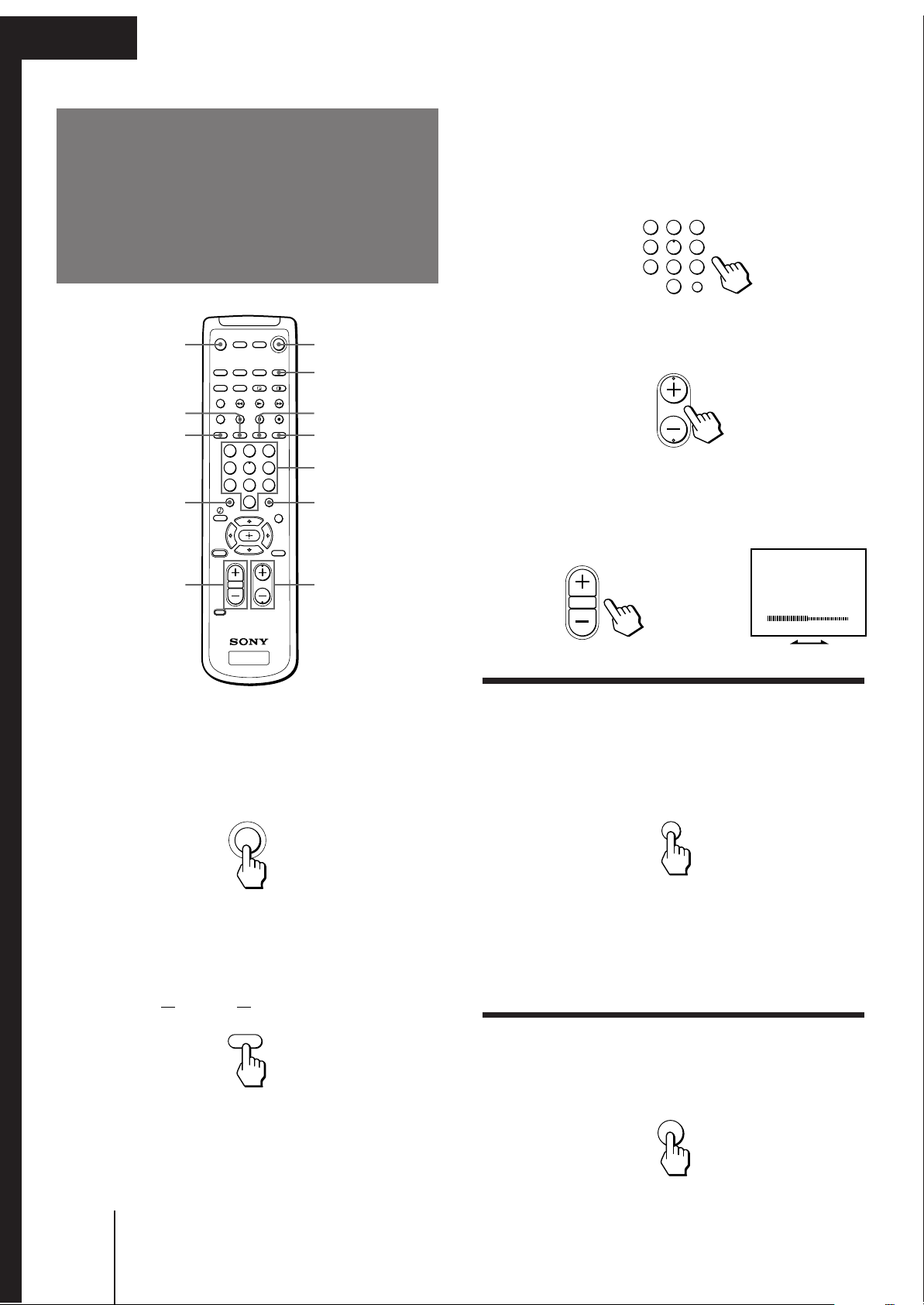

22 Watching the TV

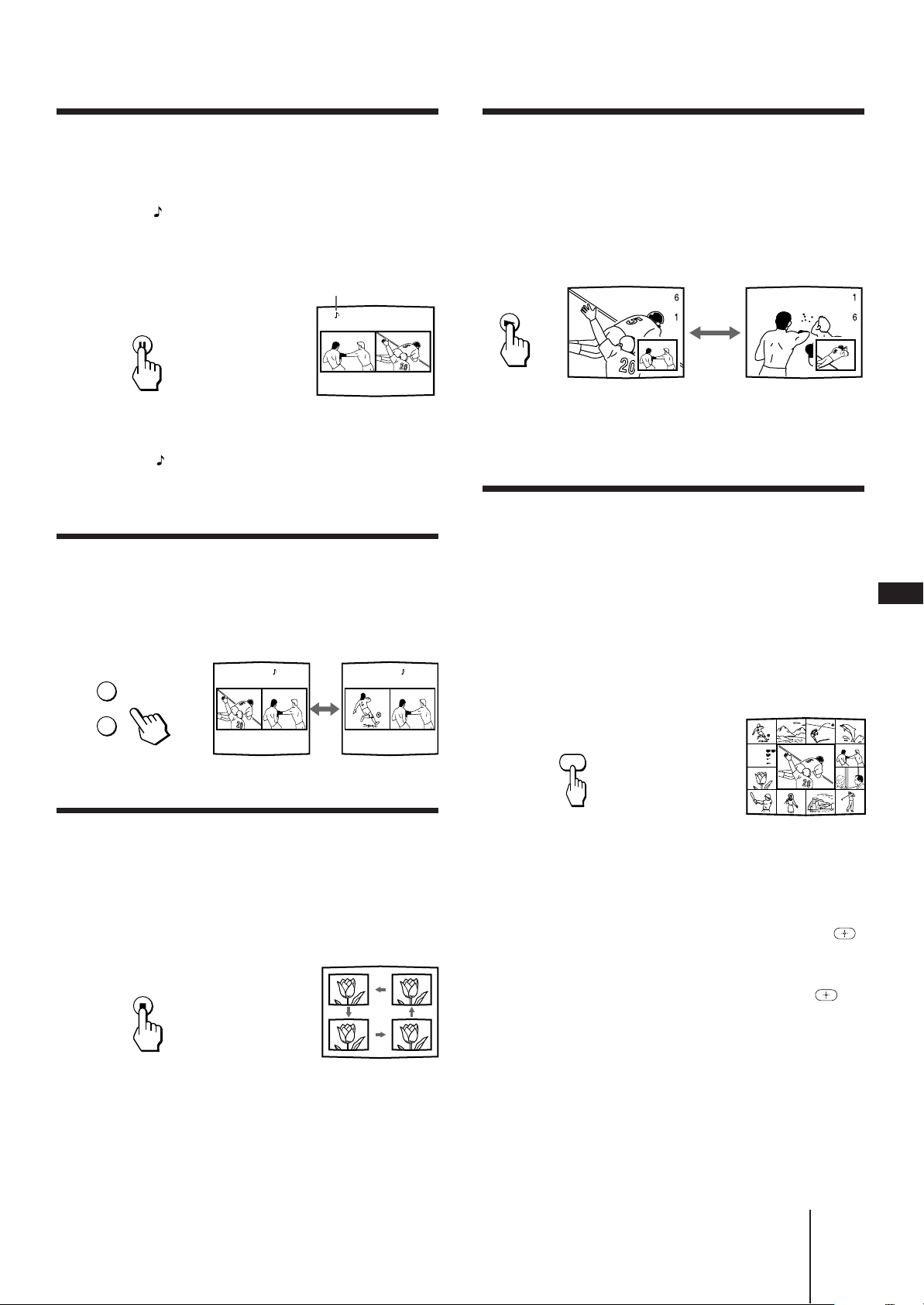

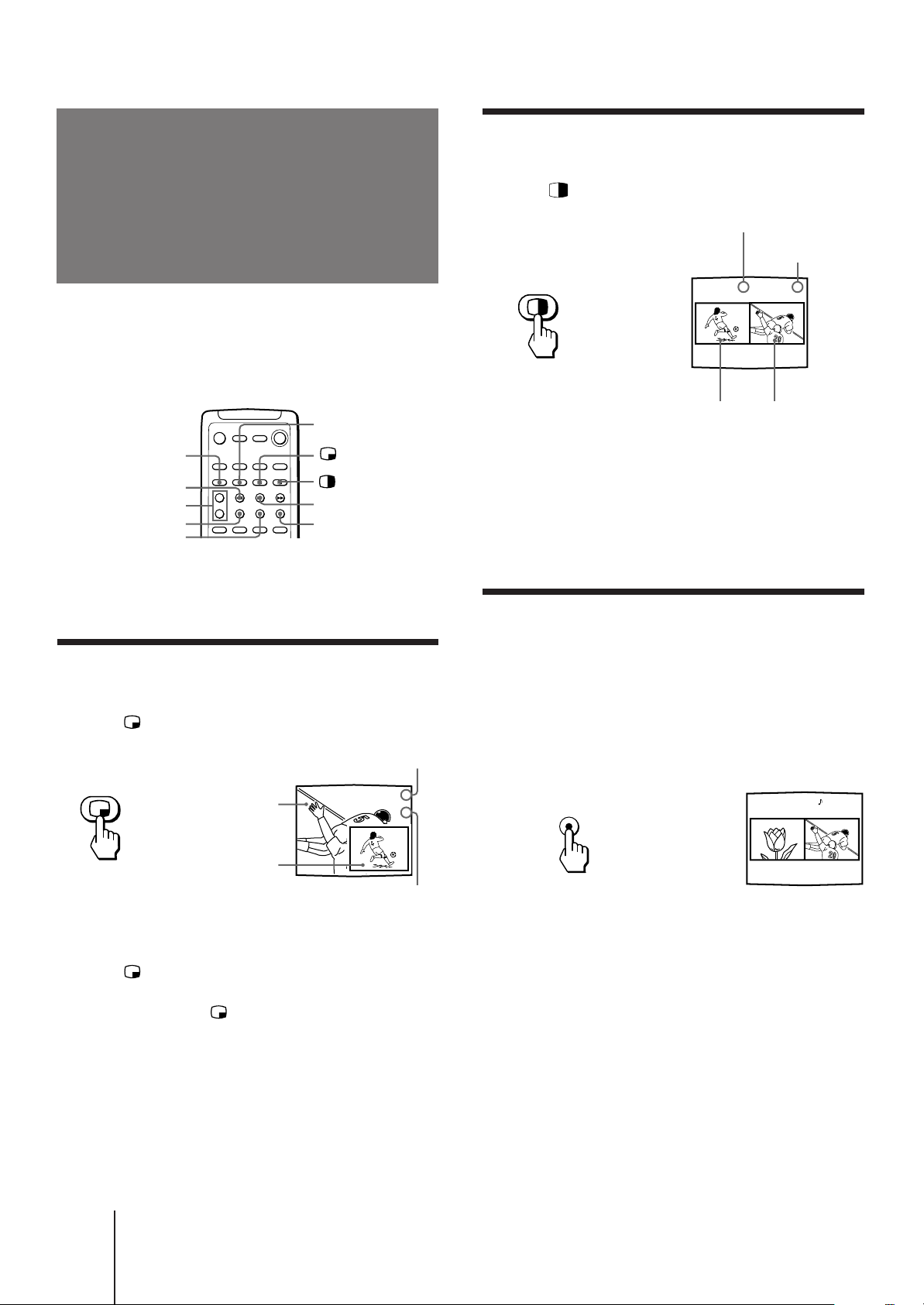

24 Watching two programs at one time—PIP/P&P
(Twin ViewTM)/CH INDEX
26 Freezing the picture (FREEZE)

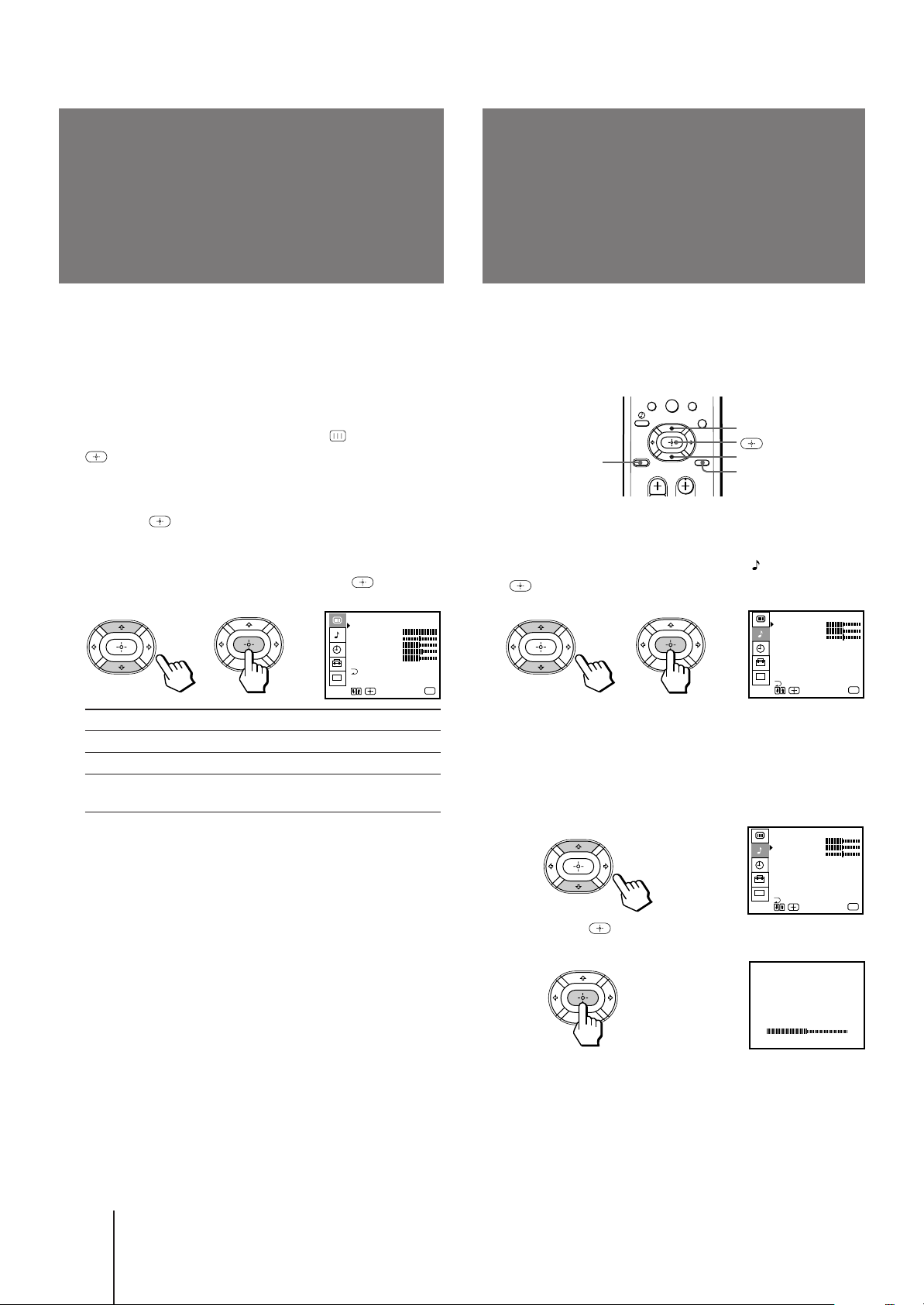

26 Adjusting the picture (VIDEO)
27 Adjusting the color temperature (TRINITONE)
28 Selecting the video mode (VIDEO)
28 Adjusting the sound (AUDIO)
29 Using audio effect (EFFECT)
30 Selecting stereo or bilingual programs (MTS)
31 Setting the speaker switch (SPEAKER)
32 Setting audio out (AUDIO OUT)
32 Setting daylight saving time (DAYLIGHT SAVING)
33 Setting the clock (CURRENT TIME SET)
33 Setting the timer to turn the projection TV on and
off (ON/OFF TIMER)

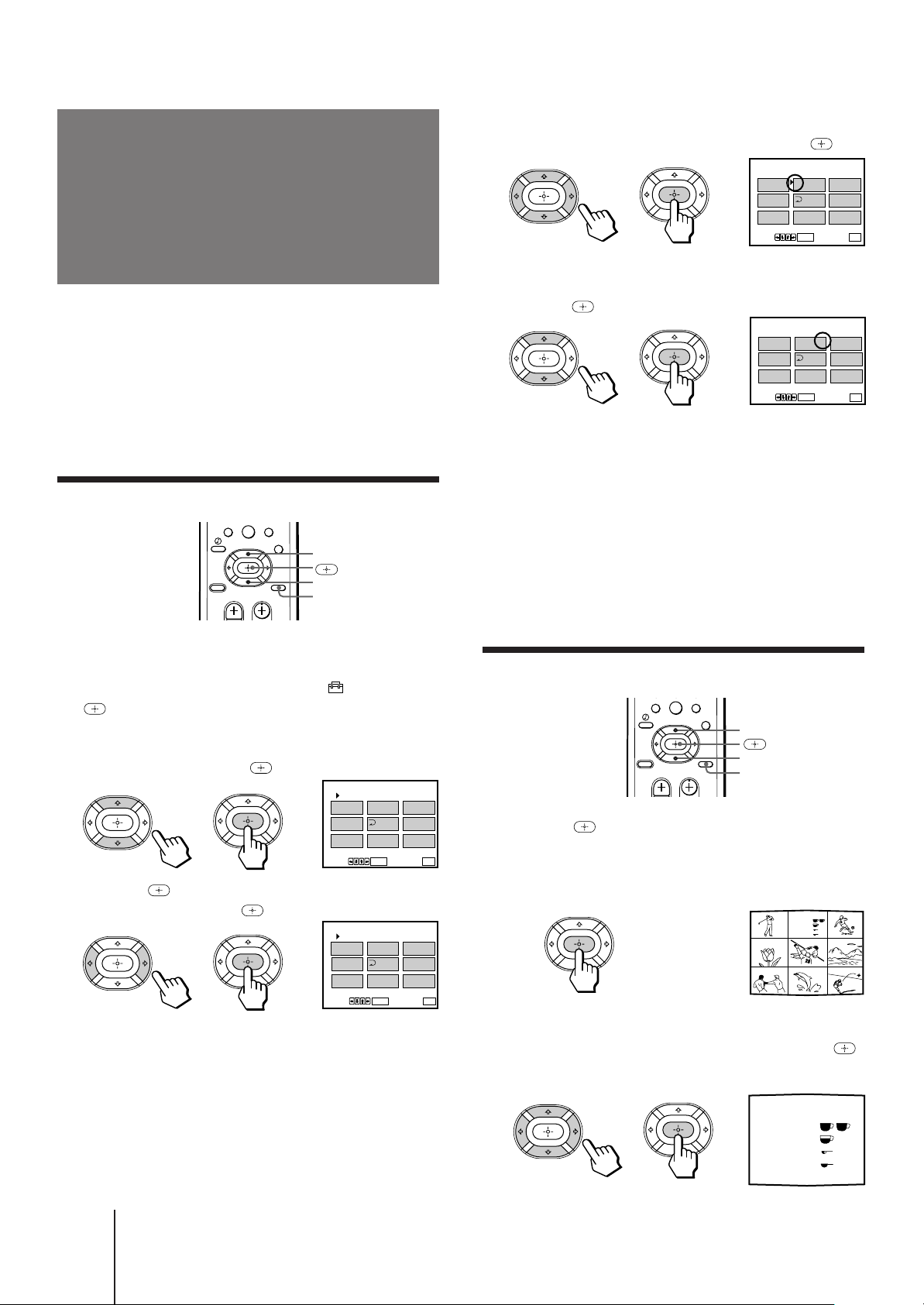

34 Customizing the channel names (CHANNEL CAPTION)
35 Blocking out a channel (CHANNEL BLOCK)
36 Setting your favorite channels (FAVORITE CHANNEL)
37 Setting video labels (VIDEO LABEL)
38 Setting Caption Vision (CAPTION VISION)

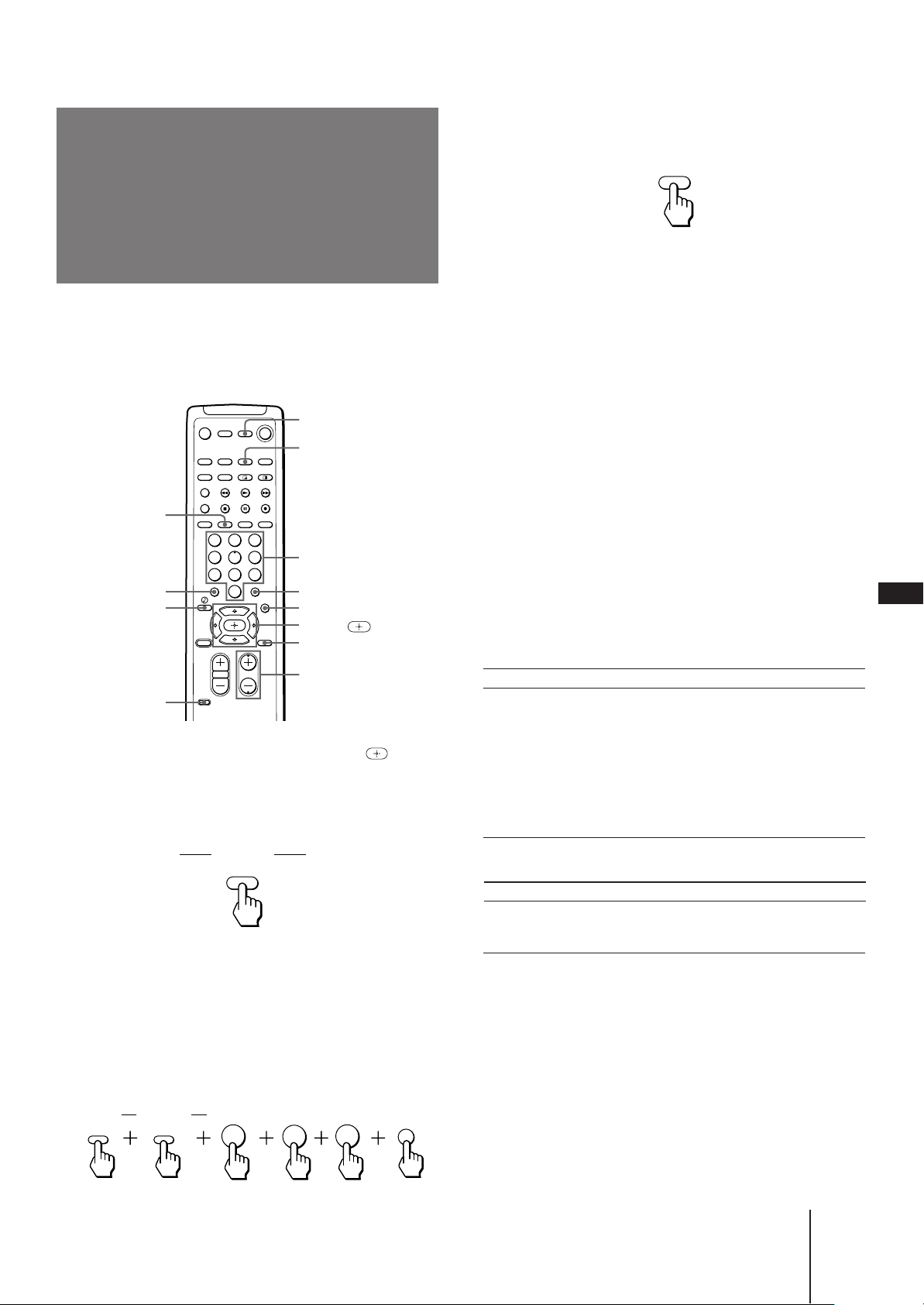

38 Operating video equipment
41 Operating a cable box or DBS receiver
EN
Additional Information
42 Troubleshooting
43 Specifications

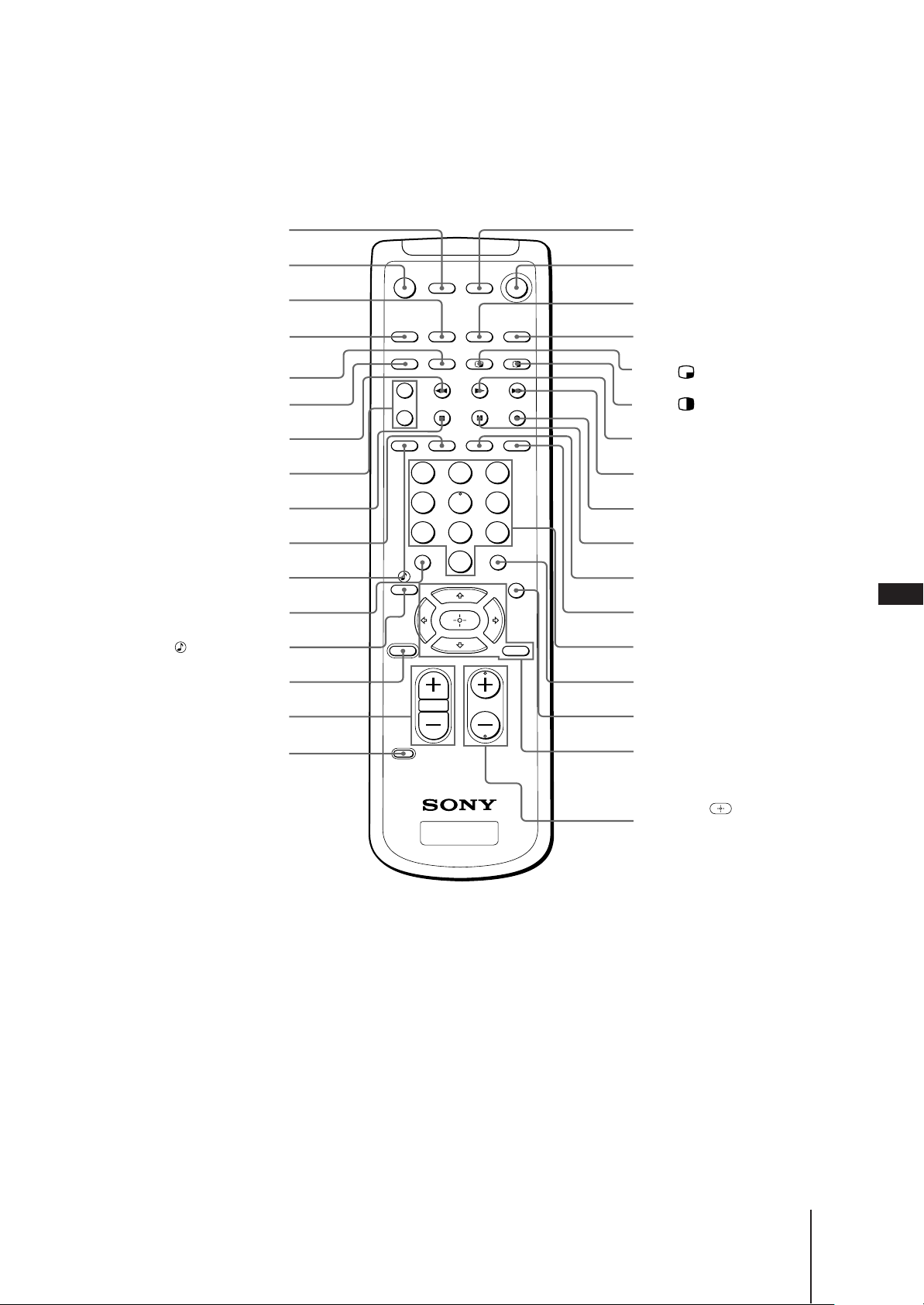

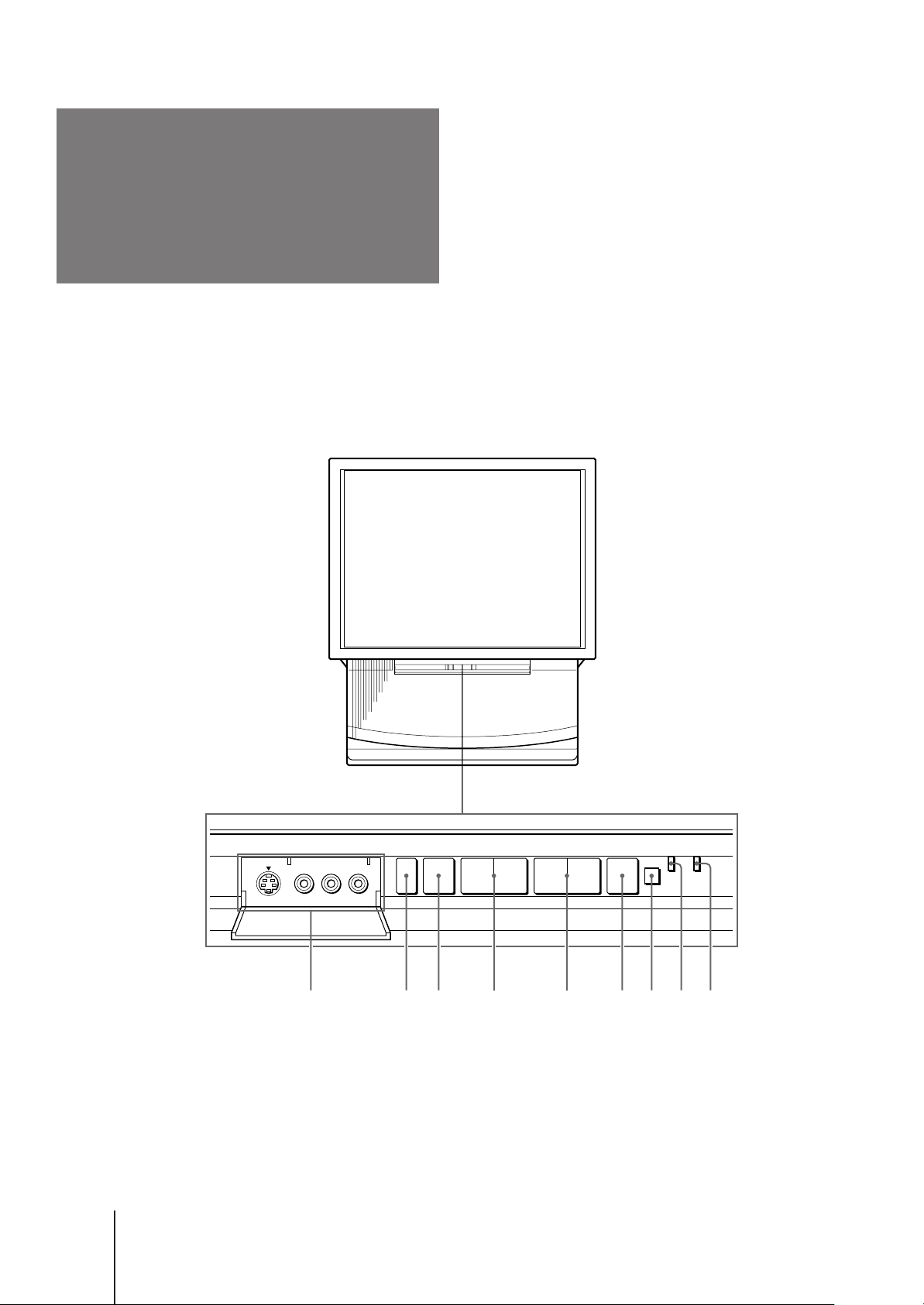

44 Index to parts and controls
46 Index
The captions in parentheses indicate menu names.
-EN
3
Welcome!
Precautions
Thank you for purchasing the Sony Color Rear Video
Projection TV. Here are some of the features you will
enjoy with your projection TV:
• On-screen menus that let you set the picture quality,
sound, and other settings.
• Two tuner Picture-in-Picture (PIP) that allows you
to watch another TV channel, video or cable image
as a window or left picture.
• SRS (SOUND RETRIEVAL SYSTEM) that allows
you to receive realistic sound that recaptures audio
“clues” originally present but masked in the
recording process so that the action seems to
happen all around you.
• SAVA SPEAKER option of the AUDIO menu that
lets you take advantage of the Sony SAVA series
speaker system’s surround sound and super woofer
mode when you connect it to the projection TV.
• S-LinkTM that allows you to automatically change
the TV’s input mode, turn on the VCR, and play a
tape by just pressing the VCR’s play button. This
feature is originally designed by Sony.
About this manual
The instructions in this manual are for models KP48V45, KP-53V45, and KP-61V45. Before you start
reading this manual, please check your model number,
located at the rear of the projection TV.
Model KP-53V45 is used for illustration purposes in
this manual. Any differences in operation are clearly
indicated in the text, for example “KP-48V45 only.”
The differences in specifications are indicated in the
text.
Instructions in this manual are based on use of the
remote control. You can also use the controls on the
projection TV if they have the same name as those on
the remote control.
-EN
4
This projection TV operates on extremely high voltage.
To prevent fire or electric shock, please follow the
precautions below.
Safety
• Operate the projection TV only on 120 V AC.
• One blade of the plug is wider than the other for safety
purposes and will fit into the power outlet only one
way. If you are unable to insert the plug fully into the
outlet, contact your dealer.
• Should any liquid or solid object fall into the cabinet,
unplug the projection TV and have it checked by
qualified personnel before operating it further.
• Unplug the projection TV from the wall outlet if you
are not going to use it for several days or more. To
disconnect the cord, pull it out by the plug. Never
pull the cord itself.
For details concerning safety precautions, see the supplied
leaflet “IMPORTANT SAFEGUARDS.”
Note on cleaning
Clean the cabinet of the projection TV with a dry soft
cloth. To remove dust from the screen, wipe it gently
with a soft cloth using vertical strokes only. Stubborn
stains may be removed with a cloth slightly dampened
with solution of mild soap and warm water. Never use
strong solvents such as thinner or benzine for cleaning.
If the picture becomes dark after using the projection TV
for a long period of time, it may be necessary to clean the
inside of the projection TV. Consult qualified service
personnel.
Installing
• To prevent internal heat build-up, do not block the
ventilation openings.
• Do not install the projection TV in a hot or humid
place, or in a place subject to excessive dust or
mechanical vibration.
• Avoid operating the projection TV at temperatures
below 5°C (41°F).
• If the projection TV is transported directly from a cold
to a warm location, or if the room temperature has
changed suddenly, the picture may be blurred or show
poor color. This is because moisture has condensed on
the mirror or lenses inside. If this happens, let the
moisture evaporate before using the projection TV.
• To obtain the best picture, do not expose the screen to
direct illumination or direct sunlight. It is
recommended to use spot lighting directed down from
the ceiling or to cover the windows that face the screen
with opaque drapery. It is desirable to install the
projection TV in a room where the floor and walls are
not of reflecting material. If necessary, cover them
with dark carpeting or wall paper.
Getting Started

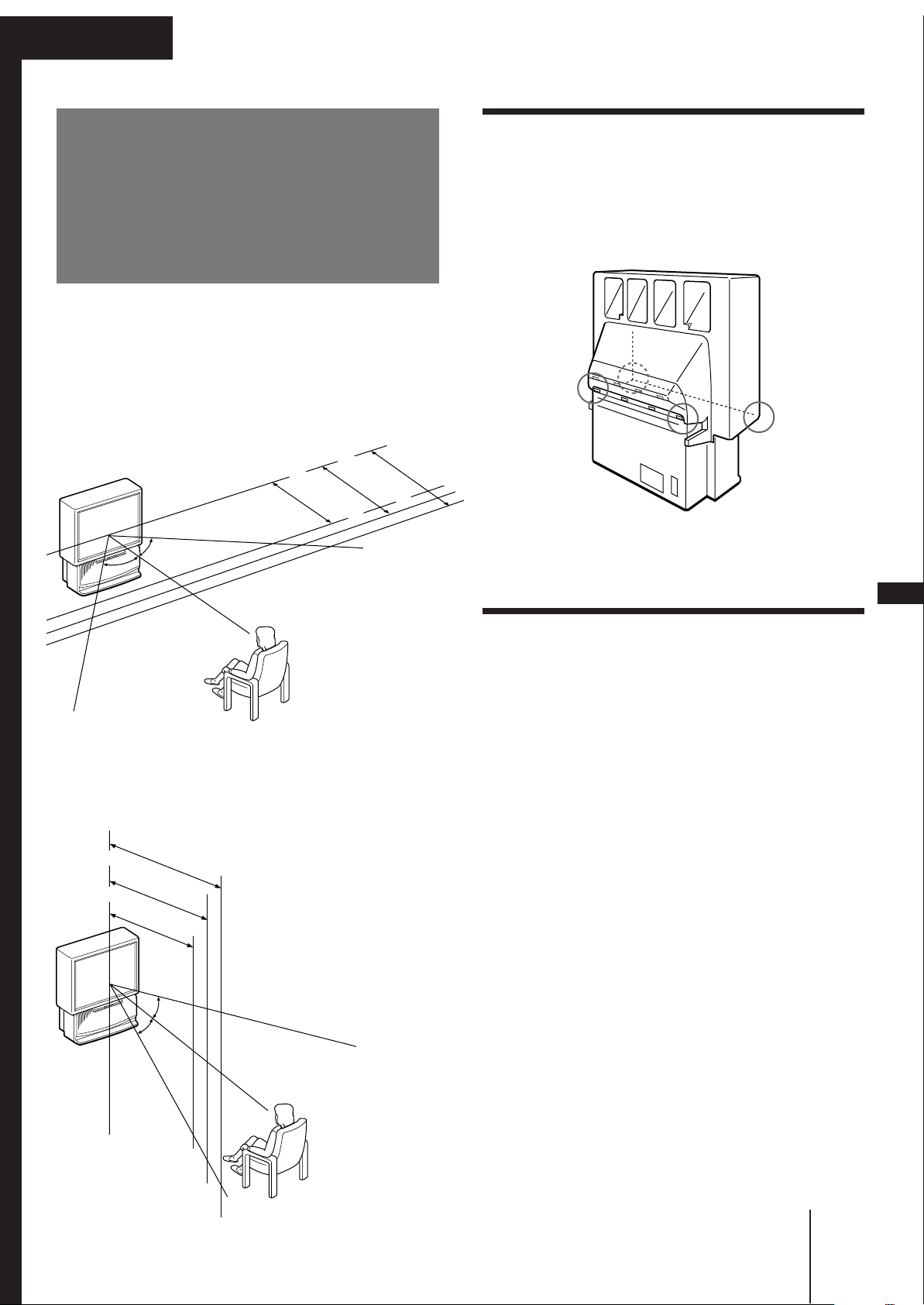

Step 1: Installing
the projection TV
For the best picture quality, install the projection TV
within the areas shown below.
Optimum viewing area (Horizontal)
min. 2.4m (approx. 8 ft.)
min. 2.1m (approx. 7 ft.)
min. 1.8m (approx. 6 ft.)
53"
48"
75°
75°75°
61"
Carrying your projection TV
p KP-48V45/53V45 only
Be sure to grasp the areas indicated when carrying the
projection TV, and to use more than two people.
(Rear of projection TV)
p KP-61V45 only
Carry your projection TV by the casters.
EN
Optimum viewing area (Vertical)
min. 2.4m (approx. 8 ft.)
61"
min. 2.1m (approx. 7 ft.)
min. 1.8m (approx. 6 ft.)
53"
48"
27.5°
27.5°
Preparing for your projection TV
Before you use your projection TV, adjust convergence.
For the procedure, see “Step 4: Setting up the projection
TV automatically (AUTO SET UP)” on page 17.
Getting Started
-EN
5
Step 2: Hookup
Connecting an antenna/cable TV
system without a VCR
Although you can use either an indoor or outdoor
antenna with your projection TV, we recommend that
you connect an outdoor antenna or a cable TV system
to get better picture quality.

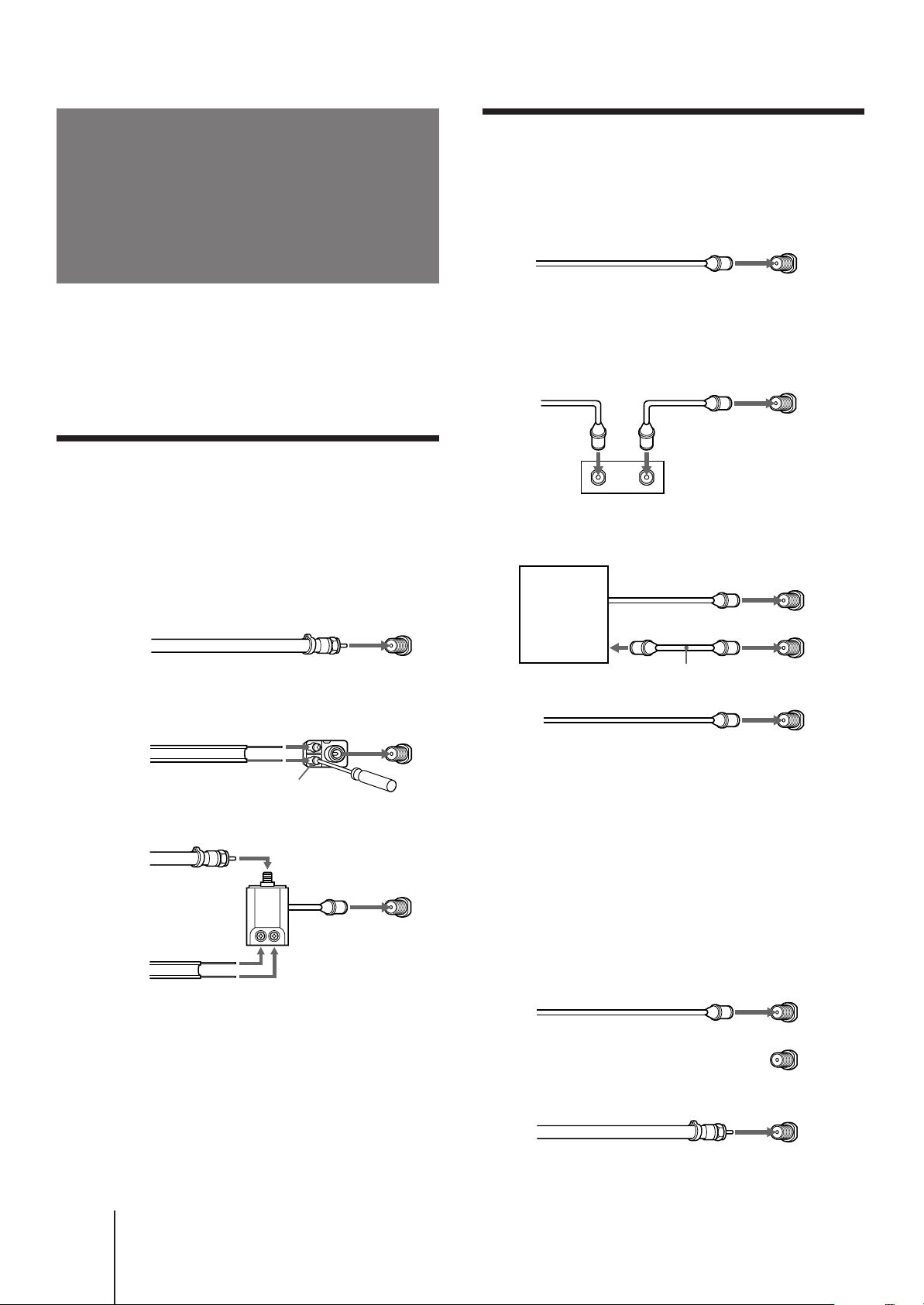

Connecting an antenna
Connect your antenna cable to the VHF/UHF antenna
terminal. If you cannot connect your antenna cable
directly to the terminal, follow one of the instructions
below depending on your cable type.
A
• VHF only
• VHF/UHF
• Cable
B
• VHF only
• UHF only
• VHF/UHF
C
• VHF
and
• UHF
75-ohm coaxial cable
or
or
300-ohm twin lead cable
or
or
75-ohm coaxial cable
300-ohm twin lead cable
Antenna connector
(Rear of projection TV)
VHF/UHF
(Rear of projection TV)
VHF/UHF
(Rear of projection TV)
VHF/UHF
EAC-66 U/V mixer
(not supplied)
To cable or antenna
(Rear of projection TV)
Cable
VHF/UHF
To cable box
If your cable company requires you to connect a cable
box, make the connection as follows:
(Rear of projection TV)
VHF/UHF
Cable
IN OUT
Cable box
To cable box and cable
Cable box
75-ohm coaxial
cable (not supplied)
CATV cable
(Rear of projection TV)
AUX
TO
CONVERTER
VHF/UHF
Pay cable TV systems use scrambled or encoded signals
requiring a cable box* in addition to the normal cable
connection.
* The cable box will be supplied by the cable company.
Note
• You cannot watch the signal through an AUX connector as a
window picture.
To cable and antenna
(Rear of projection TV)
CATV cable
AUX
Notes
• Most VHF/UHF combination antennas have a signal splitter.
Remove the splitter before attaching the appropriate connector.
• If you use the U/V mixer, snow and noise may appear in the
picture when viewing cable TV channels over 37.
-EN
6
Getting Started
TO
CONVERTER
Antenna cable
VHF/UHF
Note
• Do not connect anything to the TO CONVERTER connector in
this case.

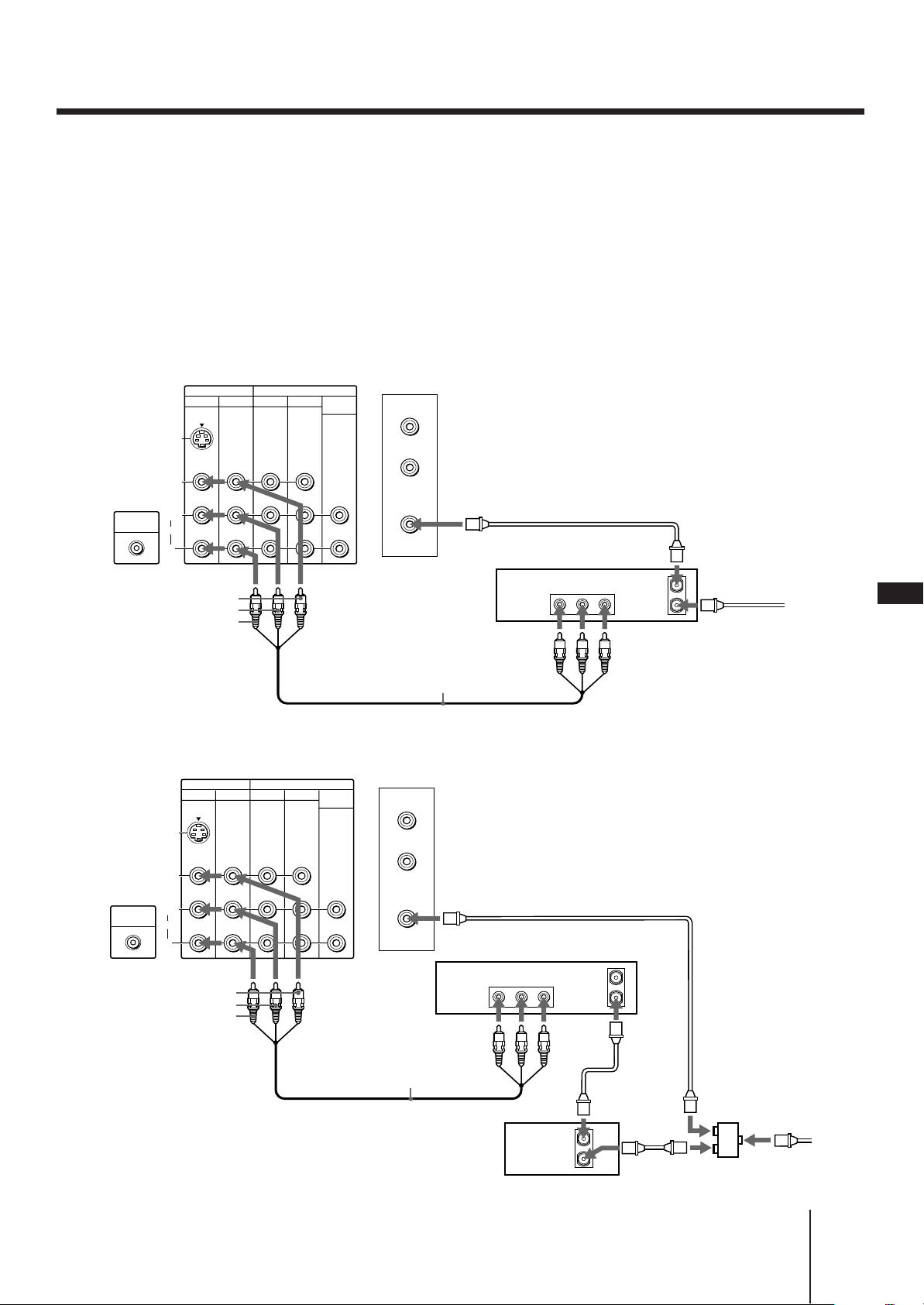

Connecting an antenna/cable TV system with a VCR
For details on connection, see your VCR instruction
manual.
Before making the connection, disconnect the AC
power cords of the equipment to be connected.
To a conventional VCR
Note
• To connect a monaural VCR, connect the audio output of the
VCR to AUDIO-L (MONO) of VIDEO 1/3 IN on the projection
TV.
Without a cable box
(Rear of projection TV)
S VIDEO
VIDEO
L
(
MONO
CONTROL S
OUT
AUDIO
R
VIDEO (yellow)
AUDIO-L (white)
AUDIO-R (red)
IN
VIDEO 1 VIDEO 3
)
TV
MONITOR AUDIO
OUT
(VAR/FIX)
CONVERTER
VHF/UHF
After making these connections, you will be able to do
the following:
• View the playback of video tapes
• Record one TV program while viewing another
• Watch two TV programs at once using PIP
AUX
TO
VHF/UHF
VMC-810S/820S
(not supplied)
program
LINE
OUT
Antenna cable
VCR
AUDIO VIDEO
VHF/UHF
output
OUT
IN
Video and audio
outputs
Antenna cable
VHF/UHF
input
EN
With a cable box
S VIDEO
VIDEO
CONTROL S
OUT
VIDEO (yellow)
AUDIO-L (white)
(Rear of projection TV)
IN
VIDEO 1 VIDEO 3
L
(
)
MONO
AUDIO
R
AUDIO-R (red)
TV
MONITOR AUDIO
OUT
(VAR/FIX)
AUX
TO
CONVERTER
VHF/UHF
VHF/UHF
VMC-810S/820S
(not supplied)
LINE
OUT
Antenna cable
VCR
AUDIO VIDEO
Cable box
OUT
Video
and
audio
outputs
IN
OUT
IN
VHF/UHF
input
VHF/UHF
output
Splitter (not supplied)
Antenna
cable
Getting Started
-EN
7

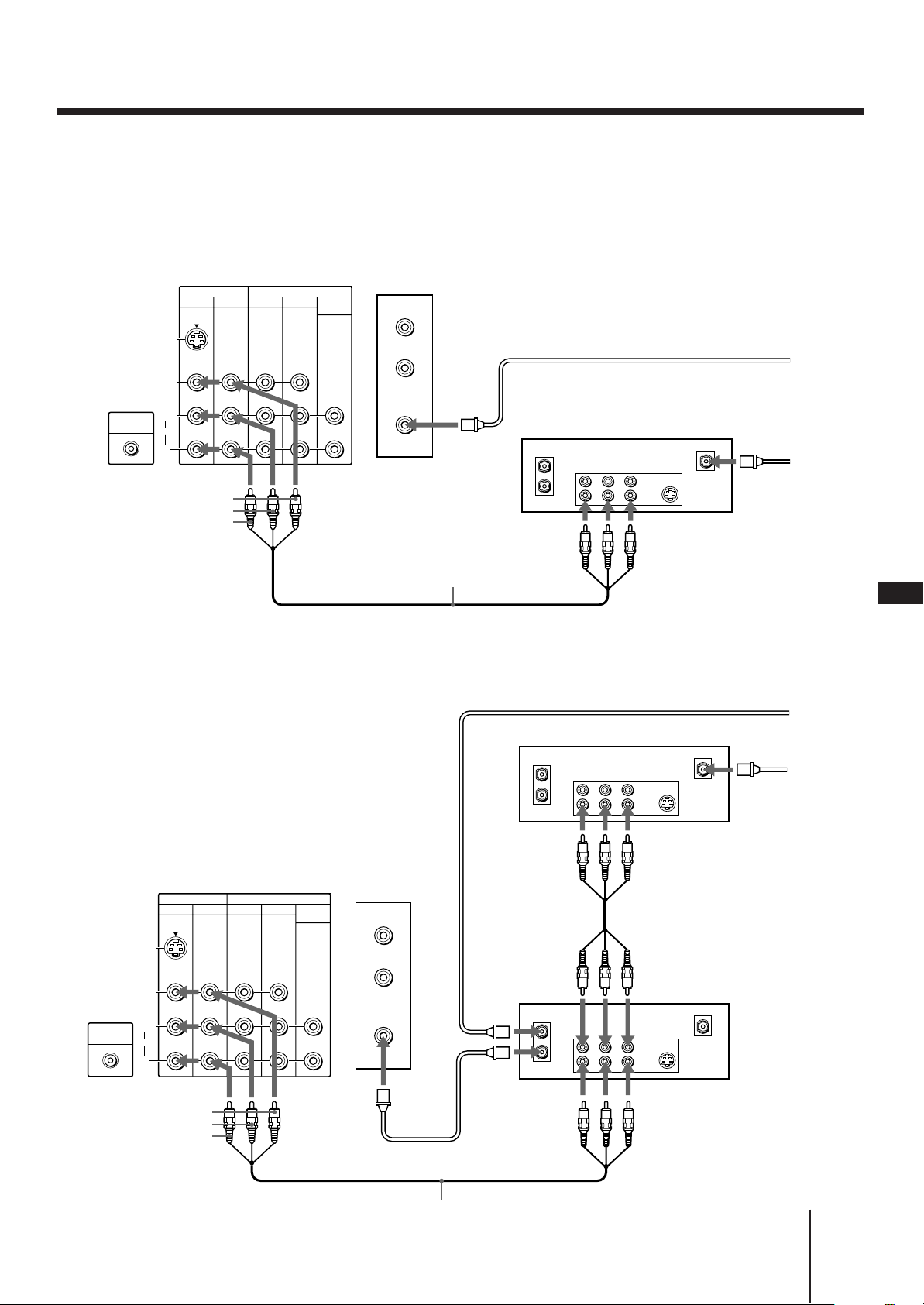

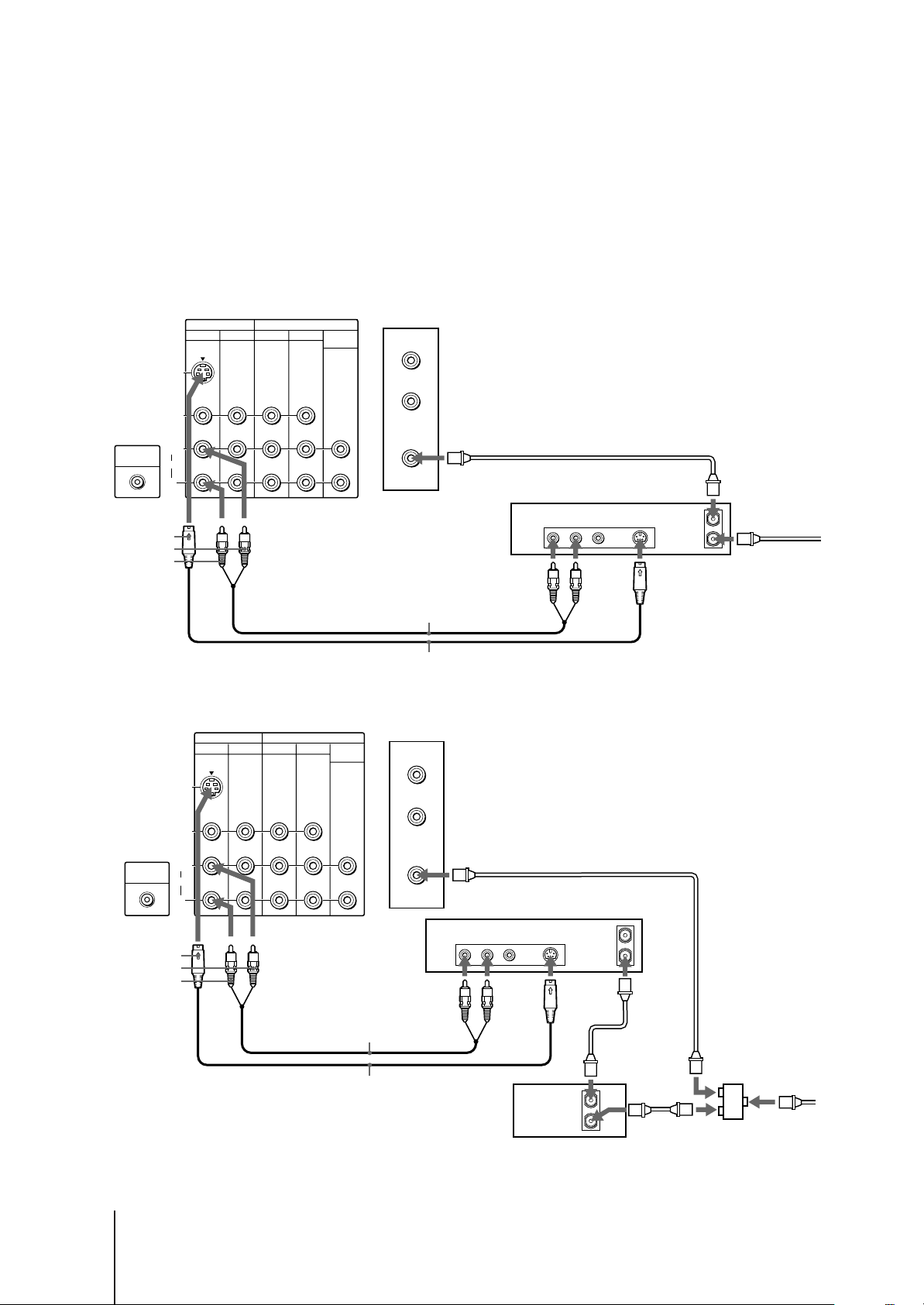

To an S video equipped VCR
If your VCR has an S VIDEO output connector, make
the following connections.
Whenever you connect the cable to the S VIDEO input
connector, the projection TV automatically receives S
video signals.
Without a cable box
(Rear of projection TV)
S VIDEO
VIDEO
IN
VIDEO 1 VIDEO 3
TV
MONITOR AUDIO
OUT
(VAR/FIX)
AUX
TO
CONVERTER
L
(
MONO
CONTROL S
OUT
AUDIO
R
S VIDEO
AUDIO-L (white)
AUDIO-R (red)
With a cable box
S VIDEO
VIDEO
L
(
MONO
CONTROL S
OUT
AUDIO
R
S VIDEO
AUDIO-L (white)
AUDIO-R (red)
)
(Rear of projection TV)
IN
VIDEO 1 VIDEO 3
)
TV
OUT
MONITOR AUDIO
(VAR/FIX)
RK-74A
(not supplied)
VHF/UHF
VHF/UHF
RK-74A
(not supplied)
YC-15V/30V
(not supplied)
AUX
TO
CONVERTER
LINE
OUT
VHF/UHF
VHF/UHF
AUDIO VIDEO S VIDEO
LINE
OUT
Antenna cable
VCR
AUDIO VIDEO S VIDEO
Audio
outputs
Antenna cable
VCR
Audio
outputs
OUT
IN
S video
output
S video
output
VHF/UHF
input
OUT
IN
VHF/UHF
output
Antenna cable
VHF/UHF
input
YC-15V/30V
(not supplied)
Note
• Video signals are composed of Y (luminance) and C (chroma)
signals. The S connection sends the two signals separately
preventing degradation, and gives better picture quality
compared to conventional connections.
-EN
8
Getting Started
Cable box
OUT
IN
Splitter
(not supplied)
Antenna
cable
Connecting a DBS receiver
For details on connection, see the instruction manual of
the DBS (Digital Broadcasting Satellites) receiver.
To a projection TV
(Rear of projection TV)
S VIDEO
VIDEO
IN
VIDEO 1 VIDEO 3
TV
MONITOR AUDIO
OUT
(VAR/FIX)
AUX
TO
CONVERTER
Cable or cable box
CONTROL S
OUT
L
(
MONO
AUDIO
R
)
VHF/UHF
VIDEO (yellow)
AUDIO-L (white)
AUDIO-R (red)
VMC-810S/820S (not supplied)
Note
• You can use the S VIDEO connector or the composite video
connector for the video connection.
To a projection TV and VCR
VHF/UHF
VHF/UHF
IN
OUT
Audio
outputs
DBS receiver
VHF/UHF
IN
OUT
Audio
outputs
DBS receiver
S VIDEOAUDIO VIDEO
Video
output
Cable or cable box
S VIDEOAUDIO VIDEO
Video
output
LINE IN
LINE OUT
LINE IN
LINE OUT
Antenna
Satellite
antenna
input
Antenna
Satellite
antenna
input
EN
S VIDEO
VIDEO
L
(
MONO
CONTROL S
OUT
AUDIO
R
VIDEO (yellow)
AUDIO-L (white)
AUDIO-R (red)
(Rear of projection TV)
IN
VIDEO 1 VIDEO 3
)
TV
MONITOR AUDIO
OUT
(VAR/FIX)
AUX
TO
CONVERTER
VHF/UHF
F-type cable
(not supplied)
VMC-810S/820S (not supplied)
VHF/
UHF IN
VHF/
UHF OUT
Audio
inputs
VHF/UHF
Audio
outputs
IN
OUT
Video
input
S VIDEOAUDIO VIDEO
VCR
LINE IN
LINE OUT
Video
output
Getting Started
-EN
9

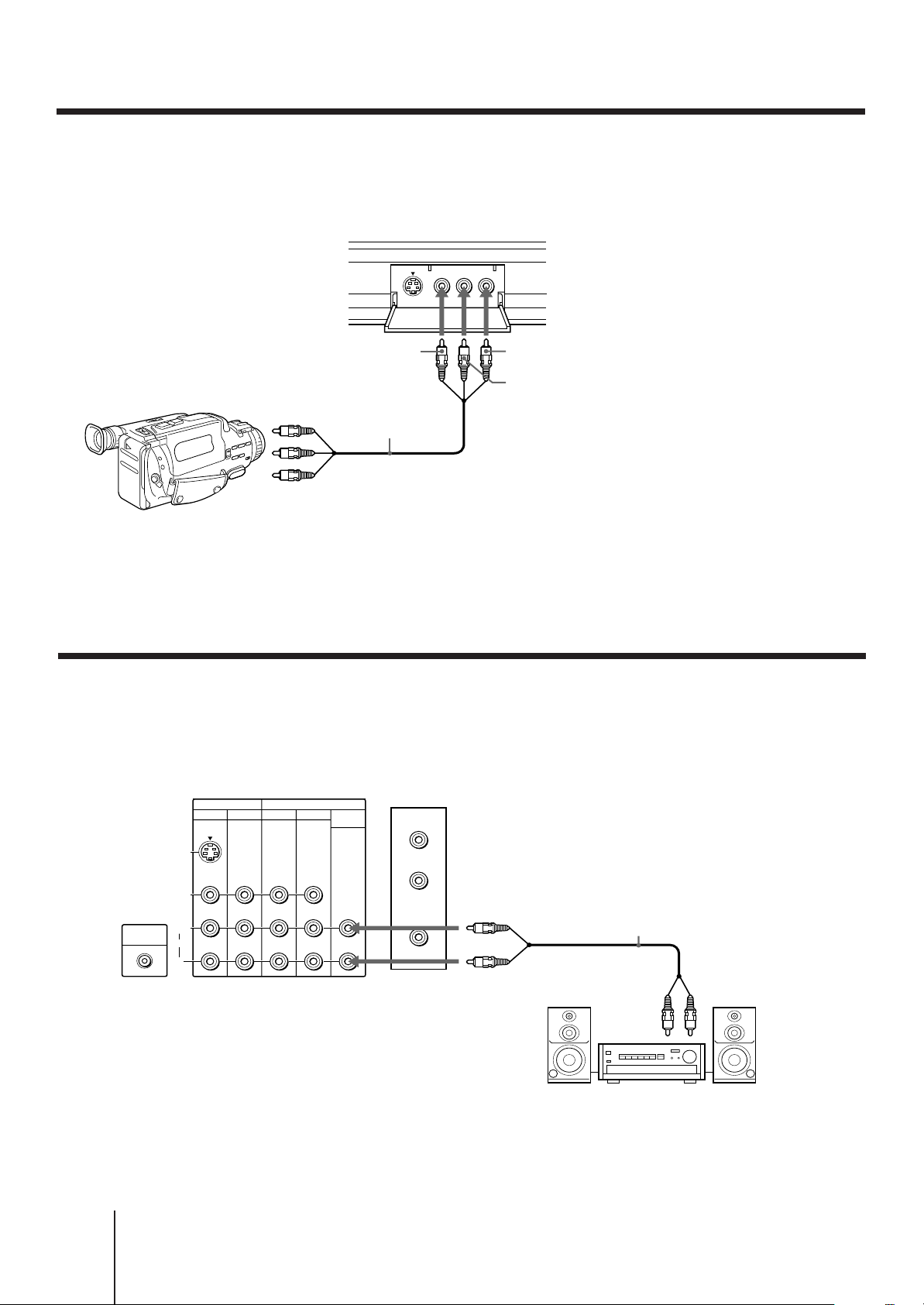

Connecting a camcorder
Use this connection to view a camcorder picture.
(Front of projection TV)
S VIDEO VIDEO 2 INPUT
VIDEO
L(MONO)-AUDIO-R
VIDEO
(yellow)
Video and
audio outputs
VMC-810S/820S
(not supplied)
Notes
• To connect a monaural camcorder, connect the audio output of
the camcorder to AUDIO-L (MONO) of VIDEO 2 INPUT on
the projection TV.

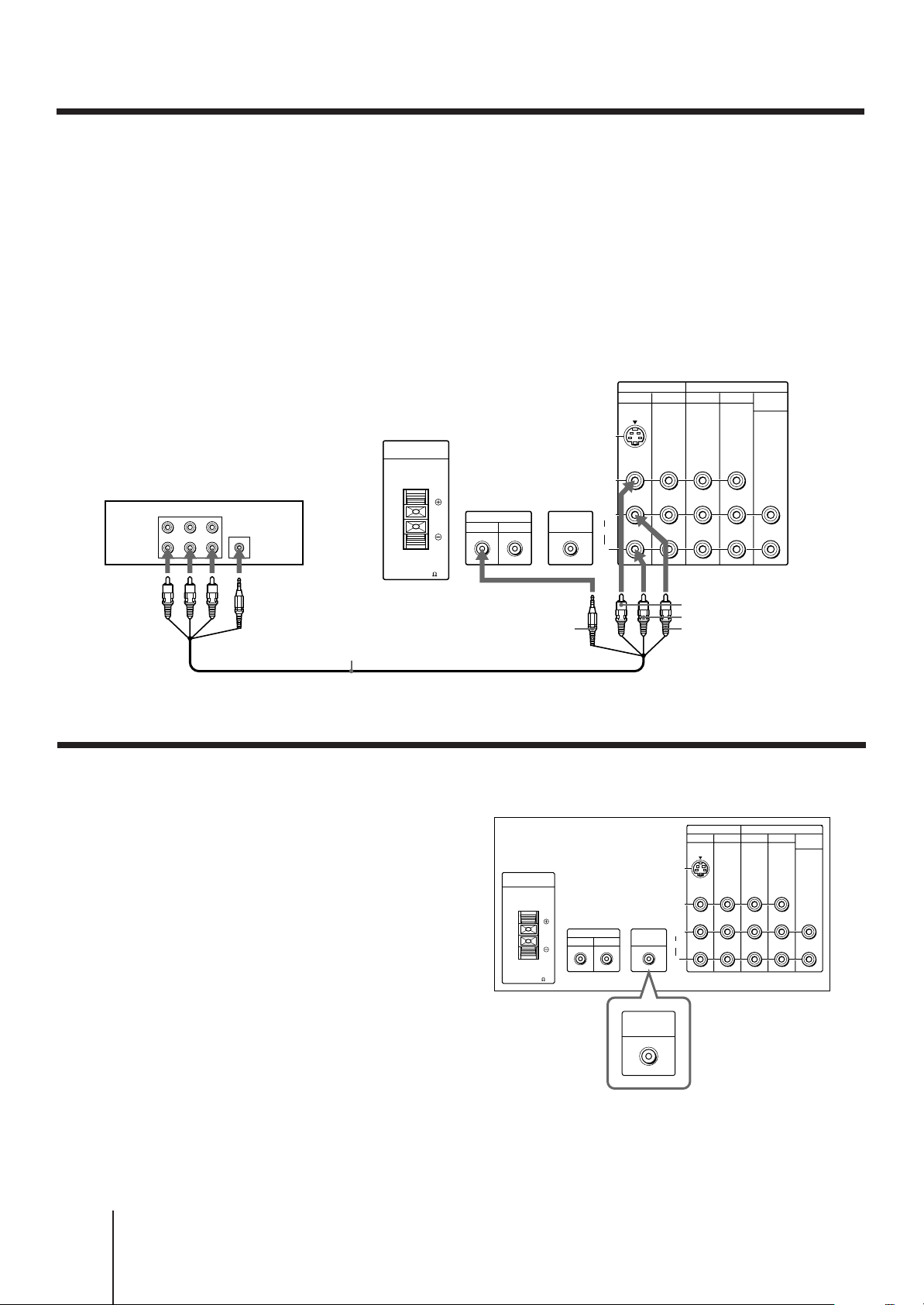

Connecting an audio system
When connecting audio equipment, see page 28 for
more information.
(Rear of projection TV)
S VIDEO
IN
VIDEO 1 VIDEO 3
TV
MONITOR AUDIO
OUT
(VAR/FIX)
AUX
TO
CONVERTER
AUDIO-R (red)
AUDIO-L (white)
• To connect a camcorder equipped with the S video output,
connect the S video output of the camcorder to the S VIDEO
connector of the projection TV.
VIDEO
L
(
)
MONO
CONTROL S
OUT
AUDIO
R
Note
• You can adjust the bass, treble, and balance, or select surround
(page 29) or an MTS (Multichannel TV Sound) mode (page 30)
with the supplied remote control.
-EN
10
Getting Started
VHF/UHF
AUDIO OUT-L
(white)
AUDIO OUT-R
(red)
RK-74A (not supplied)
Set the amplifier’s
function to line input.
Line
input
Stereo amplifier

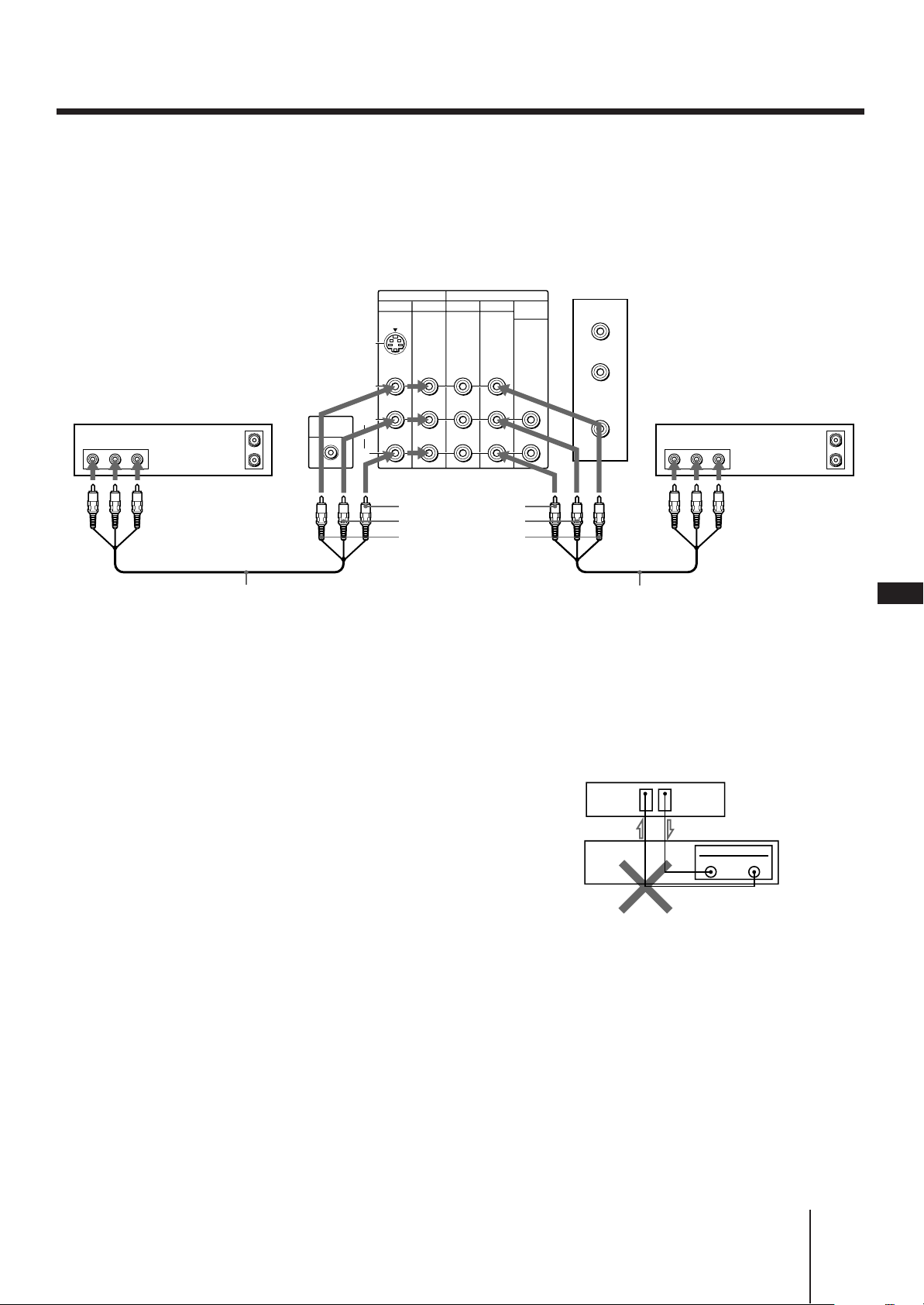

Connecting two VCRs for tape editing using MONITOR OUT
You can record input images displayed on the screen.
This type of connection should be used only when you
connect from the line input of one VCR, and from the
line output of a second VCR.
(Rear of projection TV)
S VIDEO
VIDEO
IN
VIDEO 1 VIDEO 3
TV
MONITOR AUDIO
OUT
(VAR/FIX)
AUX
TO
CONVERTER
VCR (for playback)
AUDIO VIDEO
LINE
OUT
Video/audio
outputs
CONTROL S
OUT
IN
OUT
L
(
MONO
AUDIO
R
)
AUDIO-R (red)
AUDIO-L (white)
VIDEO (yellow)
VMC-810S/820S
(not supplied)
Notes
• Do not change the input signal while editing through
MONITOR OUT, or the output signal will also change.
• You can use the S video jack to connect a VCR for playback
and the composite video connector to connect a VCR for
recording.
VHF/UHF
VCR (for recording)
AUDIO VIDEO
LINE
IN
OUT
IN
Video/audio
inputs
VMC-810S/820S
(not supplied)
• When connecting a single VCR to the projection TV, do not
connect the MONITOR OUT to the VCR’s line input, while at
the same time connecting from the projection TV’s VIDEO IN
connectors to the VCR’s line output, as shown below.
(Rear of projection TV)
VIDEO IN
VCR
MONITOR
OUT
IN OUT
LINE
EN
DO NOT CONNECT IN THIS WAY.
Getting Started
11
-EN

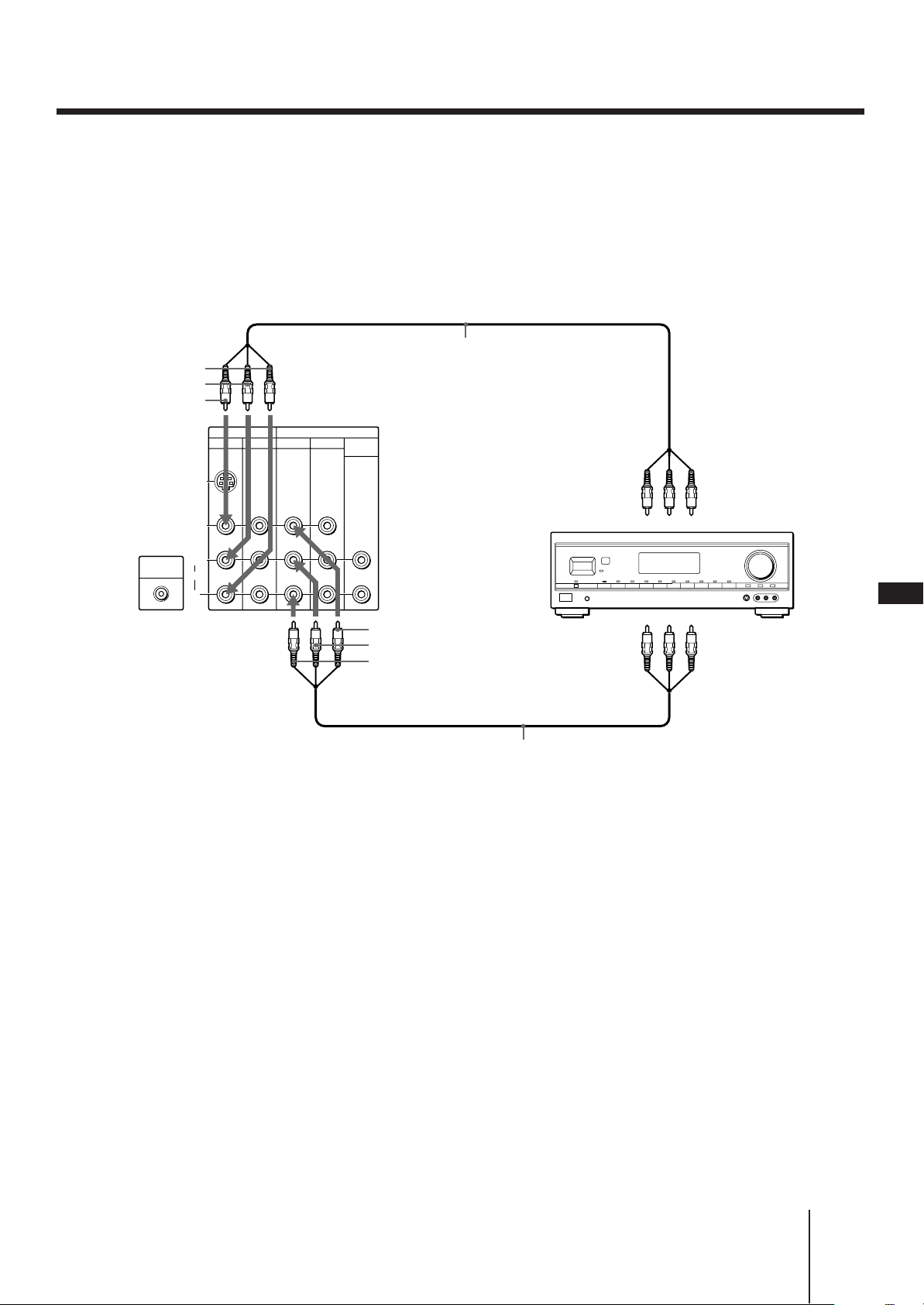

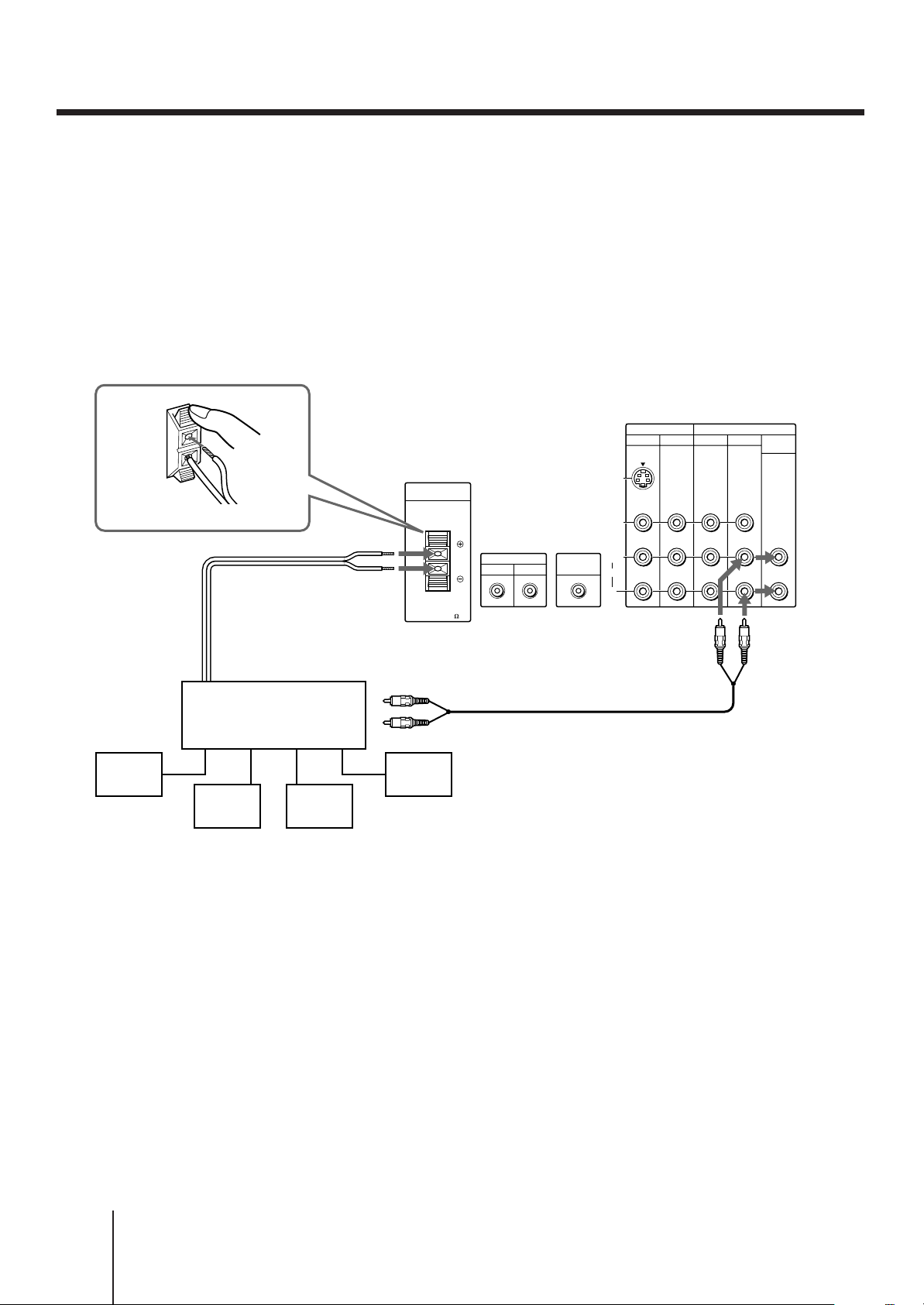

Connecting an amplifier with Dolby Pro Logic decoder
If you use an amplifier with Dolby Pro Logic decoder
instead of the projection TV’audio system, you can still
use the projection TV’s center speaker. See “Setting the
speaker switch (SPEAKER)” on page 31.
* Manufactured under license from Dolby Laboratories
Licensing Corporation. Additionally licensed under Canadian
patent number 1,037,877. “Dolby,” the double-D symbol a
and “Pro Logic” are trademarks of Dolby Laboratories
Licensing Corporation.
(Rear of projection TV)
IN
VIDEO 1 VIDEO 3
TV
OUT
MONITOR AUDIO
(VAR/FIX)
Rear
speaker
(L)
Amplifier with Dolby*
Pro Logic decoder
Front
speaker
(L)
Front
speaker
(R)
CENTER SPEAKER
IN
VIDEO 1
30W(NOM)
60W(MAX)16
CENTER SPEAKER IN ‘
CENTER SPEAKER IN ’
Rear
speaker
(R)
S-LINK
VIDEO 3
CONTROL S
RK-74A (not supplied)
OUT
S VIDEO
VIDEO
(
MONO
AUDIO
R
L
)
AUDIO (VAR/FIX)
OUT L (white)
AUDIO (VAR/FIX)
OUT R (red)
12
-EN
Getting Started

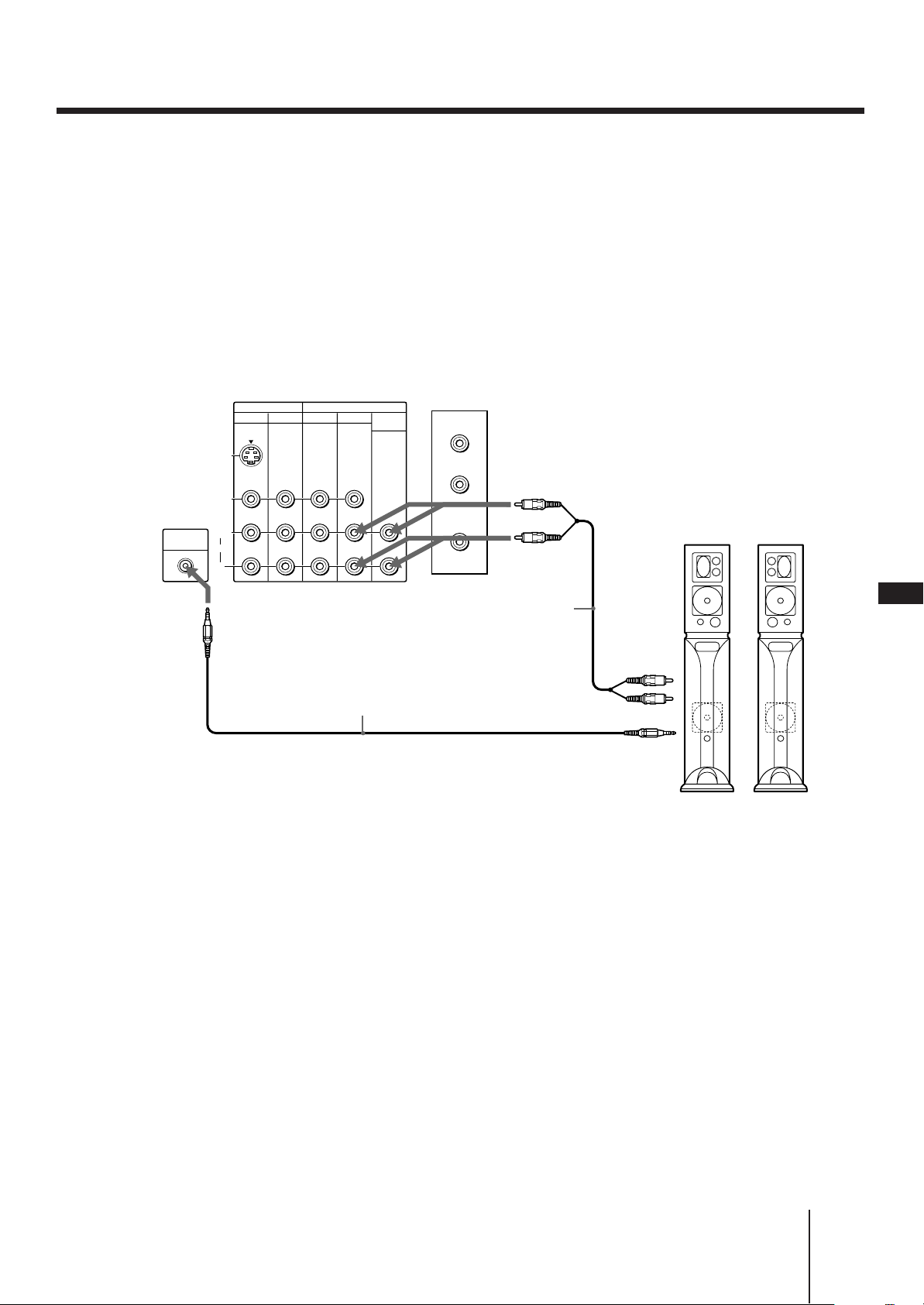

Connecting a Sony SAVA series speaker system
If you have a Sony SAVA series speaker system, connect
your speakers to the AUDIO (VAR/FIX) OUT jacks (or
MONITOR OUT jacks) on the rear of the projection TV
with the audio cable supplied with the speakers. You
can take advantage of the speakers’ Dolby Pro Logic
surround system and super woofer mode, and control
them with the supplied remote control. When
connecting a Sony SAVA series speaker system, see
page 31 for more information.
(Rear of projection TV)
S VIDEO
VIDEO
IN
VIDEO 1 VIDEO 3
TV
MONITOR AUDIO
OUT
(VAR/FIX)
AUX
TO
CONVERTER
AUDIO (VAR/FIX)
OUT L (white)
CONTROL S
OUT
CONTROL S OUT
L
(
MONO
AUDIO
R
)
VHF/UHF
AUDIO (VAR/FIX)
OUT R (red)
SAVA series speaker system
EN
Audio cord supplied
with the speakers
1 IN L
RK-G34, etc. (not supplied)
1 IN R
CONTROL S IN
Front left
Getting Started
13
-EN
Using the S-Link function with S-Link capable Sony VCRs
IN
IN
VIDEO 1 VIDEO 3
S VIDEO
VIDEO
L
R
AUDIO
(
MONO
)
OUT
TV
MONITOR AUDIO
(VAR/FIX)
CENTER SPEAKER
S-LINK
VIDEO 1
VIDEO 3
CONTROL S
OUT
20W(NOM)
40W(MAX)16
CONTROL S
OUT
The S-Link feature allows you to operate the projection
TV and VCR with the S-Link function in the following
ways:
• When you press the VCR’s play button, the
projection TV’s input mode is automatically
changed to video input which is connected, and the
VCR starts playing a tape.
• You can turn off the projection TV and VCR
together using the SYSTEM OFF button (see page
40 for details).
CENTER SPEAKER
IN
VCR
AUDIO VIDEO
LINE IN
LINE OUT
S-LINK
20W(NOM)
40W(MAX)16
Audio/video cable
(not supplied)
Notes
• The projection TV may malfunction if you connect the S-Link
cable to the projection TV without connecting the other end of
the cable to the VCR.
• When making the S-Link connection, be sure to insert all the
connectors firmly.
(Rear of projection TV)
S-LINK
VIDEO 3
VIDEO 1
S-LINK VIDEO 1
CONTROL S
OUT
S VIDEO
VIDEO
L
(
MONO
AUDIO
R
IN
VIDEO 1 VIDEO 3
)
OUT
TV
MONITOR AUDIO
(VAR/FIX)
VIDEO (yellow)
AUDIO R (red)
AUDIO L (white)
Connecting other Sony equipment with CONTROL S jack
This feature allows you to control your projection TV
and other Sony equipment with one remote control.
To control other Sony equipment with the projection
TV’s remote control, connect the input of the
equipment to CONTROL S OUT jack on the projection
TV.
(Rear of projection TV)
14
-EN
Getting Started
Connecting an AV receiver
Connect an optional AV receiver to the VIDEO 1 IN
jacks at the rear of the projection TV.
If your AV receiver has the TV input jacks, connect
them to the TV OUT jacks at the rear of the projection
TV.
VMC-810S/820S
AUDIO R (red)
AUDIO L (white)
VIDEO (yellow)
IN
VIDEO 1 VIDEO 3
(Rear of
projection TV)
OUT
TV
MONITOR AUDIO
(VAR/FIX)
(not supplied)
CONTROL S
OUT
S VIDEO
VIDEO
L
(
MONO
AUDIO
R
Monitor video
output
Monitor audio
output
AV receiver
)
EN
VIDEO (yellow)
AUDIO L (white)
TV audio input TV video input
AUDIO R (red)
VMC-810S/820S
(not supplied)
Getting Started
15
-EN
Step 3: Setting up
Getting to know buttons on the
remote control
the remote
control
Inserting batteries
Insert two size AA (R6) batteries (supplied) by
matching the + and – on the battery to the diagram
inside the battery compartment.
Notes
• Under normal conditions, batteries will last up to six months.
If the remote control does not operate properly or the
indicators of the buttons on the remote control do not light up,
the batteries may be worn out. When replacing batteries,
replace both of them with new ones.
• Do not mix old batteries with new ones or mix different types
of batteries together.
• If the electrolyte inside the battery should leak, wipe the
contaminated area of the battery compartment with a cloth and
replace the old batteries with new ones. To prevent the
electrolyte from leaking, remove the batteries when you don‘t
plan to use the remote control for a long period of time.
• Do not handle the remote control roughly. Do not drop it, step
on it, or let it get wet.
• Do not place the remote control in direct sunlight, near a
heater, or where the humidity is high.
Names of buttons on the remote control are indicated
in different colors to represent the available functions.
Button color
Transparent ....... TV/VCR/DBS/Cable box function
(light up)
buttons. Press the appropriate
function button first to change the
remote control’s function.
Green .................. Buttons relevant to power operations.
Label color
White .................. TV/VCR/DBS/Cable box operation
buttons.
Yellow................. PIP operation buttons.
Blue ..................... DBS operation buttons.
Blue
Green
Blue
1 2 3
4 5 6
7 809
Blue
Green
Transparent
Yellow
Blue
16
-EN
Getting Started
– CHANNEL +
– CHANNEL +
Step 4: Setting up
the projection TV
3 Press CHANNEL +/– or VOLUME + to select
the on-screen menu language.
If you prefer Spanish or French to English, you can
change the on-screen menu language.
automatically
(AUTO SET UP)
You can set up your projection TV easily by using the
AUTO SET UP feature. It presets all the receivable
channels, adjusts the convergence and changes the onscreen menu language. To set up the projection TV
manually, see “Adjusting convergence” (page 19),
“Setting cable TV on or off” (page 20), “Presetting
channels” (page 21) and “Changing the menu
language” (page 21).
If the projection TV is set to a video input, you cannot
perform AUTO SET UP. Press TV/VIDEO so that a
channel number appears.
(Front of projection TV)
SETUP
TV/VIDEO – VOLUME + – CHANNEL + POWER
TIMER/
STEREO STAND BY
– CHANNEL +
– VOLUME +
or
All of the menus will be set to the factory preset
condition in the selected language.
4 Press VOLUME – to start AUTO SET UP.
– VOLUME +
CONTINUE TO
AUTO PROGRAM?
5 Press CHANNEL + to preset channels.
AUTO PROGRAM
YES
NO
:
:
[]
+
CH
[]
–
CH
EN
Before you start using AUTO SET UP, be sure to
connect the antenna or cable to the projection
TV (see page 6).
1 Press POWER to turn the projection TV on.
POWER
2 Press SETUP on the front of the projection
TV.
AUTO SET UP screen appears.
+
[
]
to exit.
[
[
[
[
]
CH
–
]
CH
]
+
VOL
]
–
VOL
TV/VIDEO
SETUP
ENGLISH :
ESPAÑOL :
FRANÇAIS :
AUTO SET UP :
DEMO :
[
Press
SET UP
“AUTO PROGRAM” appears on the screen and the
TV starts scanning and presetting channels
automatically. When all the receivable channels are
stored, “AUTO PROGRAM” disappears and the
following menu appears. If the projection TV
receives cable TV channels, CABLE is set to ON
automatically.
CONTINUE TO
CONVERGENCE?
YES
NO
:
:
+
[]
CH
[]
–
CH
To exit AUTO PROGRAM
Press any button.
6 Adjust convergence.
(1) Press CHANNEL +.
The CONVERGENCE adjustment screen
appears.
]
R
G
B
B
G
R
CONVERGENCE
–
VOL
/ BLUE
RED
E
R=Red
G=Green
B=Blue
[]CH+
[]CH–
xit
:
RED
[]
+[]
VOL
[]
:
TV/VIDEO
[]
:
SET UP
Getting Started
17
-EN
(2) Press TV/VIDEO to select RED or BLUE.
– VOLUME + – CHANNEL +
–
RED
[]CH+
[]CH–
/ BLUE
xit
E
:
RED
[]
VOL
[]
:
TV/VIDEO
[]
:
SET UP
TV/VIDEO
CONVERGENCE
VOL
(3) Using CHANNEL +/– or VOLUME +/–, move
the line until it converges with the center green
line.
B
G+R
CONVERGENCE
VOL
B
G+R
To move horizontal line up/down, press CHANNEL
+/–.
To move vertical line right/left, press VOLUME +/–.
–
RED
[]CH+
[]CH–
/ BLUE
E
xit
:
:
:
RED
[]
VOL
[]
TV/VIDEO
[]
SET UP
Erasing or adding channels
After AUTO SET UP, you can erase unnecessary
+[]
+[]
channels or add the channels you want. Preset channels
during the day rather than late at night, when some
channels may not be broadcasting.
TV (FUNCTION)
1 2 3
4 5 6
7 809
.
0 – 9 buttons
ENTER
>
MENU
(4) Repeat steps (2) and (3) to adjust the other lines
until all three lines converge and are seen as a
white cross.
:
[]CH+
[]CH–
/ BLUE
E
xit
BLUE
[]
VOL
[]
:
TV/VIDEO
[]
:
SET UP
White cross
CONVERGENCE
–
VOL
RED
Note
• Using the AUX connector, press TV (black button) first and
make sure that “AUX” is displayed beside the channel number
on the screen. Then follow the steps 2 to 6 above to perform
AUTO SET UP.
To preview the main functions (DEMO)
Press TV/VIDEO on the projection TV in step 4. The
functions and menus are displayed one by one.
To exit DEMO
Press any button.
CH +/–
+[]
1 Press TV (FUNCTION).
FUNCTION
TV
2 Press MENU.
The main menu appears.
VIDEO
MENU
MODE : STANDARD
HUE
COLOR
BRIGHTNESS
SHARPNESS
TRINITONE : HIGH
MENU
CC
Use
Exit
MENU
3 Press V or v to select , and press .
The SET UP menu appears.
18
-EN
Getting Started
SET UP
CHANNEL ERASE/ADD
CHANNEL CAPTION
CHANNEL BLOCK
FAVORITE CHANNEL
CABLE : ON
AUTO PROGRAM
VIDEO LABEL
LANGUAGE : ENGLISH
CC
CONVERGENCE
MENU
Use
Exit
MENU

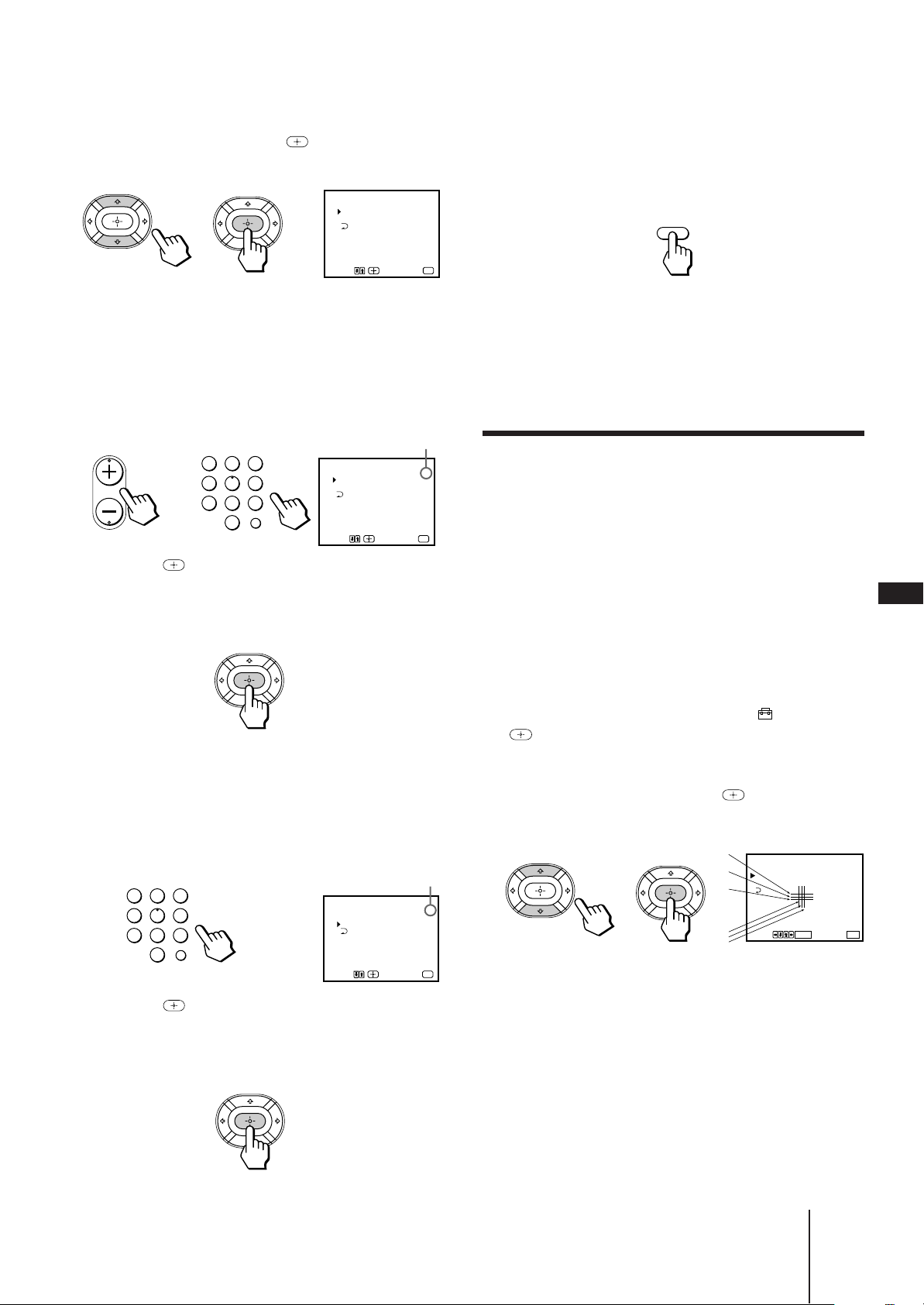

4 Press V or v to select CHANNEL ERASE/ADD,
Use
RETURN
Ex
MENU
it
RED
BLUE
MENU
CONVERGENCE
+
+
and press .
The CHANNEL ERASE/ADD menu appears.
CHANNEL ERASE/ADD
ERASE
ADD
MENU
]or [CH+/–]
Use[0 – 9
to select the channel.
Use Exit
MENU
6 To erase and/or add other channels, repeat
step 5.
7 Press MENU to return to the original screen.
33
MENU
5 Erase and/or add channels:
To erase an unwanted channel
(1) Make sure the cursor (z) is beside ERASE.
(2) Press CH +/– or the 0 – 9 buttons to select the
channel you want to erase, and press ENTER.
CH
1 2 3
or
4 5 6
7 809
ENTER
(3) Press .
The “–” indication appears beside the channel
number, showing that the channel is erased
from the preset memory.
To add a channel that you want
(1) Press V or v to move the cursor (z) to ADD.
(2) Press the 0 – 9 buttons to select the channel you
want to add, and press ENTER.
1 2 3
4 5 6
7 809
ENTER
(3) Press .
The “+” indication appears beside the channel
number, showing that the channel is added to
the preset memory.
Selected channel number
CHANNEL ERASE/ADD
ERASE
ADD
MENU
]or [CH+/–]
Use[0 – 9
to select the channel.
Use Exit
Selected channel number
CHANNEL ERASE/ADD
ERASE
ADD
MENU
Use Exit
MENU
MENU
33
Notes
• If you erase or add a VHF or UHF channel, the cable TV
channel with the same number is also erased or added, and
vice versa.
• Erasing and adding channels is also available for the AUX
input.
33
Adjusting convergence
(CONVERGENCE)
The projection tube image appears on the screen in
three layers (red, green and blue). If they do not
converge, the color is poor and the picture blurs. To
EN
correct this, adjust convergence.
You do not have to do this procedure if you perform
AUTO SET UP (page 17). Do this procedure only
when you want to adjust it manually.
1 Press MENU.
2 Press V or v to select , and press .
3 Press V or v to select CONVERGENCE, and
press .
The CONVERGENCE adjustment screen appears.
R
G
B
B
G
R
R=Red
G=Green
B=Blue
Getting Started
19
-EN

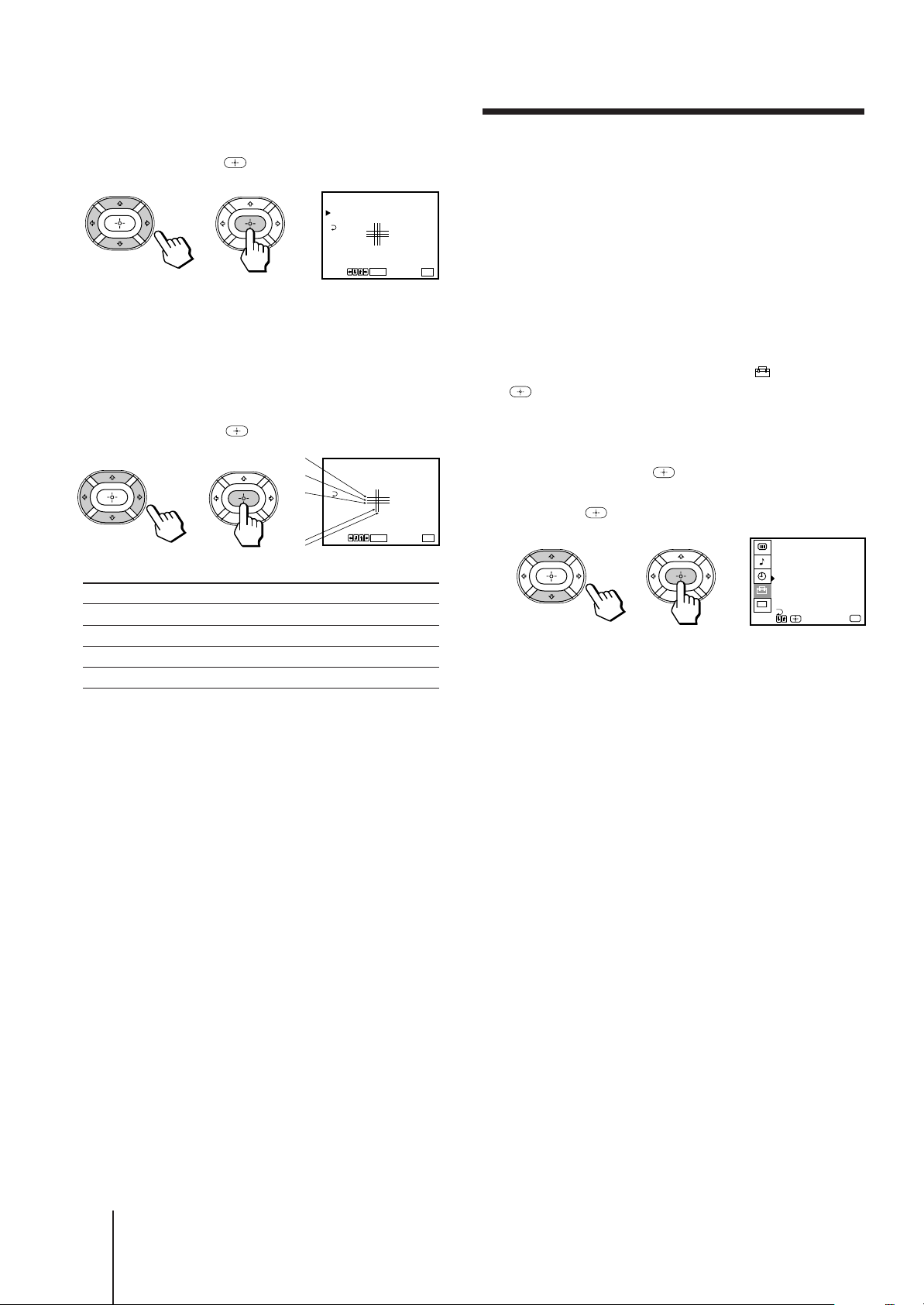

4 Press V, B, v, or b to move the cursor (z) to
the symbol showing the line you want to
adjust, and press .
CONVERGENCE
+
RED
+
BLUE
MENU
Use
RETURN
it
Ex
MENU
Setting cable TV on or off
If you have connected the projection TV to a cable TV
system, set CABLE to ON (the factory setting). If not,
set CABLE to OFF.
You do not have to do this procedure if you perform
AUTO SET UP (page 17). Do this procedure only when
you want to set it manually.
+RED : Red vertical and horizontal line (left/right/up/
down adjustment)
+BLUE :Blue vertical and horizontal line (left/right/up/
down adjustment)
5 Press V, B, v, or b to move the line until it
converges with the center green line, and
press .
R
CONVERGENCE
G
+
RED
+
Use
BLUE
MENU
RETURN
Ex
B
B
G+R
To move Press
Up V
Down v
Right b
Left B
6 Repeat steps 4 and 5 to adjust the other
lines until all three lines converge and are
seen as a white cross.
1 Press MENU.
2 Press V or v to select , and press .
3 Set CABLE to ON or OFF:
(1) Press V or v to move the cursor (z) to CABLE,
and press .
(2) Press V or v to select ON or OFF, and press .
SET UP
CHANNEL ERASE/ADD
CHANNEL CAPTION
CHANNEL BLOCK
FAVORITE CHANNEL
CABLE : OFF
AUTO PROGRAM
VIDEO LABEL
LANGUAGE : ENGLISH
CC
MENU
it
CONVERGENCE
Use
MENU
Exit
MENU
4 Press MENU to return to the original screen.
Note
• If CABLE appears in gray, the projection TV is set to a video
input and you cannot select CABLE. Press TV (black button) so
that a channel number appears.
7 Press MENU to return to the original screen.
-EN
20
Getting Started

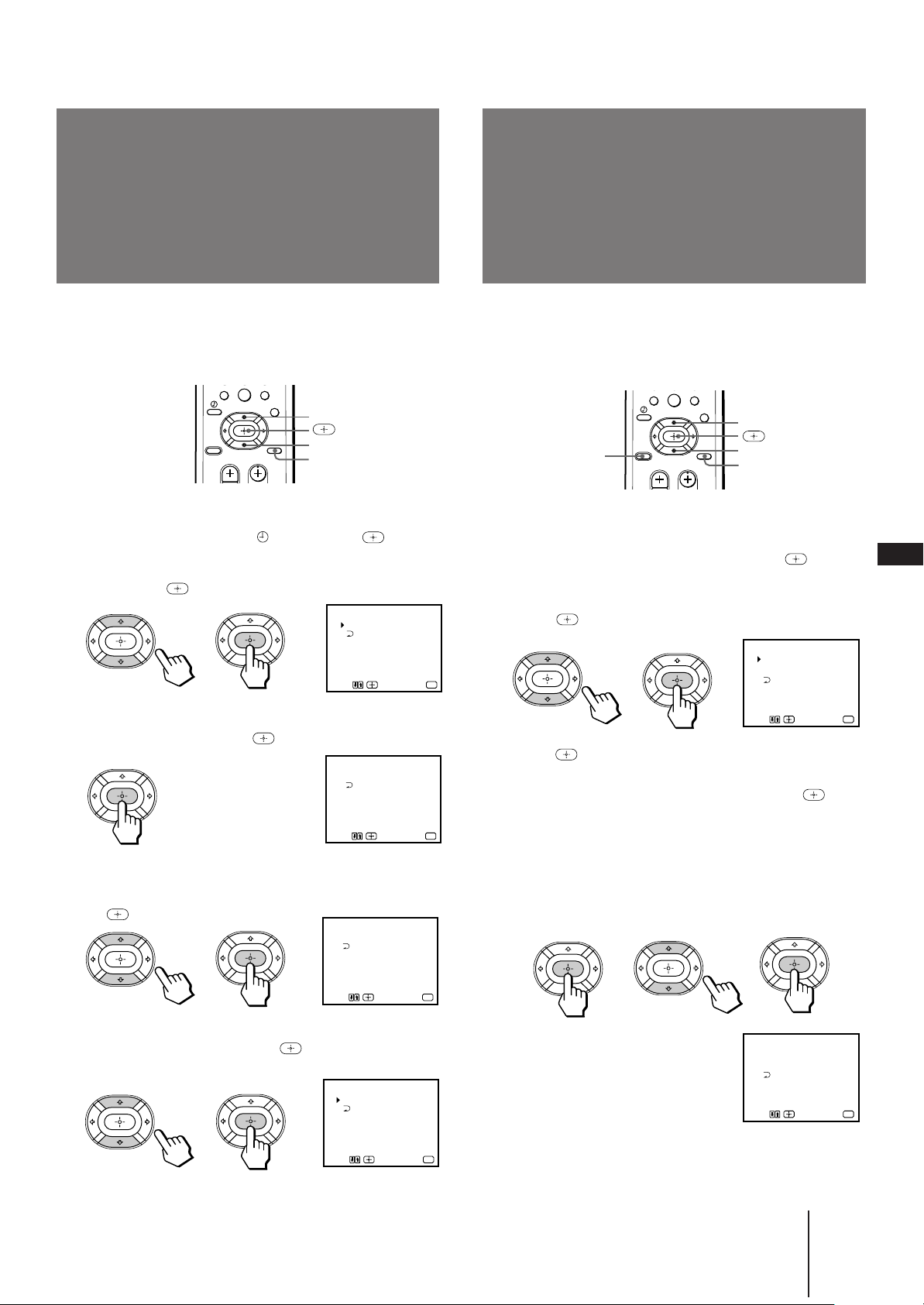

Presetting channels
You can preset TV channels easily by using the AUTO
PROGRAM feature.
You do not have to do this procedure if you perform
AUTO SET UP (page 17). Do this procedure only when
you want to set it manually.
1 Press MENU.
Changing the
menu language
2 Press V or v to select , and press .
3 Press V or v to select AUTO PROGRAM, and
press .
AUTO PROGRAM
“AUTO PROGRAM” appears on the screen and the
projection TV starts scanning and presetting
channels automatically. When all the receivable
channels are stored, “AUTO PROGRAM”
disappears and the lowest numbered channel is
displayed.
4 Press MENU to return to the original screen.
To exit AUTO PROGRAM
Press any button.
Notes
• If the AUTO PROGRAM menu appears in gray, the projection
TV is set to a video input and you cannot select AUTO
PROGRAM. Press TV (black button) so that a channel number
appears.
• Presetting channels is also available for the AUX input.
If you prefer Spanish or French to English, you can
change the menu language.
You do not have to do this procedure if you select the
language during AUTO SET UP (page 17).
Do this procedure only when you want to set it
manually.
1 Press MENU.
2 Press V or v to select , and press .
3 Press V or v to select LANGUAGE, and press
.
SET UP
CHANNEL ERASE/ADD
CHANNEL CAPTION
CHANNEL BLOCK
FAVORITE CHANNEL
CABLE : ON
AUTO PROGRAM
VIDEO LABEL
LANGUAGE : ENGLISH
CC
CONVERGENCE
Use
MENU
Exit
4 Press V or v to select your favorite
language, “ENGLISH”, “ESPAÑOL,” or
“FRANÇAIS” and press .
PREFERENCIAS
BORRAR/AÑADIR CANAL
NOMBRE DEL CANAL
BLOQUEAR CANAL
CANAL FAVORITO
CABLE : SI
AUTO PROGRAMACION
ETIQUETA DE VIDEO
LENGUAJE : ESPA
CC
CONVERGENCIA
MENU
Use
Ñ
Exit
EN
MENU
OL
MENU
5 Press MENU to return to the original screen.
Note
• Certain parts of the Spanish or French menus remain in
English.
Getting Started
21
-EN
Operations

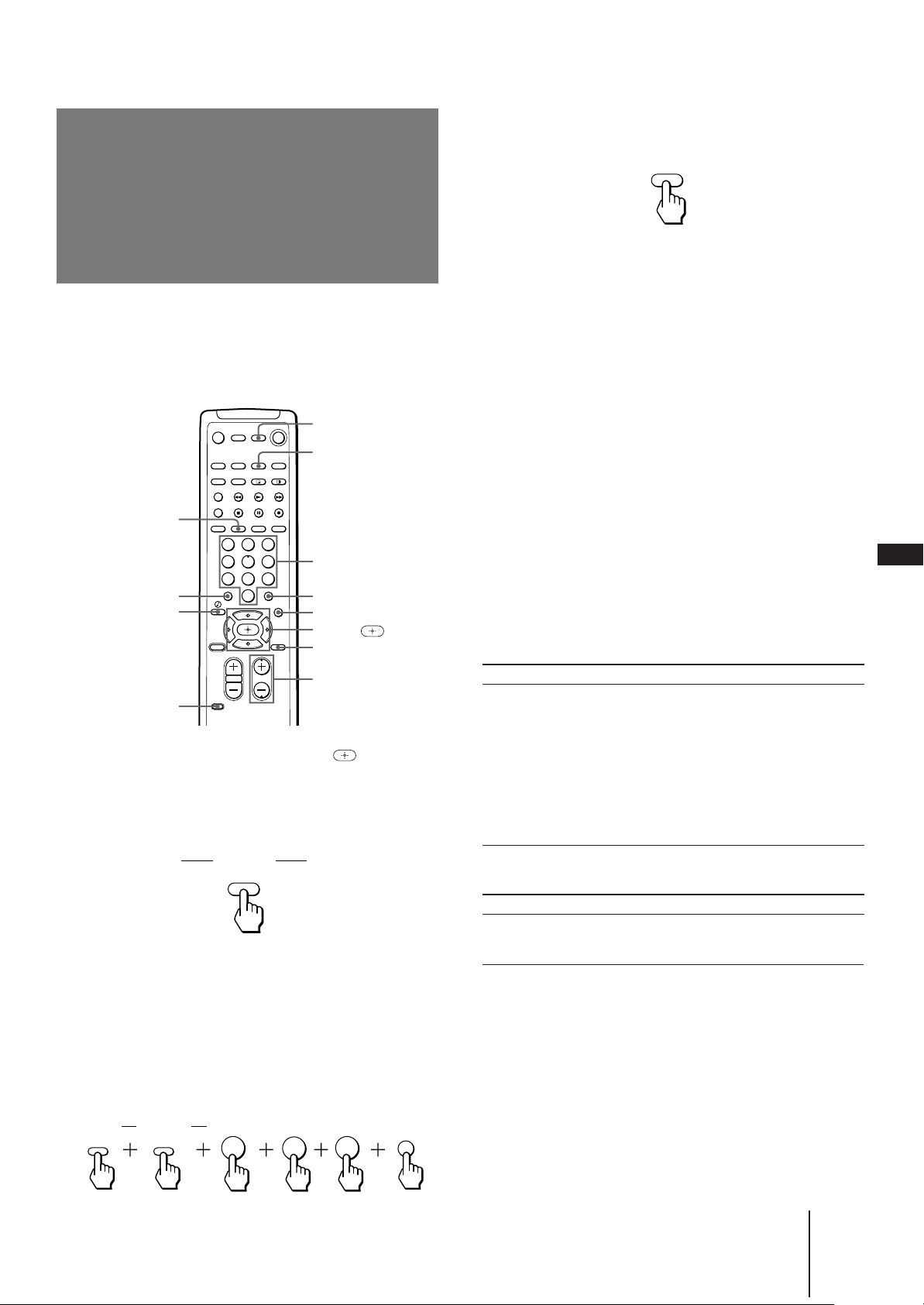

Watching the TV
MUTING
TV (POWER)
TV (FUNCTION)
3 Select the channel you want:
To select a channel directly
Press the 0 – 9 buttons, and press ENTER.
For example, to select channel 10, press 1, 0 and
ENTER.
To scan through channels
Press CH +/– until the channel you want appears.
1 2 3
4 5 6
7 809
CH
ENTER
DISPLAY
SLEEP
1 2 3
4 5 6
7 809
JUMP
VOL +/–
TV/VIDEO
TV (black button)
0 – 9 buttons
ENTER
CH +/–
1 Press TV (POWER) to turn on the projection
TV.
The TIMER/STANDBY indicator flashes until the
picture appears.
POWER
TV
The channel can also be selected without pressing
ENTER.
4 Press VOL +/– to adjust the volume.
VOL
VOLUME
Switching quickly between two
channels
You can use the JUMP button to switch or “jump” back
and forth between two channels.
Press JUMP.
JUMP
If “VIDEO” appears on the screen, press TV (black
button) so that a channel number appears.
2 Press TV (FUNCTION).
FUNCTION
TV
Once you press TV (FUNCTION), the projection TV
function is set unless another function button is
pressed.
-EN
22
Operations
Pressing JUMP again switches the channel back to the
one you selected last.
Note
• You cannot jump to channels you scanned through using the
CH +/– buttons.
Muting the sound
Press MUTING.
“MUTING” appears on the screen.
MUTING
To restore the sound, press MUTING again, or press
VOL +.
Displaying on-screen information
Watching a video input picture
Press DISPLAY repeatedly until the desired
display appears.
Each time you press DISPLAY, the display changes as
follows:
Status display* n XDS ON** n cc 1 ON***
N
DISPLAY OFF N
DISPLAY
* Channel number, the current time, channel caption
(if set), and MTS mode (if SAP is selected) are
displayed. SAP indication disappears after three
seconds.
** Some programs are broadcast with XDS (Extended
Data Service) which shows a network name,
program name, program type, program length, call
letters, and time of the show. When you select XDS
with the DISPLAY button, this information will be
displayed on the screen if the broadcaster offers this
service.
*** Some programs are broadcast with Caption Vision.
When you select Caption Vision with the DISPLAY
button, Caption Vision will be displayed on the
screen if the broadcaster offers this service. (See
page 38 for selecting Caption Vision.)
Press TV/VIDEO repeatedly until the desired
video input appears.
Each time you press TV/VIDEO, the display changes
as follows:
TV n VIDEO 1 n VIDEO 2 n VIDEO 3
N
TV/VIDEO
To return to the TV picture, press TV (black button) so
that a channel number appears.
Changing the VHF/UHF input to the
AUX input
Press TV (black button).
“AUX” appears beside the channel number.
TV
EN
To cancel the display, press DISPLAY repeatedly until
“DISPLAY OFF” appears. “DISPLAY OFF” goes off
after three seconds.
Setting the Sleep Timer
The projection TV stays on for the length of time you
specify and then shuts off automatically.
Press SLEEP repeatedly until the time (minutes)
you want appears.
Each time you press SLEEP, the time changes as
follows:
30 n 60 n 90 n SLEEP OFF
N
SLEEP
To cancel the Sleep Timer, press SLEEP repeatedly
until “SLEEP OFF” appears, or turn off the projection
TV.
Pressing TV (black button) again switches back to the
VHF/UHF input.
Operations
23
-EN
Watching two
Displaying a left picture (P&P)
programs at one
time — PIP/P&P
(Twin View™)/CH INDEX

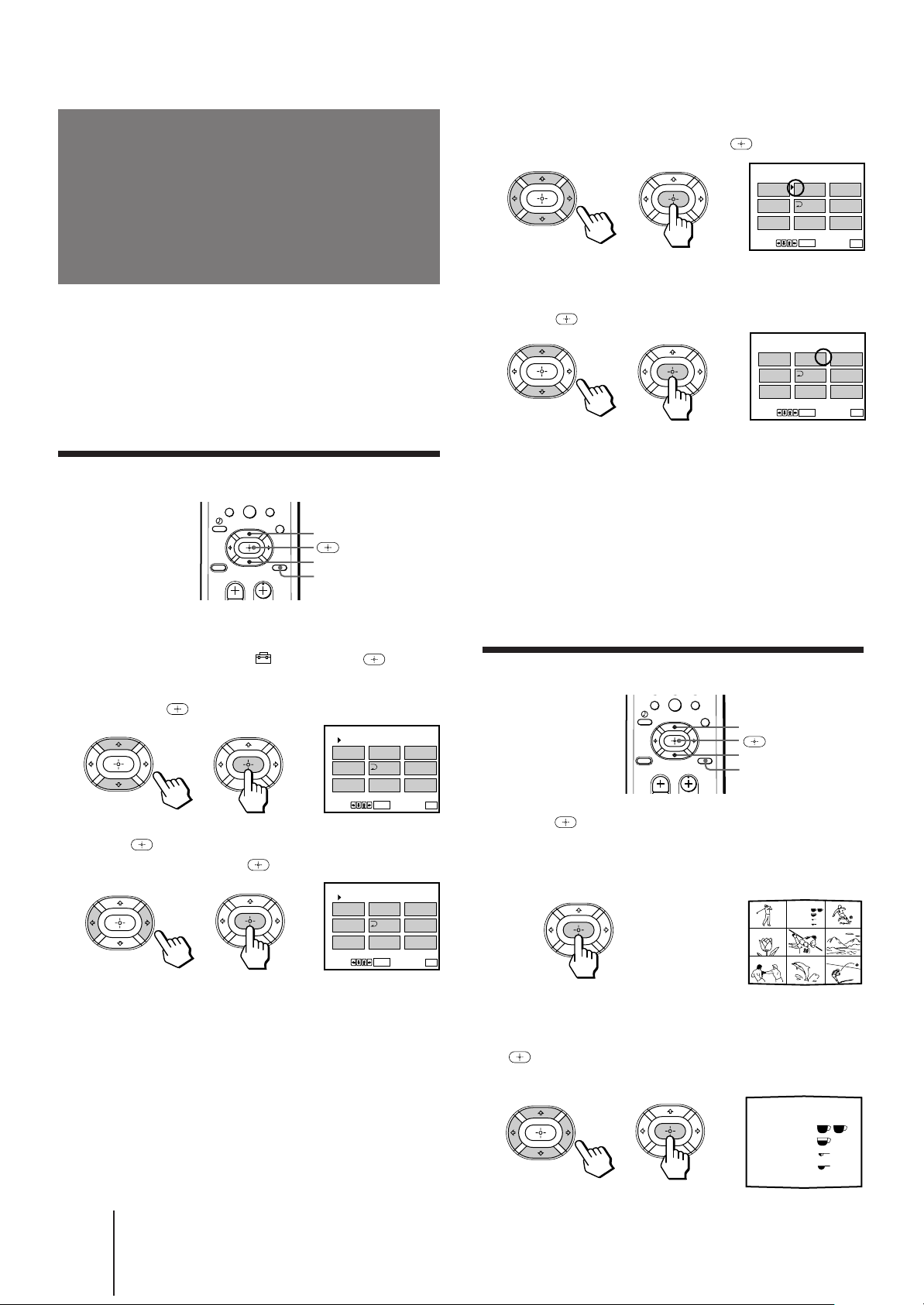

You can watch both the main/right picture and a
window/left picture simultaneously using the Picturein-Picture (PIP) or the Picture-and-Picture (Twin
View™) feature.
CH INDEX
PIP OFF
FREEZE
CH +/– (yellow
labelled button)
POSITION
AUDIO
Use the yellow labelled buttons for PIP operations.
SWAP
TV/VIDEO (yellow
labelled button)
Press .
Input-source mode or TV
channel for the left picture
Input-source mode
or TV channel for
the right picture
Left picture Right picture
To restore the normal picture, press PIP OFF.
Notes
• If the main/right picture is not receiving an image, the
window/left picture may become a noisy picture.
• The window/left picture sound is also output from the
AUDIO (VAR/FIX) OUT jacks when you listen to it.
Changing the window/left picture
input mode
67
Displaying a window picture (PIP)
Press .
Input-source mode or TV
channel for the main picture
Main picture
Window picture
(1/4 size)
Input-source mode or TV
channel for the window picture
Press repeatedly to display a smaller
window picture.
Each time you press , the size of the window picture
changes as follows: 1/4 size n 1/9 size n 1/16 size.
To remove the window picture, press PIP OFF.
6
7
Press TV/VIDEO (yellow labelled button) in PIP
or P&P mode to select the input mode.
Each time you press TV/VIDEO (yellow labelled
button), “TV,” “VIDEO 1,” “VIDEO 2,” and “VIDEO 3”
appear in sequence.
1 6
TV/VIDEO
A window/left picture will appear in the same input
mode as the last time you used PIP.
Note
• If you connect your VCR without a cable box, your PIP input
source is a VCR. If you connect your VCR with a cable box,
your PIP input source is a VCR or cable box.
24
-EN
Operations
Listening to the sound of the window/
left picture
Swapping the main/right and window/
left pictures
Press AUDIO in PIP or P&P mode.
The display appears above the window/left picture
for a few seconds, indicating that the window/left
picture sound is being received.
The sound of the window
picture is received.
AUDIO
1 6
To restore the main picture sound, press AUDIO again.
The display moves to the main picture channel
number.
Changing TV channels in the window/
left picture
Press CH +/– (yellow labelled button) in PIP or
P&P mode.
TV/VTR
+
CH
–
6 1 7 1
Press SWAP in PIP or P&P mode.
Each time you press SWAP, the images and sound
from the main/right and window/left pictures switch
places with another.
SWAP
Note
• The channels being received through the AUX connector
cannot be displayed as a window picture.
Watching multiple TV channels at one
time (CH INDEX)
You can display all the preset channels in sequence.
1 Press CH INDEX.
The main picture is displayed in the center with a
pink frame and 12 window pictures are displayed
around the main picture.
CH INDEX
Recipe
flour - - - - 2
sugar - - - 1/2
salt - - - - - 1/2
butter - - - 1
6
EN
Changing the position of the window
Press POSITION in PIP mode.
Each time you press POSITION, the window picture
will move counterclockwise on the screen.
POSITION
Each time you press CH INDEX, the 12 window
pictures will rotate and a new picture will appear.
2 Press V, B, v or b to move the pink frame to
the channel you want to watch, and press
.
The selected channel appears on the screen.
To display eight favorite channels, press .
To return to the normal picture, press PIP OFF.
Operations
25
-EN
7 809

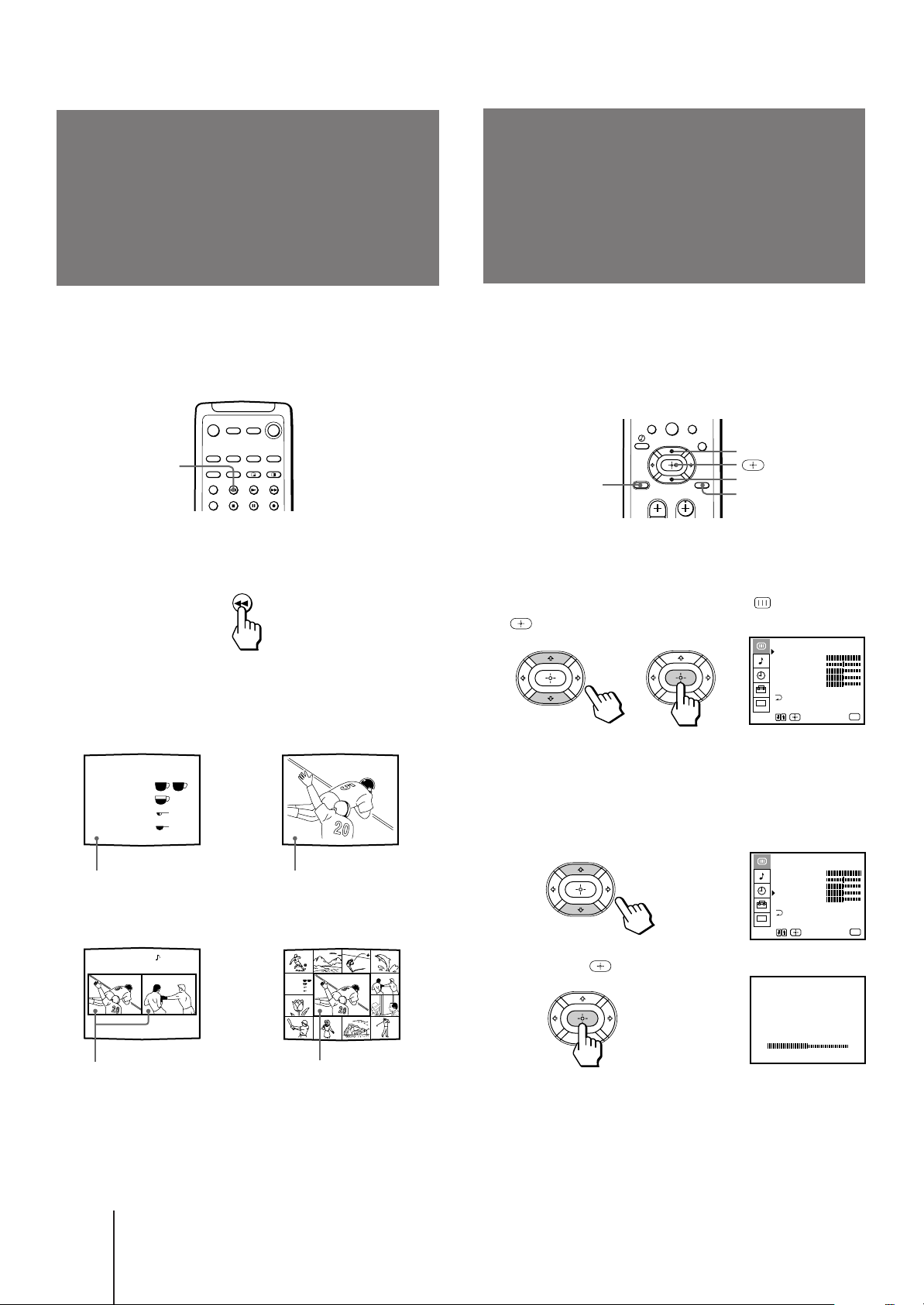

Freezing the picture
Adjusting the
(FREEZE)
The FREEZE feature is useful when you want to write
down an information such as a recipe from a cooking
program, a displayed address, or a phone number.
FREEZE
Press FREEZE.
FREEZE
The frozen picture differs depending on the current
display mode.
(VIDEO)

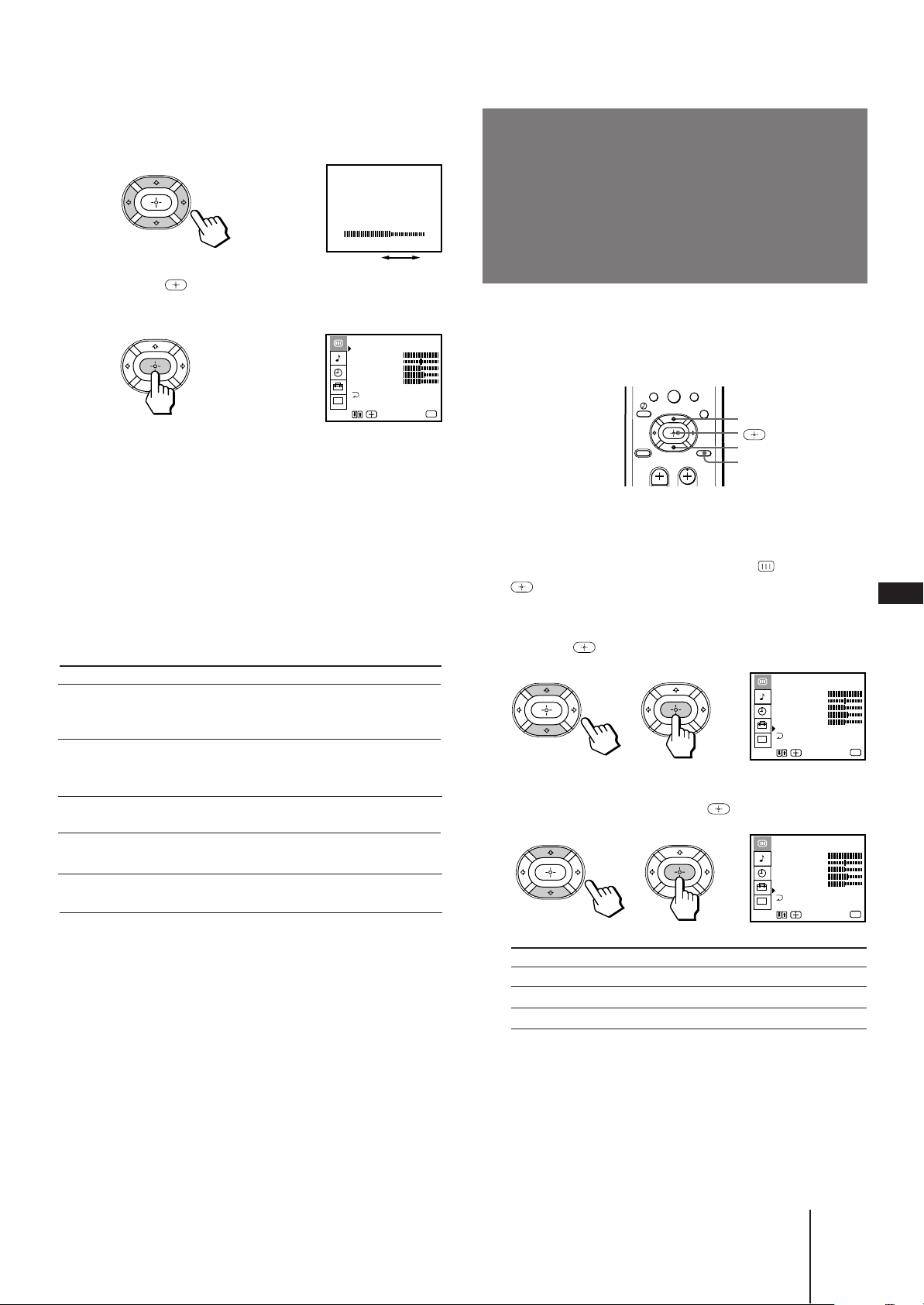

When watching TV programs, you can adjust the
picture to suit your taste.
You can adjust the picture of video input(s) as well.
V
RESET
v
MENU
1 Press MENU.
2 Press V or v to select , and press .
VIDEO
MODE : STANDARD
HUE
COLOR
BRIGHTNESS
SHARPNESS
TRINITONE : HIGH
MENU
CC
Use
Exit
MENU
Normal mode PIP mode
Recipe
flour - - - - 2
sugar - - - 1/2
salt - - - - - 1/2
butter - - - 1
The current picture freezes.
P&P mode
6 VIDEO 1
Both pictures freeze.
The main picture freezes and
the window picture
disappears.
CH INDEX mode
Reciipe
flour - - - - 2
sugar - - - 1/2
salt - - - - - 1/2
butter - - - 1
Only the main picture
freezes.
6
To cancel the frozen picture, press FREEZE again.
3 Select the item you want to adjust.
For example:
(1) To adjust the brightness, press V or v to move
the cursor (z) to BRIGHTNESS.
VIDEO
MODE : STANDARD
HUE
COLOR
BRIGHTNESS
SHARPNESS
TRINITONE : HIGH
CC
Use
(2) Press .
VIDEO STANDARD
BRIGHTNESS
MENU
Exit
MENU
-EN
26
Operations
4 Adjust the selected item:
7 809
(1) Press V, B, v, or b to adjust the item.
Adjusting the color
VIDEO STANDARD
BRIGHTNESS
(2) Press .
The new setting appears in the VIDEO menu.
VIDEO
MODE : STANDARD
HUE
COLOR
BRIGHTNESS
SHARPNESS
TRINITONE : HIGH
MENU
CC
Use
Exit
For details on each item, see “Description of
adjustable items” below.
5 To adjust other items, repeat steps 3 and 4.
6 Press MENU to return to the original screen.
Description of adjustable items
Item
HUE
COLOR
BRIGHTNESS
SHARPNESS
To restore the factory settings
Press RESET after displaying and selecting the VIDEO
menu.
All of the settings are restored to the factory settings.
Press B or v to
Decrease picture
contrast and give soft
color.
Make picture tones
become purplish.
Decrease color intensity.
Darken the picture.
Soften the picture.
Press b or V to
Increase picture
contrast and give
vivid color.
Make picture tones
become greenish.
Increase color intensity.
Brighten the picture.
Sharpen the picture.
MENU
temperature
(TRINITONE)
The TRINITONE feature controls the color
temperature, permitting white balance preference
adjustment without affecting skin tones.
V
v
MENU
1 Press MENU.
2 Press V or v to select and press .
3 Press V or v to select TRINITONE and press
.
VIDEO
MODE : MOVIE
HUE
COLOR
BRIGHTNESS
SHARPNESS
TRINITONE : HIGH
MENU
CC
Use
Exit
4 Press V or v to select NTSC STD, MEDIUM, or
HIGH and press .
VIDEO
MODE : MOVIE
HUE
COLOR
BRIGHTNESS
SHARPNESS
TRINITONE : HIGH
MENU
CC
Use
Exit
EN
MENU
MENU
Choose
HIGH
MEDIUM
NTSC STD
To
a cool (bluish) white.
a neutral white.
a warm (reddish) white.
Operations
27
-EN
Selecting the video
Adjusting the
mode
(VIDEO)
The video mode feature allows you to choose three
different modes of picture settings. Choose the one that
best suits the type of program that you want to watch.
1 Press MENU.
2 Press V or v to select , and press .
3 Press V or v to select MODE, and press .
4 Press V or v to select STANDARD, MOVIE, or
SPORTS mode, and press .
VIDEO
MODE : MOVIE
HUE
COLOR
BRIGHTNESS
SHARPNESS
TRINITONE : HIGH
MENU
CC
Use
Exit
MENU
sound
(AUDIO)
You can adjust the quality of the TV sound to suit your
taste. You can adjust the sound of the video input(s) as
well.
RESET
7 809
V
v
MENU
1 Press MENU.
2 Press V or v to select , and press .
AUDIO
TREBLE
BASS
BALANCE
EFFECT :
OFF
MTS : STEREO
SPEAKER : ON
AUDIO OUT : VARIABLE
SURROUND MODE
CC
SUPER WOOFER MODE
Use
MENU
Exit
MENU
Choose To
STANDARD Receive a standard picture.
MOVIE Receive a finely detailed picture.
SPORTS Receive a vivid, bright picture.
5 Press MENU to return to the original screen.
Note
• The settings for these modes can be adjusted in the VIDEO
menu.
3 Select the item you want to adjust.
For example:
(1) To adjust bass, press V or v to move the cursor
(z) to BASS.
AUDIO
TREBLE
BASS
BALANCE
EFFECT :
MTS : STEREO
SPEAKER : ON
AUDIO OUT : VARIABLE
SURROUND MODE
CC
SUPER WOOFER MODE
MENU
Use
(2) Press .
AUDIO
BASS
OFF
Exit
MENU
28
-EN
Operations
Loading...
