4-178-827-15(1)

LCD Digital Color TV

Setup Guide (Operating Instructions)

Setting up your TV

To watch TV

Additional Information

KDL-60EX703 / 60EX701 / 60EX700 / 55EX713 / 55EX711 / 55EX710 / 52EX703 / 52EX701 KDL-52EX700 / 46EX713 / 46EX711 / 46EX710 / 46EX703 / 46EX701 / 46EX700 / 40EX713 KDL-40EX710 / 40EX703 / 40EX700 / 32EX710 / 32EX700

Sony Customer Support

U.S.A.: www.sony.com/tvsupport Canada: www.sony.ca/support

United States Canada

1.800.222.SONY 1.877.899.SONY

Please Do Not Return the Product to the Store

Owner’s Record

The information label are located on the rear of the TV. Record model name and serial numbers on the information label in the spaces provided below. Refer to them whenever you call upon your Sony dealer regarding this TV.

Model Name

Serial No.

CAUTION

To prevent elect ric shock and blade exposure, do not use this polarized AC plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted.

• Operate the TV only on 110-240 V

AC (U.S.A./Canada 120 V AC)

• Avoid operating the TV at

temperatures below 41°F (5°C).

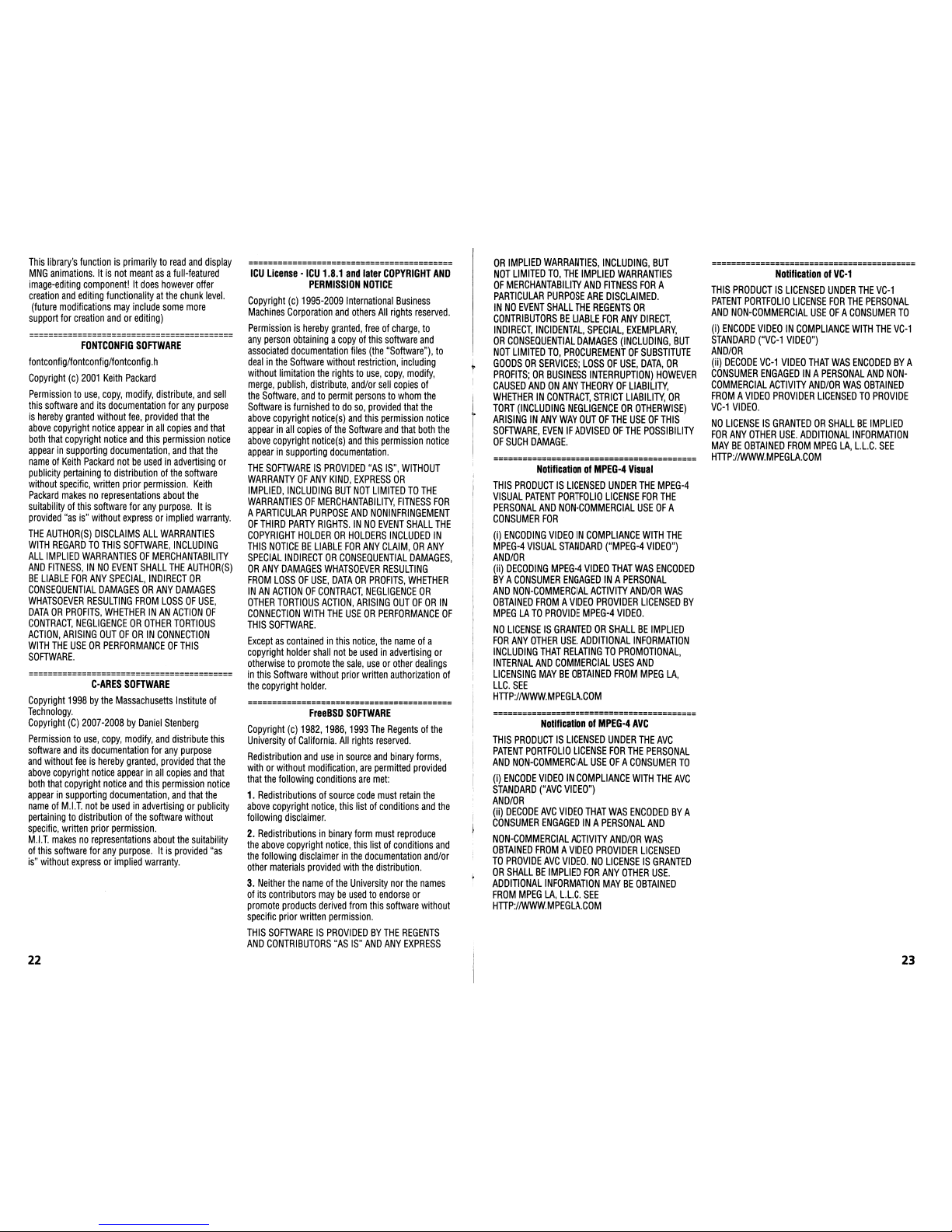

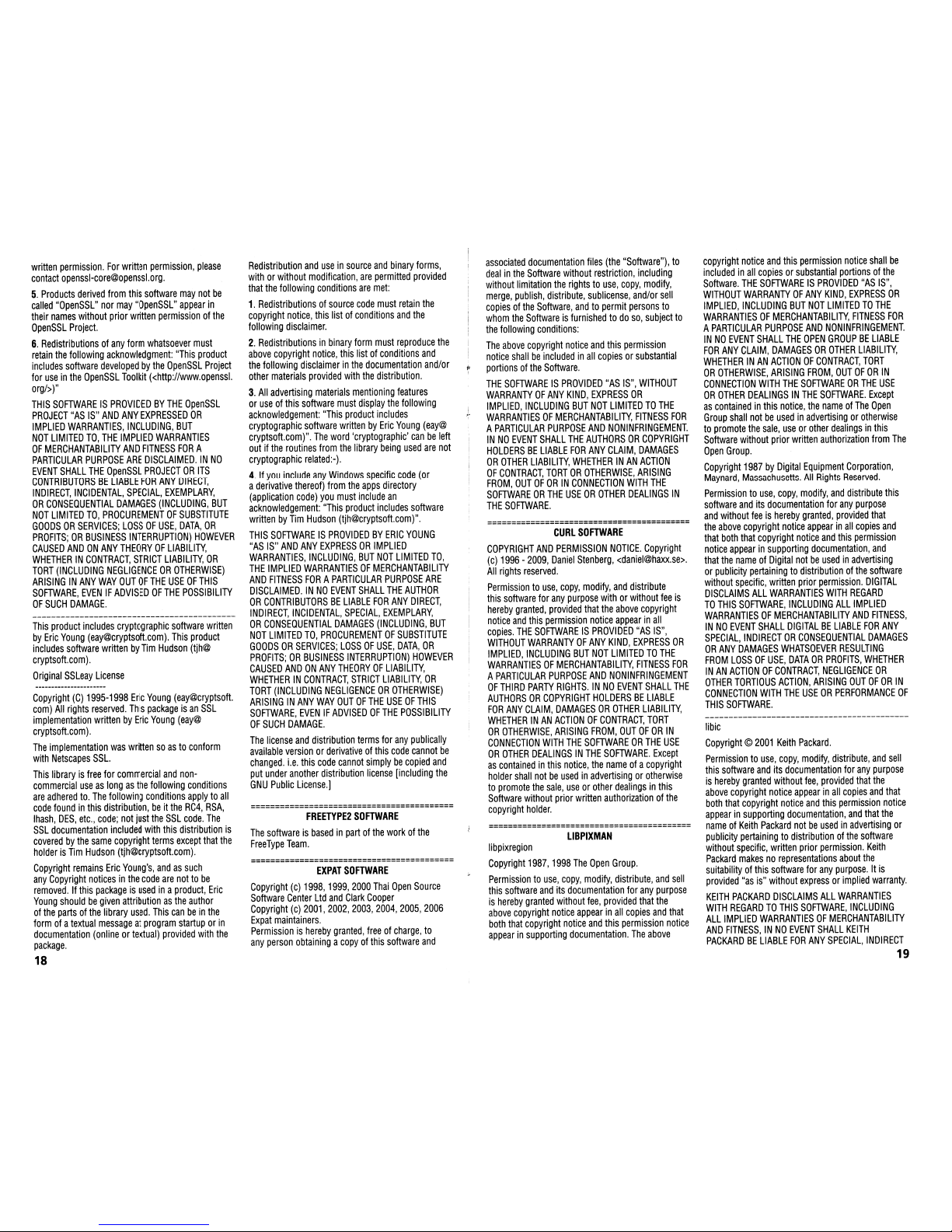

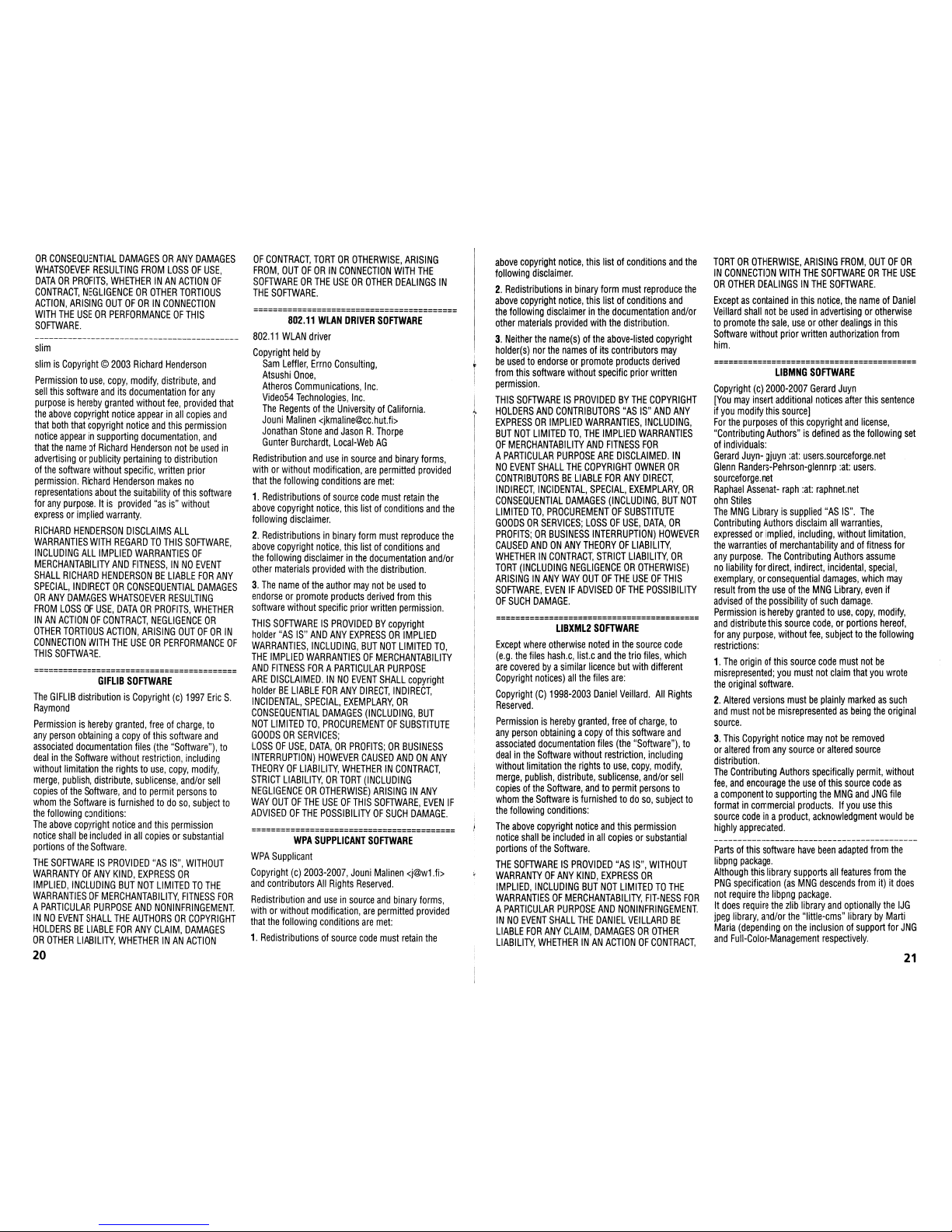

Licensing Information

Macintosh is a trademark of Apple Inc., registered in the U.S. and other countries.

HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Fergason Patent Properties, LLC: U.S. Patent No. 5,717,422 U.S. Patent No. 6,816,141

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

In the United States, TV Guide and TV Guide On Screen are registered trademarks of TV Guide Entertainment Group, Inc. and/or its subsidiaries or affiliates, and are used under a license by Gemstar-TV Guide International, Inc. and/or its subsidiaries. In Canada, TV Guide is a registered mark of Transcontinental Inc., and is used under a license by Gemstar-TV Guide International, Inc. and/or its subsidiaries.

The TV Guide On Screen system is manufactured under license from GemstarTV Guide International, Inc. and/or its subsidiaries.

The TV Guide On Screen system is protected by one or more of the following United States patents 6,498,895; 6,850,693; 6,396,546; 5,940,073; 6,239,794 to Gemstar-TV Guide International, Inc. and/or its subsidiaries.

Gemstar-TV Guide International, Inc. and/or its related affiliates are not in any way liable for the accuracy or availability of the program schedule information or other data in the TV Guide On Screen system and cannot guarantee service availability in your area. In no event shall Gemstar-TV Guide International, Inc. and/or its related affiliates be liable for any damages in connection with the accuracy or availability of the program schedule information or other data in the TV Guide On Screen system.

Blu-ray Disc is a trademark.

“BRAVIA” and , S-Force, Motionflow, BRAVIA Sync, and are trademarks or registered marks of Sony Corporation.

“XMB” and “xross media bar” are trademarks of Sony Corporation and Sony Computer Entertainment Inc.

“PlayStation” is a registered trademark and “PS3” is a trademark of Sony Computer Entertainment Inc.

DLNA

, the DLNA Logo and DLNA CERTIFIED or certification marks of the Digital Living Network Alliance.

Your BRAVIA TV is ENERGY STAR in the “Home” mode. It meets strict energy efficiency guidelines set by the U.S. Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of these government agencies, designed to promote energy efficient products and practices.

Changes to certain features, settings, and functionalities of this TV (i.e. TV Guide, Picture/Sound, Light Sensor, Power Savings) can increase or change the power consumption.

Depending upon such changed settings, the power consumption may exceed the limits required for the ENERGY STAR qualification in the “Home” mode.

The 32 class has a 31.5 inch viewable image size (measured diagonally).

are trademarks, service marks,

qualified

• The illustrations of the remote

control used in this manual are of the RM-YD033 unless otherwise stated.

The BRAVIA® Full HDTV Experience

Thank you for choosing Sony! Your new BRAVIA® TV opens the door to the “Full HDTV Experience.” This document will help you get the most out of your TV.

Please take a moment to register your TV at:

U.S.A.: http://productregistration.sony.com Canada: http://www.SonyStyle.ca/registration

Four Steps to a Full HD Experience

Set, Source, Sound, and Setup.

1 Set

Now that you have made the best selection in LCD TV technology, be sure to remove all accessory contents from the packaging before setting up your TV.

2 Source

To experience the stunning detail of your BRAVIA TV, you need access to HD programming.

• Upgrade your signal or content source to highdefinition (HD) by contacting your HD service provider.

This TV displays all video input signals in a resolution of 1,920 dots × 1,080 lines.

• Receive over-the-air HD broadcasts with an HDquality antenna connected directly to the back of your TV.

Visit www.antennaweb.org for more information on antenna selection and setup.

• Discover the wealth of entertainment now available on super-high resolution Blu-ray Disc™ player and other Sony HD equipment.

3 Sound

Complete the high-definition experience with a BRAVIA Sync™ surround sound system or A/V receiver from Sony.

4 Setup

Install your TV and connect your sources. See page 6 for sample connection diagrams.

To help assure the highest quality for your HD experience, use Sony HDMI (High-Definition Multimedia Interface) cables.

To learn more about HDTV, visit:

U.S.A.: http://www.sony.com/HDTV Canada: http://www.SonyStyle.ca/hd

Table of Contents

Checking the accessories..............................................................................................................4

Inserting batteries into the remote control .....................................................................................4

Setting up your TV

Attaching the Table-Top Stand......................................................................................................5

Connecting the TV.........................................................................................................................6

Securing the TV...........................................................................................................................10

Organizing the AC power cord ....................................................................................................11

Running initial setup ....................................................................................................................11

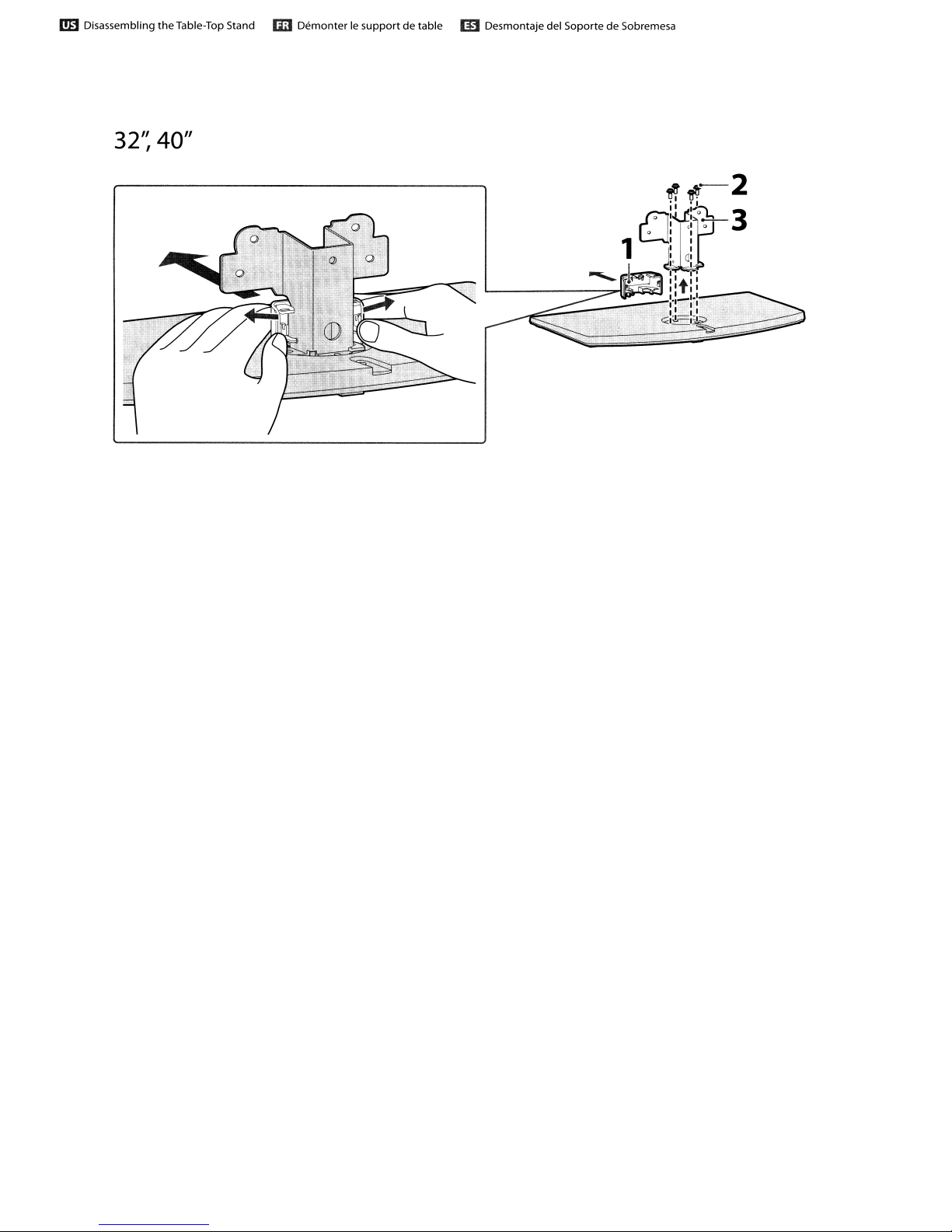

Detaching the Table-Top Stand from the TV...............................................................................12

Using a Wall-Mount Bracket........................................................................................................13

Installing the TV Against a Wall or Enclosed Area ......................................................................13

To watch TV

To watch programs......................................................................................................................14

To use the TV features................................................................................................................14

To use i-Manual...........................................................................................................................15

Additional Information

Troubleshooting...........................................................................................................................16

Specifications ..............................................................................................................................18

• Operating instructions are built into your BRAVIA TV. Refer to “To use i-Manual” for operation

(page 15).

• Retain this manual for future reference.

Checking the accessories

AC power cord (1) Table-Top Stand (1)*

(except KDL-60EX700/60EX701/60EX703 models)

Stand Rear Cover (1)* Fixing screws for Table-Top Stand (M5 × 16) (4) (except KDL-60EX700/

60EX701/60EX703 models)

Assembling Screws for Table-Top Stand (M5 × 16) (4) (for KDL-40EX713/

40EX710/40EX700/40EX703/32EX710/ 32EX700 models)

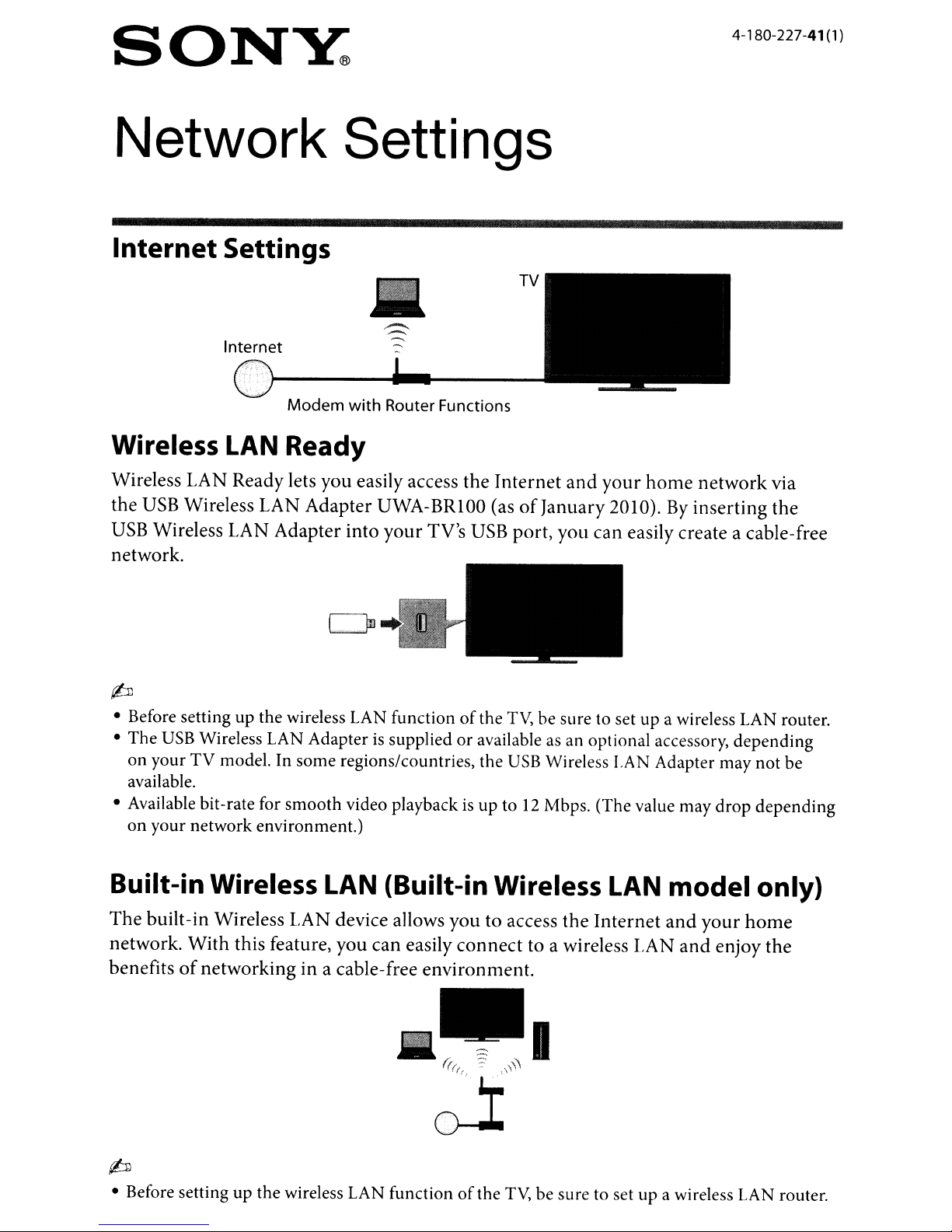

Remote control (1)* Size AAA batteries (2) USB Wireless LAN Adapter UWA-BR100 (1)

(for KDL-55EX711/46EX711 and KDL60EX701/52EX701/46EX701 models)

*1 The 32" and 40" models require assembling.

Refer to other leaflet to assemble the Table-Top Stand.

*2 The Stand Rear Cover is attached to the Table-

Top Stand for 46, 52, 55 and 60 inch models.

*3 Please refer to the model name printed on the

remote control.

Guidelines for Remote Control

• Point your remote control directly at the IR sensor located on your TV.

• Make sure that no objects are blocking the path between the remote control and the IR sensor on your TV.

• Fluorescent lamps can interfere with your remote control; try turning off the fluorescent lamps.

• If you are having problems with the remote control, reinsert or replace your batteries and make sure that they are correctly inserted.

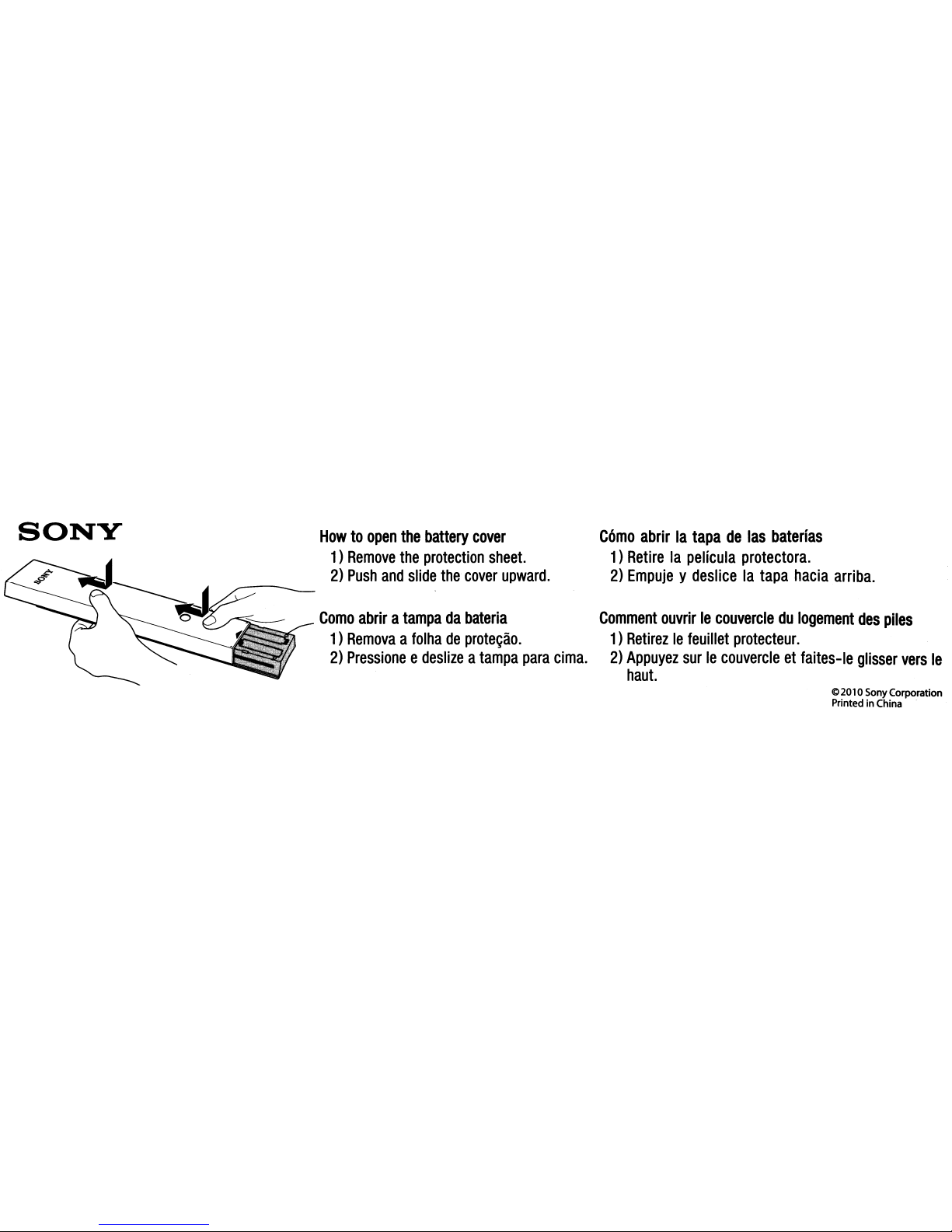

Inserting batteries into the remote control

1 Remove the protection sheet. 2 Push and slide the cover upward.

Setting up your TV

Some TV models are packaged with a detached Table-Top Stand so you can mount your TV to a wall right away. If you are not mounting the TV to a wall, you will need to attach the Table-Top Stand. You will need a Phillips screwdriver and the supplied screws to complete the task. Look for the attachment instructions provided with the TV. Be sure to consider the following while setting up your TV:

• Disconnect all cables when carrying the TV.

• Carry the TV with the adequate number of people; larger size TVs require two or more people.

• Correct hand placement while carrying the TV is very important for safety and to avoid damage.

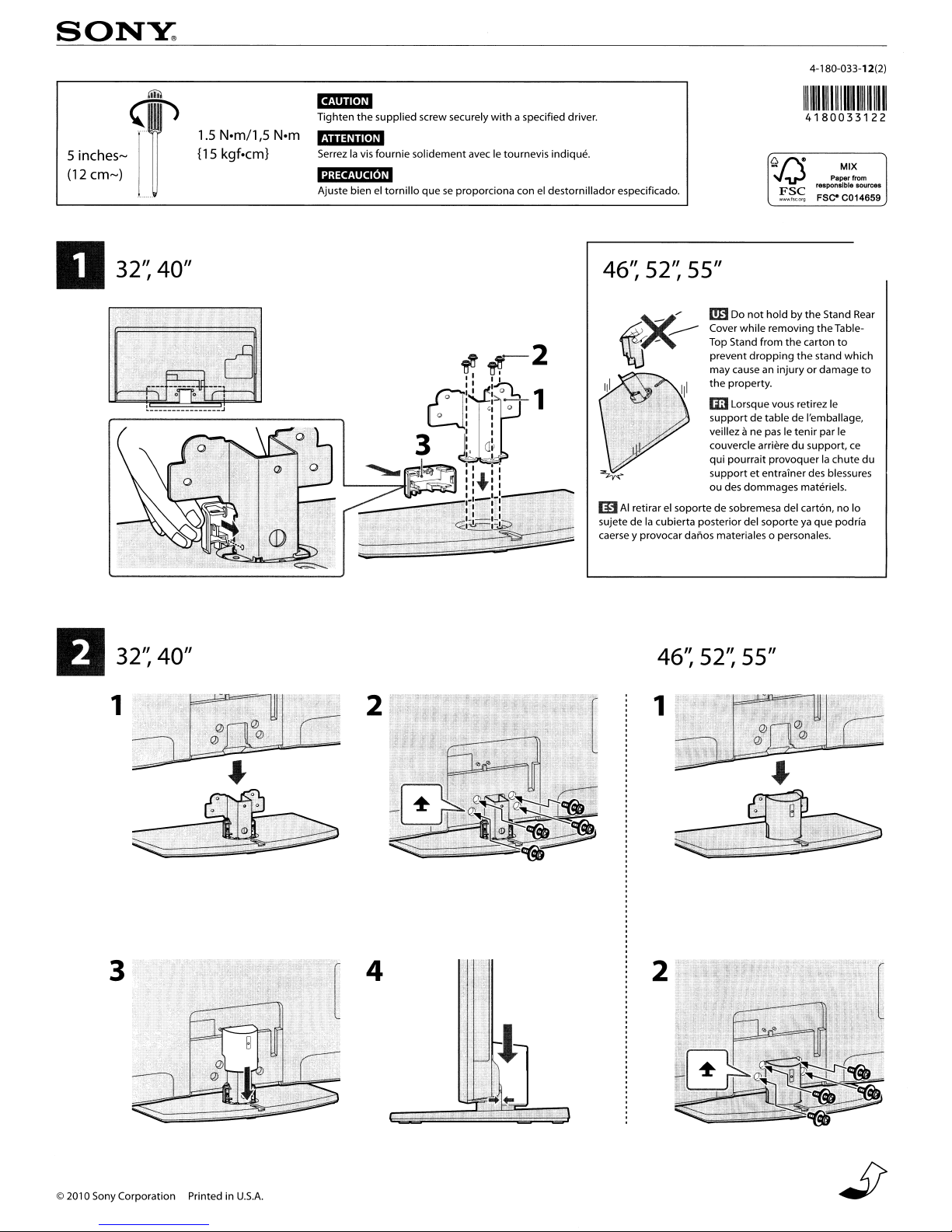

Attaching the Table-Top Stand

60EX703 models)

Refer to the supplied Table-Top Stand instruction leaflet for proper attachment.

(except KDL-60EX700/60EX701/

1 Gently slide the TV unit onto the

Table-Top Stand and align the screw holes.

• Do not put stress on the LCD panel or the frame

around the screen.

• Be careful to not pinch your hands or the AC

power cord when you install the TV unit to the Table-Top Stand.

Setting up your TV

• Ensure your TV has adequate ventilation, see page 13.

• For best picture quality, do not expose the screen to direct illumination or sunlight.

• Avoid installing the TV in a room with reflective wall and floor materials.

• Avoid moving the TV from a cold area to a warm area. Sudden room temperature changes may cause moisture condensation. This may cause the TV to show poor picture and/or poor color. Should this occur, allow moisture to evaporate completely before powering the TV on.

2 Use the supplied screws to attach the

TV unit to the Table-Top Stand.

• If you use an electric screwdriver, set the

tightening torque at approximately 1.5 N·m {15 kgf·cm}.

3 After all the screws are tighten cover

the Table-Top Stand with the supplied Stand Rear Cover.

• You can attach the TV to the Table-Top Stand

with the Stand Rear Cover on with the exception of the 32" and 40" models. The 32" and 40" models must follow the above instructions.

Connecting the TV

The following chart shows the high-definition (HD) and standard-definition (SD) video formats supported by your BRAVIA TV inputs.

* For supported PC formats refer to the i-Manual.

Recommendation of the F type plug

Projection of the inner wire from the connection part must be less than 1.5 mm.

1.5 mm

Shown with a Set Top Box with HDMI connection

Shown with a Set Top Box with COMPONENT connection

Setting up your TV

Set Top Box

Cable System or VHF/UHF Antenna System

Set Top Box

Cable or Antenna

(Continued)

Shown with HD BRAVIA® Sync™ Basic Connection

*Rear of TV

SAT (Dish)

HD Cable Box or HD Satellite Receiver

*A/V Receiver

DVD INSAT IN VIDEO 2/BD IN OUT

RLR

OPT IN

COAX IN AUDIO IN

AUDIO IN AUDIO IN

SAT

VIDEO 1

DVD

FRONT R

FRONT L SUR R SUR L CENTER SUBWOOFER

Cable/ Antenna

*Blu-ray Disc

COMPONENT

VIDEO OUT

VIDEO

OUT

DIGITAL OUT

VIDEO

AC IN

HDMI OUT

PCM/DTS/DOLBY DIGITAL

COAXIAL OPTICAL

S VIDEO

AUDIO

OUT

5.1CH OUTPUT

FRONT REAR CENTER

WOOFER

* Signifies a BRAVIA Sync capable device.

Shown with HD Basic Connection with Home Theater System

Rear of TV

Home Theater System

Cable/ Antenna

Cable/SAT (Dish)

SD Cable Box or SD Satellite Receiver

Blu-ray Disc/DVD

Shown with PC Connection with SD VCR/DVD

Rear of TV Notebook PC

Setting up your TV

Splitter

Cable/Antenna

DVDVCR

VCR/DVD Combo

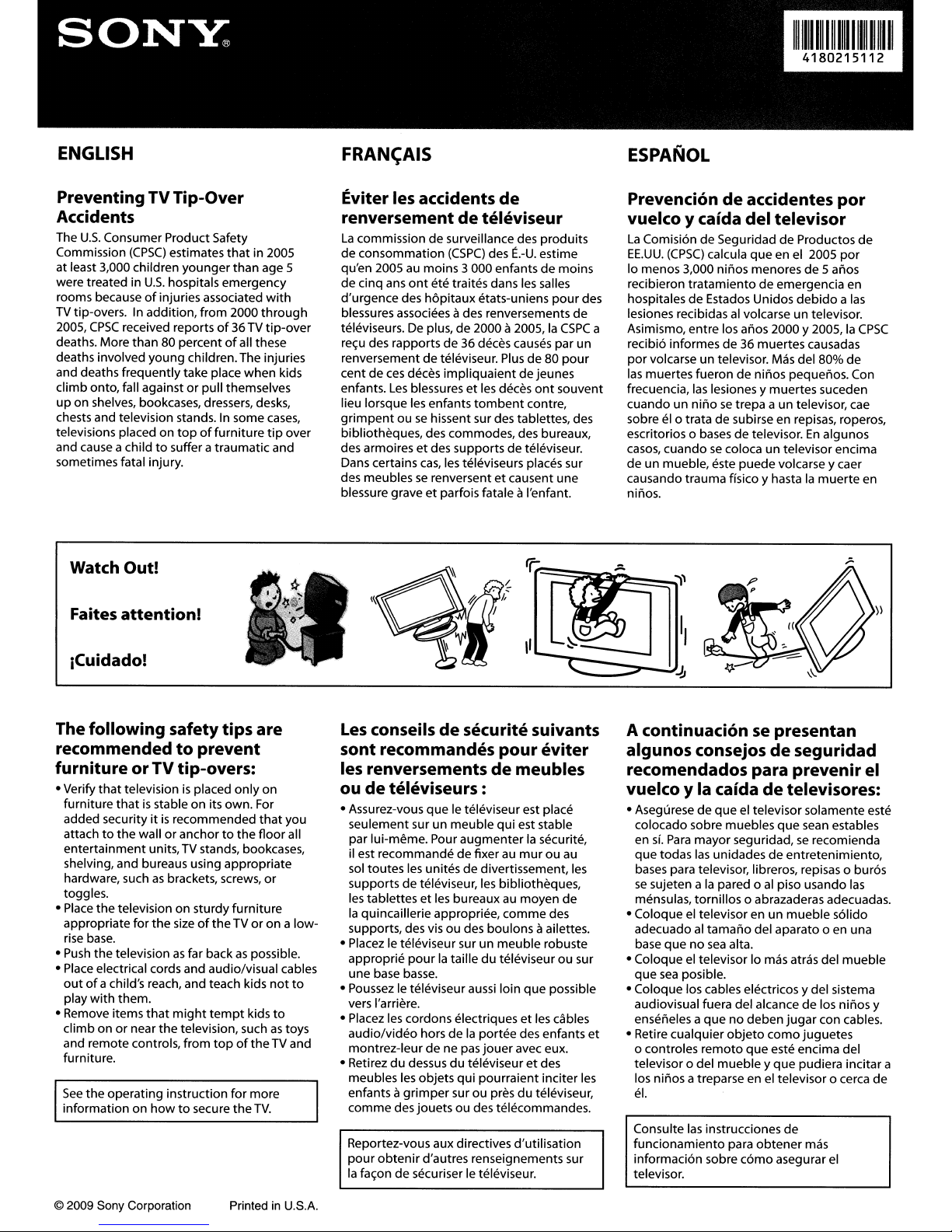

Securing the TV

Sony strongly recommends taking measures to prevent the TV from toppling over. Unsecured TVs may topple and result in property damage, serious bodily injury or even death.

Preventing the TV from Toppling

• Secure the TV to a wall and/or stand.

• Do not allow children to play or climb on furniture and TV sets.

• Avoid placing or hanging items on the TV.

• Never install the TV on:

– slippery, unstable and/or uneven surfaces. – furniture that can easily be used as steps,

such as a chest of drawers.

• Install the TV where it cannot be pulled, pushed, or knocked over.

• Route all AC power cords and connecting cables so that they are not accessible to curious children.

Recommended Measures to Secure the TV

Consider the following measures when securing your TV to a TV stand (not supplied).

1 Secure the Stand for the TV

Make sure the TV stand can adequately support the weight of the TV. Use two angle braces (not supplied) to secure the stand. For each angle brace use the appropriate hardware to:

• Attach one side of the angle brace to the wall stud.

• Attach the other side to the TV stand.

Angle brace (not supplied)

Stand

2 Secure the TV to the Stand

Use the optional hardware listed below (not supplied):

• M4 × 16 machine screw (screwed into the TV’s Table-Top Stand)

• A screw or similar (attach it to the TV stand)

• Rope or chain (strong enough to support the weight of the TV). Make sure that there is no excess slack in the rope or chain.

An alternative way to secure the TV is with an optional Sony Support Belt Kit.

M4 × 16 machine screw (not supplied)

Rope or chain (not

Screw hole on the Table-Top Stand

Contact Sony Customer Support to obtain the optional Support Belt Kit by providing your TV model name.

• For United States call: 1-800-488-7669 or visit: www.sony.com/accessories

• For Canada call: 1-877-899-7669

Screw (not supplied)

supplied)

3 Anchor the TV to the Wall

Anchor the TV to the wall by using bolts, wall anchor and chain (or rope).

• Your TV is shipped with screws attached to the rear of the TV. (They are fastened in the screw holes for wall mounting.) Be sure to remove the upper two screws prior to anchoring the TV on a wall. (Except KDL-46EX713/46EX711/ 46EX710/40EX713/40EX710/32EX710 models)

• Securing the TV to the stand without securing the TV and the stand to the wall provides minimum protection against the TV toppling over. For further protection, be sure to follow the three measures recommended.

Anchor bolts (not supplied)

Wallmount holes

Rope or chain (not supplied)

Running initial setup

POWER

1 Complete your cable connections

before proceeding with the Initial Setup.

Connect the TV to your nearest power outlet.

2 Check the ENERGY SAVING

SWITCH setting is on (z).

3 Press POWER on the TV.

When you switch the TV on for the first time, the Language menu appears on the screen.

Setting up your TV

Wall-anchor (not supplied)

Organizing the AC power cord

4 Follow the instructions on the screen.

• The ENERGY SAVING SWITCH must be

on (z) to set the clock and obtain program information for the TV Guide.

• Home mode sets the TV to display the settings

optimized for home viewing (this setting is ENERGY STAR compliant).

5 Select Continue to scan for available

channels and enable the

Screen

feature. If you receive channels from a cable box or satellite receiver and do not wish to use the TV’s built-in tuner, select Selecting

On Screen

Skip.

Skip will disable the TV Guide

feature, which is only

available when the TV’s tuner is used.

• If you skip the channel scan while in the setup

menus, TV Guide will be disabled.

TV Guide On

Detaching the Table-Top Stand from the TV

Remove only the screws marked with on the TV.

• KDL-32EX710/32EX700 models must remove

the stand rear cover prior to detaching the TableTop Stand.

• Do not remove the Table-Top Stand for any

reason other than to install corresponding accessories on the TV.

• When installing the TV on a wall, remove the four

screws from the rear of the TV. (They are fastened in the screw holes for wall mounting.) Be sure to store the removed screws in a safe place, keeping them away from children.

• When attaching the Table-Top Stand again, be

sure to fasten the four screws (previously removed) to the original holes on the rear of the TV.

• Do not hold by the Stand Rear Cover while

carrying the Table-Top Stand to prevent dropping the stand which may cause an injury or damage to the property.

Using a Wall-Mount Bracket

Installing the TV Against a

Your TV can be mounted on a wall using a Wall-Mount Bracket (not supplied) out of the box as packaged. Some larger size TV may require detaching the Table-Top Stand; see “Detaching the Table-Top Stand from the TV” (page 12). Prepare the TV for the Wall-Mount Bracket before making cable connections.

For product protection and safety reasons, Sony strongly recommends that you use the Wall-Mount Bracket designed for your TV and the installation should be performed by a Sony dealer or licensed contractor.

• Follow the instruction guide provided with the Wall-Mount Bracket for your model. Sufficient expertise is required in installing this TV, especially to determine the strength of the wall for withstanding the TV’s weight.

• Be sure to use the screws supplied with the Wall-mount bracket when attaching the mounting hooks to the TV set. The supplied screws are designed so that they are 8 mm to 12 mm in length when measured from the attaching surface of the mounting hook. The diameter and length of the screws differ depending on the Wall-mount bracket model. Use of screws other than those supplied may result in internal damage to the TV set or cause it to fall, etc.

8-12 mm

Wall or Enclosed Area

Make sure that your TV has adequate ventilation. Allow enough space around the TV as shown below. Avoid operating the TV at temperatures below 41 °F (5 °C).

Installed with stand

inches

(30 cm)

4 inches (10 cm)

Leave at least this much space around the set.

4 inches (10 cm)

Installed on the wall

inches

(30 cm)

4 inches (10 cm)

Never install the TV set as follows:

Air circulation is blocked.

Wall Wall

Air circulation is blocked.

inches

(6 cm)

Leave at least this much space around the set.

Setting up your TV

Screw (supplied with the Wall-mount bracket)

Mounting Hook

Hook attachment on rear of TV set

• Be sure to store the unused screws and Table-Top Stand in a safe place until you are ready to attach the Table-Top Stand. Keep the screws away from small children.

• Read the supplied Safety Booklet for additional

safety information.

• Inadequate ventilation can lead to overheating of

the TV and may cause damage to your TV or cause a fire.

To watch TV

To watch programs

1-2

Turn on the TV.

GUIDE

OPTIONS

HOME

0-9

ENT

1 Check the ENERGY SAVING

SWITCH setting is on (z).

2 Press POWER on the TV or on the

remote control to turn on the TV. (You may use the 1 button located on the front or back of the remote control.)

Select a TV channel.

To use the Guide Press GUIDE to display the TV Guide On

Screen to view scheduled programs or to

select a program to watch. Press again to exit the Guide. Use with 0-9 and ENT to select digital channels. For example, to enter 2.1, press , , and ENT.

To use the TV features

Press HOME to display TV Home Menu/ XMB

to access TV Settings and other

™

media and network related content.

Settings

Picture & Display

Adjust the picture and screen settings

Press for:

Picture Adjustments

Ambient Sensor

Screen

Pro Picture Setup

Press

OPTIONS

to display a list of convenient functions and menu shortcuts. The Options menu items vary based on current input and/or content.

Picture Adjustments

Sound Adjustments

Add to Favorites

Speakers

To use i-Manual

Your BRAVIA TV comes with an on-screen manual. You can browse your i-Manual anytime you need to find the varieties of convenient functions.

Press i-MANUAL.

Press F/f/G/g/ to navigate and

select items.

i-Manual

Welcome to i-Manual

BRAVIA TV Features

Watching TV

Using the Home Menu

Fun Features with Connected Equipment

Parts Description

Troubleshooting

Index

To watch TV

x Welcome to i-Manual x BRAVIA TV Features

x Fun Features with Connected

Equipment

Introduces how to connect and enjoy optional

x Watching TV

equipment.

Introduces convenient features such as TV Guide, Favorites, etc.

x Using the Home Menu

You can find how to customize your TV settings, etc.

• Images and illustrations may differ from what you are watching on this TV.

x Parts Description x Troubleshooting

You can find solutions for your problems.

x Index

RETURN

Back

Additional Information

Troubleshooting

The TV will indicate any problems with the STANDBY indicator flashing in red.

When the STANDBY indicator is flashing

The self-diagnosis function is activated.

1 Count how many times the STANDBY indicator flashes between each three second

break. For example, the indicator may flash three times, go off for three seconds, then flash

again three times.

2 Press POWER on the TV to turn it off, disconnect the AC power cord, and inform your

dealer or Sony service center of how the indicator flashes (number of flashes).

When the STANDBY indicator is not flashing

1 Check the items in the tables below. (Also refer to “Troubleshooting” in the i-Manual.) 2 If the problem persists, contact Sony Customer Support (information provided on the

front cover).

Condition Explanation/Solution


There is no picture (screen is dark) and no sound.

Tiny black dots and/or bright dots appear on the screen.

General

The TV’s power cannot be turned on.

The TV turns off automatically (the TV enters standby mode).

The remote does not function.

• Check the antenna/cable connection.

• Connect the TV to the AC power, and press POWER on the TV.

• If the STANDBY indicator lights up in red, press POWER on the

remote control.

• The screen is composed of pixels. Tiny black dots and/or bright

dots (pixels) on the screen do not indicate a malfunction.

• Check to see the (z) mark on the ENERGY SAVING SWITCH

is pressed.

• Check if the Sleep Timer, Timer, or Idle TV Standby is

activated.

• The Auto Shut-off function may be set to On. If Auto Shut-off is activated and TV receives no signal, the TV will automatically enter standby mode in 15 minutes. Check Auto Shut-off is activated under Eco feature of this TV.

• Replace the batteries.

• Your TV may be in SYNC mode. Press SYNC MENU, select TV

Control and then select Home (Menu) or Options to control the TV.

The “Parental Lock” password has been forgotten.

• Enter 4357 for the PIN code. (PIN code 4357 is always accepted.)

+ 36 hidden pages
