Sony HDR-CX700, HDR-CX700V Operating Guide

4-271-154-11(1)
Additional information on this product and answers to frequently asked questions can be found at our Customer Support Website.
Puede encontrar más información sobre este producto y respuestas a las preguntas más frecuentes en nuestro sitio Web de atención al cliente.
http://www.sony.net/
US/ES
Digital HD Video Camera Recorder
Operating Guide US
Guía de operaciones ES
Impreso en papel reciclado en un 70% o más utilizando tinta hecha con aceite vegetal exento de compuesto orgánico volátil (COV).
2011 Sony Corporation
Printed in Japan
HDR-CX560/CX560V/CX700/CX700V
Owner’s Record
The model and serial numbers are located on the bottom. Record the serial number in the space provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product.
Model No. HDR­Serial No. Model No. AC­Serial No.
WARNING
To reduce fire or shock hazard, do not expose the unit to rain or moisture.
Do not expose the batteries to excessive heat such as sunshine, fire or the like.
This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
US
2
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS. DANGER - TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
US
Unplug this apparatus during lightning storms or when unused for long periods of time.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
If the shape of the plug does not fit the power outlet, use an attachment plug adaptor of the proper configuration for the power outlet.
US
3
Representative plug of power supply cord of countries/regions around the world.
A Type
(American
Type)
B Type
(British Type)
BF Type
(British Type)
B3 Type
(British Type)
C Type
(CEE Type)
SE Type
(CEE Type)
(Ocean Type)
The representative supply voltage and plug type are described in this chart. Depend on an area, Different type of plug and supply voltage are used. Attention: Power cord meeting demands from each country shall be used.
For only the United States
Use a UL Listed, 1.5-3 m (5-10 ft.), Type SPT-2 or NISPT-2, AWG no. 18 power supply
cord, rated for 125 V 7 A, with a NEMA 1-15P plug rated for 125 V 15 A.”
Europe
Countries/regions Voltage Frequency (Hz) Plug type
Austria 230 50 C Belgium 230 50 C Czech 220 50 C Denmark 230 50 C Finland 230 50 C France 230 50 C Germany 230 50 C Greece 220 50 C Hungary 220 50 C Iceland 230 50 C Ireland 230 50 C/BF Italy 220 50 C Luxemburg 230 50 C Netherlands 230 50 C Norway 230 50 C Poland 220 50 C Portugal 230 50 C Romania 220 50 C Russia 220 50 C Slovak 220 50 C Spain 127/230 50 C Sweden 230 50 C Switzerland 230 50 C UK 240 50 BF
Asia
Countries/regions Voltage Frequency (Hz) Plug type
China 220 50 A Hong Kong 200/220 50 BF India 230/240 50 C Indonesia 127/230 50 C Japan 100 50/60 A Korea (rep) 220 60 C Malaysia 240 50 BF Philippines 220/230 60 A/C Singapore 230 50 BF Taiwan 110 60 A Thailand 220 50 C/BF
US
4
O Type
Countries/regions Voltage Frequency (Hz) Plug type
Vietnam 220 50 A/C
Oceania
Countries/regions Voltage Frequency (Hz) Plug type
Australia 240 50 O New Zealand 230/240 50 O
North America
Countries/regions Voltage Frequency (Hz) Plug type
Canada 120 60 A USA 120 60 A
Central America
Countries/regions Voltage Frequency (Hz) Plug type
Bahamas 120/240 60 A Costa Rica 110 60 A Cuba 110/220 60 A/C Dominican (rep) 110 60 A El Salvador 110 60 A Guatemala 120 60 A Honduras 110 60 A Jamaica 110 50 A Mexico 120/127 60 A Nicaragua 120/240 60 A Panama 110/220 60 A
South America
Countries/regions Voltage Frequency (Hz) Plug type
Argentina 220 50 C/BF/O Brazil 127/220 60 A/C Chile 220 50 C Colombia 120 60 A Peru 220 60 A/C Venezuela 120 60 A
Middle East
Countries/regions Voltage Frequency (Hz) Plug type
Iran 220 50 C/BF Iraq 220 50 C/BF Israel 230 50 C Saudi Arabia 127/220 50 A/C/BF Turkey 220 50 C UAE 240 50 C/BF
Africa
Countries/regions Voltage Frequency (Hz) Plug type
Algeria 127/220 50 C Congo (dem) 220 50 C Egypt 220 50 C Ethiopia 220 50 C Kenya 240 50 C/BF Nigeria 230 50 C/BF South Africa 220/230 50 C/BF Tanzania 230 50 C/BF Tunisia 220 50 C
US
5
Read this first
Before operating the unit, please read this manual thoroughly, and retain it for future reference.
CAUTION
Battery pack
If the battery pack is mishandled, the battery pack can burst, cause a fire or even chemical burns. Observe the following cautions.
Do not disassemble.
 
Do not crush and do not expose the battery pack to any shock or force such as hammering, dropping or stepping on it.
Do not short circuit and do not allow metal objects to come into contact with the battery terminals.
Do not expose to high temperature above 60°C (140°F) such as in direct sunlight or in a car parked in the sun.
Do not incinerate or dispose of in fire.
Do not handle damaged or leaking lithium ion batteries.
Be sure to charge the battery pack using a genuine Sony battery charger or a device that can charge the battery pack.
Keep the battery pack out of the reach of small children.
Keep the battery pack dry.
Replace only with the same or equivalent type recommended by Sony.
Dispose of used battery packs promptly as described in the instructions.
Replace the battery with the specified type only. Otherwise, fire or injury may result.
AC Adaptor
Do not use the AC Adaptor placed in a narrow space, such as between a wall and furniture.
Use the nearby wall outlet (wall socket) when using the AC Adaptor. Disconnect the AC Adaptor from the wall outlet (wall socket) immediately if any malfunction occurs while using your camcorder.
Even if your camcorder is turned off, AC power source (mains) is still supplied to it while connected to the wall outlet (wall socket) via the AC Adaptor.
Note on the power cord (mains lead)
The power cord (mains lead) is designed specifically for use with this camcorder only, and should not be used with other electrical equipment.
Excessive sound pressure from earphones and headphones can cause hearing loss.
For customers in the U.S.A. and CANADA
RECYCLING LITHIUM-ION BATTERIES
Lithium-Ion batteries are recyclable. You can help preserve our environment by returning your used rechargeable batteries to the collection and recycling location nearest you.
For more information regarding recycling of rechargeable batteries, call toll free 1-800-822- 8837, or visit http://www.rbrc.org/ Caution: Do not handle damaged or leaking Lithium­Ion batteries.
US
6
Battery pack
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This Class B digital apparatus complies with Canadian ICES-003.
For the customers in the U.S.A.
UL is an internationally recognized safety organization. The UL Mark on the product means it has been UL Listed.
If you have any questions about this product, you may call: Sony Customer Information Center 1-800­222-SONY (7669). The number below is for the FCC related matters only.
Regulatory Information
Declaration of Conformity
Trade Name: SONY Model No.: HDR-CX700V Responsible Party: Sony Electronics Inc. Address: 16530 Via Esprillo, San Diego, CA 92127 U.S.A. Telephone No.: 858-942-2230 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Declaration of Conformity
Trade Name: SONY Model No.: HDR-CX560V Responsible Party: Sony Electronics Inc. Address: 16530 Via Esprillo, San Diego, CA 92127 U.S.A. Telephone No.: 858-942-2230 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
CAUTION
You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.
Note
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
US
7
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/ TV technician for help.
The supplied interface cable must be used with the equipment in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.
For the State of California , USA only
Perchlorate Material – special handling may apply, See www.dtsc.ca.gov/hazardouswaste/ perchlorate Perchlorate Material: Lithium battery contains perchlorate.
Supplied items
The numbers in ( ) are the supplied quantity.
AC Adaptor (1) Power cord (Mains lead) (1) Component A/V cable (1)  A/V connecting cable (1)  USB connection support cable (1) 
Use this cable when the Built-in USB Cable of the camcorder (p. 15) is too short for connection.
Lens hood (1) (Only for HDR-CX700/
CX700V)
To attach the lens hood, see page 76.
Wireless Remote Commander (1)
A button-type lithium battery is already installed. Remove the insulation sheet before using the Wireless Remote Commander.
Rechargeable battery pack NP-FV50 (1) CD-ROM “Handycam” Application
Software (1) (p. 40)
“PMB” (software, including “PMB Help”)
US
8
“Handycam” Handbook (PDF)
“Operating Guide” (This manual) (1)
This camcorder has a built-in software
application called “PMB Portable” (p. 43).
See page 22 for the memory card you can use with this camcorder.
Using the camcorder
Do not hold the camcorder by the following
parts, and also do not hold the camcorder by the jack covers.
Viewfinder (HDR-CX700/ CX700V)
Lens hood (HDR-CX700/ CX700V)
LCD Screen Battery pack
Built-in USB Cable
The camcorder is not dustproofed, dripproofed
or waterproofed. See “Precautions” (p. 69).
Menu items, LCD panel, viewfinder (HDR-CX700/CX700V) and lens
A menu item that is grayed out is not available
under the current recording or playback conditions.
The LCD screen and viewfinder (HDR-CX700/ CX700V) are manufactured using extremely high-precision technology, so over 99.99% of the pixels are operational for effective use. However, there may be some tiny black points and/or bright points (white, red, blue, or green in color) that appear constantly on the LCD screen. These points are normal results of the manufacturing process and do not affect the recording in any way.
Black points
White, red, blue or green points
Exposing the LCD screen, the viewfinder
(HDR-CX700/CX700V) or the lens to direct sunlight for long periods of time may cause malfunctions.
Do not aim at the sun. Doing so might cause your camcorder to malfunction. Take images of the sun only in low light conditions, such as at dusk.
About language setting
The on-screen displays in each local language are used for illustrating the operating procedures. Change the screen language before
sing the camcorder if necessary (p. 20).
u
On recording
To ensure stable operation of the memory card, it is recommended to format the memory card with your camcorder before the first use. formatting the memory card will erase all the data stored on it and the data will be irrecoverable. Save your important data on your PC etc.
Before starting to record, test the recording
function to make sure the image and sound are recorded without any problems.
Compensation for the contents of recordings cannot be provided, even if recording or playback is not possible due to a malfunction of the camcorder, recording media, etc.
TV color systems differ depending on the country/region. To view your recordings on a TV, you need a NTSC system-based TV.
Television programs, films, video tapes, and other materials may be copyrighted. Unauthorized recording of such materials may be contrary to the copyright laws.
Use the camcorder in accordance with local regulations.
Notes on playing back
You may not be able to play back normally
images recorded on your camcorder with other devices. Also, you may not be able to play back images recorded on other devices with your camcorder.
Standard (STD) image quality movies recorded on SD memory cards cannot be played on AV equipment of other manufacturers.
DVD media recorded with HD image quality (high definition)
DVD media recorded with high definition image quality (HD) can be played back with devices that are compatible with the AVCHD standard. You cannot play discs recorded with high definition image quality (HD) with DVD players/recorders as they are not compatible with the AVCHD format. If you insert a disc recorded with the AVCHD format (high definition image quality (HD)) into a DVD player/recorder, you may not be able to eject the disc.
Save all your recorded image data
To prevent your image data from being lost, save all your recorded images on external media periodically. To save images on your computer, see page 39, and to save images on external devices, see page 46.
US
9
The type of discs or media on which the images
can be saved depend on the [
REC Mode] selected when the images were recorded. Movies recorded with [60p Quality
] can be saved using external media (p. 48). Movies recorded with [Highest Quality
] can be
saved on external media or on Blu-ray discs.
Notes on battery pack/AC Adaptor
Be sure to remove the battery pack or the AC Adaptor after turning off the camcorder.
Disconnect the AC Adaptor from the camcorder, holding both the camcorder and the DC plug.
Note on the camcorder/battery pack temperature
When the temperature of the camcorder
or battery pack becomes extremely high or extremely low, you may not be able to record or play back on the camcorder, due to the protection features of the camcorder being activated in such situations. In this case, an indicator appears on the LCD screen or on the viewfinder (HDR-CX700/CX700V).
When the camcoder is connected to a computer or accessories
Do not try to format the recording media of the
camcorder using a computer. If you do so, your camcorder may not operate correctly.
When connecting the camcorder to another device with communication cables, be sure to insert the connector plug in the correct way. Pushing the plug forcibly into the terminal will damage the terminal and may result in a malfunction of the camcorder.
When the camcorder is connected to other devices through a USB connection and the power of the camcorder is turned on, do not close the LCD panel. The image data that has been recorded may be lost.
If you cannot record/play back images, perform [Format]
If you repeat recording/deleting images for
a long time, fragmentation of data occurs on the recording media. Images cannot be saved or recorded. In such a case, save your images on some type of external media first, and then perform [Format] by touching (MENU) [Setup] [
(Media Settings)]
[Format] the desired medium
.
Notes on optional accessories
We recommend using genuine Sony accessories.
 
Genuine Sony accessories may not be available in some countries/regions.
About this manual, illustrations and on-screen displays
The example images used in this manual for illustration purposes are captured using a digital still camera, and therefore may appear different from images and screen indicators that actually appear on your camcorder. And, the illustrations of your camcorder and its screen indication are exaggerated or simplified for understandability.
In this manual, the internal memory and the memory card are called “recording media.”
In this manual, the DVD disc recorded with high definition image quality (HD) is called AVCHD recording disc.
Design and specifications of your camcorder and accessories are subject to change without notice.
10
US
Confirm the model name of your camcorder
The model name is shown in this manual when
there is a difference in specification between models. Confirm the model name on the bottom of your camcorder.
The main differences in specification of this series are as follows.
Capacity
HDR-CX560/ HDR-CX560V
HDR-CX700/ HDR-CX700V
of internal
recording media
*
*
Viewfinder
64 GB
96 GB
The model with * is equipped with GPS.
Notes on use
Do not do any of the following. Otherwise, the recording media may be damaged, recorded images may be impossible to play back or may be lost, or other malfunctions could occur.
ejecting the memory card when the access
amp (p. 23) is lit or flashing
l
removing the battery pack or AC Adaptor from the camcorder, or applying mechanical shock or vibration to the camcorder when the
(Movie)/ (Photo) lamps (p. 25) or the
access lamp (p. 23) are lit or flashing
When using a shoulder belt (sold separately), do not crash the camcorder against an object.
US
11
Table of contents
IMPORTANT SAFETY INSTRUCTIONS .. . .. .. . .. . .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. 3
Read this first . .. . .. . .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . 6
Getting started
Step 1: Charging the battery pack . .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. 14
Charging the battery pack abroad . . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. 17
Step 2: Turning the power on, and setting the date and time . .. .. . .. .. . .. . .. .. . .. . .. .. 18
Changing the language setting . . .. .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. . 20
Step 3: Preparing the recording media . .. . .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . . 21
To check the recording media settings . .. .. . .. . .. .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . . 21
Copying movies and photos . . .. . .. . .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . 23
Recording/Playback
Recording . . .. .. .. . .. . .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . . 24
Acquiring location information using the GPS (HDR-CX560V/CX700V) . .. . . 28
Selecting the recording mode . .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. 29
Adjusting for shooting conditions . . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. 30
Playback on the camcorder . .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . 31
Performing Highlight Playback . .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. . 34
Playing images on a TV . .. .. . .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . 35
Advanced operations
Deleting movies and photos. . .. .. .. . .. . .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. . 38
Saving movies and photos with a computer
Useful functions available if you connect the camcorder to
a computer (Windows) . . .. .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. . 39
Preparing a computer (Windows) . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. . 40
When using a Macintosh . .. . .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. 40
Starting PMB (Picture Motion Browser) . .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. . 43
Uploading images to a network service . . .. . .. .. . .. . .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. 43
US
12
Saving images with an external device
Selecting a method for saving images with an external device . . .. .. . .. .. .. . .. . .. .. . .. 46
Saving images on an external media device . . . .. .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. . 48
Creating a disc with the DVD writer, DVDirect Express . .. .. . .. .. . .. . .. .. . .. . .. .. . .. . .. .. . 51
Creating a high definition image quality (HD) disc with a DVD writer, etc.,
other than DVDirect Express . .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. 54
Creating a standard definition image quality (STD) disc with a recorder, etc. . .. . .. . 55
Customizing your camcorder
Using menus .. . .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. . 57
Getting detailed information from the “Handycam” Handbook . . .. . .. .. . .. . .. .. . .. . .. . 62
Additional information
Troubleshooting .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. 63
Recording time of movies/number of recordable photos .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. 65
Precautions . .. . .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. 69
Specifications .. . .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. 71
Quick reference

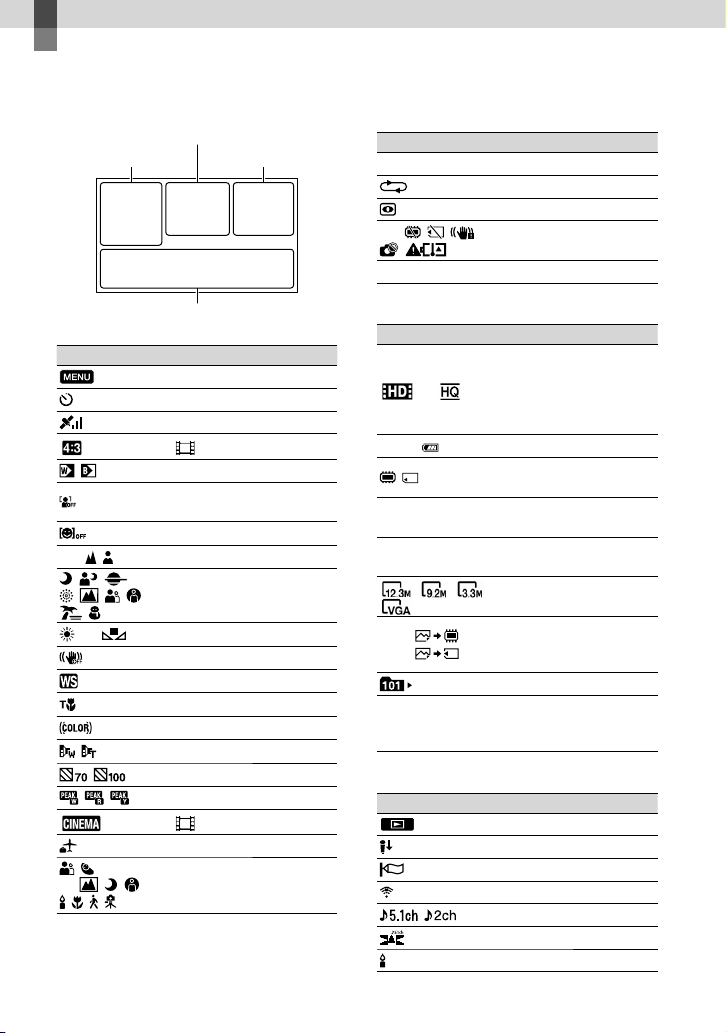

Screen indicators . .. .. . .. . .. .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . . 74
Parts and controls . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. 75
Index . .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. 78
Table of contents
US
13
Getting started

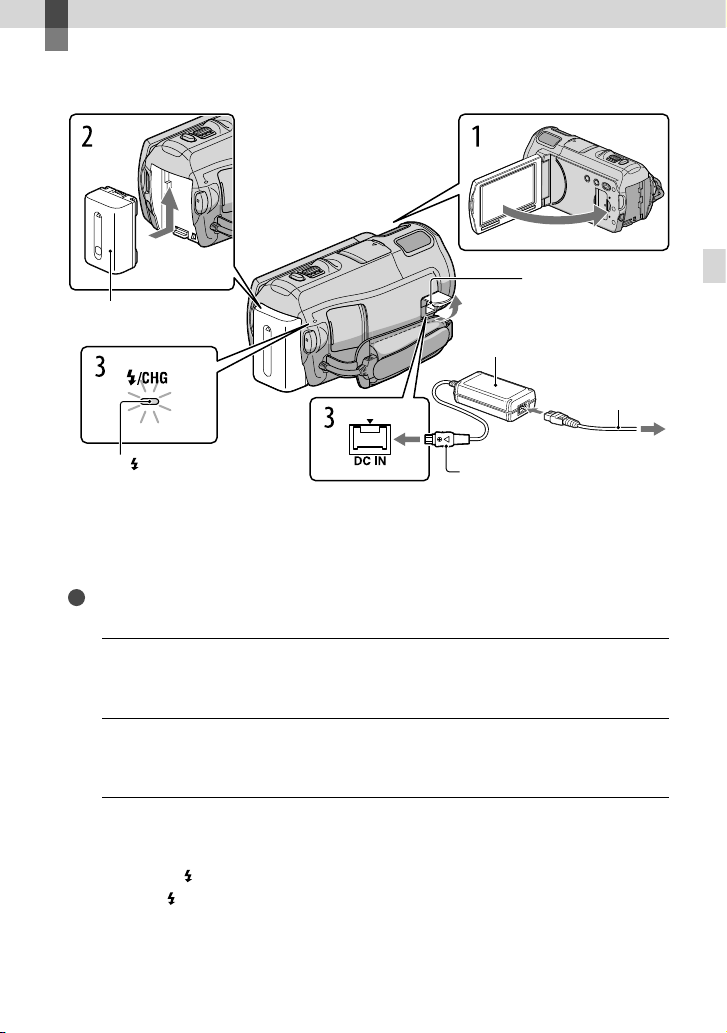

Step 1: Charging the battery pack
DC IN jack
Battery pack
AC Adaptor
Power cord
(Mains lead)
To the wall outlet
/CHG (flash/charge) lamp
Align the mark on the DC plug with that on the DC IN jack.
You can charge the “InfoLITHIUM” battery pack (V series) after attaching it to your camcorder.
Notes
You cannot attach any “InfoLITHIUM” battery pack other than the V series to your camcorder.
Turn off your camcorder by closing the LCD screen after replacing the
1
viewfinder (HDR-CX700/CX700V).
DC plug
(wall socket)
14
Attach the battery pack by sliding it in the direction of the arrow until it
2
clicks.
Connect the AC Adaptor and the power cord (mains lead) to your
3
camcorder and the wall outlet (wall socket).
The /CHG (flash/charge) lamp lights up and charging starts. The /CHG (flash/charge) lamp turns off when the battery pack is fully charged.
US
When the battery is charged, disconnect the AC Adaptor from the DC IN
4
jack of your camcorder.

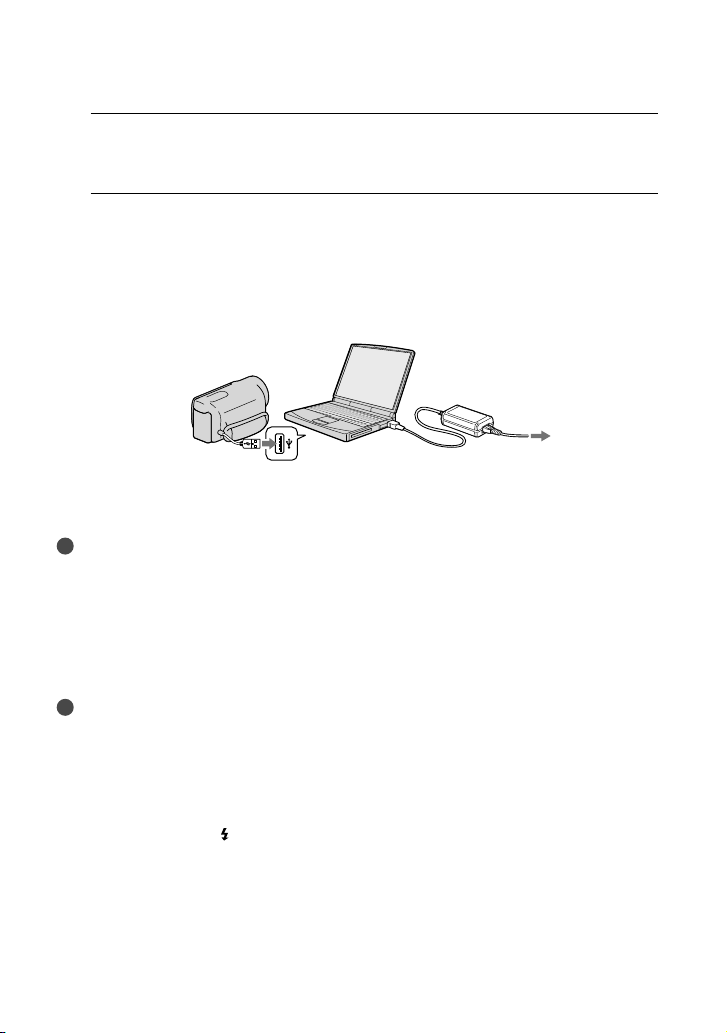

To charge the battery using your computer
This method is useful when the AC Adaptor is not available.
urn off the camcorder and attach the battery pack to the camcorder.
T
onnect the camcorder to a running computer using the Built-in USB Cable.
C
To the wall outlet
(wall socket)
When the battery is fully charged, disconnect the camcorder from the computer (p. 42).
Notes
Operation with all computers is not assured.
If you connect the camcorder to a laptop computer that is not connected to a power source, the battery of the laptop computer will continue to use up its charge. Do not leave the camcorder connected to a computer in this manner.
Charging with a personally assembled computer, with a converted computer, or through a USB hub are not guaranteed. The camcorder may not function correctly depending on the USB device which is used with the computer.
Tips
You can charge the battery by connecting the Built-in USB Cable to a wall outlet (wall socket) using an AC-U501AD/AC-U50AG USB charger/AC Adaptor (sold separately). You cannot use a Sony CP-AH2R or CP-AL portable power supply device (sold separately) to charge the camcorder.
The USB charger/AC Adaptor may not be available in some countries/regions.
/CHG (flash/charge) lamp may not light up when the remaining battery power is too low. In such a
The case, charge the battery using the supplied AC Adaptor.
Getting started
Charging time
Approximate time (min.) required when you fully charge a fully discharged battery pack.
Battery pack
NP-FV50 (supplied) 155 315 NP-FV70 195 600 NP-FV100 390 1050
AC Adaptor
Charging time
Built-in USB Cable
*
US
15
The charging times shown in the table above are measured when charging the camcorder at a
temperature of 25
C to 30 C (50 °F to 86 °F).
10
* The charging times are measured without using the USB Connection support cable.
Tips
See page 65 on recording and playing time.
 
When your camcorder is on, you can check the approximate amount of remaining battery power with the
C (77 °F). It is recommended that you charge the battery in a temperature range of
remaining battery indicator at the upper right on the LCD screen.
To remove the battery pack
Close the LCD screen. Slide the BATT (battery) release lever () and remove the battery pack ().
To use a wall outlet (wall socket) as a power source
Make the same connections as “Step 1: Charging the battery pack” (p. 14). Even if the battery pack is attached, the battery pack is not discharged.
Notes on the battery pack
When you remove the battery pack or disconnect the AC Adaptor, turn the camcorder off and make sure that the
The
  
When attaching a video light (sold separately), it is recommended that you use an NP-FV70 or NP-FV100 battery pack.
We do not recommend using an NP-FV30, which only allows short recording and playback times, with your camcorder.
In the default setting, the power turns off automatically if you leave your camcorder without any operation for about 5 minutes, to save battery power ([A. Shut Off]).
(Movie)/ (Photo) lamps (p. 25), the access lamp (p. 23) are turned off.
/CHG (flash/charge) lamp flashes during charging under the following conditions: The battery pack is not attached correctly. The battery pack is damaged. The temperature of the battery pack is low. Remove the battery pack from your camcorder and put it in a warm place. The temperature of the battery pack is high. Remove the battery pack from your camcorder and put it in a cool place.
16
US
Notes on the AC Adaptor
Use the nearby wall outlet (wall socket) when using the AC Adaptor. Disconnect the AC Adaptor from the wall outlet (wall socket) immediately if any malfunction occurs while using your camcorder.
Do not use the AC Adaptor placed in a narrow space, such as between a wall and furniture.
Do not short-circuit the DC plug of the AC Adaptor or battery terminal with any metallic objects. This may cause a malfunction.
Charging the battery pack abroad
You can charge the battery pack in any countries/regions using the AC Adaptor supplied with your camcorder within the AC 100 V - 240 V, 50 Hz/60 Hz range.
Do not use an electronic voltage transformer.
Getting started
US
17

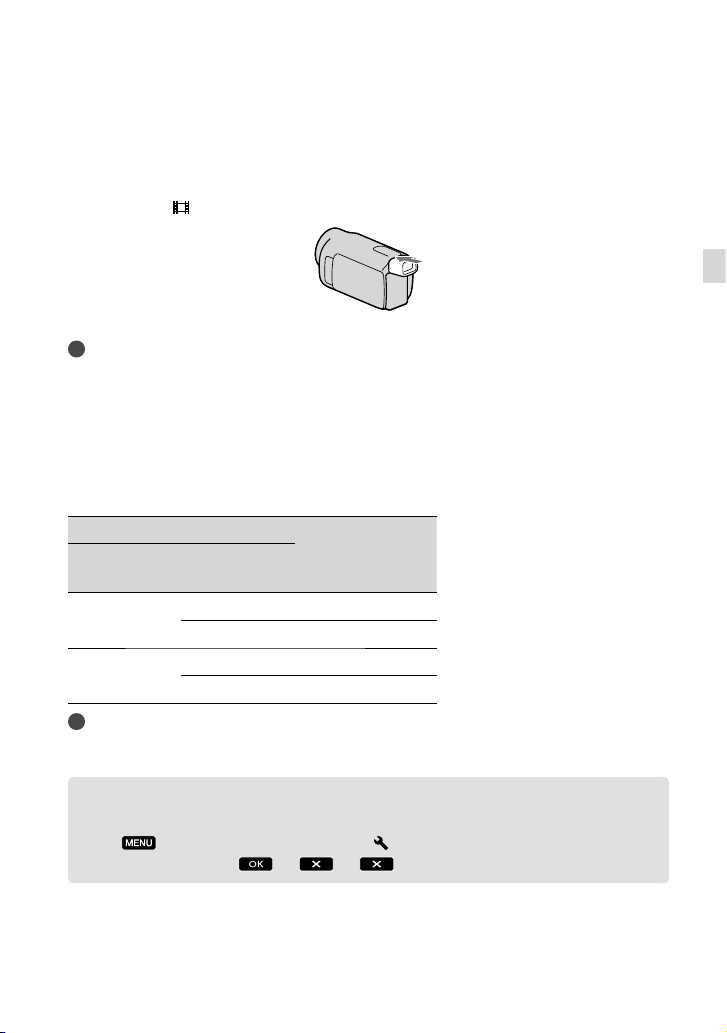

Step 2: Turning the power on, and setting the date and time
Open the LCD screen of your camcorder.
1
Your camcorder is turned on and the lens cover is opened.
To turn on your camcorder when the LCD screen is open, press POWER.
MODE lamp
POWER button
Select the desired language, then touch [Next].
2
Touch the button on the
LCD screen
18
Select the desired geographical area with
3
To set the date and time again, touch (MENU) [Setup] [ (Clock Settings)] [Date
& Time Setting] [Date & Time]. When an item is not on the screen, touch
the item appears.
US
/ , then touch [Next].
/ until
Set [Daylight Savings] or [Summer Time], then touch [Next].
4
If you set [Daylight Savings] or [Summer Time] to [On], the clock advances 1 hour.
Select the date format, then touch [Next].
5
Select the date and time, touch
6
[Next]
* The confirmation screen appears only when you set the clock for the first time.
*.
/ to set the value, then touch
Getting started
The clock starts.
Notes
The date and time does not appear during recording, but they are automatically recorded on the recording media, and can be displayed during playback. To display the date and time, touch (MENU) [Setup] [
You can turn off the operation beeps by touching [Beep] [Off] If the button you touch does not react correctly, calibrate the touch panel.
 
Once the clock is set, the clock time is automatically adjusted with [Auto Clock ADJ ] and [Auto Area ADJ] set to [On]. The clock may not be adjusted to the correct time automatically, depending on the country/region selected for your camcorder. In this case, set [Auto Clock ADJ ] and [Auto Area ADJ] to [Off] (HDR-CX560V/CX700V).
(Playback Settings)] [Data Code] [Date/Time] .
(MENU) [Setup] [ (General Settings)]
.
US
19
To turn off the power
Close the LCD screen.
f the viewfinder is pulled out, retract the viewfinder as shown in the illustration below
I
(HDR-CX700/CX700V).
(Movie) lamp flashes for a few seconds and the camcorder is turned off.
The
Tips
You can turn off the camcorder also by pressing POWER.
When [Power On By LCD] is set to [Off], turn off your camcorder by pressing POWER (HDR-CX560/CX560V).
On turning the camcorder on or off using the LCD screen or the viewfinder (HDR-CX700/CX700V)
The power of the camcorder is turned on or off depending on the status of the LCD screen or the viewfinder.
Status
LCD screen Viewfinder
Open
Closed
Notes
Even if the LCD screen is closed, if the viewfinder is pulled out, the camcorder is not turned off. When you turn off the power of the camcorder, make sure that the viewfinder is retracted to the original position.
Retracted On
Pulled out On
Retracted Off
Pulled out On
Power of the camcorder
Changing the language setting
You can change the on-screen displays to show messages in a specified language. Touch desired language
US
(MENU) [Setup] [ (General Settings)] [Language Setting] a
.
20
Step 3: Preparing the recording media
The recording media that can be used are displayed on the screen of your camcorder as following icons.
Internal memory Memory card
* In the default setting, both movies and photos are recorded on this recording media. You can perform
recording, playback and editing operations on the selected medium.
Tips
See page 66 for the recordable time of movies.
See page 68 for the number of recordable photos.
*
Selecting recording media
Touch (MENU) [Setup] [ (Media Settings)] [Media Select].
The [Media Select] screen appears.
Touch the desired recording medium, then touch .
Both movies and photos are recorded on the selected medium.
To check the recording media settings
In either movie recording mode or photo recording mode, the media icon of the selected recording media is displayed at the top right corner of the screen.
Recording media icon
Getting started
US
21
Inserting a memory card
Notes
Set the recording medium to [Memory Card] to record movies and/or photos on a memory card.
Types of memory card you can use with your camcorder
SD Speed Class Described in this
manual
“Memory Stick PRO Duo” media (Mark2)
“Memory Stick PRO-
HG Duo” media
SD memory card
SDHC memory card
Class 4 or faster SD card
SDXC memory card
Operation with all memory cards is not assured.
“Memory Stick PRO Duo” media, half the size of “Memory Stick”, or standard size SD cards can be used for this camcorder.
Do not attach a label or the like on memory card or memory card adaptor. Doing so may cause a malfunction.
“Memory Stick PRO Duo” media of up to 32 GB and SD cards of up to 64 GB have been verified to operate with your camcorder.
Notes
A MultiMediaCard cannot be used with this camcorder.
Movies recorded on SDXC memory cards cannot be imported to or played back on computers or AV devices not supporting the exFAT* file system by connecting the camcorder to these devices with the USB cable. Confirm in advance that the connecting equipment is supporting the exFAT system. If you connect an equipment not supporting the exFAT system and the format screen appears, do not perform the format. All the data recorded will be lost. * The exFAT is a file system that is used for SDXC memory cards.
“Memory Stick PRO Duo” media
22
US
Open the cover, and insert the memory card with the notched edge in the
direction as illustrated until it clicks.
Close the cover after inserting the memory card.
Access lamp
Note the direction of notched corner.
The [Preparing image database file. Please wait.] screen appears if you insert a new memory card. Wait until the screen disappears.
Close the cover.
Notes
If [Failed to create a new Image Database File. It may be possible that there is not enough free space.] is displayed, format the memory card.
Confirm the direction of the memory card. If you forcibly insert the memory card in the wrong direction, the memory card, memory card slot, or image data may be damaged.
Do not open the cover during recording.
When inserting or ejecting the memory card, be careful so that the memory card does not pop out and drop.
To eject the memory card
Open the cover and lightly push the memory card in once.
Getting started
Copying movies and photos
Touch (MENU) [Edit/Copy] [Copy], then follow the instructions that appear on the screen.
US
23
Recording/Playback
Recording
In the default setting, movies and photos are recorded on the internal recording media. Movies are recorded with high definition image quality (HD).
Tips
To change the recording media, see page 21.
Fasten the grip belt.
1
Open the LCD screen of your camcorder.
2
Your camcorder is turned on and the lens cover is opened.
24
US

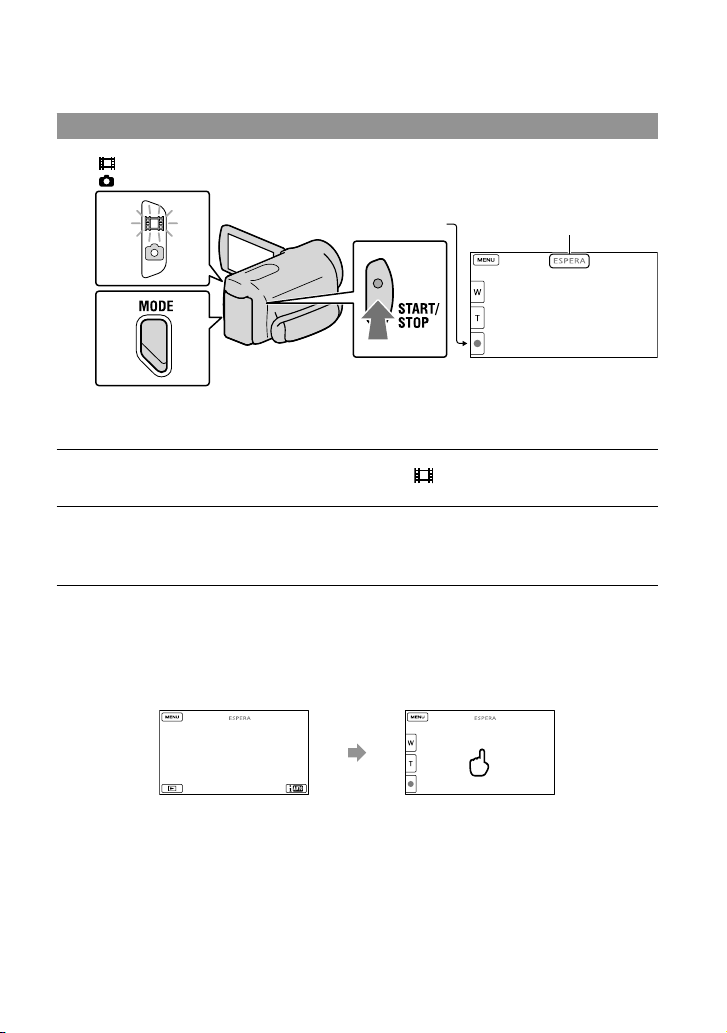

Recording movies
(Movie): When recording a movie
(Photo): When recording a photo
START/STOP button
MODE button
[STBY] [REC]
Press MODE to turn on the (Movie) lamp.
Press START/STOP to start recording.
To stop recording, press START/STOP again.
To display items on the LCD screen again
Touch anywhere on the screen except the buttons on the LCD screen so that you can use items. You can change the settings using the [Display Setting] menu.
about 4sec
after
Recording/Playback
US
25
To capture smiles
In the default setting, a photo is automatically recorded when the camcorder detects the smile of a person during movie recording (Smile Shutter). When the camcorder detects faces during movie recording, image quality is automatically adjusted ([Face Detection]).
Capturing a photo
Smile Detection frame (Orange)
Face Detection frame (White)
Notes
If you close the LCD screen while recording movies, the camcorder stops recording.
The maximum continuous recordable time of movies is about 13 hours.
When a movie file exceeds 2 GB, the next movie file is created automatically.
It will take several seconds until you can start recording after you turn on the camcorder. You cannot operate your camcorder during this time.
The following states will be indicated if data is still being written onto the recording media after recording has finished. During this time, do not apply shock or vibration to the camcorder, or remove the battery or AC Adaptor.
ccess lamp (p. 23) is lit or flashing
A
The media icon in the upper right of the LCD screen is flashing
Tips
See page 66 on the recordable time of movies.
You can record photos during movie recording by pressing PHOTO fully (Dual Rec).
SteadyShot] is set to [Active] in the default setting.
[
You can specify the priority face by touching it.
You can capture photos from recorded movies.
You can check the recordable time, estimated remaining capacity, etc., by touching [Setup] [
The LCD screen of your camcorder can display recording images across the entire screen (full pixel
(Media Settings)] [Media Info].
(MENU)
display). However, this may cause slight trimming of the top, bottom, right and left edges of images when played back on a TV which is not compatible with full pixel display. In this case, set [Guide Frame] to [On], and record images using the outer frame displayed on the screen as a guide.
To adjust the angle of the LCD panel, first open the LCD panel 90 degrees to the camcorder (), and then adjust the angle ().
26
90 degrees (max.)
180 degrees (max.)
US
90 degrees to the
camcorder
When you make recording with the viewfinder only, pull out the viewfinder and close the LCD panel.
If the indicator on the viewfinder appear blurred, adjust the viewfinder lever located on the side of the viewfinder (HDR-CX700/CX700V).
Data code during recording
The recording date, time and condition , and coordinates (HDR-CX560V/CX700V) are recorded automatically on the recording media. They are not displayed during recording. However, you can check them as [Data Code] during playback. To display them, touch (MENU) [Setup] [
.
(Playback Settings)] [Data Code] a desired setting
Shooting photos
(Movie): When recording a movie (Photo): When recording a photo
PHOTO button
MODE button
When disappears, the photo is recorded.
Flashes Lights up
Press MODE to turn on the (Photo) lamp.
The LCD screen display switches for photo recording mode.
Recording/Playback
US
27
Press PHOTO lightly to adjust the focus, then press it fully.
Tips
See page 68 on the recordable number of photos.
To change the image size, touch a desired setting
You cannot record photos while
Your camcorder flashes automatically when there is insufficient ambient light. The flash does not work in the movie recording mode. You can change how your camcorder flashes by Mic] [
(Flash)] [Flash] a desired setting .
.
(MENU) [Image Quality/Size] [ Image Size]
is displayed.
(MENU) [Camera/
If white circular spots appear on photos
This is caused by particles (dust, pollen, etc.) floating close to the lens. When they are accentuated by the camcorder’s flash, they appear as white circular spots. To reduce the white circular spots, light the room and shoot the subject without a flash.
Particles (dust, pollen, etc.) in the air
Acquiring location information using the GPS (HDR-CX560V/CX700V)
When you set [GPS Setting] (p. 61) to [On], appears on the LCD screen, and your camcorder starts searching for the GPS satellites and acquires the location information. Acquiring the location information enables you to use functions such as the Map View. The indicator changes according to the strength of GPS signal reception.
Processing time can be shortened when you load the GPS assist data into the camcorder using the
supplied software “PMB.” Install “PMB” on your computer (p. 40) and connect the computer to the internet. Then connect the camcorder to the computer and the GPS assist data will be automatically updated.
The GPS assist data may not function in the following cases:
When the GPS assist data are not updated for about 30 days or more
When the date and time of the camcorder are not correctly set
When the camcorder is moved for a long distance
Built-in map is powered by companies as follows; Map of Japan by ZENRIN CO., LTD., other areas by NAVTEQ.
28
US
Selecting the recording mode
You can change the quality of the image that you record by touching (MENU) [Image Quality/Size] [ The types of media that images can be saved on will depend on the recording mode selected. For details on a save operation using the external devices, see page 46.
Types of media
On this camcorder
Internal recording media Memory card
On external devices
External media (USB storage devices) Blu-ray discs — AVCHD recording discs
* [PS] can be set only when [ Frame Rate] is set to [60p].
REC Mode].
*
PS
Recording mode
FX FH/HQ/LP
Recording/Playback
US
29
Adjusting for shooting conditions
Recording in dark places (NightShot)
When you press NIGHTSHOT, appears, and you can record images even in total darkness. Press NIGHTSHOT again to cancel the NightShot function.
Using NightShot in bright places will cause a
malfunction of your camcorder.
Infrared port
Adjusting focus, etc., manually (MANUAL dial)
It is convenient to make manual adjustments using the MANUAL dial, by assigning a menu item ([Focus] in the default setting) to the MANUAL dial.
MANUAL button
How to use the MANUAL dial
Press MANUAL to switch to manual operation mode, and rotate the dial to make the adjustment. Pressing MANUAL switches the operation mode between manual and automatic.
To assign a menu item
Press and hold MANUAL for a few seconds to display the [Dial Setting] screen. Rotate the MANUAL dial to assign an item. You can assign [Focus], [Exposure], [IRIS], [Shutter Speed], [AE Shift], or [White Balance Shift].
Using a tripod
Attach a tripod (sold separately) to the tripod receptacle using a tripod screw (sold separately, the length of the screw must be less than 5.5 mm (7/32 in.)).
Tripod receptacle
US
30
MANUAL dial
Playback on the camcorder
You can enjoy the playback of images with powerful sound through the stereo speakers built into the camcorder. In the default setting, movies and photos that are recorded on the internal recording media are played.
Tips
To change the recording media, see page 21.
The camcorder displays recorded images as an event automatically, based on the date and time. It can also display recorded images on the basis of location information (HDR-CX560V/CX700V).
Open the LCD screen of your camcorder.
1
Your camcorder is turned on and the lens cover is opened.
Press
2
The Event View screen appears after some seconds.
Touch
3
(View Images).
/ to select the desired event ().
Recording/Playback
To the MENU screen
Events
Change View button (HDR-CX560V/CX700V)
 
/ : To the previous/next event
Event name
[Change View] button
Highlight Playback button
US
31
Change to the movie/photo recording mode
Time-line bar
Highlight Playback button
Change Event Scale button
* Appears only when the image quality is set to [ HD Quality].
The Event Index screen appears when you touch the event that is displayed on the center.
You can also choose an event by touching on the time-line bar.
 
(Change Event Scale) on the bottom right of the screen so that you can change the time
Touch
range of the time-line bar from one and a half years to three months, which changes the number of
the events that can be displayed on the time-line bar.
*
Touch an image you want to view.
4
Touch to select the image type to be displayed in the index from [ MOVIE] (movies only), [ photos mixed).
To go back to the Event View screen
 
/ : Displays the previous/next page (Touching and holding the button scrolls the index screen.) Change to the movie/photo recording mode
Event title
Switch Image Type button
Movie
PHOTO] (photos only), or [ MOVIE/PHOTO] (movies and
32
appears with the movie or photo that was most recently played or recorded. If you touch the movie or photo with , you can continue playback from the previous time.
US

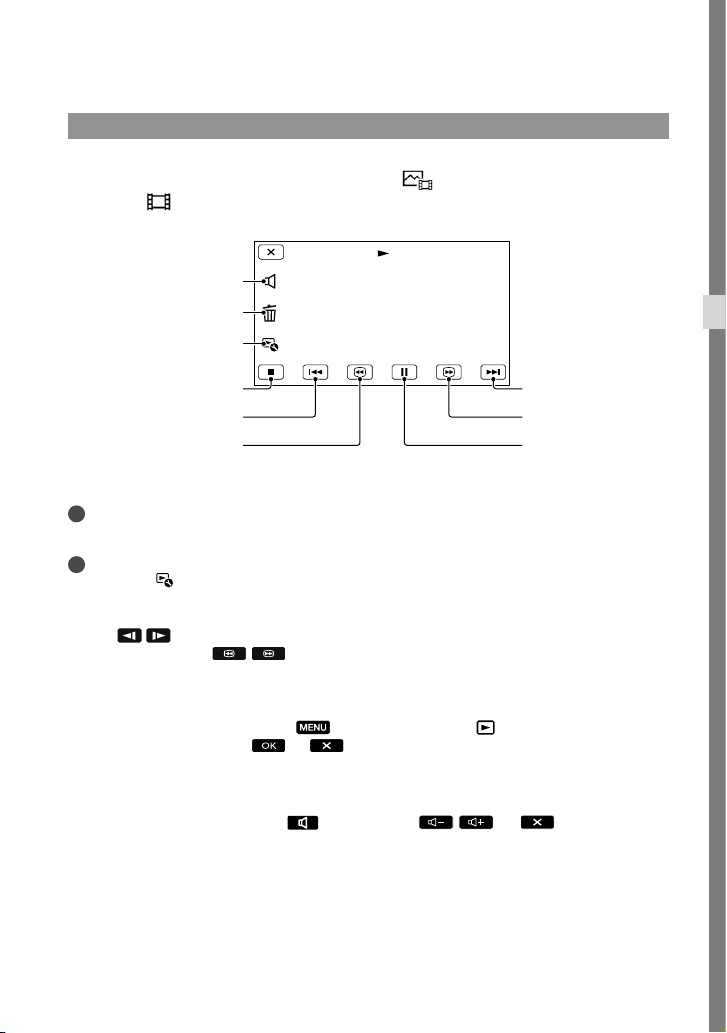

Operating the camcorder while playing a movie
You can use the functions shown in the figure below while the camcorder is playing a movie. The figure below will be displayed when you select [ setting) or [
MOVIE] by touching the Switch Image Type button on the Event Index
screen.
Volume adjustment
MOVIE/PHOTO] (the default
Delete
Context
To stop*
Previous
To fast-reverse
* These buttons can be used only when the camcorder is playing a movie.
Notes
You may not be able to play back the images with other devices than camcorder.
Tips
Touching the
to use those functions easily.
When playback from the selected image reaches the last image, the screen returns to the INDEX screen.
Touch
As you repeat touching about 10 times about 30 times about 60 times.
The recording date, time, and shooting conditions , and coordinates (HDR-CX560V/CX700V) are recorded automatically during recording. This information is not displayed during recording, but you can display it during playback by touching Code] a desired setting
In the default setting, a protected demonstration movie is pre-recorded.
button on the playback screen displays functions you can currently use, and allows you
/ during pause to play back movies slowly.
*
/ during playback, movies are played as fast as about 5 times
(MENU) [Setup] [ (Playback Settings)] [Data
.
Next
To fast-forward
To pause*/play
*
To adjust the sound volume of movies
While playing back movies, touch adjust with / .
Recording/Playback
US
33
Viewing photos
You can use the functions shown in the figure below while you are viewing photos. The figure below will be displayed when you select [ button on the Event Index screen.
Delete
Context
PHOTO] by touching the Switch Image Type
Previous
Next
To start/stop slide show
Tips
To repeat Slideshow, touch
[Slideshow Set].
Performing Highlight Playback
Press Touch / to select the desired event, then touch [ Highlight].
Touch [ Scenario Save] on the screen after the Highlight Playback is finished so that you can save
the Highlight Playback scenario.
34
US
Playing images on a TV
Connection methods and the image quality (high definition (HD) or standard definition (STD)) viewed on the TV screen differ depending on what type of TV is connected, and the connectors used.
Output connectors on the camcorder
HDMI OUT jack
A/V Remote
Connector
1
Switch the input on the TV to the connected jack.
Refer to the instruction manuals of the TV.
2
Connect the camcorder to a TV.
Use the supplied AC Adaptor as the power source (p. 16).
3
Play a movie or a photo on the camcorder (p. 31).
List of connection
Connecting to a high definition TV
When the recording quality is high definition image quality (HD), the movies are played back in high definition image quality (HD). When the recoding quality is standard image quality (STD), the movies are played back in standard definition image quality (STD).
Component A/V Cable (supplied)
(Green) Y
(Blue)
PB/CB
(Red)
PR/CR
(White)
(Red)
HDMI Cable (sold separately)
Recording/Playback
US
35
Connecting to a non-high-definition 16:9 (wide) or 4:3 TV
When movies are recorded with high definition image quality (HD), they are played back in standard definition image quality (STD). When movies are recoded with standard image quality (STD), they are played back in standard definition image quality (STD).
Component A/V Cable (supplied)
(Green) Y
(Blue)
PB/CB
(Red)
PR/CR
(White)
(Red)
A/V connecting cable with S VIDEO (sold separately)
(White)
(Yellow)
A/V connecting cable (supplied)
(Red)
(Yellow)
(White)
(Red)
When you connect with component A/V cable
If you connect only component video plugs,
audio signals are not output. Connect the white and red plugs to output audio signals.
Select the [Component] setting for the component input jack you are using. Touch
(MENU) [Setup]
(Connection)] [Component]
[ a desired setting
to make the setting.
When you connect with HDMI cable
Use an HDMI cable with the HDMI logo.
 
Use an HDMI mini connector on one end (for the camcorder), and a plug suitable for connecting your TV on the other end.
Copyright-protected images are not output from the HDMI OUT jack of your camcorder.
Some TVs may not function correctly (e.g., no sound or image) with this connection.
Do not connect the camcorder HDMI OUT jack to an external device HDMI OUT jack, as malfunction may result.
When the connected device is compatible with 5.1ch surround sound, high definition image quality (HD) movies are output in
5.1ch surround sound automatically. Standard definition image quality (STD) movies are converted to 2ch sound.
To set the aspect ratio according to the connected TV (16:9/4:3)
Set [TV Type] to [16:9] or [4:3] according to
your TV.
When you connect with A/V connecting cable with S-Video
When the S VIDEO plug (S VIDEO channel)
is connected, audio signals are not output. To output audio signals, connect the white and red plugs to the audio input jack of your TV.
This connection produces higher resolution images compared with the A/V connecting cable.
36
US
When your TV is monaural (When your TV has only one audio input jack)
Connect the yellow plug of the A/V connecting
cable to the video input jack and connect the white (left channel) or red (right channel) plug to the audio input jack of your TV or VCR.
When connecting to your TV via a VCR
Connect your camcorder to the LINE IN input on the VCR using the A/V connecting cable. Set the input selector on the VCR to LINE (VIDEO 1, VIDEO 2, etc.).
Notes
When you play back standard definition image quality (STD) movies on a 4:3 TV that is not compatible with the 16:9 signal, record movies with 4:3 aspect ratio. Touch [Image Quality/Size] [ [4:3]
When the A/V connecting cable is used to output movies, movies are output with standard definition image quality (STD).
Tips
If you connect your camcorder to the TV using more than one type of cable to output images, the order of priority of the TV input jacks is as follows: HDMI component S VIDEO video
HDMI (High Definition Multimedia Interface) is an interface to send both video/audio signals. The HDMI OUT jack outputs high quality images and digital audio.
.
(MENU)
Wide Mode]
On “Photo TV HD”
This camcorder is compatible with the “Photo TV HD” standard. “Photo TV HD” allows for highly-detailed, photo-like depiction of subtle textures and colors. By connecting Sony’s Photo TV HD­compatible devices using an HDMI cable or the component AV cable
**, a whole
new world of photos can be enjoyed in breathtaking full HD quality.
* The TV will automatically switch to the
appropriate mode when displaying photos.
** Setup of the TV will be necessary. Please refer
to the instructions of your Photo TV HD­compatible TV for details.
*
Recording/Playback
US
37
Advanced operations
Deleting movies and photos
You can free media space by deleting movies and photos from recording media.
Notes
You cannot restore images once they are deleted. Save important movies and photos in advance.
Do not remove the battery pack or the AC Adaptor from your camcorder while deleting the images. It may damage the recording media.
Do not eject the memory card while deleting images from the memory card.
You cannot delete protected movies and photos. Undo the protection of the movies and photos to delete them, before you try to delete them.
The demonstration movie on your camcorder is protected.
If you delete movies/photos that are included in saved scenarios, the scenarios will also be deleted.
Tips
If you start playing back an image by selecting it from the Event Index screen, you can delete the image using To delete all images recorded in the recording
media, and recover all the recordable space of the media, format the media.
Reduced-size images which enable you to view many images at the same time on an index screen are called “thumbnails.”
1
Touch (MENU) [Edit/ Copy] [Delete].
on the playback screen.
When [ / Setting] is set to
STD Quality], appears
[ instead of
.
3
Touch and display the mark on the movies or photos to be deleted.
Touch and hold the desired thumbnail so that you can confirm the image. Touch
to return to the previous screen.
4
Touch .
To delete all movies/photos in an event at one time
In step 2, touch [All In Event].
2
To select and delete movies, touch
[Multiple Images]
[ MOVIE]/[ PHOTO]/ [ MOVIE/PHOTO].
US
38
Touch / to select the desired
event, then touch
Touch and hold the desired thumbnail so
that you can confirm the image. Touch
to return to the previous screen.
 Touch .
.
Saving movies and photos with a computer
Useful functions available if you connect the camcorder to a computer
The software PMB stored in the CD-ROM (supplied) includes functions that enable you to do more with the images recorded with the camcorder.
View
(Windows)
Calendar
Save on a disc Upload
DVD/Blu-ray
Network services
Edit
Joining image files
Easy uploading when away from home
With PMB Portable, which is pre-installed on the camcorder, you can play back or upload your images to the Web by connecting your camcorder to a computer away from home.
Saving movies and photos with a computer
US
39
40
US
Preparing a computer
(Windows)
Step 1 Checking the computer system
1
OS*
Microsoft Windows XP SP3*2/Windows Vista
3
SP2
*
/Windows 7
4
*
CPU
Intel Core Duo 1.66 GHz or faster, or Intel Core 2 Duo 1.66 GHz or faster (Intel Core 2 Duo 2.26 GHz or faster is required when processing FX or FH movies, and Intel Core 2 Duo 2.40 GHz or faster is required when processing PS movies.) However, Intel Pentium III 1 GHz or faster is sufficient for the following operations:
Importing the movies and photos to the
computer One Touch Disc Burn
Creating a Blu-ray disc/AVCHD
disc/DVD-video (Intel Core Duo 1.66 GHz or faster is required when creating a DVD video by converting high definition image quality (HD) to standard definition image quality (STD).) Copying a disc
Processing only the movies with standard
definition image quality (STD)
Application
DirectX 9.0c or later (This product is based on DirectX technology. It is necessary to have DirectX installed.)
Memory
For Windows XP: 512 MB or more (1 GB or more is recommended.) However, 256 MB or more is sufficient for processing only the movies with standard definition image quality (STD). For Windows Vista/Windows 7: 1 GB or more
Hard disk
Disk volume required for installation: Approximately 500 MB (10 GB or more may be necessary when creating AVCHD
recording discs. 50 GB maximum may be
necessary when creating Blu-ray discs.)
recording
Display
Minimum 1,024 × 768 dots
Others
USB port (this must be provided as standard, Hi-Speed USB (USB 2.0 compatible)), Blu­ray disc/DVD burner (CD-ROM drive is necessary for installation) Either NTFS or exFAT file system is recommended as the hard disk file system.
1
*
Standard installation is required. Operation is
not assured if the OS has been upgraded or in a multi-boot environment.
2
*
64-bit editions and Starter (Edition) are not supported. Windows Image Mastering API (IMAPI) Ver.2.0 or newer is required to use disc creation function, etc.
3
*
Starter (Edition) is not supported.
4
*
Faster processor is recommended.
Notes
Operation with all computer environments is
not assured.
When using a Macintosh
The supplied software “PMB” is not supported by Macintosh computers. To import the movies and photos to the computer, please contact Apple Inc.
Step 2 Installing the supplied software “PMB”
Install “PMB” before connecting your camcorder to a computer.
Notes
If a version of “PMB” under 5.0.00 has been installed on your computer, you may be unable to use some functions of those “PMB” when installing the “PMB” from the supplied CD­ROM. Also, “PMB Launcher” is installed from the supplied CD-ROM and you can start “PMB” or other software by using the “PMB Launcher.” Double-click the “PMB Launcher” short-cut
icon on the computer screen to start “PMB Launcher.”
Confirm that your camcorder is
not connected to the computer.
Turn on the computer.
Log on as an Administrator for
installation.
Close all applications running on the computer before installing the software.
Place the supplied CD-ROM in
the disc drive of your computer.
The installation screen appears.
If the screen does not appear, click
[Start] [Computer] (in Windows XP, [My Computer]), then double-click [SONYPMB (E:)] (CD-ROM)
* Drive names (such as (E:)) may vary
depending on the computer.
*.
Click [Install].
Select the country or region.
Select the language for the
application to be installed, then proceed to the next screen.
Read the terms of the license
agreement carefully. If you agree to the terms, change
to , and
then click [Next] [Install].
Follow the instructions that
appear on the computer screen to continue the installation.
You may be required to install some
other applications included on the disc at the same time. If the installation display appears, follow the instructions that appear on the screen.
When you are required to restart the computer, follow the instructions that appear on the screen and restart it.
Connect the camcorder to the computer when you are instructed to do so.
Connect the camcorder to the
computer using the Built-in USB Cable, then touch [USB Connect] on the LCD screen of the camcorder.
When the installation is
completed, remove the CD-ROM from the computer.
Click (PMB icon) that appears on the desktop of the computer to start up the software.
Saving movies and photos with a computer
US
41
42
US
Notes
To create discs or use other functions on Windows XP, Image Mastering API v2.0 for Windows XP should be installed. If Image Mastering API v2.0 for Windows XP has not been installed yet, select it from required programs on the installation screen and install it following the procedures displayed. (The computer must be connected to the internet for the installation.) You may install Image Mastering API v2.0 for Windows XP in response to the message displayed when you try to start those functions.
Operation is not guaranteed if you read or write video data from or to the camcorder using software other than the supplied “PMB.” For the information on the compatibility of the software you are using, consult the manufacturer of the software.
To disconnect your camcorder from the computer
Click the icon at the bottom right of the
desktop of the computer [Safely remove USB Mass Storage Device].
Touch [Cancel] [Yes] on the camcorder
screen.
Disconnect the USB cable.
If you are using Windows 7, the not appear on the desktop of the computer. In this case, you can disconnect the camcorder from your computer without following the procedures described above.
Notes
Do not format the internal recording media of the camcorder using a computer. If you do this, the camcorder will not operate correctly.
icon may
Do not insert AVCHD recording discs that have
been created using the “PMB” software to DVD players or recorders, as these devices do not support the AVCHD standard. If you do, you may not be able to remove the disc from these devices.
This camcorder captures high definition footage in the AVCHD format. Using the enclosed PC software, high definition footage can be copied onto DVD media. However, DVD media containing AVCHD footage should not be used with DVD based players or recorders, as the DVD player/recorder may fail to eject the media and may erase its contents without warning.
When you access the camcorder from the computer, use the supplied software “PMB” or the pre-installed software “PMB Portable.” Do not modify the files or folders on the camcorder from the computer. The image files may be damaged or may not be played back.
Operation is not guaranteed, if you operate the data on the camcorder from the computer.
The camcorder automatically divides an image file that exceeds 2 GB or larger and saves the parts as separate files. All image files may be shown as separate files on a computer, however, the files will be handled properly by the import function of the camcorder or the “PMB” software, and also by the playback function of the “PMB Portable” software.
Use the supplied “PMB” software when you import long movies or edited images from the camcorder to a computer. If you use other software, the images may not be imported correctly.
When you delete image files, follow the steps on page 38.
You can create a Blu-ray disc by using a computer with a Blu-ray disc burner. Install the BD Add-on Software for “PMB.”
Starting PMB (Picture
Motion Browser)
Uploading images to a network service
1
Double-click the “PMB” short-cut icon on the computer screen.
The PMB software starts up.
2
Double-click the “PMB Help” short-cut icon on the computer screen to see how to use “PMB.”
Notes
If the icon is not displayed on the computer screen, click [Start] [All Programs]
PMB] the desired item.
[
Tips
Double-click “PMB Launcher” on the desktop of the computer. This allows you to start the desired function (application) by selecting one from a list of “PMB” functions.
The application software “PMB Portable” is pre-installed in the camcorder. You can enjoy the following functions using the “PMB Portable.”
Uploading images to network services such as
blogs with ease
Uploading by a network connected computer while away from home
Register network services (such as blogs) to use frequently
Click the [Help] button on the upper right of the computer screen after the “PMB Portable” software starts up, and then you can view the details on how to use the software.
Starting up “PMB Portable”
Turn on your camcorder, then
connect the camcorder to the computer using the Built-in USB Cable.
The [USB Select] screen appears on the
camcorder screen.
Saving movies and photos with a computer
US
43
44
US
Touch [USB Connect] on the
camcorder screen.
When using Windows 7: The Device
* window opens.
Stage When using Windows XP/Windows Vista: The AutoPlay wizard is displayed.
If the[USB Select] screen does not appear,
touch [
* “Device Stage” is a menu of Windows 7,
that is used to manage devices (camcorder, camera, etc.) that are connected to the computer.
(MENU) [Setup]
(Connection)] [USB Connect].
Click “PMB Portable.”
The license agreement screen appears.
Select the desired language and
click [OK].
The area select screen appears.
Select [Region] and [Country/
Area] and click [OK].
The license agreement screen appears.
Read the agreement well and
click [I Agree].
“PMB Portable” starts up.
If the AutoPlay wizard does not appear when
you are using Windows XP or Windows Vista, click [Start] [Computer] (in Windows XP, [My Computer]) [PMBPORTABLE], then double click [PMBP_Win.exe].
If the “Device Stage” does not start up when you are using Windows 7, click [Start], then double click the camera icon for this camcorder the medium icon on which the desired images are stored [APPLICATION] [PMBP_MTP. exe].
If you are using Windows 7, the Device Stage start-up window (which does not contain the information about the specific device) may appear, depending on the computer settings. In such a case, follow the instructions on the screen and download the latest information about the system.
If you are using Windows 7, the [USB Connect Setting] (USB transfer mode) will be changed to [Mass Storage] automatically when you start up “PMB Portable.”
When you upload images via Internet, as in the case of with the camcorder, cache files may be stored in the computer you are using depending on the service provider to upload the image to.
If a problem occurs to “PMB Portable” or if you wrongly delete the software, you can download the “PMB Portable” installer from the Web to repair.
Notes
When using “PMB Portable,” make sure to connect the camcorder to the network.
et [USB LUN Setting] to [Multi] (p. 60).
S
If the “PMB Portable” does not start up, set
B Connect Setting] to [Mass Storage] (p. 60)
[US and try reconnecting.
Notes on “PMB Portable”
You can download the URLs of some websites from a server administered by Sony (hereinafter referred to as the “Sony server”) using “PMB Portable.” You must agree to the following in order to utilize the image uploading service (herein after referred to as “the service”) provided by various websites including those using “PMB Portable.”
Depending on the website, registration and fees may be required for use of the service. Use the service in accordance with the terms stipulated by the website.
The service can be suspended or altered without notice by the website organizer. In these, as well as other cases, Sony shall not be liable in any way for any loss, damages or trouble between you and a third party which arose from the use of the service.
You will be redirected to the websites by the Sony server. However, you may not be able to access the websites for some reason such as server maintenance.
If Sony decides to terminate server operation, it will be announced in advance on Sony’s website, etc.
Such information as URL address of the site you are redirected to from the Sony server may be recorded in order to improve products and services Sony offers in the future. However, personal information will not be recorded.
Saving movies and photos with a computer
US
45
Saving images with an external device
Selecting a method for saving images with an external device
You can save high definition image quality (HD) movies using an external device. Select the method to be used according to the device.
External devices Connecting cable Page
External media device
Saving images on an external media device with high definition image quality (HD).
DVDirect Express DVD writer
Saving images on a DVD disc with high definition image quality (HD).
DVD writer other than DVDirect Express
Saving images on a DVD disc with high definition image quality (HD) or with standard definition image quality (STD).
Hard disk recorder, etc.
Saving images on a DVD disc with standard definition image quality (STD).
USB Adapter cable VMC-UAM1 (sold separately)
Built-in USB cable of the DVDirect Express
Built-in USB Cable
A/V connecting cable (supplied)
48
51
54
55
Movies that are recorded with standard definition image quality (STD)
Use the A/V connecting cable to connect the camcorder to an external device in which images are saved.
Notes
The AVCHD recording disc can be played back only on AVCHD format compatible devices.
Discs with high definition image quality (HD) images recorded should not be used in DVD players/ recorders. Because DVD players/recorders are not compatible with the AVCHD format, DVD players/ recorders may fail to eject the disc.
Delete the demonstration movie when copying or creating discs. If it is not deleted, the camcorder may not operate correctly. However, you cannot recover the demonstration movie once you delete it.
46
US
The types of media on which images are saved
Refer to “Selecting the recording mode” on page 29.
The devices on which the created disc can be played back
DVD disc with high definition image quality (HD)
AVCHD format playback devices, such as a Sony Blu-ray disc player or a PlayStation
DVD disc with standard definition image quality (STD)
Ordinary DVD playback devices, such as a DVD player.
Notes
Always maintain your PlayStation
The PlayStation
3 may not be available in some countries/regions.
3 to use the latest version of the PlayStation3 system software.
3.
Saving images with an external device
US
47
Saving images on an external media device
You can save movies and photos on an external media device (USB storage devices), such as an external hard disk drive. You can also play back images on the camcorder or another playback device.
Notes
For this operation, you need the USB Adaptor Cable VMC-UAM1 (sold separately).
The USB Adaptor Cable VMC-UAM1 may not be available in some countries/regions.
Connect your camcorder to the wall outlet (wall
ocket) using the supplied AC Adaptor (p. 16).
s Refer to the instruction manual supplied with
the external media device.
Tips
You can import images saved on the external media device to your computer by using the supplied software “PMB.”
Functions available after saving images on an external media device
playback of images through the camcorder
(p. 50) importing images to “PMB”
Devices that cannot be used as an external media device
You cannot use the following devices as an
external media device.
media devices with a capacity exceeding 2 TB
ordinary disc drive such as CD or DVD drive
 
media devices connected via a USB hub
media devices with built-in USB hub
card reader
Notes
You may not be able to use external media devices with a code function.
The FAT file system is available for your
camcorder. If the storage medium of the external device was formatted for the NTFS file system, etc., format the external media device using the camcorder before use. The format screen appears when an external media device is connected to your camcorder. Make sure that important data has not previously been saved on the external media device before you format it using the camcorder.
Operation is not assured with every device satisfying requirements for operating.
For details on available external media devices, go to the Sony support website in your country/region.
1
Connect the AC Adaptor and the power cord (mains lead) to the DC IN jack of your camcorder and the wall outlet (wall socket).
2
If the external medium device has the AC power cable, connect it to the wall outlet (wall socket).
3
Connect the USB Adaptor Cable to the external media device.
4
Connect the USB Adaptor Cable to the (USB) jack of your camcorder.
Make sure not to disconnect the USB cable while [Preparing image database file. Please wait.] is displayed on the LCD screen. If [Repair Img. DB F.] is displayed on the camcorder screen, touch
.
48
US
USB Adaptor
Cable
VMC-UAM1
(sold separately)
When connecting an external media device
The images saved in the external media device are displayed on the LCD screen. Images saved on the connected external media device appear on the LCD screen. When an external media device is connected, the USB icon will appear on the Event View screen, etc.
You cannot use the Built-in USB Cable for
this type of connection.
5
Connect the external media device to the camcorder and touch [Copy.] on the camcorder screen.
Movies and photos that are stored on one of the camcorder’s recording media selected in [Media Select], and that have not yet been saved on external media device can be saved on the connected media device at this time.
This operation is available only when there are newly recorded images.
6
After operation is completed, touch on the camcorder screen.
You can make menu settings of the external media device such as deleting images. Touch Event View.
(MENU) [Edit/Copy] on
To disconnect the external media device
Touch while the camcorder is in
the playback standby mode ([Event View] or Event Index is displayed) of the external media device.
sconnect the USB Adaptor Cable.
Di
Notes
The number of scenes you can save on the external media device are as follows. However, even if the external media device has free space, you cannot save scenes exceeding the following number.
High definition image quality (HD) movies: Max. 3,999
Standard definition image quality (STD) movies: Max. 9,999
Photos: Max. 40,000 The number of scenes may be smaller depending on the type of images recorded.
Saving images with an external device
US
49
Saving desired movies and photos
You can save desired images in the camcorder to the external media device.
Connect the camcorder to the
external media device and touch [Play without copying.].
Event View of the external medium is displayed.
Touch
(MENU) [Edit/
Copy] [Copy] .
Follow the instructions that
appear on the screen to select the recording media, image selection methods and type of the image.
You cannot copy images from an external media device to the internal recording medium on the camcorder.
When you selected [Multiple
Images], touch the image to be saved.
appears.
Press and hold the image down on the
LCD screen to confirm the image. Touch
to return to the previous screen.
If you select [All In Event], select the event to copy with select multiple events.
US
/ . You cannot
50
Touch
on the camcorder screen.
Playing back images in the external media device on the camcorder
Connect the camcorder to the
external media device and touch [Play without copying.].
Event View of the external media device is displayed.
Select the image you want to
view and play back the image (p
. 31).
You can also view images on a TV
connected to your camcorder (p. 35).
You can play back the high definition image quality (HD) movies on your computer using [Player for AVCHD]. Start [Player for AVCHD], and select the drive where the external media device is connected with [Settings].
To perform [Direct Copy] manually
You can perform [Direct Copy] manually while the camcorder is connected to an external media device.
ouch (MENU) [Edit/Copy]
T
[Direct Copy] on the [Event View]
screen of the external media device.
ouch [Copy images that have not been
T
copied.].
ouch .
T
Notes
If your camcorder does not recognize the external media device, try the following operations.
Reconnect the USB Adaptor Cable to your camcorder.
If the external media device has the AC power cord (mains lead), connect it to the wall outlet (wall socket).
Creating a disc with the DVD writer, DVDirect Express
You can create a disc or play back the images on a created disc by using the DVD writer, DVDirect Express (sold separately). Refer also to the instruction manual supplied with the DVD writer.
Notes
Connect your camcorder to the wall outlet (wall socket) using the supplied AC Adaptor for this
peration (p. 16).
o
DVDirect Express is referred to as “DVD writer” in this section.
Discs that can be used
12 cm DVD-R
 
12 cm DVD+R
The device does not support two-layered
discs.
1
Connect the AC Adaptor and the power cord (mains lead) to the DC IN jack of your camcorder and the wall outlet (wall socket) (p. 16).
Saving images with an external device
2
Turn on your camcorder, and connect the DVD writer to the (USB) jack of your camcorder with the USB cable of the DVD writer.
You cannot use the Built-in USB Cable
for this type of connection.
US
51
3
Insert an unused disc into the DVD writer, and close the disc tray.
6
Touch , then disconnect the USB cable.
4
Press (DISC BURN) on the DVD writer.
Movies that are stored on one of the
camcorder’s recording media selected in [Media Select], and that have not yet been saved on any discs can be saved on the disc at this time.
When there are unsaved high definition (HD) and standard definition (STD) image quality movies, they will be saved on individual discs according to the image quality.
If the files you want to copy do not fit onto one disc, replace the disc in the DVD writer with an unused one and repeat the operation.
5
After the operation is completed, touch (the tray opens) remove the disc touch on the camcorder screen.
Tips
If the total memory size of movies to be burnt by the DISC BURN operation exceeds that of the disc, disc creation stops when the limit is reached. The last movie on the disc may be cut off.
Performing [DISC BURN OPTION]
Perform this operation in the following cases:
When copying a desired image
 
When creating multiple copies of the same disc
Connect the camcorder to the
DVD writer and touch [DISC BURN OPTION].
Select the recording media
containing the movie(s) you want to save and touch [Next].
52
US
Touch the movie you want to
burn on the disc.
appears.
Remaining Disc capacity
Touch and hold the desired thumbnail so
that you can confirm the image. Touch
to return to the previous screen.
Touch
on the
camcorder screen.
To create another disc of the same contents, insert a new disc and touch [CREATE SAME DISC].
After the operation is completed,
touch [Exit.]
on the
camcorder screen.
Disconnect the USB cable from
your camcorder.
If [Failed.] or [DISC BURN failed.] appears on
the screen, insert another disc into the DVD writer and perform the DISC BURN operation again.
Tips
Disc creation time to copy movies to the limit of the disc is about 20 to 60 minutes. It may take more time depending on the recording mode or the number of scenes.
Playing back a disc on the DVD writer
Connect the AC Adaptor and the
power cord (mains lead) to the DC IN jack of your camcorder and the wall outlet (wall socket) (p
. 16).
Turn on your camcorder, and
connect the DVD writer to the (USB) jack of your camcorder with the USB cable of the DVD writer.
Saving images with an external device
Notes
Do not do any of the following when creating a disc.
Turn off the camcorder
Disconnect the USB cable or the AC Adaptor
Subject the camcorder to mechanical shock or vibration
Eject the memory card from the camcorder
Play the created disc to make sure copying was performed correctly before deleting the movies on your camcorder.
You can play back movies on the TV
screen by connecting the camcorder to a
V (p. 35).
T
US
53
Insert a created disc into the DVD
writer.
The movies on the disc appear on the index screen on the camcorder.
Press the play button on the DVD
writer.
You can also operate by the camcorder
screen.
After the operation is completed,
touch screen and remove the disc when the tray is open.
Touch
USB cable.
on the camcorder
and disconnect the
Creating a high definition image quality (HD) disc with a DVD writer, etc., other than DVDirect Express
Use the USB cable to connect your camcorder to a disc creation device, which is compatible with high definition image quality (HD) movies, such as a Sony DVD writer. Refer also to the instruction manuals supplied with the device to be connected.
Notes
Connect your camcorder to the wall outlet (wall socket) using the supplied AC Adaptor for this
peration (p. 16).
o
Sony DVD writer may not be available in some countries/regions.
Always maintain the firmware of the Sony DVDirect (DVD writer) to its latest version. For details, see the following website. http://sony.storagesupport.com/
1
Connect the AC Adaptor and the power cord (mains lead) to the DC IN jack of your camcorder and the wall outlet (wall socket) (p. 16).
54
2
Turn on your camcorder, and connect a DVD writer, etc. to your camcorder with the Built-in USB Cable.
US
The [USB Select] screen appears on the camcorder screen.
If the [USB Select] screen does not appear,
touch [
3
Touch [USB Connect] on the camcorder screen.
The displayed recording media differ
depending on the model.
4
Record movies on the connected device.
For details, refer to the instruction manuals supplied with the device to be connected.
5
After the operation is completed, touch on the camcorder screen.
(MENU) [Setup]
(Connection)] [USB Connect].
Creating a standard definition image quality (STD) disc with a recorder, etc.
You can copy images played back on your camcorder on a disc or video cassette, by connecting your camcorder to a disc recorder, a Sony DVD writer, etc., other than DVDirect Express, with the A/V connecting cable. Connect the device in either way of or . Refer also to the instruction manuals supplied with the devices to be connected.
Notes
Connect your camcorder to the wall outlet (wall socket) using the supplied AC Adaptor for this
peration (p. 16).
o
Sony DVD writer may not be available in some countries/regions.
High definition image quality (HD) movies will be copied with standard definition image quality (STD).
Saving images with an external device
6
Disconnect the USB cable.
US
55
A/V Remote Connector
Input
S VIDEO
VIDEO
(Yellow)
(White)
AUDIO
(Yellow)
Signal flow
A/V connecting cable (supplied) A/V c
onnecting cable with S VIDEO
(sold separately)
By using this cable, higher quality images can be produced than with an A/V connecting cable.
and red plug (left/right audio) and the S VIDEO plug (S VIDEO channel) of the A/V connecting cable with an S VIDEO cable. If you connect the S VIDEO plug only, you will hear no sound. The yellow plug (video) connection is not necessary.
(red)
Connect the white
1
Insert the recording media in the recording device.
If your recording device has an input
selector, set it to the input mode.
US
56
2
Connect your camcorder to the recording device (a disc recorder, etc.) with the A/V connecting cable (supplied) or an A/V connecting cable with S VIDEO (sold separately).
Connect your camcorder to the input jacks
of the recording device.
3
Start playback on your camcorder, and record it on the recording device.
Refer to the instruction manuals supplied with your recording device for details.
4
When dubbing is finished, stop the recording device, and then your camcorder.
Notes
Since copying is performed via analog data transfer, the image quality may deteriorate.
You cannot copy images to recorders connected with an HDMI cable.
To copy date/time information, camera data, and coordinates (HDR-CX560V/CX700V), touch (Playback Settings)] [Data Code] a desired setting When the screen size of display devices (TV,
etc.) is 4:3, touch
[
When you connect a monaural device, connect the yellow plug of the A/V connecting cable to the video input jack, and the white (left channel) or the red (right channel) plug to the audio input jack on the device.
(MENU) [Setup] [
.
(MENU) [Setup]
(Connection)] [TV Type] [4:3]
.
Customizing your camcorder
Using menus
You can enjoy using your camcorder more by making good use of menu operations. The camcorder has various menu items under each of 6 menu categories.
Shooting Mode (Items for selecting a shooting mode) p. 58
Camera/Mic (Items for customized shooting) p. 58
Image Quality/Size (Items for setting up image quality or size) p. 59
Playback Function (Items for playback) p. 59
Edit/Copy (Items for editing) p. 60
Setup (Other setup items) p. 60
Operating menus
Follow the procedures explained below to set the menu items.
Customizing your camcorder
The [Camera/Mic] and [Setup] menus have sub-categories. Touch the sub-category icon, and the screen changes to other sub-category menus. Grayed out menu items or settings are not available.
Notes
You may not be able to set some menu items, depending on the recording or playback conditions.
Touch
to finish setting the menu or to return to the previous menu screen.
US
57
58
US
Menu lists
Shooting Mode
Movie ..........................................Records movies.
Photo ........................................... Shoots photos.
Smth Slw REC ...........................Records fast moving subjects in slow-motion.
Golf Shot ....................................Divides two seconds of fast movement into frames which are then
recorded as a movie and photos.
Camera/Mic
(Manual Settings)
White Balance .................Adjusts the color balance to the brightness of the recording environment.
Spot Meter/Fcs ............... Adjusts the brightness and focus for the selected subject simultaneously.
Spot Meter ....................... Adjusts the brightness of images to a subject you touch on the screen.
Spot Focus ....................... Focuses on a subject you touch on the screen.
Exposure ...........................Adjusts the brightness of movies and photos.
Focus..................................Focuses manually.
IRIS ...................................... Sharpens the subject with its background blurred or sharpens the whole
Shutter Speed.................Adjusts Shutter Speed. When you shoot a moving subject at a higher
AE Shift.............................. Adjusts the exposure. Touch
White Balance Shift ......Adjusts the white balance.
Low Lux .............................Records bright color images in the dim.
(Camera Settings)
Scene Selection .............Selects an appropriate recording setting according to the type of scene,
Cinematone.............Adjusts the color of the movie to resemble the atmosphere of films when
Fader .......................... Fades scenes in or out.
Self-Timer ................. Sets the self-timer when your camcorder is in photo recording mode.
Tele Macro........................Shoots a subject in focus with the background out of focus.
SteadyShot ..............Sets the SteadyShot function when recording movies.
SteadyShot .............. Sets the SteadyShot function when shooting photos.
Digital Zoom ................... Sets the maximum zoom level of the digital zoom that exceeds the zoom
Conversion Lens ............ Sets the type of an attached conversion lens (sold separately). Optimizes
Auto Back Light ..............Adjusts the exposure for backlit subjects automatically.
Dial Setting ...................... Assigns a function to the MANUAL dial.
NIGHTSHOT Light ..........Emits infrared light when using NightShot.
image.
shutter speed, it appears as if frozen on the image. At a lower shutter speed, the subject appears as if it is flowing.
if the subject is white or the backlight
is bright, or touch
such as night view or beach.
recording.
level of the zoom.
the SteadyShot function and focus according to the attached lens.
if the subject is black or the light is dim.
(Face)
Face Detection ............... Adjusts the image quality of the face(s) automatically.
Smile Shutter .................. Automatically takes a shot whenever a smile is detected.
Smile Sensitivity ............Sets the smile detection sensitivity using the smile shutter function.
(Flash)
Flash ................................... Sets how the flash is activated.
Flash Level ....................... Sets the brightness of flash.
Red Eye Reduction ........ Prevents redeye when shooting with flash.
(Microphone)
Blt-in Zoom Mic .............Records movies with vivid sound appropriate to the zoom position.
Wind Noise Reduct. ...... Reduces the wind noise.
Audio Mode ....................Sets the recording sound format (5.1ch surround/2ch stereo).
Micref Level ..................... Sets the microphone level.
(Shooting Assist)
Expanded Focus*
1
......... Magnifies the image that appears at the center of the screen by about 2.0
times.
Guide Frame....................Displays the frame to make sure the subject is horizontal or vertical.
Display Setting ............... Sets the duration that icons or indicators are displayed on the LCD screen.
1
.............................. Displays a zebra pattern as a guide for adjusting brightness.
Zebra*
1
.......................... Displays an image on the LCD screen with its outlines enhanced.
Peaking*
Audio Level Display ...... Displays the audio level meter on the LCD screen.
Image Quality/Size
REC Mode ..........................Sets the mode to record movies. When recording fast moving subject, a
Frame Rate ........................Sets the frame rate to record movies.
/ Setting................. Sets image quality for recording, playback, or editing movies.
Wide Mode ........................ Sets the horizontal to vertical ratio when recording movies with standard
x.v.Color ..............................Records wider range of colors.
Image Size ......................... Sets the photo size.
high image quality is recommended.
definition image quality (STD).
Playback Function
Event View .................................Shows the Event View display.
Map View*
Highlight Movie ......................Starts Highlight Playback.
2
................................ Shows the Map View display.
Scenario ...............................Starts playing Highlight Scenario that has been saved.
Customizing your camcorder
US
59
60
US
Edit/Copy
Delete..........................................Deletes movies or photos.
Protect ........................................Protects movies or photos to avoid deleting.
Copy ............................................Copies images back and forth between the selected internal recording
Direct Copy ............................... Copies images stored on the internal recording medium or on a memory
medium and the inserted memory card.
card to some type of external media.
Setup
(Media Settings)
Media Select ...................S
Media Info ........................ Displays information on the recording media, such as free space.
Format ............................... Deletes all data on the internal recording media or a memory card.
Repair Img. DB F. ............ Repairs the image database file on the internal recording media or a
File Number .....................Sets how to assign the file number.
(Playback Settings)
Data Code ........................Sets the date and time.
Volume ..............................A
Download Music ...........Download music files that can be played with Highlight Playback.
Empty Music ...................Deletes music files.
(Connection)
TV Type .............................C
Component ..................... Select this option when you connect your camcorder to a TV with the
HDMI Resolution ...........Selects the output image resolution when connecting your camcorder to a
CTRL FOR HDMI .............Sets whether or not the TV’s Remote Commander is to be used when
USB Connect ................... Selects which type of media on the camcorder is to be used when the
USB Connect Setting ...Sets the connection mode when the camcorder is connected to a computer
USB LUN Setting ............ Sets the camcorder to improve the compatibility of a USB connection by
Disc Burn ..........................Allows you to save images onto discs by a single press of a button.
ets the type of media to be used for recording movies or photos (p. 21).
emory card (p. 64).
m
djusts the volume of playback sound (p. 33).
onverts the signal depending on the TV connected (p. 35).
mponent input jack (p. 36).
co
TV with an HDMI cable (sold separately).
the camcorder is connected to a “BRAVIA” Sync compatible TV with the HDMI cable (sold separately).
camcorder is connected to an external device via USB.
or a USB device.
restricting some USB functions.
(General Settings)
Beep ................................... Sets whether the camcorder sounds operation beeps or not.
LCD Brightness .............. Adjusts the brightness of the LCD screen.
Your Location* GPS Setting*
2
..............Displays the current location on a map.
2
..................Sets the GPS signal reception on or off.
REC Lamp ......................... Sets the recording lamp to light up or not.
Remote Ctrl .....................Sets whether the Wireless Remote Commander is to be used or not.
A. Shut Off ........................ C
Power On By LCD*
Language Setting .........S
hanges the [A. Shut Off] setting (p. 16).
3
....... Sets whether or not the camcorder is turned on and off when you open
and close the LCD screen.
ets the display language (p. 20).
Calibration ....................... Calibrates the touch panel.
Battery Info ...................... Displays the battery information.
Demo Mode .................... Sets whether the demonstration appears or not.
(Clock Settings)
Date & Time Setting ..... S
Area Setting ....................A
Auto Clock ADJ *
Auto Area ADJ*
ets the [Date & Time], [Summer Time], or [Date & Time Format] (p. 18).
djusts for a time difference without stopping the clock (p. 18).
2
.......... Sets whether the camcorder adjusts the clock automatically by acquiring
the time from GPS or not.
2
............. Sets whether the camcorder compensates for a time differences
automatically by acquiring the current location information from GPS or not.
1
*
HDR-CX700/CX700V
2
*
HDR-CX560V/CX700V
3
*
HDR-CX560/CX560V
Customizing your camcorder
US
61
Getting detailed information from the “Handycam” Handbook
The “Handycam” Handbook is a user guide designed to be read on a computer screen. The “Handycam” Handbook is intended to be read when you want to know more about operating your camcorder.
1
To install the “Handycam” Handbook on a Windows computer, place the supplied CD-ROM in the disc drive of your computer.
The installation screen appears.
If the screen does not appear, click
[Start] [Computer] (in Windows XP, [My Computer]), then double- click [SONYPMB(E:)](CD- ROM) exe].
* Drive names (such as (E:)) may vary
depinding on the computer.
2
Click [Handbook].
3
Click the desired language and the model name of your camcorder [Install], and follow the on- screen instructions to install “Handycam” Handbook.
The model name of your camcorder is
printed on the bottom surface.
* [install.
To view the “Handycam” Handbook, double-click the short-cut icon on the computer screen.
When using a Macintosh, open the [Handbook]
– [US] folder in the CD-ROM, then copy [Handbook.pdf].
You need Adobe Reader to read “Handycam” Handbook. If it is not installed on your computer, you can download it from the Adobe Systems web page: http://www.adobe.com/
Refer to “PMB Help” for details on the supplied
oftware “PMB” (p. 40).
s
62
US
Additional information
Troubleshooting
If you run into any problems using your camcorder, follow the steps below.
Check the list (p. 63 to 65), and
inspect your camcorder.
Remove the power source, attach
the power source again after about 1 minute, and turn the camcorder on.
Press RESET (p. 77) using a pointed
object, and turn the camcorder on.
If you press RESET, all settings, including the clock setting, are reset.
Contact your Sony dealer or local
authorized Sony service facility.
Your camcorder may be required to initialize
or change the current internal memory of your camcorder, depending on the problem. In the event of this, the data stored on the internal memory will be deleted. Be sure to save the data on the internal memory on other media (backup) before sending your camcorder for repair. We will not compensate you for any loss of internal memory data.
During repair, we may check a minimum amount of data stored on the internal memory in order to investigate the problem. However, your Sony dealer will neither copy nor retain your data.
ee the “Handycam” Handbook (p. 62) for
S details on the symptoms of your camcorder,
nd “PMB Help” (p. 43) on connecting your
a camcorder to a computer.
The power does not turn on.
Attach a charged battery pack to the
camcorder (p. 14). Connect the plug of the AC Adaptor to the
wa
ll outlet (wall socket) (p. 16).
The camcorder does not operate even when the power is set to on.
It takes a few seconds for your camcorder to
be ready to shoot after the power is turned on. This is not a malfunction. Disconnect the AC Adaptor from the wall
outlet (wall socket) or remove the battery pack, then reconnect it after about 1 minute. If your camcorder still does not work, press RES
ET (p. 77) using a pointed object. (If you press RESET, all settings, including the clock setting, are reset.) The temperature of your camcorder is
extremely high. Turn off the camcorder and leave it for a while in a cool place. The temperature of your camcorder is
extremely low. Leave the camcorder with the power turned on. If you still cannot operate your camcorder, turn off the camcorder and take it to a warm place. Leave the camcorder there for a while, then turn on the camcorder.
Your camcorder gets warm.
Your camcorder may become warm during operation. This is not a malfunction.
The power abruptly turns off.
Use the AC Adaptor (p. 16).
Turn on the power again.
C
harge the battery pack (p. 14).
Pressing START/STOP or PHOTO does not record images.
Press MODE to turn on the (Movie) or (Photo) lamp.
Your camcorder is recording the image you have just shot on the recording media. You cannot make any new recordings during this period. The recording media is full. Delete
unn
ecessary images (p. 38). Total number of movie scenes or photos has
exceeded the recordable capacity of your c
amcorder (p. 66). Delete unnecessary images
(p
. 38).
Additional information
US
63
64
US
The recording stops.
The temperature of your camcorder is
extremely high/low. Turn off your camcorder and leave it for a while in a cool/warm place.
”PMB” cannot be installed.
Check the computer environment or
installation procedure required to install “
PMB” (p. 40).
”PMB” does not work correctly.
Quit “PMB” and restart your computer.
The camcorder is not recognized by the computer.
Disconnect devices from the USB jack of the
computer other than the keyboard, mouse, and your camcorder. Disconnect the USB cable from the computer
and your camcorder, and restart the computer, then connect the computer and your camcorder again in an orderly manner. When both the built-in USB cable and other
USB cable (that is connected to the USB port on the camcorder) are connected to external devices at the same time, disconnect the one that is not connected to a computer.
Self-diagnosis display/Warning indicators
If indicators appear on the LCD screen or viewfinder (HDR-CX700/CX700V), check the following. If the problem persists even after you have tried to fix a couple of times, contact your Sony dealer or local authorized Sony service facility. In this case, when you contact them, give them all the numbers of the error code beginning with C or E.
C:04:
The battery pack is not an “InfoLITHIUM”
battery pack V series. Use an “InfoLITHIUM” b
attery pack (V series) (p. 14).
Connect the DC plug of the AC Adaptor to
y
our camcorder securely (p. 14).
C:06:
The battery pack temperature is high. Change
the battery pack or place it in a cool place.
C:13: / C:32:
Remove the power source. Reconnect it and
operate your camcorder again.
E::
Follow the steps from on page 63.
Battery power is low.
The battery pack temperature is high. Change
the battery pack or place it in a cool place.
No memory card is inserted (p. 22).
When the indicator flashes, there is not
enough free space for recording images. Delete unn
ecessary images (p. 38), or format the memory card after storing the images on other media. The Image Database File is damaged. Check
the data base file by touching [Setup] [
(Media Settings)]
[Repair Img. DB F.] the recording medium.
The memory card is damaged. Format the
memory card with your camcorder (p. 60).
(MENU)
Recording time of movies/number of recordable photos
Incompatible memory card is inserted (p. 22).
The memory card is write-protected.
Access to the memory card was restricted on another device.
There is something wrong with the flash.
The amount of light is not sufficient. Use the
flash.
The camcorder is unsteady. Hold the camcorder steady with both hands. However, note that the camera-shake warning indicator does not disappear.
The recording media is full. Delete unnecessary
p. 38).
images ( Photos cannot be recorded during processing.
Wait for a while, then record. When [
Quality capture photos while recording movies. Furthermore, if [ you cannot record photos while the camcorder is in movie recording standby mode.
REC Mode] is set to [Highest
] or [60p Quality ], you cannot
Frame Rate] is set to [24p],
“HD” stands for high definition image quality, and “STD” stands for standard image quality.
Expected time of recording and playback with each battery pack
Recording time
Approximate time available when you use a fully charged battery pack.
HDR-CX560/CX560V
(unit: minute)
Battery pack Continuous
recording time
Image quality HD STD HD STD NP-FV50
115 125 55 60
(supplied) NP-FV70 240 260 120 130 NP-FV100 485 515 240 255
HDR-CX700/CX700V
Battery pack Continuous
recording time
Image quality HD STD HD STD NP-FV50
(supplied)
115 125
NP-FV70 240
260
NP-FV100 485
515
Typical recording
time
(unit: minute)
Typical recording
time
125 13555606065
260
120 130
240 255
130 140
255 275
280 515
555
Additional information
Top: When the LCD screen is opened
Bottom: When recording with the viewfinder without opening the LCD screen
Each recording time is measured when the camcorder is recording high definition image quality (HD) movies with [ to [Standard
].
REC Mode] set
US
65
66
US
Typical recording time shows the time when
you repeat recording start/stop, switching the MODE lamp, and zooming.
Times measured when using the camcorder at
C (77 °F). 10 C to 30 C (50 °F to 86 °F) is
25 recommended.
The recording and playback time will be shorter when you use your camcorder in low temperatures.
The recording and playback time will be shorter depending on the conditions under which you use your camcorder.
Playing time
Approximate time available when you use a fully charged battery pack.
HDR-CX560/CX560V
(unit: minute)
Battery pack
Image quality HD STD NP-FV50
215 225
(supplied) NP-FV70 440 465 NP-FV100 870 925
HDR-CX700/CX700V
(unit: minute)
Battery pack
Image quality HD STD NP-FV50
(supplied)
215 240
NP-FV70 440
490
NP-FV100 870
980
Top: When the LCD screen is opened
Bottom: When playing with the viewfinder without opening the LCD screen
225 255
465 525
925
1045
Expected recording time of movies
Internal recording media
HDR-CX560/CX560V
High definition image quality (HD) in h (hour) and m (minute)
Recording mode Recording time
HDR-CX560 HDR-CX560V
5 h 15 m
]
]
]
]
]
(5 h 15 m)
6 h 15 m
(6 h 15 m)
8 h 25 m
(8 h 25 m)
14 h 55 m
(11 h 20 m)
25 h 45 m
(21 h 10 m)
26 h 40 m
(21 h 45 m)
[60p Quality
[Highest Quality
]
[High Quality
[Standard
[Long Time (5.1ch)
*
[Long Time (2ch)
*
Standard definition image quality (STD) in h (hour) and m (minute)
Recording mode Recording time
HDR-CX560 HDR-CX560V
15 h 25 m
[Standard (5.1ch)
[Standard (2ch)
]
]
(14 h 15 m)
15 h 55 m
(14 h 35 m)
*
*
HDR-CX700/CX700V
High definition image quality (HD) in h (hour) and m (minute)
Recording mode Recording time
HDR-CX700 HDR-CX700V
7 h 55 m
[60p Quality
[Highest Quality
]
[High Quality
]
]
(7 h 55 m)
9 h 20 m
(9 h 20 m)
12 h 45 m
(12 h 45 m)
5 h 10 m
(5 h 10 m)
6 h 10 m
(6 h 10 m)
8 h 20 m
(8 h 20 m)
14 h 40 m
(11 h 10 m)
25 h 25 m
(20 h 50 m)
26 h 20 m
(21 h 30 m)
15 h 15 m
(14 h 0 m)
15 h 40 m
(14 h 25 m)
7 h 50 m
(7 h 50 m)
9 h 15 m
(9 h 15 m)
12 h 35 m
(12 h 35 m)
Recording mode Recording time
HDR-CX700 HDR-CX700V
[Standard
[Long Time (5.1ch)
*
[Long Time (2ch)
*
]
]
]
22 h 25 m
(17 h 0 m)
38 h 40 m
(31 h 45 m)
40 h 5 m
(32 h 45 m)
22 h 15 m
(16 h 50 m)
38 h 20 m
(31 h 30 m)
39 h 45 m
(32 h 30 m)
Standard definition image quality (STD) in h (hour) and m (minute)
Recording mode Recording time
HDR-CX700 HDR-CX700V
23 h 10 m
[Standard (5.1ch)
[Standard (2ch)
* You can change the recording sound format with
[Audio Mode] (p. 59).
Notes
The number in ( ) is the minimum recordable time.
Tips
You can record movies of a maximum of 3,999 scenes with high definition image quality (HD), and 9,999 scenes with standard definition image quality (STD).
The maximum continuous recording time of movies is approximately 13 hours.
If you want to record up to the maximum recording time indicated in the table, you need to delete the demonstration movie on your camcorder.
Your camcorder uses the VBR (Variable Bit Rate) format to automatically adjust image quality to suit the recording scene. This technology causes fluctuations in the recording time of the media. Movies containing quickly moving and complex images are recorded at a higher bit rate, and this reduces the overall recording time.
]
]
(21 h 20 m)
23 h 55 m
(21 h 55 m)
*
*
23 h 0 m
(21 h 10 m)
23 h 40 m
(21 h 45 m)
Memory card
High definition image quality (HD)
(unit: minute)
2 GB 4 GB 8 GB 16 GB 32 GB
9
(9)15(15)35(35)75(75) 10
(10)20(20)40(40)85(85)
10
(10)25(25)60(60)
25
(15)50(35)
40
(35)90(70)
5.1ch*
45
(35)90(75)
2ch*
105
(80)
180
(150)
190
(155)
120
(120)
210
(160)
370
(300)
380
(310)
150
(150)
180
(180)
245
(245)
430
(325)
745
(610)
770
(630)
Standard definition image quality (STD)
(unit: minute)
2 GB 4 GB 8 GB 16 GB 32 GB
25
(20)50(50)
5.1ch*
25
(25)55(50)
2ch*
* You can change the recording sound format with
[Audio Mode] (p. 59).
Notes
The recordable time may vary depending on the recording and subject conditions and [ Mode] and [
The number in ( ) is the minimum recordable time.
110
(100)
(205)
110
(100)
(210)
Frame Rate] (p. 59).
220
225
445
(410)
460
(420)
REC
Additional information
US
67
68
US
Expected number of recordable photos
Internal recording media
You can record the maximum 40,000 photos.
Memory card
12.3M
2 GB 360 4 GB 720 8 GB 1450 16 GB 2900 32 GB 5900
The selected image size is effective when the
(Photo) lamp is lit.
The number of recordable photos of memory
card shown is for the maximum image size of your camcorder. The actual number of recordable photos is displayed on the LCD
creen during recording (p. 74).
s
The number of recordable photos of memory card may vary depending on the recording conditions.
Notes
The unique pixel array of Sony’s ClearVid and the image processing system (BIONZ) allow still image resolution equivalent to the sizes described.
Tips
You can also use memory card with a capacity of under 1 GB for recording photos.
The following list shows the bit rate, pixels and aspect ratio of each recording mode (movie + audio, etc.).
High definition image quality (HD): PS: Max. 28 Mbps 1,920 1,080 pixels/16:9 FX: Max. 24 Mbps 1,920 1,080 pixels/16:9 FH: Approx. 17 Mbps (average) 1,920 1,080
pixels/16:9
HQ: Approx. 9 Mbps (average) 1,440 1,080
pixels/16:9
LP: Approx. 5 Mbps (average) 1,440 1,080
pixels/16:9
Standard definition image quality (STD): HQ: Approx. 9 Mbps (average) 720 480
pixels/16:9, 4:3
The photo recording pixels and the aspect ratio.
Photo recording mode: 4,672 2,628 dots/16:9 3,504 2,628 dots/4:3 2,112 1,584 dots/4:3 640 480 dots/4:3
Dual recording: 4,672 2,628 dots/16:9 3,504 2,628 dots/4:3
Capturing a photo from a movie: 1,920 1,080 dots/16:9 640 360 dots/16:9 640 480 dots/4:3
Precautions
On use and care
Do not use or store the camcorder and
accessories in the following locations:
Anywhere extremely hot, cold or humid. Never leave them exposed to temperatures
C (140 °F), such as under direct
bove 60
a sunlight, near heaters or in a car parked in the sun. They may malfunction or become deformed.
Near strong magnetic fields or mechanical vibration. The camcorder may malfunction.
Near strong radio waves or radiation. The camcorder may not be able to record properly.
Near AM receivers and video equipment. Noise may occur.
On a sandy beach or anywhere dusty. If sand or dust gets in your camcorder, it may malfunction. Sometimes this malfunction cannot be repaired.
Near windows or outdoors, where the LCD screen, the viewfinder (HDR-CX700/ CX700V) or the lens may be exposed to direct sunlight. This damages the inside of the viewfinder (HDR-CX700/CX700V) or the LCD screen.
Operate your camcorder on DC 6.8 V/7.2 V (battery pack) or DC 8.4 V (AC Adaptor).
For DC or AC operation, use the accessories recommended in these operating instructions.
Do not let your camcorder get wet, for example, from rain or sea water. If your camcorder gets wet, it may malfunction. Sometimes this malfunction cannot be repaired.
If any solid object or liquid gets inside the casing, unplug your camcorder and have it checked by a Sony dealer before operating it any further.
Avoid rough handling, disassembling, modifying, physical shock, or impact such as hammering, dropping or stepping on the product. Be particularly careful of the lens.
Keep the camcorder turning off when you are not using your camcorder.
Do not wrap your camcorder with a towel, for example, and operate it. Doing so might cause heat to build up inside.
When disconnecting the power cord (mains
lead), pull it by the plug and not the cord (lead).
Do not damage the power cord (mains lead) such as by placing anything heavy on it.
Do not use a deformed or damaged battery pack.
Keep metal contacts clean.
If the battery electrolytic liquid has leaked:
Consult your local authorized Sony service
facility.
Wash off any liquid that may have contacted
your skin.
If any liquid gets in your eyes, wash with
plenty of water and consult a doctor.
When not using your camcorder for a long time
To keep your camcorder in optimum state for a
long time, turn it on and let it run by recording and playing back images about once a month. Use up the battery pack completely before
storing it.
LCD screen
Do not exert excessive pressure on the LCD
screen, as it may cause damage. If your camcorder is used in a cold place, a
residual image may appear on the LCD screen. This is not a malfunction. While using your camcorder, the back of
he LCD screen may heat up. This is not a
t malfunction.
To clean the LCD screen
If fingerprints or dust make the LCD screen
dirty, it is recommended that you use a soft cloth to clean it.
On handling the casing
If the casing is soiled, clean the camcorder body
with a soft cloth lightly moistened with water, and then wipe the casing with a dry soft cloth. Avoid the following to avoid damage to the
finish:
Using chemicals such as thinner, benzine,
alcohol, chemical cloths, repellent, insecticide
and sunscreen
Additional information
US
69
70
US
Handling the camcorder with above
substances on your hands
Leaving the casing in contact with rubber or vinyl objects for a long period of time
About care and storage of the lens
Wipe the surface of the lens clean with a soft
cloth in the following instances:
When there are fingerprints on the lens
surface
In hot or humid locations
When the lens is exposed to salty air such as at the seaside
Store in a well-ventilated location subject to little dirt or dust.
To prevent mold, periodically clean the lens as described above.
On charging the pre-installed rechargeable battery
Your camcorder has a pre-installed rechargeable battery to retain the date, time, and other settings even when the camcorder is turned off. The pre­installed rechargeable battery is always charged while your camcorder is connected to the wall outlet (wall socket) via the AC Adaptor or while the battery pack is attached. The rechargeable battery will be fully discharged in about 3 months if you do not use your camcorder at all. Use your camcorder after charging the pre-installed rechargeable battery. However, even if the pre­installed rechargeable battery is not charged, the camcorder operation will not be affected as long as you are not recording the date.
Procedures
Connect your camcorder to a wall outlet (wall socket) using the supplied AC Adaptor, and leave it with the LCD screen closed for more than 24 hours.
Note on disposal/transfer of the camcorder
Even if you delete all movies and still images, or perform [Format], data on the internal recording media may not be completely erased. When you transfer the camcorder, it is recommended that you perform [Empty]
(See “Getting detailed information from the “Handycam” Handbook” on page 62.) to prevent the recovery of your data. Also, when you dispose of the camcorder, it is recommended that you destroy the actual body of the camcorder.
Note on disposal/transfer of memory card
Even if you delete data in the memory card or format the memory card on your camcorder or a computer, you may not delete data from the memory card completely. When you give the memory card to somebody, it is recommended that you delete data completely using data deletion software on a computer. Also, when you dispose of the memory card, it is recommended that you destroy the actual body of the memory card.
To change the battery of the Wireless Remote Commander
While pressing on the tab, inset your fingernail
into the slit to pull out the battery case.
Place a new battery with the + side facing up.
Insert the battery case back into the Wireless
Remote Commander until it clicks.
Tab
WARNING
Battery may explode if mistreated. Do not recharge, disassemble or dispose of in fire.
When the lithium battery becomes weak, the operating distance of the Wireless Remote Commander may shorten, or the Wireless Remote Commander may not function properly. In this case, replace the battery with a Sony CR2025 lithium battery. Use of another battery may present a risk of fire or explosion.
Specifications
System
Signal format: NTSC color, EIA standards
HDTV 1080/60i, 1080/60p specification
Movie recording format:
HD: MPEG-4 AVC/H.264 AVCHD format compatible (1080 60p/original format) STD: MPEG2-PS
Audio recording system:
Dolby Digital 2ch/5.1ch Dolby Digital 5.1 Creator
Photo file format
DCF Ver.2.0 Compatible Exif Ver.2.3 Compatible MPF Baseline Compatible
Recording media (Movie/Photo)
Internal memory
R-CX560/CX560V: 64 GB
HD HDR-CX700/CX700V: 96 GB “Memory Stick PRO Duo” media SD card (Class 4 or faster)
hen measuring media capacity, 1 GB equals
W 1 billion bytes, a portion of which is used for system management and/or application files. The capacity that a user can use is below. HDR-CX560:
pproximately 63.9 GB
a HDR-CX560V:
pproximately 63.1 GB
a HDR-CX700:
pproximately 96.0 GB
a HDR-CX700V:
pproximately 95.2 GB
a
Viewfinder: Electronic viewfinder: color (HDR-
CX700/CX700V)
I
mage device: 6.2 mm (1/2.88 type) CMOS sensor
Recording pixels (photo, 16:9): M
ax. 12.3 mega (4 672 Gross: Approx. 6 648 000 pixels Effective (movie, 16:9)
2 628) pixels*
2
*
: Approx. 6 140 000 pixels Effective (photo, 16:9):
pprox. 6 140 000 pixels
A Effective (photo, 4:3):
pprox. 4 600 000 pixels
A
1
Lens: G lens
(Optical)*
10 (Digital)
ilter diameter: 37 mm (1 1/2 in.)
F
2
, 14 (Extended)*3, 120
F1.8 ~ 3.4 Focal length:
mm ~ 38.0 mm (5/32 in. ~ 1 1/2 in.)
f=3.8 When converted to a 35 mm still camera For movies ~ 10 3/8 in.) (16:9)
2
*
: 26.3 mm ~ 263 mm (1 1/16 in.
For photos: 26.3 mm ~ 263 mm (1 1/16 in. ~ 10 3/8 in.) (16:9)
Color temperature: [Auto], [One Push], [Indoor]
200 K), [Outdoor] (5 800 K)
(3 Minimum illumination 11 lx (lux) (in default setting, shutter speed 1/60
second) 3 lx (lux) ([Low Lux] is set to [On], shutter speed
1/30 second) 0 lx (lux) (NIGHTSHOT is set to [On])
1
*
The unique pixel array of Sony’s ClearVid
and the image processing system (BIONZ) allow still image resolution equivalent to the sizes described.
2
*
[ SteadyShot] is set to [Standard] or
[Off].
3
*
[ SteadyShot] is set to [Active].
Input/Output connectors
A/V Remote Connector: Component/video and
audio output jack HDMI OUT jack: HDMI mini connector USB jack: mini-AB/Type A (Built-in USB) Headphone jack: Stereo minijack ( 3.5 MIC input jack: Stereo minijack ( 3.5
mm)
mm)
LCD screen
Picture: 7.5 cm (3.0 type, aspect ratio 16:9) Total number of pixels: 921 600 (1 920
480)
Additional information
US
71
72
US
General
Power requirements: DC 6.8 V/7.2 V (battery
pack) DC 8.4 V (AC Adaptor) USB Charging: DC 5 V 500 mA Average power consumption:
HDR-CX560/CX560V:
W STD: 3.0 W
HD: 3.2
HDR-CX700/CX700V:
During camera recording using the
viewfinder at normal brightness:
W STD: 2.8 W
HD: 3.0
During camera recording using LCD screen
at normal brightness:
W STD: 3.0 W
HD: 3.2 Operating temperature: 0
104 °F)
torage temperature: –20
S
+140 °F) Dimensions (approx.):
HDR-CX560/CX560V:
67 mm 126 mm (2 1/2 in. ×
62
mm 2 3/4 in. × 5 in.) (w/h/d) including the projecting parts
67 mm 133.5 mm (2 1/2 in.
mm
62 × 2 3/4 in. × 5 3/8 in.) (w/h/d) including the projecting parts, and the supplied rechargeable battery pack attached HDR-CX700/CX700V:
72.5 mm 139 mm (2 1/2 in. ×
mm
62 2 7/8 in. × 5 1/2 in.) (w/h/d) including the projecting parts
76.5 mm 174 mm (3 5/8 in.
mm
92 × 3 1/8 in. × 6 7/8 in.) (w/h/d) including the projecting parts, and the supplied rechargeable battery pack attached
Mass (approx.)
HDR-CX560/CX560V:
g (13 oz) main unit only
385 435 g (15 oz) including the supplied rechargeable battery pack HDR-CX700/CX700V:
g (14 oz) main unit only
395 490 g (1 lb 1 oz) including the supplied rechargeable battery pack
C to 40 C (32 °F to
C to + 60 C (‒4 °F to
AC Adaptor AC-L200C/AC-L200D
Power requirements: AC 100 V - 240 V,
50 Hz/60 Hz Current consumption: 0.35 A - 0.18 A Power consumption: 18 W Output voltage: DC 8.4 V
*
Operating temperature: 0 C to 40 C (32 °F to
104 °F)
torage temperature: –20
S
C to + 60 C (‒4 °F to
+140 °F)
ensions (approx.): 48 mm
Dim
(1 15/16 in.
1 3/16 in. 3 1/4 in.) (w/h/d)
29 mm 81 mm
excluding the projecting parts
ass (approx.): 170 g (6.0 oz) excluding the
M
power cord (mains lead)
* See the label on the AC Adaptor for other
specifications.
Rechargeable battery pack NP-FV50
Maximum output voltage: DC 8.4 V Output voltage: DC 6.8 V Maximum charge voltage: DC 8.4 V Maximum charge current: 2.1 A Capacity
T
ypical: 7.0 Wh (1 030 mAh)
Minimum: 6.6 Wh (980 mAh) Type: Li-ion
Design and specifications of your camcorder and accessories are subject to change without notice.
Manufactured under license from Dolby Laboratories.
On trademarks
“Handycam” and are
registered trademarks of Sony Corporation. “AVCHD” and “AVCHD” logotype are
trademarks of Panasonic Corporation and Sony Corporation.
“Memory Stick,” “ ,” “Memory Stick Duo,” “ ,” “Memory Stick PRO Duo,” “ Stick PRO-HG Duo,” “ “MagicGate,” “ Memory Stick” and “MagicGate Memory Stick Duo” are trademarks or registered trademarks of Sony Corporation.
“InfoLITHIUM” is a trademark of Sony Corporation. “x.v.Color” is a trademark of Sony Corporation.
“BIONZ” is a trademark of Sony Corporation.
 
is a registered trademark of
Sony Corporation.
“BRAVIA” is a registered trademark of Sony Corporation. “DVDirect” is a trademark of Sony
Corporation. “Blu-ray Disc” and the logo are trademarks.
Dolby and the double-D symbol are trademarks
of Dolby Laboratories. HDMI, the HDMI logo and High-Definition
Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. Microsoft, Windows, Windows Vista, and
DirectX are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Macintosh and Mac OS are registered
trademarks of Apple Inc. in the U.S. and other countries. Intel, Intel Core, and Pentium are trademarks
or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. “
” and “PlayStation” are registered trademarks of Sony Computer Entertainment Inc..
Adobe, the Adobe logo, and Adobe Acrobat are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.
,” “Memory
,” “MagicGate
NAVTEQ and the NAVTEQ Maps logo are
trademarks of NAVTEQ in the US and other countries. SDXC logo is a trademark of SD-3C, LLC.
MultiMediaCard is a trademark of
MultiMediaCard Association. All other product names mentioned herein may be the trademarks or registered trademarks of their respective companies. Furthermore,
,”
are not mentioned in each case in this manual.
Add further enjoyment with your PlayStation 3 by downloading the application for PlayStation 3 from PlayStation Store (where available.)
The application for PlayStation 3 requires PlayStation Network account and application download. Accessible in areas where the PlayStation Store is available.
and
Additional information
US
73
Quick reference
Screen indicators
Left Right
Left
Indicator Meaning
US
74
Center
Bottom
MENU button Self-timer recording GPS triangulating status
Wide Mode Fader [Face Detection] set to
[Off] [Smile Shutter] set to [Off] Manual focus
Scene Selection
White Balance SteadyShot off White Balance Shift Tele Macro x.v.Color Conversion Lens Zebra Peaking
Cinematone Destination Intelligent Auto (face
detection/scene detection/ camera-shake detection)
Center
Indicator Meaning
[STBY]/[REC] Recording status
Slide show set NightShot
Warning
Playback mode
Right
Indicator Meaning
Recording image quality (HD/STD), frame rate
60i
60min
0:00:00
00Min
9999 9999
100/112
(60p/60i/24p) and recording mode (PS/FX/ FH/HQ/LP)
Remaining battery Recording/playback/
editing media Counter (hour:minute:
second) Estimated recording
remaining time
Photo size
Approximate number of recordable photos and photo size
Playback folder Current playing movie or
photo/Number of total recorded movies or photos
Bottom
Indicator Meaning
View Images button Micref Level low Wind Noise Reduct. Blt-in Zoom Mic Audio Mode Audio Level Display Low Lux
Parts and controls
Indicator Meaning
Spot Meter/Fcs/ Spot Meter/ Exposure
EV AE Shift
Shutter Speed IRIS Intelligent Auto Slide show button
101-0005
Indicators and their positions are approximate
and may differ from what you actually see.
Some indicators may not appear, depending on your camcorder model.
Data file name Protected image Flash/
Red Eye Reduction
Figures in ( ) are reference pages.
Built-in microphone
Active Interface Shoe
The Active Interface Shoe supplies power to optional accessories such as a video light, a flash, or a microphone. The accessory can be turned on or off as you operate the POWER switch on your camcorder.
Flash
Quick reference
US
75
Lens (G lens)
Attaching the lens hood (HDR-CX700/ CX700V)
Align the lens hood with the camcorder properly, then turn the securing ring of the lens hood in the direction of the arrow.
When attaching the lens hood, align the opening section of the lens hood with the flash-emitting section of the camcorder properly.
Securing ring
To remove the lens hood
Turn the securing ring of the lens hood in the opposite direction from that of the arrow to remove the lens hood.
When recording movies using the NightShot function, remove the lens hood. If you do not do so, the shadow of the lens hood will be reflected and recorded in your movies. Remove the lens hood when you operate the camcorder with the supplied remote commander.
DC IN jack (14)
Remote sensor/Infrared port
Camera recording lamp (61)
The camera recording lamp lights up in red during recording. The lamp flashes when the remaining recording media capacity or battery power is low.
MANUAL button (30)
MANUAL dial (30)
US
76
LCD screen/Touch panel
If you rotate the LCD panel 180 degrees, you can close the LCD panel with the LCD screen facing out. This is convenient during playback operations.
Speaker
HDR-CX560/CX560V
HDR-CX700/CX700V
(View Images) button (31)
NIGHTSHOT button (30)
POWER button (18)
(USB) jack (48, 51)
HDMI OUT jack (35)
RESET button
Press RESET using a pointed object. Press RESET to initialize all the settings
including the clock setting.
Memory card access lamp (23)
While the lamp is lit or flashing, the camcorder is reading or writing data.
Memory card slot (23)
(Movie)/ (Photo) lamps (25)
MODE button (25)
HDR-CX560/CX560V
HDR-CX700/CX700V
Power zoom lever
PHOTO button (28)
Eyecup (HDR-CX700/CX700V)
Viewfinder (HDR-CX700/CX700V) (27)
Viewfinder lens adjustment lever (HDR-
CX700/CX700V) (27)
Battery pack (14)
START/STOP button (25)
/CHG (flash/charge) lamp (14)
MIC (PLUG IN POWER) jack
A/V Remote Connector (35)
(headphones) jack
Grip belt (24)
Built-in USB Cable (15)
Tripod receptacle (30)
BATT (battery) release lever (16)
Quick reference
US
77
Index
A
A/V connecting cable...........36, 56
B
Battery pack .................................14
Built-in USB Cable .................8, 15
C
Care ..............................................69
Charging the battery pack .........14
Charging the battery pack
abroad ..........................................17
Clock Set ......................................18
Computer.....................................40
Computer system ........................40
Connection ..................................35
Copy .............................................23
D
Data Code ....................................19
Date/Time ....................................19
Delete ...........................................38
Disc recorder ...............................55
DVDirect Express .......................51
DVD writer............................51, 54
E
Event Index ..................................31
Event View ...................................31
External media ............................48
F
Fully charged ...............................14
G
GPS ...............................................28
H
“Handycam” Handbook .............62
Highlight Playback .....................34
I
Install ............................................40
L
Language Setting ........................20
M
Macintosh ....................................40
Maintenance ................................69
MANUAL dial.............................30
Media Select ................................21
Media Settings .............................21
Memory card ...............................22
“Memory Stick” media ...............22
“Memory Stick PRO-HG Duo”
media ............................................22
“Memory Stick PRO Duo”
media ............................................22
Menus ...........................................58
Movies ....................................25, 33
N
NightShot .....................................30
P
Photos ....................................27, 34
Playing..........................................31
PMB (Picture Motion
Browser) .......................................43
Power on ......................................18
Precautions ..................................69
PS .................................................. 29
R
Recording ....................................24
Recording and playback time ...65
Recording media.........................21
Recording time of movies/
number of recordable photos ....65
Repair ...........................................63
RESET ..........................................77
S
Saving images in external
media ............................................48
Screen indicators ........................74
Self-diagnosis display .................64
Setting the date and time ...........18
Software .......................................40
Specifications ..............................71
Supplied items ...............................8
T
Thumbnail ...................................38
Tripod.....................................30, 77
Troubleshooting ..........................63
Turning the power on ................18
TV .................................................35
U
USB cable ...............................51, 54
V
VBR ..............................................66
W
Wall outlet (wall socket) ............14
Warning indicators .....................64
Windows ......................................40
You will find the menu lists on pages 58 to 61.
78
US
US
79
Quick reference
Lea este apartado en primer lugar
Antes de utilizar la unidad, lea detenidamente este manual y consérvelo para futuras consultas.
ADVERTENCIA
Para reducir el riesgo de incendios o electrocución, no exponga la unidad a la lluvia ni a la humedad.
No exponga las pilas a fuentes de calor excesivo, como la luz solar directa, el fuego o similares.
PRECAUCIÓN
Batería
Si la batería se manipula indebidamente, puede explotar y causar un incendio o provocarle quemaduras químicas. Tenga en cuenta las siguientes precauciones.
No desmonte el producto.
 
No aplaste ni exponga la batería a impactos tales como golpes o caídas, ni la deje caer o la pise.
No provoque un cortocircuito en la batería ni permita que objetos metálicos entren en contacto con sus terminales.
No exponga la batería a temperaturas superiores a 60 °C como a la luz solar directa, o en el interior de un automóvil estacionado al sol.
No la incinere ni la arroje al fuego.
No manipule baterías de iones de litio dañadas o que presenten fugas.
Asegúrese de cargar la batería con un cargador de baterías original de Sony o con un dispositivo que pueda cargarla.
Mantenga la batería fuera del alcance de niños pequeños.
Mantenga la batería seca.
Sustitúyala únicamente por otra del mismo tipo o equivalente recomendada por Sony.
Deshágase de la baterías usada lo antes posible según el procedimiento que se describe en las instrucciones.
Sustituya la batería únicamente por otra del tipo especificado. De lo contrario, es posible que se produzcan incendios o lesiones.
ES
2
Adaptador de alimentación de ca
No utilice el adaptador de alimentación de ca colocado en un espacio angosto, tal como entre una pared y los muebles.
Si utiliza el adaptador de alimentación de ca conéctelo a un tomacorriente de pared cercano. Si se produce alguna falla de funcionamiento al utilizar la videocámara, desconecte el adaptador de alimentación de ca del tomacorriente de inmediato.
Aunque la videocámara esté apagada, seguirá recibiendo adaptador de alimentación de ca (corriente doméstica) mientras esté conectada a la toma de pared mediante el adaptador de alimentación de ca
Nota sobre el cable de alimentación
El cable de alimentación está diseñado específicamente para utilizarse sólo con esta videocámara, y no se debe usar con otros equipos eléctricos.
Un exceso de presión sonora de los auriculares puede ocasionar la pérdida de la capacidad auditiva.
Elementos suministrados
Los números entre ( ) indican la cantidad suministrada.
Adaptador de alimentación de ca (1) Cable de alimentación (1) Cable de A/V de componente (1)  Cable de conexión de A/V (1)  Cable de soporte de conexión USB (1) 
Use este cable si el cable USB incorporado de la videocámara (pág. 10) es demasiado corto para la conexión.
Parasol del objetivo (1) (sólo para
HDR‑CX700/CX700V)
Para instalar el parasol del objetivo, consulte al página 74.
Control remoto inalámbrico (1)
Ya tiene una batería de litio de tipo botón instalada. Retire la lámina de aislamiento antes de usar el control remoto inalámbrico.
Batería recargable NP‑FV50 (1) CD‑ROM “Handycam” Application
Software (1) (pág. 36)
“PMB” (software, incluye la “Ayuda de PMB”)
 
Guía práctica de “Handycam” (PDF)
“Guía de operaciones” (Este manual) (1)
Esta videocámara tiene una aplicación de software incorporada llamada “PMB Portable”
ág. 40).
(p
Consulte la página 17 para conocer los tipos de tarjeta de memoria que puede usar con esta videocámara.
Uso de la videocámara
No sujete la videocámara por las partes siguientes ni por las tapas de las tomas.
Visor (HDR-CX700/CX700V) Parasol del objetivo
(HDR-CX700/CX700V)
Pantalla de cristal líquido Batería
Cable USB incorporado
La videocámara no está protegida contra el
polvo, las salpicaduras ni el agua. Consulte las
Precauciones” (pág. 66).
Elementos del menú, panel de cristal líquido, visor (HDR-CX700/CX700V) y objetivo
Los elementos de menú que aparezcan atenuados no estarán disponibles en las condiciones de grabación o reproducción actuales.
La pantalla de cristal líquido y el visor
R‑CX700/CX700V) se han fabricado con
(HD tecnología de alta precisión, lo que hace que más del 99,99% de los píxeles sean operativos para uso efectivo. Sin embargo, es posible que aparezcan constantemente algunos pequeños puntos negros o brillantes (blancos, rojos, azules o verdes) en la pantalla de cristal líquido. Estos puntos son el resultado normal del proceso de fabricación y no afectan en modo alguno a la grabación.
ES
Puntos negros
Puntos blancos, rojos, azules o verdes
ES
3
La exposición de la pantalla de cristal líquido, el
visor (HDR‑CX700/CX700V) o el objetivo a la luz solar directa durante períodos prolongados puede provocar fallas de funcionamiento.
No apunte directamente al sol. Si lo hace, puede ocasionar fallas en la unidad. Tome fotografías del sol sólo en condiciones de baja intensidad, como al atardecer.
Acerca del ajuste de idioma
Para ilustrar los procedimientos operativos se utilizan indicaciones en pantalla en cada idioma local. Si es necesario, cambie el idioma de la pantalla antes de utilizar la videocámara
ág. 15).
(p
Acerca de la grabación
Para asegurar el funcionamiento estable de la tarjeta de memoria, es recomendable formatearla con la videocámara antes del primer uso. Al hacerlo, se borrarán todos los datos almacenados en ella y no podrá recuperarlos. Guarde los datos importantes en su computadora u otro soporte.
Antes de comenzar a grabar, pruebe las funciones de grabación para asegurarse de que la imagen y el sonido se graben sin problemas.
No es posible compensar el contenido de las grabaciones, aun si la grabación o la reproducción no son posibles a causa de una falla de funcionamiento de la videocámara, de los soportes de grabación, etc.
Los sistemas de televisión en color varían en función del país o la región. Si desea ver su grabación en un televisor, necesita un televisor con sistema NTSC.
Los programas de televisión, películas, cintas de video y demás materiales pueden estar sujetos a derechos de autor. La grabación no autorizada de tales materiales puede ir en contra de las leyes sobre los derechos de autor.
Use la videocámara según las normas locales.
Notas acerca de la reproducción
Es posible que no pueda reproducir
normalmente en otros dispositivos imágenes grabadas con la videocámara. También, es posible que no pueda reproducir en la videocámara imágenes grabadas con otros dispositivos.
Las películas con calidad de imagen estándar (STD) grabadas en tarjetas de memoria SD no pueden reproducirse en equipos AV de otros fabricantes.
DVD grabados con calidad de imagen HD (alta definición)
Los soportes DVD media grabados con calidad
de imagen de alta definición (HD) pueden reproducirse con dispositivos compatibles con el estándar AVCHD. No es posible reproducir discos grabados con calidad de imagen de alta definición (HD) usando reproductores/ grabadoras de DVD que no sean compatibles con el formato AVCHD. Si inserta un disco grabado con el formato AVCHD (calidad de imagen de alta definición (HD)) en un reproductor o una grabadora de DVD, es posible que no pueda expulsar el disco.
Guarde todos los datos de imagen grabados
Para evitar que se pierdan sus datos de imagen,
guarde periódicamente todas las imágenes grabadas en soportes externos. Para guardar imágenes en la computadora, consulte la página 35, y para guardar imágenes en dispositivos externos, consulte la página 42.
Los tipos de discos o soportes en los cuales se pueden guardar imágenes dependen del ajuste
Modo grabación] que se seleccionó al
de [ grabar las imágenes. Las películas grabadas con [Calidad 60p un soporte externo (pág. 44). Las películas grabadas con [Calidad superior guardar utilizando un soporte externo o en
scos Blu‑ray.
di
] se pueden guardar utilizando
] se pueden
ES
4
Notas sobre la batería/Adaptador de alimentación de ca
Asegúrese de retirar la batería o el adaptador
de alimentación de ca luego de apagar la videocámara.
Desconecte el adaptador de alimentación de ca de la videocámara, sujetando la videocámara y la clavija de cc
Nota sobre la temperatura de la videocámara y la batería
Cuando la temperatura de la videocámara
o la batería sea demasiado alta o baja, es posible que no se pueda grabar ni reproducir en la videocámara. Esto se debe a que en estas condiciones se activan las funciones de protección de la videocámara. En este caso, aparecerá un indicador en la pantalla de cristal
uido o en el visor (HDR‑CX700/CX700V).
líq
Si la videocámara se conecta a una computadora o accesorios
No intente formatear el soporte de grabación
de la videocámara mediante una computadora. Si lo hace, es posible que la videocámara no funcione correctamente.
Cuando conecte la videocámara a otro dispositivo mediante cables de comunicación, asegúrese de insertar la clavija del conector en la dirección correcta. Si inserta la clavija a la fuerza en el terminal, dañará el terminal, lo que podría ocasionar una falla de funcionamiento en la videocámara.
Cuando la videocámara esté conectada a otros dispositivos mediante una conexión USB y esté encendida, no cierre el panel de cristal líquido. Si lo hace, podría perder los datos de imágenes que se grabaron.
Si no puede grabar o reproducir imágenes, ejecute [Formatear]
Si graba o elimina imágenes repetidamente
durante mucho tiempo, los datos del soporte de grabación se fragmentarán. Las imágenes no se pueden guardar ni grabar. En ese caso, guarde primero las imágenes en algún tipo de soporte externo y luego ejecute [Formatear] tocando
(MENU) [Configuración]
(Ajustes de soporte)] [Formatear] el
[ soporte deseado
.
Notas sobre los accesorios opcionales
Recomendamos el uso de accesorios Sony
originales.
Es posible que los accesorios originales de Sony no estén disponibles en algunos países o regiones.
Acerca de este manual, ilustraciones e indicaciones en pantalla
Las imágenes de ejemplo que se usan en este
manual con fines ilustrativos fueron capturadas usando una cámara digital de imágenes fijas y, por lo tanto, pueden lucir diferentes a las imágenes e indicadores en pantalla que aparecen realmente en la videocámara. Además, las ilustraciones de la videocámara y las indicaciones en pantalla se muestran exageradas o simplificadas para facilitar su comprensión.
En este manual, la memoria interna y la tarjeta de memoria se denominan “soportes de grabación”.
En este manual, el disco DVD grabado con calidad de imagen de alta definición (HD) recibe el nombre de disco de grabación AVCHD.
El diseño y las especificaciones de la videocámara y los accesorios están sujetos a modificaciones sin previo aviso.
ES
5
Confirme el nombre de modelo de su videocámara
El nombre de modelo aparece en este manual si
existe alguna diferencia en las especificaciones entre los modelos. Confirme el nombre de modelo en la parte inferior de su videocámara.
Las principales diferencias en las especificaciones de esta serie son las siguientes.
Capacidad
R‑CX560/
HD HDR‑CX560V
HDR‑CX700/ HDR‑CX700V
*
*
del soporte
de grabación
interno
64 GB
96 GB
Visor
El modelo con * está equipado con GPS.
Notas acerca del uso
No realice ninguna de las siguientes acciones o podría dañar el soporte de grabación, ser incapaz de reproducir las imágenes grabadas o perderlas, u ocasionar otras fallas de funcionamiento.
expulsar la tarjeta de memoria cuando el
dicador de acceso (pág. 18) está encendido
in o parpadeando
extraer la batería o el adaptador de alimentación de ca de la videocámara, o someter la videocámara a golpes o vibraciones cuando los indicadores (Foto) (pág. 20) o el indicador de acceso
ág. 18) están encendidos o parpadeando
(p
Al usar una correa de hombros (se vende por separado), procure no golpear la videocámara contra otros objetos.
(Película)/
ES
6
Índice
Lea este apartado en primer lugar . . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. . 2
Procedimientos iniciales
Paso 1: Carga de la batería . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. . 9
Carga de la batería en el extranjero . . .. .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . . 12
Paso 2: Encendido y ajuste de la fecha y la hora . .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . 13
Cambio del ajuste de idioma . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. 15
Paso 3: Preparación del soporte de grabación . .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. 16
Para comprobar los ajustes del soporte de grabación . . .. . .. .. .. . .. . .. .. .. . .. . . 16
Copiar películas y fotos . . .. .. .. . .. . .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . 18
Grabación/reproducción
Grabación .. .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . . 19
Adquisición de la información de ubicación mediante GPS (HDR-CX560V/
CX700V) . . . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . 24
Selección del modo de grabación . . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. 24
Ajustes según las condiciones de filmación .. .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. 25
Reproducción en la videocámara . .. .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . . 26
Uso de la Reproducción de selección . . . .. .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. 29
Reproducción de imágenes en un televisor .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. 30
Funciones avanzadas
Eliminación de películas y fotos . .. . .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . 33
Índice
Almacenamiento de películas y fotos con una computadora
Funciones útiles disponibles si conecta la videocámara a una computadora
(Windows) .. .. . .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. 35
Preparación de una computadora (Windows) . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . 36
Al usar una computadora Macintosh . .. .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. . 36
Inicio de PMB (Picture Motion Browser) . .. . .. .. . .. . .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . 39
Carga de imágenes a un servicio de red . .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. 40
ES
7
Almacenamiento de imágenes en un dispositivo externo
Selección de un método para guardar imágenes con un dispositivo externo.. .. .. . 42
Almacenamiento de imágenes en un dispositivo de soporte externo . . . .. .. . .. .. . .. . 44
Creación de un disco con la grabadora de DVD, DVDirect Express . .. .. .. . .. . .. .. .. . .. 47
Creación de un disco con calidad de imagen de alta definición (HD) mediante
una grabadora de DVD, etc., que no es DVDirect Express . .. . .. .. .. . .. . .. .. .. . .. . .. .. . .. 50
Creación de un disco con calidad de imagen de definición estándar (STD)
mediante una grabadora, etc. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. 51
Personalización de la videocámara
Uso de los menús . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. 54
Obtención de información detallada con la Guía práctica de “Handycam” . . .. .. . .. . 59
Información complementaria
Solución de problemas . .. . .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. . 60
Tiempo de grabación de películas/número de fotos que puede grabar . .. . .. .. . .. . .. 63
Precauciones . .. .. .. . .. . .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. . 66
Especificaciones . . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . 69
Referencia rápida
Indicadores de la pantalla . .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . . 72
Piezas y controles .. .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. . 73
Índice . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . . 76
ES
8
Procedimientos iniciales
Paso 1: Carga de la batería
Toma DC IN
Batería
Adaptador de
alimentación de ca
Cable de
alimentación
Indicador /CHG (flash/carga)
Alinee la marca de la clavija de cc con la marca de la toma DC IN.
Puede cargar la batería “InfoLITHIUM” (serie V) después de instalarla en la videocámara.
Notas
No puede instalar ninguna batería “InfoLITHIUM” que no sea de la serie V en la videocámara.
Para apagar la videocámara, cierre la pantalla de cristal líquido después
1
de volver a poner el visor (HDR-CX700/CX700V).
Instale la batería en la dirección que indica la flecha hasta que oiga un
2
clic.
Conecte el adaptador de alimentación de ca y el cable de alimentación a
3
la videocámara y al tomacorriente de pared.
El indicador /CHG (flash/carga) se enciende y se inicia el proceso de carga. El indicador
/CHG (flash/carga) se apaga cuando la batería está totalmente cargada.
Al tomacorriente de pared
Clavija de cc
Procedimientos iniciales
ES
9
10
ES
Cuando la batería esté cargada, desconecte el adaptador de alimentación
4
de ca de la toma DC IN de la videocámara.
Para cargar la batería usando la computadora
Este método es útil cuando el adaptador de alimentación de ca no está disponible.
pague la videocámara e instale la batería.
A
onecte la videocámara a una computadora que esté funcionando mediante el cable USB
C
incorporado.
Al tomacorriente
de pared
Cuando la batería se haya cargado completamente, desconecte la videocámara de la
computadora (pág. 38).
Notas
No se asegura la operación con todas las computadoras.
Si conecta la videocámara a una computadora portátil que no está conectada a una fuente de alimentación, la batería de la computadora portátil seguirá consumiendo su carga. No deje la videocámara conectada a una computadora de esta manera.
No se garantiza la carga si utiliza una computadora ensamblada personalmente, una computadora reacondicionada o un concentrador USB. Es posible que la videocámara no funcione adecuadamente según el dispositivo USB que se utilice con la computadora.
Sugerencias
Puede cargar la batería conectando el cable USB incorporado a un tomacorriente de pared utilizando un
argador USB/adaptador de alimentación de ca AC‑U501AD/AC‑U50AG (se vende por separado). No
c puede usar un dispositivo de suministro alimentación portátil CP‑AH2R o CP‑AL de Sony (se vende por separado) para cargar la videocámara.
Es posible que el cargador USB/adaptador de alimentación de ca no estén disponibles en algunos países o regiones.
Es posible que el indicador baja. En ese caso, cargue la batería utilizando el adaptador de alimentación de ca
/CHG (flash/carga) no se ilumine cuando la batería restante sea demasiado
Tiempo de carga
Tiempo aproximado (min) necesario para cargar completamente una batería totalmente descargada.
Tiempo de carga
Batería
Adaptador de alimentación
de ca
Cable USB incorporado
*
NP‑FV50 (suministrada) 155 315 NP‑FV70 195 600
FV100 390 1050
NP‑
El tiempo de carga que aparece en la tabla anterior se mide al cargar la videocámara a una temperatura de
C Se recomienda que cargue la batería a una temperatura de un rango de 10 C a 30 C
25
* El tiempo de carga se mide sin utilizar el cable de soporte de conexión USB.
Sugerencias
Consulte la página 63 para obtener información sobre los tiempos de reproducción y grabación.
Con la videocámara encendida, puede comprobar el tiempo restante aproximado de la batería a través del indicador de batería restante situado en la esquina superior derecha de la pantalla de cristal líquido.
Para extraer la batería
Cierre la pantalla de cristal líquido. Deslice la palanca de liberación de BATT (batería) () y retire la batería ().
Procedimientos iniciales
Para usar un tomacorriente de pared como fuente de alimentación
Realice las mismas conexiones que se indican en “Paso 1: Carga de la batería” (pág. 9). Aunque la batería esté instalada, no se descargará.
Notas sobre la batería
Antes de extraer la batería o desconectar el adaptador de alimentación de ca apague la videocámara y compruebe que los indicadores apagados.
El indicador
La batería no está conectada correctamente.
La batería está dañada.
La temperatura de la batería es baja. Extraiga la batería de la videocámara y póngala en un lugar cálido.
La temperatura de la batería es alta. Extraiga la batería de la videocámara y póngala en un lugar frío.
/CHG (flash/carga) parpadea durante la carga en las condiciones siguientes:
(Película)/ (Foto) (pág. 20) y el indicador de acceso (pág. 18) estén
ES
11
12
ES
Al conectar una luz de video (se vende por separado), se recomienda el uso de una batería NP‑FV70 o
NP‑FV100.
No recomendamos el uso de una batería NP‑FV30 en esta videocámara, ya que sólo permite tiempos de grabación y reproducción cortos. En el ajuste predeterminado, la alimentación se apaga automáticamente si no utiliza la videocámara
durante unos 5 minuto a fin de ahorrar energía de la batería ([Apagado auto]).
Notas acerca del adaptador de alimentación de ca
Cuando utilice el adaptador de alimentación de ca use el tomacorriente de pared más cercano. Si se
produce alguna falla de funcionamiento mientras utiliza la videocámara, desconecte inmediatamente el adaptador de alimentación de ca del tomacorriente de pared. No coloque el adaptador de alimentación de ca en lugares estrechos, como por ejemplo entre una pared
y un mueble.
No provoque un cortocircuito en la clavija de cc del adaptador de alimentación de ca ni en el terminal de la batería con ningún objeto metálico. Si lo hace, puede ocasionar una falla de funcionamiento.
Carga de la batería en el extranjero
Puede cargar la batería en cualquier país o región con el adaptador de alimentación de ca suministrado con la videocámara dentro de un rango de ca de entre 100 V y 240 V, 50 Hz/60 Hz
No utilice un transformador de voltaje electrónico.
Paso 2: Encendido y ajuste de la fecha y la hora
Abra la pantalla de cristal líquido de la videocámara.
1
Se abre la tapa del objetivo y se enciende la videocámara.
Para encender la videocámara cuando la pantalla de cristal líquido está abierta, presione POWER.
Indicador MODE
Botón POWER
Seleccione el idioma deseado y toque [Sig.].
2
Toque el botón que
aparece en la pantalla de
cristal líquido
Procedimientos iniciales
Seleccione la zona geográfica deseada con
3
Para volver a ajustar la fecha y la hora, toque (MENU) [Configuración] [ (Ajustes
del reloj)] [Config.fecha y hora] [Fecha y hora]. Si un elemento no aparece en la pantalla, toque
/ hasta que aparezca.
/ y luego toque [Sig.].
ES
13
14
ES
Ajuste [Hora verano] y, luego, toque [Sig.].
4
Si ajusta [Hora verano] en [Activar], el reloj avanza 1 hora.
Seleccione el formato de fecha y toque [Sig.].
5
Seleccione la hora y la fecha, toque
6
toque [Sig.]
* La pantalla de confirmación sólo aparece cuando ajusta el reloj por primera vez.
*.
/ para ajustar el valor y, luego,
El reloj empezará a funcionar.
Notas
La fecha y la hora no aparecen durante la grabación, aunque se graban automáticamente en el soporte de grabación y se pueden mostrar durante la reproducción. Para mostrar la fecha y la hora, toque
[Configuración]  [
Puede apagar los pitidos de funcionamiento si toca generales)] [Pitido] [Desactivar] Si el botón que toca no reacciona correctamente, debería calibrar el panel táctil.
 
Tras ajustar el reloj, la hora se ajusta automáticamente con [Aj. reloj automático] y [Aj. área automático] ajustados en [Activar]. En función del país o región que se seleccione en la videocámara, es posible que el reloj no ajuste la hora correcta automáticamente. En ese caso, ajuste [Aj. reloj automático] y [Aj. área
utomático] en [Desactivar] (HDR‑CX560V/CX700V).
a
(Ajustes reproducción)] [Código datos] [Fecha/hora] .
(MENU) [Configuración] [ (Ajustes
.
(MENU)
Para apagar la videocámara
Cierre la pantalla de cristal líquido.
i el visor está extendido, retráigalo como se muestra en la ilustración siguiente
S
(HDR‑CX700/CX700V).
El indicador
Sugerencias
También puede apagar la videocámara si presiona POWER.
Si [Encendido con LCD] está ajustado en [Desactivar], apague la videocámara presionando POWER
R‑CX560/CX560V).
(HD
(Película) parpadea durante varios segundos y la videocámara se apaga.
Cómo encender y apagar la videocámara usando la pantalla de cristal líquido o el visor (HDR-CX700/CX700V)
La videocámara se enciendo o se apaga dependiendo del estado de la pantalla de cristal líquido o del visor.
Estado
Pantalla de cristal líquido
Abierta
Cerrada
Notas
Aunque la pantalla de cristal líquido esté cerrada, si el visor está extendido, la videocámara no se apaga. Si apaga la videocámara, asegúrese de que el visor esté retraído en su posición original.
Visor
Retraído Activar
Extendido Activar
Retraído Desactivar
Extendido Activar
Alimentación de la videocámara
Procedimientos iniciales
Cambio del ajuste de idioma
Puede ajustar la videocámara para ver los mensajes de la pantalla en un idioma específico. Toque el idioma deseado
(MENU) [Configuración] [ (Ajustes generales)] [Language Setting]
.
ES
15
16
ES
Paso 3: Preparación del soporte de grabación
Los soportes de grabación que se pueden usar aparecen en la pantalla de la videocámara con los siguientes iconos.
Memoria interna Tarjeta de memoria
* En el ajuste predeterminado, tanto películas como fotos se graban en este soporte de grabación. Puede
realizar operaciones de grabación, reproducción y edición en el soporte seleccionado.
Sugerencias
Consulte la página 64 para conocer el tiempo de grabación de las películas.
Consulte la página 65 para conocer el número de fotos que puede guardar.
*
Selección del soporte de grabación
Toque (MENU) [Configuración] [ (Ajustes de soporte)]
[Selección soporte].
Aparecerá la pantalla [Selección soporte].
Toque el soporte de grabación deseado y, luego, toque .
La películas y fotos se graban en el soporte seleccionado.
Para comprobar los ajustes del soporte de grabación
En el modo de grabación de películas o en el modo de grabación de fotos, el icono de soporte de grabación seleccionado de grabación seleccionado aparece en la esquina superior derecha de la pantalla.
Icono de soporte de grabación
Inserción de una tarjeta de memoria
Notas
Ajuste el soporte de grabación en [Tarjeta memoria] para grabar películas y/o fotos en una tarjeta de memoria.
Tipos de tarjeta de memoria que puede usar con esta videocámara
Clase de velocidad
de SD
Descrito en este
manual
“Memory Stick PRO Duo” (Mark2)
“Memory Stick
“Memory Stick PRO Duo”
PRO‑HG Duo”
Tarjeta de memoria SD
Tarjeta de memoria SDHC
Class 4 o superior Tarjeta SD
Tarjeta de memoria SDXC
No se asegura la operación con todas las tarjetas de memoria.
En esta videocámara se pueden usar soportes “Memory Stick PRO Duo”, “Memory Stick” de tamaño medio o tarjetas SD de tamaño estándar.
No adhiera etiquetas ni adhesivos similares en una tarjeta de memoria ni en un adaptador para tarjeta de memoria. Si lo hace, puede ocasionar una falla de funcionamiento.
e ha comprobado que los soportes “Memory Stick PRO Duo” de hasta 32 GB y las tarjetas SD de hasta
S 64 GB funcionan con la videocámara.
Notas
Esta videocámara no es compatible con tarjetas MultiMediaCard.
Las películas grabadas en tarjetas de memoria SDXC no se pueden importar a las computadoras ni
reproducirse en ellas, ni en los dispositivos AV que no sean compatibles con el sistema de archivos exFAT* conectando la videocámara a estos dispositivos mediante el cable USB. Confirme de antemano que el equipo de conexión sea compatible con el sistema exFAT. Si conecta un equipo que no es compatible con el sistema exFAT y aparece la pantalla de formateo, no realice el formateo. Si lo hace, perderá todos los datos grabados. * exFAT es un sistema de archivos que se usa para tarjetas de memoria SDXC.
Procedimientos iniciales
ES
17
Abra la tapa e inserte la tarjeta de memoria con el borde biselado en la
dirección que se muestra en la imagen hasta que encaje.
Cierre la tapa después de insertar la tarjeta de memoria.
Indicador de acceso
Observe la dirección de la esquina biselada.
Aparece la pantalla [Preparando archivo base datos imagen. Espere por favor.] si inserta una nueva tarjeta de memoria. Espere hasta que la pantalla desaparezca.
Cierre la tapa.
Notas
Si aparece [Error al crear un nuevo archivo de base de datos de imágenes. Es posible que no exista suficiente espacio libre.], formatee la tarjeta de memoria.
Confirme la dirección de la tarjeta de memoria. Si inserta la tarjeta de memoria forzadamente en la dirección incorrecta, es posible que se dañe la tarjeta de memoria, la ranura para la tarjeta de memoria o los datos de imagen.
No abra la tapa durante la grabación.
Al insertar o expulsar la tarjeta de memoria, tenga cuidado de que la tarjeta de memoria no salga impulsada y se caiga.
Para expulsar la tarjeta de memoria
Abra la tapa y presione ligeramente la tarjeta de memoria hacia dentro una vez.
Copiar películas y fotos
Toque (MENU) [Editar/Copiar] [Copiar] y siga las instrucciones que aparecen en la pantalla.
ES
18
Grabación/reproducción
Grabación
En el ajuste predeterminado, las películas y fotos se graban en el soporte de grabación interno. Las películas se graban con calidad de imagen de alta definición (HD).
Sugerencias
Para cambiar los soportes de grabación, consulte la página 16.
Ajuste la correa de sujeción.
1
Abra la pantalla de cristal líquido de la videocámara.
2
Se abre la tapa del objetivo y se enciende la videocámara.
Grabación/reproducción
ES
19
20
ES
Grabación de películas
(Película): Durante la grabación de una película
(Foto): Durante la grabación de una foto
Botón START/STOP
Botón MODE
[ESPERA] [GRAB.]
Presione MODE para encender el indicador (Película).
Presione START/STOP para iniciar la grabación.
Para detener la grabación, presione START/STOP de nuevo.
Para volver a mostrar los elementos en la pantalla de cristal líquido
Toque cualquier área de la pantalla, excepto los botones de la pantalla de cristal líquido, para que pueda usar elementos. Puede cambiar los ajustes utilizando el menú [Ajuste pantalla].
unos 4
segundo
después
Para capturar sonrisas
En el ajuste predeterminado, se graba automáticamente una foto cuando la videocámara detecta la sonrisa de una persona durante la grabación de una película (Captador de sonrisas). Cuando la videocámara detecta caras durante la grabación de películas, la calidad de imagen se ajusta automáticamente ([Detección de rostro]).
Captura de una foto
Marco de detección de sonrisa (Naranjo)
Marco de detección de cara (Blanco)
Notas
Si cierra la pantalla de cristal líquido mientras graba películas, se detendrá la grabación.
El tiempo máximo de grabación continua de películas es de aproximadamente 13 hora.
Cuando un archivo de película supera los 2 GB el siguiente archivo de película se crea automáticamente.
Tras encender la videocámara, esta tardará varios segundo antes de poder comenzar a grabar. Durante este tiempo, no podrá utilizar la videocámara.
Los siguientes estados se indicarán si todavía se están escribiendo datos en el soporte de grabación después de que ha finalizado la grabación. Durante este tiempo, no someta la videocámara a golpes ni a vibraciones, ni tampoco extraiga la batería o el adaptador de alimentación de ca
l indicador de acceso (pág. 18) está encendido o parpadeando
E
El icono de soporte que aparece en la parte superior derecha de la pantalla de cristal líquido está parpadeando
Sugerencias
Consulte la página 64 para conocer el tiempo de grabación de las películas.
Para capturar fotos durante la grabación de una película, presione PHOTO completamente (Dual Rec).
SteadyShot] está definido en [Activo] en el ajuste predeterminado.
[
Para especificar la prioridad de cara, tóquela.
Puede capturar fotos a partir de películas grabadas.
Puede comprobar el tiempo de grabación, capacidad restante estimada, etc., si toca [Configuración] [
La pantalla de cristal líquido de la videocámara puede mostrar imágenes de grabación en toda la
(Ajustes de soporte)] [Info soporte].
(MENU)
pantalla (visualización de píxeles completos). Sin embargo, esto puede ocasionar un leve recorte de los bordes superior, inferior, derecho e izquierdo de las imágenes al reproducirlas en un televisor que no es compatible con la visualización de píxeles completos. En este caso, ajuste [Guía fotográfica] en [Activar], y grabe imágenes usando como guía el marco externo que se muestra en la pantalla.
Para ajustar el ángulo del panel de cristal líquido, primero abra el panel de cristal líquido 90 grados con respecto a la videocámara () y ajuste el ángulo ().
Grabación/reproducción
90 grados (máx.)
180 grados (máx.)
90 grados respecto a la
videocámara
ES
21
22
ES
Si va a realizar una grabación usando el visor solamente, extienda el visor y cierre el panel de cristal
líquido. Si el indicador en el visor aparece borroso, ajuste la palanca que se encuentra a un costado del
isor. (HDR‑CX700/CX700V)
v
Código de datos durante la grabación
La fecha, la hora, las condiciones de grabación y las coordenadas (HDR‑CX560V/CX700V) se graban automáticamente en el soporte de grabación, pero no se muestran durante la grabación. No obstante, es posible consultarlos como [Código datos] durante la reproducción. Para mostrarlos, toque [Código datos] el ajuste deseado
(MENU) [Configuración] [ (Ajustes reproducción)]
.
Captura de fotos
(Película): Durante la grabación de una película
(Foto): Durante la grabación de una foto
Botón PHOTO
Botón MODE
Cuando desaparece, se graba la foto.
Presione MODE para encender el indicador (Foto).
La pantalla de cristal líquido cambia para el modo de grabación de fotos.
Parpadea Se enciende
