HDR-CX530E/CX535/CX610E/PJ530E/
PJ540/PJ540E/PJ610E
983477311.pdf
Revision History
SERVICE MANUAL
Ver. 1.0 2014.01
Photo: HDR-PJ540/BROWN
Check the SERVICE NOTE (LEVEL 2) before the service.
LEVEL 3
US Model
Canadian Model
AEP Model
UK Model
North European Model
E Model
Australian Model
Hong Kong Model
Chinese Model
Korea Model
Tourist Model
Japanese Model
Ver. Date History Contents
1.0 2014.01 Official Release — —
Distinguishing MM-102 Boards (HDR-CX610E/PJ610E)
Three types of MM-102 board are used in this unit.
When repairing an MM-102 board, identify its type by the IC model names printed on the surface of IC8101 and IC8201 on the MM-102 board.
S.M. Rev.
issued
MODEL GROUP
Projector Model: PJ530E/PJ540/PJ540E/PJ610E
Non Projector Model: CX530E/CX535/CX610E
IC8101 IC8201
Type A KLMBG4WE4A-A001T01 KLMBG4WE4A-A001T01
Type B THGBM7G8T4JBAIRH10 THGBM7G8T4JBAIRH10
Type C KLMCG8WE4A-A001T01 No Mount
Note:
IC8101 and IC8201 cannot be replaced with any other type of IC. Be sure to replace them with the same type of IC.
When replacing Type A or Type B of IC8101 and IC8201, be sure to replace IC8101 and IC8201 together.
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number
specified.
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
9-834-773-11
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
Digital HD Video Camera Recorder
Sony Corporation
2014A08-1
© 2014.01
Published by Sony Techno Create Corporation
– ENGLISH – – JAPANESE –
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
Dispose of used batteries according to the instructions.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH
MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST
ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY
SONY.
Caution
如果电池更换不当会有爆炸危险。
只能用同样类型或等效类型的电池来更换。
务必按照说明处置用完的电池。
SAFETY CHECK-OUT
After correcting the original service problem, perform the following
safety checks before releasing the set to the customer.
1. Check the area of your repair for unsoldered or poorly-soldered
connections. Check the entire board surface for solder splashes and
bridges.
2. Check the interboard wiring to ensure that no wires are “pinched”
or contact high-wattage resistors.
3. Look for unauthorized replacement parts, particularly transistors,
that were installed during a previous repair. Point them out to the
customer and recommend their replacement.
4. Look for parts which, through functioning, show obvious signs of
deterioration. Point them out to the customer and recommend their
replacement.
5. Check the B+ voltage to see it is at the values specified.
6. Flexible Circuit Board Repairing
• Set the soldering iron tip temperature to 350 °C approximately.
• Do not touch the soldering iron on the same conductor of the circuit
board (within 3 times).
• Be careful not to apply force on the conductor when soldering or
unsoldering.
注意
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT
CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT
LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES
SUPPLÉMENTS PUBLIÉS PAR SONY.
UNLEADED SOLDER
This unit uses unleaded solder.
Boards requiring use of unleaded solder are printed with the lead free
mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with the
lead free mark due to their particular size.)
: LEAD FREE MARK
Be careful to the following points to solder or unsolder.
• Set the soldering iron tip temperature to 350 °C approximately.
If cannot control temperature, solder/unsolder at high temperature
for a short time.
Caution: The printed pattern (copper foil) may peel away if the
heated tip is applied for too long, so be careful!
Unleaded solder is more viscous (sticky, less prone to
flow) than ordinary solder so use caution not to let solder
bridges occur such as on IC pins, etc.
• Be sure to control soldering iron tips used for unleaded solder and
those for leaded solder so they are managed separately. Mixing unleaded solder and leaded solder will cause detachment phenomenon.
電池の交換は，正しく行わないと破裂する恐れがあります。
注意
電池を交換する場合には必ず同じ型名の電池又は同等品と
交換してください。
使用済み電池は，取扱指示に従って処分してください。
サービス，点検時には次のことにご注意ください。
1. 注意事項をお守りください。
サービスのとき特に注意を要する個所については，キャビ
ネット，シャーシ，部品などにラベルや捺印で注意事項を
表示しています。これらの注意書き及び取扱説明書等の注
意事項を必ずお守り下さい。
2. 指定部品のご使用を
セットの部品は難燃性や耐電圧など安全上の特性を持った
ものとなっています。従って交換部品は，使用されていた
ものと同じ特性の部品を使用して下さい。特に回路図，部
品表に0印で指定されている安全上重要な部品は必ず指定
のものをご使用下さい。
3. 部品の取付けや配線の引きまわしはもとどおりに
安全上，チューブやテープなどの絶縁材料を使用したり，
プリント基板から浮かして取付けた部品があります。また
内部配線は引きまわしやクランパによって発熱部品や高圧
部品に接近しないよう配慮されていますので，これらは必
ずもとどおりにして下さい。
4. サービス後は安全点検を
サービスのために取外したネジ，部品，配線がもとどおり
になっているか，またサービスした個所の周辺を劣化させ
てしまったところがないかなどを点検し，安全性が確保さ
れていることを確認して下さい。
5. チップ部品交換時の注意
・ 取外した部品は再使用しないで下さい。
・ タンタルコンデンサのマイナス側は熱に弱いため交換時
は注意して下さい。
6. フレキシブルプリント基板の取扱いについて
・ 半田こてのこて先温度は約350℃に設定してください。
・ 同一パターンに何度もコテ先を当てないで下さい。（3回
以内）
・ パターンに力が加わらないよう注意して下さい。
無鉛半田について
本機には無鉛半田が使用されています。
無鉛半田を使用している基板には，無鉛（LeadFree）を意味する
レッドフリーマークがプリントされています。
（注意：基板サイズによっては，無鉛半田を使用していてもレッ
ドフリーマークがプリントされていないものがありま
す）
：レッドフリーマーク
無鉛半田は，下記の点に注意して使用してください。
・ 半田こてのこて先温度は約350℃に設定してください。
温度調節が無理な場合は，高温短時間で作業を行ってくだ
さい。
注意：半田こてを長く当てすぎると，基板のパターン（銅
箔）がはがれてしまうことがありますので，注意して
ください。また，従来の半田よりも粘性が強いため，
IC端子などが半田ブリッジしないように注意してく
ださい。
・ 半田こてのこて先は，必ず無鉛半田用と有鉛半田用に分け
て管理してください。
無鉛半田と有鉛半田が混在すると剥離現象が発生してしま
います。
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
– 2 –
AN-1006 CM-1004 FP-2060 FP-2106 FP-2125 FP-2126 FP-2189 FP-2191 FP-2192 FP-2193 FP-2200 FP-2214 JK-1009
(ENGLISH)
NOTE:
• -XX, -X mean standardized parts, so they may have some differences from the original one.
• Items marked “*” are not stocked since they are seldom required for
routine service. Some delay should be anticipated when ordering
these items.
• The mechanical parts with no reference number in the exploded
views are not supplied.
• Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components
used on the set.
• CAPACITORS:
uF: μF
• COILS
uH: μH
• RESISTORS
All resistors are in ohms.
METAL: metal-film resistor
METAL OXIDE: Metal Oxide-film resistor
F: nonflammable
• SEMICONDUCTORS
In each case, u: μ, for example:
uA...: μA... , uPA... , μPA... ,
uPB... , μPB... , uPC... , μPC... ,
uPD..., μPD...
When indicating parts by reference number, please include the board name.
The components identified by mark 0
or dotted line with mark 0 are critical
for safety.
Replace only with part number specified.
Les composants identifiés par une marque 0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
Note1 : Be sure to read “Precautions for Replacement of Imager”
on page 6-1 when changing the imager.
(JAPANESE)
【使用上の注意】
• ここに記載されている部品は,補修用部品であるため,回路図及び
セットに付いている部品と異なる場合があります。
• -XX,-Xは標準化部品のため,セットに付いている部品と異なる場
合があります。
•*印の部品は常備在庫しておりません。
• コンデンサの単位でuFはμFを示します。
• 抵抗の単位Ωは省略してあります。
金 被：金属被膜抵抗。
サンキン：酸化金属被膜抵抗。
• インダクタの単位でuHはμHを示します。
• 半導体の名称でuA...,uPA...,uPB...,uPC...,uPD...等はそれぞれμA...,
μPA...,μPB...,μPC...,μPD...を示します。
お願い
図面番号で部品を指定するときは基板名又はブロック
を併せて指定してください。
印の部品，または0印付の点線で囲まれた部品は，
0
安全性を維持するために，重要な部品です。
従って交換時は，必ず指定の部品を使用してください。
Note1 :
イメージャの交換時は6-1ページの“イメージャ交換時の
注意”を必ずお読みください。
2-2. ELECTRICAL PARTS LIST
1-889-592-11 AN-1006 FLEXIBLE BOARD (EXCEPT CX535)
*********************
A-1903-090-A CM-1004 BOARD, COMPLETE
***********************
(CP001 is not supplied, but this is included in CM-1004 COMPLETE BOARD.)
< CAPACITOR >
C6703 1-112-717-91 CERAMIC CHIP 1uF 10% 6.3V
C6708 1-112-717-91 CERAMIC CHIP 1uF 10% 6.3V
C6709 1-114-582-91 CERAMIC CHIP 0.1uF 10% 16V
C6710 1-112-717-91 CERAMIC CHIP 1uF 10% 6.3V
C6711 1-114-582-91 CERAMIC CHIP 0.1uF 10% 16V
C6712 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C6713 1-165-884-91 CERAMIC CHIP 2.2uF 10% 6.3V
C6714 1-114-582-91 CERAMIC CHIP 0.1uF 10% 16V
C6715 1-116-724-11 CERAMIC CHIP 4.7uF 20% 6.3V
C6716 1-114-582-91 CERAMIC CHIP 0.1uF 10% 16V
C6717 1-114-582-91 CERAMIC CHIP 0.1uF 10% 16V
C6718 1-114-582-91 CERAMIC CHIP 0.1uF 10% 16V
C6720 1-114-582-91 CERAMIC CHIP 0.1uF 10% 16V
C6728 1-112-717-91 CERAMIC CHIP 1uF 10% 6.3V
C6729 1-112-717-91 CERAMIC CHIP 1uF 10% 6.3V
C6743 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C6745 1-114-582-91 CERAMIC CHIP 0.1uF 10% 16V
< CONNECTOR >
* CN6702 1-821-503-11 CONNECTOR, FPC (ZIF) 39P
< COMPOSITION CIRCUIT BLOCK >
Ref. No. Part No. DescriptionRef. No. Part No. Description
A-1919-696-A FP-2125 FLEXIBLE BOARD, COMPLETE
*******************************
< CONNECTOR >
CN0001 1-816-655-61 CONNECTOR, FFC/FPC 8P
CN0002 1-816-655-61 CONNECTOR, FFC/FPC 8P
A-1919-697-A FP-2126 FLEXIBLE BOARD, COMPLETE
*******************************
< CONNECTOR >
* CN0004 1-821-503-11 CONNECTOR, FPC (ZIF) 39P
* CN0005 1-842-269-11 CONNECTOR, FPC (ZIF) 23P
1-889-183-11 FP-2189 FLEXIBLE BOARD
*********************
1-889-185-11 FP-2191 FLEXIBLE BOARD
*********************
1-889-186-11 FP-2192 FLEXIBLE BOARD (Non Projector Model)
*********************
1-889-187-11 FP-2193 FLEXIBLE BOARD (Projector Model)
*********************
Danger of explosion if battery is incorrectly replaced.
Caution
Replace only with the same or equivalent type.
Dispose of used batteries according to the instructions.
注意
如果电池更换不当会有爆炸危险。
只能用同样类型或等效类型的电池来更换。
务必按照说明处置用完的电池。
Note 2: Replace the battery holder (BH4200) together when replac-
ing the lithium storage battery (BT4200) on the JK-1009
board. (The battery holder removed once cannot be used
again.)
When mounting these parts, mount new battery holder first
and attach new lithium battery next.
The components identified by mark contain confidential information.
Strictly follow the instructions whenever the components are repaired and/or replaced.
Destroy and discard the prescribed board and IC after they are
replaced.
Les composants identifiés par le symbole contiennent des informations confidentielles.
Suivez scrupuleusement les instructions chaque fois qu'un composant est remplacé et / ou réparé.
Veuillez détruire et éliminer les circuits imprimés et / ou les circuits
intégrés que vous avez remplacés.
标识有 的元件包含机密信息。
更换或维修元件时，请严格遵守指⽰。
更换后的电路板和IC，应予以报废。
電池の交換は，正しく行わないと破裂する恐れがあります。
電池を交換する場合には必ず同じ型名の電池又は同等品と交換し
てください。
使用済み電池は，取扱指示に従って処分してください。
Note 2:
修理の際は、指示に従った対応を行ってください。
交換後の対象基板及び対象ICは、破壊のうえ廃棄してください。
JK-1009基板のリチウム蓄電池（BT4200）を交換する場合
はバッテリホルダ（BH4200）も同時に新品に交換して下さ
い。（一度使用したバッテリホルダは再使用できません。）
部品取り付 け の際は ， 先にバッテリホルダを取り付 けてか
らリチウム電池を装着して下さい。
印の部品には、秘密情報が含まれています。
注意
CP001 (Not supplied) IMX167CQL-13
< IC >
IC6703 6-715-211-01 IC MM3404A28URE
< RESISTOR >
R6707 1-218-973-11 METAL CHIP 47K 5% 1/16W
1-887-155-11 FP-2060 FLEXIBLE BOARD (EXCEPT CX530E)
*********************
A-1903-100-A FP-2106 FLEXIBLE BOARD, COMPLETE
(Projector Model)
******************************
< CONNECTOR >
CN5503 1-842-687-11 CONNECTOR, BOARD TO BOARD 42P
1-889-209-11 FP-2200 FLEXIBLE BOARD (EXCEPT CX535)
*********************
A-1992-201-A FP-2214 BOARD, COMPLETE
***********************
(CN002 is not supplied, but this is included in FP-2214 FLEXIBLE COMPLETE
BOARD.)
< CONNECTOR >
CN002 (Not supplied) CONNECTOR (SHOE)
A-2043-894-A JK-1009 BOARD, COMPLETE (SERVICE)
*******************************
(C8830 and IC3000 are not supplied, but they are included in JK-1009 COMPLETE
BOARD (SERVICE).)
(BT4200 is not included in JK-1009 COMPLETE BOARD (SERVICE).)
< BATTERY HOLDER >
BH4200 1-251-928-21 SOCKET, BATTERY
< BATTERY >
BT4200 1-756-134-15 BATTERY, LITHIUM (SECONDARY)
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
2-1
JK-1009 MM-102 PD-1030 PD-1031 PJ-1005
Ref. No. Part No. Description
< CAPACITOR >
* C2201 1-116-738-11 CERAMIC CHIP 1uF 10% 6.3V
* C2202 1-116-738-11 CERAMIC CHIP 1uF 10% 6.3V
* C3000 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
C3400 1-128-617-91 CERAMIC CHIP 100PF 5% 25V
C3401 1-128-617-91 CERAMIC CHIP 100PF 5% 25V
* C3402 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
* C3403 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
* C7701 1-118-033-11 CERAMIC CHIP 0.047uF 10% 10V
* C7702 1-118-033-11 CERAMIC CHIP 0.047uF 10% 10V
C7703 1-118-029-11 CERAMIC CHIP 0.0022uF 10% 16V
* C7704 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
C7705 1-118-029-11 CERAMIC CHIP 0.0022uF 10% 16V
* C7706 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
C8830 (Not supplied) CERAMIC CHIP 0.22uF 20% 6.3V
< CONNECTOR >
* CN3001 1-816-647-61 FFC/CONNECTOR, FPC (LIF) 18P
CN4200 1-842-897-11 CONNECTOR, FPC (ZIF) 45P
< FERRITE BEAD >
FB3400 1-400-331-11 FERRITE, EMI (SMD) (1005)
FB3401 1-400-331-11 FERRITE, EMI (SMD) (1005)
FB3402 1-400-331-11 FERRITE, EMI (SMD) (1005)
FB3403 1-400-331-11 FERRITE, EMI (SMD) (1005)
< IC >
* IC2201 6-719-361-01 IC MM3416A28URE
IC3000 (Not supplied) IC TC7SZ32FU, RSONYJ
< JACK >
J3400 1-793-703-21 JACK (DIA. 3.5)
J3401 1-818-055-21 JACK
< TRANSISTOR >
* Q3000 6-552-354-01 TRANSISTOR DRC3144E0L
Q3001 8-729-053-57 TRANSISTOR RN1902FE
* Q3002 6-552-348-01 TRANSISTOR DRC3114E0L
* Q3400 6-552-354-01 TRANSISTOR DRC3144E0L
Q8830 6-550-576-01 TRANSISTOR SSM6E01TU
< RESISTOR >
R3000 1-218-977-11 METAL CHIP 100K 5% 1/16W
R3400 1-694-535-91 SHORT CHIP 0
R3401 1-218-934-11 RES, CHIP 27 (1005)
R3402 1-218-934-11 RES, CHIP 27 (1005)
R8830 1-240-718-91 METAL CHIP 100K 5% 1/20W
R8831 1-240-695-91 METAL CHIP 1K 5% 1/20W
< COMPOSITION CIRCUIT BLOCK >
* RB3000 1-234-938-21 RES, NETWORK 3.3K (1005X4)
Ref. No. Part No. Description
A-1992-197-A MM-102 BOARD, COMPLETE (CX535/PJ540/PJ540E)
A-1992-199-A MM-102 BOARD, COMPLETE (PJ530E)
A-2011-087-A MM-102 BOARD, COMPLETE (CX610E/PJ610E)
**********************
< CAPACITOR >
C8102 1-118-465-11 CERAMIC CHIP 4.7uF 10% 16V
C8103 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C8104 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C8202 1-118-465-11 CERAMIC CHIP 4.7uF 10% 16V
(CX610E/PJ610E (Type A, B))
C8203 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
(CX610E/PJ610E (Type A, B))
C8204 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
(CX610E/PJ610E (Type A, B))
* C8701 1-116-738-11 CERAMIC CHIP 1uF 10% 6.3V
< CONNECTOR >
* CN8101 1-816-647-61 FFC/FPC CONNECTOR (LIF) 18P
< IC >
* IC8101 6-719-919-01 IC KLMCG8WE4A-A001T01
(CX610E/PJ610E (Type C))
* IC8101 6-720-022-01 IC KLMBG4WE4A-A001T01 (CX535/PJ540/PJ540E)
* IC8101 6-720-022-01 IC KLMBG4WE4A-A001T01
(CX610E/PJ610E (Type A))
* IC8101 6-720-227-01 IC SDIN7DP2-4G-1029T (PJ530E)
* IC8101 6-721-326-01 IC THGBM7G8T4JBAIRH10
(CX610E/PJ610E (Type B))
* IC8201 6-720-022-01 IC KLMBG4WE4A-A001T01
(CX610E/PJ610E (Type A))
* IC8201 6-721-326-01 IC THGBM7G8T4JBAIRH10
(CX610E/PJ610E (Type B))
IC8701 6-716-442-11 IC MM3404A29URE
< RESISTOR >
R8101 1-218-965-11 METAL CHIP 10K 5% 1/16W
R8103 1-218-990-81 SHORT CHIP 0
R8104 1-218-990-81 SHORT CHIP 0
R8105 1-218-990-81 SHORT CHIP 0
R8106 1-218-990-81 SHORT CHIP 0
R8107 1-218-990-81 SHORT CHIP 0
R8108 1-218-990-81 SHORT CHIP 0
R8109 1-218-990-81 SHORT CHIP 0
R8110 1-218-990-81 SHORT CHIP 0
R8112 1-218-990-81 SHORT CHIP 0
R8202 1-218-990-81 SHORT CHIP 0 (CX610E/PJ610E (Type A, B))
< COMPOSITION CIRCUIT BLOCK >
RB8101 1-242-962-21 RES, NETWORK 82 (1005X4)
RB8102 1-242-962-21 RES, NETWORK 82 (1005X4)
A-2011-100-A PD-1030 BOARD, COMPLETE (SERVICE)
(Non Projector Model)
*******************************
< CAPACITOR >
* C4700 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
C4707 1-118-395-11 CERAMIC CHIP 0.0047uF 10% 50V
C4708 1-118-395-11 CERAMIC CHIP 0.0047uF 10% 50V
* C8040 1-116-738-11 CERAMIC CHIP 1uF 10% 6.3V
C8041 1-118-039-11 CERAMIC CHIP 1uF 10% 25V
C8042 1-118-039-11 CERAMIC CHIP 1uF 10% 25V
C8043 1-118-039-11 CERAMIC CHIP 1uF 10% 25V
C8044 1-118-039-11 CERAMIC CHIP 1uF 10% 25V
* C8045 1-116-738-11 CERAMIC CHIP 1uF 10% 6.3V
* C8046 1-116-738-11 CERAMIC CHIP 1uF 10% 6.3V
C8047 1-118-462-11 CERAMIC CHIP 1uF 10% 10V
C8048 1-118-462-11 CERAMIC CHIP 1uF 10% 10V
C8049 1-118-462-11 CERAMIC CHIP 1uF 10% 10V
* C8050 1-116-738-11 CERAMIC CHIP 1uF 10% 6.3V
C8051 1-118-462-11 CERAMIC CHIP 1uF 10% 10V
C8052 1-118-462-11 CERAMIC CHIP 1uF 10% 10V
* C8053 1-116-738-11 CERAMIC CHIP 1uF 10% 6.3V
< CONNECTOR >
* CN4700 1-821-501-11 CONNECTOR, FPC (ZIF) 51P
* CN4702 1-822-910-11 CONNECTOR, FPC (LIF (NON-ZIF))
* CN8040 1-821-501-11 CONNECTOR, FPC (ZIF) 51P
< COIL >
* L4700 1-481-102-21 INDUCTOR 10uH
* L4701 1-481-102-21 INDUCTOR 10uH
< TRANSISTOR >
Q8080 6-552-758-01 TRANSISTOR RN4986FE
Q8081 6-552-758-01 TRANSISTOR RN4986FE
< RESISTOR >
R4700 1-218-977-11 METAL CHIP 100K 5% 1/16W
< COMPOSITION CIRCUIT BLOCK >
RB4700 1-234-375-21 RES, NETWORK 1K (1005X4)
< SENSOR >
* SE4700 1-487-118-31 GMR SENSOR
A-2011-101-A PD-1031 BOARD, COMPLETE (SERVICE)
(Projector Model)
*******************************
(IC8010 is not supplied, but this is included in PD-1031 COMPLETE BOARD
(SERVICE).)
Ref. No. Part No. DescriptionRef. No. Part No. Description
C8041 1-118-039-11 CERAMIC CHIP 1uF 10% 25V
C8042 1-118-039-11 CERAMIC CHIP 1uF 10% 25V
C8043 1-118-039-11 CERAMIC CHIP 1uF 10% 25V
C8044 1-118-039-11 CERAMIC CHIP 1uF 10% 25V
* C8045 1-116-738-11 CERAMIC CHIP 1uF 10% 6.3V
* C8046 1-116-738-11 CERAMIC CHIP 1uF 10% 6.3V
C8047 1-118-462-11 CERAMIC CHIP 1uF 10% 10V
C8048 1-118-462-11 CERAMIC CHIP 1uF 10% 10V
C8049 1-118-462-11 CERAMIC CHIP 1uF 10% 10V
* C8050 1-116-738-11 CERAMIC CHIP 1uF 10% 6.3V
C8051 1-118-462-11 CERAMIC CHIP 1uF 10% 10V
C8052 1-118-462-11 CERAMIC CHIP 1uF 10% 10V
* C8053 1-116-738-11 CERAMIC CHIP 1uF 10% 6.3V
< CONNECTOR >
CN3750 1-821-652-11 CONNECTOR, BOARD TO BOARD (REC
* CN4800 1-821-501-11 CONNECTOR, FPC (ZIF) 51P
* CN4802 1-822-910-11 CONNECTOR, FPC (LIF (NON-ZIF))
* CN8040 1-821-501-11 CONNECTOR, FPC (ZIF) 51P
< FERRITE BEAD >
FB3750 1-469-580-21 INDUCTOR, FERRITE BEAD (1005)
< IC >
IC8010 (Not supplied) IC BU79R272-E2
< COIL >
* L4801 1-481-102-21 INDUCTOR 10uH
* L4802 1-481-102-21 INDUCTOR 10uH
< TRANSISTOR >
Q8080 6-552-758-01 TRANSISTOR RN4986FE
Q8081 6-552-758-01 TRANSISTOR RN4986FE
< RESISTOR >
R3756 1-240-683-91 METAL CHIP 100 5% 1/20W
R4800 1-218-977-11 METAL CHIP 100K 5% 1/16W
R4801 1-218-965-11 METAL CHIP 10K 5% 1/16W
R4805 1-218-966-11 METAL CHIP 12K 5% 1/16W
< COMPOSITION CIRCUIT BLOCK >
RB4801 1-234-375-21 RES, NETWORK 1K (1005X4)
< SENSOR >
* SE4800 1-487-118-31 GMR SENSOR
A-1992-196-A PJ-1005 BOARD, COMPLETE (Projector Model)
***********************
(IC8504, IC8605, IC8801 and R8815 are not supplied, but they are included in PJ-1005
COMPLETE BOARD.)
< SENSOR >
SE7701 8-826-002-51 GYRO SENSOR GSU-X370D/N-S (PITCH/YAW)
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
< CAPACITOR >
C3750 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
* C4800 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
C4807 1-118-395-11 CERAMIC CHIP 0.0047uF 10% 50V
C4808 1-118-395-11 CERAMIC CHIP 0.0047uF 10% 50V
* C8040 1-116-738-11 CERAMIC CHIP 1uF 10% 6.3V
2-2
< CAPACITOR >
* C8510 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
C8540 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
* C8543 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
C8545 1-116-734-11 CERAMIC CHIP 1uF 20% 16V
C8547 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
PJ-1005 VC-1025
Ref. No. Part No. Description
C8548 1-118-462-11 CERAMIC CHIP 1uF 10% 10V
C8549 1-118-462-11 CERAMIC CHIP 1uF 10% 10V
C8551 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C8552 1-116-717-11 CERAMIC CHIP 10uF 20% 10V
C8602 1-164-856-81 CERAMIC CHIP 18PF 5% 50V
C8603 1-164-856-81 CERAMIC CHIP 18PF 5% 50V
C8605 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C8606 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V
C8607 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C8609 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C8610 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C8618 1-118-462-11 CERAMIC CHIP 1uF 10% 10V
C8619 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C8627 1-118-462-11 CERAMIC CHIP 1uF 10% 10V
C8628 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C8701 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C8703 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C8710 1-118-462-11 CERAMIC CHIP 1uF 10% 10V
C8801 1-118-462-11 CERAMIC CHIP 1uF 10% 10V
C8803 1-118-037-11 CERAMIC CHIP 0.22uF 10% 25V
C8804 1-100-591-91 CERAMIC CHIP 1uF 10% 25V
C8805 1-116-729-11 CERAMIC CHIP 2.2uF 20% 10V
C8806 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C8810 1-116-729-11 CERAMIC CHIP 2.2uF 20% 10V
* C8814 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
C8816 1-118-462-11 CERAMIC CHIP 1uF 10% 10V
C8817 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C8818 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C8824 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
< CONNECTOR >
* CN8502 1-816-643-51 FFC/CONNECTOR, FPC (LIF) 10P
CN8503 1-822-395-51 CONNECTOR, BOARD TO BOARD 60P
CN8504 1-842-897-11 CONNECTOR, FPC (ZIF) 45P
< DIODE >
D8501 6-503-126-01 DIODE DA2S10100K8
D8801 6-502-934-01 DIODE DB2S31100K8
< IC >
IC8504 (Not supplied) IC MM3411A10URE
IC8605 (Not supplied) IC DPP2601
* IC8606 6-720-178-01 IC W25X40CLPYB1
* IC8701 6-721-275-01 IC W948D6FBHX5E-ER25
IC8801 (Not supplied) IC PAD1000YFFR
< COIL >
L8801 1-481-035-11 INDUCTOR 10uH
L8802 1-457-526-11 INDUCTOR 2.2uH
< TRANSISTOR >
Q301 6-550-576-01 TRANSISTOR SSM6E01TU
< RESISTOR/FERRITE >
R8518 1-218-959-11 METAL CHIP 3.3K 5% 1/16W
R8519 1-220-398-11 METAL CHIP 1.5M 5% 1/16W
R8520 1-218-968-11 METAL CHIP 18K 5% 1/16W
R8521 1-218-967-11 METAL CHIP 15K 5% 1/16W
R8522 1-218-977-11 METAL CHIP 100K 5% 1/16W
Ref. No. Part No. Description
R8523 1-218-965-11 METAL CHIP 10K 5% 1/16W
R8611 1-218-941-81 METAL CHIP 100 5% 1/16W
R8612 1-250-567-11 METAL CHIP 1M 1% 1/16W
R8620 1-218-935-11 METAL CHIP 33 5% 1/16W
R8621 1-218-935-11 METAL CHIP 33 5% 1/16W
R8633 1-481-984-21 EMI FERRITE (SMD)(1005)
R8702 1-218-971-11 METAL CHIP 33K 5% 1/16W
R8813 1-218-977-11 METAL CHIP 100K 5% 1/16W
R8815 (Not supplied) METAL CHIP 0.1 1% 0.12W
R8818 1-218-953-11 METAL CHIP 1K 5% 1/16W
< COMPOSITION CIRCUIT BLOCK >
RB8601 1-234-381-11 RES, NETWORK 100K (1005X4)
RB8603 1-234-381-11 RES, NETWORK 100K (1005X4)
RB8604 1-234-381-11 RES, NETWORK 100K (1005X4)
< VIBRATOR >
X8601 1-814-480-11 QUARTZ CRYSTAL OSCILLATOR (16.66667MHz)
A-1992-249-A VC-1025 BOARD, COMPLETE (SERVICE)
A-1992-250-A VC-1025 BOARD, COMPLETE (SERVICE)
*******************************
(C1105, C1112, C1113, C1116, C1117, C1119, C1120, C1121, C1122, C3509, C4012,
C5102, C5152, C5207, C5500, C5600, C5651, C5652, C5701, C5702, C5703, C5704,
C5712, C5714, C5715, C6801, C6804, C6805, C6808, C6809, C7711, C7715, C8509,
C8510, C8511, C8512, C8513, C8514, C8524, CN0500, ET4012, ET4013, IC5100,
IC5150, IC5500, IC5651, IC5700, IC6000, IC6741, IC6742, IC7711, IC8000, IC8120,
IC8201, IC8501, L5150, R3303, R5100, R5201, R6062, R6120, R6121, R6123, R6124,
R6125, R7711, R7712, R7713, R7714, R7715 and SE7711 are not supplied, but they
are included in VC-1025 COMPLETE BOARD (SERVICE).)
< CAPACITOR >
C0102 1-116-717-11 CERAMIC CHIP 10uF 20% 10V
C0104 1-118-040-11 CERAMIC CHIP 2.2uF 10% 16V
C0160 1-118-047-11 CERAMIC CHIP 10uF 10% 16V
C0300 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
* C1041 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
* C1061 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
C1062 1-128-613-91 CERAMIC CHIP 47PF 5% 25V
* C1081 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
* C1082 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
C1101 1-118-477-11 CERAMIC CHIP 2.2uF 10% 6.3V
C1105 (Not supplied) CERAMIC CHIP 10uF 20% 6.3V
C1112 (Not supplied) CERAMIC CHIP 0.1uF 10% 10V
C1113 (Not supplied) CERAMIC CHIP 0.1uF 10% 10V
C1116 (Not supplied) CERAMIC CHIP 0.1uF 10% 10V
C1117 (Not supplied) CERAMIC CHIP 0.1uF 10% 10V
C1119 (Not supplied) CERAMIC CHIP 0.1uF 10% 10V
C1120 (Not supplied) CERAMIC CHIP 0.1uF 10% 10V
C1121 (Not supplied) CERAMIC CHIP 0.1uF 10% 10V
C1122 (Not supplied) CERAMIC CHIP 0.1uF 10% 10V
C1400 1-116-717-11 CERAMIC CHIP 10uF 20% 10V
C1401 1-116-717-11 CERAMIC CHIP 10uF 20% 10V
C1402 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C1403 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
* C3351 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
(Non Projector Model)
(Projector Model)
(Non Projector Model)
(Projector Model)
* C3505 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
* C3507 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
C3509 (Not supplied) CERAMIC CHIP 0.001uF 10% 25V
* C3510 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
C4012 (Not supplied) CERAMIC CHIP 0.1uF 10% 10V
C5100 1-118-462-11 CERAMIC CHIP 1uF 10% 10V
C5101 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C5102 (Not supplied) CERAMIC CHIP 0.01uF 10% 16V
C5103 1-118-039-11 CERAMIC CHIP 1uF 10% 25V
C5104 1-118-462-11 CERAMIC CHIP 1uF 10% 10V
C5105 1-118-462-11 CERAMIC CHIP 1uF 10% 10V
C5106 1-118-462-11 CERAMIC CHIP 1uF 10% 10V
* C5107 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
C5108 1-118-477-11 CERAMIC CHIP 2.2uF 10% 6.3V
C5109 1-118-477-11 CERAMIC CHIP 2.2uF 10% 6.3V
C5110 1-118-040-11 CERAMIC CHIP 2.2uF 10% 16V
C5111 1-118-040-11 CERAMIC CHIP 2.2uF 10% 16V
C5112 1-118-040-11 CERAMIC CHIP 2.2uF 10% 16V
C5114 1-118-040-11 CERAMIC CHIP 2.2uF 10% 16V
C5116 1-116-713-11 CERAMIC CHIP 22uF 20% 10V
* C5117 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
* C5118 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
* C5120 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
C5151 1-118-047-11 CERAMIC CHIP 10uF 10% 16V
C5152 (Not supplied) CERAMIC CHIP 0.1uF 10% 10V
C5153 1-118-047-11 CERAMIC CHIP 10uF 10% 16V
C5154 1-118-047-11 CERAMIC CHIP 10uF 10% 16V
* C5200 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
C5201 1-118-041-11 CERAMIC CHIP 4.7uF 10% 10V
* C5202 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
* C5203 1-116-738-11 CERAMIC CHIP 1uF 10% 6.3V
C5204 1-118-462-11 CERAMIC CHIP 1uF 10% 10V
C5205 1-118-462-11 CERAMIC CHIP 1uF 10% 10V
* C5206 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
C5207 (Not supplied) CERAMIC CHIP 4.7uF 20% 6.3V
C5208 1-118-462-11 CERAMIC CHIP 1uF 10% 10V
C5209 1-118-462-11 CERAMIC CHIP 1uF 10% 10V
C5300 1-118-462-11 CERAMIC CHIP 1uF 10% 10V
C5301 1-118-039-11 CERAMIC CHIP 1uF 10% 25V
C5500 (Not supplied) CERAMIC CHIP 0.1uF 10% 10V
C5501 1-118-462-11 CERAMIC CHIP 1uF 10% 10V
C5600 (Not supplied) CERAMIC CHIP 0.1uF 10% 10V
C5630 1-118-480-11 CERAMIC CHIP 4.7uF 10% 6.3V
C5631 1-118-462-11 CERAMIC CHIP 1uF 10% 10V
C5650 1-118-039-11 CERAMIC CHIP 1uF 10% 25V
C5651 (Not supplied) CERAMIC CHIP 0.22uF 10% 6.3V
C5652 (Not supplied) CERAMIC CHIP 0.1uF 10% 10V
C5653 1-118-040-11 CERAMIC CHIP 2.2uF 10% 16V
C5654 1-118-047-11 CERAMIC CHIP 10uF 10% 16V
C5655 1-118-047-11 CERAMIC CHIP 10uF 10% 16V
C5656 1-118-039-11 CERAMIC CHIP 1uF 10% 25V
C5657 1-118-039-11 CERAMIC CHIP 1uF 10% 25V
C5658 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C5700 1-116-713-11 CERAMIC CHIP 22uF 20% 10V
C5701 (Not supplied) CERAMIC CHIP 0.1uF 10% 10V
C5702 (Not supplied) CERAMIC CHIP 0.1uF 10% 10V
C5703 (Not supplied) CERAMIC CHIP 0.1uF 10% 10V
C5704 (Not supplied) CERAMIC CHIP 0.1uF 10% 10V
2-3
Ref. No. Part No. DescriptionRef. No. Part No. Description
C5705 1-118-480-11 CERAMIC CHIP 4.7uF 10% 6.3V
C5707 1-128-606-91 CERAMIC CHIP 15PF 5% 25V
C5708 1-118-477-11 CERAMIC CHIP 2.2uF 10% 6.3V
C5709 1-128-606-91 CERAMIC CHIP 15PF 5% 25V
C5710 1-128-605-11 CERAMIC CHIP 12PF 5% 25V
C5711 1-128-605-11 CERAMIC CHIP 12PF 5% 25V
C5712 (Not supplied) CERAMIC CHIP 0.1uF 10% 10V
C5714 (Not supplied) CERAMIC CHIP 0.1uF 10% 10V
C5715 (Not supplied) CERAMIC CHIP 0.1uF 10% 10V
C6002 1-118-477-11 CERAMIC CHIP 2.2uF 10% 6.3V
* C6005 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
* C6006 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
* C6007 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
* C6009 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
* C6010 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
C6020 1-118-477-11 CERAMIC CHIP 2.2uF 10% 6.3V
* C6022 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
* C6023 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
C6060 1-118-477-11 CERAMIC CHIP 2.2uF 10% 6.3V
C6061 1-118-477-11 CERAMIC CHIP 2.2uF 10% 6.3V
C6062 1-118-477-11 CERAMIC CHIP 2.2uF 10% 6.3V
* C6063 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
* C6065 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
* C6066 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
* C6067 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
* C6102 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
* C6122 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
* C6123 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
* C6124 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
* C6126 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
* C6127 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
* C6128 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
* C6132 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
* C6133 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
* C6140 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
* C6741 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
C6742 1-118-047-11 CERAMIC CHIP 10uF 10% 16V
C6744 1-118-047-11 CERAMIC CHIP 10uF 10% 16V
* C6800 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
C6801 (Not supplied) CERAMIC CHIP 0.1uF 10% 10V
* C6802 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
* C6803 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
C6804 (Not supplied) CERAMIC CHIP 0.01uF 10% 16V
C6805 (Not supplied) CERAMIC CHIP 0.01uF 10% 16V
* C6806 1-118-033-11 CERAMIC CHIP 0.047uF 10% 10V
* C6807 1-118-033-11 CERAMIC CHIP 0.047uF 10% 10V
C6808 (Not supplied) CERAMIC CHIP 0.1uF 10% 10V
C6809 (Not supplied) CERAMIC CHIP 0.1uF 10% 10V
* C6814 1-118-033-11 CERAMIC CHIP 0.047uF 10% 10V
* C6815 1-118-033-11 CERAMIC CHIP 0.047uF 10% 10V
* C6816 1-118-033-11 CERAMIC CHIP 0.047uF 10% 10V
* C6817 1-118-033-11 CERAMIC CHIP 0.047uF 10% 10V
* C6818 1-118-033-11 CERAMIC CHIP 0.047uF 10% 10V
* C6819 1-118-033-11 CERAMIC CHIP 0.047uF 10% 10V
* C6843 1-116-738-11 CERAMIC CHIP 1uF 10% 6.3V
* C7101 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
* C7102 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
C7711 (Not supplied) CERAMIC CHIP 0.33uF 10% 6.3V
VC-1025
Ref. No. Part No. Description
C7712 1-116-713-11 CERAMIC CHIP 22uF 20% 10V
* C7713 1-118-033-11 CERAMIC CHIP 0.047uF 10% 10V
* C7714 1-118-033-11 CERAMIC CHIP 0.047uF 10% 10V
C7715 (Not supplied) CERAMIC CHIP 0.1uF 10% 10V
* C7717 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
C7718 1-118-026-11 CERAMIC CHIP 470PF 10% 25V
* C7719 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
* C8120 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
(Projector Model)
* C8121 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
(Projector Model)
* C8122 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
(Projector Model)
* C8123 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
(Projector Model)
* C8124 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
(Projector Model)
C8201 1-118-477-11 CERAMIC CHIP 2.2uF 10% 6.3V
* C8203 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
(Projector Model)
* C8204 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
(Projector Model)
C8205 1-118-477-11 CERAMIC CHIP 2.2uF 10% 6.3V
(Projector Model)
* C8206 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
(Projector Model)
* C8207 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
(Projector Model)
* C8209 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
(Projector Model)
* C8211 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
(Projector Model)
C8500 1-118-462-11 CERAMIC CHIP 1uF 10% 10V
C8501 1-118-462-11 CERAMIC CHIP 1uF 10% 10V
* C8503 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
* C8504 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
C8505 1-118-462-11 CERAMIC CHIP 1uF 10% 10V
C8506 1-118-462-11 CERAMIC CHIP 1uF 10% 10V
* C8507 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
* C8508 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
C8509 (Not supplied) CERAMIC CHIP 0.001uF 10% 25V
C8510 (Not supplied) CERAMIC CHIP 0.001uF 10% 25V
C8511 (Not supplied) CERAMIC CHIP 0.001uF 10% 25V
C8512 (Not supplied) CERAMIC CHIP 0.001uF 10% 25V
C8513 (Not supplied) CERAMIC CHIP 0.001uF 10% 25V
C8514 (Not supplied) CERAMIC CHIP 0.001uF 10% 25V
C8515 1-118-462-11 CERAMIC CHIP 1uF 10% 10V
C8516 1-118-462-11 CERAMIC CHIP 1uF 10% 10V
C8517 1-118-462-11 CERAMIC CHIP 1uF 10% 10V
C8518 1-118-462-11 CERAMIC CHIP 1uF 10% 10V
* C8519 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
C8520 1-118-462-11 CERAMIC CHIP 1uF 10% 10V
C8521 1-116-717-11 CERAMIC CHIP 10uF 20% 10V
C8522 1-116-729-11 CERAMIC CHIP 2.2uF 20% 10V
C8523 1-116-729-11 CERAMIC CHIP 2.2uF 20% 10V
C8524 (Not supplied) CERAMIC CHIP 0.0047uF 10% 6.3V
C8525 1-118-026-11 CERAMIC CHIP 470PF 10% 25V
* C8526 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
* C8527 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
* C8630 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
* C8632 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
Ref. No. Part No. Description
C8800 1-118-462-11 CERAMIC CHIP 1uF 10% 10V
< CONNECTOR >
* CN0400 1-843-120-21 HEADER ASSEMBRY
CN0500 (Not supplied) SOCKET, USB CONNECTOR
CN3201 1-843-066-11 CONNECTOR, HDMI (Projector Model)
CN4001 1-842-897-11 CONNECTOR, FPC (ZIF) 45P
* CN4003 1-819-781-61 CONNECTOR, FPC (ZIF) 45P
CN4004 1-819-934-61 CONNECTOR, FPC (ZIF) 39P
* CN4005 1-816-644-51 FFC/CONNECTOR, FPC (LIF) 12P
* CN4006 1-816-647-61 FFC/CONNECTOR, FPC (LIF) 18P
CN4007 1-580-789-21 PIN, CONNECTOR (SMD) 6P
CN4008 1-770-619-21 PIN, CONNECTOR 2P
CN4009 1-816-654-61 FFC/FPC CONNECTOR (LIF) 6P
CN4010 1-816-654-61 FFC/FPC CONNECTOR (LIF) 6P
CN4011 1-794-057-21 PIN, CONNECTOR (PC BOARD) 2P
* CN4901 1-842-522-21 CONNECTOR, FPC (ZIF) 61P
* CN4902 1-816-650-51 FFC/CONNECTOR, FPC (LIF) 24P
CN7101 1-843-144-21 CONNECTOR, CARD MSMICRO/SDMICR
CN9000 1-843-066-11 CONNECTOR, HDMI
< DIODE >
D0100 6-503-126-01 DIODE DA2S10100K8
D4010 6-501-216-01 DIODE CL-271HR-C-TS
D5600 8-719-421-71 DIODE MA132WA
D6081 6-503-126-01 DIODE DA2S10100K8
D6082 6-503-126-01 DIODE DA2S10100K8
D8800 6-503-126-01 DIODE DA2S10100K8
* D9000 6-502-988-01 DIODE RB480Y-40T2R
< CONTACT TERMINAL >
ET4012 (Not supplied) IPS-4039T-01Y901
ET4013 (Not supplied) TERMINAL, CONTACT
< FUSE >
F001 1-576-415-31 FUSE (2A/32V)
F002 1-576-415-31 FUSE (2A/32V)
F003 1-576-406-31 FUSE (1.4A/32V)
* F004 1-576-872-31 FUSE (0.25A/50V)
F005 1-523-231-31 FUSE (2.5A/50V)
< FERRITE BEAD >
FB0500 1-400-331-11 FERRITE, EMI (SMD) (1005)
FB0501 1-400-331-11 FERRITE, EMI (SMD) (1005)
* FB1003 1-481-250-11 INDUCTOR, FERRITE BEAD (1005)
FB1061 1-469-580-21 INDUCTOR, FERRITE BEAD (1005)
FB1062 1-400-833-21 SMD EMI FERRITE
FB1083 1-469-580-21 INDUCTOR, FERRITE BEAD (1005)
* FB1084 1-481-250-11 INDUCTOR, FERRITE BEAD (1005)
FB3300 1-469-580-21 INDUCTOR, FERRITE BEAD (1005)
FB3350 1-400-921-21 FERRITE, EMI (SMD) (Non Projector Model)
FB3351 1-400-921-21 FERRITE, EMI (SMD) (Non Projector Model)
FB3352 1-400-921-21 FERRITE, EMI (SMD) (Non Projector Model)
FB3353 1-400-921-21 FERRITE, EMI (SMD) (Non Projector Model)
FB3354 1-400-921-21 FERRITE, EMI (SMD) (Non Projector Model)
FB3355 1-400-921-21 FERRITE, EMI (SMD) (Non Projector Model)
FB3356 1-400-921-21 FERRITE, EMI (SMD) (Non Projector Model)
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
(Non Projector Model)
(Projector Model)
FB3357 1-400-921-21 FERRITE, EMI (SMD) (Non Projector Model)
FB3358 1-400-921-21 FERRITE, EMI (SMD) (Non Projector Model)
FB3359 1-400-921-21 FERRITE, EMI (SMD) (Non Projector Model)
FB3360 1-400-921-21 FERRITE, EMI (SMD) (Non Projector Model)
FB3361 1-400-921-21 FERRITE, EMI (SMD) (Non Projector Model)
FB3362 1-400-921-21 FERRITE, EMI (SMD) (Non Projector Model)
FB3363 1-400-921-21 FERRITE, EMI (SMD) (Non Projector Model)
FB3364 1-400-921-21 FERRITE, EMI (SMD) (Non Projector Model)
FB3365 1-400-921-21 FERRITE, EMI (SMD) (Non Projector Model)
* FB6080 1-481-250-11 INDUCTOR, FERRITE BEAD (1005)
FB6081 1-469-580-21 INDUCTOR, FERRITE BEAD (1005)
< IC >
IC5100 (Not supplied) IC BD8336GU-E2
IC5150 (Not supplied) IC TPS63060DSCR
IC5200 6-716-945-01 IC BD8331GU-E2
IC5300 6-718-155-01 IC R1207N823B-TR-FE
IC5500 (Not supplied) IC BD2224G-BZTR
IC5600 6-716-783-01 IC BD11600NUX-E2
* IC5630 6-714-833-01 IC TPS2553DBVR-1
IC5651 (Not supplied) IC OZ8072PN-C5-0-TR
IC5700 (Not supplied) IC MB9AF004BGL-G-103-ERE1
IC6000 (Not supplied) IC KSZ4G4G01A
IC6741 (Not supplied) IC DRV8835DSSR
IC6742 (Not supplied) IC LV8417CS-TE-L-H
IC6800 6-716-760-01 IC R2J30503LG
* IC6802 6-719-361-01 IC MM3416A28URE
IC7711 (Not supplied) IC NJM3232MG2 (TE2)
IC8000 (Not supplied) IC BU79T272-E2 (Projector Model)
IC8120 (Not supplied) IC MB8AA4590BGL-G-ERE1 (Projector Model)
* IC8200 6-721-219-01 IC ADV7610BBCZ-RL (Projector Model)
IC8201 (Not supplied) IC MM3416A33URE
* IC8500 6-719-793-01 IC AK4695ECB-L
IC8501 (Not supplied) IC MM3411A28URE
IC8630 6-718-186-01 IC CS48L10-CWZR
< COIL >
* L0101 1-457-858-11 INDUCTOR 4.7uH
L0102 1-460-370-11 INDUCTOR 10uH
L0103 1-460-370-11 INDUCTOR 10uH
L0105 1-460-370-11 INDUCTOR 10uH
L0106 1-460-359-11 INDUCTOR 4.7uH
* L0107 1-457-690-11 INDUCTOR 33uH
L1061 1-469-757-21 INDUCTOR 10uH
L1063 1-414-842-21 INDUCTOR 15nH
L1064 1-414-842-21 INDUCTOR 15nH
L3501 1-400-588-11 INDUCTOR 10uH
L5150 (Not supplied) INDUCTOR 2uH
L5650 1-460-358-11 INDUCTOR 2.2uH
* L9000 1-460-611-11 COMMON MODE CHOKE COIL
* L9001 1-460-611-11 COMMON MODE CHOKE COIL
< LINE FILTER >
LF0400 1-457-223-11 COMMON MODE CHOKE COIL
LF0500 1-457-223-11 COMMON MODE CHOKE COIL
< TRANSISTOR >
Q0201 6-551-630-01 TRANSISTOR RN1102MFV (TL3S
2-4
Ref. No. Part No. DescriptionRef. No. Part No. Description
Q0202 8-729-055-01 TRANSISTOR RN4984FE
Q0300 6-552-842-01 TRANSISTOR QS8J2FU7TR
* Q1101 6-552-344-01 TRANSISTOR DRA3143T0L
Q3201 6-551-202-01 TRANSISTOR LM6K1FS8T2R
(Projector Model)
Q4010 6-551-626-01 TRANSISTOR RN2110MFV (TL3S
* Q4013 6-552-397-01 TRANSISTOR DSC300100L
* Q5600 6-552-529-01 TRANSISTOR DMC964010R
Q5700 6-552-999-01 TRANSISTOR RW1E025RPT2CR
Q5701 6-551-630-01 TRANSISTOR RN1102MFV (TL3S
Q5702 6-553-038-01 TRANSISTOR DRA3115T0L
* Q7101 6-552-700-01 TRANSISTOR SSM3K15AMFV, L3SF
Q8800 6-551-631-01 TRANSISTOR RN1104MFV (TL3S
Q8801 6-552-874-01 TRANSISTOR RW1C025ZPT2CR
Q9000 6-551-202-01 TRANSISTOR LM6K1FS8T2R
* Q9001 6-552-700-01 TRANSISTOR SSM3K15AMFV, L3SF
Q9002 8-729-055-01 TRANSISTOR RN4984FE
< RESISTOR >
R0160 1-240-711-91 METAL CHIP 22K 5% 1/20W
R0205 1-240-718-91 METAL CHIP 100K 5% 1/20W
* R0207 1-257-309-11 METAL CHIP 1M 1% 1/20W
* R0208 1-257-309-11 METAL CHIP 1M 1% 1/20W
* R0209 1-257-301-11 METAL CHIP 470K 1% 1/20W
* R0210 1-257-301-11 METAL CHIP 470K 1% 1/20W
R0412 1-218-990-81 SHORT CHIP 0
R0413 1-218-990-81 SHORT CHIP 0
R1006 1-240-678-91 METAL CHIP 33 5% 1/20W
* R1062 1-250-507-11 METAL CHIP 3.3K 1% 1/16W
R1063 1-218-990-81 SHORT CHIP 0 (Projector Model)
* R1066 1-250-469-11 METAL CHIP 82 1% 1/16W
R1070 1-218-990-81 SHORT CHIP 0
R1080 1-240-679-91 METAL CHIP 47 5% 1/20W
R1081 1-240-679-91 METAL CHIP 47 5% 1/20W
R1082 1-240-707-91 METAL CHIP 10K 5% 1/20W
R1083 1-240-683-91 METAL CHIP 100 5% 1/20W
R1084 1-240-685-91 METAL CHIP 150 5% 1/20W
R1085 1-240-683-91 METAL CHIP 100 5% 1/20W
R1086 1-240-683-91 METAL CHIP 100 5% 1/20W
R1088 1-240-679-91 METAL CHIP 47 5% 1/20W
R1089 1-240-679-91 METAL CHIP 47 5% 1/20W
R1094 1-240-679-91 METAL CHIP 47 5% 1/20W
R1095 1-240-679-91 METAL CHIP 47 5% 1/20W
R1096 1-240-679-91 METAL CHIP 47 5% 1/20W
R1097 1-240-679-91 METAL CHIP 47 5% 1/20W
R1098 1-240-679-91 METAL CHIP 47 5% 1/20W
R1099 1-240-679-91 METAL CHIP 47 5% 1/20W
R1101 1-218-945-11 METAL CHIP 220 5% 1/16W
R1106 1-240-714-91 METAL CHIP 47K 5% 1/20W
R1108 1-240-714-91 METAL CHIP 47K 5% 1/20W
R1109 1-240-714-91 METAL CHIP 47K 5% 1/20W
R1118 1-240-683-91 METAL CHIP 100 5% 1/20W
R1119 1-240-683-91 METAL CHIP 100 5% 1/20W
R1401 1-218-953-11 METAL CHIP 1K 5% 1/16W
R1402 1-218-953-11 METAL CHIP 1K 5% 1/16W
R1416 1-240-714-91 METAL CHIP 47K 5% 1/20W
R3100 1-240-695-91 METAL CHIP 1K 5% 1/20W
R3201 1-218-953-11 METAL CHIP 1K 5% 1/16W
(Projector Model)
VC-1025 WF-1004
Ref. No. Part No. Description
R3202 1-218-977-11 METAL CHIP 100K 5% 1/16W
(Projector Model)
R3303 (Not supplied) METAL CHIP 240 1% 1/20W
(Projector Model)
R3501 1-208-691-11 METAL CHIP 2.2K 0.5% 1/16W
R4016 1-218-989-11 METAL CHIP 1M 5% 1/16W
R4018 1-218-945-11 METAL CHIP 220 5% 1/16W
R4019 1-218-945-11 METAL CHIP 220 5% 1/16W
R4020 1-218-953-11 METAL CHIP 1K 5% 1/16W
R4021 1-240-695-91 METAL CHIP 1K 5% 1/20W
R4025 1-240-700-91 METAL CHIP 2.7K 5% 1/20W
(Projector Model)
R4025 1-240-707-91 METAL CHIP 10K 5% 1/20W
(Non Projector Model)
R4029 1-240-700-91 METAL CHIP 2.7K 5% 1/20W
R4030 1-240-705-91 METAL CHIP 6.8K 5% 1/20W
(Projector Model)
R4033 1-240-707-91 METAL CHIP 10K 5% 1/20W
R4034 1-240-707-91 METAL CHIP 10K 5% 1/20W
R4901 1-240-711-91 METAL CHIP 22K 5% 1/20W
(Non Projector Model)
R4901 1-694-535-91 SHORT CHIP 0 (Projector Model)
R4904 1-240-714-91 METAL CHIP 47K 5% 1/20W
R4905 1-240-718-91 METAL CHIP 100K 5% 1/20W
(Non Projector Model)
R4907 1-694-535-91 SHORT CHIP 0
R5100 (Not supplied) METAL CHIP 47K 1% 1/20W
* R5150 1-250-546-11 METAL CHIP 130K 1% 1/16W
R5151 1-250-519-11 METAL CHIP 10K 1% 1/16W
R5200 1-218-941-81 METAL CHIP 100 5% 1/16W
R5201 (Not supplied) METAL CHIP 100K 1% 1/20W
* R5202 1-257-273-11 METAL CHIP 33K 1% 1/20W
R5300 1-250-449-11 METAL CHIP 12 1% 1/16W
R5301 1-250-449-11 METAL CHIP 12 1% 1/16W
R5500 1-240-707-91 METAL CHIP 10K 5% 1/20W
R5600 1-240-714-91 METAL CHIP 47K 5% 1/20W
R5630 1-240-711-91 METAL CHIP 22K 5% 1/20W
* R5631 1-257-267-11 METAL CHIP 18K 1% 1/20W
R5650 1-240-679-91 METAL CHIP 47 5% 1/20W
* R5654 1-250-503-11 METAL CHIP 2.2K 1% 1/16W
R5655 1-240-699-91 METAL CHIP 2.2K 5% 1/20W
R5656 1-240-699-91 METAL CHIP 2.2K 5% 1/20W
R5701 1-240-701-91 METAL CHIP 3.3K 5% 1/20W
R5702 1-240-697-91 METAL CHIP 1.5K 5% 1/20W
R5711 1-240-711-91 METAL CHIP 22K 5% 1/20W
R5712 1-240-677-11 METAL CHIP 27 5% 1/20W
R5713 1-240-677-11 METAL CHIP 27 5% 1/20W
R6001 1-240-695-91 METAL CHIP 1K 5% 1/20W
R6002 1-240-695-91 METAL CHIP 1K 5% 1/20W
R6041 1-240-695-91 METAL CHIP 1K 5% 1/20W
* R6060 1-257-249-11 METAL CHIP 3.3K 1% 1/20W
* R6061 1-257-249-11 METAL CHIP 3.3K 1% 1/20W
R6062 (Not supplied) METAL CHIP 12K 1% 1/20W
R6081 1-240-683-91 METAL CHIP 100 5% 1/20W
R6082 1-240-683-91 METAL CHIP 100 5% 1/20W
R6084 1-240-683-91 METAL CHIP 100 5% 1/20W
R6085 1-240-684-91 METAL CHIP 120 5% 1/20W
R6120 (Not supplied) METAL CHIP 240 1% 1/20W
R6121 (Not supplied) METAL CHIP 240 1% 1/20W
Ref. No. Part No. Description
R6123 (Not supplied) METAL CHIP 240 1% 1/20W
R6124 (Not supplied) METAL CHIP 10K 1% 1/20W
R6125 (Not supplied) METAL CHIP 10K 1% 1/20W
R6800 1-240-812-11 METAL CHIP 15K 0.5% 1/20W
R6801 1-250-553-11 METAL CHIP 270K 1% 1/16W
R6802 1-250-553-11 METAL CHIP 270K 1% 1/16W
R6803 1-240-707-91 METAL CHIP 10K 5% 1/20W
R6804 1-240-707-91 METAL CHIP 10K 5% 1/20W
R7101 1-240-729-91 METAL CHIP 1M 5% 1/20W
R7711 (Not supplied) METAL CHIP 15K 1% 1/20W
R7712 (Not supplied) METAL CHIP 150K 1% 1/20W
R7713 (Not supplied) METAL CHIP 10K 1% 1/20W
R7714 (Not supplied) METAL CHIP 22K 1% 1/20W
R7715 (Not supplied) METAL CHIP 22K 1% 1/20W
R8500 1-208-703-11 METAL CHIP 6.8K 0.5% 1/16W
R8501 1-208-703-11 METAL CHIP 6.8K 0.5% 1/16W
R8502 1-208-691-11 METAL CHIP 2.2K 0.5% 1/16W
R8503 1-208-667-11 METAL CHIP 220 0.5% 1/16W
R8504 1-208-667-11 METAL CHIP 220 0.5% 1/16W
R8505 1-208-691-11 METAL CHIP 2.2K 0.5% 1/16W
R8506 1-240-699-91 METAL CHIP 2.2K 5% 1/20W
R8507 1-240-699-91 METAL CHIP 2.2K 5% 1/20W
R8508 1-240-722-91 METAL CHIP 220K 5% 1/20W
R8800 1-218-965-11 METAL CHIP 10K 5% 1/16W
R8801 1-250-567-11 METAL CHIP 1M 1% 1/16W
R9000 1-240-712-91 METAL CHIP 27K 5% 1/20W
< COMPOSITION CIRCUIT BLOCK >
* RB0200 1-234-384-11 RES, NETWORK 1M (1005X4)
RB0500 1-234-381-11 RES, NETWORK 100K (1005X4)
RB1081 1-234-377-21 RES, NETWORK 4.7K (1005X4)
RB3100 1-234-380-21 RES, NETWORK 47K (1005X4)
RB3357 1-234-373-21 RES, NETWORK 220 (1005X4)
(Non Projector Model)
RB3358 1-234-373-21 RES, NETWORK 220 (1005X4)
(Non Projector Model)
RB3359 1-234-373-21 RES, NETWORK 220 (1005X4)
(Non Projector Model)
RB3360 1-234-373-21 RES, NETWORK 220 (1005X4)
(Non Projector Model)
RB3502 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
(Projector Model)
RB3503 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
(Non Projector Model)
* RB4000 1-234-384-11 RES, NETWORK 1M (1005X4)
RB4001 1-234-380-21 RES, NETWORK 47K (1005X4)
* RB4002 1-234-723-21 RES, NETWORK 75 (1005X4)
RB4010 1-234-372-11 RES, NETWORK 100 (1005X4)
(Non Projector Model)
RB4011 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
(Projector Model)
RB5700 1-234-378-21 RES, NETWORK 10K (1005X4)
RB6080 1-200-051-21 RES, NETWORK 150 (1005X4)
RB6082 1-234-372-11 RES, NETWORK 100 (1005X4)
RB8201 1-234-380-21 RES, NETWORK 47K (1005X4) (Projector Model)
RB9000 1-234-375-21 RES, NETWORK 1K (1005X4)
< SENSOR >
* SE4010 1-487-118-31 GMR SENSOR (Projector Model)
* SE4011 1-487-118-31 GMR SENSOR (Non Projector Model)
Ref. No. Part No. Description
SE7711 (Not supplied) SENSOR, ANGULAR VELOCITY
< VARISTOR >
VD0500 1-802-090-21 VARISTOR, CHIP
VD0501 1-802-090-21 VARISTOR, CHIP
VD0502 1-802-090-21 VARISTOR, CHIP
VD4018 1-802-090-21 VARISTOR, CHIP
< VIBRATOR >
X5700 1-781-525-11 VIBRATOR, CRYSTAL (32.768kHz)
X5701 1-814-304-11 VIBRATOR, CRYSTAL (12MHz)
* X6000 1-813-403-81 QUARTZ CRYSTAL OSCILLATOR (12MHz)
X8200 1-814-515-11 QUARTZ CRYSTAL OSCILLATOR (28.636363MHz)
(Projector Model)
A-1992-200-A WF-1004 BOARD, COMPLETE (EXCEPT CX535)
***********************
(C7402, CP7300, ET2301 and L2303 are not supplied, but they are included in WF1004 COMPLETE BOARD.)
< CAPACITOR >
* C2305 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
C2307 1-117-730-81 CERAMIC CHIP 1.2PF 0.1PF 16V
C7301 1-118-477-11 CERAMIC CHIP 2.2uF 10% 6.3V
C7302 1-118-477-11 CERAMIC CHIP 2.2uF 10% 6.3V
C7303 1-118-477-11 CERAMIC CHIP 2.2uF 10% 6.3V
C7304 1-118-477-11 CERAMIC CHIP 2.2uF 10% 6.3V
C7305 1-118-477-11 CERAMIC CHIP 2.2uF 10% 6.3V
* C7401 1-118-458-11 CERAMIC CHIP 0.1uF 10% 6.3V
C7402 (Not supplied) CERAMIC CHIP 100PF 1% 50V
< CONNECTOR >
CN2301 1-821-858-61 CONNECTOR, FPC (LIF (NON-ZIF)) 24P
CN2302 1-794-375-21 PIN, CONNECTOR 2P
< COMPOSITION CIRCUIT BLOCK >
CP7300 (Not supplied) WLAN MODULE
< ON BOARD CONTACT >
ET2301 (Not supplied) ON BOARD CONTACT
< IC >
* IC7401 6-715-114-01 IC CXD9950AK
< COIL >
L2303 (Not supplied) INDUCTOR 3.3nH
< COMPOSITION CIRCUIT BLOCK >
RB7301 1-234-372-11 RES, NETWORK 100 (1005X4)
RB7302 1-234-372-11 RES, NETWORK 100 (1005X4)
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
2-5E
4. BLOCK DIAGRAMS
4-1. OVERALL BLOCK DIAGRAM (1/4)( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.
LENS BLOCK (1/2)
IRIS
(SHUTTER)
HDMI
OUT
MULTI
BUILT-IN
USB CABLE
CHARGE
CM-1004 BOARD
DOAP - DODP,
DOAM - DODM,
DCKP, DCKM
CP001
CMOS
IMAGER
CN9000
3,5,6,8,9,11
12, 14
18
17
15
1 LEVEL SHIFT
CN0500
DEBUG_UART0_TXD DEBUG_UART0_TXD
8
USB_ID
4
AD_JACK_IN
10
DEBUG_UART0_RXD,
BOOT_SERIAL_IN
9
13
USB_D+/-_MULTI
2, 311, 122, 3
7
15
CN0400
XVS
G2
XHS
G1
SDI, SDO, SCK
XCE
XCLR
E1
INCK
H3
HDMI_TXCN/TXCP HDMI_TXCN/TXCP
SDA HDMI_SDA
SCL
CEC
HotPlugDetect
USB_D+/-_DWN
XRESET_REQ XRESET_REQ
XPOWER_TACT_SW
AUDIO_L_I/O,
AUDIO_R_I/O
USB_D+/-_DWN
8
OVERALL (3/4)
(PAGE 4-3)
08
FP-2189
FLEXIBLE
CN6702
BOARD
17, 18,
21, 22,
25, 26,
29, 30,
33, 34
14
13
8, 9,
11, 12
8
6
3
HDMI_TX0SOP-TX2SOP, HDMI_TX0SON-TX2SON
Q9000
LEVEL SHIFT
Q9002
IC5600
USB SELECT
(5/26)
VC-1025 BOARD (1/3)
CN4004
SUBL_DINP4 - 7,
17, 18,
21, 22,
25, 26,
29, 30,
33, 34
14
13
9, 11,
12
8
6
3
LEVEL SHIFT
SUBL_DINN4 - 7,
SUBL_CLKINP/CLKINN
SENS_VD
SENS_HD
IC_6000_SENSSI/SENSSO/SENSSCK
IC_6000_SENSXCS
XFLASH_RST
CLK_CMOS_IN_IMG
Q9001
1
OVERALL (3/4)
(PAGE 4-3)
XPOWER_TACT_SW
XMSX_INS
XSD_INS
X6000
12MHz
HDMI_SCL
HDMI_CEC
HDMI_HPD
USB_ID, AD_JACK_IN,
DEBUG_UART0_RXD,
BOOT_SERIAL_IN
COMPO_VIDEOCOMPO_VIDEO
USB_D+/-_KJR
USB_SEL
XCS_DWN
DWN_SI/SO/SCK
DWN_SI/SO/SCK
XCS_DWN
XRESET_REQ
XPOWER_TACT_SW
USB_D+/-_DWN
Q5702
USB ACTIVE
SWITCH
X5701
12MHz
X5700
32.768kHz
XMSX_INS
XSD_INS
USBVCC
H15
G15
A5
V29
IC6000
(1/3)
CPU, CAMERA DSP,
AV SIGNAL PROCESS,
LENS CONTROL,
MODE CONTROL,
HDMI PROCESS
(7/26 - 14/26)
IC5700
POWER CONTROL
(3/26)
L8
L9
L5
L6
Non Projector Model
LCD_R_0 - 7,
LCD_G_0 - 7,
LCD_B_0 - 7
LCD_R_0 - 7, LCD_G_0 - 7, LCD_B_0 - 7
LCD_XHD
AH14
LCD_XVD
AF15
LCD_CLK
LCD_DATEN LCD_DATEN
PJ_RST, PAD_PROJ_ON,
PJ_TEMP_AD, I2C_SDA/SCK
XBB_RST
D23
SDO_KJR SDO_KJR
BCK_OUT_KJR,
LRCK_OUT_KJR,
MCK_INOUT_KJR
XCS_IC_8120
MISO_SDA
PANEL_NOR/REV
XCS_LCD
TP_SEL1
TP_X
TP_Y
Q1101
TP_SEL2
AV_ SO/ SCK
SDI0_SPDIF_IN_KJR
SDI1_KJR
XCS_IC_8630
G16
XSYS_RST
V13
KEY_AD1, SS,
ZOOM_VR_AD,
XPOWER_LED
XSYS_RST
H11
XPANEL_POWER_ON
SYS_DD_SI/SO/SCK SYS_DD_SO/SCK
Q0201
LED DRIVE
Q4013
LANC_SI/SO
LANC_IC_ON
SYS_DD_IC_5200_XCS
SYS_DD_SI/SO/SCK
SYS_DD_IC_5100_XCS
XCHARG_LED
BCK_OUT_KJR,
LRCK_OUT_KJR,
MCK_INOUT_KJR
MISO_SDA
AV_SO/SCK
BCK_OUT_KJR,
LRCK_OUT_KJR,
MCK_INOUT_KJR
XCS_IC_8120
MISO_SDA
PANEL_O/C_GMR
LCD_XHD
LCD_XVD
IC_8120_CLK
AV_ SO/ SCK
Non Projector Model
Non Projector Model: SE4011
DC/DC CONVERTER,
LANC DRIVER
DC/DC CONVERTER
A4
B4
IC8630
AUDIO DSP
(19/26)
Projector Model: SE4010
PANEL OPEN/CLOSE
DETECT
(25/26)
IC5200
(1/26)
IC5100
(1/26)
IC8120
VIDEO
SELECTOR
(21/26)
D1
L13
K12
PCLK
IC_6800_IC_6000_CLK
L4
L3
E1
PDATA0 - 23
HSYNC_CS
VSYNC_WE
DATEN_CMD
G6
LCD SERIAL
F5
INTERFACE
TRANSMITTER
IC8000
(22/26)
XBB_RST
B6
2
OVERALL (4/4)
(PAGE 4-4)
I2C_SDA/SCK
HDMI_RX_PDATA0 - 23 TMDS_DATA0± - 2±
HDMI_RX_HSYNC
HDMI_RX_VSYNC
HDMI_RX_I2S/DE/VCK
HDMI_RX_MCLK/SCLK/LRCK
XSYS_RST
SDO_IC_8120
BCK_OUT_IC_8120,
LRCK_OUT_IC_8120,
MCK_OUT_IC_8120
CN4005
KEY_AD1
SS
ZOOM_VR_AD
XPOWER_LED
XCHARG_LED
F9
E9
B6
8, 9
CONTROL
2
SWITCH BLOCK
11
(PS45300)
5
4
IC8200
HDMI
RECEIVER
(20/26)
AV_ SO/ SCK
SDO_KJR/IC_8120
BCK_OUT_KJR/IC_8120,
LRCK_OUT_KJR/IC_8120,
MCK_OUT_KJR/IC_8120
SDI0_SPDIF_IN_MAG
SDI1_MAG
XSYS_RST
XSYS_RST
: VIDEO SIGNAL
: AUDIO SIGNAL
: VIDEO/AUDIO SIGNAL
A6
TMDS_CLOCK±
DDCSDA_RX
DDCSCL_RX
HPA
28.636363MHz
X8200
5
6
LCD_G_0 - 7, LCD_B_0 - 7
D0±, D1±
CLK±
OVERALL (3/4)
(PAGE 4-3)
OVERALL (4/4)
(PAGE 4-4)
LCD_XHD
LCD_XVD
LCD_CLK
PJ_RSTZ
PAD_PROJ_ON
PJ_TEMP_AD
I2C_SDA/SCK
XBB_RST
PANEL_NOR/REV
XCS_LCD
TP_SEL1
TP_X
TP_Y
AV_ SO/ SCK
Q3201
HPD
SWITCH
Projector Model
CN4901
CN3201
20
21
18
42, 44,
54, 56
48, 50
20
36
34
18, 21
30
12
32
13
14
7, 11
18
17
38,39,41,42,44,45,47,48,
50,51,53,54,56,57,59,60
Projector Model
OVERALL (2/4)
(PAGE 4-2)
Non Projector Model
OVERALL (2/4)
8
3,5,6,8,9,11
12, 14
1
(PAGE 4-2)
PROJECTOR
IN
3
4
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
4-1
4-2. OVERALL BLOCK DIAGRAM (2/4)( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.
Projector Model
LCD901
FP-2193 FLEXIBLE
BOARD
D0±, D1±
CLK±
XBB_RST
XCS_LCD
AV_SO/SCK
TP_X
TP_Y
TP_SEL1
PD-1031 BOARD
CN4800
4, 6,
D0±, D1±
12, 14
CLK±
8, 10
XBB_RST_VC
44
XCS_LCD
40
AV_ SO/ SCK
41, 45
TP_X
39
TP_Y
38
TP_SEL1
20
B6
IC8010
LCD SERIAL
INTERFACE
RECEIVER
(1/2)
Q8080, Q8081
TOUCH PANEL
INTERFACE
G6
F5
LCD_DR0 - 7
LCD_DG0 - 7
LCD_DB0 - 7
LCD_HD
LCD_VD
LCD_CK
LCD_DATEN
LCD_DG0 - 7
LCD_DB0 - 7
LCD_HD
LCD_VD
LCD_CK
XCS_LCD
AV_SO/SCK
TP_BOT
CN8040
CN4802
TP_X
TP_Y
TP_R
13 - 20
21 - 28
12
11
10
4
5, 6
4
1
2
5
(LCD MODULE)
3.0 INCH
WIDE COLOR
LCD
TOUCH
PAN EL
3
OVERALL (1/4)
(PAGE 4-1)
Non Projector Model
4
OVERALL (1/4)
(PAGE 4-1)
PANEL_NOR/REV PANEL_NOR/REV
I2C_SDA/SCL
PJ_RSTZ
PAD_PROJ_ON
PJ_TEMP_AD
22
31, 34
32
16
18
FP-2192 FLEXIBLE
BOARD
3, 4,
LCD_G_0 - 7,
LCD_B_0 - 7
LCD_XHD
LCD_XVD
LCD_CLK
XCS_LCD
AV_ SO/ SCK
PANEL_NOR/REV PANEL_NOR/REV
TP_X
TP_Y
TP_SEL1
08
6, 7,
9, 10,
12, 13,
15, 16,
18, 19,
21, 22,
24, 25
34
33
36
42
43, 45
29
41
40
28
I2C_SDA/SCL
PJ_RSTZ
PAD_PROJ_ON
PJ_TEMP_AD
PD-1030 BOARD
CN4700
LCD_G_0 - 7, LCD_B_0 - 7
TP_X
TP_Y
TP_SEL1
TOUCH PANEL
NORMAL/REVERSE
LCD_HD
LCD_VD
LCD_CLK
XCS_LCD
AV_ SO/ SCK
NORMAL/REVERSE
Q8080, Q8081
INTERFACE
SE4800
PAN EL
DETECT
(2/2)
SE4700
PAN EL
DETECT
CN8040
TP_X
TP_Y
TP_R
TP_BOT
CN4702
13 - 20,
21 - 28
12
11
10
4
5, 6
4
1
2
5
CN3750
LCD_DR0 - 7
LCD_DG0 - 7
LCD_DB0 - 7
LCD_HD
LCD_VD
LCD_CK
LCD_DATEN
I2C_SDA/SCL
PJ_RSTZ
PAD_PROJ_ON_DPP
PJ_TEMP_AD
LCD901
(LCD MODULE)
3.0 INCH
WIDE COLOR
LCD
TOUCH
PAN EL
23, 25,
29, 31,
35, 37,
53, 55
41, 43,
47, 48,
49, 50,
54, 56
24, 26,
30, 32,
36, 38,
42, 44
16
14
20
10
4, 6
11
17
8
PJ-1005 BOARD
CN8503
24, 26,
30, 32,
36, 38,
54, 56
42, 44,
47, 48,
49, 50,
53, 55
23, 25,
29, 31,
35, 37,
41, 43
15
13
19
9
3, 5
PJ_RSTZ
12
PAD_PROJ_ON
18
PJ_TEMP_AD
7
IC8701
SDRAM
(3/4)
PDATA16 - 23
PDATA8 - 15
PDATA0 - 7
HSYNC_CS
VSYNC_WE
PCLK
DATEN_CMD
I2C_SDA/SCL
PAD_PROJ_ON
MEM0_A0 - 12
MEM0_DQ0 - 15
MEM0_CLK_N/P
MEM0_BA0/BA1
MEM0_LDM/UDM
MEM0_LDQS/UDQS
MEM0_CASZ/RASZ/CSZ
MEM0_CKE/WEZ
IC8605
DMD
H13
CONTROL
(2/4)
H14
: VIDEO SIGNAL
J15
K15
LED_SEL0
LED_SEL1
SPI_CSZ1
DPP_CMP_OUT
DPP_CMP_PWM
PAD_RESETZ
J14
PAD_PROJ_ON
DPPSPI_DIN,
DPPSPI_DOUT,
DPPSPI_CLK
SPI_CSZ0
X8601
16.66667MHz
PJ_RSTZ
DMD_D0 - 11
DMD_SAC_BUS
DMD_STRB/OEZ
DMD_LOADB/SCTRL
DMD_DCLK/BUS
IC8801
LED
DRIVE
(4/4)
B3
F4
DPPSPI_DIN,
(2/4)
DPPSPI_DOUT,
DPPSPI_CLK
IC8606
FLASH
MEMORY
LED_ANODE
RED_CATHODE
BLU_CATHODE
GRN_CATHODE
DPPSPI_DIN,
DPPSPI_DOUT,
DPPSPI_CLK
PJ_TEMP_AD
CN8502
FP-2106 FLEXIBLE
BOARD
4, 5,
8, 9,
12, 13,
14, 15,
16, 20,
24, 26
30, 37
21, 25
19, 29
1, 2
3, 4
9, 10
7, 8
33
6
DMD_D0 - 11
DMD_SAC_BUS
DMD_STRB/OEZ
DMD_LOADB/SCTRL
DMD_DCLK/BUS
CN5503CN8504
3, 4,
7, 8,
11, 12,
13, 14,
15, 19,
23, 25
32
29, 36
20, 24
18, 28
PROJECTOR
UNIT
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
4-2
4-3. OVERALL BLOCK DIAGRAM (3/4)( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.
MEMORY
STICK
MICRO
microSD
CONTROL
SWITCH BLOCK
(SK45300: Non Projector Model)
(SK45310: Projector Model)
VC-1025 BOARD (2/3)
CN7101
2, 3,
4, 6
7
1
5
12, 13,
18, 19
16
14
20
Q7101
OVERALL (1/4)
CN4009
MECAN
2
PJ_SW
3
PLAY_SW
4
XPOWER_TACT_SW
5
8
(PAGE 4-1)
(ACCESS)
MSX_D0 - 3
MSX_CLK
MSX_BS
XMSX_INS
SD_D0 - 3
SD_CLK
SD_CMD
XSD_INS
Projector Model
D4010
XMSX_INS
XSD_INS
XPOWER_TACT_SW
XMS_ACC_LED
D6081
D6082
KEY_AD2KEY_AD2
IC6000
(2/3)
CPU, CAMERA DSP,
AV SIGNAL PROCESS,
LENS CONTROL,
MODE CONTROL,
HDMI PROCESS
(7/26 - 14/26)
5
OVERALL (1/4)
(PAGE 4-1)
IHS_ID1 - ID3
EXT_STROBE_ON
EXT_STRB_SCK
EXT_STRB_CONT
EXT_STRB_SI/SO
AV_ SO/ SCK
SDO_KRJ/IC_8120
BCK_OUT_KRJ/IC_8120,
LRCK_OUT_KRJ/IC_8120,
MCK_OUT_KRJ/IC_8120
SDI0_SPDIF_IN_MAG
SDI1_MAG
XSYS_RST
BEEP_PWM_P
XCS_IC_8500
MIC_JACK_IN
HP_JACK_IN
IC8500
AUDIO
PROCESSOR
(23/26)
B3
1
OVERALL (1/4)
(PAGE 4-1)
7
OVERALL (4/4)
(PAGE 4-4)
SHOE_MIC_FL/FR
AUDIO_L_I/O,
AUDIO_R_I/O
AUDIO_L_I/O,
AUDIO_R_I/O
PITCH_AD
YAW_AD
SP+/-
INT_MIC_L
INT_MIC_R
INT_MIC_F
EXT_MIC_L
EXT_MIC_R
HP_R_OUT
HP_L_OUT
IHS_ID1 - ID3
EXT_STROBE_ON
EXT_STRB_SCK
EXT_STRB_CONT
EXT_STRB_SI/SO
CN4011
CN4010
CN4003
1, 2
1
5
3
FP-2191
FLEXIBLE
BOARD
4
2
10
11
6, 813, 14
34
35
25 - 27
17
20
31
18, 19
42
44
: VIDEO SIGNAL
: AUDIO SIGNAL
SP901
(SPEAKER)
(L)
(R)
(F)
MIC901
MICROPHONE
UNIT
: VIDEO/AUDIO SIGNAL
JK-1009 BOARD
CN4200
EXT_MIC_L
4
EXT_MIC_R
2
HP_R_OUT
10
HP_L_OUT
11
SHOE_MIC_FL/FR
6, 813, 14
AUDIO_L_I/O,
AUDIO_R_I/O
Q3400
34
35
IHS_ID1 - ID3 ID1 - ID3
25 - 27
EXT_STROBE_ON
17
EXT_STRB_SCK
20
EXT_STRB_CONT
31
EXT_STRB_SI/SO
18, 19
42
44
PITCH_AD
YAW_AD
IC3000
STROBE SWITCH
(3/5)
SE7701
PITCH/YAW
SENSOR
(2/5)
SHOE_MIC_FL/FR
AUDIO_L_I/O,
AUDIO_R_I/O
EXT_STROBE_ON
Q3002
Q3000, Q3001
LEVEL SHIFT
(HEADPHONE)
CN3001
IHS_ID1 - ID3
X_CONTACT
ST_F3
ST_F2
J3400
PLUG IN
POWER
J3401
FP-2214 FLEXIBLE BOARD
MIC_L_GVIF_SDATA_P,
MIC_L_GVIF_SDATA_N
5, 6
WALN_SD_CMD/AUDIO_L,
XGPS_RST/XWLAN_RST/AUDIO_R
11, 13
1 - 3
F1/EXT_EVF_SO
17
X_CONTACT
8
F3/EXT_EVF_SCK
15
F2/EXT_EVF_S1
16
CN002
1 - 3 14, 16 5, 6
MUITI
20
INTERFACE
SHOE
22
18
19
EXCEPT CX535
FP-2200
FLEXIBLE
10 - 13
2
BOARD
CN4902
WLAN_SD_D0 - D3WLAN_SD_D0 - D3
WLAN_SD_CLK
WLAN_SD_CMD
XWLAN_RST
NFC_DATA
NFC_SCK
NFC_IRQ
XNFC_RFDET
08
WLAN_SD_CLK
WLAN_SD_CMD
XWLAN_RST
NFC_DATA
NFC_SCK
NFC_SELNFC_SEL
NFC_SWNFC_SW
NFC_IRQ
XNFC_RFDET
WF-1004 BOARD AN-1006 FLEXIBLE
BOARD
CN2301
WLAN_SD_D0 - D3
12 - 15
WLAN_SD_CLK
23
WLAN_SD_CMD
187
XWLAN_RST
178
NFC_DATA
205
NFC_SCK
214
NFC_SEL
223
NFC_SW
520
NFC_IRQ
421
XNFC_RFDET
322
CP7300
WIRELESS LAN
MODULE
31
IC7401
NFC
INTERFACE
ET2301
WLAN_ANT_MOD
CN2302
NFC_L1/L2
WIRELESS LAN
ANTENNA
1, 2
ANT901
NFC
ANTENNA
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
4-3
4-4. OVERALL BLOCK DIAGRAM (4/4)( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.
LENS BLOCK (2/2)
IRIS
DRIVE
FOCUS
DRIVE
ZOOM
DRIVE
LENS TEMP
SENSOR
OPTICAL IMAGE
STABILIZER
M901
(PITCH)
MM
M902
(YAW)
MM
FP-2125
FLEXIBLE
BOARD
CN0002
PITCH±
5-8
PITCH_HALL±,
PITCH_BIAS -
1,3,4
CN0001
YAW±
5-81,3,4
YAW_HALL±,
YAW_BIAS -
FP-2126 FLEXIBLE
BOARD
CN0004
I_HALL±, I_DRIVE±, I_BIAS-
25,26,
29-31
FOCUS_A/B/XA/XB
1 - 4
F_PI_C
38
ZOOM_A/B/XA/XB
5 - 8
Z_PI_C
35
L_TEMP_OUT
33
CN0005
PITCH±
PITCH_HALL±,
PITCH_BIAS-
6-818-23 12-171,3,4
YAW±
YAW_ HAL L±,
YAW_BIAS-
VC-1025 BOARD (3/3)
CN4001
24, 29,
I_HALL±, I_DRIVE±, I_BIAS-
38, 40,
41
FOCUS_A/XA/B/XB
32 - 35
FC_SENSE
25
ZOOM_A/B/XA/XB_BOSS30, 31,
36, 37
ZM_SENSE1A
43
LENZ_TEMP_AD
42
PITCH±_BOSS
4 - 6,
16 - 18
PITCH_BIAS-,
PITCH_HALL±
7, 10,
13
YAW±_BOSS
1 - 3,
19 - 21
YAW_BIAS-,
8, 11,
YAW_HALL±
12
IC6741
PITCH/YAW
MOTOR DRIVE
(15/26)
PITCH_INA_O,
PITCH_INB_O
YAW_INA_O,
YAW_INB_O
PITCH_BIAS-,
PITCH_HALL±
YAW_BIAS-,
YAW_HALL±
IC6800
STEADYSHOT
PROCESSOR,
FOCUS/ZOOM/IRIS
MOTOR DRIVE
(15/26)
ZM_SENS1A,
FC_SENSE,
LENZ_TEMP_AD
IC_6800_IC_6000_CLK
E3
F5
IC_6000_VD
XIC_6000_RST
IC_6800_IC_6000_CLK
IC_6800_SI/SO/SCK
IC_6800_XCS
IC_6800_INT_REQ
CAM_V
XIC_6800_CPU_RST
FC_DIR_A/B
FC_ENB
MSHUT_EN
IC_6800_P_LIMIT
2
OVERALL (1/4)
(PAGE 4-1)
L12
E20
K20
CPU, CAMERA DSP,
AV SIGNAL PROCESS,
LENS CONTROL,
MODE CONTROL,
HDMI PROCESS
(7/26 - 14/26)
IC6000
(3/3)
EXCEPT CX530E
MM-102 BOARD FP-2060
CN8101
08
IC8101
INTERNAL
MEMORY
(1/2)
IC8201
INTERNAL
MEMORY
(2/2)
CX610E/PJ610E
TE1_DAT_0 - 7
TE1_CLK
TE1_CMD
TE1_DAT_0 - 7
TE1_CLK
TE1_CMD
BARRIER
FLEXIBLE
BOARD
2 - 9
11
13
LENS
UNIT
2
1
11
13
CN4008
2 - 9
CN4006
SHUTTER_A
SHUTTER_XA
TE1_DAT_0 - 7
MMC_DAT_0 - 7
MMC_CLK
MMC_CMD
6
OVERALL (1/4)
(PAGE 4-1)
7
OVERALL (3/4)
(PAGE 4-3)
IC6742
LENS BARRIER
DRIVE
(15/26)
XSYS_RST
PITCH_AD
YAW_AD
D1
LENSV_EN
LENS_COVER_DIR_PWM
SE7711
ROLL
SENSOR
(17/26)
IC7711
ROLL SENSOR
AMP
(17/26)
VST_C_CHARGE
ROLL_AD
MMC_DAT_0 - 7
MMC_CLK
MMC_CMD
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
4-4
4-5. POWER BLOCK DIAGRAM (1/3) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.
J901
(DC JACK)
DC IN
BATTERY
TERMINAL
S
BUILT-IN
USB CABLE
CHARGE
MULTI
VC-1025 BOARD (1/3)
CN4007
ACV_UNREG
2
BATT/XEXT
3
1
BATT_UNREG
4
BATT_IB
5
6
CN0400
USB_VBUS_STD
1
CN0500
XPOWER_TACT_SW
15
USB_VBUS_MULTI
1
CONTROL
SWITCH BLOCK
(SK45300: Non Projector Model)
(SK45310: Projector Model)
CN4009
XPOWER_TACT_SW
5
08
BATT/XEXT
BATT_IB
POWER (2/3)
(PAGE 4-6)
Q0300
SWITCH
ACV_UNREG
UNREG_IC_1101_IN
F005
USB_VBUS_ARM
SYS_BGL_SDA
SYS_BGL_SCL
USB_5601_EN
SYS_BGL_SDA
SYS_BGL_SCL
USB_5601_EN
SYS_BATTSENSE
SYS_ACVSENSE
Q0202
DC JACK
DETECT
A
B+
ACVGE3
BATTGE2
ACVE4
BATTE1
USB POWER
MANAGEMENT
VBUS1A5
VBUS2B5
SDAC6
SCLD6
DD_ON
D3
P57/SOT1F9
F8
P58/SCK1
C2
P24/INT00/WKUP1
G11
P10/AN00
F11
P11/AN01
P63/INT19
K8
J5
SIO2
P30/INT08
E1
POWER CONTROL
UNREG_IC_5651_OUT
IC5651
(4/26)
P53
P50/SIN3
P17/AN07
IC5700
(3/26)
VCC_B11
VCC_J11
D1SYS1
D2SYS2
A2SW100
EVER_3V
VBUS_5V
B6PVBUS
USB_SUSREQ_KJR
C3SUS
VBUS_5V
DD_ON1
E2P2C
LDO1_ON
G10
C9P5F
H10
H9P51/SOT3
H8P52/SCK3
F3P33/INT11
C10
D7P08
K1P3F/INT15
C4P0F/NMIX/WKUP0
L7INITX
B11
C1VCC_C1
J11
L2VCC_L2
H4P44
K5P60/INT16
E8P5B/INT26
E4P2A/INT06
F003
SHOE_UNREG_FUSE SHOE_UNREG_FUSE
F002
MT_UNREG
IC5100
DC/DC CONVERTER
CORE_UNREG,
F001
IO_UNREG
SYS_DD_IC_5100_XCS
SYS_DD_SI
SYS_DD_SO
SYS_DD_SCK
EVER_3V
DD_ON1
D_3.3V
SYS_DD_SO
SYS_DD_SCK
SYS_DD_IC_5200_XCS
XLANC_PWR_ON
SYS_UNREGIN
XRST_DWN
USB_SUSREQ_KJR USB_SUSREQ_KJR
XPWR_OFF
XPANEL_POWER_ON XPANEL_POWER_ON
VUC
Q5700, Q5701
B+
SWITCH
PVDD1A
E1
PVDD1B
E2
PVDD6A
D8
PVDD6B
D7
PVDD5A
H5
PVDD5B
G5
PVDD3A
A1
PVDD3B
B1
PVDD2
C8 B8LX2
DD_ON
F5
LDO1_ENB
D6
LDO2_ENBE5
PVDD_CPH2
AVD D
B7
CSG6
DOUT
E6
DINF6
CLK
G7
VTR_UNREGE6
UNREG_IN_DET
F2
F6 EVER3
A4 PVDD_LDO2
A5 LDO2_ON
DIND3
CLK
D4
CSE3
XLANC_PWR_ONC4
E4 UNREG_IN
E5 VUC_RST
F5 VUC
D_3.3V
(1/26)
VBUS_5V
D_3.3V
IC5200
DC/DC CONVERTER
(1/26)
D1LX1A
D2LX1B
D3FB1
E8LX6A
E7LX6B
D5FB6
F3VREG5.0V
H4LX5A
G4LX5B
E3FB5
A2LX3A
B2LX3B
C4FB3
C5FB2
A6LDO1_SOURCE
A5LDO1_OUT
B4LDO2_SOURCE
A4LDO2_OUT
B1PVDD_LDO1
A1LDO1_OUTC1 LDO1_ON
B2LDO1_FB
A3LDO2_OUT
B6LOAD_IN
A6LOAD_OUT
B5LOAD_ON
F4VCH
L0101
L0106
D0100
L0105
L0103
L0102
D_1.2V
A_1.0V_IC_5200
HDMI_5V
D_3.3V
MXS_3.3V
MT_UNREG
D_1.0V
MT_5.0V, J_5.0V
D_3.3V, A_3.3V
D_1.8V, A_1.8V
D_1.2V
HB_1.2V
HB_1.8V
VBUS_5V
A_1.0V_IC_5200
MSX_3.3V
MS_PWR_ON
BATT_LI_3V
XPWR_OFF
Q8800, Q8801
B+ SWITCH
IC8201
3.3V REG
(20/26)
VDD
4
CE
1
D
POWER (2/3)
(PAGE 4-6)
SHOE_UNREG
SHOE_UNREG_ON
MT_UNREG
D_1.0V
MT_5.0V, J_5.0V
D_3.3V, A_3.3V
D_1.8V, A_1.8V
D_1.2V
HB_1.2V
HB_1.8V
VBUS_5V
A_1.0V_IC_5200
MSX_3.3V
EVER_3V
MT_5.0V
D_3.3V
D_1.8V, A_1.8V
D_1.2V
LDO_3.3V_OUT
3VOUT
E
POWER (2/3)
(PAGE 4-6)
B
POWER (2/3)
(PAGE 4-6)
C
POWER (3/3)
(PAGE 4-7)
CN4005
D_3.3V
EVER_3VEVER_3V
Projector Model
LDO_3.3V_OUTMT_5.0V
D_1.8V
A_1.8V
IC8200
HDMI
RECEIVER
(20/26)
HDMI_5V_RX
HDMI_5V
CN3201
CN9000
CONTROL
6, 12
SWITCH BLOCK
(PS45300)
3
19
19
PROJECTOR
IN
HDMI OUT
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
4-5
4-6. POWER BLOCK DIAGRAM (2/3) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.
VC-1025 BOARD (2/3)
MT_UNREG
D_1.0V
MT_5.0V, J_5.0V
D_3.3V, A_3.3V
D_1.8V, A_1.8V
B
POWER (1/3)
(PAGE 4-5)
D_1.2V
HB_1.2V
HB_1.8V
VBUS_5V
A_1.0V_IC_5200
MSX_3.3V
EVER_3V
POWER (1/3)
(PAGE 4-5)
POWER (1/3)
(PAGE 4-5)
POWER (3/3)
(PAGE 4-7)
POWER (1/3)
(PAGE 4-5)
FP-2189
Non Projector Model: SE4011
EVER_3V
CN4003
Q4013
FP-2191
FLEXIBLE
BOARD
23, 24
32
30
39
37
PANEL_O/C_GMR
IC6802
2.8V REG
(15/26)
VDD
4
CE
1
IC5150
DC/DC CONVERTER
(2/26)
IN
2
EN
3
(ACCESS)
JK-1009 BOARD
CN4200
23, 24
32
30
39
37
XPANEL_POWER_ON
A_3.3V
A_1.8V
D_1.8V
D_1.0V
D_3.3V
A_3.3V
D_1.2V
HB_1.2V
HB_1.8V
A_1.0V_IC_5200
MSX_3.3V
IC5500
B+ SWITCH
D_3.3V
J_5.0V
A
E
F
D
(1/26)
108VIN
VOUT 5
EN
Q5600
VBUS
DETECT
IC5630
BUS POWER SWITCH
(6/26)
1IN
VOUT 6
EN
X_FAULT
USB_VBUS_MULTI
SHOE_UNREG
SHOE_UNREG_ON
WLAN_VOUT_3.3V
VCC_MMC
LCD_CABC_PWN
PAD_PROJ_ON
MMC_PWR_ON
PJ_RSTZ
XPWR_OFF
MS_PWR_ON
USB_SUSREQ_KJR
XPANEL_POWER_ON
BATT_LI_3V
3
D5600
3
4
XVBUS_DET_STD_AVBUS_5V
XVBUS_DET_MULTI
XVBUS_DET
VBUS_EN
VBUS_XOVR_CUR
L1061
SD_3.3V
SD_PWR_ON
FRC_RTG_OUT0
IC6000
CPU, CAMERA DSP,
AV SIGNAL PROCESS,
LENS CONTROL,
MODE CONTROL,
HDMI PROCESS
(7/26 - 14/26)
M19
GPIO_S_5
E19
GPIO_SB_1
L17
GPIO_S_13
Y23
USB_VBUS
AA23
VBUS_EN
W22
USB_OCI
L7 IRIS1
LCD_CABC_PWM
AB12
K4 SD1_O1
M20
GPIO_S_4
M4 SD1_I0
L18
GPIO_S_11
L20
GPIO_S_6
W25
USB_CHG_HL
SA_TDI
ND_DIR_A
V11
E20
M10
XZM_RST_LED
XIC_6000_RST
D_3.3V
D_1.2V
MT_5.0V
MT_UNREG
D_1.8V
MSX_3.3V
SD_3.3V
SHOE_UNREG
D_3.3V
ST_VCC_ON
A_3.3V
BATT_LI_3V
EVER_3.0V
D_3.3V
D_1.2V
MT_5.0V
9VOUT
5PG
D4010
D_3.3V
ST_VCC_ON
A_3.3/2.8V
BATT_LI_3V
Projector Model: SE4010
PAN EL
OPEN/CLOSE
DETECT
(25/26)
3VOUT
MR_A_2.8V
MR_A_2.8V
XZM_RST_LED
MR_A_2.8V
MT_5.0V
XCON_7.0V_OUT
D_3.3V
PGOOD_XC
D_3.3V
D_1.8V
IC2201
2.8V REG
(1/5)
VDD
4
CE
1
BT4200
LITHIUM
BATTERY
ROLL SENSOR
ROLL SENSOR
IC6800
STEADYSHOT
PROCESSOR,
FOCUS/ZOOM/IRIS
MOTOR DRIVE
(15/26)
IC6741
PITCH/YAW
MOTOR DRIVE
(15/26)
IC6742
LENS BARRIER
DRIVE
(15/26)
ENA
C3
IC8501
2.8V REG
(23/26)
VDD
4
CE
1
L3501
SHOE_UNREG
Q8830
B+ SWITCH
A_2.8V_REG
3VOUT
SE7711
(17/26)
IC7711
AMP
(17/26)
Q4010
LED DRIVE
3VOUT
PROCESSOR
LOGIC_VDD_SHOE
STROBE SWITCH
PITCH/YAW
AVDD18_SUBLA_1.8V
IC8500
AUDIO
(23/26)
IC3000
(3/5)
SE7701
SENSOR
(2/5)
D_1.2V
A_3.3V A_2.8V_IMG
CN4001
PITCH_BIAS+
YAW_BIAS+
IRIS_BIAS+
Z_PI_A
F_PI_A
CN7101
MSX_3.3V
SD_3.3V
CN3001
FLEXIBLE
BOARD
38
37
39
FP-2126 FLEXIBLE
BOARD
14
9
23
27
44
8
15
FP-2214 FLEXIBLE
BOARD
SHOE_UNREG
14
LOGIC_VDD
9
CM-1004 BOARD
CN6702CN4004
38
37
39
CN0005
PITCH_BIAS+
YAW_BIAS+
CN0004
IRIS_BIAS+
Z_PI_A
F_PI_A
MEMORY
STICK
MICRO
microSD
CN002
CAM_1.2V
I/O_1.8V
CMOS_A_3.3V
FP-2125
FLEXIBLE
BOARD
9
2
28
34
37
17
13
VDD
4
CE
1
CN0002
PITCH_BIAS+
CN0001
YAW_BIAS+
MULTI
INTERFACE
SHOE
IC6703
2.8V REG
2
2
3VOUT
LENS
BLOCK
CP001
CMOS
IMAGER
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
4-6
4-7. POWER BLOCK DIAGRAM (3/3)
VC-1025 BOARD (3/3)
MT_5.0V
C
POWER (1/3)
(PAGE 4-5)
D_3.3V
D_1.8V, A_1.8V
D_1.2V
LDO_3.3V_OUT
MT_5.0V
F004
A_1.8V
D_1.2V
D_1.8V
D_3.3V
D_1.2V
D_3.3V
USB SELECT
L0107
Projector Model
TRANSMITTER
AUDIO DSP
IC5600
(5/26)
DC/DC CONVERTER
VIN6
LX1
IC8000
LCD SERIAL
INTERFACE
(22/26)
IC8120
VIDEO
SELECTOR
(21/26)
IC8630
(19/26)
( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.
IC5300
(1/26)
VFB
BL_H
5VOUT
BL_L
3
LCD_CABC_PWM
4CE
CN4901
D_3.3V
A_1.8V
BL_H, BL_L
Projector Model
MT_5.0V
PJ_RSTZ
PAD_PROJ_ON
LDO_3.3V_OUT
23
20
36
24
9, 10
16, 15
26 - 28
FP-2193
FLEXIBLE
BOARD
D_3.3V
A_1.8V
BL_H, BL_L BL_H, BL_L
MT_5.0V
PJ_RSTZ
PAD_PROJ_ON
LDO_3.3V_OUT
PD-1031 BOARD
CN4800
D_3.3V
29
A_1.8V
42, 43
36, 37
24 - 26
32
16
28
D_3.3V
A_1.8V
PAD_PROJ_ON_DPP
SE4800
PAN EL
NORMAL/REVERSE
DETECT
(2/2)
IC8010
LCD SERIAL
INTERFACE
RECEIVER
(1/2)
MT_5.0V
PJ_RSTZ
LDO_OUT_3.3V
L4802
L4801
CN8040
D_3.3V
A_1.8V
BL_H
BL_L
A_1.8V
7,33,34
8
2
1
13, 153, 5, 7, 9
11 12
17 18
19
14, 164, 6, 8, 10
20
LCD901
(LCD MODULE)
3.0 INCH
WIDE COLOR
LCD
BACKLIGHT
PJ-1005 BOARD
CN8503CN3750
A_1.8V
PJ_SYSPWR
PJ_RSTZ
PAD_PROJ_ON
VFLASH
VFLASH
Projector Model
A_1.8V
PAD_PROJ_ON
VFLASH
IC8606
FLASH
MEMORY
(2/4)
SWITCH
D7
A4
A1
A2
Q301
B+
LED DRIVE
VINA
VINR
VINL
VINL
VSPIB5
RSTZF4
PROJ_ONE6
B8
P1P8V
A_1.8V
IC8801
(4/4)
PAR KZ
IC8605
DMD CONTROL
(2/4)
IC8504
1.0V REG
(1/4)
VDD
4 3VOUT
CE
1
B6CNTR_VRST
A5SWN
L8801
A7SWP
B7VBIAS
C7VOFS
DMD_VRST
D8801
DMD_VBIAS
DMD_VOFS
P1P0V
P1P8V
IC8701
SDRAM
(3/4)
P1P0V
P1P8V
CN8504
P1P8V
FP-2106
FLEXIBLE
BOARD
D_1.8V
2,3,22,23,42,43
DMD_VRST
40
DMD_VBIAS
32
DMD_VOFS
31
CN5503
1,2,21,22,41,42
PROJECTOR
40
32
31
UNIT
Non Projector Model
FP-2192
FLEXIBLE
BOARD
D_3.3V
A_1.8V
BL_H, BL_L BL_H, BL_L
FP-2060
FLEXIBLE
BOARD
17, 18
16
15
F
POWER (2/3)
(PAGE 4-6)
LCD_CABC_PWM
PJ_RSTZ
PAD_PROJ_ON
MMC_PWR_ON
VCC_MMC
WLAN_VOUT_3.3V
D_3.3V
MMC_PWR_ON
VCC_MMC
FP-2200
FLEXIBLE
D_1.8V
LDO_3.3V_OUT
WLAN_VOUT_3.3V
D_3.3V
08
BOARD
19
17
16
18
MM-102 BOARD
CN8101CN4006
MEDIA_3.3V
17, 18
MMC_PWR_ON1
16
TE1_VCC
15
WF-1004 BOARD
CN2301CN4902
VCC_WLAN_L
6
WLAN_VCC_H
8
WLAN_VCC_H_OUT
9
EVER_3V
7
PD-1030 BOARD
CN4700
D_3.3V
31
A_1.8V
44
38, 39
IC8701
2.9V REG
(1/2)
VDD
4
CE1
WIRELESS LAN
D_3.3V
3VOUT
CP7300
MODULE
IC7401
NFC
INTERFACE
SE4700
PAN EL
NORMAL/REVERSE
DETECT
EXCEPT CX530E
IC8101
INTERNAL MEMORY
IC8201
INTERNAL MEMORY
EXCEPT CX535
(1/2)
(2/2)
L4701
L4700
CN8040
D_3.3V
A_1.8V
BL_H
BL_L
CX610E/PJ610E
7,33,34
8
2
1
LCD901
(LCD MODULE)
3.0 INCH
WIDE COLOR
LCD
BACKLIGHT
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
4-7E
5-1. FRAME SCHEMATIC DIAGRAM (1/2)
5. FRAME SCHEMATIC DIAGRAMS
LENS BLOCK
M902
(YAW)
MM
M901
(PITCH)
MM
FP-2125 FLEXIBLE BOARD
81
CN0001
CN0004
1
FP-2126
2
FLEXIBLE BOARD
39
38
81
CN0002
CN0005
1
12223
2
23
VC-1025 BOARD
(SIDE A)
IC6742
(Not supplied)
CONTROL
SWITCH
BLOCK
(SK45310)
IC8000
(Not supplied)
Non Projector ModelProjector Model
CN4001
IC8201
(Not supplied)
IC8120
(Not supplied)
16
CN4009
78
CONTROL
SWITCH
BLOCK
(SK45300)
45
1
45
47
PROJECTOR
1
46
244
IC5700
IC6741
(Not supplied)
(Not supplied)
Projector Model
CN3201 CN9000
19 1
18 2
23
20
22
21
IN
CM-1004 BOARD
(SIDE A)
CP001
(Not supplied)
139
CN0400
2
38
139
CN4004
IC5651
(Not supplied)
25
234567891011 12120
22
1
19
CN7101
2
18
23
22
HDMI
OUT
131415161718 1219
20
24
21
23
CN4011
CM-1004 BOARD
(SIDE B)
2
CN6702
1
FP-2189
FLEXIBLE BOARD
BUILT-IN
USB CABLE
CHARGE
FP-2191
FLEXIBLE
15
67
BOARD
145
2
(Page 5-2)
CN4003
A
44
12
34
SP901
(SPEAKER)
38
39
BATTERY
TERMINAL
39
1
DC IN
J901
DC JACK
EXCEPT CX530E
CONTROL
SWITCH
BLOCK
(PS45300)
MULTI
1314
1718
CN4005
7
8
112
16
(Not supplied)
CN4007
IC5150
19
615
16
15
IC5100
(Not supplied)
CN0500
VC-1025 BOARD
(SIDE B)
MM-102 BOARD
118
CN8101
1
18
FP-2060
FLEXIBLE
BOARD
IC5500
(Not supplied)
18
CN4006
IC6000
(Not supplied)
1920
118
1
IC7711
(Not supplied)
EXCEPT CX535
FP-2200
FLEXIBLE BOARD
CN4010
8
2526
16
124
IC8501
(Not supplied)
61
7
12
CN4008
34
CN4902
CN4901
260
62 63
1
B
FP-2192
FLEXIBLE
BOARD
(Page 5-2)
Non Projector Model
FP-2193
FLEXIBLE
BOARD
(Page 5-2)
Projector Model
AN-1006 FLEXIBLE BOARD
WIRELESS LAN
ANTENNA
WF-1004 BOARD
(SIDE A)
1
24
124
LENS
BARRIER
UNIT
25
1
26
24
CN2301
MIC901
MICROPHONE
UNIT
C
WF-1004 BOARD
(SIDE B)
4
2
3
1
CN2302
ET2301
ANT901
(NFC ANTENNA)
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
5-1
5-2. FRAME SCHEMATIC DIAGRAM (2/2)
MULTI
INTERFACE
SHOE
FP-2214 FLEXIBLE BOARD
22
CN002
121
23 24
FP-2191
FLEXIBLE BOARD
VC-1025
BOARD
(SIDE A)
(Page 5-1)
1
A
45
Non Projector Model
VC-1025
BOARD
(SIDE B)
(Page 5-1)
B
JK-1009 BOARD
(SIDE A)
19
118
20
118
CN4200
244
46 47
1
1
45
CN3001
JK-1009 BOARD
(SIDE B)
J3400
PLUG IN
POWER
45
(HEADPHONE)
SE7701
PITCH/YAW
J3401
BT4200
(LITHIUM BATTERY)
IC3000
(Not supplied)
Projector Model
VC-1025
BOARD
(SIDE B)
(Page 5-1)
C
161
PJ-1005 BOARD
(SIDE A)
PJ-1005 BOARD
(SIDE B)
1
45
FP-2106
FLEXIBLE BOARD
43
1
CN5503
41
45
44
2
PROJECTOR
UNIT
42
46
161
FP-2192
FLEXIBLE BOARD
CN4700
PD-1030 BOARD
250
52 53
51
1
151
51
50
CN8040
2
1
52 53
16
78
CN4702
LCD901
(LCD MODULE)
TOUCH
PAN EL
3.0 INCH
WIDE COLOR
LCD
FP-2193
FLEXIBLE BOARD
IC8605
(Not supplied)
CN8503
260
159
CN3750
60
2
1
2
52 53
1
CN4800
151
PD-1031 BOARD
IC8010
59
(Not supplied)
50
51
45 1
44 2
CN8504
8
6
1
7
CN4802
53
51
50
CN8040
2
1
52
10 1
IC8801
(Not supplied)
IC8504
(Not supplied)
CN8502
LCD901
(LCD MODULE)
TOUCH
PAN EL
3.0 INCH
WIDE COLOR
LCD
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
5-2E
6. SCHEMATIC DIAGRAMS AND PRINTED WIRING BOARDS
– ENGLISH – – JAPANESE –
THIS NOTE IS COMMON FOR SCHEMATIC DIAGRAMS AND PRINTED WIRING BOARDS
(In addition to this, the necessary note is printed in each block)
For Schematic Diagrams
• All capacitors are in μF unless otherwise noted. pF :
μF. 50 V or less are not indicated except for electrolytics
and tantalums.
• Chip resistors are 1/10 W unless otherwise noted.
kΩ=1000 Ω, MΩ=1000 kΩ.
• Caution when replacing chip parts.
New parts must be attached after removal of chip.
Be careful not to heat the minus side of tantalum capacitor,
Because it is damaged by the heat.
• Some chip part will be indicated as follows.
Example C541 L452
22U 10UH
TA A 2520
Kinds of capacitor External dimensions (mm)
Case size
• Constants of resistors, capacitors, ICs and etc with XX
indicate that they are not used.
In such cases, the unused circuits may be indicated.
• Parts with differ according to the model/destination.
Refer to the mount table for each function.
• All variable and adjustable resistors have characteristic curve
B, unless otherwise noted.
• Signal name
XEDIT → EDIT PB/XREC → PB/REC
•
•
•
•
•
•
•
When indicating parts by reference number, please include the board name.
The components identified by mark 0
or dotted line with mark 0 are critical
for safety.
Replace only with part number specified.
Les composants identifiés par une marque 0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
: non flammable resistor
: fusible resistor
: panel designation
: B+ Line
: B– Line
: IN/OUT direction of (+, –) B LINE.
: adjustment for repair.
Precautions for Replacement of Imager
• If the imager has been replaced, carry out all the adjustments
for the camera section.
• As the imager may be damaged by static electricity from its
structure, handle it carefully like for the MOS IC.
In addition, ensure that the receiver is not covered with dusts
nor exposed to strong light.
For Printed Wiring Boards
•
: Uses unleaded solder.
•
: Circuit board
: Flexible board
Pattern from the side which enables seeing.
: pattern of the rear side
(The other layers’ patterns are not indicated)
• Through hole is omitted.
• There are a few cases that the part printed on diagram isn’t
mounted in this model.
•
: panel designation
• Chip parts.
Transistor Diode
C
EB
The components identified by mark contain confidential information.
Strictly follow the instructions whenever the components are repaired and/or replaced.
Destroy and discard the prescribed board and IC after they are
replaced.
Les composants identifiés par le symbole contiennent des informations confidentielles.
Suivez scrupuleusement les instructions chaque fois qu'un composant est remplacé et / ou réparé.
Veuillez détruire et éliminer les circuits imprimés et / ou les circuits
intégrés que vous avez remplacés.
标识有 的元件包含机密信息。
更换或维修元件时，请严格遵守指⽰。
更换后的电路板和IC，应予以报废。
654
46
123
3152
21
12
345
534
54
45
21321321
123
312
23
14
43
12
回路図，プリント図共通ノート
（他に必要なノートは各セクションに記載しています）
回路図ノート
・ ケミコン，タンタルを除くコンデンサで，耐圧50V以下の
ものはその耐圧を省略。単位はすべてμF（pはpF）。
・ チップ抵抗で指示のないものは，1/10W以下。
kΩ＝1000Ω，MΩ＝1000kΩ
・ チップ部品交換時の注意
取り外した部品は再使用せず，未使用の部品をご使用く
ださい。
タンタルコンデンサのマイナス側は熱に弱いため注意し
てください。
・ チップ部品には下記のように表示したものがあります。
例 C541 L452
22U 10UH
TA A 2520
3
43
12
23
14
31
種類 外形寸法（mm）
ケースサイズ
4625
654
46
・ 抵抗，コンデンサ，ICなど定数にXXがあるものは，使用
していない事を示しています。このため，使用していな
い回路が記載されている事があります。
123
3152
・ ★印のある部品は，機種などにより異なりますので機能
別マウント一覧表を参照してください。
・ 可変抵抗と半固定抵抗で，B特性の表示を省略。
・ 信号名表記について，下記のような場合があります。
XEDIT → EDIT PB/XREC → PB/REC
・ は不燃性抵抗。
・ はヒューズ抵抗。
・ はパネル表示名称。
・ はB＋ライン。
・ はB−ライン。
・ はBライン（＋，−）の入出力方向を示す。
・ は調整名称。
イメージャ交換時の注意
・ イメージャを交換した場合は，カメラ部の全調整を行って
ください。
・ イメージャは構造上，静電気により破壊される恐れがある
ため，MOSICと同様に注意して取り扱ってください。
また，受光部にはゴミの付着，および強い光がはいること
のないように注意してください。
お願い
図面番号で部品を指定するときは基板名又はブロック
を併せて指定してください。
印の部品，または0印付の点線で囲まれた部品は，
0
安全性を維持するために，重要な部品です。
従って交換時は，必ず指定の部品を使用してください。
プリント図ノート
・ ：無鉛半田を使用しています。
・ ：基板
：フレキシブル配線板
見ている面側のパターン。
：裏側のパターン
（他のパターンについては表示されていません）
・ スルーホールは省略。
・ プリント図には，本機で使用していない部品が記載され
ている場合があります。
・ はパネル表示名称。
• Chipparts.
Transistor Diode
C
EB
印の部品には、秘密情報が含まれています。
修理の際は、指示に従った対応を行ってください。
交換後の対象基板及び対象ICは、破壊のうえ廃棄してください。
654
46
123
3152
21
12
345
534
54
45
21321321
123
312
23
14
43
12
23
14
3
43
12
31
4625
654
46
123
3152
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
6-1
6-1. SCHEMATIC DIAGRAMS
12345 6 7 8 9
A
R6706
XX
C6711
XX
XX
K2
J2
K5
NC5
VSSLSC
VDDLSC
VDDHDAA8VSSHDAC1VDDHCPC2VSSHCPA9NC5
A7
0.1u
C6712
0.001u
K1
J1
K3
NC5K4NC5
VSSLPL
VDDLPL
VDDHCMA3NC5A4NC5B3NC5B4NC5A5VSSHPXA6VDDHPXB6NC5B7NC5H2NC5H1VDDSUB1
C11
C6709
C6710
0.1u
1u
R6705
XX
C6707
C6706
B
C6746
C6747
XX
R6701
R6702
XX
C6703
1u
XX
C6701
I/O_1.8V
C
R6703
CAM_1.2V
XX
C6752
XX
C6743
0.001u
XX
C6751
NC5
K8
XX
VDDLSC
K9
VSSLSC
J9
NC5
L3
VDDMLV
K7
VSSMLV
K6
VSSMLV
M3
VSSMLV
M9
NC5
L9
NC5
D9
NC5
D10
NC5
D11
NC5
E9
VDDMIO
F1
NC5
E10
NC5
E11
NC5
F9
NC5
F10
NC5
F11
NC5
G9
NC5
G10
NC5
G11
VSSLCN
J10
VSSLCN
J11
VDDLCN
K10
VDDLCN
K11
XX
D
C6708
1u
REG_GND
A_2.8V
C6713
R6707
47k
C6714
C6718
0.1u
CP001
C6716
0.1u
C6715
4.7u
0.1u
D2
D3
C10
B9
A10
A11
B10
B11
C8
B8
C7
NC4
NC4
NC4
NC4
NC5C6NC5
VEXRES
C6720
0.1u
C6717
0.1u
VBGR
ASMON
VDDSUB2
NC5H9NC5C3NC5C4NC5A1NC1A2NC1B1NC1B2NC1
H11
H10
D1
NC5C9NC5
TOUT
TENABLE
TSCANEN
NC3
M11
NC3
M10
NC3
L11
NC3
DODP
DODM
DOCP
DOCM
DCKP
DCKM
DOBP
DOBM
DOAP
DOAM
L10
M8
L8
M7
L7
M6
L6
M5
L5
M4
L4
NC2
M2
NC2
M1
NC2
L2
NC2
L1
ICNK
H3
SDO
E3
SDI
F3
SCK
F2
XCE
E2
XHS
G1
XVS
G2
XCLR
E1
C6745
0.1u
R6709 XX
R6708 XX
DODP
DODM
DOCP
DOCM
DCKP
DCKM
DOBP
DOBM
DOAP
DOAM
CL006
CL007
CL008
CL009
CL010
C6753
XX
INCK
SDO
SDI
SCK
XCE
XHS
XVS
XCLR
REG_GND
CMOS_A_3.3V
DODP
DODM
DOCP
DOCM
DCKP
DCKM
DOBP
DOBM
DOAP
DOAM
CAM_1.2V
I/O_1.8V
REG_GND
REG_GND
REG_GND
LF6715
LF6714
LF6716
LF6713
LF6712
XCLR
INCK
CMOS_A_3.3V
R6778 XX
R6777 XX
1
2
XX
3
4
R6776 XX
R6775 XX
1
2
XX
3
4
R6774 XX
R6773 XX
1
2
XX
3
4
R6772 XX
R6771 XX
1
2
XX
3
4
R6770 XX
R6769 XX
1
2
XX
3
4
R6768 XX
XVS
XHS
SDO
SDI
SCK
XCE
CL001
39
CAM_1.2V
38
I/F_1.8V
37
REG_GND
36
REG_GND
35
DODP
34
DODM
33
REG_GND
32
REG_GND
31
DOCP
30
DOCM
29
REG_GND
28
REG_GND
27
DCKP
26
DCKM
25
REG_GND
24
REG_GND
23
DOBP
22
DOBM
21
REG_GND
20
REG_GND
19
DOAP
18
DOAM
17
REG_GND
16
REG_GND
15
XVS
14
XHS
13
SDO
12
SDI
11
REG_GND
10
SCK
9
XCE
8
REG_GND
7
XCLR
6
REG_GND
5
REG_GND
4
INCK
3
REG_GND
2
REG_GND
1
CN6702 39P
FP-2189
FLEXIBLE
LND001
(PAGE 6-29)
2.2u
C5
B5
G3
NC5J3NC5
VRLT
VRLS
IMX167CQL-13
CMOS IMAGER
R6767
XX
A
B
C
D
E
A_2.8V
R6729
XX
C6728
1u
F
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
IC6703
2.8V REG
MM3404A28URE
3IN4
GND
Note: CP001 is not supplied, but this is included in
CM-1004 COMPLETE BOARD.
R6741
XX
OUT
1CE2
C6729
1u
CMOS_A_3.3V
REG_GND
CM-1004 BOARD
E
F
CMOS IMAGER
XX MARK: NO MOUNT
6-2
12345 6 7 8 9
F004
LCD_CABC_PWM
REG_GND
0.25A/50V
R1207N823B-TR-FE
LX
E
L0107
33uH
CE
GND
CM0102
Note: C5102, C5207, C5500, IC5100, IC5500, R5100 and R5201 are not supplied,
but they are included in VC-1025 COMPLETE BOARD (SERVICE).
DC/DC CONVERTER
1
LX
2
GND
3
VFB CE
R530012R5301
12
A
IC5300
6
VIN
5
VOUT
4
C5300
1u
VIN
BL_H
C5301
1u
BL_L
BL_H
BL_L
B
C
D
A
I/O_UNREG
CORE_UNREG
B
DD_ON1
SYS_DD_IC_5100_XCS
SYS_DD_SCK
SYS_DD_SO
SYS_DD_SI
SYS_DD_IC_5200_XCS
C
LDO1_ON
D
REG_GND
PVDD5/CP/AVDD
PVDD1/2/3
VO_SEL
VREG5.0V
DD_ON
CS
CLK
DIN
DOUT
LDO1_ENB
LDO2_ENB
REG_GND
CM0513
CM0114
XX
XX
XX
R5103
R5101
R5102
CM0111
CM0113
CM0112
F4
B6
AGND
IC5100
BD8336GU-E2
DC/DC CONVERTER
CL5102
R5104 XX
D5
VO_SEL
FB1D3FB2C5FB3C4FB4E4FB5E3FB6
E1
PVDD1A
C5110
E2
PVDD1B
2.2u
D1
LX1A
D2
LX1B
C1
PGND1A
C2
PGND1B
C3
SLOPE1
C5111
C8
PVDD2
2.2u
B8
LX2
A7
PGND2
A1
PVDD3A
C5112
B1
PVDD3B
2.2u
A2
LX3A
B2
LX3B
A3
PGND3A
B3
PGND3B
H6
PVDD4
H7
LX4
G8
PGND4
H5
PVDD5A
PVDD5B
PGND5A
PGND5B
PVDD6A
PVDD6B
PGND6A
PGND6B
B4
CL5101
C5109
C5108
2.2u
2.2u
C5114
G5
2.2u
H4
LX5A
G4
LX5B
H3
G3
D8
D7
E8
LX6A
E7
LX6B
F8
F7
C5116
22u
CM0514
C5117
10u
CM0515
C5118
10u
CM0516
C5120
10u
CM0517
CH1_OUT
SLOPE1
CH2_OUT
CH3_OUT
CH5_OUT
LDO1_SOURCE
LDO2_SOURCE
LDO2_OUT
LDO1_OUT
CP_OUT
LX1
LN0106
LX2
LX3
PVDD4
LX4
LN0108
FB4
LN0109
PGND4
LX5
PVDD6
LX6
FB6
R0101
XX
PGND6
LN0105
C0105
XX
L0101
4.7uH
L0102
10uH
C0106
XX
L0103
10uH
C0107
XX
L0105
10uH
C0104
2.2u
L0106
CM0116
4.7uH
C0102
CM0101
10u
D0100
DA2S10100K8
CM0103
D_1.0V
CM0104
R0103
XX
D_1.2V
CM0105
R0104
XX
A_1.8V
R0105
XX
D_1.8V
CM0106
I/O_UNREG
CM0107
R0106
XX
A_3.3V
R0107
XX
D_3.3V
CM0108
MT_UNREG
CM0109
R0108
XX
MT_5.0V
R0109
XX
J_5.0V
CM0110
HB_1.8V
HB_1.2V
C5105 1u
C5100 1u
C5102 0.01u
CM0512
H1
TEST1
H8
TEST2
A8
TEST3
CM0519
JL5100
F5
DD_ON
B5
R5100
47k
ROSC
G6
CS
G7
CLK
F6
DIN
E6
DOUT
CM0518
C5106 1u
C7
C6
B7
AVDD
VREF_BG
VREG5.0VF3VREG3.0V
PVDD_CPH2CP_OUTG2CFPG1CFNF1PGND_CPF2LDO1_ENBD6LDO1_OUTA5LDO1_SOURCEA6LDO2_ENBE5LDO2_OUTA4LDO2_SOURCE
C5107
0.1u
1u
0.1u
C5101
C5103
C5104
1u
MT_5.0V
CS
CLK
DIN
DD_ON
E
LANC_DC
LANC_SO
LANC_SIG
XLANC_PWR_ON
LANC_IC_ON
SYS_UNREGIN
XRST_DWN
BATT_LI_3V
LANC_SI
VUC
EVER_3V
R0100 XX
F
ACV_UNREG
LN0100
BATT_UNREG
LN0101
VTR_UNREG
ACV_ON
LN0102
BATT_ON
LN0103
C0100
LANC_DC
XX
DATA_IN
DATA_OUT
LANC_SIG
XLANC_PWR_ON
XLANC_ON
UNREG_IN_DET
UNREG_IN
VUC
VUC_RST
VCH
EVER3
GND
R5200 100
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
IC5200
BD8331GU-E2
DC/DC CONVERTER
E3
CS
D4
CLK
D3
DIN
D2
DD_ON
F1
ACV_UNREG
E1
C5201
4.7u
C5200
0.1u
BATT_UNREG
E6
VTR_UNREG
E2
ACV_ON
D1
BATT_ON
F3
AGND_COMMON
D6
LANC_DC
B4
DATA_IN
D5
DATA_OUT
C5
LANC_SIG
C4
XLANC_PWR_ON
C2
XLANC_ON
C6
AGND_LANC
F2
UNREG_IN_DET
E4
UNREG_IN
F5
VUC
E5
VUC_RST
F4
VCH
F6
EVER3
C5202
C5203
0.1u
1u
LDO1_ON
PVDD_LDO1
LDO1_OUT
LDO1_FB
LDO2_ON
PVDD_LDO2
LDO2_OUT
LDO2_FB
LOAD_ON
LOAD_IN
LOAD_OUT
SGND_LDO
C1
B1
A1
B2
C5204
C5207
1u
4.7u
A5
A4
A3
B3
C5205
C5208
1u
1u
B5
B6
A6
C5206
C5209
0.1u
1u
A2
R5201
100k
LDO1_ON
PVDD_LDO1
LDO1_OUT
CM0115
R5202
R5203
33k
XX
LDO2_ON
PVDD_LDO2
LDO2_OUT
LOAD_ON
LOAD_IN
LOAD_OUT
A_1.0V_IC_5200
HDMI_5V
MS_PWR_ON
MSX_3.3V
SD_PWR_ON
VIN
EN
C5500
0.1u
IC5500
BD2224G-BZTR
B+ SWITCH
1
VIN
2
GND
3
EN OC
5
VOUT
4
VOUT
R5500
C5501
10k
1u
SD_3.3V
GND
VC-1025 BOARD (1/26)
DC/DC CONVERTER
XX MARK: NO MOUNT
E
F
6-3
12345 6 7 8 9
A
B
L5150
2uH
IC5150
TPS63060DSCR
DC/DC CONVERTER
1
C
D
MT_UNREG XCON_7.0V_OUT
XIC_6000_RST
C0160
10u
REG_GND
CM0160
CM0161
XC_UNREG
XC_EN
XC_PGND
XC_AGND
C5151
10u
2
3
4
5
L1
IN
EN
PS/SYNC
PG
PowerPAD
VOUT
GND
VAUX
11
10
L2
9
8
FB
7
6
C5152
0.1u
R5150
130k
R5151
10k
C5153
C5154
10u
10u
XC_VOUT
XC_PGOOD
R0160
22k
D_3.3V
PGOOD_XC
A
B
C
D
E
F
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
Note: C5152, IC5150 and L5150 are not supplied,
but they are included in VC-1025 COMPLETE BOARD (SERVICE).
6-4
VC-1025 BOARD (2/26)
DC/DC CONVERTER
XX MARK: NO MOUNT
E
F

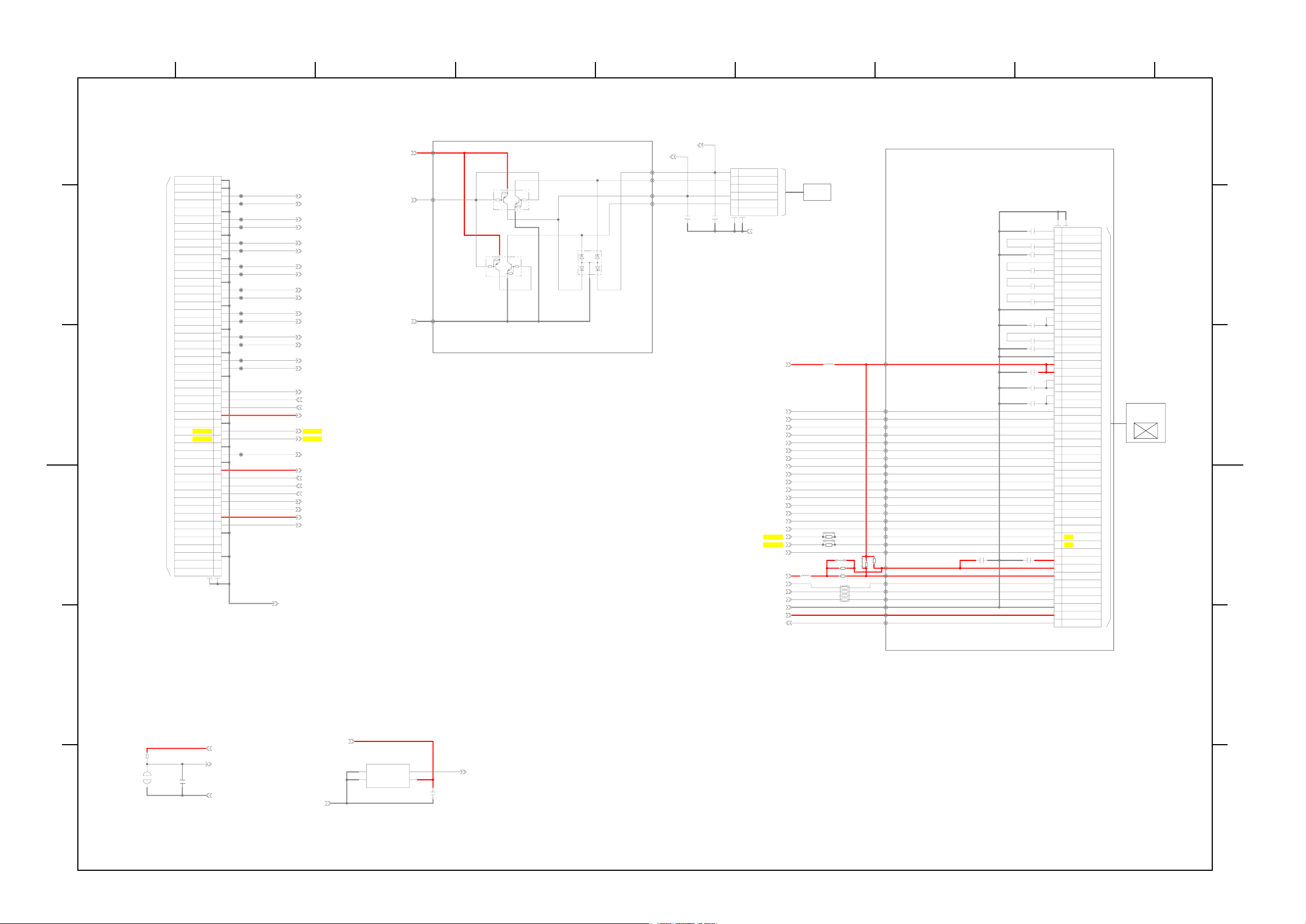

12345 6 7 8 9
BATT_IB
A
LN0233
LN0234
LN0235
LN0236
LN0237
LN0238
LN0239
LN0240
LN0241
VCC5
EVER
GND
UDP/UAN0
UDM/UAN1
P35/LSO
P0F/NMIX/WKUP0
P24/INT00/WKUP1
P3A/RTCCO/SUBOUT
P40/TIOA00
P41/TIOA01
P42/TIOA02
P68
P3B
P2C
P43
P44
P45
P53
P54
P55
P5E
P5F
P08
P09
VCC
VCC3
R5712
R5713
RW1E025RPT2CR
Q5700, Q5701
B+ SWITCH
27
27
56
12
Q5700
3
RN1102MFV(TL3S
Q5701
RB5700
10k
12
34
56
78
CM0202
R5714
XX
C5700
22u
S
4
3.3k
R5701
C5701
0.1u
VBUS_5V
EVER_3V
REG_GND
USB_D+_DWN
USB_D-_DWN
B
LANC_SO
SYS_UNREGIN
USB_IC_5651_EN
XCHARGE_LED
Q0201
RN1102MFV(TL3S
C
LED DRIVE
REG_GND
XSYS_RST
LDO1_ON
USB_SUSREQ_DWN
SYS_DD_IC_5100_XCS
SYS_DD_IC_5200_XCS
DD_ON1
DD_ON2
D_3.3V
CL0216
CL0208
CL0209
CL0210
CL0211
VUC
D
E
C5702
0.1u
P34_PULLUP
C5703
0.1u
C5704
0.1u
P34/LSI
LANC_SI
C5705
LN0232
P0E/UAN2
4.7u
C5714
XCS_DWN
DWN_SCK
DWN_SI
DWN_SO
CL0213
CL0214
CL0215
CL0212
LN0231
Q5702
DRA3115T0L
USB ACTIVE SWITCH
R5702
1.5k
F1
P35/LSO
C4
P0F/NMIX/WKUP0
C2
P24/INT00/WKUP1
H2
P3A/RTCCO/SUBOUT
K3
P40/TIOA00
J3
P41/TIOA01
K4
P42/TIOA02
H11
P68
H1
P3B
E2
P2C
J4
P43
H4
P44
G4
P45
G10
P53
G9
P54
G8
P55
D8
P5E
C9
P5F
D7
P08
C6
P09
B11
VCC_B11
C1
VCC_C1
J11
VCC_J11
L2
VCC_L2
L3
C
A6
VSS_A6
B1
VSS_B1
C11
VSS_C11
K11
VSS_K11
L4
VSS_L4
MD0
0.1u
F2
P34/LSI
INITXL7MD0
CL5701
R5704
X5700
32.768kHz
12
34
C5709
C5707
15p
C5706
C5708
XX
2.2u
A5
A3
A4
A2
B4
USBVCC
P0E/UAN2
UDP/UAN0
UDM/UAN1
P20/UHCONX
PE0/MD1K9X0AL5X1AL6PE2/X0L8PE3/X1L9P00/TRSTX
L10
XX
X5701
12MHz
12
34
C5711
C5710
12p
15p
12p
C5715
0.1u
B5
XX
R5705
A7
USBVOUT
A11
VCC5
P36/SIN5
P39/SCS5
P38/SCK5(SCL5)
P37/SOT5(SDA5)
R5711 22k
G3
G2
G1
H3
D5
P39/SCS5
P0D/INT31
P38/SCK5(SCL5)
P37/SOT5(SDA5)
MB9AF004BGL-G-103-ERE1
P01/TCK/SWCLKA1P02/TDIF6P03/TMS/SWDIOL1P04/TDO/SWO
L11
C5712 0.1u
P0B/SOT4(SDA4)
P0C/SCK4(SCL4)/TIOA06
E6
C5
P36/SIN5
P0C/SCK4(SCL4)/TIOA06
POWER CONTROL
AVCCA9AVRHB9AVSSA8P10/AN00
XX
C5713
SYS_DD_SCK
LN0229
LN0230
P0A/SIN4
P52/SCK3(SCL3)
H8
D6
P0A/SIN4
P52/SCK3(SCL3)
P0B/SOT4(SDA4)
IC5700
P11/AN01
G11
F11
SYS_DD_SI
SYS_DD_SO
CL0206
CL0205
P50/SIN3
P51/SOT3(SDA3)
H10
H9
P50/SIN3
P51/SOT3(SDA3)
P12/AN02
P13/AN03
F10
E11
CL0207
LN0228
P4E/SOT2_2
H7
P4E/SOT2_2
P14/AN04
E10
LN0227
P4D/SIN2_2
P4C/SOT2_1
G6
J7
P4D/SIN2_2
P15/AN05
D11
D10
LN0225
LN0226
P4B/SIN2_1
H6
P4B/SIN2_1
P4C/SOT2_1
P16/AN06
P17/AN07
C10
SIO2
J5
B10
SYS_BGL_SCL
LN0223
LN0224
P48/SIN2_0
P58/SCK1(SCL1)
P4A/SCK2(SCL2)
P57/SOT1(SDA1)
P49/SOT2_0(SDA2)
F9
F8
H5
G5
J6
SIO2
P48/SIN2_0
P58/SCK1(SCL1)
P4A/SCK2(SCL2)
P49/SOT2_0(SDA2)
P18/AN08
P19/AN09B8P1A/AN10B7P1B/AN11B6P07/ADTGC7P25/INT01D4P26/INT02
SYS_BGL_SDA
LN0221
P56/SIN1
G7
P56/SIN1
P57/SOT1(SDA1)
P23/SCK0(SCL0)
P22/SOT0(SDA0)
D3
P21/SIN0
P06/INT30
P05/INT29
P5D/INT28
P5C/INT27
P5B/INT26
P5A/INT25
P59/INT24
P67/INT23
P66/INT22
P65/INT21
P64/INT20
P63/INT19
P62/INT18
P61/INT17
P60/INT16
P3F/INT15
P3E/INT14
P3D/INT13
P3C/INT12
P33/INT11
P32/INT10
P31/INT09
P30/INT08
P2B/INT07
P2A/INT06
P29/IINT05
P28/INT04
P27/INT03
P23/SCK0(SCL0)
P22/SOT0(SDA0)
C3
P21/SIN0
B2
P06/INT30
B3
P05/INT29
C8
P5D/INT28
A10
P5C/INT27
D9
P5B/INT26
E7
P5A/INT25
E8
P59/INT24
E9
P67/INT23
F7
P66/INT22
J8
P65/INT21
J9
P64/INT20
J10
P63/INT19
K10
P62/INT18
K8
P61/INT17
K7
P60/INT16
K6
P3F/INT15
K5
P3E/INT14
K1
P3D/INT13
K2
P3C/INT12
J1
P33/INT11
J2
P32/INT10
F3
P31/INT09
F4
P30/INT08
F5
P2B/INT07
E1
P2A/INT06
E3
P29/IINT05
E4
P28/INT04
E5
P27/INT03
D1
D2
LN0220
LN0219
LN0218
LN0216
LN0212
LN0211
LN0209
LN0208
LN0207
LN0204
DEBUG_UART_OT
DEBUG_UART_IN
CL0204
CL0200
C0200
XX
R0206 XX
SYS_SETTING_ON
R0200
CL0201
CL0202
XX
REG_GND
78
123456
CM0200
BATT/XEXT_DWN
RB0200
1M
R0201
XX
R0202
XX
SYS_SETTING_ON
LANC_IC_ON
XPWR_OFF
XRESET_REQ
USB_SUSREQ_KJR
XSD_INS
XMSX_INS
EVER_3V
XPANEL_POWER_ON
CM0201
R0203
XX
R0204
XX
BATT/XEXT
CBE
BEC
123
R0205
100k
SYSTEM_SET_SENS2SYSTEM_SET_SENS
456
Q0202
RN4984FE
DC JACK DETECT
BATT/XEXT
ACV_UNREG
EVER_3V
XLANC_PWR_ON
XPOWER_TACT_SW
A
B
C
D
E
REG_GND
EVER_3V
R0213
XX
F
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
MD0
INITX
XRST_DWN
P00/TRSTX
JL0200
JL0201
P01/TCK/SWCLK
P02/TDI
JL0203
JL0202
P03/TMS/SWDIO
P04/TDO/SWO
JL0204
P11/AN01
P10/AN00
R02071MR0208
1M
R0209
R0210
P12/AN02
P14/AN04
P15/AN05
P16/AN06
P17/AN07
P18/AN08
P19/AN09
P1A/AN10
P1B/AN11
P07/ADTG
LN0244
LN0243
LN0242
LN0201
470k
470k
EVER_3V
P25/INT01
LN0202
P26/INT02
LN0203
P13/AN03
SYSTEM_SET_SENS
SYSTEM_SET_SENS2
Note: C5701, C5702, C5703, C5704, C5712, C5714, C5715 and IC5700 are not supplied,
but they are included in VC-1025 COMPLETE BOARD (SERVICE).
VC-1025 BOARD (3/26)
F
POWER CONTROL
XX MARK: NO MOUNT
SYS_ACVSENSE
SYS_BATTSENSE
6-5
12345 6 7 8 9
A
B
BATT_UNREG
ACV_UNREG
C
D
SYS_BATTSENSE
SYS_ACVSENSE
USB_VBUS_ARM
EVER_3V
SYS_BGL_SDA
SYS_BGL_SCL
VBUS_5V
USB_SUSREQ_KJR
USB_SUSREQ_DWN
USB_IC_5651_EN
CM0300
CM0301
D0300
XX
R0301 XX
3
12
DD
G
SS
123
CL0301
CL0302
5678
4
G
Q0300
QS8J2FU7TR
B+ SWITCH
EVER_3V
SDA
SCL
VBUS_5V
SUS
DD_ON
BATT
BATTG
ACVG
ACV
USB_VBUS
C5651
0.22u
R5650
47
C5650
C5652
0.1u
A
R5655
2.2k
D3
D4
1u
D5
POK
E1
BATT
E2
BATTG
E3
ACVG
E4
ACV
E5
COMP
E6
GNDA
VREF
OZ8072PN-C5-0-TR
MANAGEMENT
BSTA1SW100A2VDDP1A3VDDP2B3BUS_NPA4VBUS1A5VBUS2
D2
SYS2
DD_ON
IC5651
USB POWER
R5656
2.2k
C5654
10u
C5
C6
D6
D1
SCL
SDA
SYS1
VI2C
R5654
C5655
10u
C5656
C5657
1u
1u
C5658
0.1u
L5650
2.2uH
2.2k
C4
IBS
C3
SUS
C2
LX2
C1
LX1
B6
PVBUS
B2
GNDP2
B1
GNDP1
A6
VDDA
B5
B
C
D
UNREG_IC_5651_OUT
C5653
2.2u
E
REG_GND
C0300
0.1u
LN0300
BUS_NP_IC_5651
REG_GND
CM5651
CM5650
PGND
AGND
E
F001
2A/32V
CORE_UNREG
Note: C5651, C5652 and IC5651 are not supplied,
but they are included in VC-1025 COMPLETE BOARD (SERVICE).
CM0302
F002
2A/32V
F003
1.4A/32V
F
I/O_UNREG
MT_UNREG
SHOE_UNREG_FUSE
VC-1025 BOARD (4/26)
F
USB POWER MANAGEMENT
XX MARK: NO MOUNT
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
6-6
12345 6 7 8 9
A
F005
2.5A/50V
B
C
BUILT-IN
USB CABLE
CHARGE
CN0400 5P
USB_VBUS_STD
USB_D-_STD_CN
USB_D+_STD_CN
REG_GND
REG_GND
67
1
2
3
4
5
R0400
2
R0401
REG_GND
USB_D-_DWN
USB_D+_DWN
USB_VBUS_MULTI
USB_VBUS_ARM
USB_D-_MULTI
1
34
USB_D+_MULTI
LF0400
R0403 XX
L0404
34
12
R0404 XX
XX
XX
XX
R0410
XX
R0411
XX
R0412 0
R0413 0
D_1D+
D_1D-
D_2D+
D_2D-
GND
VBUS_MULTI
1
2
3
4
5
1D+
1D-
2D+
2D-
GND
IC5600
BD11600NUX-E2
USB SELECT
SW(D)
GND
VCC
XOE
11
10
9
S
8
D+
7
D-
6
C5600
0.1u
C5601
XX
USB_SEL
VCC
MT_5.0V
D+
D-
USB_D-_KJR
USB_D+_KJR
USB_SEL
A
B
C
Note: BUILT-IN USB CABLE is not included in
VC-1025 COMPLETE BOARD (SERVICE).
D
E
456
CBE
Q5600
DMC964010R
VBUS DETECT
BEC
123
Note: C5600 is not supplied, but this is included in
VC-1025 COMPLETE BOARD (SERVICE).
R5600
47k
D5600
1SS360(T5LS
23
1
VBUS_STD_A
XVBUS_DET_STD_A
XVBUS_DET_MULTI
XVBUS_DET_MASTER
VBUS_5V
D
XVBUS_DET_STD_A
XVBUS_DET_MULTI
XVBUS_DET
E
F
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
6-7
VC-1025 BOARD (5/26)
USB SELECT
XX MARK: NO MOUNT
F
12345 6 7 8 9
A
B
MULTI
USB_VCC_MULTI
USB_D-_MULTI
USB_D+_MULTI
REG_GND
D_2.8V/LANC_DC
XRESET_REQ
UART_TX/LANC_SIG
UART_RX/BOOT_SERIAL_IN
AD_JACK_IN
LINEOUT_R
LINEOUT_L
AV_GND
XPWR_ON
USB_ID
VIDEO
15PCN0500
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16171819
USB_VBUS_MULTI
USB_ID
XRESET_REQ
FB0500
FB0501
UUU
VD0500
R0500 XX
2
LF0500
R0501 XX
VD0501
VD0502
1
34
UART_TX/LANC_SIG
C0500XXC0501
XX
USB_D-_MULTI
USB_D+_MULTI
D_2.8V/LANC_DC
AD_JACK_IN
AUDIO_R_I/O
AUDIO_L_I/O
COMPO_VIDEO
12
34
56
78
XPOWER_TACT_SW
RB0500
100k
R0502
XX
CM0500
A_3.3V
IHS_ID3
IHS_ID2
IHS_ID1
DEBUG_UART0_RXD
BOOT_SERIAL_IN
C
IC5630
TPS2553DBVR-1
EVER_3V
D_3.3V
SEL_UART_LANC
D
REG_GND
DEBUG_UART0_TXD
LANC_SIG
LANC_DC
D_3.3V
R0503
XX
S
1D+
1D-
2D+
2D-
GND
IC5640
XX
1
1D+
2
1D-
3
2D+
4
2D-
5
GND OE
VCC
11
10
9
S
8
D+
7
D-
6
R5640
XX
C5640
XX
VCC
D+
D-
OUT
R5630
C5630
22k
4.7u
R5631
18k
6
OUT
5ILIM
X_FAULT
BUS POWER SWITCH
1IN
2GND
3EN4
C5631
1u
X_FAULT
GND
IN
EN
J_5.0V
VBUS_EN
VBUS_XOVR_CUR
A
B
C
D
E
F
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
R0504 XX
R0505 XX
CM0502
CM0501
6-8
Note: CN0500 is not supplied, but this is included in
VC-1025 COMPLETE BOARD (SERVICE).
VC-1025 BOARD (6/26)
MULTI TERMINAL
XX MARK: NO MOUNT
E
F
12345 6 7 8 9
A
B
IC6000 (1/8)
KSZ4G4G01A
CPU, CAMERA DSP, AV SIGNAL PROCESS,
LENS CONTROL, MODE CONTROL, HDMI PROCESS
AJ16
AH16
AJ18
AH18
AJ26
AH26
AJ25
AH25
AJ17
AH17
G20
G21
G22
H21
W18
Y18
T10
T11
U10
U11
V28
VDE30_001_G20
VDE30_001_G21
VDE30_001_G22
VDE30_001_H21
VDE30_001_W18
VDE30_001_Y18
VDE30_001_T10
VDE30_001_T11
VDE30_001_U10
VDE30_001_U11
VDE1830_002
PLL00_AVD
PLL00_AVS
PLL10_AVD
PLL10_AVS
PLL20_AVD
PLL20_AVS
PLL30_AVD
PLL30_AVS
PLL40_AVD
PLL40_AVS
CLK_CMOS_IN
IC_6800_IC_6000_CLK
BOOT_SERIAL_IN
CLK
BOOT
D_3.3V CAM_V
VCC_VDE30
C6010
0.1u
C
VCC_VDE18
VCC_PLL
C6002
C6005
0.1u
C6006
2.2u
0.1u
A_1.0V_IC_5200
D_1.8V
L1001
XX
D
CAM_V
IC_6000_VD
CLK_SYS_IN
XRESET
XRESET_REQ
XRESET_18
DDRCKSEL
BOOT_MAIN
SYS_V
L11
K11
L12
M26
V29
K12
G16
E16
A5
H18
U25
E15
C6007
0.1u
R6000 XX
R6001
1k
R6002
1k
X6000
12MHz
3
C6008
OUT4VCC
2
XX
GND
1
ST
C6009
0.1u
IC_6000_VD
XRESET_CR
CLK_CMOS_IN
CLK_SYS_IN
IC_6800_IC_6000_CLK
XRESET
XRESET_REQ
XRESET_18
BOOT_SERIAL_IN
BOOT_MAIN
CLK_SYS_OUT
VCC_XTAL
CAM_V
SYS_V
LN1002
LN1003
R1003
IC_6000_VD
XX
CL1001
REG_GND
CM1001
R1009 XX
R1007 XX
R1008 XX
CM1002
IC_6800_IC_6000_CLK
XSYS_RST
XRESET_REQ
XFLASH_RST
BOOT_SERIAL_IN
C1003
XX
FB1003
C1005
XX
R1002
R1006
33
CLK_CMOS_IN_IMG
XX
A_1.8V
REG_GND
A
B
C
D
E
REG_GND
REG_GND
F
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
Note: IC6000 is not supplied, but this is included in
VC-1025 COMPLETE BOARD (SERVICE).
6-9
VC-1025 BOARD (7/26)
CPU, CAMERA DSP, AV SIGNAL PROCESS,
LENS CONTROL, MODE CONTROL, HDMI PROCESS
XX MARK: NO MOUNT
E
F
12345 6 7 8 9
A
B
AVDD18_SUBL
A_1.8V
CM1020
VCC_VDE_SUBL
C6020
LENS CONTROL, MODE CONTROL, HDMI PROCESS
A8
VDE_SUBL_A8
B8
C6023
0.1u
2.2u
D10
A22
B22
D21
VDE_SUBL_B8
VDE_SUBL_D10
VDE_SUBL_A22
VDE_SUBL_B22
VDE_SUBL_D21
C
D_1.8V
D
A_1.0V_IC_5200
REG_GND
R1023
R1024
XX
XX
VCC_VDE18
VCC_GCS2_VDN
VCC_GCS2_VDU
C6022
0.1u
E12
E13
D28
D29
F26
G26
J26
K26
L26
L28
M28
N28
N26
H28
H29
VDE18_026_E12
VDE18_026_E13
GCS2_0_VDN_D28
GCS2_0_VDN_D29
GCS2_0_VDN_F26
GCS2_0_VDN_G26
GCS2_0_VSN_J26
GCS2_0_VSN_K26
GCS2_0_VSN_L26
GCS2_0_VSN_L28
GCS2_0_VSN_M28
GCS2_0_VSN_N28
GCS2_0_VSN_N26
GCS2_0_VDU_H28
GCS2_0_VDU_H29
IC6000 (2/8)
KSZ4G4G01A
CPU, CAMERA DSP, AV SIGNAL PROCESS,
SubL
GCS2 0
SUBL_DINP11
SUBL_DINN11
SUBL_DINP10
SUBL_DINN10
SUBL_DINP9
SUBL_DINN9
SUBL_DINP8
SUBL_DINN8
SUBL_DINP7
SUBL_DINN7
SUBL_DINP6
SUBL_DINN6
SUBL_DINP5
SUBL_DINN5
SUBL_DINP4
SUBL_DINN4
SUBL_DINP3
SUBL_DINN3
SUBL_DINP2
SUBL_DINN2
SUBL_DINP1
SUBL_DINN1
SUBL_DINP0
SUBL_DINN0
SUBL_CLKINP
SUBL_CLKINN
SENS_VD
SENS_HD
SENS_SCK
SENS_SO
SENS_SI
SENS_XCS
CIS_SHT_RST
GCS2_0_RODP3
GCS2_0_RODN3
GCS2_0_RODP2
GCS2_0_RODN2
GCS2_0_RODP1
GCS2_0_RODN1
GCS2_0_RODP0
GCS2_0_RODN0
GCS2_EXT12K
A21
B21
A20
B20
A19
B19
A18
B18
A17
B17
A16
B16
A14
B14
A13
B13
A12
B12
A11
B11
A10
B10
A9
B9
A15
B15
H15
G15
G13
H14
G14
H13
E14
F28
F29
G28
G29
J28
J29
K28
K29
R6021 XX
M29
SUBL_DINP11
SUBL_DINN11
SUBL_DINP10
SUBL_DINN10
SUBL_DINP9
SUBL_DINN9
SUBL_DINP8
SUBL_DINN8
SUBL_DINP7
SUBL_DINN7
SUBL_DINP6
SUBL_DINN6
SUBL_DINP5
SUBL_DINN5
SUBL_DINP4
SUBL_DINN4
SUBL_DINP3
SUBL_DINN3
SUBL_DINP2
SUBL_DINN2
SUBL_DINP1
SUBL_DINN1
SUBL_DINP0
SUBL_DINN0
SUBL_CLKINP
SUBL_CLKINN
SENS_VD
SENS_HD
SENS_SCK
SENS_SO
SENS_SI
SENS_XCS
CIS_SHT_RST
R1021 XXR1020 XX
LN1020
Note: IC6000 is not supplied, but this is included in
VC-1025 COMPLETE BOARD (SERVICE).
REG_GND
SUBL_DINP7
SUBL_DINN7
SUBL_DINP6
SUBL_DINN6
SUBL_DINP5
SUBL_DINN5
SUBL_DINP4
SUBL_DINN4
REG_GND
SUBL_CLKINP
SUBL_CLKINN
SENS_VD
SENS_HD
IC_6000_SENSSCK
IC_6000_SENSSO
IC_6000_SENSSI
IC_6000_SENSXCS
A
B
C
D
E
L1021
R1022
XX
XX
C1023XXC1024
A_3.3V
REG_GND
F
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
H25
GCS2_0_VSU_H25
H26
GCS2_0_VSU_H26
VCC_GCS2_VDP
REG_GND
XX
L29
GCS2_VDP
VC-1025 BOARD (8/26)
E
F
CPU, CAMERA DSP, AV SIGNAL PROCESS,
LENS CONTROL, MODE CONTROL, HDMI PROCESS
XX MARK: NO MOUNT
6-10
12345 6 7 8 9
A
B
D_3.3V
D_1.8V
C1041
VDE33_021
0.1u
VDE1833_015
LENS CONTROL, MODE CONTROL, HDMI PROCESS
R7
VDE33_021_R7
R8
VDE33_021_R8
K1
VDE1833_015_K1
K2
VDE1833_015_K2
C
REG_GND
C1043
VDE18_013
XX
E4
F4
G4
D4
VDE18_013_E4
VDE18_013_F4
VDE18_013_G4
VDE18_013_D4
D
E
IC6000 (3/8)
KSZ4G4G01A
CPU, CAMERA DSP, AV SIGNAL PROCESS,
AUDIO
FLASH
LRCK0_OUT
BCK0_OUT
MCK0_INOUT
SD0_I0_SPDIF_IN
SD0_SPDIF_OUT
LRCK1_OUT
BCK1_OUT
MCK1_INOUT
VIO_FLD
FLS_ADDR_20
FLS_ADDR_19
FLS_ADDR_18
FLS_ADDR_17
FLS_ADDR_16
FLS_AD_15
FLS_AD_14
FLS_AD_13
FLS_AD_12
FLS_AD_11
FLS_AD_10
FLS_AD_9
FLS_AD_8
FLS_AD_7
FLS_AD_6
FLS_AD_5
FLS_AD_4
FLS_AD_3
FLS_AD_2
FLS_AD_1
FLS_AD_0
FLS_XRE
FLS_XWE
FLS_XCS_2
FLS_XCS_1
FLS_XCS_0
FLS_ALE_XADV
FLS_RDY_0
FLS_CLE_XOE
FLS_XWP
SD0_I1
SD0_O
SD1_I2
SD1_I1
SD1_I0
SD1_O2
SD1_O1
SD1_O0
R5
P4
R4
P7
P5
N5
N4
N7
N8
M7
L5
M5
M4
L4
K4
K5
P8
H8
H10
H12
H11
H9
F5
G5
E6
E5
H7
E8
E7
D9
E10
E9
G9
G12
G7
G10
G11
G8
D8
B6
D5
A7
D6
A6
D7
B5
B7
R6041
1k
LRCK0_OUT
BCK0_OUT
MCK0_INOUT
SD0_I0_SPDIF_IN
SD0_SPDIF_OUT
LRCK1_OUT
BCK1_OUT
MCK1_INOUT
SD1_O2
SD1_O1
SD1_O0
VIO_FLD
FLS_ADDR_20
FLS_ADDR_19
FLS_ADDR_18
FLS_ADDR_17
FLS_ADDR_16
FLS_AD_15
FLS_AD_14
FLS_AD_13
FLS_AD_12
FLS_AD_11
FLS_AD_10
FLS_AD_9
FLS_AD_8
FLS_AD_7
FLS_AD_6
FLS_AD_5
FLS_AD_4
FLS_AD_3
FLS_AD_2
FLS_AD_1
FLS_AD_0
FLS_XRE
FLS_XWE
FLS_XCS_2
FLS_XCS_1
FLS_XCS_0
FLS_ALE_XADV
FLS_CLE_XOE
FLS_XWP
SD0_I1
SD0_O
SD1_I2
SD1_I1
SD1_I0
DOLBY
LN1040
LN1041
LN1042
LN1133
LN1043
LN1044
LN1045
LN1046
LN1047
LN1048
LN1049
LN1050
LN1051
LN1052
LN1053
LN1054
LN1055
LN1056
LN1057
LN1058
LN1059
LN1120
LN1121
LN1122
LN1123
LN1124
LN1125
LN1126
LN1127
LN1128
LN1129
LN1130
LN1131
LN1132
R1041 XX
R1042 XX
R1043
CL1042
LRCK_OUT_KJR
XX
CL1041
BCK_OUT_KJR
MCK_INOUT_KJR
SDI1_KJR
SDI0_SPDIF_IN_KJR
SDO_KJR
NFC_SEL
NFC_SW
PJ_RSTZ
PAD_PROJ_ON
Note: IC6000 is not supplied, but this is included in
VC-1025 COMPLETE BOARD (SERVICE).
A
B
C
D
E
F
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
6-11
VC-1025 BOARD (9/26)
CPU, CAMERA DSP, AV SIGNAL PROCESS,
LENS CONTROL, MODE CONTROL, HDMI PROCESS
XX MARK: NO MOUNT
F
12345 6 7 8 9
A
IC6000 (4/8)
KSZ4G4G01A
L1061
10uH
A_3.3V
A_1.0V_IC_5200
B
D_3.3V
R1069
XX
R1070
D_1.8V
0
VDAC_AVDH
C1061
10u
HDMI_AVCC
L1062
XX
VDE33_030
VDE1833_016
C6062
2.2u
C6065
0.1u
C6067
0.1u
C6068
XX
C
D
USB_AVDF1
USB_AVDF2
C6060
C6063
2.2u
0.1u
C6061
C6066
2.2u
0.1u
E
LENS CONTROL, MODE CONTROL, HDMI PROCESS
R22
VDAC_AVDH
R23
VDAC_AVSH
AE28
HDMI_AVCC_AE28
AE29
HDMI_AVCC_AE29
W29
HDMI_AVSS_W29
W28
HDMI_AVSS_W28
W26
HDMI_AVSS_W26
Y26
HDMI_AVSS_Y26
AA26
HDMI_AVSS_AA26
AB26
HDMI_AVSS_AB26
AC26
HDMI_AVSS_AC26
AE26
HDMI_AVCC_PLL
AD26
HDMI_AVSS_PLL_AD26
AD28
HDMI_AVSS_PLL_AD28
V22
VDE33_030_V22
V23
VDE33_030_V23
AH8
VDE1833_016_AH8
AJ8
VDE1833_016_AJ8
AF9
VDE1833_017_AF9
AH9
VDE1833_017_AH9
AJ9
VDE1833_017_AJ9
U28
USB_AVDF1_U28
U29
USB_AVDF1_U29
R29
USB_AVDF2
R28
USB_AVSF1_R28
R26
USB_AVSF1_R26
T26
USB_AVSF1_T26
U26
USB_AVSF1_U26
P28
USB_AVDP_P28
N29
USB_AVDP_N29
P26
USB_AVSP
CPU, CAMERA DSP, AV SIGNAL PROCESS,
VDAC Composit
HDMI
HDMI DDC/HPD
CEC
Digital Panel I/F
USB2.0
USB
VDAC_AVOUT
VDAC_VRO
HDMI_TX2SOP
HDMI_TX2SON
HDMI_TX1SOP
HDMI_TX1SON
HDMI_TX0SOP
HDMI_TX0SON
EXT_SWING
HDMI_TXCP
HDMI_TXCN
HDMI_DDC_SCL
HDMI_DDC_SDA
HDMI_HPD
CEC_INOUT
LCD_R_7_S_7
LCD_R_6_S_6
LCD_R_5_S_5
LCD_R_4_S_4
LCD_R_3_S_3
LCD_R_2_S_2
LCD_R_1_S_1
LCD_R_0_S_0
LCD_G_7_M_Y_7
LCD_G_6_M_Y_6
LCD_G_5_M_Y_5
LCD_G_4_M_Y_4
LCD_G_3_M_Y_3
LCD_G_2_M_Y_2
LCD_G_1_M_Y_1
LCD_G_0_M_Y_0
LCD_B_7_M_C_7
LCD_B_6_M_C_6
LCD_B_5_M_C_5
LCD_B_4_M_C_4
LCD_B_3_M_C_3
LCD_B_2_M_C_2
LCD_B_1_M_C_1
LCD_B_0_M_C_0
LCD_DATEN
LCD_CABC_PWM
LCD_M_CLK
LCD_M_XHD
LCD_M_XVD
LCD_S_CLK
LCD_S_XHD
LCD_S_XVD
USB_EXT12K
VBUS_UNLIMIT
USB_CHG_EN
USB_CHG_HL
USB_PWR_EN
USB_ACV_DET
USB_VBUS
USB_DP
USB_DM
VBUS_EN
USB_OCI
LN1060
LN1061
LN1062
LN1063
LN1064
R1062
3.3k
L1063 15nH
L1064
R1066
82
R1071
XX
R1064
R1065
MARK
15nH
MARK
T23
T22
Y28
Y29
AA28
AA29
AB28
AB29
R6060
3.3k
AD29
AC28
AC29
AB23
AC23
AB25
AC25
AB16
AC15
AB15
AC14
AB14
AC13
AB13
AC12
AE15
AF14
AE14
AF13
AE13
AF12
AE12
AF11
AJ14
AH13
AJ13
AH12
AJ12
AH11
AJ11
AH10
AC16
AB12
AE16
AH14
AF15
AE10
AE11
AF10
T28
T29
P29
AA23
AA25
W22
Y25
W25
AA22
W23
Y23
V25
USB_ID
R6061 3.3k
R6062 12k
VDAC_AVOUT
VDAC_VRO
HDMI_TX2SOP
HDMI_TX2SON
HDMI_TX1SOP
HDMI_TX1SON
HDMI_TX0SOP
HDMI_TX0SON
HDMI_TXCP
HDMI_TXCN
HDMI_DDC_SCL
HDMI_DDC_SDA
HDMI_HPD
CEC_INOUT
LCD_R_7_S_7
LCD_R_6_S_6
LCD_R_5_S_5
LCD_R_4_S_4
LCD_R_3_S_3
LCD_R_2_S_2
LCD_R_1_S_1
LCD_R_0_S_0
LCD_G_7_M_Y_7
LCD_G_6_M_Y_6
LCD_G_5_M_Y_5
LCD_G_4_M_Y_4
LCD_G_3_M_Y_3
LCD_G_2_M_Y_2
LCD_G_1_M_Y_1
LCD_G_0_M_Y_0
LCD_B_7_M_C_7
LCD_B_6_M_C_6
LCD_B_5_M_C_5
LCD_B_4_M_C_4
LCD_B_3_M_C_3
LCD_B_2_M_C_2
LCD_B_1_M_C_1
LCD_B_0_M_C_0
LCD_DATEN
LCD_CABC_PWM
LCD_M_CLK
LCD_M_XHD
LCD_M_XVD
LCD_S_CLK
LCD_S_XHD
LCD_S_XVD
VBUS_EN
VBUS_UNLIMIT
USB_OCI
USB_CHG_EN
USB_CHG_HL
USB_PWR_EN
USB_ACV_DET
XVBUS_DET
USB_DM
USB_DP
USB_ID
FB1062
XX
XX
HDMI_TX2SOP
HDMI_TX2SON
HDMI_TX1SOP
HDMI_TX1SON
HDMI_TX0SOP
HDMI_TX0SON
HDMI_TXCP
HDMI_TXCN
HDMI_SCL
HDMI_SDA
HDMI_HPD
HDMI_CEC
LCD_R_7
LCD_R_6
LCD_R_5
LCD_R_4
LCD_R_3
LCD_R_2
LCD_R_1
LCD_R_0
LCD_G_7
LCD_G_6
LCD_G_5
LCD_G_4
LCD_G_3
LCD_G_2
LCD_G_1
LCD_G_0
LCD_B_7
LCD_B_6
LCD_B_5
LCD_B_4
LCD_B_3
LCD_B_2
LCD_B_1
LCD_B_0
USB_D+_KJR
USB_D-_KJR
VBUS_EN
VBUS_XOVR_CUR
USB_SUSREQ_KJR
REG_GND
XVBUS_DET
USB_ID
COMPO_VIDEO
REG_GND
LCD_DATEN
LCD_CABC_PWM
LCD_XHD
LCD_XVD
Projector Model
R1063 0
FB1061
Non Projector Model
R1067 XX
CM1060
C1062
47p
IC_8120_CLK
LCD_CLK
Non Projector Model
REG_GND
A
B
C
D
E
REG_GND
F
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
GND
Note: IC6000 and R6062 are not supplied, but they are included in
VC-1025 COMPLETE BOARD (SERVICE).
VC-1025 BOARD (10/26)
CPU, CAMERA DSP, AV SIGNAL PROCESS,
LENS CONTROL, MODE CONTROL, HDMI PROCESS
XX MARK: NO MOUNT
F
6-12
12345 6 7 8 9
A
IC6000 (5/8)
KSZ4G4G01A
CPU, CAMERA DSP, AV SIGNAL PROCESS,
LENS CONTROL, MODE CONTROL, HDMI PROCESS
B
D_3.3V
VDE1833_020
C1081
0.1u
G25
VDE1833_020
UART
SIRCS
JTAG
eFUSE
FIQ
Serial Wire Debug
I2C
C
SIO
SA Debug
MSX_3.3V
VDE33_033
AD4
AD5
VDE33_033_AD4
VDE33_033_AD5
D
MSX
VDE18_101
MMC_VCC
SD_3.3V
C1082
VDE33_101
0.1u
VDE18_023
VDE33_023
E
WLAN_VOUT_3.3V
R1082
10k
VDE33_024
M25
N25
K25
L25
T4
T5
M1
M2
W4
W5
Y1
Y2
VDE18_101_M25
VDE18_101_N25
VDE33_101_K25
VDE33_101_L25
VDE18_023_T4
VDE18_023_T5
VDE33_023_M1
VDE33_023_M2
VDE18_024_W4
VDE18_024_W5
VDE33_024_Y1
VDE33_024_Y2
MMC
SDCard/SDIO 0
SDCard/SDIO 1
UART2_TXD
UART2_RXD
UART2_CTS
UART2_RTS
UART1_TXD
UART1_RXD
UART0_TXD
UART0_RXD
FUSE_EN
FUSE_CLK
SIO4_SCK
SIO4_SCS
SIO4_TXD
SIO4_RXD
SIO3_SCK
SIO3_SCS
SIO3_TXD
SIO3_RXD
SIO2_SCK
SIO2_SCS
SIO2_TXD
SIO2_RXD
SIO1_SCK
SIO1_SCS
SIO1_TXD
SIO1_RXD
SIO0_SCK
SIO0_SCS
SIO0_TXD
SIO0_RXD
MSX_INS_HIZ
MSX_BIO_7
MSX_BIO_6
MSX_BIO_5
MSX_BIO_4
MSX_BIO_3
MSX_BIO_2
MSX_BIO_1
MSX_BIO_0
MSX_CLK
MMC_XRST
MMC_CMD
MMC_CLK
MMC_DAT_7
MMC_DAT_6
MMC_DAT_5
MMC_DAT_4
MMC_DAT_3
MMC_DAT_2
MMC_DAT_1
MMC_DAT_0
SDIO0_XSDIOCD
SDIO0_SDIOWP
SDIO0_CMD
SDIO0_CLK
SDIO0_DAT_3
SDIO0_DAT_2
SDIO0_DAT_1
SDIO0_DAT_0
SDIO1_XSDIOCD
SDIO1_SDIOWP
SDIO1_CMD
SDIO1_CLK
SDIO1_DAT_3
SDIO1_DAT_2
SDIO1_DAT_1
SDIO1_DAT_0
SIR_RXD
I2C_SCK
I2C_SDA
SA_TDO
MSX_BS
W8
Y7
AA8
Y8
V8
W7
U8
V7
Y12
V12
TDI
V16
TCK
V18
TMS
V14
TDO
V15
RTCK
V13
NTRST
M17
M18
W12
FIQ
AB11
SWCLK
AC11
SWDIO
F25
E25
Y14
W14
Y13
W13
Y16
W16
Y15
W15
Y20
W20
Y19
W19
V20
U20
V19
U19
T20
R20
T19
R19
V11
SA_TDI
V10
AB2
D6081
AA7
DA2S10100K8
AC5
AC4
AB5
AB4
AD2
AD1
AC2
AC1
AB1
J22
J23
H23
K22
K23
L22
L23
M22
M23
N22
N23
D6082
AA4
DA2S10100K8
AA5
N2
N1
P1
P2
R1
R2
Y4
Y5
U2
U1
V1
V2
W1
W2
RB6080
FB6080
FB6081
RB6082
100
12
150
34
56
78
R6084
12
34
56
78
R6081
100
100
R6085 120
R6082
100
UART2_TXD
UART2_RXD
UART2_CTS
UART2_RTS
UART1_TXD
UART1_RXD
UART0_TXD
UART0_RXD
SIO4_SCK
SIO4_SCS
SIO4_TXD
SIO4_RXD
SIO3_SCK
SIO3_SCS
SIO3_TXD
SIO3_RXD
SIO2_SCK
SIO2_SCS
SIO2_TXD
SIO2_RXD
SIO1_SCK
SIO1_SCS
SIO1_TXD
SIO1_RXD
SIO0_SCK
SIO0_SCS
SIO0_TXD
SIO0_RXD
MSX_INS_HIZ
MSX_BIO_7
MSX_BIO_6
MSX_BIO_5
MSX_BIO_4
MSX_BIO_3
MSX_BIO_2
MSX_BIO_1
MSX_BIO_0
MMC_XRST
MMC_CMD
MMC_CLK
MMC_DAT_7
MMC_DAT_6
MMC_DAT_5
MMC_DAT_4
MMC_DAT_3
MMC_DAT_2
MMC_DAT_1
MMC_DAT_0
SDIO0_XSDIOCD
SDIO0_SDIOWP
SDIO0_CMD
SDIO0_CLK
SDIO0_DAT_3
SDIO0_DAT_2
SDIO0_DAT_1
SDIO0_DAT0
SDIO1_XSDIOCD
SDIO1_SDIOWP
SDIO1_CMD
SDIO1_CLK
SDIO1_DAT_3
SDIO1_DAT_2
SDIO1_DAT_1
SDIO1_DAT_0
SIR_RXD
FUSE_EN
I2C_SCK
I2C_SDA
SA_TDO
MSX_BS
MSX_CLK
GPS_UART_TXD
GPS_UART_RXD
GPS_UART_CTS
47
47
100
100
100
100
RB1081
4.7k
78
GPS_UART_RTS
DEBUG_UART0_TXD
DEBUG_UART0_RXD
MR_A_2.8V
D_3.3V
HDMI_SCL
HDMI_SDA
I2C_SCK
I2C_SDA
EXT_STRB_SCK
EXT_STRB_SO
EXT_STRB_SI
DWN_SCK
XCS_DWN
DWN_SO
DWN_SI
NFC_SCK
NFC_DATA
AV_SCK
XCS_IC_8120
AV_SO
MISO_SDA
IC_6800_SCK
XCS_IC_6800
IC_6800_SO
IC_6800_SI
XZM_RST_LED
REG_GND
MSX_BS
XMSX_INS
MSX_D3
MSX_D2
MSX_D1
MSX_D0
MSX_CLK
MMC_CMD
MMC_CLK
MMC_DAT_7
MMC_DAT_2
MMC_DAT_6
MMC_DAT_1
MMC_DAT_5
MMC_DAT_0
MMC_DAT_4
MMC_DAT_3
XSD_INS
SD_CMD
SD_CLK
SD_D3
SD_D2
SD_D1
SD_D0
WLAN_SD_CMD
WLAN_SD_CLK
WLAN_SD_D3
WLAN_SD_D2
WLAN_SD_D1
WLAN_SD_D0
LN1080
LN1081
LN1082
TDI
TDO
LN1083
RTCK
LN1084
NTRST
FIQ
SWCLK
SWDIO
LN1085
R1091 XX
LN1086
R1090 XX
SA_TDI
LN1088
LN1089
LN1090
LN1091
LN1092
LN1093
FB1083
LN1094
LN1095
LN1096
CL1084
CL1081
CL1082
C1084XXC1085
FB1084
FB1085
FB1086
FB1087
FB1088
R1093
XX
R1087 XX
XX
R1083
R1084 150
R1094 47
R1095
R1096 47
R1097 47
R1098 47
R1099 47
R1080 47
R1081 47
R1092 XX
XX
XX
XX
XX
100
R1088
R1089
R1085
R1086
R1118
R1119
XSYS_RST
123456
47
A
B
C
D
E
REG_GND
F
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
GND
Note: IC6000 is not supplied, but this is included in
VC-1025 COMPLETE BOARD (SERVICE).
VC-1025 BOARD (11/26)
CPU, CAMERA DSP, AV SIGNAL PROCESS,
LENS CONTROL, MODE CONTROL, HDMI PROCESS
XX MARK: NO MOUNT
F
6-13
12345 6 7 8 9
A
IC6000 (6/8)
KSZ4G4G01A
R1101
A_3.3V
220
C1101
2.2u
VDE1833_103
C1105
10u
ADC0_AVDH
B
ADC1_AVDH
C6102
0.1u
C
D
D_3.3V
VDE1830_005
FG_AVDH
E
REG_GND
GND
F
CPU, CAMERA DSP, AV SIGNAL PROCESS,
LENS CONTROL, MODE CONTROL, HDMI PROCESS
AB8
VDE1833_103
AB7
BEEP_VSS
AJ21
ADC0_AVDH
AJ20
ADC0_AVSH
AH21
ADC1_AVDH
AH20
ADC1_AVSH
A23
VDE1830_005_A23
B23
VDE1830_005_B23
F2
FG_AVDH
E1
FG_AVSH
BEEP Audio
CPU A/D 0
CPU A/D 1
GPIO SYS
TPU
FRC/RTG
PI Sensor
BEAR/ETC
BEEP_PWM_P
BEEP_PWM_N
ADC0_IN11
ADC0_IN10
ADC0_IN9
ADC0_IN8
ADC0_IN7
ADC0_IN6
ADC0_IN5
ADC0_IN4
ADC0_IN3
ADC0_IN2
ADC0_IN1
ADC0_IN0
ADC1_IN11
ADC1_IN10
ADC1_IN9
ADC1_IN8
ADC1_IN7
ADC1_IN6
ADC1_IN5
ADC1_IN4
ADC1_IN3
ADC1_IN2
ADC1_IN1
ADC1_IN0
GPIO_S_16
GPIO_S_15
GPIO_S_14
GPIO_S_13
GPIO_S_12
GPIO_S_11
GPIO_S_10
GPIO_S_9
GPIO_S_8
GPIO_S_7
GPIO_S_6
GPIO_S_5
GPIO_S_4
GPIO_S_3
GPIO_S_2
GPIO_S_1
GPIO_S_0
GPIO_SB_6
GPIO_SB_5
GPIO_SB_4
GPIO_SB_3
GPIO_SB_2
GPIO_SB_1
GPIO_SB_0
TPU5_OUT
TPU4_OUT
TPU3_OUT
TPU2_OUT
TPU1_INA_OUT
TPU1_INB
TPU0_INA_OUT
TPU0_INB
FRC_RTG_IN1
FRC_RTG_IN0
FRC_RTG_OUT3
FRC_RTG_OUT2
FRC_RTG_OUT1
FRC_RTG_OUT0
FG_MON_A
FG_MON_B
ND_DIR_A
ND_DIR_B
MSHUT_EN
STRB_ON3
STRB_ON2
STRB_ON1
FG_IREF
SENS_A
SENS_B
AC8
AC7
AJ22
AH22
AF22
AE21
AC20
AF21
AB20
AC21
AC22
AB21
AB22
AE22
AE19
AE18
AF18
AH19
AJ19
AE20
AF19
AF20
AB18
AC18
AB19
AC19
G19
H19
H20
L17
K17
L18
K18
K19
K20
L19
L20
M19
M20
N19
N20
P19
P20
H16
E17
H17
E18
G17
E19
G18
L13
K13
L14
K14
L15
L16
K15
K16
E21
D22
E23
E22
D23
E20
H2
G2
F1
H1
FG_A
G1
FG_B
L7
IRIS1
K7
BRK1A
K8
BRK1B
L10
DIR1A
K10
DIR1B
M8
L8
J5
IRIS0
M10
M11
N10
ND_EN
J4
N11
P11
P10
BEEP_PWM_P
BEEP_PWM_N
ADC0_IN11
ADC0_IN10
ADC0_IN9
ADC0_IN8
ADC0_IN7
ADC0_IN6
ADC0_IN5
ADC0_IN4
ADC0_IN3
ADC0_IN2
ADC0_IN1
ADC0_IN0
ADC1_IN11
ADC1_IN10
ADC1_IN9
ADC1_IN8
ADC1_IN7
ADC1_IN6
ADC1_IN5
ADC1_IN4
ADC1_IN3
ADC1_IN2
ADC1_IN1
ADC1_IN0
GPIO_S_16
GPIO_S_15
GPIO_S_14
GPIO_S_13
GPIO_S_12
GPIO_S_11
GPIO_S_10
GPIO_S_9
GPIO_S_8
GPIO_S_7
GPIO_S_6
GPIO_S_5
GPIO_S_4
GPIO_S_3
GPIO_S_2
GPIO_S_1
GPIO_S_0
GPIO_SB_6
GPIO_SB_5
GPIO_SB_4
GPIO_SB_3
GPIO_SB_2
GPIO_SB_1
GPIO_SB_0
TPU5_OUT
TPU4_OUT
TPU3_OUT
TPU2_OUT
TPU1_INA_OUT
TPU1_INB
TPU0_INA_OUT
TPU0_INB
FRC_RTG_IN1
FRC_RTG_IN0
FRC_RTG_OUT3
FRC_RTG_OUT2
FRC_RTG_OUT1
FRC_RTG_OUT0
FG_MON_A
FG_MON_B
ND_DIR_A
ND_DIR_B
MSHUT_EN
STRB_ON3
STRB_ON2
STRB_ON1
FG_IREF
SENS_A
SENS_B
LN1114
LN1100
LN1101
LN1102
LN1103
LN1106
LN1104
LN1105
FG_A
FG_B
IRIS1
BRK1A
BRK1B
LN1110
DIR1A
DIR1B
IRIS0
ND_EN
LN1113
LN1112
BEEP_PWM_P
C1118
0.1u
C1106
XX
R1102 XX
C1116
C1113
XX
0.1u
0.1u
XGPS_RST
XNFC_RFDET
XVBUS_DET_MULTI
TP_SEL2
XPWR_OFF
SS
SEL_UART_LANC
XIC_6800_CPU_RST
NFC_IRQ
MS_PWR_ON
SD_PWR_ON
MMC_PWR_ON
XMS_ACC_LED
XPOWER_LED
HP_JACK_IN
XCS_IC_8500
XCS_LCD
XVBUS_DET_STD_A
REG_GND
PANEL_NOR/REV
VST_C_CHARGE
LENS_COVER_DIR_PWM
TP_SEL1
XCS_IC_8630
REG_GND
MIC_JACK_IN
IC_6800_INT_REQ
XWLAN_RST
XBB_RST
XIC_6000_RST
REG_GND
SHOE_UNREG_ON
FC_ENB
FC_DIR_A
FC_DIR_B
D_3.3V
R1108
47k
FC_SENSE
LENSV_EN
IC_6800_P_LIMIT
ST_VCC_ON
USB_SEL
MSHUT_EN
EXT_STRB_CONT
EXT_STRB_ON
C1119
C1111XXC1110XXC1108XXC1109XXC1115
TZ_HALL_TEMP
ROLL_AD
GENERAL_AD
SYSTEM_AD
PJ_TEMP_AD
REG_GND
A_3.3V
Q1101
DRA3143T0L
R1109
R1106
47k
C1114
C1117
C1112
XX
XX
0.1u
0.1u
Note: C1105, C1112, C1113, C1116, C1117, C1119 and IC6000 are not supplied,
but they are included in VC-1025 COMPLETE BOARD (SERVICE).
INVERTER
47k
TP_SEL2
LENZ_TEMP_AD
ZOOM_VR_AD
AD_JACK_IN
IHS_ID3
TP_Y
TP_X
IHS_ID2
IHS_ID1
KEY_AD2
KEY_AD1
REG_GND
VC-1025 BOARD (12/26)
CPU, CAMERA DSP, AV SIGNAL PROCESS,
LENS CONTROL, MODE CONTROL, HDMI PROCESS
XX MARK: NO MOUNT
A
B
C
D
E
F
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
6-14
12345 6 7 8 9
A
IC6000 (7/8)
KSZ4G4G01A
R1120
D_1.2V
XX
C1120
C1121
0.1u
0.1u
B
R1121
R1122
R1123
R1124
XX
XX
XX
XX
HB_1.8V
C
HB_1.2V
D
D_1.8V
C1122
VDE12_1
C6122
0.1u
0.1u
C6123
0.1u
C6124
0.1u
POP_VDD1
POP_VDD2
C6126
0.1u
POP_VDDQ
C6128
0.1u
C6127
0.1u
POP_VCC
C6132
0.1u
E
AF1
AF2
AE4
AF24
AH24
AJ24
A25
B25
D25
B28
AE5
AF5
AE25
AF25
A27
B27
AG29
AG1
AG2
AH2
AJ3
AH3
AF4
A26
B26
D26
E26
C28
C29
AD25
AF26
AH27
AJ27
AG28
AH28
AE6
CPU, CAMERA DSP, AV SIGNAL PROCESS,
LENS CONTROL, MODE CONTROL, HDMI PROCESS
VDE12_1_AF1
VDE12_1_AF2
VDE12_1_AE4
VDE12_2_AF24
VDE12_2_AH24
VDE12_2_AJ24
VDE12_3_A25
VDE12_3_B25
VDE12_3_D25
POP_VDD1_B28
D1
POP_VDD1_D1
D2
POP_VDD1_D2
POP_VDD1_AE5
POP_VDD1_AF5
POP_VDD1_AE25
POP_VDD1_AF25
POP_VDD2_A27
POP_VDD2_B27
POP_VDD2_AG29
C1
POP_VDD2_C1
C2
POP_VDD2_C2
POP_VDD2_AG1
POP_VDD2_AG2
POP_VDD2_AH2
POP_VDDCA_AJ3
POP_VDDCA_AH3
POP_VDDCA_AF4
POP_VDDQ_A26
POP_VDDQ_B26
POP_VDDQ_D26
POP_VDDQ_E26
POP_VDDQ_C28
POP_VDDQ_C29
POP_VDDQ_AD25
POP_VDDQ_AF26
POP_VDDQ_AH27
POP_VDDQ_AJ27
POP_VDDQ_AG28
POP_VDDQ_AH28
B2
POP_VCC_B2
A3
POP_VCC_A3
B3
POP_VCC_B3
C3
POP_VCC_C3
POP_VCC_AE6
POWER
DDR_MZQ2
DDR_MZQ0
DDR_REFOUT2
DDR_REFOUT1
POP_ZQ1
POP_ZQ0
POP_VREFCA
JTAGMODE
TESTMODE5
TESTMODE4
TESTMODE3
TESTMODE2
TESTMODE1
TESTMODE0
AE24
Y22
AF23
D24
AF16
U4
U5
C6133
0.1u
B1
A2
VPD
AJ2
AH1
AH29
AJ28
A28
B29
R6120 240
R6121
R6123
R6124
R6125
240
240
10k
10k
Note: C1120, C1121, C1122, IC6000, R6120, R6121, R6123, R6124 and R6125
are not supplied, but they are included in VC-1025 COMPLETE BOARD (SERVICE).
A
B
C
D
E
REG_GND
F
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
GND
VC-1025 BOARD (13/26)
F
CPU, CAMERA DSP, AV SIGNAL PROCESS,
LENS CONTROL, MODE CONTROL, HDMI PROCESS
XX MARK: NO MOUNT
6-15
12345 6 7 8 9
A
IC6000 (8/8)
KSZ4G4G01A
CPU, CAMERA DSP, AV SIGNAL PROCESS,
LENS CONTROL, MODE CONTROL, HDMI PROCESS
D_1.0V
VCC_CORE
C6140
C6141
XX
10u
B
C
D
E
REG_GND
REG_GND
AJ5
AJ6
AJ7
AH5
AH6
AH7
AF6
AF7
AF8
AE7
AE8
AE9
AC9
AC10
AB9
AB10
Y10
Y11
W10
W11
A24
B24
D11
D12
D13
D14
D15
D16
D17
D18
D19
D20
E11
E24
E28
E29
G23
H22
J25
M12
M13
M14
M15
M16
N12
N13
N14
N15
N16
N17
N18
P12
P13
P14
P15
P16
P17
P18
P22
P23
P25
R10
R11
VDD_CORE_AJ5
VDD_CORE_AJ6
VDD_CORE_AJ7
VDD_CORE_AH5
VDD_CORE_AH6
VDD_CORE_AH7
VDD_CORE_AF6
VDD_CORE_AF7
VDD_CORE_AF8
VDD_CORE_AE7
VDD_CORE_AE8
VDD_CORE_AE9
VDD_CORE_AC9
VDD_CORE_AC10
VDD_CORE_AB9
VDD_CORE_AB10
VDD_CORE_Y10
VDD_CORE_Y11
VDD_CORE_W10
VDD_CORE_W11
A4
VSS_A4
B4
VSS_B4
VSS_A24
VSS_B24
VSS_D11
VSS_D12
VSS_D13
VSS_D14
VSS_D15
VSS_D16
VSS_D17
VSS_D18
VSS_D19
VSS_D20
E2
VSS_E2
VSS_E11
VSS_E24
VSS_E28
VSS_E29
VSS_G23
H4
VSS_H4
H5
VSS_H5
VSS_H22
J1
VSS_J1
J2
VSS_J2
J7
VSS_J7
J8
VSS_J8
VSS_J25
L1
VSS_L1
L2
VSS_L2
VSS_M12
VSS_M13
VSS_M14
VSS_M15
VSS_M16
VSS_N12
VSS_N13
VSS_N14
VSS_N15
VSS_N16
VSS_N17
VSS_N18
VSS_P12
VSS_P13
VSS_P14
VSS_P15
VSS_P16
VSS_P17
VSS_P18
VSS_P22
VSS_P23
VSS_P25
VSS_R10
VSS_R11
GND
VSS_R12
VSS_R13
VSS_R14
VSS_R15
VSS_R16
VSS_R17
VSS_R18
VSS_R25
VSS_T1
VSS_T2
VSS_T7
VSS_T8
VSS_T12
VSS_T13
VSS_T14
VSS_T15
VSS_T16
VSS_T17
VSS_T18
VSS_T25
VSS_U7
VSS_U12
VSS_U13
VSS_U14
VSS_U15
VSS_U16
VSS_U17
VSS_U18
VSS_U22
VSS_U23
VSS_V4
VSS_V5
VSS_V17
VSS_V26
VSS_W17
VSS_Y17
VSS_AA1
VSS_AA2
VSS_AB17
VSS_AC17
VSS_AE1
VSS_AE2
VSS_AE17
VSS_AE23
VSS_AF17
VSS_AF28
VSS_AF29
VSS_AH4
VSS_AH15
VSS_AH23
VSS_AJ4
VSS_AJ10
VSS_AJ15
VSS_AJ23
R12
R13
R14
R15
R16
R17
R18
R25
T1
T2
T7
T8
T12
T13
T14
T15
T16
T17
T18
T25
U7
U12
U13
U14
U15
U16
U17
U18
U22
U23
V4
V5
V17
V26
W17
Y17
AA1
AA2
AB17
AC17
AE1
AE2
AE17
AE23
AF17
AF28
AF29
AH4
AH15
AH23
AJ4
AJ10
AJ15
AJ23
Note: IC6000 is not supplied, but this is included in
VC-1025 COMPLETE BOARD (SERVICE).
A
B
C
D
E
F
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
6-16
VC-1025 BOARD (14/26)
CPU, CAMERA DSP, AV SIGNAL PROCESS,
LENS CONTROL, MODE CONTROL, HDMI PROCESS
XX MARK: NO MOUNT
F
12345 6 7 8 9
IC6800
R2J30503LG
STEADYSHOT PROCESSOR,
VCCD12
VCCD3
VCCA3
VDD_LDO
C6844
XX
VM
C1401
10u
P_GND
GND
CLK
RESET_N
XDL
SIO0_SCK
SIO0_XSCS
SIO0_SI
SIO0_SO
GPIO0
GPIO1
GPIO2
GPIO3
GPIO4
GPIO5
GPIO6/I2C_SCL
GPIO7/I2C_SDA
PITCH_INA_O
PITCH_INB_O
YAW_INA_O
YAW_INB_O
FC_ENB
FC_DIR_A
FC_DIR_B
IC6802
MM3416A28URE
2.8V REG
1
CE
2
GND
4
VDD
3
VOUT
C6843
1u
COM680
C6803
C6802
C6800
0.1u
0.1u
0.1u
C6801
0.1u
CL6811
CL6800
CL6801
CL6802
CL6803
CL6804
CL6805
MR_A_2.8V
IC_6800_IC_6000_CLK
IC_6800_SCK
XCS_IC_6800
IC_6800_SO
IC_6800_SI
IC_6000_VD
IC_6800_P_LIMIT
IC_6800_INT_REQ
CRESET_P
MSHUT_EN
REG_GND
FC_DIR_A
FC_DIR_B
MDRV_EN
FC_ENB
D_1.2V
D_3.3V
A_3.3V
C1400
10u
CAM_V
CL1401
A
B
MR_A_2.8V_GY
XSYS_RST
XIC_6800_CPU_RST
REG_GND
ZM_SENSE1A
MT_5.0V
C
R1417
XX
R1415
XX
MT_GND_IC_6800
R1402 1k
R1401 1k
C1402
C1403
0.1u
0.1u
D_3.3V
R1416
47k
PITCH_INA_O
PITCH_INB_O
YAW_INA_O
YAW_INB_O
VCCD12
F2
VCCD3
F7
GNDD
F6
VCCA3
B1
GNDA3
A1
VM01
G3
VM23
J4
VM45
J7
VM6
K8
PGND0
G2
PGND1
H3
PGND2
H4
PGND3
J5
PGND4
J6
PGND5
K7
PGND6/RNF
J9
VLIM
G9
CLK
G1
RESET_N
D1
XDL
F5
SIO0_SCK
E1
SIO0_XSCS
G5
SIO0_SI
F1
SIO0_SO
G4
GPIO0
E4
GPIO1
E3
GPIO2
E2
GPIO3
D2
GPIO4
C2
GPIO5
C1
GPIO6/I2C_SCL
F10
GPIO7/I2C_SDA
E10
UDITRST_N
D6
DBGMOD/SEL
E5
UDITCK/SIO2_SCK
E8
UDITDI/SIO2_SI
D8
UDITDO/SIO2_SO
D7
UDITMS/SIO2_SRDY_N
E7
TEST
K1
IN2A
K10
IN2B
J10
IN3A
G6
IN3B
G7
IN4A
H9
IN4B
H10
IN5A
F9
IN5B
G10
IN6A
G8
IN6B
F8
FOCUS/ZOOM/IRIS MOTOR DRIVE
OP_6OUT
OP_7OUT
VREF(1.4V)
OP_8OUT
OP_9AOUT
OP_9AINN
OP_9AINP/DA_9
OP_9BOUT
OP_9BINN
OP_9BINP
SIO1_SCK
SIO1_XSCS
OP_6INN
OP_6INP
OP_7INN
OP_7INP
OP_8INN
OP_8INP
SIO1_SO
A4
SE_2
A3
SE_3
A2
SE_4F
B2
SE_5F
B3
SE_4S
CL6807
B4
SE_5S
C10
DF_0N
C9
DF_0P
E9
CC_0
D10
DF_1N
D9
DF_1P
E6
CC_1
A5
DA_6
A6
B6
B5
C5
DA_7
C3
C4
D4
C6
A10
B10
B9
A9
DA_8
B8
A8
A7
B7
C8
C7
D5
CC_2
D3
CC_R
H1
K2
J2
SIO1_SI
J1
F3
OUT0A
F4
OUT0B
J3
OUT1A
H2
OUT1B
K3
OUT2A
K4
OUT2B
K5
OUT3A
H5
OUT3B
H6
OUT4A
K6
OUT4B
H8
OUT5A
H7
OUT5B
J8
OUT6A
K9
OUT6B
R6800 15k
C6804
0.01u
R6801 270k
R6802 270k
C6806
0.047u
C6807
C6805
0.047u
0.01u
C6811
XX
C6845
XX
C6814
0.047u
C6846
XX
C6821
R6809
XX
XX
R6810
XX
C6820
XX
CM6806
R6806
R6805
C6810
XX
C6815
C6816
C6817
0.047u
0.047u
C6822
XX
R6804 10k
XX
R6803 10k
XX
CM6805
C6808
C6809
0.1u
0.1u
0.047u
C6818
C6819
0.047u
0.047u
PITCH_AD
YAW_AD
PITCH_HALL+
PITCH_HALL-
PITCH_BIAS-
YAW_HALL+
YAW_HALL-
YAW_BIAS-
SIO1_SCK
SIO1_XSCS
SIO1_SO
FOCUS_XA
FOCUS_A
FOCUS_XB
FOCUS_B
I_DRIVE-
I_DRIVE+
I_HALL+
PITCH_AD
YAW_AD
PITCH_HALL+
PITCH_HALL-
PITCH_BIAS-
YAW_HALL+
YAW_HALL-
YAW_BIAS-
I_HALL-
I_BIAS-
SIO1_SI
OUT0A
OUT0B
OUT1A
OUT1B
OUT2A
OUT2B
OUT3A
OUT3B
I_HALL-
I_HALL+
I_BIAS-
LN1401
LN1402
LN1403
LN1404
FOCUS_XA
FOCUS_A
FOCUS_XB
FOCUS_B
I_DRIVE-
I_DRIVE+
CM1401
CM1402
CM1403
CM1404
ZOOM_XA_BOSS
ZOOM_A_BOSS
ZOOM_XB_BOSS
ZOOM_B_BOSS
PITCH-
PITCH+
YAW-
YAW+
ZOOM_XA
ZOOM_A
ZOOM_XB
ZOOM_B
A
B
C
D
MT_5.0V
MT_GND_IC_6800
XCON_7.0V_OUT
LENSV_EN
REG_GND
REG_GND
PGOOD_XC
D_3.3V
PITCH_INA_O
PITCH_INB_O
YAW_INA_O
YAW_INB_O
E
LENS_COVER_DIR_PWM
F
VCC_VM_TI
PGND_TI
13
12
VCC
MODE_TI
AIN1_TI
AIN2_TI
BIN1_TI
BIN2_TI
EN_SANYO
VCC
VCC_VM_SANYO
IN2_SANYO
IN1_SANYO
CM1405
PGND_SANYO
REG_GND
11
MODE
10
AIN1/APHASE
9
AIN2/AENBL
8
BIN1/BPHASE
7
BIN2/BENBL
C6741
0.1u
C6743
XX
A1
OUT2
A2
VM
A3
IN2
C6744
10u
D_3.3V
DRV8835DSSR
PITCH/YAW
MOTOR DRIVE
5
IN1
6
SLEEP
7
VCC
8
9
IC6741
LV8417CS-TE-L-H
LENS BARRIER
IC6742
DRIVE
C3
PGNDB1SGND
C6742
10u
Note: C6801, C6804, C6805, C6808, C6809, IC6741 and IC6742 are not supplied,
1
VM
2
AOUT1
3
AOUT2
4
BOUT1
5
BOUT2
6
GND
VCCC2ENA
C1
OUT1
B3
IN1
B2
GNDIN2
4
OUT2
3
OUT1
2
VM
1
IC1405
XX
XCON_7.0V_OUT
AOUT1_TI
AOUT2_TI
BOUT1_TI
BOUT2_TI
OUT2_SANYO
OUT1_SANYO
PITCH-_BOSS
PITCH+_BOSS
YAW-_BOSS
YAW+_BOSS
SHUTTER_XA
SHUTTER_A
but they are included in VC-1025 COMPLETE BOARD (SERVICE).
LENS_COVER_DIR_PWM
LENSV_EN
MT_GND_IC_6800
MT_5.0V
B2ENC1
OUTB
B1
IC1404
VM
XX
C1410
XX
GNDA1OUTA
A2
VC-1025 BOARD (15/26)
STEADYSHOT PROCESSOR
XX MARK: NO MOUNT
C2
IN
SHUTTER_A
SHUTTER_XA
D
E
F
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
6-17
12345 6 7 8 9
A
B
MSX_CLK
MSX_BS
MSX_D0
MSX_D1
C
MSX_D2
MSX_D3
XMSX_INS
SD_CLK
SD_CMD
SD_D0
SD_D1
SD_D2
SD_D3
C2101
XX
D
XSD_INS
C2100
XX
EVER_3V
SD_3.3V
MSX_3.3V
REG_GND
MSX_CLK
MSX_BS
MSX_D0
MSX_D1
MSX_D2
MSX_D3
MSX_XINS
SD_CLK
SD_CMD
SD_D0
SD_D1
SD_D2
SD_D3
SD_XINS
EVER_VDD
SD_VCC
MSX_VCC
REG_GND
SSM3K15AMFV,L3SF
INVERTER
R7101
1M
Q7101
MSX_XINS
S
XSD_INS_G
C7102
0.1u
C7101
0.1u
MSX_BS
MSX_D1
MSX_D0
MSX_D2
MSX_XINS
MSX_D3
MSX_CLK
SD_D2
SD_D3
SD_CMD
SD_CLK
SD_D0
SD_D1
XSD_INS_G
CN7101 8P
1BS
2 DIO1
3 DIO0
4 DIO2
5INS
6 DIO3
7 SCLK
8 VCC
9 VSS
10 Reserved
11 Reserved
12 DAT2
13 CD/DAT3
14 CMD
15 VDD
16 CLK
17 VSS
18 DAT0
19 DAT1
20
21
22 23 24 25
Card Short
Card Open
MEMORY
STICK
MICRO
microSD
A
B
C
D
E
F
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
6-18
VC-1025 BOARD (16/26)
MEMORY CARD CONNECTOR
XX MARK: NO MOUNT
E
F
12345 6 7 8 9
A
B
A
B
Note: C7711, C7715, IC7711, R7711, R7712, R7713, R7714, R7715 and
SE7711 are not supplied, but they are included in VC-1025 COMPLETE BOARD (SERVICE).
C
C7711
0.33u
R7711
C7712
22u
9
NC_9
10HO11HI12
NC_12
R7713
15k
10k
C7716
XX
R7716
XX
CM7716
C7717
0.1u
6
5
4
ROLL SENSOR
VREF
GND
SE7711
LPF
OUT
V1VCC
C7719
0.1u
C7718
470p
1
2
3
C
8
R7712
150k
D
ROLL_AD
VST_C_CHARGE
MR_A_2.8V
REG_GND
C2301
XX
GYRO_ROLL_AD
GYRO_ROLL_RST
VCC_GYRO_ROLL
GY_GND
NC_8
7
VREF
6
AM
5
OUT
IC7711
NJM3232MG2 (TE2)
ROLL SENSOR
AMP
CRST
4
GND2VCC3NC_3
1
E
F
NC_13
13
C7713
0.047u
14
LO
15
LIA
16
LIB
C7714
0.047u
17
R7714
22k
C7715
0.1u
R7715
22k
CM7717
R7717
XX
D
E
VC-1025 BOARD (17/26)
F
ROLL SENSOR
XX MARK: NO MOUNT
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
6-19
12 3 4
12 3 4
A
B
C
SHOE_UNREG_FUSE
SHOE_UNREG_ON
REG_GND
SHOE_GND
CM3050
SHOE_UNREG_FUSE
RN1104MFV(TL3S
IHS_UNREG_ON
SHOE_GND
Q8800
R8800
10k
Q8800, Q8801
B+ SWITCH
R8801
1M
RW1C025ZPT2CR
C8800
1u
D8800
DA2S10100K8
A
B
Q8801
S
4
56
12
SHOE_UNREG
3
SHOE_UNREG
C
A
B
C
(L)
LND001
1
(F)
(R)
2
3
4
5
6
INT_MIC_L
MIC_GND
INT_MIC_F
MIC_GND
INT_MIC_R
MIC_GND
6P
VC-1025
(25/26)
CN4010
(PAGE 6-27)
A
B
C
D
E
VC-1025 BOARD (18/26)
D
E
D
E
MICROPHONE UNIT
D
E
B+ SWITCH
F
XX MARK: NO MOUNT
F
F
F
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
08
6-20
12345 6 7 8 9
A
RB3100
47k
78
B
XCS_IC_8630
XSYS_RST_IC_8630
C
XSYS_RST
AV_SO
MISO_SDA
AV_SCK
D_3.3V
R3100
1k
56
34
12
XINT/HS1
XBUSY/HS0
XCS
XRESET
MOSI
MOSO/SDA
CLK/SCL
VL
D1
D2
D3
D4
D5
RESET
MOSI
MOSO/SDA
CLK/SCL
VL
C3
C4CSC5
GND
BUSY/HS0/EE_CS
IC8630
CS48L10-CWZR
AUDIO DSP
C2
INT/HS1
C1
DBCK
DAO_LRCLK
DBDA/TEST_EN
DAO_SCLK
MCLK
B5
VD
B4
B3
B2
B1
C8632
0.1u
C8631
XX
VD
D_1.2V
A
B
C
C3100
XX
D
LRCK_OUT_KJR
BCK_OUT_KJR
MCK_INOUT_KJR
REG_GND
SDI0_SPDIF_IN_MAG
SDI1_MAG
REG_GND
DAI_D1
DAO_LRCLK
DAI_LRCLK
DAI_SCLK
CLOCK
E
C8630
0.1u
DAO_D1A2DAI_D1A3DAI_LRCLKA4DAI_SCLKA5CLOCK
A1
DAO_SCLK
DAO_D1
D
SDI1_KJR
SDI0_SPDIF_IN_KJR
E
F
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
6-21
VC-1025 BOARD (19/26)
AUDIO DSP
XX MARK: NO MOUNT
F
12345 6 7 8 9
XSYS_RST
REG_GND
I2C_SCK
XX
LN3203
INT1
I2C_SDA
SCL
SDA
A
B
R3207 XX
R3204 XX
R3205 XX
R3206 XX
R3203 XX
HDMI_RX_MCLK
HDMI_RX_LRCLK
HDMI_RX_SCLK
HDMI_RX_I2S
HDMI_RX_VSYNC
HDMI_RX_HSYNC
HDMI_RX_DE
HDMI_RX_VCK
C
D
MCLK
LRCLK
SCLK
I2S
A9
B9
A8
B8
B7
SCL
SDA
LRCLK
SCLK/INT2
MCLK/INT2
VS/FIELD/ALSB
GND_G6
GND_G5
GND_G4
GND_F4
GND_E4
GND_D6
GND_D5
GND_D4
DVDDIO_K10
DVDDIO_J10
DVDDIO_G7
DVDDIO_F7
DVDD_E7
DVDD_D7
DVDD_B10
DVDD_A10
G6
G5
G4
F4
E4
D6
D5
D4
K10
J10
C8208
XX
G7
F7
C8209
0.1u
E7
C8210
D7
XX
B10
C8211
A10
0.1u
C9
I2S3
D9
I2S2
C10
I2S1
D10
I2S0
E9
F9
HS
E10
DE
K4
LLC
VS
HS
DE
LLC
A
RXA_5V
D_1.8V
PVDD
DVDD
LDO_OUT
DVDDIO_TVDD
LDO_CE
REG_GND
HPA
RXA_C-
RXA_C+
RXA_0-
RXA_0+
RXA_1-
RXA_1+
RXA_2-
RXA_2+
C8206
C8205
0.1u
2.2u
C8202
XX
IC8201
MM3416A33URE
3.3V REG
1
CE
2
GND
VOUT
4
VDD
3
C8201
2.2u
C8203
C8204
A1
HPA_A/INT2
B1
TVDD_B1
B2
0.1u
0.1u
TVDD_B2
C2
RXA_C-
C1
RXA_C+
D2
RXA_0-
D1
RXA_0+
E2
RXA_1-
E1
RXA_1+
F2
RXA_2-
F1
RXA_2+
G1
CVDD_G1
G2
CVDD_G2
A_1.8V
B
Projector Model
1
4
GSSG
DD
3
6
R3202
100k
2
Q3201
LM6K1FS8T2R
HPD SWITCH
DDCSDA_RX
DDCSCL_RX
REG_GND
HDMI_5V
5
20212223
DDCSDA_RX
DDCSCL_RX
REG_GND
SIGN100141
TMDS_CLOCK-
REG_GND
TMDS_CLOCK+
TMDS_DATA0-
REG_GND
TMDS_DATA0+
TMDS_DATA1-
REG_GND
TMDS_DATA1+
TMDS_DATA2-
REG_GND
TMDS_DATA2+
HPD_RX
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
NC
1
19PCN3201
HDMI_5.0V_RX_CN
C
PROJECTOR
IN
R3201
1k
VD3201
XX
CL3201
LDO_3.3V_OUT
MT_5.0V
TMDS_CLOCK-
TMDS_CLOCK+
TMDS_DATA0-
TMDS_DATA0+
TMDS_DATA1-
TMDS_DATA1+
TMDS_DATA2-
TMDS_DATA2+
D_1.8V
CL8207
4
VDD
1
STANDBY2GND
28.636363MHz
DVDD_OUT
LDO_OUT
X8200
PVDD_
3
OUT
A2
RXA_5V
RB8201
47k
78
56
34
12
C8207
0.1u
A4
PVDD
IC8200
ADV7610BBCZ-RL
HDMI RECEIVER
DDCSDA_RX
DDCA_SCL
DDCA_SDA
A3
B3
DDCA_SDA
DDCSCL_RX
DDCA_SCL
C3201
LN3202
LN3201
CEC
INT1
XTALN
XRESET
B6
A6
A5
B4CSB5
A7
CEC
XTALP
XTALN
RESET
D
E
F
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
Note: IC8201 is not supplied, but this is included in
VC-1025 COMPLETE BOARD (SERVICE).
6-22
P23H1P22H2P21J1P20K1P19K2P18J2P17K3P16J3P15J4P14K5P13J5P12K6P11J6P10K7P9J7P8K8P7J8P6K9P5J9P4
P23
P22
P21
P20
P19
P18
P17
P16
P15
P14
P13
P12
P11
P10P9P8P7P6P5P4P3P2P1P0
P3H9P2
P1G9P0
F10
H10
G10
HDMI_RX_PDATA0
HDMI_RX_PDATA1
HDMI_RX_PDATA2
HDMI_RX_PDATA3
HDMI_RX_PDATA4
HDMI_RX_PDATA5
HDMI_RX_PDATA6
HDMI_RX_PDATA7
HDMI_RX_PDATA8
HDMI_RX_PDATA9
HDMI_RX_PDATA10
HDMI_RX_PDATA11
HDMI_RX_PDATA12
HDMI_RX_PDATA13
HDMI_RX_PDATA14
HDMI_RX_PDATA15
HDMI_RX_PDATA16
HDMI_RX_PDATA17
HDMI_RX_PDATA18
HDMI_RX_PDATA19
HDMI_RX_PDATA20
HDMI_RX_PDATA21
HDMI_RX_PDATA22
HDMI_RX_PDATA23
VC-1025 BOARD (20/26)
E
F
HDMI RECEIVER
XX MARK: NO MOUNT
12345 6 7 8 9
A
D_1.8V
REG_GND
M13
K10
VSS_K10
M12
VSS_M12
VDDE_1830
N13
VSS_N13
VDDE_1830_A2A2VDDE_1830_B3
B3
VSS_A1A1VSS_B2
C8122
0.1u
B2
J3
VDDE_33_J3
K3
VSS_H3
VDDE_33_K3
H3
VSS_K4
K4
C8123
0.1u
H1
PLL2_AVS
PLL2_AVD
H2
PLL1_AVS
M3
PLL1_AVD
C8124
0.1u
N3
D10
E4
H4
VDDI_J4
VDDI_E4
VDDI_H4
VDDI_D10
IC8120
MB8AA4590BGL-G-ERE1
VIDEO SELECTOR
J4
VDDI_J10
J10
VSS_A13
A13
VSS_B12
B12
C11
VSS_C11
VSS_J1J1VSS_J2
FB3300
VDDI
PLL_ADV
VDDE_33
VDDE_18
VDDE_30
REG_GND
DE
VSYNC
HSYNC
PCLK
PDATA23
PDATA22
PDATA21
PDATA20
PDATA19
PDATA18
PDATA17
PDATA16
PDATA15
PDATA14
PDATA13
PDATA12
PDATA11
PDATA10
PDATA9
PDATA8
PDATA7
PDATA6
PDATA5
PDATA4
PDATA3
PDATA2
PDATA1
PDATA0
D4
VSS_D3
VDDE_30_C3C3VDDE_30_D4
D3
F4
VSS_F4
C8121
0.1u
L11
L12
VDDE_18_L11
VDDE_18_L12
VDDE_18_M13
C8120
0.1u
B13
TDO
K11
DE
K12
VSYNC
L13
HSYNC
F13
PCLK
C12
PDATA23
C13
PDATA22
D11
PDATA21
D12
PDATA20
D13
PDATA19
E10
PDATA18
E11
PDATA17
E12
PDATA16
E13
PDATA15
F12
PDATA14
F11
PDATA13
F10
PDATA12
G13
PDATA11
G12
PDATA10
G11
PDATA9
G10
PDATA8
H13
PDATA7
H12
PDATA6
H11
PDATA5
H10
PDATA4
J13
PDATA3
J12
PDATA2
J11
PDATA1
K13
PDATA0
D_1.2V
D_3.3V
B
C
D
D_1.8V
REG_GND
DATEN_CMD
VSYNC_WE
HSYNC_CS
PDATA23
PDATA22
PDATA21
PDATA20
PDATA19
PDATA18
PDATA17
PDATA16
PDATA15
PDATA14
PDATA13
PDATA12
PDATA11
PDATA10
PDATA9
PDATA8
PDATA7
PDATA6
PDATA5
PDATA4
PDATA3
PDATA2
PDATA1
PDATA0
R3303 240
PCLK
J2
VSS_M2M2VSS_M4
M4
SYS_LRCK
N1
VSS_N1
LRCK_OUT_KJR
MCK_INOUT_KJR
BCK_OUT_KJR
SYS_BCK
SYS_MCK
D1
C1
SYS_BCK
SYS_MCK
SYS_LRCK
SDO_KJR
XCS
SYS_ADATA
C2
D2
SYS_ADATA
XCS_IC_8120
C3300 XX
G3
XCS
TRST
XSYS_RST
XRST
B1
XRST
AV_SO
AV_SCK
IC_6800_IC_6000_CLK
SI
SCLK
FXCLK
E1
G4
E3SIF3SOE2
SCLK
FXCLK
MISO_SDA
SO
LRCK
BCK_OUT_IC_8120
LRCK_OUT_IC_8120
MCK_OUT_IC_8120
BCK
MCK
ADATA
F2
G1
G2
BCK
MCK
LRCK
SDO_IC_8120
F1
ADATA
SYS_PDATA0
SYS_PDATA1
SYS_PDATA2
SYS_PDATA3
SYS_PDATA4
SYS_PDATA5
SYS_PDATA6
SYS_PDATA7
SYS_PDATA8
SYS_PDATA9
SYS_PDATA10
SYS_PDATA11
SYS_PDATA12
SYS_PDATA13
SYS_PDATA14
SYS_PDATA15
SYS_PDATA16
SYS_PDATA17
SYS_PDATA18
SYS_PDATA19
SYS_PDATA20
SYS_PDATA21
SYS_PDATA22
SYS_PDATA23
SYS_PCLK
SYS_HSYNC
SYS_VSYNC
SYS_DE
B11
C10
B10
A10
D9
C9
B9
A9
A8
D8
C8
B8
D7
C7
B7
A7
A6
B6
C6
D6
A5
B5
C5
D5
A11
A4
B4
C4
A3
TCK
A12
TDI
SYS_PDATA0
SYS_PDATA1
SYS_PDATA2
SYS_PDATA3
SYS_PDATA4
SYS_PDATA5
SYS_PDATA6
SYS_PDATA7
SYS_PDATA8
SYS_PDATA9
SYS_PDATA10
SYS_PDATA11
SYS_PDATA12
SYS_PDATA13
SYS_PDATA14
SYS_PDATA15
SYS_PDATA16
SYS_PDATA17
SYS_PDATA18
SYS_PDATA19
SYS_PDATA20
SYS_PDATA21
SYS_PDATA22
SYS_PDATA23
SYS_PCLK
SYS_HSYNC
SYS_VSYNC
SYS_DE
LCD_R_0
LCD_R_1
LCD_R_2
LCD_R_3
LCD_R_4
LCD_R_5
LCD_R_6
LCD_R_7
LCD_G_0
LCD_G_1
LCD_G_2
LCD_G_3
LCD_G_4
LCD_G_5
LCD_G_6
LCD_G_7
LCD_B_0
LCD_B_1
LCD_B_2
LCD_B_3
LCD_B_4
LCD_B_5
LCD_B_6
LCD_B_7
IC_8120_CLK
LCD_XHD
LCD_XVD
LCD_DATEN
A
B
C
D
E
F
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
VPDM1F_TESTN2TMS
L1
K1
K2
N12
N4
L4
L3
L2
M10
L10
N11
M11
N9
M9
L9
K9
N10
K7
N8
M8
L8
K8
L6
K6
N7
M7
L7
N5
M5
L5
N6
M6
EXT_PDATA0
EXT_PDATA1
EXT_PDATA2
EXT_PDATA3
EXT_PDATA4
EXT_PDATA5
EXT_PDATA6
EXT_PDATA7
EXT_PDATA8
EXT_PDATA9
EXT_PDATA10
EXT_PDATA11
EXT_PDATA12
EXT_PDATA13
EXT_PDATA14
EXT_PDATA15
EXT_PDATA16
EXT_PDATA17
EXT_PDATA18
EXT_PDATA19
EXT_PDATA20
EXT_PDATA21
EXT_PDATA22
EXT_PDATA23
EXT_PCLK
EXT_HSYNC
EXT_VSYNC
EXT_DEK5EXT_LRCK
EXT_BCK
EXT_MCK
EXT_ADATA
E
EXT_PDATA0
EXT_PDATA1
EXT_PDATA2
EXT_PDATA3
EXT_PDATA4
EXT_PDATA5
EXT_PDATA6
EXT_PDATA7
EXT_PDATA8
EXT_PDATA9
EXT_PDATA10
EXT_PDATA11
EXT_PDATA12
EXT_PDATA13
EXT_PDATA14
EXT_PDATA15
EXT_PDATA16
EXT_PDATA17
EXT_PDATA18
EXT_PDATA19
EXT_PDATA20
EXT_PDATA21
EXT_PDATA22
EXT_PDATA23
EXT_PCLK
EXT_HSYNC
EXT_VSYNC
EXT_DE
EXT_LRCK
EXT_BCK
EXT_MCK
EXT_ADATA
TMS
Note: IC8120 and R3303 are not supplied, but they are included in
VC-1025 COMPLETE BOARD (SERVICE).
HDMI_RX_PDATA9
HDMI_RX_PDATA10
HDMI_RX_PDATA11
CL3305
HDMI_RX_PDATA8
HDMI_RX_PDATA7
HDMI_RX_PDATA6
HDMI_RX_PDATA3
HDMI_RX_PDATA4
HDMI_RX_PDATA5
HDMI_RX_PDATA1
HDMI_RX_PDATA2
HDMI_RX_PDATA0
VC-1025 BOARD (21/26)
F
D_3.3V
HDMI_RX_I2S
HDMI_RX_MCLK
HDMI_RX_SCLK
HDMI_RX_LRCLK
CL3301
CL3302
HDMI_RX_DE
HDMI_RX_VSYNC
CL3303
HDMI_RX_VCK
HDMI_RX_HSYNC
HDMI_RX_PDATA23
HDMI_RX_PDATA20
HDMI_RX_PDATA21
HDMI_RX_PDATA22
HDMI_RX_PDATA17
HDMI_RX_PDATA18
HDMI_RX_PDATA19
CL3304
HDMI_RX_PDATA14
HDMI_RX_PDATA16
HDMI_RX_PDATA15
HDMI_RX_PDATA13
HDMI_RX_PDATA12
Projector Model
VIDEO SELECTOR
XX MARK: NO MOUNT
6-23
12345 6 7 8 9
A
Projector Model
Non Projector Model
RB3357 220
12
D1-/LCD_G_5
D1+/LCD_G_6
B
PDATA6
PCLK
HSYNC_CS
VSYNC_WE
DATEN_CMD
PDATA23
PDATA22
PDATA21
PDATA20
C
D
E
PDATA19
PDATA18
PDATA17
PDATA16
PDATA15
PDATA14
PDATA13
PDATA12
PDATA11
PDATA10
PDATA9
PDATA8
PDATA7
PDATA6
PDATA5
PDATA4
PDATA3
PDATA2
PDATA1
PDATA0
CL3351
CL3352
CL3350
PDATA2
PDATA1
VSYNC_WE
PDATA5
PDATA4
PDATA3
PDATA0
DATEN_CMD
HSYNC_CS
R3352 XX
R3353
XX
CM3350
PD21
PD22
PD25
R8002
R8001
PD18
PD19
PD20
PD23
PD24
PD26
SCRM VDD18
CM3353
F3
PD21
F4
PD22
F5
XX
XX
PD25
F6
DFSET
F7
VDD18_F7
G1
PD18
G2
PD19
G3
PD20
G4
PD23
G5
PD24
G6
PD26
G7
SCRM
PDATA7
PD16
PD17
F2
A1
PD10
PDATA13
DFD1-
DFD1+
E6
E7
F1
PD16
PD17
PD10A2PD8A3PD6A4PD5A5PD2
PD8
PDATA15
DFD1+
PD6
PDATA22
DFD1-
LCD SERIAL INTERFACE
PD5
PDATA21
E5
PD2
PDATA8
PD15
E2
E3
E4
GND_E5
GND_E3
VDDIO_E4
IC8000
BU79T272-E2
TRANSMITTER
PD1A7PD0B2PD9B3PD7B4PD4B5PD3B6XRST
A6
PD1
PD0
PD9
PDATA18
PDATA17
PDATA16
PDATA14
PD15
CLK+/LCD_G_4
PDATA9
PD14
DFCK+
D7
E1
PD14
PD7
PD4
PDATA23
PDATA20
CLK-/LCD_G_3
DFCK-
D6
DFCK-
DFCK+
PD3
PDATA19
D5
XRST
TEST
VDDIO_D4
PCLK
DFD0+
DFD0-
GND_C5
VDDIO_C4
GND_C3
VDD18_B7
POL
PD13
PD11
PD12
D4
D3
D2
D1
C7
C6
C5
C4
C3
C2
C1
B7
D0+/LCD_G_2
DFD0+
D0-/LCD_G_1
DFD0-
VDDIO
PD13
PCLK
PD11
PD12
GND
PDATA10
PDATA12
PDATA11
PCLK
VDDIO
VDD18
D0-/LCD_G_1
D0+/LCD_G_2
CLK-/LCD_G_3
CLK+/LCD_G_4
D1-/LCD_G_5
D1+/LCD_G_6
R3354
XX
CM3351
C3350
XX
C3351
0.1u
CM3352
R3355
XX
A_1.8V
REG_GND
XBB_RST
34
56
78
RB3358 220
12
34
56
78
RB3359 220
12
34
56
78
RB3360 220
12
34
56
78
FB3350
FB3351
FB3352
FB3353
FB3354
FB3355
FB3356
FB3357
FB3358
FB3359
FB3360
FB3361
FB3362
FB3363
FB3364
FB3365
N.C/LCD_G_0
N.C/LCD_B_0
N.C/LCD_B_1
D0-/LCD_G_1
D0+/LCD_G_2
N.C/LCD_B_2
N.C/LCD_B_3
CLK-/LCD_G_3
CLK+/LCD_G_4
N.C/LCD_B_4
N.C/LCD_B_5
D1-/LCD_G_5
D1+/LCD_G_6
N.C/LCD_B_6
N.C/LCD_B_7
N.C/LCD_G_7
LCD_B_0
LCD_B_1
LCD_B_2
LCD_B_3
LCD_B_4
LCD_B_5
LCD_B_6
LCD_B_7
LCD_G_0
LCD_G_1
LCD_G_2
LCD_G_3
LCD_G_4
LCD_G_5
LCD_G_6
LCD_G_7
A
B
C
D
E
F
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
Note: IC8000 is not supplied, but this is included in
VC-1025 COMPLETE BOARD (SERVICE).
6-24
VC-1025 BOARD (22/26)
LCD SERIAL INTERFACE TRANSMITTER
XX MARK: NO MOUNT
F
1 2 3 4 5 6 7 8 9
A
B
C
D
E
F
A
B
C
D
E
F
08
C3501
XX
10uH
D_1.8V
D_3.3V
L3501
AUDIO_GND
REG_GND
C3502
SPORTS_PACK_L
SPORTS_PACK_R
AUDIO_GND
EXT_MIC_R
EXT_MIC_L
XX
C3503
XX
C3506
XX
R3501
C3505
2.2k
INT_MIC_F
INT_MIC_R
INT_MIC_L
AUDIO_GND
SHOE_MIC_FR
SHOE_MIC_FL
0.1u
AUDIO_L_I/O
AUDIO_R_I/O
DVDD
C3507
10u
HP_GND
AVDD_LDO
CM8501
MIC_GND
TVDD
REG_GND
SVDD
AUX_IN_L
AUX_IN_R
C3508
XX
MPWRB
LN3503
EXT_MIC_R
EXT_MIC_L
MPWRA
INT_MIC_RR
LN3501
INT_MIC_F_RL
INT_MIC_R
INT_MIC_L
C3509
0.001u
SHOE_MIC_R
SHOE_MIC_L
AUDIO_L_I/O
AUDIO_R_I/O
LINE_L_OUT
LINE_R_OUT
R8500 6.8k
R8501 6.8k
R8503 220
R8504 220
C8500
1u
C8505
1u
C8506
1u
C8501
1u
R8502
R8505
2.2k
2.2k
C8507
0.1u
C8508
0.1u
C8503
0.1u
C8504
0.1u
R8506 2.2k
R8507 2.2k
IC8501
MM3411A28URE
2.8V REG
1
CE
2
GND
C8509
0.001u
4
VDD
3
VOUT
C8517
1u
CM8500
10u
C8519
0.1u
C8521
C8520 1u
A1
C2
C1
D1
E6
C5
D5
C6
A3
A2
AUXINL
AUXINR
B4
MICIN1R
A4
MICIN1L
A5
C8512
0.001u
C8510
C8513
0.001u
0.001u
C8511
C8514
0.001u
0.001u
C8515
1u
C8516
1u
MICIN3R
B5
MICIN3L
C4
MICIN0R
D4
MICIN0L
A6
MICIN2R
B6
MICIN2L
D6
MPWRA
E5
VSS1
E4
BEEPIN
PDNB3SVDDG4SPP/LOUTBG5SPN/ROUTBF4VSS2F5LOUTAF6ROUTAG6CPF3CNG3PVEE
C8518
1u
MRF
AVDD
MPWRB
AK4695ECB-L
AUDIO PROCESSOR
CSN
CCLK
GPO1
VCOM
CDTIO
E3
BCKI
B1
MCKI
D3
LRCK
E1
SDTO2
IC8500
C8522
2.2u
E2
SDTO1
D2
SDTI
C3
TVDD
C8526 0.1u
B2
VSS3
F2
DVDD
F1
HPL
G1
HPR
G2
C8523
2.2u
C8524
0.0047u
C8527
0.1u
C8525
470p
R8508 220k
AVDD_OUT
BEEP_PWM
AU_2.8V_IC_8500
CDTIO
CCLK
CSN
GPO
LN3502
BCK
MCK
LRCK
SDTO2
SDTO1
SDTI
HP_L
HP_R
PDN
SP-_R
SP+_L
AV_SO
AV_SCK
XCS_IC_8500
SDO_KJR/IC_8120
MCK_OUT_KJR/IC_8120
BCK_OUT_KJR/IC_8120
LRCK_OUT_KJR/IC_8120
C3510
0.1u
XSYS_RST_IC_8630
REG_GND
BEEP_PWM_P
SP-
SP+
RB3502
0.05
12
34
56
78
RB3503
0.05
R3507
R3508
HP_L_OUT
HP_R_OUT
Projector Model
SDO_IC_8120
MCK_OUT_IC_8120
BCK_OUT_IC_8120
LRCK_OUT_IC_8120
LRCK_OUT_KJR
BCK_OUT_KJR
MCK_INOUT_KJR
SDO_KJR
SDO_KJR/IC_8120
MCK_OUT_KJR/IC_8120
BCK_OUT_KJR/IC_8120
LRCK_OUT_KJR/IC_8120
SDI1_MAG
SDI0_SPDIF_IN_MAG
Non Projector Model
12
34
56
78
XX
XX
SPORTS_PACK_L
SPORTS_PACK_R
REG_GND
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
R3503
XX
R3504
XX
RB3501
XX
123456
78
Note: C3509, C8509, C8510, C8511, C8512, C8513, C8514, C8524 and IC8501
are not supplied, but they are included in VC-1025 COMPLETE BOARD (SERVICE).
6-25
VC-1025 BOARD (23/26)
AUDIO PROCESSOR
XX MARK: NO MOUNT
12345 6 7 8 9
A
R3801
R3802
XX
C3801
XX
C3802
XX
XX
D_1.8V
REG_GND
SDI0_SPDIF_IN_KJR
SDO_KJR/IC_8120
BCK_OUT_KJR/IC_8120
LRCK_OUT_KJR/IC_8120
MCK_OUT_KJR/IC_8120
XCS_IC_8500
D_3.3V
AV_SO
AV_SCK
B
C
LN3801
LN3802
DVDD
REG_GND
IOVDD/SPVDD
DAIN
ADOUT
BCLK
LRCK
MCLK
SDATA
SCLK
CSB
V_OUT
V_IN
C8426
XX
E5
C4
F4
G1
G2
G3
E1
E2
F3
F1
F2
D5
N.C.
SDATA
G4
SCLK
G5
CSB
F5
VVDD
C2
V_OUT
C1
V_IN
D2
VVSS
D1
PDB
D3
DMCLK
G6
DMDAT
F6
TEST
E3
N.C.
C5
MCLK
DAIN
BCLK
LRCK
IOVDD
ADOUT
IC8420
XX
N.C.
DVSS
DVDD
MCLK_O
BEEP_IN
N.C.
E4
SP_+
A1
SPVDD
B2
SPVSS
A2
SP_-
B3
EVROUT
MUTE_L
LINE_L
LINE_R
MUTE_R
SPIN
N.C.
C8427
A3
XX
A4
A5
B4
B5
A6
D4
C8428
XX
BEEP_IN
MUTE_L
MUTE_R
SP_+
SP_-
LINE_L
LINE_R
C3803 XX
C3804 XX
R3807
R3808
XX
XX
R3809
XX
BEEP_PWM_P
SP+
SP-
AUDIO_L_I/O
AUDIO_R_I/O
A
B
C
REG_GND
CM8421
MIC_GND
D
MIC_GND
C3807
XX
C3806
XX
LN3803
MIC_REG_R
EX_MIC_R
EX_MIC_L
E
MIC_NF_RE7EX_MIC_RF7INT_MIC_RE6MIC_REG_RD6MIC_REG_LC7INT_MIC_LC6EX_MIC_LD7MIC_NF_LB6BIASA7AVSSB7AVDDC3N.C.
G7
C8420
XX
R8420
XX
R3810
R3811
XX
XX
INT_MIC_L
INT_MIC_R
AU_2.8V_IC_8500
D_3.3V
D
MIC_GND
INT_MIC_L
INT_MIC_R
AVDD
R3803
R3804
XX
R3805
XX
XX
R3806
XX
C3805
XX
C8423 XX
C8421 XX
C8424
C8425
XX
R8421
XX
R8422
XX
XX
C8422
XX
E
F
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
6-26

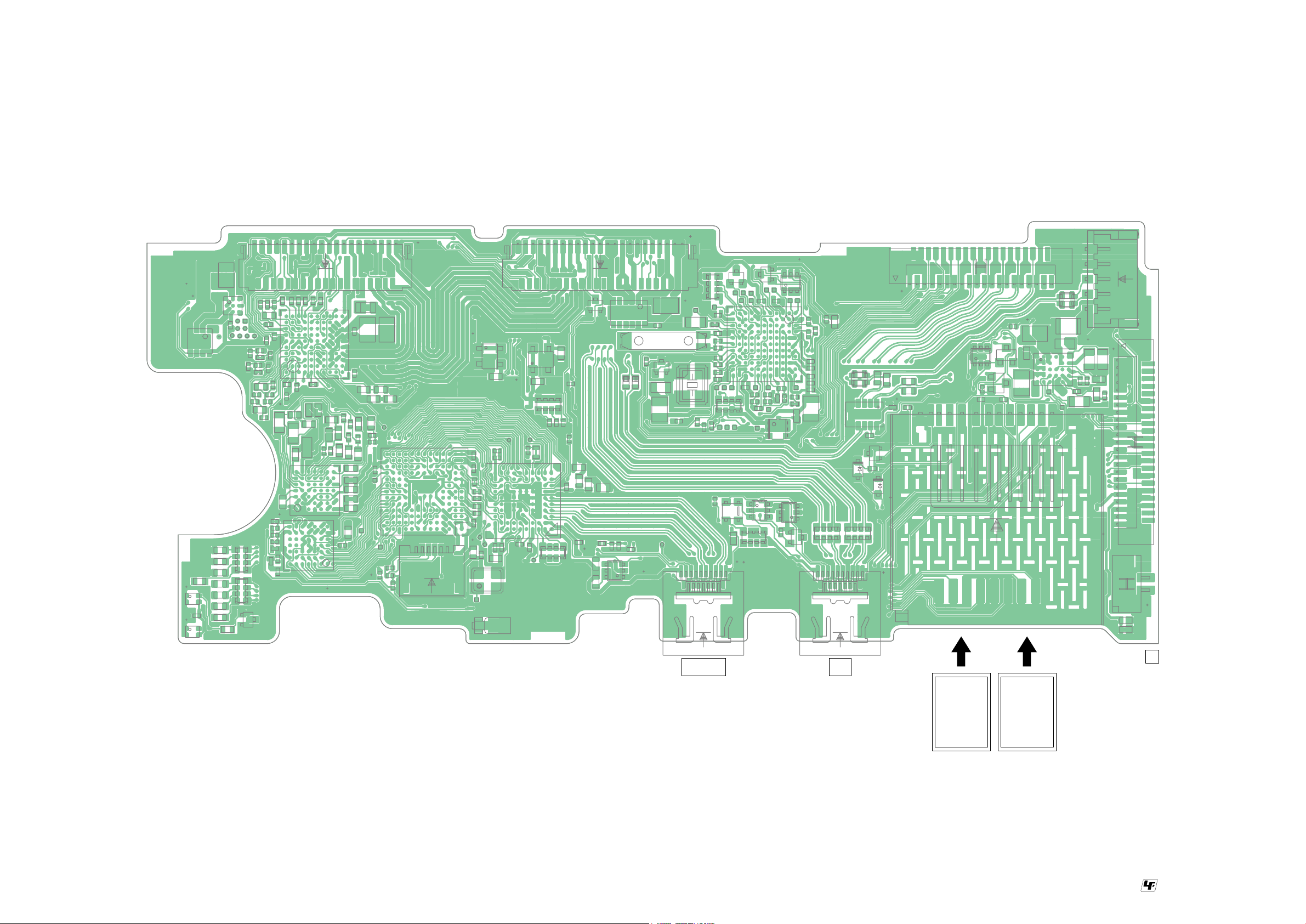

VC-1025 BOARD (24/26)
NOT USED
XX MARK: NO MOUNT
F
12345 6 7 8 9
FP-2191
FLEXIBLE
LND001
(PAGE 6-38)
CN4003 45P
AUDIO_GND
EXT_MIC_R
AUDIO_GND
EXT_MIC_L
AUDIO_GND
SHOE_MIC_FL
AUDIO_GND
SHOE_MIC_FR
AUDIO_GND
HP_L_OUT
HP_R_OUT
REG_GND
AUDIO_L_I/O
AUDIO_R_I/O
REG_GND
REG_GND
EXT_STROBE_ON
EXT_STRB_SO
EXT_STRB_SI
EXT_STRB_SCK
SHOE_GND
SHOE_GND
SHOE_UNREG
SHOE_UNREG
IHS_ID2
IHS_ID1
IHS_ID3
REG_GND
REG_GND
ST_VCC_ON
EXT_STRB_CONT
D_3.3V
REG_GND
MIC_JACK_IN
HP_JACK_IN
REG_GND
BATT_LI_3V
GY_GND
A_3.3V/2.8V
CRESET_P
GY_GND
PITCH_AD
GY_GND
YAW_AD
GY_GND
R4031
R4032 XX
AUDIO_GND
EXT_MIC_R
EXT_MIC_L
SHOE_MIC_FL
SHOE_MIC_FR
HP_L_OUT
HP_R_OUT
AUDIO_L_I/O
AUDIO_R_I/O
EXT_STRB_ON
EXT_STRB_SO
EXT_STRB_SI
EXT_STRB_SCK
SHOE_GND
SHOE_UNREG
IHS_ID2
IHS_ID1
IHS_ID3
ST_VCC_ON
EXT_STRB_CONT
D_3.3V
MIC_JACK_IN
HP_JACK_IN
REG_GND
BATT_LI_3V
XX
CRESET_P
PITCH_AD
YAW_AD
MR_A_2.8V_GY
A_3.3V
A
B
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
C
R4018
220
D_3.3V
XMS_ACC_LED
D4010
CL-271HR-C-TS
(ACCESS)
1
2
34
CN4002 XX
FOCUS_XA
1
FOCUS_A
2
FOCUS_XB
3
FOCUS_B
4
ZOOM_A
5
ZOOM_XA
6
ZOOM_B
7
ZOOM_XB
8
NC_GND
9
Yaw(+)
10
Yaw(-)
11
Pitch(+)
12
Pitch(-)
13
GND
14
TEMP_OUT
15
PITCH_HALL(+)
16
PITCH_BIAS(-)
17
PITCH_HALL(-)
18
PITCH_BIAS(+)
19
YAW_HALL(+)
20
YAW_BIAS(-)
21
YAW_HALL(-)
22
YAW_BIAS(+)
23
NC_GND
24
IRIS_DRIVE(+)
25
IRIS_DRIVE(-)
26
NC_GND
27
IRIS_BIAS(+)
28
IRIS_HALL(+)
29
IRIS_BIAS(-)
30
IRIS_HALL(-)
31
GND
32
L_TEMP_OUT
33
Z_PI_A
34
Z_PI_C
35
Z_PI_K/E
36
F_PI_A
37
F_PI_C
38
F_PI_K/E
39
XX
VD4016
VD4015
A_3.3V
39
D_1.2V
38
AVDD18_SUBL
37
REG_GND
36
REG_GND
35
SUBL_DINP4
34
SUBL_DINN4
33
REG_GND
32
REG_GND
31
SUBL_DINP5
30
SUBL_DINN5
29
REG_GND
28
REG_GND
27
SUBL_CLKINP
26
SUBL_CLKINN
25
REG_GND
24
REG_GND
FP-2189
FLEXIBLE
LND002
(PAGE 6-29)
SHUTTER_XA
SHUTTER_A
XX
REG_GND
SUBL_DINP6
SUBL_DINN6
SUBL_DINP7
SUBL_DINN7
IC_6000_SENSSI
IC_6000_SENSSO
IC_6000_SENSSCK
IC_6000_SENSXCS
XFLASH_RST
CLK_CMOS_IN_IMG
CN4004
REG_GND
REG_GND
REG_GND
REG_GND
SENS_VD
SENS_HD
REG_GND
REG_GND
REG_GND
REG_GND
REG_GND
REG_GND
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
39P
A_3.3V
D_1.2V
AVDD18_SUBL
SENS_VD
SENS_HD
IC_6000_SENSSI
IC_6000_SENSSO
IC_6000_SENSSCK
IC_6000_SENSXCS
XFLASH_RST
CLK_CMOS_IN_IMG
REG_GND
SUBL_DINP4
SUBL_DINN4
SUBL_DINP5
SUBL_DINN5
SUBL_CLKINP
SUBL_CLKINN
SUBL_DINP6
SUBL_DINN6
SUBL_DINP7
SUBL_DINN7
45P
CN4001
YAW+
1
YAW+
2
YAW+
3
PITCH-
4
PITCH-
5
PITCH-
6
PITCH_BIAS-
7
YAW_BIAS-
8
YAW_BIAS+
9
PITCH_HALL-
10
YAW_HALL-
11
YAW_HALL+
12
PITCH_HALL+
13
PITCH_BIAS+
14
N.C.
15
PITCH+
16
PITCH+
17
PITCH+
18
YAW-
19
YAW-
20
YAW-
21
N.C.
22
IRIS_BIAS+
23
IRIS_BIAS-
24
F_PI_C
25
Z_PI_K/E
26
Z_PI_A
27
REG_GND
28
IRIS_DRIVE-
29
ZOOM_XB
30
ZOOM_XA
31
FOCUS_B
32
FOCUS_A
33
FOCUS_XA
34
FOCUS_XB
35
ZOOM_A
36
ZOOM_B
37
IRIS_DRIVE+
38
REG_GND(NC)
39
IRIS_HALL+
40
IRIS_HALL-
41
L_TEMP_OUT
42
Z_PI_C
43
F_PI_A
44
F_PI_K/E
45
47
46
FP-2126
FLEXIBLE
LND002
(PAGE 6-40)
LED DRIVE
YAW+_BOSS
PITCH-_BOSS
PITCH_BIAS-
YAW_BIAS-
PITCH_HALL-
YAW_HALL-
YAW_HALL+
PITCH_HALL+
PITCH+_BOSS
YAW-_BOSS
MR_A_2.8V
I_BIAS-
FC_SENSE
Q4010
I_DRIVE-
ZOOM_XB_BOSS
ZOOM_XA_BOSS
FOCUS_B
FOCUS_A
FOCUS_XA
FOCUS_XB
ZOOM_A_BOSS
ZOOM_B_BOSS
I_DRIVE+
I_HALL+
I_HALL-
LENZ_TEMP_AD
ZM_SENSE1A
REG_GND
A
B
A_3.3V
XZM_RST_LED
D_3.3V
RB4001
47k
123456
78
RN2110MFV(TL3S
TZ_HALL_TEMP
LENZ_TEMP_AD
C
Note: J901, SP901, CONTROL SWITCH BLOCK (SK45310) and
LENS BARRIER UNIT are not included in VC-1025 COMPLETE BOARD (SERVICE).
FOCUS_XA
FOCUS_XB
ZOOM_XA
ZOOM_XB
TZ_HALL_TEMP
PITCH_HALL+
PITCH_BIAS-
PITCH_HALL-
MR_A_2.8V
YAW_HALL+
YAW_BIAS-
YAW_HALL-
LENZ_TEMP_AD
ZM_SENSE1A
FC_SENSE
REG_GND
LENS
BARRIER
UNIT
FOCUS_A
FOCUS_B
ZOOM_A
ZOOM_B
I_DRIVE+
I_DRIVE-
PITCH+
I_HALL+
I_HALL-
PITCH-
I_BIAS-
YAW+
YAW-
CN4008 2P
SHUTTER_XA
SHUTTER_A
ET4011
* R4025
2.7k
: Projector Model
10k
: Non Projector Model
XPOWER_TACT_SW
REG_GND
KEY_AD2
A_3.3V
R4034
10k
R4025
*
R4030 6.8K
Projector Model
78
REG_GND
6
XPOWER_TACT_SW
5
PLAY_SW
4
PJ_SW/MECAN
3
MECAN
2
REG_GND
1
CN4009 6P
J901
D
DC JACK
BATTERY
TERMINAL
DC IN
ACV_GND
ACV_UNREG_CN
BATT/XEXT_CN
BATT_UNREG_CN
BATT_SIG_CN
BATT_GND
6PCN4007
1
2
3
4
5
6
78
C4014
XX
R4026 XX
R4020
1k
VD4021
XX
R4019
220
VD4018
REG_GND
ACV_UNREG
BATT/XEXT
BATT_UNREG
BATT_IB
REG_GND
REG_GND
KEY_AD1
ZOOM_VR_AD
R4021
VD4019 XX
VD4017 XX
VD4020 XX
SS
EVER_3V
XCHARGE_LED
A_3.3V
XPOWER_LED
RB4000
1M
123456
78
D_3.3V
D_3.3V
R4033
10k
1k
R4024
XX
CN4005 12P
REG_GND
1
START_STOP
2
12
CHARGE_LED_VDD
3
34
56
XCHARGE_LED
4
78
RB4002
75
XPOWER_LED
5
D_3.3V
6
R4029
7
NC
2.7k
PHOTO_FREEZE
8
KEY_AD1_
9
REG_GND
10
ZOOM_VR_AD
11
D_3.3V
12
13 14
CONTROL
SWITCH
BLOCK
(PS45300)
LND4601
(PAGE 6-52)
Non Projector Model
CONTROL
SWITCH
BLOCK
(SK45300)
CONTROL
SWITCH
BLOCK
(SK45310)
LND001
(PAGE 6-52)
Projector Model
FP-2060
FLEXIBLE
LND001
(PAGE 6-29)
D_3.3V
D_3.3V
MMC_PWR_ON
MMC_VCC
REG_GND
MMC_CMD
REG_GND
MMC_CLK
REG_GND
MMC_DAT_3
MMC_DAT_4
MMC_DAT_0
MMC_DAT_5
MMC_DAT_1
MMC_DAT_6
MMC_DAT_2
MMC_DAT_7
REG_GND
CN4006 18P
1920
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
D_3.3V
MMC_PWR_ON
MMC_VCC
MMC_CMD
MMC_CLK
MMC_DAT_3
MMC_DAT_4
MMC_DAT_0
MMC_DAT_5
MMC_DAT_1
MMC_DAT_6
MMC_DAT_2
MMC_DAT_7
REG_GND
REG_GND
XX
E
Note: C4012, ET4012 and ET4013 are not supplied,
but they are included in VC-1025 COMPLETE BOARD (SERVICE).
Non Projector Model
SE4011
PANEL OPEN/CLOSE
DETECT
SP+
78
MIC_GND
6
INT_MIC_R_IN
MICROPHONE
UNIT
LND001
F
(PAGE 6-20)
MIC_GND
INT_MIC_F_IN
MIC_GND
INT_MIC_L_IN
5
4
3
2
1
6PCN4010
REG_GND
AUDIO_GND
INT_MIC_R
INT_MIC_F
INT_MIC_L
SP-
REG_GND
CN4011 2P
SP+
1
SP-
2
34
SP901
(SPEAKER)
1
PANEL OPEN/CLOSE
1
NC
GND2VDD
Projector Model
NC
GND2VDD
SE4010
DETECT
4
OUT
3
4
OUT
3
EVER_3V
R4016
1M
DSC300100L
C4012
0.1u
INVERTER
EVER_3V
XPANEL_POWER_ON
Q4013
REG_GND
VC-1025 BOARD (25/26)
CONNECTORS
XX MARK: NO MOUNT
ET4013ET4012
D
E
F
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
6-27
12345 6 7 8 9
A
HDMI_5V
HDMI_SCL
HDMI_SDA
HDMI_CEC
REG_GND
R4910
R4909
CM4900
D_3.1V
HPD
HDMI_DATA2+
HDMI_DATA2-
HDMI_DATA1+
HDMI_DATA1-
HDMI_DATA0+
HDMI_DATA0-
HDMI_CLOCK+
HDMI_CLOCK-
HDMI_5V
HDMI_SCL
HDMI_SDA
HDMI_CEC
REG_GND
XX
XX
AUDIO_GND
REG_GND
NFC_SEL
XNFC_RFDET
NFC_IRQ
NFC_SW
D_1.8V
WLAN_VOUT_3.3V
DD_ON2
WLAN_SD_D0
WLAN_SD_D1
WLAN_SD_D2
WLAN_SD_D3
XWLAN_RST
WLAN_SD_CMD
NFC_DATA
NFC_SCK
WLAN_SD_CLK
R9000
27k
S
25 26
REG_GND
24
NFC_SEL
23
XNFC_RFDET
22
NFC_IRQ
21
NFC_SW
20
VCC_WLAN_L
19
EVER_3V
18
VCC_WLAN_H
17
VCC_WLAN_H_OUT
16
WLAN_VL_ON
15
REG_GND
14
WLAN_SD_D0
13
WLAN_SD_D1
12
WLAN_SD_D2
11
WLAN_SD_D3
10
REG_GND
9
XWLAN_RST
8
WLAN_SD_CMD
7
REG_GND
6
NFC_DATA
5
NFC_SCK
4
REG_GND
3
WLAN_SD_CLK
2
REG_GND
1
CN4902 24P
2
SS
1
DD
4
GG
5
Q9001
SSM3K15AMFV,L3SF
LEVEL SHIFT
L9000
12
34
56
78
L9001
12
34
56
78
6
3
Q9000
LM6K1FS8T2R
LEVEL SHIFT
FP-2200
FLEXIBLE
LND001
(PAGE 6-38)
Q9002
RN4984FE
LEVEL SHIFT
456
E
BB
CCE
123
123456
78
RB9000
1k
12
34
D9000
RB480Y-40T2R
A_3.3V
R4901
22k0: Non Projector Model
: Projector Model
GENERAL_AD
R4905
100k
Non Projector Model
REG_GND
CN9000 19P
HotPlugDetect
1
Utility
2
Data2+
3
Data2Shield
4
Data2-
5
Data1+
6
Data1Shield
7
Data1-
8
Data0+
9
Data0Shield
10
Data0-
11
Clock+
12
ClockShield
13
Clock-
14
CEC
15
CEC_GND
16
SCL
17
SDA
18
+5VPower
19
20 21 22 23
HDMI OUT
VC-1025 BOARD (26/26)
R4908 XX
R4903 XX
CM4901
D_3.3V
HDMI_TX2SOP
HDMI_TX2SON
HDMI_TX1SOP
HDMI_TX1SON
HDMI_TX0SOP
HDMI_TX0SON
HDMI_TXCP
HDMI_TXCN
D_3.3V
GPS_UART_TXD
GPS_UART_RXD
B
C
D
E
GPS_UART_RTS
GPS_UART_CTS
PJ_RSTZ
I2C_SCK
I2C_SDA
REG_GND
LCD_CLK
REG_GND
LCD_XHD
LCD_XVD
C4015
XX
KEY_AD2
TP_SEL1
XGPS_RST
PJ_TEMP_AD
A_3.3V
C4016
XX
Projector Model
RB4011
12
34
56
78
RB4010
Non Projector Model
100
R4906
R4907
C4018
C4017
XX
XX
AV_SCK
XBB_RST
A_1.8V
AV_SO
XCS_LCD
TP_X
TP_Y
BL_L
LDO_3.3V_OUT
MT_5.0V
PANEL_NOR/REV
REG_GND
BL_H
D_3.3V
SYSTEM_AD
BATT_LI_3V
C4019 XX
78
56
34
12
0
XX
0
R4900 XX
R4904
47k
PAD_PROJ_ON
N.C/LCD_G_0
N.C/LCD_B_0
N.C/LCD_B_1
D0-/LCD_G_1
D0+/LCD_G_2
N.C/LCD_B_2
N.C/LCD_B_3
CLK-/LCD_G_3
CLK+/LCD_G_4
N.C/LCD_B_4
N.C/LCD_B_5
D1-/LCD_G_5
D1+/LCD_G_6
N.C/LCD_B_6
N.C/LCD_B_7
N.C/LCD_G_7
CN4901 61P
GPS_UART_TXD
1
GPS_UART_RXD
2
REG_GND
3
GPS_UART_RTS
4
GPS_UART_CTS
5
REG_GND
6
AV_SCK
7
XBB_RST
8
A_1.8V
9
A_1.8V
10
AV_SO
11
XCS_LCD
12
TP_X
13
TP_Y
14
BL_L
15
BL_H
16
REG_GND
17
I2C_SCK/LCD_CLK
18
REG_GND
19
PJ_RSTZ/LCD_XHD
20
I2C_SDA/LCD_XVD
21
REG_GND
22
D_3.3V
23
LDO_OUT_3.3V
24
REG_GND
25
MT_5.0V
26
MT_5.0V
27
MT_5.0V
28
SYSTEM_AD
29
PANEL_NOR/REV
30
BATT_LI_3V
31
TP_SEL1/KEY_AD2
32
XGPS_RST
33
PJ_TEMP_AD
34
REG_GND
35
PAD_PROJ_ON
36
REG_GND
37
N.C/LCD_G_0
38
N.C/LCD_B_0
39
REG_GND
40
N.C/LCD_B_1
41
D0-/LCD_G_1
42
REG_GND
43
D0+/LCD_G_2
44
N.C/LCD_B_2
45
REG_GND
46
N.C/LCD_B_3
47
CLK-/LCD_G_3
48
REG_GND
49
CLK+/LCD_G_4
50
N.C/LCD_B_4
51
REG_GND
52
N.C/LCD_B_5
53
D1-/LCD_G_5
54
REG_GND
55
D1+/LCD_G_6
56
N.C/LCD_B_6
57
REG_GND
58
N.C/LCD_B_7
59
N.C/LCD_G_7
60
REG_GND
61
62
63
Non Projector Model
FP-2192
FLEXIBLE
LND001
(PAGE 6-50)
Projector Model
FP-2193
FLEXIBLE
LND001
(PAGE 6-51)
HDMI_HPD
MT_5.0V EVER_3V
LDO_3.3V_OUT
F
A
B
C
D
E
F
CONNECTORS
XX MARK: NO MOUNT
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
6-28
12 3 4
12 3 4
A
LND00239P
A3.3V
39
D1.2V
REG_GND
REG_GND
REG_GND
REG_GND
REG_GND
REG_GND
REG_GND
REG_GND
REG_GND
REG_GND
REG_GND
REG_GND
SENS_VD
SENS_HD
REG_GND
REG_GND
REG_GND
REG_GND
REG_GND
REG_GND
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
AVDD18_SUBL
B
C
VC-1025
(25/26)
CN4004
(PAGE 6-27)
D
SUBL_DINP4
SUBL_DINN4
SUBL_DINP5
SUBL_DINN5
SUBL_CLKINP
SUBL_CLKINN
SUBL_DINP6
SUBL_DINN6
SUBL_DINP7
SUBL_DINN7
IC_6000_SENSSI
IC_6000_SENSSO
IC_6000_SENSSCK
IC_6000_SENSXCS
XFLASH_RST
CLK_CMOS_IN_IMG
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
CMOS_A_3.3V
CAM_1.2V
I/F_1.8V
REG_GND
REG_GND
DODP
DODM
REG_GND
REG_GND
DOCP
DOCM
REG_GND
REG_GND
DCKP
DCKM
REG_GND
REG_GND
DOBP
DOBM
REG_GND
REG_GND
DOAP
DOAM
REG_GND
REG_GND
XVS
XHS
SDO
SDI
REG_GND
SCK
XCE
REG_GND
XCLR
REG_GND
REG_GND
INCK
REG_GND
REG_GND
LND00139P
CM-1004
CN6702
(PAGE 6-2)
A
B
C
D
A
B
VC-1025
(25/26)
CN4006
(PAGE 6-27)
C
1MEDIA_3.3V
2MEDIA_3.3V
3MMC_PWR_ON1
4MMC_VCC
5REG_GND
6MMC_CMD
7REG_GND
8MMC_CLK
9REG_GND
10MMC_DAT_3
11MMC_DAT_4
12MMC_DAT_0
13MMC_DAT_5
14MMC_DAT_1
15MMC_DAT_6
16MMC_DAT_2
17MMC_DAT_7
18REG_GND
LND00118P
18 MEDIA_3.3V
17 MEDIA_3.3V
16 MMC_PWR_ON1
15 TE1_VCC
14 REG_GND
13 TE1_CMD
12 REG_GND
11 TE1_CLK
10 REG_GND
9 TE1_DAT_3
8 TE1_DAT_4
7 TE1_DAT_0
6 TE1_DAT_5
5 TE1_DAT_1
4 TE1_DAT_6
3 TE1_DAT_2
2 TE1_DAT_7
1 REG_GND
LND002 18P
MM-102
(1/2)
CN8101
(PAGE 6-30)
D
A
B
C
D
E
FP-2189 FLEXIBLE BOARD
F
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
CM-VC CONNECTION
(PRINTED WIRING BOARD is omitted.)
E
E
E
FP-2060 FLEXIBLE BOARD
F
F
08
6-29
EXCEPT CX530E
VC-MM CONNECTION
(PRINTED WIRING BOARD is omitted.)
F
12345 6 7 8 9
A
B
N2N3N10N12N13N14P1P2P3P10P12P13P14R1R2R3R5R12R13R14T1T2T3T5T12T13T14U1U2U3U5U6U7U10U12U13U14V1V2V3V12V13V14
W1W2W3W7W8W9W10W11W12W13W14Y1Y3Y6Y7Y8Y9Y10Y11Y12Y13Y14AA1AA2AA7AA8AA9AA10AA11AA12AA13AA14AE1AE14AG2AG13AH4AH6AH9AH11L4
IC8701
MM3404A29URE
2.9V REG
3
4
VDD
C8701
1u
MEDIA_3.3V
18
MEDIA_3.3V
17
MMC_PWR_ON1
16
TE1_VCC
15
REG_GND
C
FP-2060
FLEXIBLE
LND002
(PAGE 6-29)
14
TE1_CMD
13
REG_GND
12
TE1_CLK
11
REG_GND
10
TE1_DAT_3
9
TE1_DAT_4
8
TE1_DAT_0
7
TE1_DAT_5
6
TE1_DAT_1
5
TE1_DAT_6
4
TE1_DAT_2
3
TE1_DAT_7
2
REG_GND
1
CN8101
18P
1
CE2GND VOUT
2
4
6
8
R8101
10k
R8102 XX
FB8708
RB8101
R8103
82
FB8707
2
1
4
3
R8104
6
5
8
7
FB8706
R8105
FB8705
R8106
RB8102
82
FB8704
1
R8107
3
5
FB8703
7
R8108
FB8702
R8109
FB8701
R8110
TE1_VCC
REG_GND
TE1_CMD
TE1_CLK
XX
0
TE1_DAT_3
XX
0
TE1_DAT_4
XX
0
TE1_DAT_0
XX
0
TE1_DAT_5
XX
0
TE1_DAT_1
XX
0
TE1_DAT_6
XX
0
TE1_DAT_2
XX
0
TE1_DAT_7
REG_GND
CX535/PJ540/PJ540E:
CX610E/PJ610E (Type A):
CX610E/PJ610E (Type B):
CX610E/PJ610E (Type C):
INTERNAL MEMORY
IC8101
PJ530:
KLMBG4WE4A-A001T01
SDIN7DP2-4G-1029T
KLMBG4WE4A-A001T01
THGBM7G8T4JBAIRH10
KLMCG8WE4A-A001T01
H10H11 H12H13 H14 J1 J7 J8 J9 J10 J11 J12 J13 J14 K1 K3 K5 K7 K8 K9 K10 K11 K12 K13 K14 L1 L2 L3 L12 L13 L14 M1 M2 M3 M5 M8 M9M10M12 M13M14 N1
D
TE1_CMD
TE1_CLK
TE1_DAT_0
TE1_DAT_1
TE1_DAT_2
TE1_DAT_3
TE1_DAT_4
TE1_DAT_5
TE1_DAT_6
TE1_DAT_7
TE1_VCC
REG_GND
R8111 XX
0
R8112
R8113
XX
W5 W6 H3 H4 H5 J2 J3 J4 J5 J6 K6 W4 Y4 AA3AA5 M6 N5 T10 U9 K2 K4 M7 P5 R10 U8 Y2 Y5 AA4 AA6 A4 A6 A9A11 B2 B13 D1 D14 H1 H2 H6 H7 H8 H9
C8104
C8102
4.7u
C8105
0.1u
XX
C8103
0.1u
A
B
C
D
E
F
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
6-30
MM-102 BOARD (1/2)
EXCEPT CX530E
INTERNAL MEMORY
XX MARK: NO MOUNT
E
F
12345 6 7 8 9
A
119120121122123124125126127128129130131132133134135136137138139140141142143144145146147148149150151152153154155156157158159160161162163164165166167168169170171172173174175176177
B
C
178179180181182183184185186187188189190191192193194195196197198199200201202203204205206207208209210211212213214215216217218219220221222223224225226227228229230231232233234235236237
IC8201
CX610E/PJ610E (Type A): KLMBG4WE4A-A001T01
CX610E/PJ610E (Type B): THGBM7G8T4JBAIRH10
INTERNAL MEMORY
A
B
C
D
60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118
TE1_CMD
TE1_CLK
TE1_DAT_0
TE1_DAT_1
TE1_DAT_2
TE1_DAT_3
TE1_DAT_4
TE1_DAT_5
TE1_DAT_6
TE1_DAT_7
TE1_VCC
E
REG_GND
0
R8202
R8203
R8201
XX
XX
F
1234567891011121314151617181920212223242526272829303132333435363738394041424344454647484950515253545556575859
C8205
C8204
C8202
4.7u
XX
0.1u
C8203
0.1u
MM-102 BOARD (2/2)
CX610E/PJ610E (Type A, B)
INTERNAL MEMORY
XX MARK: NO MOUNT
D
E
F
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
6-31
12345 6 7 8 9
A
B
L2201
PITCH_ADP_GYRO
YAW_ADP_GYRO
9
10
C
13
A_2.8V_REG
GYROP_VREF
CM2202
R2202
XX
C2221
XX
C2222
C
14
VREGA
15
D
16
VREGD
XX
C2223
XX
11SL12
B
OUTA
OUTB
SE2221
XX
VCC_11GND12V13GND2
4
C2224
XX
VCC_7
GND3
VREF
8
A
7
6
5
CL2221
A_3.3/2.8V
GY_GND
XX
IC2201
2.8V REG
MM3416A28URE
C2201
1u
4
1CE2
VDD
C2208
XX
R2201
XX
VOUT
GND
CM2201
C2202
1u
3
A_2.8V_REG
A
B
C
D
GY_GND
E
F
JK-1009 BOARD (1/5)
D
E
F
2.8V REG
XX MARK: NO MOUNT
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
6-32
12345 6 7 8 9
A
B
PITCH_ADS_GYRO
YAW_ADS_GYRO
C
A_2.8V_REG
GYROS_VREF
CM2402
R2402
XX
GYRO_OUTX
GYRO_OUTY
DSEL
VCC_GYRO_PY
GYRO_VREF
GY_GND
CL7701
0.047u
C7702
C7701
0.047u
C7703
0.0022u
11
12
14
15
Vcc
Fox
Soy
SDO
Fix
SDI
Sox
C7704
0.1u
SCLK13DSEL
SE7701
PITCH/YAW
SENSOR
Vref1NC2Fiy3Adj4Dox
5
CL7703
16
17
18
19
20
CL7702
Doy
VddIO
C7706
0.1u
10
Vdd
9
8
CS
7
GND
6
Foy
C7705
0.0022u
A
B
C
GY_GND
C2407
XX
C2406
XX
XX
XX
4
5
HI1
LO1
HO1
IC2403
XX
LO212HI213HO214VREF215AM2
11
C2410
XX
C2405
D
GYROS_VREF
GYROP_VREF
PITCH_ADS_TO_BEADS
YAW_ADS_TO_BEADS
R2421
R2422
XX
XX
R2405
R2414
XX
XX
C2403
C2413XXXX
R2406
R2415
XX
C2404
XX
C2412
XX
XX
2223
LIA1
6
LIB1
7
GND
8
LIB2
9
LIA2
10
C2411
E
R2408
XX
R2409
XX
1
2
3
AM1
VREF1
R2413
21
25
OUT1
20
NC
19
V+
18
CRST
17
OUT2
16
24
XX
R2410
XX
R2412
XX
C2409
XX
R2411
XX
R2420
XX
A_2.8V_REG
PITCH_ADS_BEADS
CRESET_P
YAW_ADS_BEADS
GY_GND
PITCH_ADS_GYRO
PITCH_ADS_TO_BEADS
PITCH_ADS_BEADS
YAW_ADS_GYRO
YAW_ADS_TO_BEADS
YAW_ADS_BEADS
R2416 XX
R2418 XX
R2404
CM2404
R2417
R2407
CM2407
R2419
XX
XX
XX
XX
PITCH_AD
YAW_AD
D
E
F
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
6-33
JK-1009 BOARD (2/5)
PITCH/YAW SENSOR
XX MARK: NO MOUNT
F
12345 6 7 8 9
A
B
REG_GND
DD/G
R8831
1k
SS
3
6
G
2
D
45
Q8830
1
SSM6E01TU
B+ SWITCH
D_3.3V
LOGIC_VDD
REG_GND
LOGIC_VDD_ON
R8830
100k
C8830
0.22u
C
456
BEC
CBE
123
AUDIO_L_I/O
AUDIO_R_I/O
Q3001
RN1902FE
XX
VD3000
XX
VD3001
ST_F3
ST_F2
RB3000
ST_VCC_ON
IC3000
TC7SZ32FU,RSONYJ
STROBE SWITCH
EXT_STRB_CONT
D
EXT_STRB_SCK
EXT_STRB_SI
EXT_STRB_SO
EXT_STRB_ON
SHOE_UNREG
SHOE_GND
1
IN_B
2
IN_A
3
GND OUT
5
VCC
4
C3000
0.1u
R3000
100k
3.3k
12
34
Q3000
DRC3144E0L
56
78
Q3000, Q3001
LEVEL SHIFT
LOGIC_VDD_SHOE
XX
VD3002XXVD3004
VD3003XXVD3005
IHS_ID3
IHS_ID2
IHS_ID1
AUDIO_GND
SHOE_MIC_FL
SHOE_MIC_FR
XX
VD3006
XX
VD3007
XX
XX
XX
VD3010
VD3009XXVD3011
VD3008
XX
Q3002
DRC3114E0L
INVERTER
CN3001 18P
IHS_ID3
1
IHS_ID2
2
IHS_ID1
3
AUDIO_GND
4
SHOE_MIC_FL
5
SHOE_MIC_FR
6
REG_GND
7
X_CONTACT
8
LOGIC_VDD
9
REG_GND
10
AUDIO_L_I/O
11
REG_GND
12
AUDIO_R_I/O
13
SHOE_UNREG
14
ST_F3
15
ST_F2
16
EXT_STRB_ON
17
SHOE_GND
18
19 20
FP-2214
FLEXIBLE
LND005
(PAGE 6-39)
A
B
C
D
E
F
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
Note: C8830 and IC3000 are not supplied,
but they are included in JK-1009 COMPLETE BOARD (SERVICE).
6-34
JK-1009 BOARD (3/5)
SHOE INTERFACE
XX MARK: NO MOUNT
E
F
12345 6 7 8 9
A
B
FB3402
FB3403
R3400
0
C3404
XX
XX
J3401
2R
4BR
1L
3GND
(HEADPHONE)
XX
Q3400
DRC3144E0L
INVERTER
FB3400
FB3401
J3400
2R
4BR
1L
3GND
PLUG IN
POWER
EXT_MIC_L
EXT_MIC_R
C3400
C
AUDIO_GND
100p
C3401
100p
MIC_JACK_IN
VD3400XXVD3401
HP_L_OUT
HP_R_OUT
HP_JACK_IN
REG_GND
R3401
R3402
27
27
C3402
0.1u
C3403
0.1u
VD3402XXVD3403
A
B
C
REG_GND
D
E
F
JK-1009 BOARD (4/5)
D
E
F
MIC/HEADPHONE JACK
XX MARK: NO MOUNT
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
6-35
12345 6 7 8 9
A
BT4200
BATT_LI_3V
CN4200 45P
AUDIO_GND
EXT_MIC_R
B
C
FP-2191
FLEXIBLE
LND002
(PAGE 6-38)
D
E
AUDIO_GND
EXT_MIC_L
AUDIO_GND
SHOE_MIC_FL
AUDIO_GND
SHOE_MIC_FR
AUDIO_GND
HP_L_OUT
HP_R_OUT
REG_GND
AUDIO_L_I/O
AUDIO_R_I/O
REG_GND
REG_GND
EXT_STRB_ON
EXT_STRB_SO
EXT_STRB_SI
EXT_STRB_SCK
SHOE_GND
SHOE_GND
SHOE_UNREG
SHOE_UNREG
REG_GND
REG_GND
ST_VCC_ON
EXT_STRB_CONT
REG_GND
MIC_JACK_IN
HP_JACK_IN
REG_GND
BATT_LI_3V
A_3.3/2.8V
CRESET_P
PITCH_AD
IHS_ID2
IHS_ID1
IHS_ID3
D_3.3V
GY_GND
GY_GND
GY_GND
YAW_AD
GY_GND
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
AUDIO_GND
EXT_MIC_R
EXT_MIC_L
SHOE_MIC_FL
SHOE_MIC_FR
HP_L_OUT
HP_R_OUT
AUDIO_L_I/O
AUDIO_R_I/O
EXT_STRB_ON
EXT_STRB_SO
EXT_STRB_SI
EXT_STRB_SCK
SHOE_GND
SHOE_UNREG
IHS_ID2
IHS_ID1
IHS_ID3
ST_VCC_ON
EXT_STRB_CONT
D_3.3V
MIC_JACK_IN
HP_JACK_IN
REG_GND
BATT_LI_3V
A_3.3/2.8V
CRESET_P
PITCH_AD
YAW_AD
GY_GND
REG_GND
VD4200
VD4201
XX
XX
Note: BT4200 is not included in
JK-1009 COMPLETE BOARD (SERVICE).
(LITHIUM BATTERY)
BH4200
BATTERY
HOLDER
A
B
C
D
E
F
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
6-36
JK-1009 BOARD (5/5)
CONNECTOR
XX MARK: NO MOUNT
F
12345 6 7 8 9
A
AN-1006 FLEXIBLE BOARD
WIRELESS LAN
ANTENNA
ET2301
WLAN_RF_FPC_BANE
B
C
FP-2200
FLEXIBLE
(PAGE 6-38)
D
LND002
CN2301 24P
XNFC_RFDET
WLAN_VCC_L
WLAN_VCC_H
WLAN_VCC_H_OUT
WLAN_VL_ON
WLAN_SD_D0
WLAN_SD_D1
WLAN_SD_D2
WLAN_SD_D3
XWLAN_RST
WLAN_SD_CMD
WLAN_SD_CLK
REG_GND
NFC_SEL
NFC_IRQ
NFC_SW
EVER_3V
REG_GND
REG_GND
REG_GND
NFC_DATA
NFC_SCK
REG_GND
REG_GND
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
NFC_SEL
XNFC_RFDET
NFC_IRQ
NFC_SW
VCC_WLAN_L
EVER_3V
VCC_WLAN_H
VCC_WLAN_H_OUT
NFC_DATA
NFC_SCK
Note:
AN-1006 FLEXIBLE BOARD and ANT901
are not included in WF-1004 COMPLETE BOARD.
C2307
1.2p
L2301
XX
R2311
XX
C2301
L2302
XX
XX
VCC_WLAN_H_OUT
VCC_WLAN_H
VCC_WLAN_L
WLAN_VL_ON
WLAN_SD_CMD
WLAN_SD_CLK
WLAN_SD_D0
WLAN_SD_D1
WLAN_SD_D2
WLAN_SD_D3
XWLAN_RST
CM2303
R2307 XX
CM2302
R2308
CM2304
R2313
L2303
C2306
3.3nH
XX
C2304
XX
C2305
XX
10u
XX
WLAN_SD_CLK
WLAN_SD_CMD
WLAN_SD_D3
WLAN_SD_D2
WLAN_SD_D1
WLAN_SD_D0
XWLAN_RST
CM2301
R2314
WLAN_ANT_MOD
1
GND_1
2
CLK_REQ_OUT
2.2u
VCC_WLAN_H_OUT
VCC_WLAN_H
VCC_WLAN_L
WLAN_VH_ON
WLAN_VL_ON
WLAN_SD_CLK
WLAN_SD_CMD
WLAN_SD_D3
WLAN_SD_D2
WLAN_SD_D1
WLAN_SD_D0
WLAN_RST
XX
R2315
XX
REG_GND
C7313
XX
C7314
XX
IC7311
1
2
XX
CE
GND
A2
B1
IC7312
GND
XX
B2
VDD
VOUT
VIN
CONTROL
CM7301
R7301
XX
4
3
CM7302
R7302
XX
A1
VOUT
C7302
C7301 2.2u
VCC_WLAN_H_OUT
D_1.8V_WLAN
10
11
12
3
4
5
6
7
8
9
AVDD12
VBAT
VDD_SDIO
PAREG_OUT
ANT_E
GND_8
ANT
GND_10
GND_11
ANT_D
WIRELESS LAN MODULE
SWREG_OUT14VREG_IN15AVDD1816VDD3317VDD_SOC18WOW19CLK32_IN20GND_2021DVDD1222DREG_OUT23GND_2324SDIO_D1
13
C7303
2.2u
C7304
CL7301
2.2u
CP7300
C7305
GND_4142GND_4243GND_4344GND_4445GND_4546GND_46
2.2u
41
PM_ENABLE
40
39
PM_MODE
BT_CLK_OUT
37
38
BT_CLK_REQ
WLAN_ACTIVE
BT_PRIORITY
BT_RX_FRAME
BT_FREQ
BT_ACTIVE
CHIP_PWD_L
GND_30
SDIO_D3
SDIO_D2
SDIO_D0
SDIO_CLK
SDIO_CMD
36
35
34
33
32
31
30
29
28
27
26
25
12
34
56
78
RB7301
100
12
34
56
78
RB7302
WLAN_RST
WLAN_SD_D3
WLAN_SD_D2
WLAN_SD_D0
WLAN_SD_D1
WLAN_SD_CLK
WLAN_SD_CMD
100
A
B
C
D
ANT901
(NFC ANTENNA)
2P
E
CN2302
NFC_L1
NFC_L2
1
2
XNFC_RFDET
NFC_SCK
NFC_DATA
NFC_SEL
NFC_IRQ
NFC_SW
R2316 XX
REG_GND
F
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
R2306
CM2305
R2310
IC7401
19
2825
NC_1920NC_2021NC_2122NC_2223NC_2324NC_24
18
SPICLK
TEST0
DATA
NFC_SCK
17
16
NFC_SIO
15
NFC_SEL
SEL
14
NFC_IRQ
IRQ
13
SW
NFC_SW
Note:
C7402, CP7300, ET2301 and L2303 are not supplied,
but they are included in WF-1004 COMPLETE BOARD.
WF-1004 BOARD
E
F
XX
XX
VCC_NFC
VDD
NFC_L1
NFC_L2
XNFC_RFDET
NFC_SCK
NFC_SIO
NFC_SEL
NFC_IRQ
NFC_SW
REG_GND
C7404
C7401
0.1u
C7402
C7403
XX
100p
XX
CL7401
CL7400
29
1
VDD
2
L1
3
L2
4
VZ
5
RFDET
6
GND
26 27
CXD9950AK
NFC INTERFACE
NC_78NC_89NC_910NC_1011NC_1112TEST1
7
EXCEPT CX535
Wi-Fi/NFC INTERFACE
XX MARK: NO MOUNT
6-37
12 3 4
12 3 4
A
LND001 45P
AUDIO_GND
EXT_MIC_R
AUDIO_GND
EXT_MIC_L
AUDIO_GND
SHOE_MIC_FL
AUDIO_GND
B
C
VC-1025
(25/26)
CN4003
(PAGE 6-27)
D
SHOE_MIC_FR
AUDIO_GND
HP_L_OUT
HP_R_OUT
REG_GND
AUDIO_L_I/O
AUDIO_R_I/O
REG_GND
REG_GND
EXT_STROBE_ON
EXT_STRB_SO
EXT_STRB_SI
EXT_STRB_SCK
SHOE_GND
SHOE_GND
SHOE_UNREG
SHOE_UNREG
REG_GND
REG_GND
ST_VCC_ON
EXT_STRB_CONT
REG_GND
MIC_JACK_IN
HP_JACK_IN
REG_GND
BATT_LI_3V
A_3.3V/2.8V
CRESET_P
PITCH_AD
IHS_ID2
IHS_ID1
IHS_ID3
D_3.3V
GY_GND
GY_GND
GY_GND
YAW_AD
GY_GND
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
LND002 45P
1 AUDIO_GND
2 EXT_MIC_R
3 AUDIO_GND
4 EXT_MIC_L
5 AUDIO_GND
6 SHOE_MIC_FL
7 AUDIO_GND
8 SHOE_MIC_FR
9 AUDIO_GND
10 HP_L_OUT
11 HP_R_OUT
12 REG_GND
AUDIO_L_I/O
13
14 AUDIO_R_I/O
15 REG_GND
16 REG_GND
17 EXT_STROBE_ON
18 EXT_STRB_SO
19 EXT_STRB_SI
20 EXT_STRB_SCK
21 SHOE_GND
22 SHOE_GND
23 SHOE_UNREG
24 SHOE_UNREG
25 IHS_ID2
26 IHS_ID1
27 IHS_ID3
28 REG_GND
29 REG_GND
30 ST_VCC_ON
31 EXT_STRB_CONT
32 D_3.3V
33 REG_GND
34 MIC_JACK_IN
35 HP_JACK_IN
36 REG_GND
37 BATT_LI_3V
38 GY_GND
39 A_3.3V/2.8V
40 CRESET_P
41 GY_GND
42 PITCH_AD
43 GY_GND
44 YAW_AD
45 GY_GND
JK-1009
(5/5)
CN4200
(PAGE 6-36)
A
B
C
D
A
B
REG_GND
REG_GND
NFC_SCK
NFC_DATA
REG_GND
REG_GND
REG_GND
EVER_3V
NFC_SW
NFC_IRQ
NFC_SEL
REG_GND
24P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
REG_GND
23
WLAN_SD_CLK
22
REG_GND
21
NFC_SCK
20
NFC_DATA
19
REG_GND
18
WLAN_SD_CMD
17
XWLAN_RST
16
REG_GND
15
WLAN_SD_D3
14
WLAN_SD_D2
13
WLAN_SD_D1
12
WLAN_SD_D0
11
REG_GND
10
WLAN_VL_ON
9
VCC_WLAN_H_OUT
8
VCC_WLAN_H
7
EVER_3V
6
VCC_WLAN_L
5
NFC_SW
4
NFC_IRQ
3
XNFC_RFDET
2
NFC_SEL
1
REG_GND
24P
LND002
WF-1004
CN2301
(PAGE 6-37)
LND001
WLAN_SD_CLK
WLAN_SD_CMD
XWLAN_RST
C
VC-1025
(26/26)
CN4902
(PAGE 6-28)
WLAN_SD_D3
WLAN_SD_D2
WLAN_SD_D1
WLAN_SD_D0
WLAN_VL_ON
VCC_WLAN_H_OUT
VCC_WLAN_H
VCC_WLAN_L
XNFC_RFDET
D
A
B
C
D
E
FP-2191 FLEXIBLE BOARD
F
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
VC-JK CONNECTION
(PRINTED WIRING BOARD is omitted.)
E
E
E
FP-2200 FLEXIBLE BOARD
F
F
08
6-38
VC-WF CONNECTION
(PRINTED WIRING BOARD is omitted.)
F
12345 6 7 8 9
A
B
CN002 22P
ID3
1
ID2
2
ID1
3
MIC_GND
4
MIC_L/GVIF_SDATA_N
5
MIC_R/GVIF_SDATA_P
6
REG_GND
7
GPS_PWR_CTPL/WLAN_SD_CLK
8
GPS_CTS/WLAN_SD_D0
9
GPS_RTS/WLAN_SD_D1
10
GPS_UART_TXD/WLAN_SD_D2
11
GPS_UART_RXD/WLAN_SD_D3
12
LOGIC_VDD
13
WALN_SD_CMD/AUDIO_L
14
REG_GND
15
XGPS_RST/XWLAN_RST/AUDIO_R
16
UNREG_SHOE
17
F3/EXT_EVF_SCK
18
F2/EXT_EVF_SI
19
F1/EXT_EVF_SO
20
P_GND
21
X_contact
22
23 24
MULTI
INTERFACE
SHOE
MIC_GND
UNREG
18P
ID3
1
ID2
2
ID1
3
4
5
6
7
X
8
9
10
11
12
13
14
15
16
17
18
LND005
C
MIC_L/GVIF_SDATA_D
MIC_R/GVIF_SDATA_P
REG_GND
JK-1009
(3/5)
CN3001
(PAGE 6-34)
D
LOGIC_VDD
AUDIO_L_I/O
REG_GND
AUDIO_R_I/O
F3/EXT_EVF_SCK
F2/EXT_EVF_SI
F1/EXT_EVF_SO
SHOE_GND
A
B
C
D
E
F
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
6-39
Note: CN002 is not supplied, but this is included in
FP-2214 FLEXIBLE COMPLETE BOARD.
FP-2214 FLEXIBLE BOARD
MULTI INTERFACE SHOE
E
F
12345 6 7 8 9
A
23P
CN0005
YAW-
23
YAW-
22
YAW-
21
YAW+
20
YAW+
B
C
VC-1025
(25/26)
CN4001
(PAGE 6-27)
D
45P
PITCH_BIAS-
YAW_BIAS-
YAW_BIAS+
PITCH_HALL-
YAW_HALL-
YAW_HALL+
PITCH_HALL+
PITCH_BIAS+
IRIS_BIAS+
IRIS_BIAS-
Z_PI_K/E
REG_GND
IRIS_DRIVE-
ZOOM_XB
ZOOM_XA
FOCUS_B
FOCUS_A
FOCUS_XA
FOCUS_XB
ZOOM_A
ZOOM_B
IRIS_DRIVE+
REG_GND(NC)
IRIS_HALL+
IRIS_HALL-
L_TEMP_OUT
F_PI_K/E
YAW+
YAW+
YAW+
PITCH-
PITCH-
PITCH-
PITCH+
PITCH+
PITCH+
F_PI_C
Z_PI_A
Z_PI_C
F_PI_A
LD0002
1
2
3
4
5
6
7
8
9
10
11
12
13
14
N.C.
15
16
17
18
YAW-
19
YAW-
20
YAW-
21
N.C.
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
E
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
YAW+
PITCH+
PITCH+
PITCH+
PITCH-
PITCH-
PITCH-
N.C
N.C
PITCH_BIAS+
PITCH_HALL-
PITCH_HALL+
PITCH_BIAS-
N.C
YAW_BIAS-
YAW_HALL+
YAW_BIAS+
YAW_HALL-
FP-2125
FLEXIBLE
LD0001
(PAGE 6-41)
CN0004 39P
FOCUS_XA
1
FOCUS_A
2
FOCUS_XB
3
FOCUS_B
4
ZOOM_A
5
ZOOM_XA
6
ZOOM_B
7
ZOOM_XB
8
GND(NC)
9
GND(NC)
10
GND(NC)
11
GND(NC)
12
GND(NC)
13
GND(NC)
14
GND(NC)
15
GND(NC)
16
GND(NC)
17
GND(NC)
18
GND(NC)
19
GND(NC)
20
GND(NC)
21
GND(NC)
22
GND(NC)
23
GND(NC)
24
IRIS_DRIVE+
25
IRIS_DRIVE-
26
GND(NC)
27
IRIS_BIAS+
28
IRIS_HALL+
29
IRIS_BIAS-
30
IRIS_HALL-
31
GND
32
L_TEMP_OUT
33
Z_PI_A
34
Z_PI_C
35
Z_PI_K/E
36
F_PI_A
37
F_PI_C
38
F_PI_K/E
39
LENS
BLOCK
A
B
C
D
E
F
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
Note: LENS BLOCK is replaced as block, so that PRINTED WIRING BOARD
and SCHEMATIC DIAGRAM are omitted.
6-40
FP-2126 FLEXIBLE BOARD
LENS BLOCK
F
12345 6 7 8 9
A
B
CN0001 8P
YAW_HALL-
1
YAW_BIAS+
2
YAW_HALL+
3
YAW_BIAS-
LD000123P
23
YAW-
YAW-
22
YAW-
C
FP-2126
FLEXIBLE
CN0005
(PAGE 6-40)
D
PITCH_BIAS+
PITCH_HALL-
PITCH_HALL+
PITCH_BIAS-
YAW_BIAS-
YAW_HALL+
YAW_BIAS+
YAW_HALL-
YAW+
YAW+
YAW+
PITCH+
PITCH+
PITCH+
PITCH-
PITCH-
PITCH-
21
20
19
18
17
16
15
14
13
12
N.C
11
N.C
10
9
8
7
6
N.C
5
4
3
2
1
4
YAW-
5
YAW-
6
YAW+
7
YAW+
8
CN0002 8P
PITCH_HALL-
1
PITCH_BIAS+
2
PITCH_HALL+
3
PITCH_BIAS-
4
PITCH-
5
PITCH-
6
PITCH+
7
PITCH+
8
M902
(YAW)
MM
M901
(PITCH)
MM
A
B
C
D
E
F
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
Note: M901 and M902 are not included in FP-2125 FLEXIBLE BOARD.
6-41
FP-2125 FLEXIBLE BOARD
PITCH/YAW MOTOR
E
F
12345 6 7 8 9
A
D_3.3V
CN4700 51P
REG_GND
1
REG_GND
2
LCD_G_7
LCD_B_7
REG_GND
LCD_B_6
LCD_G_6
REG_GND
LCD_G_5
B
FP-2192
FLEXIBLE
C
LND002
(PAGE 6-50)
D
LCD_B_5
REG_GND
LCD_B_4
LCD_G_4
REG_GND
LCD_G_3
LCD_B_3
REG_GND
LCD_B_2
LCD_G_2
REG_GND
LCD_G_1
LCD_B_1
REG_GND
LCD_B_0
LCD_G_0
REG_GND
XGPS_RST
TP_SEL1
PANEL_NOR/REV
SYSTEM_AD
REG_GND
LCD_XVD
LCD_XHD
REG_GND
LCD_CLK
REG_GND
XCS_LCD
AV_SCK
REG_GND
GPS_UART_CTS
GPS_UART_RTS
REG_GND
GPS_UART_RXD
GPS_UART_TXD
D_3.3V
AV_SO
A_1.8V
BL_H
TP_Y
TP_X
CL4715
3
4
CL4714
5
CL4713
6
7
CL4712
8
CL4711
9
10
CL4710
11
CL4709
12
13
CL4708
14
CL4707
15
16
CL4706
17
CL4705
18
19
CL4704
20
CL4703
21
22
CL4702
23
CL4701
24
25
CL4700
26
27
28
29
30
31
32
33
34
35
36
CL4716
37
38
BL_L
39
40
41
42
43
44
45
46
47
48
49
50
51
5253
REG_GND
LCD_G_7
LCD_B_7
LCD_B_6
LCD_G_6
LCD_G_5
LCD_B_5
LCD_B_4
LCD_G_4
LCD_G_3
LCD_B_3
LCD_B_2
LCD_G_2
LCD_G_1
LCD_B_1
LCD_B_0
LCD_G_0
TP_SEL1
PANEL_NOR/REV
SYSTEM_AD
D_3.3V
LCD_XVD
LCD_XHD
LCD_CLK
BL_H
BL_L
TP_Y
TP_X
XCS_LCD
AV_SO
A_1.8V
AV_SCK
TP_SEL1
REG_GND
VCC_TP
TP_SEL1
REG_GND
RN4986FE
Q8080
Q8080, Q8081
TOUCH PANEL
INTERFACE
456
E
BB
456
BB
Q8081
CCE
RN4986FE
123
E
CCE
123
45
123
D8080
DF5A6.8JE(TPLR3)
TP_TOP
TP_BOT
TP_L
TP_R
TP_Y
TP_X
C4708
C4707
0.0047u
0.0047u
CN4702
1
2 TP_R
3N.C.
4 TP_TOP
5 TP_BOT
6N.C.
78
6P
TP_L
REG_GND
Note: LCD901 is not included in
D_3.3V
LCD_B_0
LCD_B_1
LCD_B_2
LCD_B_3
LCD_B_4
LCD_B_5
LCD_B_6
LCD_B_7
LCD_G_0
LCD_G_1
LCD_G_2
LCD_G_3
LCD_G_4
LCD_G_5
LCD_G_6
LCD_G_7
LCD_XHD
LCD_XVD
LCD_CLK
A_1.8V
AV_SCK
AV_SO
XCS_LCD
REG_GND
BL_H
BL_L
LCD901 (2/2)
(LCD MODULE)
TOUCH
PANEL
PD-1030 COMPLETE BOARD.
L4701
10uH
CM4700
R4704 XX
CM4701
R4703 XX
CM4702
L4700 10uH
R4706 XX
R4705
RB4700 1k
78
56
34
12
52 53
C8041 1u
C8042 1u
C8043 1u
C8044 1u
C8045 1u
C8046 1u
C8047 1u
C8048 1u
VDD
DC0
DC1
DC2
DC3
DC4
DC5
DC6
DC7
DY0
DY1
DY2
DY3
DY4
DY5
DY6
DY7
HS
VS
DCLK
XX
VDDIO
R4708
CM4703
R4707
XX
XX
VDDSI
SCLK
SDIN
CS
GND
VLED+
VLED-
C8040 1u
C8049 1u
C8050 1u
C8051 1u
C8052 1u
C8053 1u
51 VGL
50 V8
49 V7
48 VGH
47 V6
46 V5
45 V4
44 V3
43 V2
42 V1
41 AGND
40 VINT1
39 VINT1
38 V10
37 V9
36 VINT2
35 GND1
34 VDD
33 VDD
32 VCOML
31 VCOML
30 VCOMH
29 VCOMH
28 DC0
27 DC1
26 DC2
25 DC3
24 DC4
23 DC5
22 DC6
21 DC7
20 DY0
19 DY1
18 DY2
17 DY3
16 DY4
15 DY5
14 DY6
13 DY7
12 HS
11 VS
10 DCLK
9 VDD_18V
8VDDIO
7VDDSI
6 SCLK
5SDIN
4CS
3GND
2 VLED+
1 VLED-
CN8040
LCD901 (1/2)
(LCD MODULE)
3.0 INCH
WIDE COLOR
LCD
51P
A
B
C
D
E
REG_GND
D_3.3V
1
2
C4709
D_3.3V
SYSTEM_AD
XX
REG_GND
100k
SL4700
R4700
F
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
SE4700
PANEL
NORMAL/REVERSE
DETECT
NC
GND
E
4
OUT
3
VDD
C4700
PANEL_NOR/REV
0.1u
PD-1030 BOARD
F
Non Projector Model
LCD
XX MARK: NO MOUNT
6-42
12345 6 7 8 9
A
REG_GND
I2C_SDA
I2C_SCK
PJ_TEMP_AD
LCD_DATEN
REG_GND
LCD_VD
LCD_HD
REG_GND
AV_SCK_VC
AV_SO_VC
XCS_LCD_VC
XBB_RST_VC
LCD_CK
REG_GND
LCD_DB0
LCD_DB1
REG_GND
LCD_DB2
LCD_DB3
REG_GND
LCD_DB4
LCD_DB5
REG_GND
LCD_DB6
LCD_DB7
REG_GND
LCD_DG3
LCD_DG2
REG_GND
LCD_DG1
LCD_DG0
REG_GND
REG_GND
D1-
B
C
D1+
CLK-
CLK+
D0-
D0+
VDDIO_S/P
REG_GND
R3750 XX
CM3750
R3751
LCD_DR5
LCD_DR6
LCD_VD
LCD_DR2
LCD_DR3
LCD_DR4
XX
LCD_DR7
LCD_DATEN
LCD_HD
PD21
PD22
PD25
F_XS
PD18
PD19
PD20
PD23
PD24
PD26
SWAP
F3
PD21
F4
PD22
F5
PD25
F6
F_XS
F7
VDD18_F7
G1
PD18
G2
PD19
G3
PD20
G4
PD23
G5
PD24
G6
PD26
G7
SWAP
D1-
LCD_DR1
LCD_DR0
DFD1-
PD16
PD17
E7
F1
PD16F2PD17
DFD1-
PD10A2PD8A3PD6A4PD5A5PD2
A1
D1+
DFD1+
E5
E6
E3
E4
DFD1+
GND_E5
GND_E3
VDDIO_E4
IC8010
BU79R272-E2
LCD SERIAL INTERFACE
RECEIVER
PD1A7PD0B2PD9B3PD7B4PD4B5PD3B6XRST
A6
LCD_DG7
PD15
LCD_DG6
PD14
E1
CLK-
CLK+
R3756
100
FB3750
PCLK
LCD_VD
DFCK-
DFCK+
D7
D5
D6
PD14E2PD15
TEST
DFCK-
DFCK+
D4
VDDIO_D4
D3
POL
DFD0+
GND_C5
VDDIO_C4
GND_C3
VDD18_B7
DFD0-
D2
PD13
D1
PCLK
C7
C6
C5
C4
C3
C2
PD11
C1
PD12
B7
PD13
PCLK
DFD0-
DFD0+
VDDIO
GND
PD11
PD12
VDD18
R3752
LCD_DG5
D0-
D0+
XX
CM3751
C3750
0.1u
C3751
XX
R3755
XX
R3754 XX
CM3752
C3752
XX
VDDIO_S/P
D_3.3V
LCD_DG3
LCD_DG4
A_1.8V
REG_GND
LCD_HD
LCD_DB0
LCD_DB1
LCD_DB2
LCD_DB3
LCD_DB4
LCD_DB5
LCD_DB6
LCD_DB7
LCD_DG0
LCD_DG1
LCD_DG2
LCD_DG3
LCD_DG4
LCD_DG5
LCD_DG6
LCD_DG7
LCD_DR0
LCD_DR1
LCD_DR2
LCD_DR3
LCD_DR4
LCD_DR5
LCD_DR6
LCD_DR7
LCD_CK
LCD_VD
LCD_HD
LCD_DB0
LCD_DB1
LCD_DB2
LCD_DB3
LCD_DB4
LCD_DB5
LCD_DB6
LCD_DB7
LCD_DG0
LCD_DG1
LCD_DG2
LCD_DG3
LCD_DG4
LCD_DG5
LCD_DG6
LCD_DG7
LCD_DR0
LCD_DR1
LCD_DR2
LCD_DR3
LCD_DR4
LCD_DR5
LCD_DR6
LCD_DR7
D
PD10
LCD_DG2
PD8
LCD_DG0
PD6
LCD_DB6
PD5
LCD_DB5
PD2
LCD_DB2
PD1
LCD_DB1
PD0
LCD_DB0
PD9
LCD_DG1
PD7
LCD_DB7
PD4
LCD_DB4
PD3
LCD_DB3
XRST
LCD_DATEN
LCD_DATEN
CN3750 60P
REG_GND
2
I2C_SDA
4
I2C_SCK
6
PJ_TEMP_AD
8
LCD_DATEN
10
REG_GND
12
LCD_VD
14
LCD_HD
16
REG_GND
18
LCD_CK
20
REG_GND
22
LCD_DB0
24
LCD_DB1
26
REG_GND
28
LCD_DB2
30
LCD_DB3
32
REG_GND
34
LCD_DB4
36
LCD_DB5
38
REG_GND
40
LCD_DB6
42
LCD_DB7
44
REG_GND
46
LCD_DG3
48
LCD_DG2
50
REG_GND
52
LCD_DG1
54
LCD_DG0
56
REG_GND
58
REG_GND
60
8
2B2
PJ-1005
(1/4)
CN8503
(PAGE 6-45)
5
6
GND_67GND_7
REG_GND
A_5.0V
A_5.0V
A_5.0V
A_5.0V
XPJ_RESET
A_1.8V
A_1.8V
PJ_PWR_EN
VFLASH
REG_GND
LCD_DR7
LCD_DR6
REG_GND
LCD_DR5
LCD_DR4
REG_GND
LCD_DR3
LCD_DR2
REG_GND
LCD_DG4
LCD_DG5
REG_GND
LCD_DG6
LCD_DG7
REG_GND
LCD_DR0
LCD_DR1
REG_GND
REG_GND
CM3753
CM3754
CM3755
CM3756
R3757 XX
R3758 XX
R3759 XX
R3760 XX
2A2
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
51
53
55
57
59
1819
REG_GND
MT_5.0V
PJ_RSTZ
A_1.8V
PAD_PROJ_ON_DPP
LDO_OUT_3.3V
REG_GND
LCD_DR7
LCD_DR6
REG_GND
LCD_DR5
LCD_DR4
REG_GND
LCD_DR3
LCD_DR2
REG_GND
LCD_DG4
LCD_DG5
REG_GND
LCD_DG6
LCD_DG7
REG_GND
LCD_DR0
LCD_DR1
REG_GND
REG_GND
AV_SCK_LCD
A
B
C
D
XBB_RST_VC
E
F
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
Note: IC8010 is not supplied, but this is included in
PD-1031 COMPLETE BOARD (SERVICE).
6-43
D_3.3V
A_1.8V
REG_GND
C3753
C3754
2A1
1A2
1A1
2DIR
XX
XX
2B1
9
1B2
10
1B1
11
2OE
12
20
IC3750
XX
1OE14VCCB15VCCA161DIR
13
PD-1031 BOARD (1/2)
Projector Model
LCD SERIAL INTERFACE RECEIVER
XX MARK: NO MOUNT
4
3
2
1
17
21
AV_SO_LCD
XCS_LCD
E
F
12345 6 7 8 9
A
D_3.3V
CN4800 51P
B
FP-2193
FLEXIBLE
LND002
(PAGE 6-51)
LDO_OUT_3.3V
C
D
E
REG_GND
REG_GND
SYSTEM_AD
REG_GND
REG_GND
REG_GND
D_3.3V
MT_5.0V
MT_5.0V
MT_5.0V
D_3.3V
I2C_SDA
PJ_RSTZ
I2C_SCK
BL_H
5253
1REG_GND
2REG_GND
3REG_GND
CL4805
4D1+
5N.C
CL4804
6D1-
7REG_GND
CL4803
8CLK+
9N.C
CL4802
10CLK-
11REG_GND
CL4801
12D0+
13N.C
CL4800
14D0-
15
16PAD_PROJ_ON
R4801 10k R4805 12k
17REG_GND
18PJ_TEMP_AD
19XGPS_RST
20TP_SEL1/KEY_AD2
21BATT_LI_3V
22PANEL_NOR/REV
23
24
25
26
27
28
29
30REG_GND
R4802 XX
31
32
33
34
35
36
37BL_L
38TP_Y
39TP_X
40XCS_LCD
41AV_SO
42A_1.8V
43A_1.8V
44XBB_RST
45AV_SCK
46REG_GND
47GPS_UART_CTS
48GPS_UART_RTS
49REG_GND
50GPS_UART_RXD
51GPS_UART_TXD
SE4800
PANEL
NORMAL/REVERSE
DETECT
1
NC
2
GND
CM4800
R4803 XX
CM4801
R4804 XX
CM4802
D1+
D1-
CLK+
CLK-
D0+
D0-
4
OUT
3
VDD
C4800
0.1u
REG_GND
PAD_PROJ_ON_DPP
PJ_TEMP_AD
TP_SEL1
PANEL_NOR/REV
SYSTEM_AD
MT_5.0V
LDO_OUT_3.3V
D_3.3V
I2C_SDA
PJ_RSTZ
I2C_SCK
BL_H
BL_L
TP_Y
TP_X
XCS_LCD_VC
AV_SO_VC
A_1.8V
XBB_RST_VC
AV_SCK_VC
PANEL_NOR/REV
TP_SEL1
REG_GND
VCC_TP
TP_SEL1
REG_GND
BB
Q8080
RN4986FE
Q8080, Q8081
TOUCH PANEL INTERFACE
456
E
BB
456
Q8081
CCE
RN4986FE
123
E
CCE
123
45
123
D8080
DF5A6.8JE(TPLR3)
TP_TOP
TP_BOT
TP_L
TP_R
TP_Y
TP_X
1
2
3
4
5
0.0047u
C4807
6
C4808
0.0047u
78
Note: LCD901 is not included in PD-1031
COMPLETE BOARD (SERVICE).
TP_L
TP_R
N.C.
TP_TOP
TP_BOT
N.C.
REG_GND
D_3.3V
LCD_DB0
LCD_DB1
LCD_DB2
LCD_DB3
LCD_DB4
LCD_DB5
LCD_DB6
LCD_DB7
LCD_DG0
LCD_DG1
LCD_DG2
LCD_DG3
LCD_DG4
LCD_DG5
LCD_DG6
LCD_DG7
LCD_HD
LCD_VD
LCD_CK
A_1.8V
AV_SCK_LCD
AV_SO_LCD
XCS_LCD
REG_GND
6PCN4802
LCD901 (2/2)
(LCD MODULE)
TOUCH
PANEL
53
52
VGL
C8041 1u
C8042 1u
C8043 1u
C8044 1u
C8045 1u
C8046 1u
C8047 1u
C8048 1u
10uH
L4802
CM4805
CM4806
CM4807
CM4808
8
7
6
5
4
3
2
1
RB4805 XX
CM4809
CM4810
CM4811
CM4812
8
7
6
5
4
3
2
1
RB4803 XX
CM4813
CM4814
CM4815
CM4816
8
7
6
5
4
3
2
1
RB4804 XX
CM4817
CM4818
CM4819
CM4820
8
7
6
5
4
3
2
1
RB4802 XX
CM4821
R4807 XX
R4806 XX
CM4822
CM4803
R4809 XX
L4801 10uH
BL_H
BL_L
R4808 XX
RB4801 1k
78
56
34
12
CM4804
R4810
VDD
DC0
DC1
DC2
DC3
DC4
DC5
DC6
DC7
DY0
DY1
DY2
DY3
DY4
DY5
DY6
DY7
HS
VS
DCLK
XX
XX
R4811
VDDIO
VDDSI
SCLK
SDIN
CS
GND
VLED+
VLED-
C8040 1u
C8049 1u
C8050 1u
C8051 1u
C8052 1u
C8053 1u
51
V8
50
V7
49
VGH
48
V6
47
V5
46
V4
45
V3
44
V2
43
V1
42
AGND
41
VINT1
40
VINT1
39
V10
38
V9
37
VINT2
36
GND1
35
VDD
34
VDD
33
VCOML
32
VCOML
31
VCOMH
30
VCOMH
29
DC0
28
DC1
27
DC2
26
DC3
25
DC4
24
DC5
23
DC6
22
DC7
21
DY0
20
DY1
19
DY2
18
DY3
17
DY4
16
DY5
15
DY6
14
DY7
13
HS
12
VS
11
DCLK
10
VDD_18V
9
VDDIO
8
VDDSI
7
SCLK
6
SDIN
5
CS
4
GND
3
VLED+
2
VLED-
1
CN8040
51P
LCD901 (1/2)
(LCD MODULE)
3.0 INCH
WIDE COLOR
LCD
A
B
C
D
E
R4800
100k
SL4800
F
D_3.3V
SYSTEM_AD
C4809
XX
REG_GND
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
6-44
PD-1031 BOARD (2/2)
Projector Model
CONNECTORS
XX MARK: NO MOUNT
F
12345 6 7 8 9
R8518
3300
D8501
DA2S10100K8
1
CE
2
GND
LED_ANODE
RED_CATHODE
PJ_TEMP_AD
GRN_CATHODE
BLU_CATHODE
Q301
SSM6E01TU
B+ SWITCH
3
6
IC8504
MM3411A10URE
1.0V REG
REG_GND
45
C8547
1
0.1u
R8523
10k
C8552
C8553
10u
XX
VDD
VOUT
C8549
4
1u
3
CN8502
C8550
XX
LED_ANODE
1
LED_ANODE
2
RED_CATHODE
3
RED_CATHODE
4
REG_GND
5
PJ_TEMP_AD
6
GRN_CATHODE
7
GRN_CATHODE
8
BLU_CATHODE
9
BLU_CATODE
10
Note: PROJECTOR UNIT is not included in
10P
PJ-1005 COMPLETE BOARD.
P1P0V
PROJECTOR
UNIT
(1/2)
P1P8V
A
C8501
XX
A_1.8V
VFLASH
C8512
XX
B
C8505
XX
R8516
XX
COM851
C8510
10u
PJ_RSTZ
PAD_PROJ_ON
PDATA23
PDATA22
PDATA21
PDATA20
PDATA19
PDATA18
PDATA12
PDATA13
PDATA14
PDATA15
PDATA16
PDATA17
REG_GND
C
COM852
R8515
C8540
0.1u
XX
C8541
XX
P1P8V
D
E
DMD_VOFS
DMD_VBIAS
DMD_VRST
REG_GND
C8543
0.1u
C8545
1u
C8517
XX
C8544
XX
C8546
XX
CL8509
DMD_D1
DMD_D9
DMD_D2
DMD_D8
DMD_D3
DMD_D11
DMD_D4
DMD_D10
DMD_D5
DMD_DCLK
DMD_D7
DMD_LOADB
DMD_D6
DMD_SCTRL
DMD_D0
DMD_BUS
DMD_STRB
DMD_SAC_BUS
DMD_OEZ
CL8502
CN8503
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
REG_GND
SYS_PWR
SYS_PWR
SYS_PWR
SYS_PWR
PJ_RSTZ
A_1.8V
A_1.8V(PJ_INTZ)
PAD_PROJ_ON
VFLASH
REG_GND
LCD_DR7
LCD_DR6
REG_GND
LCD_DR5
LCD_DR4
REG_GND
LCD_DR3
LCD_DR2
REG_GND
LCD_DG4
LCD_DG5
REG_GND
LCD_DG6
LCD_DG7
REG_GND
LCD_DR0
LCD_DR1
REG_GND
REG_GND
C8536
XX
CL8503
C8537
XX
C8538
XX
PD-1031
(1/2)
CN3750
(PAGE 6-43)
CN8504
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
1
2
3
4
5
6
7
8
9
GND
D_1.8V
D_1.8V
DMD_D1
DMD_D9
GND
GND
DMD_D2
DMD_D8
GND
GND
DMD_D3
DMD_D11
DMD_D4
DMD_D10
DMD_D5
GND
GND
DMD_DCLK
DMD_D7
DMD_LOADB
D_1.8V
D_1.8V
DMD_D6
DMD_SCTRL
DMD_D0
GND
GND
DMD_BUS
DMD_STRB
DMD_VOFS
DMD_VBIAS
DMD_SAC_BUS
GND
GND
GND
DMD_OEZ
GND
GND
DMD_VRST
TEST
D_1.8V
D_1.8V
GND
GND
F
REG_GND
I2C_SDA_PJ
I2C_SCK_PJ
PJ_TEMP_AD
LCD_DATEN
REG_GND
LCD_VD
LCD_HD
REG_GND
LCD_CK
REG_GND
LCD_DB0
LCD_DB1
REG_GND
LCD_DB2
LCD_DB3
REG_GND
LCD_DB4
LCD_DB5
REG_GND
LCD_DB6
LCD_DB7
REG_GND
LCD_DG3
LCD_DG2
REG_GND
LCD_DG1
LCD_DG0
REG_GND
REG_GND
60P
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
51
53
55
57
59
45P
FP-2106
FLEXIBLE
LND001
(PAGE 6-49)
CL8507CL8508
CL8510
I2C_SDAPJ_SYSPWR
I2C_SCK
PJ_TEMP_AD
DATEN_CMD
VSYNC_WE
HSYNC_CS
PCLK
PDATA0
PDATA1
PDATA2
PDATA3
PDATA4
PDATA5
PDATA6
PDATA7
PDATA11
PDATA10
PDATA9
PDATA8
PAD_PWR_EN
PJ_RSTZ
A_1.8V
R8522
100k
R8524
XX
R8521
15k
REG_GND
Note: IC8504 is not supplied, but this is included in
PJ-1005 COMPLETE BOARD.
R8520
18k
C8551
0.1u
R8519
C8548
1u
1.5M
PJ-1005 BOARD (1/4)
A
B
C
D
E
F
Projector Model
CONNECTORS
XX MARK: NO MOUNT
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
6-45
12345 6 7 8 9
A
Note: IC8605 is not supplied, but this is included in
PJ-1005 COMPLETE BOARD.
VFLASH
P1P0V
P1P8V
PDM_CVS_TE
H15
B
C
DATEN_CMD
VSYNC_WE
HSYNC_CS
PDATA0
PDATA1
PDATA2
PDATA3
PDATA4
PDATA5
PDATA6
PDATA7
PDATA8
PDATA9
PDATA10
PDATA11
PDATA12
PDATA13
PDATA14
PDATA15
PDATA16
PDATA17
PDATA18
PDATA19
PDATA20
PDATA21
PDATA22
PDATA23
PCLK
CMP_OUT
RB8603
8
6
4
2
100k
7
5
3
1
G15
D13
H14
H13
G14
G13
F15
F14
F13
E15
E14
E13
D15
D14
C15
C14
C13
B15
B14
A15
A14
B13
A13
C12
B12
A12
C11
B11
A11
DATEN_CMD
PCLK
VSYNC_WE
HSYNC_CS
PDATA_0
PDATA_1
PDATA_2
PDATA_3
PDATA_4
PDATA_5
PDATA_6
PDATA_7
PDATA_8
PDATA_9
PDATA_10
PDATA_11
PDATA_12
PDATA_13
PDATA_14
PDATA_15
PDATA_16
PDATA_17
PDATA_18
PDATA_19
PDATA_20
PDATA_21
PDATA_22
PDATA_23
LED_ENABLE
D
I2C_SCK
I2C_SDA
PAD_RESETZ
PAD_PROJ_ON
JTAGRSTZ
2
4
X8601
R8611
13
100
R8612
1M
C8602
18p
C8603
E
18p
16.66667MHz
A10
C10
B10
J14
B8
N5
P6
N7
P8
R7
J15
K15
SCL
SDA
DBIC_CSZ
RESETZ
PARKZ
JTAGTCK
JTAGTDI
JTAGTMS
JTAGRSTZ
JTAGTDO
PLL_REFCLK_O
PLL_REFCLK_I
IC8605 (1/2)
DPP2601
DMD CONTROL
DMD_D0
DMD_D1
DMD_D2
DMD_D3
DMD_D4
DMD_D5
DMD_D6
DMD_D7
DMD_D8
DMD_D9
DMD_D10
DMD_D11
DMD_D12
DMD_D13
DMD_D14
DMD_DCLK
DMD_SAC_CLK
DMD_SAC_BUS
DMD_DAD_BUS
DMD_DAD_STRB
DMD_DAD_OEZ
DMD_LOADB
DMD_SCTRL
DMD_TRC
CMP_OUT
GPIO0_CMPPWR
CMP_PWM
LEDDRV_ON
GPIO1_RPWM
GPIO2_GPWM
GPIO3_BPWM
LED_SEL_1
LED_SEL_0
HWTEST_EN
GPIO4_INTF
GPIO5_INTF
TSTPT_7
TSTPT_6
TSTPT_5
TSTPT_4
TSTPT_3
TSTPT_2
TSTPT_1
TSTPT_0
VDD_PLL
VSS_PLL
CMP_OUT
C8605
0.1u
DMD_D0
DMD_D1
DMD_D2
DMD_D3
DMD_D4
DMD_D5
DMD_D6
DMD_D7
DMD_D8
DMD_D9
DMD_D10
DMD_D11
DMD_DCLK
CL8604
DMD_SAC_BUS
DMD_BUS
DMD_STRB
DMD_OEZ
DMD_LOADB
DMD_SCTRL
DPP_CMP_OUT
DPP_CMP_PWM
LED_SEL1
LED_SEL0
COM862
R8606
XX
COM863
R8607
XX
RB8604
100k
8
6
4
2
JTAGRSTZ
7
5
3
1
M15
N14
M14
N15
P13
P14
P15
R15
R12
N11
P11
R11
N10
P10
R10
R8633
N13
L14
L15
L13
K13
M13
R13
R14
P12
COM861
R8632 XX
A6
P5
B7
R8630 XX
P7
N8
P9
R8
N6
R6
A9
C9
B9
R9
N9
C8
A7
B5
C7
A8
B6
H12
C8606
0.01u
J13
MEM0_LDQS
MEM0_LDM
MEM0_DQ0
MEM0_DQ1
MEM0_DQ2
MEM0_DQ3
MEM0_DQ4
MEM0_DQ5
MEM0_DQ6
MEM0_DQ7
MEM0_UDQS
MEM0_UDM
MEM0_DQ8
MEM0_DQ9
MEM0_DQ10
MEM0_DQ11
MEM0_DQ12
MEM0_DQ13
MEM0_DQ14
MEM0_DQ15
C8627
1u
C8618
C8607 0.1u
1u
C8609 0.1u
C8610 0.1u
C8611
XX
C8612
XX
C8619 0.1u
C8620 XX
C8621 XX
C8622 XX
J2
J1
N1
M2
M1
L3
L2
K2
L1
K1
G1
H1
H2
G2
H3
F3
F1
E2
F2
E3
K14
D11
E12
D6
C4
D8
E4
G3
K3
K12
L4
M5
M9
M12
N4
N12
D5
D9
F4
F12
J4
J12
M6
M8
M11
MEM0_LDQS
MEM0_LDM
MEM0_DQ0
MEM0_DQ1
MEM0_DQ2
MEM0_DQ3
MEM0_DQ4
MEM0_DQ5
MEM0_DQ6
MEM0_DQ7
MEM0_UDQS
MEM0_UDM
MEM0_DQ8
MEM0_DQ9
MEM0_DQ10
MEM0_DQ11
MEM0_DQ12
MEM0_DQ13
MEM0_DQ14
MEM0_DQ15
DMD_PWR_EN
VCC_INTF
VCC_INTF
VCC_FLSH
VCC18
VCC18
VCC18
VCC18
VCC18
VCC18
VCC18
VCC18
VCC18
VCC18
VCC18
VCC18
VDD10
VDD10
VDD10
VDD10
VDD10
VDD10
VDD10
VDD10
VDD10
IC8605 (2/2)
DPP2601
DMD CONTROL
MEM0_A0
MEM0_A1
MEM0_A2
MEM0_A3
MEM0_A4
MEM0_A5
MEM0_A6
MEM0_A7
MEM0_A8
MEM0_A9
MEM0_A10
MEM0_A11
MEM0_A12
MEM0_BA0
MEM0_BA1
MEM0_RASZ
MEM0_CASZ
MEM0_WEZ
MEM0_CSZ
MEM0_CKE
MEM0_CLK_P
MEM0_CLK_N
SPICLK
SPIDIN
SPIDOUT
SPICSZ0
SPICSZ1
RESERVED
RESERVED
RESERVED
RESERVED
R8623
COM864
1
3
5
7
RB8602
COM865
COM866
COM867
COM868
MEM0_A0
MEM0_A1
MEM0_A2
MEM0_A3
MEM0_A4
MEM0_A5
MEM0_A6
MEM0_A7
MEM0_A8
MEM0_A9
MEM0_A10
MEM0_A11
MEM0_A12
MEM0_BA0
MEM0_BA1
MEM0_RASZ
MEM0_CASZ
MEM0_WEZ
MEM0_CSZ
MEM0_CKE
MEM0_CLK_P
MEM0_CLK_N
XX
2
4
6
8
XX
DPPSPI_CLK
DPPSPI_DOUT
DPPSPI_DIN
SPI_CSZ0
SPI_CSZ1
P1
R3
R1
R2
A1
B1
A2
B2
D2
A3
P2
B3
D3
M3
P3
P4
R4
R5
J3
C1
R8620 33
D1
R8621 33
E1
A4
B4
C5
A5
C6
C2
C3
N2
N3
GND
D4
GND
D7
GND
D10
GND
D12
GND
G4
GND
G12
GND
H4
GND
K4
GND
L12
GND
M4
GND
M7
GND
M10
PAD_RESETZ
SPI_CSZ0
DPPSPI_DOUT
DPPSPI_CLK
DPPSPI_DIN
REG_GND
VFLASH
SPI_CSZ0
DPPSPI_DOUT
REG_GND
VFLASH
C8628
0.1u
RB8601
100k
CN8601
1 RESET
2SPICS_INT
3SPIDIN_INT
4 SPICLK_INT
5 SPIDOUT_INT
6GND
7N.C.
8 VFLASH
1
/CS
2
DO
3
/WP
4
GND
8
1234567
IC8606
W25X40CLPYB1
FLASH MEMORY
9
XX
8
VCC
7
HOLD
6
CLK
5
DIO
DPPSPI_CLK
DPPSPI_DIN
A
B
C
D
E
REG_GND
F
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
6-46
PJ-1005 BOARD (2/4)
Projector Model
DMD CONTROL
XX MARK: NO MOUNT
F
12 3 4
A
R8705
P1P8V
B
REG_GND
C
MEM0_A0
MEM0_A1
MEM0_A2
MEM0_A3
MEM0_A4
MEM0_A5
MEM0_A6
MEM0_A7
D
MEM0_A8
MEM0_A9
MEM0_A10
MEM0_A11
MEM0_A12
XX
COM871
C8710
CL8701
A9
F9
K9
A1
F1
K1
B1
D1
A7
C9
E9
C1
E1
A3
B9
D9
J8
J9
K7
K8
K2
K3
J1
J2
J3
H1
J7
H2
H3
1u
C8701 0.1u
XX
C8702
C8703 0.1u
VDD
VDD
VDD
VSS
VSS
VSS
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12
IC8701
W948D6FBHX5E
SDRAM
UDM
XCAS
XRAS
XWE
LDQS
UDQS
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
LDM
XCS
CKE
XCK
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
BA0
H8
BA1
H9
F8
F2
G8
H7
G9
G7
G1
CK
G2
G3
E8
E2
NC
F3
NC
F7
A8
B7
B8
C7
C8
D7
D8
E7
E3
D2
D3
C2
C3
B2
B3
A2
R8702 33k
R8701 XX
MEM0_BA0
MEM0_BA1
MEM0_LDM
MEM0_UDM
MEM0_CASZ
MEM0_CSZ
MEM0_RASZ
MEM0_WEZ
MEM0_CKE
MEM0_CLK_P
MEM0_CLK_N
MEM0_LDQS
MEM0_UDQS
MEM0_DQ0
MEM0_DQ1
MEM0_DQ2
MEM0_DQ3
MEM0_DQ4
MEM0_DQ5
MEM0_DQ6
MEM0_DQ7
MEM0_DQ8
MEM0_DQ9
MEM0_DQ10
MEM0_DQ11
MEM0_DQ12
MEM0_DQ13
MEM0_DQ14
MEM0_DQ15
A
B
C
D
E
PJ-1005 BOARD (3/4)
F
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
Projector Model
SD RAM
XX MARK: NO MOUNT
E
F
6-47
12345 6 7 8 9
A
R8816 XX
COM886
COM885
R8806 XX
R8805 XX
R8804 XX
R8817 XX
CL8801
CL8802
COM884
COM883
COM882
C8820
XX
D8801
DB2S31100K8
R8813
C8803
0.22u
C8804
C8805
2.2u
C8806
0.1u
1u
L8801
10uH
C8801
100k
CL8805
R8815 0.1
G1
G2
G3
G5
G6
F5
IC8801
PAD1000YFFR
LED DRIVE
RLIM_K
G7
SW1
SW2
SW3
SW4
SW5
SW6
VLED
VLED
VLED
PGNDL
PGNDL
VINL
VINL
V6V
F6
B3
B4
D3
D6
DGND
VINA
G4
1u
E
AGND
D7
AGND1
A3
VINR
A4
SWN
A5
PGNDR
A6
SWP
A7
REF_VRST
B6
VBIAS
B7
VOFS
C7
VSPI
B5
SPI_CLK
C3
INTZ
PWR_EN
RESETZ
RLIMF7RLIM
CL8806
CL8807
F2
E2
E1
L2
D2
L2
D1
E
L8802
C2
2.2uH
C1
L1
B2
L1
B1
A2
A1
F1
R8812 XX
C8824 0.1u
C8814 10u
C8815 XX
C8817
0.1u
COM881
C8816
C8818 0.1u
1u
BLU_CATHODE
GRN_CATHODE
RED_CATHODE
LED_ANODE
PAD_RESETZ
PAD_PWR_EN
PJ_SYSPWR
B
REG_GND
DMD_VRST
C
DMD_VBIAS
DMD_VOFS
VFLASH
A
B
C
D
DPPSPI_CLK
SPI_CSZ1
DPPSPI_DIN
DPPSPI_DOUT
C8825
PJ_RSTZ
PAD_PROJ_ON
DPP_CMP_OUT
E
DPP_CMP_PWM
LED_SEL0
LED_SEL1
PJ_TEMP_AD
R8818 1k
R8801 XX
XX
CL8803
CL8804
F
SPI_CSZC4SPI_DINC5SPI_DOUTC6RSTZF4PROJ_ONE6LED_SEL0
F3
LED_SEL1E3CMP_OUT
D5
D4
SENS1E4SENS2E5V2V5
PWM_IN
C8807
XX
E7
C8809
XX
C8810
2.2u
Note: IC8801 and R8815 are not supplied,
but they are included in PJ-1005 COMPLETE BOARD.
PJ-1005 BOARD (4/4)
D
E
F
Projector Model
LED DRIVE
08
XX MARK: NO MOUNT
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
6-48
12345 6 7 8 9
A
B
LND00145P
1GND
2D_1.8V
C
D
PJ-1005
(1/4)
CN8504
(PAGE 6-45)
E
3D_1.8V
4DMD_D1
5DMD_D9
6GND
7GND
8DMD_D2
9DMD_D8
10GND
11GND
12DMD_D3
13DMD_D11
14DMD_D4
15DMD_D10
16DMD_D5
17GND
18GND
19DMD_DCLK
20DMD_D7
21DMD_LOADB
22D_1.8V
23D_1.8V
24DMD_D6
25DMD_SCTRL
26DMD_D0
27GND
28GND
29DMD_BUS
30DMD_STRB
31DMD_VOFS
32DMD_VBIAS
33DMD_SAC_BUS
34GND
35GND
36GND
37DMD_OEZ
38GND
39GND
40DMD_VRST
41TEST
42D_1.8V
43D_1.8V
44GND
45GND
C001
CN5503 42P
XX
1 D_1.8V
3DMD_D1
5GND
7DMD_D2
9GND
11 DMD_D3
13 DMD_D4
15 DMD_D5
17 GND
19 DMD_D7
21 D_1.8V
23 DMD_D6
25 DMD_D0
27 GND
29 DMD_STRB
31 DMD_VBIAS
33 GND
35 GND
37 GND
39 DMD_VRST
41 D_1.8V
PROJECTOR
UNIT(2/2)
D_1.8V
43 44 45 46
2D_1.8V
4DMD_D9
6GND
8DM_D8
10GND
12DMD_D11
14DMD_D10
16GND
18DMD_DCLK
20DMD_LOADB
22D_1.8V
24DMD_SCTRL
26GND
28DMD_BUS
30DMD_VOFS
32DMD_SAC_BUS
34GND
36DMD_OEZ
38GND
40TEST
42
Note: PROJECTOR UNIT is not included in
FP-2106 FLEXIBLE COMPLETE BOARD.
A
B
C
D
E
F
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
6-49
FP-2106 FLEXIBLE BOARD
Projector Model
PROJECTOR UNIT
XX MARK: NO MOUNT
F
12345 6 7 8 9
REG_GND
REG_GND
AV_SCK
XBB_RST
A_1.8V
A_1.8V
AV_SO
XCS_LCD
REG_GND
REG_GND
REG_GND
D_3.3V
LDO_OUT_3.3V
REG_GND
MT_5.0V
MT_5.0V
MT_5.0V
SYSTEM_AD
BATT_LI_3V
XGPS_RST
PJ_TEMP_AD
REG_GND
PAD_PROJ_ON
REG_GND
N.C/LCD_G_0
N.C/LCD_B_0
REG_GND
N.C/LCD_B_1
D0-/LCD_G_1
REG_GND
D0+/LCD_G_2
N.C/LCD_B_2
REG_GND
N.C/LCD_B_3
CLK-/LCD_G_3
REG_GND
CLK+/LCD_G_4
N.C/LCD_B_4
REG_GND
N.C/LCD_B_5
D1-/LCD_G_5
REG_GND
D1+/LCD_G_6
N.C/LCD_B_6
REG_GND
N.C/LCD_B_7
N.C/LCD_G_7
REG_GND
TP_X
TP_Y
BL_L
BL_H
LND00161P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
LND002
GPS_UART_TXD
51
GPS_UART_RXD
50
REG_GND
49
GPS_UART_RTS
48
GPS_UART_CTS
47
REG_GND
46
AV_SCK
45
A_1.8V
44
AV_SO
43
XCS_LCD
42
TP_X
41
TP_Y
40
BL_L
39
BL_H
38
REG_GND
37
LCD_CLK
36
REG_GND
35
LCD_XHD
34
LCD_XVD
33
REG_GND
32
D_3.3V
31
SYSTEM_AD
30
PANEL_NOR/REV
29
TP_SEL1
28
XGPS_RST
27
REG_GND
26
LCD_G_0
25
LCD_B_0
24
REG_GND
23
LCD_B_1
22
LCD_G_1
21
REG_GND
20
LCD_G_2
19
LCD_B_2
18
REG_GND
17
LCD_B_3
16
LCD_G_3
15
REG_GND
14
LCD_G_4
13
LCD_B_4
12
REG_GND
11
LCD_B_5
10
LCD_G_5
9
REG_GND
8
LCD_G_6
7
LCD_B_6
6
REG_GND
5
LCD_B_7
4
LCD_G_7
3
REG_GND
2
REG_GND
1
51P
PD-1030
CN4700
(PAGE 6-42)
FP-2192 FLEXIBLE BOARD
A
GPS_UART_TXD
GPS_UART_RXD
GPS_UART_RTS
GPS_UART_CTS
B
I2C_SCK/LCD_CLK
PJ_RSTZ/LCD_XHD
I2C_SDA/LCD_XVD
C
VC-1025
(26/26)
CN4901
(PAGE 6-28)
PANEL_NOR/REV
TP_SEL1/KEY_AD2
D
E
F
A
B
C
D
E
F
Non Projector Model
VC-PD CONNECTION
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
6-50
12345 6 7 8 9
REG_GND
REG_GND
AV_SCK
XBB_RST
A_1.8V
A_1.8V
AV_SO
XCS_LCD
REG_GND
REG_GND
REG_GND
D_3.3V
LDO_OUT_3.3V
REG_GND
MT_5.0V
MT_5.0V
MT_5.0V
SYSTEM_AD
BATT_LI_3V
XGPS_RST
PJ_TEMP_AD
REG_GND
PAD_PROJ_ON
REG_GND
N.C/LCD_G_0
N.C/LCD_B_0
REG_GND
N.C/LCD_B_1
D0-/LCD_G_1
REG_GND
D0+/LCD_G_2
N.C/LCD_B_2
REG_GND
N.C/LCD_B_3
CLK-/LCD_G_3
REG_GND
CLK+/LCD_G_4
N.C/LCD_B_4
REG_GND
N.C/LCD_B_5
D1-/LCD_G_5
REG_GND
D1+/LCD_G_6
N.C/LCD_B_6
REG_GND
N.C/LCD_B_7
N.C/LCD_G_7
REG_GND
TP_X
TP_Y
BL_L
BL_H
LND00161P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
A
GPS_UART_TXD
GPS_UART_RXD
GPS_UART_RTS
GPS_UART_CTS
B
I2C_SCK/LCD_CLK
PJ_RSTZ/LCD_XHD
I2C_SDA/LCD_XVD
C
VC-1025
(26/26)
CN4901
(PAGE 6-28)
PANEL_NOR/REV
TP_SEL1/KEY_AD2
D
E
F
LND002 51P
GPS_UART_TXD
51
GPS_UART_RXD
50
REG_GND
49
GPS_UART_RTS
48
GPS_UART_CTS
47
REG_GND
46
AV_SCK
45
XBB_RST
44
A_1.8V
43
A_1.8V
42
AV_SO
41
XCS_LCD
40
TP_X
39
TP_Y
38
BL_L
37
BL_H
36
REG_GND
35
I2C_SCK/LCD_CLK
34
REG_GND
33
PJ_RSTZ/LCD_HD
32
I2C_SDA/LCD_VD
31
REG_GND
30
D_3.3V
29
LDO_OUT_3.3V
28
REG_GND
27
MT_5.0V
26
MT_5.0V
25
MT_5.0V
24
SYSTEM_AD
23
PANEL_NOR/REV
22
BATT_LI_3V
21
TP_SEL1/KEY_AD2
20
XGPS_RST
19
PJ_TEMP_AD
18
REG_GND
17
PAD_PROJ_ON
16
REG_GND
15
D0-
14
N.C
13
D0+
12
REG_GND
11
CLK-
10
N.C
9
CLK+
8
REG_GND
7
D1-
6
N.C
5
D1+
4
REG_GND
3
REG_GND
2
REG_GND
1
PD-1031
(2/2)
CN4800
(PAGE 6-44)
FP-2193 FLEXIBLE BOARD
A
B
C
D
E
F
Projector Model
VC-PD CONNECTION
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
6-51
12 3 4
12 3 4
A
B
C
LND0016P
REG_GND
VC-1025
(25/26)
CN4009
D
(PAGE 6-27)
POWER_SW
PLAY_SW
LIGHT_SW
REG_GND
P/L/i_SW
6
5
4
3
2
1
POWER
S001
MY VOICE
CANCELING
S003
S002
PROJECTOR
S004
A
B
C
D
A
POWER/
CHG
START/
STOP
B
1
REG_GND
REG_GND
D_2.8V
LND460112P
2
3
4
5
6
N.C 7
8
9
10
11
12
START_STOP
CHARGE_LED_VDD
XCHARGE_LED
VC-1025
(25/26)
CN4005
(PAGE 6-27)
XPHOTO_LED
POWER_LED_VDD
PHOTO_FREEZE
PHOTO_REC
ZOOM_VR_AD
C
S002
(ZOOM)
RV001
22k
4
2
3
D001
SML-522MY8WT86
1
(PHOTO FREEZE)
S004
(PHOTO)
S003
D
A
B
C
D
E
CONTROL SWITCH BLOCK (SK45310)
F
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
Projector Model
CONTROL SWITCHES
(PRINTED WIRING BOARD is omitted.)
E
F
E
F
CONTROL SWITCH BLOCK (PS45300)
E
F
CONTROL SWITCHES
(PRINTED WIRING BOARD is omitted.)
08
6-52
6-2. PRINTED WIRING BOARDS
CM-1004 BOARD (SIDE A) CM-1004 BOARD (SIDE B)
R6706
C6711
C6712
C6706C6707
M1
L2
M2
L3
M3
L4
M4
L5
M5
L6
M6
L7
M7
L8
M8
L9
M9
L10
M10
M11
C6746 C6747
C6743
C6703
08
R6701
R6741
C6729
R6703
1
2
IC6703
R6702
R6708
C6701
C6717
J2
K2
J3
K3
K4
K5
K6
K7
K8
J9
K9
J10
K10
C6751
C6752
4
3
C6728
C6745
E2
F2
G2
H2
E3
F3
G3
H3
CP001
E9
F9
G9
H9
E10
F10
G10
H10
C6720
C6718
R6705
R6729
D10
C6710
C6709
C6753
A1
B1C1D1E1F1G1H1J1K1L1
A2
B2
C2
D2
A3
B3
C3
D3
A4
B4
C4
A5
B5
C5
A6
B6
C6
A7
B7
C7
A8
B8
C8
A9
B9
C9
D9
A10
B10
C10
B11C11D11E11F11G11H11J11K11L11
A11
CL006
R6707
QR-CODE
C6708
R6767
C6715
C6716
CL008
C6714
C6713
CL001
238
1
R6709
CL007
CL009
CL010
LF6712
4
R6768
LF6713 LF6714
123
4
R6770
123
R6769
CN6702
R6771
R6772
123
4
R6774
R6775
LF6715LF6716
R6773
R6776
123
4
R6777
R6778
123
4
39
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
08
1-887-995-
11
Note: CP001 is not supplied, but this is included in CM-1004 COMPLETE BOARD.
6-53
1-887-995-
11
: Uses unleaded solder.
VC-1025 BOARD (SIDE A)
1
46
244
C6742
CL0209
X5700
C5705
C
13
X5701
L1061
C1041
C6741
Q5701
BE
C1061
CL3201
19 1
18 2
23
PROJECTOR
C5654
C5655
C5658
38
39
A2A3A4A5A6
A1
B2B3B5
B1
C2C3C4C5C6
C1
D2D3D4D5D6
D1
E2E3E4E5E6
E1
CL0302
CL0301
234567891011 1
LF0400
C5653
R0401
R0400
1
2
4
3
F005
B6
IC5651
R5655
C5652
C5650
CN0400
15
67
145
2
R5656
C5656
R5654
C5651
C5657
R5650
CN4003
22
44
2
C
CL0212
CL0204
CL0206
D9000
Q0201
BE
CL0213
CL0215
L1
L2
L3
L4
L5
L6
L7
L8
L9
L10
K10
L11
K11
JL0204
127
CL0207
VD3201
CL0216
CL0214
K1
K2
K3
K4
K5
K6
K7
K8
K9
J10
J11
C5703
127
C
Q5702
6
BE
Q0202
143
CL0208
CL0201
C5702
R0205
J1
H1
G1
F1
J2
H2
G2
F2
J3
H3
G3
F3
J4
H4
G4
F4
J5
H5
G5
F5
J6
H6
G6
F6
J7
H7
G7
F7
J8
H8
G8
F8
J9
H9
G9
F9
H10
G10
F10
H11
G11
F11
JL0202
CL0200
R0209
R0210
R0207
R0208
R0202
CL0210
CL0211
6
1
Q9000
4
3
8
RB9000
E1
E2
E3
E4
E5
E6
E7
E8
E9
E10
E11
D1
C1
D2
C2
D3
C3
D4
C4
D5
C5
D6
C6
D7
C7
D8
C8
D9
C9
D10
C10
D11
C11
R0203
R0204
R0201
Q5700
46
31
R9000
JL0201
CL0202
B1
A1
B2
A2
B3
A3
B4
A4
B5
A5
B6
A6
B7
A7
B8
A8
B9
A9
B10
A10
B11
A11
C0200
R0200
4
Q9002
6
GS
3
1
JL0200
R5714
Q9001
R5702
R5713
IC5700
R5711
C5715
C5712
C5713
C5701
D
C5700
C5706
C5708
R5712
7
L9001
82
R0404
2
1
4
3
L0404
R0403
IC5600
11
610
C5601
D
C2100
D6082
1
71
L9000
82
15
Q7101
D6081
R0413
R0412
C5600
GS
R7101
R0411
R0410
25
1
20
21
1
2
RB0200
7
8
JL0203
C5704
R0206
C5707
1
R5704
23
C5709
C5714
C5710
R5705
42
C5711
CL5701
RB5700
8
R6001
R0213
C6007
CL0205
R1102
42
31
CN4004
6
Q5600
143
C7101
12
R0301
CN7101
R5600
1
D5600
23
3
D0300
C2101
19 1
20
2122
IN
18 2
23
CN9000
HDMI
OUT
20
2122
24
131415161718 1219
23
1-889-179-
12
CN4011
34
R4031
R4032
11
ET4013
IC8201
C8201
C8208
C8209
J10 K10
H10
G10
F10
E10
D10
C10
A10 B10
C8210
C8202
3
2
4
3
CL3305
J9 K9
H9
G9
F9
E9
D9
C9
A9 B9
C8211
45
47
4
3
IC6802
1
2
C6844
8
RB0500
127
C1108
C1110
CL3304
R3203
R3207
J3 K3
J4 K4
J5 K5
J6 K6
J7 K7
J8 K8
G5G6G7
D4 E4 F4 G4
D5D6D7 E7 F7
B1 C1 D1 E1 F1 G1 H1 J1A1 K1
A2 B2 C2 D2 E2 F2 G2 H2 J2 K2
A3 B3
A4 B4
A5 B5
A6 B6
A7 B7
A8 B8
C3201
C8207
RB8201
8
CL3301
C6843
127
R1108
C1111
R1071
C8204
IC8200
R1069
C8203
R1070
CN4001
C
Q4010
BE
R1101
R6124
C1105
R3201R3202
6
7
R6125
4
6
IC6741
C6133
3
Q3201
1
R6123
1
13
12
4
R5701
L1063
L1064
C1401
C1402
C8428
C8426
CL3350
1
238
C1400
12
R1401
1
R1402
R3809
CL6811
C8123
C8121
IC8120
D7 K7 L7 M7 N7
C9 D9 K9 L9 M9 N9
B9
A8 B8 C8 D8 K8 L8 M8 N8
A9
A5 B5 C5 D5 K5 L5 M5 N5
A6 B6 C6 D6 K6 L6 M6 N6
A7 B7 C7
A11 B11 C11 D11 E11 F11 G11 H11 J11 K11 L11 M11 N11
A10 B10 C10 D10 E10 F10 G10 H10 J10 K10 L10 M10 N10
A12 B12 C12 D12 E12 F12 G12 H12 J12 K12 L12 M12 N12
A13 B13 C13 D13 E13 F13 G13 H13 J13 K13 L13 M13 N13
CL3351
16
R4904
R4030
R4025
CN4009
78
R4034
C8122
R3206
R3205
R3204
C8124
C3300
C8120
A1 B1 C1 D1 E1 F1 G1 H1 J1 K1 L1 M1 N1
A2 B2 C2 D2 E2 F2 G2 H2 J2 K2 L2 M2 N2
A3 B3 C3 D3 E3 F3 G3 H3 J3 K3 L3 M3 N3
A4 B4 C4 D4 E4 F4 G4 H4 J4 K4 L4 M4 N4
CL3303
CL3302
C8205
4
1
CL8207
C8206
X8200
39
C6744
A2B2C2
A1
B1
B3
C1
C3 A3
IC6742
IC1405
4
9
FB3354
34
21
SE4011
C4012
34
21
SE4010
08
CL6803
CL6802
C6743
CL6800
CL6805
CL6807
815
8
FB3357
FB3356
2
FB3355
8
FB3353
FB3352
2
FB3351
BE
FB3350
R4016
CL1401
CL6804
7
RB3358
1
7
RB3357
1
CL6801
C6808
C6804
Q4013
C6809
C6845
R6803
R6805
R6804
R6806
R6801
R6802
C6806
C6821
C6822
R6810
C6820
C6819
C6818
R1416
C6811
C6810
C6805
C6846
C6807
R8001
R8002
R3352
R3353
R3354
C3351
R3355
C3350
C
CN4002
C6814
C6815
C6816
C6817
R6809
A10 B10 C10 D10 E10 F10 G10 H10 J10 K10
A9 B9 C9 D9 E9 F9 G9 H9 J9 K9
A8 B8 C8 D8 E8 F8 G8 H8 J8 K8
A7 B7 C7 D7 E7 F7 G7 H7 J7 K7
A6 B6 C6 D6 E6 F6 G6 H6 J6 K6
A5 B5 C5 D5 E5 F5 G5 H5 J5 K5
A4 B4 C4 D4 E4 F4 G4 H4 J4 K4
A3 B3 C3 D3 E3 F3 G3 H3 J3 K3
A2 B2 C2 D2 E2 F2 G2 H2 J2 K2
A1 B1 C1 D1 E1 F1 G1 H1 J1 K1
C6803
R1417
R3807
C3803
C8427
C6802
IC6800
R1087
R6800
R3810
R3811
C8422
R3808
C3804
C8423
A7
A6
A5
A4
A3
A2
A1
G7
F7
E7
D7
C7
B7
A7
B7
B6
B5
B4
B3
B2
C3805
IC8420
D7
C7
D6
C6
D5
C5
D4
C4
D3
C3
D2
C2
D1
C1
R8421
C8424
E7
F7
G7
E6
F6
G6
E5
F5
G5
E4
F4
G4
E3
F3
G3
E2
F2
G2
E1
F1
G1
G2G3G4G5G6
F1
F2F3F4F5F6
E1
E2E3E4E5E6
D1
D2D3D4D5D6
C1
C2C3C4C5C6
B2B3B4B5B6
A1
A2A3A4A5A6
C8425
G1
R8422
C8421
R3303
IC8000
R3805
C8420
R3802
C3802
R3801
C3801
R3806
C3806
FB3300
R3804
R1415
C6801
C6800
C1403
R8420
R3803
C3807
CL3352
Note: C1105, C4012, C5600, C5651, C5652, C5701, C5702, C5703, C5704, C5712, C5714, C5715, C6801, C6804,
C6805, C6808, C6809, CN9000, ET4013, IC5651, IC5700, IC6741, IC6742, IC8000, IC8120, IC8201, R3303,
R6123, R6124 and R6125 are not supplied, but they are included in VC-1025 COMPLETE BOARD (SERVICE).
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
6-54
microSD
STICK
MICRO
MEMORY
: Uses unleaded solder.
VC-1025 BOARD (SIDE B)
RB4002
16
CN4007
R5151
R5150
R0504 R0505
R4018
C5154
C5153
R4021
112
17
28
1314
VD4019
C4014
R4026
85
14
F001
C5152
610
L5150
L5650
Q0300
C0300
R8801
F002
F003
R8800
11
IC5150
15
C7102
C8800
C5151
C0160
R0160
C5118
D8800
Q8800
Q8801
19
LF0500
R0501
R5631
BE
C
13
64
R5102
R0103
C5102
R5100
C5108
C5109
C0106
L0103
R0104
C5202
C5203
AK
D4010
R5200
C5200
17
RB4000
28
7
8
R4020
VD4021
C5204
IC5200
D1
E1
B1
C1
F1
D2
E2
B2
C2
F2
D3
E3
B3
F3
C4
D4
E4
B4
F4
C5
D5
E5
B5
F5
C6
D6
E6
B6
F6 A6
R0100
C0100
C5201
R5640
C5640
CN4005
R4024
R4029
VD4017
R4033
VD4020
R4019
VD4018
R5203
R5201
R5202
C5207
A1
A2
C5208
A3
C5205
A4
A5
C5206
C5209
6
11
IC5640
R0503
15
10
MULTI
1718
CN0500
615
16
15
412
C5630
3
R0500
R5630
IC5630
C5631
13
64
L0102
C5117
R0105
C5100
C5105
C5112
R5103
C5111
A8
A7
A6
A5
A4
A3
A2
A1
B8
B7
B6
B5
B4
B3
B2
B1
IC5100
C8
C7
C6
C5
C4
C3
C2
C1
C5110
C0104
D8
E8
D7
E7
D6
E6
D5
E5
E4
D3
E3
D2
E2
D1
E1
L0101
C7711
C7712
R7713
IC7711
CN4006
1920
R1006
FB1003
C1005
VD0500
C0500
FB0500
R0502
L0106
CL5102
CL5101
G8
H8
F8
G7
H7
F7
JL5100
G6
H6
F6
G5
H5
F5
F4
G4
H4
C5114
F3
G3
H3
F2
G2
H2
F1
G1
H1
C5101
C5107
C5106
C0105
R5101
C5104
C5103
VD0502
FB0501
C0501
C5116
R0108R0109
R0101
C0107
VD0501
D0100
C0102
L0105
R1066
FB1062
CL1001
R5104
C5500
R0107
C5120
C5300
64
L0107
13
R0106
IC5500
F004
IC5300
R5300
C6009
213
C1003
R1002
54
C5501
R5301
43
X6000
12
R1123
C6128
R1120
C6124
C1122
C1081
C6010
C6020
C6023
R6002
C1106
R1020
R6000
R1021
R1003
R6041
R1124
C1043
C6022
C6132
R5500
C5301
CL1041
21
R6084
CL1042
C6008
R1023
R1024
R1122
21
FB6081
21
R6085
R1008
R1007
R1121
RB6082
R1009
C1082
C1023
L1021
R1022
R1042
R1043
R1041
17
28
C1024
R1083
R6021
FB1083
R6062
IC6000
R1084
FB1084
R1089
C6061
C6066
R1081
R29 T29 U29 V29 W29 Y29 AA29 AB29 AC29 AD29 AE29 AF29 AG29 AH29P29N29M29L29K29J29H29G29F29E29D29C29B29
R28 T28 U28 V28 W28 Y28 AA28 AB28 AC28 AD28 AE28 AF28 AG28 AH28 AJ28P28N28M28L28K28J28H28G28F28E28D28C28B28A28
R26 T26 U26 V26 W26 Y26 AA26 AB26 AC26 AD26 AE26 AF26 AH26 AJ26P26N26M26L26K26J26H26G26F26E26D26B26A26
R25 T25 U25 V25 W25 Y25 AA25 AB25 AC25 AD25 AE25 AF25 AH25 AJ25P25N25M25L25K25J25H25G25F25E25D25B25A25
R23 T23 U23 V23 W23 Y23 AA23 AB23 AC23 AE23 AF23 AH23 AJ23P23N23M23L23K23J23H23G23E23D23B23A23
R22 T22 U22 V22 W22 Y22 AA22 AB22 AC22 AE22 AF22 AH22 AJ22P22N22M22L22K22J22H22G22E22D22B22A22
R20 T20 U20 V20 W20 Y20 AB20 AC20 AE20 AF20 AH20 AJ20P20N20M20L20K20H20G20E20D20B20A20
R19 T19 U19 V19 W19 Y19 AB19 AC19 AE19 AF19 AH19 AJ19P19N19M19L19K19H19G19E19D19B19A19
R18 T18 U18 V18 W18 Y18 AB18 AC18 AE18 AF18 AH18 AJ18P18N18M18L18K18H18G18E18D18B18A18
R17 T17 U17 V17 W17 Y17 AB17 AC17 AE17 AF17 AH17 AJ17P17N17M17L17K17H17G17E17D17B17A17
R16 T16 U16 V16 W16 Y16 AB16 AC16 AE16 AF16 AH16 AJ16P16N16M16L16K16H16G16E16D16B16A16
R15 T15 U15 V15 W15 Y15 AB15 AC15 AE15 AF15 AH15 AJ15P15N15M15L15K15H15G15E15D15B15A15
R14 T14 U14 V14 W14 Y14 AB14 AC14 AE14 AF14 AH14 AJ14P14N14M14L14K14H14G14E14D14B14A14
R13 T13 U13 V13 W13 Y13 AB13 AC13 AE13 AF13 AH13 AJ13P13N13M13L13K13H13G13E13D13B13A13
R12 T12 U12 V12 W12 Y12 AB12 AC12 AE12 AF12 AH12 AJ12P12N12M12L12K12H12G12E12D12B12A12
R11
R10 T10 U10 V10 W10 Y10 AB10 AC10 AE10 AF10 AH10 AJ10P10N10M10L10K10H10G10E10D10B10A10
R1080
R1099
C6060
C6063
T11 U11 V11 W11 Y11 AB11 AC11 AE11 AF11 AH11 AJ11P11N11M11L11K11H11G11E11D11B11A11
R8 T8 U8 V8 W8 Y8 AA8 AB8 AC8 AE8 AF8 AH8 AJ8P8N8M8L8K8J8H8G8E8D8B8A8
R7 T7 U7 V7 W7 Y7 AA7 AB7 AC7 AE7 AF7 AH7 AJ7P7N7M7L7K7J7H7G7E7D7B7A7
R5 T5 U5 V5 W5 Y5 AA5 AB5 AC5 AD5 AE5 AF5 AH5 AJ5P5N5M5L5K5J5H5G5F5E5D5B5A5
R4 T4 U4 V4 W4 Y4 AA4 AB4 AC4 AD4 AE4 AF4 AH4 AJ4P4N4M4L4K4J4H4G4F4E4D4B4A4
R2 T2 U2 V2 W2 Y2 AA2 AB2 AC2 AD2 AE2 AF2 AG2 AH2 AJ2P2N2M2L2K2J2H2G2F2E2D2C2B2A2
R1
T1 U1 V1 W1 Y1 AA1 AB1 AC1 AD1 AE1 AF1 AG1 AH1P1N1M1L1K1J1H1G1F1E1D1C1B1
FB1085
R1088
R1086
R1085
R6082
R1098
FB1086
R1097
C6005
FB6080
R1062
R1096
FB1087
R1118
R1119
R1082
R1095
AB21 AC21 AE21 AF21 AH21 AJ21H21G21E21D21B21A21
AB9 AC9 AE9 AF9 AH9 AJ9H9G9E9D9B9A9
R1094
FB1088
118
R6060 R6061
C6065
AE24
R6081
RB6080
28
RB1081
17
C6062
AF24 AH24 AJ24E24D24B24A24
AE6 AF6 AH6 AJ6E6D6B6A6
C6122
C1121
13
C7713
16
R7714
14
C7714
C7715
C2301
R7715
L1062
AH27 AJ27B27A27
AH3 AJ3C3B3A3
C6126
17
28
912
ET4012
8
17
5
R7711
R7712
C7719
SE7711
C7717
C6127
L1001
C6006
C6002
C1120
R4905
C6067
C6123
C1118
R4901
C6102
C1101
C1112
C1115
C1116
C1109
CL1081
CL1084
CL1082
FB1061
R1063
C6068
C6141
C6140
C1113
R6120
C1084
C1119
R1109
RB4001
R1065
R1064
R6121
C1085
C1117
C1114
R1106
Q1101
17
28
R1092
R1090
C7716
R7717
R7716
C7718
13
R4909
64
C8631
C8630
IC8630
RB4011
17
28
C4016C4017
C4015
C8632
28
17
RB4010
28
R1091
BE
C
R1093
C4018
R4908
R4903
R4910
D4D3D2
D5C5B5A5
D1
C4C3C2
C1
B4B3B2
B1
A2
A3
A4
A1
17
RB3503
28
RB3502
C1062
17
R1067
CN4902
C8500
28
RB3100
17
C3100
R3100
C3501
C4019
R4900
R4907
R4906
C8512
C3503
R8500
R8508
R8501
C8506
C8505
C8509
C3502
C3506
C8525
C8524
R3508
R3507
L3501
C3507
FB3359
FB3358
2 60
62 63
CN4901
1
C8501
R8503
R8504
C3508
C8526
A1
C3510
B1
C1
D1
E1
F1
G1
C8527
C8523
28
RB3501
17
FB3361
FB3360
28
RB3359 RB3360
17
2526
124
C3505
R8502
R8505
C3509
C8507
C8508
C8513
C8510
A2A3A4A5A6
B2B3B4B5B6
C2C3C4C5C6
D2D3D4D5D6
E2E3E4E5E6
F2F3F4F5F6
G2G3G4G5G6
C8516
R3503
C8518
C8522
R3504
FB3365
FB3364
FB3363
FB3362
C8519
IC8500
C8515
28
17
8
CN4010
16
7
IC1404
C1410
B1
C1 A1
B2 A2C2
VD4015
VD4016
2
1
R3501
IC8501
34
C8520
C8514
C8517
C8503
C8504
C8511
C8521
R8506
R8507
61
12
ET4011
CN4008
34
08
Note: C1112, C1113, C1116, C1117, C1119, C1120, C1121, C1122, C3509, C5102, C5152, C5207, C5500, C7711,
C7715, C8509, C8510, C8511, C8512, C8513, C8514, C8524, CN0500, ET4012, IC5100, IC5150, IC5500,
IC6000, IC7711, IC8501, L5150, R5100, R5201, R6062, R6120, R6121, R7711, R7712, R7713, R7714,
R7715 and SE7711 are not supplied, but they are included in VC-1025 COMPLETE BOARD (SERVICE).
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
6-55
1-889-179-
11
: Uses unleaded solder.
MM-102 BOARD (SIDE A)
MM-102 BOARD (SIDE B)
:EXCEPT CX530E
D14
C8205
C8204
A11
A9
A6
A4
FB8701
B13
R8110
B2
D1
R8108
R8109
FB8702
FB8703
1
7
RB8102
2
8
H14
J13 K13 L13
H13
J12 K12 L12
K11 AA11
H11
J11
J10
K10
J9
K9
M8H8
J8
K8
IC8101
J7
K7
K6
M6H6
J6
J4 K4 L4
J3 K3 L3
J2
R8106
FB8705
N5
K5
M5
K2 L2
R8103
R8104
R8105
FB8706
FB8707
FB8708
1
7
RB8101
2
8
R8107
FB8704
H5
H4
H3
H2
T10R10P10N10
C8104
V14U14T14R14P14N14M14
V13U13T13R13P13N13J5M13
V12U12T12R12P12N12M12H12
Y11
W11
U10
Y10
W10M10H10
U9
Y9
W9M9H9
U8
Y8
W8
W7M7H7
U7
Y7
W6
U6
Y6
Y5
W5U5T5R5P5
V3U3T3R3P3N3M3
T2R2P2N2M2
V2U2
Y1W1
V1U1T1R1P1N1M1L1K1J1H1
R8113
R8112
C8105
AA13Y13W13
AA12Y12W12
AA10
AE14
AG13
AH11
AA9
AA8
AA7
AA6
AA5
AA4Y4W4
AA3Y3W3
AA2Y2W2
AA1
AH9
AH6
AH4
AG2
AE1
C8103
R8111
3
2
R8101 R8102
4
C8701
1
IC8701
C8102
AA14Y14W14J14 K14 L14
118
CN8101
:EXCEPT CX530E
AR1
AU3
AV6
AV9
AV12
AV15
AV18
AV21
AU24
AR26
C8203
C8202
AJ4
AF4
AH4
AG4
AE4
AJ5
AF5
AH5
AG5
AE5
AJ6
AH6
AJ7
AF7
AE7 AD7
AH7
AJ8
AF8 AE8 AD8
AH8
AF9 AE9 AD9
AD10
AF10 AE10
AE11
AF11
AD11 AB11 AA11 Y11 W11
AF12
AE12
AD12
AD13 U13 N13
AF13
AE13
AE14
AF14
AD14
AE15
AF15
AD15 U15 N15
AE16
AF16
AD16 U16 N16
AE17
AD17
AF18 AE18 AD18
AJ19
AF19 AE19 AD19
AH19
AF20 AE20
AJ20
AJ21
AJ22
AJ23
AH20
AH21
AF22
AH22
AG22
AE22
AG23
AF23
AH23
AE23
R8201
AD20 P20R20T20
AA7Y7W7V7U7T7R7P7N7
AC7 AB7
AA8 Y8 W8 V8 U8
AC8 AB8
AC9 AB9 AA9 Y9 W9 V9 U9
V11
IC8201
AA16 Y16 W16 V16
AA20 Y20 W20 V20 U20
U11
U12 N12
U14 N14
U19
AB12
AB13
AB14
AB15
AB16
AC18
AB18 AA18 Y18 W18 V18 U18 N18
AC19
AB19 AA19 Y19 W19 V19
AC20 AB20
R8203
R8202
D1
N4
P4
K4
M4
L4
N5
P5
K5
M5
L5
K6
L6
K7
L7
P8
R8T8
N8
K8
L8
P9R9T9
N9
P10R10T10
N10
P11
R11
N11
R12
P12
P13
R13
P14
R14
P15
R15
P16
R16
N17
R17AF17
P17
P18R18T18
R19
N19
P19T19
K19
L19
N20
K20
L20
K21
L21
N22
P22
K22
M22
L22
N23
K23P23
M23
L23
B3
A6
A9
A12
A15
A18
A21
B24
D26
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
1-884-970-
11
6-56
08
1-884-970-
11
: Uses unleaded solder.
PD-1030 BOARD
:Non Projector Model
SE4700
21
34
SL4700
C4700
R4700
C4709
2 50
52 53
CN4700
1
6
143
CL4703
CL4707
CL4711
CL4715
CL4700
CL4704
CL4708
R4703
R4704
CL4714
CL4713
1
2
RB4700
7
8
CL4716
51
CL4710
CL4709
CL4706
CL4705
CL4702
CL4701
C8042
C8044
C8046
C8045
CL4712
16
C8041
Q8081
Q8080
143
6
C4707
45
C4708
D8080
13
CN4702
78
51
C8043
C8047
C8048
C8049
L4701
C8050
C8051
C8052
CN8040
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
6-57
C8040
R4708
R4707
R4705
L4700
2 50
R4706
1
52 53
C8053
1-889-181-
11
: Uses unleaded solder.
PD-1031 BOARD
:Projector Model
SE4800
21
34
C4809
6
Q8080
143
R4800
6
C4807
C4808
3
1
143
D8080
4
5
6
1
R3756
8
RB4804
127
8
C4800
2
CL4805
1
CL4804
CL4803
CL4802
CL4801
R4805
CL4800
CN3750
R4801
R4802
60
59
R4803
R4804
2 50
52 53
CN4800
1
RB4802
127
FB3750
IC8010
A1
C1
D1
E1
F1
G1
G2
G3
G4
G5
R4806R4807
G6
G7
R3750
R3751
A2
B2
C2
D2
E2
F2
A3
B3
C3
D3
E3
F3
A4
B4
C4
D4
E4
F4
A5
B5
C5
D5
E5
F5
A6
B6
C6
D6
E6
F6
A7
B7
C7
D7
E7
F7
C3750
C3752
R3752
C3751
R3754
R3755
51
2
1
2
RB4803
7
8
RB4805
7
8
Note: IC8010 is not supplied, but this is included in
IC3750
12 10 9181920
11
R3760
13
14
C3753
21
C3754
17
2
341
C8042
C8043
C8044
C8045
C8046
8
RB4801
R3758
R3759
8
7
615
R3757
516
Q8081
C8041
127
51
SL4800
8
CN4802
1
7
PD-1031 COMPLETE BOARD (SERVICE).
C8047
C8048
C8049
C8050
L4801
L4802
R4808
R4810
R4811
C8053
C8051
C8052
CN8040
R4809
C8040
08
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
6-58
2 50
1
52 53
1-889-182-
11
: Uses unleaded solder.
JK-1009 BOARD (SIDE A) JK-1009 BOARD (SIDE B)
WF-1004 BOARD (SIDE A)
:EXCEPT CX535
WF-1004 BOARD (SIDE B)
:
EXCEPT CX535
1920
118
CN3001
VD3005VD3006
C7706
2 44
46 47
1
CN4200
45
08 08
C3400
FB3401
VD3400
VD3401
C3401
FB3400
PLUG IN
POWER
BE
Q3400
C
R2422
C2208
C2202
R2201
34
2
L2201
1
IC2201
C2201
R3400
FB3403
C3404
VD3402
C3402
R3402
FB3402
R3401
VD3403
C3403
1-889-180-
(HEADPHONE)
11
21
Note: C8830 and IC3000 are not supplied,
but they are included in JK-1009 COMPLETE BOARD
(SERVICE).
CL7401
C7402
C7403
C7404
CL7400
VD3009
R2410 R2411
R2420
2122
2
J3400J3401
3
1
2
3
1
C2407
R2408 R2409
4
51234
C2406
C2405
R2406
R2417
C2403
R2405
R2216
R2204
14
121314
R2202
C2223
C2222
C2224
C2221
SE2221
15 16
710
CL2221
VD4201
VD4200
4
BT4200
R2412R2413
R2419
1617181920
C2409
25
IC2403
11 12 13 14 15
987
6
10
C2410
23 24
C2411C2412
C2404
R2415
C2413
R2414
R2418
R2218
C7705
R2207
CL7703
R2416
R2404
BH4200
CL7702
CL7701
R2421
C7704
C7701
R2407
15
610
1115
1620
SE7701
PITCH/YAW
C7703
C7702
R2402
54
IC3000
1
Q8830
C3000
Note: BT4200 is not included in
VD3007
VD3010
VD3011
VD3008
E
C
Q3002
B
VD3000
VD3001
VD3002
VD3003
VD3004
3
4
R3000
Q3001
6
1
BE
3
C8830
R8830
13
64
RB3000
17
28
R8831
C
Q3000
1-889-180-
11
21
JK-1009 COMPLETE BOARD (SERVICE).
LITHIUM
BATTERY
C7401
25
16
26
24
7
IC7401
29
1912
13
18
28
27
2526
124
R2310
B1
B2
R2306
R2308
A1
A2
IC7312
C7314
R7302
CN2301
C2305
R2307
C2304
12
CN2302
34
R2316
34
12
IC7311
C7304
46
40
7
8
RB7302
1
2
C7303
12
41
39
38
1-889-083-
R7301
C7313
C7301C7302
111
11
R2313
L2303
C2306
C2307
R2311
L2301
L2302
ET2301
C2301
08
1-889-083-
C7305
11
1
CL7301
2030
19
444342
45
CP7300
31
R2314R2315
2
1
RB7301
8
7
08
Note: C7402, CP7300, ET2301 and L2303 are not supplied,
but they are included in WF-1004 COMPLETE BOARD.
Danger of explosion if battery is incorrectly replaced.
Caution
Replace only with the same or equivalent type.
Dispose of used batteries according to the instructions.
注意
如果电池更换不当会有爆炸危险。
只能用同样类型或等效类型的电池来更换。
务必按照说明处置用完的电池。
注意
電池の交換は，正しく行わないと破裂する恐れがあります。
電池を交換する場合には必ず同じ型名の電池又は同等品と交換し
てください。
使用済み電池は，取扱指示に従って処分してください。
Note: Replace the battery holder (BH4200) together when replac-
ing the lithium storage battery (BT4200) on the JK-1009
board. (The battery holder removed once cannot be used
again.)
When mounting these parts, mount new battery holder first
and attach new lithium battery next.
Note:
JK-1009基板のリチウム蓄電池（BT4200）を交換する場合
はバッテリホルダ（BH4200）も同時に新品に交換して下さ
い。（一度使用したバッテリホルダは再使用できません。）
部品取り付 け の際は ， 先にバッテリホルダを取り付 けてか
らリチウム電池を装着して下さい。
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
PJ-1005 BOARD (SIDE A)
:Projector Model
R8801
C8809
R8804
R8805
C8805
C8810
C8804
CL8802
C8603
C8602
CL8507
CL8510
CL8801
CL8604
X8601
34
21
R8611
R8612
L8802
R14
R13
R12
R11
P12N12D12C12B12
P13N13M13L13K13J13H13G13F13E13D13C13B13A13
P14N14M14L14K14J14H14G14F14E14D14C14B14A14
P11N11
P15N15M15L15
M11
M12L12K12J12H12G12F12E12
K15J15H15G15F15E15D15C15B15A15 R15
D11C11B11A11
A12
127
RB8603
8
CL8508 CL8509
CL8804
RB8604
8
R9R8R7R6R5R4R3R2R1
R10
P9N9D9C9B9
P10N10D10C10
M9M8M7
M10
B10A10
2
1
CN8503
08
6-59
P8N8D8C8
P7N7D7C7B7A7
IC8605
B8
A8A9A5
R8813
L8801
CL8803
127
P6N6B5P4N4M4L4
P5N5D5C5
M5
M6D6C6B6
K4J4H4G4F4E4D4C4B4A4
A6
R8632
R8806
D8801
C8803
C8806 C8807
R8633
R8620 R8621
CL8701
2
8
C8702 C8703
A9
A8
A7
R8701
A3
A2
A1
R8623
P3N3M3L3K3J3H3G3F3
P1N1L1K1G1F1D1C1B1A1
P2N2M2L2K2J2H2G2F2E2D2C2B2A2
E1 J1H1 M1
E3D3C3
B3
A3
1
RB8602
7
60
59
R8630
R8817
C8517
F9 H9 K9
B9 C9 D9 E9
B8 C8 D8 E8 F8 G8 H8 J8 K8
B7 C7 D7
G9 J9
E7 F7 G7 H7 J7 K7
IC8701
B3 C3 D3 E3 F3 G3 H3 J3 K3
B2 C2 D2 E2 F2 G2 H2 J2 K2
F1 H1 K1
B1 C1 D1 E1 G1 J1
C8701
R8702
18
CN8601
PJ-1005 BOARD (SIDE B)
:Projector Model
C8710
R8705
08
1-887-467-
Note: IC8504, IC8605, IC8801 and R8815 are not supplied,
but they are included in PJ-1005 COMPLETE BOARD.
11
CL8502 CL8503
45
C8538
C8546
RB8601
14
9
IC8606
110
R8812
CL8807
CN8502
CL8806
CL8805
R8815
G7
F7
E7
D7
C7
B7
A7
G6
F6
E6
D6
C6
B6
A6
G5
F5
E5
D5
C5
B5
A5
G4
F4
E4
D4
C4
B4
A4
C8801
G3
F3
E3
D3
C3
B3
A3
G2
F2
E2
D2
C2
B2
A2
G1
F1
E1
D1
C1
B1
A1
IC8801
C8818
C8816
C8820
R8816
C8611
C8612
1
C8621
C8620
CN8504
C8537
R8515
C8541
C8543
C8544
C8545
C8540
17
28
8
C8628
C8547
C8552
C8553
A
R8518
C8512
R8516
R8522R8523
C8548
Q301
13
64
244
C8610
C8536
C8618
R8524
R8519
D8501
C8619
C8627
C8607
C8609
C8549
4
3
R8520
IC8504
1
2
C8551
C8815
C8824
C8817
C8814
C8825
R8818
C8622
C8605
C8606
R8606
R8607
C8501
C8505
C8550
C8510
R8521
5
1-887-467-
11
: Uses unleaded solder.
FP-2214 FLEXIBLE BOARD
MULTI
INTERFACE
SHOE
121
23 24
08
CN002
FP-2125 FLEXIBLE BOARD
>PI <
81
22
>PI<
FP-2214
Note: CN002 is not supplied, but this is included in
1-889-342-
LND005
118
11
08
FP2125
FP-2214 FLEXIBLE COMPLETE BOARD.
CN0001
CN0002
81
FP-2106 FLEXIBLE BOARD
: Projector Model
145
LND001
08
C001
43
1
CN5503
41
45
1-887-503-
LD0001
23 1
1-887-653-
11
I
44
2
FP-2126 FLEXIBLE BOARD
>PI<
42
46
39
CN0004
38
1
2
23
CN0005
1
222
FP-2126
ID
11
08
LD0002
145
1-887-654-
11
HDR-CX530E/CX535/CX610E/PJ530E/PJ540/PJ540E/PJ610E_L3
: Uses unleaded solder.
6-60E
Loading...
