Sonim XP 6 (AT&T) User Guide

USER

GUIDE

SONIM XP6

English

SONIM and the Sonim logo are trademarks of Sonim Technologies, Inc. Other company and product names may be trademarks or registered trade-marks of the respective owners with whom they are associated.

Third Party Trademarks

Google, Android, Google Calendar, Google Now, Google Play and other marks are trademarks of Google Inc.”

Disposal of Old Electrical and Electronic Equipment

This symbol indicates that within the countries in the European Union, this product, and any enhancements marked with this symbol, can not be disposed as unsorted waste but must be taken to separate collection at their end- of-life.

Disposal of Battery

Please check local regulations for disposal of batteries. The battery should never be placed in municipal waste. Use a battery disposal facility if available.

Guideline for Headphone and Earphone

To prevent possible hearing damage, please do not listen at high volume levels for long periods.

General Information———————— 7

Phone Models Covered Sonim Support Information Use the Guide Effectively

Safety Guidelines———————— 9

SAR Information Avoid High Temperatures Battery Disposal Personal Medical Devices Child Safety Emergency Calls

Battery Usage Guidelines———————— 14

Battery Usage Charging the Battery Verifying and Optimizing Battery Usage Tips to extend the battery life

Getting Started———————— 16

What Is In the Box? Phone Specications

Contents

Your SIM Card Replacing the SIM Card

Your Sonim XP6———————— 18

Switching On Setting Up Your Phone Enhanced Push-To-Talk (EPTT) Application Update Setting up Google Touch Keyboard Need for a Google+™ Account Touch and Type Operations Managing Home Screen Home Screen Indicators Phone Operations Without SIM Card Setting up and Using Lock Screen Changing the Wallpaper Taking a Screenshot Voice Input for Text Entry

Text Entry Options T9 Text Input Method Keypad Functions

Managing Phone Settings———————— 29

Time and Date Settings Language and Input Settings Mouse/Pointer Settings Display Settings Power Saving Settings Connecting a Wireless Display Device Connecting a PC Using USB Connection Viewing Device Details Managing Memory Utilized by Applications Optimizing Memory Usage

Managing Wireless and Network Settings———————— 33

Connecting to Wi-Fi Network Enhanced PTT Users Advanced Setting Connecting to Bluetooth Devices Optimizing Data Usage Activating Airplane Mode Setting Up Tethering & Portable Hotspot Setting Up Wi-Fi Hotspot Activating Bluetooth Tethering Managing Mobile Network Managing Emergency Alerts

Managing Phone Security Settings———————— 37

About Android Security Managing Security Settings Locking your Screen Encrypting Phone Data Locking Your SIM Card Managing Credential Certicates Protecting your Phone from Harmful Applications

Managing Personal, Account and System

Settings———————— 39

Location Access Apps Accessing Your Location Backup and Restore Data Managing Accounts Syncing Your Account

Managing Contacts———————— 42

Add a New Contact View the Contact Details Sending a Message from Contacts Dialing a Number from Contacts Editing the Contact Details Importing SIM Card Contacts to Phone Exporting Phone Contacts to SIM Card Exporting Phone Contacts to Storage Managing Contact Settings Managing Phonebook Settings Searching Contacts Deleting a Contact

Managing Calls———————— 45

Contents

Making a Call Dialing a Number via People Answering an Incoming Call Adding a Contact from Phone Screen Viewing All Contacts from Phone Screen Viewing Call History Deleting Call History Deleting Frequently Called Contacts List Managing Call Settings Changing Ringtones and Master Volume Editing Quick Responses Activating Vibrate Mode Activating Touch Tones Changing to Loudspeaker Mode Managing Fixed Dial Numbers Monitoring Incoming and Outgoing Calls

Turn on proximity sensor Setting TTY Mode Call Forwarding SIP Accounts Use Internet Calling Optimizing Power During a Call

Sending Messages———————— 50

Sending SMS/MMS Message Managing Message Settings Deleting Messages Emergency Alerts Setting Up E-mail Accounts Sending an E-mail Reading an E-mail

Using the Virtual Keyboard———————— 53

Enter and Edit Text Gesture Typing Use Gesture Typing without the space bar Keyboard Dictionaries

Installing and Accessing Enhanced Push-To-Talk Services———————— 55

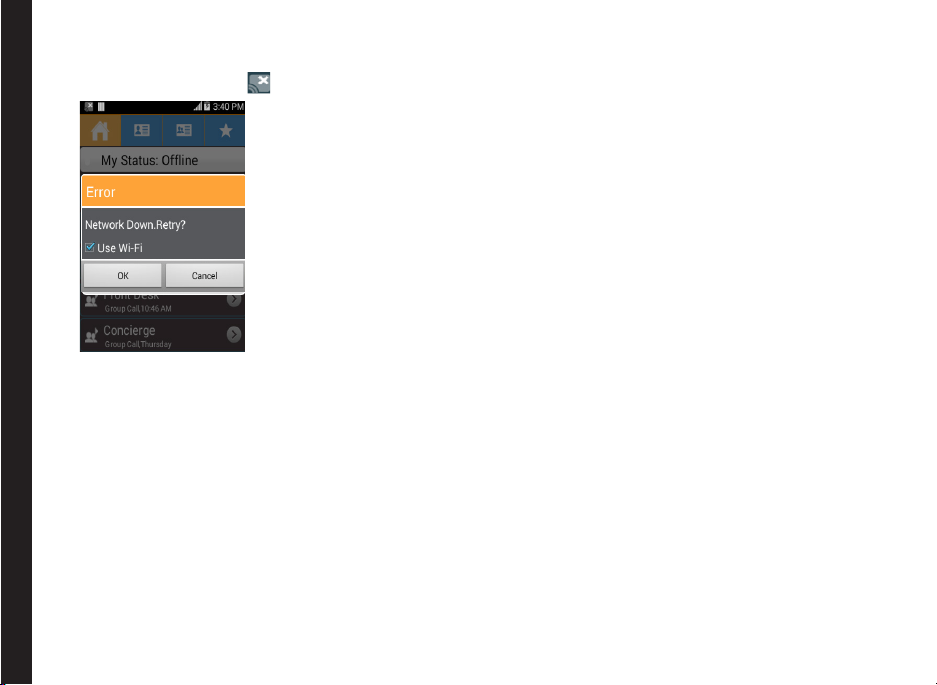

Launching EPTT Application Activating EPTT Using Wi-Fi Enhanced PTT Users Advanced Setting

Creating EPTT Contacts———————— 59

Adding Contacts from Native Phonebook Adding Contacts by Manual Input

Creating New EPTT Groups———————— 62

Making EPTT Calls to Individuals and Groups———————— 63

Making a EPTT Call to an Individual Making a EPTT Call to a Group Making a Quick Group Call Editing EPTT Contact

Deleting EPTT Contact Editing EPTT Group Deleting EPTT Group

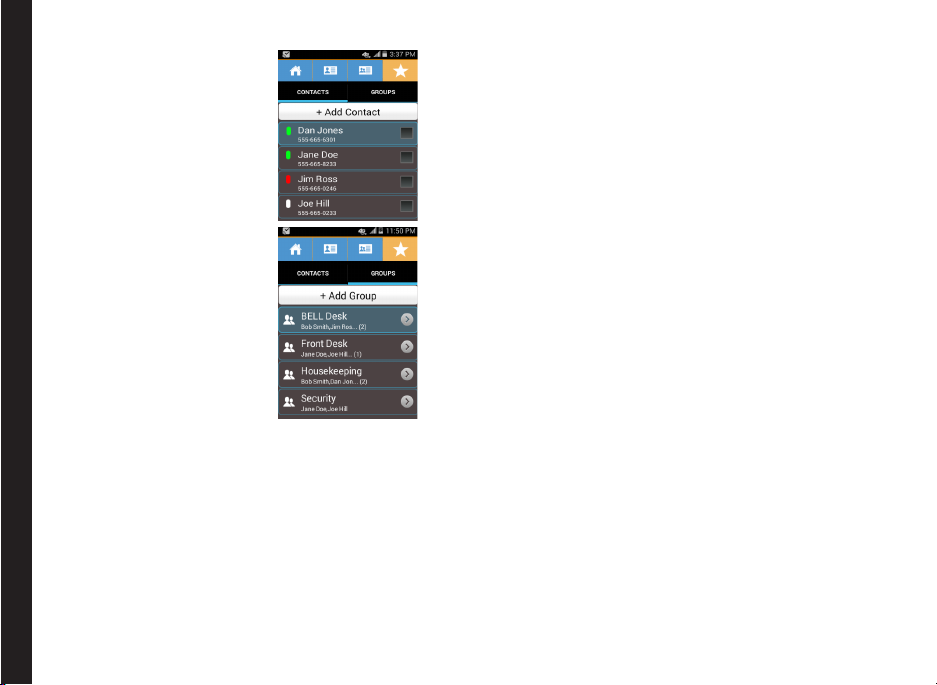

Adding a Favorite Contact or Favorite Group———————— 71

Adding a Favorite Contact Adding a Favorite Group

EPTT Presence Status Change———————— 73

EPTT Presence Status Change

Managing Alerts———————— 75

Sending Personal Alert Receiving Personal Alert Missed call Alert

EPTT History Screen———————— 77

Managing EPTT Settings———————— 79

Logout of EPTT Service———————— 82

Installing and Using Android™

Contents

Applications———————— 83

Google Play™ Store Downloading Android Applications and Media Files Managing Downloaded Application Managing Downloaded Media Files Accessing Gmail Camera Google Calendar™ Alarm Clock Calculator Sound Recorder Music Player

Google Search™ and Google Now™———————— 87

About Google Search™ and Google Now™

Activate Google Now Use Google Now Voice Search and Action Voice Actions

End User License Agreement———————— 88

License Comprehensive 3 Year Warranty Warranty Registration Application (Only available on Smart phones) Our Warranty What We Will Do Phone Care Conditions Accessories

Federal Communication Commission Interference (FCC) Statement———————— 92

FCC Statement FOR PORTABLE DEVICE DEVICE USAGE (<20cm from body/SAR)

Index———————— 94

• Please register your phone at www.sonimtech.com/register, to receive product information and updates.

Sonim devices are covered by a 3-Year comprehensive warranty. The embedded battery is covered by a 1-Year limited warranty. For more information related to the warranty, please refer to the warranty section “Comprehensive 3 Year Warranty” on page 88.

Congratulations on the purchase of a Sonim XP6 mobile phone. This phone is an LTE smartphone enabled handset with quad-band capabilities and has an intuitive, feature-rich user interface, which allows you to make the best use of the offered functions.

Phone Models Covered

This user guide covers Sonim XP6 phone with the model number XP6700. The model name can be read on the phone label under the battery.

Sonim Support Information

For additional product and support information, visit www.sonimtech.com.

SWIPE OR SLIDE

DOUBLE TAP Tap quickly twice on a map or other

Quickly move your nger across the surface of the screen, without pausing when you rst touch. For example, you can slide a home screen left or right to view the other home screens.

screen to zoom. For example, doubletap a location in the map to zoom in, and double-tap again to zoom out.

Signies a Note.

Use the Guide Effectively

Familiarize yourself with the terminology and symbols used in the guide to help you use your phone effectively.

General Information

HOME SCREEN

TOUCH & HOLD

DRAG Touch and hold an item for a moment

This is the screen displayed when the phone is in idle condition or when you tap the Home icon ( ) on the keypad.

Touch and hold an item on the screen by touching it and not lifting your nger until an action occurs.

and then, without lifting your nger, move your nger on the screen until you reach the target position.

Options Commonly Used across Menu Items

The following are common actions used across various menu items:

OK Conrms an action. Use the Center key to

perform this function.

BACK Use this key to display the previous

screen.

HOME Moves the current working application to

the recent applications list/background and displays home screen.

RECENT Displays the thumbnails of the applications

that you have worked on recently. To remove any application from this list, swipe the application to left or right.

General Information

Please read and understand the following safety guidelines before you use the phone. These guidelines provide details to enable you to operate your phone safely and conform to any legal requirements regarding the use of cellular phones.

Do not to use the phone at a refueling point. Observe restrictions when using radio equipment at fuel depots, chemical plants or where blasting operations are in progress.

Electrical interference may obstruct the use of your phone. Observe restrictions in hospitals and near medical equipment.

Switch off your cellular phone when in an aircraft. Wireless phones can cause interference or danger to an aircraft. In an aircraft, the phone can be used in flight mode.

Do not expose the battery to high temperatures (in excess of 55°C).

Safety Guidelines

Adhere to road safety laws. Do not hold/use a phone while you are driving; find a safe place to stop first. Use hands-free microphone while you are driving.

Avoid using the phone in close proximity to personal medical devices, such as pacemakers and hearing aids.

Use only Sonim XP6 approved charging equipment to charge your phone and avoid damage to your phone.

The symbol of the crossed-out wheeled bin indicates that this product, and any enhancements marked with this symbol, cannot be disposed as unsorted waste but must be taken to separate collection at their end-of-life.

Safety Guidelines

Ensure that only qualied person install or repair your phone.

The Sonim XP6 is water-proof and can be submerged to 2 meters for 1 hour.

• Ensure to properly close the rubber cover of the charging connector and audio connector, to avoid deposits of water drops on these connectors, when the phone is immersed in water.

• Water droplets may condense under the display cover if the phone is immersed in water with signicant drop in temperature. This does not indicate water leakage. The droplets disappear at room temperature.

The Sonim XP6 is dust-resistant, rugged and shock-resistant. However, it is not dust-proof or unbreakable if subjected to overwhelming impact. For best results and long product life, one should protect the Sonim XP6 from salt water, dust and strong impacts.

SAR Information

The Sonim XP6 has been certified in compliance with the Government’s requirements for exposure to Radio Waves.

When communicating over the wireless network, the mobile phone emits via the radio frequency waves low levels of radio energy. The Specic Absorption Rate, or SAR, is the amount of RF energy absorbed by the body while using the phone and is expressed in watts/kilogram (W/kg).

Governments around the world have adopted comprehensive international safety guidelines, developed by scientic organizations, for example, ICNIRP (International Commission on Non-Ionizing Radiation Protection) and IEEE (The Institute of Electrical and Electronics Engineers Inc.). These guidelines establish permitted levels of radio wave exposure for the general population.

Tests for SAR are conducted using standardized methods with the phone transmitting at its highest certied power

Safety Guidelines

level in all used frequency bands.

SAR Data Information for residents in the United States and Canada

The limit recommended by ICNIRP is 1.6 W/kg averaged over one (1) gram of tissue.

The highest SAR value for the Sonim XP6700 phones when tested by Sonim for use:

• By the ear is 0.93 W/1g.

• Worn on the body is 1.29 W/1g provided that the phone is used with a non-metallic accessory with the handset at least 1 cm from the body, or with the original Sonim accessory intended for this phone

and worn on the body.

HAC Rating

The FCC has created a rating system for cellular phones regarding their HAC-related performance. This rating helps consumers with hearing disabilities to nd phones that work well with their hearing aid devices. The HAC rating and measurement procedure are described in the American National Standards Institute (ANSI) C63.19:2011.

ANSI C63.19 contains two rating standards: an “M” rating from 1 to 4 for hearing aids operating in microphone mode, and a “T” rating from 1 to 4 for hearing aids operating in telecoil mode.

M-Rating stands for Microphone rating and indicates the amount of reduction of RF interference between the telephone and the hearing aid in acoustic coupling mode (also called microphone mode).

Phones rated M3 or M4 meet FCC requirements and generate less interference to hearing devices set in microphone mode.T-Rating stands for Telecoil rating and represents inductive coupling with hearing aids that are operating in telecoil mode. A telecoil is a small piece of tightly wrapped wire, built into some hearing aids. While the microphone of a hearing aid picks up all sounds, the telecoil only picks up an electromagnetic signal from the telephone. Thus, users of telecoil-equipped hearing aids are able to communicate over the telephone without the amplication of unwanted background noise.

Phones rated T3 or T4 meet FCC requirements and generate less interference to hearing devices set in telecoil mode.

A combination of M-rating and T-rating denes the nal HAC rating and is a deciding factor in selecting

cellular phones for people with hearing problems. A HAC compliant phone could be rated:

• M3/T3

• M3/T4

• M4/T3

• M4/T4

These ratings assist hearing device users to nd phones that are compatible with their hearing devices. Ratings are shown on the phone’s box or label. The ratings are not guaranteed for suitability. The results vary depending on the individual’s hearing loss and the immunity characteristics of the used hearing device, i.e. its resistance to interference. The best way to evaluate the suitability of the phone is to try it with the intended hearing aid device.

Sonim XP6 has been tested for hearing aid device compatibility and complies with the Federal Communications Commission (FCC) requirements. Sonim XP6 is rated M3/T4.

Safety Guidelines

Avoid High Temperatures

Leaving the device in hot or cold places, such as in a closed car in summer or winter conditions, reduces the capacity and lifetime of the battery. For the best results, try to keep the device between -20°C and +55°C (-4°F and 131°F). A device with a hot or cold battery may not work temporarily, even when the battery is fully charged. Battery performance is particularly limited in temperatures well below freezing.

Battery Disposal

Do not dispose of batteries in a re as they may explode.

Batteries may also explode if damaged. Dispose of batteries according to local regulations and recycle when possible. Do not dispose as household waste. Do not dismantle, open or shred cells or batteries. In the event of a battery leak, do not allow the liquid to come in contact with the skin or eyes. In the event of leak or a hazard seek medical help immediately.

Personal Medical Devices

Mobile phones may affect the operation of cardiac pacemakers and other implanted equipment. Please avoid placing the mobile phone over the pacemaker, for example in your breast pocket. When using the mobile phone, place it at the ear opposite the pacemaker. If a minimum distance of 15 cm (6 inches) is kept between the mobile phone and the pacemaker, the risk of interference is limited. If you suspect that interference is taking place, immediately turn off your mobile phone. Contact your cardiologist for more information. For other medical devices, consult your physician and the manufacturer of the device. Comply with instructions to switch off the device or deactivate the RF transmitter when required, especially when posted in hospitals and aeroplanes. Equipment used in these places may be sensitive to radio waves emitted from the device and adversely affect their operation. Also, observe restrictions at gas stations or other areas with ammable atmosphere or when close to electro-explosive devices.

Child Safety

Do not allow children to play with your mobile phone or its accessories. Keep it out of their reach. They could hurt themselves or others, or could accidentally damage the mobile phone or accessories. Your mobile phone and its accessories may contain small parts, which could be

detached and create a choking hazard.

Emergency Calls

Mobile phones operate using radio signals, which cannot guarantee connection under all conditions. Therefore you should never rely solely upon any mobile phone for essential communications (e.g. medical emergencies). Emergency calls may not be possible in all areas, on all cellular networks, or when certain network services and/ or mobile phone features are in use. Check with your local service provider.

To dial emergency calls, when the phone is not connected to any network, tap Emergency calls on the home screen. Dial the emergency call number provided by your service provider.

Safety Guidelines

Battery Usage

Sonim XP6 phone comes with a built-in battery. For any battery related queries contact Sonim customer support.

Charging the Battery

We recommend that you charge your mobile phone for 4 hours before using for the rst time.

There is a risk of explosion while charging if the battery has been replaced by an incorrect type.

3 Charging Animation/Icon

If the battery is being charged when the phone is switched off, a battery charging animation with charged percentage is displayed. If the battery is being charged while the phone is switched on, the battery charge icon on the home screen shows animation indicating that the battery is being charged. After the phone is fully charged the charging animation stops and you can disconnect the charger from the phone.

1 Insert Charger

Insert the charger plug into a power outlet

2 Connect to Phone

Battery Usage Guidelines

The charging port is located in lower side of the phone, below the back cover. Insert the charger connector to the charging port.

Verifying and Optimizing Battery Usage

You can check the battery usage status and also close some applications to save battery power. In the home screen, select Settings ( )> Device > Battery ( ).

The current battery charge status (charging or discharging) and the charge level details are displayed on the top of the screen.

The discharge graph on the top of the screen shows the battery level over time since you last charged the device, and how long you have been running on battery power.

The list at the bottom of the screen shows the breakdown of battery usage for individual apps and services. Touch a graph for more details. The details screen for some apps includes buttons that allow you to adjust settings affecting power usage, or stop the app completely.

If you stop some system apps or services such as Google service, your device may not work correctly.

Tips to extend the battery life

Follow these tips to extend your phone’s battery life.

• If you are not using Wi-Fi, Bluetooth, or GPS, use the Settings to turn them off. The GPS setting is located in Settings > Personal > Location.

• Terminate or close Google Maps or Navigation apps to background when you are not using them. They use GPS (and thus more power) only when they’re running.

• Set screen brightness to Auto and set a shorter Sleep timeout (1 minute). The display settings are located in Settings > Device > Display.

• If you are travelling and do not have access to mobile or Wi-Fi network, switch to Airplane mode: Press and hold the power switch until the Phone options dialog appears. Then touch Airplane Mode.

Battery Usage Guidelines

What Is In the Box?

The list of items in the Sonim XP6 phone box are:

• Sonim XP6 phone with rechargeable built-in battery

• Quick Start Guide

• Factory Installed SIM Card

• USB Data Cable

• Multi-tool (for SIM removal)

• Wall charger

Phone Specifications

Feature Description

Operating system

Android Kitkat (4.4.2)

Camera Rear camera - 5 MP (Auto focus)

Memory 8 GB

Getting Started

Wireless Wi-Fi - 802.11 a/b/g/n/r with hotspot

Connectivity Charger port name: 5pins water-proof

Battery 4800mAh (4 pins) embedded

function(Max. 5 connections) Bluetooth 4 + LE

magnetic USB2.0

3.5 mm headphone jack

Standby: up to 250 hours Talk time: up to 10 hours Music playback: up to 40 hours Video playback: up to 8 hours Web browsing: up to 7 hours

Your SIM Card

The SIM card associates your network services (for example, phone number, data services, and so on) with your phone.

Your Sonim XP6 comes with a SIM card installed at the factory. Please contact your operator to activate your SIM prior to use.

Replacing the SIM Card

1. Remove screw A using the screwdriver in the multi-tool and remove the headset port cover.

Getting Started

2. Remove screw B using the screwdriver in the multi-tool and remove SIM cover.

3. Insert the pin into the pinhole and press inside. The SIM card tray will pop-up. Use the pin to hook into the loop on top of the SIM card tray and remove the tray completely.

4. Insert the SIM card in the tray and return the tray into the slot by pushing it in, make sure the pinhole is aligned next to the headset port.

5. Rex both the covers and screws in place using the

screwdriver in the multitool.

* Multi-Tool

Sonim XP6 Phone

SIM card slot

Headset port

Loudspeaker

Receiver

Power On key

Navigation Keys

Your Sonim XP6

Camera

Return

Call/Accept

Press and hold to access voicemail

Press and hold to lock the keypad

Microphone

* Requires a subscription. Please go to www.

sonimprotect.com for more information.

EPTT

Display screen

Volume Up key

Volume Down key

Home

Sonim Protect® Alarm Key *

Options

Call reject/ Long press for Power Off/ Airplane Mode/Restart

Long press 5 to turn On/Off torch

Press and hold to turn on/off

meeting mode

Charger/USB port

Switching On

Press and hold the Power ON/OFF key located in the top corner in the left hand side for 2 seconds to Power ON the phone.

When the phone is switched on, it tries to register with the network. After successful registration, the name of the service provider is displayed.

Ensure that a valid SIM card is inserted in your phone.

Setting Up Your Phone

For instructions on using your phone’s buttons, charger, battery, and other hardware features, check the printed Quick Start Guide provided along with your phone.

When you power ON the phone for the rst time, Welcome screen is displayed.

Your Sonim XP6

• To choose the language, touch the Menu.

• To set up your phone, touch Start and follow the instructions.

• Make sure not to skip setting up your Google account or certain applications will not update properly.

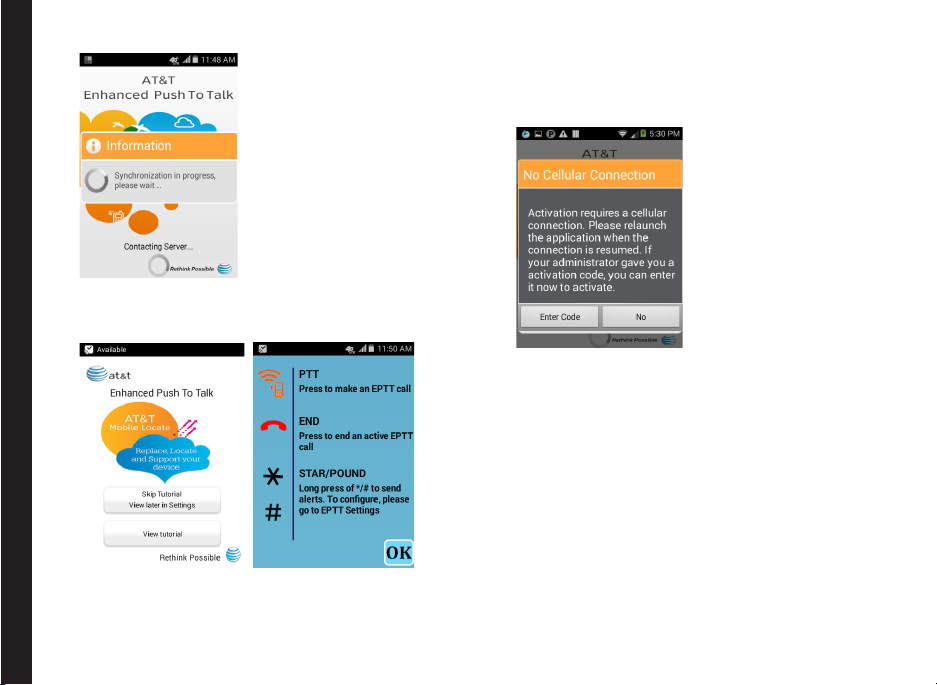

Enhanced Push-To-Talk (EPTT) Application Update

Once set up is complete,

1. Push the EPTT button (“EPTT” on page 18) to update the application from the Google Play Store.

2. Select Update > Accept permissions > Press OK.

Once downloading is completed, press the EPTT button again to load the application. For further instructions,

“Launching EPTT Application” on page 55.

Setting up Google Touch Keyboard

A series of screens takes you through the setup process. Your XP6 default input method is set to T9. Refer to “T9

Text Input Method” on page 25.

Once you have completed the set up process and have already updated your EPTT application, if you wish to turn OFF T9 and use the Google touch keyboard, go to

Settings > Language & Input > scroll down and tap Default > slide Hardware Physical Keyboard to the OFF position > check the Google Keyboard option > tap Default again > check English (US) Google Keyboard > uncheck T9 Text Input > tap Back or Home Key (to

return to main settings or home screen).

The Settings menu will display a light gray check next to Google Keyboard. Please note that if you use the numeric keyboard to input while having the Google keyboard enabled, special characters, such as *, # and space bar can only be found by pressing the 1 key multiple times until you nd the special character. Or use the touch screen for input of special characters.

If you already have Gmail account, use your Gmail address and password or else, create a Gmail account.

If you want to, you can skip some of the setup steps such as mobile network conguration and Wi-Fi conguration during this setup process. Refer to the user guide to congure later.

Need for a Google+™ Account

Your Google Account lets you organize and access your personal information from any computer or mobile device:

• When you sign in to your phone with your Google account, all the contacts you associate with that account in the People app are automatically backed up. As a result, they are always accessible through your Gmail account from any computer. The contacts are also not lost.

• Synchronize and back up your e-mails, multimedia les, contact details and events created in your phone to your Google account. You can use the download backed up information to any other computer or mobile device when you login to the same Google account from that device.

• Protect your personal information as Google accounts are secure, accessible and password protected.

Your Sonim XP6

• You can use all the Google services such as Google Maps, Google Play™, Google Now™, Google+ and Chrome bookmarks with a single sign-on user name and password.

Touch and Type Operations

Sonim XP6 is a touch phone. You can use your ngers to manipulate icons, buttons, menus, and other items on the touchscreen. To select or activate a feature or application, touch it.

Other common touch gestures are:

• Touch & hold: Touch & hold an item on the screen by touching it and not lifting your nger until an

action occurs.

• Drag: Touch and hold an icon for a moment and then, without lifting your nger, move your nger on the screen until you reach the target position. For example, you can drag to reposition shortcuts on the Home screen.

• Swipe or slide: Quickly move your nger across the surface of the screen, without pausing when you rst touch (so you don’t drag something instead). For example, you can slide a Home screen left or right to view the other Home screens.

Managing Home Screen

After you complete the phone setup, the home screen is displayed. The home screen is the beginning point to access all the device’s features. The home screen can have multiple panels. To move between the home panels, press the navigation keys.

1. Display icons

2. Service indicator and Signal strength indicator

3. Battery charge

indicator and time

4. Home screen

5. Application menu or grid

The navigation keys are located below the display screen.

Keys Description

Back - Opens the previous

screens in the working sequence till the home screen is displayed. Once the home screen is displayed, it remains there even when you press the back key.

Home - moves the current working application to the recent applications list/ background and displays home screen.

Recent - displays the thumbnails of the applications that you have worked on

Your Sonim XP6

The Application menu or grid is located above the navigation buttons in the home screen. The app icons you keep in the tray remain visible on every Home screen panel.

The Applications Tray ( ) is always positioned in the center of the favorites tray. Touch it to view all the installed applications and widgets.

recently. To remove any application from this list, swipe the application to left or right. Tap the Home key twice to view the recent applications list.

The Display icons on the top of the display screen provides details about various notications such as missed calls, new messages and E-mail messages.

• To view the notications, swipe your nger down from the top of the screen to view the notication panel settings.

The System icons on the right display the current device status such as wireless and network connection strength, battery level and time.

The Google Search bar, just below the status and system icons, lets you search your phone or the Internet. Touch Google search bar to type your search terms, or to speak and give a voice input.

You can save folders, application and widget icons in the middle of your home screen panel.

Adding an Application Icon to Home Screen

1. On the home screen, tap App Tray ( ).

2. Swipe left or right to locate the application for which you require a shortcut on the home screen.

3. Touch and hold the application icon and drag it to the home screen.

• To open an app, folder, or widget, touch its icon.

• To view other Home screens, swipe your nger quickly left or right.

Creating a Folder on the Home Screen

Folders help you to keep the icons in an organized fashion. To create folders,

1. Touch and hold an icon on the home screen or Applications.

2. Drag and position it on another icon that should be included in the same folder.

3. Hold for a about 2 seconds. Both the icons are grouped together in an unnamed folder.

4. Tap the folder. Tap on the name area and give a suitable name.

Moving an Icon/Folder from the Home Screen

1. Tap and hold the application icon and drag it to the new location.

2. To move it to another panel, drag it to the side of the screen.

Removing an Icon/Folder from the Home Screen

1. Tap and hold the application icon. A Remove icon is displayed on the top of the home screen.

2. Drag the icon and position it on the Remove icon till it turns red.

Your Sonim XP6

3. Drop the icon and it is deleted from the home screen.

Deleting an application icon from the home screen does not delete the application. You must go to the Applications panel and select the application to uninstall it.

connectivity status, airplane mode, alarm and call forward (only if Always forward is enabled) are displayed, if the feature is activated.

Icons Description

Battery level indicator

Battery charging in progress

No signal

Signal strength

No SIM card

Roaming

4G LTE network connected

Home Screen Indicators

The icons displayed at the top of the screen provides information about the status of the device. Details such as date and time, battery charge status, and data service and Wi-Fi connectivity are displayed when the phone is in standby mode. Other indicators such as Bluetooth

HSPA or UMTS network connected

Icons Description

GPRS network connected

Icons Description

Vibration mode activated

Your Sonim XP6

EDGE network connected

Wi-Fi connected

Bluetooth activated

Call in progress

Missed call

New SMS or MMS

Alarm activated

Silent mode activated

Airplane mode activated

Error/information notication - attention required

Synced with the associated account such as Google

Screenshot captured

Music is played

Device storage space is running out

Phone Operations Without SIM Card

You can perform the following operations without inserting a SIM card in your phone.

• Make emergency calls.

• View and modify all settings except Data usage and mobile network related settings.

• Activate and share les through Bluetooth.

• Activate and access the Internet, and all your synced accounts using Wi-Fi connectivity.

• Access your phonebook, my les, multimedia les, all tools and applications.

• View and modify your prole settings.

Setting up and Using Lock Screen

You must lock your phone to protect it from unauthorized access.

1. From the Home screen or Notcation Panel, tap Settings ( ).

2. Scroll down and tap Security, located under Personal settings.

3. Tap Screen lock and select one of the following options to congure phone:

• None: Disables the phone lock.

• Slide: When the phone is locked, press and

Your Sonim XP6

When the phone is locked, you can answer an incoming call, without unlocking the phone. Touch the white phone icon and slide over one of these icons:

hold * key or swipe to unlock.

• PIN: When enabled, enter you own PIN value.

When the phone is locked, unlock it using the PIN.

• Password: When enabled, enter your own

password. When the phone is locked, unlock it using the password.

Icons Description

To answer the call, either press green key on the keypad or swipe towards right on the touch screen.

To reject the call, either press red key on the keypad or swipe towards left on the touch screen.

Disconnect the call and respond with a default text message from a list of response text messages.

Changing the Wallpaper

You can set an image or a photo stored in your phone as your home screen wallpaper. To change the wallpaper,

1. Tap and hold on the Home screen. Home screen actions is displayed.

1. Tap change wallpaper. Choose wallpaper from popup is displayed.

2. Select from one of the following Wallpaper collections

• Gallery: includes photos and screenshots

taken using the phone’s camera.

• Live Wallpapers: includes animated

wallpapers.

• Photos: includes photos taken from the phone

camera and the photos from the Google account.

• Wallpapers: includes images that are prebundled with the phone.

Taking a Screenshot

You can take the screenshot of the current screen and it is stored in your phone’s gallery. To take a screenshot:

1. Ensure that the image to be captured is displayed in the current screen.

2. Press the Power and Volume down button simultaneously. The screenshot is captured and stored in the gallery. A screen Capture icon ( ) is also displayed on the home screen top bar.

Voice Input for Text Entry

You can use voice input to enter text by speaking. This feature uses Google’s speech-recognition service. It is necessary to have data connection on a mobile or Wi-Fi network to use it.

Your Sonim XP6

Text Entry Options

When you enter the text message, you can change the text entry options by pressing the # key. The current text entry options are displayed in the top bar.

The various text entry options are

• ABC: Enter all the text in upper case.

• Abc: Enter the rst letter of the paragraph in upper

case.

• abc: Enter all the text in lower case.

• 123: Enter the numbers.

• T9ENG: Enter the text based on the T9 dictionary.

All the letters are in upper case (capitalized).

• T9eng: Enter the text based on the T9 dictionary. All the letters are in lower case.

T9 Text Input Method

Your device is defaulted to T9. However, if you changed to the Google Keyboard, to change back to T9, please follow these steps:

To turn T9 ON, go to Settings > Language & Input > scroll down and tap Default > slide Hardware Physical Keyboard to the ON position > Check T9 Text Input > Tap Default again > select T9 Text Input > tap the Back key to nish set up > tap Back or Home key (to return to main settings or home screen).

To Enter a Word:

1. Start by pressing the numeric keys from 2 through 9 only once for the required letter.

Ex 1: To enter the word Good, press 4-6-6-3. The word displays on the screen as you type.

Ex 2: To enter the word Hello, press 4-3-5-5-6. The word displays on the screen as you type.

2. If the word does not display correctly, press right navigation key to scroll through alternative word choices. Press either the center navigation key or 0 key to accept the word.

To Insert a Number:

1. Press the key labeled with the number you want and

1. use the navigation key to scroll to that number as above.

Your Sonim XP6

2. To insert a symbol, press ad hold the numeric key 1 and use the navigation key to scroll and select a symbol.

You can switch between T9 and multi-tap text entry option by pressing the # key until it corresponds to your chosen entry method appearing in the noticaiton bar at the top of your phone display.

The different methods to enter the text:

• T9EN: Enter the text based on the T9 dictionary. All the letters is in upper case (capitalized).

• T9En: Enter the text based on the T9 dictionary. Only the rst letter of the paragraph is in upper case (capitalized).

• T9en: Enter the text based on the T9 dictionary. All the letters are in lower case.

To quickly change the input method while typing in an application (like SMS or e-mail), slide down the notication panel, and tap

Choose Input Method to select Google Keyboard.

Keypad Functions

The following table displays the various keys and the corresponding functions they perform:

Keypad key Operations

• Press to end a call.

• Press to return to home screen.

RED PHONE HANDLE/END

• Press to wake up display.

• Press to reject an incoming call.

CALL

• Press to answer an incoming call.

• After entering a phone number, press to make a call.

CALL/ACCEPT/SEND

• Press while in Standby mode to access last received or dialed call list.

Your Sonim XP6

BACK

MENU KEY (CENTER)

NAVIGATION KEYS

Present above the Call accept key. Press this key to go back to the previous screen. You can press till you reach the Home screen.

Press to perform a specic operation on a selected application.

Press to navigate in up, down, left and right directions.

ALPHA-NUMERIC KEYS

Your Sonim XP6

• Press the required keys (0-9) to enter the desired phone number and press to make a call.

• Enter text while in the text editor.

• Press and hold in standby mode to access your Voicemail.

• Press and hold to display ‘+’ used for dialing an international number, while in standby mode.

• On editor screen, press 0 to get a blank space in T9 or normal mode.

• Press and hold to lock/unlock the keypad.

• Press and hold in standby mode to switch between Meeting on/off modes. To set from keypad, press # key to set the option Silent > Vibrate > General mode.

• When entering text, press to switch between lower case, upper case or numeric.

• Press and hold to enable/disable T9 mode.

• Press and hold to change the language, when entering text.

• Press and hold to turn on the Torch.

• Press again to turn it off.

Time and Date Settings

You can set and display the date and time on the phone. You can also select the display format.

1. From the Home screen or Apps Tray, tap Settings ( ).

2. Scroll down and tap Date & Time ( ), located under Personal settings.

3. Select one of the following options to congure phone:

• To synchronize the date and time with the

network provided time enable Automatic date and time.

• To synchronize the time zone with the network

provided time enable Automatic time zone.

• To set the date manually, tap Set date. Scroll

and select the date, month and year. Tap Done.

• To set the time manually, tap Select time.

Scroll and select the hour and minute. Tap

Managing Phone Settings

Done.

• To set the time zone, tap Select time zone.

Scroll and select your time zone.

• To set the clock to 24-hour format enable Use

24-hour format. By default, the phone is set to 24-hour format.

• To set your preferred date format, tap Choose

date format. The date formats supported are Regional (the standard format supported by that country or region, MM DD YYYY, DD MM YYYY, YYYY MM DD with / as the date separator).

Language and Input Settings

You can set the phone’s language to either US Spanish or English.

1. From the Home screen or Apps Tray, tap Settings ( ).

2. Scroll down and tap Language & input ( ) , located under Personal settings.

3. Select English or Espanol as your preferred language.

All the menu items, user feedback messages and text entry language are displayed in the set language.

Spell Checker Settings

Enable Spell checker, to verify and change the spellings when you type your text message or mail.

Personal Dictionary Settings

The default keyboard input language is set to English (US)/Spanish (United States) - T9 format. This cannot

be modied.

Speech Settings

• Tap Speech rate, to set the Speech input rate to a comfortable speed.

• Tap Text-to-speech output to access speech rate.

• Tap Listen to an example to verify the set speech rate.

• Tap Default language status, to view the default language for speech input.

• Tap Text-to-speech output to access speech rate.

+ 67 hidden pages
