Page 1 of 10
F 012 370 000
SAW TABLE 3700
21.09.2006
00:07:56
Page 1
9/20/2006http://le11288.le.de.bosch.com/sid/printdirect.asp?ID_PRODUCT=F012370000&ID_VER...
Page 2 of 10
Item Quantity Order No. Designation Price group Page
1 1 2 610 358 924 MOTOR HOUSING 1
2 1 2 610 909 424 FIELD \ 120V 1
3 1 2 610 905 924 ARMATURE \ 120V 1
4 1 2 610 912 921 ON-OFF SWITCH 1
5 1 2 610 912 922 MAINS CONNECTION CABLE 1
6 1 2 610 358 840 GROMMET 1
7 1 2 610 358 842 CABLE CLIP 1
8 1 2 610 924 568 NAMEPLATE 1
13 1 2 610 015 747 DEEP-GROOVE BALL BEARING 1
14 1 2 610 904 744 DEEP-GROOVE BALL BEARING 1
19 2 2 610 358 841 HEXAGON SCREW 1
20 1 2 610 912 925 REFERENCE PLATE 1
22 2 2 610 358 803 SPACER 2
23 1 2 610 358 801 WASHER 2
24 4 2 610 358 802 WASHER 1
25 2 2 610 304 772 HEXAGON NUT 1
26 1 2 610 358 804 RUBBER BACKING PAD 2
27 1 2 610 905 900 BRACKET HOLDER 2
28 2 2 610 358 806 PIVOT PIN 2
29 4 2 610 358 807 NUT 2
30 1 2 610 358 800 PIVOTING BLADE GUARD 2
31 1 2 610 358 811 PIN 2
32 2 2 610 358 808 HOLDING PLATE 2
33 2 2 610 358 809 SPACER 2
34 1 2 610 912 939 RIVING KNIFE 2
35 1 2 610 358 810 SPRING 2
36 1 2 610 358 812 BOLT 2
37 2 2 610 358 813 NUT 2
38 1 2 610 703 214 SCREW 1
39 1 2 610 910 013 WASHER 1
40 1 2 610 912 936 CONNECTING BLOCK 1
41 2 2 610 358 819 SCREW 2
42 1 2 610 912 937 BRACKET 1
43 1 2 610 912 938 CLAMPING PLATE 1
44 3 2 610 912 941 SCREW 1
45 1 2 610 998 580 SCREW 1
46 1 2 610 924 975 HANDLE 2
47 1 2 610 044 563 NUT 2
48 1 2 610 358 895 BOLT 2
49 1 2 610 358 896 PIN 2
50 1 2 610 358 894 BOLT 2
51 1 2 610 910 017 CLAMPING PIECE 2
52 1 2 610 358 890 LEVER 2
53 1 2 610 358 891 CLAMP 2
54 2 2 610 358 892 COVER 2
55 1 2 610 358 898 SCREW 2
56 1 2 610 358 899 SPRING 2
57 1 2 610 913 862 SCREW 2
58 1 2 610 912 927 POINTER 2
59 1 2 610 924 595 HOUSING 2
60 1 2 610 358 888 HOUSING 2
9/20/2006http://le11288.le.de.bosch.com/sid/printdirect.asp?ID_PRODUCT=F012370000&ID_VER...
61 1 2 610 358 887 SLIDING PIECE 2
62 1 2 610 358 886 SPRING 2
63 1 2 610 358 885 CLAMP 2
64 1 2 610 924 976 ROD 2
65 1 2 610 912 929 HANDLE 2
66 1 2 610 358 907 WASHER 2
67 1 2 610 358 910 GEAR HOUSING 2
68 1 2 610 358 911 PIN 2
69 1 2 610 358 913 SLIDING PIECE 2
70 9 2 610 358 832 SCREW 1
71 1 2 610 990 539 PAN HEAD SCREW 2
72 1 2 610 913 860 POINTER 2
73 1 2 610 912 930 GUIDE 2
74 1 2 610 358 858 NUT 1
75 1 2 610 358 857 WASHER 1
76 1 2 610 912 924 BASE 1
77 1 2 610 358 914 SHAFT 1
78 1 2 610 358 915 KEY 1
79 1 2 610 015 361 DEEP-GROOVE BALL BEARING 1
80 1 2 610 358 916 C-CLIP 1
81 6 2 610 358 920 SCREW 1
82 1 2 610 358 917 BEARING HOUSING 1
83 1 2 610 358 918 BEARING HOUSING 1
84 1 2 610 358 919 GEAR 1
85 1 2 610 358 922 NEEDLE-ROLLER BEARING 1
86 1 2 610 908 278 GEAR HOUSING 1
87 2 2 610 358 926 BOLT 1
88 2 2 610 358 936 WASHER 1
89 1 2 610 358 927 WASHER 1
90 3 2 610 358 928 SCREW 1
91 2 2 610 351 107 NUT 1
92 2 2 610 358 937 RUBBER BUFFER 1
93 1 2 610 358 935 HOUSING 1
94 1 2 610 358 932 CONNECTOR 1
95 1 2 610 909 438 CORD 1
96 1 2 610 998 567 CLAMP BUSHING 1
97 1 2 610 358 822 INSERT 1
98 2 2 610 358 823 SCREW 1
99 2 2 610 358 824 NUT 1
100 6 2 610 358 826 RECESSED-HEAD SCREW 1
101 1 2 610 358 827 SCREW 1
102 1 2 610 358 828 SCREW 1
103 1 2 610 924 570 TABLE 1
105 15 2 610 358 876 NUT 1
106 2 2 610 358 867 STRAP 1
107 1 2 610 912 935 ROD 1
108 4 2 610 903 744 STRAP 1
109 1 2 610 905 904 BRACKET HOLDER 1
110 1 2 610 358 863 HEXAGON SCREW 1
111 1 2 610 358 865 BLOCK 1
112 3 2 610 905 908 RECESSED-HEAD SCREW 1
113 2 2 610 358 882 BOLT 1
Page 3 of 10
9/20/2006http://le11288.le.de.bosch.com/sid/printdirect.asp?ID_PRODUCT=F012370000&ID_VER...
114 2 2 610 908 268 SCREW 1
115 2 2 610 908 270 WASHER 1
116 2 2 610 908 271 SELF-TAPPING SCREW 1
117 1 2 610 908 269 SUPPORT 1
118 1 2 610 990 544 MOTOR BRACKET 1
119 1 2 610 910 044 SLOTTED PAN-HEAD SCREW 1
120 3 2 610 358 860 HEXAGON SCREW 1
121 2 2 610 908 272 NUT 1
122 2 2 610 358 861 HEXAGON SCREW 1
123 2 2 610 358 862 SPACER 1
124 1 2 610 358 869 RETAINING RING 1
125 1 2 610 901 978 SPACER 1
126 1 2 610 358 874 PIVOT PIN 1
127 2 2 610 358 877 HEXAGON NUT 1
128 1 2 610 358 878 WASHER 1
129 1 2 610 358 879 WASHER 1
130 1 2 610 358 868 SPRING PIN 1
131 1 2 610 990 545 MOUNTING PLATE 1
132 1 2 610 903 733 SPRING 1
133 1 2 610 912 932 HANDWHEEL 1
134 1 2 610 912 933 KNOB 1
135 1 2 610 990 547 SLOTTED PAN-HEAD SCREW 1
136 2 2 610 358 833 WASHER 1
137 1 2 610 990 548 HANDLE 1
138 3 2 610 358 844 SCREW 1
139 1 2 610 910 018 SWITCH COVER 1
140 1 2 610 358 831 CLAMPING PLATE 1
141 4 2 610 358 846 RUBBER BUSHING 1
142 1 2 610 702 414 SCREW 2
143 1 2 610 912 934 REFERENCE PLATE 4
144 4 2 610 358 830 HEXAGON SCREW 1
145 3 2 610 306 005 RECESSED-HEAD SCREW 1
146 3 2 610 026 248 WASHER 1
147 1 2 610 358 881 POINTER 1
148 1 2 610 990 549 DEFLECTOR PLATE 1
149 1 2 610 994 251 SPACER 1
150 1 2 610 994 252 CARRYING BOLT 1
152 2 2 610 924 593 COVER 1
153 4 2 610 905 909 SCREW 1
154 4 2 610 358 904 SPACER 1
155 1 2 610 911 896 NUT 1
156 1 2 610 912 945 POST 1
157 1 2 610 998 574 SCREW 1
158 1 2 610 997 243 C-CLIP 1
159 2 2 610 912 946 LABEL 1
164 1 2 610 924 571 SCALE 1
165 1 2 610 925 055 SCALE 1
166 1 2 610 924 572 GUIDE 1
167 1 2 610 924 590 GUIDE 1
168 1 2 610 924 973 CONNECTOR 1
169 10 2 610 924 582 BOLT 2
170 1 2 610 924 573 LCD-DISPLAY 1
Page 4 of 10
9/20/2006http://le11288.le.de.bosch.com/sid/printdirect.asp?ID_PRODUCT=F012370000&ID_VER...
171 2 2 610 924 966 STICKER 1
172 1 2 610 925 185 TABLE PLATE 2
173 2 2 610 924 576 BRACKET 2
174 2 2 610 924 577 LEVER 2
175 2 2 610 924 578 SPRING 2
176 2 2 610 924 579 Pin 2
177 4 2 610 921 481 SCREW 2
179 1 2 610 925 376 TABLE PLATE 2
180 1 2 610 924 951 GUIDE 3
181 4 2 610 924 584 WING NUT 3
182 8 2 610 924 958 BOLT 3
183 8 2 610 924 959 WASHER 3
184 1 2 610 924 585 DUST CHAMBER 3
185 2 2 610 924 960 SCREW 3
186 2 2 610 924 961 NUT 3
187 2 2 610 924 963 WASHER 3
188 1 2 610 925 000 LABEL 3
189 1 2 610 925 001 LABEL 3
190 1 2 610 925 162 LABEL 3
191 2 2 610 925 163 BASE PLATE 3
192 1 2 610 924 946 WORK BOARD 3
193 4 2 610 925 197 KNOB 3
194 6 2 610 925 198 KNURLED SCREW 2
195 1 2 610 924 587 SAFETY COVER 3
196 1 2 610 924 962 PARTS SET 3
197 1 2 610 924 948 INSERT 3
198 1 2 610 924 969 PARTS SET 3
199 1 2 610 924 949 INSERT 3
200 2 2 610 924 970 PARTS SET 3
201 2 2 610 924 601 INSERT 3
202 1 2 610 924 971 PARTS SET 3
203 1 2 610 924 596 INSERT 3
204 5 2 610 924 594 REDUCING RING 3
205 2 2 610 924 950 LABEL 3
206 1 2 610 924 972 SWITCH UNIT 2
207 2 2 610 924 955 NUT 2
209 1 2 610 925 002 CABINET 4
210 1 2 610 925 003 CABINET 4
211 1 2 610 925 036 PLATE 4
212 1 2 610 925 004 DUST CHAMBER 4
213 1 2 610 925 005 DOOR 4
214 1 2 610 925 006 SUPPORTING FOOT 4
215 1 2 610 925 007 SUPPORT RAIL 4
217 1 2 610 925 009 PARTS SET 4
218 1 2 610 925 010 COVER 4
220 1 2 610 925 038 PARTS SET 4
221 1 2 610 925 039 HANDLE 4
224 1 2 610 925 164 LABEL 4
225 1 2 610 925 165 LABEL 4
226 1 2 610 925 033 PARTS SET 4
229 2 2 610 925 186 SCREW 2
230 2 2 610 925 187 NUT 2
Page 5 of 10
9/20/2006http://le11288.le.de.bosch.com/sid/printdirect.asp?ID_PRODUCT=F012370000&ID_VER...
231 4 2 610 925 188 WASHER 2
232 1 2 610 925 294 WASHER 3
233 1 2 610 925 281 LABEL 3
234 1 2 610 925 292 LABEL 3
235 1 2 610 925 203 LABEL 3
236 1 2 610 925 204 LABEL 3
240 1 2 610 925 437 BOLT 1
241 1 2 610 925 439 WASHER 1
242 1 2 610 911 901 LOCK NUT 1
243 2 2 610 925 438 WASHER 1
650 1 2 610 912 940 SINGLE-HEAD ENG. WRENCH 2
651 1 2 610 996 880 KEY 2
653 1 2 610 998 551 HEXAGON SOCKET SCREW KEY 2
655 1 2 610 924 967 DUST BAG 2
662 1 2 610 924 947 SANDER PLATE 3
810 1 2 610 909 439 CARBON-BRUSH SET 1
830 1 2 610 912 944 PIVOTING BLADE GUARD 2
860 1 2 610 924 965 GUIDE 2
867 1 2 610 912 943 MITRE GAUGE 2
Page 6 of 10
9/20/2006http://le11288.le.de.bosch.com/sid/printdirect.asp?ID_PRODUCT=F012370000&ID_VER...
Page 7 of 10
Page 2
9/20/2006http://le11288.le.de.bosch.com/sid/printdirect.asp?ID_PRODUCT=F012370000&ID_VER...
Page 8 of 10

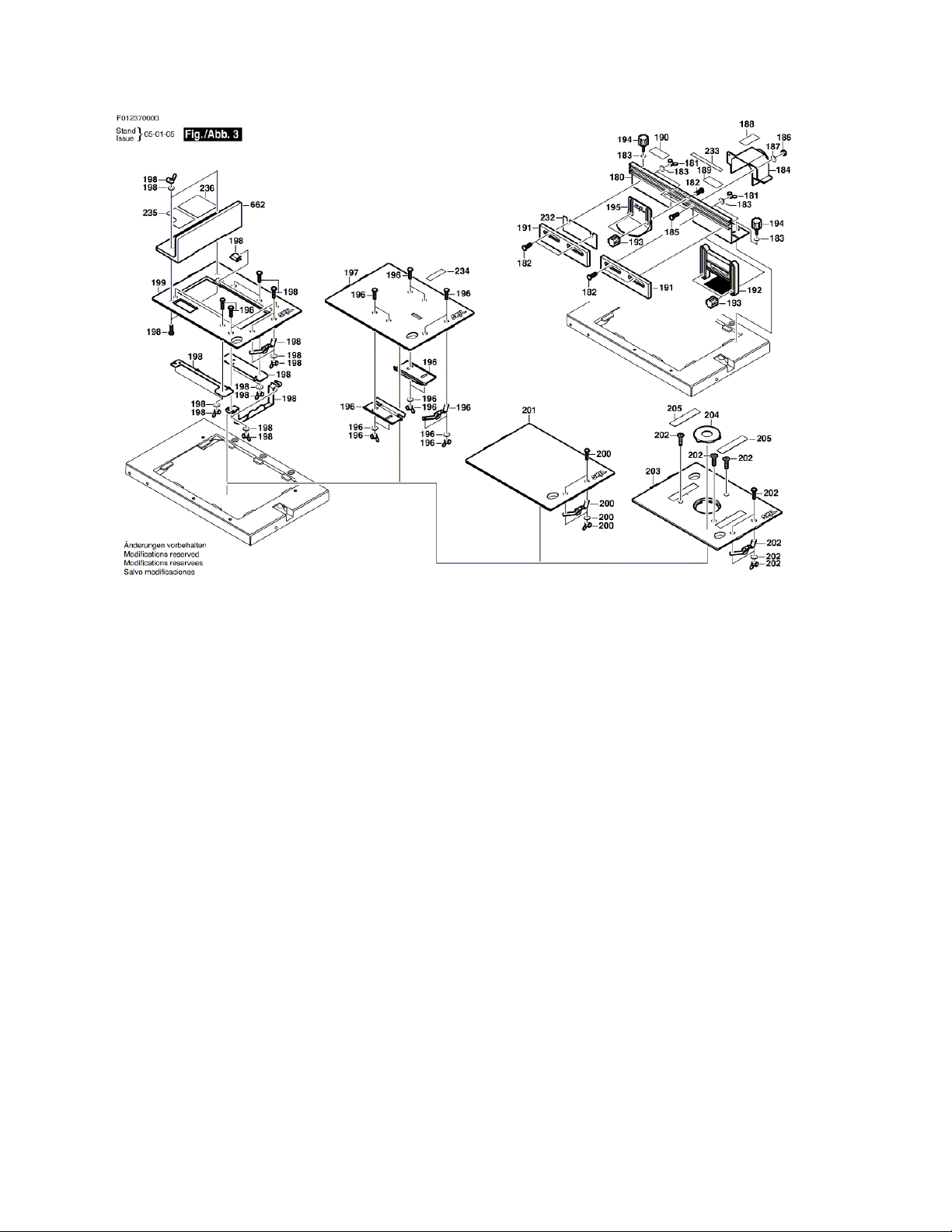

Page 3
9/20/2006http://le11288.le.de.bosch.com/sid/printdirect.asp?ID_PRODUCT=F012370000&ID_VER...
Page 9 of 10
Page 4
9/20/2006http://le11288.le.de.bosch.com/sid/printdirect.asp?ID_PRODUCT=F012370000&ID_VER...
Page 10 of 10
9/20/2006http://le11288.le.de.bosch.com/sid/printdirect.asp?ID_PRODUCT=F012370000&ID_VER...
