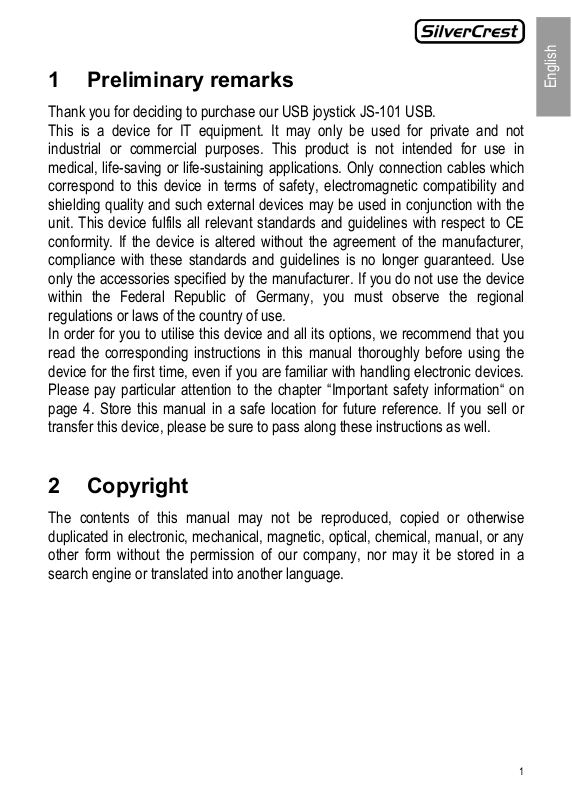

Thank you for deciding to purchase our USB joystick JS-101 USB.
This is a device for IT equipment. It may only be used for private and not
industrial or commercial purposes. This product is not intended for use in
medical, life-saving or life-sustaining applications. Only connection cables which
correspond to this device in terms of safety, electromagnetic compatibility and
shielding quality and such external devices may be used in conjunction with the
unit. This device fulfils all relevant standards and guidelines with respect to CE
conformity. If the device is altered without the agreement of the manufacturer,
compliance with these standards and guidelines is no longer guaranteed. Use
only the accessories specified by the manufacturer. If you do not use the device
within the Federal Republic of Germany, you must observe the regional
regulations or laws of the country of use.
In order for you to utilise this device and all its options, we recommend that you
read the corresponding instructions in this manual thoroughly before using the
device for the first time, even if you are familiar with handling electronic devices.
Please pay particular attention to the chapter “Important safety information“ on
page 4. Store this manual in a safe location for future reference. If you sell or
transfer this device, please be sure to pass along thes
e instructions as well.
English
2 Copyright
The contents of this manual may not be reproduced, copied or otherwise
duplicated in electronic, mechanical, magnetic, optical, chemical, manual, or any
other form without the permission of our company, nor may it be stored in a
search engine or translated into another language.
1
3 Declaration
The descriptions and features in this manual only serve as general guidelines
and do not represent a guarantee. In order to offer you a product of the highest
quality, we reserve the right to make possible improvements or changes without
prior notification.
For all product descriptions and user instructions, the German version is the
ultimately valid reference in the event of possible deviations in other languages.
The USB joystick JS-101 USB corresponds to the basic requirements and
relevant regulations of the EMC Directive 2004/108/EC and the Low Voltage
Directive 2006/95/EC.
4 Manufacturer information
JNC Datum Tech GmbH
Benzstraße 33
71083 Herrenberg
Germany
More information can also be found at:
www.mysilvercrest.de
2
5 Table of contents
1 Preliminary remarks 1
2 Copyright 1
3 Declaration 2
4 Manufacturer information 2
5 Table of contents 3
6 Important safety information 4
7 Scope of delivery 5
8 Control elements 6
9 System requirements 7
10 Installation 8
11 Technical data 10
12 Troubleshooting 11
13 Warranty information 12
English
3
6 Important safety information
Please read and strictly observe the following
instructions!
You are not permitted to disassemble, modify or repair the USB joystick.
If the USB joystick has been dropped or if the casing has been
damaged, do not continue to use it.
Do not give your USB joystick to children. Never let your children use
electrical devices without supervision. Children are not always able to
recognize potential hazards. Also keep the plastic packaging material out
of reach of children. There is a danger of suffocation.
The USB joystick and accompanying components may not be exposed
to dripping or sprayed water. Additionally, no objects or containers
containing liquids, such as vases or glasses, may be placed next to the
device.
Do not use the USB joystick in environments with high humidity, large
amounts of steam, smoke, or dust.
Do not leave the USB joystick in locations where the temperature can
rise dramatically (e.g. in direct sunshine). This could damage the
casing and interior parts.
Only place the USB joystick on stable surfaces. The USB joystick might
otherwise fall or topple, cause injuries or sustain damage. Do not drop the
USB joystick or bump it against anything and take great care when using
it.
Dispose of your device in compliance with the Directive 2002/96/EC. This
device should not be disposed of with household waste.
4
7 Scope of delivery
1. USB joystick JS-101 USB 2. Driver CD
Not illustrated
3. User manual
Note:
Design and technical data are subject to change without
notice.
English
5
8 Control elements
1-8 : Function buttons
9 : Throttle control
10 : 4-way trigger
6
9 System requirements
- Pentium PC or higher
- USB port V1.1 or V2.0
- Microsoft Windows 98/ME/2000/XP/Vista
- Minimum 32MB and 64MB RAM recommended for Microsoft Windows
98 or ME
- Minimum 64MB and 128MB RAM recommended for Microsoft Windows
2000 or XP/Vista
- Minimum 32MB hard drive capacity
- CD-ROM drive
- Minimum Super VGA 256 colour monitor
Note:
If you are unable to play any games, check the minimum
requirements for the game.
English
7
10 Installation
Note:
We recommend plugging in the USB cable only when the device is
turned off.
1) Plug the USB cable into a free USB port on your computer. A message will
appear stating that new hardware has been found.
2) Insert the CD-ROM provided. Start the SETUP file and follow the
installation instructions on your screen.
3) After installation click on Start – Settings – Control Panel and select the
item “Game Controllers” here. A window will open in which you can select
the USB joystick and test whether it functions correctly.
8
g sy
4) Click on Properties to test whether the USB is working correctly. Another
window will open.
5) After the test, close the window by clicking OK.
Installation of your USB joystick is now complete and you can start using
the device.
Note:
English
Please note that the installation guidelines refer to the Windows XP
operatin
stem. The instructions for Windows Vista (or other
versions) may differ somewhat.
9
11 Technical data
General
Dimensions 16 x 13.5 x 21 cm (L x W x H)
Weight 500 g
Operating temperature 5° - 35° C
Permissible humidity for
operation
Storage temperature -10° - 60° C
Operating voltage 5 V
Operating current 150 mA
Connections/control elements
USB connection V1.1/V2.0 compatible
4-way trigger
Throttle control
8 function buttons
20 % - 80 %
10
12 Troubleshooting
Problem Possible reason Suggested solution
The device doesn’t work
flawlessly.
The suction pads do not
stick to the surface
The driver has not been
installed properly
The device was not
properly recognized by
the operating system
The device is faulty Please contact the
Uneven surface Place the joystick on an
No suction power Slightly moisten the
Please reinstall the
driver
Pull out the USB plug
and insert it into the
USB port again
according to the
description in this
manual
customer hotline (see
guarantee information)
even and smooth
surface
suction pads
English
11
13 Warranty information
This product has a guarantee period of three years after the purchase date. You
can find information about our guarantees and the processing of our guarantees
at www.mysilvercrest.de or call our hotline:
England: 0871 075 5300
Ireland: 1890 944 848
12
1 Indledende bemærkninger
Tak, fordi du har købt vores USB-joystick JS-101 USB.
Dette produkt er et stykke informationselektronik. Det må kun bruges til private
formål, ikke i industrielt eller kommercielt øjemed. Produktet er som standard
ikke beregnet til brug i medicinske, livreddende eller livsopretholdende
sammenhænge. Der må kun benyttes tilslutningsledninger og eksterne
apparater, som sikkerhedsteknisk og med hensyn til elektromagnetisk
kompatibilitet og afskærmning passer til det foreliggende produkt. Produktet
opfylder alle de standarder og direktiver, der er relevante i forbindelse med CEoverensstemmelse. Hvis produktet ændres, uden at dette på forhånd er aftalt
med producenten, kan det ikke længere garanteres, at det overholder disse
standarder og direktiver. Benyt kun det tilbehør, producenten angiver. I
forbindelse med brugen af dette produkt skal du overholde de nationale
bestemmelser og love i det land, hvor brugen finder sted.
For at du kan få mest muligt ud af produktet og alle dets muligheder, anbefaler
vi, at du læser denne vejledning grundigt igennem, inden du bruger produktet
første gang, også selvom du er vant til at bruge elektroniske apparater. Det er
især vigtigt, at du læser kapitlet „Vigtige sikkerhedsanvisninger“ på side 16
Opbevar denne vejledning til senere brug. Sørg for, at denne vejledning fø
med, hvis du videresælger eller videregiver produktet til en anden.
lger
Dansk
2 Copyright
Indholdet af denne vejledning må ikke reproduceres, kopieres eller på anden
måde mangfoldiggøres i elektronisk, mekanisk, magnetisk, optisk, kemisk,
manuel eller anden form, uden at producenten forinden har givet sin tilladelse
hertil. Indholdet må heller ikke lagres i en søgemaskine eller oversættes til et
andet sprog, uden at producenten forinden har givet sin tilladelse hertil.
13
3 Erklæring
De beskrivelser af produktet og dets egenskaber, der er indeholdt i denne
vejledning, fungerer kun som generelle anvisninger, ikke som garanti. For at vi
kan tilbyde dig et produkt af så høj kvalitet som muligt, forbeholder vi os ret til at
forbedre eller ændre produktet uden forudgående varsel herom.
Ved eventuelle afvigelser i produktbeskrivelserne og betjeningsanvisningerne i
forhold til andre sprog er det den tyske version, der gælder.
USB-joysticken JS-101 USB opfylder de grundlæggende krav og relevante
bestemmelser i EMC-direktivet 2004/108/EF samt i lavspændingsdirektivet
2006/95/EF.
4 Oplysninger om producenten
JNC Datum Tech GmbH
Benzstraße 33
D-71083 Herrenberg
Tyskland
Nedenstående anvisninger skal læses og overholdes
nøje!
Du må ikke selv skille USB-joysticken ad eller ændre eller reparere den.
Undlad at bruge USB-joysticken, hvis den er faldet ned, eller hvis den er
blevet beskadiget udenpå.
Sørg for, at børn ikke får fat i USB-joysticken. Børn skal altid være under
opsyn, når de bruger elektriske apparater. Børn kan ikke altid genkende
mulige farer. Sørg også for, at emballagematerialerne er utilgængelige for
børn. Der er fare for kvælning.
Der må ikke dryppes vand eller komme stænkvand på USB-joysticken
og de tilhørende dele. Derudover må der ikke stilles væskefyldte
genstande eller beholdere som f.eks. vaser eller glas ved siden af
produktet.
Undlad at bruge USB-joysticken i omgivelser med høj luftfugtighed,
meget damp, røg eller støv.
Læg aldrig USB-joysticken fra dig på steder, hvor der kan være kraftige
temperaturstigninger (f.eks. ved direkte sollys). Produktets ydre og
dets indre dele kan tage skade af det.
Sørg altid for kun at lægge USB-joysticken på et stabilt underlag. Hvis du
ikke gør det, er der risiko for, at USB-joysticken kan falde ned eller vælte
og derved blive beskadiget eller forårsage skader på andre. Undgå at tabe
eller støde USB-joysticken, og pas altid godt på den.
Bortskaf apparatet i overensstemmelse med direktivet 2002/96/EF
Apparatet må ikke bortskaffes som almindeligt husholdningsaffald.
16
7 Leveringsomfang
1. USB-joystick JS-101 USB 2. Driver-cd
Ikke afbildet
3. Brugsvejledning
Bemærk!
Dansk
Vi forbeholder os ret til at ændre design og tekniske data uden
forudgående varsel herom.
- Til Microsoft Windows 98 eller ME anbefales som minimum 32 MB og 64
MB RAM
- Til Microsoft Windows 2000 eller XP/Vista anbefales som minimum 64
MB og 128 MB RAM
- Der skal som minimum være 32 MB ledig plads på harddisken
- CD-ROM-drev
- Der skal som minimum anvendes en Super VGA 256-farveskærm
Bemærk!
Hvis du ikke kan spille dine spil, skal du kontrollere, at dit
udst
r overholder de minimumkrav, som det pågældende spil
kræver.
Dansk
19
10 Installation
Bemærk!
Vi anbefaler, at du kun tilslutter USB-kablet i slukket tilstand.
1) Stik USB-kablet i et ledigt USB-stik i din computer. Der vises en
meddelelse om, at der er fundet ny hardware.
2) Læg den vedlagte cd i computeren. Start SETUP-filen, og følg
installationsanvisningerne på skærmen.
3) Efter installationen skal du klikke på Start – Indstillinger – Kontrolpanel
og vælge punktet „Spilleenheder“. Der åbnes et vindue, hvor du kan
vælge USB-joysticken, og kontrollere, at den fungerer korrekt.
20
4) Klik på Egenskaber for at kontrollere, om USB-joysticken fungerer
korrekt. Der åbnes endnu et vindue.
5) Luk vinduet efter kontrollen ved at trykke på OK.
Installationen af din USB-joystick er nu afsluttet, og du kan nu tage den i
brug.
Bemærk!
Dansk
Vær opmærksom på, at der i installationsanvisningerne refereres til
operativsystemet Windows XP. Installationsproceduren kan være
anderledes eller afvige lidt herfra, hvis dit operativsystem er Windows
Vista (eller andre versioner end XP).
21
11 Tekniske data
Generelt
Mål16 x 13,5 x 21 cm (L x B x H)
Vægt500 g
Driftstemperatur5° - 35° C
Tilladt luftfugtighed ved brug20 % - 80 %
Opbevaringstemperatur-10° - 60° C
Driftsspænding5 V
Driftsstrøm150 mA
