A70 Level 2 Service Manual

Table of Contents

1 CELLULAR COMMUNICATION………………………………………..……….3 2 KEY FEATURES ……...……………………………………………………………….6

3 COMPARISION WITH PREVIOUS PRODUCT …………………………………….8 4 ACCESSORIES ……………………………………………………………………….9

5 UNIT DESCRIPTION OF A70...…………………………………………………......11

6 DISASSEMBLY OF A70........................................................................................13

7 REASSEMBLY OF A70........………………………………………………………..18

8 MOBILE SOFTWARE PROGRAMMING ……………………………………….....19

9 SIEMENS SERVICE EQUIPMENT USER MANUAL …………………………….22 10 JPICS INTERNET.……………………………………………………………………23 11 INTERNATIONAL MOBILE EQUIPMENT IDENTITY, IMEI…….………………..29 12 GENERAL TESTING INFORMATION……………………………….……………..30 Annex 1……………………………………………………………………………….……….35 Annex 2…………………………………………………………………………….………….36

A70 Level 2 Service Manual

1 Cellular Communication

1.1 Coverage Concept

The cellular system is made up of numerous transmitting and receiving sites, whose individual coverage areas partially overlap. The concept of frequency re-use, same frequency is used by several sites, allows a high traffic density in a wide area. Due to the limited transmission range of the terminals, cellular systems are based on a large number of base stations on the infrastructure side, scattered over the area to cover, with each covering a fairly small geographical zone called cell. Cells are often represented by hexagons (see figure 1.1.).

Figure 1.1 CELLULAR COVERAGE REPRESENTATION

A70 Level 2 Service Manual

1.2 GSM Network Architecture

GSM network can be broadly divided into three broad parts, namely:

1. Mobile Station (MS) carried by the subscriber

2. Base Station Sub-system (BSS) which controls the radio link with the mobile station.

3. Mobile Switching Center (MSC) which performs the switching of calls between the mobile users, and between mobile and fixed network users.

FIGURE 1.2 GSM ARCHITECTURE

Each mobile station is given a unique identity. As soon as the mobile phone is turned on, it registers with the network and is authenticated, as such the network could always find the mobile phone. Larger amount of data is being exchanged to and from the following functional blocks in the MSC:

Visitor Location Register, VLR

Contain relevant data of all mobiles located in the serving MSC, but not belong to the area.

Home Location Register, HLR Stores identity and user data of all the mobile users belonging to the area.

Authentication Center, AUC

Provides the HLR with different sets of parameters to complete the authentication of the mobile station.

Equipment Identity Register, EIR

An option the network operator can use to enforce security. With this feature the network can identify defective or stolen mobile that may not be used in the network.

A70 Level 2 Service Manual

1.3 Subscriber Identity Module (SIM)

SIM is a smart card which has a computer and memory chip that is permanently installed in the mobile equipment. It comes in either the size of a credit card or smaller version known as the plug-in SIM.

SIM card using 5V technology is not supported.

The subscriber information, which includes a unique number called the International Mobile Subscriber Identity (IMSI) is stored in the SIM card. SIM card identifies the subscriber to the network.

To protect the SIM card from improper use, a security feature, a four digits personal identification number (PIN), is built in. The PIN is stored in the card and can be changed by the subscriber. PIN2 Is required for additional functions available with a special SIM card (Consult the operator for more Information about the PIN 2).

A code (PUK) is provided for unlocking the SIM card if the SIM card is blocked.

A70 Level 2 Service Manual

2 Key Features

Bands

• Triple Band E-GSM 900 / GSM 1800 / GSM 1900

• EGSM Phase 2 / phase 2+

Battery

• Li-Ion Battery Pack

• Nominal Voltage : 3.7V

• Nominal Capacity : 600 mAh

Stand-by Time Talk Time SIM Card

• up to 250 h (standard battery)

• up to 300 min (standard battery)

• Small (”Plug In”) 1.8 V or 3V SIM card (Phase II)

•

To insert the SIM card, the battery pack must be

removed. GSM Antenna • Integrated triple band antenna for EMEA/APAC. Dimensions Weight Charging time Receiver Sensitivity

• 101 x 45 x 21 mm (L x W x H)

• 78 g

• < 2 h for 100%

• GSM 900: -102dBm (Specification, static & with fading)

• GSM 1800/1900: -102 dBm (Specification, static & with

fading)

Receiver sensitivity must comply with the corresponding GSM recommendations in all operating conditions (temperature, battery level, etc)

Transmitter Power

• GSM 900: nominal 2W (Specification: Class 4 Mobile phone)

• GSM 1800/1900: nominal 1W (Specification: Class 1 Mobile phone)

Transmitter output characteristics is according to GSM 11.10 specification implying all specified operating conditions (Temperature, battery level ...).

Transmitter set points will be specified for GSM and PCN when typical values and statistical values become available.

Speech Codec Temperature

Range

• Half Rate, Full Rate, Enhanced Full Rate and Adaptive Multi Rate speech coders are available as standard.

• -10

• -30

0

C to +550C (Normal operation)

0

C to +850C (Storage capability)

A70 Level 2 Service Manual

Display

12-Block Keypad

Acoustics

• Type: Full Dot Matrix

• Resolution: 101 x 64 Pixel

• Colours: B & W

• Technology: F-STN (Epson)

• Dot size: 0.277mm x 0.297mm

• Active area: 29.477mm x 19.953mm

• Visible area: 33.0mm x 23.2mm

• Illumination: Min 2.0cd/mm

0

• Operating Temp.: -20

C to +550C

• 12-digit block (0-9, #, *) small letters

• two function keys (SEND, END)

• ON/OFF key combined with the END key

• 2 way navi key

• 2 softkeys on left & right position

• comfortable earpiece with optimal acoustics

• unidirectional microphone (same as Puma)

• different call melodies (for the amount see SW product

description). All melodies with increasing volume because of the danger of acoustic shock. Additional measures to protect from acoustic shock, see SW product description.

• different selectable volume levels for handset and ringer mode (for the amount see SW product description)

• mount see SW product description)

A70 Level 2 Service Manual

3 Comparison with Previous Product

Feature A65 A70

Frequency bands/int’l 900/1800/1900MHz 900/1800/1900MHz Frequency bands/LAM 850/1800/1900MHz 850/1800/1900MHz Product Class Class A Class A Form factor Bar phone Bar phone PCB thickness

PCB outline Same as Puma Same as Puma BB chipset EGOLDlite EGOLDlite

RF solutions B6E/SD2 B6E/SD2 PMU ASIC Salzburg 75/Twigo 3+ 75 Salzburg 75/Twigo 3+ 75

Flash 64Mbit 32Mbit RAM 16Mbit P-SRAM 16Mbit P-SRAM

Display 101X80, 4k, C-STN 101X64, b/w Battery Same as Puma Same as Puma Feature set A60 A52 USB/IrDA/Bluetooth None None MMS None No Java None No WAP Yes No Exchangable housing No No Speaker Penelope Same as Penelope Lead free technology Yes No Clip on camera No No NO ID CO NCEPT Battery Cover Battery Cover Navi key 4-way 2-way

1.106MM 1.106MM

A70 Level 2 Service Manual

4 Accessories

For A70, the following accessories will be available.

Description Part number

Belt Case FCL-600 Tour Case FCT-650 Headset Purestyle HHS-610 Headset HHS-510 Headset Basic HHS-500

Li-Ion Battery 700mAh EBA-510 L36880-N5601-A100 Travel Charger ETC-500 L36880-N5601-A104 Travel Charger ETC-510 L36880-N5601-A105 Car Charger Plus ECC-600 L36880-N7101-A109 Desk Top Stand EDS-600 TBC

Car Charger ECC-500 Car Kit Easy HKP-700

L36880-N7101-A120 L36880-N5601-A149 L36880-N7101-A500 L36880-N5601-A108 L36880-N5601-A107

TBC TBC

Car Kit Portable HKP-500 Car Kit Easy Upgrade HKO-700

Note: Visit the Communication Market for updated accessories:

https://communication-market.siemens.de/

L36880-N5601-A109 TBC

A70 Level 2 Service Manual

4.1 A70 Interface to accessories

The phone has a fully compatible interface to accessories. The connectors (I/O) are identical to the 75 Family. Mechanical interfaces are defined on the mobile phone to make sure that the accessories are compatible across the whole L75 platform. The design is released by AD regarding compatibility to Accessory Devices.

Slim Lumberg I/O Connector

A70 Level 2 Service Manual

5 Unit Description of A70

The Phone is part of the 75 platform with the following specific features:

• Integrated tri-band antenna

• B/W Display

• The concept of the device is optimized regarding design-to-cost and easy-to-

assemble. The phone consists of equipped upper case, keypad, equipped PCB, equipped lower case and battery cover. The PCB is based on the 75 Platform. All electro mechanic components are overtaken from Lion and Barracuda, The RF chamber and shielding is new for 75 platform. Each of the preassemblies, upper and lower cases are designed to be automatically mounted and checked. These preassemblies are designed to be easily assembled. The strategy of use of similar components is completely realised.

A70 Level 2 Service Manual

5.1 Exploded View of A70

Earphon

Upper case shell w/o

Keypad with

Display

Lower mounting

Screw

Main

Microphon

Vibramoto

Battery Li-

Battery

A70 Level 2 Service Manual

6 Disassembly of A70

Note: ESD concept; the internal circuits will be more susceptible to ESD because of

the use of exchangeable housing. The construction of the internal block must be/is designed, in the best possible way, to protect the circuit against sparks.

The keypad must be completely closed to prevent any occurrence of an ESD disruptive discharge.

The SIM contacts may be open, thus reachable for ESD contact discharge. This could lead to damage or destruction of the E-Goldlite pins.

It is a requirement for the service personnel to observe ESD protection rules while performing servicing the A70.

Step 1

Step 3

Front view of the A70

Step 2

Back View of the A70

Remove Battery cover.

A70 Level 2 Service Manual

Step 4

Step 5

Remove Battery

Remove SIM Card: 1) move latch upwards; 2) SIM Card will eject from holder

Step 6

Remove the 4 screws (as indicated) with T5 Plus screw driver.

A70 Level 2 Service Manual

Step7

Remove Lower mounting frame with Vibra and Micro.

Step 9

Remove Virbamotor. Remove Microphone.

A70 Level 2 Service Manual

Step 10

Step 11

Remove PCB

Remove Display module. Place foil over display module for protection.

Step 12

Remove Earphone

A70 Level 2 Service Manual

Step 13

Step 14

Remove Keypad.

Fully disassembled A70

A70 Level 2 Service Manual

7 Reassembly of A70

For the reassembly of the A70, reverse the disassembly procedures from Step 13 to Step1. However there are some areas to be taken note of during reassembling of the phone.

During the installation of the SIM card, make sure that the SIM card is inserted properly and that the golden contact area is facing downwards. Insert the SIM card and push the latch downwards to lock the SIM card into position.

Installation of the SIM card

During the installation of the battery, make sure that the hinges are properly in place (See picture below). Otherwise the battery will not be able to fit into the phone properly.

When placing the screws, set Torque with 17cNm.

A70 Level 2 Service Manual

8 Mobile Software Programming

The common mobile software available is divided into language groups. However, this software does not contain the specific settings, such as ringing tones, greeting text, and short dial list etc., required by the operator or service provider. Therefore, it is common to have some menu item(s) differ in different variants or are not visible at all. These settings are stored in different memory area of the mobile and will be activated depending on the customer specific model or variant of the phone by a separate test step during the production process.

Due to this separation of common mobile software and customer specific initialization, it is possible to fulfil the demands of the market requiring customization and flexibility. As a consequence the software programming process in the LSO is divided into two different steps as followed:

- Software update to actual version and appropriate language group

- Programming of CUSTOMER SPECIFIC INITIALIZATION

Usage of GRT is mandatory!! For more detail check GRT User manual

Figure 1. A70 Software Programming Setup

A70 Level 2 Service Manual

8.1 Mobile Software Updating

The software of the mobile, 65 series is loaded from a PC directly. Hardware interconnection between the mobile and the PC is shown in Figure 1. Because of the new type of external connector used since 55 series (Slim-Lumberg type) an additional adaptor cable between mobile and boot adaptor is required. Table 1 listed all the hardware requirements

If you use the battery dummy, make sure that the power supply voltage is correctly adjusted.

Description Part No. Bootadapter 2000 incl. AC-Adapter, serial

cable and mobile connection cable IBM Compatible PC – Pentium Adapter cable – Slim Lumberg to Old F30032-P226-A1

TABLE 1. EQUIPMENT LIST FOR SOFTWARE PROGRAMMING

L36880-N9241-A200

A70 Level 2 Service Manual

8.2 Flow Chart for Software Upgrading

Plug in the Boot Adaptor to the PC and Mobile

Connect the A C adaptor to the Boot Adaptor

Power up Boot Adaptor & check LED.

OK?

NO

YES

Start the SWUP

program

Select & Execute the "Mobile S/W"

ERROR?

YES

Check

H/W setup = S/W

NO

S/W upgrading in

progress

ERROR?

NO

TEST Mobile

Take note of error and repeat process

YES

Check AC Adaptor

YES

Faulty AC Adaptor

Faulty Boot

FLOW CHART FOR S/W PROGRAMMING PROCESS

OK?

NO

Adaptor

OK?

Correct Settings

Feedback Error to Tech. Supp. Dep

END

A70 Level 2 Service Manual

9 Siemens Service Equipment User Manual

Introduction

Every LSO repairing Siemens handset must ensure that the quality standards are observed. Siemens has developed an automatic testing system that will perform all necessary measurements. This testing system is known as:

Siemens Mobile Service Equipment

All mobile Phones have to be tested with the GRT-Software. The Service Partner is responsible to ensure that all required hardware is available.

For additional Software and Hardware options as well as the supported GRT equipment, please check the GRT User manual

A70 Level 2 Service Manual

10 JPICS (Java based Product Information Controlling System)

Overview

The following functions are available for the LSO:

• General mobile information

• Generate PINCODE

• Generate SIMLOCK-UNLOCK-Code

• Print IMEI labels

• Lock, Unlock and Test the BF-Bus

A70 Level 2 Service Manual

The access to the JPICS server which is located in Kamp-Lintfort is

and in addition using secure socket layer (SSL) connection.

card

protected by chip

The JPICS server is only available for authorized users with a specially coded chip card. These chip cards and the administration of the JPICS web server and the PICS database-server can only be provided by the JPICS-TRUST-Center of the

responsible department in Kamp-Lintfort.

In case of any questions or requests concerning chip cards or administration of the databases please ask your responsible Siemens Customer Care Manager.

A70 Level 2 Service Manual

Installation overview

The following installation description assumes that a web browser is already installed. JPICS is tested with the following

Internet Explorer Version 5.5 and higher

1.

2.

Netscape Version 6 and higher

For further information regarding supported browsers, browser version and supported

browsers

operating systems, see the

Sun FAQ's.

Here is a step by step instruction to install all the required components:

It is necessary to follow this order!

1. Card reader (Omnikey)

2.

CardOS interface (Siemens)

3.

JPICS Certificates

4.

Java Plugin JVM/JRE (Sun)

5.

Java additional components

Every user is responsible for a proper installation matching the license agreements.

For installation and further access you need the following:

1. The JPICS Installation-CD

2. A chip card. Chip cards can be ordered via your responsible Customer Care Manager within Siemens.

3. A supported chip card reader (Smarty or Siemens B1) in order to access your chip card. Remark: We recommend using Siemens B1 reader. Similar device to B1 is Cardman 9010.

A70 Level 2 Service Manual

Generate Codes

In the module “Generate Codes“you can choose to generate:

- Master – Phonecodes

- Simlock Unlock – Codes

Master - Phonecodes The Master – Phonecode is used to unlock blocked mobiles. Master – Phonecodes can only be supplied for mobiles which have been delivered

in a regular manner.

A70 Level 2 Service Manual

Simlock Unlock - Code

The Simlock-Unlock-Codes can only be generated if the following conditions are given:

- Mobile must have an active Simlock inside.

- The user must be given the authorization to obtain Simlock Unlock- Codes for the variant of the operator to which the mobile was delivered last time.

A70 Level 2 Service Manual

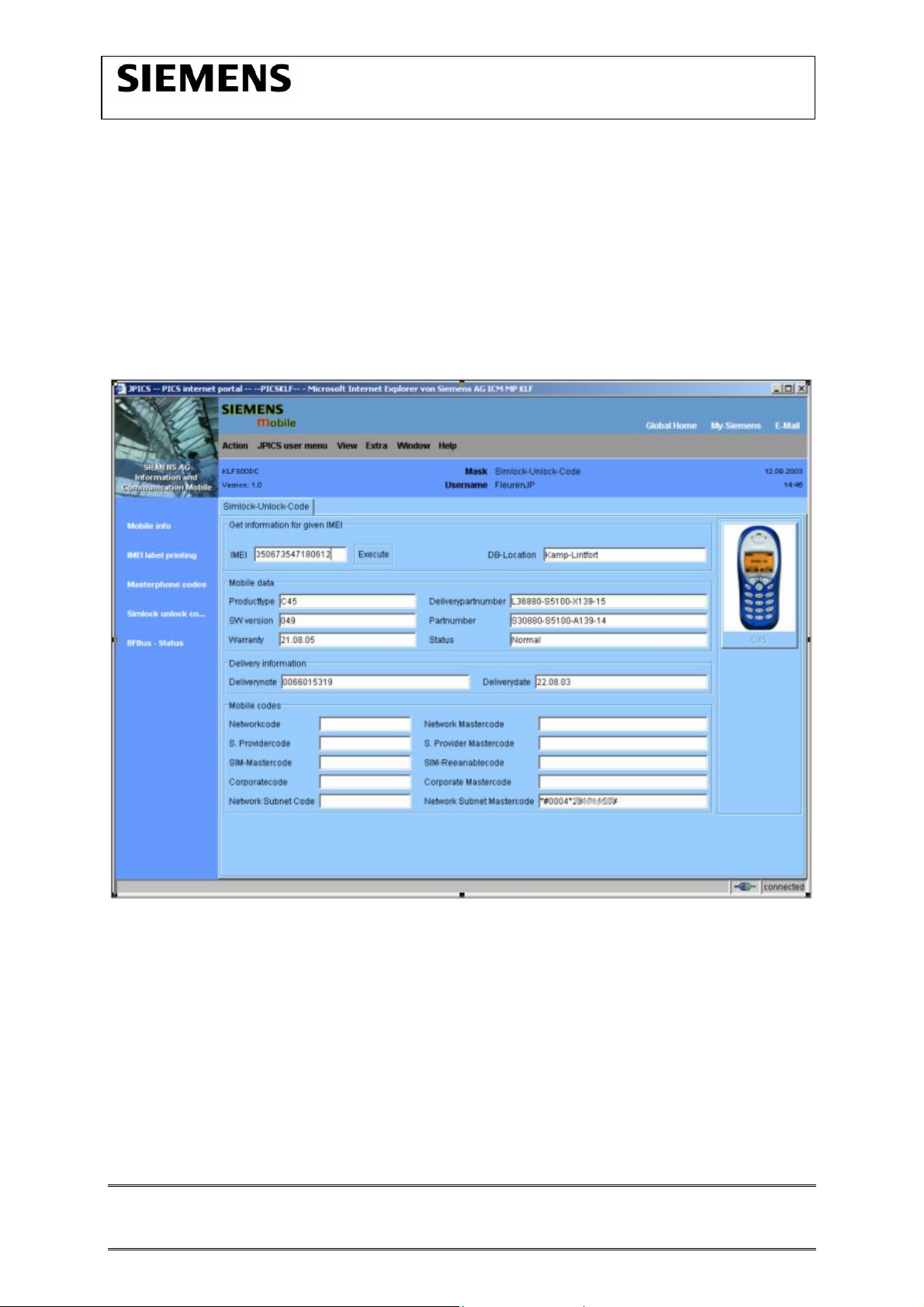

Printing IMEI label

The module “Print IMEI label” offers the possibility to re-print IMEI labels for mobiles again.

You are able to print 1 label in just one step. To prevent that misaligned labels are being printed, the setting "Print test labels = " is activated as default. After having printed a well-aligned test label you can uncheck the setting and print the correct label.

Hint:

For correct printing of IMEI labels you must have a Zebra – label printer with special material that fits for label printing. This printer has to be connected to local LPT1 printer port (also see Installation of IMPRINT) and MUST feature a printing resolution of 300dpi.

A70 Level 2 Service Manual

11 International Mobile Equipment Identity , IMEI

The mobile equipment is uniquely identified by the International Mobile Equipment Identity, IMEI, which consists of 15 digits. Type approval granted to a type of mobile is allocated 6 digits. The final assembly code is used to identify the final assembly plant and is assigned with 2 digits. 6 digits have been allocated for the equipment serial number for manufacturer and the last digit is spare.

The part number for the A70 is L36880-N2770-Axx-x where the last 4 letters specify the housing and software variant.

Re-use of IMEI label is possible by using a hair-dryer to remove the IMEI label.

On this IMEI label, Siemens has also includes the date code for production or service, which conforms to the industrial standard DIN EN 60062. The date code comprises of 2 characters: first character denotes the Year and the second character denotes the Month.

For example: M3

CODE YEAR MONTH CODE

M

2000 MARCH

3

N 2001 APRIL 4

P 2002 MAY 5

R 2003 JUNE 6

S 2004 JULY 7

TABLE 2 DIN EN 60062 DATE CODE

To display the IMEI number, exit code and SW/HW version, key: *#06#.

A70 Level 2 Service Manual

12 General Testing Information

General Information

The technical instruction for testing GSM mobile phones is to ensure the best repair quality.

Validity

This procedure is to apply for all from Siemens AG authorized level 2 up to 2.5e workshops.

Procedure

All following checks and measurements have to be carried out in an ESD protected environment and with ESD protected equipment/tools. For all activities the international ESD regulations have to be considered.

Get delivery:

 Ensure that every required information like fault description, customer data

a.s.o. is available.

 Ensure that the packing of the defective items is according to packing

requirements.

 Ensure that there is a description available, how to unpack the defective items

and what to do with them.

Enter data into your database: (Depends on your application system)

 Ensure that every data, which is required for the IRIS-Reporting is available in

your database.

 Ensure that there is a description available for the employees how to enter the

data.

A70 Level 2 Service Manual

Incoming check and check after assembling:

!! Verify the customers fault description!!

 After a successful verification pass the defective item to the responsible

troubleshooting group.

 If the fault description can not be verified, perform additional tests to save time

and to improve repair quality.

- Switch on the device and enter PIN code if necessary unblock phone.

- Check the

- Check the display for error in

function of all keys including side keys.

line and row, and for illumination.

- Check the ringer/loudspeaker acoustics by individual validation.

- Perform a GSM Test as described on page 32.

Check the storage capability:

 Check internal resistance and capacity of the battery.  Check battery charging capability of the mobile phone.  Check charging capability of the power supply.  Check current consumption of the mobile phone in different mode.

Visual inspection:

 Check the entire board for liquid damages.  Check the entire board for electrical damages.  Check the housing of the mobile phone for damages.

SW update:

 Carry out a software update and data reset according to the master tables and

operator/customer requirements.

Repairs:

The disassembling as well as the assembling of a mobile phone has to be carried out by considering the rules mentioned in the dedicated manuals. If special equipment is required the service partner has to use it and to ensure the correct function of the tools. If components and especially soldered components have to be replaced all rules mentioned in dedicated manuals or additional information e.g. service information have to be considered

A70 Level 2 Service Manual

GSM Test:

 Connect the mobile/board via internal antenna (antenna coupler) and external

antenna (car cradle) to a GSM tester.

 Use a Test SIM.

 Skip GSM 900/GSM1800 or GSM1900 test cases if not performed by the

mobile

phone.

A70 Level 2 Service Manual

Final Inspection:

The final inspection contains:

1) A 100% network test (location update, and set up call).

2) Refer to point 3.3.

3) A random sample checks of:

- data reset (if required)

- optical appearance

- complete function

4) Check if PIN-Code is activated (delete the PIN-Code if necessary).

Basis is the international standard of DIN ISO 2859. Use Normal Sample Plan Level II and the Quality Border 0,4 for LSO. Remark: All sample checks must be documented.

A70 Level 2 Service Manual

Annex 1

Test SIM Card There are two different “Test SIM Cards” in use:

1) Test SIM Card from the company “ORGA” Pin 1 number: 0000

PUK 1 : 12345678 Pin 2 number: 0000

PUK 2 : 23456789

2) Test SIM Card from the company “T-D1” Pin 1 number: 1234

PUK : 76543210 Pin 2 number: 5678

PUK 2 : 98765432

A70 Level 2 Service Manual

Annex 2

Battery Date Code overview

Varta

Date code example N 9 A VA
