Siemens A62 User Manual

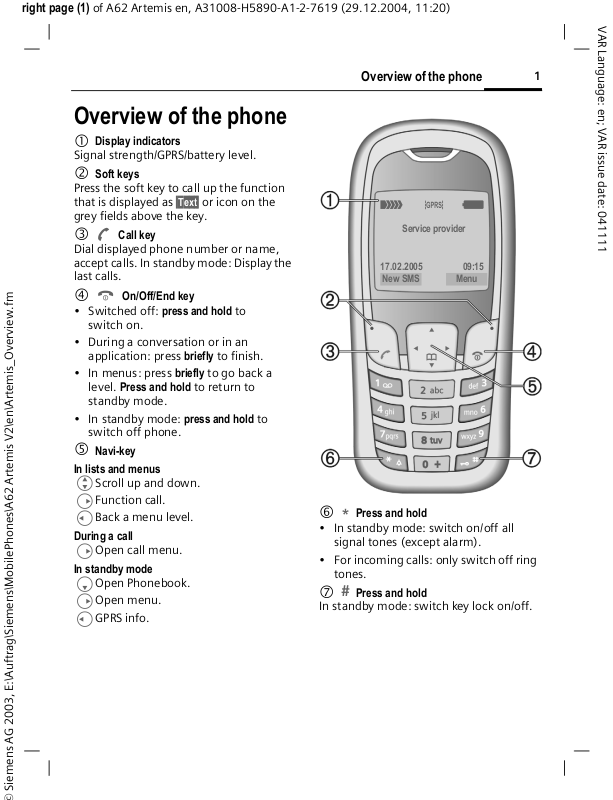

Overview of the phone

Display indicators

1

Signal strength/GPRS/battery level.

Soft keys

2

Press the soft key to call up the function
that is displayed as
grey fields above the key.

A

Call key

3

Dial displayed phone number or name,
accept calls. In standby mode: Display the
last calls.

B

On/Off/End key

4

• Switched off: press and hold to

switch on.

• During a conversation or in an

application: press briefly to finish.

• In menus: press briefly to go back a
level. Press and hold to return to
standby mode.

•In standby mode: press and hold to
switch off phone.

5 Navi-key

In lists and menus

GScroll up and down.

Function call.

D

Back a menu level.

C

During a call

Open call menu.

D

In standby mode

Open Phonebook.

F

Open menu.

D

GPRS info.

C

§Text§ or icon on the

Overview of the phone

_ ª g

Service provider

17.02.2005 09:15
New SMS Menu

Press and hold

6

*

• In standby mode: switch on/off all
signal tones (except alarm).

• For incoming calls: only switch off ring
tones.



Press and hold

7

In standby mode: switch key lock on/off.

1

2

Getting started

Getting started

Using the SIM card/battery

Your phone's display is delivered with a
protective film. Remove this film before get-
ting started. The service provider supplies
you with a SIM card on which all the im­portant data for your account is stored. If
the SIM card is credit card-sized, snap out
the smaller segment and trim any rough
edges.

Remove the battery cover upwards

1

Insert SIM card
the locating slot (make sure the angled
corner is in the correct position
push the retaining catch over the top of
the SIM card

and push it fully into

2

.

4

2

4

Insert the battery sideways into the
phone
until it engages.

, then press downwards 6

5

3

3

1

). Then

.

6

5

7

To remove, press the retaining tab
then lift the battery out.

Insert the battery cover by the tabs at the
bottom
until it engages.

, then press downwards 9,

8

7

9

8

Always switch off phone before removing
the battery!

Only 3 V SIM cards are supported. Please
contact your service provider if you have
an older card.

Charging the battery

The battery is not supplied fully charged.
Plug the charger cable into the bottom of
the phone, plug the power supply unit
into a mains power socket and charge for
at least two hours.

Switch on/off, PIN entry

3

Charging time

The charging time is 2 hours. Ambient
temperature of 5 °C to 40 °C (icon flashes
as a warning when 5 °C above/below this).

Switch on/off, PIN entry

Switch on/off

Press and hold On/Off/End keyBto

switch on or off.

Enter PIN

The SIM card can be protected with a
4–8 digit PIN. Enter the PIN code using
the number keys (the display shows a
series of asterisks, if you make a mistake

Clear§

press

§

Logging on to the network will take a few
seconds.
First time switching on phone, the time
and date must be set.

). Confirm your input with §OK§.

Standby mode

When the name of the service provider/
logo appears on the display, the phone is

in standby mode and ready for use.
Press and hold the On/Off/End key

return to standby mode from any menu

option.

Bto

Security

The phone and SIM card are protected
against misuse by several security codes.

Keep these confidential numbers in a safe
place where you can access them again if
required.

§Menu§ ¢ m ¢ Security ¢ Codes

¢ Select a function.

PIN control

The PIN is usually requested each time
the phone is switched on. You can deacti­vate this feature but you risk unauthor­ised use of the phone. Some service pro­viders do not permit deactivation of the
control.

Change PIN

You can change the PIN to any 4–8 digit
number you may find easier to remember.

Change PIN2

(Displayed only if PIN2 is available.)
Proceed as with Change PIN.

Change phonecode

You define and enter the phone code
(4–8 digits) when calling a phone code
protected function (e.g. Direct call, p. 5)
for the first time. It is then valid for all
protected functions. If it is entered incor­rectly three times the phone is locked.
Contact the Siemens Service.

Clear SIM card barring

If the PIN is entered incorrectly three
times, the SIM card is barred. Enter the
PUK (MASTER PIN) provided by your serv­ice provider with the SIM card. If the PUK
(MASTER PIN) has been lost, please con­tact your service provider.

Prevent accidental activation

Even if PIN use is deactivated confirma­tion is required to switch on the phone.
This prevents accidental activation of the
phone, e.g. when you are carrying it in
a bag or when you are travelling in an
aircraft.

After pressing and holding the On/Off/End
key

select §OK§ to switch on the phone

B

or abort the operation with any key
except

§OK§.

4

Making a phone call

Making a phone call

Dialling with number keys

The phone must be switched on (standby
mode). Enter the number (always with
prefix, if necessary with the international
dialling code). Press
digit, press and hold to clear the entire
phone number. To dial press the

End call

Press the End keyBbriefly. Press this key
even if the person on the other end of the
line has hung up first.

Set volume

Use the scroll keyEto start adjusting
the volume during conversation. Set vol­ume with

G.

Redial previous numbers

To redial the phone number last called,
press the Call key
numbers that were dialled previously,
pick out the required phone number from
the list with

G, then pressAto dial.

When a number is busy

For automatically dialling the phone
number for up to 15 minutes at increas­ing intervals, press
ringing when the busy number is free,
press

§Call back§ (

beep will remind you to redial the dis­payed phone number after 15 minutes.

L

Accept call

The phone must be switched on (standby
mode). An incoming call will interrupt
any other use of the phone.
Press

§Answer§ orA.

If the phone number has been transmitted
by the network, it is displayed. If the number

§Clear§

to clear the last

Akey.

Atwice. To redial other

§Auto dial§. For phone

). Press §Prompt§ and a

and the name are stored in the Phonebook,
the corresponding name is displayed in­stead. If set, an animation can be dis­played instead of the bell icon.

Reject call

§Reject§ or B press briefly.

Swapping between 2 calls b

Make a new connection during a call with

y menu§ ¢ Hold ¢

number, also from Phonebook:

§Swap§ you can swap back and forth be-

tween both calls.
Additional costs will be incurred for the

2nd phone connection.

(dial new phone

J

F

). With

Conference b

Make a new connection during a call with

y menu§ ¢ Hold ¢

number).
With

y menu§ ¢ Conference you can join

the held call. Repeat this procedure until
all participants are linked together (up to
5participants).

All calls in the conference are ended si­multaneously when the End key
pressed.

Additional costs will be incurred for every
additional phone connection.

(dial a new phone

J

Bis

Handsfree

You can put the phone down during a
call. You can then hear the caller via the
loudspeaker. Press
to activate handsfree function. Press

§Handsfr.§ to switch off.

Warning!

Please make sure you have accepted the
call before holding the phone to your ear.
This will prevent a loud ring tone from
damaging your hearing!

§Handsfr.§ and §Yes§

Phonebook

5

Call menu

Several functions are only available
during a call:

y menu§ ¢ Select a function.

Direct call

The phone can be locked, so it's only pos­sible to dial a defined number.

Switch on

§Menu§ ¢ m ¢ Security ¢ Direct call

§Select§ and enter phone code. When

Press
first prompted you define and enter the
phone code (4– 8 digits). Please do not for-
get this code! Confirm input with
press

§Change§. Select phone number from

the Phonebook or enter a new one. With

§OK§ confirm ON.

§OK§ and

Use

Press and hold the right soft key

>to dial.

Switch off

Press and hold  and enter phone code.

Confirm input with
With

§OK§ confirm OFF.

§OK§ and press §Change§.

Phonebook

<New entry>

Open Phonebook (in standby mode)

Fselect <New entry> ¢ §Select§

¢ GActivate input fields.

Number: Always enter phone number with

an area dialling code.

Name: Enter first name or surname.
Group: Organise entries in groups, select

§Change§.

with

Location: Select location: SIM (SIM card),
Mobile (phone memory) or Protected SIM

(special SIM card).

Record no.: This is automatically assigned

to the entry. Change with

§Save§ to store the new entry.

Press

§Change§.

Text entry

Press number key repeatedly until the re­quired letter appears. The cursor advanc­es after a short delay. Example:

Press once for a, twice for b etc.

2

Press and hold to write the
number.

Ä, ä, 1–9 Umlauts and numbers are dis-

played after the relevant letters.

§Clear§ Press briefly to delete the letter

before the cursor, press and hold
to delete the whole word.

H

Move the cursor (forwards/back).

 Press briefly: Switch between:

abc, Abc, ABC,

T9

ABC, 123. Status indicator in

the top line of the display.
Press and hold: All input modes
are displayed.

Press briefly: Select special

*

characters.

Press and hold: Open input menu.
Press once/repeatedly:

0

. , ? ! ’ “ 0 - ( ) @ / : _ + ~ &

Press and hold: Writes 0.

1

Writes blank. Press twice =
skip line.

T9

abc, T9Abc,

Call/search for an entry

Open PhonebookF, select name by typ­ing first letter or scroll and dial with

A

Call with record no.

A record number is automatically assigned
to every new entry in the Phonebook.

JEnter record number (in standby

mode)

¢  ¢ A

.
