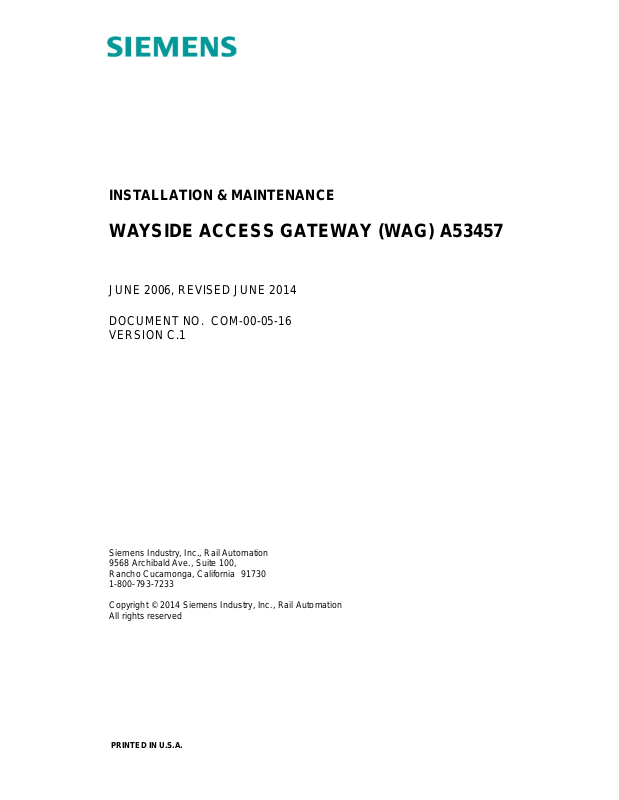

Page 1
INSTALLATION & MAINTENANCE
WAYSIDE ACCESS GATEWAY (WAG) A53457
JUNE 2006, REVISED JUNE 2014
DOCUMENT NO. COM-00-05-16
VERSION C.1
Siemens Industry, Inc., Rail Automation
9568 Archibald Ave., Suite 100,
Rancho Cucamonga, California 91730
1-800-793-7233
Copyright © 2014 Siemens Industry, Inc., Rail Automation
All rights reserved
PRINTED IN U.S.A.
Page 2
PROPRIETA RY INFORMATION
Siemens Industry, Inc., Rail Automation
Siemens Industry, Inc., Rail Automation
2400 NELSON MILLER PARKWAY
939 S. MAIN STREET
LOUISVILLE, KENTUCKY 40223
MARION, KENTUCKY 42064
TELEPHONE:
(502) 618-8800
TELEPHONE:
(270) 918-7800
FAX:
(502) 618-8810
CUSTOMER SERVICE:
(800) 626-2710
SALES & SERVICE:
(800) 626-2710
TECHNICAL SUPPORT:
(800) 793-7233
WEB SITE:
http://www.rail-automation.com/
FAX:
(270) 918-7830
The material contained herein constitutes proprietary and confidential information, and is the
intellectual property of Siemens Industry, Inc., Rail Automation (Siemens) protected under
United States patent, copyright and/or other laws and international treaty provisions. This
information and the software it describes are for authorized use only, and may not be: (i)
modified, translated, reverse engineered, decompiled, disassembled or used to create derivative
works; (ii) copied or reproduced for any reason other than specific application needs; or (iii)
rented, leased, lent, sublicensed, distributed, remarketed, or in any way transferred; without the
prior written authorization of Siemens. This proprietary notice and any other associated labels
may not be removed.
TRANSLATIONS
The manuals and product information of Siemens are intended to be produced and read in
English. Any translation of the manuals and product information are unofficial and can be
imprecise and inaccurate in whole or in part. Siemens does not warrant the accuracy, reliability,
or timeliness of any information contained in any translation of manual or product information
from its original official released version in English and shall not be liable for any losses caused
by such reliance on the accuracy, reliability, or timeliness of such information. Any person or
entity who relies on translated information does so at his or her own risk.
WARRANTY IN FORMATION
iemens Industry, Inc., Rail Automation warranty policy is as stated in the current Terms and
S
Conditions of Sale document. Warranty adjustments will not be allowed for products or
components which have been subjected to abuse, alteration, improper handling or installation, or
which have not been operated in accordance with Seller's instructions. Alteration or removal of
any serial number or identification mark voids the warran
SALES AND SERVICE LOCATIONS
ty.
Technical assistance and sales information on Siemens Industry, Inc., Rail Automation
products may be obtained at the following loc at ions:
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
ii
Page 3
Version
Release Date
Details of Change
A
September2005
New manual to replace SIG-00-04-22.
B
March 2006
Updated title page and all page footers to indicate ‘B’ Version of
including Figures 2-5 and 2-6 to support text
DOCUMENT HISTORY
document.
Page xi, GLOSSARY
• Reworded definition for ‘DNS’ to read “…(Also known as Domain
Name System)…”
• Added definition for ‘OSI’ to read “Office System Interface –
Functionally allowing…”
• Added definition for ‘PST’ to read “Persistent Serial Tunneling –
Functionally allowing…”
Entire Document;
• Changed all plural acronym references “WAGS” to “WAGs”.
• Entire documentRemoved all references to “WAG unit” and changed
wording to “WAG”
• Removed all references to menu option numbers such as “(#12”, etc.
• Removed all references to option number such as “(#6), etc.
Section I
• Renumbered and titled all paragraphs in Section 1 to coordinate the
following changes to that section of this document.
Page 1-4, paragraph 1.3
• Re-titled paragraph “PERSISTENT SERIAL TUNNELING…”
• Provided diagram and verbiage to fully explain WAG communication
through the LAN.
• Changed the wording of all subparagraphs following Figure 1.2 to
present a more accurate operational description for the WAG.
Page 1-5, paragraph 1.4
• Re-titled paragraph “OFFICE SYSTEM INTERFACE (OSI)…”
• Provided diagram and verbiage to fully explain WAG communication
through the OSI and a SEAR II/SEAR IIi echelon.
Page 1-9, subparagraph 1.5.1.5 Echelon Interface (J4) Characteristic
• Removed hyphen (-) from the words “daisy chain”
Page 1-11, subparagraph 1.6.5 Default Factory Settings
• Expanded software definitions and default setting to match current
software configuration
Page 2-2, subparagraph 2.3.1, Connecting to Ethernet Radio A53325
• Changed subparagraph title to read, “Connecting to Safetran Ethernet
Radio A53325”
• Changed first sentence to read, “The following diagram shows the
Safetran Ethernet Radio (A5332 5) …”
Page 2-6, paragraph 2.3, EQUIPMENT CONNECTION TO WAG
• Added subparagraph 2.3.5, Persistent Serial Tunneling Configuration,
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
iii
Page 4
Page 2-7, paragraph 2.3, EQUIPMENT CONNECTION TO WAG
15, paragraph 2.6, CONFIGURATION OF THE WAG, subparagraph
15, paragraph 2.6, CONFIGURATION OF THE WAG, subparagraph
18, paragraph 2.6, CONFIGURATION OF THE WAG, subparagraph
bparagraph
2.6.14
• Added subparagraph 2.3.6, Office System Interface Configuration,
including Figure 2-7 to support text
Page 2-8, paragraph 2.4, CONFIGURATION USING TERMINAL
EMULATION SOFTWARE, Step 3
• Added note “If the screen shown in figure 2-9…”
Page 2-9, paragraph 2.4, CONFIGURATION USING TERMINAL
EMULATION SOFTWARE, Step 4
• Changed “…WAG…” to “…WAGs…”
Page 2-9, paragraph 2.4, CONFIGURATION USING TERMINAL
EMULATION SOFTWARE, first NOTE
• Changed last sentence in note to read, “Wait at least 3 seconds and
then type +++ and wait 3 seconds for the system to command
mode…”
Page 2-10, paragraph 2.5, CONFIGURATION USING TELNET
• Changed “To Login Using…” to read, “To log in using…”
Page 2-12, paragraph 2.6, CONFIGURATION OF THE WAG UNIT,
subparagraph 2.6.1
• Changed subparagraph title to read “Type 7 ATCS Address” and
reworded entire subparagraph, adding Figure 2-13, Type 7 ATCS
Address Configuration Screen with functional explanations
Page 2-13, subparagraph 2.6.2, Type 3 ATCS Address
• Item 1: replaced Figure 2-14 ATCS Address Screen with one that
specifies the second line ATCS address item as, “Enter the NN…”
Page 2-13, paragraph 2.6.2, Type 3 ATCS Address, subparagraph 2.6.2
• Changed subparagraph title to read “Type 3 ATCS Address” and
reworded entire subparagraph, adding Figure 2-14, Type 3 ATCS
Address Configuration Screen with functional explanations
Page 2-
2.6.4
• Reformatted paragraph to “unwrap” Figure 2-16 from the text for
steps 1 through 4
Page 2-
2.6.5
• Changed subparagraph title to read “WAG Test Mode” and reworded
entire subparagraph to read “This function is for future…..”. All
subparagraphs in this section renumbered accordingly.
Page 2-
2.6.8
• Removed last sentence (“To specify the routing table never
expires…”) from step 2.
Page 2-23, paragraph 2.6, CONFIGURATION OF THE WAG, su
iv
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 5
• Changed second paragraph to read, “If a user…21 bits…display
Page 2-43, paragraph 2.6, CONFIGURATION OF THE WAG
255.255.248.000.”
Page 2-30, paragraph 2.6, CONFIGURATION OF THE WAG
• Added subparagraph 2.6.16 WAG Circuit ID with appropriate figures
Page 2-32, paragraph 2.6, CONFIGURATION OF THE WAG
• Added subparagraph 2.6.17 Routing Region Domain 1 with
appropriate figures
Page 2-34, paragraph 2.6, CONFIGURATION OF THE WAG
• Added subparagraph 2.6.18 Routing Region Domain 2 with
appropriate figures
Page 2-34, paragraph 2.6, CONFIGURATION OF THE WAG
• Added subparagraph 2.6.19 ATCS Server UDP Port Number with
appropriate figures
Page 2-35, paragraph 2.6, CONFIGURATION OF THE WAG
• Added subparagraph 2.6.20 Telnet Port Numbers with appropriate
figures
Page 2-36, paragraph 2.6, CONFIGURATION OF THE WAG
• Added subparagraph 2.6.21 Genisys Wait Poll Response with
appropriate figures
Page 2-37, paragraph 2.6, CONFIGURATION OF THE WAG
• Added subparagraph 2.6.22 ATCS Retry Wait with appropriate
figures
Page 2-38, paragraph 2.6, CONFIGURATION OF THE WAG
• Added subparagraph 2.6.23 ATCS Max Retries with appropriate
figures
Page 2-38, paragraph 2.6, CONFIGURATION OF THE WAG
• Added subparagraph 2.6.24 Genisys Poll Starting Station with
appropriate figures
Page 2-39, paragraph 2.6, CONFIGURATION OF THE WAG
• Added subparagraph 2.6.25 Genisys Poll Ending Station with
appropriate figures
Page 2-40, paragraph 2.6, CONFIGURATION OF THE WAG
• Added subparagraph 2.6.26 Fragile Telnet Connections with
appropriate figures
Page 2-41, paragraph 2.6, CONFIGURATION OF THE WAG
• Added subparagraph 2.6.27 Persistent Serial Tunnel with appropriate
figures
Page 2-42, paragraph 2.6, CONFIGURATION OF THE WAG
• Added subparagraph 2.6.27.1 Typical PST Configuration Parameter
Settings with appropriate figures
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
v
Page 6
• Added subparagraph 2.6.28 Primary and Secondary DNS with
appropriate figures
• Added “To go to Command Mode temporarily…”; added (after To go
Page 2-43, Table 2-2
• Changed table section headings to read, “Settings on First
Configuration Screen” and “Settings on Second Configuration
Screen”
• Reset left justification for verbiage in the first, left-hand cell of the
table.
Page 2-46, paragraph 2.6, CONFIGURATION OF THE WAG
• Added subparagraph 2.6.29 Default IP Gateway with appropriate
figures
Page 2-47, paragraph 2.6, CONFIGURATION OF THE WAG
• Added subparagraph 2.6.30 WAG Site ID with appropriate figures
Page 3-1, Table 3-1, WAG Unit Command
• Reformatted table to include a column for ‘Shorthand’ symbols and
added ‘Tunnel’ to the Command column with the appropriate
Description
Page 3-2, Item 1 under “To View the Status”
• For XPORT channel, added “XPORT Link Status…”
Page 3-3, paragraph 3.2 VIEWING THE STATUS
• Added two subparagraphs that read “The last line of the XPORT….”
and “In the event…”
Page 3-3, paragraph 3.2, VIEWING THE STATUS
• Added subparagraph 3.2.1.1 Additional Status Information When
Configured of OSI
Page 3-5, paragraph 3.6
• Re-titled paragraph “PERSISTANT SERIAL TUNNEL COMMAND”
• Provided diagram and verbiage to fully explain WAG Persistent Serial
Tunnel configuration
• Renumbered the original paragraph 3.6 and all subsequent
paragraphs to compensate for this change.
Page 3-8, paragraph 3.10
• Re-titled paragraph “SENDING A ROUTE PING REQUEST”
• Provided diagram and verbiage to fully explain the Route Ping
command
• Renumbered the original paragraph 3.10 and all subsequent
paragraphs to compensate for this change.
Page 3-9, paragraph 3.11
• Re-titled paragraph “TRACING AN INTERFACE”
• Provided diagram and verbiage to fully explain the Trace command
• Renumbered the original paragraph 3.11 and all subsequent
paragraphs to compensate for this change.
Page 3-14, paragraph 3.15 (originally 3.13 in the ‘A’ revision)
vi
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 7
to Data Mode) “(if the serial interface is configured…” and added note
C
June 2006
Updated title page and all page footers to indicate ‘C’ Version of
• Deleted “is” in first line of the second paragraph.
“Configuration changes are made with the WAG in Command
Mode…..”
Page 3-17, paragraph 3.20
• Designated Log Entries matrix as Table 3-2, Log Entry Descriptions
Page 3-21, Table 3-2
• For Classification Warning, Log Entry FLASH: ZMODEM transfer
aborted, changed the Description to read “Means that the user
either aborted…”
Page 3-25, Table 3-2
• Added Classification Information for Log Entry “PST: Persistent
request…”, “PST: Persistent tunnel…” and “MM/YY
HH:MMSS:mmm: DNS…”
Page 3-25, paragraph 3.21
• Change CAUTION statement to read, “MAKE SURE….THE
USER CANNOT RECOVER THE LOG AFTER IT HAS BEEN
CLEARED.”
Page 5-2, Figure 5-2. Send File Pop-up Window
• Replaced image with one more accurate and appropriate for this
manual.
Page 5-2, Figure 5-3. Zmodem File Send Screen
• Replaced image with one more accurate and appropriate for this
manual.
Page 5-4, Figure 5-4. Zmodem File Receive Screen
• Replaced image with one more accurate and appropriate for this
manual.
Page 6-2, paragraph 6.3
• Reformatted CAUTION statement to remove extra spacing in second
line.
document.
Page xi to xiii,
• Glossary updated with missing acronyms and terms.
Page 1-1
• Moved acronym (SSR) to first occurrence and capitalized ‘radio.’
• Deleted extra bullet and space.
• Added bullet and the word “Bridges”.
Page 1-2
• Added full name to acronym at first occurrence.
Page 1-3
• Added full name to acronym at first occurrence (two places).
Page 1-4
• Replaced Figure 1-2 with new artwork.
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
vii
Page 8
• Added full name to acronym at the first occurrence.
• Added “(which defaults to 10023)”
• Added “(usually 10023)”
Page 1-6
• Added full name to acronym at the first occurrence.
Page 1-7 through 1-11
• Added paragraph 1.5 through paragraph 1.9 and figures 1-4 to 1-6.
Page 1-11
• Renumbered to 1.10, Wag Hardware Interface heading.
• Renumbered to figure 1-7 and reference in previous paragraph (1.10).
• Added paragraph 1.10.1 Ports heading and associated sentence.
Page 1-12
• Added paragraph headings 1.10.1.1 and 1.10.1.2.
Page 1-13
• Added paragraph headings 1.10.1.3 through 1.10.1.5.
Page 1-14
• Added paragraph headings 1.10.2, 1.11, 1.11.1 and 1.11.2.
Page 1-15
• Added paragraph headings 1.11.3 through 1.11.5.
Page 2-6
• Added new paragraph 2.3.5 Persistent Serial Tunneling
Configuration.
• Added figures 2-5 and 2-6.
Page 2-7
• Added paragraph 2.3.6 Office System Interface Configuration.
• Added figure 2-7.
Page 2-9
• Added top paragraph.
• Added Figure 2-6.
• Added phrase “and without the operator selecting a menu option”.
• Updated figure and paragraph references in the first note.
Page 2-10
• Updated figure 2-8 with new screen shot.
Page 2-11
• Updated figure 2-9 with new screen shot.
Page 2-12
• Updated figure 2-11 with new screen shot.
Page 2-13
• Updated figure 2-12 with new screen shot.
viii
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 9
Page 2-16
• Updated figure 2-15 with new screen shot.
Page 2-17
• Added paragraphs entitled Serial Telnet While in Genisys ATCS
Mode and Serial Telnet While in HDLC Mode.
• Added “An Example of” to figure 2-16 and updated the figure with new
artwork.
Page 2-18
• Added “An Example of” to figure 2-17.
Page 2-21
• Updated figure 2-21 with new screen shot.
Page 2-23
• Updated figure 2-23 with new screen shot.
Page 2-24
• Updated figure 2-24 with new screen shot.
Page 2-33 and 2-34
• Added full name to acronym at the first occurrence.
• Added paragraph 2.6.16.
• Added figure 2-41.
• Updated paragraph number to 2.6.17.
• Updated figure reference to 2-42.
Page 2-35
• Updated figure number to 2-43 and reference in following sentence.
• Updated paragraph heading number to 2.6.18.
• Acronym spelled out on the first occurrence on the previous page.
Page 2-36
• Updated figure references (in two places) to 2-45.
Page 2-37
• Updated figure reference to 2-46.
• Updated paragraph headin g to 2.6.19 (rip pl e for other paragraph
headings on subsequent pages.
• Updated paragraph references (two places) to 2.6.18. Ripple for other
paragraph references on subsequent pages.
• Acronym spelled out on the first occurrence previously.
Page 2-44
• Updated figure 2-57 with n ew screen shot.
Page 2-47
• Acronym spelled out on the first occurrence previously.
Page 2-51 through 2-54
• Added paragraphs 2.6.32 through 2.6. 35.
• Added figures 2-65 through 2-67.
ix
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 10
Page 3-1
C.1
June 2014
Rebrand for Siemens
• Added four new commands to WAG Commands table.
Page 3-3
• Updated paragraph heading number to 3.2.1.
Page 3-4
• Added paragraph 3.2.2.
Page 3-6
• Acronym spelled out on the first occurrence previously.
Page 3-9
• Updated screen shot within paragraph 3.11. Added “R” to list below in
sentence.
Page 3-12
• Added new paragraph entitled “To Trace IP Redundancy to Serial and
Telnet”.
Page 3-14
• Added new paragraph “Time Stamp on Trace”.
Page 3-15 and 3-16
• To paragraph 3.18 second paragraph, added the phrase “on how to
save displays to a file”.
• Added “System” to run time:… on list.
Page 3-28 through 3-30
• Added paragraph entitled “Event Log Stre aming” and paragraphs
3.22 through 3.25.
Page 5-1
• Updated figure 5-1 with new screen shot.
Page 5-3
• Updated figure 5-4 with new screen shot.
Page 6-1
• Changed paragraph 6.2 to read “7” instead of “6”.
• Added number 7 and text to Table 6-1 table.
Page 6-2
• Updated figure 6-3 with new screen shot.
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
x
Page 11
WARNING
OUS SITUATION WHICH, IF NOT
DENCE OVER NOTES, CAUTIONS, AND ALL
OTHER INFORMATION.
CAUTION
REFERS TO PROPER PROCEDURES OR PRACTICES WHICH IF NOT
WARNINGS.
NOTE
discussion.
NOTES, CAUTIONS, AND WARNINGS
Throughout this manual, notes, cautions, and warnings are frequently used to direct the reader’s
attention to specific information. Use of the three terms is defined as follows:
INDICATES A POTENTIALLY HAZARD
AVOIDED, COULD RESULT IN DEATH OR SERIOUS INJURY. WARNINGS
ALWAYS TAKE PRECE
STRICTLY OBSERVED, COULD RESULT IN A POTENTIALLY HAZARDOUS
SITUATION AND/OR POSSIBLE DAMAGE TO EQUIPMENT. CAUTIONS TAKE
PRECEDENCE OVER NOTES AND ALL OTHER INFORMATION, EXCEPT
Generally used to highlight certain information relating to the topic under
If there are any questions, contact Siemens Industry Inc., Rail Automation Application
Engineering.
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
xi
Page 12
ELECTROSTATIC DISCHARGE (ESD) PRECAUTIONS
Static electricity can damage electronic circuitry, particularly low voltage components such as the
integrated circuits commonly used throughout the electronics industry. Therefore, procedures
have been adopted industry-wide which make it possible to avoid the sometimes invisible
damage caused by electrostatic discharge (ESD) during the handling, shipping, and storage of
electronic modules and components. Siemens Industry, Inc., Rail Automation has instituted these
practices at its manufacturing facility and encourages its customers to adopt them as well to
lessen the likelihood of equipment damage in the field due to ESD. Some of the basic protective
practices include the following:
• Ground yourself before touching card cages, assemblies, modules, or components.
• Remove power from card cages and assemblies before removing or installing modules.
• Remove circuit boards (modules) from card cages by the ejector lever only. If an ejector lever is
not provided, grasp the edge of the circuit board but avoid touching circuit traces or components.
• Handle circuit boards by the edges only.
• Never physically touch circuit board or connector contact fingers or allow these fingers to come in
contact with an insulator (e.g., plastic, rubber, etc.).
• When not in use, place circuit boards in approved static-shielding bags, contact fingers first.
Remove circuit boards from static-shielding bags by grasping the ejector lever or the edge of the
board only. Each bag should include a caution label on the outside indicating static-sensitive
contents.
• Cover workbench surfaces used for repair of electronic equipment with static dissipative
workbench matting.
• Use integrated circuit extractor/inserter tools designed to remove and install electr os tatic -
sensitive integrated circuit devices such as PROM’s (OK Industries, Inc., Model EX-2 Extractor
and Model MOS-40 Inserter (or equivalent) are highly recommended).
• Utilize only anti-static cushioning material in equipment shipping and storage containers.
For information concerning ESD material applications, please contact the Technical Support Staff
at 1-800-793-7233. ESD Awareness Classes and additional ESD product information are also
available through the Technical Support Staff.
xii
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 13
TABLE OF CONTENTS
Section Title Page
PROPRIETARY INFORMATION ......................................................................... ii
TRANSLATIONS ................................................................................................. ii
WARRANTY INFORMATION............................................................................... ii
SALES AND SERVICE LOCATIONS ................................................................... ii
DOCUMENT HISTORY ...................................................................................... iii
NOTES, CAUTIONS, AND WARNINGS ............................................................. xi
ELECTROSTATIC DISCHARGE (ESD) PRECAUTIONS .................................. xii
LIST OF FIGURE S ........................................................................................... xvi
LIST OF TABLES ............................................................................................. xviii
GLOSSARY ...................................................................................................... xix
1.0 DESCRIPTION ................................................................................................ 1-1
1.1 GENERAL........................................................................................................ 1-1
1.2 WAG MESSAGE MANAGEMENT ................................................................... 1-2
1.3 WAG HARDWARE INTERFACE ..................................................................... 1-4
1.3.1 Ports ................................................................................................................ 1-4
1.3.1.1 Pinouts for J1 .............................................................................................. 1-5
1.3.1.2 Pinouts for J2 .............................................................................................. 1-5
1.3.1.3 Pinouts for J3A/J3B .................................................................................... 1-6
1.3.1.4 Pinouts for J4 .............................................................................................. 1-6
1.3.1.5 Echelon Interface (J4) Characteristics ........................................................ 1-6
1.3.2 LED Indicators ................................................................................................. 1-7
1.4 PRODUCT SPECIFICATIO NS ......................................................................... 1-7
1.4.1 Physical Specifications..................................................................................... 1-7
1.4.2 Dimensions ...................................................................................................... 1-7
1.4.3 Power Specifications ........................................................................................ 1-7
1.4.4 Environmental Specifications ........................................................................... 1-7
1.4.5 Default Factory Settings ................................................................................... 1-8
1.5 PERSISTENT SERIAL TUNNELING (PST) FUNCTIONALITY ........................ 1-9
1.6 OFFICE SYSTEM INTERFACE (OSI) FUNCTIONALIT Y ............................... 1-10
1.7 BOOT LOADER RS485 J1/J2 JUMPER DETECTION ................................... 1-12
1.8 EXTERNAL J1/J2 JUMPERS......................................................................... 1-13
1.9 J1/J2 JUMPER DETECT TEST FRAMES ...................................................... 1-14
1.10 RS485 OPERATION ...................................................................................... 1-14
1.11 HDLC-UI OPERATION .................................................................................. 1-16
2.0 iNSTALLATION AND CONFIGURAT ION ........................................................ 2-1
xiii
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 14
2.1 PRE-STARTUP ............................................................................................... 2-1
2.2 HARDWARE INSTALLATION .......................................................................... 2-1
2.2.1 Hardware Mounting .......................................................................................... 2-1
2.2.2 Wiring .............................................................................................................. 2-1
2.3 EQUIPMENT CONNECTION TO WAG ........................................................... 2-2
2.3.1 Connecting to Safetran Ethernet Radio A53325 ............................................... 2-2
2.3.2 Connecting to an Ethernet Hub ........................................................................ 2-3
2.3.3 Connecting to an Ethernet Hub and Safetran Ethernet Radio A53325 ............. 2-4
2.3.4 Connecting Two Sites Using Modems .............................................................. 2-5
2.4 CONNECTIN G USING TERM IN AL EMULATION S OFTWARE ....................... 2-6
2.5 CONNECTING USING TELNET ...................................................................... 2-9
2.6 CONFIGURATION OF THE WAG ................................................................. 2-11
2.6.1 Type 7 ATCS Address ................................................................................... 2-11
2.6.2 Type 3 ATCS Address ................................................................................... 2-12
2.6.3 Serial Port Interface ....................................................................................... 2-13
2.6.4 Serial Format ................................................................................................. 2-14
2.6.5 WAG Test Mode ............................................................................................ 2-17
2.6.6 Echelon Address ............................................................................................ 2-17
2.6.7 UDP Port Assignments .................................................................................. 2-18
2.6.8 Router Expiration Timer ................................................................................. 2-19
2.6.9 Broadcast Medium ......................................................................................... 2-19
2.6.10 TCP Port Assignments ................................................................................... 2-20
2.6.11 DHCP Server ................................................................................................. 2-21
2.6.12 WAG IP Address ............................................................................................ 2-22
2.6.13 Type 7 Address Route Length........................................................................ 2-23
2.6.14 IP Network Mask ............................................................................................ 2-24
2.6.15 Radio Site ID Bindings ................................................................................... 2-24
2.6.15.1 If More than One Radio is Co-Located with a DHCP Serving WAG .......... 2-30
2.6.16 DHCP Client .................................................................................................. 2-31
2.6.17 WAG Circuit ID .............................................................................................. 2-32
2.6.18 Routing Region Domain 1 .............................................................................. 2-33
2.6.19 Routing Region Domain 2 .............................................................................. 2-35
2.6.20 ATCS Server UDP Port Number .................................................................... 2-36
2.6.21 Telnet Port Numbers ...................................................................................... 2-36
2.6.22 Genisys Wait Poll Response .......................................................................... 2-38
2.6.23 ATCS Retry Wait............................................................................................ 2-38
2.6.24 ATCS Max Retries ......................................................................................... 2-39
2.6.25 Genisys Poll Starting Station .......................................................................... 2-40
2.6.26 Genisys Poll Ending Station ........................................................................... 2-40
2.6.27 Fragile Telnet Connection .............................................................................. 2-41
2.6.28 Persistent Serial Tunnel ................................................................................. 2-42
2.6.28.1 Typical PST Configuration Parameter Settings ......................................... 2-43
xiv
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 15
2.6.29 Primary and Secondary DNS ......................................................................... 2-44
2.6.30 Default IP Gateway ........................................................................................ 2-46
2.6.31 WAG Site ID .................................................................................................. 2-48
2.6.32 Route RAW Echelon: No ................................................................................ 2-48
2.6.33 Route Unknown Outbound Echelon: No ......................................................... 2-49
2.6.34 Telnet Password: Disabled ............................................................................ 2-50
2.6.35 RS485 J1/J2 Jumper Detect: Enabled ........................................................... 2-50
3.0 OPERATION .................................................................................................... 3-1
3.1 INTRODUCTION ............................................................................................. 3-1
3.2 VIEWING THE STATUS .................................................................................. 3-2
3.2.1 Additional Status Information When WAG Configured for OSI ......................... 3-3
3.2.2 Genisys Status Report ..................................................................................... 3-4
3.3 VIEWING THE ROUTING TABL E .................................................................... 3-4
3.4 VIEWING MAC ADDRESSES.......................................................................... 3-5
3.5 VIEWING THE WAG CONFIGURATION ......................................................... 3-5
3.6 PERSISTENT SERIAL TUNNEL COMMAND .................................................. 3-6
3.7 CHANGING THE DIAGNOSTIC VERB OSITY LEVELS ................................... 3-7
3.8 SEND WINK REQUEST TO A WAG ................................................................ 3-7
3.9 SENDING A PING TO AN IP ADDRESS ......................................................... 3-8
3.10 SENDING A ROUTE PING REQUEST ............................................................ 3-8
3.11 TRACING AN INTERFACE .............................................................................. 3-9
3.12 SETTING THE CURRENT DATE .................................................................. 3-14
3.13 SETTING THE CURRENT TIME ................................................................... 3-14
3.14 UPLOADING/DOWNLOADING FIL ES ........................................................... 3-14
3.15 DATA/COMMAND MODE FROM A SERIAL INTERFACE ............................. 3-15
3.16 RETURNING THE SERIAL INTERFACE TO COMMAND MODE F ROM A
TELNET SESSION ......................................................................................................... 3-15
3.17 RESTARTING THE WAG .............................................................................. 3-15
3.18 VIEWING SOFTWARE INF OR MATION ........................................................ 3-16
3.19 REVIEWING THE LOGS ............................................................................... 3-16
3.20 LOG ENTRIES ............................................................................................... 3-18
3.21 CLEARING THE LOG .................................................................................... 3-27
3.22 REQIP ........................................................................................................... 3-28
3.23 WAGREPORT ............................................................................................... 3-28
3.24 TTIME ............................................................................................................ 3-29
3.25 REVISIONS ................................................................................................... 3-30
4.0 TROUBLESHOOTING ..................................................................................... 4-1
4.1 INTRODUCTION ............................................................................................. 4-1
xv
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 16
4.2 DEVICES NOT TALKING TO EACH OTHER ON NETWORK ......................... 4-1
4.3 ENTRIES NOT IN ROUTING TABLE ............................................................... 4-1
4.4 WAG LIGHTS ARE OFF .................................................................................. 4-4
4.5 WAG WILL NOT CO MPL ETE THE BOOT PROCESS ..................................... 4-4
4.6 BOOT MENU DOES NOT APPEAR ................................................................ 4-5
4.7 CANNOT TELNET TO WAG ............................................................................ 4-6
4.8 MULTIPLE WAGs HAVE SAME IP ADDRESS ................................................ 4-6
5.0 MAINTENANCE ............................................................................................... 5-1
5.1 INTRODUCTION ............................................................................................. 5-1
5.2 DOWNLOADING SOFTWARE TO WAG USING XFILES COMMAND ............ 5-1
5.3 UPLOADING SOFTWARE FROM WAG USING XFILES COMMAND ............. 5-2
5.4 UPGRADING WAG VIA BOOT OPTIONS SCREEN ....................................... 5-4
6.0 USING ADVANCED OPTIONS ........................................................................ 6-1
6.1 INTRODUCTION ............................................................................................. 6-1
6.2 BOOT MENU OPTIONS .................................................................................. 6-1
6.3 DEBUGGING FROM THE BOOT MENU ......................................................... 6-2
6.3.1 Available Commands and Description .............................................................. 6-3
6.4 UPGRADING THE XILINX CODE .................................................................... 6-5
6.5 TROUBLESHOOTING COMMANDS ............................................................... 6-6
6.5.1 Using TESTMODE ........................................................................................... 6-6
6.5.2 Using XDUMP .................................................................................................. 6-7
LIST OF FIGURES
Figure 1-1. General Network Overview .................................................................................................... 1-2
Figure 1-2. Wayside Access Gateway ......................................................................................................... 1-4
Figure 1-3. Persistent Serial Tunneling ........................................................................................................... 1-9
Figure 1-4. Office Systems Interface ............................................................................................................ 1-10
Figure 1-5. J1/J2 Jumper Auto Detect Option ............................................................................................ 1-12
Figure 1-6. RS485 Operational Interconnection ....................................................................................... 1-14
Figure 1-7. RS485 Cable Interconnections ................................................................................................. 1-15
Figure 1-8. RS485 Cable Interconnections ................................................................................................. 1-15
Figure 2-1. Safetran Ethernet Radio A53325................................................................................................. 2-2
Figure 2-2. Ethernet Hub ................................................................................................................................... 2-3
Figure 2-3. Ethernet Hub and Safetran Ethernet Radio A53325 .............................................................. 2-4
Figure 2-4. Connecting Two Sites Using Modems ....................................................................................... 2-5
Figure 2-5. WAG Terminal Emulation Boot Screen ..................................................................................... 2-6
Figure 2-6. WAG Terminal Emulation Boot With Number 7 Screen ....................................................... 2-7
Figure 2-7. WAG Terminal Ready Screen ....................................................................................................... 2-8
Figure 2-8. HyperTerminal Configuration Screen ........................................................................................ 2-8
xvi
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 17
Figure 2-9. First Configuration Menu ............................................................................................................. 2-9
Figure 2-10. Second Configuration Menu .................................................................................................. 2-10
Figure 2-11. Third Configuration Menu ...................................................................................................... 2-10
Figure 2-12. Type 7 ATCS Address Configuration Screen....................................................................... 2-11
Figure 2-13. Type 3 ATCS Address Screen .................................................................................................. 2-13
Figure 2-14. Serial Port Interface Screen .................................................................................................... 2-14
Figure 2-15. Serial Format Screen ................................................................................................................ 2-15
Figure 2-16. An Example of HDLC Tunneling ............................................................................................ 2-16
Figure 2-17. An Example of HDLC Tunneling Cable Interconnections ................................................ 2-16
Figure 2-18. Echelon Configuration Screen ................................................................................................ 2-17
Figure 2-19. UDP Port Assignment Screen ................................................................................................. 2-18
Figure 2-20. Router Expiry Timer Screen .................................................................................................... 2-19
Figure 2-21. Broadcast Interface Screen ..................................................................................................... 2-20
Figure 2-22. TCP Configuration Screen ....................................................................................................... 2-21
Figure 2-23. DHCP Server Screen ................................................................................................................. 2-21
Figure 2-24. Change WAG IP Address Screen ............................................................................................ 2-22
Figure 2-25. Type 7 Address Route Length Screen .................................................................................. 2-23
Figure 2-26. Change IP Network Mask Screen .......................................................................................... 2-24
Figure 2-27. Radio Site IDs/DHCP Bindings Screen .................................................................................. 2-25
Figure 2-28. DHCP Binding Screen ............................................................................................................... 2-25
Figure 2-29. Change Binding IP Address Screen ....................................................................................... 2-26
Figure 2-30. Change Binding IP Address Bytes 1 through 4 Screen ..................................................... 2-26
Figure 2-31. Change Binding Left Transmit Channel Screen ................................................................. 2-26
Figure 2-32. Change Binding Left Transmit Power Screen ..................................................................... 2-26
Figure 2-33. Change Binding Left Transmit Speed Screen ..................................................................... 2-27
Figure 2-34. Change Binding Left Receive Channel Screen.................................................................... 2-27
Figure 2-35. Change Binding Right Transmit Channel Scree. ................................................................ 2-27
Figure 2-36. Change Binding Right Transmit Power Screen ................................................................... 2-28
Figure 2-37. Change Binding Right Transmit Speed Screen ................................................................... 2-28
Figure 2-38. Change Binding Right Receive Channel Screen ................................................................. 2-29
Figure 2-39. Radio Site IDs/DHCP Bindings Screen – After Binding Configuration ......................... 2-29
Figure 2-40. Selected Binding Screen – After Binding Configuration ................................................. 2-30
Figure 2-41. DHCP Client ................................................................................................................................ 2-32
Figure 2-42. Change WAG Routing Region Screen – Initial Screen ...................................................... 2-32
Figure 2-43. Change WAG Routing Region Screen – After Digits Entered In First Field ................. 2-33
Figure 2-44. Change WAG Routing Region Screen – After Digits Entered In Second Field ........... 2-33
Figure 2-45. Change Routing Region Domain One - Initial Screen ...................................................... 2-34
Figure 2-46. Change Routing Region Domain One - IP Address Screen ............................................. 2-35
Figure 2-47. Change Routing Region Domain One – Symbolic Name Screen .................................. 2-35
Figure 2-48. Change ATCS Server UDP Port Number Screen ................................................................ 2-36
Figure 2-49. Change Telnet Port Numbers Screen ................................................................................... 2-37
Figure 2-50. Change WAG Telnet Port Number Screen .......................................................................... 2-37
Figure 2-51. Change Serial Telnet Port Number Screen ......................................................................... 2-37
xvii
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 18
Figure 2-52. Change Genisys Poll Response Wait Timer Screen ........................................................... 2-38
Figure 2-53. Change ATCS Retry Timeout Scree ....................................................................................... 2-39
Figure 2-54. Change ATCS Retry Timeout Screen .................................................................................... 2-39
Figure 2-55. Change Genisys Starting Station Polling Number Screen ............................................... 2-40
Figure 2-56. Change Genisys Ending Station Polling Number Screen ................................................. 2-41
Figure 2-57. Select the new Fragile Telnet Connections Option Screen ............................................ 2-41
Figure 2-58. Change Persistent Serial Telnet IP Address Screen ........................................................... 2-42
Figure 2-59. Change Persistent Serial Telnet IP Address Screen ........................................................... 2-43
Figure 2-60. Change Persistent Serial Telnet IP Address Symbolic Name Screen ............................ 2-43
Figure 2-61. Change Primary DNS IP Address Screen ............................................................................. 2-45
Figure 2-62. Change Secondary DNS IP Address Screen ........................................................................ 2-46
Figure 2-63. Change Default Gateway IP Address Screen ...................................................................... 2-47
Figure 2-64. Change WAG Site Name Screen ............................................................................................ 2-48
Figure 2-65. RAW Echelon Message Option ............................................................................................... 2-49
Figure 2-66. Unknown Outbound Echelon Message Option ................................................................ 2-50
Figure 2-67. Telnet Password Option........................................................................................................... 2-50
Figure 5-1. ZMODEM File Transfer Menu ...................................................................................................... 5-1
Figure 5-2. Send File Pop-up Window ............................................................................................................ 5-2
Figure 5-3. Zmodem File Send Screen ............................................................................................................ 5-2
Figure 5-4. ZMODEM File Transfer Menu ...................................................................................................... 5-3
Figure 5-5. Receive File Pop-up Window ....................................................................................................... 5-3
Figure 5-6. Zmodem File Receive Screen....................................................................................................... 5-4
Figure 5-7. WAG Boot Screen ........................................................................................................................... 5-4
Figure 6-1. Boot Options Screen ...................................................................................................................... 6-1
Figure 6-2. Boot Options Screen ...................................................................................................................... 6-2
Figure 6-3. Debugger Commands List ............................................................................................................ 6-2
Figure 6-4. Exception Test Diagnostic Information ..................................................................................... 6-5
Figure 6-5. Xdump Block Display ..................................................................................................................... 6-7
Figure 6-6. Xdump Partial Block Display ........................................................................................................ 6-7
LIST OF TABLES
Table 1-1. WAG Ports ........................................................................................................................................ 1-4
Table 1-2. Pinouts for J1 ..................................................................................................................................... 1-5
Table 1-3. Pinouts for J2 ..................................................................................................................................... 1-5
Table 1-4. Pinouts for J3A/J3B .......................................................................................................................... 1-6
Table 1-5. Pinouts for J4 ..................................................................................................................................... 1-6
Table 2-1. PC Serial Port Settings .................................................................................................................... 2-6
Table 2-2. Typical WAG Configuration Settings For PST Function ....................................................... 2-44
Table 3-1. WAG Commands .............................................................................................................................. 3-1
Table 3-2. Log Entry Descriptions ................................................................................................................. 3-19
Table 6-1. List of Boot Options ........................................................................................................................ 6-1
xviii
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 19
GLOSSARY
AAR: Association of American Railroads
ARP: Address Resolution Protocol
AServer: AServer – Safetran (Siemens Rail Automation) ATCS Server
(ASERVER.EXE) is a standalone executable program that
manages statistical and diagnost ic traffic in an ATCS (Automatic
Train Control System) environment. Its primary function is to route
Network Management System (NMS) data packets between
endpoints in a LAN-based WCC network. Endpoints include
WCC/FPD, WCM, PC workstations, ATCS-aware hardware devices
and software services.
ATCS: Advanced Train Control System - A set of standards compiled by
the AAR for controlling all aspects of train operation.
BCM: Base Control Module
CRC: Cyclical Redundancy Check – A checksum for a data packet that is
normally calculated and appended to the data so that the receiver
can verify that no data was lost or corrupted during transit.
CTS: Clear To Send – An indication/signal that the transmit line is ready
to send or forward data.
DHCP: Dynamic Host Configuration Protocol – An Internet protoc ol for
automating the configuration of computers that use TCP/IP. DHCP
can be used to automatically assign IP addresses, to deliver
TCP/IP stack configuration parameters such as the subnet mask
and default router, and to provide other configuration information.
DNS: Domain Name Server – (also known as Directory Name Service) A
distributed database of information associated with domain names,
most importantly the IP address. A DNS allows easily remembered
domain names to be automatically mapped to a machine’s IP
address.
Echelon®: Twisted pair local area network.
ESD: Electrostatic Discharge – A source of static electricity which can be
harmful to low voltage components. A charge of built up static
electricity within a person usually caused from rubbing on carpet or
other similar material, especially during dry weather, and then
discharged by touching some object . Use o f Pers on al Protective
xix
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 20
Clothing and ESD prevention gear, such as grounding straps or
floor pads, can help prevent ESD conditions.
GCP 4000: Gate Crossing Predictor 4000 – A Si em ens R ai l Automation
product that provides a train detection device used as part of a
highway-railroad grade crossing warning system to provide a
relatively uniform warning time.
GEO: Geographic Sig nali ng S y s tem – A Si e me ns R ai l Auto mation
product that is vital microprocessor-controlled si g nal ing equipment.
It monitors and controls switches, signals, and relays at wayside
locations on the railroad.
HDLC: High-level Data Link Control - A synchronous serial protocol for
exchanging information. The default standard for serial
communications between WCCs and BCPs.
HDLC UI: High-Level Data Link Control Unnumbered Information
HD/Link: Home Distant/Link – Siemens Rail Automation vital I/O assembly
supporting a vital communications protocol.
HUB: Ethernet hub - A device for connecting multiple Ethernet devices
together making them act as a single segment.
iLOD: Intelligent Light Out Detector – Siemens Rail Automation product
used to detect light out conditions for crossing lamps.
IP: See TCP/IP
LAN: Local Area Network – A collection of devices, usually PCs or
workstations, that are interconnected for the purpose of sharing
data, typically on an Ethernet communications platform.
MAC: Media Access Control – Describes a typically hard-wired machine
address.
MODEM: Modulator/Demodulator – A device that takes computer signals and
converts them to signals that can pass across telephone lines and
be reconverted back to computer signals at the distant end.
NEMA: National Electrical Manufacturers Association
OCG: Office Communication Gateway – Siemens Rail Automation office
application providing front end processing and cluster controller
functionality.
xx
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 21
OSI: Office System Interface – Functionality allowi ng communications
between the SEAR II/SEAR IIi and the Office via the WAG.
Packet Switch: Packet Switch - The process of routing and transferring data by
means of addressed packets so that a channel is occupied during
the transmission of the packet only, and upon completion of the
transmission the channel is made available for the transfer of other
traffic.
PST: Persistent Serial Tunneling – Functionality allowing virtual
connection between two WAGs and their serial interfaces.
RAW Echelon: RAW Echelon - Echelon messages that are not ATCS messages.
RTS: Request To Send – A signal that indicates that the originator is
ready to send data to the destination site.
SEAR II or IIi: Safetran Event Analyzer Recorder, Model II or Iii – Siemens Rail
Automation product that is a non-vital stand-alone system designed
to provide continuous real-time general purpose status monitoring
and event recording for a wide range of functions associated with
railroad wayside and grade crossing installations.
SNTP Simple Network Time Protocol
SSR: Spread Spectrum Radio
TCP/IP: Transmission Control Protocol / Internet Protocol - The Internet
protocol used to connect a world-wide inter-network of univ er si ti es,
research laboratories, military installations, organizations, and
corporations. The TCP/IP includes standards for how computers
communicate and conventions for connecting network and routing
traffic.
TP: Twisted Pair
UDP: User Datagram Protocol - A transport protocol used primarily for the
transmission of network management information. Not as reliable
as TCP.
VSLIC: Vital Safetran Logic I/O Controller – Siemens Rail A utomation
product used for monitoring and reporting of switch position
information of hand throw switches in dark (non-signal) territories.
xxi
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 22
WAG: Wayside Access Gateway – Siemens Rail Automation assembly
A53457 converts Echelon messages to Ethernet messages
allowing Safetran equipment to use Ethernet Spread Spectrum
radios A53325 for communications. WAG assembly A53457 also
converts Echelon received messages to RS232 messages allowing
the system to use modems for communication between Safetran
equipment.
WAMS: Wayside Alarm Management System – Siemens Rail Automation
office application for monitoring and reporting of field alarm
conditions.
WAN: Wide Area Networ k
WCC/FPD Wayside Communications (or Cluster) Controller/Field Protocol
Device
xxii
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 23
DESCRIPTION
WARNING
SECTION 1
DESCRIPTION
1.0 DESCRIPTION
1.1 GENERAL
The Wayside Access Gateway (A53457) converts Echelon® messages to Ethernet messages. This
lets Safetran (Siemens) equipment such as the HD/Link, use Ethernet Networks for
communications. The Wayside Access Gateway (WAG) can also convert Echelon received messages
to serial messages. This allows the system to use modems for communication between Safetran
equipment.
THE WAG IS A N ON -VITAL PRODUCT. IF USED IN A VITAL APPLICATION,
EXTERNAL EQUIPMENT MUST PROVIDE VITALITY.
The Wayside Access Gateway can communicate with Ethernet-enabled devices such as:
• Safetran A53325 Ethernet Spread Spectrum Radio
• Routers
• Computers
• Hubs
• Bridges
The Wayside Access Gateway can also communicate with Echelon-enabled devices such as:
• HD/Link
• 4000 GCP
• GEO
• SEAR II/SEAR IIi
• VSLIC
Figure 1-1 on the following page shows an example of how devices in the field can be connected
and the interaction between devices.
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
1-1
Page 24
DESCRIPTION
Figure 1-1. General Network Overview
1.2 WAG M ESSAGE MANAGEMENT
Upon startup of a WAG, it has an empty routing table. As devices report and respond, the WAG
dynamically updates the routing table.
When an Advanced Train Control System (ATCS) message comes into the WAG from the Ethernet,
Echelon, or a serial port, the WAG checks its internal routing table to see if it has seen the address
before. If the address is new, the WAG adds the source ATCS address of the message to its
internal routing table. If the ATCS device is already in the routing table, the WAG updates the
expiration timer in its routing table for that device.
After the routing table is updated, the WAG looks at the destination ATCS address of the message.
If the destination ATCS address appears in the routing table, the message is sent to the destination
device through the Ethernet, Echelon, or the serial port where the destination device can be
reached. If the destination ATCS device is not known, the ATCS message is sent to the specified
Broadcast Medium. During configuration, the user can specify the Broadcast Medium as Ethernet,
Echelon, or serial port. For more information about configuring, see Section 2.
If an ATCS device is turned off or otherwise stops communicating, the WAG times out the routing
table entry for the device and removes it from the routing table.
1-2
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 25
DESCRIPTION
NOTE
device on the network.
When a route to an ATCS device is in the routing table, indicating that it goes through a particular
IP address on the Ethernet Local Area Network (LAN), but later appears on a different Internet
Protocol (IP) address, the new IP address will be adopted. This can occur when a WAG within the
network is swapped out with another WAG that has a different IP address configured. The client
ATCS devices for the new WAG will now go through that WAG to reach the LAN. All WAGs will
note the new IP address and will update the routing table accordingly.
The same is true for an Echelon Subnet/Node address. When an ATCS address is matched with a
particular Echelon Subnet/Node address but later the WAG detects that the same ATCS address
appears on a different Subnet/Node address, the new address will be adopted for that route.
The detection of two devices that have the same ATCS address can be a configuration conflict
that exists in the ATCS network. Because of this conflict, the WAG will log an event after adopting
the new address.
For Echelon devices, the logged event is:
• WARNING: 7.RRR.LLL.GGG.SS.DD Echelon Address conflict WW.XX to YY.ZZ
The ATCS address of the conflicting or altered routing is displayed with the old Echelon
Subnet/Node address (WW.XX) and the new Subnet/Node address (YY.ZZ).
For IP changes/conflicts, the logged event is:
• WARNING: 7.RRR.LLL.GGG.SS.DD IP XX.XX.XX.XX to YY.YY.YY.YY
The ATCS address of the conflicting or altered routing is displayed with the old IP address
(XX.XX.XX.XX) and the new IP address (YY.YY.YY.YY).
While the above logge d events m ay indicate that ther e is a configurati on conflict
on the network, the re-addressed routing m ay be due to a user swapp ing out a
WAGs collect statistical information about the source and destination devices and the interfaces
that the message came in on and went out to.
WAGs also communicate with each other, periodically sending messages to each other conveying
internal routing information. These messages are sent along the specified Broadcast Medium.
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
1-3
Page 26
DESCRIPTION
Port No.
Name
Description
J1
DB 25 Female
Supports asynchronous operation with either internal or external
handshaking using RTS, CTS, and other signals.
J2
RJ45 Ethernet
10Base-T and 100Base-T with auto-sensing. Includes 2 LEDs - a Link
or full-duplex depending on activity level.
1.3 WAG HARDWARE INTERFACE
The front of the Wayside Access Gateway unit (see Figure 1-2) has 1 serial port, 5 LEDs, 3 network
jacks, and 1 Echelon/power connector. These interface devices are described in the following
paragraphs.
Figure 1-2. Wayside Access Gateway
1.3.1 Ports
The following table describes the WAG ports.
Table 1-1. WAG Ports
RS232 serial port
transmit and/or receive clocking. The user can specify the data rate
of the interface and the framing of bytes. Supports hardware
interface
LED (top of J2) that displays amber for 10 Mbps or green for 100
Mbps and an Activity LED (bottom of J2) that displays half-duplex
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
1-4
Page 27
DESCRIPTION
Port No.
Name
Description
J3A/J3B
Second Ethernet
Dual RJ45 connectors for inserting 12V DC at 1 Amp to power
J4
Echelon and
6-Pin connector provides two pins for the twisted-pair Echelon
power.
Pin Number
Name
I/O
Signal Description
6, 8, 10, 11, 20, 21, 22, 23, 25
Not Used
---
2 TXD1-
O
Tx Data
3
RXD1-
I
Rx Data
4
RTSO1-
O
Ready To Send
5
CTSI1-
I
Clear To Send
1, 7
Ground
I
9 RXC1+
I
Rx Clock
12
TXCI1+
I
Tx Clock
13
CTSI1+
I
Clear To Send
14
TXD1+
O
Tx Data
15
TXCI1-
I
Tx Clock
16
RXD1+
I
Rx Data
17
RXC1-
I
Rx Clock
18
TXCO1+
O
Tx Clock
19
RTSO1+
O
Ready To Send
24
TXCO1-
O
Tx Clock
Pin No.
Name
I/O
Signal Description
1
TX+
O
Transmit data +
2
TX- O Transmit data -
3
RX+
I
Ethernet Receive data +
6
RX- I Ethernet Receive data -
4, 5, 7, 8
N/C
Not used
interface
power interface
Safetran Ethernet Radio A53325. The wiring for J3A is non-standard.
interface. It also includes 2 pins for 9 Volts to 24 Volts DC battery
1.3.1.1 Pinouts for J1
The following table shows the pinouts for J1.
Table 1-2. Pinouts for J1
1.3.1.2 Pinouts for J2
The following table shows the pinouts for J2.
Table 1-3. Pinouts for J2
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
1-5
Page 28
DESCRIPTION
J3A Pin No.
J3B Pin No.
Name
I/O
Signal Description
1
1
TX+
O
Radio Eth Transmit data +
2
2
TX- O Radio Eth Transmit data -
3
3
RX+
I
Radio Eth Receive data +
6
6
RX- I Radio Eth Receive data -
4, 5
N/C
+12VDC
O
Power for radio
7, 8
N/C
Digital Ground
O
Ground return for radio
1
TP LAN – Twisted wire A (not polarity specific)
2
TP LAN – Twisted wire B (not polarity specific)
3
Not used
4
N – Battery input – negative terminal
5
Not used
6
B – Battery input – positive terminal
• Data Transfer Rate:
1.25 Mbps
• Transmission Medium:
Level 4 (NEMA) twisted pair cable, shielded or unshielded, solid or
stranded.
• Topology:
Bus (direct daisy chain).
Number of Nodes:
No more than 8 (including any terminations used) in any 16-meter
network segment.
• Termination:
Normally not needed
Network Length:
53 feet (16m) recommended maximum, 426 feet (130m) absolute
NOTE
bungalow.
1.3.1.3 Pinouts for J3A/J3B
The following table shows the pinouts for J3A and J3B.
Table 1-4. Pinouts for J3A/J3B
1.3.1.4 Pinouts for J4
The following table shows the pinouts for J4.
Table 1-5. Pinouts for J4
Pin Number Function
1.3.1.5 Echelon Interface (J4) Characteristics
•
(53 feet) length of transmission cable, 16 maximum total per
•
maximum per network segment (with certain restrictions).
Because of the nature of the Echelon LAN interface, make sure all devices
connected to the LAN are contained entirely within the same signal case or
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
1-6
Page 29
1.3.2 LED Indicators
Link LED (Top of J2)
Activity LED (Bottom of J2)
Color
Meaning
Color
Meaning
Off
No Link
Off
No activity
Amber
10 Mbps
Amber
Half-Duplex
Green
100 Mbps
Green
Full-Duplex
H x W x D:
H. 9.75” (include mounting tab), W. 2.25”, D. 7.5”
24.77 cm x 5.72 cm x 19.05sm)
Weight:
3 lbs. 7 oz (1.67 kilograms)
Voltage:
Between 8.5V and 24V DC, 12V Nominal
Isolation:
2000VRMS, 60Hz, 60Sec
Temperature:
-40 °F to +158 °F (-40 °C to +70 °C)
Humidity:
0 – 95% non-condensing
The front of the WAG has 5 LEDs.
• Green Health LED flashes to indicate good health.
• Red TP LAN LED flashes when Echelon transmits or receives a message frame.
• Green Power OK LED indicates the WAG is powered.
• XPort LAN Ethernet J2 connector has 2 LEDs that indicate the following:
1.4 PRODUCT SPECIFICATIONS
DESCRIPTION
This section details the specifications for the Wayside Access Gateway. For examples of wiring
other equipment to the WAG, see Section 2.
1.4.1 Physical Specifications
Standard 19” rack mount using relay rails.
1.4.2 Dimensions
1.4.3 Power Specifications
1.4.4 Environmental Specifications
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
1-7
Page 30
DESCRIPTION
1.4.5 Default Factory Settings
• WAG Type 7 ATCS Address: 7.620.100.100.01.01
• WAG Type 3 ATCS Address: 3.620.10.1000
• Serial interface: RS232, 9600, None, 8, 1/NoFlow, RTS asserted
• Serial format is: Command mode
• WAG test mode: Disabled
• Echelon address: 01.01
• UDP ports are: 5000, 5001, 5002, 5003
• Route table expiry: 5400 seconds (90 minutes)
• Broadcast medium: IP Ethernet
• TCP ports are: 23, 6000, 6001, 6002
• DHCP Server: Disabled
• WAG IP Address: 10.232.53.40.
• Type 7 Route Length: 12 - - 7RRRLLLGGGSS
• IP Network Mask: 255.255.255.255
• Radio Site ID Bindings: No Bindings Configured
• WAG Circuit ID: 000.0.00 – Disabled
• Routing Region Domain 1: Disabled
• Routing Region Domain 2: Disabled
• ATCS Server UDP Port Number: 5361
• Telnet Port Numbers: (WAG: 23, Serial: 10023)
• Genisys Wait Poll Response: 800ms
• ATCS Retry Wait: 800ms
• ATCS Max Retrys: 3
• Genisys Poll Starting Station: 1
• Genisys Poll Ending Station: 16
• Fragile Telnet Connections: Enabled
• Persistent Serial Tunnel: Disabled
• Primary DNS: Disabled
• Secondary DNS: Disabled
• Default IP Gateway: Disabled
• Telnet Echo Enabled
• Serial Receive Clocks Internal
• Serial Transmit Clocks Internal
• Route RAW Echelon Disabled
• Route Unknown Outbound Echelon Disabled
• Telnet Password Disabled
• J1/J2 Jumper Detect Enabled
• Serial Max Idle 4
• DHCD Client Option Disabled
1-8
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 31
DESCRIPTION
1.5 PERSISTENT SERIAL TUNNELING (PST) FUNCTIONALITY
In a Persistent Serial Tunneling (PST) application (see Figure 1-3), the WAG operates as a modem
that enables serial devices to communicate via the LAN. The WAG converts the serial data into
Ethernet packets and transmits the information onto the LAN. A second WAG at the other end
converts the information back to serial data for use by the other serial device.
Figure 1-3. Persistent Serial Tunneling
WAGs are configured to communicate in pairs as illustrated above. When one or both of the
WAGs in the paired system is configured with the “Persistent Serial Tunnel” IP address of the other
WAG, it will attempt to establish a Transmission Control Protocol (TCP) connection to the other
WAG at that IP address.
For most applications, only one WAG is configured to establish the connection, however, if both
are configured to do so, the Tunnel will still be established. Typically the WAG that is physically
located in the office is configured to establish the connection to the other WAG which may be in
the field.
When the system is powered up, the WAG will attempt to establish the PST TCP connection to the
WAG’s “Serial Telnet” port number (which defaults to 10023).
In addition to other typical configuration requirements for the WAG, in general, the following are
required for PST to work:
1. Both WAGs must be configured to have a serial interface format of RAW data mode.
2. One or both of the WAGs in the paired system must be configured with the IP address of
the other WAG.
3. Both WAGs must be configured with the same Serial Telnet port number (usually 10023).
4. Both WAGs must also have that same Serial Telnet port number configured in its list of
four TCP port numbers.
1-9
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 32
DESCRIPTION
Ethernet
Office
system
(WAMS)
WAG
SEAR II
Echelon
Other
devices
IP Network
Ethernet
5. Both WAG Serial Interface baud rates must match the baud rate of the serial device that it
is plugged into.
Once a Tunnel is established, serial data from any serial device(s) plugged into either WAG will be
sent to the serial device(s) plugged into the other WAG.
When a Tunnel is established, if the tunnel is dropped for some reason, the WAG will attempt to
re-establish the connection if the WAG is configured with a valid Serial Tunnel IP address and if
the WAG is still in RAW data mode.
1.6 OFFICE SYSTEM INTERFACE (O SI) F UNCTIONALITY
When used in an Office System Interface (OSI) application (see Figure 1-4), the WAG operates as a
message router between the office system and field devices operating on the LAN.
Refer to the diagram below for the following discussion.
Figure 1-4. Office Systems Interface
The SEAR II/SEAR IIi sends an ATCS message to the WAG consisting of a source address of type 7
and a destination address of type 2. The 7 indicates that the source is a field device and the 2
indicates that the destination is an office device.
The WAG will look at the codeline designation (LLL) portion of the source ATCS address and will
check its “Active route list” to determine whether it knows of any office device that is interested
in the ATCS messages.
1-10
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 33
DESCRIPTION
NOTE
“Pending route links” list and the “Active route links” list.
If a known route to an office device exists for that LLL, the WAG will send the ATCS messages to
that IP address at the “ATCS Server User Datagram Protocol (UDP) Port number” configured into
the WAG. The expiry timer for the “Active route list” entry for that LLL is refreshed.
If there is no known route toward the office for the LLL, the WAG will issue a “route request” out
into the broadcast medium (which should be IP Ethernet) requesting anyone who is interested in
the LLL to report the fact.
The “route request” is transmitted out into the “Routing Region Domain” IP addresses configured
into the WAG. There are two “Routing Region Domains” possible, only one of which is required
for proper OSI operation. If only one is configured with a valid IP address, the “route request” is
sent out that one, otherwise if both are configured, a copy of the “route request” will be sent out
both IP addresses.
The LLL is entered into the “Pending route links” list and a timer is started. The ATCS message is
saved so that if an office device expresses interest in the LLL, the ATCS message can be sent.
If an office device responds with a “route update” for any pending LLLs, the WAG will move the
“pending” entries into the “active” list and any pending ATCS message is sent to the office. At that
time, the timer for the “pending” entry is marked as “Expired” and the timer for the newly created
active entry is started.
If no activity for an LLL in the “Active route links” list is seen before the timer counts down to the
end, the WAG will issue another “route request” for the LLL to determine whether the office
device is still interested in the LLL.
If the office responds, the timer for that LLL entry is refreshed; otherwise as the timer continues
to count down the WAG will issue the “route request” again, doing so three times before the LLL
is moved from the “Active” list to the “Pending” list. Once the entry expires from the “Pending”
list, it is marked as “Expired” until such time as the field device with that LLL attempts to send
another message toward the office.
As this route discovery process takes place, if tracing is enabled for OSI, there will be trace
information offered out the serial and Telnet session.
When a route to the office is known, ATCS messages may flow between the office and the field
device. If tracing for OSI is enabled, every time an ATCS message is passed through WAG, it is
traced out the serial and Telnet session.
The “status” comm and described later can be used to show the contents of the
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
1-11
Page 34
DESCRIPTION
In addition to other typical configuration requirements for the WAG, in general, the following are
required for OSI to work:
1. The Type 3 ATCS address option must be configured with a proper address.
2. The WAG Circuit ID must be configured.
3. One or both of the Routing Region Domains must be configured with valid IP addresses or
symbolic names.
4. The ATCS UDP Server Port Number must be configured with a valid port number.
1.7 BOOT LOADER RS485 J1/J2 JUMPER DETECTION
If the WAG is configured for RS485 Half-Duplex serial interface operation and if RS485 J1/J2
Jumper Detect is ENABLED (described below), then the Boot Monitor will perform automatic J1/J2
jumper detection.
On the WAG hardware there are two jumpers which are shipped from the factory as un-jumpered.
These jumpers are used to connect the serial interface’s Transmit and Receive signals together.
On the serial interface when J1/J2 are in place, pins 2 and 3 on J1 (transmit and receive) are tied
together to form half of the balanced wire signaling. Pins 14 and 16 on J1 (secondary transmit
data and secondary receive data) are tied together to form the second half of the balance wire
signal.
The WAG’s Boot Monitor can detect the presence of these jumpers by transmitting a test frame in
RS232 mode and see if it loops back to its receiver. If the test frame is looped back, it means that
the jumpers are in place.
Figure 1-5 shows the J1/J2 Jumper Auto Detect option, which defaults to enabling the J1/J2 Auto
Detect. To disable this option, select “Disable J1/J2 Auto Detect” at the Enter option prompt.
Select “Enable J1/J2 Auto Detect” to enable this option. Select “Exit without making a change” if
no change is required.
Figure 1-5. J1/J2 Jumper Auto Detect Option
1-12
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 35
DESCRIPTION
If J1/J2 jumper detection is disabled and the WAG is configured for RS485, the Boot Monitor
assumes that the jumpers are in place, the WAG will immediately launch the executive software,
not offering the usual boot menu.
If J1/J2 jumper detection is enabled and the Boot Monitor doesn’t detect the transmitted test
frame being looped back to it, the Boot Monitor will try again, up to four more times, performing
a bit of a delay between each test.
If the Boot Monitor never sees the test frame come back to it, it decides that the J1/J2 jumpers
are not in place. The boot menu will be offered and the WAG will default to operate in RS232
mode, ignoring the fact that it’s configured for RS485.
The reason for this J1/J2 jumper detection is so that the operator can unplug the RS485 multidrop
cable from the WAG, remove the J1/J2 jumpers, plug in his or her computer, and apply power on
the WAG. When the WAG determines that the jumpers are not in place, the operator can be given
a menu and can launch the executive software to reconfigure the WAG or to acquire its system
event log.
NOTE: If an operator needs to configure the WAG and it’s in RS485 mode and the operator
doesn’t want to open the WAG to remove the jumpers, the operator may Telnet into the WAG to
perform the configuration. The operator must know the WAG’s IP address.
1.8 EXTERNAL J1/J2 JUMPERS
The use of the J1/J2 Jumpers on the hardware can be moved off of the PC board and on to the
connector plugged into the WAG’s serial interface. This way the operator need never open the
WAG to remove jumpers in the event he or she wants to access the WAG serially.
Having an RS485 Half-Duplex multidrop serial cable with pins 2 and 3 and pins 14 and 16 tied
together, performs the same electrical function of the J1/J2 internal jumpers.
When an externally jumpered cable is plugged into the WAG, the test frames that are issued by
the WAG are looped back to the WAG via the cable rather than the jumpers. When the cable
performs the tie-up of the required signals, the J1 and J2 jumpers can remain removed and RS485
Half-Duplex will continue to work properly.
The benefit of having external signal ties is that the operator may simply unplug the RS485 cable,
plug a computer into the WAG, and cycle power. With J1/J2 Jumper Auto Detect enabled, the
WAG will determine that the jumpers are not present and the operator will be given a boot menu
and from there will be able to access the WAG’s configuration menus and log.
Once the operator is finished, the RS485 cable can be plugged back into the WAG and the WAG’s
power would be cycled. When the WAG issues its test frames, the WAG will go back to normal
RS485 Half-Duplex operation.
1-13
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 36
DESCRIPTION
1.9 J1/J2 JUMPER DETECT TEST FRAMES
The test frames issued by the WAG’s boot monitor look something like the following:
:JT010232053192X:
When the operator has a computer plugged into the serial interface and the WAG starts testing
whether the J1/J2 jumpers are in place, the operator may see these test frames.
The jumper detection test frames start with :JT to indicate a Jumper Test. It’s followed by the IP
address of the WAG which is then followed by an X: to indicate the end of the test frame.
1.10 RS485 OPERATION
When the WAG is configured for RS485, the WAG also must be configured for one of the Genisys
ATCS protocols – Office if the WAG is to operate as a Bus Master or Field if the WAG is to operate
as a Bus Slave. There must be only one WAG Bus Master configured as Genisys ATCS Office.
Figure 1-6 shows an example of a typical RS485 operational interconnection. Figures 1-7 and 1-8
show the RS485 cable interconnections used with this example, relying on the internal J1/J2
jumpers.
Figure 1-6. RS485 Operational Interconnection
1-14
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 37
DESCRIPTION
Connector 1
Connector
2
Connector
3
p
i
n
2
p
i
n
1
4
p
i
n
2
p
i
n
1
4
p
i
n
2
p
i
n
1
4
Connector 1
Connector 2
Connector 3
p
i
n
2
p
i
n
3
p
i
n
1
4
p
i
n
1
6
p
i
n
2
p
i
n
3
p
i
n
1
4
p
i
n
1
6
p
i
n
2
p
i
n
3
p
i
n
1
4
p
i
n
1
6
Figure 1-7. RS485 Cable Interconnections
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Figure 1-8. RS485 Cable Interconnections
1-15
Page 38
DESCRIPTION
1.11 HDLC-UI OPERATION
There are two modes of HDLC-UI operation. The first mode consists of an “HDLC Un-numbered
Information frame” mode and the other mode consists of an “HDLC Raw Serial Tunnel” mode.
The HDLC-UI mode of operation allows ATCS messages that are encapsulated in HDLC UI frames
to be sent and received on the serial interface. Such ATCS messages are routed according to the
message’s ATCS destination address after their HDLC headers are removed.
The “HDLC Raw Serial Tunnel” mode of operation requires that the “Persistent Serial Tunnel”
functionality be enabled. When the Tunnel is established, all forms of HDLC frames are sent and
received on the serial interface complete with their HDLC headers, get conveyed across the
Persistent Tunnel, and then are sent out the remote WAG’s serial interface which is also
configured for HDLC Raw Serial Tunnel mode.
1-16
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 39
SECTION 2
WARNING
HARMFUL RF EMISSIONS FROM INTERFERING WITH NEARBY
EQUIPMENT.
INSTALLATION AND CONFIGURATION
2.0 INSTALLATION AND CONFIGURATION
2.1 PRE-STARTUP
Installing the WAG consists of:
• Physically mounting the unit
• Wiring the unit to power and connecting equipment
• Configuring the unit
The rest of this section explains these steps.
2.2 HAR DW ARE I NSTALLATION
INSTALLATION AND CONFIGURATION
This section explains installing the WAG and getting it ready to connect equipment.
2.2.1 Hardware Mounting
Using the mounting tab and holes on the back of the unit, the WAG can be mounted on a
standard 19” rack, or shelf, using standard relay rails. The mounting holes accept standard #10
mounting screws. After mounting, the unit needs to be wired to the power supply. The WAG may
also be wall-mounted.
2.2.2 Wiring
Wire power to the connector on the WAG as follows:
1. Remove the supplied plug from the J4 connector.
USE A FERRITE BEAD ON B AND N TO PREVENT POTENTIALLY
2. Wire the connector by using Level 4 (NEMA) twisted pair for the TP LAN connector and 14 to
18 gauge wire for the battery connector. Make sure to properly use ferrite beads on the
power wires.
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
2-1
Page 40
INSTALLATION AND CONFIGURATION
CAUTION
TO OTHER EQUIPMENT.
J3A IS FOR S AFETRAN ETHERNET R ADIO A53325 AND US ES A SPECIAL
CABLE PROVID ED WITH THE RADIO . J3 A IS N ON-STANDARD AND HAS DC
POWER PRESENT ON THE CONNECTOR. USE CAUTION WHEN WIRING
3. Wire the WAG to equipment that will be used. With the exception of J3A, use standard RJ45
connectors.
2.3 EQUIPMENT CONNECTION TO WAG
There are numerous pieces of equipment that can be connected to the WAG. This section serves
as a guide for connecting various devices to the WAG.
2.3.1 Connecting to Safetran Ethernet Radio A53325
The following diagram shows the Safetran Ethernet Radio (A53325) connected to the WAG.
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Figure 2-1. Safetran Ethernet Radio A53325
2-2
Page 41
INSTALLATION AND CONFIGURATION
2.3.2 Connecting to an Ethernet Hub
The following diagram shows an Ethernet hub connected to the WAG.
Figure 2-2. Ethernet Hub
2-3
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 42
INSTALLATION AND CONFIGURATION
2.3.3 Connecting to an Ethernet Hub and Saf etran Ethernet Radio A53325
The following diagram shows an Ethernet hub and a Safetran Ethernet Radio (A53325) connected
to the WAG.
Figure 2-3. Ethernet Hub and Safetran Ethernet Radio A53325
2-4
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 43
INSTALLATION AND CONFIGURATION
2.3.4 Connecting Two Sites Using Modems
The following diagram shows connecting two sites using a pair of modems.
Figure 2-4. Connecting Two Sites Using Modems
2-5
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 44
INSTALLATION AND CONFIGURATION
NOTE
following step.
2.4 CONNECTING USING TERMINAL EMULATION SOFTWARE
A terminal emulator, such as HyperTerminal from Microsoft®, can be used to interact with the
WAG. HyperTerminal is included with the standard Windows® 9x/NT/2000/XP installation. The
WAG uses ANSI terminal emulation.
To Connect Using HyperTerminal:
1. Connect a null modem cable to the WAG serial port labeled J1 and to the serial COM port of a
PC laptop computer. Make sure the cable is a null cable or use a null modem adapter.
2. Match the PC/laptop COM port settings to the WAG serial port default settings. Use the
following table.
Table 2-1. PC Serial Port Settings
Item Setting
Baud 9600
Data bits 8
Parity None
Stop Bits 1
Flow Control None
If it is necessary to reset th e WAG to the def ault conf iguration, rem ove the W AG
cover and hold do wn the S 3 button m ounted on the b oard befor e perform ing the
3. Apply power to the WAG. When the system is first powered up, the WAG boot monitor runs.
The boot monitor allows for upgrades of executive software and performs some initial
hardware testing. The following information appears on the screen showing the executive file
is valid.
Figure 2-5. WAG Terminal Emulation Boot Screen
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
2-6
Page 45
INSTALLATION AND CONFIGURATION
NOTE
3.15).
NOTE
reported may be different.
The addition of number 7, Run Executive internal clocks, RS232, Command Mode allows for
the WAG’s serial interface to be configured to utilize external transmit clocks or external
receive clocks, and for the WAG’s serial interface to be configured for the HDLC-UI mode. This
allows the operator to launch the WAG executive to use internal clocking in RS232 format into
the Command Mode. If the WAG is configured for external clocks and/or HDLC mode, the
operator may plug a laptop into the WAG, cycle power on the WAG, and tell the WAG that the
executive should ignore the configuration options and execute with internal clocks, in RS232
mode, and in Command Mode.
Figure 2-6. WAG Terminal Emulation Boot With Number 7 Screen
After 5 seconds and without the operator selecting a menu option, Figure 2-5 is replaced with the
screen in figure 2-7.
If the screen shown in figure 2-7 does not appear and the statement “Boot
Monitor complete. Run nin g WAG Executive.” appears at the bottom of figure 2-5;
the WAG is not in comm and mode. Wait at least 3 seconds and then t ype +++
and wait 3 seconds for the system to go to command mode (see paragraph
The following screen captures depict the WAG default settings. Actual results
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
2-7
Page 46
INSTALLATION AND CONFIGURATION
Figure 2-7. WAG Terminal Ready Screen
4. With the computer connected to the WAG and the terminal emulation software running, type
con and press ENTER to modify the WAG configuration settings. The following screen
appears.
Figure 2-8. HyperTerminal Configuration Screen
To configure the WAG, go to the Configuration of the WAG Section (see Section 2-6).
2-8
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 47
INSTALLATION AND CONFIGURATION
NOTE
mask do not allow access to the WAG configured IP address.
NOTE
the WAG has been reconfigured, the IP address ma y not be 10.232.5 3.40 .
2.5 CONNECTING USING TELNET
To connect the WAG using the Telnet software, perform the following steps:
To log in using Telnet software:
A Telnet connection may not b e possible if the com puter IP address and subnet
1. Open Telnet software.
2. If this is the first time connecting to the WAG, go to 10.232.53.40, port 23. If this is not
the first time, connect to the previously specified IP address for the unit.
The Telnet session is dropped af ter configuration changes have been sav ed. If
When connected to the WAG, type con and press ENTER. The First Configuration Menu appears.
Figure 2-9. First Configuration Menu
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
2-9
Page 48
INSTALLATION AND CONFIGURATION
Select “NEXT configuration menu” for the Second Configuration Menu (see Figure 2-10). Select
“NEXT configuration menu” for the Third Configuration Menu (see Figure 2-11). Refer to
paragraph 2.6 for WAG configuration.
Figure 2-10. Second Configuration Menu
Figure 2-11. Third Configuration Menu
2-10
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 49
INSTALLATION AND CONFIGURATION
RRR
The railroad number.
LLL
Line Segment designation.
GGG
A unique number for each group within that line segment.
SS
Sub-node Field used to further differentiate traffic within a group to an individual device.
DD
Device Field used to further differentiate traffic internally in the equipment being addressed.
2.6 CONFIGURATION OF THE WAG
After connecting to the WAG using a terminal emulator or using Telnet, the WAG can be
configured. The following paragraphs describe how to enter the new configuration. After the
changes have been completed, the changes should be saved.
Configuration options are described in the order they appear on the WAGSetup.CFG configuration
screens (Configuration Menu).
2.6.1 Type 7 ATCS Address
The WAG can be assigned both Type 7 and Type 3 ATCS addresses. This enables the WAG to
handle any ATCS message of either type that it sees. See paragraph 2.6.2 for directions on
changing Type 3 addresses.
Changing the Type 7 ATCS address lets the user specify the Type 7 ATCS address for the WAG on
the network. The Type 7 address for each unit uses the field wayside equipment ATCS address
format 7.RRR.LLL.GGG.SS.DD. The address segments are as follows:
Make sure that a unique and valid Type 7 ATCS address is configured for each piece of equipment
used on the network.
To Assign Type 7 ATCS Address:
1. On the First Configuration Menu, select “WAG Type 7 ATCS Address” to be changed. The
Type 7 ATCS Address screen (see Figure 2-12) appears.
Figure 2-12. Type 7 ATCS Address Configuration Screen
2-11
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 50
INSTALLATION AND CONFIGURATION
RRR
The railroad number.
NN
Node number.
DDDD
Base device number.
2. Do the following:
a. To keep any of the current displayed values, press ENTER.
b. To enter a new value, type the first 3 digits of the new Type 7 ATCS address (RRR) and press
ENTER.
c. To enter a new value, type the second 3 digits of the new Type 7 ATCS address (LLL) and press
ENTER.
d. To enter a new value, type the third 3 digits of the new Type 7 ATCS address (GGG) and press
ENTER.
e. To enter a new value, type the fourth 2 digits of the new Type 7 ATCS address (SS) and press
ENTER.
f. To enter a new value, type the fifth 2 digits of the new Type 7 ATCS address (DD) and press
ENTER.
When finished, the user will be returned to the First Configuration Menu. The new Type 7
ATCS address is displayed.
3. Prior to exiting the First Configuration Menu, select “Save changes then restart” to save the
changes and restart the WAG.
2.6.2 Type 3 ATCS Address
The WAG can be assigned both Type 3 and Type 7 ATCS addresses. This enables the WAG to
handle any ATCS message of either type that it sees. See paragraph 2.6.1 for directions on
changing Type 7 addresses.
Changing the Type 3 ATCS address lets the user specify the Type 3 ATCS address for the WAG on
the network. The Type 3 address for each unit uses the field wayside equipment ATCS address
format 3.RRR.NN.DDDD. The address segments are as follows:
To Assign Type 3 ATCS Address:
1. On the First Configuration Menu, select “WAG Type 3 ATCS Address” to be changed. The Type
3 ATCS Address screen (see Figure 2-13) appears.
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
2-12
Page 51
INSTALLATION AND CONFIGURATION
Figure 2-13. Type 3 ATCS Address Screen
2. Do the following:
a. To keep all of the current displayed values, press ENTER.
b. To enter a new value, type the first 3 digits of the new Type 3 ATCS address (RRR) and
press ENTER.
c. To enter a new value, type the second 2 digits of the new Type 3 ATCS address (SS) and
press ENTER.
d. To enter a new value, type the third 4 digits of the new Type 3 ATCS address (DDDD) and
press ENTER.
When finished, the user will be returned to the First Configuration Menu. The new Type 3
ATCS address is displayed.
3. Prior to exiting the First Configuration Menu, select “Save changes then restart” to save
changes and restart the WAG.
2.6.3 Serial Port Interface
The user can make changes to the serial interface baud rate configure the number of data and
stop bits on the serial interface, enable or disable the flow control, and the ability to insert parity
bits. If the user changes the baud rate from the default of 9600, the baud rate for the computer
the WAG is connected to will also need to be changed.
To Change the Serial Port:
1. On the First Configuration Menu, select serial port to be changed. The Serial Port selection
screen appears.
2-13
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 52
INSTALLATION AND CONFIGURATION
Figure 2-14. Serial Port Interface Screen
2. Select a desired serial port change and press ENTER. Repeat for each desired change.
3. To exit without making a change, select “Abandon all changes”.
4. To enable the changes, select “Accept current values”.
When finished, the user will be returned to the First Configuration Menu. The new serial
interface settings are displayed.
5. Prior to exiting the First Configuration Menu, select “Save changes then restart” to save
changes and restart the WAG.
2.6.4 Serial Format
Changing the serial format can be selected from the following communication protocols:
• RAW
• Genisys ATCS Office
• Genisys ATCS Field
• HDLC UI
• Command mode
To Change the Serial Format:
2-14
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 53
INSTALLATION AND CONFIGURATION
1. On the First Configuration Menu, select the serial format to be changed. The Serial format
selection screen appears.
Figure 2-15. Serial Format Screen
2. To keep the current configuration, press ENTER. If not, make a selection and press ENTER.
3. To exit without making a change, select “Exit without making a change”.
When finished, the user will be returned to the First Configuration Menu. The new serial
format setting is displayed.
4. Prior to exiting the First Configuration Menu, select “Save changes then restart” to save
changes and restart the WAG.
Serial Telnet While in Genisys ATCS Mode
When the WAG is configured with a serial interface of either Genisys ATCS protocol (Office or
Field), any attempt to establish a TCP connection to the Serial Telnet port will be disallowed.
Such a connection attempt will cause the TCP connection to be established and then immediately
be disconnected. The TCP connection is allowed for a brief period of time to log that a
connection was attempted and disconnected.
TCP connections are disallowed to the WAG’s serial interface when the interface is configured for
Genisys because the assumption is that the interface is being used for important communications
to other serial devices. This prevents the operator from interfering with the communications
assumed to be taking place on the serial interface.
Serial Telnet While in HDLC Mode
When a TCP connection is attempted to the serial interface of a WAG that’s configured for HDLC,
if the WAG isn’t configured for Persistent Serial Tunnel, the WAG will immediately disconnect the
TCP connection.
2-15
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 54
INSTALLATION AND CONFIGURATION
2
34
1
5 17
24
2
33
2 2
Cable 1
Cable 2
RJ45 DB25
DB25DB25
14
16
14
16
24
18
24
18
17
9
17
9
7 7
WAGBCM
WAG
Packet
Switch
The Persistent Serial Tunnel TCP connection is allowed because the HDLC device is allowed to
tunnel, but the TCP connections are not allowed to the serial interface if there is no persistent
tunnel. This prevents an operator from interfering with any HDLC communications that are taking
place on the serial interface.
Figure 2-16. An Example of HDLC Tunneling
Figure 2-17. An Example of HDLC Tunneling Cable Interconnections
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
2-16
Page 55
INSTALLATION AND CONFIGURATION
NOTE
settings of subnet 01 and node 01.
NOTE
ATCS Address.
2.6.5 WAG Test Mode
This function is for future application and is not operational at this time. Leave it Disabled.
2.6.6 Echelon Addr ess
Changing the Echelon address lets the user specify the Echelon address the WAG has on the
twisted pair Echelon network. The user should ensure that a unique Echelon address is used for
each piece of equipment on the network.
Prior to starting, ensure the user has available the complete Echelon address to be used.
If the WAG is being used with the 53201 HD/LINK Vital I/O, leave the default
To Assign an Echelon Address:
1. On First Configuration Menu, select “Echelon address” to be changed. The Change Echelon
Address configuration screen appears prompting for the subnet address (first two digits of
Echelon address).
Figure 2-18. Echelon Configuration Screen
2. Do the following:
a. To keep the current subnet address value, press ENTER. To enter a new value, type the
two digits of the new Echelon subnet address and press ENTER.
The Change Echelon Address configuration screen next prompts for the node address (second
two digits of Echelon address).
b. To keep the current node address value, press ENTER. To enter a new value, type the two
digits of the new Echelon node address and press ENTER.
When finished, the user will be returned to the First Configuration Menu. The new Echelon
address is listed.
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Set the subnet field to 1 to use with Safet ran equipment. It is rec ommended to
set the node address to the same value as the sub-node field of the Type 7
2-17
Page 56
INSTALLATION AND CONFIGURATION
3. Prior to exiting the First Configuration Menu, select “Save changes then restart” to save
changes and restart the WAG.
2.6.7 UDP Port Assignments
If two or more WAGs need to communicate with each other across the Ethernet, the Slot #1 UDP
port number configured in all WAGs must be the same. However, the user may choose to isolate
WAGs from conflicting with each other by configuring the Slot #1 UDP port numbers differently.
UDP port numbers 9999 and 10000 are protected. The user cannot specify these port numbers.
To Assign UDP Port Numbers:
1. On the First Configuration Menu, select “UDP ports” assignments to be changed. The UDP port
assignment screen appears. The UDP port assignment defaults are; 5000, 5001, 5002, and 5003.
Figure 2-19. UDP Port Assignment Screen
UDP Port Assignment Screen
2. To keep the current UDP port assignment, press ENTER. If not, enter the assignment value for
slots 1 through 4 and then press ENTER.
When finished, the user will be returned to the First Configuration Menu. The UDP
assignments are listed.
3. Prior to exiting the First Configuration Menu, select “Save changes then restart” to save
changes and restart the WAG.
2-18
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 57
INSTALLATION AND CONFIGURATION
NOTE
timer value.
2.6.8 Router Expiration Timer
If a device is turned off or otherwise stops communicating, the WAG Router Expiration timer
starts running. When the timer expires, the routing table entry for the device is removed from the
routing table. The user can specify the time period before a device is timed-out.
The Router Expiration timer is set to 5400 seconds by default.
To Specify a Router Expiration Time:
1. On First Configuration menu, select “Route table expiry” timer to be set. The Router expiry
timer configuration screen appears.
Figure 2-20. Router Expiry Timer Screen
2. To keep the current displayed value, press ENTER. To enter a new value, type the number of
seconds desired.
The routing table is cleared with every power cycle of the WAG, regardless of the
When finished, the user will be returned to the First Configuration Menu. The Route Table
Expiry timer setting is listed.
3. Prior to exiting the First Configuration Menu, select “Save changes then restart” to save
changes and restart the WAG.
2.6.9 Broadcast Medium
The broadcast medium is the channel on which the WAGs talk to each other. Typically this is the
Ethernet interface; however Ethernet, Echelon, or serial can be selected as the broadcast medium.
The broadcast medium is set to IP Ethernet Interface by default.
To Configure the Broadcast Medium:
1. On the First Configuration Menu, select “Broadcast medium” to be changed. The Broadcast
interface screen appears.
2-19
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 58
INSTALLATION AND CONFIGURATION
NOTE
be configured to either well known socket numbers for this mode of operation.
Figure 2-21. Broadcast Interface Screen
2. Select the desired broadcast medium and press ENTER.
3. To exit without making a change, select “Exit without making a change”..
When finished, the user will be returned to the First Configuration Menu.
4. Prior to exiting the First Configuration Menu, select “Save changes then restart” to save
changes and restart the WAG.
2.6.10 TCP Port Assignments
TCP port assignments are available when connection based messaging is to be used by the WAGs
to communicate across the Ethernet. Both WAGs must have the same port number configured for
serial Telnet.
TCP port numbers 9999 and 10000 are protected. The user cannot specify these port numbers.
To Assign TCP Port Numbers:
1. On the First Configuration Menu, select “TCP ports” assignments to be changed. The TCP
configuration screen appears. The TCP port assignment defaults are; 23, 6001, 6001, and 6002.
Socket number 23 is the Internet standard number (or “well known socket
number”) for Telnet. Well known socket num ber 1002 3 pr o vides a T elnet s es si on
that directly accesses the WAG serial interface. Any of the four TCP slots may
2-20
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 59
INSTALLATION AND CONFIGURATION
Figure 2-22. TCP Configuration Screen
2. To keep the current TCP port assignments, press ENTER. If not, enter the assignment value for
slots 1 through 4 and then press ENTER.
When finished, the user will be returned to the First Configuration Menu. The TCP port
numbers are shown.
3. Prior to exiting the First Configuration Menu, select “Save changes then restart” to save
changes and restart the WAG.
2.6.11 DHCP Server
The Dynamic Host Configuration Protocol (DHCP) server (or Site ID) can be enabled or disabled
depending on whether the WAG is required to provide configuration information for up to five
A53325 Safetran Ethernet Radios. When DHCP is enabled, the WAG will support the A53325
Safetran Ethernet Radio operation running Linear Network Software.
To Change the DHCP Server:
1. On the First Configuration Menu, select “DHCP server” to be changed. The DHCP Server
screen appears.
Figure 2-23. DHCP Server Screen
2. To keep the current configuration, press ENTER. If not, make a selection and press ENTER.
2-21
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 60
INSTALLATION AND CONFIGURATION
3. To exit without making a change, select “Exit without making a change”.
When finished, the user will be returned to the First Configuration Menu.
4. Prior to exiting the First Configuration Menu, select “Save changes then restart” to save
changes and restart the WAG.
2.6.12 WAG IP Address
Changing the WAG IP address allows the user to specify the IP address the WAG has on the
network. The user should ensure that a unique IP address is used for each unit on the network.
The default WAG IP Address is 10.232.53.40. Prior to starting, ensure the user has available the
complete IP address to be used.
To Assign WAG IP Address:
1. On the First Configuration Menu, select “WAG IP Address” to be assigned. The Change WAG IP
Address screen displays.
Figure 2-24. Change WAG IP Address Screen
2. To keep the current WAG IP address default, press ENTER. If not, enter the address bytes 1
through 4 and then press ENTER.
The user will be returned to the First Configuration Menu.
3. Prior to exiting the First Configuration Menu, select “Save changes then restart” to save
changes and restart the WAG.
2-22
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 61
INSTALLATION AND CONFIGURATION
2.6.13 Type 7 Address Route Length
The significant number of ATCS address digits to be used for determining how to route the ATCS
messages can be configured. The allowable values are from 4 digits to 14 digits. A setting of 004
digits displays 7.RRR and routes everything for a particular railroad out to a particular interface. A
setting of 014 digits displays the full Type 7 ATCS address (7RRRLLLGGGSSDD) and routes only
specific addressed messages to a particular interface.
Typically, 12 significant digits are used (default 7RRRLLLGGGSS) which designates a particular
hardware while the DD part of the address designates a particular software application located
within that hardware.
The WAG routing table stores the ATCS address of a device that the WAG hears communicating as
well as the device’s interface. If the device was heard on the Ethernet interface, the IP address of
the device that sent the ATCS message is recorded. If the interface was Echelon, the Subnet/Node
or Unique Neuron ID of the ATCS device is recorded.
This configuration setting tells the router how many digits to use when searching the destination
ATCS address of a message against the routing table to determine which interface to route the
ATCS message to.
To Change the Type 7 Address Route Length:
1. On the First Configuration menu, select “Type 7 Address Route Length” of the WAG to be
changed. The Type 7 Address Route Length Address screen appears.
Figure 2-25. Type 7 Address Route Length Screen
2. To keep the current configuration, press ENTER. If not, make a selection by entering a
number from 4 to 14 and then press ENTER.
The user will be returned to the First Configuration Menu. The Type 7 Address Route Length
is displayed.
3. Prior to exiting the First Configuration Menu, select “Save changes then restart” to save
changes and restart the WAG.
2-23
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 62
INSTALLATION AND CONFIGURATION
NOTE
after installation of the new radio.
2.6.14 IP Network Mask
The WAG Ethernet interface can be configured to use a particular subnet mask when
communicating on the LAN.
The bit number offered indicates the number of subnet mask bits reading from left to right. If a
user requests a subnet mask of 21 bits, the mask would display 255.255.248.000.
To Change the IP Network Mask:
1. On First Configuration Menu, select “IP Network Mask” to be changed. The change IP Network
Mask screen appears.
Figure 2-26. Change IP Network Mask Screen
2. To keep the current configuration, press ENTER. If not, enter the number of bits from 8 to 32
and then press ENTER.
The user will be returned to the First Configuration Menu. The Type 7 Address Route Length is
displayed.
3. Prior to exiting the First Configuration Menu, select “Save changes then restart” to save
changes and restart the WAG.
2.6.15 Radio Site ID Bindings
When the WAG is enabled to be a DHCP Server, the WAG can provide A53325 Ethernet
Communications Radios running Linear Network Software with configuration information.
If the WAG is configured to send radios their own set of configuration, the installer must
configure at least one “binding” into the WAG. Since the WAG allows for up to five radios to be
configured, five DHCP bindings can be configured via the Radio Site IDs screen.
If a DHCP configured r adio must be replaced ensure that the W AG is restarted
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
2-24
Page 63
INSTALLATION AND CONFIGURATION
To Configure the Radio Site ID Bindings:
1. On the First Configuration Menu, select “Radio Site ID Bindings” to be set. The Radio Site
IDs/DHCP Bindings screen appears.
Figure 2-27. Radio Site IDs/DHCP Bindings Screen
2. Select one of the five bindings to create or to edit (binding 1 for this description). When the
first binding is selected, the DHCP Binding 1 screen appears.
Figure 2-28. DHCP Binding Screen
The Binding IP Address is the address sent to the radio. The radio will configure to the IP address
as its own.
3. To assign an IP Address to a Binding, select “IP Address” on the DHCP Binding screen. The
Change Binding IP Address screen appears.
2-25
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 64
INSTALLATION AND CONFIGURATION
Figure 2-29. Change Binding IP Address Screen
4. To keep the current IP address default, press ENTER. If not, enter the address for bytes 1
through 4 and then press ENTER.
Figure 2-30. Change Binding IP Address Bytes 1 through 4 Screen
The user will be returned to the DHCP Binding Screen.
5. Select change binding “Left transmit channel”. The Change Binding Left Transmit Channel
screen appears.
Figure 2-31. Change Binding Left Transmit Channel Screen
6. To keep the transmit channel default, press ENTER. If not, enter the transmit channel from 3
to 37 and then press ENTER.
The user will be returned to the DHCP Binding Screen.
7. Select change binding “Left transmit power”. The Change Binding Left Transmit Power screen
appears.
Figure 2-32. Change Binding Left Transmit Power Screen
2-26
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 65
INSTALLATION AND CONFIGURATION
8. To keep the transmit power default, press ENTER. If not, enter the transmit power from 0 to
23 and then press ENTER.
The user will be returned to the DHCP Binding Screen.
9. Select change binding “Left transmit speed”. The Change Binding Left Transmit Speed screen
appears.
Figure 2-33. Change Binding Left Transmit Speed Screen
10. To keep the transmit speed default, press ENTER. If not, select the option number for the
desired transmit speed and then press ENTER.
The user will be returned to the DHCP Binding Screen.
11. Select change binding “Left receive channel”. The Change Binding Left Receive Channel
screen appears.
Figure 2-34. Change Binding Left Receive Channel Screen
12. To keep the left receive channel default, press ENTER. If not, select the channel number from
3 to 37 and then press ENTER.
The user will be returned to the DHCP Binding Screen.
13. Select change binding “Right transmit channel”. The Change Binding Right Transmit Channel
screen appears.
Figure 2-35. Change Binding Right Transmit Channel Scree.
2-27
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 66
INSTALLATION AND CONFIGURATION
14. To keep the right transmit channel default, press ENTER. If not, select the channel number
from 3 to 37 and then press ENTER.
The user will be returned to the DHCP Binding Screen
15. Select change binding “Right transmit power”. The Change Binding Right Transmit Power
screen appears.
Figure 2-36. Change Binding Right Transmit Power Screen
16. To keep the transmit power default, press ENTER. If not, enter the transmit power from 0 to
23 and then press ENTER.
The user will be returned to the DHCP Binding Screen.
17. Select change binding “Right transmit speed”. The Change Binding Right Transmit Speed
screen appears.
Figure 2-37. Change Binding Right Transmit Speed Screen
18. To keep the transmit speed default, press ENTER. If not, select the option number for the
desired transmit speed and then press ENTER.
The user will be returned to the DHCP Binding Screen.
19. Select change binding “Right receive channel”. The Change Binding Right Receive Channel
screen appears.
2-28
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 67
INSTALLATION AND CONFIGURATION
Figure 2-38. Change Binding Right Receive Channel Screen
20. To keep the right receive channel default, press ENTER. If not, select the channel number
from 3 to 37 and then press ENTER.
21. The user will be returned to the DHCP Binding Screen. Select one of the following options (21,
22 or 23):
22. To save changes, select “Save changes”.
23. To exit without making a change, select “Exit without saving changes”.
24. To delete the binding entirely, select “delete this binding”.
25. Prior to exiting the First Configuration Menu, select “Save changes then restart” to save
changes and restart the WAG.
After a binding has been configured, the following is displayed on the Radio Site IDs/DHCP
Binding screen.
Figure 2-39. Radio Site IDs/DHCP Bindings Screen – After Binding Configuration
26. To view or edit binding information, select the binding option number and press ENTER. The
following figure is an example of the selected binding after it has been configured.
2-29
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 68
INSTALLATION AND CONFIGURATION
NOTE
after installation of the new radio.
Figure 2-40. Selected Binding Screen – After Binding Configuration
If a DHCP configured radio m ust be replaced, ensure that the W AG is restarted
2.6.15.1 If More than One Radio is Co-Located with a DHCP Serving WAG
Typically, only one radio will be configured by a DHCP serving WAG. In the event that more than
one radio is co-located with a DHCP serving WAG, the following describes the performance of the
WAG in this circumstance:
• An A53325 Ethernet Communications Radio always initiates the request for configuration.
• If the radio already knows an IP address it would like to have assigned, it will ask the WAG
for that IP address; otherwise the radio is not configured and does not offer an IP address
“hint”, informing the WAG that it has no preference.
• The WAG will receive the configuration request and will examine the hardware MAC
address of the radio and any IP address “hint” the radio might have offered, and then
check its configured bindings to determine which are in use and which are available for
the radio.
• If the radio is re-requesting a binding that has already been issued, the WAG will inform
the radio that its binding is still valid. The radio will re-establish their hold on bindings
about once every 10 hours to ensure WAG has the proper configuration information
should the WAG lose power. If this occurs, the radio informs the WAG of its configuration
so that the WAG can mark the associated binding as being assigned.
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
2-30
Page 69
INSTALLATION AND CONFIGURATION
• The WAG will select the first available, unassigned binding to offer the radio. Multiple
radios co-located with a WAG are issued bindings on a first-asked, first-served basis.
• After the WAG selects an available binding to offer the radio, the WAG will issue an ICMP
PING frame to determine whether any other device on the LAN has been assigned the
candidate IP address. Typically, the ICMP PING results in an Address Resolution Protocol
(ARP) request being sent first. If any device responds to the ARP frame, the WAG will send
the actual ICMP to the MAC address reported in the ARP. When a device reports back with
an ICMP PING response, this indicates the candidate IP address is already being used and
the WAG will select the next available unassigned binding.
• If no device responds to the PING, the WAG will offer the binding to the radio. The radio
will then indicate that the binding is acceptable, allowing the WAG to grant a firm lease on
the binding and record the binding as assigned to that radio.
If DHCP serving is disabled or there are no configured bindings, the WAG will ignore all DHCP
requests. If all configured bindings are already assigned and a radio requests configuration, the
WAG will ignore the DHCP request from that radio.
Site installation of radios with DHCP configuration is important to install and configure
properly. Whether it is the simple installation of one radio and one or more WAGs, or more
complex with multiple radios and one DHCP serving WAG, the WAG has the ability to trace
DHCP requests and replies. Additionally, the diagnostic command “status” offers information
about the five possible bindings (if assigned), so that the user may view a radio and its
assigned binding.
The DHCP Serving process is specifically designed so that if a radio is destroyed, a new one
may be installed without having to configure the radio because the WAG will perform this
function. The radio only has to be configured to request DHCP configuration. Further
description concerning DHCP tracing and details about the status report on assigned bindings
can be found in Section 3.
2.6.16 DHCP Client
The WAG may be configured to automatically acquire its IP address and IP Subnet Bitmask from a
DHCP Server. When the WAG’s DHCP Client is configured for “Automatic,” every time the WAG
acquires power it will issue a DHCP request. When the DHCP Server responds, the WAG will adopt
the offered IP address.
In the event a DHCP Server does not respond, the WAG will issue its request for IP configuration
periodically until it gets a response. During the time that the WAG is waiting for a DHCP Server to
offer an IP address, the WAG will utilize the IP address that it’s currently configured with.
2-31
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 70
INSTALLATION AND CONFIGURATION
The following shows the DHCP Client screen.
Figure 2-41. DHCP Client
2.6.17 WAG Circuit ID
Every WAG that is operating as a gateway to the office must have a unique Circuit ID. The Circuit
ID is used by the office to know which WAG on the Ethernet LAN ATCS messages should be
routed to in order to reach type 7 devices that the WAG is connected to.
The WAG Circuit ID consists of three data fields and defaults to 000.0.00 (Disabled).
To Change the WAG Circuit ID:
1. On the Second Configuration Menu, select “WAG Circuit ID” to be changed. The Change WAG
Routing Region screen appears.
Figure 2-42. Change WAG Routing Region Screen – Initial Screen
2. From this initial screen (Figure 2-42), do one of the following:
a. To leave the three digits of the first field of a currently assigned WAG Circuit ID
unchanged, press ENTER. Go to step 3.
b. To change the three digits of the first field of the WAG Circuit ID, type the digits and then
press ENTER. Entry can be any value from 1 to 999. Go to step 3.
c. To disable the WAG Circuit ID and set it to the default value, enter 0 (zero) and then press
ENTER. The user is returned to the Second Configuration Menu.
3. From the screen in figure 2-43, do one of the following:
a. To leave the digit of the second field of a currently assigned WAG Circuit ID unchanged,
press ENTER. Go to step 4.
2-32
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 71
INSTALLATION AND CONFIGURATION
b. To change the digit of the second field of the WAG Circuit ID, type the digit and then
press ENTER. Entry can be any value from 1 to 3. Go to step 4.
Figure 2-43. Change WAG Routing Region Screen – After Digits Entered In First Field
4. From the screen in figure 2-44, do one of the following:
a. To leave the digits of the third field of a currently assigned WAG Circuit ID unchanged,
press ENTER.
b. To change the digits of the third field of the WAG Circuit ID, type the digits and then press
ENTER. Entry can be any value from 1 to 15.
The user will be returned to the Second Configuration Menu. The WAG Circuit ID is displayed.
Figure 2-44. Change WAG Routing Region Screen – After Digits Entered In Second Field
5. Prior to exiting the First Configuration Menu, “Save changes then restart” to save changes and
restart the WAG.
2.6.18 Routing Region Domain 1
Routing Region Domain 1 consists of four data fields and is intended to contain an IP address (if
the first field is set to 0, the function is disabled). The IP address can be a single IP address
(unicast) or it can be a multicast or broadcast address such as 255.255.255.255.
This address is typically the IP address of a Packet Switch that handles the necessary LLL routing
regions, or a computer running the Office Communications Gateway (OCG) software that will
handle the routing regions. This address can also be the IP address of AServer.
If a broadcast IP address is configured here (all 255s) then “route request” messages sent by the
WAG to resolve the route for an LLL will be broadcast on the Ethernet LAN.
2-33
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 72
INSTALLATION AND CONFIGURATION
If a DNS (Directory Name Services) server is configured into the WAG, symbolic names for the
Domain may be provided and the WAG will look up the IP address for the symbolic name.
This function defaults to Disabled.
To Change Routing Region Domain 1:
1. On the Second Configuration Menu, select “Routing Region Domain 1” to be changed. The
Change Routing Region Domain One screen appears (figure 2-45).
Figure 2-45. Change Routing Region Domain One - Initial Screen
2. From this initial screen, do one of the following:
a. To enter or change an IP Address, select “Enter an IP address” and then press ENTER. Go
to step 3.
b. To enter or change a symbolic name, select “Enter a symbolic name” and then press
ENTER. Go to step 4.
c. To disable Routing Region Domain 1, select “Disable Routing Region Domain One” and
then press ENTER. The user is returned to the Second Configuration screen.
d. To exit this function without making changes, select “Exit without a change” and then
press ENTER. The user is returned to the Second Configuration screen.
3. From the screen in figure 2-45 If “Enter an IP Address” was selected, then do one of the
following (see Figure 2-46):
a. To disable Routing Region Domain 1, enter 0 (zero) in the first data field and then press
ENTER. The user will be returned to the Second Configuration Menu.
b. To leave the first data field of the current IP Address unchanged, press ENTER.
c. To change the first data field of the IP Address, type the digit(s) and then press ENTER.
Entry can be any value from 1 to 255.
d. Repeat step b or c above for each of the four data fields. After the fourth data field is
filled, the user will be returned to the Second Configuration Menu.
2-34
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 73
INSTALLATION AND CONFIGURATION
Figure 2-46. Change Routing Region Domain One - IP Address Screen
4. On the Symbolic Name screen (figure 2-47), enter the symbolic name for Routing Region
Domain 1. Entries can consist of up to 40 characters including A-Z, 1-9 and 0, periods (.) and
dashes (-). After entering the symbolic name, press ENTER.
The user will be returned to the Second Configuration Menu.
Figure 2-47. Change Routing Region Domain One – Symbolic Name Screen
5. Prior to exiting the First Configuration Menu, select “Save changes then restart” to save
changes and restart the WAG.
2.6.19 Routing Region Domain 2
Routing Region Domain 2 is identical to Routing Region Domain 1 described in paragraph 2.6.18
above. If this function is configured with a valid IP address, copies of every “route request”
message the WAG sends will be transmitted out this IP address as well as Domain 1.
Two “domains” are provided in the event a router is located somewhere on the LAN that provides
redundant paths from the WAG to the office equipment.
If a DNS server is configured into the WAG, symbolic names for the Domain may be provided and
the WAG will look up the IP address for the symbolic name.
This function defaults to Disabled.
Refer to paragraph 2.6.18 for instructions on how to set Routing Region Domain 2. The Routing
Region Domain 2 option is on the Second Configuration Menu.
2-35
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 74
INSTALLATION AND CONFIGURATION
2.6.20 ATCS Server UDP Port Number
Office devices usually listen for “route request” and other messages on a specific UDP port
number. The default port number is 5361, however it is configuration setting.
To change the ATCS Server UDP Port Number:
1. On the Second Configuration Menu, select “ATCS Server UDP Port number” to be changed.
The Change ATCS Server UDP Port Number screen appears.
Figure 2-48. Change ATCS Server UDP Port Number Screen
2. To keep the current ATCS Server UDP Port Number, press ENTER. If not, enter the new port
number and then press ENTER. Entry can be any value from 0 to 65535.
The user will be returned to the Second Configuration Menu.
3. Prior to exiting the First Configuration Menu, select “Save changes then restart” to save
changes and restart the WAG.
2.6.21 Telnet Port Numbers
Because there are routers, bridges, and hubs that block Telnet port 23 for security reasons, the
“well known” Telnet and Serial Telnet port numbers have been made configuration setting. This
will allow the user to change the numbers to values that are not blocked.
The default values for this function are 23 for the WAG Telnet port and 10023 for the Serial
Telnet port.
To change the Telnet Port Numbers:
1. On the Second Configuration Menu, select “Telnet Port Numbers” to be changed. The Change
Telnet Port Numbers screen (see Figure 2-49) appears.
2-36
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 75
INSTALLATION AND CONFIGURATION
Figure 2-49. Change Telnet Port Numbers Screen
2. Do one of the following:
a. To change the WAG Telnet Port Number, select WAG Telnet Port Number option number
and press ENTER. Go to step 3.
b. To change the Serial Telnet Port Number select Serial Telnet Port Number option number
and press ENTER. Go to step 4.
3. From the screen in figure 2-50, press ENTER to keep the current port number value or enter
the new WAG Telnet Port Number and then press ENTER. Entry can be any value from 0 to
65535. The default is 23.
Figure 2-50. Change WAG Telnet Port Number Screen
4. From the screen in figure 2-51, press ENTER to keep the current port number or enter the
new Serial Telnet Port Number and then press ENTER. Entry can be any value from 0 to
65535. The default is 10023.
Figure 2-51. Change Serial Telnet Port Number Screen
5. From the Change Telnet Port Numbers Menu (figure 2-49) do one of the following:
a. To save the new Telnet port number entries, select “Save Telnet Port Numbers” option
number and then press ENTER.
b. To abandon any changes, select “Abandon changes” option number and then press
ENTER.
2-37
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 76
INSTALLATION AND CONFIGURATION
6. Prior to exiting the First Configuration Menu, select “Save changes then restart” to save
changes and restart the WAG.
2.6.22 Genisys Wait Poll Response
The Genisys wait poll response is used when the serial interface is configured for Genisys ATCS
Office. It designates the amount of time to wait before sending a Genisys poll.
The default value is 800ms.
To set the Genisys Wait Poll Response Time:
1. On the Second Configuration Menu, select “Genisys wait poll response” Wait Timer to be set.
The Change Genisys Poll Response Wait Timer screen appears.
Figure 2-52. Change Genisys Poll Response Wait Timer Screen
2. To keep the current timer setting, press ENTER. To change the timer setting, enter the new
value and then press ENTER. Entry can be any value from 20 to 65535.
The user will be returned to the Second Configuration Menu.
3. Prior to exiting the First Configuration Menu, select “Save changes then restart” to save
changes and restart the WAG.
2.6.23 ATCS Retry Wait
The ATCS Retry Wait is used when the serial interface is configured for Genisys ATCS Office. It
designates the amount of time to wait before re-sending an ATCS message that has not been
acknowledged.
The default value is 800ms.
To set the ATCS Retry Timeout:
1. On the Second Configuration Menu, select “ATCS Retry wait” Timer to be set. The Change
ATCS Retry Timeout screen (see Figure 2-53) appears.
2-38
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 77
INSTALLATION AND CONFIGURATION
Figure 2-53. Change ATCS Retry Timeout Scree
2. To keep the current timer setting, press ENTER. To change the timer setting, enter the new
value and then press ENTER. Entry can be any value from 20 to 65535.
The user will be returned to the Second Configuration Menu.
3. Prior to exiting the First Configuration Menu, select “Save changes then restart” to save
changes and restart the WAG.
2.6.24 ATCS Max Retries
ATCS Max Retries is used when the serial interface is configured for Genisys ATCS Office. It
designates the number of times to retry the sending of an ATCS message before giving up after
waiting for an acknowledgement.
The default value is 3.
To set the ATCS Max Retries value:
1. On the Second Configuration Menu, select “ATCS Max retries” count to be set. The Change
Genisys ATCS Maximum Retry Count screen appears.
Figure 2-54. Change ATCS Retry Timeout Screen
2. To keep the current retry count setting, press ENTER. To change the retry count setting,
enter the new value and then press ENTER. Entry can be any value from 0 to 255.
The user will be returned to the Second Configuration Menu.
3. Prior to exiting the First Configuration Menu, select “Save changes then restart” to save
changes and restart the WAG.
2-39
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 78
INSTALLATION AND CONFIGURATION
2.6.25 Genisys Poll Starting Station
The Genisys poll starting station is used when the serial interface is configured for Genisys ATCS
Office. It designates the starting station number to poll.
The default value is 1.
To set the Genisys Poll Starting Station:
1. On the Second Configuration Menu, select “Genisys Poll Starting Station” to be changed. The
Change Genisys Starting Station Polling Number screen appears.
Figure 2-55. Change Genisys Starting Station Polling Number Screen
2. To keep the starting station number setting, press ENTER. To change the starting station
number setting, enter the new value and then press ENTER. Entry can be any value from 0 to
64.
The user will be returned to the Second Configuration Menu.
3. Prior to exiting the First Configuration Menu, select “Save changes then restart” to save
changes and restart the WAG.
2.6.26 Genisys Poll Ending Station
The Genisys poll ending station is used when the serial interface is configured for Genisys ATCS
Office.
It designates the ending station number to poll.
The default value is 16.
To set the Genisys Poll Ending Station:
1. On the Second Configuration Menu, select “Genisys Poll Ending Station” to be changed. The
Change Genisys Ending Station Polling Number screen appears.
2-40
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 79
INSTALLATION AND CONFIGURATION
Figure 2-56. Change Genisys Ending Station Polling Number Screen
2. To keep the ending station number setting, press ENTER. To change the ending station
number setting, enter the new value and then press ENTER. Entry can be any value from 0 to
64.
The user will be returned to the Second Configuration Menu.
3. Prior to exiting the First Configuration Menu, select “Save changes then restart” to save
changes and restart the WAG.
2.6.27 Fragile Telnet Connection
When the Fragile Sockets function is enabled, if a Telnet or Serial Telnet connection exists to a
WAG and someone else attempts to make a connection, the old connection is dropped in favor of
the new one, allowing a user to steal the connection.
When the Fragile Sockets function is disabled, if a Telnet or Serial Telnet connection exists and
someone else tries to make the connection, the attempted connection is refused and the original
owner keeps the connection.
The Fragile Sockets function defaults to ENABLED so that people may walk away from their
computers or leave for the day and others may seize control of the connection.
To enable/disable Fragile Telnet Connections:
1. On the Second Configuration Menu, select “Fragile Telnet Connections” function to be
enabled/disabled. The Select the new Fragile Telnet Connections Option screen appears.
Figure 2-57. Select the new Fragile Telnet Connections Option Screen
2. Select the desired Fragile Telnet Connections option and press ENTER.
2-41
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 80
INSTALLATION AND CONFIGURATION
The user will be returned to the Second Configuration Menu.
3. Prior to exiting the First Configuration Menu, select “Save changes then restart” to save
changes and restart the WAG.
2.6.28 Persistent Serial Tunnel
Each WAG is provided with the IP address or symbolic name of the remote WAG using the
“Persistent Serial Tunnel” configuration option. If the first byte of the IP address is configured with
0, the PST functionality is disabled.
The value defaults to DISABLED.
To change the Persistent Serial Telnet IP Address or Symbolic Name:
1. On the Second Configuration Menu, select “Persistent Serial Tunnel” Telnet IP Address or
Symbolic Name to be changed. The Change Persistent Serial Telnet IP Address screen appears.
Figure 2-58. Change Persistent Serial Telnet IP Address Screen
2. Do one of the following:
a. To change or enter the IP Address, select “Enter an IP address” option number and press
ENTER. Go to step 3.
b. To change or enter the Symbolic Name, select “Enter a Symbolic name” option number
and press ENTER. Go to step 4.
c. To disable the Persistent Serial Telnet function, select “Disable Persistent Serial Telnet IP
Address” option number and press ENTER. The user will be returned to the Second
Configuration Menu. Go to step 5.
d. To exit the Persistent Serial Telnet function without making changes, select “Exit without a
change” option number and press ENTER. The user will be returned to the Second
Configuration Menu. Go to step 5.
3. From the screen in figure 2-59, do one of the following:
2-42
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 81
INSTALLATION AND CONFIGURATION
a. To disable the Persistent Serial Telnet IP Address enter 0 (zero) in the first data field and
then press ENTER. The user will be returned to the Second Configuration Menu.
b. To leave the first data field of the current IP Address unchanged, press ENTER.
c. To change the first data field of the IP Address, type the digit(s) and then press ENTER.
Entry can be any value from 1 to 255.
d. Repeat step b or c above for each of the four data fields. After the fourth data field is
filled, the user will be returned to the Second Configuration Menu. Go to step 5.
Figure 2-59. Change Persistent Serial Telnet IP Address Screen
4. On the screen in figure 2-60, enter the symbolic name for the Persistent Serial Telnet IP
Address. Entries can consist of up to 40 characters including A-Z, 1-9 and 0, periods (.) and
dashes (-). After entering the symbolic name press ENTER.
The user will be returned to the Second Configuration Menu. Go to step 5.
Figure 2-60. Change Persistent Serial Telnet IP Address Symbolic Name Screen
5. Prior to exiting the Second Configuration Menu, select “Save changes then restart” to save
changes and restart the WAG.
2.6.28.1 Typical PST Configuration Parameter Settings
The following table shows typical configuration settings for a WAG using the Persistent Serial
Tunnel function.
2-43
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 82
INSTALLATION AND CONFIGURATION
WAG Type 7 ATCS Address:
Set IP Network Mask:
7.620.300.301.01.01
255.255.255.255
WAG Circuit ID:
Persistent Serial Tunnel:
000.0.00 (Disabled)
010.232.053.043
Table 2-2. Typical WAG Configuration Settings For PST Function
Settings on First Configuration Screen
WAG Type 3 ATCS Address:
Serial interface:
Serial format is:
WAG test mode:
Echelon address:
UDP ports are:
Route table expiry:
Broadcast medium:
TCP ports are: DHCP Server:
WAG IP Address:
Type 7 Address Route Length
Settings on Second Configuration Screen
Routing Region Domain 1:
Routing Region Domain 2:
ATCS Server UDP Port number:
Telnet Port Numbers
Genisys wait poll response:
ATCS Retry wait:
ATCS Max retries:
Genisys Poll Starting Station: Genisys Poll
Ending Station:
Fragile Telnet Connections:
3.620.30.3000
115200,None,8,1/NoFlow
RAW
disabled
01.01
5000, 5001, 5002, 5003
120 seconds
IP Ethernet
23, 10023, 6001, 6002 Disabled
10.232.53.42
12 -- 7RRRLLLGGGSS
Disabled
Disabled
5361
(WAG: 23, Serial: 10023)
800ms
800ms
3
1
16
Enabled
2.6.29 Primary and Secondary DNS
These are the IP addresses of one or two DNS servers that are somewhere on the user’s WAN. If
the Domain One, Domain Two, or Default Gateway for the WAG is configured to use symbolic
names rather than hard-coded IP addresses, either the primary DNS or the secondary DNS must
be configured with a valid IP address.
When the WAG powers up, it waits for the XPORT component to indicate that it is ready to carry
IP Ethernet traffic. The WAG then checks to see if there are any symbolic names configured in the
Domain One, Domain Two, or Default Gateway fields.
If there is at least one symbolic name, the WAG checks to see if there is a valid DNS IP address
configured in either the Primary, Secondary or both DNS configuration fields.
If there are, the WAG will ask the DNS servers on the Ethernet LAN what the IP addresses are for
the symbolic names. The primary DNS server is asked first and if no answer is received or if the
primary DNS server does not know the IP address, the secondary DNS server is asked.
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
2-44
Page 83
INSTALLATION AND CONFIGURATION
If either server provides an IP address, that IP address is used for the Domain One, Domain Two,
or Default Gateway as needed. If neither DNS knows the IP address for the symbolic names, the IP
addresses for Domain One, Domain Two, and/or the Default Gateway -- if they used symbolic
names -- will remain unresolved and the OSI system will not operate at all.
In the event an Active Route expires (gets moved to the Pending list and then expires), the WAG
will discard all of its resolved IP addresses and the symbolic names are once again sent through
the look-up process to resolve their IP addresses.
This is very important because disaster recovery factors into this behavior. In the event links to
office devices break and are expired, a user may configure a new IP address into one or both of
the DNS servers, pointing the office machines to another geographical location somewhere on the
Network.
Because of that disaster recovery process, the WAG is required to detect the loss of the office
links (by timing out the Active, then Pending routes) and then discarding the resolved IP addresses
which may or may not be valid any longer.
Then the WAG, after discarding the old resolved IP addresses, will again ask the DNS servers what
the IP addresses are for the symbolic names. In the event a user reconfigured the IP address for
the symbolic names in the DNS servers, the servers will inform the WAG of what the new IP
addresses are.
This means that if there are a hundred WAGs in the network and an office facility is destroyed or
loses power, the WAGs do not need to be reconfigured. Only the DNS server configuration needs
to be reconfigured and all WAGs will eventually ask the DNS server what the new IP address is for
the symbolic names.
These Primary and Secondary DNS values default to: Disabled
To change the Primary DNS IP Address:
1. On the Second Configuration Menu, select “Primary DNS” IP Address to be changed. The
Change Primary DNS IP Address screen appears.
Figure 2-61. Change Primary DNS IP Address Screen
2. From the screen in figure 2-61, do one of the following:
a. To disable the Primary DNS IP Address enter 0 (zero) in the first data field and then press
ENTER. The user will be returned to the Second Configuration Menu. Go to step 3.
2-45
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 84
INSTALLATION AND CONFIGURATION
b. To leave the first data field of the current IP Address unchanged, press ENTER.
c. To change the first data field of the IP Address, type the digit(s) and then press ENTER.
Entry can be any value from 1 to 255.
d. Repeat step b or c above for each of the four data fields. After the fourth data field is
filled, the user will be returned to the Second Configuration Menu. Go to step 3.
3. Prior to exiting the First Configuration Menu, select “Save changes then restart” to save
changes and restart the WAG.
To change the Secondary DNS IP Address:
1. On the Second Configuration Menu, select “Secondary DNS” IP Address to be changed. The
Change Secondary DNS IP Address screen appears.
Figure 2-62. Change Secondary DNS IP Address Screen
2. From the screen in figure 2-62, do one of the following:
a. To disable the Secondary DNS IP Address enter 0 (zero) in the first data field and then
press ENTER. The user will be returned to the Second Configuration Menu. Go to step 3.
b. To leave the first data field of the current IP Address unchanged, press ENTER.
c. To change the first data field of the IP Address, type the digit(s) and then press ENTER.
Entry can be any value from 1 to 255.
d. Repeat step b or c above for each of the four data fields. After the fourth data field is
filled, the user will be returned to the Second Configuration Menu. Go to step 3.
3. Prior to exiting the First Configuration Menu, select “Save changes then restart” to save
changes and restart the WAG.
2.6.30 Default IP Gateway
The Default Gateway can only be configured with an IP address. The Default Gateway allows
Ethernet IP traffic to be sent from the WAG to different subnets. In the event a destination IP
device can not be reached on the WAG subnet, the WAG will send the IP message to the Default
Gateway, and the Default Gateway will be responsible for sending the message to its actual
destination.
2-46
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 85
INSTALLATION AND CONFIGURATION
If the Default Gateway is configured for Disabled, then Ethernet messages that are addressed to IP
devices that are not on the subnet configured for the WAG will be discarded by the WAG since
the destination IP device is considered unreachable.
Often, Default Gateways are bridges, routers, or some other device on the LAN that maintains its
own route tables so that it knows how to forward Ethernet messages into and between subnets.
This Default IP Gateway value default is: Disabled.
To change the Default Gateway IP Address:
1. On the Second Configuration Menu, select “Default IP Gateway” Address to be changed. The
Change Default Gateway IP Address screen appears.
Figure 2-63. Change Default Gateway IP Address Screen
2. From the screen in figure 2-63, do one of the following:
a. To disable the Default Gateway IP Address enter 0 (zero) in the first data field and then
press ENTER. The user will be returned to the Second Configuration Menu. Go to step 3.
b. To leave the first data field of the current IP Address unchanged, press ENTER.
c. To change the first data field of the IP Address, type the digit(s) and then press ENTER.
Entry can be any value from 1 to 255.
d. Repeat step b or c above for each of the four data fields. After the fourth data field is
filled, the user will be returned to the Second Configuration Menu. Go to step 3.
3. Prior to exiting the First Configuration Menu, select “Save changes then restart” to save
changes and restart the WAG.
2-47
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 86
INSTALLATION AND CONFIGURATION
2.6.31 WAG Site ID
The WAG Site ID is a unique ASCII string used to identify the WAG location.
To change the WAG Site ID:
1. On the Third Configuration Menu, select “Change WAG Site ID” to be changed. The Change
WAG Site Name screen appears.
Figure 2-64. Change WAG Site Name Screen
2. On the screen in figure 2-64, do one of the following:
a. To retain the current WAG Site Name, press ENTER.
b. To change the WAG Site Name, enter an ASCII string of up to 40 characters. Entries can
consist of A-Z, 1-9 and 0, and ASCII symbols. After entering the site name, press ENTER.
The user will be returned to Third Configuration Menu.
3. Prior to exiting the First Configuration Menu, select “Save changes then restart” to save
changes and restart the WAG.
4. Following the save, the WAG Site ID can be viewed using the SCON command to show the
current configuration.
2.6.32 Route RAW Echelon: No
In previous executive software releases for the WAG, RAW Echelon frames (such as those received
from an iLOD) were sent to all other WAGs, which then transmitted the Echelon frame out their
Echelon interfaces.
The WAG executive software releases, A01E and later, support this as a configuration setting
option. When it’s configured to NO, any RAW Echelon messages that come into the WAG from its
Echelon interface are ignored.
The WAG defaults this configuration setting to: NO.
2-48
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 87
INSTALLATION AND CONFIGURATION
Figure 2-65. RAW Echelon Message Option
2.6.33 Route Unknown Outbound Echelon: No
Prior to release of executive software releases for the WAG, any Echelon frame that was received
from the Broadcast Medium was routed out the WAG’s Echelon interface despite the fact that the
WAG may not have seen the intended destination device on the Echelon interface.
The WAG’s usual routing behavior dictates that before the WAG can route an ATCS message to an
ATCS device, it must have heard from the destination device first. In previous releases of the
executive software, WAG would go ahead and route Echelon messages out its Echelon interface
even if the destination ATCS device wasn’t in its route table.
When this field is configured as YES, the WAG will continue to route Echelon messages for devices
it hasn’t seen yet out its Echelon interface.
When this field is configured as NO, the WAG will not route Echelon ATCS messages out its
Echelon interface unless it’s heard from the intended destination ATCS device first and thus the
device is in its route table.
When configured for NO, the internal routing of the WAG is consistent across all interfaces in that
it must hear from the device and know of its existence before attempting to route ATCS messages
to unseen devices.
The WAG defaults this configuration setting to: NO.
2-49
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 88
INSTALLATION AND CONFIGURATION
Figure 2-66. Unknown Outbound Echelon Message Option
2.6.34 Telnet Password: Disabled
If a Telnet password has been defined for the WAG, an operator enters the password (maximum
of 20 characters) upon establishing a Telnet session, which will allow commands to be issued to
the WAG.
If a password is required, any time the operator enters a command, yet hasn’t offered the
password yet, the command that was entered will be ignored. If the operator persists in entering
commands, every third attempt the operator will be asked to offer the Telnet Password.
The WAG defaults this configuration setting to: DISABLED.
Figure 2-67. Telnet Password Option
2.6.35 RS485 J1/J2 Jumper Detect: Enabled
This configuration parameter is discussed in the Boot Monitor sections (2.4 and 6.2) of this
document.
The WAG defaults this configuration setting to: ENABLED.
2-50
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 89
SECTION 3
Command
Shorthand
Description
?
?
Gets a list of keyboard commands.
Break
bre
Breaks to the boot monitor.
Command
com
Returns the WAG serial interface to command mode from Telnet.
Config
con
Allows changes to the WAG configuration.
Data
dat
Returns the WAG serial interface to data mode.
log1
log1
Shows the event log.
log2
log2
Clears the log.
Log3
Log3
Enables/disables event log streaming.
Ping
pin
Sends a PING to an IP address.
Project
pro
Shows system level information about the WAG.
Reqip
reqip
Request a new IP address from a DHCP server.
Restart
res
Reboots the WAG.
Revisions
rev
Displays all WAG software version information.
Routes
rou
Shows the route table.
Rping
rpi
Pings a route ID.
Sconfig
sco
Shows current configuration settings.
Smac
sma
Shows MAC addresses in the route table.
Status
sta
Displays status information of system operation.
Sdate
sda
Sets the current date.
Stime
sti
Sets the time of day.
Testmode
tes
Sets/stops the WAG test mode (0, 1, 2, or 3).
Trace
tra
Traces one or more interfaces.
Ttimes
ttimes
Displays WAG task usage.
Tunnel
tun
Connects RAW serial interface tunnel.
Verbosity
ver
Sends run-time messages out serial interface when unit is in
command mode.
Wagreport
wagreport
Search for and report other WAGs.
Winkwag
win
Sends WINK request to a WAG.
Xfiles
xfi
Uploads and downloads files.
NOTE
commands will work.
OPERATION
3.0 OPERATION
3.1 INTRODUCTION
This section explains the available commands with respect to the WAG.
Table 3-1. WAG Commands
OPERATION
The WAG serial interface must be in Command mode before the following
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
3-1
Page 90
OPERATION
When performing any of the commands described in the following paragraphs, the user can save
the information to a file. For more information, see the documentation for the terminal emulation
software or for the Telnet application.
3.2 VIEWING THE STATUS
The user can view the status and the log for the WAG. The status shows the operating system
status information, serial interface status, router information, XPort information, and Echelon
information. This information helps the user verify system operation.
To View the Status:
1. Type status and press Enter. The status information appears, similar to the following:
Status of Wayside Access Gateway:
----------------------------------Operating System:
Serial mem pool 0x6C0F8, 21 got, 21 put, 30 remain
XPORT mem pool 0x6EFD8, 1021 got, 1021 put, 30 remain
Echelon mem pool 0x74D98, 0 got, 0 put, 30 remain
End mem pools 0x77C78
Total of 9233 sends, 9178 released (55 in use)
Memory: OKAY, 314784 free, 313292 largest, Sequence: 2
Serial channel:
Sent 120 frames, received 21 frames
116 transmit chokes encountered
Serial interface max baud: 115200
Router status: (3003 messages routed)
Entity Echelon: 00000000 from, 00000000 to
Entity Serial: 00000000 from, 00000000 to
Entity XPort: 00003003 from, 00000000 to
Entity Unknown: 00000000 from, 00000000 to
Local routes: 00000001 sent, 00000000 received
Ignored same: 00000000
XPORT channel:
XPORT 00-20-4a-81-e7-37
XPORT 10.232.53.50, netmask 255.255.255.255 (32 bits)
XPORT Version 9V846-A01B, Jul 27 2005 13:30:34
XPORT 42422 bytes, checksum: 1B424600
Sent 1010 frames, received 1021 frames
UDP sent to XPORT 1001, sent to 68302 3003
TCP sent to XPORT 0, sent to 68302 0
XPORT Alive requests 1 with 2 replies
XPORT serial clock: 115200
XPORT Link Status: UP, 10 MBit
DHCP Server:
There were 10 ignored DHCP discovers
Bind 01: MAC 00-0d-94-00-3a-c2 to IP 010.232.053.053
: Discovers: 2, Requests: 1
Echelon Channel:
Dupe Address Detect timer: 0
echelon_activity 0 collission_activity 0
collission_detect 0 delayed_transmissions 0
scc1_bsy_count 0 scc1_tx_count 1000
3-2
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 91
OPERATION
NOTE
the tasks of the WAG will be displayed immediately below “Memory: OKAY”.
NOTE
does not become exhausted.
scc1_rx_count 0 scc1_eof_count 0
good_count 0 bad_count 0
do_transmit_repeat 0 12_dups_discarded 0
The last line of the XPORT information in the status example on the previous page shows an entry
for “XPORT Link status”. This line pertains to the Ethernet link and informs the user whether the
link is UP or DOWN. If the link is UP, the data rate of the link is also indicated (10 Mbit or 100
Mbit).
In the event the link is down, possibly because the Ethernet cable is unplugged from J2 or because
the radio plugged into the WAG is not powered, the link status will be indicated on this line as
DOWN.
If the user types status 1, additio nal inform ation about the stack space us age for
2. Type status 1 and press Enter. The stack space usage information appears below “Memory:”
similar to the following:
Run Queue: task_serial_key (01-02) 24 stack use
Run Queue: task_serial_out (03-04) 11 stack use
Run Queue: task_xport_out (07-08) 15 stack use
Run Queue: task_app_timer (08-09) 12 stack use
Delayed: task_led (00-01) 15 stack use
Delayed: task_echelon_out (05-06) 12 stack use
Mailbox: task_serial_in (02-03) 18 stack use
Other Que: task_echelon_in (04-05) 13 stack use
Other Que: task_xport_in (06-07) 39 stack use
Other Que: task_router (09-10) 44 stack use
Other Que: Raw/Command In (10-11) 13 stack use
The “xx stack use” indicated at the right side of the example above is the
maximum percentage of stack space used by that task and is only used by
Siemens Rail Automation personnel to ensure that allocated task stack space
3.2.1 Additional Status Information When WAG Configured for OSI
When the WAG is configured for OSI, two additional lists of information are maintained: Active
Route Links and Pending Route Links, both of which are associated with OSI. When the WAG
receives an ATCS message that is intended for the office (the destination ATCS address of the
messages all start with type 2), the WAG looks at the LLL of the source device and calls it a
“routing region” after adding 5000 decimal to it.
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
3-3
Page 92
OPERATION
When the “status” command is entered by the user, an additional block of status information is
provided (only if a valid Circuit ID is configured into the WAG). This additional information
appears following the Echelon Channel information at the end of the status listing. An example of
this information is shown below.
Office Communication Circuit ID 140.1.01:
Received: L3: 31, L4: 132, Others: 10531, Unknown: 662
Toward office count: 47, Discarded pending count: 0
Active route links:
Region Link Timer
9999 010.232.053.148 00127
5112 010.232.053.148 00067
Pending route links:
Region Link Timer
9999 Pending Expired
5873 Pending 00075
5610 Pending 00004
The “Active route links” section shows the routes that an office device has expressed an interest
in. In this example, the office device with IP address 10.232.53.148 has indicated that it is
interested in receiving all ATCS messages from any device that has the LLL of 112. It also indicates
that it is the computer where Network Management System messages may be sent. (Region 9999
is a special region number indicating Network Management.)
Entries in the “Pending route links” section indicate which routes are waiting for an office device
to express interest in them. The example shown above indicates that WAG has ATCS traffic from
two devices, one with an LLL of 873 and the other with an LLL of 610.
The WAG has sent “route update requests” messages out the two “Routing Region Domains” that
are configured into the WAG. These “Routing Region Domains” are IP addresses which may be
single IP addresses of a computer running AServer, a computer running OCG, or a Packet Switch.
The IP address configured into a “Routing Region Domain” may also be a broadcast IP address;
either multicast or broadcast.
3.2.2 Genisys Status Report
If the WAG is configured for RS485 Half-Duplex and Genisys ATCS Office, when the operator types
the “status” command, the report section for Genisys offers some useful information about the
Genisys ATCS Field devices that it is communicating with.
3.3 VIEWING THE ROUTING TABLE
This command shows information in the route table.
3-4
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 93
OPERATION
To View the Routing Table:
Type routes and press Enter. The route table information appears, similar to the following:
FF.SNT.NOD Timer Interface Port Address Sent Received
41.001.003 0120 Echelon 7.620.020.010.03.02 073269 073249
00.000.000 0120 010.232.053.041 -UDP- 7.620.020.020.03.02 073249 146500
00.000.000 0120 010.232.053.041 -UDP- 7.620.020.020.03.03 040259 000000
00.000.000 0099 010.232.053.041 -UDP- 7.620.123.123.12.10 002152 000000
3.4 VIEWING MAC ADDRESSES
This command shows the user any MAC addresses of devices in the routing table.
To View the MAC Address Information:
Type smac and press Enter. The MAC information appears, similar to the following:
smac
IP Address Hardware MAC address ATCS Address
010.232.053.041 00-20-4a-81-e7-40 7.620.020.020.03.02
010.232.053.041 00-20-4a-81-e7-40 7.620.020.020.03.03
010.232.053.041 00-20-4a-81-e7-40 7.620.123.123.12.10
3.5 VIEWING THE WAG CONFIGURATION
This command shows the current configuration settings for the WAG.
To View the Configuration:
Type sconfig and press Enter. The configuration information appears, similar to the following:
Wayside Access Gateway (WAG) up and running.
WAG ATCS Address: 7.620.100.100.01.01
Configured IP address: 10.232.53.40
IP network mask: 32 bits [255.255.255.255]
Listening on UDP ports 5000, 5001, 5002, 5003
Listening on TCP ports 23, 6000, 6001, 6002
Local Echelon: 01.01
Serial interface: Command, 9600, None, 8, 1/NoFlow
Route table expiry: 5400 seconds
Broadcast medium: IP Ethernet
DHCP Server: Disabled
Type 7 route length: 12 digits 7RRRLLLGGGSS
3-5
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 94
OPERATION
WAG
WAG
WAG
SEAR
PACKET SWITCH
MCM
WAG
Preconfigured PST
WAG
WAG
WAG
SEAR
PACKET SWITCH
MCM
WAG
Preconfigured PST
“for the duration
between WAGs 1
3.6 PERSISTENT SERIAL TUNNEL COMMAND
If two WAGs are configured for a PST, the tunnel will be established by one of the WAGs at power
up. In the diagram below WAGs 1 and 3 are configured for the PST.
At any time after the tunnel is established, the user can drop the tunnel and establish a “for the
duration tunnel” with another WAG as described below.
between WAGs 1
and 3 dropped
tunnel” established
To drop the tunnel once it is established:
Once the PST is established, the user may drop the tunnel by typing tun and pressing Enter.
To establish a “for the duration tunnel”:
If there is no Tunnel established and there is no Persistent Serial Tunnel IP address configured into
the WAG, the user may manually request a “for the duration tunnel” to a remote WAG by typing
tun followed by the IP address of the remote WAG.
For example, if the user types: tun 10.232.53.55
The WAG will show: Attempting Serial Tunnel to 10.232.53.55
This “for the duration tunnel” requires that both WAGs:
• have the same Serial Telnet port numbers configured into them.
• are listening on those port numbers by having them in their four “TCP ports are” configuration
options.
• have their Serial Interface format configured for RAW.
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
3-6
Page 95
OPERATION
1 -
No logging of diagnostic information.
10 -
Enables the logging of diagnostic information regarding multipart ATCS messages.
If the “for the duration tunnel” is established, the user is not shown anything when the connection
is made; however, anything sent by the user, such as from HyperTerm, will be sent out the serial
interface of the remote WAG. This is because once the tunnel is established, the WAG, which the
user used to request the connection, will immediately be placed into Data Mode.
If the “for the duration tunnel” can not be established for any of the following reasons, the user is
not shown anything either.
• The remote WAG is not powered up.
• The remote WAG is not connected to the LAN.
• The remote WAG is not configured for the same Serial Telnet number.
• The remote WAG is not configured for RAW.
• The remote WAG is not in Data Mode.
Since the connection is not established, the WAG will remain in Command Mode.
3.7 CHANGING THE DIAGNOSTIC VERBOSITY LEVELS
The WAG sends run-time messages out the serial interface when the serial interface is in
Command Mode. Each run-time message is assigned a verbosity level at which it is displayed. The
allowable verbosity levels are 0 through 65534, however only 1 through 10 are significant.
To Change the Verbosity Levels:
1. Type verbosity and press Enter. The current verbosity information appears.
2. To change the level, type verbosity nn and press Enter, where nn is a number from 1 to
10.
3.8 SEND WINK REQUEST TO A WAG
This command is used to allow the user to visually confirm which WAG the user is talking to.
When the user enters the winkwag command followed by an ATCS address, the WAG will send a
wink command to that particular WAG causing the Health LED to flash quickly for a period of
time. And if the user types wink followed by a Type 7 ATCS address, the WAG with that type 7
address on the broadcast medium will wink.
To Use the Winkwag Command:
Type wink and press Enter. The Health LED on the particular WAG flashes rapidly.
3-7
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 96
OPERATION
NOTE
System”.
3.9 SENDING A PING TO AN IP ADDRESS
The Ping command accepts an IP address and causes the WAG to issue an ICMP PING frame out
the Ethernet interface. If a response from a device with that offered IP address is received, the
WAG will display a sequence number to the Ping response.
To Use the Ping Command:
Type ping and an IP address and then press Enter. The ping information appears, similar to the
following:
ping 10.232.48.226
Sending ICMP PING to 10.232.48.226
PING Response sequence 0x3436
The sequence number is a pseudo random value that changes every time a PING is issued. In the
event no response is detected by the WAG, the “Ping Response” line displayed above will not
appear.
3.10 SENDING A ROUTE PING REQUEST
This is a diagnostic command that is very useful for determining whether a communications path
exists between the WAG and an office system.
To Use the Route Ping Command:
Type rping followed by a route region number and then press Enter.
For example, if a user wants to know whether the WAG can talk to AServer in the office, the user
can type: rping 9999
9999 is the special Route Region number that means “Network Management
And if the office hears the “Route Ping” request that the WAG sends, it will respond causing the
WAG to display the IP address of the office device: RPING: 9999 is at 010.232.048.030
If the office does not hear the Route Ping or if the response from the office does not make it
back to the WAG, the WAG will not display the “is at” message which lets the user know that bidirectional communications is not working.
If the user wants to know whether the WAG can communicate with a Packet Switch or an OCG on
the LAN, the Rping command is used with a Route Region number that is a normal codeline
number.
3-8
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 97
OPERATION
For example, if a Packet Switch, OCG or other office device is running codeline 110 and the user
types: rping 110
The WAG will display: RPING: Searching for 110
After the Packet Switch, OCG or other office device responds, the WAG will display:
RPING: 110 is at 010.232.054.015
That informs the user that the office device is able to speak with the WAG in both directions.
It should be noted that some office devices will respond to an Rping request immediately whereas
other office devices may take several seconds to respond. In elaborate networks, which may
include radios, responses could take more than 10 seconds to be received and displayed by the
WAG.
3.11 TRACING AN INTERFACE
The Trace command allows tracing of several interfaces. The user must specify an option after the
Trace command or the following will be displayed:
The user can enable or disable a trace of one interface at a time. This is accomplished by typing
either X, E, S, P, D, I, R or N after the Trace command. To disable a trace, the user would type
trace O.
To Trace an Ethernet (XPort) Interface:
The tracing of an interface provides the user the ability of displaying interface messages. This
function provides the user with information in such cases where software or cable problems have
occurred.
Type trace X and then press Enter. The Ethernet information appears, similar to the
following:
3-9
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 98
OPERATION
When the Trace is enabled, the HEX values of input messages to the interface (whether it is XPort,
Serial or Echelon), and output messages from the interface are displayed. An ASCII representation
of the printable characters is also displayed within the trace.
The tracing of Ethernet results in the trace being sent only out the serial interface. If a Telnet
session is running, the trace information will not be sent to the Telnet screen. Because a deadly
loop would result, the WAG will not allow tracing of the Ethernet interface to be sent out the
Ethernet interface.
To Trace an Echelon Interface:
The tracing of Echelon information will go out both the serial interface and to a Telnet session if
one is running.
Type trace E and then press Enter. The Echelon information begins as follows:
trace E
Echelon activity will trace to serial port and Telnet
To Trace a Serial Interface:
The tracing of Serial information will only be sent to an existing Telnet connection. Because a
deadly loop would result, the WAG will not send trace serial information out the serial interface.
Type trace S and then press Enter. The Serial information begins as follows:
Trace S
Serial activity will trace to a Telnet session
To Trace a Persistent TCP Serial Tunnel to Event Log:
The Trace a Persistent TCP Serial Tunnel to Event Log option is for debugging purposes.
3-10
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 99
OPERATION
Type trace P and then press Enter. The Persistent TCP Serial Tunnel to Event Log information
begins as follows:
trace P
Serial Tunnel activity will trace to Event Log
When tracing is enabled for Persistent Serial Tunneling, the following entries may be placed into
the system event log:
PST: Persistent request to 010.232.053.043
PST: Persistent Tunnel was dropped
To Trace DHCP Site ID Information:
DHCP Site ID information displays the exchange of information between the WAG and an A53325
Ethernet Radio, provided that the WAG is configured to be a DHCP Server. When a radio asks for
configuration or the WAG offers configuration, this exchange will be displayed out the serial
interface and any Telnet session that may be running.
Type trace D and then press Enter. The DHCP Site ID information appears, similar to the
following:
Inbound DHCP Request, Ethernet, MAC length 6, hops 0, Transaction:
29397be1
Client IP: 000.000.000.000, Your IP: 000.000.000.000
Client MAC: 00-0d-94-00-3a-c2
Remaining options:
Option: 053 (35) length 001 bytes: 001 Discover
Option: 055 (37) length 006 bytes: 001 002 003 00c 03c 02b
Option: 051 (33) length 004 bytes: 000 009 03a 080
DHCP Sending ping 0x4dd8 to 10.232.53.53
Inbound DHCP Request, Ethernet, MAC length 6, hops 0, Transaction:
3bfclab0
Client IP: 000.000.000.000, Your IP: 000.000.000.000
Client MAC: 00-0d-94-00-3a-c2
Remaining options:
Option: 053 (35) length 001 bytes: 001 Discover
Option: 055 (37) length 006 bytes: 001 002 003 00c 03c 02b
Option: 051 (33) length 004 bytes: 000 009 03a 080
DHCP Offer of binding was presented
Inbound DHCP Request, Ethernet, MAC length 6, hops 0, Transaction:
3bfclab1
Client IP: 000.000.000.000, Your IP: 000.000.000.000
Client MAC: 00-0d-94-00-3a-c2
Remaining options:
Option: 053 (35) length 001 bytes: 003 Request
Option: 055 (37) length 006 bytes: 001 002 003 00c 03c 02b
Option: 054 (36) length 004 bytes: 00a 0e8 035 02a
Option: 051 (33) length 004 bytes: 000 000 08c 0a0
Option: 050 (32) length 004 bytes: 00a 0e8 035 035
Option: 060 (3c) length 011 bytes: 041 052 032 034 030 032
037 02d 04c 04e 057
DHCP Acknowledge of binding was presented
3-11
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
Page 100
OPERATION
As the above displays, an inbound DHCP request with “Discover” for a radio was received from
the radio with a MAC address of 00-0d-94-00-3a-c2. The WAG then tested its configured binding
by issuing an ICMP PING to IP address of 10.232.53.53 to see if it was being used.
While waiting for a possible response to the PING, the radio sent another DHCP request. The WAG
decided that the PING response time was long enough and not having received one, elected to
provide the binding to the radio indicated by the trace “DHCP offer of binding was presented.”
The radio then sent another DHCP request with “Request” to the WAG echoing back the binding
information that WAG had offered. The WAG then informed the radio that it acknowledges that
the binding is agreeable to both ends of the handshake. Typically, after the handshake, the radio
will stop sending DHCP requests yet may periodically repeat the process 5 to 10 hours later
depending on the operating rules within that radio.
To Trace Office System Interface to Serial and Telnet:
The Trace Office System Interface to Serial and Telnet option is for debugging purposes.
Type trace I and then press Enter. The Office System Interface to Serial and Telnet information
begins as follows:
trace I
Office activity will trace to serial port and Telnet
When tracing is enabled for the Office System Interface, the following messages can be displayed
real time out the serial and Telnet interfaces:
OSI: Inbound 2.RRR.NN.DDDD to 7.RRR.LLL.GGG.SS.DD
OSI: Route Request for RRR to Domain One
OSI: Route Request for RRR to Domain Two
OSI: Outbound 7.RRR.LLL.GGG.SS.DD to 2.RRR.NN.DDD
OSI: XID Request from 2.RRR.NN.DDDD [XXX.XXX.XXX.XXX]
OSI: Health request from 2.RRR.NN.DDDD [XXX.XXX.XXX.XXX]
OSI: LON request from 2.RRR.NN.DDDD [XXX.XXX.XXX.XXX]
OSI: Configuration request from 2.RRR.NN.DDDD [XXX.XXX.XXX.XXX]
OSI: MCP Loopback from 2.RRR.NN.DDDD to 7.RRR.LLL.GGG.SS.DD
OSI: Log request from 2.RRR.NN.DDDD to 7.RRR.LLL.GGG.SS.DD
OSI: Update RRR to XXX.XXX.XXX.XXX
OSI: Refresh RRR to XXX.XXX.XXX.XXX
OSI: Loopback request/response to XXX.XXX.XXX.XXX
To Trace IP Redundancy to Serial and Telnet:
The Trace IP Redundancy to Serial and Telnet is for debugging purposes.
3-12
Document No.: COM-00-05-16 June 2006, Revised June 2014
Version: C.1
