ENGLISH
HOW SHARP AIR PURIFIER WORKS
An air purifier draws in room air from
its air intake, lets the air pass through
an Active Carbon Filter (Deodorizing
Filter) and a HEPA Filter (dust collection filter) inside of the unit, then
discharges the air from its air outlet.
The air purifier unit repeats this
process by moving its internal fan.
As air passes through, the HEPA
Filter can remove dust particles. The
Active Carbon Filter gradually absorbs
odour elements as they repeatedly
pass through the filter.
(Odour elements are absorbed by
HEPA Filter as well.)
Some odour ingredients absorbed by
the filters may become separated and
may be discharged through the air
outlet and result in additional odour.
Depending on the usage environment, this odour may become strong
in a shorter period than expected.
In this case, purchase the optional
replacement filter kit FZ-28SEF.
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS ....
•WARNING ....................................................E-2
• CAUTIONS CONCERNING OPERATION ...E-2
• REMOTE CONTROL LIMITATIONS ............ E-3
• CAUTIONS WHEN MOUNTING
THIS PRODUCT TO A WALL ....................... E-3
• FILTER GUIDELINES .................................. E-3
PART NAMES .......................................... E-4
• MAIN UNIT DISPLAY ...................................E-4
• BACK ........................................................... E-4
• ACCESSORIES ...........................................E-4
PREPARATION........................................ E-5
• INSERTING BATTERIES
IN THE REMOTE CONTROL ...................... E-5
• REMOTE CONTROL USE ...........................E-5
INSTALLATION ....................................... E-6
FILTER INSTALLATION ........................E-10
E-2
ENGLISH
NOTE
The air purifier is designed to remove
air-suspended dust and odour, but not
harmful gases (for example, carbon
monoxide contained in cigarette
smoke). Neither can it completely
remove odours that are always
present (for example, odours from
construction materials and pet
odours).
HEPA Filter
Active Carbon Filter
OPERATION .......................................... E-12
• MAIN UNIT OPERATION .......................... E-12
• REMOTE CONTROL OPERATION .......... E-13
CARE AND MAINTENANCE ................. E-14
• FILTER REPLACEMENT
GUIDELINES ............................................ E-14
• MAIN UNIT ................................................ E-15
• ODOUR SENSOR .................................... E-15
• PRE-FILTER ............................................. E-15
SPECIFICATIONS ................................. E-15
TROUBLE SHOOTING.......................... E-16
Thank you for purchasing the SHARP FU-28H.
Please read this manual carefully for the correct
usage information. Before using this product, be
sure to read the section: “Important Safety Instructions.”
After reading this manual, retain it in a convenient location for future reference.
E-1
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances, basic safety precautions should be followed, including the
following:
WARNING - To reduce the risk of electrical shock, fire or injury to persons:
• Read all instructions before using the air purifier.
• Use only a 220-240 volt outlet .
• Do not use the air purifier if the power cord or plug is damaged or the connection to the wall
outlet is loose.
• Periodically remove dust from the power plug.
• Do not insert fingers or foreign objects into the intake or air outlet.
When removing the power plug, always hold the plug and never pull the cord.
Electrical shock and/or fire from short circuit may occur as result.
• Do not use this air purifier near gas appliances or fireplaces.
• Remove the power plug from the wall outlet before cleaning the unit and when not using the
unit.
Electrical shock from bad insulation and / or fire from short circuit may occur as a result.
• If the power cord is damaged, it must be replaced by the manufacturer, its service agent, Sharp
authorized service or similarly qualified person in order to avoid a hazard.
• Do not operate when using aerosol insecticides or in rooms where there is oily residue, incense,
sparks from lit cigarettes, chemical fumes in the air or a humidity condition.
• Use care when cleaning the air purifier. Strong corrosive cleansers may damage the exterior.
• Only Sharp Authorized Servicers should service this air purifier. Contact the nearest Servicer for any
problems, adjustments, or repairs.
• The batteries must be removed from the remote control before disposal, and the batteries must be
disposed of safely.
CAUTIONS CONCERNING OPERATION
• Do not block the intake and air outlet.
• Do not use the unit near or on hot objects, such as range or where it may come into contact with
steam.
• Always hold the main unit when moving it.
Holding the front panel when carrying may cause it to detach, thus dropping the unit and resulting in
bodily injury.
• Do not operate the unit without the filter.
• Do not wash the Active Carbon Filter and the HEPA Filter.
Not only it does not improve filter performance, it may cause electric shock or malfunction.
• Clean the exterior with a soft cloth only.
The unit surface may be damaged or cracked.
In addition, the sensor may malfunction as a result.
E-2
REMOTE CONTROL LIMITATIONS
DO NOT USE THE REMOTE CONTROL IN THE FOLLOWING LOCATIONS:
• Any location where there is inverter lighting equipment or electronic spontaneous lighting
equipment
The remote control may become inoperative. In this case, move away from such lighting equipment or
change direction.
• Location exposed to direct sunlight or fluorescent.
The unit may not receive signals from the remote control.
CAUTIONS WHEN MOUNTING THIS PRODUCT ON A WALL
•Avoid a location where the sensor is exposed to direct wind.
The unit may not operate properly.
•Avoid a location where curtains, etc., come into contact with the intake or air outlet.
Curtains, etc., may become dirty or a malfunction may occur.
•Avoid locations where the unit is exposed to condensation, due to drastic temperature changes.
• Place on a stable surface with sufficient air circulation.
• Install the unit on a wall, wooden pillar, crosspiece, etc. that is flat and strong enough.
• Do not install the unit on a thin wall or on plasterboard. The unit may fall down if installed on an
insufficiently strong wall.
•To install the unit on a wooden wall that is less than 10 mm thick, consult your dealer and have
them confirm the strength of the wall before installation.
• Always hold the main unit when moving it.
Holding the front panel may cause it to become detached, thus dropping the unit and resulting in
bodily injury.
• Do not install when there is generation of lampblack, such as in a kitchen, etc.
The unit surface may crack or the sensor may malfunction as a result.
ENGLISH
FILTER GUIDELINES
• Follow the instructions in this manual for correct care and maintenance of the filters.
This equipment complies with the requirements of Directives
89/336/EEC and 73/23/EEC as amended by 93/68/EEC.
E-3
PART NAMES
MAIN UNIT DISPLAY
Plasmacluster Indicator Light
Fan Speed Indicator Lights
OFF Timer Display Indicator Lights
Remote Control Receiver
Power ON/OFF button
Fan Control button
OFF Timer button
Odour Sensor
Filter Frame
HEPA Filter (white)
(with Microbial Control Filter)(blue)
Active Carbon Filter
(Deodorizing Filter)
Stainless Steel Pre-Filter
Front Panel
BACK
Air Outlet
Power Cord
Adjusting Guide
Power Cord
Power Plug
(Shape of plug
depends on country)
E-4
ACCESSORIES
Remote Control
(1 unit)
Battery
(R6(AA) battery X 2 )
Operation Manual
Wall mounting kit
•Wall mounting bracket
•Wood screws (4 pcs)
• Fisher plugs (4 pcs)
PREPARATION
INSERTING BATTERIES IN THE REMOTE CONTROL
Remove the back cover
1
Press and slide the back cover to remove.
Insert batteries
2
−
＋
＋
−
About the batteries
Insert batteries with and as shown
below.
Close the back cover
3
ENGLISH
• The battery life is about 1 year.
• Replace the batteries when the remote control becomes inoperative.
• Incorrect usage of the batteries may cause battery fluid leakage and/or
damage. Take care of the following when handling:
• When replacing the batteries, replace both batteries with new ones of the same
type. (Use R6 (AA) manganese batteries (2 units).)
• When not using the unit or remote control for an extended period, remove the
batteries. This prevents malfunction of the remote control from battery fluid
leakage.
• The batteries of the accessory are for initial use only and may be depleted
within 1 year.
REMOTE CONTROL USE
• Operate the remote control facing the main unit receiver.
• The signal range is about 7m (front).
• Make sure there are no objects blocking the path of the signal.
•A beep sound will be heard from the main unit when a signal is received.
NOTE
Receiver
•Avoid dropping or damaging the remote control,
using in a high humidity condition, in direct sunlight or near a heat source.
E-5
Transmitter
INSTALLATION
FOR APPROPRIATE INSTALLATION
To remove room odour
Installing the unit high up on the wall is most effective.
To remove room dust
Comparatively large dust particles such as pollen and house dust collect in the lower strata of the
room air.
Select a location in the room where the air circulation is good.
This improves the cleaning performance and causes Plasmacluster ions to spread throughout the
room.
Operating Conditions
Please operate the unit under the following conditions.
It is recommended to use the unit in a room where the temperature is in the range of 0 - 35C°.
Avoid locations where the unit is exposed to condensation, due to drastic temperature changes.
Determine the mounting location
1

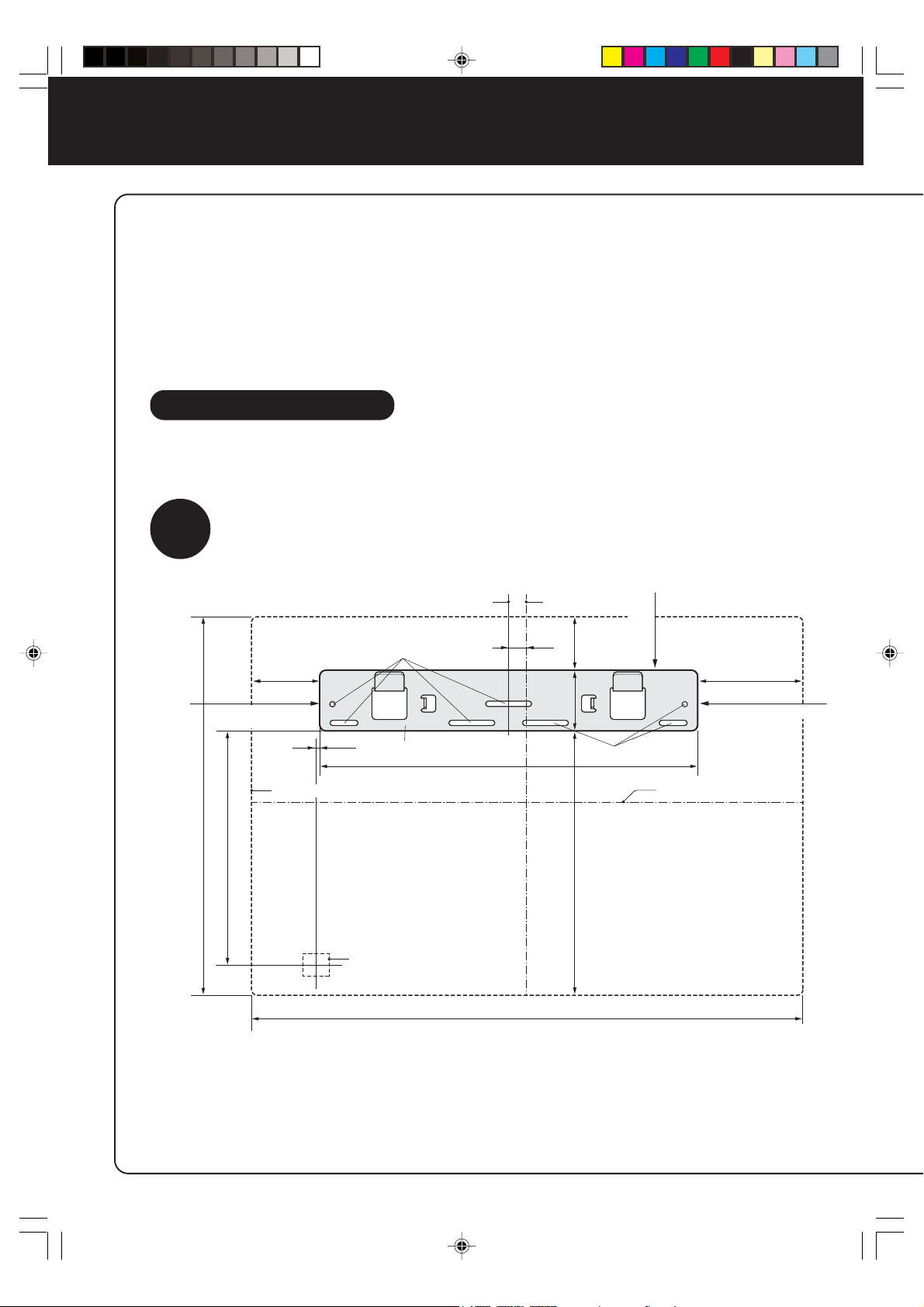

Leave space around the bracket referring to the drawing below. The unit cannot
be mounted if there is insufficient spacing around the bracket.
60mm
70cm or more from
side wall
Size of main unit
207mm
337mm (Size of main unit)
Center line of Wall mounting bracket
Screw Holes
3mm
Wall mounting bracket
Power cord
330mm
482mm (
Center line of
main unit
16mm
48mm
54mm
Screw Holes
235mm
Size of main unit)
45cm or more
from the ceiling
70cm or more from
side wall
Center line of main unit
92mm
Installation Cautions
• Before fixing the wall mounting bracket, make sure there is nothing that could obstruct installation of the unit.
Then fix the wall mounting bracket through screw holes with the supplied wood screws.
• Install the unit on a wall, wooden pillar, crosspiece or the like that is flat and strong enough..
• If the wall is weak or made of concrete, have the unit installed by a specialist such as an electric appliance
store.
•Avoid locations near inverter lamps or where the unit is exposed to direct sunlight.
E-6
m
2
Mount wall mounting bracket

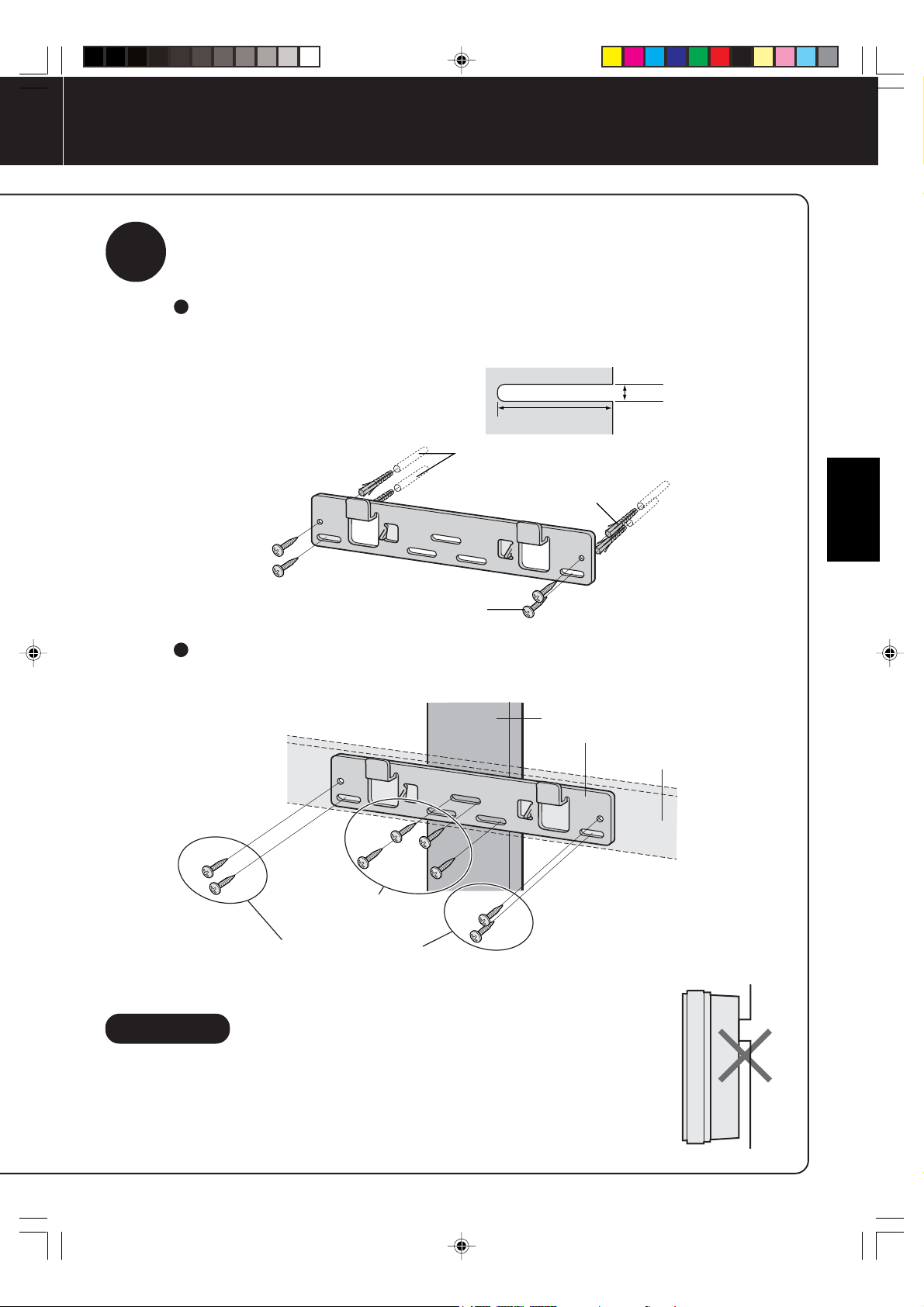

• Mount the bracket using the included wood screws so that it is maintained level.
Installation on a concrete, block or mortar surface
Drill holes of at least 35 mm depth and 5 mm diameter into the wall, drive in
Fisher plugs, and fix the unit with wood screws.
φ5m
35mm
Hole on the wall
Fisher plug
ENGLISH
Wood screw
Installation on a wooden pillar, crosspiece or other wooden surface
Use wood screws for installation.
Wooden pillar
Wall mounting bracket
Installation on a
wooden pillar
Installation on a
wooden crosspiece
Wood screws (4)
Caution
•To install the unit on a wooden wall that is less than 10 mm thick, consult your
dealer and have them confirm the strength of the wall before installation.
• Install the unit on a wall, wooden pillar, crosspiece, etc. that is flat and strong
enough.
• Make sure that the unit is installed in an upright position, without leaning to
the right or left.
Wooden crosspiece
E-7
INSTALLATION
Before starting the wall installation, be sure to remove the front panel
and filter frame.
3
Install the unit on the wall.
Place the unit facing
1
up, remove the Front
Panel and Filter Frame.

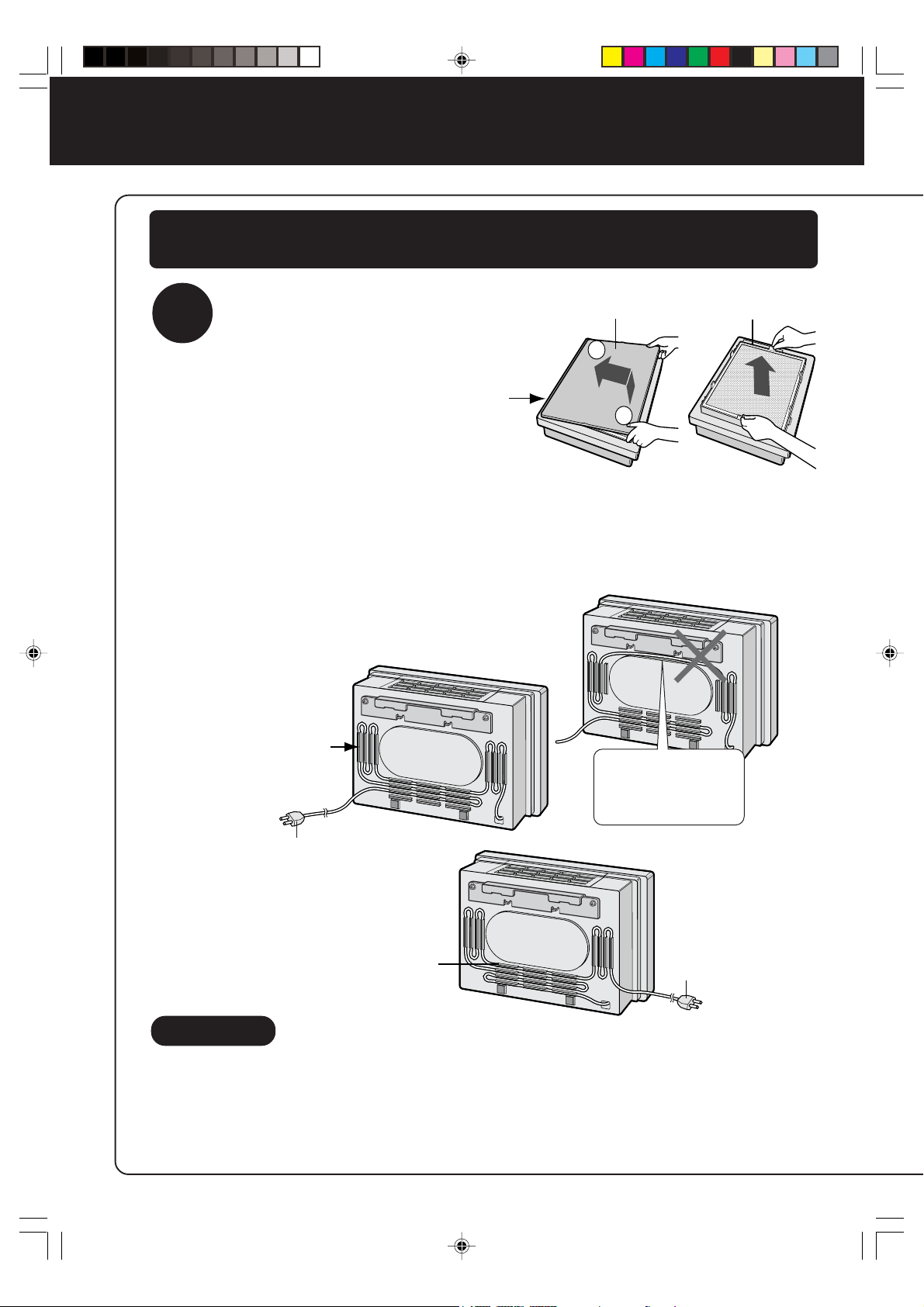

Adjust the length of the power cord.
2
Measure the distance between the unit and the wall outlet.
1
(Refer to E-6)
Air Outlet
2 Place the unit face down, and insert the
power cord into the power cord adjusting guide so as to adjust it to the measured length.
Power Cord
Adjusting Guide
Front Panel
2
1
Do not wire the
power cord right
below the wall
mounting bracket.
Filter Frame
In case the power plug to be lead
to the right of the unit.
In case the power plug to
Power cord adjusting guide
be lead to the left of the
unit.
Cautions
•To avoid scratching or damaging the unit, place it on a soft piece of cloth
until it is installed on the wall.
• Do not lead the power cord together with other cord and do not twist it.
• Never modify the power cord.
•Take care not to damage the power cord.
E-8
Apply a mark (tape, etc.) 8 cm above both ends of the wall mounting
2
2
1
3
bracket.
Lift up the unit so that the hooking holes on the unit are aligned with
4
the marks, hook the unit onto the wall mounting bracket and slide it
to the right.
When positioned correctly, the unit will move down slightly until it
engages.
Alignment with the right hooking holes
mark
about 8 cm
claw socket
Alignment with the left hooking holes
mark
about 8 cm
claw socket
Double-check the installation.
5
Make sure that the claws of the unit are hooked in properly. If they are
not, the unit will move sideways. In addition, the unit may fall off the
wall and be damaged.
Wall mounting bracket
1
ENGLISH
2
• Make sure that the power cord is not caught in the unit.
Remove the mark.
6
HOW TO REMOVE THE UNIT
Pull the power plug out of the wall outlet and remove
the Front Panel and Filter Frame. Holding the unit by
its lower corners, lift it up slightly, then slide it to the
right or left and lift it off toward the top.
E-9
FILTER INSTALLATION
Be sure to remove the filters from the
plastic bags before using the unit.

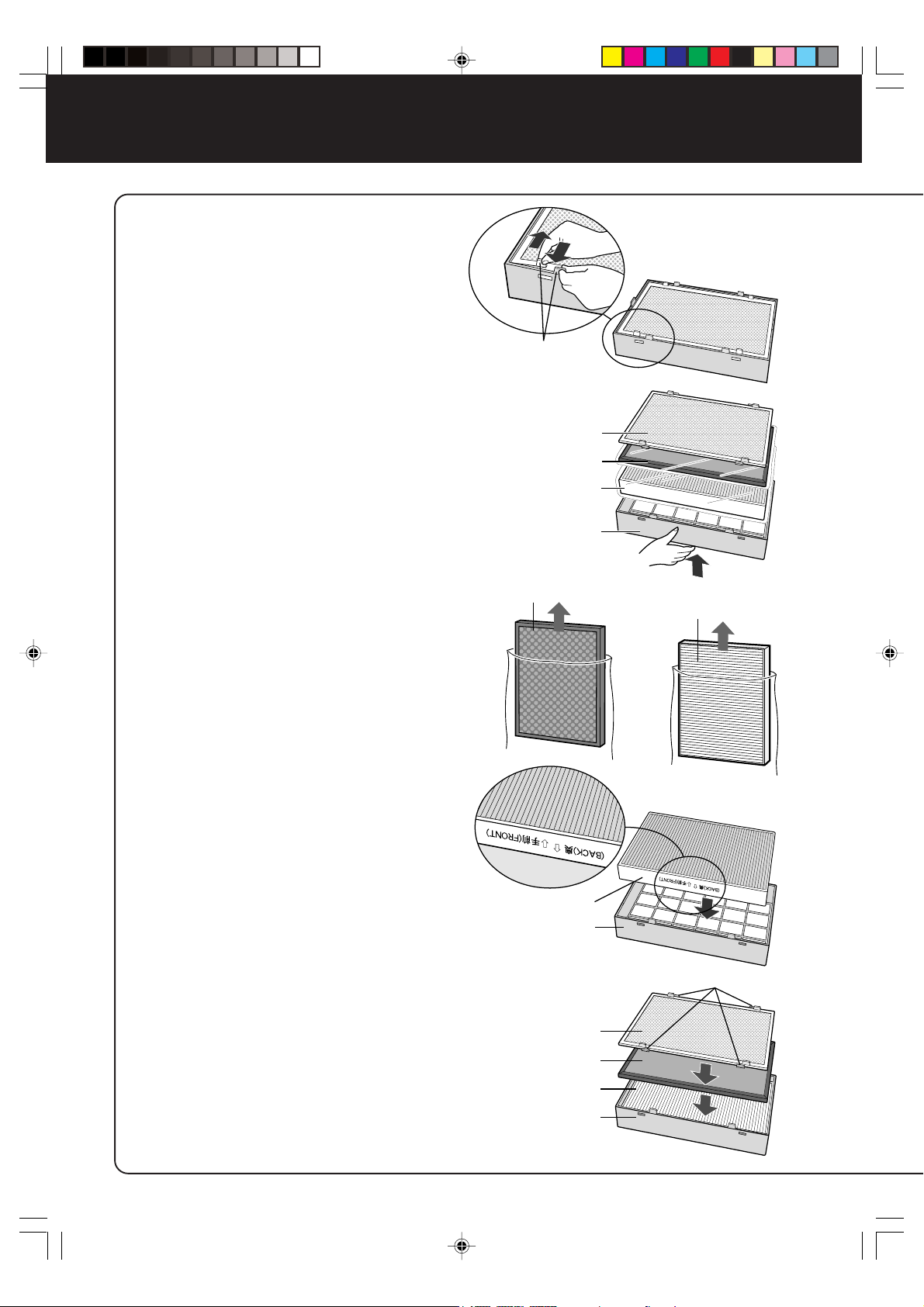

Remove the Pre-Filter,
1
Active Carbon Filter and
HEPA Filter from the Filter
Frame.
Remove the Active Carbon
2
Filter and HEPA Filter from
the plastic bags.
How to Remove the Stainless
Steel Pre-Filter
Tabs
Pre-Filter
Active Carbon Filter
HEPA Filter
Filter Frame
Active Carbon Filter
HEPA Filter
Place the HEPA Filter
3
within the Filter Frame.
Do not install the filter backwards
or the unit will not operate properly.
Place the Active Carbon
4
Filter within the Filter
Frame on top of the HEPA
Filter.
The Active Carbon Filter does not
have a front and a back.
Next, place the Pre-Filter
5
within the Filter Frame.
Fit the 4 tabs of the Pre-Filter into
the holes in the Filter Frame.
HEPA Filter
Filter Frame
Tabs
Pre-Filter
Active Carbon Filter
HEPA Filter
Filter Frame
E-10

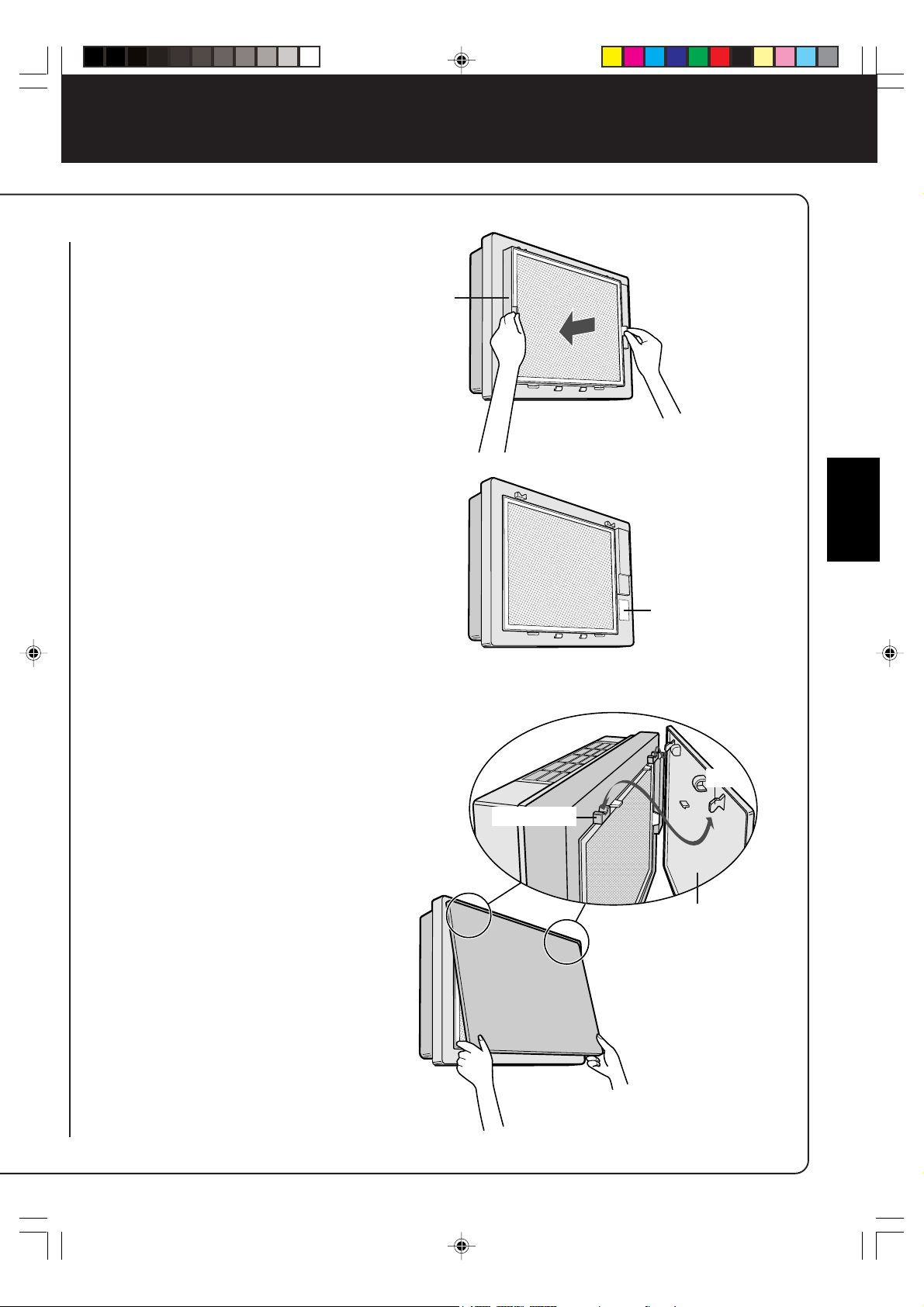

Mount the Filter Frame to
6
the main unit.
Filter Frame
Fill in the usage start date
7
on the Date Label.
Use the date as a guide for the
Filter Replacement schedule.
Mount the Front Panel to
8
the main unit.
ENGLISH
Date Label
Claw
Claw socket
Front Panel
Insert the power plug into
9
the wall outlet and check
on/off operation using
the remote control.
E-11
For the first 30 seconds after the plug is inserted into the
OPERATION
wall outlet, the unit will check the conditions of the air.
• Auto Operation
Odour sensor checks the amount of impurities in the air and the fan
speed switches automatically.
• Manual Operation
Regardless of the amount of impurities, desired fan speed can be
switched between Silent and Max.
MAIN UNIT OPERATION
POWER ON/OFF button
• Used to start AUTO operation (short beep)
and stop operation (long beep).
• Plasmacluster Indicator Light and Fan Speed
Indicator Light (AUTO) turn on/off.
• Unless unplug the power cord, the operation
starts in the previous mode the unit was
operated in.
Fan Control button
The fan speed can be switched among Silent,
Max and AUTO.
Silent
AUTO
Max
OFF Timer button
• The set timer switches every time the button
is pressed as shown below.
• When “4 hours” is selected “4 H” indicator light
activates. When the remaining time becomes
1 hour, then indicator light switches to “1 H”.
1 hour
Cancel
4 hours
E-12
Silent
Max
1 hour
4 hours
Cancel
Plasmacluster Ion Operation
While the product is in operation, the unit will constantly discharge approximately
the same amount of Positive and Negative cluster ions. This is effective for reducing
some airborne mold.
REMOTE CONTROL OPERATION
POWER ON/OFF button
• Used to start AUTO operation (short beep) and
stop operation (long beep).
• Plasmacluster Indicator Light, and Fan Speed
Indicator Light (AUTO) turn on/off.
• Unless unplug the power cord, the operation
starts in the previous mode the unit was
operated in.
AUTO (Fan Speed) button
The fan speed switches automatically depending
on the amount of impurities in the air.
ENGLISH
MANUAL (Fan Speed) button
The fan speed can be switched between Silent,
Max.
OFF Timer button
• The set timer switches every time the button is
pressed as shown below.
• When “4 hours” is selected “4 H” indicator light
activates. When the remaining time becomes 1
hour, then indicator light switches to “1 H”.
E-13
CARE AND MAINTENANCE
To maintain optimum performance of this air purifier, please clean the unit including the
sensor and filters periodically.
When cleaning the unit, be sure to unplug the power cord, and never handle the plug
with wet hands. Electrical shock and/or bodily injury may occur as a result.
FILTER REPLACEMENT GUIDELINES
Depending on the usage environment, air outlet odour may become strong
after several months.
If dust or odours cannot be removed easily, replace the filters.
(Refer to HOW SHARP AIR PURIFIER WORKS E-1)
Guide for filter replacement timing
• The following filter life and replacement period is based on the condition of smoking 10
cigarettes per day, reducing the dust collection/deodorization power to half compared with
that of new filters.
• HEPA Filter About 12 months after opening
• Active Carbon Filter About 12 months after opening
REPLACING THE FILTERS
See page E-10,11 for directions
1
on how to install the filters when
replacing.
Fill in the usage start date of the
2
filters on the Date Label
Replacement Filters
Model: FZ-28SEF
• HEPA Filter: 1 unit
• Active Carbon Filter: 1 unit
Please ask for replacement filters at
your dealer of purchase.
Disposal of Filters
Please dispose of replaced filters according
to the local disposal laws and regulations.
HEPA Filter materials:
• Filter: Polypropylene
• Frame: Polyester
•
Microbial Control Filter: Polypropylene, polyethylene
Active Carbon Filter Materials:
• Deodorizer: Activated charcoal
• Frame: Paper
• Net: Polypropylene 60% Polyester 40%
.
Washable
Pre-Filter Front Panel
Date Label
Not Washable
Active Carbon Filter
HEPA Filter
(with Microbial control Filter)
Filter Frame
Main Unit
E-14
MAIN UNIT
To prevent dirt or stains on the main unit, clean as often as necessary. If stains are allowed to
remain, they may become hard to clean.
Wipe with a dry, soft cloth
For stubborn stains or dirt, use a soft cloth dampened with warm water.
Do not use volatile fluids
Benzene, paint thinner, polishing powder, etc., may damage the surface.
Do not use detergents
Detergent ingredients may damage the unit.
Keep the unit away from water
ODOUR
SENSOR
Remove dust from the surfaces of the sensor openings with a vacuum cleaner.
PRE-FILTER
Remove the Filter Frame, Clean the top surface of the
Pre-Filter lightly with a vacuum cleaner.
If it is contaminated heavily, remove it from the Filter Frame
to wash it.
NOTE
Pre-Filter
Odour
Sensor
• In case of washing, use a soft
brush etc. and cold/warm water.
• Metal brushes or scrub brushes
may cause damage.
• After washing, leave it in the
shade until it gets dried. Then
place it back to the Filter Frame.
SPECIFICATIONS
Model
Power supply
Fan speed
Operation
* The applicable floor surface area is the surface area for when operating the unit in MAX fan level.
(JEM 1467, The Japan Electrical Manufacturers’ Association)
Applicable floor surface area indicates the space where a certain amount of dust pollution can be
removed in 30 minutes.
Fan speed Adjustment
Rated Power
Air Flow Volume
Applicable Floor Surface
Cord Length
Dimensions
Weight
MAX
29 W
168m3/hour
482mm(W)x142mm(D)x337mm(H)
FU-28H-S
220-240V 50/60Hz
2
~21 m
2.5m
6.2kg
SILENT
3.1 W
30m3/hour
ENGLISH
About the reduction of standby power
In order to operate the electrical circuits while the power plug is inserted in the wall outlet, this
product consumes about 1.0W of standby power.
For the conservation of energy, remove the power plug when not using the unit.
E-15
TROUBLESHOOTING
Before calling for repair, please review the list below, since the problem may not be a unit malfunction.
SYMPTOM
The Remote Control does not
work
Odours and smoke are not removed
A ticking sound is heard from
the unit
The discharged air has an
aroma or odour.
The unit does not operate when
cigarette smoke is in the air.
REMEDY (not a malfunction)
• Have the batteries been depleted?
• Are the batteries inserted correctly?
• Is a fluorescent lighting in the room flickering due to service life? (Refer to E-5,E-9)
• Replace the filters if they appear to be heavily soiled.
(Refer to E-14)
•Ticking sound is emitted when the unit is generating ions.
This is normal and not a malfunction.
• Check to see if the filters are heavily soiled.
Replace filters (Refer to E-14)
• Plasmacluster Air Purifiers emit small traces of ozone
which may produce an odour. These ozone emissions
are below safety levels set by the IEC 60335-2-65.
• Is the unit installed in a location that is difficult for the
sensor to detect cigarette smoke?
• Are the odour sensor openings blocked or clogged?
(In this case, clean the openings.) (Refer to E-15)
ERROR DISPLAY
LAMP INDICATION
The “Silent” Fan Speed Indicator Light blinks.
REMEDY
Fan motor disconnected or abnormal.
Operation stops.
• Pressing the ON/OFF button will reset the error display,
but if error occurs again, contact the shop where you
purchased the unit.
E-16
ENGLISH
SHARP CORPORATION
Printed in Japan
TINS-A119KKRZ 04BK 1
Loading...
