R
FP-N40CX
AIR PURIFIER
OPERATION MANUAL
PURIFICATEUR D’AIR
MANUEL D’UTILISATION
Floor / Tabletop type
Type mobile
*Plasmacluster is a trademark of Sharp Corporation.
*Plasmacluster est une marque de commeree de Sharp Corpration.
ENGLISH FRANÇAIS
ENGLISH
FEATURES
Plasmacluster Ion Control
The unit controls the ratio of negative ions and positive ions depending on the condition of the room.
• Clean Mode
Approximately the same numbers of positive and negative ions are discharged.
• Ion Control Mode
Plenty of negative ions exist in natural surroundings such as waterfalls or forests. In this mode, negative ions will be released in an increased rate, in order to bring the room air close to this natural environment.
• AUTO Plasmacluster Ion Mode
The unit will switch between Clean Mode and Ion Control Mode automatically depending on the amount of impurities in the air detected by the dust and odor sensor.
• Filters
1)Pre-Filter
It collects large particles.
2)Washable Active Carbon Filter
Its deodorizing performance can be maintained by washing.
3)True HEPA (High Efficiency Particulate Air) Filter with antibacterial Apatite Filter
High-efficiency particle collection including pollen and dust.
FILTER MAINTENANCE
Some odor ingredients absorbed by the filters may become separated and may be discharged through the air outlet and result in additional odor.
Depending on the usage environment, the air outlet odor may become strong after several months.
In this case, clean the Washable Active Carbon Filter. (Refer to E-14)
If this odor persists, this is because the odor components absorbed by the HEPA Filter have come off the filter. Purchase the optional filter FZN40HFU and replace the original filters.
CONTENTS
• FOR YOUR PROTECTION (U.S.) ............... |
E-2 |
• CONSUMER LIMITED WARRANTY (U.S.) .E-3 |
|
• FOR YOUR PROTECTION (CANADA) ....... |
E-4 |
• LIMITED WARRANTY (CANADA) ............... |
E-5 |
SAFETY PRECAUTIONS ........................ |
E-6 |
• RISK OF ELECTRIC SHOCK ...................... |
E-6 |
• CAUTIONS CONCERNING THE |
E-7 |
OPERATION OF THIS PRODUCT .............. |
|
• REMOTE CONTROL LIMITATIONS ............ |
E-7 |
• INSTALLATION GUIDELINE ........................ |
E-7 |
• FILTER GUIDELINES .................................. |
E-7 |

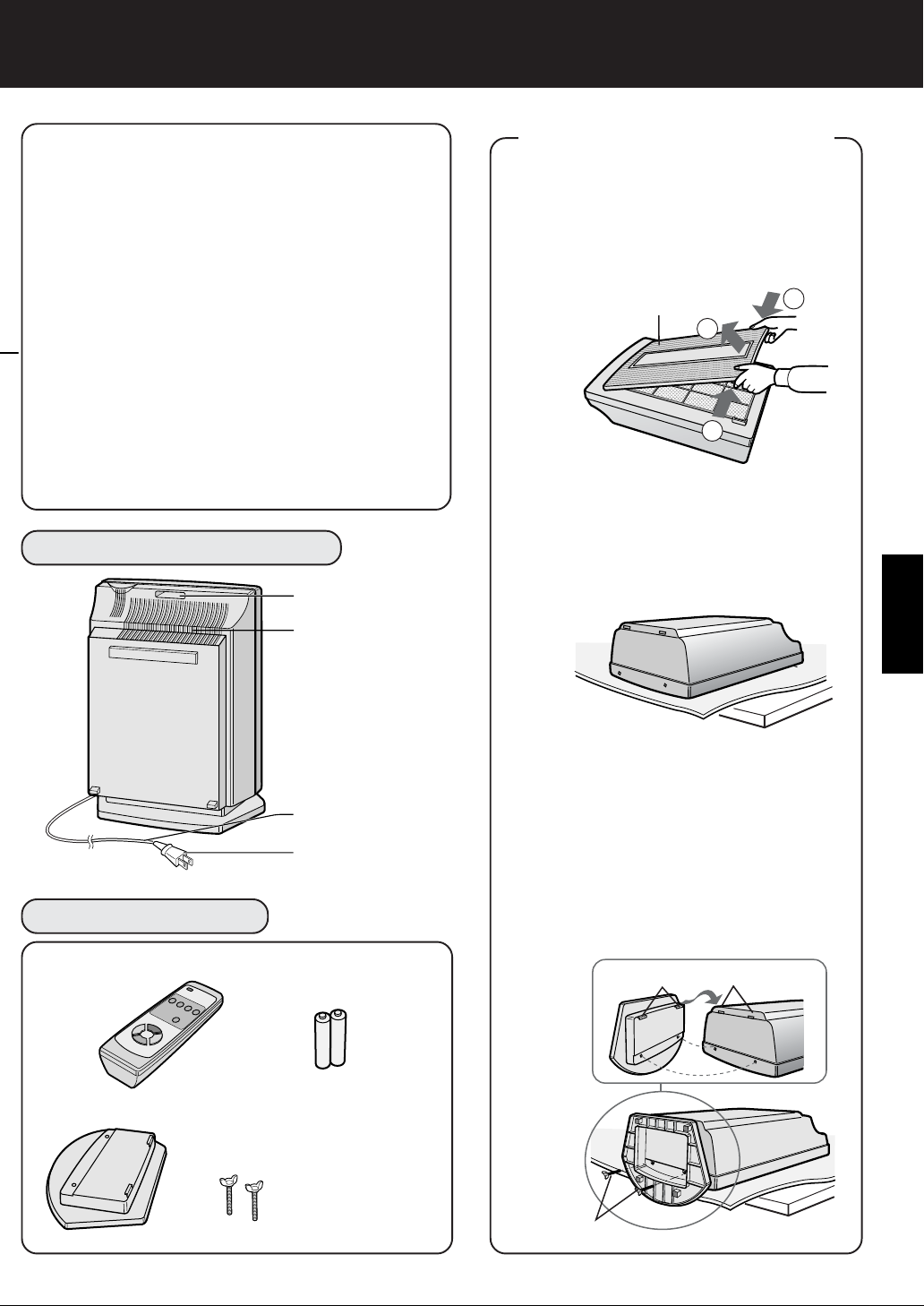

PART NAMES.......................................... |
E-8 |
• MAIN UNIT DISPLAY ................................... |
E-8 |
• BACK ........................................................... |
E-9 |
• ACCESSORIES ........................................... |
E-9 |
• MOUNTING THE STAND ............................ |
E-9 |
PREPARATION...................................... |
E-10 |
• FILTER INSTALLATION ............................ |
E-10 |
• INSERTING BATTERIES |
E-10 |
IN THE REMOTE CONTROL ................... |
|
• REMOTE CONTROL USE ......................... |
E-11 |
OPERATION .......................................... |
E-12 |
• MAIN UNIT OPERATION .......................... |
E-12 |

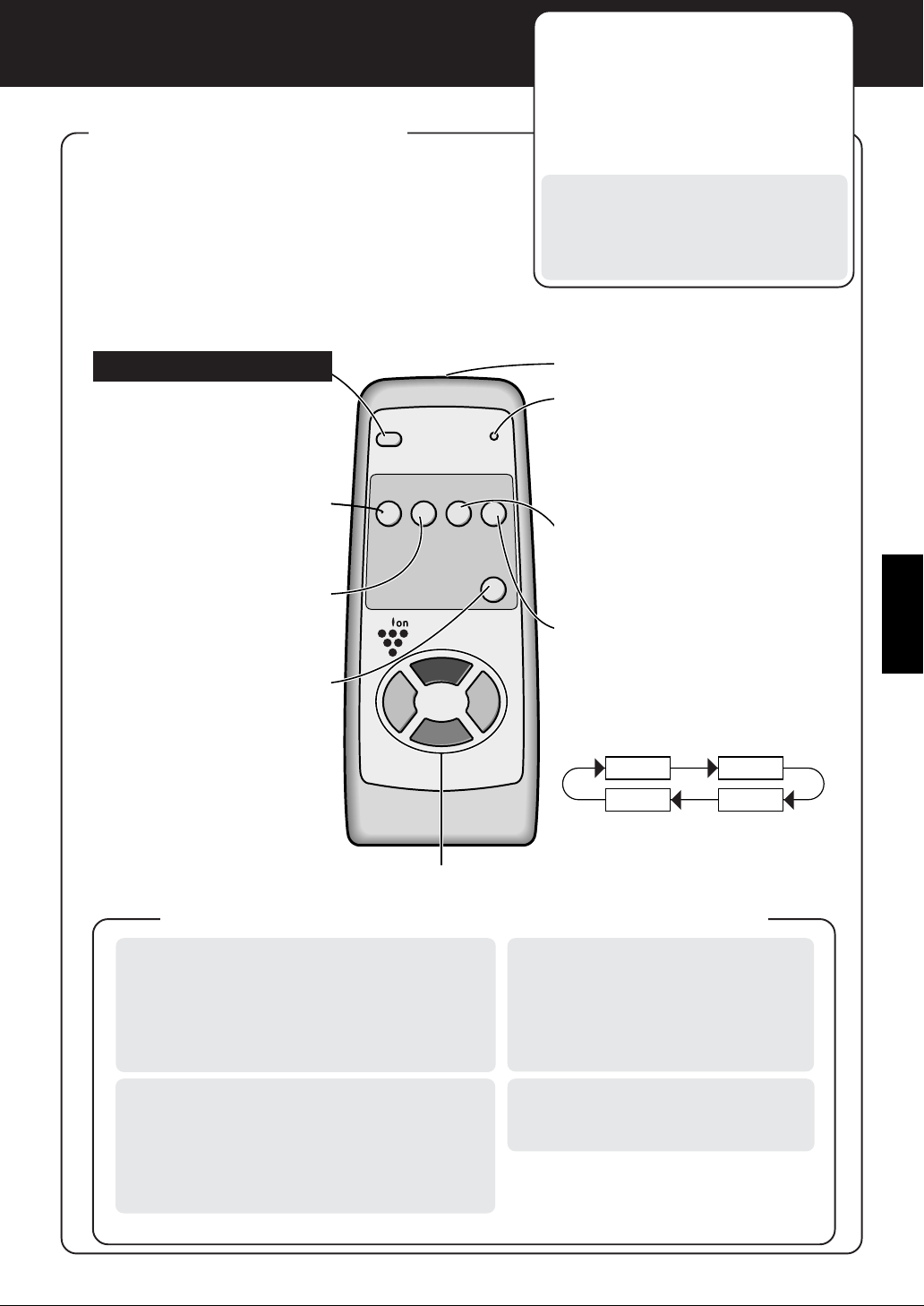

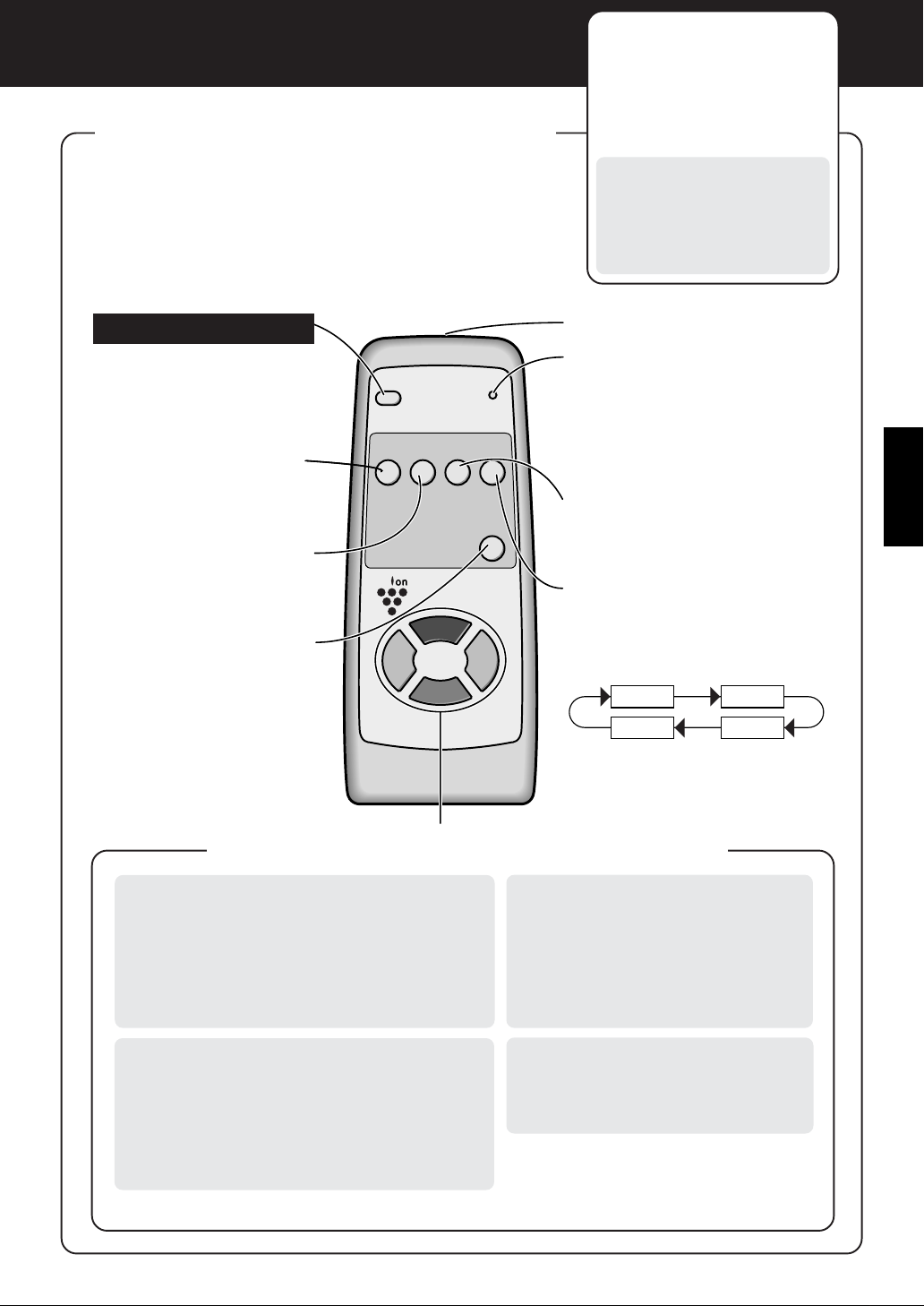

• REMOTE CONTROL OPERATION .......... |
E-13 |
CARE AND MAINTENANCE ................. |
E-14 |
• WASHABLE ACTIVE CARBON |
E-14 |
FILTER CARE ........................................... |
|
• FILTER CLEANING ................................... |
E-15 |
• MAIN UNIT ................................................ |
E-16 |
• ODOR SENSOR ....................................... |
E-16 |
• FILTER REPLACEMENT |
E-17 |
GUIDELINES ............................................ |
|
OPERATION GUIDE.............................. |
E-18 |
TROUBLE SHOOTING.......................... |
E-19 |
SPECIFICATIONS ................................. |
E-20 |
|
|
Thank you for purchasing the SHARP FP-N40CX. Please read this manual carefully for the correct usage information. Before using this product, be sure to read the section: “Safety Precautions.” After reading this manual, retain it in a convenient location for future reference.
This product is for household use only.
ENGLISH
E-1
FOR YOUR PROTECTION (the United States)
To aid in answering questions if you call for service or for reporting loss or theft, please record below the model and serial number located on the back side of the unit.
MODEL NUMBER
SERIAL NUMBER
DATE OF PURCHASE
Dealer Name
Address
City
State
Zip
Telephone
TO PHONE: Dial 1-800-BE-SHARP (237-4277) for:
SERVICE (for your nearest Sharp Authorized Servicer)
PARTS (for your Authorized Parts Distributor) ACCESSORIES
ADDITIONAL CUSTOMER INFORMATION
TO WRITE: For service problems, warranty information, missing items and other assistance:
Sharp Electronics Corporation
Customer Assistance Center
1300 Naperville Drive Romeoville, IL 60446-1091
Please provide the following information when you write or call: model number, serial number, date of purchase, your complete mailing address (including zip code), your daytime telephone number (including area code) and description of the problem.
E-2
CONSUMER LIMITED WARRANTY
CONSUMER LIMITED WARRANTY FOR THE U.S. USERS
SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the “Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below.
This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or modified in design or construction.
In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide proof of purchase to the servicer.
The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law.
ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time period described herein on behalf of Sharp.
The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way responsible for any incidental or consequential economic or property damage. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you.
THIS WARRANTY GIVES YOU SPECIFlC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
Your Product Model Number & Description:
Warranty Period for this Product:
Additional Item(s) Excluded From Warranty Coverage (If any):
Where to Obtain Service:
FP-N40CX Air Purifier. Be sure to have this information available when you need service for your Product.
One (1) year parts and labor from date of purchase.
Appearance items of the Product, filter, or accessories, or any printed materials.
From a Sharp Authorized Servicer located in the United States. To find the location of the nearest Sharp Authorized Servicer, call Sharp Toll Free at 1-800-BE-SHARP.
What to Do to Obtain Service: |
Contact your Sharp Authorized Servicer to obtain in-home service for |
|
this Product. The Servicer will come to your home, and if it is necessary |
|
to remove the Product, the Servicer will reinstall it. Be sure to have |
|
Proof of Purchase available. |
TO OBTAIN SUPPLY, ACCESSORY OR PRODUCT INFORMATION, GO TO OUR WEBSITE AT www.sharpusa.com
R
SHARP ELECTRONICS CORPORATION
Sharp Plaza, Mahwah, New Jersey 07430-2135
ENGLISH
E-3
FOR YOUR PROTECTION (Canada)
To aid in answering questions if you call for service or for reporting loss or theft, please record below the model and serial number located on the back side of the unit.
MODEL NUMBER
SERIAL NUMBER
DATE OF PURCHASE
Dealer Name
Address
City
Province
Postal Code
Telephone
TO PHONE: Dial 1-905-568-7140 for:
SERVICE (for your nearest Sharp Authorized Servicer) PARTS (for your Authorized Parts Distributor)
ACCESSORIES
ADDITIONAL CUSTOMER INFORMATION
TO WRITE: For service problems, warranty information, missing items and other assistance:
Sharp Electronics of Canada Ltd. Customer Care
335 Britannia Road East
Mississauga, Ontario L4Z 1W9
Please provide the following information when you write or call: model number, serial number, date of purchase, your complete mailing address (including Postal Code), your daytime telephone number (including area code) and description of the problem.
E-4
R
LIMITED WARRANTY
Consumer Electronics Products
Congratulations on your purchase!
Sharp Electronics of Canada Ltd. (hereinafter called “Sharp”) gives the following express warranty to the first consumer purchaser for this Sharp brand product, when shipped in its original container and sold or distributed in Canada by Sharp or by an Authorized Sharp Dealer:
Sharp warrants that this product is free, under normal use and maintenance, from any defects in material and workmanship. If any such defects should be found in this product within the applicable warranty period, Sharp shall, at its option, repair or replace the product as specified herein.
This warranty shall not apply to:
(a) |
Any defects caused or repairs required as a result of abusive operation, negligence, accident, improper installa- |
|
|
tion or inappropriate use as outlined in the owner’s manual. |
|
(b) |
Any Sharp product tampered with modified, adjusted or repaired by any party other than Sharp, Sharp’s Author- |
|
|
ized Service Centres or Sharp’s Authorized Servicing Dealers. |
|
(c) |
Damage caused or repairs required as a result of the use with items not specified or approved by Sharp, including |
|
|
but not limited to head cleaning tapes and chemical cleaning agents. |
|
(d) |
Any replacement of accessories, glassware, consumable or peripheral items required through normal use of the |
|
|
product including but not limited to earphones, remote controls, AC adapters, batteries, temperature probe, stylus, |
|
(g) |
trays, filters, belts, ribbons, cables and paper. |
ENGLISH |
Any product received without appropriate model, serial number and CSA/cUL markings. |
||
(e) |
Any cosmetic damage to the surface or exterior that has been defaced or caused by normal wear and tear. |
|
(f) |
Any damage caused by external or environmental conditions, including but not limited to transmission line/power |
|
|
line voltage or liquid spillage. |
|
(h) |
Any products used for rental or commercial purposes. |
|
(i) |
Any installation, setup and/or programming charges. |
|
|
Should this Sharp product fail to operate during the warranty period, warranty service may be obtained upon delivery of the Sharp product together with proof of purchase and a copy of this LIMITED WARRANTY statement to an Authorized Sharp Service Centre or an Authorized Sharp Servicing Dealer. In home warranty service may be provided at Sharp’s discretion on any Sharp television with the screen size of 27” or larger and on any Sharp Over-the-Range
Microwave Oven.
This warranty constitutes the entire express warranty granted by Sharp and no other dealer, service centre or their agent or employee is authorized to extend, enlarge or transfer this warranty on behalf of Sharp. To the extent the law permits, Sharp disclaims any and all liability for direct or indirect damages or losses or for any incidental, special or consequential damages or loss of profits resulting from a defect in material or workmanship relating to the product, including damages for the loss of time or use of this Sharp product or the loss of information. The purchaser will be responsible for any removal, reinstallation, transportation and insurance costs incurred. Correction of defects, in the manner and period of time described herein, constitute complete fulfillment of all obligations and responsibilities of
Sharp to the purchaser with respect to the product and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise.
WARRANTY PERIODS: |
Parts & Labour (exceptions noted) |
Audio Products |
1 year |
Camcorder |
1 year |
DVD Products |
1 year |
LCD Projector |
1 year (lamp 90 days) |
LCD TV |
1 year |
Microwave Oven |
2 years (magnetron component-3 additional years) |
Television Products |
1 year (picture tube component-1 additional year) |
VCR Products |
1 year |
Vacuum Cleaner |
1 year |
Air Purifier |
1 year (filters) |
|
|
|
|
To obtain the name and address of the nearest Authorized Sharp Service Centre or Dealer, please contact:
SHARP ELECTRONICS OF CANADA LTD. 335 Britannia Road East Mississauga, Ontario L4Z 1W9
For more information on this Warranty, Sharp Canada Products, Accessory Sales, Dealer or Service Locations, please call (905)
568-7140
Visit our Web site: www.sharp.ca
|
|
|
|
THE |
B |
|
|
|
|
|
|
|
|
E |
|
|
|
|
|
||
|
|
B |
|
E |
|
|
|
|
||
|
O |
|
|
|
S |
|
|
|
||
|
|
|
|
|
|
|
T |
|
|
|
T |
|
|
|
|
|
|
|
|
|
N |
R |
|
|
|
|
|
|
|
|
|
O |
H |
|
|
|
|
|
|
|
|
|
I |
U |
SERVICE |
|
C |
T |
||||||
O |
|
|
|
|
|
|
|
|
|
|
H |
|
|
|
|
|
F |
A |
|
|
|
G |
C |
|
|
|
|
|
IS |
|
|
|
|
|
|
|
|
|
T |
|
|
|
|
|
U |
S |
|
|
|
A |
|
|
|
|
|
|
|
|
S |
|
|
|
|
||
|
|
|
TOMER |
|
|
|
|
|
||
E-5
SAFETY PRECAUTIONS
RISK OF ELECTRIC SHOCK
•These servicing instructions are for use by qualified personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.
•To reduce the risk of electric shock, this equipment has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact qualified personnel to install the proper outlet. Do not alter the plug in any way.
•Do not use the unit if the power cord or plug is damaged or the connection to the wall outlet is loose.
Electrical shock, short circuit and/or fire may occur as a result.
•Do not damage, break, coat, forcefully bend, pull, twist, bundle, pinch or place heavy objects on the power cord.
If the power cord is damaged, fire and/or electrical shock may occur as a result.
•Use AC 120V only.
Fire and/or electrical shock may occur as a result.
•Do not modify. Repair and disassembly of this product are to be performed by authorized service personnel only.
Fire, electrical shock and/or bodily injury may occur if not.
For repair, contact your dealer or the nearest Sharp Service Center.
•Periodically remove dust from the power plug
Accumulated dust on the power plug may cause bad insulation from humidity, etc. Fire and/or electrical shock may occur as a result.
•When cleaning the unit, be sure to remove the power plug from the wall outlet.
In addition, never handle the power plug with wet hands. Electrical shock and/or bodily injury may occur as a result.
•Do not use the unit where there are oil ingredients such as cooking oil, in the air.
Cracking of the unit surface may occur as a result.
•Do not wipe the unit with benzene or paint thinner. Also, do not spray insecticides on the unit.
Cracking, electrical shock and/or fire may occur as a result.
•Do not operate the unit when using indoor smoke-generating insecticides.
Chemical ingredients may accumulate within the unit and then discharge from the air outlet when the unit operates. Discharge of such chemicals may be unhealthy to your body.
•Do not allow the unit to intake flammable gases, sparks from lit cigarettes, incense, etc.
The unit may ignite as a result.
•Do not use the unit where it is humid, such as in a bathroom, or where the unit may get wet.
Electrical shock and/or malfunction may occur as a result.
•Do not insert fingers or foreign objects into the intake or air outlet.
Electrical shock and/or malfunction may occur as a result.
•When removing the power plug, always hold the plug and never pull the cord.
Electrical shock and/or fire from short circuit may occur as a result.
•Ventilate when using the unit along with a heating appliance.
Carbon monoxide poisoning may occur as a result.
•Remove the power plug when not using the unit.
Electrical shock from bad insulation and/or fire from short circuit may occur as a result.
•If the power cord is damaged, it must be replaced by the manufacturer , its service agent or similarly qualified person in order to avoid a hazard.
•The batteries must be removed from the remote control before it is disposed and the batteries must be disposed of safely.
NOTE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
E-6
CAUTIONS CONCERNING THE OPERATION OF THIS PRODUCT
• Do not block the intake and air outlet.
• Do not use the unit near or on hot objects, such as a stove. Also, do not use the unit where it may come into contact with steam.
• Do not use the unit on its side.
Deformation, malfunction and/or overheating of the motor may occur as a result.
• Do not install when there is generation of oily residue, such as in a kitchen.
• Do not use detergent when cleaning the unit.
The unit surface may become damaged or cracked. In addition, the sensor may malfunction as a result.
• Do not operate the unit without the filter.
It will have no purification effect. In addition, it becomes the cause of the trouble.
• Do not wash and reuse HEPA filter.
Not only it does not improve filter performance, it may cause electric shock or malfunction.
• Let Washable Active Carbon Filter dry thoroughly after cleaning it. |
ENGLISH |
|
Wet filter may damage HEPA filter, and it may cause strong odor. |
||
|
||
• When transporting the unit, always hold the handle on the back of the unit. |
|
|
Holding the front panel when carrying may cause it to detach, thus dropping the unit and resulting in |
|
|
bodily injury. |
|
REMOTE CONTROL LIMITATIONS
DO NOT USE THE REMOTE CONTROL IN THE FOLLOWING LOCATIONS
•Any location where there is inverter lighting equipment or electronic spontaneous lighting equipment
The remote control may become inoperative. In this case, move away from such lighting equipment or change direction.
•Location exposed to direct sunlight
The unit may not receive signals from the remote control.
The unit may not respond to the signals of the remote control if the ends of fluorescent lighting become black or lights flicker due to the depletion of service life; however, this is not a malfunction of the remote control or the main unit. In this case, replace the lighting with new fluorescent tubes.
INSTALLATION GUIDELINES
•Leave at least 7 feet (2m) of space from equipments which involve electric wave such as televisions, radios or wave clocks.
Electrical interference may occur if not.
•Leave at least 2 feet (60cm) of space from the wall
The motor may overheat, causing malfunction if not.
•Avoid a location where sensor is exposed to direct wind
The unit may not operate properly.
•Avoid a location where curtains, etc., come into contact with the intake or air outlet.
Curtains, etc., may become dirty or malfunction may occur as a result.
EFFECTIVE OPERATION
• Place on a stable surface with sufficient air circulation
FILTER GUIDELINES
•Do not wash and reuse the True HEPA Filter. It does not work effectively, and may become a cause of electric shock.
•The wall behind the air outlet may become dirty as time passes. When using the unit for extensive period in the same location, use a vinyl sheet, etc., to prevent the wall from becoming dirty. In addi-
tion, periodically clean the wall, etc.
E-7
PART NAMES
MAIN UNIT DISPLAY
Filter Indicator Light
If the Filter Indicator Light is lit, the Washable Active Carbon Filter needs to be cleaned.
|
AUTO Operation |
Fan Level |
|
Pollen Mode |
|
OFF Timer Display Indicator Lights |
||||||||||
|
Indicator Light |
Indicator Light |
Indicator Light |
(set using remote control) |
||||||||||||
|
FILTER |
|
|
|
AUTOSILENT MED |
HIGH MAX POLLEN |
CLEAN-SIGN |
OFF |
TIMER |
|||||||
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Plasmacluster |
|
|
|
|
|
|
|
|
|
CLEAN-SIGN LIGHT |
||||||||
|
|
|
|
|
|
|
|
The color changes according to the air condition. |
||||||||
|
|
Remote Control Receiver |
Clean (Green) |
Slightly Impure (Orange) Very Impure (Red) |
||||||||||||
Odor Sensor |
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
ABOUT THE CLEAN-SIGN |
||||||||||||||
• Detects odors such as tobacco |
||||||||||||||||
smoke, pets, cosmetics, etc. |
• The Odor sensor displays a CLEAN-SIGN depending on relative |
|||||||||||||||
• It can not detect odorless pollen |
changes to the environment from the time the power plug is inserted |
|||||||||||||||
and dust. |
|
|
|
|
|
|
into the wall outlet and thereafter. |
|||||||||
•When the air is extremely impure at the time the power plug is inserted, the CLEAN-SIGN may light green since the impure condition is the environment against which the sensor bases the impurity rate on. In this case, operate the unit for a while in Clean Mode first, then switch to the desired operation mode. See Page E-13
•To reset the base impurity rate of the CLEAN-SIGN remove and insert the power plug.
•The light can be turned off using ‘Display ON/OFF’ Button on the remote control. Please turn off the light it is not needed. See Page E-13
MODE-ON/OFF Button See Page E-12
(Used to select operations or turn the unit off)
Main Unit
Band See Page E-11
True HEPA Filter (white) See Page E-17
(Dust Collection Filter with Anti-Bacterial Apatite Filter sheet covering its front surface)
Washable Active Carbon Filter (black)
See Page E-14
(Deodorization filter)
Pre-Filter
Front Panel
Remote Control See Page E-13
Hook
Stand See Page E-9
(Be sure to mount for tabletop installation)
Thumbscrew
E-8
PLASMACLUSTERINDICATORLIGHT
Plasmacluster ion operation is selected using the remote control.
Blue light
When the Plasmacluster ion operation is in Clean Mode, or in AUTO Plasmacluster Ion Mode and the air in the room is impure, the light will activate and the unit will operate in Clean Mode.
Green light
When the Plasmacluster ion operation is in the Ion Control Mode, or in AUTO Plasmacluster Ion Mode and the air in the room is clean, this light will activate and the unit will operate in Ion Control Mode.
Light off
There are no Plasmacluster ions being generated.
•The light can be turned off by using the ‘Display ON/ OFF Button’ on the Remote Control.
(Please turn off the light when not required.)
BACK
Handle
Air Outlet
|
Power Cord |
|
Power Plug |
ACCESSORIES |
|
Remote Control |
Battery |
(1 unit) |
(AA battery X 2 ) |
Stand (1 unit) |
Thumbscrews (2 pieces) |
|
Located on bottom of stand |
|
• Operation manual |
MOUNTING THE STAND
Please mount the stand before use.
1 Remove the Front Panel.
•At this time, also remove the Pre-Fil- ter, Washable Active Carbon Filter and the True HEPA Filter.
Front Panel |
1 |
2 |
1
2 Place the unit with its front side facing down on a flat and stable surface.
•Place a soft cloth, etc., to prevent damaging the unit.
3 Insert the tabs on the stand into the holes on the main unit and fix the stand using the included thumbscrews (2 units).
•Do not insert the thumbscrews forcibly or diagonally. Otherwise, the screws may not be tightened correctly.
Tabs Holes
Thumbscrews
ENGLISH
E-9
PREPARATION |
Be sure to remove the power plug from the wall outlet. |
|
FILTER INSTALLATION
To maintain the quality of the filters, they are placed in the main unit within plastic bags. Be sure to remove the filters from the plastic bags before using the unit.
1 Filters Removal
1 Place the unit facing up
Lay the unit on a flat surface such as a table, making sure that the stand does not contact the surface.
2 Remove the Front Panel
Press in the hook on the bottom
of the Front Panel and lift to re- 2 move.
1 Hook
Place so that stand does not touch surface.
Soft cloth |
Table, etc. |
|
1
Front Panel
2
1
Pre-Filter
3 Remove the Pre-Filter, and then remove the Washable Active Carbon Filter (black) and True HEPAFilter (white) from the plastic bags.
The Washable Active Carbon Filter is reinforced with cardboard to prevent it losing its shape.
Washable Active Carbon Filter
INSERTING BATTERIES IN THE REMOTE CONTROL
1 Remove the back cover
Press and slide the back cover to remove.
2 Insert batteries
Insert batteries with
and
as shown
below.
3 Closecover the back
Battery Information
•The batteries for this remote control are for initial use only . Change the batteries when necessary.
•Incorrect usage of the batteries may cause battery fluid leakage and/or damage.
Take care of the following when handling:
•When replacing the batteries, replace both batteries with new ones of the same type. (Use 2 AA manganese batteries.)
•When not using the unit or remote control for an extended period, remove the batteries. (This prevents malfunction of the remote control from battery fluid leakage.)
•The batteries of the accessory are for initial use only and may be depleted within 1 year.
E-10
2 Filter Installation
1 After the True HEPA Filter is removed from the plastic bag, and place it in the main unit with the tabs facing up.
(See the diagram to the right.)
Ensure that the filter is installed correctly. Do not install the filter backwards or the unit will not operate properly.
2 After removing the Washable Active Carbon Filter from the plastic bag, place it on top of the True HEPA Filter with the bands (2 places) located in the upper most corners.
3 Next, place the Pre-Filter through the bands (2 places) located in the corners of the Washable Active Carbon Filter.
Insert the tabs of the Pre-Filter into the associated holes of the main unit.
4 Fill in the usage start date on the Date Label, which can be found near the upper edge of the Pre-Filter.
Use the date as a guide for your Filter Replacement schedule.
True HEPA Filter
Tabs
FRONT
Ensure the bands are uppermost
Washable Ac-
tive Carbon Filter
Holes in the main unit
Band Pre-Filter
Tab(4 places)
Date Label
REMOTE CONTROL USE
•Operate with the remote control facing the main unit (Receiver).
• The signal range is about 23 feet (front). |
Receiver |
• Make sure there are no objects blocking the path of the |
Transmitter |
signal. |
|
• A beep sound will be heard from the main unit when a |
|
signal is received. |
|
NOTE
• Avoid dropping or damaging the remote control. In addition, be sure the remote control avoids moisture or place in direct sunlight or near a electric heater, etc., otherwise a malfunction may occur.
ENGLISH
E-11
For the first 30 seconds after the power plug is inserted into OPERATION the wall outlet, the unit will check the conditions of the air. If operation is set to ON during this time, the CLEAN SIGN
LIGHT will alternately flash in green, orange and red.
MAIN UNIT OPERATION
Main Unit Controls
• AUTO
• SILENT
• MEDIUM
• HIGH
• MAX
• POLLEN
MODE-ON/OFF Button
OFF TIMER
FILTER |
AUTO SILENT MED HIGH MAX POLLEN |
CLEAN-SIGN |
Plasmacluster
Plasmacluster Indicator Light
The unit will start operating when the MODE-ON / OFF Button is pressed.
The unit will begin operating in the AUTO Mode. (fan level)
• While operating the Plasmacluster Indicator Light will be on.
To switch operating controls, press the MODE-ON / OFF Button until the desired control is activated. (Your desired control will have its Indicator Light lit.)
For the best results of the room environment, set your operation control as desired.
Stop
AUTO operation
The fan level is automatically switched (HIGH, MEDIUM, SILENT) depending on the amount of impurities in the air. The sensors detect the impurities for efficient air purification.
POLLEN mode operation
The unit will operate at High level for 10 minutes, then will alternate be-
tween MEDIUM and HIGH.
10 minutes: High fan level
20 minutes: Medium fan level
20 minutes: High fan level
SILENT operation
The unit will operate quietly using minimal air intake.
MEDIUM to MAX operation
The unit will operate at a fan level of MEDIUM, HIGH or MAX.
E-12
Loading...
