“Plasmacluster” and “Device of a cluster of grapes” are
trademarks of Sharp Corporation.
AIR PURIFIER
OPERATION MANUAL
*The number in this technology mark indicates an
approximate number of ions supplied into air of 1 cm
which is measured around the center of a room with
the “high-density plasmacluster 7000” applicable oor
area (at 1.2 m height above the oor) at the medium
wind volume in air purifying mode, when an air purier
using the high-density plasmacluster ion evolving
device is placed close to a wall. This product is
equipped with a device corresponding to this capacity.
3
Free standing type
,
Please read before operating your new Air Purier
The air purier draws in room air from the air intake, passes the air through a pre-
Filter, a HEPA Filter inside of the unit, then discharges the air through the air outlet.
The HEPA Filter can remove 99.97% of dust particles as small as 0.3 microns that
pass through the lter.
Some odors absorbed by the lter may break down over time, resulting in additional
odor. Depending on the usage environment, especially when the product is used in
extreme environments (signicantly more severe than normal household use), this
odor may become strong in a shorter period than expected. If the odor persists, the
lter should be replaced.
NOTE
• The air purier is designed to remove air-suspended dust, but not harmful gases
(for example, carbon monoxide contained in cigarette smoke).
HEPA Filter
Back Panel
FEATURES
CONTENTS
Unique Combination of Air Treatment
Technologies
Filtration System + Plasmacluster
TRAPS DUST*
Pre-lter traps dust and other large
airborne particles.
REDUCES POLLEN & MOLD*
HEPA lter traps 99.97% of particles as
small as 0.3 microns.
FRESHENS
Plasmacluster treats the air similar to the
way nature cleans the environment by
emitting a balance of positive and negative
ions.
*When air is drawn through the lter
system.
IMPORTANT SAFETY INSTRUCTIONS
PART NAMES
FILTER INSTALLATION
OPERATION
CARE AND MAINTENANCE
TROUBLESHOOTING
SPECIFICATIONS
FOR CUSTOMER ASSISTANCE
...............................................
.............................
.................................................
.....................
..............................
......................................
............
.....
E-2
E-4
E-5
E-6
E-8
E-10
E-11
E-12
Thank you for purchasing the SHARP
Air Purier. Please read this manual carefully.
Before using this product, be sure to read the
section: “Important Safety Instructions.”
After reading this manual, keep it in a
convenient location for future reference.
For your reference, we recommend to keep
this manual in the place where you can read
at any time.
E-1
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances, basic safety precautions should be followed,
including the following:
WARNING
• Read all instructions before using the unit.
• Use only a 220-240 volt outlet.
• Do not use the unit if the power cord or plug is damaged or the connection to the
wall outlet is loosened.
• Periodically remove dust from the power plug.
• Do not insert ngers or foreign objects into the intake or air outlet.
• When removing the power plug, always hold the plug and never pull the cord.
Electrical shock and/or re from short circuit may occur as a result.
• Be careful not to damage the power cord, it may cause electric shock, excess heat or
res.
• Do not remove the plug when your hands are wet.
• Do not use this unit near gas appliances or replaces.
• Remove the power plug from the wall outlet before cleaning the unit and when not
using the unit.
Electrical shock from bad insulation and/or re from short circuit may occur as a result.
• When cleaning the unit, or when the unit is not in use, be sure to unplug the unit. Electrical
shock and/or re from a short circuit may result.
• If the power cord is damaged, it must be replaced by the manufacturer, its service
agent, Sharp Approved Service Centre or similarly qualified person in order to
avoid a hazard.
• Do not operate when using aerosol insecticides or in rooms where there is oily residue,
incense, sparks from lit cigarettes, chemical fumes in the air or in very high humidity
conditions, such as a bathroom.
• Be cautious when cleaning the unit. Corrosive cleansers may damage the exterior.
• Only a Sharp Authorized Service Centre should service this air purier. Contact the
nearest Service Centre for any problems, adjustments, or repairs.
• This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
- To reduce the risk of electrical shock, re or injury to persons:
NOTE
If this air purier should cause interference to radio or television reception, try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the unit and radio/TV receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
- Radio or TV Interference
E-2
CAUTIONS CONCERNING OPERATION
• Do not block the intake and/or air outlet.
• Do not use the unit near or on hot objects, such as stoves or heaters or where it may
come into contact with steam.
• Do not lay the unit down when using.
• Always hold the handle on the back of the unit when moving it.
• Do not use without the lter inside the unit.
• Do not wash and reuse the HEPA lter.
Not only does it not improve lter performance, it may cause electric shock or malfunction.
INSTALLATION GUIDELINES
• When using the unit, place it away from equipment utilizing electric waves such as
televisions or radios to avoid electrical interference.
• Avoid use in locations where furniture, fabrics or other items may come in contact
with and restrict the air intake and/or air outlet.
• Avoid use in locations where the unit is exposed to condensation or drastic
temperature changes. Appropriate conditions are when room temperature is
between 0 – 35 ºC.
• Place on a stable surface with sufcient air circulation.
When placing the unit on a heavily carpeted area, the unit may vibrate slightly.
• Avoid locations where grease or oily smoke is generated.
The unit surface may crack as a result.
• Place the unit about 30 cm(1 ft) away from the wall in order to ensure proper
airow.
The dust collecting performance will be the same even if using the unit 3cm away from
the wall, but place it as far as possible(30cm away recommended) because it may dirty
the wall or oor around.
FILTER GUIDELINES
• Follow the instructions in this manual for correct care and maintenance of the lter.
E-3
PART NAMES
FRONT
2
5
6
3
1
8
BACK
11
12
10
4
7
13
9
14
15
(Shape of plug depends on country.)
16
Main Unit
1
Air Outlet
2
Fan Speed Indicator Lights
3
MODE Button / LIGHT ON/OFF Button(Press 3 sec.)
4
Plasmacluster Ion Indicator Light (blue)
5
Plasmacluster Ion ON/OFF Button
6
POWER ON/OFF Button
7
CLEAN ION SHOWER Button /
8
CLEAN ION SHOWER indicator Light (green)
(green)
E-4
9
10
11
12
13
14
15
16
HEPA Filter
Upper Tabs
Back Panel
Bottom Tabs
Handle
Date Label
Power Cord
Plug
(Pre-Filter)
Be sure to remove the power plug
FILTER INSTALLATION
To maintain the quality of the lter, it is installed in the main unit and packed in plastic
bag. Be sure to remove the lter from the plastic bag before using the unit.
from the wall outlet.
Remove the Back Panel.
1
Upper Tabs
Pull
Remove the plastic bag from
2
the Filter.
Replace the Back Panel to the
4
main unit.
Push
Bottom Tabs
Fill in the usage start date on the
5
Date Label.
Use the date as a guide for the filter replacement schedule.
Place the Filter within the main
3
unit.
Do not install the lter backwards or the
unit will not operate properly.
Date Label
• Do not operate the unit without the lter.
E-5

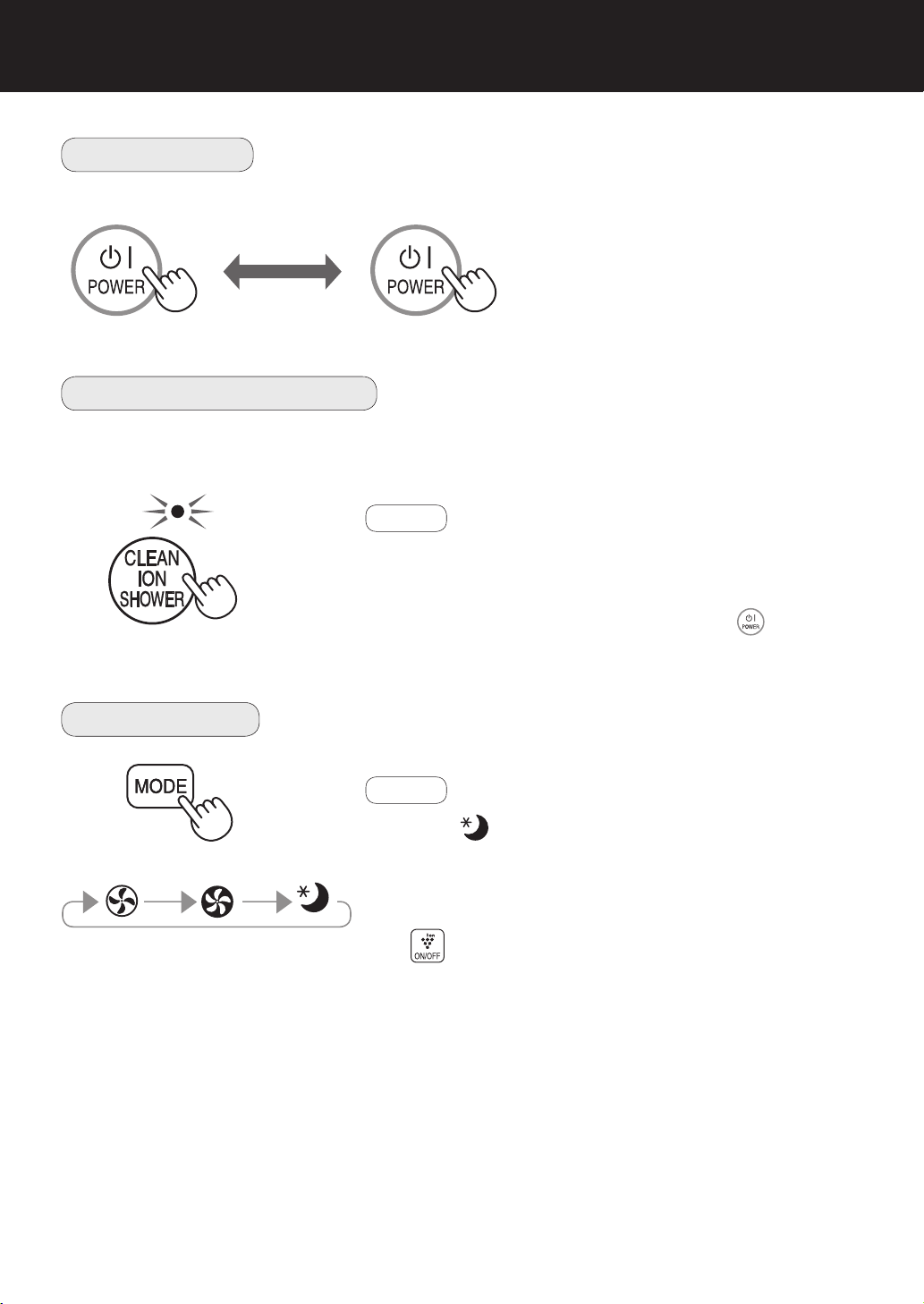

OPERATION
CLEAN AIR
START
STOP
• Select the desired fan speed.
• Unless the power cord has been unplugged,
the operation starts in the previous mode it
was operated in.
CLEAN ION SHOWER
Releases high-density Plasmacluster ions and discharges strong air ow for 60 minutes.
START
NOTE
• If Plasmacluster Ion is OFF, Plasmacluster Ion will not be
released.
• When the operation nishes, the unit will return to the prior
operation mode.
It is able to change the other mode and during this
mode.
FAN SPEED
MEDMAX SLEEP
NOTE
SLEEP
• The unit will operate very quietly with low fan speed.
Plasmacluster Ion Indicator goes off automatically.
Even though the indicator is off, Plasmacluster Ion is
dispersed into air unless Plasmacluster Ion is turned off
by .
E-6

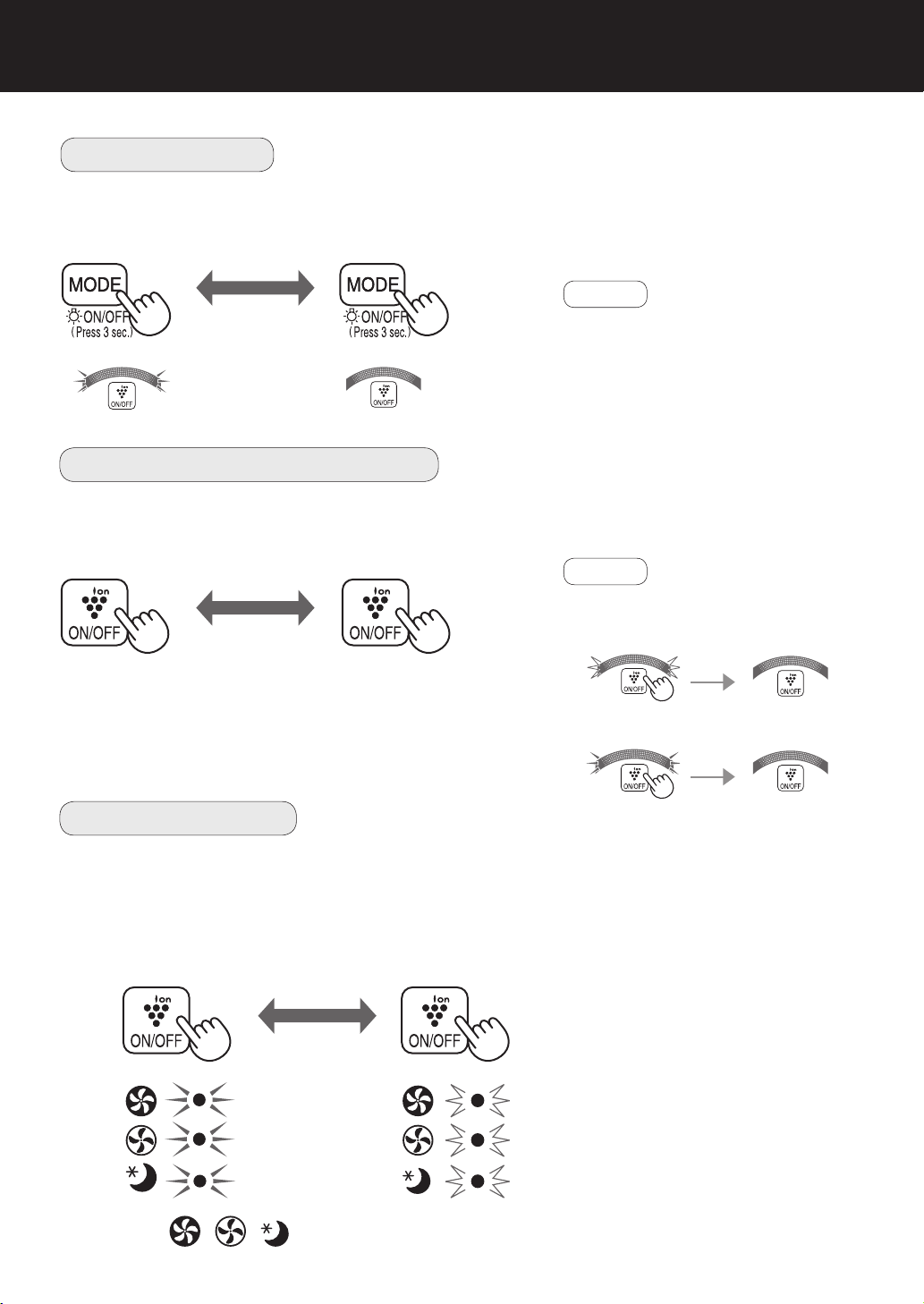

Light Control
You can set the Plasmacluster Ion Indicator to OFF when the Plasmacluster Ion Indicator is bright.
ON
OFF
NOTE
• When the unit starts operation, the
more than 3 sec.
more than 3 sec.
Plasmacluster Ion Indicator always
lights.
• In SLEEP mode, Light Control
button doesn’t operate.
Plasmacluster Ion ON/OFF
When Plasmacluster Ion is ON, the Plasmacluster Ion Indicator Light will turn on. (blue)
ONOFF
NOTE
When Indicator is off,
• If Plasmacluster Ion is ON,
Flashing
3 sec.
• If Plasmacluster Ion is OFF,
Lighting
3 sec.
OFF
OFF
Auto RESTART
If the unit is unplugged or if there is a power failure, the unit will resume operation with the previous
settings after power is restored.
ONOFF
(with the unit OFF)
more than 3 sec.
LightingFlashing
If the , , lamp Lights up for 10 seconds, the setting is completed.
(with the unit OFF)
more than 3 sec.
E-7
CARE AND MAINTENANCE
To maintain optimum performance of this air purier, please clean the unit including the lter
periodically.
Be sure to disconnect the power cord from the wall outlet before performing any maintenance.
BACK PANEL
Back Panel
NOTE How to clean stubborn dirt
HEPA Filter
Tag
(Pre-Filter)
Back Panel
Gently remove dust from the HEPA Filter with a vacuum cleaner attachment or similar tool.
Gently remove dust from the back panel,
using a vacuum cleaner attachment or
similar tool.
CAUTION
Do not apply excessive pressure, when
scrubbing the back panel.
1. Add a small amount of kitchen
detergent to water and soak for about
10 minutes.
2. Rinse off the kitchen detergent with
clean water.
3. Completely dry the lter in a well-
ventilated area.
UNIT
CAUTION
• Do not WASH in water and DRY in the sun.
• Apply the maintenance only on the side with the tag.
Do not clean the opposite side; otherwise, the lter will be
damaged.
The lter is fragile, be careful not to apply too much force.
Wipe with a dry, soft cloth
For stubborn stains or dirt, use a soft cloth dampened with warm water.
CAUTION
• Do not use volatile uids
Benzine, paint thinner, polishing powder, etc. , may damage the surface.
• Do not use detergents
Detergent ingredients may damage the unit.
E-8
Be sure to remove the power plug from the wall outlet.

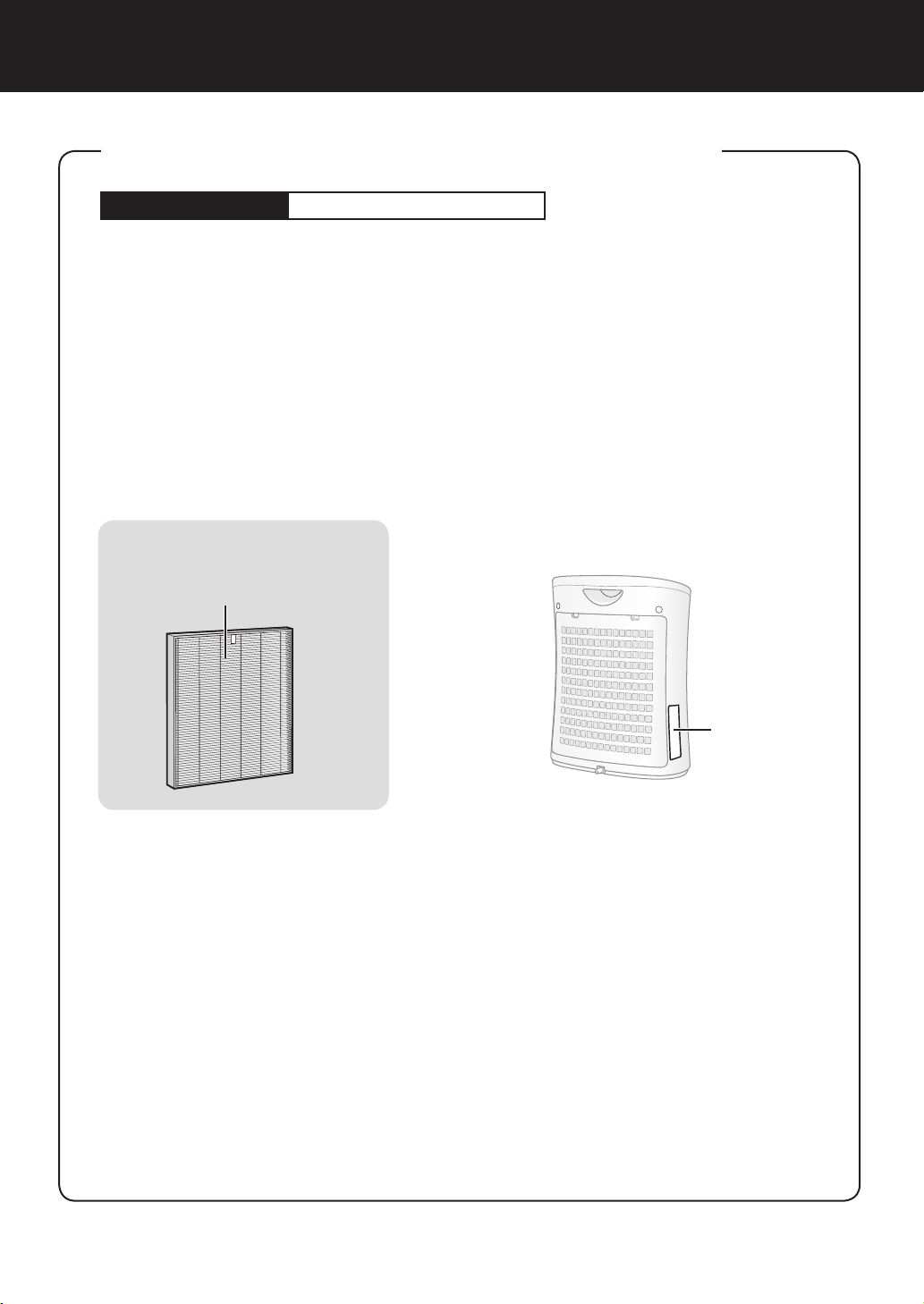

FILTER REPLACEMENT GUIDELINES
Replacement timing
About 2 years after operating
Do not wash and reuse the lter
The lter life and replacement period are based on the condition of smoking 5 cigarettes per
day and the dust collection power is reduced by half compared with that of new lter.
Filter life varies depending on the room environment, usage, and location of the unit.
We recommend to replace the lter more frequently if the product is used in a condition significantly severer than normal household use.
REPLACING THE FILTER
Replacement Filter
Model : FZ-F30HFE
• HEPA Filter : 1 unit
See page E-5 for directions on how to
install the lter when replacing.
Date Label
• Please consult your dealer for purchase of replacement lter.
• Use only lter designed for this product.
Disposal of Filter
Please dispose of the replaced lter according to the local disposal laws and regulations.
Filter materials :
•Filter : Polypropylene
•Frame : Polyester
E-9
TROUBLESHOOTING
Before calling for service, please review the Troubleshooting list below, since the problem may not
be a unit malfunction.
SYMPTOMREMEDY (not a malfunction)
Dust and smoke are not removed.
A clicking or ticking sound is heard
from the unit.
The discharged air has an odor.
The Plasmacluster Ion Indicator
doesn’t Light on.
•Clean or replace the filter if they appear to be heavily
soiled.(Ref. E-8,E-9
• Clicking or ticking sound may be audible when the unit
is generating ions.
•Check to see if the lter are heavily soiled.
Replace the lter.
•Plasmacluster Air Purifiers emit small traces of ozone
which may produce an odor. These ozone emissions
are well below safety levels.
•Check to see if the SLEEP mode is selected.
The Plasmacluster Ion Indicator Light is turned off
3 seconds after the SLEEP mode is selected.
•Check to see if the Plasmacluster Ion OFF is selected.
Press
•Check to see if the Light Control is selected.
Press
)
to light on.
for 3 seconds to light on.
E-10
SPECIFICATIONS
Power supply220-240V 50-60Hz
Fan
Speed
Operation
Recommended Room Size~21m
High density Plasmacluster ion recommended room size
Cord Length2.0m
Dimensions400mm(W)x182mm(D)x463mm(H)
Weight4.0kg
*1 Size of a room which is appropriate for operating the unit at maximum fan speed.
• It indicates the space where a certain amount of dust particles can be removed in 30 minutes(-
JEM1467).
*2 Size of a room in which approximately 7000 ions can be measured per cubic centimeter in the
center of the room (at a height of approximately 1.2 meters from the oor) when the product is
placed next to a wall and run at the MED operation position.
Fan Speed AdjustmentMAXMEDSLEEP
Rated Power51W30W13W
Fan Speed180m
3
/hour120m3/hour60m3/hour
2 *1
2 *2
~16m
Standby Power
In order to operate the electrical circuits while the power plug is inserted in the
wall outlet, th
For energy saving, unplug the power cord when the unit is not in use.
is product consumes about 1.0W of standby power.
E-11
FOR CUSTOMER ASSISTANCE
North Ryde NSW 2113
FOR CUSTOMERASSISTANCE
FOR LOCATIONENQUIRIESWITHIN
NEWZEALAND
REGARDING YOURLOCAL
SHARP CORPORATION OFNEW ZEALAND LIMITED
VISIT OUR WEBSITE AT
SHARP CUSTOMER SERVICES
TELEPHONE: 09573 0111
FACSIMILE: 095730113
SPform019(AUGUST 2011)
SHARP APPROVEDSERVICE CENTRE
www.sharp.net.nz
CONTACT YOUR SELLING DEALER/RETAILER
ORCALL
FOR LOCATIONENQUIRIES WITHIN
AUSTRALIA
REGARDING YOURLOCAL
SHARP APPROVED SERVICE CENTRE
VISIT OUR WEBSITE AT
www.sharp.net.au
ORCALLSHARP CUSTOMER CARE
1300 135 022
SHARP CORPORATION OFAUSTRALIAPTY LTD
(LOCALCALL COSTS APPLY WITHINAUSTRALIA)
WARRANTY
Consumer Electronic Products
Congratulations on Your Purchase!
This Sharp product is warranted against faults in material and manufacture for the
period as stated in the table below.
If service is required during the warranty period, please contact your nearest Sharp
Approved Service Centre. These repairs would be carried out at no charge to the
owner, subject to the conditions specified herein.
This warranty does not extend to defects or injuries caused by or resulting from causes
not attributable to faulty parts or the manufacture of the product, including but not
limited to, defect or injury caused by or resulting from misuse, abuse, neglect, lack of
maintenance, accidental damage, improper voltage, liquid spillage, vermin infestation,
software, or any alterations made to the product which are not authorised by Sharp.
Please retain your sales documentation, as this should be produced to validate a
warranty claim. This warranty is in addition to and in no way limits, varies or excludes
any implied rights and remedies under any relevant legislation in the country of sale.
This warranty does not cover transportation to and from the Sharp Approved Service
Centre. Goods presented for repair may be replaced by refurbished goods of the same
type rather than being repaired. Refurbished parts may be used to repair the goods.
The repair of your goods may result in the loss of user generated data, please ensure
that you have saved this data elsewhere prior to repair.
Australian customers: Our goods come with guarantees that cannot be excluded
under the Australian Consumer Law. You are entitled to a replacement or refund
for a major failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired or replaced
if the goods fail to be of acceptable quality and the failure does not amount
to a major failure. The criteria of a major failure is defined in the Australian
Consumer Law. Should you require any assistance with a major failure please
contact Sharp Customer Care.
WARRANTY PERIODS
Home Theatre Projector12 months
Audio/Home Theatre12 months
Microwave Oven12 months
Steam Oven12 months
Refrigerator24 months
DVD/Blu-ray12 months
Air Conditioner60 months
Portable Air Conditioner12 months
LCD Television36 months
Air Purifier12 months
(excluding lamps and air filters)
SHARP CORPORATION OF
AUSTRALIA PTY. LIMITED
ABN 40 003 039 405
2 Julius Avenue
SHARP CORPORATION OF
NEW ZEALAND LIMITED
59 Hugo Johnston Drive
Penrose, Auckland
SPform 040 (AUGUST 2011)
IMPORTANT NOTICE: This warranty applies only to products sold in Australia&New Zealand
E-12
FOR CUSTOMER ASSISTANCE
FOR LOCATION ENQUIRIES WITHIN
AUSTRALIA
REGARDING YOUR LOCAL
SHARP APPROVED SERVICE CENTRE
VISIT OUR WEBSITE AT
www.sharp.net.au
OR CALL SHARP CUSTOMER CARE
1300 135 022
(LOCAL CALL COSTS APPLY WITHIN AUSTRALIA)
SHARP CORPORATION OF AUSTRALIA PTY LTD
FOR LOCATION ENQUIRIES WITHIN
NEW ZEALAND
REGARDING YOUR LOCAL
SHARP APPROVED SERVICE CENTRE
VISIT OUR WEBSITE AT
www.sharp.net.nz
CONTACT YOUR SELLING DEALER/RETAILER
OR CALL
SHARP CUSTOMER SERVICES
TELEPHONE: 09 573 0111
FACSIMILE: 09 573 0113
SHARP CORPORATION OF NEW ZEALAND LIMITED
SPform019(AUGUST 2011)
E-13
SHARP CORPORATION OF AUSTRALIA PTY.LTD.
A. B. N. 40 003 039 405
2 JULIUS AVENUE, NORTH RYDE, N.S.W. 2113
P.O.BOX 84, MACQUARIE PARK. N.S.W 2113
SHARP CORPORATION OF NEW ZEALAND LIMITED
59 HUGO JOHNSTON DRIVE PENROSE, AUCKLAND
Printed in Thailand
TINS-B010KKRZ 17B- 1
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
