Characteristics:
www.self-ecg.com
Standards:
Product description：

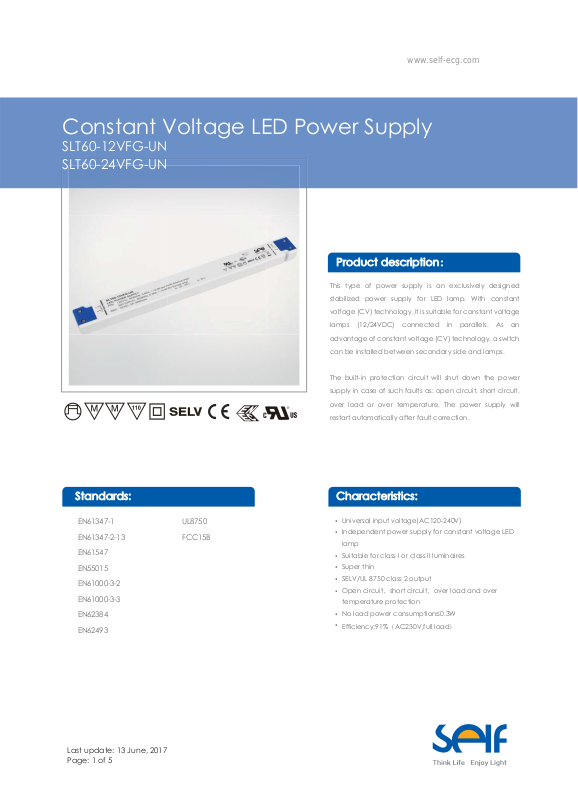

Constant Voltage LED Power Supply
SLT60-12VFG-UN
SLT60-24VFG-UN
Product description
This type of power supply is an exclusively designed
stabilized power supply for LED lamp. With constant
voltage (CV) technology, it is suitable for constant voltage
lamps (12/24VDC) connected in parallels. As an
advantage of constant voltage (CV) technology, a switch
can be installed between secondary side and lamps.
Standards:
EN61347-1
EN61347-2-13
EN61547
EN55015
EN61000-3-2
EN61000-3-3
EN62384
EN62493
UL8750
FCC15B
The built-in protection circuit will shut down the power
supply in case of such faults as: open circuit, short circuit,
over load or over temperature. The power supply will
restart automatically after fault correction.
Characteristics:
•
Universal input voltage(AC120-240V)
•
Independent power supply for constant voltage LED
lamp
•
Suitable for class I or class II luminaires
•
Super thin
•
SELV/UL 8750 class 2 output
•
Open circuit，short circuit，over load and over
temperature protection
•
No load power consumption≤0.3W
•
Efficiency:91%（AC230V,full load）
Last update: 13 June, 2017
Page: 1 of 5
Input
Other
Note
Ambient
and Life
Protection
Output
Model
Specifications
Specifications：
turn on time(S)
output power(W)
output votage(V)
output voltage tolerance
ripple voltage(mV)
working current range(A)
dimming interface
dimming range
rated supply voltage(Vac)
voltage range(Vac)
line frequency(Hz)
input current(mA)
efficiency
average efficiency
no load power consumption(W)
power factor
inrush current(Ipk)
over voltage protection
short circuit protection
over temperature protection
automatic restart
over load protection
surge capacity
Ta(℃) )
Tc max.(℃) )
Storage Temperature(℃) )
ambient humidity range
nominal life-time(hrs)
weight(g)
dimensions (L×W×H)(mm)
casing material
housing colour
type of protection
protection class
SLT60-12VFG
-UN
SLT60-24VFG-UN
www.self-ecg.com
In
turn on time(S)
output power(W)
output votage(V)
output voltage tolerance
ripple voltage(mV)
working current range(A)
dimming interface
dimming range
rated supply voltage(Vac)
voltage range(Vac)
line frequency(Hz)
input current(mA)
efficiency
average efficiency
no load power consumption(W)
power factor
inrush current(Ipk)
over voltage protection
short circuit protection
over temperature protection
automatic restart
over load protection
surge capacity
Ta(
Tc max.(
Storage Temperature(
ambient humidity range
nominal life-time(hrs)
weight(g)
dimensions (L×W×H)(mm)
casing material
housing colour
type of protection
protection class
2
2
1
3
SLT60-12VFG
≤0.5
60
12
+/-5%
230(Vp-p)
0-5
120-240
108-264
50/60
700
91.1%
89%
≤0.3
0.95
46A/180us
YES
YES
YES
YES
YES
L-N:1kV
-20…45
90
162
-UN
No
n/a
-30...80
5%...85%，Not condensing
50000@Tc=90℃
298x29.8x16
Plastic
Grey+Blue
IP20
Class2
SLT60-24VFG-UN
≤0.5
60
24
+/-5%
200(Vp-p)
0-2.5
120-240
108-264
50/60
700
91.6%
89%
≤0.3
0.95
46A/180us
YES
YES
YES
YES
YES
L-N:1kV
-20…45
90
162
1. Tolerance:includes set up tolerance, line regulation and load regulation.
2. Tested at full load,230Vac.Refer to"Power Factor" and "EFFICIENT"curve graphs.
Note
3. Calculate the model’s average efficiency for each test voltage by testing at 100%, 75%, 50%, and 25% of
rated current and then computing the simple arithmetic erage of these four values.
4. All parameters NOT specially mentioned are measured at nominal voltage input, rated load and 25 of
ambient temperature.
5. The power supply is considered as a component that will be operated in combination with final equipment.
Since EMC performance will be affected by the complete installation, the final equipment manufacturers must
re-qualify EMC Directive on the complete installation again.
Last update: 13 June, 2017
Page: 2 of 5
Wiring diagram:
Dimensions(mm):
Dimensions(mm):
www.self-ecg.com
298
262
29.8
16
Wiring diagram:
23
N
120-240VAC
50/60Hz
L
Last update: 13 June, 2017
Page: 3 of 5
PRI
LED POWER SUPPLY
wire preparation
0.75-1.0
SEC
7-8mm
Electrical curves:
Electrical curves:
70
75
80
85
90
95
10.00%
20.00%
30.00%
40.00%
50.00%
60.00%
70.00%
80.00%
90.00%
100.00%
EFFICIENCY（%）
LOAD
EFFICIENCY vs L OAD (120Vac)
12V
24V
0.7
0.75
0.8
0.85
0.9
0.95
1
1.05
10.00%
20.00%
30.00%
40.00%
50.00%
60.00%
70.00%
80.00%
90.00%
100.00%
PF
LOAD
PF vs LOAD(120Vac)
12V
24V
80
82
84
86
88
90
92
94
10.00%
20.00%
30.00%
40.00%
50.00%
60.00%
70.00%
80.00%
90.00%
100.00%
EFFICIENCY
LOAD
EFFICIENCY vs L OAD (230Vac)
12V
24V
0.7
0.75
0.8
0.85
0.9
0.95
1
10.00%
20.00%
30.00%
40.00%
50.00%
60.00%
70.00%
80.00%
90.00%
100.00%
PF
LOAD
PF vs LOAD(230Vac)
12V
24V
www.self-ecg.com
（%）
note
For constant current power supply,"LOAD" means the percentage of the maximum rated output voltage.
For constant voltage power supply,"LOAD" means the percentage of the maximum rated output current.
Last update: 13 June, 2017
Page: 4 of 5
Sales & Technical Support:
Sales & Technical Support:
Se lf Electr onics Co. ,Ltd .
SE LF ELECTR ONICS GER MANY G MBH
Se lf Electr onics Co. ,Ltd .,Shenz hen Offic e
Self Electronics Co.,Ltd.
Add: No. 1345 Ju Xian Road, Ningbo Hi Tech Park, Ningbo,
China
Tel: 0086-574-28805765,28805658(For English Assistance)
0086-574-28805678 (For Chinese Assistance)
Fax: 0086-574-28805656
E-mail: sales@self-ecg.com
http://www.self-ecg.com
SELF ELECTRONICS GERMANY GMBH
Add:August-Horch-Str. 7,51149 Koeln
Tel: 0049 2203 18501-0
Fax: 0049 2203 18501-199
E-mail: saleseu@self-electronics.com
www.self-ecg.com
Self Electronics Co.,Ltd.,Shenzhen Office
Add: Room2007,Xinglang Xuan,Xinghe Mingju,Fuming
Road,Futian District,Shenzhen
Tel: 0086-755-83558850, 83558851
Fax: 0086-755-83558840
*Due to continuous improvements and innovations,specifications
are subjected to change without notice.
Last update: 13 June, 2017
Page: 5 of 5
