Page 1
Characteristics:
www.self-ecg.com
Standards:
Product description：
Constant Voltage LED Power Supply
Product description
This type of power supply is an exclusively designed
stabilized power supply for LED lamp. With constant
voltage (CV) technology, it is suitable for constant voltage
lamps (12/24VDC) connected in parallels. As an advan-
tage of constant voltage (CV) technology, a switch can
be installed between secondary side and lamps.
Standards:
EN61347-1
EN61347-2-13
EN61547
EN55015
EN61000-3-2
EN61000-3-3
EN62384
EN62493
The built-in protection circuit will shut down the power
supply in case of such faults as: open circuit, short circuit,
over load or over temperature. The power supply will
restart automatically after fault correction.
Characteristics:
•
Independent power supply for constant voltage LED
lamp
•
Class II protection against electric shock from direct
and indirect contact
•
Super thin
•
SELV outputn
•
Open circuit，short circuit，over load and over
temperature protection
•
Auto restart after fault conditions removal
•
No load power consumption≤0.3W
•
Efficiency:84%（AC230V,full load）
Last update: 09 Sep, 2014
Page: 1 of 5
Page 2
Input
Other
Note
Ambient
and Life
Protection
Output
Model
Specifications
Specifications：
turn on time(S)
output power(W)
output votage(V)
output voltage tolerance
ripple voltage(mV)
working current range(A)
dimming interface
dimming range
rated supply voltage(Vac)
voltage range(Vac)
line frequency(Hz)
input current(mA)
efficiency
average efficiency
no load power consumption(W)
power factor
inrush current(Ipk)
over voltage protection
short circuit protection
over temperature protection
automatic restart
over load protection
surge capacity
Ta(℃) )
Tc max.(℃) )
Storage Temperature(℃) )
ambient humidity range
nominal life-time(hrs)
weight(g)
dimensions (L×W×H)(mm)
casing material
housing colour
type of protection
protection class
SLT30-12VFG
SLT30-24VFG
www.self-ecg.com
In
turn on time(S)
output power(W)
output votage(V)
output voltage tolerance
ripple voltage(mV)
working current range(A)
dimming interface
dimming range
rated supply voltage(Vac)
voltage range(Vac)
line frequency(Hz)
input current(mA)
efficiency
average efficiency
no load power consumption(W)
power factor
inrush current(Ipk)
over voltage protection
short circuit protection
over temperature protection
automatic restart
over load protection
surge capacity
Ta(
Tc max.(
Storage Temperature(
ambient humidity range
nominal life-time(hrs)
weight(g)
dimensions (L×W×H)(mm)
casing material
housing colour
type of protection
protection class
2
2
1
3
SLT30-12VFG
≤0.5
30
12
+/-5%
90(Vp-p)
0-2.5
220-240
198-264
50/60
160
83.5%
79.5%
≤0.5
0.95
18A/180us
YES
YES
YES
YES
YES
L-N: 500V
-20…40
85
135
No
n/a
-30...80
5%...85%，Not condensing
35’000@Tc=85℃
246x30x16
Plastic
White+Blue
IP20
Class2
SLT30-24VFG
≤0.5
30
24
+/-5%
100(Vp-p)
0-1.25
220-240
198-264
50/60
160
84.5%
80.0%
≤0.5
0.95
18A/180us
YES
YES
YES
YES
YES
L-N: 500V
-20…40
85
125
1. Tolerance:includes set up tolerance, line regulation and load regulation.
2. Tested at full load,230Vac.Refer to"Power Factor" and "EFFICIENT"curve graphs.
Note
3. Calculate the model’s average efficiency for each test voltage by testing at 100%, 75%, 50%, and 25% of
rated current and then computing the simple arithmetic erage of these four values.
4. All parameters NOT specially mentioned are measured at nominal voltage input, rated load and 25 of
ambient temperature.
5. The power supply is considered as a component that will be operated in combination with final equipment.
Since EMC performance will be affected by the complete installation, the final equipment manufacturers must
re-qualify EMC Directive on the complete installation again.
Last update: 09 Sep, 2014
Page: 2 of 5
Page 3

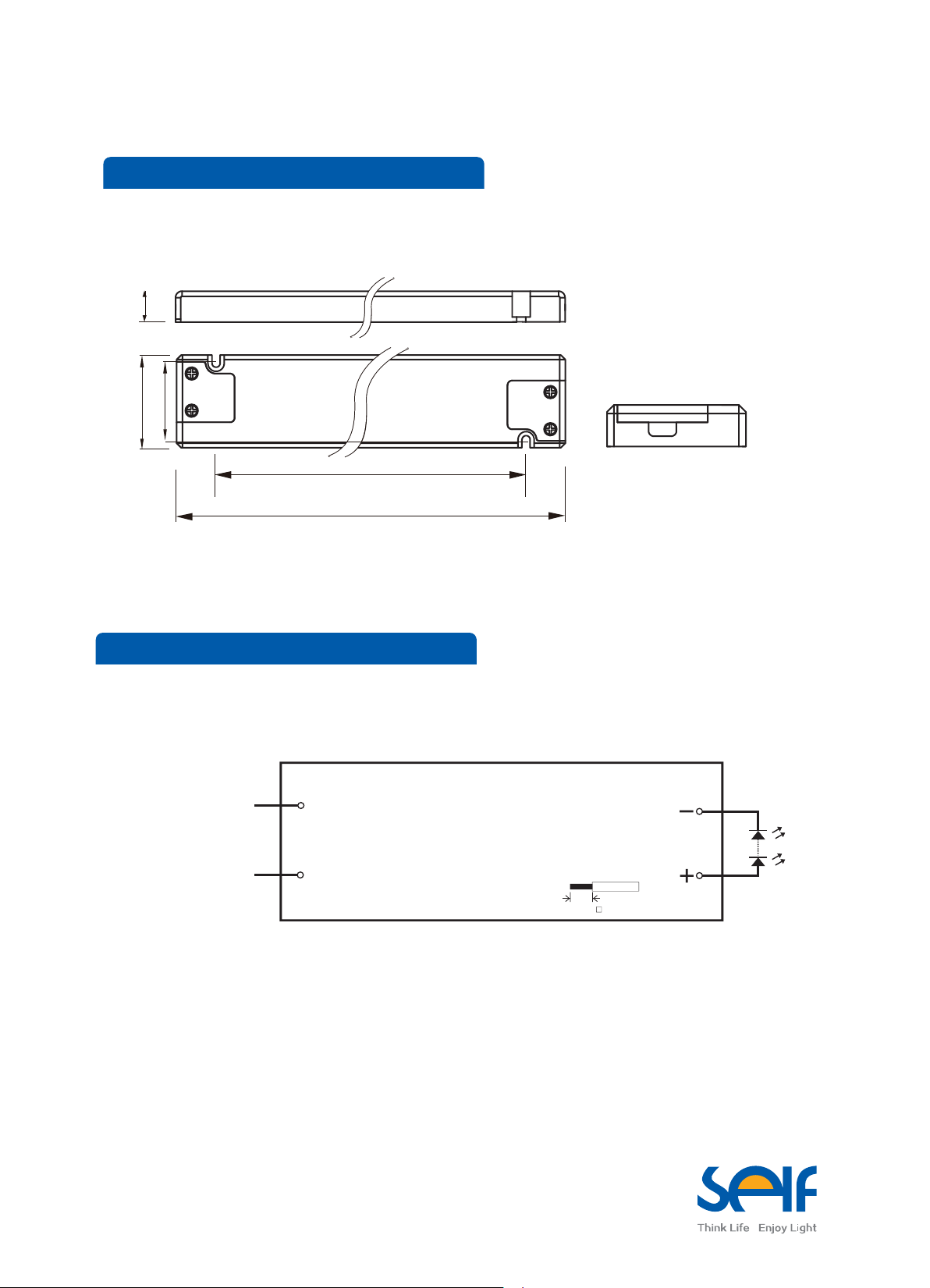

Wiring diagram:
Dimensions(mm):
Dimensions(mm):
16
23
30
www.self-ecg.com
210
246
Wiring diagram:
220-240V
AC
50/60Hz
N
L
PRI
LED POWER SUPPLY
wire preparation
0.5-0.75
SEC
7-8mm
Last update: 09 Sep, 2014
Page: 3 of 5
Page 4
Electrical curves:
Electrical curves:
PF
LOAD
PF vs LOAD(
230Vac)
EFFICIENCY(%)
EFFICIENCY vs LOAD(
230Vac)
www.self-ecg.com
1.05
0.95
230
0.85
0.75
30% 40% 50% 60% 70% 80% 90% 100%
85
80
75
230
12
24
12
24
70
30% 40% 50% 60% 70% 80% 90% 100%
note
For constant current power supply,"LOAD" means the percentage of the maximum rated output voltage.
For constant voltage power supply,"LOAD" means the percentage of the maximum rated output current.
LOAD
Last update: 09 Sep, 2014
Page: 4 of 5
Page 5
Sales & Technical Support:
Sales & Technical Support:
Se lf Electr onics Co. ,Ltd .
SE LF ELECTR ONICS FRA NCE BR ANCH OFFI CE
SE LF ELECTR ONICS GER MANY G MBH
Se lf Electr onics Co. ,Ltd .,Shenz hen Offic e
Self Electronics Co.,Ltd.
Add: No. 1345 Ju Xian Road, Ningbo Hi Tech Park, Ningbo,
China
Tel: 0086-574-28805765,28805658(For English Assistance)
0086-574-28805678 (For Chinese Assistance)
Fax: 0086-574-28805656
E-mail: [email protected]
http://www.self-ecg.com
SELF ELECTRONICS FRANCE BRANCH OFFICE
www.self-ecg.com
Self Electronics Co.,Ltd.,Shenzhen Office
Add: Room2007,Xinglang Xuan,Xinghe Mingju,Fuming
Road,Futian District,Shenzhen
Tel: 0086-755-83558850, 83558851
Fax: 0086-755-83558840
SELF ELECTRONICS GERMANY GMBH
Add:12-14 rue Raymond Ridel, 92250 La Garennes Colombes
Tel: 0033 (0)1 72 42 71 57
E-mail: [email protected]
Add:August-Horch-Str. 7,51149 Koeln
Tel: 0049 2203 18501-0
Fax: 0049 2203 18501-199
E-mail: [email protected]
*Due to continuous improvements and innovations,specifications
are subjected to change without notice.
Last update: 09 Sep, 2014
Page: 5 of 5
