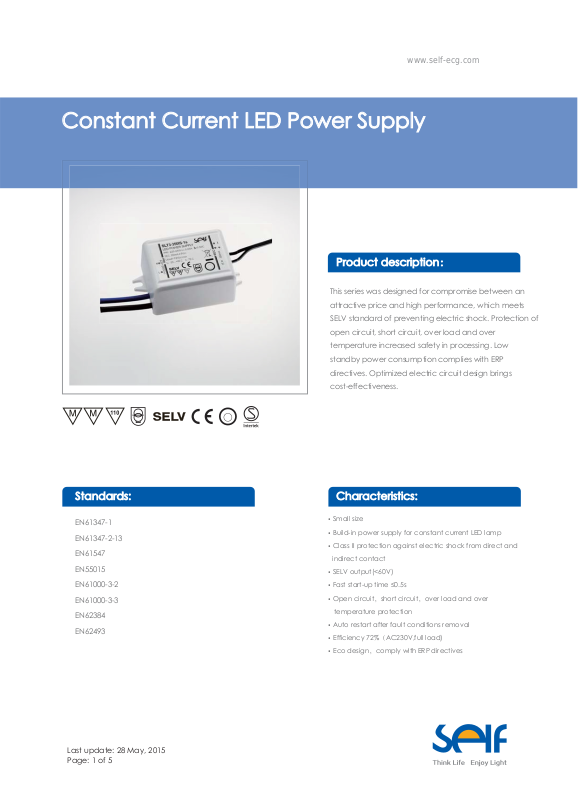

SELF SLF SLT3-350IS-1 Datasheet

Characteristics:

www.self-ecg.com

Standards:

Product description：

Constant Current LED Power Supply

Constant Current LED Power Supply

Product description

This series was designed for compromise between an

attractive price and high performance, which meets

SELV standard of preventing electric shock. Protection of

open circuit, short circuit, over load and over

temperature increased safety in processing. Low

standby power consumption complies with ERP

directives. Optimized electric circuit design brings

cost-effectiveness.

Standards:

EN61347-1

EN61347-2-13

EN61547

EN55015

EN61000-3-2

EN61000-3-3

EN62384

EN62493

Last update: 28 May, 2015
Page: 1 of 5

Characteristics:

• Small size

• Build-in power supply for constant current LED lamp

• Class II protection against electric shock from direct and

indirect contact

• SELV output(<60V)

• Fast start-up time ≤0.5s

• Open circuit，short circuit，over load and over

temperature protection

• Auto restart after fault conditions removal

• Efficiency 72%（AC230V,full load)

• Eco design，comply with ERP directives

SLT3-700IS-1s

Specifications

Specifications：

Input

Other

Note

Ambient
and Life

Protection

Output

Model

turn on time(S)

output current(mA)

output current tolerance

ripple current(mA)

working voltage range(V)

Max. output voltage(V)

dimming interface

dimming range

rated supply voltage(Vac)

voltage range(Vac)

line frequency(Hz)

input current(mA)

efficiency

power factor

inrush current(Ipk)

over voltage protection

short circuit protection

over temperature protection

automatic restart

over load protection

surge capacity

Ta(℃) )

Tc max. (℃) )

Storage Temperature(℃) )

ambient humidity range

nominal life-time(hrs)

weight(g)

dimensions (L×W×H)(mm)

casing material

housing colour

type of protection

protection class

SLT3-350IS-1s

www.self-ecg.com

In

Note

SLT3-350IS-1s

turn on time(S)

output current(mA)

output current tolerance

ripple current(mA)

working voltage range(V)

Max. output voltage(V)

dimming interface

dimming range

rated supply voltage(Vac)

voltage range(Vac)

line frequency(Hz)

input current(mA)

efficiency

power factor

inrush current(Ipk)

over voltage protection

short circuit protection

over temperature protection

automatic restart

over load protection

surge capacity

Ta(

Tc max. (

Storage Temperature(

ambient humidity range

nominal life-time(hrs)

weight(g)

dimensions (L×W×H)(mm)

casing material

housing colour

type of protection

protection class

1. Tolerance : includes set up tolerance, line regulation and load regulation.

2. Tested at full load,230Vac.Refer to"Power Factor" and "EFFICIENT"curve graphs.

3. All parameters NOT specially mentioned are measured at nominal voltage input, rated load,
25 of ambient temperature and no dimmer.

4. The power supply is considered as a component that will be operated in combination with final equipment. Since
EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify
EMC Directive on the complete installation again.

3

3

1

2

≤0.5

350

+/-8%

100(Ip-p)

4-9

12

No

n/a

220-240

198-264

50/60

50

72.0%

0.50

18A/35us

YES

YES

YES

YES

YES

L-N: 500V

-20…45

75

-30…80

5%...85%RH，Not condensing

30'000@Tc=70℃

30

50×30×20

Plastic

White

IP20

CLASS II

SLT3-700IS-1s

≤0.5

700

+/-8%

200(Ip-p)

2-4.2

6

220-240

198-264

50/60

50

67.0%

0.50

18A/35us

YES

YES

YES

YES

YES

L-N: 500V

-20…45

85

30'000@Tc=85℃

Last update: 28 May, 2015
Page: 2 of 5

Dimensions(mm/inches):

Dimensions(mm/inches):

Wiring diagram:

43

39

www.self-ecg.com

20

30

Wiring diagram:

Blue

Brown

LED POWER SUPPLY

N

220-240VAC
50/60Hz

L

Black

White

Last update: 28 May, 2015
Page: 3 of 5

Electrical curves:

Electrical curves:

50%

60%

70%80%

90%

100%

PF vs LOAD(230Vac)

50%

60%

70%

80%

90%

100%

EFFICIENCY vs LOAD(230Vac)

350mA

700mA

0.60

0.55

0.50

0.45

0.40

PF

0.35

0.30

0.25

0.20

0.15

0.10

LOAD

www.self-ecg.com

350mA
700mA

95

90

85

80

75

70

65

60

55

EFFICIENCY(%)

50

45

40

35

30

LOAD

note
For constant current power supply,"LOAD" means the percentage of the maximum rated output voltage.
For constant voltage power supply,"LOAD" means the percentage of the maximum rated output current.

Last update: 28 May, 2015
Page: 4 of 5

Sales & Technical Support:

Sales & Technical Support:

Se lf Electr onics Co. ,Ltd .

SE LF ELECTR ONICS GER MANY G MBH

Se lf Electr onics Co. ,Ltd .,S henz hen Offic e

Self Electronics Co.,Ltd.

Add: No. 1345 Ju Xian Road, Ningbo Hi Tech Park, Ningbo,

China

Tel: [phone](For English Assistance)

0086-574-28805678 (For Chinese Assistance)

Fax: [phone]

E-mail: [email protected]

http://www.self-ecg.com

SELF ELECTRONICS GERMANY GMBH

Add:August-Horch-Str. 7,51149 Koeln

Tel: [phone]

Fax: [phone]-199

E-mail: [email protected]

www.self-ecg.com

Self Electronics Co.,Ltd.,Shenzhen Office

Add: Room2007,Xinglang Xuan,Xinghe Mingju,Fuming

Road,Futian District,Shenzhen

Tel: [phone]

Fax: [phone]

*Due to continuous improvements and innovations,specifications
are subjected to change without notice.
