Page 1
Characteristics:
Standards:
Product description：

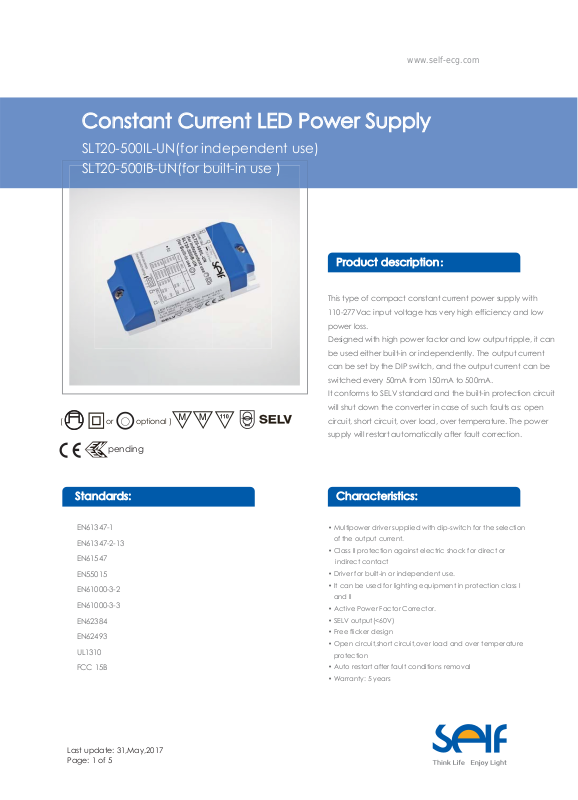

Constant Current LED Power Supply
Constant Current LED Power Supply
SLT20-500IL-UN(for independent use)
SLT20-500IB-UN(for built-in use )
Product description
This type of compact constant current power supply with
110-277Vac input voltage has very high efficiency and low
power loss.
Designed with high power factor and low output ripple, it can
be used either built-in or independently. The output current
can be set by the DIP switch, and the output current can be
switched every 50mA from 150mA to 500mA.
It conforms to SELV standard and the built-in protection circuit
will shut down the converter in case of such faults as: open
( or optional )
pending
circuit, short circuit, over load, over temperature. The power
supply will restart automatically after fault correction.
www.self-ecg.com
Standards:
EN61347-1
EN61347-2-13
EN61547
EN55015
EN61000-3-2
EN61000-3-3
EN62384
EN62493
UL1310
FCC 15B
Last update: 31,May,2017
Page: 1 of 5
Characteristics:
• Multipower driver supplied with dip-switch for the selection
of the output current.
• Class II protection against electric shock for direct or
indirect contact
• Driver for built-in or independent use.
• It can be used for lighting equipment in protection class I
and II
• Active Power Factor Corrector.
• SELV output(<60V)
• Free flicker design
• Open circuit,short circuit,over load and over temperature
protection
• Auto restart after fault conditions removal
• Warranty: 5 years
Page 2
Specifications
Specifications：
Input
Other
Note
Ambient
and Life
Protection
Output
Model
turn on time(S)
output current(mA)
output current tolerance
ripple current(%)
working voltage range(V)
output power range(W)
Max. output voltage(V)
output safety rating
dimming interface
dimming range
rated supply voltage(Vac)
voltage range(Vac)
line frequency(Hz)
input current(mA)
input power(W)
input over voltage protection
short circuit protection
over temperature protection
automatic restart
over load protection
surge capacity
Ta(℃)
Tc max. (℃)
nominal life-time(hrs)
guarantee(years)
MTBF(hrs)
Storage Temperature(℃)
ambient humidity range
audible noise(dB)
weight(g)
dimensions (L×W×H)(mm)
casing material
housing colour
connecting method
type of protection
protection class
efficiency
power factor
THD
inrush current(Ipk)
SLT20-500IB-UN(for build-in use ) SLT20-500IL-UN(for independent use)
www.self-ecg.com
In
Note
SLT20-500IB-UN(for build-in use) SLT20-500IL-UN(for independent use)
turn on time(S)
output current(mA)
output current tolerance
ripple current(%)
working voltage range(V)
output power range(W)
Max. output voltage(V)
output safety rating
dimming interface
dimming range
rated supply voltage(Vac)
voltage range(Vac)
line frequency(Hz)
input current(mA)
input power(W)
efficiency
power factor
1
THD
inrush current(Ipk)
input over voltage protection
short circuit protection
over temperature protection
automatic restart
over load protection
surge capacity
Ta(
Tc max. (
nominal life-time(hrs)
guarantee(years)
MTBF(hrs)
Storage Temperature(
ambient humidity range
audible noise(dB)
weight(g)
dimensions (L×W×H)(mm)
casing material
housing colour
connecting method
type of protection
protection class
1
1
2
3
150/200/250/300/350/400/450/500
Max 42,Min 2V
no dim interface
110-277Vac
1
1
1
1
10A/10uS
50'000@Ta=50℃
5%...85%RH，Not condensing
24dBA tested@10cm
66.7x41x22/85.3x41x22
Grey+Blue
Terminal block
1. At 230Vac,50Hz,full load.
2. Tolerance:includes set up tolerance,line regulation and load regulation.
3. At 230Vac,50Hz,LED load,below 200Hz
≤0.5
+/-5%
5%
Max 20
48
SELV
n/a
108-305
50/60
Max 240
23.8
85%
0.90C
10%
-
yes
yes
yes
yes
L-N: 1KV
-20...+50
85
5
50'0000
-30...80
85
Plastic
IP20
CLASSII
Page: 2 of 5
Page 3

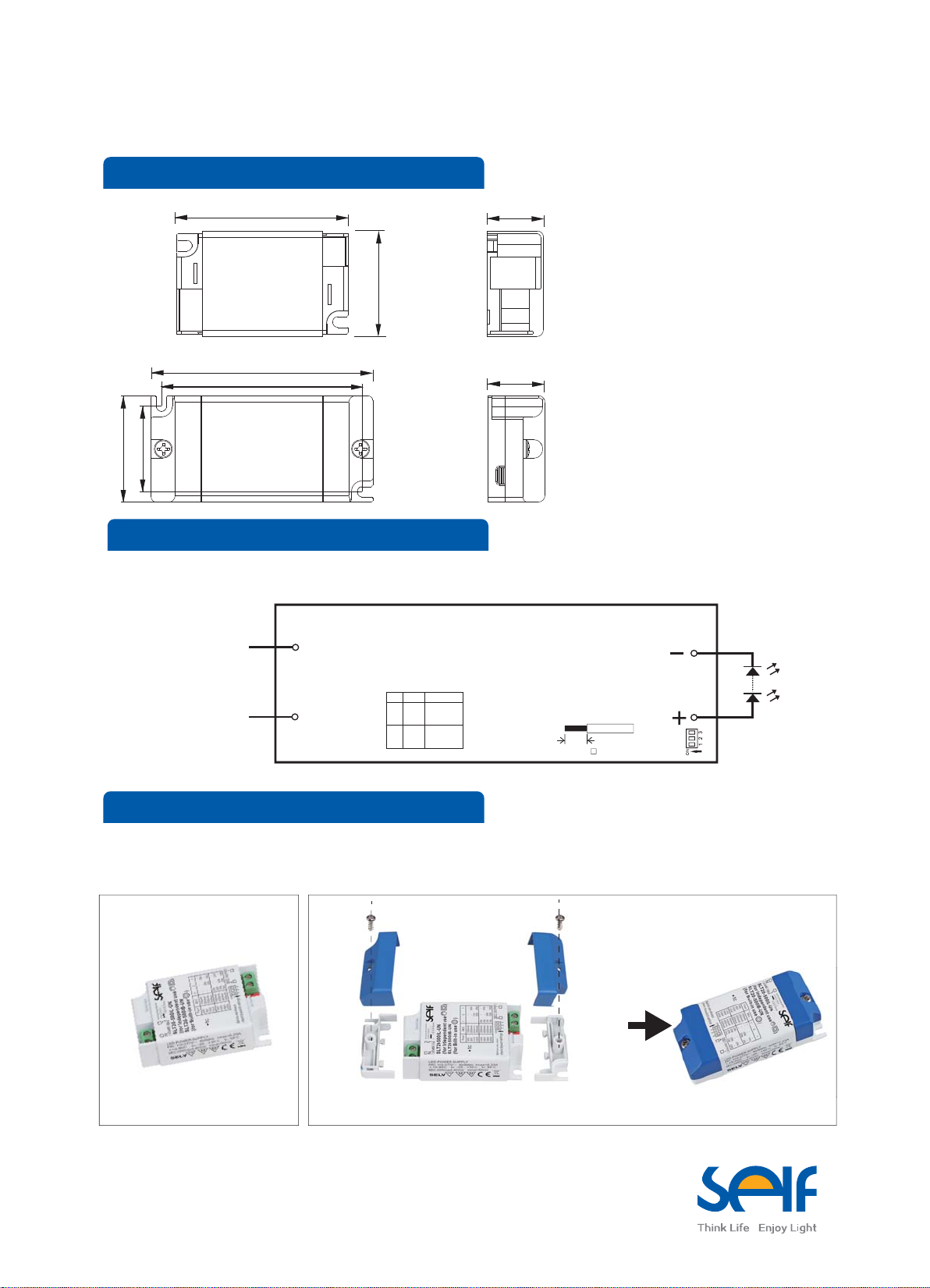

Dimensions(mm):
Dimensions(mm):
Wiring diagram:
Application:
www.self-ecg.com
41
33
Wiring diagram:
110-277VAC
50/60Hz
N
66.7
22
41
85.3
77.3
L
PRI
LED POWER SUPPLY
Pout
SEC
2 1
3
6W
150mA
- - -
8W
200mA
- - ON
10W
250mA
ON --
12W
300mA
- ON ON
14W
350mA
ON - -
16W
400mA
ON - ON
18W
450mA
ON -ON
20W
500mA
ON ON ON
22
SEC
wire preparation
7-8mm
0.5-0.75
Application:
Built-in application Independent application
Independent LED power supply accessorise
Page: 3 of 5
Page 4

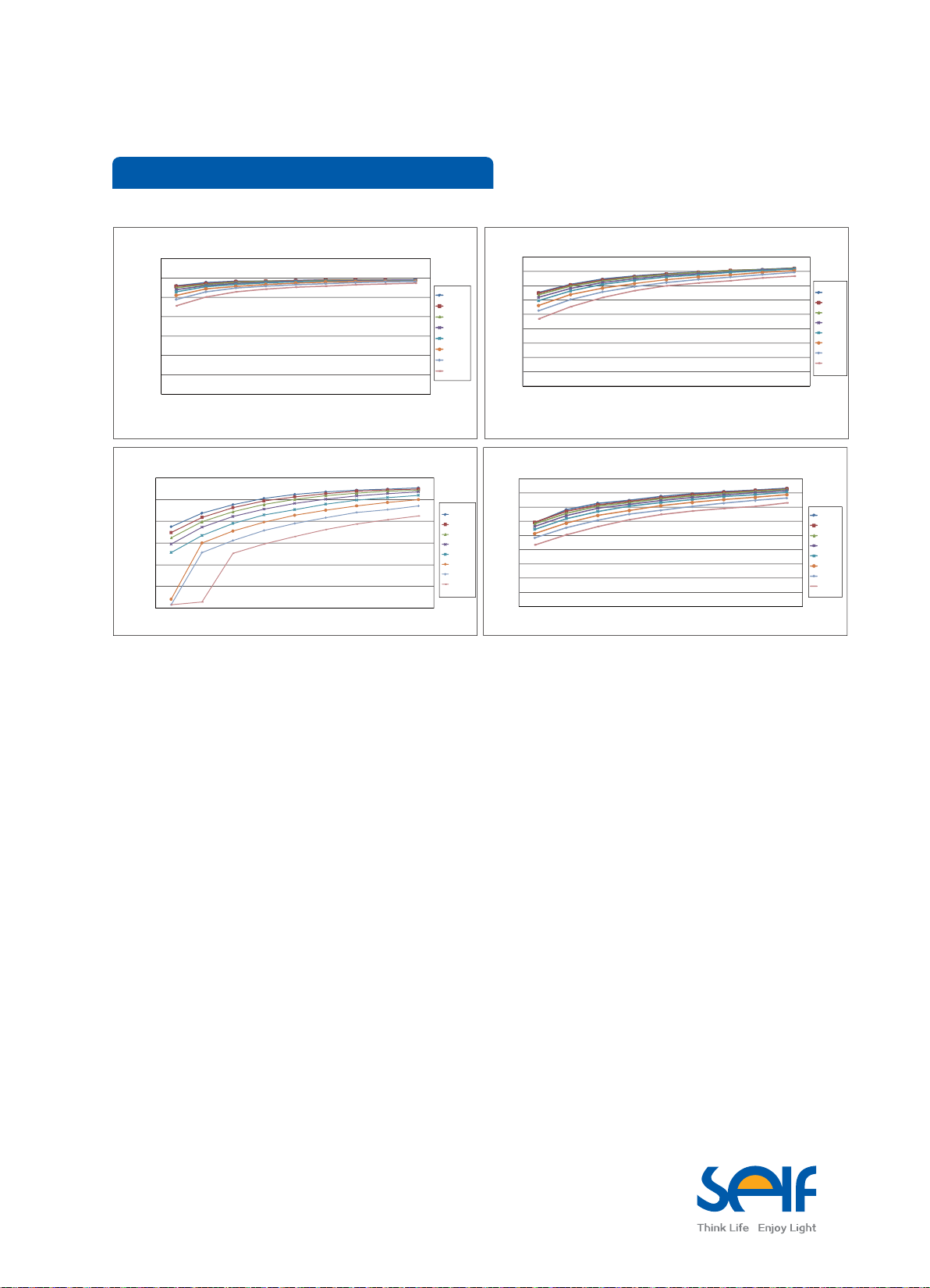

Electrical curves:
Electrical curves:
0.400
0.500
0.600
0.700
0.800
0.900
1.000
1.100
2030405060708090100
500mA
450mA
400mA
350mA
300mA
250mA
200mA
150mA
0.00
0.10
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
20
30
40
50
60
70
80
90
100
500mA
450mA
400mA
350mA
300mA
250mA
200mA
150mA
0.400
0.500
0.600
0.700
0.800
0.900
1.000
2030405060708090100
500mA
450mA
400mA
350mA
300mA
250mA
200mA
150mA
0.00
0.10
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
20
30
40
50
60
70
80
90
100
500mA
450mA
400mA
350mA
300mA
250mA
200mA
150mA
www.self-ecg.com
PF
PF
PF vs load[120Vac]
PF vs load[230Vac]
Efficiency vs load[120Vac]
Efficiency[%]
Efficiency vs load[230Vac]
Efficiency[%]
note
For constant current power supply,"LOAD" means the percentage of the maximum rated output voltage.
For constant voltage power supply,"LOAD" means the percentage of the maximum rated output current.
Page: 4 of 5
Page 5
Sales & Technical Support:
Sales & Technical Support:
Se lf Electr onics Co. ,Ltd .
SE LF ELECTR ONICS GER MANY G MBH
Se lf Electr onics Co. ,Ltd .,Shenz hen Offic e
Self Electronics Co.,Ltd.
Add: No. 1345 Ju Xian Road, Ningbo Hi Tech Park, Ningbo,
China
Tel: 0086-574-28805765,28805658(For English Assistance)
0086-574-28805678 (For Chinese Assistance)
Fax: 0086-574-28805656
E-mail: [email protected]
http://www.self-ecg.com
SELF ELECTRONICS GERMANY GMBH
Add:August-Horch-Str. 7,51149 Koeln
Tel: 0049 2203 18501-0
Fax: 0049 2203 18501-199
E-mail: [email protected]
www.self-ecg.com
Self Electronics Co.,Ltd.,Shenzhen Office
Add: Room2007,Xinglang Xuan,Xinghe Mingju,Fuming
Road,Futian District,Shenzhen
Tel: 0086-755-83558850, 83558851
Fax: 0086-755-83558840
*Due to continuous improvements and innovations,specifications
are subjected to change without notice.
Page: 5 of 5
