Characteristics:
www.self-ecg.com
Standards:
Product description：

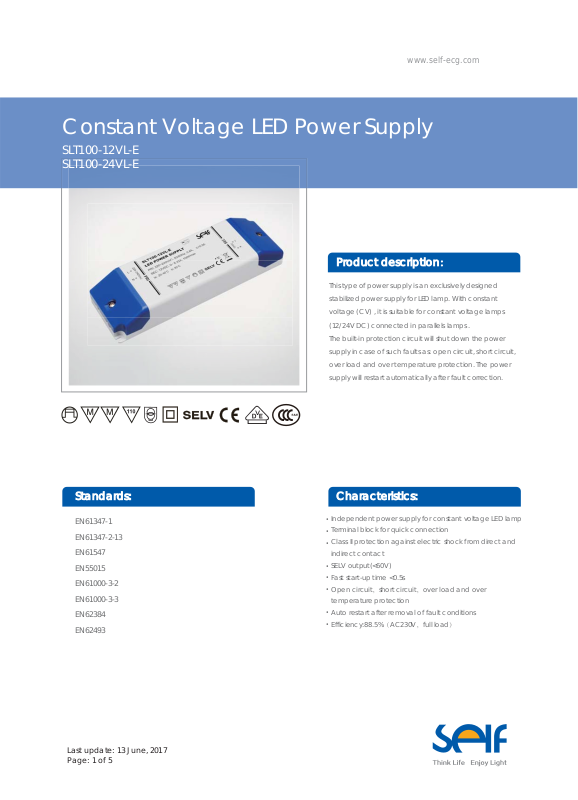

Constant Voltage LED Power Supply
SLT100-12VL-E
SLT100-24VL-E
Product description
This type of power supply is an exclusively designed
stabilized power supply for LED lamp. With constant
voltage (CV) , it is suitable for constant voltage lamps
(12/24V DC) connected in parallels lamps .
The built-in protection circuit will shut down the power
supply in case of such faults as: open circuit, short circuit,
over load and over temperature protection. The power
supply will restart automatically after fault correction.
Standards:
EN61347-1
EN61347-2-13
EN61547
EN55015
EN61000-3-2
EN61000-3-3
EN62384
EN62493
Last update: 13 June, 2017
Page: 1 of 5
Characteristics:
Independent power supply for constant voltage LED lamp
•
Terminal block for quick connection
•
Class II protection against electric shock from direct and
•
indirect contact
•
SELV output(<60V)
•
Fast start-up time <0.5s
•
Open circuit，short circuit，over load and over
temperature protection
•
Auto restart after removal of fault conditions
•
Efficiency:88.5%（AC230V，full load）
Page 2
Input
Other
Note
Ambient
and Life
Protection
Output
Model
Specifications
Specifications：
turn on time(S)
output power(W)
output votage(V)
output voltage tolerance
ripple voltage(mV)
working current range(A)
dimming interface
dimming range
rated supply voltage(Vac)
voltage range(Vac)
line frequency(Hz)
input current(mA)
efficiency
average efficiency
no load power consumption(W)
power factor
inrush current(Ipk)
over voltage protection
short circuit protection
over temperature protection
automatic restart
over load protection
surge capacity
Ta(℃) )
Tc max.(℃) )
Storage Temperature(℃) )
ambient humidity range
nominal life-time(hrs)
weight(g)
dimensions (L×W×H)(mm)
casing material
housing colour
type of protection
protection class
SLT100-24VL-E
SLT100-12VL-E
www.self-ecg.com
In
turn on time(S)
output power(W)
output votage(V)
output voltage tolerance
ripple voltage(mV)
working current range(A)
dimming interface
dimming range
rated supply voltage(Vac)
voltage range(Vac)
line frequency(Hz)
input current(mA)
efficiency
average efficiency
no load power consumption(W)
power factor
inrush current(Ipk)
over voltage protection
short circuit protection
over temperature protection
automatic restart
over load protection
surge capacity
Ta(
Tc max.(
Storage Temperature(
ambient humidity range
nominal life-time(hrs)
weight(g)
dimensions (L×W×H)(mm)
casing material
housing colour
type of protection
protection class
2
2
1
3
SLT100-12VL-E
<0.5
100
12
+/-5%
800(Vp-p)
0-8.33
220-240
198-264
50/60
600
88.5%
87.0%
<0.5
0.95
50A/360us
YES
YES
YES
YES
YES
L-N: 2kV
-20....40
80
40000@TC=80℃
No
n/a
-30...80
5%...85%，Not condensing
316
185×60×31
Plastic
White+Blue
IP20
ClassII
SLT100-24VL-E
<0.5
100
24
+/-5%
800(Vp-p)
0-4.17
220-240
198-264
50/60
600
91.7%
86.5%
<0.5
0.95
50A/180us
YES
YES
YES
YES
YES
L-N: 2kV
-20....40
80
50'000@Tc=80℃
1. Tolerance:includes set up tolerance, line regulation and load regulation.
2. Tested at full load,230Vac.Refer to""Power Factor"" and ""EFFICIENT""curve graphs.
Note
3. Calculate the model’s average efficiency for each test voltage by testing at 100%, 75%, 50%, and 25% of
rated current and then computing the simple arithmetic erage of these four values.
4. All parameters NOT specially mentioned are measured at nominal voltage input, rated load and 25 of
ambient temperature.
5. The power supply is considered as a component that will be operated in combination with final equipment.
Since EMC performance will be affected by the complete installation, the final equipment manufacturers must
re-qualify EMC Directive on the complete installation again.
Last update: 13 June, 2017
Page: 2 of 5
Page 3

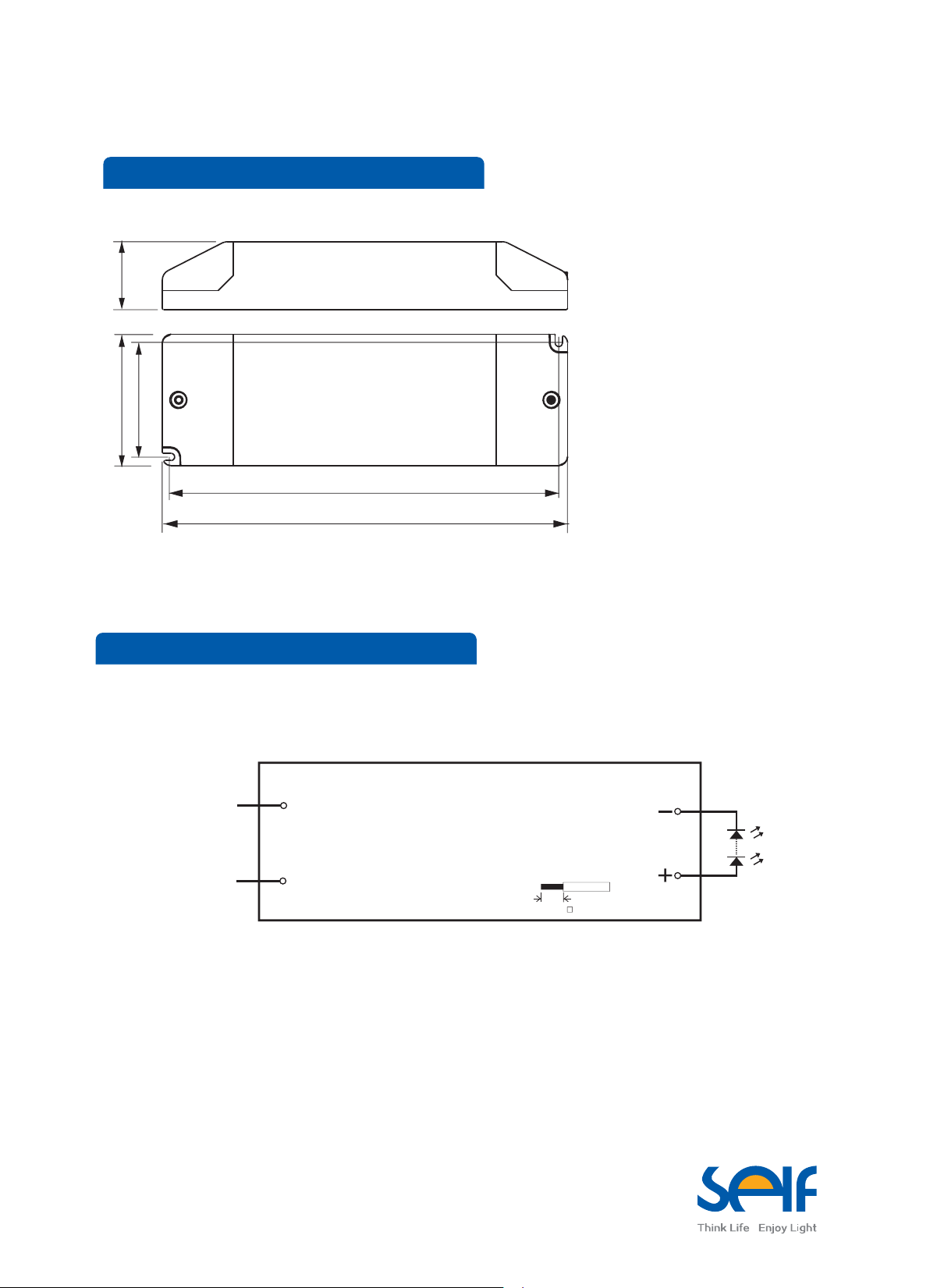

Wiring diagram:
Dimensions(mm):
Dimensions(mm):
31
51
60
www.self-ecg.com
177
185
Wiring diagram:
220-240V
50/60Hz
AC
L
N
PRI
LED POWER SUPPLY
wire preparation
7-8mm
0.75 -1.0
SEC
Last update: 13 June, 2017
Page: 3 of 5
Page 4

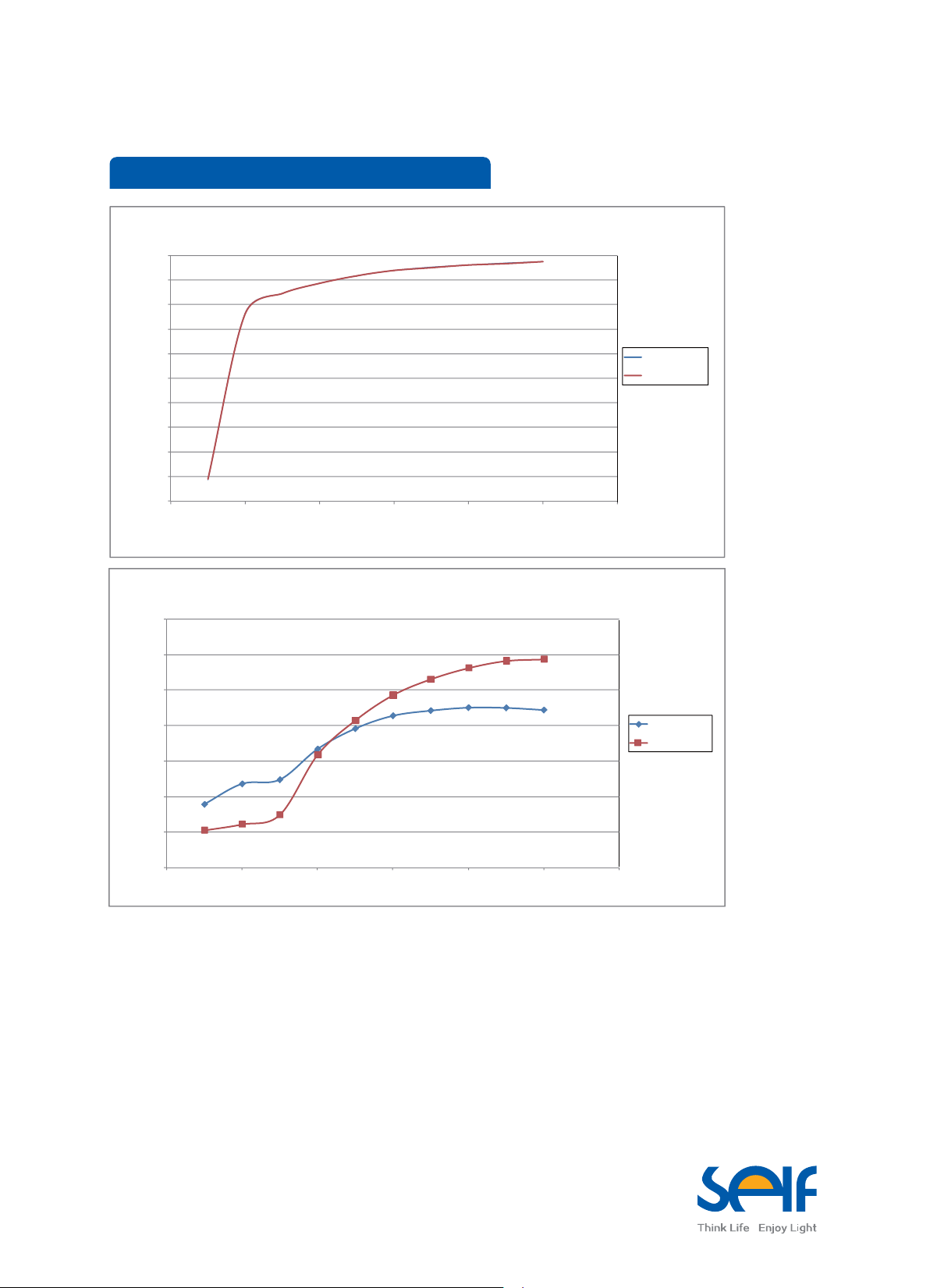

Electrical curves:
Electrical curves:
PF
PF
PF vs LOAD(230Vac)
EFFICIENCY vs LOAD(230Vac)
0.50
0.55
0.60
0.65
0.70
0.75
0.80
0.85
0.90
0.95
1.00
0 20% 40% 60% 80% 100% 120%
LOAD
0.80
0.82
0.84
0.86
0.88
0.90
0.92
0.94
0 20% 40% 60% 80% 100% 120%
www.self-ecg.com
SLT100-12VL-E
SLT100-24VL-E
EFFICIENCY
note
For constant current power supply,"LOAD" means the percentage of the maximum rated output voltage.
For constant voltage power supply,"LOAD" means the percentage of the maximum rated output current.
Last update: 13 June, 2017
Page: 4 of 5
SLT100-12VL-E
SLT100-24VL-E
Page 5
Sales & Technical Support:
Sales & Technical Support:
Self Electronics Co.,Ltd.
SELF ELECTRONICS GERMANY GMBH
Self Electronics Co.,Ltd.,Shenzhen Office
Self Electronics Co.,Ltd.
Add: No. 1345 Ju Xian Road, Ningbo Hi Tech Park, Ningbo,
China
Tel: 0086-574-28805765,28805658(For English Assistance)
0086-574-28805678 (For Chinese Assistance)
Fax: 0086-574-28805656
E-mail: [email protected]
http://www.self-ecg.com
SELF ELECTRONICS GERMANY GMBH
Add:August-Horch-Str. 7,51149 Koeln
Tel: 0049 2203 18501-0
Fax: 0049 2203 18501-199
E-mail: [email protected]
www.self-ecg.com
Self Electronics Co.,Ltd.,Shenzhen Office
Add: Room2007,Xinglang Xuan,Xinghe Mingju,Fuming
Road,Futian District,Shenzhen
Tel: 0086-755-83558850, 83558851
Fax: 0086-755-83558840
*Due to continuous improvements and innovations,specifications
are subjected to change without notice.
