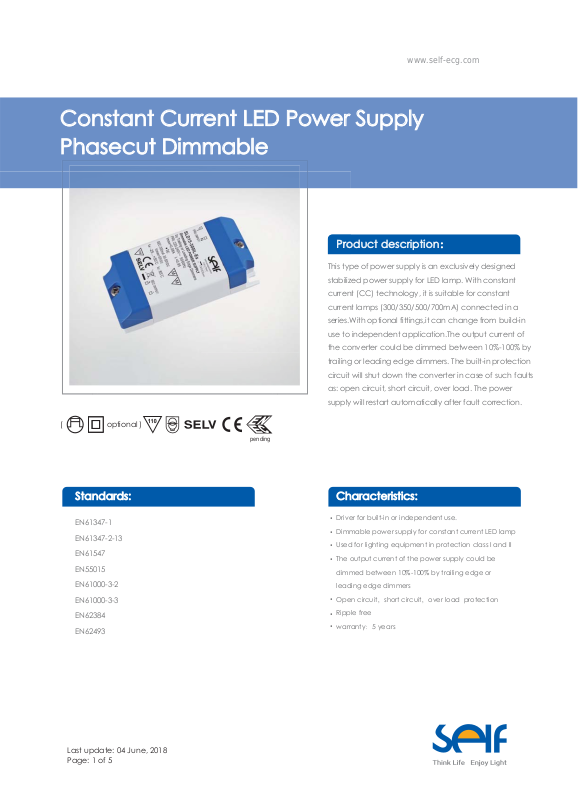

Constant Current LED Power Supply
Phasecut
Dimmable
p
iz
W
o
g
cui
pe
Constant Current LED Power Supply
Phasecut
( optional )
Dimmable
pending
Product description
This type of power supply is an exclusively designed
This ty
stabilized power supply for LED lamp. With constant
stabil
current (CC) technology, it is suitable for constant
curren
current lamps (300/350/500/700mA) connected in a
curren
series.With optional fittings,it can change from build-in
series.
use to independent application.The output current of
use to
the converter could be dimmed between 10%-100% by
the c
trailing or leading edge dimmers. The built-in protection
trailin
circuit will shut down the converter in case of such faults
r
t
as: open circuit, short circuit, over load. The power
as: o
supply will restart automatically after fault correction.
Standards:
EN61347-1
EN61347-2-13
EN61547
EN55015
EN61000-3-2
EN61000-3-3
EN62384
EN62493
Last update: 04 June, 2018
Page: 1 of 5
Characteristics:
•
Driver for built-in or independent use.
•
Dimmable power supply for constant current LED lamp
•
Used for lighting equipment in protection class I and II
•
The output current of the power supply could be
dimmed between 10%-100% by trailing edge or
leading edge dimmers
•
Open circuit，short circuit，over load protection
Ripple free
•
•
warranty：5 years
Page 2
Input
Other
Note
Ambient
and Life
Protection
Output
Model
Specifications
Specifications：
turn on time(S)
output current(mA)
output current tolerance
ripple current(mA)
working voltage range(V)
Max. output voltage(V)
dimming interface
dimming range
rated supply voltage(Vac)
voltage range(Vac)
line frequency(Hz)
input current(mA)
efficiency
power factor
inrush current(Ipk)
over voltage protection
short circuit protection
over temperature protection
automatic restart
over load protection
surge capacity
Ta(℃) )
Tc max. (℃) )
Storage Temperature(℃) )
ambient humidity range
nominal life-time(hrs)
weight(g)
dimensions (L×W×H)(mm)
casing material
housing colour
type of protection
protection class
SLD15-300IB-Es
SLD15-300IL-Es
SLD15-350IB-Es
SLD15-350IL-Es
SLD15-500IB-Es
SLD15-500IL-Es
SLD15-700IB-Es
SLD15-700IL-Es
www.self-ecg.com
In
turn on time(S)
output current(mA)
output current tolerance
ripple current(mA)
working voltage range(V)
Max. output voltage(V)
dimming interface
dimming range
rated supply voltage(Vac)
voltage range(Vac)
line frequency(Hz)
input current(mA)
efficiency
power factor
inrush current(Ipk)
over voltage protection
short circuit protection
over temperature protection
automatic restart
over load protection
surge capacity
Ta(
Tc max. (
Storage Temperature(
ambient humidity range
nominal life-time(hrs)
weight(g)
dimensions (L×W×H)(mm)
casing material
housing colour
type of protection
protection class
2
2
1
SLD15-300IB-Es
SLD15-300IL-Es
≤0.5
300
+/-5%
15
24-48
60
SLD15-350IB-Es
SLD15-350IL-Es
≤0.5
350
+/-5%
20
24-42
60
SLD15-500IB-Es
SLD15-500IL-Es
≤0.5
500
+/-5%
25
17-30
50
Leading or Trailing Edge
10-100%
220-240
198-264
50/60
90
80.8%
0.95
2A/17.7us
220-240
198-264
50/60
90
80.3%
0.95
2A/17.7us
220-240
198-264
50/60
90
80.4%
0.95
2A/17.7us
320Vac,1 hour
In case of a short circuit on the secondary side,the ECG will switche off
ECG switchs off if the temperature reaches a certain degree
ECG works in pulsed light output mode
After elimination of the fault condition the ECG will recover automatically
L-N:0.5KV
-25…50
85
-30...80
5%...85%RH，Not condensing
50'000@Tc=85℃
95
85.3x41x22/66.7x41x22
Plastic
Grey+Blue
IP20
CLASS II
SLD15-700IB-Es
SLD15-700IL-Es
≤0.5
700
+/-5%
37
9-22
35
220-240
198-264
50/60
90
78.9%
0.95
2A/17.7us
Note
Page: 2 of 5
1.Tolerance : includes set up tolerance, line regulation and load regulation.
2.Tested at full load,230Vac.Refer to"Power Factor" and "EFFICIENT"curve graphs.
3.All parameters NOT specially mentioned are measured at nominal voltage input, rated load, 25 of ambient
temperature and no dimmer.
4.The power supply is considered as a component that will be operated in combination with final equipment. Since
EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify
EMC Directive on the complete installation again.
Page 3

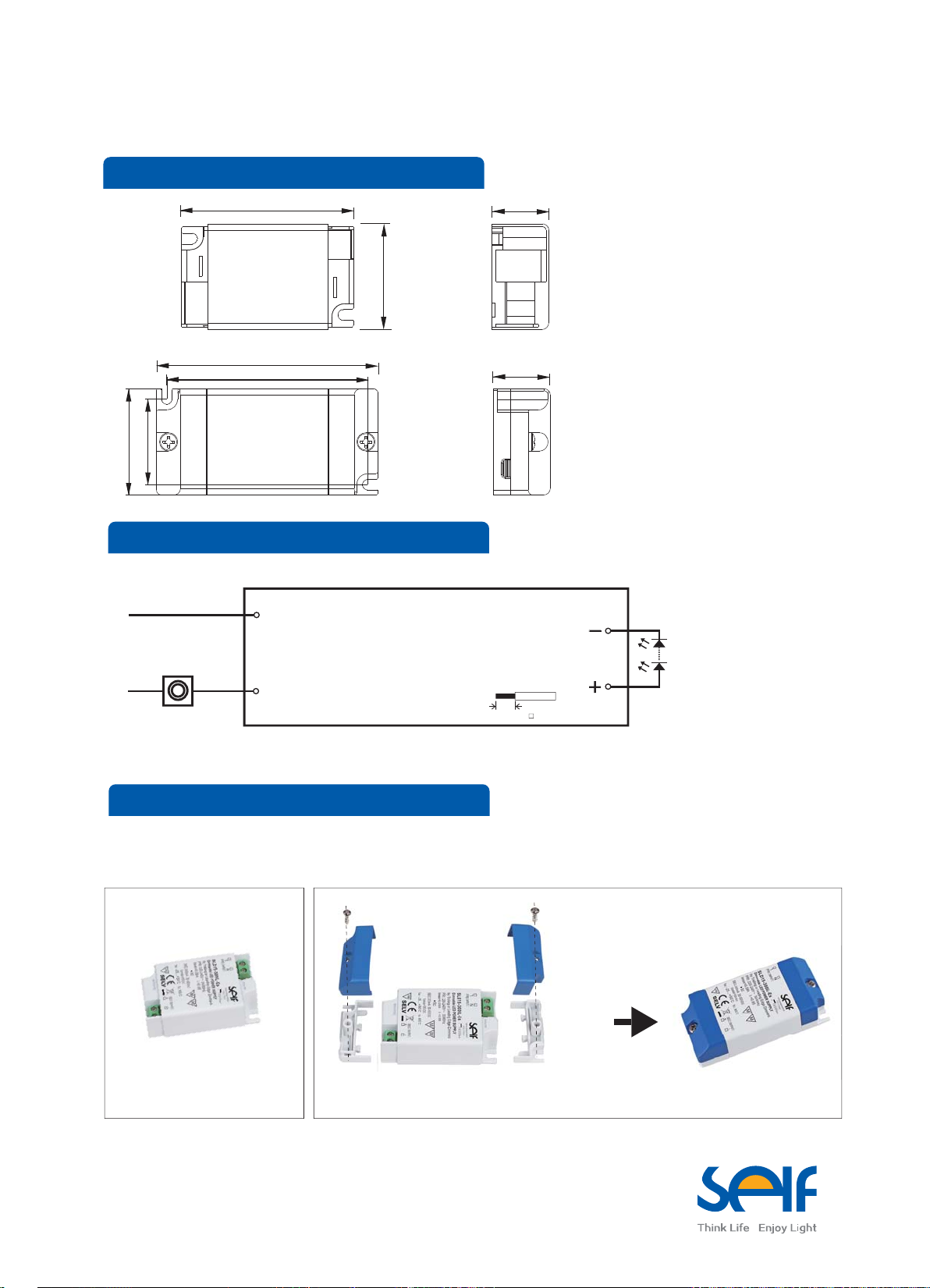

Dimensions(mm):
Dimensions(mm):
Wiring diagram:
Application:
66.7
www.self-ecg.com
22
41
41
33
Wiring diagram:
N
Dimmer
L
220-240VAC
50/60Hz
Application:
85.3
77.3
PRI
22
DIMMABLE LED POWER SUPPLY
wire preparation
7-8mm
0.5-0.75
SEC
Built-in application Independent application
Independent LED power supply accessorise
Page: 3 of 5
Page 4
Electrical curves:
Electrical curves:
50
60
70
80
90
100
5060708090
100
www.self-ecg.com
82
80
78
76
74
72
Efficiency[%]
70
68
66
0.99
0.98
Efficiency vs load[230Vac]
SLD15-300IL-Es
SLD15-350IL-Es
SLD15-500IL-Es
SLD15-700IL-Es
LOAD[%]
PF vs load[230Vac]
PF
0.97
0.96
0.95
0.94
0.93
0.92
SLD15-300IL-Es
SLD15-350IL-Es
SLD15-500IL-Es
SLD15-700IL-Es
LOAD[%]
Page: 4 of 5
Page 5
Sales & Technical Support:
Se lf Electr onics Co. ,Ltd .
SE LF ELECTR ONICS GER MANY G MBH
Se lf Electr onics Co. ,Ltd .,Shenz hen Offic e
Manufacturer
Model
Dimmer list approved by SELF:
Dimmer list approved by SELF:
Model
Manufacturer
SELF SD910
SELF SD810
Busch 6523U
Ygonix 33594C
Legrand VRCM2
Schneider pure
SCHNEIDER 220V50Hz400W
Siemens 230V50Hz 400Wmax
T&J 220V 50Hz 630Wmax
CHNT 220V 50Hz 500Wmax
ABB 220V 50Hz 600Wmax
GIRA 2262 00/I01
Duwi DW700DA
VIMAR 14150/14153
Panasonic WMK549
JUNG 225 TDE
Busch 6513U
SIMON 45E101
PROSPERING 03-0059
www.self-ecg.com
