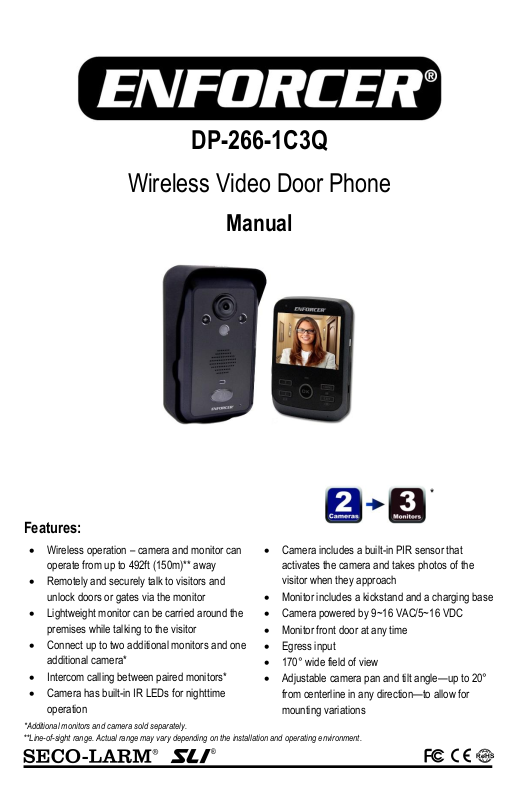

DP-266-1C3Q
Wireless Video Door Phone
Manual
*
Features:
Wireless operation – camera and monitor can operate from up to 492ft (150m)** away
Remotely and securely talk to visitors and unlock doors or gates via the monitor
Lightweight monitor can be carried around the premises while talking to the visitor
Connect up to two additional monitors and one additional camera*
Intercom calling between paired monitors*
Camera has built-in IR LEDs for nighttime operation
Camera includes a built-in PIR sensor that activates the camera and takes photos of the visitor when they approach
Monitor includes a kickstand and a charging base
Camera powered by 9~16 VAC/5~16 VDC
Monitor front door at any time
Egress input
170° wide field of view
Adjustable camera pan and tilt angle—up to 20° from centerline in any direction—to allow for mounting variations
*Additional monitors and camera sold separately.
**Line-of-sight range. Actual range may vary depending on the installation and operating environment.
®
ENFORCER Wireless Video Door Phone
Table of Contents: |
|
Introduction................................................................ |
2 |
Parts List.................................................................... |
2 |
Specifications ............................................................ |
3 |
Overview.................................................................... |
3 |
Display Overview....................................................... |
4 |
Installation Notes ....................................................... |
4 |
Camera Wiring Diagram ............................................ |
5 |
Sample Application.................................................... |
5 |
Installation – Camera................................................. |
6 |
Installation – Monitor ............................................. |
6~7 |
On-Screen Display Features ..................................... |
8 |
Programming and Using the |
|
On-Screen Display........................................... |
9~10 |
Programming the Advanced Settings ................ |
10~11 |
Operating the Wireless |
|
Video Door Phone ......................................... |
12~13 |
Resetting the Camera and |
|
Pairing a First Monitor.................................... |
13~14 |
Pairing Additional Monitors or Cameras .................. |
14 |
Tamper Alarm .......................................................... |
15 |
Troubleshooting ....................................................... |
15 |
Warranty................................................................... |
16 |
Introduction:
The ENFORCER Wireless Video Door Phone is a convenient and secure way to monitor and control an entryway, such as a door or gate, from up to 492 feet (150 meters) away.
When a guest or visitor presses the doorbell button on the camera unit, the homeowner can use one of up to three lightweight, wireless LCD monitors to see whom is requesting entry, speak with the caller, take a photo, and decide whether or not to grant entry. The video door phone can be expanded with up to two additional monitors and one additional camera. If multiple monitors are set up, then the system can also be used as an intercom system between each monitor.
Parts List:
DP-266-1C3Q
Complete Kit
1x Monitor (DP-266-M3Q)*
1x Camera (DP-266-CQ)*
1x Monitor charging stand
1x Monitor kick stand
1x AC Power adapter with USB port (for monitor)
1x USB Cable
1x Monitor battery
1x Camera mounting hood bracket
1x AC Power adapter with DC plug (for camera)
1x DC Jack with pigtail
1x Camera battery
3x Camera mounting screws
3x Camera mounting screw anchors
1x Camera screw
1x Camera screw cover
1x Manual
DP-266-M3Q
Additional Monitor Unit
1x Monitor (DP-266-M3Q)**
1x Monitor charging stand
1x Monitor kick stand
1x AC Power adapter with USB port (for monitor)
1x USB Cable
1x Monitor battery
1x Manual
DP-266-CQ
Additional Camera Unit
1x Camera (DP-266-CQ)**
1x Camera mounting hood bracket
1x AC Power adapter with DC plug (for camera)
1x DC Jack with pigtail
1x Camera battery
3x Camera mounting screws
3x Camera mounting screw anchors
1x Camera screw
1x Camera screw cover
1x Manual
*The DP-266-1C3Q included monitor and camera are paired by default.
**Additional monitors and cameras are not paired by default. See "Pairing Additional Monitors or Cameras" on pg. 14.
2 |
SECO-LARM U.S.A., Inc. |
ENFORCER Wireless Video Door Phone
Specifications:
|
|
Camera |
|
Type |
|
Color camera |
|
Chip |
|
CMOS |
|
Resolution |
|
480 TV Lines |
|
Lens |
|
2mm |
|
Field of view |
|
170° |
|
Camera angle adjustment |
Up to 20° any direction |
||
Operating voltage |
9~16 VAC/5~16 VDC |
||
Relock delay |
|
3/6/8 Seconds |
|
Relay output |
|
3A@250VAC/30VDC |
|
Current |
|
Active |
300mA@12VDC |
draw |
|
Standby |
15mA@12VDC |
Battery |
|
Active |
~7 Hours |
life |
|
Standby |
~60 Days |
IR LED Range |
5' (1.5m) |
||
IR LED Frequency |
940nm |
||
PIR Detection range |
9' (3m) |
||
PIR Detection angle |
60° |
||
Dimensions |
|
511/16"x31/8"x115/16" |
|
(with bracket) |
|
(144x80x50 mm) |
|
Weight |
|
4.3-oz (122g) |
|
Operating temperature |
14°~122° F (-10°~50° C) |
||
|
|
|
Monitor |
|
Display |
|
|
33/8" (86mm) TFT |
|
Operating voltage |
|
5VDC (adapter) or |
||
|
3.7VDC (battery) |
|||
|
|
|
|
|
Current |
|
Active |
|
370mA@3.7VDC |
draw |
|
Standby |
|
5mA@3.7VDC |
Battery |
|
Active |
|
~2.5 Hours |
life |
|
Standby |
|
~7 Days |
Operating frequency |
|
2402~2480 MHz |
||
RF power |
|
|
120mW |
|
Wireless range |
|
492' (150m)* |
||
Dimensions |
|
|
5"x33/8"x7/8" |
|
|
|
(127x85x22 mm) |
||
|
|
|
|
|
Weight |
|
|
3.9-oz (110g) |
|
Operating temperature |
|
32°~104° F (0°~40° C) |
||
*Line-of-sight range. Actual range may vary depending on the installation and operating environment.
Overview:
Camera:
Camera angle |
|
|
|
adjustment joystick |
|
|
Camera |
Wiring connections |
|
|
IR LEDs |
|
|
PIR Sensor |
|
(see pg. 5) |
|
|
|
Reset button |
Reset |
|
|
|
|
Speaker |
|
|
|
|
|
Battery cover |
|
|
Status LED |
|
|
|
|
|
|
|
Doorbell |
|
|
|
Microphone |
Monitor: |
|
|
USB Connector |
|
|
(not used) |
|
Charging |
|
|
|
|
|
|
|
indicator |
|
|
|
|
Volume up/down |
ON/OFF Button: |
|
|
33/8" (86mm) |
- |
Turn monitor |
|
|
|
ON/OFF |
|
|
- |
Standby mode |
Status LED |
|
|
OK/Talk |
|
Up |
|
|
USB Connector |
|
|
MENU |
Menu/Unlock |
||
Down/Photo |
OK |
EXIT |
Exit/View |
(Mini-B) |
|
||||
|
|
|
Microphone |
|
SECO-LARM U.S.A., Inc. |
|
|
3 |
|
ENFORCER Wireless Video Door Phone
Display Overview:
: ID – Displays the monitor ID number
: Signal Strength – Displays the wireless signal strength
: Communication Mode – Displays current communication mode
– Bell indicates an incoming call
– Crossed out microphone indicates one-way communication
– Microphone indicates two-way communication
: Message – Displays when there is a message due to a missed call
: PIR – Displays when the PIR sensor is turned on
: Photo – Displays when a photo is taken
: Relay – Displays while the relay is active
: Alarm – Displays when the tamper alarm has been activated
: Monitor volume – Displays the current monitor volume
: Monitor Battery: Displays the current monitor station battery level
: Camera Battery: Displays the current camera station battery level
Installation Notes:
1.Unpack the video door phone and note the included parts.
2.Read this manual thoroughly. A clear understanding of the manual will make installation and operation much easier.
3.Find a good location to mount the monitor and camera. Approximately 5ft (1.5m) above the ground is optimal, where the visitor would stand approximately 2.5~5 ft (0.8~1.5 m) from the camera. Note that the camera tilt and pan angle can be adjusted up to 20° from centerline to compensate for less than optimal situations (see below).
4.Avoid mounting the camera or monitor near sources of strong electromagnetic signals or other electronic devices that may cause interference.
5.Avoid mounting the camera in direct sunlight or exposing the camera to strong vibrations, direct rain, or moisture, which could result in damage to the camera. Strong backlight or reflection may degrade the resulting video image.
6.The monitor and camera contain no user-serviceable parts. Opening them may damage sensitive components and will void the warranty.
Camera with No Tilt |
|
Camera Tilted |
115º |
|
|
|
115º |
|
170º |
Up 20º |
170º |
|
||
|
|
Left 20º |
4 |
|
SECO-LARM U.S.A., Inc. |
ENFORCER Wireless Video Door Phone
Camera Wiring Diagram:
6 |
COM |
|
|
5 |
N.C. |
Relay |
|
Output |
|||
|
N.O. |
||
4 |
|
3
Reset
Egress input (N.O., –)
1 2
(–)
(+)
9~16 VAC/ 5~16 VDC
1.Positive (+) power input – Connect to the red wire of the included AC adapter or to the positive wire of the doorbell's power supply.
2.Negative (-) power input – Connect to the black wire of the included AC adapter or to the negative wire of the doorbell's power supply.
3.Egress (N.O.) negative input – Connect to an optional N.O. egress device. The egress device will activate the relay for the same length as the lock delay. (See the "Unlocking duration" section in "Programming the Advanced Settings," pg. 11).
4.N.O. (Normally opened) output – Wire to the lock device for fail-secure operation.
5.N.C. (Normally closed) output – Wire to the lock device for fail-safe operation.
6.Common output – Wire to the power supply of the lock device.
NOTE: For 16VAC doorbell installation, wire directly from the doorbell's transformer.
Sample Application:
1 2 3 4 5 6
Camera
COM
N.C.
N.O.
Egress input (N.O., -) (–)
(+)
|
Electric strike |
|
power supply |
|
Fail-secure |
|
electric strike |
PUSH |
Request-to-exit plate |
TO |
|
EXIT |
|
Negative (-) (black wire)
|
To the included AC adapter or |
Positive (+) (red wire) |
the doorbell's transformer |
The camera is connected to its included AC adapter.
The egress input is connected to a Request-to-Exit Plate. The homeowner can exit the premises by pressing this button.
The N.O. (normally open) output is wired to an electric lock. The camera and the Request-to-Exit Plate both activate the strike, allowing entry or egress.
The electric lock's power supply is wired to the COM (common) output.
SECO-LARM U.S.A., Inc. |
5 |
