SATO RWG500 Quick Guide

Quick Guide

for

RWG500

Label Rewinder

PN 9001128A

Introduction

Thank you for your purchase of the SATO RWG500 new
generation rewinder for SATO barcode printers.
This quick reference guide will lead you on a familiariza­tion tour to help you start using the machine as soon as
possible.
To get the most out of the RWG500’s intelligent features,
make sure to read this manual carefully before using the
machine.

Table of Contents

Introduction.......................................................2

Safety Symbols ................................................3

Safety Precautions ..........................................4

FCC Notice ......................................................6

What’s In the Box ............................................7

Parts Identification ...........................................8

Parts Identification ...........................................9

Preparing the Joint Plate .................................10

Adjusting the Roller Height ...............................14

Installing the Joint Plate ...................................15

Label Setup ......................................................17

Basic Operation ...............................................23

Winding 6” labels ..............................................25

Installing the 6” Expansion Kit ..........................26

Basic Specifications..........................................27

2

Safety Symbols

About warning symbols

As a preventive measure to ensure safe usage of this
machine so as to safeguard against damage to yourself,
other people or property, several symbols and icons are
used in this guide. The following pages describe the
significance of each symbol. Please take time to read and
understand the content.

If this display and its warning is ignored, any
mishandling could result in death or serious
injuries.

If this display and its warning is ignored, any

Caution

Examples

The content within the triangle illustrates specific
hazards. In this case, the sign on
the left means ‘beware of electric shock’.

The triangle sign means ‘Be careful’.

mishandling could result in serious injuries as
well as damage to properties.

The circular sign means ‘prohibited’. The
content within the circle illustrates a specific
prohibition. In this case the sign on the left means
‘disassembly prohibited’.

The black circular sign means ‘must do’. The
content within the sign illustrates specific items
that must be carried out. In this case the sign on
the left means ‘the plug must be unplugged from
the socket’.

3

Caution

Caution

Safety Precautions

Do not place on an unstable place

Do not place the rewinder on an unstable place

such as an unsteady table, an inclined place or

a place with vibration. The rewinder may drop

or topple over and cause injuries.

Liquids

Do not place any containers with water or

chemicals, such as flower vases or cups, as

well as small metallic objects near the rewinder.

Continued use creates the danger of fire or

electrical shock.

* If any of these should fall into the rewinder,

immediately turn off the power and contact your

nearest dealer or service center.

Foreign Matter

Do not drop or insert metallic or flammable

objects into the openings on the rewinder.

Continued use creates the danger of fire or

electrical shock.

* If any of these should fall into the rewinder,

immediately turn off the power and contact your

nearest dealer or service center.

Dropping and Damage

Do not use if the product has been dropped or

damaged. Continued use creates the danger of

fire and electrical shock.

* Should the rewinder ever fall or otherwise

become damaged, immediately turn off the

power and contact your nearest dealer or

service center. Continued use creates the

danger of fire or electrical shock.

4

Caution

Caution

Abnormal Conditions
Do not use the rewinder if it is emitting smoke

or strange odors. Continued use creates the
danger of fire and electrical shock.

* Immediately turn off the power and contact
your nearest dealer or service center for
repairs. Do not try to service the rewinder by
yourself.

Disassembly
Never try to take the unit apart or modify it in

any way. Doing so creates the danger of fire or
electrical shock. Contact your nearest dealer or
service center for repairs.

Location
Do not locate the rewinder in areas subjected to

high humidity or dew. Doing so creates the
danger of electrical shock.

* If dew forms inside the rewinder, immediately
turn off the power and do not use it until it has
dried up.

FOR CONTINUED PROTECTION AGAINST
RISK OF FIRE.

REPLACE ONLY SAME TYPE AND RATING
OF FUSE.

LOCATION : F1 , F2 RATING : 125V 3.5A

5

FCC Notice

This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful
interference in a residential installation.

This equipment generates use and can radiate radio frequency energy and, if
not installed and used in accordance with instructions, may cause harmful
interference to radio communications.

However, there is no guarantee that interference will not occur in a particular
installation.

If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures:

- Reorient or re locate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

6

What’s In the Box

RWG500 main unit Joint plate

Label Clip

3-inch core x 2 Label Guide

EXT cable

Quick Guide

7

Status
LED

Parts Identification

Rewind
Start/Stop
button

Direction
Indicator LED:
Clockwise
winding
(face in)

Direction
Indicator LED:
Counter-clock­wise winding
(face out)

Stopper
Plate

8

Second roller

First roller

Tension arm

Rewind
Core

Power
Switch

Earth
terminal

Parts Identification

Socket for
AC adaptor

Selector for
clockwise or
counterclock­wise rewind

EXT connector
(links to printer)

direction

9

Preparing the Joint Plate

The joint plate aligns the base of the RWG500 to the
base of a SATO printer. This alignment ensures a smooth
label path and prevents problems during long periods of
continuous operation.

The following procedure adjusts the joint plate to suit the
base of different SATO printers, as shown here:

Use a Phillips

1

screwdriver
to loosen the
two screws
that secure
the movable
portion of the
joint plate.

Main plate

Movable plate

Slide the movable

2

portion of the joint
plate in various
directions to
reveal the names
of various SATO
printer models.

10

Preparing the Joint Plate (cont’d)

To prepare the joint plate for a GTx4XXe or M-84Pro
series printers:

When the movable plate
reveals “GTx4XXe” and
“M-84Pro”, adjust its
position so that each pro­truding stub (called a
boss) on the underside of
the movable plate will fit
neatly into two comple­mentary holes on the
main plate. The movable
plate will not slide easily
now. Tighten the two
screws which were loos­ened in Step 1.

Top of

movable

plate

Underside

of movable

plate

Boss

Boss

11

Wh

Preparing the Joint Plate (cont’d)

To prepare the joint plate for the M-5900RVe printer:

en the movable
plate reveals “MT4XXe”
and “M-5900RVe”,
adjust its position so
that each protruding
stub (called a boss) on
the underside of the
movable plate will fit
neatly into two comple­mentary holes on the
main plate. The mov­able plate will not slide
easily now. Tighten the
two screws which were
loosened in Step 1.

Top of

movable

plate

Underside

of movable

plate

12

Boss

Boss

Wh

w

Preparing the Joint Plate (cont’d)

To prepare the joint plate for the CL6XXe series printers:

en the movable
plate reveals
“MR6XXe” and
“CL6XXe”, adjust its
position so that each
protruding stub (called
a boss) on the under­side of the movable
plate will fit neatly into
two complementary
holes on the main plate.
The movable plate will
not slide easily now.
Tighten the two screws

hich were loosened in

Step 1.

Top of

movable

plate

Underside

of movable

plate

Boss

Boss

13

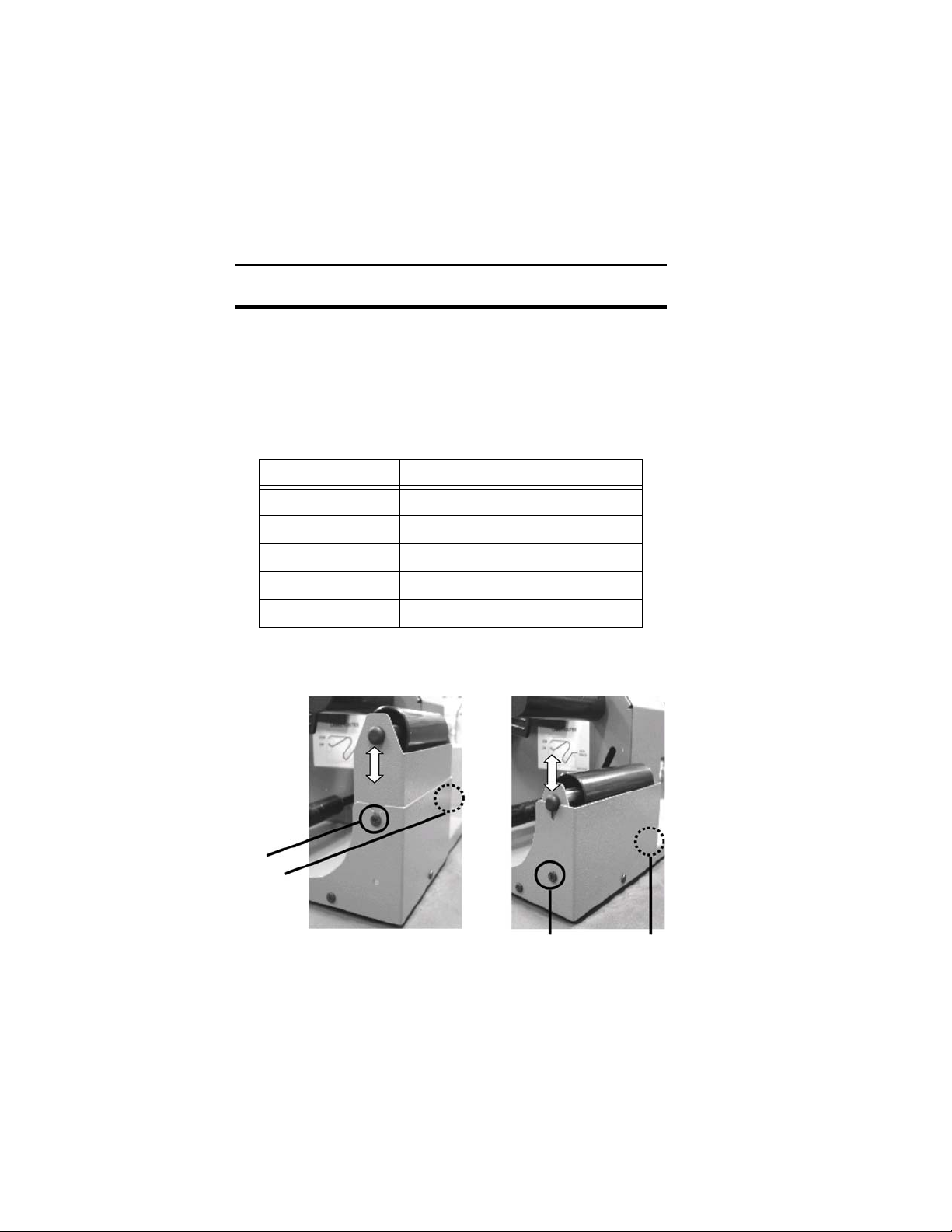

Adjusting the Roller Height

Before the rewinder is guided into place in front of the
printer, the height of its first roller has to be adjusted to
one of two positions (upper or lower) to fit the printer,
based on the table below:

Roller Height settings for SATO Printers

Model Roller Height

GTx4XXe Lower position

CL6XXe Lower position

CL4XXe Upper position

M-84Pro Upper position

M-5900RVe Upper position

Install

two
locking
screws

here

14

Roller in Upper

position

Roller in lower

position

Install two locking screws here

Installing the Joint Plate

To align the printer to the RWG500 using the joint plate:

Place the non-movable

1

holes of the joint plate
under the feet of the
rewinder as shown. The
holes of the movable
plate should be facing
away from the rewinder.

Connect the Frame

2

Ground wire of the joint
plate to the Earth termi­nal on the rewinder.
Use a Phillips screw­driver if necessary.

Earthing completed

15

Installing the Joint Plate (cont’d)

Now place the printer

3

so that its feet at the
label output side will fit
into the positioning
holes on the joint place.

Make sure both the

4

printer and the rewinder
are turned OFF.
Locate the EXT con­nector of the printer and
use the supplied EXT
cable to connect the
printer to the rewinder’s
EXT connector.

16

Caution

Make sure that the
printer and rewinder are
aligned properly using
the joint plate. Other­wise rewinding errors
may occur.

Label Setup

The RWG500 offers two rewind directions and two types
of rewind shafts, as follows:

Rewinding Direction: Face in (CW) / Face Out (CCW)
Rewinding Shaft: Direct rewind/3” paper core rewind

About Rewinding Direction

Counterclockwise

winding (CCW)

In a CCW winding
direction, the printed
surface of the label is
always visible as it
faces outwards.

Clockwise

winding (CW)

In a CW winding direction,
the printed surface of the
label faces inwards and is
hidden from view. Only
the backing sheet (label
liner) faces outwards. The
rewind is set by default to
CW rewinding.

17

Label Setup (cont’d)

To change the rewind direction, use the Direction switch
found on the side panel of the rewinder. The factory set-

ting is CW rewinding by default.

Setting Rewind Direction

1. Before changing the rewind direction, make sure
the rewinder is turned OFF, or make sure that the
Status LED is blinking in green (rewinder in Idling
state)

2. Locate the Direction switch at the side panel, and
set it to either CW (clockwise, face in) or CCW
(counterclockwise, face-out).

3. Check the control panel display to confirm that the
appropriate CW or CCW LED is lit.

Caution

Change the rewind direction only when the rewinder is in
an idling state, or when it is turned OFF.

18

Label Setup (cont’d)

Besides setting the rewind direction, you can set up the
rewinder for direct rewinding or rewinding using a 3”
paper core.

About Direct Rewinding

Use direct rewinding when a paper core is not to be
used, and the label being collected will not need
reprinting or reprocessing in future.

Set the rewinder for

1

CW or CCW rewind
direction and load
the label accord­ingly. Wind the label
at the rewinding
shaft, and insert the
provided label clip
to fasten the label
onto the shaft.

Now insert the label
guide. The label

2

output from the
printer is now set
for direct rewinding.

19

Label Setup (cont’d)

You can collect output labels onto a 3” paper core for
more consistent winding, and if the wound label needs to
be unwound later for reprocessing/reprinting.

Rewinding on a 3” paper core

If label width is

1

below 65 mm,
attach one of the
provided 3” core
adaptors to the
rewinding shaft.
Otherwise, use two
adaptors. The
adaptor(s) should
be inserted so that
the metal plate teeth faces in the same direc­tion* as the rewind direction. Screw the adap­tor(s) into the narrow groove of the shaft.

* For CW and CCW rewinding, the metal

teeth must face left or right respectively.

20

Space the adaptor(s)
along the shaft to fit

2

the label width, then
tighten each locking
screw. Make sure the
screw fits into the
metal nut sliding
along the groove.

Label Setup (cont’d)

After properly inserting the 3” core adaptor(s), follow the
steps below to install the label.

Insert the 3” paper

3

4

tube core into the
rewind shaft. Affix
the leading (front)
portion of the output
label to the paper
core with some
adhesive tape.

Finally, insert the
label guide.

Caution

Before installing any label, always make sure that
the rewinder is OFF, or in an idling state (Status
LED blinks green).

21

Basic Operation

After setting up the rewinder to work with your SATO
printer, rewinding can be performed.

Turn on the rewinder. Wait for the status LED on

1

2

the control panel to start blinking in green. The
rewinder is now in idling status–ready to collect
labels from the printer.

Press and hold down the
START/STOP button on the
rewinder control panel. The
rewind shaft starts rotating,
and the tension arm rises
and stops automatically.
This process takes up any
slack in the label path.

When the Status LED is lit
in green continuously,
release the Start/Stop but­ton. The rewinder is now in
operation.

22

If you release the Start/Stop
button before the Status
LED lights up continuously
in green, repeat Step 1.

3

4

Basic Operation (cont’d)

Start the automatic rewinding by printing labels on
the printer. Each time a label is printed, the
rewinder automatically winds it outwards and
takes up any slack in the winding process.

When the rewinding is completed, press the
START/STOP button on the rewinder’s control
panel. The tension arm comes to rest and stops
automatically. The Status LED blinks in green to
signal the rewinder’s idling
status.

5

Remove the label on the printer, and then remove
the wound label on the rewinder. The wound label
can be removed easily because the tension arm is
inactive.

23

Winding 6” labels

To wind labels wider than 131 mm, the optional 6” Expan­sion Kit is required. The kit consists of the following:

1 Second roller joint

24

2 Second roller shaft guide

3 Core joint

4 Core shaft guide

Installing the 6” Expansion Kit

Follow the steps below to install the Expansion Kit.

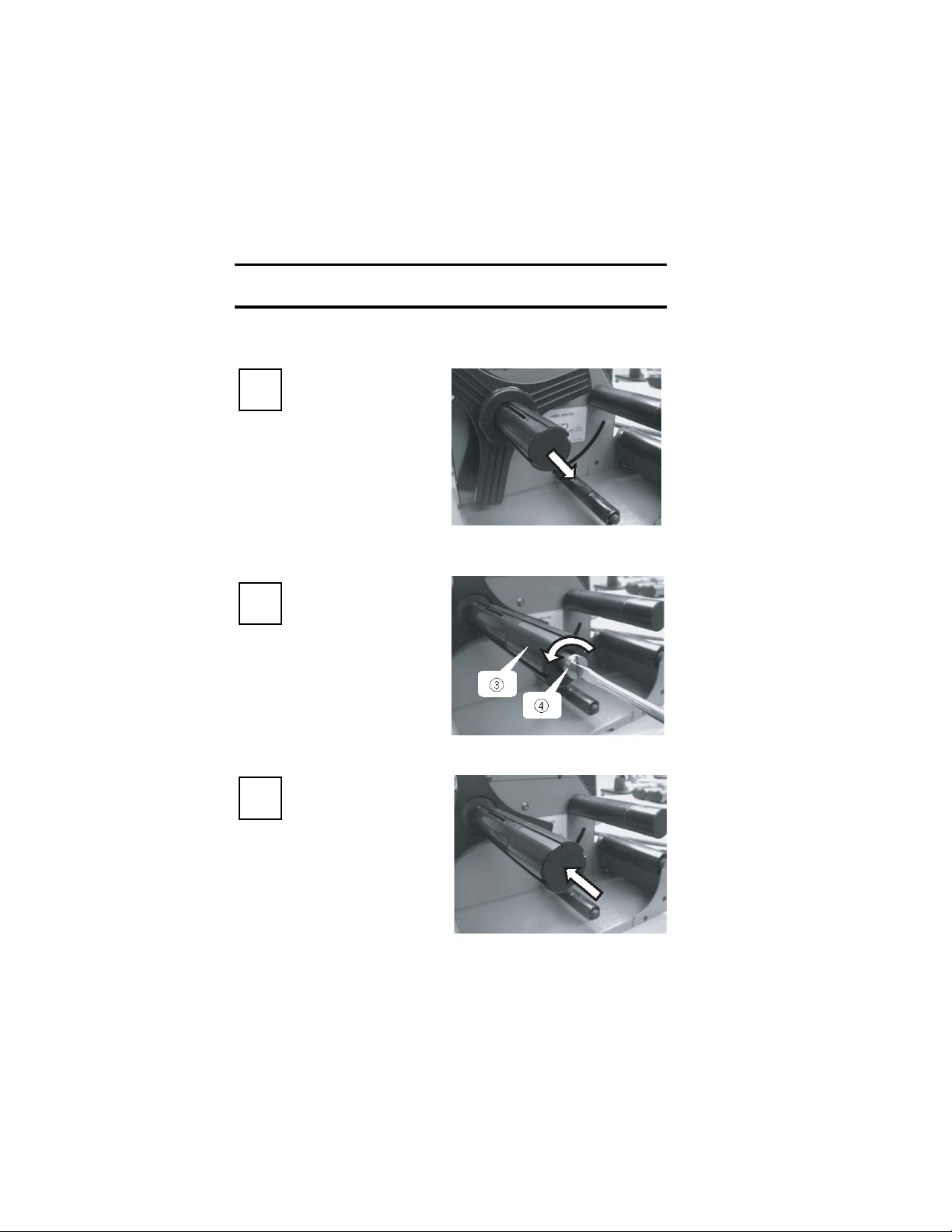

Remove the cap

11

2

covering the
second roller of
the rewinder.

Insert the kit’s
second-roller
joint and sec­ond-roller shaft
guide. Tighten
the shaft guide
in a counter­clockwise direc­tion using a
screwdriver.

3

Reattach the
cap.

25

Installing the 6” Expansion Kit (cont’d)

Remove the cap

14

5

covering the
rewinding shaft
of the rewinder.

Insert the core
joint and core
shaft guide.
Tighten the shaft
guide in a coun­terclockwise
direction using a
screwdriver.

26

6

Reattach the cap
to complete
installation of the
expansion kit.

Basic Specifications

Rewinding

method

Paper type

Paper width

Winding

direction

(selectable)

Rewind

speed

Rewind

monitoring

Power

Supply

• Ø 38.1 mm direct rewinding

• 3” paper core rewinding

Supports all genuine SATO labels printed on
SATO printers, except linerless labels

Width: 25–131 mm (standard)
Width: 25–180 mm w/optional expansion kit.
Label thickness: 0.08–0.26 mm

• Default setting: Face in (CW)

• Face out (CCW)
Note: Rewind direction must match the
winding direction of the label produced from
the printer.

Auto speed setting, up to max of 381mm/s

Tension arm detects paper slack, paper
presence and incoming paper speed

DC25V Standard:

Power tapped from SATO
printer’s EXT port
Option:
AC adaptor designed for
RWG500

External

diameter

Weight

Width (W) 280 mm

Depth (D) 320 mm
Height (H) 230 mm

7.5kg

27
