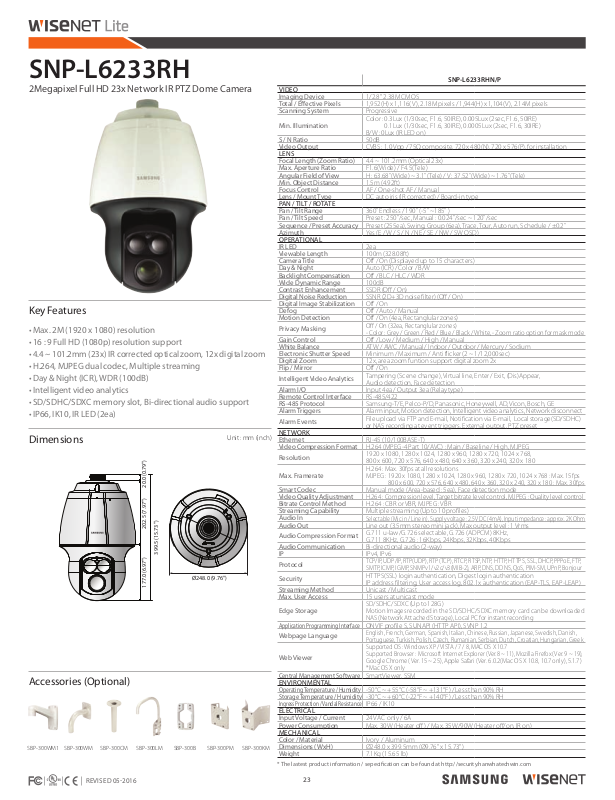

Samsung SNP-L6233RH Specsheet
SNP-L6233RH
2MegapixelFullHD23xNetworkIRPTZDomeCamera
Key Features
•Max.2M(1920x1080)resolution
•16:9FullHD(1080p)resolutionsupport
•4.4~101.2mm(23x)IRcorrectedopticalzoom,12xdigitalzoom
•H.264,MJPEGdualcodec,Multiplestreaming
•Day&Night(ICR),WDR(100dB)
•Intelligentvideoanalytics
•SD/SDHC/SDXCmemoryslot,Bi-directionalaudiosupport
•IP66,IK10,IRLED(2ea)
Dimensions |
|
20.20(0.79") |
|
202.2025(7..597") |
399(1573").5 |
|
399.5 |
177177.0(6.97") |
|
Unit : mm (inch)
Ø248Ø248.0(9.76")
Accessories (Optional)
SBP-300WM1 SBP-300WM SBP-300CM SBP-300LM SBP-300B SBP-300PM SBP-300KM
|
SNP-L6233RHN/P |
|
Video |
|
|
Imaging Device |
1/2.8" 2.38M CMOS |
|
Total / Effective Pixels |
1,952(H) x 1,116(V), 2.18M pixels / 1,944(H) x 1,104(V), 2.14M pixels |
|
Scanning System |
Progressive |
|
Min. Illumination |
Color : 0.3Lux (1/30sec, F1.6, 50IRE), 0.005Lux (2sec, F1.6, 50IRE) |
|
0.1Lux (1/30sec, F1.6, 30IRE), 0.0005Lux (2sec, F1.6, 30IRE) |
||
|
B/W : 0Lux (IR LED on) |
|
S / N Ratio |
50dB |
|
Video Output |
CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation |
|
Lens |
|
|
Focal Length (Zoom Ratio) |
4.4 ~ 101.2mm (Optical 23x) |
|
Max. Aperture Ratio |
F1.6(Wide) / F4.5(Tele) |
|
Angular Field of View |
H : 63.68˚(Wide) ~ 3.1˚(Tele) / V : 37.52˚(Wide) ~ 1.76˚(Tele) |
|
Min. Object Distance |
1.5m (4.92ft) |
|
Focus Control |
AF / One-shot AF / Manual |
|
Lens / Mount Type |
DC auto iris (IR corrected) / Board-in type |
|
Pan / Tilt / Rotate |
|
|
Pan / Tilt Range |
360˚ Endless / 190˚ (-5˚ ~185˚ ) |
|
Pan / Tilt Speed |
Preset : 250˚/sec, Manual : 0.024˚/sec ~ 120˚/sec |
|
Sequence / Preset Accuracy |
Preset (255ea), Swing, Group (6ea), Trace, Tour, Auto run, Schedule / ±0.2˚ |
|
Azimuth |
Yes (E / W / S / N / NE / SE / NW / SW OSD) |
|
Operational |
|
|
IR LED |
2ea |
|
Viewable Length |
100m (328.08ft) |
|
Camera Title |
Off / On (Displayed up to 15 characters) |
|
Day & Night |
Auto (ICR) / Color / B/W |
|
Backlight Compensation |
Off / BLC / HLC / WDR |
|
Wide Dynamic Range |
100dB |
|
Contrast Enhancement |
SSDR (Off / On) |
|
Digital Noise Reduction |
SSNR (2D+3D noise filter) (Off / On) |
|
Digital Image Stabilization |
Off / On |
|
Defog |
Off / Auto / Manual |
|
Motion Detection |
Off / On (4ea, Rectanglular zones) |
|
Privacy Masking |
Off / On (32ea, Rectanglular zones) |
|
- Color : Grey / Green / Red / Blue / Black / White, - Zoom ratio option for mask mode |
||
|
||
Gain Control |
Off / Low / Medium / High / Manual |
|
White Balance |
ATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium |
|
Electronic Shutter Speed |
Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec) |
|
Digital Zoom |
12x, area zoom funtion support digital zoom 2x |
|
Flip / Mirror |
Off / On |
|
Intelligent Video Analytics |
Tampering (Scene change), Virtual line, Enter / Exit, (Dis)Appear, |
|
Audio detection, Face detection |
||
|
||
Alarm I/O |
Input 4ea / Output 3ea (Relay type) |
|
Remote Control Interface |
RS-485/422 |
|
RS-485 Protocol |
Samsung-T/E, Pelco-P/D, Panasonic, Honeywell, AD, Vicon, Bosch, GE |
|
Alarm Triggers |
Alarm input, Motion detection, Intelligent video analytics, Network disconnect |
|
Alarm Events |
File upload via FTP and E-mail, Notification via E-mail, Local storage(SD/SDHC) |
|
or NAS recording at event triggers, External output, PTZ preset |
||
Network |
|
|
Ethernet |
RJ-45 (10/100BASE-T) |
|
Video Compression Format |
H.264 (MPEG-4 Part 10/AVC) : Main / Baseline / High, MJPEG |
|
Resolution |
1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, |
|
800 x 600, 720 x 576, 640 x 480, 640 x 360, 320 x 240, 320 x 180 |
||
|
||
Max. Framerate |
H.264 : Max. 30fps at all resolutions |
|
MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps |
||
|
800 x 600, 720 x 576, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max. 30fps |
|
Smart Codec |
Manual mode (Area-based : 5ea), Face detection mode |
|
Video Quality Adjustment |
H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control |
|
Bitrate Control Method |
H.264 : CBR or VBR, MJPEG : VBR |
|
Streaming Capability |
Multiple streaming (Up to 10 profiles) |
|
Audio In |
Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm |
|
Audio Out |
Line out (3.5mm stereo mini jack), Max output level : 1 Vrms |
|
Audio Compression Format |
G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, |
|
G.711 8KHz, G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps |
||
|
||
Audio Communication |
Bi-directional audio (2-way) |
|
IP |
IPv4, IPv6 |
|
Protocol |
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, |
|
SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
||
|
||
Security |
HTTPS(SSL) login authentication, Digest login authentication |
|
IP address filtering, User access log, 802.1x authentication (EAP-TLS, EAP-LEAP) |
||
|
||
Streaming Method |
Unicast / Multicast |
|
Max. User Access |
15 users at unicast mode |
|
Edge Storage |
SD/SDHC/SDXC (Up to 128G) |
|
Motion Images recorded in the SD/SDHC/SDXC memory card can be downloaded |
||
|
NAS (Network Attached Storage), Local PC for instant recording |
|
Application Programming Interface |
ONVIF profile S, SUNAPI (HTTP API), SVNP 1.2 |
|
Webpage Language |
English, French, German, Spanish, Italian, Chinese, Russian, Japanese, Swedish, Danish, |
|
Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek |
||
|
||
|
Supported OS : Windows XP / VISTA / 7 / 8, MAC OS X 10.7 |
|
Web Viewer |
Supported Browser : Microsoft Internet Explorer (Ver.8 ~ 11), Mozilla Firefox (Ver. 9 ~ 19), |
|
Google Chrome (Ver. 15 ~ 25), Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) |
||
|
||
|
* Mac OS X only |
|
Central Management Software |
SmartViewer, SSM |
|
Environmental |
|
|
OperatingTemperature / Humidity |
-50°C ~ +55°C (-58°F ~ +131°F) / Less than 90% RH |
|
Storage Temperature / Humidity |
-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
|
Ingress Protection /Vandal Resistance |
IP66 / IK10 |
|
Electrical |
|
|
Input Voltage / Current |
24V AC only / 6A |
|
Power Consumption |
Max. 30W (Heater off ) / Max. 35W/90W (Heater off/on, IR on) |
|
Mechanical |
|
|
Color / Material |
Ivory / Aluminum |
|
Dimensions (WxH) |
Ø248.0 x 399.5mm (Ø9.76" x 15.73") |
|
Weight |
7.1Kg (15.65 lb) |
*The lastest product information / sepecification can be found at http://security.hanwhatechwin.com
Revised05-2016 |
