Rockwell Automation 20G-SCR User Manual

Installation Instructions
CG
WARNING
High Center of Gravity. Do Not Push or Pull above this point. Failure to comply can result in death or serious injury.
TIP OVER HAZARD
A
B
A
B
B
B
B
A
B
A
2
DC+ DC–
0V
0V
20-750-BUS1A-F8
x 6x 4x 2
DC+
DC-
x 8 x 2
x 8
IMPORTANT
Refer to the PowerFlex 750-Series Roll-Out Cart Installation Instructions (publication 750-IN014) and the 750-Series Installation Instructions (publication 750-IN001) for information on removing the drive from the cabinet and power disconnection. You can view or download these publications at www.rockwellautomation.com/literature
.
PowerFlex 755 DC Bus Bar - Frame 8 (BUS1A)
1
L1 L2 L3
I
3
O
PowerFlex 755 DC Bus Bar - Frame 8 (BUS1A)
M5
4
6
5
T40
5.6 N•m (50 lb•in)
7
M5
4.5 N•m (40 lb•in)
x 14
T20
4.5 N•m (40 lb•in)
2 Rockwell Automation Publication 750-IN029A-EN-P - March 2013

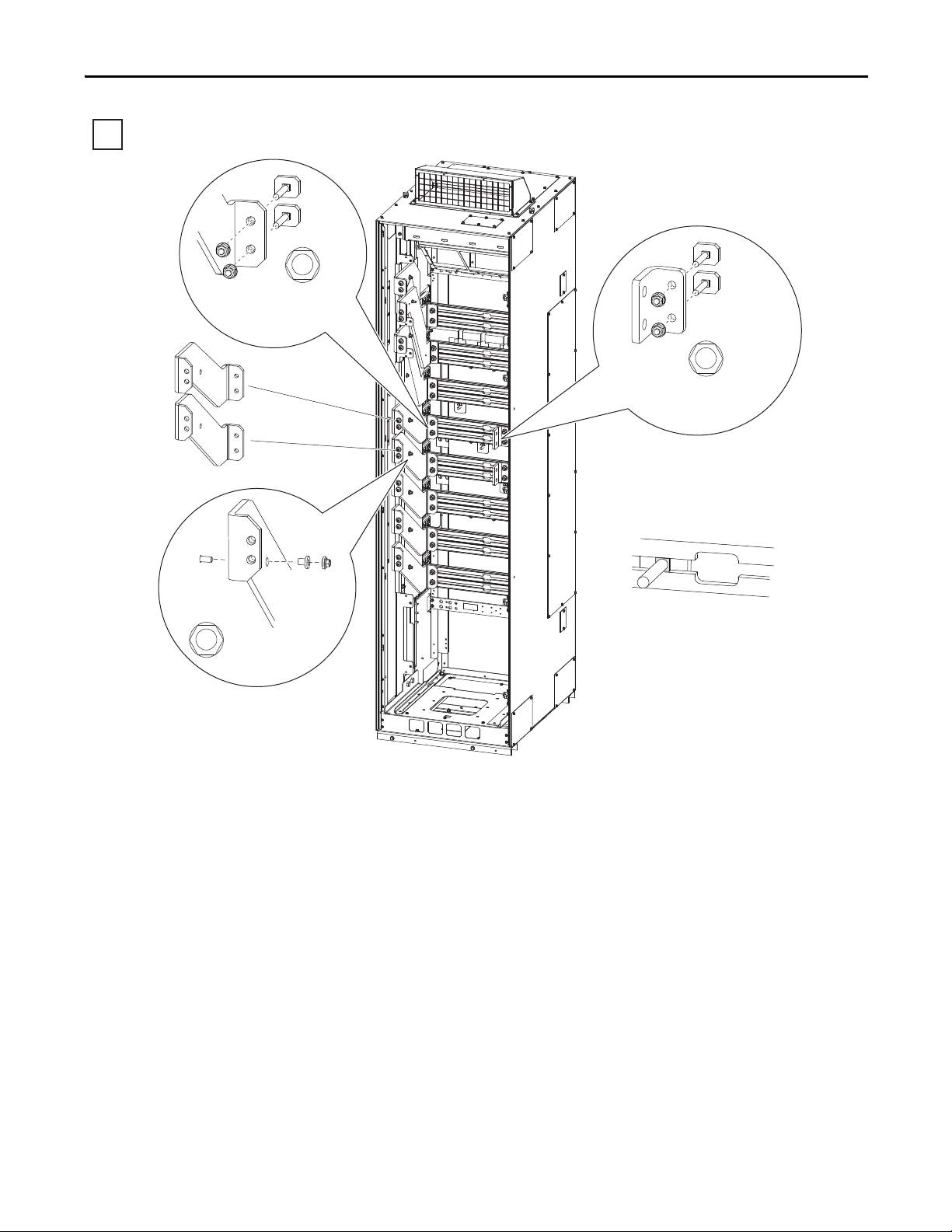

PowerFlex 755 DC Bus Bar - Frame 8 (BUS1A)
8
IMPORTANT
Verify that clamp fits squarely
in the bus bar slot
A
B
C
x 2
M10
37.9 N•m (336 lb•in)
DC+
DC-
M10
37.9 N•m (336 lb•in)
M8
11.3 N•m (100 lb•in)
Rockwell Automation Publication 750-IN029A-EN-P - March 2013 3
