RIDGID K-60 User Manual
Ridge Tool Company/Elyria, Ohio, U.S.A.
24
Drain Cleaning Machine
K-60SP
1
2
3
4
5
6
13
14
15
18
16
19
17
20
21
22
23
24
26
27
28
29
30
31
32
33
34
35
37
38
39
42
44
43
45
47
5
46
41
40
25
7
12
11
10
9
8
NOTE: Order parts by Catalog Number only.
DO NOT order by Reference Number.

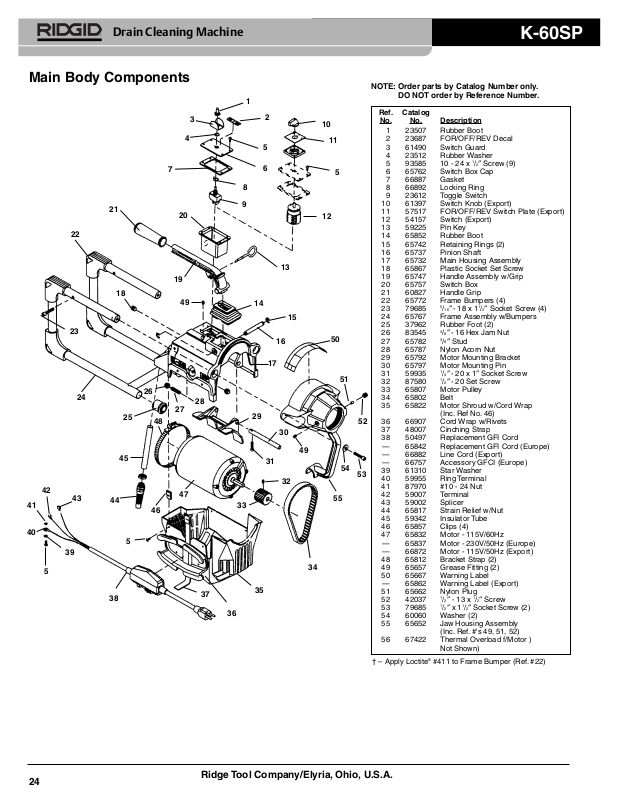

Main Body Components
Ref. Catalog
No.
No.
Description
1 23507 Rubber Boot
2 23687 FOR/OFF/REV Decal
3 61490 Switch Guard
4 23512 Rubber Washer
5 93585 10 - 24 x
1
/2″ Screw (9)
6 65762 Switch Box Cap
7 66887 Gasket
8 66892 Locking Ring
9 23612 Toggle Switch
10 61397 Switch Knob (Export)
11 57517 FOR/OFF/REV Switch Plate (Export)
12 54157 Switch (Export)
13 59225 Pin Key
14 65852 Rubber Boot
15 65742 Retaining Rings (2)
16 65737 Pinion Shaft
17 65732 Main Housing Assembly
18 65867 Plastic Socket Set Screw
19 65747 Handle Assembly w/Grip
20 65757 Switch Box
21 60827 Handle Grip
22 65772 Frame Bumpers (4)
23 79685
5
/16″ - 18 x 11/2″ Socket Screw (4)
24 65767 Frame Assembly w/Bumpers
25 37962 Rubber Foot (2)
26 83545
3
/8″ - 16 Hex Jam Nut
27 65782
3
/8″ Stud
28 65787 Nylon Acorn Nut
29 65792 Motor Mounting Bracket
30 65797 Motor Mounting Pin
31 59935
1
/4″ - 20 x 1″ Socket Screw
32 87580
1
/2″ - 20 Set Screw
33 65807 Motor Pulley
34 65802 Belt
35 65822 Motor Shroud w/Cord Wrap
(Inc. Ref No. 46)
36 66907 Cord Wrap w/Rivets
37 48007 Cinching Strap
38 50497 Replacement GFI Cord
— 65842 Replacement GFI Cord (Europe)
— 66882 Line Cord (Export)
— 66757 Accessory GFCI (Europe)
39 61310 Star Washer
40 59955 Ring Terminal
41 87970 #10 - 24 Nut
42 59007 Terminal
43 59002 Splicer
44 65817 Strain Relief w/Nut
45 59342 Insulator Tube
46 65857 Clips (4)
47 65832 Motor - 115V/60Hz
— 65837 Motor - 230V/50Hz (Europe)
— 66872 Motor - 115V/50Hz (Export)
48 65812 Bracket Strap (2)
49 65657 Grease Fitting (2)
50 65667 Warning Label
— 65862 Warning Label (Export)
51 65662 Nylon Plug
52 42037
1
/2″ - 13 x 1/2″ Screw
53 79685
1
/2″ x 11/2″ Socket Screw (2)
54 60060 Washer (2)
55 65652 Jaw Housing Assembly
(Inc. Ref. #'s 49, 51, 52)
56 67422 Thermal Overload f/Motor )
Not Shown)
5
5
48
36
† – Apply Loctite®#411 to Frame Bumper (Ref. #22)
49
50
51
52
53
54
49
55
Ridge Tool Company/Elyria, Ohio, U.S.A.
25
Drain Cleaning Machine
K-60SP
Ref. Catalog
No.
No.
Description
1 65727 Steel Insert
2† 65722 Sleeve Bearing
3 65712 Shaft w/Rack
4 65717 Extension Spring (2)
5 65707 Spring Plate
6 65702 Pulley Assembly
7 66897 Drive Cone
Ref. Catalog
No.
No.
Description
8 65697 Baffle
9 61110 10 - 32 x
3
/8″ Screw (2)
10 65692 Jawset Cover
11 65687 Clutch Jaw
12 65682 Idler Cone
13† 65677 Bearing (2)
14 65672 Adjustment Cap
NOTE: Order parts by Catalog Number only.
DO NOT order by Reference Number.
† – Apply Loctite®#642 to O.D of Sleeve Bearing (Ref. #2).
† – Apply Loctite
®
#642 to I.D. of Bearing (Ref. #13) prior to assembly into Shaft w/Rack (Ref. #3) and Idler Cone
(Ref. #12).
1
2†
3
4
5
6
13†
14
12
11
10
9
8
Main Drive Components
7
Ref. Catalog
No.
No. Description
— 65702 Pulley Assembly
1 61110 10 - 32 x
3
/8″ Screw (6)
2 66877 Pulley Flange (2)
3† 65677 Bearing (2)
4 66902 Pulley
Pulley Assembly
1
2
3†
4
2
1
† – Apply Loctite®#642 to I.D. of Bearing (Ref. #3) prior to assembly
into Shaft w/Rack (Ref. #3) and Idler Cone (Ref. #12).
