Ricoh SP 6430DN Parts Catalog

Model Da-P1

(M187)

Parts Catalog

Parts change information sample

Add

Update

Delete

Unit All

U001

EXTERIOR

U005

PROCESSES AROUND PHOTOCONDUCTOR

U002

PAPER FEED

U006

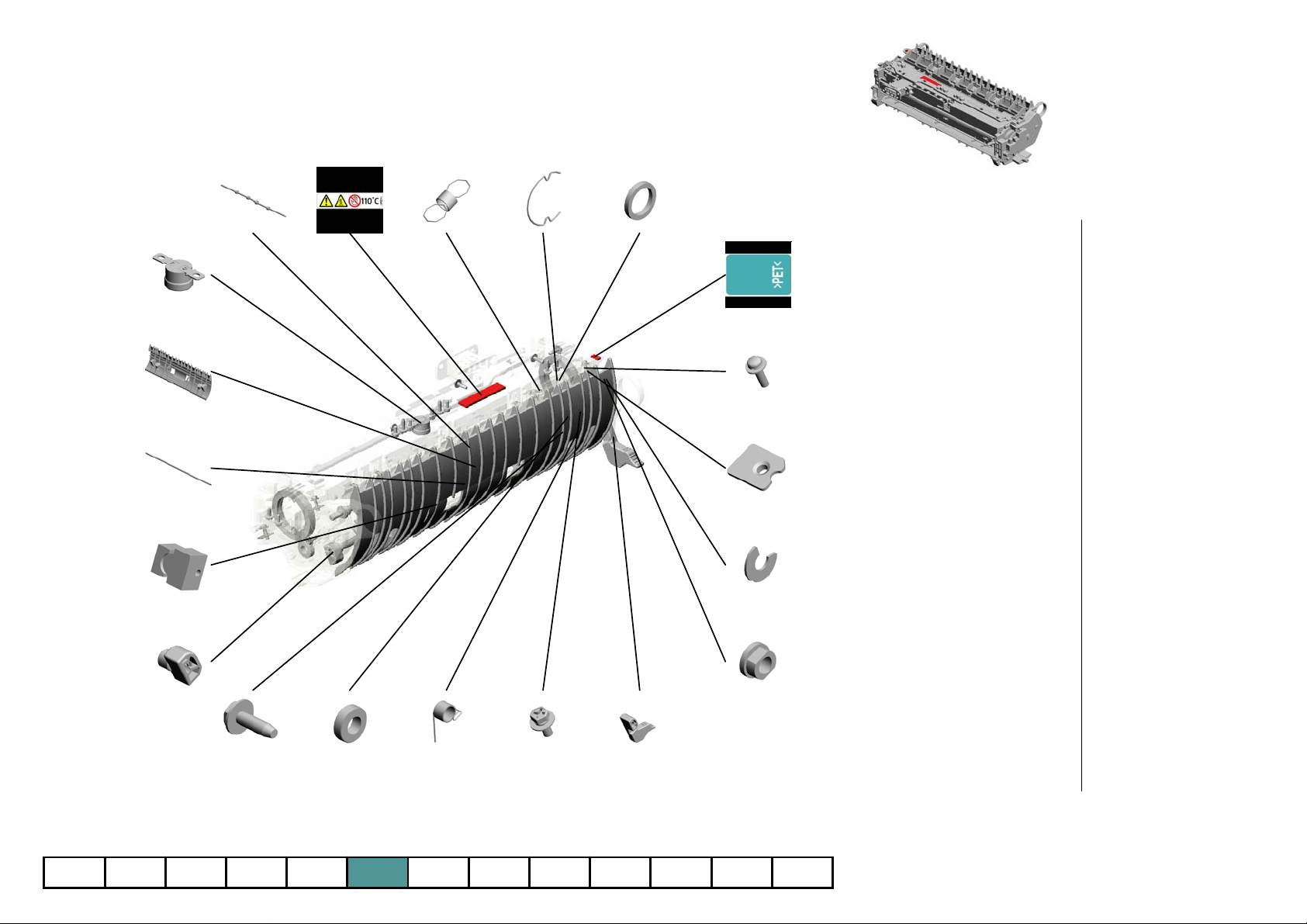

FUSING

U003

TRANSFER/SEPARATION

U007

PAPER EXIT

U004

OPTICAL WRITING

U008

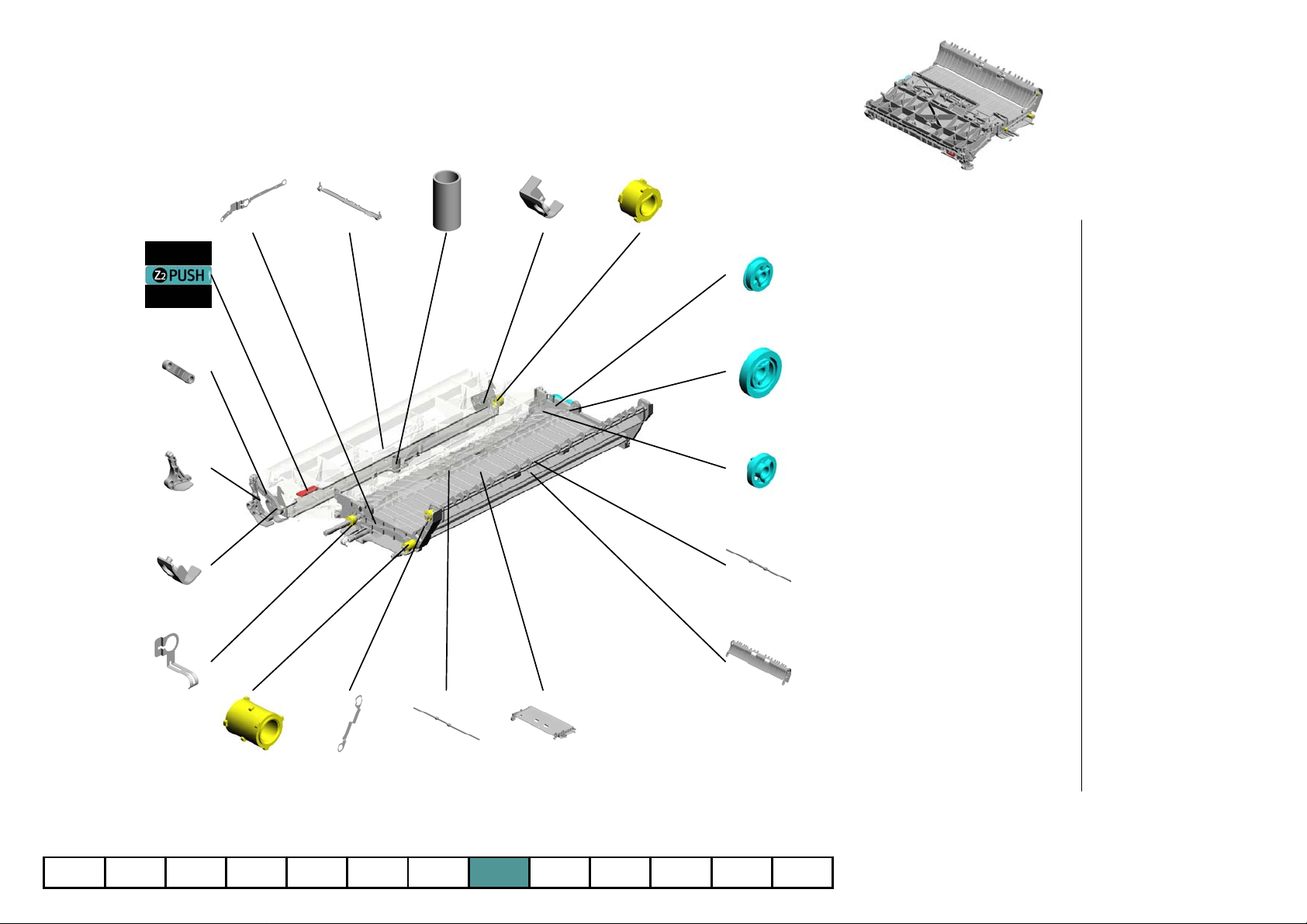

DUPLEX

U009

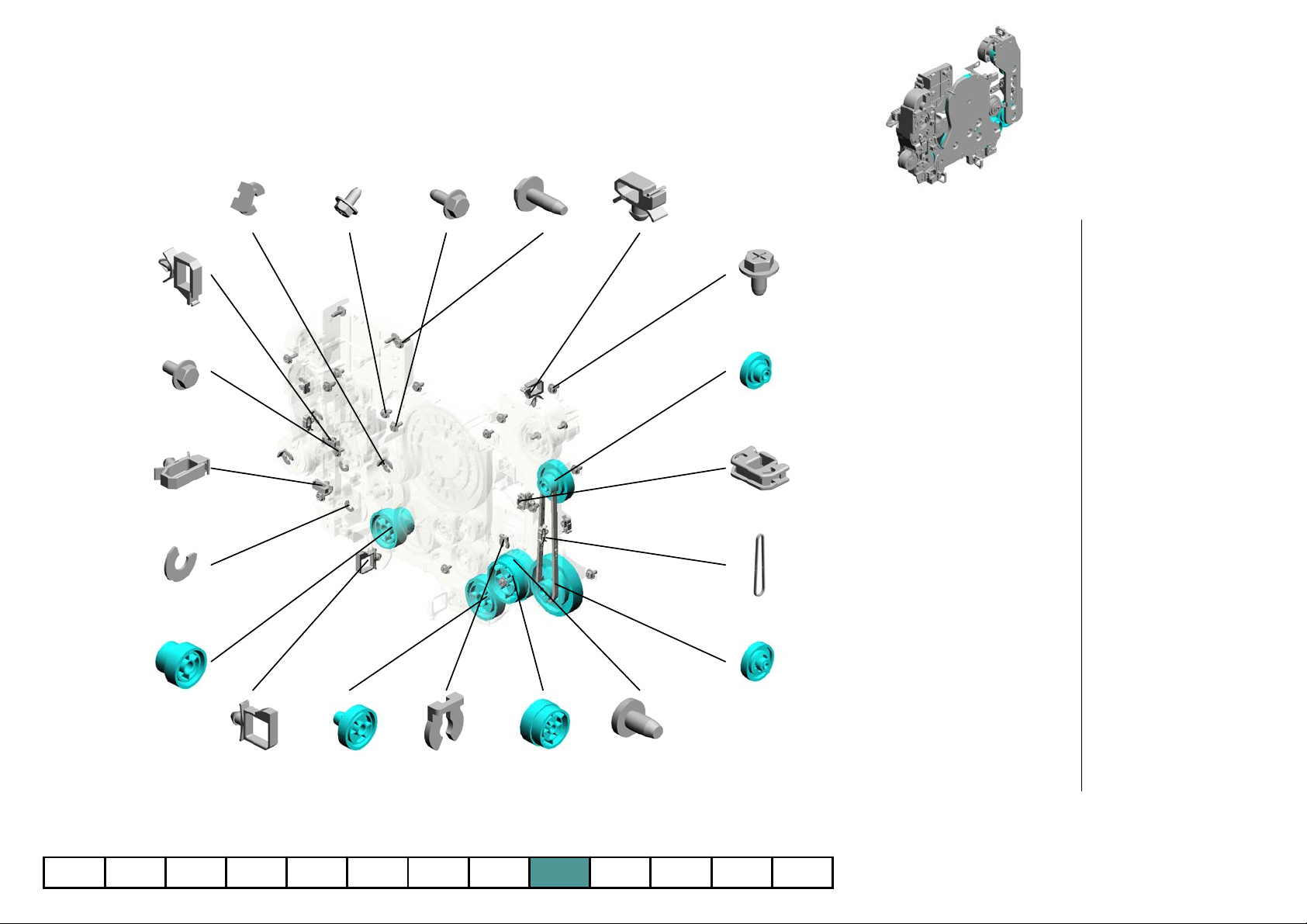

MAIN DRIVE

U010

TONER SUPPLY

U011

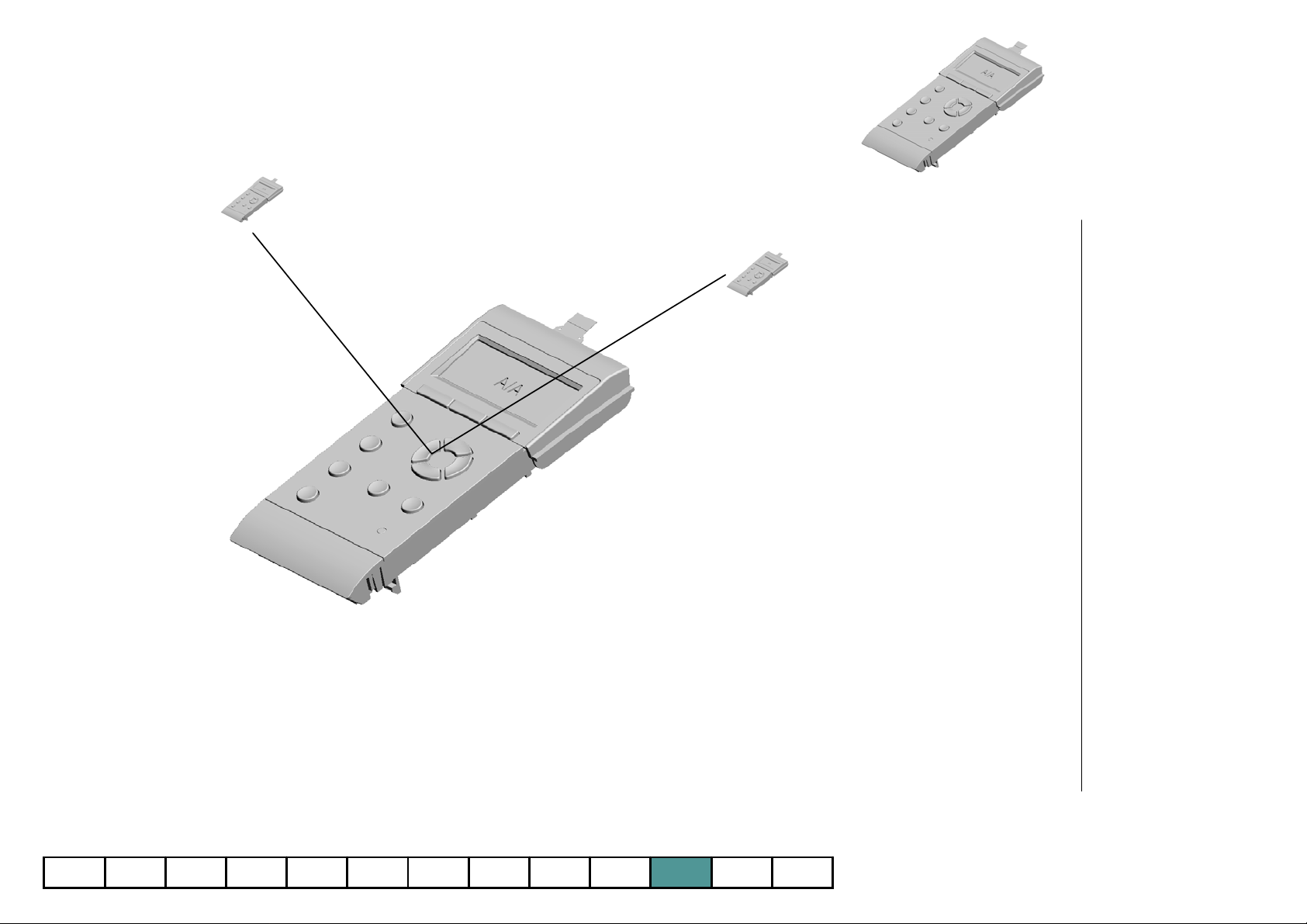

OPERATION

U012

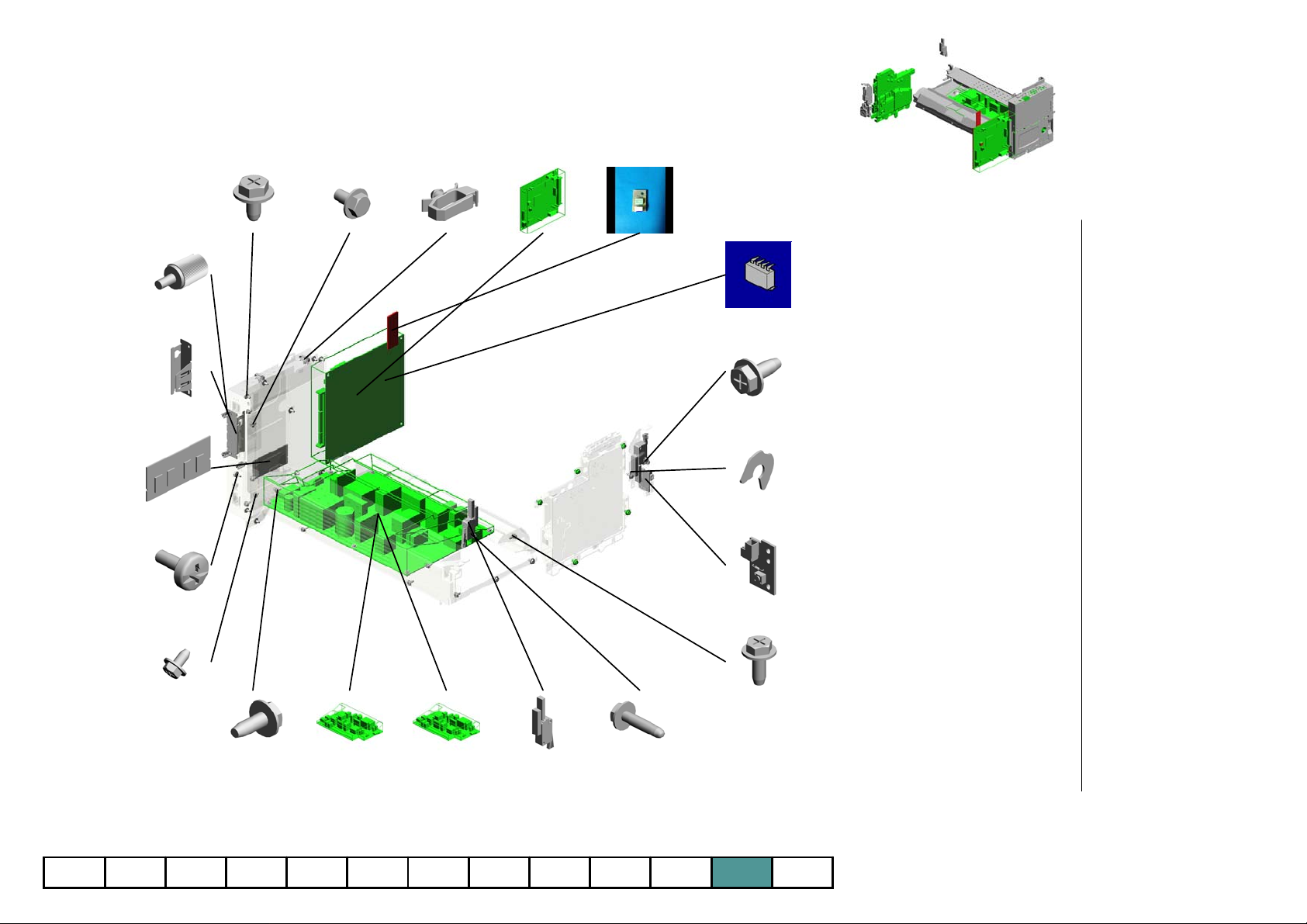

ELECTRICAL

U013

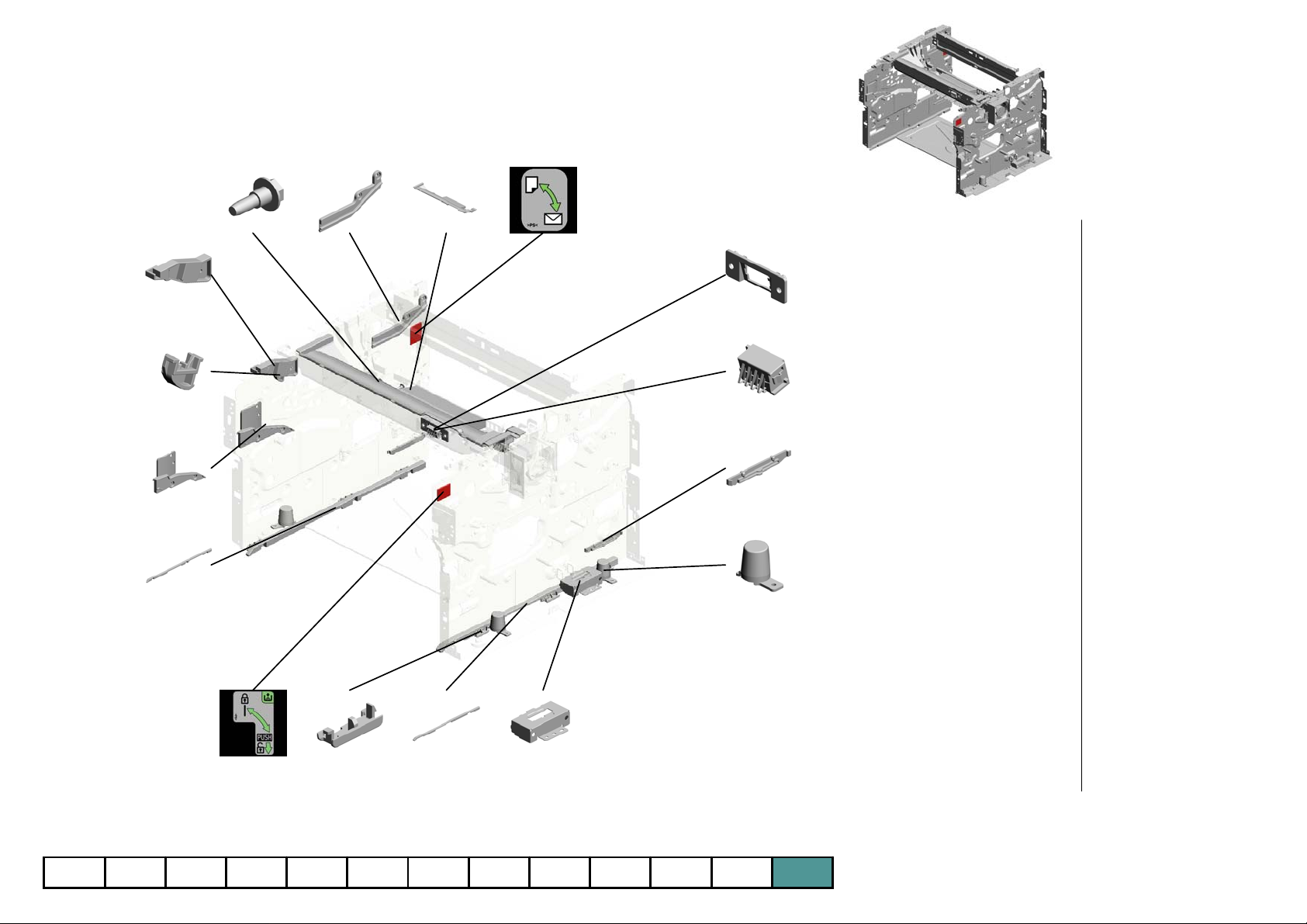

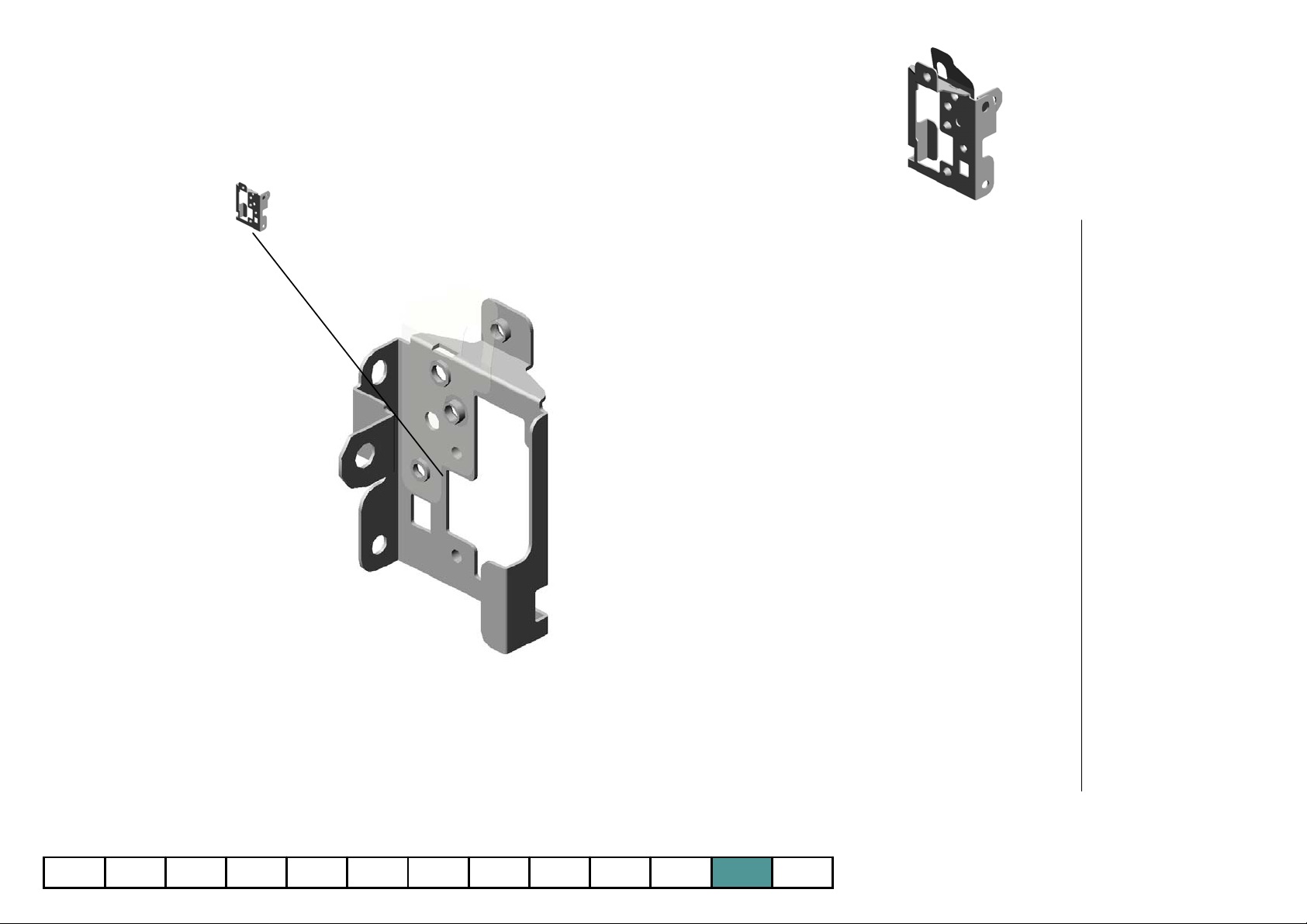

MAIN FRAME

Unit All

U001_S001 M1871280

COVER:FRONT:DAI-P1D:ASS 'Y

U001.EXTERIOR

U001_S002 M1871290

COVER:REAR:DAI-P1D:ASS' Y

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

U001 EXTERIOR

16.M1871279

EXTENSION TRAY: EXIT:SMALL

6.M1871251

COVER:LEFT

10.M1871263

COMPRESSION SP RING:COVER:RIGH T:BUTTON

14.M1871272

EXTENSION TRAY: EXIT

13.M1871271

COVER:UPPER:50 0

15.M1871273

COVER:EXIT:INNE R BACK

24.M1871297 (x2)

SHEET:COVER:A 201511-01

12.M1871265

CAP:TOTAL COUN TER

11.M1871264

COVER:RIGHT:SM ALL

4.AA143853 (x2)

FLAT FILLISTER H EAD TAPPING SCR EW:M3X8

1.04513006N (x10)

TAPPING SCREW - 3X6

2.04513008N (x 2)

TAPPING SCREW - M3X8

3.04583008N (x 2)

HEXAGON HEAD TAPPING SCREW:3X 8

9.M1871262

COVER:BUTTON

25.M1871298 (x14)

SHEET:COVER:B 201511-02

8.M1871261

COVER:RIGHT

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

U001_S001 COVER:FRONT:DAI-P1D:ASS'Y

22.M1871289

COMPRESSION SP RING:COVER:FRO NT

21.M1871287

PLATE:COVER:FR ONT

17.M1871280

COVER:FRONT:DA I-P1D:ASS'Y

27.M1875820

BUTTON:MAIN SWI TCH

19.M1871285

COIL SPRING:SUP PORT STAY

18.M1871284

SUPPORT STAY:C OVER:FRONT

20.M1871286

WIRE:DRIVE:JOINT

28.M1875823

COIL SPRING:MAI N SWITCH

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

U001_S002 COVER:REAR:DAI-P1D:ASS'Y

26.M1874492 (x2)

COIL SPRING:GUI DE PLATE:EXIT:RE AR

23.M1871290

COVER:REAR:DAIP1D:ASS'Y

7.M1871258 (x2)

PLATE:GUIDE PLA TE:REAR

5.AG070517 (x2)

MAGNET CATCH:3 4N:ASS'Y

4.AA143853

FLAT FILLISTER H EAD TAPPING SCR EW:M3X8

3.04583008N (x2)

HEXAGON HEAD T APPING SCREW:3 X8

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

U002_S004 M1872702

TRAY:MANUAL FEED:ASS'Y

U002.PAPER FEED

U002_S003 M1872701

MANUAL FEED UNIT:ASS'Y

U002_S001 M1872550

PAPER TRAY:REAR:500TYP E:ASS'Y

U002_S002 M1872605

PAPER TRAY:FRONT:500TY PE:ASS'Y

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

U002_S001.PAPER TRAY:REAR:500TYPE:ASS'Y

U002_S001_S001 M1872656

END FENCE:500TYPE:ASS'Y

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

U002_S002.PAPER TRAY:FRONT:500TYPE:ASS'Y

U002_S002_S001 M1872610

SEPARATOR:ASS'Y

U002_S002_S002 M1872641

SIDE FENCE:RIGHT:500TYP E:ASS'Y

U002_S002_S003 M1872661

SIDE FENCE:LEFT:500TYPE: ASS'Y

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

U002 PAPER FEED

56.M1872651

(-NA):DECAL:DIAL: PAPER SIZE SENS OR

57.M1872652 (x2)

(-EU/-CHN):DECAL: DIAL:PAPER SIZE SENSOR

34.M1112604

DIAL:PAPER SIZE SENSOR BOARD

5.04583010N (x20)

HEXAGON HEAD T APPING SCREW:3 X10

9.11050758

CLAMP:LWSM-030 6A

1.04543006N (x2)

TAPPING SCREW: ROUND POINT:3X6

7.08050104 (x4)

RETAINING RINGS

-E:SILENCER:DIA4

6.07200040E (x2)

RETAINING RING M4

8.08050106

RETAINING RINGS

-E:SILENCER:DIA6

13.AA082175 (x2)

PLAIN SHAFT BEA RING:8X12X7

12.AA082173 (x4)

PLAIN SHAFT BEA RING:6X10X6

7.08050104

RETAINING RINGS

-E:SILENCER:DIA4

31.M1092635 (x2)

SPACER:PAPER SI ZE SENSOR BOAR D:OUTER

36.M1112636

SPACER:PAPER SI ZE SENSOR BOAR D:MIDDLE

24.GW500004

PUSH SWITCH:CA SSETTE:TYCO

30.M1092631

GRIP:PAPER TRAY

17.AW020198

PHOTOINTERRUP TOR:LG2A14NL1

22.GF031009

PAPER FEED ROL LER:BALANCER

23.GW010007

PHOTO REFLECTI ON SENSOR:EXIT

39.M1872590 (x2)

SPRING PLATE:PA PER TRAY:ASS'Y

2.04543006Q (x2)

TAPPING SCREW M3X6

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

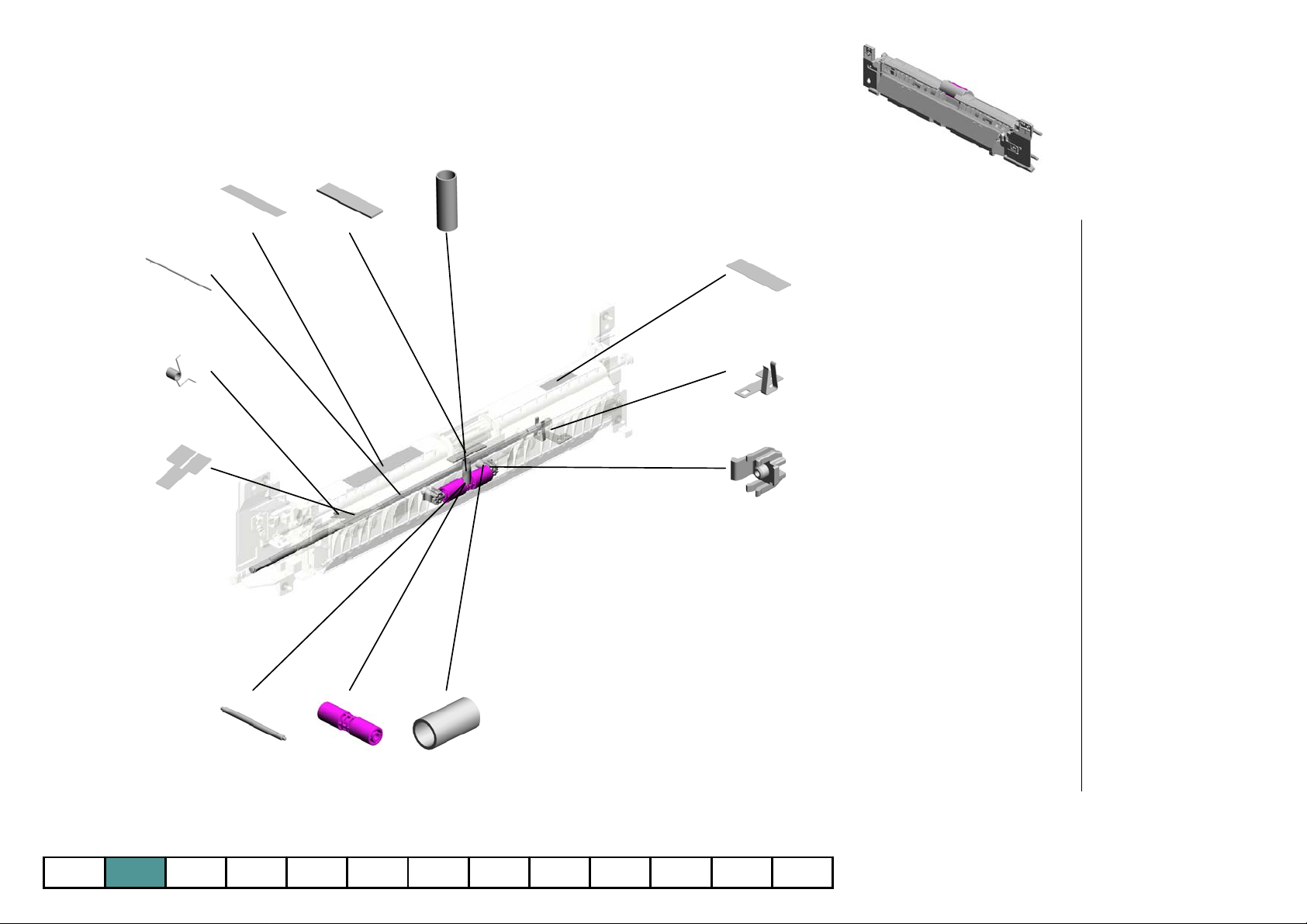

U002 PAPER FEED

106.M1872807

SHAFT:PAPER FEE D

111.M1872817

GROUND PLATE:S TAY:PAPER FEED: RIGHT

114.M1872823

GROUND PLATE:P APER FEED:UPPE R

59.M1872654

DECAL:PAPER SE T DIRECTION:RIGH T

108.M1872811

ROLLER:CONNEC TING:DRIVE:PAPE R FEED

66.M1872692

COVER:PAPER TR AY:500TYPE

107.M1872808

SPACER:ROLLER: CONNECTING:PAP ER FEED

58.M1872653

DECAL:PAPER SE T DIRECTION:LEFT

110.M1872816

SHEET:STAY:PAPE R FEED:UPPER

117.M1872837

COVER:STAY:PAP ER FEED:LEFT

112.M1872818

COMPRESSION SP RING:LEVER:PAPE R FEED ROLLER

64.M1872683

LEVER:PAPER SIZ E SENSOR BOARD

118.M1872842

SENSOR COVER:P APER SIZE SENSO R BOARD:500TYPE

116.M1872836

COVER:STAY:PAP ER FEED:RIGHT

113.M1872822

FEELER:PAPER E ND SENSOR

115.M1872831

GUIDE PLATE:PAP ER FEED:ENTRAN CE:ASS'Y

104.M1872805

STAY:PAPER FEE D

109.M1872813

GUIDE PLATE:PAP ER FEED:UPPER

103.M1872803

LEVER:PAPER FEE D ROLLER

105.M1872806

SHAFT:PLAIN SHA FT BEARING:PAPE R FEED ROLLER

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

U002 PAPER FEED

127.M1873825

SHEET:GUIDE:RE GISTRATION ROLL ER:UPPER RIGHT

132.M1873891

SHEET:GUIDE:RE GISTRATION SENS OR:HARNESS

129.M1873831

LEVER:PRESSURE :REGISTRATION:RI GHT

124.M1873822

COVER:GUIDE:RE GISTRATION:UPPE R

128.M1873826

DECAL:REGISTRA TION GUIDE:GRIP

125.M1873823

STOPPER:SENSO R:PLATE

123.M1873821

GUIDE PLATE:REG ISTRATION:UPPER

130.M1873832

LEVER:PRESSURE :REGISTRATION:L EFT

131.M1873833 (x2)

COMPRESSION SP RING:LEVER:PRES SURE:REGISTRATI ON

126.M1873824

SHEET:GUIDE:RE GISTRATION ROLL ER:UPPER LEFT

119.M1872851

COVER:PREVENTF ENCE:PAPER TRA Y

121.M1873811

REGISTRATION R OLLER:DRIVE

122.M1873812

REGISTRATION R OLLER:DRIVEN

120.M1872856

TENSION SPRING: COVER:PREVENTF ENCE

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

U002_S001 PAPER TRAY:REAR:500TYPE:ASS'Y

38.M1872554

PAPER TRAY:REA R:500TYPE

60.M1872655

DECAL:PAPER FE ED PRESSURE:OP ERATE

35.M1112633

DECAL:EXTENSIO N TRAY:OPERATE

37.M1872550

PAPER TRAY:REA R:500TYPE:ASS'Y

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

U002_S001_S001 END FENCE:500TYPE:ASS'Y

25.M0752610 (x2)

COMPRESSION SP RING:LOCK:SIDE F ENCE

61.M1872656

END FENCE:500TY PE:ASS'Y

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

U002_S002 PAPER TRAY:FRONT:500TYPE:ASS'Y

49.M1872624

SHEET:PAPER TR AY:SEPARATE:500 TYPE

20.GA063086

COMPRESSION SP RING:PAPER TRAY

11.A2672869

GEAR - 16Z

42.M1872606

LEVER:PAPER VO LUME SENSOR:50 0TYPE

5.04583010N (x6)

HEXAGON HEAD T APPING SCREW:3 X10

41.M1872605

PAPER TRAY:FRO NT:500TYPE:ASS'Y

52.M1872637 (x2)

TENSION SPRING: TRAY BOTTOM PL ATE:500TYPE

55.M1872647

PAD:BASE:URETH ANE:WHITE

65.M1872688 (x2)

SEAL:PAPER TRAY :500

33.M1092657 (x2)

PROTECTION:PAP ER TRAY

40.M1872602

PAPER TRAY:FRO NT:500TYPE

51.M1872630

TRAY BOTTOM PL ATE:500TYPE

32.M1092640

HOLDER:PINION

21.GA063087 (x2)

COMPRESSION SP RING:AUXILIARY:P APER TRAY

29.M1092598 (x2)

HOLDER:COIL SPR ING:BASE

28.M1092595 (x2)

KNOB:COIL SPRIN G:PAPER TRAY:UD

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

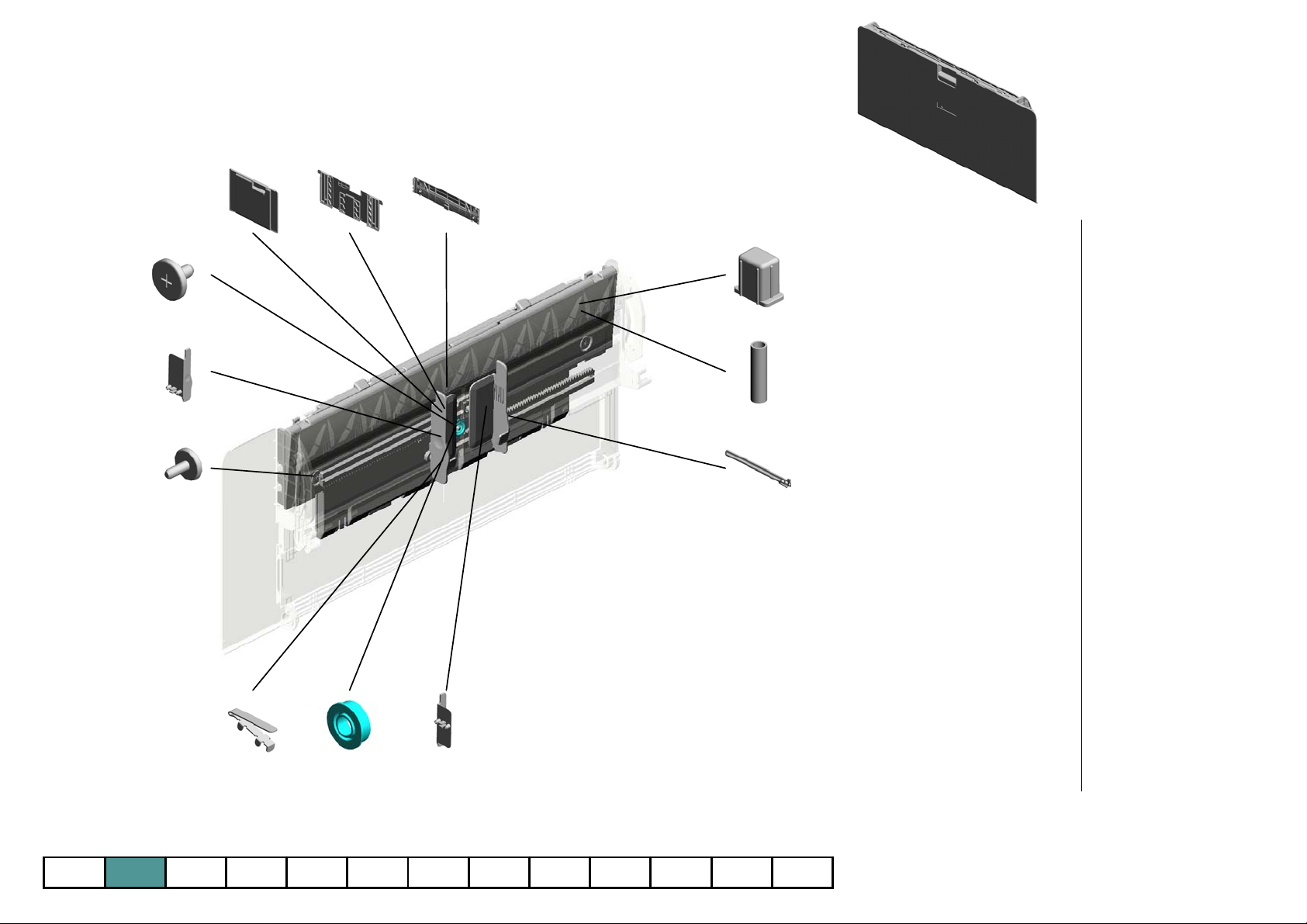

U002_S002_S001 SEPARATOR:ASS'Y

44.M1872612

BRACKET:PAPER FEED ROLLER:SE PARATE

16.AF032094

PAPER FEED ROL LER:SEPARATE

46.M1872614

SHAFT:PAPER FEE D ROLLER:SEPAR ATE

136.M1872610

SEPARATOR:ASS' Y 201511-03

43.M1872611

BASE:PAPER FEE D ROLLER:SEPAR ATE

18.D1292783

TORQUE LIMITER MECHANICAL CLU TCH:40MNM:DIA18

7.08050104

RETAINING RINGS

-E:SILENCER:DIA4

50.M1872625 (x2)

SHEET:SEPARATE :AUXILIARY

48.M1872623

GUIDE:SEPARATE: AUXILIARY

45.M1872613

COVER:PAPER FE ED ROLLER:SEPA RATE

47.M1872618

COMPRESSION SP RING:PRESSURE: SEPARATE:0.75N

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

U002_S002_S002 SIDE FENCE:RIGHT:500TYPE:ASS'Y

27.M1092589

LEVER:LOCK:SIDE FENCE

25.M0752610

COMPRESSION SP RING:LOCK:SIDE F ENCE

53.M1872641

SIDE FENCE:RIGH T:500TYPE:ASS'Y

133.M4062854

PAWL:LOCK:SIDE FENCE

134.M4062855

COVER:SIDE FENC E:RIGHT

54.M1872642

SIDE FENCE:RIGH T:500TYPE

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

U002_S002_S003 SIDE FENCE:LEFT:500TYPE:ASS'Y

19.GA063084

COMPRESSION SP RING:AUXILIARY:S IDE FENCE

62.M1872661

SIDE FENCE:LEFT: 500TYPE:ASS'Y

26.M1092584

PRESSURE PLATE :SIDE FENCE:LEFT

135.M4062865

COVER:SIDE FENC E:LEFT

63.M1872662

SIDE FENCE:LEFT: 500TYPE

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

U002_S003 MANUAL FEED UNIT:ASS'Y

72.M1872727

CAM:MANUAL FEE D:RIGHT

75.M1872730

FEELER:PAPER E ND SENSOR:MANU AL FEED

73.M1872728

COVER:PAPER FE ED ROLLER:MANU AL FEED

79.M1872737

HOLDER:FRICTION PAD:MANUAL FEE D

69.M1872721

SHAFT:PAPER FEE D ROLLER:MANUA L FEED:PRESS FIT

67.M1872701

MANUAL FEED UNI T:ASS'Y

78.M1872736 (x2)

COMPRESSION SP RING:BASE:MANU AL FEED

80.M1872740

FEELER:CAM:MAN UAL FEED

7.08050104 (x3)

RETAINING RINGS

-E:SILENCER:DIA4

17.AW020198 (x2)

PHOTOINTERRUP TOR:LG2A14NL1

9.11050758 (x2)

CLAMP:LWSM-030 6A

3.04543008Q (x4)

TAPPING SCREW: 3X8

5.04583010N (x6)

HEXAGON HEAD T APPING SCREW:3 X10

10.54472681 (x2)

SNAP RING

12.AA082173 (x4)

PLAIN SHAFT BEA RING:6X10X6

4.04583008N (x3)

HEXAGON HEAD T APPING SCREW:3 X8

76.M1872732

PAD:BASE

74.M1872729

DAMPING INSULAT ION:MANUAL FEED

70.M1872723

PAPER FEED ROL LER:MANUAL FEE D

77.M1872735 (x2)

HOLDER:CAM:BAS E:MANUAL FEED

71.M1872726

CAM:MANUAL FEE D:LEFT

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

U002_S003 MANUAL FEED UNIT:ASS'Y

84.M1872752

DECAL:SET:PCDU: RIGHT

90.M1872765

FRICTION PAD:MA NUAL FEED

97.M1872772

COMPRESSION SP RING:FRICTION PA D:MANUAL FEED:3 .4N

67.M1872701

MANUAL FEED UNI T:ASS'Y

96.M1872771

SHAFT:CAM:MANU AL FEED

81.M1872741

COIL SPRING:FEE LER:CAM:MANUAL FEED

102.M1872778

SHEET:SENSOR C OVER

85.M1872753

DECAL:SET:PCDU: LEFT

82.M1872744

SPRING PLATE:HO ME POSITION SEN SOR:MANUAL FEE D

100.M1872776 (x2)

PLAIN SHAFT BEA RING:DIA5:CONNE CTING

99.M1872775

SHAFT:CONNECTI NG:DRIVEN:PAPE R FEED

98.M1872774

ROLLER:DRIVEN:C ONNECTING

83.M1872750 (x2)

COMPRESSION SP RING:DRIVEN ROL LER:CONNECTING

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

U002_S004 TRAY:MANUAL FEED:ASS'Y

93.M1872768

EXTENSION TRAY: NO.2:MANUAL FEE D

92.M1872767

EXTENSION TRAY: NO.1:MANUAL FEE D

91.M1872766

COVER:EXTENSIO N TRAY

68.M1872702

TRAY:MANUAL FE ED:ASS'Y

14.AA143846

TAPPING SCREW: M3X6

87.M1872761

SIDE FENCE:MAN UAL FEED:RIGHT

15.AA143853 (x2)

FLAT FILLISTER H EAD TAPPING SCR EW:M3X8

94.M1872769 (x2)

HOLDER:COMPRE SSION SPRING:EX TENSION TRAY

95.M1872770 (x2)

COMPRESSION SP RING:EXTENSION TRAY:7N

89.M1872763 (x2)

RACK:SIDE FENCE

101.M1872777 (x2)

SPRING PLATE:SI DE FENCE:MANUA L FEED

88.M1872762

GEAR:SIDE FENCE

86.M1872760

SIDE FENCE:MAN UAL FEED:LEFT

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

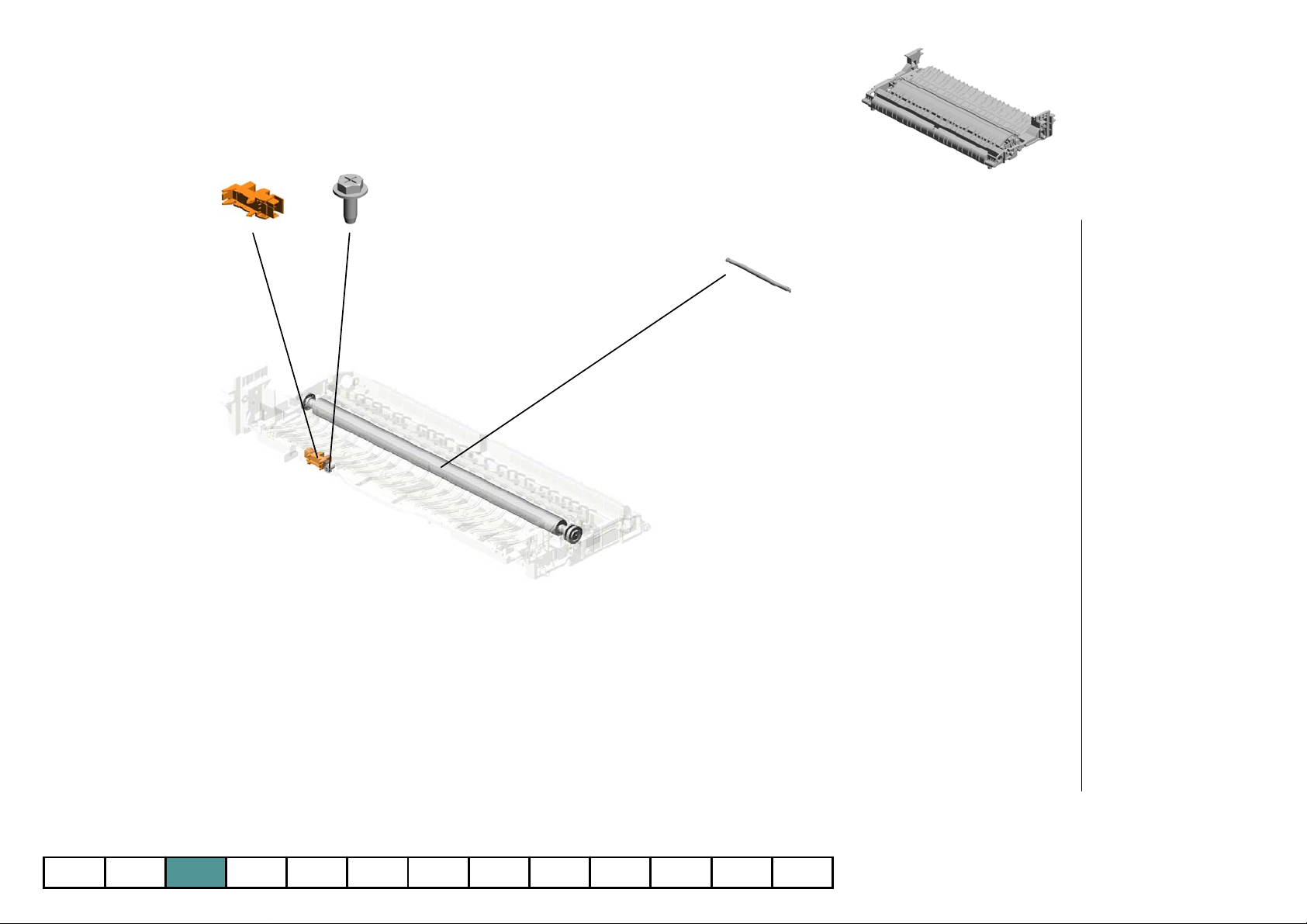

U003 TRANSFER/SEPARATION

2.AW020198

PHOTOINTERRUP TOR:LG2A14NL1

1.04583008N

HEXAGON HEAD T APPING SCREW:3 X8

3.M1876202

TRANSFER ROLLE R:ASS'Y

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

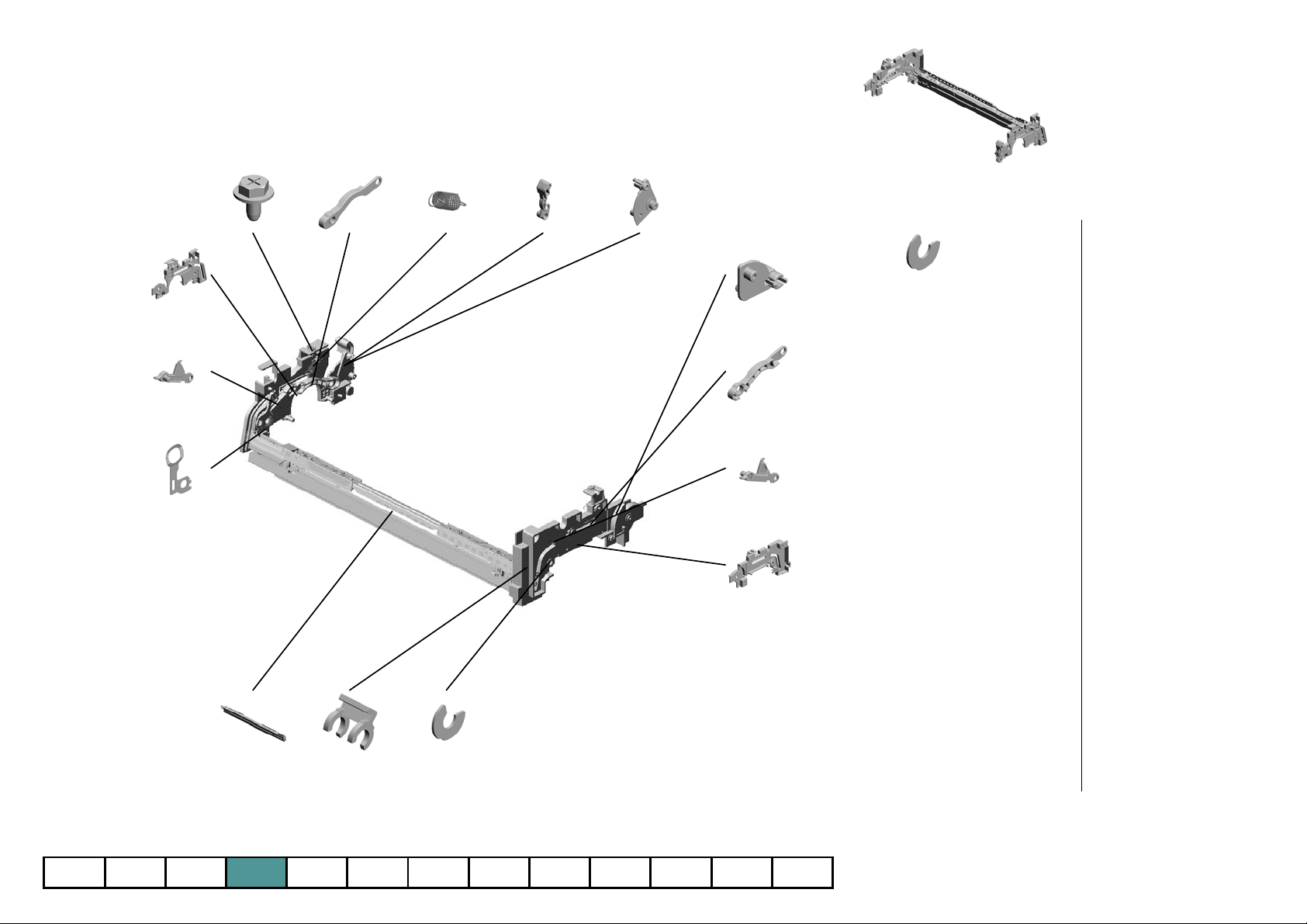

U004 OPTICAL WRITING

4.M1871924

GUIDE:LINK:LED:RI GHT

13.M1871942

LINK:LED:RIGHT:C

10.M1871933 (x2)

GROUND PLATE:HI NGE:LED

1.04543006Q (x8)

TAPPING SCREW M3X6

7.M1871927

LINK:LED:RIGHT:B

11.M1871935 (x2)

COIL SPRING:LINK :LED

12.M1871936

LEVER:LINK:LED:R IGHT

6.M1871926

LINK:LED:RIGHT:A

8.M1871929

LINK:LED:LEFT:A

9.M1871930

LINK:LED:LEFT:B

14.M1871943

LINK:LED:LEFT:C

2.08050104 (x2)

RETAINING RINGS

-E:SILENCER:DIA4

5.M1871925

GUIDE:LINK:LED:L EFT

15.M1871970

LED:ASS'Y

3.M1871909

SPACER:HOLDER: LED

2.08050104 (x7)

RETAINING RINGS

-E:SILENCER:DIA4

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

U005 PROCESSES AROUND PHOTOCONDUCTOR

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

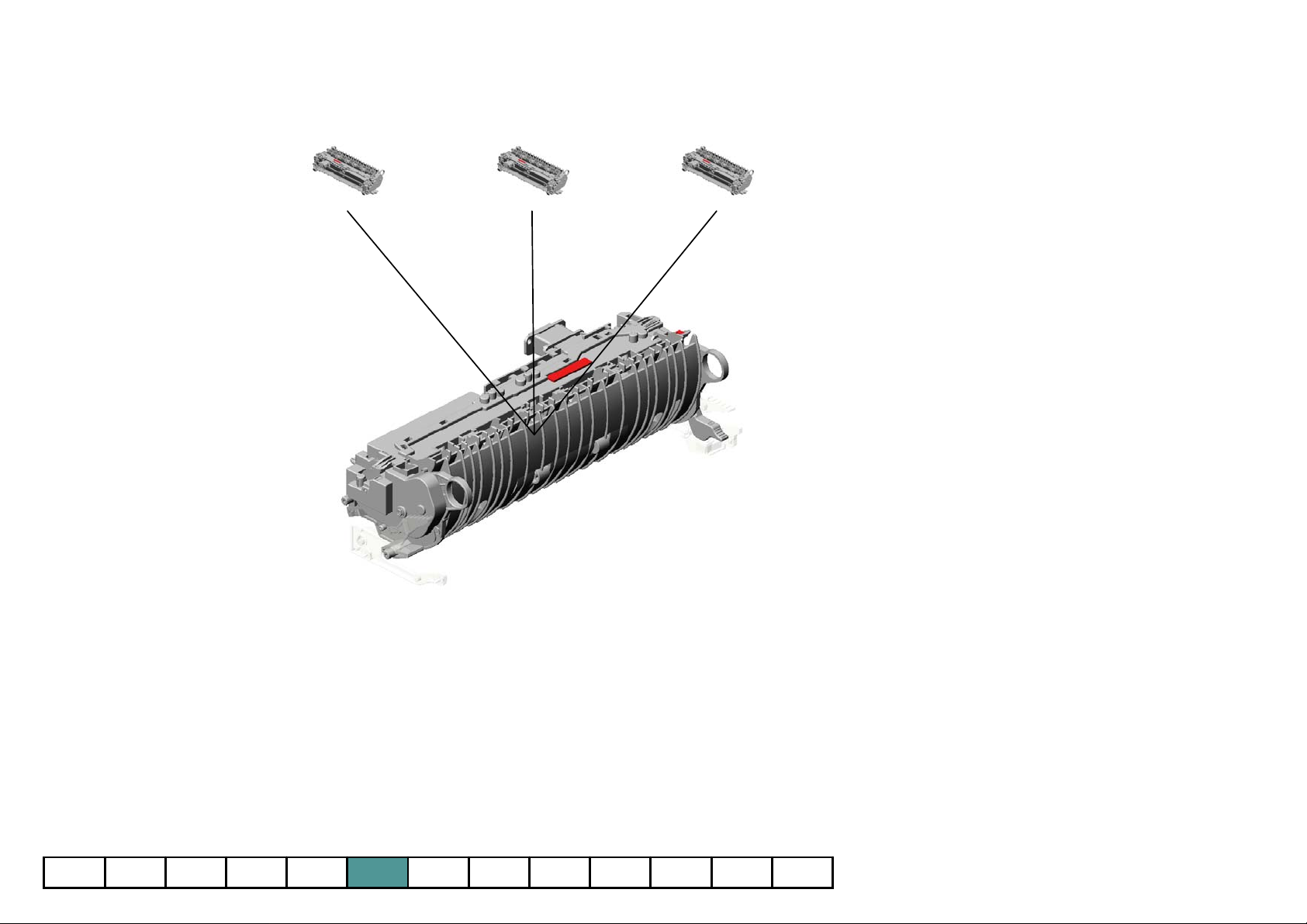

U006_S001 M1874027

(-EU/-CHN):FUSING UNIT

U006.FUSING

U006_S002 M1874027

(-EU/-CHN):FUSING UNIT

U006_S003 M1874017

(-NA):FUSING UNIT

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

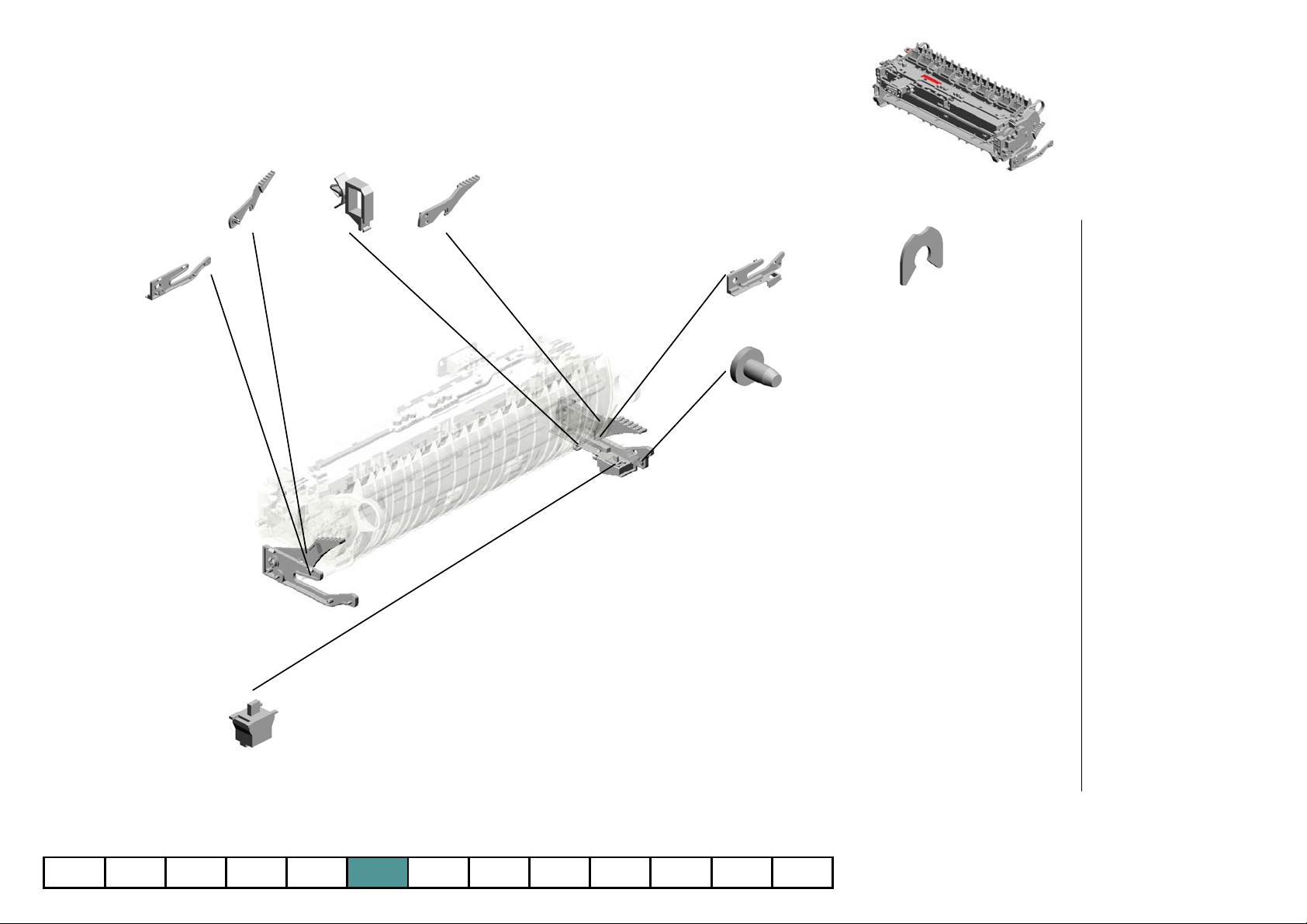

U006 FUSING

62.M1874351

GUIDE:FUSING:RI GHT LOWER

63.M1874352

LEVER:FUSING:RI GHT

7.11050758 (x2)

CLAMP:LWSM-030 6A

65.M1874354

LEVER:FUSING:LE FT

64.M1874353

GUIDE:FUSING:LE FT LOWER

1.04533006N (x4)

TAPPING SCREW M3X6

8.52152621 (x2)

SNAP RING - M6

13.G0205626

PUSH SWITCH

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

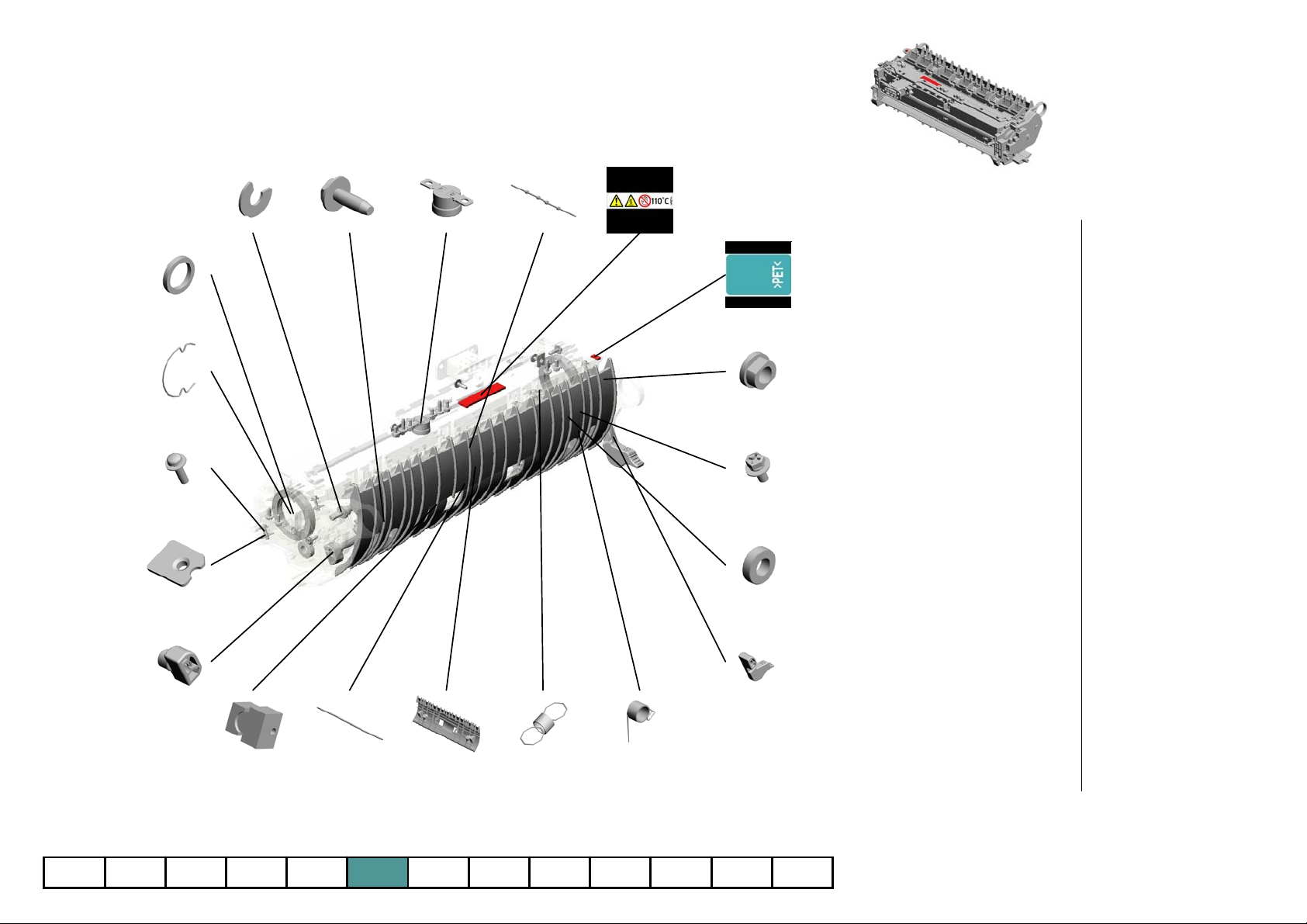

U006_S001 (-EU/-CHN):FUSING UNIT

21.M1874106

EXIT ROLLER:FUSI NG

12.D1204184

DECAL:H-TEMP W ARNING:SMALL

15.M0124120 (x5)

TENSION SPRING: PICKOFF PAWL

16.M0124281 (x2)

RETAINING RINGS

-C:HOT ROLLER

14.M0124055 (x2)

RADIAL BALL BEA RING:35X47X7

19.M1874027

(-EU/-CHN):FUSING UNIT

11.AW110110

THERMOSTAT

26.M1874121

GUIDE:DUPLEX:FU SING

24.M1874113

SHAFT:LEVER:ENV ELOPE

9.AA080313 (x2)

DRIVEN ROLLER B USHING

23.M1874112

LEVER:ENVELOPE :RIGHT

17.M1094181

DECAL:OPERATIO N SUB-UNIT:GUIDE PLATE

6.09543012N (x6)

SCREW - M3X12

20.M1874102 (x5)

FLAT NUT:FRAME

4.08050104 (x2)

RETAINING RINGS

-E:SILENCER:DIA4

10.AA082118 (x2)

BUSHING - M6

2.04583010N (x12)

HEXAGON HEAD T APPING SCREW:3 X10

5.08053575 (x2)

RADIAL BALL BEA RING:DIA8XDIA16X 5

25.M1874114

TORSION SPRING: LEVER

3.08046127 (x8)

HEXAGONAL BOLT :DOUBLE SCREW: M3X8

22.M1874111

LEVER:ENVELOPE :LEFT

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

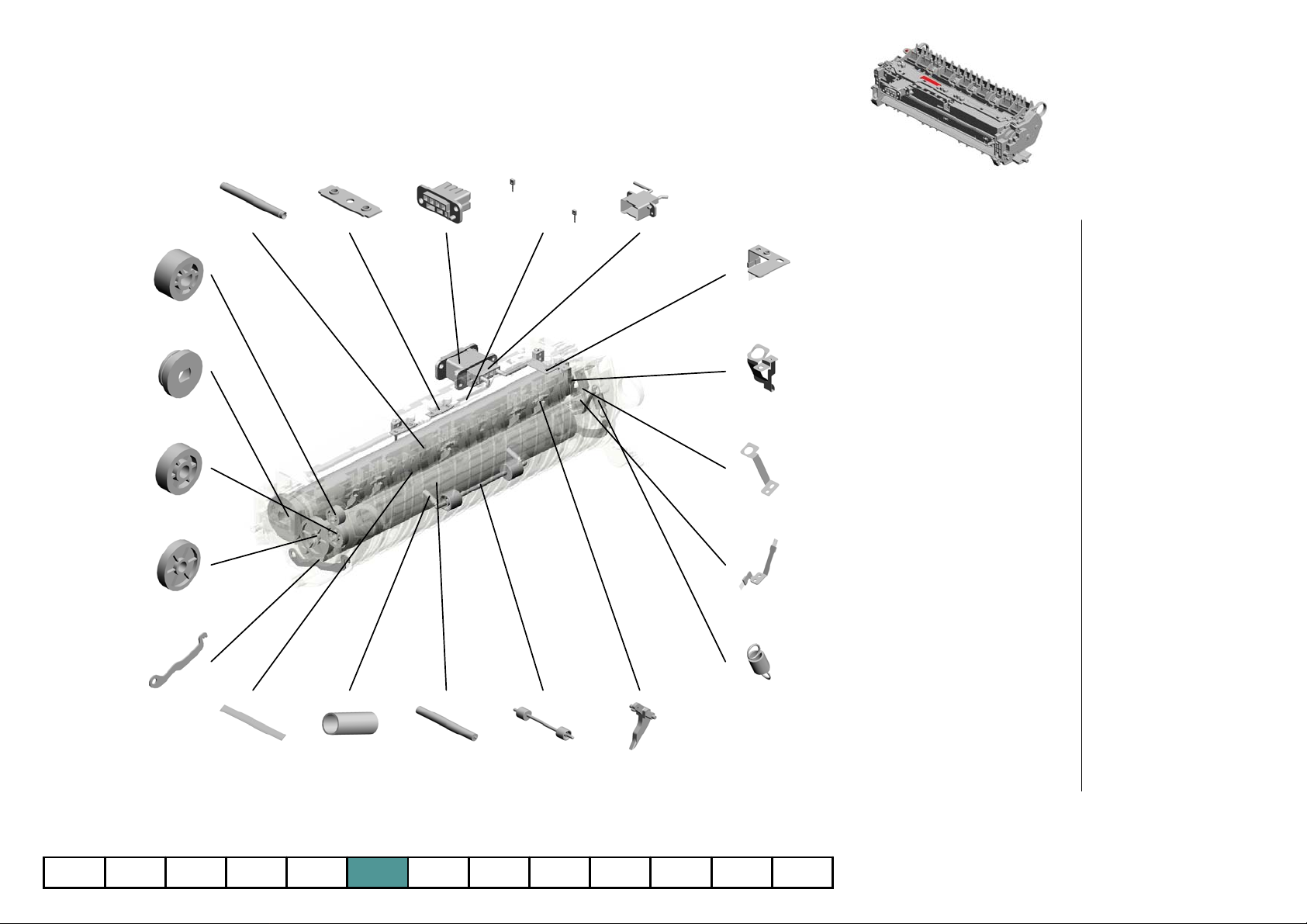

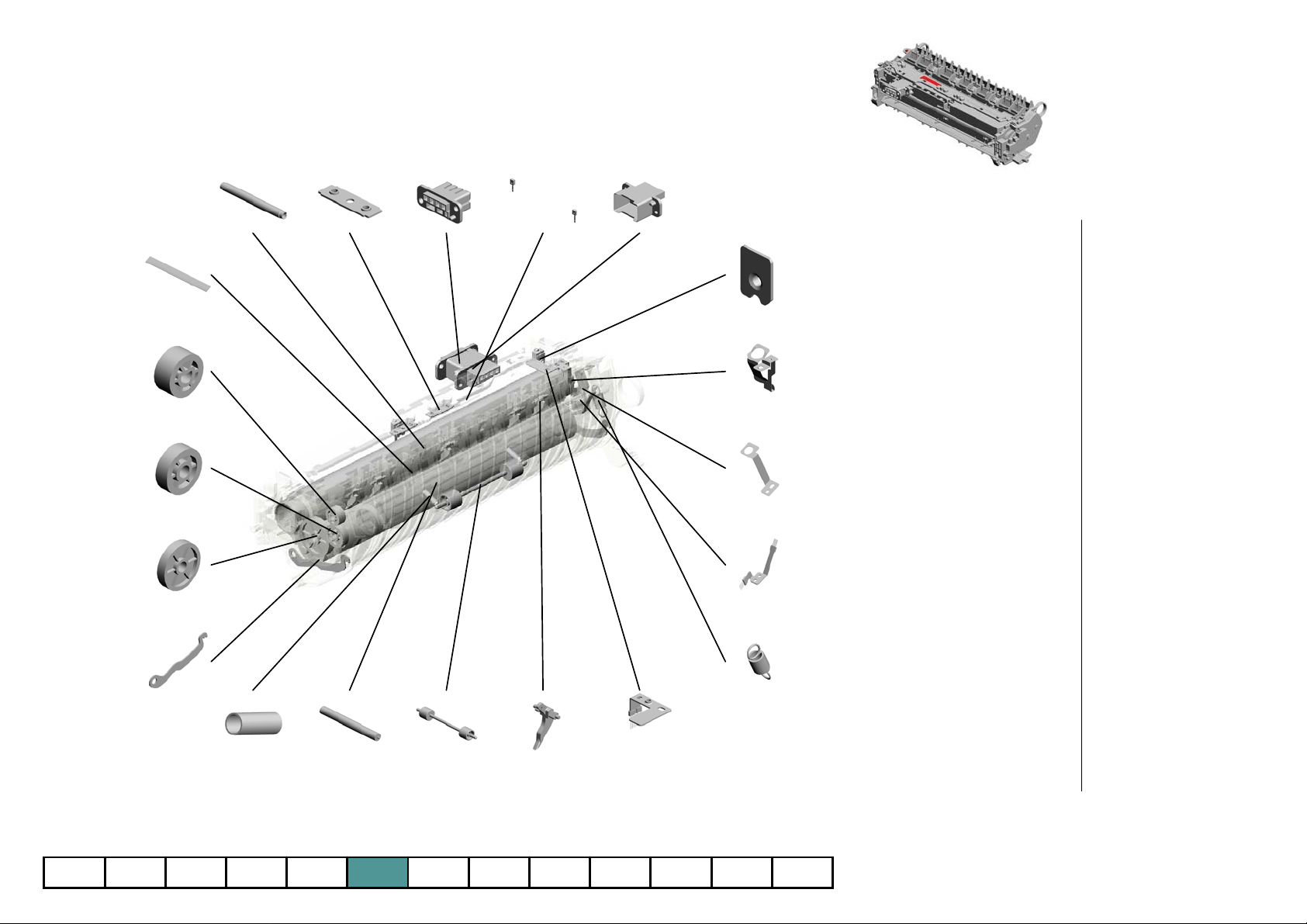

U006_S001 (-EU/-CHN):FUSING UNIT

47.M1874241

HOT ROLLER

43.M1874223 (x2)

ELECTRODE PLAT E:THERMOSTAT

38.M1874212

SET SENSOR:DRA WER:FUSING

39.M1874213

THERMISTOR:FUSI NG

41.M1874217

(-EU/-CHN):DRAW ER:FUSING

19.M1874027

(-EU/-CHN):FUSING UNIT

34.M1874155

GUIDE PLATE:ENT RANCE:LOWER

37.M1874163

GEAR:FUSING:NO. 3

36.M1874162

GEAR:FUSING:NO. 2

35.M1874161

GEAR:FUSING:NO. 1

32.M1874142 (x2)

LEVER:PRESSURE

42.M1874218 (x2)

FLAT NUT:THERMI STOR

44.M1874226

GROUND PLATE:U PPER

30.M1874132

GROUND PLATE:P RESSURE ROLLER

29.M1874131

DISCHARGE BRUS H:PRESSURE ROL LER

33.M1874143 (x2)

TENSION SPRING: PRESSURE ROLLE R

28.M1874124 (x2)

COMPRESSION SP RING:2N

31.M1874141

PRESSURE ROLLE R

27.M1874122

DRIVEN ROLLER:D UPLEX

46.M1874232 (x5)

STRIPPER PAWLS: HOT ROLLER 201509-01 X/O

45.M1874227

DISCHARGE BRUS H:HOT ROLLER

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

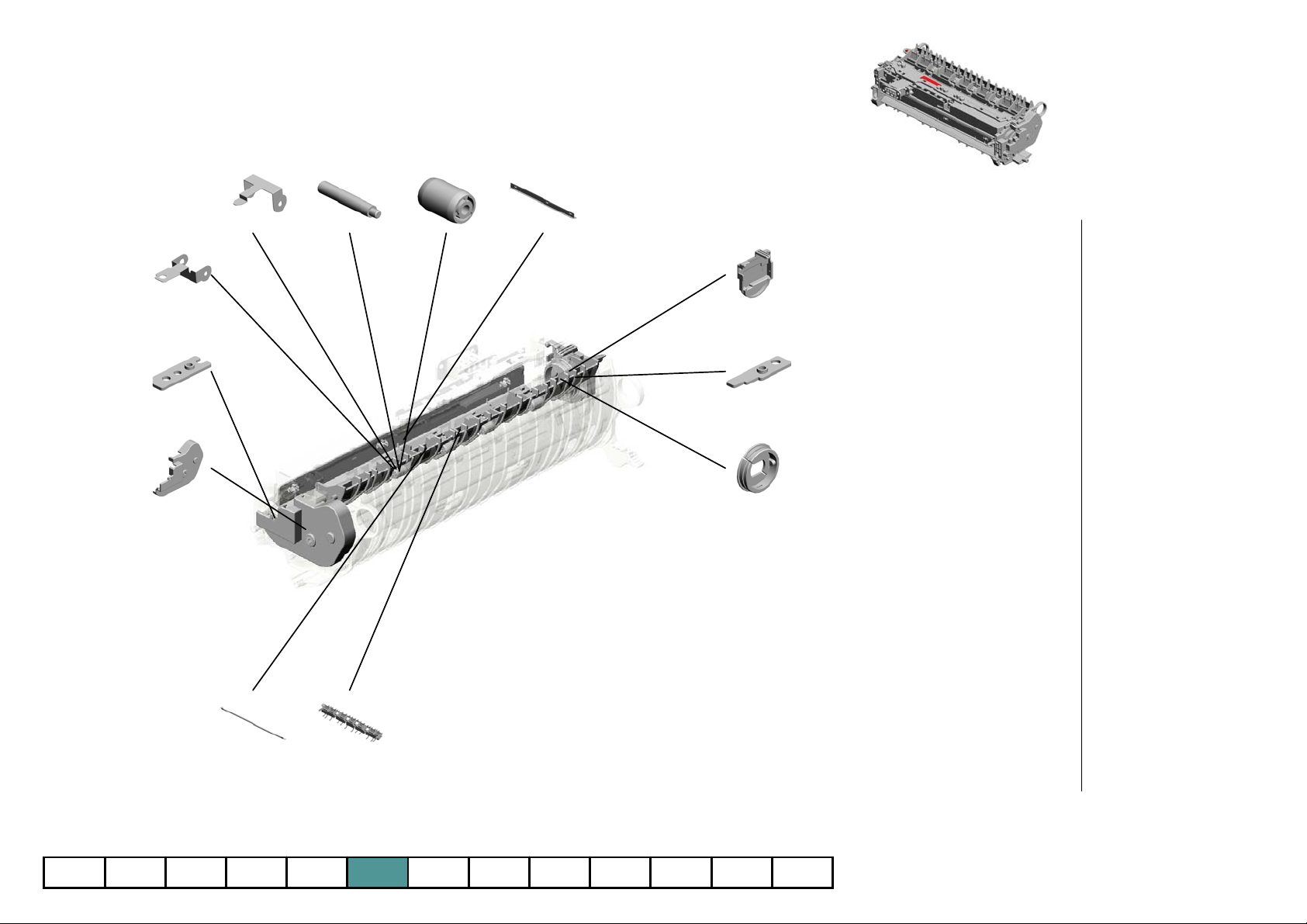

U006_S001 (-EU/-CHN):FUSING UNIT

58.M1874313 (x4)

HOLDER:EXIT ROL LER

59.M1874314 (x4)

SUPPORTING PLA TE:EXIT ROLLER

57.M1874312 (x4)

SHAFT:EXIT ROLL ER

56.M1874311 (x4)

EXIT ROLLER

54.M1874261

GUIDE PLATE:ENT RANCE:UPPER

19.M1874027

(-EU/-CHN):FUSING UNIT

48.M1874242

GEAR:HOT ROLLE R

51.M1874253

BRACKET:HEATER :RIGHT

61.M1874331

COVER:FUSING U NIT:RIGHT

60.M1874321

COVER:FUSING U NIT:LEFT

50.M1874252

BRACKET:HEATER :LEFT

49.M1874243

THERMAL INSULA TING BUSHING:HO T ROLLER

53.M1874257

(-EU/-CHN):HEATE R:844W:227V:INFR ARED

55.M1874301

GUIDE:EXIT:FUSIN G

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

U006_S002 (-EU/-CHN):FUSING UNIT

4.08050104 (x2)

RETAINING RINGS

-E:SILENCER:DIA4

2.04583010N (x12)

HEXAGON HEAD T APPING SCREW:3 X10

11.AW110110

THERMOSTAT

21.M1874106

EXIT ROLLER:FUSI NG

12.D1204184

DECAL:H-TEMP W ARNING:SMALL

19.M1874027

(-EU/-CHN):FUSING UNIT

14.M0124055 (x2)

RADIAL BALL BEA RING:35X47X7

16.M0124281 (x2)

RETAINING RINGS

-C:HOT ROLLER

6.09543012N (x6)

SCREW - M3X12

20.M1874102 (x7)

FLAT NUT:FRAME

23.M1874112

LEVER:ENVELOPE :RIGHT

17.M1094181

DECAL:OPERATIO N SUB-UNIT:GUIDE PLATE

10.AA082118 (x2)

BUSHING - M6

3.08046127 (x8)

HEXAGONAL BOLT :DOUBLE SCREW: M3X8

5.08053575 (x2)

RADIAL BALL BEA RING:DIA8XDIA16X 5

22.M1874111

LEVER:ENVELOPE :LEFT

9.AA080313 (x2)

DRIVEN ROLLER B USHING

24.M1874113

SHAFT:LEVER:ENV ELOPE

26.M1874121

GUIDE:DUPLEX:FU SING

15.M0124120 (x5)

TENSION SPRING: PICKOFF PAWL

25.M1874114

TORSION SPRING: LEVER

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

U006_S002 (-EU/-CHN):FUSING UNIT

47.M1874241

HOT ROLLER

43.M1874223 (x2)

ELECTRODE PLAT E:THERMOSTAT

38.M1874212

SET SENSOR:DRA WER:FUSING

39.M1874213

THERMISTOR:FUSI NG

41.M1874217

(-EU/-CHN):DRAW ER:FUSING

19.M1874027

(-EU/-CHN):FUSING UNIT

37.M1874163

GEAR:FUSING:NO. 3

48.M1874242

GEAR:HOT ROLLE R

36.M1874162

GEAR:FUSING:NO. 2

35.M1874161

GEAR:FUSING:NO. 1

32.M1874142 (x2)

LEVER:PRESSURE

45.M1874227

DISCHARGE BRUS H:HOT ROLLER

44.M1874226

GROUND PLATE:U PPER

30.M1874132

GROUND PLATE:P RESSURE ROLLER

29.M1874131

DISCHARGE BRUS H:PRESSURE ROL LER

33.M1874143 (x2)

TENSION SPRING: PRESSURE ROLLE R

34.M1874155

GUIDE PLATE:ENT RANCE:LOWER

28.M1874124 (x2)

COMPRESSION SP RING:2N

31.M1874141

PRESSURE ROLLE R

27.M1874122

DRIVEN ROLLER:D UPLEX

46.M1874232 (x5)

STRIPPER PAWLS: HOT ROLLER 201509-01 X/O

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

U006_S002 (-EU/-CHN):FUSING UNIT

59.M1874314 (x4)

SUPPORTING PLA TE:EXIT ROLLER

57.M1874312 (x4)

SHAFT:EXIT ROLL ER

56.M1874311 (x4)

EXIT ROLLER

54.M1874261

GUIDE PLATE:ENT RANCE:UPPER

19.M1874027

(-EU/-CHN):FUSING UNIT

58.M1874313 (x4)

HOLDER:EXIT ROL LER

51.M1874253

BRACKET:HEATER :RIGHT

61.M1874331

COVER:FUSING U NIT:RIGHT

60.M1874321

COVER:FUSING U NIT:LEFT

50.M1874252

BRACKET:HEATER :LEFT

49.M1874243

THERMAL INSULA TING BUSHING:HO T ROLLER

53.M1874257

(-EU/-CHN):HEATE R:844W:227V:INFR ARED

55.M1874301

GUIDE:EXIT:FUSIN G

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

U006_S003 (-NA):FUSING UNIT

4.08050104 (x2)

RETAINING RINGS

-E:SILENCER:DIA4

2.04583010N (x12)

HEXAGON HEAD T APPING SCREW:3 X10

11.AW110110

THERMOSTAT

21.M1874106

EXIT ROLLER:FUSI NG

12.D1204184

DECAL:H-TEMP W ARNING:SMALL

18.M1874017

(-NA):FUSING UNIT

14.M0124055 (x2)

RADIAL BALL BEA RING:35X47X7

16.M0124281 (x2)

RETAINING RINGS

-C:HOT ROLLER

6.09543012N (x6)

SCREW - M3X12

20.M1874102 (x7)

FLAT NUT:FRAME

23.M1874112

LEVER:ENVELOPE :RIGHT

17.M1094181

DECAL:OPERATIO N SUB-UNIT:GUIDE PLATE

10.AA082118 (x2)

BUSHING - M6

3.08046127 (x8)

HEXAGONAL BOLT :DOUBLE SCREW: M3X8

5.08053575 (x2)

RADIAL BALL BEA RING:DIA8XDIA16X 5

22.M1874111

LEVER:ENVELOPE :LEFT

9.AA080313 (x2)

DRIVEN ROLLER B USHING

24.M1874113

SHAFT:LEVER:ENV ELOPE

26.M1874121

GUIDE:DUPLEX:FU SING

15.M0124120 (x5)

TENSION SPRING: PICKOFF PAWL

25.M1874114

TORSION SPRING: LEVER

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

U006_S003 (-NA):FUSING UNIT

47.M1874241

HOT ROLLER

43.M1874223 (x2)

ELECTRODE PLAT E:THERMOSTAT

38.M1874212

SET SENSOR:DRA WER:FUSING

39.M1874213

THERMISTOR:FUSI NG

40.M1874215

(-NA):DRAWER:FU SING

18.M1874017

(-NA):FUSING UNIT

37.M1874163

GEAR:FUSING:NO. 3

48.M1874242

GEAR:HOT ROLLE R

36.M1874162

GEAR:FUSING:NO. 2

35.M1874161

GEAR:FUSING:NO. 1

32.M1874142 (x2)

LEVER:PRESSURE

45.M1874227

DISCHARGE BRUS H:HOT ROLLER

44.M1874226

GROUND PLATE:U PPER

30.M1874132

GROUND PLATE:P RESSURE ROLLER

29.M1874131

DISCHARGE BRUS H:PRESSURE ROL LER

33.M1874143 (x2)

TENSION SPRING: PRESSURE ROLLE R

34.M1874155

GUIDE PLATE:ENT RANCE:LOWER

28.M1874124 (x2)

COMPRESSION SP RING:2N

31.M1874141

PRESSURE ROLLE R

27.M1874122

DRIVEN ROLLER:D UPLEX

46.M1874232 (x5)

STRIPPER PAWLS: HOT ROLLER 201509-01 X/O

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

U006_S003 (-NA):FUSING UNIT

59.M1874314 (x4)

SUPPORTING PLA TE:EXIT ROLLER

57.M1874312 (x4)

SHAFT:EXIT ROLL ER

56.M1874311 (x4)

EXIT ROLLER

54.M1874261

GUIDE PLATE:ENT RANCE:UPPER

18.M1874017

(-NA):FUSING UNIT

58.M1874313 (x4)

HOLDER:EXIT ROL LER

51.M1874253

BRACKET:HEATER :RIGHT

61.M1874331

COVER:FUSING U NIT:RIGHT

60.M1874321

COVER:FUSING U NIT:LEFT

50.M1874252

BRACKET:HEATER :LEFT

49.M1874243

THERMAL INSULA TING BUSHING:HO T ROLLER

52.M1874255

(-NA):HEATER:844 W:117V:INFRARED

55.M1874301

GUIDE:EXIT:FUSIN G

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

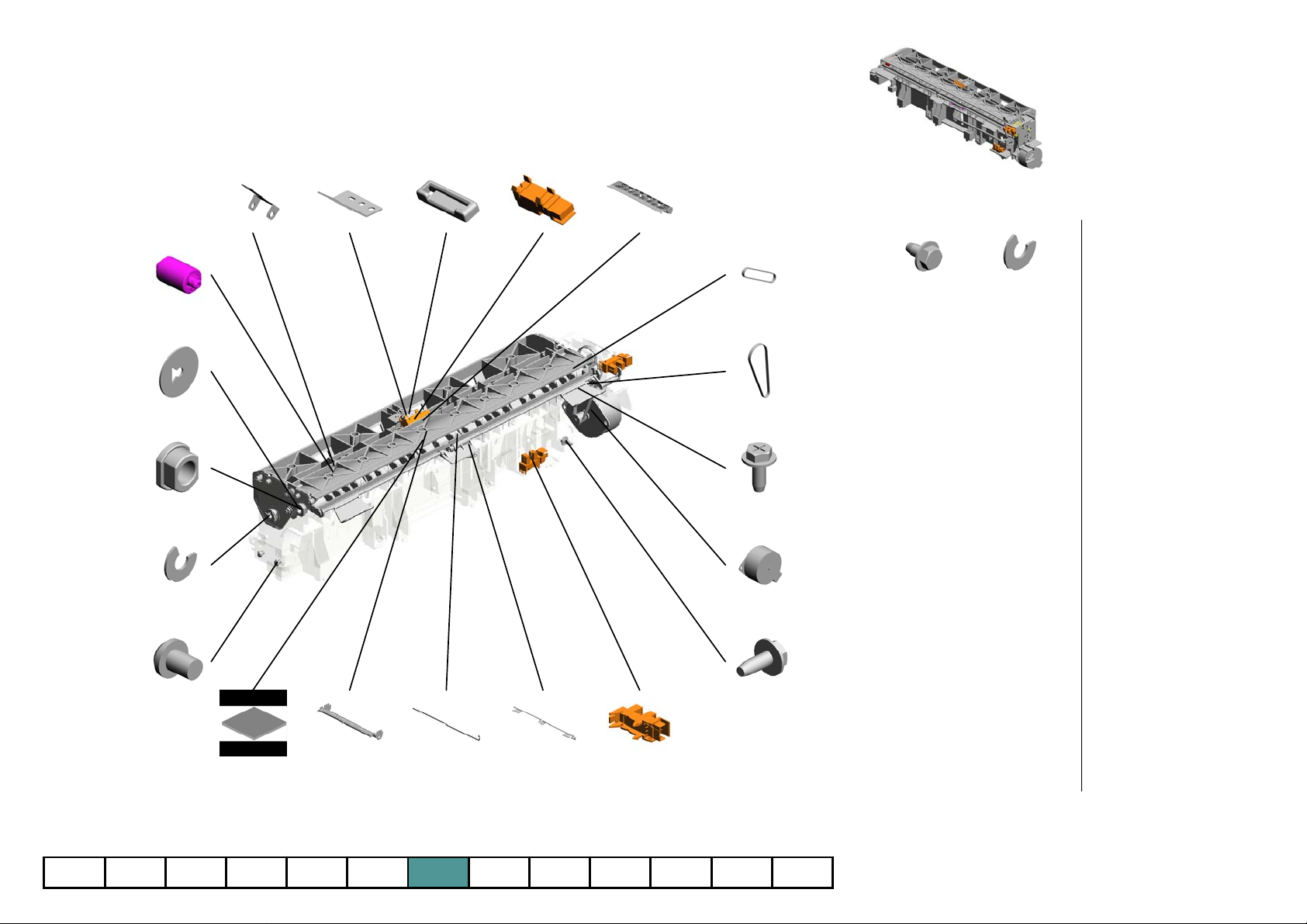

U007 PAPER EXIT

15.M1874422 (x6)

ROLLER:DRIVEN:R EVERSE

5.08050103 (x2)

RETAINING RINGS

-E:SILENCER:DIA3

8.AA082173 (x4)

PLAIN SHAFT BEA RING:6X10X6

16.M1874426 (x4)

SPRING PLATE:RO LLER:REVERSE 201510-01 X/O

17.M1874425

BRACKET:SENSO R:REVERSE:500

13.M1873823

STOPPER:SENSO R:PLATE

11.GW010007

PHOTO REFLECTI ON SENSOR:EXIT

14.M1874421

GUIDE PLATE:EXIT :UPPER:500

10.B7003535

TIMING BELT:B40S 2M116

7.AA043623

TIMING BELT - B40 S2M180

3.04583008N (x6)

HEXAGON HEAD T APPING SCREW:3 X8

4.08025305 (x2)

TAPPING SCREW M3X6

6.08050104 (x2)

RETAINING RINGS

-E:SILENCER:DIA4

2.04513008N (x 1)

TAPPING SCREW - M3X8

6.08050104 (x2)

RETAINING RINGS

-E:SILENCER:DIA4

1.03530030N (x2)

SCREW:M3X3

21.M1874434

PAD:SENSOR:REV ERSE

18.M1874431

GUIDE PLATE:EXIT :MIDDLE:500

20.M1874433

DISCHARGE BRUS H:EXIT

19.M1874432

FEELER:EXIT:OVE RFLOW

9.AW020198 (x2)

PHOTOINTERRUP TOR:LG2A14NL1

12.GX050111

DC STEPPER MOT OR:EXIT

2.04513008N

TAPPING SCREW M3X8

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

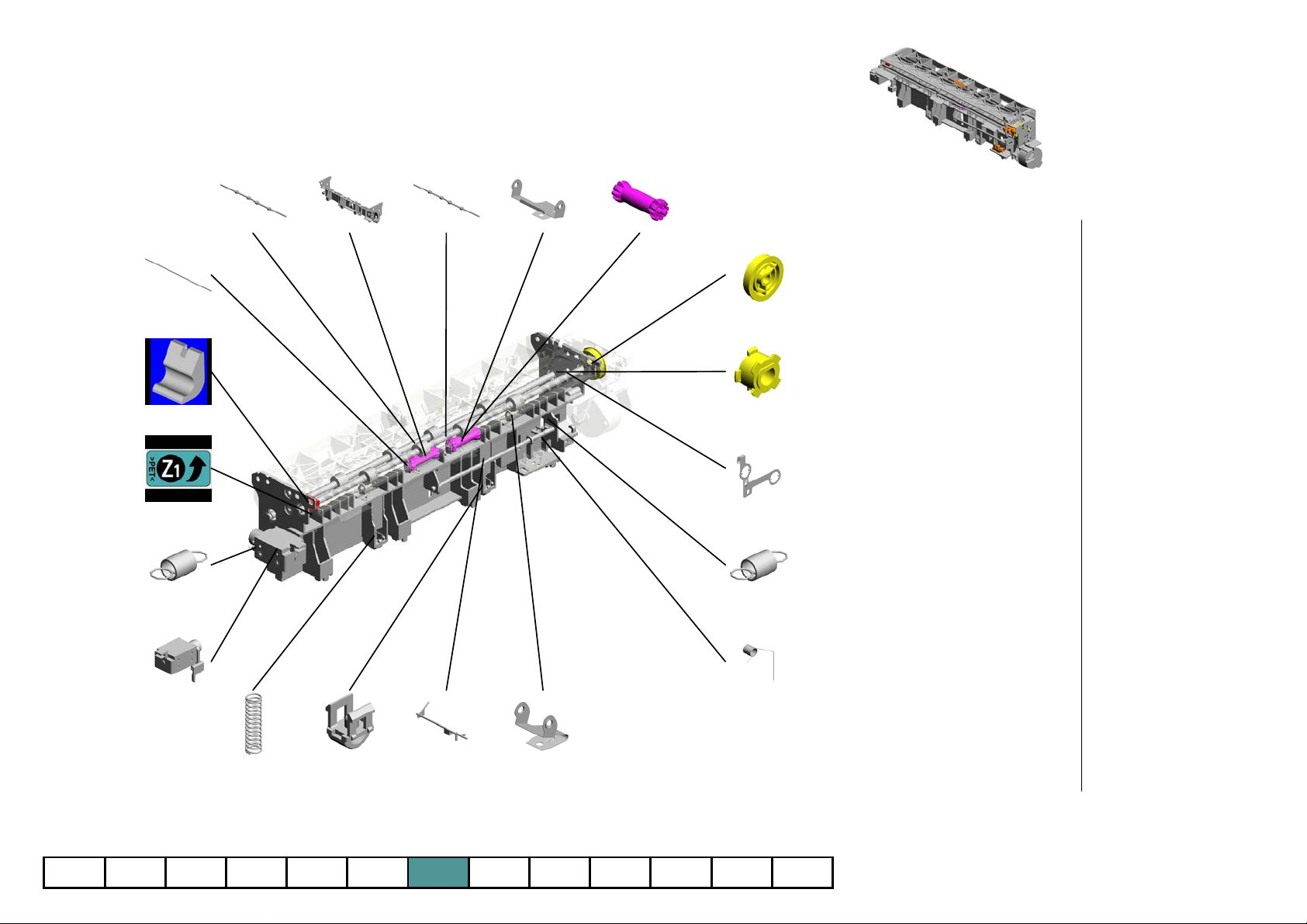

U007 PAPER EXIT

34.M1874455

GATE PAWL:EXIT: 500

22.M1874435

SPACER:EXIT:500

33.M1874453

DECAL:PICKOFF P AWL:GRIP:B

36.M1874462

REVERSE ROLLER :500

23.M1874441

GUIDE PLATE:EXIT :LOWER:500

35.M1874461

EXIT ROLLER

25.M1874443 (x2)

SPRING PLATE:EXI T ROLLER:MIDDLE

27.M1874445 (x2)

EXIT ROLLER:DRIV EN

37.M1874463

TIMING PULLEY:EX IT:43T:18T

38.M1874464

TIMING PULLEY:R EVERSE:18T:500

28.M1874446

GROUND PLATE:E XIT:500

40.M1874483

TENSION SPRING: EXIT:SOLENOID:1. 4N

39.M1874481

DC SOLENOID:EXI T:500:SUB-ASS'Y

30.M1874448 (x2)

COMPRESSION SP RING:FUSING:PLA TE

29.M1874447 (x2)

PRESSURE PLATE :FUSING:PLATE

24.M1874442

FEELER:SENSOR: EXIT:500

26.M1874444 (x2)

SPRING PLATE:EXI T ROLLER:OUTER

32.M1874452

TENSION SPRING: GATE PAWL:EXIT

31.M1874449

TORSION SPRING: FEELER:EXIT:500

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

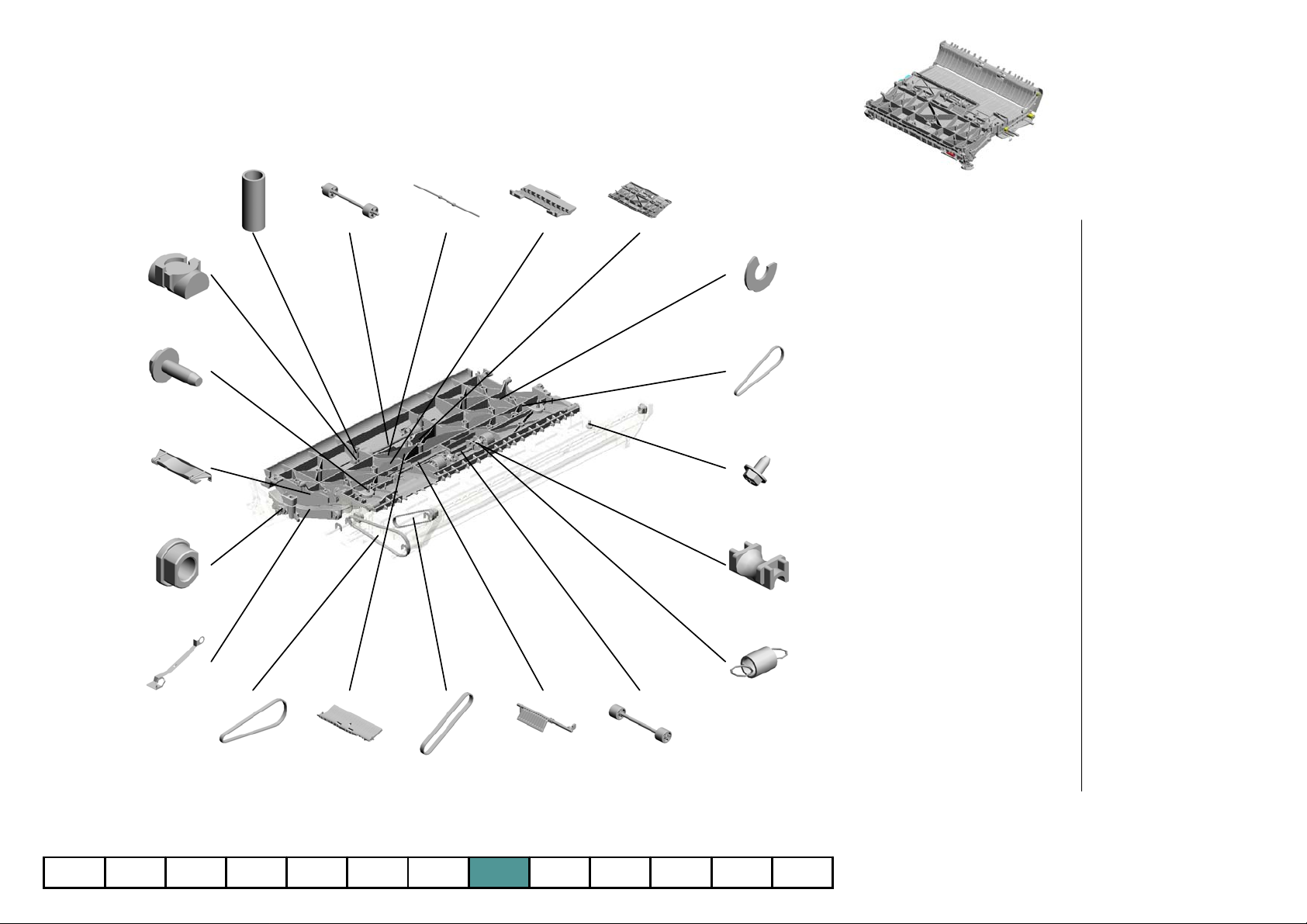

U008 DUPLEX

12.M1874863 (x2)

PLAIN SHAFT BEA RING:DRIVEN:DUP LEX:EXIT

2.04583010N (x10)

HEXAGON HEAD T APPING SCREW:3 X10

20.M1874883

GRIP:PICK-UP PAP ER JAM:FRONT:DU PLEX

11.M1874862 (x2)

COMPRESSION SP RING:EXIT:DUPLE X

10.M1874861

DRIVEN ROLLER:E XIT:DUPLEX

18.M1874881

ROLLER:EXIT:DRIV E:DUPLEX

19.M1874882

GRIP:PICK-UP PAP ER JAM:MIDDLE:D UPLEX

8.M1874851

GUIDE:UPPER:DU PLEX

3.08050104 (x10)

RETAINING RINGS

-E:SILENCER:DIA4

7.B6744339

TIMING BELT - B40 S2M192

1.04513006N (x3)

TAPPING SCREW 3X6

6.AA082173 (x6)

PLAIN SHAFT BEA RING:6X10X6

17.M1874874

GROUND PLATE:F RONT:DUPLEX

5.AA043615

TIMING BELT:40S2 M208

16.M1874871

GUIDE:FRONT:DU PLEX

4.AA043335

TIMING BELT:40S2 M148

9.M1874854

FEELER:UPPER:D UPLEX

13.M1874866

DRIVEN ROLLER:C ONNECTING:DUPL EX

15.M1874868 (x2)

PLAIN SHAFT BEA RING:DRIVEN:DUP LEX:UPPER

14.M1874867 (x2)

TENSION SPRING: CONNECTING:DUP LEX

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

U008 DUPLEX

24.M1874889

DECAL:DESIGN SK ETCH:DUPLEX:Z2

23.M1874888

LINK:PICK-UP PAP ER JAM:FRONT:DU PLEX

22.M1874887

LINK:PICK-UP PAP ER JAM:FRAME:DU PLEX

29.M1874913

GROUND PLATE:C ONNECTING:DUPL EX

25.M1874891

HOOK:PICK-UP PA PER JAM:FRONT:D UPLEX

21.M1874886

COMPRESSION SP RING:HOOK:DUPL EX

27.M1874897

PLATE:HOOK:DUP LEX:LEFT

34.M1874924 (x3)

PULLEY:DRIVE:DU PLEX:T18

35.M1874931

GEAR:IDLER:DUPL EX:Z29

33.M1874922

GEAR:DRIVE:DUPL EX:Z29

31.M1874917

PULLEY:GEAR:DU PLEX:Z29T18

26.M1874894

PLATE:HOOK:DUP LEX:RIGHT

30.M1874914

GROUND PLATE:C ONNECTING:DUPL EX:SMALL

39.M1874976

PULLEY:CONNECT ING:DUPLEX:T18

37.M1874953

GROUND PLATE:R EAR:DUPLEX

32.M1874921

ROLLER:CONNEC TING:DRIVE:DUPL EX

28.M1874911

GUIDE:CONNECTI NG:DUPLEX

38.M1874961

ROLLER:ENTRANC E:DRIVE:DUPLEX

36.M1874951

GUIDE:REAR:DUPL EX

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

U009_S001 M1871190

DRIVE UNIT:DRUM:ASS'Y

U009.MAIN DRIVE

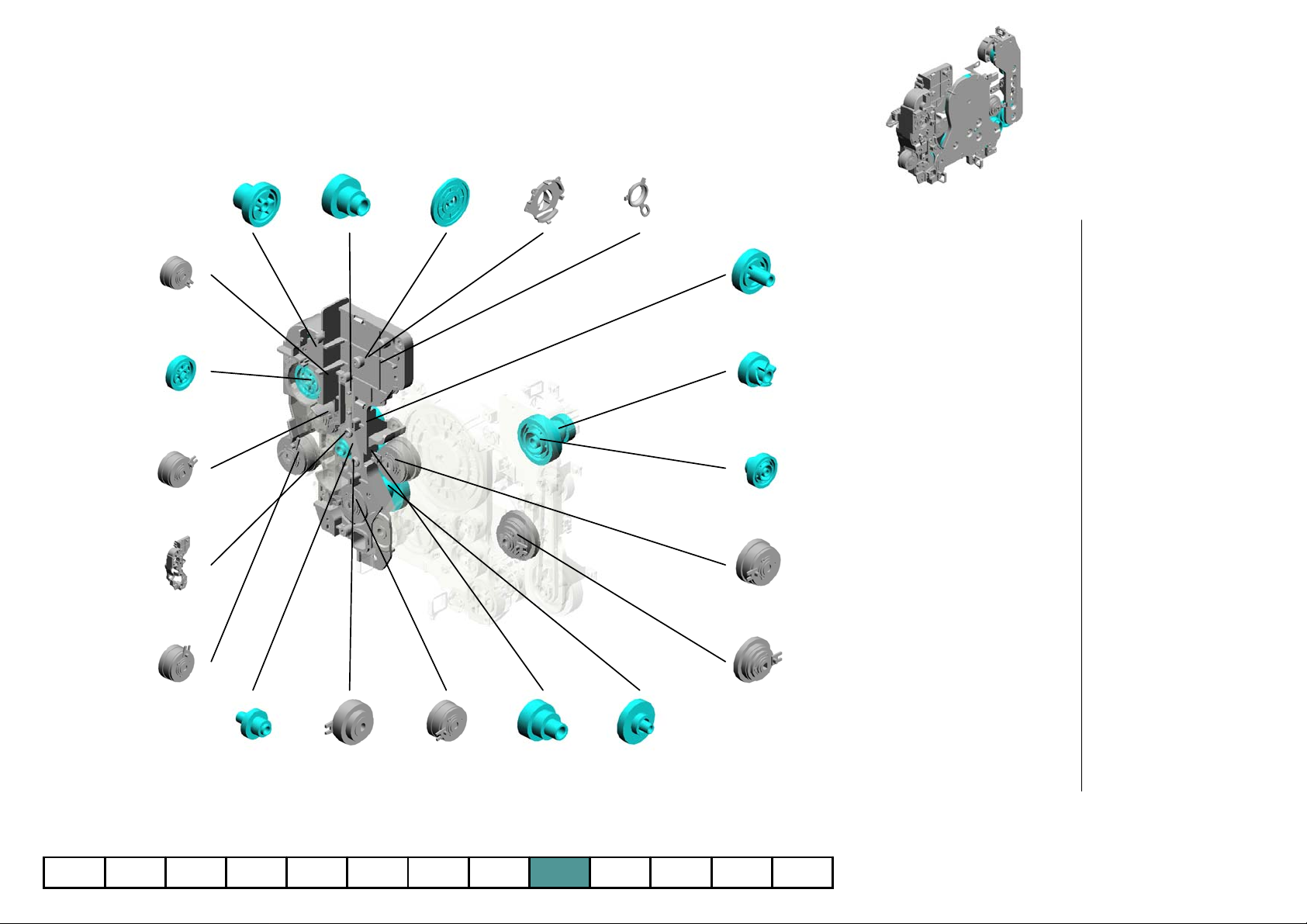

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

U009 MAIN DRIVE

12.11050758 (x5)

CLAMP:LWSM-030 6A

2.03603006N

SCREW - M3X6

13.11050760

CLAMP:LWSM-051 1A

16.54472681 (x4)

SNAP RING

3.04513006N (x2)

TAPPING SCREW 3X6

6.04543008Q (x3)

TAPPING SCREW: 3X8

7.04583010N (x5)

HEXAGON HEAD T APPING SCREW:3 X10

14.11050762

CLAMP:LWS-0711A

5.04543006Q (x9)

TAPPING SCREW M3X6

27.GB011201

GEAR:DRIVE:FUSI NG:NO.5

11.11050692

CLAMP:LES-0503

10.08050104 (x2)

RETAINING RINGS

-E:SILENCER:DIA4

25.GB010107

GEAR:DRIVE:PAPE R FEED:NO.3

15.11050763

CLAMP:LWS-1211A

22.GB010104

GEAR:DRIVE:FUSI NG:NO.2

9.08050097

RING SEPARATOR

23.GB010105

GEAR:DRIVE:FUSI NG:NO.3

4.04533006N (x3)

TAPPING SCREW M3X6

17.D7342289

SYNCHRONOUS B ELT:40S3M234

26.GB011200

GEAR:DRIVE:FUSI NG:NO.4

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

U009 MAIN DRIVE

39.GX200031

ELECTROMAGNET IC CLUTCH:0.45NM :PAPER FEED

35.GB011216

GEAR:DRIVE:TON ER SUPPLY:NO.3

43.GX200035

ELECTROMAGNET IC CLUTCH:0.35NM :MANUAL FEED

36.GB011217

GEAR:DRIVE:TON ER SUPPLY:NO.4

34.GB011215

GEAR:DRIVE:TON ER SUPPLY:NO.2

37.GB011218

GEAR:DRIVE:TON ER SUPPLY:NO.5

47.M1871154

HOLDER:DRIVE:TO NER SUPPLY

48.M1871155

LINK:DRIVE:TONE R SUPPLY

33.GB011214

GEAR:DRIVE:TON ER SUPPLY:NO.1

29.GB011203

GEAR:DRIVE:FUSI NG:NO.7

28.GB011202

GEAR:DRIVE:FUSI NG:NO.6

46.M1871151

HOUSING:DRIVE:P APER FEED

44.GX200036

ELECTROMAGNET IC CLUTCH:0.35NM :BASE

32.GB011212

GEAR:DRIVE:CON NECTING:NO.2

40.GX200032

ELECTROMAGNET IC CLUTCH:0.35NM :CONNECTING

45.GX200038

ELECTROMAGNET IC CLUTCH:0.45NM :PAPER FEED:39

31.GB011211

GEAR:DRIVE:CON NECTING:NO.1

30.GB011210

GEAR:DRIVE:PAPE R FEED:NO.4

41.GX200033

ELECTROMAGNET IC CLUTCH:0.45NM :REGISTRATION

42.GX200034

ELECTROMAGNET IC CLUTCH:0.35NM :DUPLEX

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

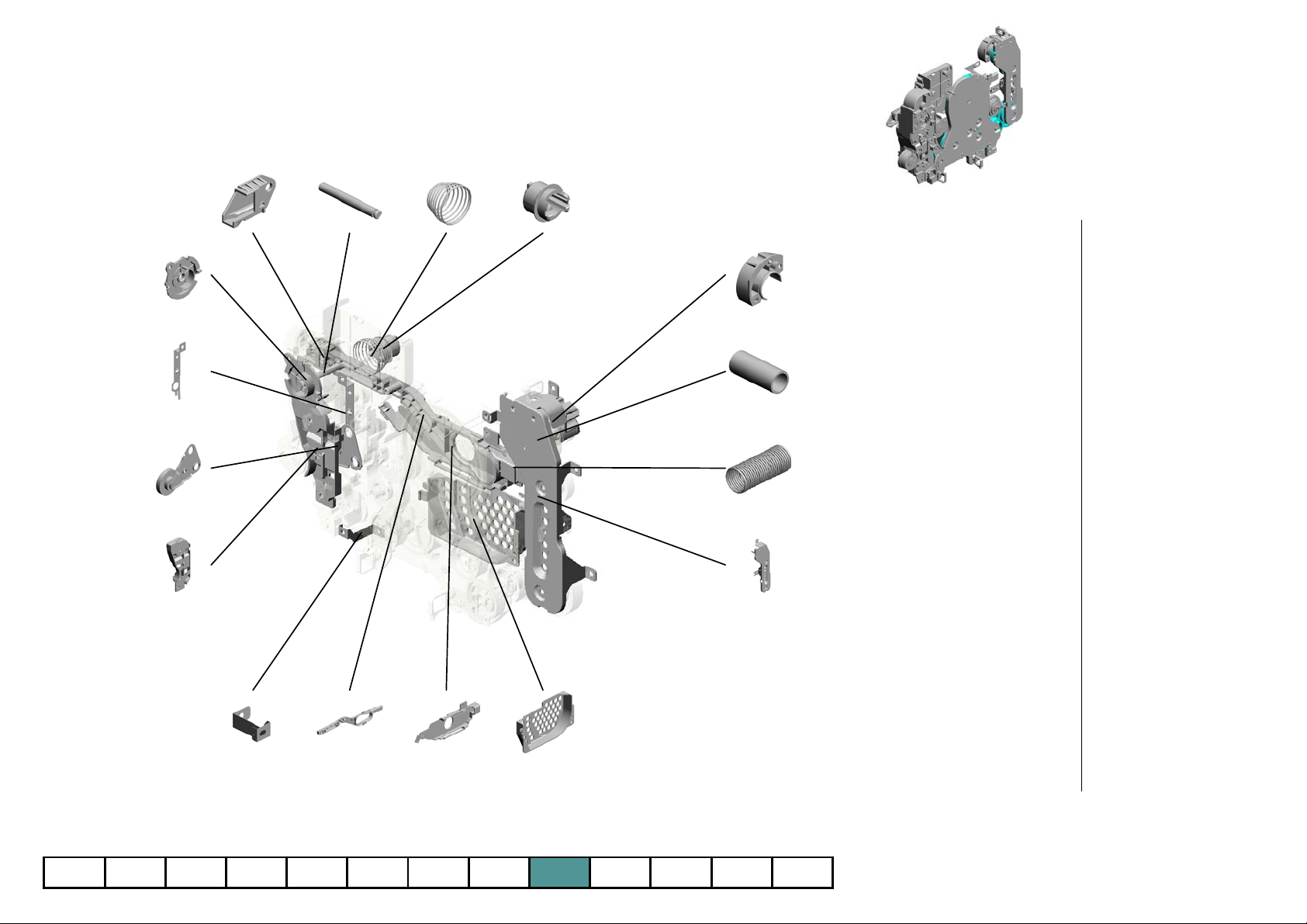

U009 MAIN DRIVE

53.M1871167

COVER:DRIVE:TO NER SUPPLY

55.M1871173

GROUND PLATE:B CU:NO.2

54.M1871170

BRACKET:DRIVE:C ONNECTING

71.M1871229

PLAIN SHAFT BEA RING:ELECTROMA GNETIC CLUTCH:T ONER SUPPLY

52.M1871164

SHAFT:ELECTROM AGNETIC CLUTCH: TONER SUPPLY

50.M1871157

COMPRESSION SP RING:DRIVE:TONE R SUPPLY

49.M1871156

JOINT:DRIVE:TON ER SUPPLY

70.M1871227

BRACKET:DRIVE:F USING:NO.2

58.M1871184

COMPRESSION SP RING:DRIVE:FUSIN G

68.M1871223

COMPRESSION SP RING:ARM

56.M1871176

GUIDE:HARNESS: ELECTROMAGNET IC CLUTCH

51.M1871161

GROUND PLATE:B CU:NO.1

66.M1871221

ARM:JOINT

67.M1871222

HOLDER:ARM:JOI NT

69.M1871225

COVER:MOTOR

57.M1871181

BRACKET:DRIVE:F USING:NO.1

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

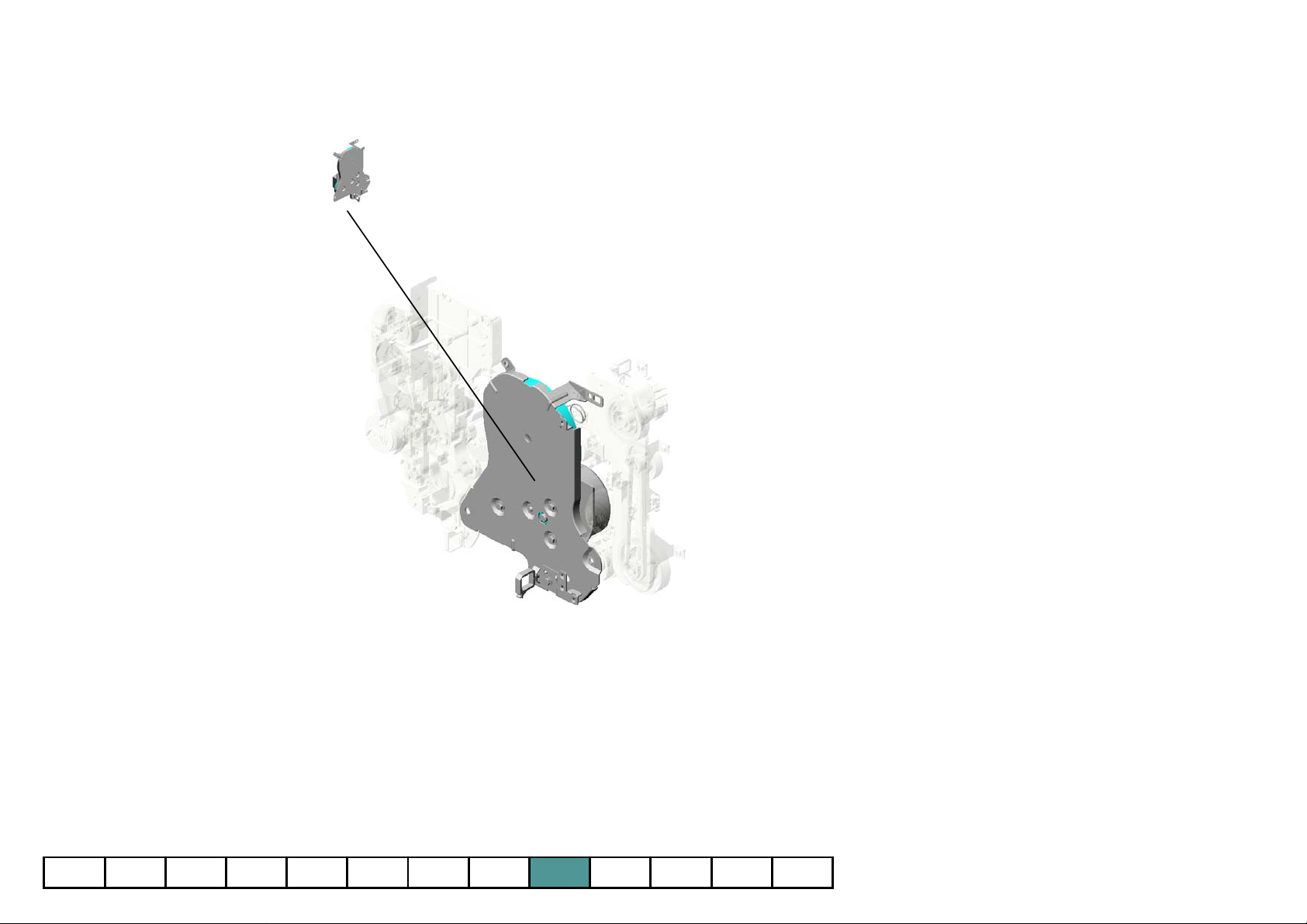

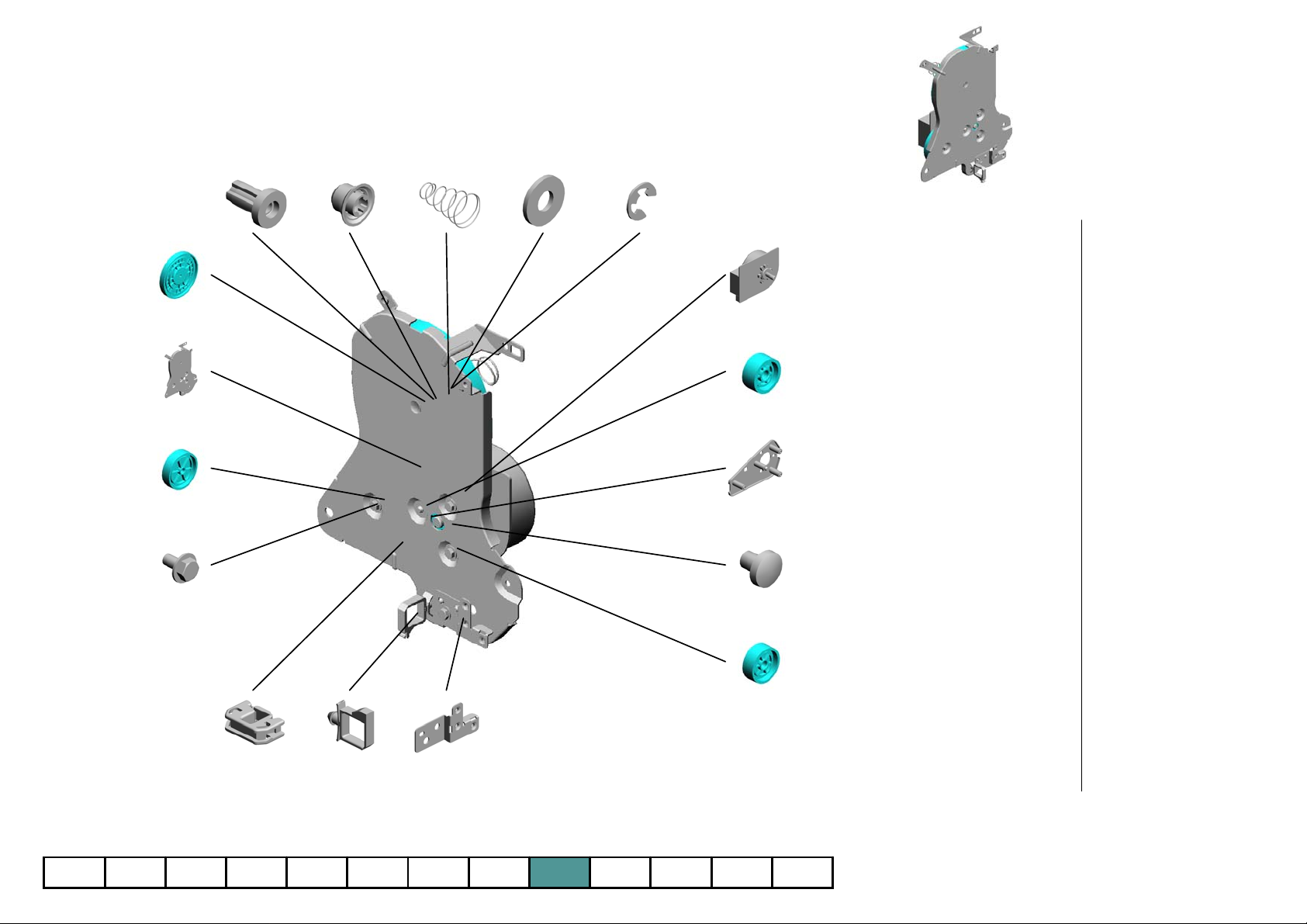

U009_S001 DRIVE UNIT:DRUM:ASS'Y

62.M1871209

BOSS:DRIVE:DRU M

64.M1871211

JOINT:DRIVE:DRU M

63.M1871210

COMPRESSION SP RING:DRIVE:DRUM

18.GA132000

SPACER:DIA4.2XDI A10X1

8.07200025E

RETAINING RING M2.5

59.M1871190

DRIVE UNIT:DRUM :ASS'Y

20.GB010101

GEAR:DRIVE:DRU M

61.M1871206

BRACKET:DRIVE:D RUM

24.GB010106

GEAR:DRIVE:PAPE R FEED:NO.2

2.03603006N (x4)

SCREW - M3X6

38.GX060042

DC BRUSHLESS M OTOR:MAIN:34W

19.GB010100 (x2)

GEAR:DRIVE:DRU M:IDLER

60.M1871193

BRACKET:DRIVE:M OTOR

1.03530040N (x3)

SCREW - M3X4

21.GB010103

GEAR:DRIVE:FUSI NG:NO.1

11.11050692

CLAMP:LES-0503

15.11050763

CLAMP:LWS-1211A

65.M1871216

BRACKET:BCU

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

U010 TONER SUPPLY

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

U011 OPERATION

1.M1871401 (x2)

(-NA/-EU):OPERATI ON PANEL:ASS'Y

2.M1871403

(-CHN):OPERATIO N PANEL:ASS'Y

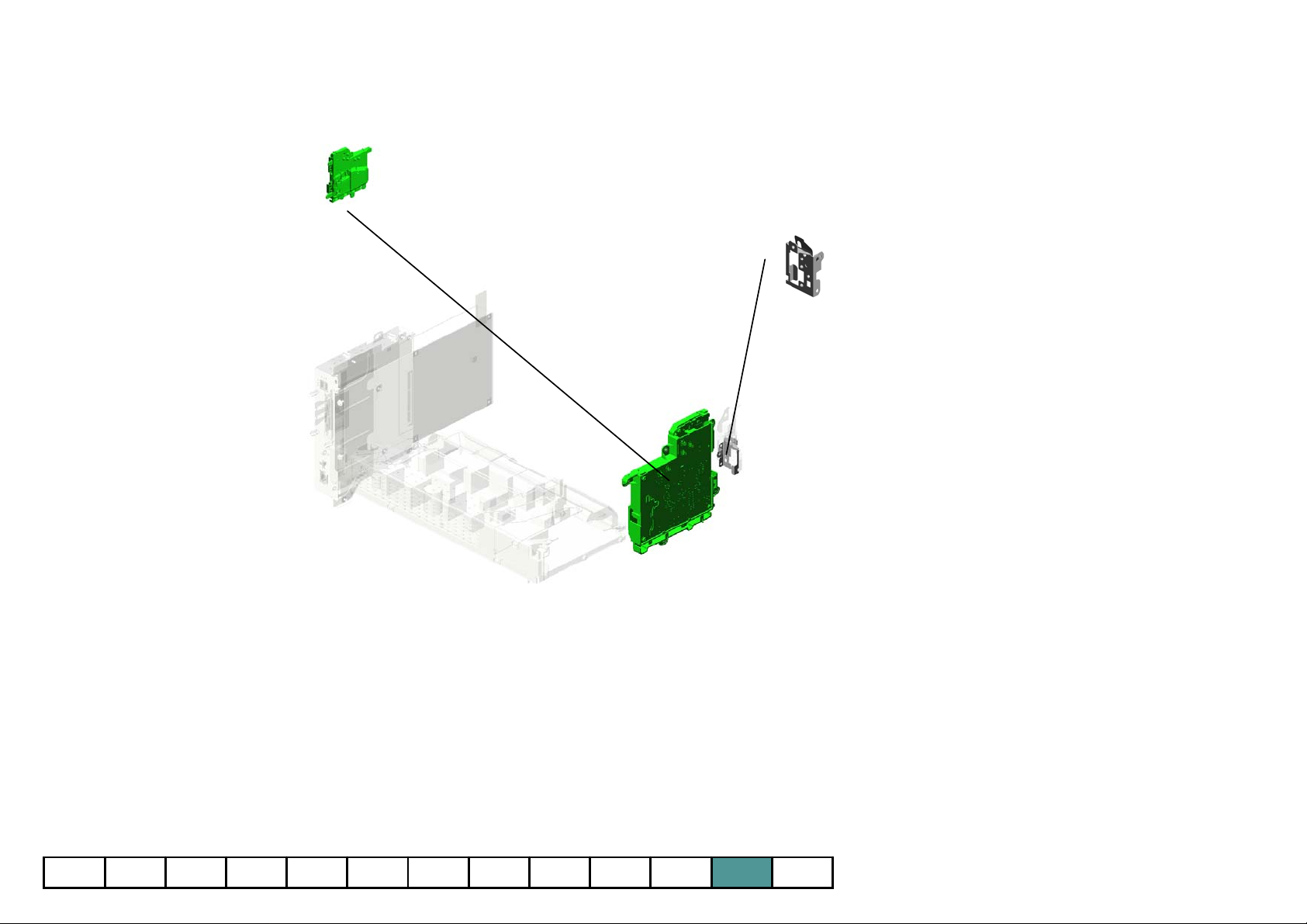

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

U012_S001 M1875630

POWER PACK:CDVT:ASS'Y

U012.ELECTRICAL

U012_S002 M1875664

BRACKET:MAIN SWITCH:PE EN

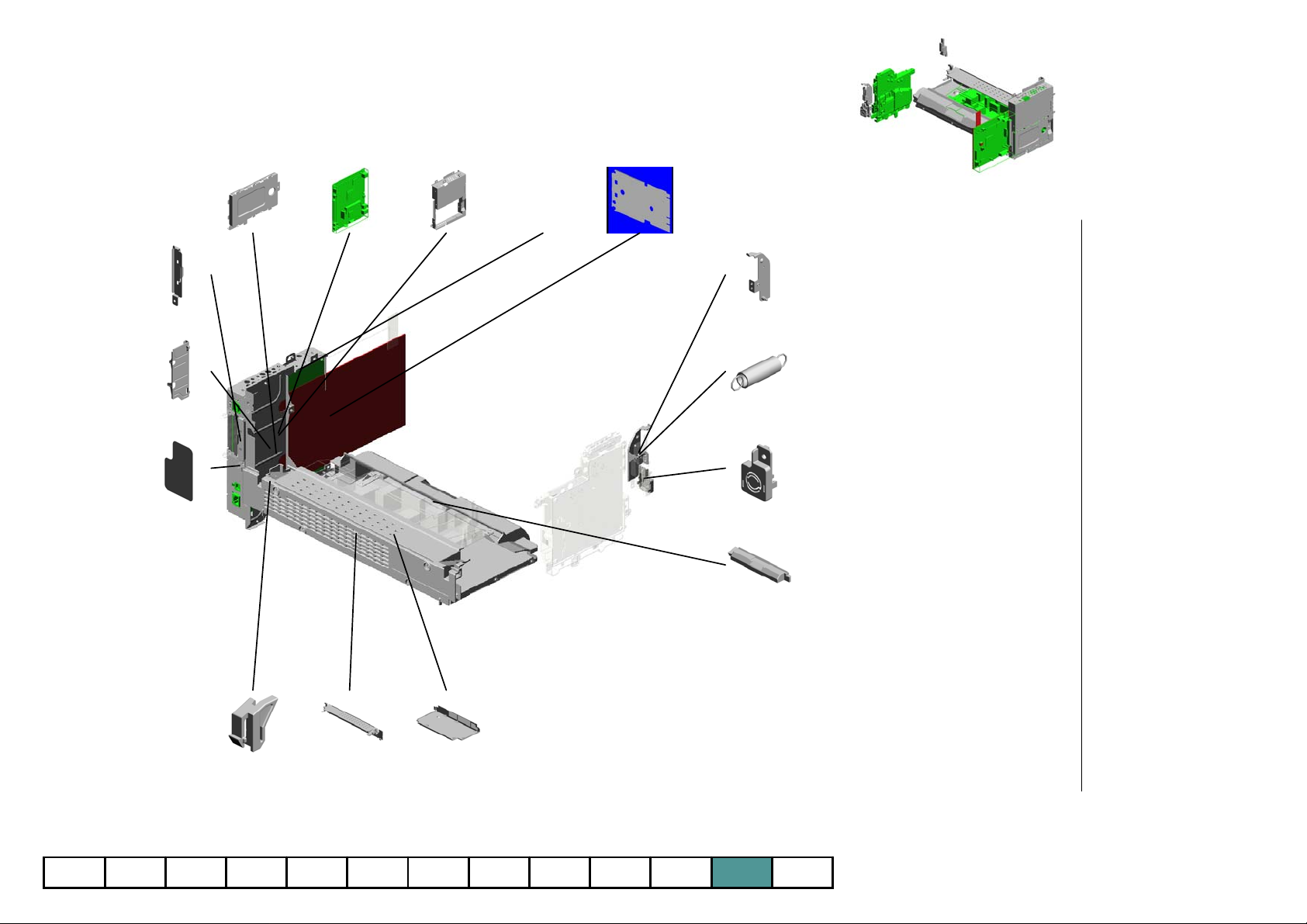

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

U012 ELECTRICAL

18.G1045141 (x3)

KNOB SCREW:M3

16.B1545869

PANEL:INTERFAC E:SECC

19.M1095245

PCB:DDR3-DIMM:5 12MB(32BIT):ASS'Y

6.04543006Q (x9)

TAPPING SCREW M3X6

2.03603006N (x16)

SCREW - M3X6

10.11050760 (x2)

CLAMP:LWSM-051 1A

21.M1875013

PCB:BCU:ASS'Y

13.AW140016

TEMPERATURE & HUMIDITY SENSO R

12.14077677

EEPROM:BR24T64W

3.03603008N (x2)

SCREW:M3X8

9.08050100

RETAINING RING M2.5

2.03603006N (x 2)

SCREW - M3X6

8.04583008N (x 3)

HEXAGON HEAD TAPPING SCREW:3X 8

1.03530060N

BIND SCREW - M3 X6

4.04513006N (x5)

TAPPING SCREW 3X6

5.04513008N (x4)

TAPPING SCREW M3X8

14.AZ230267

(-NA):POWER SUP PLY UNIT:DOM/NA:

674.6W

15.AZ230269 (x2)

(-EU/-CHN):POWE R SUPPLY UNIT:60

9.9W

11.12042612 (x2)

MICRO SWITCH:D3 V-16506-3C25

7.04543014Q (x2)

TAPPING SCREW: 3X14

17.D1775686

PCB:DCSW

8.04583008N (x4)

HEXAGON HEAD T APPING SCREW:3 X8

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

U012 ELECTRICAL

36.M1875868

COVER:SD-CARD

35.M1875866

BASE:C/T BOX

37.M1875869

DECAL:INTERFAC E

34.M1875863

COVER:C/T BOX:S MALL

24.M1875792

PCB:CTL:DAI-P1D_ EXP:38CPM

33.M1875861

COVER:C/T BOX

39.M1879590

NV-RAM

38.M1875875

INSULATING SHEE T:BCU

31.M1875854

BRACKET:SAFETY SWITCH:FRONT

32.M1875858

TENSION SPRING: SAFETY SWITCH

29.M1875821

HOLDER:MAIN SWI TCH

26.M1875817

COVER:POWER S UPPLY UNIT:FRON T

28.M1875819

STOPPER:COVER: REAR

27.M1875818

COVER:POWER S UPPLY UNIT:REAR

25.M1875810

BRACKET:POWER SUPPLY UNIT:SUB

-ASS'Y

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

U012_S001 POWER PACK:CDVT:ASS'Y

8.04583008N (x4)

HEXAGON HEAD T APPING SCREW:3 X8

20.M1605120

PCB:SENSOR:TON ER END SENSOR

22.M1875630

POWER PACK:CD VT:ASS'Y

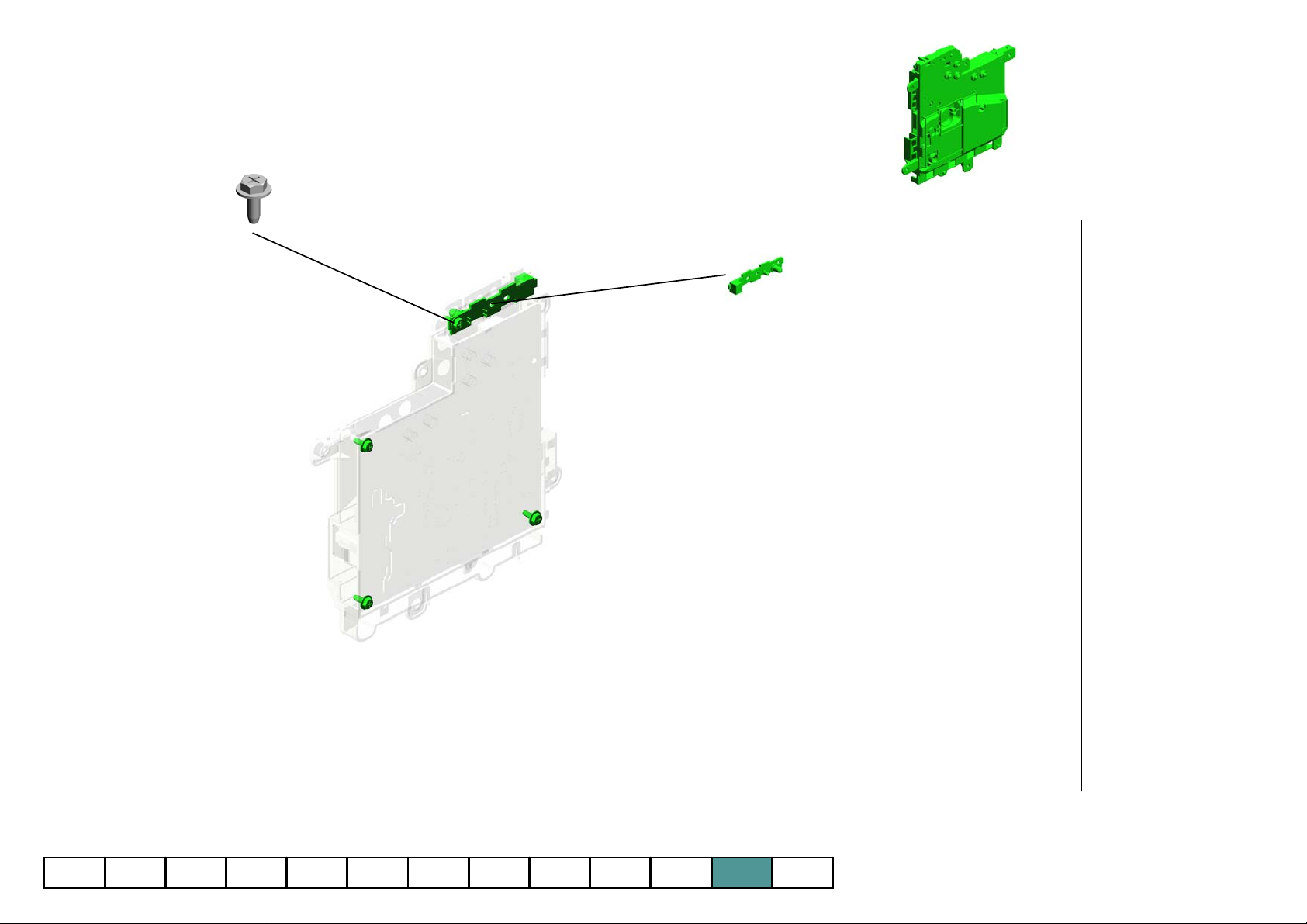

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

U012_S002 BRACKET:MAIN SWITCH:PEEN

30.M1875822

BRACKET:SWITCH :MAIN

23.M1875664

BRACKET:MAIN S WITCH:PEEN

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

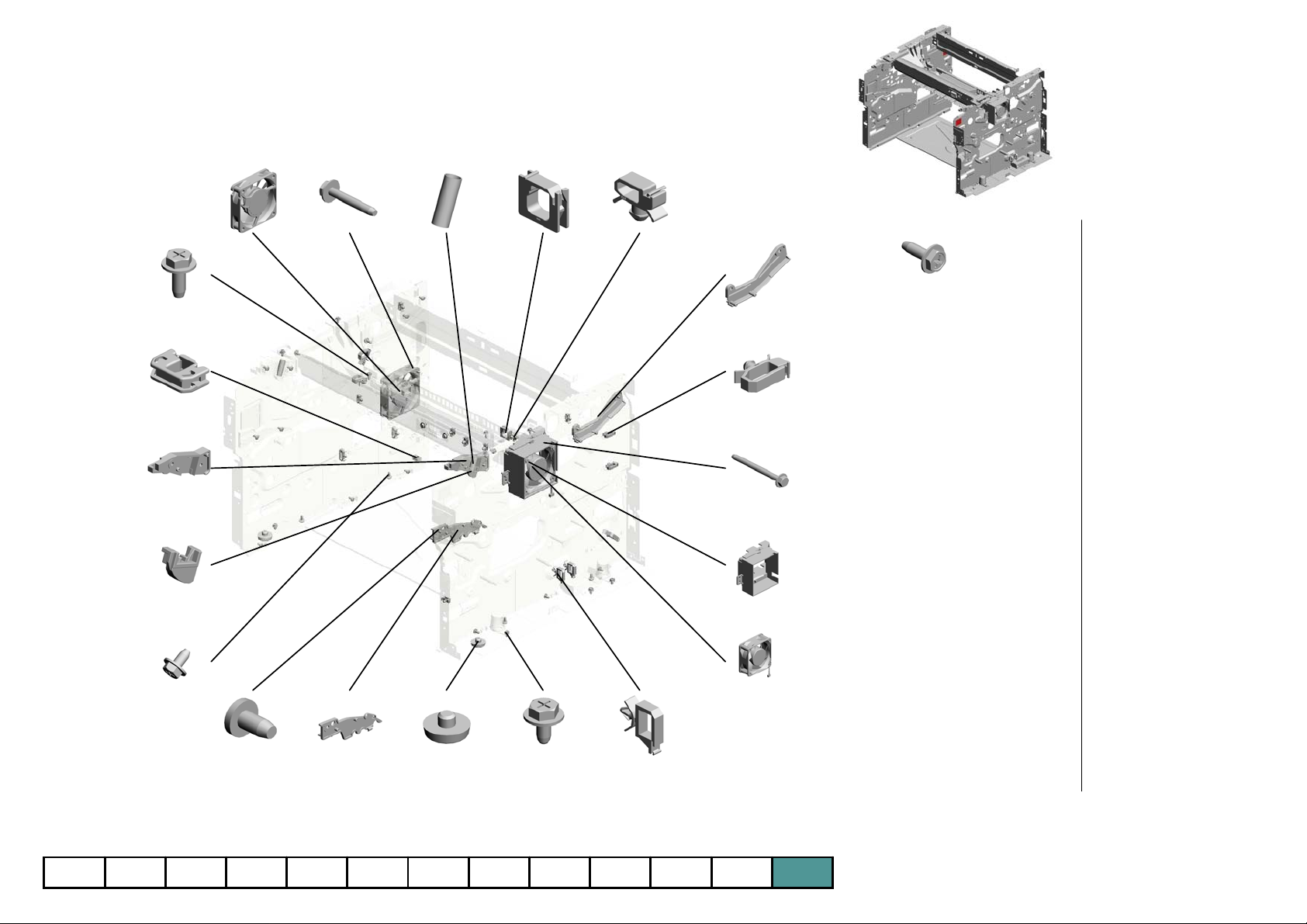

U013 MAIN FRAME

6.04583008N (x3)

HEXAGON HEAD T APPING SCREW:3 X8

9.11050692

CLAMP:LES-0503

20.M1871063

GUIDE:PCDU:RIGH T UPPER

17.GX640031

FAN MOTOR:DC:2. 64W

3.04513020N (x2)

TAPPING SCREW: 3X20

22.M1871065 (x2)

COIL SPRING:TIGH TENER:PCDU

10.11050724

CLAMPS:WES-121 0

13.11050762 (x6)

CLAMP:LWS-0711A

23.M1871086

GUIDE:FUSING:RI GHT UPPER 201509-02 X/X

12.11050760 (x4)

CLAMP:LWSM-051 1A

1.04503035N (x2)

TAPPING SCREW: 3X35

14.AA143592

SCREW- M4X6

2.04513006N (x 1)

TAPPING SCREW - 3X6

5.04543006Q (x 2)

TAPPING SCREW - M3X6

7.04583010N (x 2)

HEXAGON HEAD TAPPING SCREW:3X 10

8.11029431 (x 1)

CONNECTOR:1-1612256-2

21.M1871064

TIGHTENER:PCDU: RIGHT

2.04513006N (x15)

TAPPING SCREW 3X6

4.04533006N (x17)

TAPPING SCREW M3X6

19.M1871062

GUIDE:PCDU:RIGH T LOWER

15.AH010017 (x2)

RUBBER FOOT:H5

5.04543006Q (x4)

TAPPING SCREW M3X6

11.11050758 (x9)

CLAMP:LWSM-030 6A

18.M1871057

DUCT:PCU

16.AX640222

DC FAN MOTOR:D C24V:MM60:25MM

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

U013 MAIN FRAME

30.M1871075

GUIDE:PCDU:LEFT UPPER

31.M1871076

TIGHTENER:PCDU: LEFT

29.M1871074

GUIDE:PCDU:LEFT LOWER

36.M1871082 (x2)

STEPPED SCREW: M3:SECOND KIND: DRAWER

32.M1871087

GUIDE:FUSING:LE FT UPPER 201509-03 X/X

35.M1871081

DUCT:UPPER

37.M1871084

DECAL:LEVER:EN VELOPE:FUSING

34.M1871080

BRACKET:CHIP:PC DU

38.M1873360 (x2)

CONNECTOR:ID_C HIP

26.M1871069 (x2)

COVER:SIDE PLAT E:PAPER TRAY

33.M1871078

GUIDE:PAPER TRA Y:LEFT

39.M1873382

DECAL:OPERATE: LOCK:TONER CAR TRIDGE

27.M1871070 (x6)

COVER:SIDE PLAT E:LOWER

24.M1871067

GUIDE:PAPER TRA Y:RIGHT

28.M1871071

BRACKET:CONNE CTOR:OPTION

25.M1871068 (x3)

COVER:SIDE PLAT E:OPTION

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013

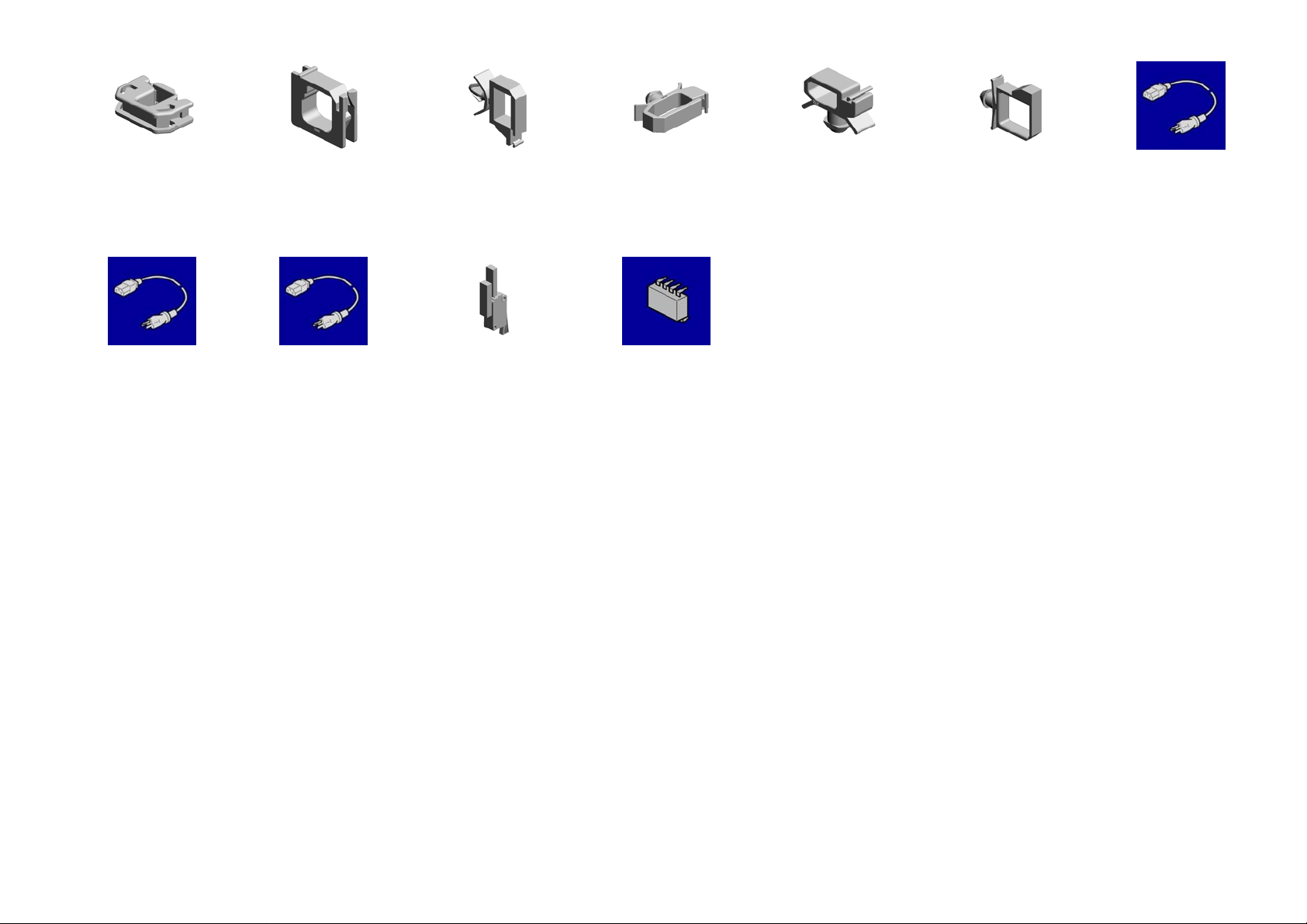

ACCESSORIES

1.11500427

(-NA):POWER SUPPLY CODE:125V:1 5A

7.M1871311

DECAL:MISFEED REMOVAL

13.M1898617

(-NA):ACCESSORY:CD-ROM:ASS'Y

2.11500456

(-CHN):POWER SUPPLY CODE:250V: 10A

8.M1871312

DECAL:MISFEED REMOVAL:FUSING UNIT

14.M1898627

(-EU):ACCESSORY:CD-ROM:ASS'Y

3.11500458

(-EU):POWER SUPPLY CODE:250V:1 0A

9.M1871317

(-NA):DECAL:CAUTION:PAPER_GRA DE

15.M1898635

(-CHN):ACCESSORY:CD-ROM:ASS'Y

4.D6457902 (x2)

(-NA/-EU):SEAL:CAUTION:20LANGUA GES

10.M1873376

SPONGE:COVER:FRONT

5.M1091948

CLEANER:LENS:LED HEAD

11.M1874494

(-CHN):TRAY:EXIT:MOVEABLE:ASS'Y

6.M1871310

PLATE:LOGO:RIC:BIOMASS

12.M1876855

DECALME PLATE:M187:EXP

Exclusive Parts

Number Part Name Group ID

U006 852152621 SNAP RING - M6

54472681 SNAP RING

AA080313 DRIVEN ROLLER BUSHING

AA082118 BUSHING - M6

AA082173 PLAIN SHAFT BEARING:6X10X6

AA143853 FLAT FILLISTER HEAD TAPPING S

CREW:M3X8

AW020198 PHOTOINTERRUPTOR:LG2A14NL

1

AW110110 THERMOSTAT

SOR M

U002_S003 10 U009 16 U002_S002 11A2672869 GEAR - 16Z U008 4AA043335 TIMING BELT:40S2M148 U008 5AA043615 TIMING BELT:40S2M208 U007 7AA043623 TIMING BELT - B40S2M180 U006_S001 9 U006_S002 9 U006_S003 9 U006_S001 10 U006_S002 10 U006_S003 10 U002 12 U002_S003 12 U007 8 U008 6 U002 13AA082175 PLAIN SHAFT BEARING:8X12X7 U013 14AA143592 SCREW- M4X6 U002_S004 14AA143846 TAPPING SCREW:M3X6 U001 4 U001_S002 4 U002_S004 15 U002_S002_S00116AF032094 PAPER FEED ROLLER:SEPARATE U001_S002 5AG070517 MAGNET CATCH:34N:ASS'Y U013 15AH010017 RUBBER FOOT:H5 U002 17 U002_S003 17 U003 2 U007 9 U006_S001 11 U006_S002 11 U006_S003 11 U012 13AW140016 TEMPERATURE & HUMIDITY SEN

U013 16AX640222 DC FAN MOTOR:DC24V:MM60:25M U012 14AZ230267 (-NA):POWER SUPPLY UNIT:DOM/

Number Part Name Group ID

NA:674.6W

U012 15AZ230269 (-EU/-CHN):POWER SUPPLY UNIT:

609.9W U012 16B1545869 PANEL:INTERFACE:SECC U008 7B6744339 TIMING BELT - B40S2M192 U007 10B7003535 TIMING BELT:B40S2M116

D1204184 DECAL:H-TEMP WARNING:SMALL

LUTCH:40MNM:DIA18

UAGES

Y:SIDE FENCE RAY Y:PAPER TRAY

U006_S001 12 U006_S002 12 U006_S003 12 U002_S002_S00118D1292783 TORQUE LIMITER MECHANICAL C

U012 17D1775686 PCB:DCSW ACCESSORIES 4D6457902 (-NA/-EU):SEAL:CAUTION:20LANG

U009 17D7342289 SYNCHRONOUS BELT:40S3M234 U006 13G0205626 PUSH SWITCH U012 18G1045141 KNOB SCREW:M3 U002_S002_S00319GA063084 COMPRESSION SPRING:AUXILIAR

U002_S002 20GA063086 COMPRESSION SPRING:PAPER T U002_S002 21GA063087 COMPRESSION SPRING:AUXILIAR U009_S001 18GA132000 SPACER:DIA4.2XDIA10X1

U009_S001 19GB010100 GEAR:DRIVE:DRUM:IDLER U009_S001 20GB010101 GEAR:DRIVE:DRUM U009_S001 21GB010103 GEAR:DRIVE:FUSING:NO.1 U009 22GB010104 GEAR:DRIVE:FUSING:NO.2 U009 23GB010105 GEAR:DRIVE:FUSING:NO.3 U009_S001 24GB010106 GEAR:DRIVE:PAPER FEED:NO.2 U009 25GB010107 GEAR:DRIVE:PAPER FEED:NO.3 U009 26GB011200 GEAR:DRIVE:FUSING:NO.4 U009 27GB011201 GEAR:DRIVE:FUSING:NO.5 U009 28GB011202 GEAR:DRIVE:FUSING:NO.6 U009 29GB011203 GEAR:DRIVE:FUSING:NO.7 U009 30GB011210 GEAR:DRIVE:PAPER FEED:NO.4 U009 31GB011211 GEAR:DRIVE:CONNECTING:NO.1 U009 32GB011212 GEAR:DRIVE:CONNECTING:NO.2

Exclusive Parts

Number Part Name Group ID

U009 33GB011214 GEAR:DRIVE:TONER SUPPLY:NO.

1

U009 34GB011215 GEAR:DRIVE:TONER SUPPLY:NO.

2

U009 35GB011216 GEAR:DRIVE:TONER SUPPLY:NO.

3

U009 36GB011217 GEAR:DRIVE:TONER SUPPLY:NO.

4

U009 37GB011218 GEAR:DRIVE:TONER SUPPLY:NO.

5

U002 22GF031009 PAPER FEED ROLLER:BALANCER

GW010007 PHOTO REFLECTION SENSOR:EXI

T

W 5NM:PAPER FEED 5NM:CONNECTING 5NM:REGISTRATION 5NM:DUPLEX 5NM:MANUAL FEED 5NM:BASE 5NM:PAPER FEED:39

M0124055 RADIAL BALL BEARING:35X47X7

M0124120 TENSION SPRING:PICKOFF PAWL

U002 23 U007 11 U002 24GW500004 PUSH SWITCH:CASSETTE:TYCO U007 12GX050111 DC STEPPER MOTOR:EXIT U009_S001 38GX060042 DC BRUSHLESS MOTOR:MAIN:34

U009 39GX200031 ELECTROMAGNETIC CLUTCH:0.4 U009 40GX200032 ELECTROMAGNETIC CLUTCH:0.3 U009 41GX200033 ELECTROMAGNETIC CLUTCH:0.4 U009 42GX200034 ELECTROMAGNETIC CLUTCH:0.3 U009 43GX200035 ELECTROMAGNETIC CLUTCH:0.3 U009 44GX200036 ELECTROMAGNETIC CLUTCH:0.3 U009 45GX200038 ELECTROMAGNETIC CLUTCH:0.4 U013 17GX640031 FAN MOTOR:DC:2.64W

U006_S001 14 U006_S002 14 U006_S003 14 U006_S001 15 U006_S002 15 U006_S003 15

Number Part Name Group ID M0124281 RETAINING RINGS-C:HOT ROLLE

R

M0752610 COMPRESSION SPRING:LOCK:SID

E FENCE

EFT

UD

ARD:OUTER

M1094181 DECAL:OPERATION SUB-UNIT:GUI

DE PLATE

S'Y D TE ARD:MIDDLE R

U006_S001 16 U006_S002 16 U006_S003 16 U002_S001_S00125 U002_S002_S00225 ACCESSORIES 5M1091948 CLEANER:LENS:LED HEAD U002_S002_S00326M1092584 PRESSURE PLATE:SIDE FENCE:L

U002_S002_S00227M1092589 LEVER:LOCK:SIDE FENCE U002_S002 28M1092595 KNOB:COIL SPRING:PAPER TRAY:

U002_S002 29M1092598 HOLDER:COIL SPRING:BASE U002 30M1092631 GRIP:PAPER TRAY U002 31M1092635 SPACER:PAPER SIZE SENSOR BO

U002_S002 32M1092640 HOLDER:PINION U002_S002 33M1092657 PROTECTION:PAPER TRAY U006_S001 17 U006_S002 17 U006_S003 17 U012 19M1095245 PCB:DDR3-DIMM:512MB(32BIT):AS

U002 34M1112604 DIAL:PAPER SIZE SENSOR BOAR U002_S001 35M1112633 DECAL:EXTENSION TRAY:OPERA U002 36M1112636 SPACER:PAPER SIZE SENSOR BO U012_S001 20M1605120 PCB:SENSOR:TONER END SENSO U013 18M1871057 DUCT:PCU

U013 19M1871062 GUIDE:PCDU:RIGHT LOWER U013 20M1871063 GUIDE:PCDU:RIGHT UPPER U013 21M1871064 TIGHTENER:PCDU:RIGHT U013 22M1871065 COIL SPRING:TIGHTENER:PCDU U013 24M1871067 GUIDE:PAPER TRAY:RIGHT U013 25M1871068 COVER:SIDE PLATE:OPTION U013 26M1871069 COVER:SIDE PLATE:PAPER TRAY

Exclusive Parts

Number Part Name Group ID

U013 27M1871070 COVER:SIDE PLATE:LOWER U013 28M1871071 BRACKET:CONNECTOR:OPTION U013 29M1871074 GUIDE:PCDU:LEFT LOWER U013 30M1871075 GUIDE:PCDU:LEFT UPPER U013 31M1871076 TIGHTENER:PCDU:LEFT U013 33M1871078 GUIDE:PAPER TRAY:LEFT U013 34M1871080 BRACKET:CHIP:PCDU U013 35M1871081 DUCT:UPPER U013 36M1871082 STEPPED SCREW:M3:SECOND KI

ND:DRAWER

U013 37M1871084 DECAL:LEVER:ENVELOPE:FUSIN

G

U013 23M1871086 GUIDE:FUSING:RIGHT UPPER U013 32M1871087 GUIDE:FUSING:LEFT UPPER U009 46M1871151 HOUSING:DRIVE:PAPER FEED U009 47M1871154 HOLDER:DRIVE:TONER SUPPLY U009 48M1871155 LINK:DRIVE:TONER SUPPLY U009 49M1871156 JOINT:DRIVE:TONER SUPPLY U009 50M1871157 COMPRESSION SPRING:DRIVE:T

ONER SUPPLY

U009 51M1871161 GROUND PLATE:BCU:NO.1 U009 52M1871164 SHAFT:ELECTROMAGNETIC CLUT

CH:TONER SUPPLY

U009 53M1871167 COVER:DRIVE:TONER SUPPLY U009 54M1871170 BRACKET:DRIVE:CONNECTING U009 55M1871173 GROUND PLATE:BCU:NO.2 U009 56M1871176 GUIDE:HARNESS:ELECTROMAGN

ETIC CLUTCH

U009 57M1871181 BRACKET:DRIVE:FUSING:NO.1 U009 58M1871184 COMPRESSION SPRING:DRIVE:FU

SING

U009_S001 59M1871190 DRIVE UNIT:DRUM:ASS'Y U009_S001 60M1871193 BRACKET:DRIVE:MOTOR U009_S001 61M1871206 BRACKET:DRIVE:DRUM U009_S001 62M1871209 BOSS:DRIVE:DRUM U009_S001 63M1871210 COMPRESSION SPRING:DRIVE:D

RUM

U009_S001 64M1871211 JOINT:DRIVE:DRUM

Number Part Name Group ID

U009_S001 65M1871216 BRACKET:BCU U009 66M1871221 ARM:JOINT U009 67M1871222 HOLDER:ARM:JOINT U009 68M1871223 COMPRESSION SPRING:ARM U009 69M1871225 COVER:MOTOR U009 70M1871227 BRACKET:DRIVE:FUSING:NO.2 U009 71M1871229 PLAIN SHAFT BEARING:ELECTRO

MAGNETIC CLUTCH:TONER SUPP LY

U001 6M1871251 COVER:LEFT U001_S002 7M1871258 PLATE:GUIDE PLATE:REAR U001 8M1871261 COVER:RIGHT U001 9M1871262 COVER:BUTTON U001 10M1871263 COMPRESSION SPRING:COVER:R

IGHT:BUTTON

U001 11M1871264 COVER:RIGHT:SMALL U001 12M1871265 CAP:TOTAL COUNTER U001 13M1871271 COVER:UPPER:500 U001 14M1871272 EXTENSION TRAY:EXIT U001 15M1871273 COVER:EXIT:INNER BACK U001 16M1871279 EXTENSION TRAY:EXIT:SMALL U001_S001 17M1871280 COVER:FRONT:DAI-P1D:ASS'Y U001_S001 18M1871284 SUPPORT STAY:COVER:FRONT U001_S001 19M1871285 COIL SPRING:SUPPORT STAY U001_S001 20M1871286 WIRE:DRIVE:JOINT U001_S001 21M1871287 PLATE:COVER:FRONT U001_S001 22M1871289 COMPRESSION SPRING:COVER:F

RONT

U001_S002 23M1871290 COVER:REAR:DAI-P1D:ASS'Y ACCESSORIES 6M1871310 PLATE:LOGO:RIC:BIOMASS ACCESSORIES 7M1871311 DECAL:MISFEED REMOVAL ACCESSORIES 8M1871312 DECAL:MISFEED REMOVAL:FUSIN

G UNIT

ACCESSORIES 9M1871317 (-NA):DECAL:CAUTION:PAPER_GR

ADE

U011 1M1871401 (-NA/-EU):OPERATION PANEL:ASS'

Y

U011 2M1871403 (-CHN):OPERATION PANEL:ASS'Y

Exclusive Parts

Number Part Name Group ID

U004 3M1871909 SPACER:HOLDER:LED U004 4M1871924 GUIDE:LINK:LED:RIGHT U004 5M1871925 GUIDE:LINK:LED:LEFT U004 6M1871926 LINK:LED:RIGHT:A U004 7M1871927 LINK:LED:RIGHT:B U004 8M1871929 LINK:LED:LEFT:A U004 9M1871930 LINK:LED:LEFT:B U004 10M1871933 GROUND PLATE:HINGE:LED U004 11M1871935 COIL SPRING:LINK:LED U004 12M1871936 LEVER:LINK:LED:RIGHT U004 13M1871942 LINK:LED:RIGHT:C U004 14M1871943 LINK:LED:LEFT:C U004 15M1871970 LED:ASS'Y U002_S001 37M1872550 PAPER TRAY:REAR:500TYPE:ASS'

Y

U002_S001 38M1872554 PAPER TRAY:REAR:500TYPE U002 39M1872590 SPRING PLATE:PAPER TRAY:ASS'

Y

U002_S002 40M1872602 PAPER TRAY:FRONT:500TYPE U002_S002 41M1872605 PAPER TRAY:FRONT:500TYPE:AS

S'Y

U002_S002 42M1872606 LEVER:PAPER VOLUME SENSOR:

500TYPE

U002_S002_S001 136M1872610 SEPARATOR:ASS'Y

U002_S002_S00143M1872611 BASE:PAPER FEED ROLLER:SEPA

RATE

U002_S002_S00144M1872612 BRACKET:PAPER FEED ROLLER:S

EPARATE

U002_S002_S00145M1872613 COVER:PAPER FEED ROLLER:SE

PARATE

U002_S002_S00146M1872614 SHAFT:PAPER FEED ROLLER:SEP

ARATE

U002_S002_S00147M1872618 COMPRESSION SPRING:PRESSU

RE:SEPARATE:0.75N

U002_S002_S00148M1872623 GUIDE:SEPARATE:AUXILIARY U002_S002 49M1872624 SHEET:PAPER TRAY:SEPARATE:5

00TYPE

U002_S002_S00150M1872625 SHEET:SEPARATE:AUXILIARY

Number Part Name Group ID

U002_S002 51M1872630 TRAY BOTTOM PLATE:500TYPE U002_S002 52M1872637 TENSION SPRING:TRAY BOTTOM

PLATE:500TYPE

U002_S002_S00253M1872641 SIDE FENCE:RIGHT:500TYPE:ASS'

Y

U002_S002_S00254M1872642 SIDE FENCE:RIGHT:500TYPE U002_S002 55M1872647 PAD:BASE:URETHANE:WHITE U002 56M1872651 (-NA):DECAL:DIAL:PAPER SIZE SE

NSOR

U002 57M1872652 (-EU/-CHN):DECAL:DIAL:PAPER SI

ZE SENSOR

U002 58M1872653 DECAL:PAPER SET DIRECTION:LE

FT

U002 59M1872654 DECAL:PAPER SET DIRECTION:RI

GHT

U002_S001 60M1872655 DECAL:PAPER FEED PRESSURE:

OPERATE

U002_S001_S00161M1872656 END FENCE:500TYPE:ASS'Y U002_S002_S00362M1872661 SIDE FENCE:LEFT:500TYPE:ASS'Y U002_S002_S00363M1872662 SIDE FENCE:LEFT:500TYPE U002 64M1872683 LEVER:PAPER SIZE SENSOR BOA

RD

U002_S002 65M1872688 SEAL:PAPER TRAY:500 U002 66M1872692 COVER:PAPER TRAY:500TYPE U002_S003 67M1872701 MANUAL FEED UNIT:ASS'Y U002_S004 68M1872702 TRAY:MANUAL FEED:ASS'Y U002_S003 69M1872721 SHAFT:PAPER FEED ROLLER:MA

NUAL FEED:PRESS FIT

U002_S003 70M1872723 PAPER FEED ROLLER:MANUAL F

EED

U002_S003 71M1872726 CAM:MANUAL FEED:LEFT U002_S003 72M1872727 CAM:MANUAL FEED:RIGHT U002_S003 73M1872728 COVER:PAPER FEED ROLLER:MA

NUAL FEED

U002_S003 74M1872729 DAMPING INSULATION:MANUAL F

EED

U002_S003 75M1872730 FEELER:PAPER END SENSOR:MA

NUAL FEED

Exclusive Parts

Number Part Name Group ID

U002_S003 76M1872732 PAD:BASE U002_S003 77M1872735 HOLDER:CAM:BASE:MANUAL FEE

D

U002_S003 78M1872736 COMPRESSION SPRING:BASE:MA

NUAL FEED

U002_S003 79M1872737 HOLDER:FRICTION PAD:MANUAL

FEED

U002_S003 80M1872740 FEELER:CAM:MANUAL FEED U002_S003 81M1872741 COIL SPRING:FEELER:CAM:MANU

AL FEED

U002_S003 82M1872744 SPRING PLATE:HOME POSITION S

ENSOR:MANUAL FEED

U002_S003 83M1872750 COMPRESSION SPRING:DRIVEN

ROLLER:CONNECTING

U002_S003 84M1872752 DECAL:SET:PCDU:RIGHT U002_S003 85M1872753 DECAL:SET:PCDU:LEFT U002_S004 86M1872760 SIDE FENCE:MANUAL FEED:LEFT U002_S004 87M1872761 SIDE FENCE:MANUAL FEED:RIGH

T

U002_S004 88M1872762 GEAR:SIDE FENCE U002_S004 89M1872763 RACK:SIDE FENCE U002_S003 90M1872765 FRICTION PAD:MANUAL FEED U002_S004 91M1872766 COVER:EXTENSION TRAY U002_S004 92M1872767 EXTENSION TRAY:NO.1:MANUAL

FEED

U002_S004 93M1872768 EXTENSION TRAY:NO.2:MANUAL

FEED

U002_S004 94M1872769 HOLDER:COMPRESSION SPRING:

EXTENSION TRAY

U002_S004 95M1872770 COMPRESSION SPRING:EXTENSI

ON TRAY:7N

U002_S003 96M1872771 SHAFT:CAM:MANUAL FEED U002_S003 97M1872772 COMPRESSION SPRING:FRICTIO

N PAD:MANUAL FEED:3.4N

U002_S003 98M1872774 ROLLER:DRIVEN:CONNECTING U002_S003 99M1872775 SHAFT:CONNECTING:DRIVEN:PA

PER FEED

U002_S003 100M1872776 PLAIN SHAFT BEARING:DIA5:CON

Number Part Name Group ID

NECTING

U002_S004 101M1872777 SPRING PLATE:SIDE FENCE:MAN

UAL FEED

U002_S003 102M1872778 SHEET:SENSOR COVER U002 103M1872803 LEVER:PAPER FEED ROLLER U002 104M1872805 STAY:PAPER FEED U002 105M1872806 SHAFT:PLAIN SHAFT BEARING:PA

PER FEED ROLLER

U002 106M1872807 SHAFT:PAPER FEED U002 107M1872808 SPACER:ROLLER:CONNECTING:P

APER FEED

U002 108M1872811 ROLLER:CONNECTING:DRIVE:PA

PER FEED

U002 109M1872813 GUIDE PLATE:PAPER FEED:UPPE

R

U002 110M1872816 SHEET:STAY:PAPER FEED:UPPER U002 111M1872817 GROUND PLATE:STAY:PAPER FE

ED:RIGHT

U002 112M1872818 COMPRESSION SPRING:LEVER:P

APER FEED ROLLER

U002 113M1872822 FEELER:PAPER END SENSOR U002 114M1872823 GROUND PLATE:PAPER FEED:UP

PER

U002 115M1872831 GUIDE PLATE:PAPER FEED:ENTR

ANCE:ASS'Y

U002 116M1872836 COVER:STAY:PAPER FEED:RIGHT U002 117M1872837 COVER:STAY:PAPER FEED:LEFT U002 118M1872842 SENSOR COVER:PAPER SIZE SEN

SOR BOARD:500TYPE

U002 119M1872851 COVER:PREVENTFENCE:PAPER T

RAY

U002 120M1872856 TENSION SPRING:COVER:PREVE

NTFENCE

U013 38M1873360 CONNECTOR:ID_CHIP ACCESSORIES 10M1873376 SPONGE:COVER:FRONT U013 39M1873382 DECAL:OPERATE:LOCK:TONER C

ARTRIDGE

U002 121M1873811 REGISTRATION ROLLER:DRIVE

Exclusive Parts

Number Part Name Group ID

U002 122M1873812 REGISTRATION ROLLER:DRIVEN U002 123M1873821 GUIDE PLATE:REGISTRATION:UP

PER

U002 124M1873822 COVER:GUIDE:REGISTRATION:UP

PER

M1873823 STOPPER:SENSOR:PLATE

LLER:UPPER LEFT LLER:UPPER RIGHT IP N:RIGHT N:LEFT RESSURE:REGISTRATION

NSOR:HARNESS M1874027 (-EU/-CHN):FUSING UNIT M1874102 FLAT NUT:FRAME

M1874106 EXIT ROLLER:FUSING

M1874111 LEVER:ENVELOPE:LEFT

M1874112 LEVER:ENVELOPE:RIGHT

M1874113 SHAFT:LEVER:ENVELOPE

U002 125 U007 13 U002 126M1873824 SHEET:GUIDE:REGISTRATION RO

U002 127M1873825 SHEET:GUIDE:REGISTRATION RO U002 128M1873826 DECAL:REGISTRATION GUIDE:GR U002 129M1873831 LEVER:PRESSURE:REGISTRATIO U002 130M1873832 LEVER:PRESSURE:REGISTRATIO U002 131M1873833 COMPRESSION SPRING:LEVER:P U002 132M1873891 SHEET:GUIDE:REGISTRATION SE U006_S003 18M1874017 (-NA):FUSING UNIT

U006_S001 19 U006_S002 19 U006_S001 20 U006_S002 20 U006_S003 20 U006_S001 21 U006_S002 21 U006_S003 21 U006_S001 22 U006_S002 22 U006_S003 22 U006_S001 23 U006_S002 23 U006_S003 23 U006_S001 24 U006_S002 24

Number Part Name Group ID

U006_S003 24

M1874114 TORSION SPRING:LEVER

M1874121 GUIDE:DUPLEX:FUSING

M1874122 DRIVEN ROLLER:DUPLEX

M1874124 COMPRESSION SPRING:2N

M1874131 DISCHARGE BRUSH:PRESSURE R

OLLER

M1874132 GROUND PLATE:PRESSURE ROLL

ER

M1874141 PRESSURE ROLLER

M1874142 LEVER:PRESSURE

M1874143 TENSION SPRING:PRESSURE RO

LLER

M1874155 GUIDE PLATE:ENTRANCE:LOWER

M1874161 GEAR:FUSING:NO.1

M1874162 GEAR:FUSING:NO.2

U006_S001 25 U006_S002 25 U006_S003 25 U006_S001 26 U006_S002 26 U006_S003 26 U006_S001 27 U006_S002 27 U006_S003 27 U006_S001 28 U006_S002 28 U006_S003 28 U006_S001 29 U006_S002 29 U006_S003 29 U006_S001 30 U006_S002 30 U006_S003 30 U006_S001 31 U006_S002 31 U006_S003 31 U006_S001 32 U006_S002 32 U006_S003 32 U006_S001 33 U006_S002 33 U006_S003 33 U006_S001 34 U006_S002 34 U006_S003 34 U006_S001 35 U006_S002 35 U006_S003 35 U006_S001 36 U006_S002 36 U006_S003 36 U006_S001 37M1874163 GEAR:FUSING:NO.3

Exclusive Parts

Number Part Name Group ID

U006_S002 37 U006_S003 37

M1874212 SET SENSOR:DRAWER:FUSING

M1874213 THERMISTOR:FUSING

M1874217 (-EU/-CHN):DRAWER:FUSING

M1874223 ELECTRODE PLATE:THERMOSTA

T

M1874226 GROUND PLATE:UPPER

M1874227 DISCHARGE BRUSH:HOT ROLLER

M1874232 STRIPPER PAWLS:HOT ROLLER

M1874241 HOT ROLLER

M1874242 GEAR:HOT ROLLER

M1874243 THERMAL INSULATING BUSHING:

HOT ROLLER

M1874252 BRACKET:HEATER:LEFT

M1874253 BRACKET:HEATER:RIGHT

U006_S001 38 U006_S002 38 U006_S003 38 U006_S001 39 U006_S002 39 U006_S003 39 U006_S003 40M1874215 (-NA):DRAWER:FUSING U006_S001 41 U006_S002 41 U006_S001 42M1874218 FLAT NUT:THERMISTOR U006_S001 43 U006_S002 43 U006_S003 43 U006_S001 44 U006_S002 44 U006_S003 44 U006_S001 45 U006_S002 45 U006_S003 45 U006_S001 46 U006_S002 46 U006_S003 46 U006_S001 47 U006_S002 47 U006_S003 47 U006_S001 48 U006_S002 48 U006_S003 48 U006_S001 49 U006_S002 49 U006_S003 49 U006_S001 50 U006_S002 50 U006_S003 50 U006_S001 51 U006_S002 51

Number Part Name Group ID

U006_S003 51 U006_S003 52M1874255 (-NA):HEATER:844W:117V:INFRAR

ED

M1874257 (-EU/-CHN):HEATER:844W:227V:IN

FRARED

M1874261 GUIDE PLATE:ENTRANCE:UPPER

M1874301 GUIDE:EXIT:FUSING

M1874311 EXIT ROLLER

M1874312 SHAFT:EXIT ROLLER

M1874313 HOLDER:EXIT ROLLER

M1874314 SUPPORTING PLATE:EXIT ROLLE

R

M1874321 COVER:FUSING UNIT:LEFT

M1874331 COVER:FUSING UNIT:RIGHT

E

U006_S001 53 U006_S002 53 U006_S001 54 U006_S002 54 U006_S003 54 U006_S001 55 U006_S002 55 U006_S003 55 U006_S001 56 U006_S002 56 U006_S003 56 U006_S001 57 U006_S002 57 U006_S003 57 U006_S001 58 U006_S002 58 U006_S003 58 U006_S001 59 U006_S002 59 U006_S003 59 U006_S001 60 U006_S002 60 U006_S003 60 U006_S001 61 U006_S002 61 U006_S003 61 U006 62M1874351 GUIDE:FUSING:RIGHT LOWER U006 63M1874352 LEVER:FUSING:RIGHT U006 64M1874353 GUIDE:FUSING:LEFT LOWER U006 65M1874354 LEVER:FUSING:LEFT U007 14M1874421 GUIDE PLATE:EXIT:UPPER:500 U007 15M1874422 ROLLER:DRIVEN:REVERSE U007 17M1874425 BRACKET:SENSOR:REVERSE:500 U007 16M1874426 SPRING PLATE:ROLLER:REVERS

Exclusive Parts

Number Part Name Group ID

U007 18M1874431 GUIDE PLATE:EXIT:MIDDLE:500 U007 19M1874432 FEELER:EXIT:OVERFLOW U007 20M1874433 DISCHARGE BRUSH:EXIT U007 21M1874434 PAD:SENSOR:REVERSE U007 22M1874435 SPACER:EXIT:500 U007 23M1874441 GUIDE PLATE:EXIT:LOWER:500 U007 24M1874442 FEELER:SENSOR:EXIT:500 U007 25M1874443 SPRING PLATE:EXIT ROLLER:MID

DLE

U007 26M1874444 SPRING PLATE:EXIT ROLLER:OUT

ER

U007 27M1874445 EXIT ROLLER:DRIVEN U007 28M1874446 GROUND PLATE:EXIT:500 U007 29M1874447 PRESSURE PLATE:FUSING:PLATE U007 30M1874448 COMPRESSION SPRING:FUSING:

PLATE

U007 31M1874449 TORSION SPRING:FEELER:EXIT:5

00

U007 32M1874452 TENSION SPRING:GATE PAWL:EXI

T

U007 33M1874453 DECAL:PICKOFF PAWL:GRIP:B U007 34M1874455 GATE PAWL:EXIT:500 U007 35M1874461 EXIT ROLLER U007 36M1874462 REVERSE ROLLER:500 U007 37M1874463 TIMING PULLEY:EXIT:43T:18T U007 38M1874464 TIMING PULLEY:REVERSE:18T:50

0

U007 39M1874481 DC SOLENOID:EXIT:500:SUB-ASS'

Y

U007 40M1874483 TENSION SPRING:EXIT:SOLENOID

:1.4N

U001_S002 26M1874492 COIL SPRING:GUIDE PLATE:EXIT:

REAR

ACCESSORIES 11M1874494 (-CHN):TRAY:EXIT:MOVEABLE:AS

S'Y

U008 8M1874851 GUIDE:UPPER:DUPLEX U008 9M1874854 FEELER:UPPER:DUPLEX U008 10M1874861 DRIVEN ROLLER:EXIT:DUPLEX

Number Part Name Group ID

U008 11M1874862 COMPRESSION SPRING:EXIT:DUP

LEX

U008 12M1874863 PLAIN SHAFT BEARING:DRIVEN:D

UPLEX:EXIT

U008 13M1874866 DRIVEN ROLLER:CONNECTING:D

UPLEX

U008 14M1874867 TENSION SPRING:CONNECTING:D

UPLEX

U008 15M1874868 PLAIN SHAFT BEARING:DRIVEN:D

UPLEX:UPPER

U008 16M1874871 GUIDE:FRONT:DUPLEX U008 17M1874874 GROUND PLATE:FRONT:DUPLEX U008 18M1874881 ROLLER:EXIT:DRIVE:DUPLEX U008 19M1874882 GRIP:PICK-UP PAPER JAM:MIDDL

E:DUPLEX

U008 20M1874883 GRIP:PICK-UP PAPER JAM:FRONT

:DUPLEX

U008 21M1874886 COMPRESSION SPRING:HOOK:DU

PLEX

U008 22M1874887 LINK:PICK-UP PAPER JAM:FRAME:

DUPLEX

U008 23M1874888 LINK:PICK-UP PAPER JAM:FRONT:

DUPLEX

U008 24M1874889 DECAL:DESIGN SKETCH:DUPLEX:

Z2

U008 25M1874891 HOOK:PICK-UP PAPER JAM:FRON

T:DUPLEX

U008 26M1874894 PLATE:HOOK:DUPLEX:RIGHT U008 27M1874897 PLATE:HOOK:DUPLEX:LEFT U008 28M1874911 GUIDE:CONNECTING:DUPLEX U008 29M1874913 GROUND PLATE:CONNECTING:D

UPLEX

U008 30M1874914 GROUND PLATE:CONNECTING:D

UPLEX:SMALL

U008 31M1874917 PULLEY:GEAR:DUPLEX:Z29T18 U008 32M1874921 ROLLER:CONNECTING:DRIVE:DU

PLEX

U008 33M1874922 GEAR:DRIVE:DUPLEX:Z29

Exclusive Parts

Number Part Name Group ID

U008 34M1874924 PULLEY:DRIVE:DUPLEX:T18 U008 35M1874931 GEAR:IDLER:DUPLEX:Z29 U008 36M1874951 GUIDE:REAR:DUPLEX U008 37M1874953 GROUND PLATE:REAR:DUPLEX U008 38M1874961 ROLLER:ENTRANCE:DRIVE:DUPL

EX

U008 39M1874976 PULLEY:CONNECTING:DUPLEX:T1

8

U012 21M1875013 PCB:BCU:ASS'Y U012_S001 22M1875630 POWER PACK:CDVT:ASS'Y U012_S002 23M1875664 BRACKET:MAIN SWITCH:PEEN U012 24M1875792 PCB:CTL:DAI-P1D_EXP:38CPM U012 25M1875810 BRACKET:POWER SUPPLY UNIT:S

UB-ASS'Y

U012 26M1875817 COVER:POWER SUPPLY UNIT:FR

ONT

U012 27M1875818 COVER:POWER SUPPLY UNIT:RE

AR

U012 28M1875819 STOPPER:COVER:REAR U001_S001 27M1875820 BUTTON:MAIN SWITCH U012 29M1875821 HOLDER:MAIN SWITCH U012_S002 30M1875822 BRACKET:SWITCH:MAIN U001_S001 28M1875823 COIL SPRING:MAIN SWITCH U012 31M1875854 BRACKET:SAFETY SWITCH:FRON

T

U012 32M1875858 TENSION SPRING:SAFETY SWITC

H

U012 33M1875861 COVER:C/T BOX U012 34M1875863 COVER:C/T BOX:SMALL U012 35M1875866 BASE:C/T BOX U012 36M1875868 COVER:SD-CARD U012 37M1875869 DECAL:INTERFACE U012 38M1875875 INSULATING SHEET:BCU U003 3M1876202 TRANSFER ROLLER:ASS'Y ACCESSORIES 12M1876855 DECALME PLATE:M187:EXP U012 39M1879590 NV-RAM ACCESSORIES 13M1898617 (-NA):ACCESSORY:CD-ROM:ASS'Y ACCESSORIES 14M1898627 (-EU):ACCESSORY:CD-ROM:ASS'Y

Number Part Name Group ID

ACCESSORIES 15M1898635 (-CHN):ACCESSORY:CD-ROM:ASS

'Y

U002_S002_S002133M4062854 PAWL:LOCK:SIDE FENCE U002_S002_S002134M4062855 COVER:SIDE FENCE:RIGHT U002_S002_S003135M4062865 COVER:SIDE FENCE:LEFT

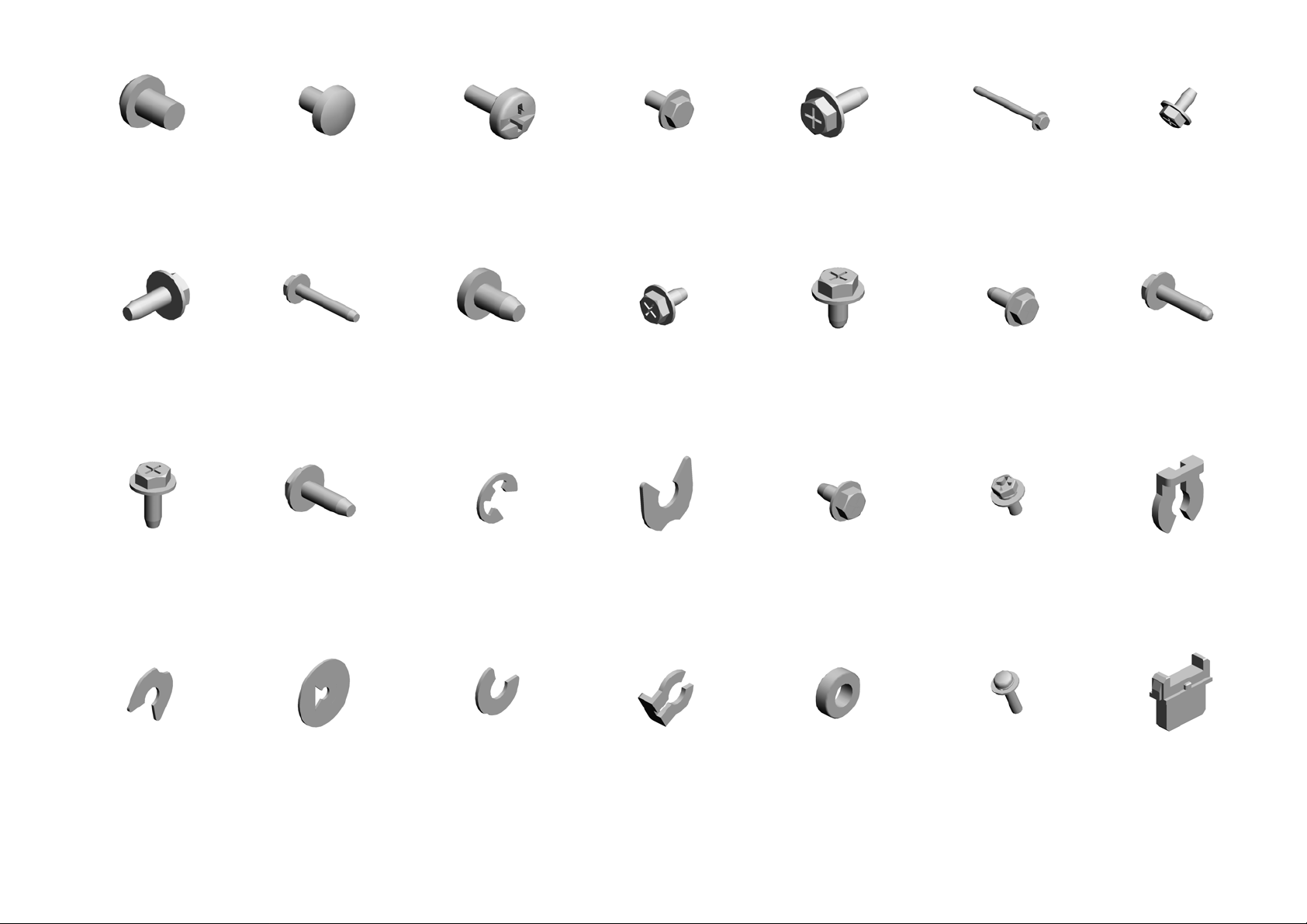

Standard Parts

03530030N

SCREW:M3X3

04513008N

TAPPING SCREW - M3X8

04583008N

HEXAGON HEAD TAPPING S CREW:3X8

03530040N

SCREW - M3X4

04513020N

TAPPING SCREW:3X20

04583010N

HEXAGON HEAD TAPPING S CREW:3X10

03530060N

BIND SCREW - M3X6

04533006N

TAPPING SCREW - M3X6

07200025E

RETAINING RING - M2.5

03603006N

SCREW - M3X6

04543006N

TAPPING SCREW:ROUND P OINT:3X6

07200040E

RETAINING RING - M4

03603008N

SCREW:M3X8

04543006Q

TAPPING SCREW - M3X6

08025305

TAPPING SCREW - M3X6

04503035N

TAPPING SCREW:3X35

04543008Q

TAPPING SCREW:3X8

08046127

HEXAGONAL BOLT:DOUBLE SCREW:M3X8

04513006N

TAPPING SCREW - 3X6

04543014Q

TAPPING SCREW:3X14

08050097

RING SEPARATOR

08050100

RETAINING RING - M2.5

08050103

RETAINING RINGS-E:SILENC ER:DIA3

08050104

RETAINING RINGS-E:SILENC ER:DIA4

08050106

RETAINING RINGS-E:SILENC ER:DIA6

08053575

RADIAL BALL BEARING:DIA8 XDIA16X5

09543012N

SCREW - M3X12

11029431

CONNECTOR:1-1612256-2

Standard Parts

11050692

CLAMP:LES-0503

11500456

(-CHN):POWER SUPPLY COD E:250V:10A

11050724

CLAMPS:WES-1210

11500458

(-EU):POWER SUPPLY CODE :250V:10A

11050758

CLAMP:LWSM-0306A

12042612

MICRO SWITCH:D3V-16506-3 C25

11050760

CLAMP:LWSM-0511A

14077677

EEPROM:BR24T64-W

11050762

CLAMP:LWS-0711A

11050763

CLAMP:LWS-1211A

11500427

(-NA):POWER SUPPLY CODE :125V:15A

Number Part Name Num Group ID

U006_S003 18M1874017 (-NA):FUSING UNIT 1

M1874027 (-EU/-CHN):FUSING UNIT 2

U006_S001 19 U006_S002 19 U003 3M1876202 TRANSFER ROLLER:ASS'Y 1

PM Part List

Design Change List

Number Title Set Old Part New Part Index No. Q'ty Interchg Reason Cut-in S/N

P/N Name P/N Name Group ID Indiv. Set

201509-01 1509 Modification Model Da-P1:- X/OM1874231 STRIPPER PAWL

S:HOT ROLLER

201509-02 1509 Modification Model Da-P1:A X/XM1871066 GUIDE:FUSING:R

IGHT UPPER

201509-03 1509 Modification Model Da-P1:A X/XM1871077 GUIDE:FUSING:L

EFT UPPER

201510-01 1510 Modification Model Da-P1:- X/OM1874423 SPRING PLATE:

ROLLER:REVER SE

201511-01 1511 Modification Model Da-P1:- M1871297 SHEET:COVER:A U001 24 2 201511-02 1511 Modification Model Da-P1:- M1871298 SHEET:COVER:B U001 25 14 201511-03 1511 Modification Model Da-P1:- M1872610 SEPARATOR:AS

M1874232 STRIPPER PAWL

S:HOT ROLLER

M1871086 GUIDE:FUSING:R

IGHT UPPER

M1871087 GUIDE:FUSING:L

EFT UPPER

M1874426 SPRING PLATE:

ROLLER:REVER SE

S'Y

U006_S001 46 5 U006_S002 46 5 U006_S003 46 5 U013 23 1

U013 32 1

U007 16 4

U002_S002 _S001

136 1
