Propane – Heater
REMKO PGT 30 – PGT 100
Operation
Technology
Spare Parts
Edition GB– L07
REMKO – strong as a bear.
Operating instructions
Make sure to read these instructions carefully before starting/using the unit!
Our guarantee will become void when the unit supplied by us is used and installed
for inadequate purposes, or maintained incorrectly, etc.,
or if it is changed without our prior consent.
Mobile
Propane - Heaters
Contents Page
Safety hints 3
General hints 3
Starting 4 –5
Putting out of service 5
Fault elimination hints 5
Important hints 5
Maintenance 6
Action in the case of faults 7
Always keep these operating instructions near or on the device!
G

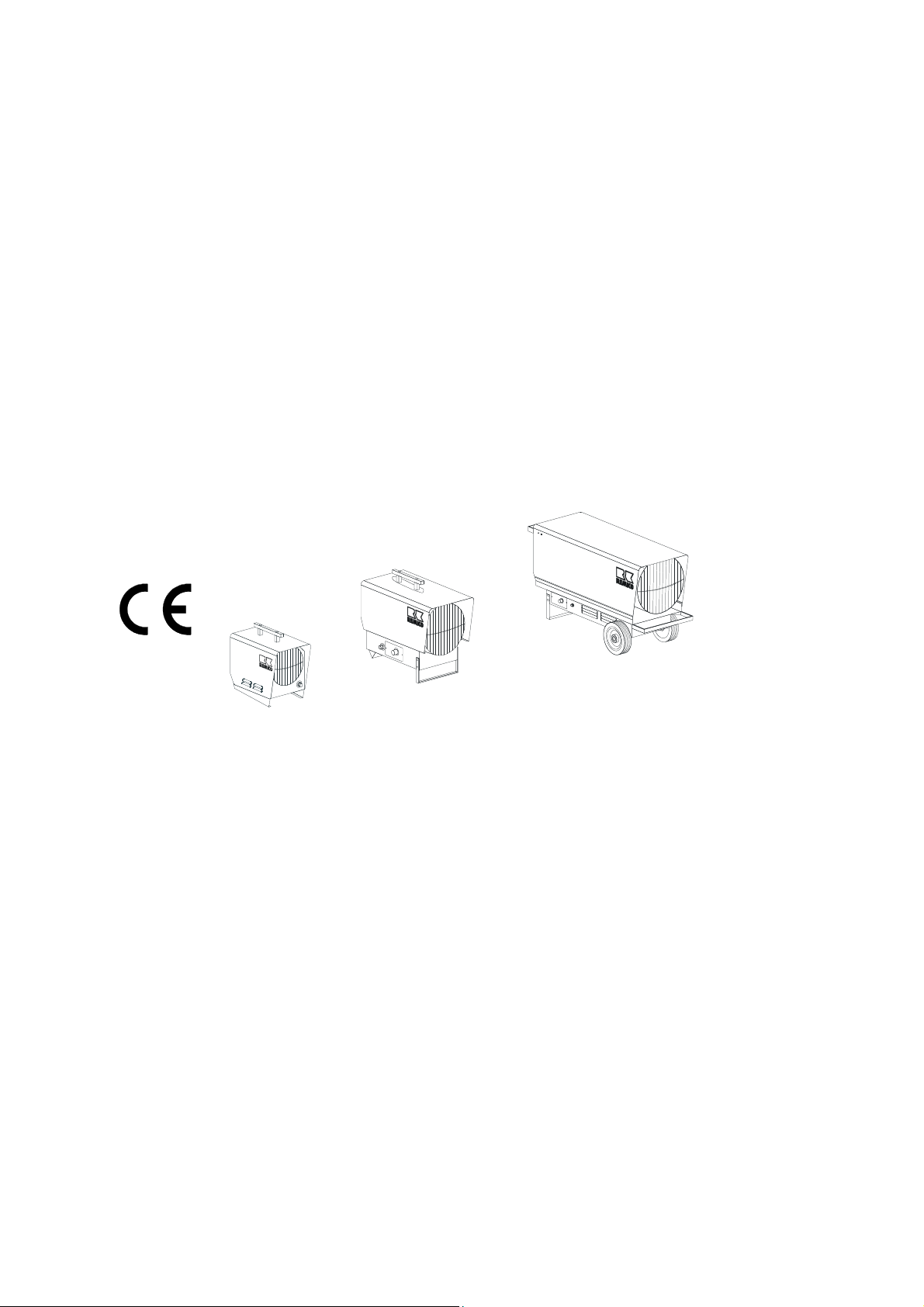

PGT 100 PGT 30 PGT 60
Contents Page

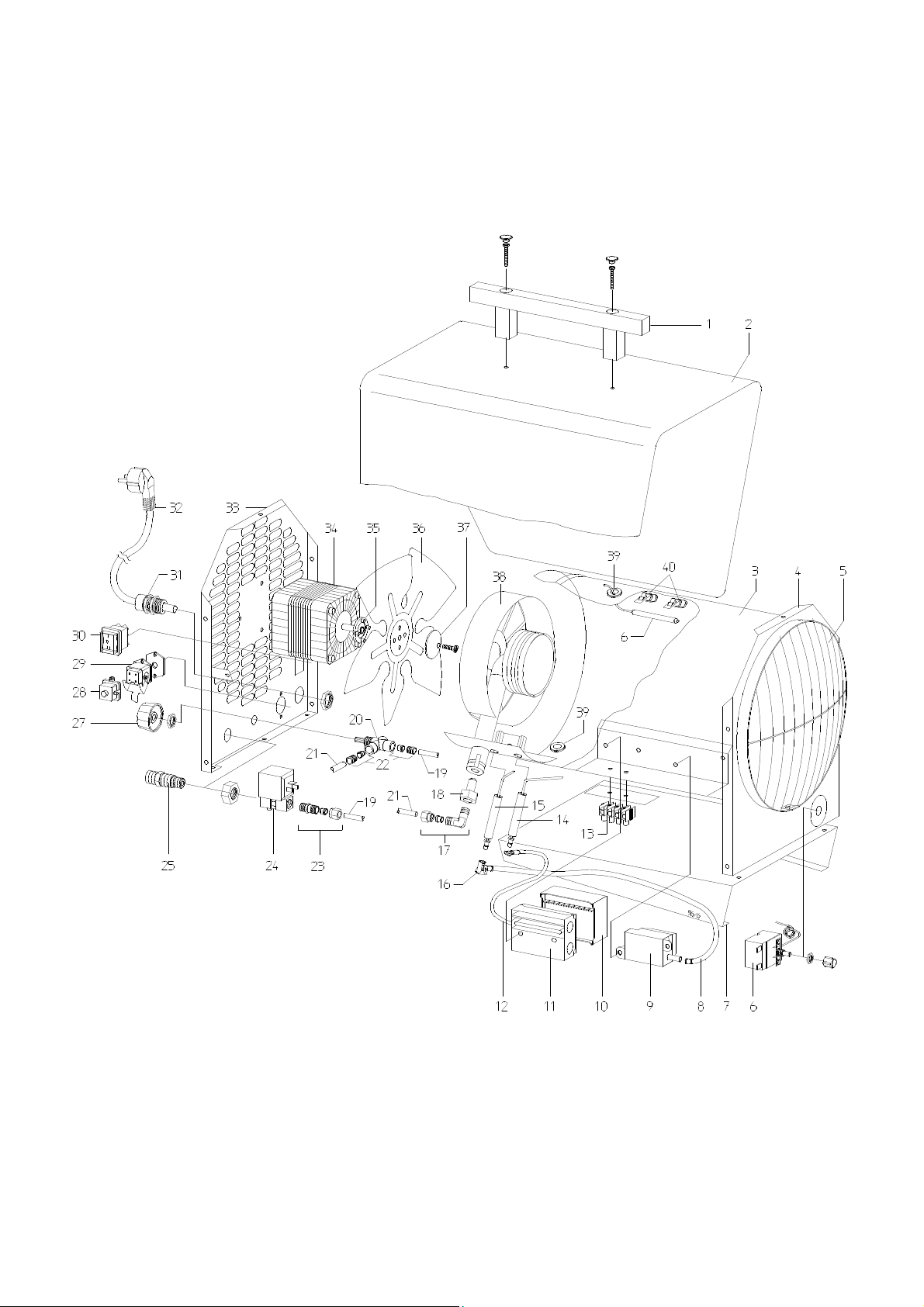

Drawing PGT 30 8
List of spare parts PGT 30 9

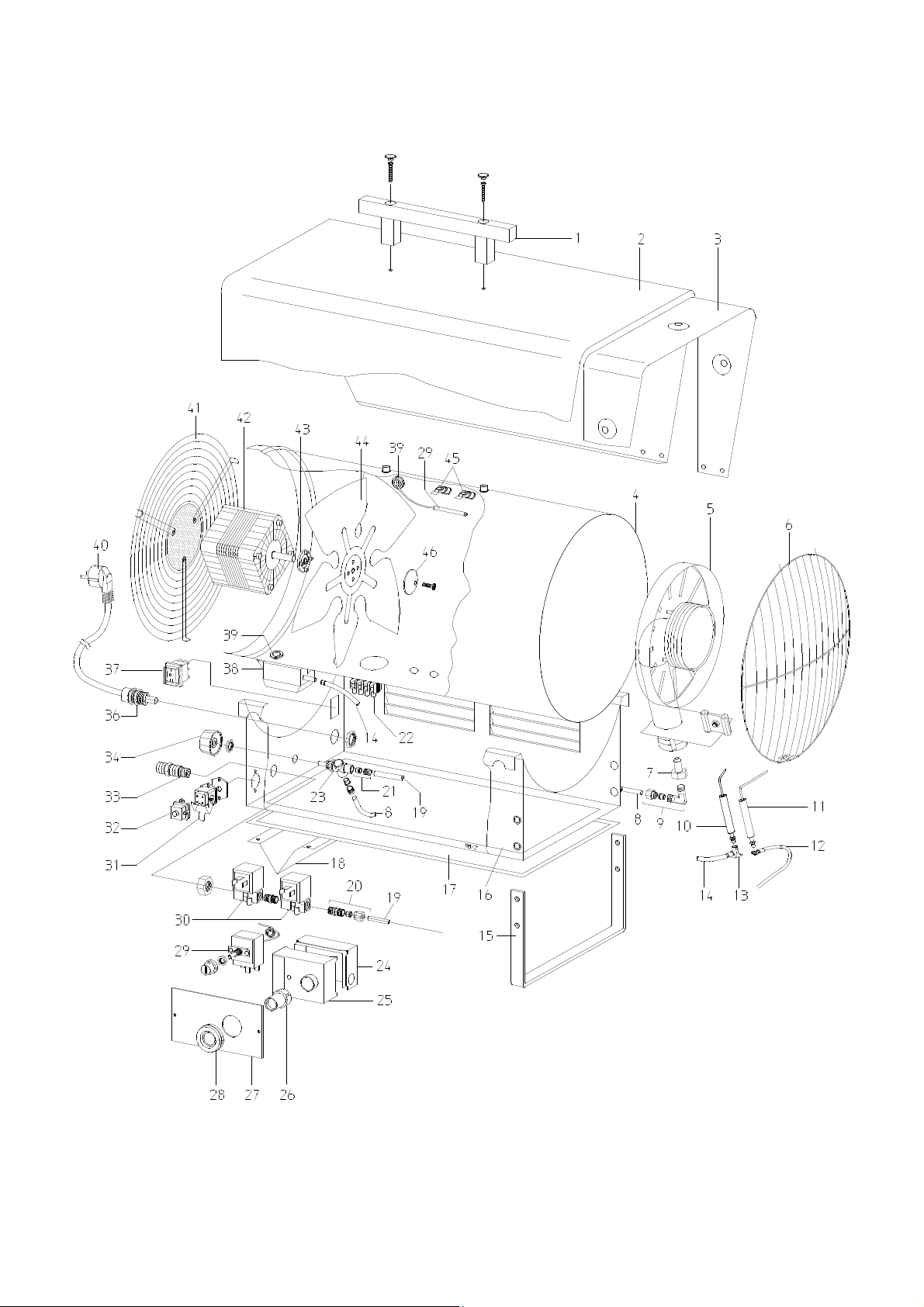

Drawing PGT 60 10
List of spare parts PGT 60 11
Drawing PGT 100 12
List of spare parts PGT 100 13
Block diagrams 14
Technical data 15
G
2
Safety Hints
When using this unit make sure always to observe
the applicable building and fire protection regulations as well as the rules of the trade cooperative
association.
l The unit may be operated only by those persons who
have been instructed accordingly.
l The unit is to be installed and operated in such a way
as to ensure that the employees are not endangered
by waste gases and radiation heat and that no fire
can break out.
l The unit may only be installed and operated in
rooms, when the air rate fed to the unit is sufficient
for combustion.
l Make sure to install mobile liquid gas reservoir on a
solid ground and in a vertical position.
l Liquid gas reservoir may never be used in a lying po-
sition while the unit is operating (gas leakage in the liquid phase).
l The unit may be operated only in well aerated rooms.
Persons may not stay permanently in the room where
the unit has been installed. Relevant prohibition signs
are to be fastened to the entrances.
l The unit is to be installed and operated on a solid
non combustible ground.
l It is to be ensured that no combustible objects/
materials can be sucked in.
l The unit may not be installed or operated in in-
flammable and explosive surroundings.
l A safety zone of 1.5 m around the unit and a mini-
mum distance of 3 m at the unit’s exhaust opening
are to be observed, even regarding non combustible
objects.
l The unit’s exhaust opening may not be reduced or
equipped with hoses or pipings.
l Make sure not to introduce foreign matters into the
unit.
l The air suction lattice is always to be kept free from
dirt and loose objects.
l Make sure not to expose the unit to direct water jets.
l All electric cables outside the unit are to be protected
from damage (e.g. caused by animals, etc.).
l Make sure to cut off the gas supply and to pull the
mains plug out of the mains socket when maintenance and repairs are carried out.
l Safety devices may be neither bridged nor
blocked.
General Hints
² The unit may be operated only by those persons who
have been instructed regarding the unit’s operation
and the handling of liquid gas.
² When using the unit make sure always to obser-
ve the guiding principles of the countries and
states concerned.
² The unit may only be operated in rooms when
– the air rate fed to the unit is sufficient for com bustion and
– the rooms are well ventilated and deventilated and
– the percentage of the substances which are
injurious to health in the breathed in air has
no inadmissible concentration.
A good and natural ventilation and deventilation
is given if e.g. the room volume in m³ corresponds to
at least 30 times the nominal heat load in kW of all
the units being operated in the room, and if a natural
air exchange through doors and windows is ensured,
or if there are permanently open ventilation possibilities for ingoing and outgoing air near the ceiling and
the floor, of which the size in m² corresponds to at
least 0.003 times the nominal heat load in kW of all
the units being operated in the room.
² A uniform unit connection pressure of 1.5 bar
(1500 mbar) of the category I 3B/P is necessary
for all the countries of the European Community.
The connection pressure may not fall below or
exceed the required value.
² Make sure to use exclusively components, such as
gas hose, pressure controller and hose security devices (protection against breakage) or safety devices
against gas leakage, that have been tested and are
suitable for the intended purpose. The pressure controllers must have a firmly regulated initial pressure
of 1500 mbar and are to be equipped with a security
device against hose breakage.
² Hose pipes are to be protected generally against
chemical, thermal and mechanical damage.
² The persons charged with the operation of the unit
have to check it prior to starting work to make sure
that there are no visible defects. If there are defects
which affect the unit’s operational reliability, its operation is to be stopped!
² The unit may be only maintained by trained persons
and only original spare parts may be used.
² If the unit has been switched off by the temperature
limiter due to overheating, the reason for the fault
has to be detected and eliminated.
3
Starting
Make sure to charge a person with the operation of the
unit and with the supervision of the reservoirs and of the
bottle stock who has been instructed sufficiently regarding the handlings concerned.
Make sure to draw the operators‘ attention to possible
dangers during the handling of liquid gas.
A constant unit connection pressure of 1.5 bar
(1500 mbar) must be ensured, also during con-
G
tinuous operation.
Heating Operation
Plug mains plug into a properly installed mains socket.
(230V/1 – 50Hz with fault current breaker!)
When connecting the unit to the mains
socket make sure to observe the right
polarity.
If the unit is switched off due to a fault
during the starting phase, the mains
plug has to be turned by 180°.

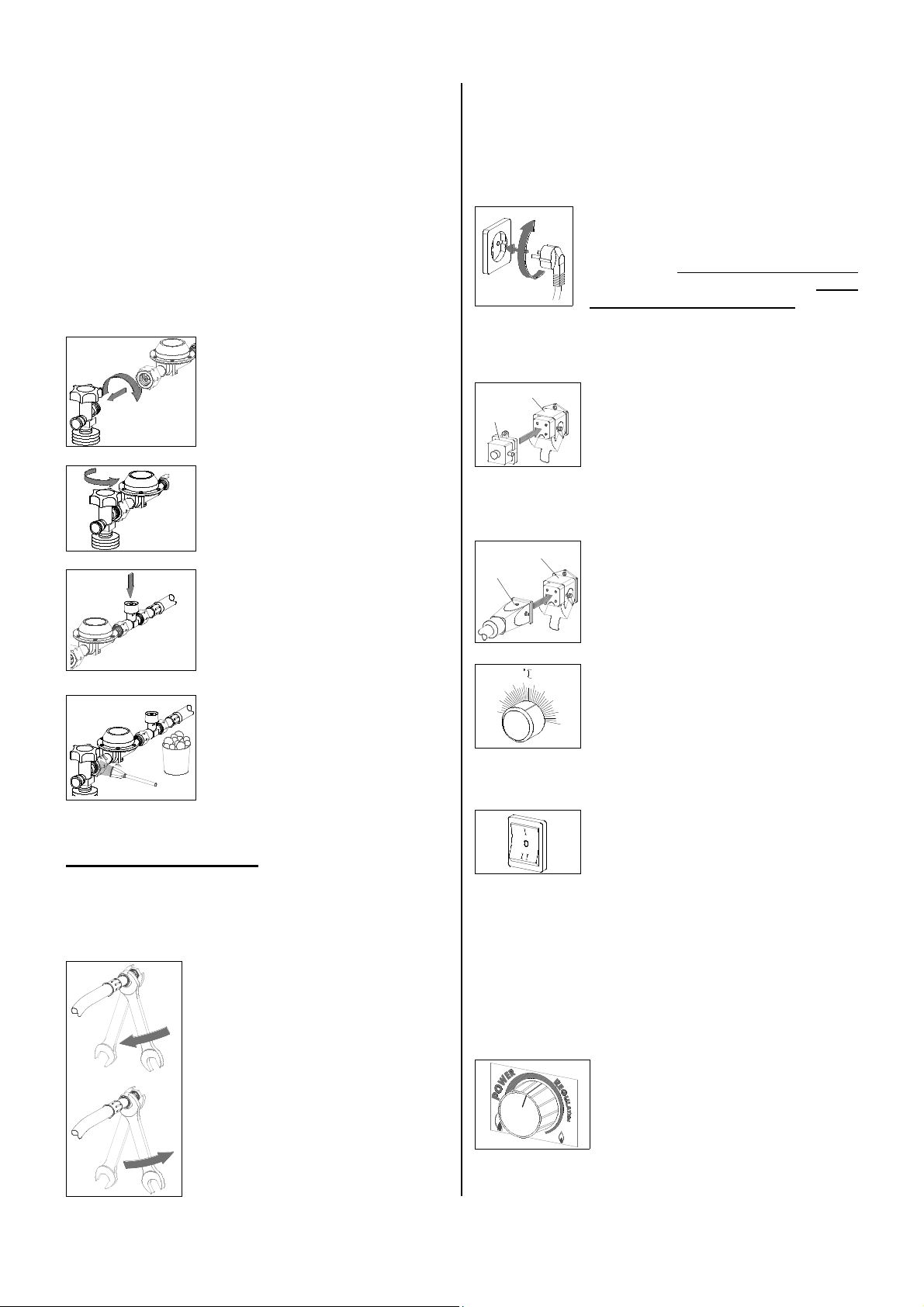

Connect pressure controller to the
gas bottle(s).
Attention – left-handed thread!
G
Open bottle valve(s).
When gas is taken out of several
gas bottles simultaneously, all the
valves have to be opened.
Press release button of the hose
security device (protection against
breakage) after having opened the
valve(s).
This has also to be done after each
replacement of bottles.
After the installation and connection of the units all the gas bearing
connections have to be checked
with soap solution, leakage detecting spray etc. to make sure that
they are tight.
Do not use open flames!
1) Heating Without Room Thermostat
2
1
The unit runs in continuous operation.
Plug the supplied bridge plug (1) into
the thermostat socket (2).
2) Heating With Room Thermostat
2
3
The unit operates fully automatically
and dependent from the temperature.
Remove bridge plug (1) and plug thermostat plug (3) of the room thermostat (accessories) into the thermostat
socket (2).
Preselect desired room temperature
on the room thermostat.
The selected temperature must be
higher than the actual room temperature.
3) How to Start the Unit
Important Installation Hint
When installing or removing the gas hose make sure to
exert a counterpressure on the gas connection
nipple of the unit using an open-end spanner SW 19
and observing the left-handed thread.
1) Unscrew gas hose
1.
Turn union nut clockwise
2) Fasten gas hose
Turn union nut anti-clockwise
2.
This procedure also refers to all
further gas components, such as
pressure controller, hose security
device (protection against breakage), etc.
Install only in well ventilated rooms, not in rooms which people will be using for longer periods!
4
Switch operating switch into “I”
position (= heating operation).
The ingoing air fan starts and the automatic burner
carries out the programme flow.
After approx. 15 seconds formation of the flames starts.
4) Setting/Regulating the Heating Capacity
Set desired heating capacity by means of the
continuously adjustable “power regulation”.
Turn to the left:
increased heating capacity
Turn to the right:
reduced heating capacity
The setting can also be continuously adjusted when the
unit is operating.
G G
Ventilation
2. Automatic Burner Relay
Put operating switch into “II” position. In this
position only the ingoing air fan runs and the
unit can be used for air circulation.
Putting out of Service
Close all the bottle valves.
Let flame burn out.
The fan should still run for a few se-
conds to exhaust the accumulated
heat.
Put operating switch into “0” position (=
off) and unplug mains plug from the
mains socket.
Hint PGT 100
F
The unit has been equipped with an automatic fan after-running phase to avoid heat accumulation and
consequently the release of STB when the burner has
been switched off.
Therefore the electric connection to the mains may not
be interrupted (with the exception of emergency situations) before the post-cooling time has lapsed!
When the fault-indicating lamp of
the automatic burner relay is lit
up, the reason for the fault has to
be detected and to be eliminated
first.
Release is carried out by pressing
the fault-button.
It is not possible to unlock the automatic burner relay
immediately after releasing.
Make sure to observe waiting time of approx.
60 seconds!
You will find a detailed chart for the fault
elimination in chapter “Action in the case of faults”.
Important Hints

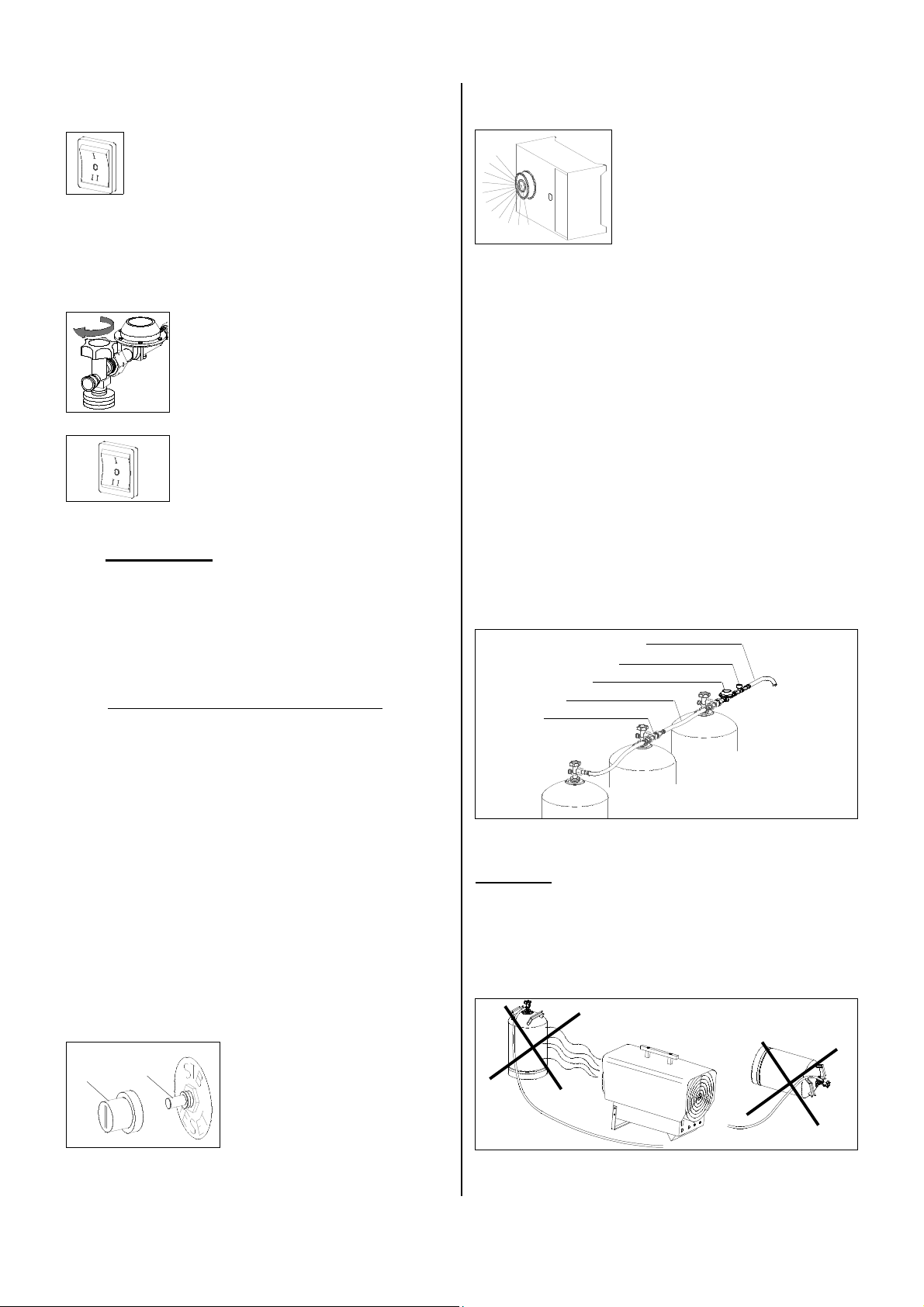

Assembly of Multi-bottle Set
To avoid intensive icing of the gas bottle during a longer
operation of the unit, we recommend that you use a
bottle battery consisting of at least 3 bottles. All bottle
valves must be open to ensure regular gas supply!
gas hose to unit
hose-break protection
pressure controller
high pressure hose 0.4 m
T-connection
Fault Elimination Hints
1. Safety Temperature Limiter
The safety temperature limiter (STB) interrupts gas
supply in the case of overheating and the unit is locked
on the electric side. Any unit function is switched off.
When the safety temperature limiter has released, the
reason for the fault is to be detected and to be eliminated first. Unlocking is carried out when the protective
cap has been unscrewed by pressing the key “STBRESET“.
1
“RESETTING” is not possible before the sensor has
cooled down below approx. 90 °C.
2
G G
- remove protective cap (1)
- press key (2)
- refit protective cap (1)
Clean gas supply line thoroughly before starting the unit for the first time!
Important!
Make sure to place gas reservoir only laterally behind
the unit! Never heat up or defrost gas reservoir through
the unit’s hot air current (danger of explosion!).
Never use gas reservoir in a lying position when the unit
is operating (gas leakage in the liquid phase).
5
Maintenance
Depending on the operation conditions the units are to
be tested by an expert when necessary, but at least regularly every two years, to ensure their safe operation.
The test result is to be recorded in a test certificate
which is to be safely kept until the next test so that it
can be presented to the authorized persons for control
purposes at any time.
The persons charged with the operation of the units
have to check the units before starting work to detect
obvious defects on the operating and safety elements
and to make sure that the safety devices have not been
removed.
If any faults are stated the supervisor is to be informed.
If the faults affect the unit’s operational reliability, opera-
tion is to be stopped!
l Regular maintenance and care, at least after each
heating period is the basic condition for a long service life and a faultless operation of the unit.
l Make sure to keep the unit free from dust and other
deposits and to clean it only with a dry or humid cloth
(do not use water jet).
l Do not use sharp or solvent-containing cleaning
agents.
l Check the suction opening for combustion air as well
as the injector fitted behind it and the gas nozzle regularly to make sure that they are not dirty.
l Clean gas burner and gas nozzle regularly.
l Clean baffle plate regularly.
l Check suction and blowing out lattice regularly to see
whether it is dirty and clean it, when necessary.
When the unit is being maintained, set or repaired, the gas supply has to be cut off and the
G
mains plug has to be unplugged from the mains
socket!
Setting and maintenance work is to be carried
out only by authorized specialists!
G
Any operation/handling which does not correspond to that indicated in these instructions is
G
prohibited, otherwise we will not be responsible and the guarantee will become void!
Removal and Cleaning of the Gas Burner
l Remove protective exhaust lattice and outer casing
and disassemble inspection cover from the lower
side of the unit.
l Loosen clamping screw of nozzle holding device.
l Pull ignition cable from initiating electrode.
l Remove ionisation cable from ionisation electrode
(attention domed cap nut and lock washer).
l Loosen clamping screw of electrode holder, pull out
initiating electrode and ionisation electrode.
l Unscrew 4 fastening screws of the burner and take
burner out of the unit.
l Clean burner with steel brush and compressed air
and reassemble in reverse order.
l Set initiating electrode and ionisation electrode
according to the instructions given below.
l Reassemble all the parts carefully in reverse order.
l Carry out functional control of the whole unit and
tightness control of all gas bearing connections
with soap solution and leakage detection spray,
respectively.
l An intensive yellowish flame indicates insuffi-
cient fresh air supply and pollution within the
unit, respectively.
A
B
ignition electrode

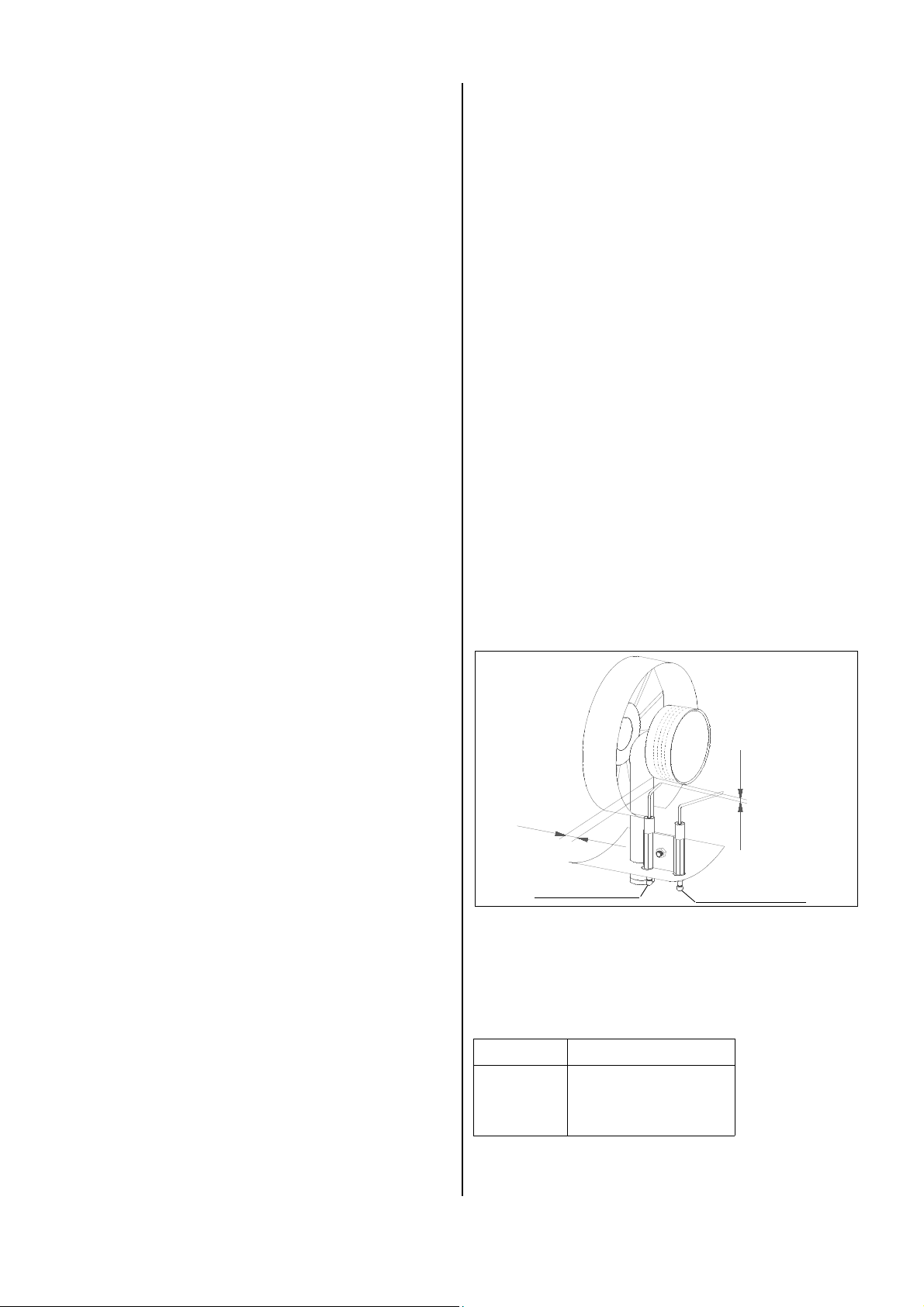

Setting hints:
Dim. A = distance from ignition electrode tip to burner
Dim. B = distance from ignition electrode tip to burner
type A B
PGT 30 3 15
PGT 60 3 15
PGT 100 4 30
ionisation electrode
6
approx. dimensions in mm
Action in the Case of Faults
- Unit does not start
- Unit switches off during operation (fault-indicating lamp in
automatic burner is lit up)
- Fan runs, but gas supply is blocked or there is no ignition
- Gas supply is interrupted or flame goes out
- Unit consumes too much combustible
- Unit cannot be switched off
- Heating capacity is reduced with continuous operation
- Heating capacity cannot be regulated
Cause: Faults:
1 – 2 – 3 – 4 – 5 – 7 – 10 – 13 – 17 – 18
2 – 6 – 7 – 8 – 9 – 10 – 13 – 14 – 17
7 – 12 – 13 – 14
6 – 7 – 8 – 9 – 10 – 13 – 14 – 17 – 18
13
5 – 15
14
11
1. Unit has no electrical connection – Insert plug into appropriate socket (230V/1-50Hz)
Fan motor is overloaded
2.
(air supply fan runs irregularly or is blocked)
3. Value set on room thermostat is too low – Set value must be higher than that of actual room temperature
4. No bridge plug in the room thermostat socket – Connect bridge plug with the thermostat socket
5. Faulty operating switch
6. No polarity – Turn mains plug by 180° (check polarity)
7. No gas pressure on solenoid valve
8. Ionisation and/or initiating electrode incorrectly set
9. Suction protective lattice of air supply fan is dirty – Clean suction protective lattice
- switching-off by safety temperature limiter (STB)
10.
- Mains plug disconnected from mains supply before the
post-cooling time has lapsed (only PGT 100)
Cause: Remedy:
– Control motor, fan wing and carrier coupling and replace,
when necessary
– Cut off gas supply, remove plug from mains socket and replace
operating switch
– Control whether gas is supplied to the unit
– Control contents of gas bottles
– Check whether gas hose is damaged
– Unlock or replace hose security device (protection against breaka-
ge)
– Set according to instructions; check porcelain insulation of electro-
des
– Control suction and exhaust protective lattice (clean, when neces-
sary)
– Control whether there is sufficient fresh air supply
– Unlock STB (STB – Reset)
11. Gas regulation faulty or dirty – Replace or clean gas regulation
12. Ignition does not work
Pressure regulator is either faulty or a wrong pressure regulator
13.
has been installed, or the hose break protection (SBS) has lokked
Gas bottle is iced due to low temperatures and high consumed
14.
gas rate
15. Solenoid valve does not close
16. Untight gas connection – Detect leakage by means of foaming agents and eliminate it
17. Fault-indicating lamp in the automatic burner relay is lit up – Unlock automatic burner relay by pressing the fault button
18. Faulty automatic burner relay – Replace faulty automatic burner relay
– Operating switch into “I” position (heating operation)
– Check whether ignition cable is damaged
– Check electrode setting, check cycle igniter
– Install original pressure controller
– Unlock or replace hose security device (protection against breaka-
ge)
– Replace gas bottle and connect 2 or 3 bottles with the multi-bottle
set, EDP no. 1014050
– Cut off gas supply
– Let flame burn out
– Put operating switch into “0” position and remove mains plug from
mains socket
– Replace solenoid valve
7
Drawing PGT 30
8
We reserve the right to make modifications in dimensions and construction in the interests of technical progress.
List of spare parts PGT 30
Fig.-No. Description
1 transport handle
2 outside casing
3 combustion chamber
4 end plate, front
5 blow out protection grille
6 safety thermostat with sensitive element
7 inspection cover
8 ignition cable
9 ignition transformer
10 burner relay socket
11 automatic burner relay
12 ionisation cable
13 terminal strip, 4er
14 ionisation electrode
15 ignition electrode
16 connecting clip
17 angled coupling 1/8"x6mm
18 gas nozzle
19 gas pipe M/R
20 gas regulator
21 gas pipe R/D
22 tube fitting M10x1
23 GE–coupling 1/4"x 6mm
24 solenoid valve
25 gas connection nipple 3/8" links
27 control knob, cpl.
28 shunt plug
29 thermostat socket
30 operating switch
31 traction relief
32 connecting cable with plug
33 end plate, rear
34 fan motor
35 clutch plate B 6 Ø
35 clutch plate B 7 Ø
36 fan blade
37 clutch disc
38 gas burner
39 protection socket
40 retaining bracket
EDV-Nr.
1101142
1101440
1101384
1101382
1101383
1101197
1101385
1101521
1101520
1102534
1101526
1101187
1101442
1101186
1101180
1101181
1101316
1101159
1101441
1101411
1101453
1101409
1101396
1101376
1101134
1101192
1101019
1101018
1101188
1101267
1101320
1101415
1108049
1108455
1108014
1101392
1101375
1101417
1101304
1101395
not shown: pressure controller with hose-break protection
2 running metres gas hose
2 running metres HD gas hose (for building sites)
5 running metres HD gas hose (for building sites)
10 running metres HD gas hose (for building sites)
multi-cylinder set (2 - 3 cylinders)
T - connection for multi-cylinder set
nylon seal for T - connection
HD - gas hose 0,4m for multi-cylinder set
thermostat plug
When ordering spare parts it is necessary to indicate
EDV- No. and machine no.(see data plate)!
1101470
1101419
1101174
1108410
1108411
1014050
1101177
1101178
1101179
1101020
9
Drawing PGT 60
10
We reserve the right to make modifications in dimensions and construction in the interests of technical progress.
List of spare parts PGT 60
Fig.-No. Description EDV-Nr.
1 transport handle 1101142
2 outside casing 1101420
3 insulation 1101421
4 combustion chamber 1101422
5 gasburner 1101423
6 blow out protection grille 1101424
7 gas nozzle 1101426
8 gas pipe R/D 1101457
9 angled coupling 1/8" x 6mm 1101316
10 ignition electrode 1101280
11 ionisation electrode 1101186
12 ionisation cable 1101187
13 connecting clip 1101181
14 ignition cable 1101521
15 support bracket, front 1101427
16 base 1101428
17 inspection cover 1101469
18 support bracket, rear 1101249
19 gas pipe M/R 1101441
20 GE–coupling 1/4" x 6mm 1101396
21 tube fitting M10x1 1101409
22 terminal strip, 4er 1101442
23 gas regulator 1101412
24 burner relay socket 1102534
25 automatic burner relay 1101526
26 push-botton extension 1101524
27 cover plate 1101525
28 socket 1101528
29 safety thermostat with sensitive element 1101197
30 solenoid valve 1101376
31 thermostat socket 1101018
32 shunt plug 1101019
33 gas connection nipple 3/8" lks. 1101134
34 control knob, cpl. 1101192
36 traction relief 1101267
37 operating switch 1101188
38 ignition transformer 1101520
39 protection socket 1101304
40 connecting cable with plug 1101320
41 air suction grille 1101432
42 fan motor 1101254
43 clutch plate B 8 ø 1101255
44 fan blade 1101150
45 retaining bracket 1101395
46 clutch disc 1101375
not shown: pressure controller with hose-break protection
2 running metres gas hose 1101419
2 running metres HD gas hose (for building sites) 1101174
5 running metres HD gas hose (for building sites) 1108410
10 running metres HD gas hose (for building sites) 1108411
multi-cylinder set (2 - 3 cylinders) 1014050
T - connection for multi-cylinder set 1101177
nylon seal for T - connection 1101178
HD - gas hose 0,4m for multi-cylinder set 1101179
thermostat plug 1101020
When ordering spare parts it is necessary to indicate
EDV- No. and machine no.(see data plate)!
1101470
11

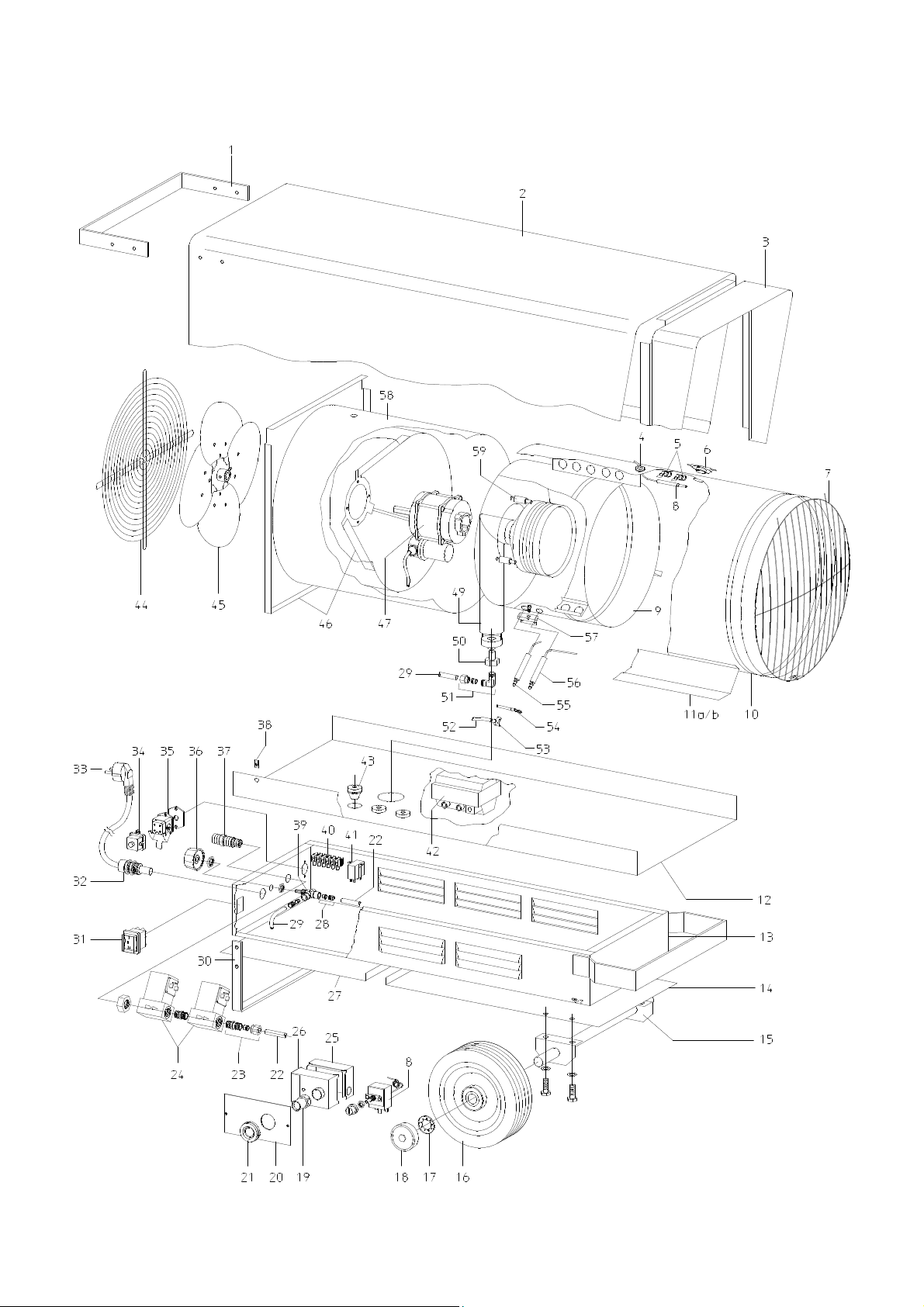

Drawing PGT 100
12
We reserve the right to make modifications in dimensions and construction in the interests of technical progress.
List of spare parts PGT 100
Fig.-No. Description
1 transport handle
2 outside casing
3 insulation
4 protection socket
5 retaining bracket
6 after-cooling thermostat
7 blow out protection grille
8 safety thermostat with
sensitive element
9 combustion chamber
10 inside casing, front
11a casing holder, right
11b casing holder, left
12 assembly plate
13 base
14 base plate
15 axle
16 wheel
17 retaining ring
18 hub cap
19 push-botton extension
20 cover plate
21 socket
22 gas pipe M/R
23 GE–coupling 1/4" x 6mm
24 solenoid valve
25 burner relay socket
26 automatic burner relay
27 inspection cover
28 tube fitting M10 x 1
29 gas pipe R/D
EDV-No.
1101680
1101681
1101682
1101304
1101395
1101683
1101684
1101197
1101685
1101686
1101631
1101632
1101687
1101688
1101652
1101653
1102155
1101622
1101623
1101524
1101525
1101528
1101441
1101396
1101165
1102534
1101526
1101651
1101409
1101690
Fig.-No. Description
30 support bracket, rear
31 operating switch
32 traction relief
33 connecting cable with plug
34 shunt plug
35 thermostat socket
36 control knob, cpl.
37 gas connection nipple 3/8" lks.
38 fixing bracket
39 gas regulator
40 terminal strip, 6er
41 auxiliary relay
42 ignition transformer
43 protection socket, large
44 air suction grille
45 fan blade
46 fan housing with
motor bracket
47 fan motor
49 gas burner
50 gas nozzle
51 angled coupling 1/8" x 6mm
52 ignition cable
53 connecting clip
54 ionisation cable
55 ignition electrode
56 ionisation electrode
57 electrode bracket
58 inside casing, rear
59 spacer
EDV-No.
1101691
1101188
1101267
1101320
1101019
1101018
1101192
1101134
1102906
1101692
1101366
1108039
1101666
1101677
1101648
1101693
1101694
1101634
1101695
1101659
1101316
1101696
1101181
1101187
1101698
1101697
1101633
1101450
1101699
not shown:
pressure controller
hose-break protection
2 running metres gas hose
2 running metres HD gas hose (for building sites)
5 running metres HD gas hose (for building sites)
10 running metres HD gas hose (for building sites)
multi-cylinder set (2 - 3 cylinders)
T - connection for multi-cylinder set
nylon seal for T - connection
HD - gas hose 0,4m for multi-cylinder set
thermostat plug
When ordering spare parts it is necessary to indicate
EDV- No. and machine no.(see data plate)!
1101418
1101664
1101419
1101174
1108410
1108411
1014050
1101177
1101178
1101179
1101020
13

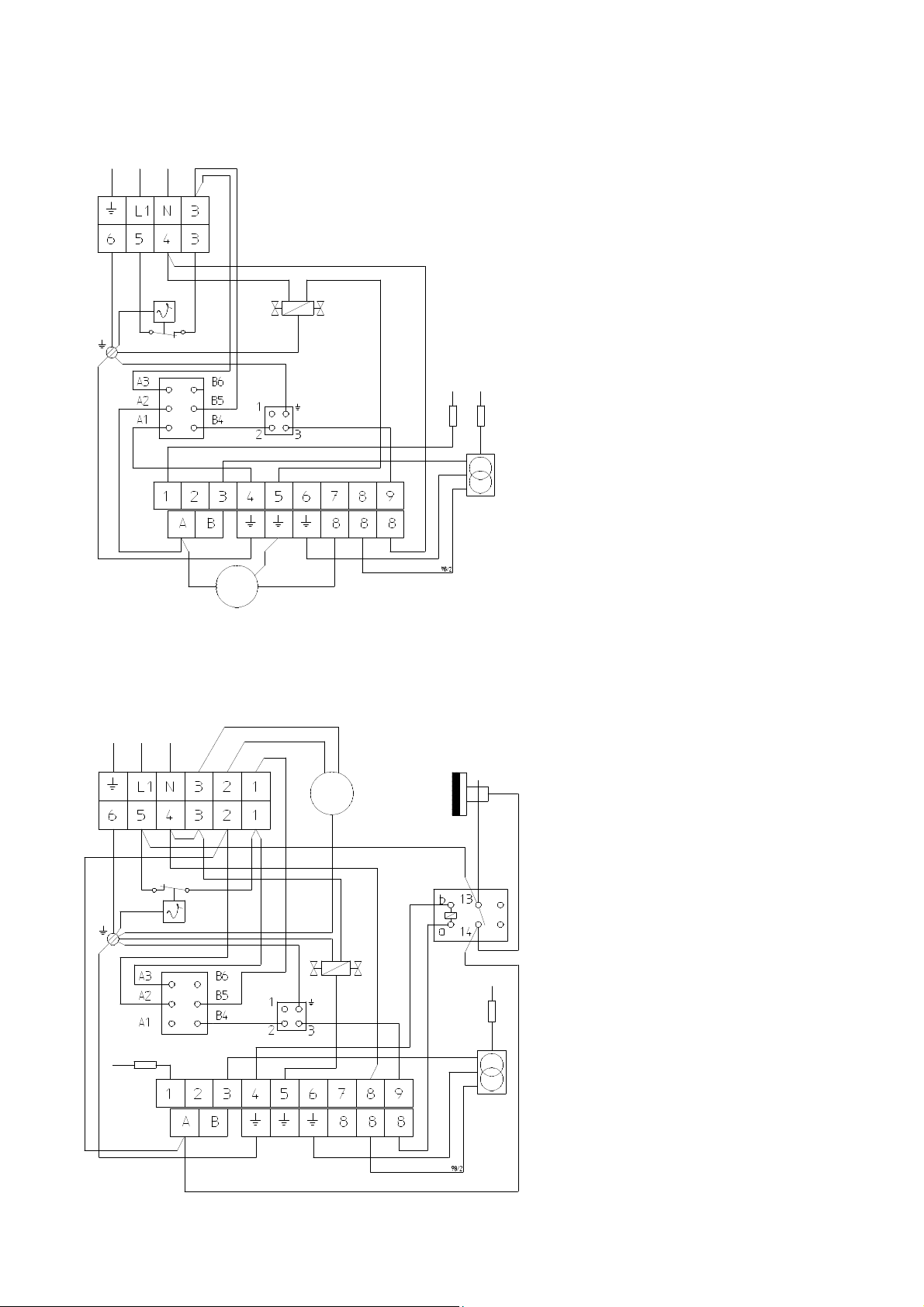

Block Diagram PGT 30/60
230/1~ 50 Hz
PE L1 N
KL
I – ionisation electrode
STB
MV
RT
S
RS
M
1~
Block Diagram PGT 100
230/1~ 50 Hz
PE L1 N
KL – terminal strip
M – fan motor
MV – solenoid valve
I
Z
RS – burner relay socket
RT – room thermostat socket
S – operating switch
STB – safety temperature limiter
Z – ignition electrode
ZT
ZT – ignition transformer
KL
I
RS
S
STB
RT
M
1~
MV
NK
HS
HS – auxiliary relay
I – ionisation electrode
KL – terminal strip
M – fan motor
MV – solenoid valve
NK – after-cooling thermostat
RS – burner relay socket
RT – room thermostat socket
Z
STB – safety temperature limiter
S – operating switch
Z – ignition electrode
ZT – ignition transformer
ZT
14
Technical Data:
Series PGT 30 PGT 60 PGT 100
Nominal heat output kW 26 55 100
Heating capacity kW 10 – 26 25 – 55 50 – 100
Air output m³/h 800 1.450 3600
Fuel/type of gas liquified gas Cat. I
Unit connecting gas-pressure bar 1,5 1,5 1,5
Unit connecting value kg/h 0,78 – 2,0 1,95 – 4,27 3,9 – 7,8
Electrical connection 1~ V 230 230 230
Frequency Hz 50 50 50
Power consumption kW 0,07 0,11 0,125
Fuse-protection (required) A 10 10 10
Kind of protection IP 44 IP 44 IP 44
Sound pressure level L
Weight (without accessories) kg 12 20 47
Dimensions Length mm 450 650 1060
Width mm 260 320 435
Hight mm 410 510 620
1) Noise measuring DIN 45635 - 01- KL 3
pA 1m
1)
dB(A) 56 – 69 62 – 72 74 – 82
3B/P
Technical Data
Automatic burner relay: Working voltage 230 V (-15% + 10%)
Frequency 50 Hz (40 - 60 Hz)
Safety time 5 seconds
Waiting time after interference cut-off ca. 60 seconds
Allowable ambient temperature – 20° C ... + 60° C
Min. required ionisation current 5 µA
Sensitivity (ionisation current) 1 µA
Kind of protection IP 44
Any operation/handling which does not correspond to that indicated in these instructions is prohibited,
otherwise we will not be responsible and the guarantee will become void.
The orderer or the customer must have properly filled out the “guarantee certificate” which is enclosed
with every REMKO automatic heater and must have returned it to REMKO GMBH & Co. KG within
a timely acceptable period based on the sale and commissioning, to be entitled to possible
guarantee claims regarding faulty material.
15
REMKO GmbH & Co. KG
Klima- und Wärmetechnik
D-32791 Lage • Im Seelenkamp 12
D-32777 Lage • Postfach 1827
Telefon (0 52 32) 606 - 0
Telefax (0 52 32) 606260
Loading...
